# Nonlinear Mixed Convection in a Reactive Third-Grade Fluid Flow with Convective Wall Cooling and Variable Properties

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

## 3. Solution by Weighted Residual Method

## 4. Solution by Shooting-Runge–Kutta Method

## 5. Results and Discussion

## 6. Concluding Remarks

- -
- Flow, temperature, and entropy generation are enhanced with increasing values of the Grashof number, the quadratic component of buoyancy and Frank-Kameneskii parameter but reduces with increasing third-grade material parameter.
- -

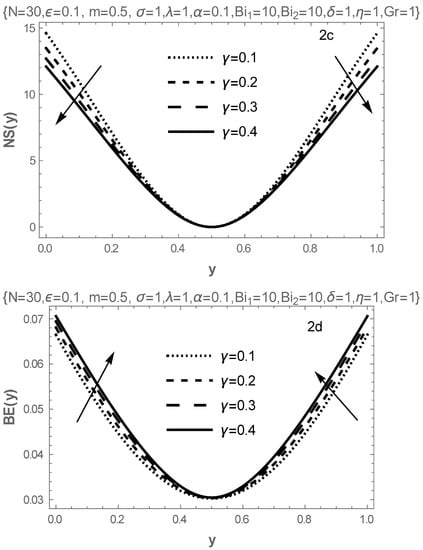

- Increasing values of third-grade parameter encourages the thermal stability of the flow, while increasing values of the linear and nonlinear buoyancy parameter destabilizes the flow.
- -

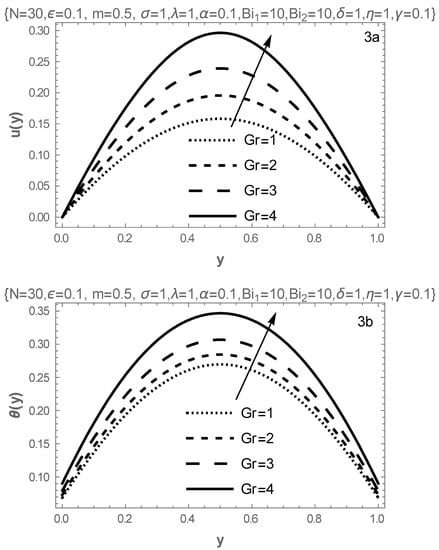

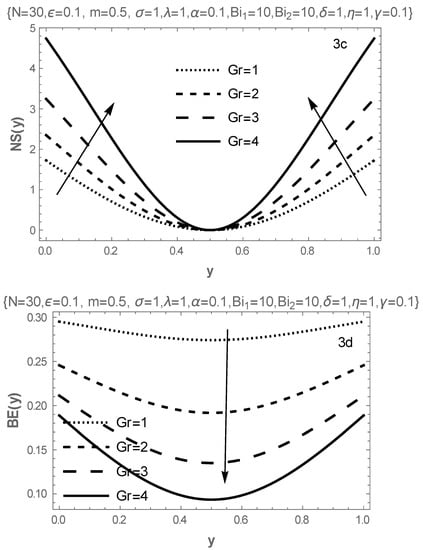

- The Grashof number increase encourages the early occurrence of thermal runaway and exergy loss in the flow domain.

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

$\left(x,y{}^{\prime}\right)$ | dimensional Cartesian coordinates, (m) |

$y$ | dimensional Cartesian coordinates |

${T}_{0}$ | referenced temperature, (K) |

T | dimensional fluid temperature (K) |

$\theta $ | dimensionless fluid temperature |

$u{}^{\prime}$ | the dimensional flow velocity (m/s) |

$u$ | the dimensionless flow velocity |

$E$ | activation energy (E/mols) |

$Q$ | reaction heat (J) |

${C}_{0}$ | initial specie concentration (mol) |

$A$ | reaction rate constant |

$m$ | reaction exponent |

$\epsilon $ | dimensionless activation energy |

$R$ | universal rate constant J/(K.mol) |

${\mu}_{0}$ | constant dynamic viscosity (Poise) |

$\rho $ | fluid density (Kg/m^{3}) |

$g$ | gravitational acceleration m/s^{2} |

$\hslash $ | Planck’s constant (Js) |

$\upsilon $ | frequency of vibration N.s/m^{2} |

$P$ | fluid pressure (N/m^{2}) |

${k}_{0}$ | referenced thermal conductivity J/(mK), |

$\left(\overline{\alpha},\overline{\eta}\right)$ | viscosity and thermal conductivity, respectively(1/K). |

$\left(\alpha ,\eta \right)$ | dimensionless variation parameters for viscosity and thermal conductivity, respectively. |

$Gr$ | modified Grashof number |

$\sigma $ | coefficient of the quadratic thermal expansion, |

$\lambda $ | Frank-Kameneskii parameter |

$\delta $ | Viscous dissipation parameter |

$Bi$ | Biot number |

$\gamma $ | non-Newtonian material parameter |

${h}_{1,2}-$ | coefficient of heat transfer 1/K |

## References

- Salawu, S.O.; Fatunmbi, E.O.; Ayanshola, A.M. On the diffusion reaction of fourth-grade hydromagnetic fluid flow and thermal criticality in a plane couette medium. Results Eng.
**2020**, 8, 100169. [Google Scholar] [CrossRef] - Cui, J.; Munir, S.; Raies, S.F.; Farooq, U.; Razzaq, R. Non-similar aspects of heat generation in bioconvection from flat surface subjected to chemically reactive stagnation point flow of Oldroyd-B fluid. Alex. Eng. J.
**2022**, 61, 5397–5411. [Google Scholar] [CrossRef] - Salawu, S.O.; Oderinu, R.A.; Ohaegbue, A.D. Thermal runaway and thermodynamic second law of a reactive couple stress hydromagnetic fluid with variable properties and Navier slips. Sci. Afr.
**2020**, 7, e00261. [Google Scholar] [CrossRef] - Sadiq, M.A.; Hayat, T. Entropy optimized flow of Reiner-Rivlin nanofluid with chemical reaction subject to stretchable rotating disk. Alex. Eng. J.
**2022**, 61, 3501–3510. [Google Scholar] [CrossRef] - Okoya, S.S. Computational study of thermal influence in axial annular flow of a reactive third grade fluid with non-linear viscosity. Alex. Eng. J.
**2019**, 58, 401–411. [Google Scholar] [CrossRef] - Adesanya, S.O.; Falade, J.; Jangili, S.; Bég, O.A. Irreversibility analysis for reactive third-grade fluid flow and heat transfer with convective wall cooling. Alex. Eng. J.
**2017**, 56, 153–160. [Google Scholar] [CrossRef] [Green Version] - Salawu, S.O.; Kareem, R.A.; Shonola, S.A. Radiative thermal criticality and entropy generation of hydromagnetic reactive Powell–Eyring fluid in saturated porous media with variable conductivity. Energy Rep.
**2019**, 5, 480–488. [Google Scholar] [CrossRef] - Makinde, O.D. Hermite-Padé approximation approach to thermal criticality for a reactive third-grade liquid in a channel with isothermal walls. Int. Commun. Heat Mass Transf.
**2007**, 34, 870–877. [Google Scholar] [CrossRef] - Okoya, S.S. Disappearance of criticality for reactive third-grade fluid with Reynold’s model viscosity in a flat channel. Int. J. Non-Linear Mech.
**2011**, 46, 1110–1115. [Google Scholar] [CrossRef] - Khan, S.A.; Khan, M.I.; Alzahrani, F. Melting heat transportation in chemical reactive flow of third grade nanofluid with irreversibility analysis. Int. Commun. Heat Mass Transf.
**2021**, 129, 105696. [Google Scholar] [CrossRef] - Makinde, O.D.; Chinyoka, T. Numerical study of unsteady hydromagnetic generalized Couette flow of a reactive third-grade fluid with asymmetric convective cooling. Comput. Math. Appl.
**2011**, 61, 1167–1179. [Google Scholar] [CrossRef] [Green Version] - Baranovskii, E.S.; Artemov, M.A. Steady flows of second-grade fluids in a channel. Appl. Math.
**2017**, 13, 342–353. [Google Scholar] [CrossRef] - Okoya, S.S. On the transition for a generalized Couette flow of a reactive third-grade fluid with viscous dissipation. Int. Commun. Heat Mass Transf.
**2008**, 35, 188–196. [Google Scholar] [CrossRef] - Hron, J.; LeRoux, C.; Malek, J.; Rajagopal, K.R. Flows of incompressible fluids subject to Navier’s slip on the boundary. Comput. Math. Appl.
**2008**, 56, 2128–2143. [Google Scholar] [CrossRef] [Green Version] - Zehra, I.; Kousar, N.; UrRehman, K. Pressure dependent viscosity subject to Poiseuille and Couette flows via Tangent hyperbolic model. Phys. A Stat. Mech. Its Appl.
**2019**, 527, 121332. [Google Scholar] [CrossRef] - Manjunatha, G.; Rajashekhar, C.; Vaidya, H.; Prasad, K.V.; Vajravelu, K. Impact of heat and mass transfer on the peristaltic mechanism of Jeffery fluid in a non-uniform porous channel with variable viscosity and thermal conductivity. J. Therm. Anal. Calorim.
**2020**, 139, 1213–1228. [Google Scholar] [CrossRef] - Qasim, M.; Riaz, N.; Lu, D.; Afridi, M.I. Flow over a Needle Moving in a Stream of Dissipative Fluid Having Variable Viscosity and Thermal Conductivity. Arab. J. Sci. Eng.
**2021**, 46, 7295–7302. [Google Scholar] [CrossRef] - Saraswathy, M.; Prakash, D.; Muthtamilselvan, M.; Al Mdallal, Q.M. Arrhenius energy on asymmetric flow and heat transfer of micropolar fluids with variable properties: A sensitivity approach. Alex. Eng. J.
**2022**, 61, 12329–12352. [Google Scholar] [CrossRef] - Khan, A.A.; Zaib, F.; Zaman, A. Effects of entropy generation on Powell Eyring fluid in a porous channel. J. Braz. Soc. Mech. Sci. Eng.
**2017**, 39, 5027–5036. [Google Scholar] [CrossRef] - Singh, K.; Pandey, A.K.; Kumar, M. Entropy generation impact on flow of micropolar fluid via an inclined channel with non-uniform heat source and variable fluid properties. Int. J. Appl. Comput. Math.
**2020**, 6, 85. [Google Scholar] [CrossRef] - Shah, Z.; Kumam, P.; Deebani, W. Radiative MHD Casson Nanofluid Flow with Activation energy and chemical reaction over past nonlinearly stretching surface through Entropy generation. Sci. Rep.
**2020**, 10, 4402. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Yusuf, T.A.; Kumar, R.N.; Prasannakumara, B.C.; Adesanya, S.O. Irreversibility analysis in micropolar fluid film along an incline porous substrate with slip effects. Int. Commun. Heat Mass Transf.
**2021**, 126, 105357. [Google Scholar] [CrossRef] - Agrawal, R.; Kaswan, P. Minimization of the entropy generation in MHD flow and heat transfer of nanofluid over a vertical cylinder under the influence of thermal radiation and slip condition. Heat Transf.
**2022**, 51, 1790–1808. [Google Scholar] [CrossRef] - Adesanya, S.O.; Ogunseye, H.A.; Lebelo, R.S.; Moloi, K.C.; Adeyemi, O.G. Second law analysis for nonlinear convective flow of a reactive couple stress fluid through a vertical channel. Heliyon
**2018**, 4, e00907. [Google Scholar] [CrossRef] [Green Version] - Xia, W.F.; Ahmad, S.; Khan, M.N.; Ahmad, H.; Rehman, A.; Baili, J.; Gia, T.N. Heat and mass transfer analysis of nonlinear mixed convective hybrid nanofluid flow with multiple slip boundary conditions. Case Stud. Therm. Eng.
**2022**, 32, 101893. [Google Scholar] [CrossRef] - Ibrahim, W.; Gadisa, G. Finite element solution of nonlinear convective flow of Oldroyd-B fluid with Cattaneo-Christov heat flux model over nonlinear stretching sheet with heat generation or absorption. Propuls. Power Res.
**2020**, 9, 304–315. [Google Scholar] [CrossRef] - Patil, P.M.; Shankar, H.F.; Hiremath, P.S.; Momoniat, E. Nonlinear mixed convective nanofluid flow about a rough sphere with the diffusion of liquid hydrogen. Alex. Eng. J.
**2021**, 60, 1043–1053. [Google Scholar] [CrossRef] - Bandara, S.; Carnegie, C.; Johnson, C.; Akindoju, F.; Williams, E.; Swaby, J.M.; Oki, A.; Carson, L.E. Interaction of heat generation in nonlinear mixed/forced convective flow of Williamson fluid flow subject to generalized Fourier’s and Fick’s concept. J. Mater. Res. Technol.
**2020**, 9, 11080–11086. [Google Scholar] - Yusuf, T.A.; Mabood, F.; Gbadeyan, J.A.; Adesanya, S.O. Nonlinear Convective for MHDOldroyd8-constant fluid in a channel with chemical reaction and convective boundary condition. J. Therm. Sci. Eng. Appl.
**2020**, 12, 1–19. [Google Scholar] [CrossRef] - IjazKhan, M.; Alzahrani, F.; Hobiny, A. Heat transport and nonlinear mixed convective nanomaterial slip flow of Walter-B fluid containing gyrotactic microorganisms. Alex. Eng. J.
**2020**, 59, 1761–1769. [Google Scholar] [CrossRef] - Ijaz, M.; Ayub, M. Nonlinear convective stratified flow of Maxwell nanofluid with activation energy. Heliyon
**2019**, 5, e01121. [Google Scholar] [CrossRef] [PubMed] - Srinivasacharya, D.; RamReddy, C.; Naveen, P. Double dispersion effect on nonlinear convective flow over an inclined plate in a micropolar fluid saturated non-Darcy porous medium. Eng. Sci. Technol. Int. J.
**2018**, 21, 984–995. [Google Scholar] [CrossRef] - Makinde, O.D. On thermal stability of a reactive third-grade fluid in a channel with convective cooling the walls. Appl. Math. Comput.
**2009**, 213, 170–176. [Google Scholar] [CrossRef] - Makinde, O.D.; Aziz, A. Second law analysis for a variable viscosity plane Poiseuille flow with asymmetric convective cooling. Comput. Math. Appl.
**2010**, 60, 3012–3019. [Google Scholar] [CrossRef]

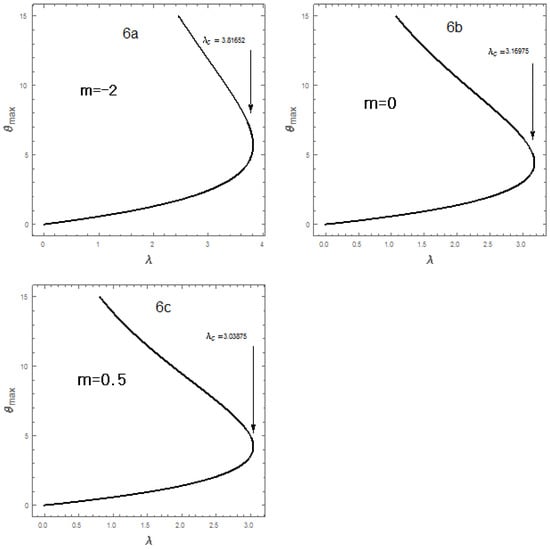

**Figure 6.**Bifurcation plots when $Gr=7,\sigma =0.1=\epsilon =\eta =\alpha ,\delta =0.2,\gamma =0.3,B{i}_{1,2}=10$.

**Table 1.**Validation of numerical results for velocity $\delta =0.5,\eta =0.1,\alpha =0.3$, $\alpha =0.1,N=30,$ $\gamma =0.3,Gr=1,$ $B{i}_{1}=B{i}_{2}=10,$ $\lambda =0.4,\epsilon =0.1,m=0.5$.

$y$ | $u{\left(y\right)}_{\mathbf{SCCM}}$ | $u{\left(y\right)}_{\mathbf{RK}4}$ | $\left|u{\left(y\right)}_{\mathbf{CWRM}}-u{\left(y\right)}_{\mathbf{RK}4}\right|$ |
---|---|---|---|

0 | −6.96195549259×10^{−18} | 0.000000000000000 | 6.961955492590054 × 10^{−18} |

0.1 | 0.04313941885340904 | 0.04313941993774605 | 1.084337016010739 × 10^{−9} |

0.2 | 0.07813634077297339 | 0.07813635190993772 | 1.11369643229775 × 10^{−8} |

0.3 | 0.10406977160813229 | 0.10406978921035206 | 1.760221977897824 × 10^{−9} |

0.4 | 0.12006990360382683 | 0.12006992567673559 | 2.207290876465872 × 10^{−8} |

0.5 | 0.12548527366302917 | 0.12548528888798596 | 1.522495679529001 × 10^{−9} |

0.6 | 0.12006990360382683 | 0.12006990533241987 | 1.728593046479432 × 10^{−9} |

0.7 | 0.1040697716081323 | 0.10406977022133693 | 1.386795372981808 × 10^{−9} |

0.8 | 0.07813634077297338 | 0.07813634228509685 | 1.512123468105919 × 10^{−9} |

0.9 | 0.043139418853409044 | 0.04313941955035403 | 6.96944987832459 × 10^{−10} |

1.0 | −7.69196285588 × 10^{−18} | −9.12736796 × 10^{−10} | 9.12736788740352 × 10^{−10} |

$y$ | $\theta {\left(y\right)}_{\mathbf{SCCM}}$ | $\theta {\left(y\right)}_{\mathbf{RK}4}$ | $\left|\theta {\left(y\right)}_{\mathbf{SCCM}}-\theta {\left(y\right)}_{\mathbf{RK}4}\right|$ |
---|---|---|---|

0 | 0.022151849024484603 | 0.022151849374097372 | 3.496127692903528 × 10^{−10} |

0.1 | 0.04208489447368267 | 0.04208489042284373 | 4.050838935121259 × 10^{−9} |

0.2 | 0.05751544434774708 | 0.057515440006678895 | 4.341068185476082 × 10^{−9} |

0.3 | 0.06849268440471615 | 0.06849268031195316 | 4.092762989627019 × 10^{−9} |

0.4 | 0.07505930588225566 | 0.07505930197957113 | 3.902684536649659 × 10^{−9} |

0.5 | 0.07724467496042003 | 0.07724467142322092 | 3.537199116943057 × 10^{−9} |

0.6 | 0.07505930588225566 | 0.07505930282648429 | 3.055771372051374 × 10^{−9} |

0.7 | 0.06849268440471615 | 0.06849268167736071 | 2.727355438714163 × 10^{−9} |

0.8 | 0.05751544434774707 | 0.05751544180643439 | 2.541312688064678 × 10^{−9} |

0.9 | 0.04208489447368267 | 0.04208489220244641 | 2.271236268502896 × 10^{−9} |

1.0 | 0.022151849024484603 | 0.02215184702121924 | 2.003265362621187 × 10^{−9} |

**Table 3.**Fast convergence of critical values by weighted residual method when $Gr=3,\delta =0.2,B{i}_{1}=10=B{i}_{2},m=0.5,\epsilon =0.1$.

$N$ | $\alpha $ | $\sigma $ | $\gamma $ | $\eta $ | ${\lambda}_{c}$ |
---|---|---|---|---|---|

5 | 0.1 | 0.1 | 0.3 | 0.1 | 3.369629994329486 |

10 | 0.1 | 0.1 | 0.3 | 0.1 | 3.329979429762467 |

15 | 0.1 | 0.1 | 0.3 | 0.1 | 3.3377915382719980 |

20 | 0.1 | 0.1 | 0.3 | 0.1 | 3.3375451276368135 |

25 | 0.1 | 0.1 | 0.3 | 0.1 | 3.3376391452777585 |

30 | 0.1 | 0.1 | 0.3 | 0.1 | 3.3376334297519272 |

35 | 0.1 | 0.1 | 0.3 | 0.1 | 3.3376356319779727 |

$\sigma $ | $\alpha $ | $\gamma $ | $\eta $ | $Gr$ | ${\lambda}_{c}$ |
---|---|---|---|---|---|

0.1 | 0.1 | 0.3 | 0.1 | 3 | 3.337791538271998 |

0.3 | 0.1 | 0.3 | 0.1 | 3 | 3.294547099649542 |

0.5 | 0.1 | 0.3 | 0.1 | 3 | 3.251342585235665 |

0.1 | 0.3 | 0.3 | 0.1 | 3 | 3.327113416799457 |

0.1 | 0.5 | 0.3 | 0.1 | 3 | 3.3180031889548034 |

0.1 | 0.1 | 0.5 | 0.1 | 3 | 3.354693697420452 |

0.1 | 0.1 | 0.8 | 0.1 | 3 | 3.370237078964153 |

0.1 | 0.1 | 0.3 | 0.01 | 3 | 3.5150936154732557 |

0.1 | 0.1 | 0.3 | 0.001 | 3 | 3.5341579072708558 |

0.1 | 0.1 | 0.3 | 0.1 | 5 | 3.1911369048073452 |

0.1 | 0.1 | 0.3 | 0.1 | 7 | 3.0387490555917243 |

**Table 5.**Validation with previous result when $B{i}_{1}=B{i}_{2}=10,Gr=0=\gamma =\eta ,\alpha =0.1$.

$y$ | ${u}_{1}\left(y\right)$ Makinde & Aziz [34] | ${u}_{2}\left(y\right)$ Present Result | $\left|{u}_{1}\left(y\right)-{u}_{2}\left(y\right)\right|$ |
---|---|---|---|

0 | 0.0000000000000000 | 1.9996146847 × 10^{−18} | 1.999614684734152 × 10^{−18} |

0.1 | 0.04500260897270728 | 0.04500261769036607 | 8.717658789292315 × 10^{−9} |

0.2 | 0.08000542199231503 | 0.08000543151384462 | 9.521529592548816 × 10^{−9} |

0.3 | 0.10500767322725557 | 0.10500768307611696 | 9.848861393102482 × 10^{−9} |

0.4 | 0.12000907000446212 | 0.12000908068447211 | 1.068000998749596 × 10^{−8} |

0.5 | 0.12500954265746725 | 0.12500954933196154 | 6.674494290592747 × 10^{−9} |

0.6 | 0.12000907650344211 | 0.12000908068447211 | 4.181029994443364 × 10^{−9} |

0.7 | 0.10500768080412677 | 0.10500768307611698 | 2.271990207081131 × 10^{−9} |

0.8 | 0.08000543108796186 | 0.08000543151384461 | 4.258827457359615 × 10^{−10} |

0.9 | 0.045002617803451495 | 0.04500261769036607 | 1.130854229702826 × 10^{−10} |

1.0 | 8.38288175864 × 10^{−10} | 2.13968421631 × 10^{−18} | 8.38288173724192 × 10^{−10} |

**Table 6.**Validation with previous result when $B{i}_{1}=B{i}_{2}=10,Gr=0=\gamma =\eta ,\alpha =0.1$.

$y$ | ${\theta}_{1}\left(y\right)-SRK4$ Makinde & Aziz [34] | ${\theta}_{2}\left(y\right)-SCCM$ Present Result | $\left|{\theta}_{1}\left(y\right)-{\theta}_{2}\left(y\right)\right|$ |
---|---|---|---|

0 | 0.0004166959732611298 | 0.00041669643079810236 | 4.57536972555978 × 10^{−10} |

0.1 | 0.0007242078568868499 | 0.0007242204230993113 | 1.256621246132922 × 10^{−8} |

0.2 | 0.0008700589609001264 | 0.0008700665516844415 | 7.59078431502528 × 10^{−9} |

0.3 | 0.0009242312498706879 | 0.0009242382030372055 | 6.953166517597101 × 10^{−9} |

0.4 | 0.0009367330606715411 | 0.0009367393712081855 | 6.310536644453524 × 10^{−9} |

0.5 | 0.0009375671371315745 | 0.0009375727826577018 | 5.645526127313893 × 10^{−9} |

0.6 | 0.000936734339945098 | 0.0009367393712081855 | 5.031263087466702 × 10^{−9} |

0.7 | 0.0009242337880723514 | 0.0009242382030372052 | 4.414964853774461 × 10^{−9} |

0.8 | 0.0008700627611325915 | 0.0008700665516844411 | 3.790551849616394 × 10^{−9} |

0.9 | 0.0007242172747296661 | 0.0007242204230993107 | 3.148369644634038 × 10^{−9} |

1.0 | 0.0004166939431660092 | 0.0004166964307981019 | 2.487632092722583 × 10^{−9} |
