# Distribution Path Optimization by an Improved Genetic Algorithm Combined with a Divide-and-Conquer Strategy

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Distribution Path Optimization Model of the MVRP

**Objective function 1.**The total cost is minimized,

**Objective function 2.**The total length of the route is minimized,

**Constraint 1.**The delivered goods shall not exceed the maximum load capacity of a vehicle,

**Constraint 2.**The distribution job of each node is completed by only one vehicle, and all the distribution jobs are completed by ${N}_{\mathrm{v}}$ vehicles,

**Constraint 3.**There is only one vehicle that reaches or leaves a demand node,

**Constraint 4.**There is no duplicate or loop route section on the optimized path,

**Objective function 3.**For any two demand/distribution nodes A and B, assume that there is $n-2$ road intersection nodes between them. A and B are treated as nodes 1 and $n$, respectively, and all the other $n-2$ nodes are permutated and then renamed as 2, 3, …, $n-1$. Then, the path length of any sequence between the two nodes is minimized,

## 3. A Divide-and-Conquer Strategy for the MVRP

## 4. An Improved GA for Distribution Path Optimization of the MVR

- vehicle 1: [0-32-40-22-34-35-6-3-0];
- vehicle 2: [0-16-11-30-33-7-0];
- vehicle 3: [0-38-28-17-14-8-36-29-21-0];
- vehicle 4: [0-25-37-31-27-26-19-15-1-36-23-2-4-0];
- vehicle 5: [0-18-24-39-13-9-20-10-12-0].

Algorithm 1 [Distribution Sequence Search] |

Input: ${N}_{\mathrm{P}}$, ${p}_{\mathrm{c}}$, ${p}_{\mathrm{m}}$, $T$; ${N}_{\mathrm{d}}$, ${N}_{\mathrm{v}}$, $Q$, ${q}_{i}$, node positions, …Output: Distribution sequence of demand nodes.Begin:Load node positions; Code demand nodes into continual integers; Generate initial population; while (TRUE):Generate a population; Preprocess infeasible individuals; Calculate fitness defined by (1) or (3); Perform selection, combination, and mutation; Apply elitist’s strategy; until Termination criterion is met.End |

Algorithm 2 [Route Search Between Two Nodes] |

Input: ${N}_{\mathrm{P}}$, ${p}_{\mathrm{c}}$, ${p}_{\mathrm{m}}$, $T$; node positions, intersection positions, …Output: Optimal route between the two nodes.Begin:while (TRUE):Apply the divide-and-conquer strategy: Find a center between two nodes; Draw a search region using a radius; Identify the road intersections within the range as additional nodes; Generate a population using nodes in the region; Preprocess infeasible individuals; Calculate fitness defined by (12); Perform selection, combination, and mutation; Apply elitist’s strategy; until Termination criterion is met.End |

## 5. Simulation

#### 5.1. Sequence Search Using Algorithm 1

#### 5.2. Route Search Using Algorithm 2

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Fisher, M.L.; Jaikumar, R. A Generalized Assignment Heuristic for Vehicle Routing. Networks
**1981**, 11, 109–124. [Google Scholar] [CrossRef] - Dantzig, G.B.; Ramser, R.H. The Truck Dispatching Problem. Manag. Sci.
**1959**, 6, 80–91. [Google Scholar] [CrossRef] - Ochelska-Mierzejewska, J.; Poniszewska-Maranda, A.; Maranda, W. Selected Genetic Algorithms for Vehicle Routing Problem Solving. Electronics
**2021**, 10, 3147. [Google Scholar] [CrossRef] - Sabar, N.R.; Bhaskar, A.; Chung, E.; Turky, A.; Song, A. A Self-adaptive Evolutionary Algorithm for Dynamic Vehicle Routing Problems with Traffic Congestion. Swarm Evol. Comput.
**2019**, 44, 1018–1027. [Google Scholar] [CrossRef] - Goeked, D.; Schneider, M. Routing a Mixed Fleet of Electric and Conventional Vehicles. Eur. J. Oper. Res.
**2015**, 245, 81–99. [Google Scholar] [CrossRef] - Macrina, G.; Pugliese, L.D.P.; Guerriero, F.; Laporte, G. The Green Mixed Fleet Vehicle Routing Problem with Partial Battery Recharging and Time Windows. Comput. Oper. Res.
**2018**, 101, 183–199. [Google Scholar] [CrossRef] - Hiermann, G.; Hartl, R.F.; Puchinger, J.; Vidal, T. Routing a Mix of Conventional, Plug-in Hybrid, and Electric Vehicles. Eur. J. Oper. Res.
**2019**, 272, 235–248. [Google Scholar] [CrossRef] [Green Version] - Goodarzi, A.H.; Zegordi, S.H.; Alpan, G.; Kamalabadi, I.N.; Kashan, A.H. Reliable Cross-docking Location Problem Under the Risk of Disruptions. Oper. Res.
**2021**, 21, 1569–1612. [Google Scholar] [CrossRef] - Gelareh, S.; Glover, F.; Guemri, O.; Hanafi, S.; Nduwayo, P.; Todosijevic, R. A Comparative Study of Formulations for a Cross-dock Door Assignment Problem. Omega
**2020**, 91, 102015. [Google Scholar] [CrossRef] - Gunawan, A.; Widjaja, A.T.; Vansteenwegen, P.; Yu, V.F. A Matheuristic Algorithm for the Vehicle Routing Problem with Cross-docking. Appl. Soft Comput.
**2021**, 103, 107163. [Google Scholar] [CrossRef] - Chen, J.-S.; Pan, J.C.-H.; Lin, C.-M. A Hybrid Genetic Algorithm for the Re-entrant Flow-shop Scheduling Problem. Expert Syst. Appl.
**2008**, 34, 570–577. [Google Scholar] [CrossRef] [Green Version] - Ning, T.; An, L.; Duan, X. Optimization of Cold Chain Distribution Path of Fresh Agricultural Products Under Carbon Tax Mechanism: A Case Study in China. J. Intell. Fuzzy Syst.
**2021**, 40, 10549–10558. [Google Scholar] [CrossRef] - Chen, W.T.; Hsu, C.-I. Optimal Scheduling for Multi-temperature Joint Distribution Under Carbon Tax. Int. J. Oper. Res.
**2019**, 16, 45–62. [Google Scholar] [CrossRef] - Ticha, H.B.; Absi, N.; Feillet, D.; Quilliot, A.; Woensel, T.V. A Branch-and-Price Algorithm for the Vehicle Routing Problem with Time Windows on a Road Network. Networks
**2019**, 73, 401–417. [Google Scholar] [CrossRef] - Jabir, E.; Panicker, V.V.; Sridharan, R. Design and Development of a Hybrid Ant Colony-variable Neighbourhood Search Algorithm for a Multi-depot Green Vehicle Routing Problem. Transp. Res. Part D
**2017**, 57, 422–457. [Google Scholar] [CrossRef] - Fernández, E.; Mireia, R.-R.; Speranza, M.G. The Shared Customer Collaboration Vehicle Routing Problem. Eur. J. Oper. Res.
**2018**, 265, 1078–1093. [Google Scholar] [CrossRef] [Green Version] - Hernandez, F.; Gendreau, M.; Jabali, O.; Rey, W. A Local Branching Metaheuristic for the Multi-vehicle Routing Problem with Stochastic Demands. J. Heuristics
**2019**, 25, 215–245. [Google Scholar] [CrossRef] - Hu, C.; Lu, J.; Liu, X.; Zhang, G. Robust Vehicle Routing Problem with Hard Time Windows Under Demand and Travel Time Uncertainty. Comput. Oper. Res.
**2018**, 94, 139–153. [Google Scholar] [CrossRef] - Masmoudi, M.A.; Hosny, M.; Koc, C. The Fleet Size and Mix Vehicle Routing Problem with Synchronized Visits. Transp. Lett.
**2021**, 14, 427–445. [Google Scholar] [CrossRef] - Marinakis, Y.; Marinaki, M.; Migdalas, A. Variants and Formulations of the Vehicle Routing Problem. In Open Problems in Optimization and Data Analysis; Pardalos, P., Migdalas, A., Eds.; Springer Optimization and Its Applications; Springer: Cham, Switzerland, 2018; Volume 141, pp. 91–127. [Google Scholar] [CrossRef]
- Du, K.-L.; Swamy, M.N.S. Neural Networks in a Softcomputing Framework; Springer: London, UK, 2006. [Google Scholar] [CrossRef]
- Du, K.-L.; Swamy, M.N.S. Search and Optimization by Metaheuristics; Springer: New York, NY, USA, 2016. [Google Scholar] [CrossRef]
- Barbulescu, L.; Howe, A.E.; Whitley, L.D.; Roberts, M. Understanding Algorithm Performance on an Oversubscribed Scheduling Application. J. Artif. Intell. Res.
**2006**, 27, 577–615. [Google Scholar] [CrossRef]

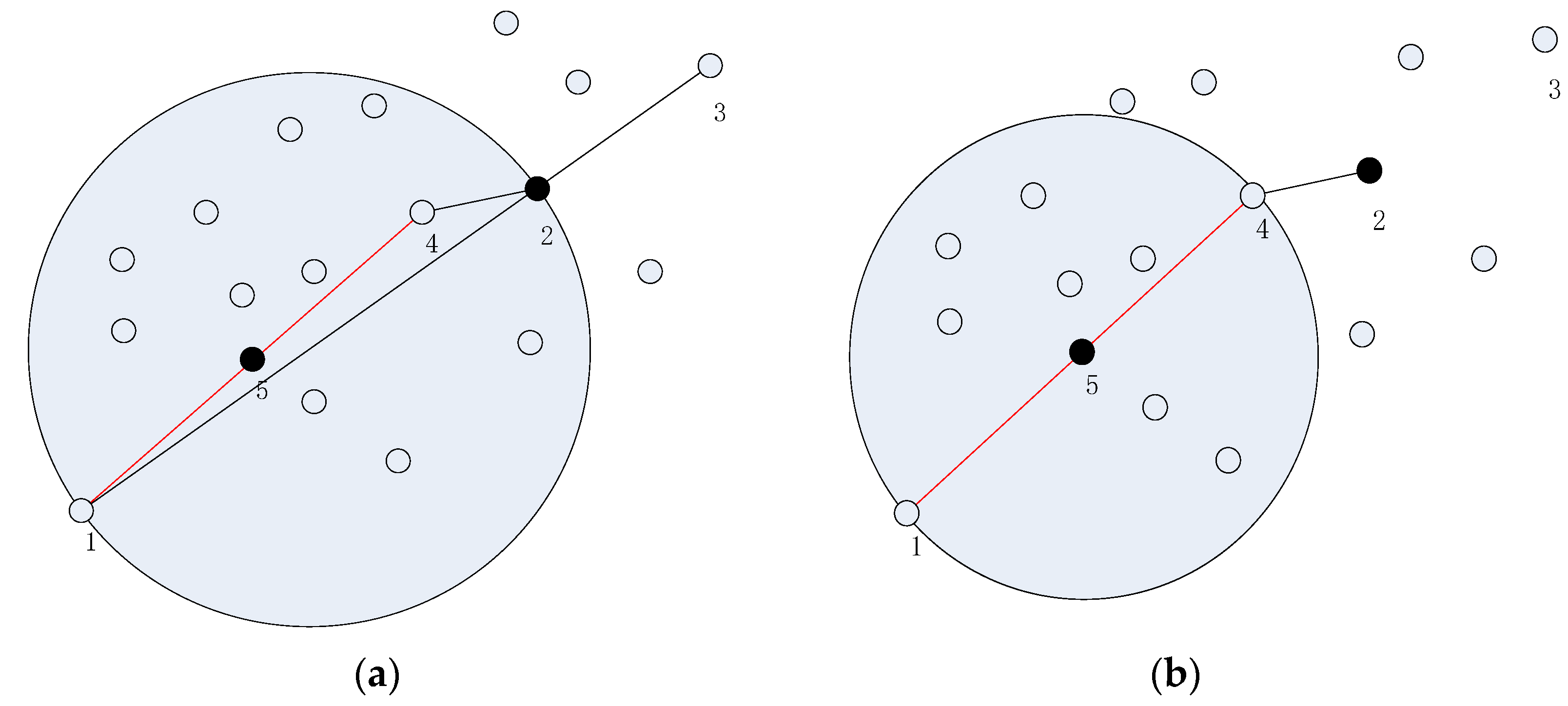

**Figure 3.**Determination of the search radius. (

**a**) When node 3 is out of search range, and (

**b**) The new search range.

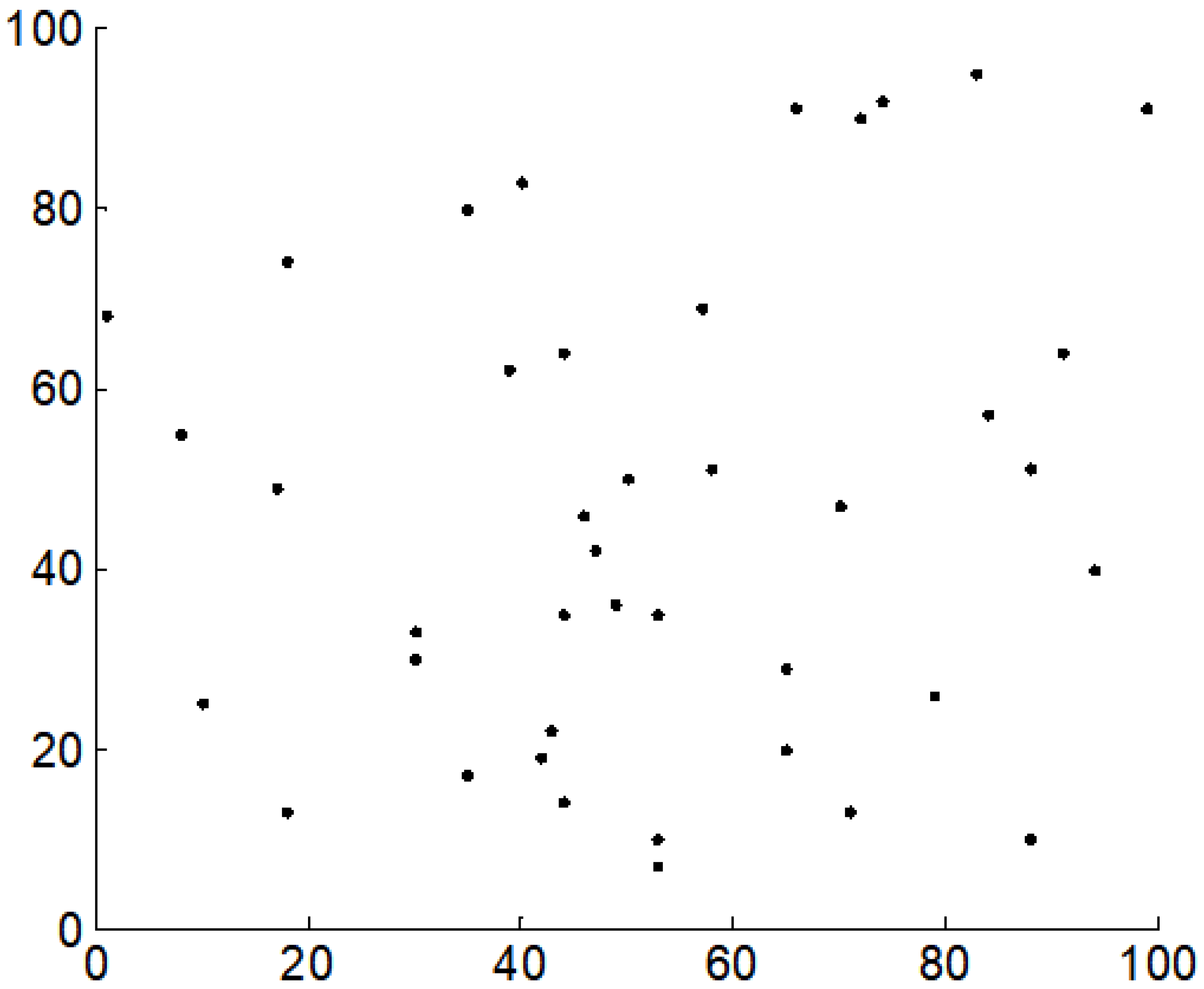

**Figure 5.**The coordinates of the demand nodes. The $x$- and $y$-coordinates correspond to a position on a map.

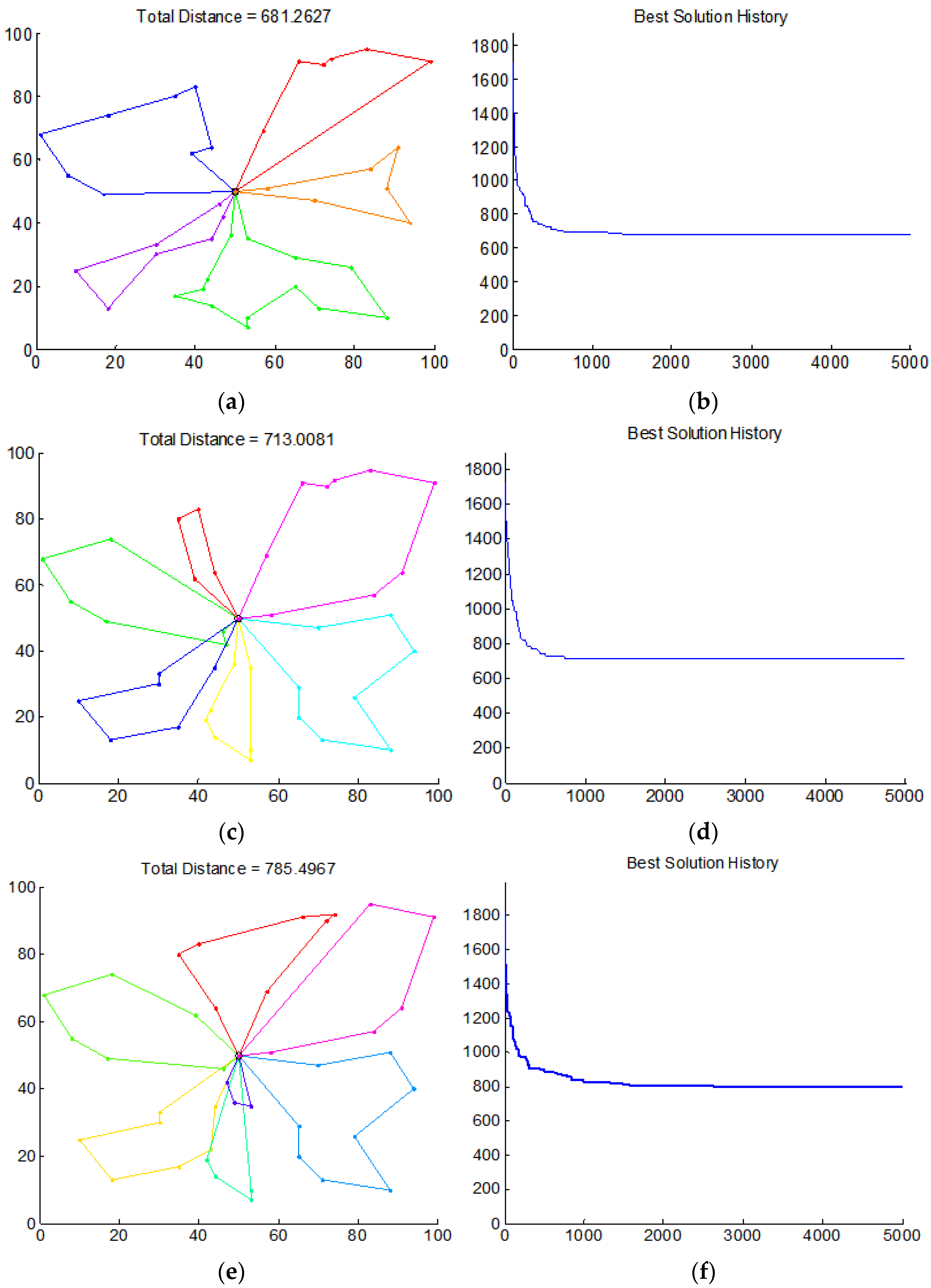

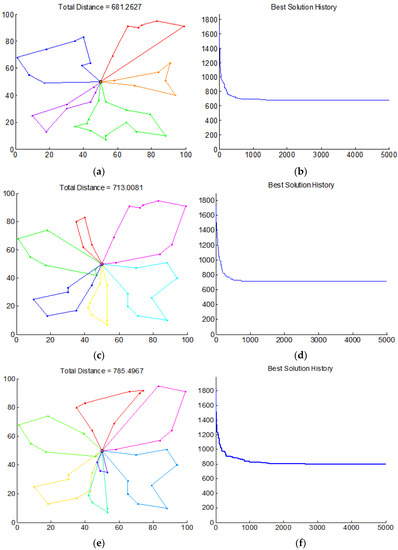

**Figure 6.**The distribution sequence, using the improved GA, (

**a**,

**b**) for 5 vehicles, (

**c**,

**d**) for 6 vehicles, and (

**e**,

**f**) for 7 vehicles. For (

**a**,

**c**,

**e**), the $x$- and $y$-coordinates correspond to a position on a map. For (

**b**,

**d**,

**f**), the $x$-coordinate corresponds to the number of generation, and the $y$-coordinate corresponds to the total distance in km.

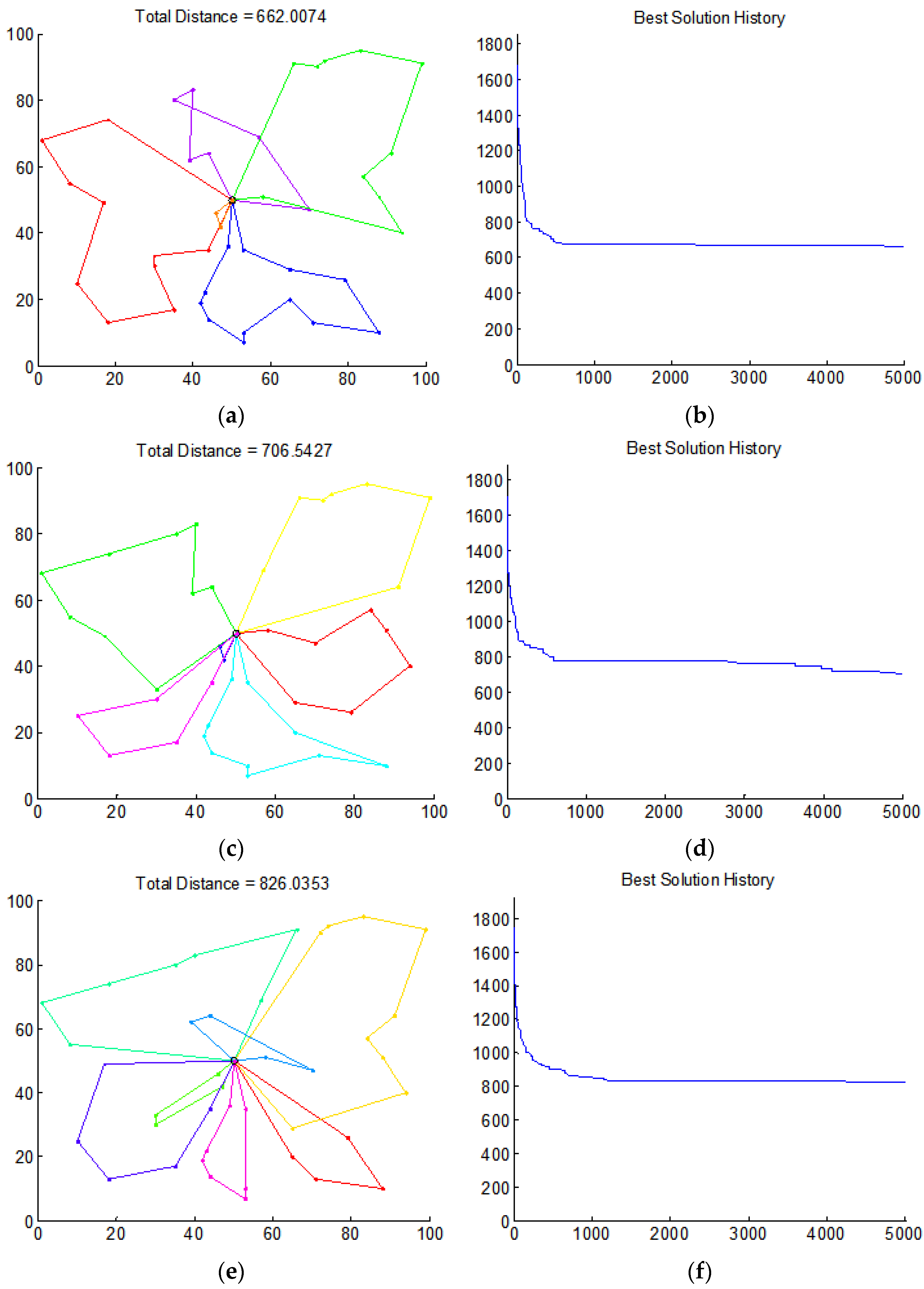

**Figure 7.**Distribution sequence, using the simple GA, (

**a**,

**b**) for 5 vehicles, (

**c**,

**d**) for 6 vehicles, and (

**e**,

**f**) for 7 vehicles. For (

**a**,

**c**,

**e**), the $x$- and $y$-coordinates correspond to a position on a map. For (

**b**,

**d**,

**f**), the $x$-coordinate corresponds to the number of generation, and the $y$-coordinate corresponds to the total distance in km.

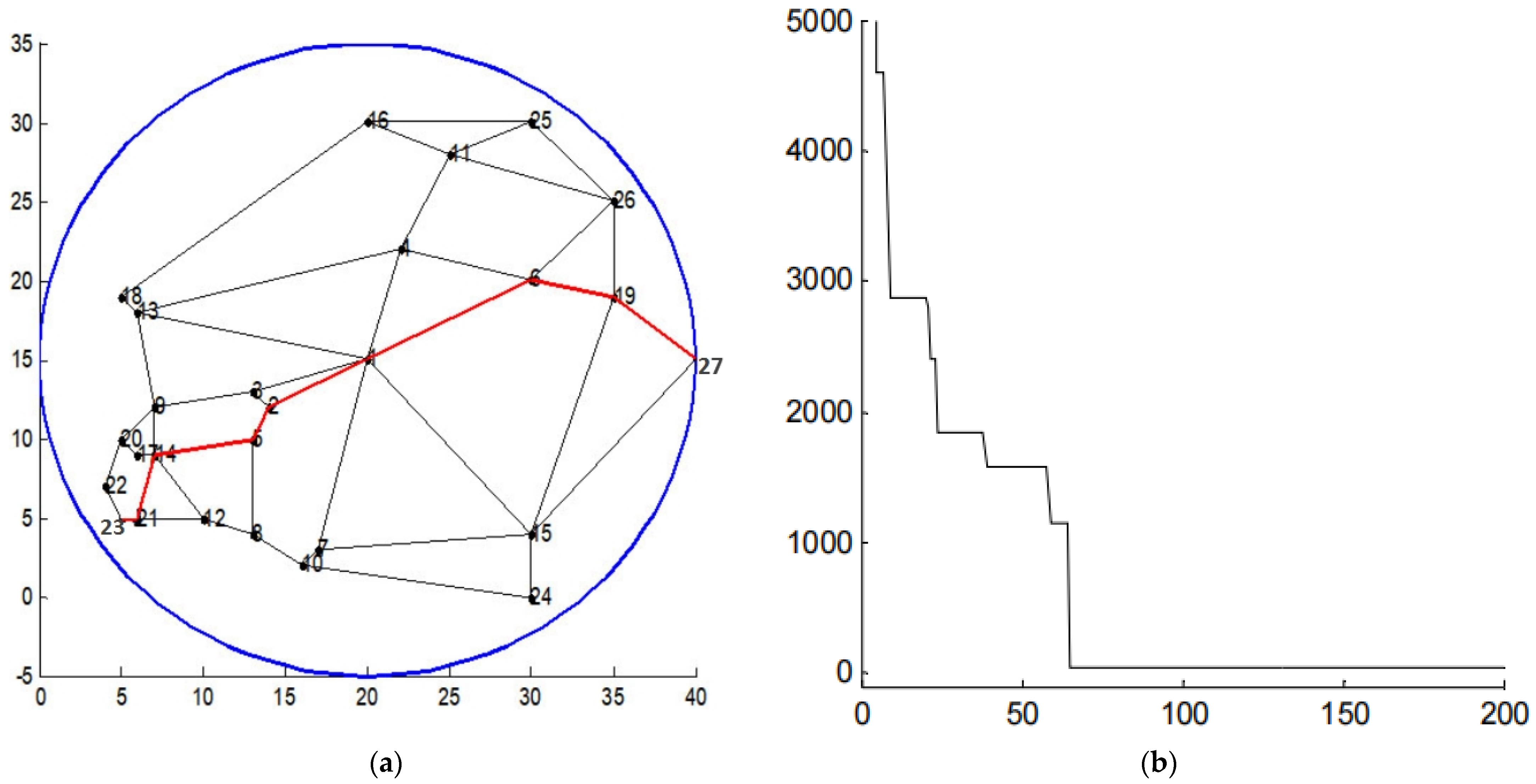

**Figure 8.**Distribution path (

**a**) and the optimization curve (

**b**). For (

**a**), the $x$- and $y$-coordinates correspond to a position on a map. For (

**b**), the $x$-coordinate corresponds to the number of generations, and the $y$-coordinate corresponds to the total route length in km.

No. | $\mathit{x}$ (km) | $\mathit{y}$ (km) | Demand ($\times {10}^{3}$ pcs) | No. | $\mathit{x}$ (km) | $\mathit{y}$ (km) | Demand ($\times {10}^{3}$ pcs) |
---|---|---|---|---|---|---|---|

0 | 50 | 50 | no | 21 | 88 | 51 | 0.3 |

1 | 47 | 42 | 8.1 | 22 | 65 | 29 | 8.4 |

2 | 79 | 26 | 9 | 23 | 44 | 64 | 9.3 |

3 | 99 | 91 | 1.2 | 24 | 91 | 64 | 6.7 |

4 | 30 | 33 | 9.1 | 25 | 74 | 92 | 7.5 |

5 | 65 | 20 | 6.3 | 26 | 1 | 68 | 7.4 |

6 | 53 | 10 | 0.9 | 27 | 53 | 35 | 3.9 |

7 | 40 | 83 | 2.7 | 28 | 44 | 35 | 6.5 |

8 | 83 | 95 | 5.4 | 29 | 58 | 51 | 1.7 |

9 | 53 | 7 | 9.5 | 30 | 88 | 10 | 7.0 |

10 | 35 | 17 | 9.6 | 31 | 49 | 36 | 0.3 |

11 | 72 | 90 | 1.5 | 32 | 71 | 13 | 2.7 |

12 | 35 | 80 | 9.7 | 33 | 39 | 62 | 0.4 |

13 | 57 | 69 | 9.5 | 34 | 84 | 57 | 0.9 |

14 | 43 | 22 | 4.8 | 35 | 30 | 30 | 8.2 |

15 | 44 | 14 | 8.0 | 36 | 17 | 49 | 6.9 |

16 | 46 | 46 | 1.4 | 37 | 10 | 25 | 3.1 |

17 | 94 | 40 | 4.2 | 38 | 18 | 74 | 9.5 |

18 | 42 | 19 | 9.1 | 39 | 18 | 13 | 0.3 |

19 | 66 | 91 | 7.9 | 40 | 8 | 55 | 9.5 |

20 | 70 | 47 | 6.5 | Total | 224.9 |
