Mach 4 Simulating Experiment of Pre-Cooled Turbojet Engine Using Liquid Hydrogen

Abstract

This study investigated a pre-cooled turbojet engine for a Mach 5 class hypersonic transport aircraft. The engine was demonstrated under takeoff and Mach 2 flight conditions, and a Mach 5 propulsion wind tunnel test is planned. The engine is composed of a pre-cooler, a core engine, and an afterburner. The engine was tested under simulated Mach 4 conditions using an air supply facility. High-temperature air under high pressure was supplied to the engine components through an airflow control valve and an orifice flow meter, and liquid hydrogen was supplied to the pre-cooler and the core engine. The results confirmed that the starting sequence of the engine components was effective under simulated Mach 4 conditions using liquid hydrogen fuel. The pre-cooling effect caused no damage to the rotating parts of the core engine in the experiment.

1. Introduction

JAXA is investigating a design approach to a Mach 5 hypersonic passenger aircraft [1] (Figure 1), which could significantly reduce the flight time for intercontinental travel. The X-43A [2] flight experiment successfully demonstrated hypersonic flight with a scramjet engine. The following plans demonstrate the feasibility of hypersonic propulsion systems. JAXA focused on hypersonic propulsion systems as the key to successful hypersonic passenger aircraft and slated demonstrations of Mach 5 hypersonic technologies for 2025 [3].

JAXA designed and fabricated pre-cooled turbojets [4] that can accelerate an aircraft continuously from takeoff to Mach 5. This engine uses a heat exchanger to cool the hot incoming air during hypersonic flight. A pre-cooler is mounted in front of the turbojet core engine, and cryogenic liquid hydrogen is used as a coolant and fuel. The total temperature during a Mach 5 flight is around 1300 K, but pre-cooling decreases the temperature to 600 K, thermally protecting the core engine. The compressor power is reduced by pre-cooling, and the residual power can be used for propulsion via the exhaust gas.

The thrust performance of a pre-cooled turbojet was investigated using performance analyses [4]. A supersonic flight experiment at Mach 2 was conducted [5]. The vehicle, separated from a stratospheric balloon and accelerated to Mach 2 through free fall, demonstrated the operation of the pre-cooled turbojet and engine at Mach 2.

In this study, an experiment simulating a Mach 4 flight investigated the pre-cooled turbojet engine to confirm its high-temperature structural design and the engine starting sequence. Mach 4 conditions with a total temperature of 900 K were selected as the intermediate target to demonstrate the pre-cooling cycle using an existing hot air supply facility. Liquid hydrogen was used as fuel by the core engine and the afterburner. There was no damage to the pre-cooler or the core engine at the end of the experiment. The engine starting sequence for the Mach 4, direct-connect experiment was confirmed.

2. Design Features of Pre-Cooled Turbojet Engine

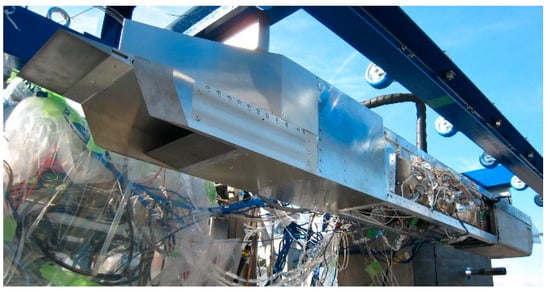

Figure 2 is an external view of the pre-cooled turbojet engine [6]. The engine consisted of a variable-geometry air intake, pre-cooler, core engine, afterburner, and variable-geometry exhaust nozzle. The engine size was determined by the capacity of the Ramjet Engine Test Facility (RJTF) [7] at the JAXA Kakuda Space Center.

Table 1. Specifications of pre-cooled turbojet.

Item	Value	Unit
Length	2.7	m
Width	0.23	m
Rotation Speed	80000	rpm
Air Flow Rate	1.0	kg/s
Turbine Inlet Temperature	1223	K
Afterburner Temperature	2073	K

summarizes the design features of the engine. The intake was made of a nickel alloy to handle Mach 5 flight conditions. The pre-cooler was a heat exchanger with a counter-flow shell and tube, made of a thin stainless-steel tube with 2 mm in diameter chosen for its light weight. The casing was also made of a nickel alloy.

The core engine was a one-spool turbojet with a design rotation speed of 80000 rpm and a pressure ratio of 6. The compressor air mass flow rate at the design point was 1.0 kg/s. The compressor was made of titanium alloy to endure the stress at the nominal rotation speed. The main combustor and the turbine were both made of a nickel alloy. The combustion temperature of the main combustor was limited to a maximum of 1223 K because the turbine did not have cooling holes. The casing of the core engine was made of stainless steel.

The regenerative cooling part of the variable-geometry nozzle was made of a nickel alloy, and the movable throat and external nozzle were made of stainless steel. The fuel injector of the afterburner was upstream of the exhaust nozzle, and the nozzle cowl was made of C/C composite material impregnated with silicone.

3. Experimental Setup

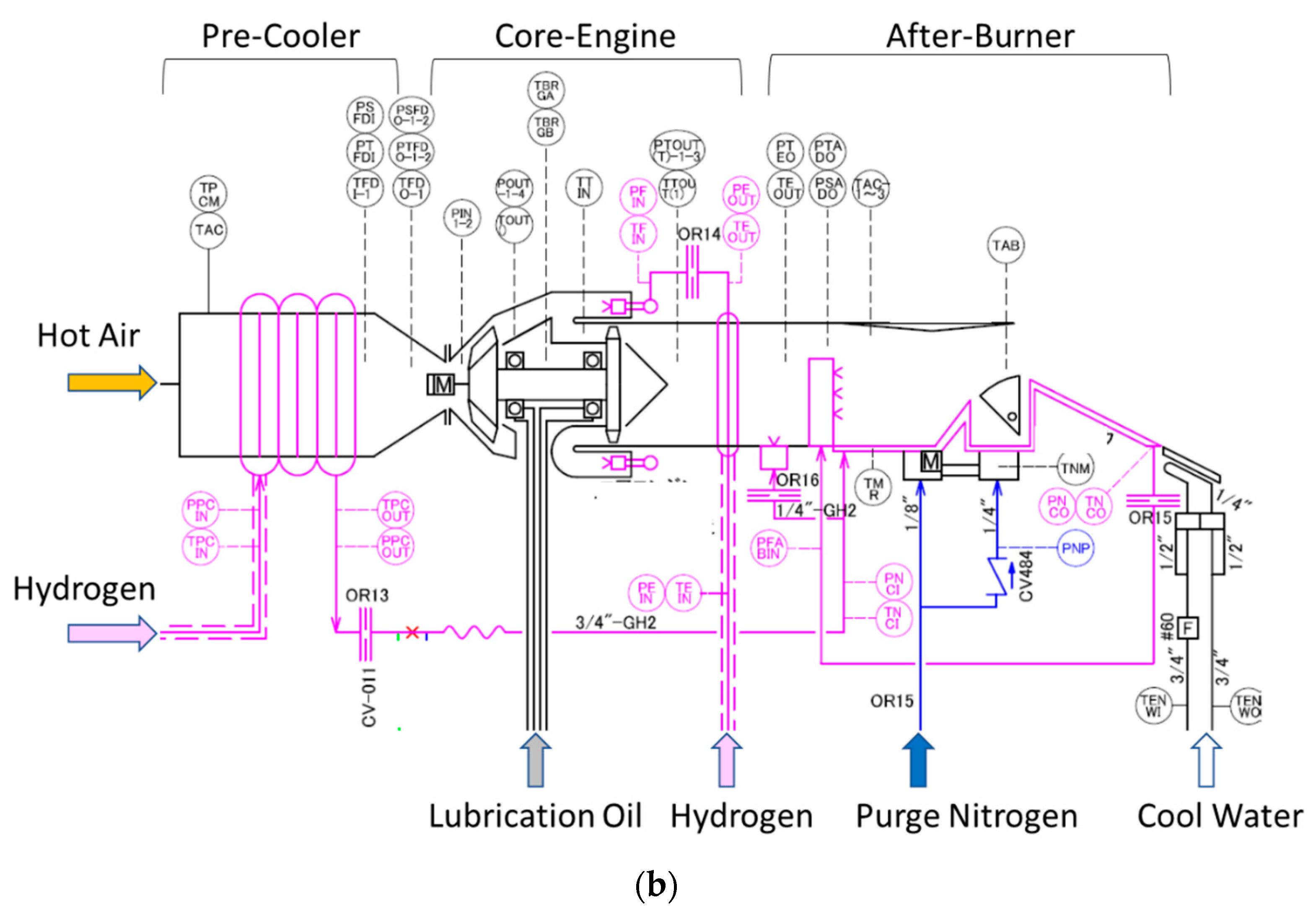

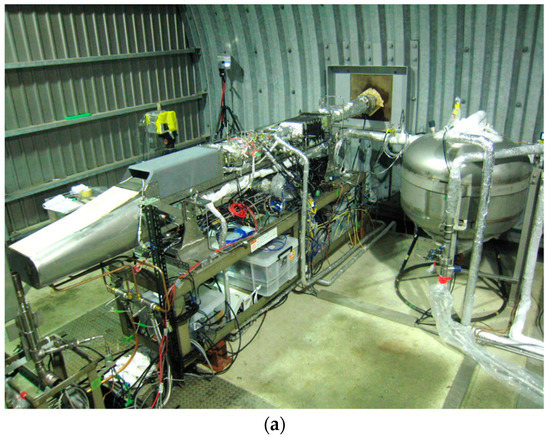

The combustion experiment was assembled in the JAXA Noshiro Rocket Testing Center. Figure 3 shows the experimental setup.

The air intake was not used in this setup. The inlet of the pre-cooler was connected directly to the hot air supply, which generated the hot air that simulated the pressure and temperature conditions at the inlet of the pre-cooler. The air was heated by a heat exchanger, which burned combustion gas with propane and air. The oxygen fraction of the air did not change during the heat exchange process.

The fuel tank was filled with liquid hydrogen from an external container; then, it was supplied to the engine by pressurizing the tank using hydrogen gas. After the fuel passed through the pre-cooler and regenerative cooling channel of the variable-geometry nozzle, it was injected into the afterburner. Fuel-rich combustion was selected to attain deep cooling by the pre-cooler. Helium gas supplied from an external tank was used to purge the fuel.

Liquid hydrogen was also supplied to the core engine. The starting sequence of the core engine using liquid hydrogen was investigated using a low-pressure chamber simulating high-altitude conditions. Fuel was supplied under supercritical conditions to avoid hard vaporization in the fuel supply system.

Temperatures inside the engine were measured using thermocouples. Type K thermocouples were used under 1000 K, and type B thermocouples were used above 1000 K in the afterburner.

Pressures inside the engine were measured using pressure scanners with temperature compensation capabilities. The maximum pressure range was 700 kPa, and the uncertainty was 0.05% of the maximum range.

The thrust of the engine was not measured in this experiment.

4. Experimental Methodology

The experimental cases are shown in

Table 2. Experimental cases.

Case	Unit	1	2	3	4
Simulated Mach Number		-	3.4	3.4	4.0
Total Pressure	MPa	0.37	0.37	0.37	0.37
Total Temperature	K	288	720	720	900
Pre-Cooler			On	On	On
Core Engine		On	On	On	On
Afterburner				On	On
Number of Experiments		4	2	3	1

. The temperature was calculated based on the flight trajectory analysis of Mach 4 and a dynamic pressure of 50 kPa, with a simulated altitude of 21.3 km. The temperature at Mach 4 was 900 K. The pressure was set to 0.37 MPa, higher than the actual pressure at the pre-cooler inlet.

Case 1 was an experiment on only the core engine. The main burner fuel flow rate was controlled, so that the main burner temperature did not exceed the design limit. The mechanical rotation speed was limited to 80000 rpm, which is the design speed.

In Case 2, hot air, simulating Mach 3.4 conditions, was supplied to the engine. Liquid hydrogen was provided to both the pre-cooler and the core engine. The fuel supplied to the pre-cooler was discharged to the vent stack without combustion.

In Case 3, the fuel was supplied to the pre-cooler and the afterburner. High-temperature combustion occurred in the afterburner. The simulated flight speed was Mach 3.4.

In Case 4, the simulated flight speed was Mach 4.

The experimental sequence is as follows:

• The high-temperature air supply facility was started.
• Liquid hydrogen fuel was supplied from the container to the fuel tank.
• Oil misting for bearing lubrication and cooling was supplied.
• Purging nitrogen gas was supplied to the actuator box of the variable-geometry nozzle.
• The exit torch burner was ignited.
• The fuel tank was pressurized by helium gas.
• The ignition plug was started.
• Hot air and liquid hydrogen were supplied to the engine simultaneously and ignited.
• The ignition plug was stopped.
• The rotation was accelerated by the windmill effect and turbine power.
• Liquid hydrogen fuel supply was stopped and purged by helium gas.
• The tank pressure was reduced.
• Oil misting and purging nitrogen gas supply were stopped.

5. Experimental Results

Stable engine operation was confirmed under the test conditions of Table 2.

In Case 1, the engine operated with the restricted main burner temperature. The outer shell vibration was minimized by modifying the direction of the pre-compression of bearings. The rotation speed was at 90%.

In Case 2, stable engine operation was attained at Mach 3.4. This case was conducted with a roof because there was no combustion at the afterburner. Liquid hydrogen was supplied to the pre-cooler and the core engine.

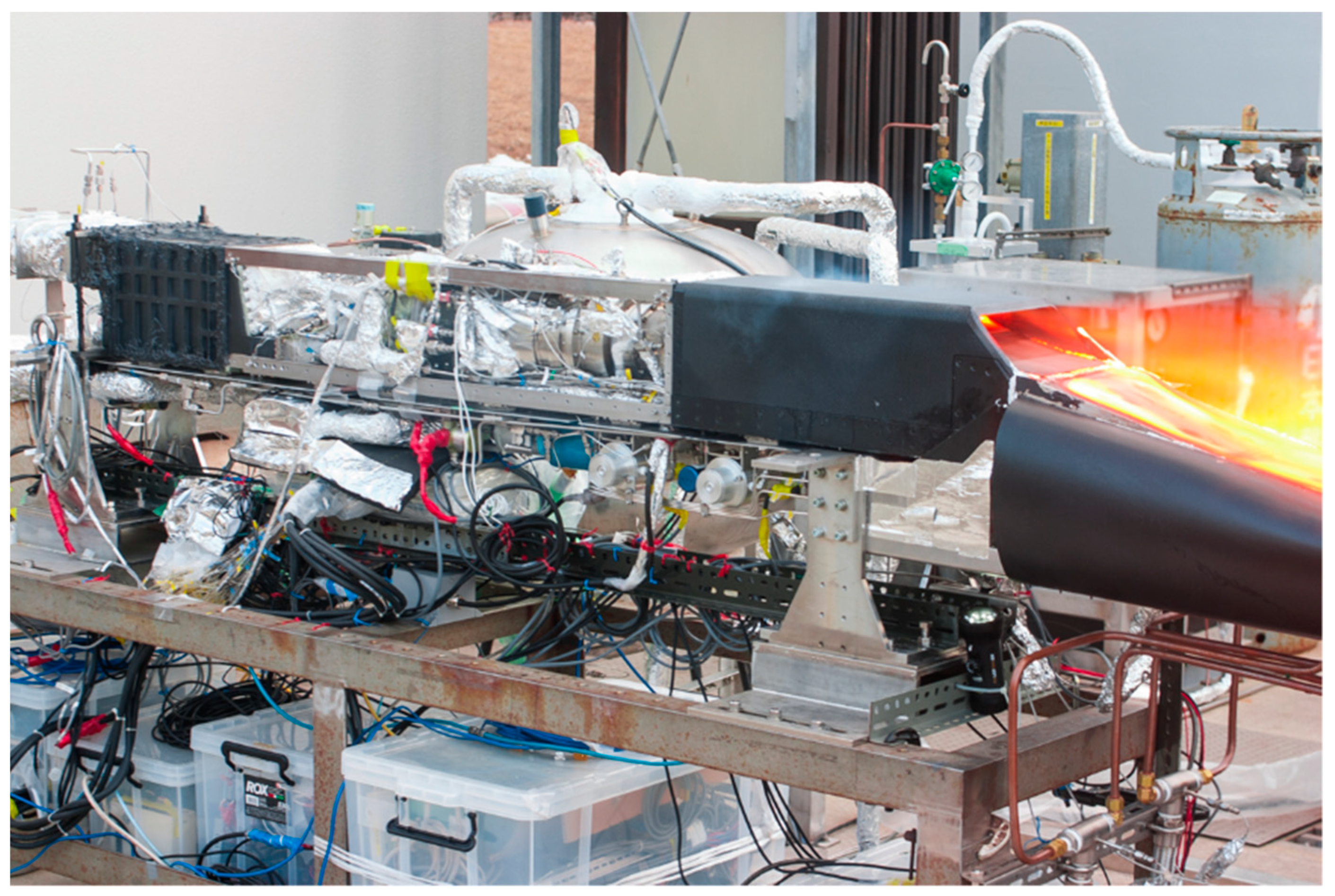

In Case 3, liquid hydrogen was supplied to the pre-cooler and the afterburner. There was an igniter and pilot fuel port upstream of the afterburner. However, the pilot fuel was not ignited, and the exit torch burner ignited the fuel. Liquid hydrogen fuel was supplied to the core engine after the afterburner ignited.

In Case 4, liquid hydrogen was supplied simultaneously to the pre-cooler, afterburner, and core engine. Fuel at the afterburner ignited because combustion at the core engine started, and the temperature at the inlet of the afterburner was high enough for self-ignition. Figure 4 is an external view of the setup for Case 4.

The test time was limited to 20 s to check for damage to the afterburner after each experiment under the same conditions. This paper describes the results of Case 4.

5.1. Rotation Speed

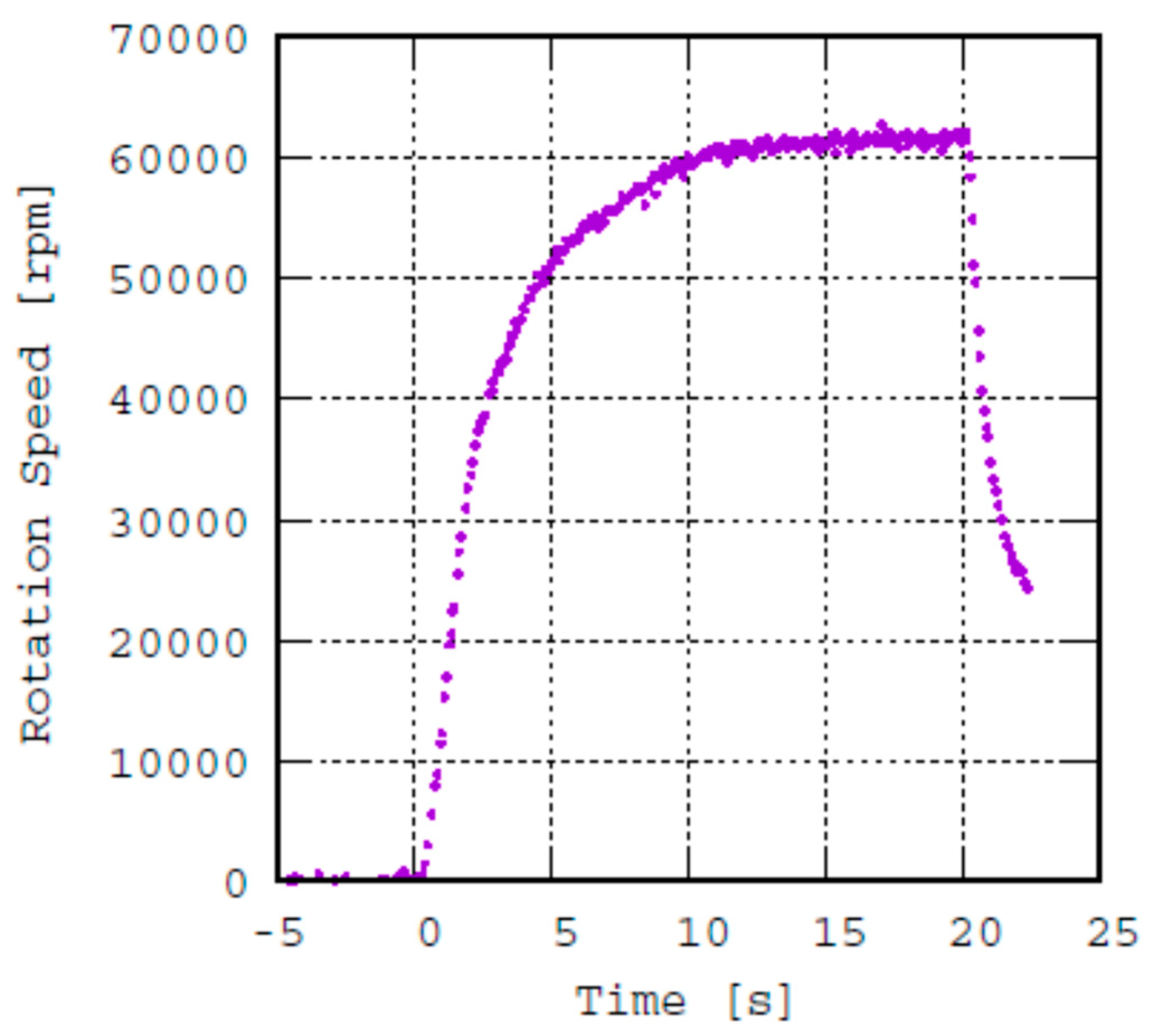

Figure 5 shows the experimental result of rotation speed. Rotation speed was measured using gap sensors installed on the core engine casing.

At 0 s, the rotation was accelerated by the windmill effect and turbine power by the combustion gas of the main burner. The rotation speed reached 60000 rpm at 10 s. Then, the speed decreased to 20 s. The air supply and fuel supply were stopped at this point.

5.2. Equivalence Ratio and Combustion Temperature

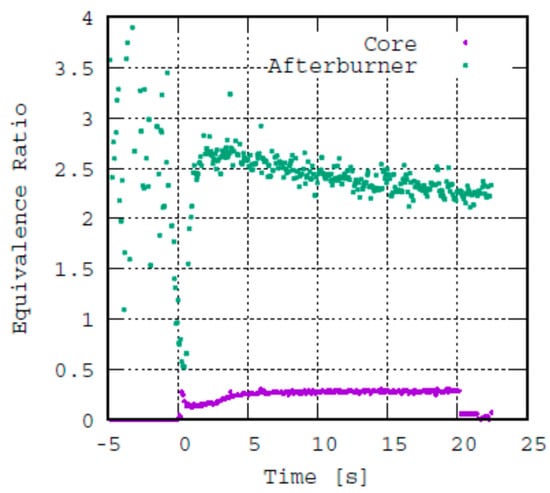

Figure 6 shows the time history of the equivalence ratio. The equivalence ratio at the afterburner was 2.2, and the ratio at the main burner was 0.3. The fuel flow of the afterburner was measured by a turbine flow meter. The fuel-rich operation was selected for the afterburner for a large pre-cooling effect. The fuel flow rate of the main burner was calculated using the upstream pressure at the choke orifice in the supply line. Fuel-lean combustion was selected for the main burner. The fuel supply started at 0 s, and the equivalence ratios became nearly constant at 10 s.

Fuel injection at the main burner and the afterburner was started at 0 s. The main burner’s fuel flow rate was controlled to operate the engine within a limited range of turbine inlet temperatures. The fuel control valve was chilled before the experiment by blowing a small amount of supercritical hydrogen fuel through it. The fuel flow rate increased as the flow control valve was opened.

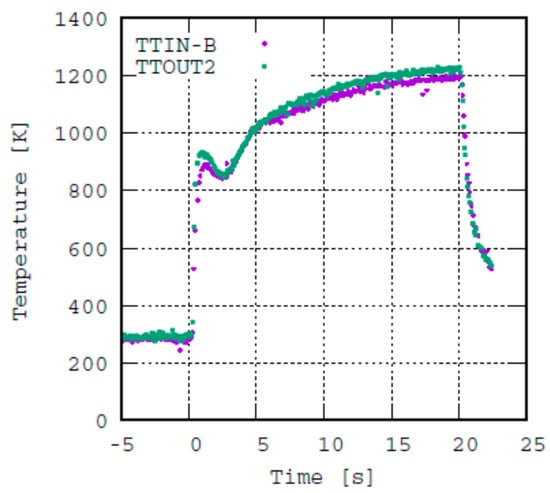

Figure 7 shows the time history of the air temperature at the turbine inlet and exit. The inlet temperature gradually increased and reached 1200 K, nearly the design turbine inlet temperature, at 20 s.

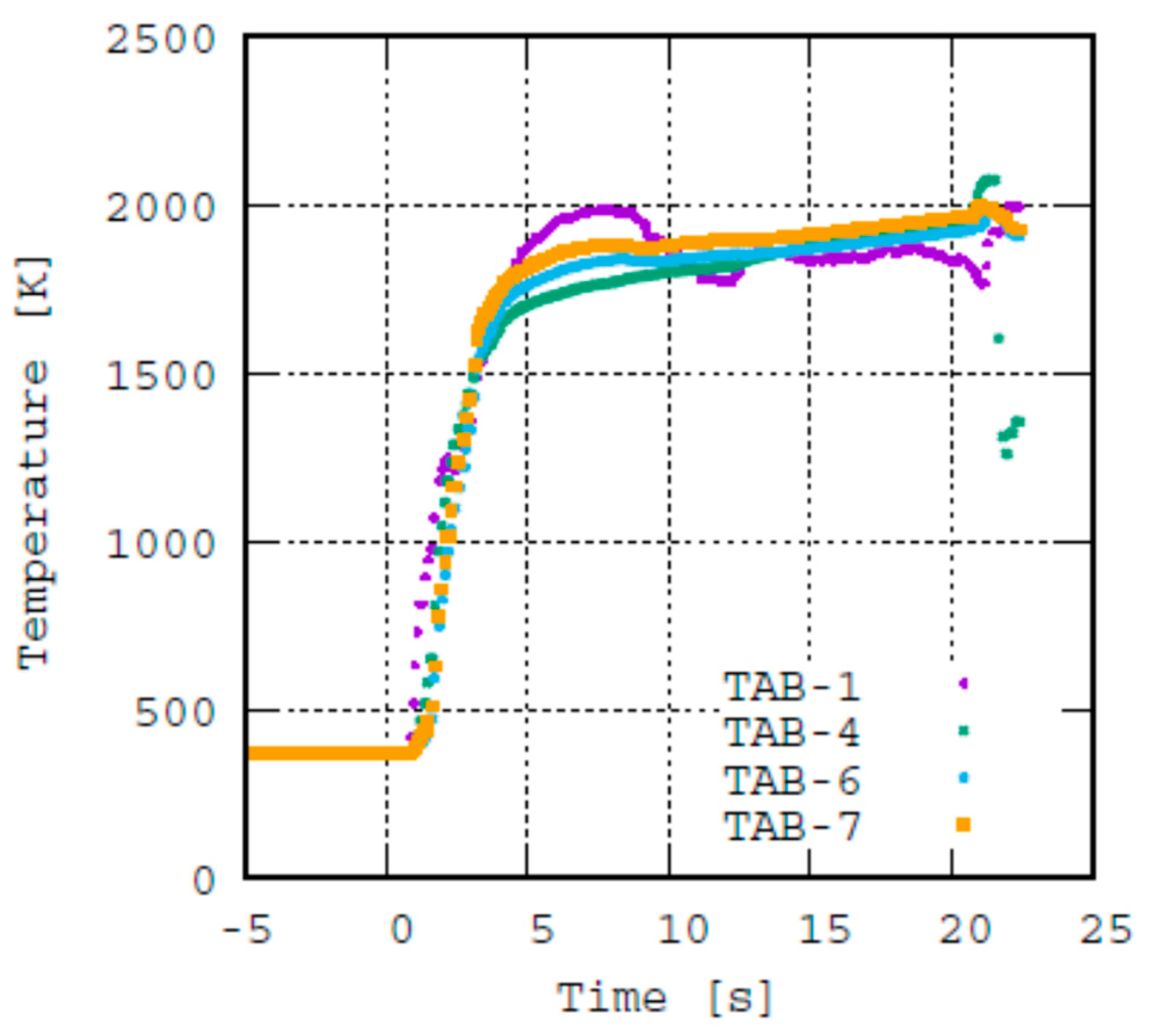

Figure 8 shows the time history of temperature at the afterburner exit. The temperature reached 1900 K at 5 s, gradually increasing to 2000 K at 20 s. These values are a little lower than the design limit.

The temperature at the exit of the variable-geometry nozzle (TAB-1) rose before the other temperatures, demonstrating that the ignition occurred at the exit torch burner. It was confirmed by a follow-up experiment of the pilot burner that the local equivalence ratio of the pilot burner was below the ignition limit.

5.3. Temperature at Pre-Cooler

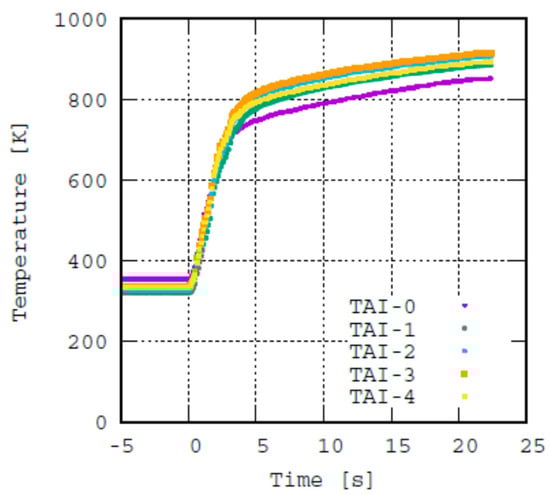

Figure 9 shows the time history of air temperature at the inlet of the pre-cooler. There were five measurement points along the airstream. The temperature gradually increased because the heat exchange capacity was small for that airflow rate. The temperature rose to 900 K, which corresponds to Mach 4 flight conditions, at 20 s.

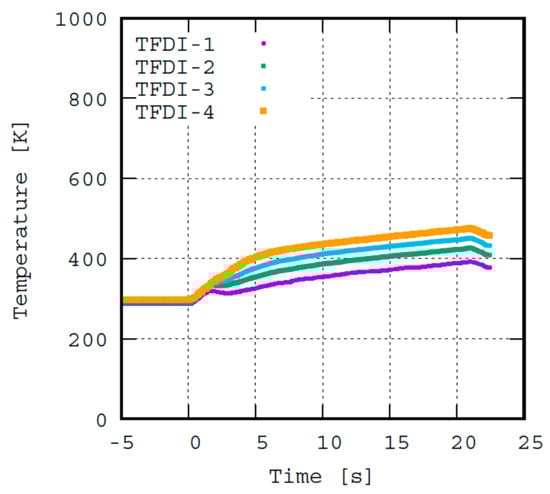

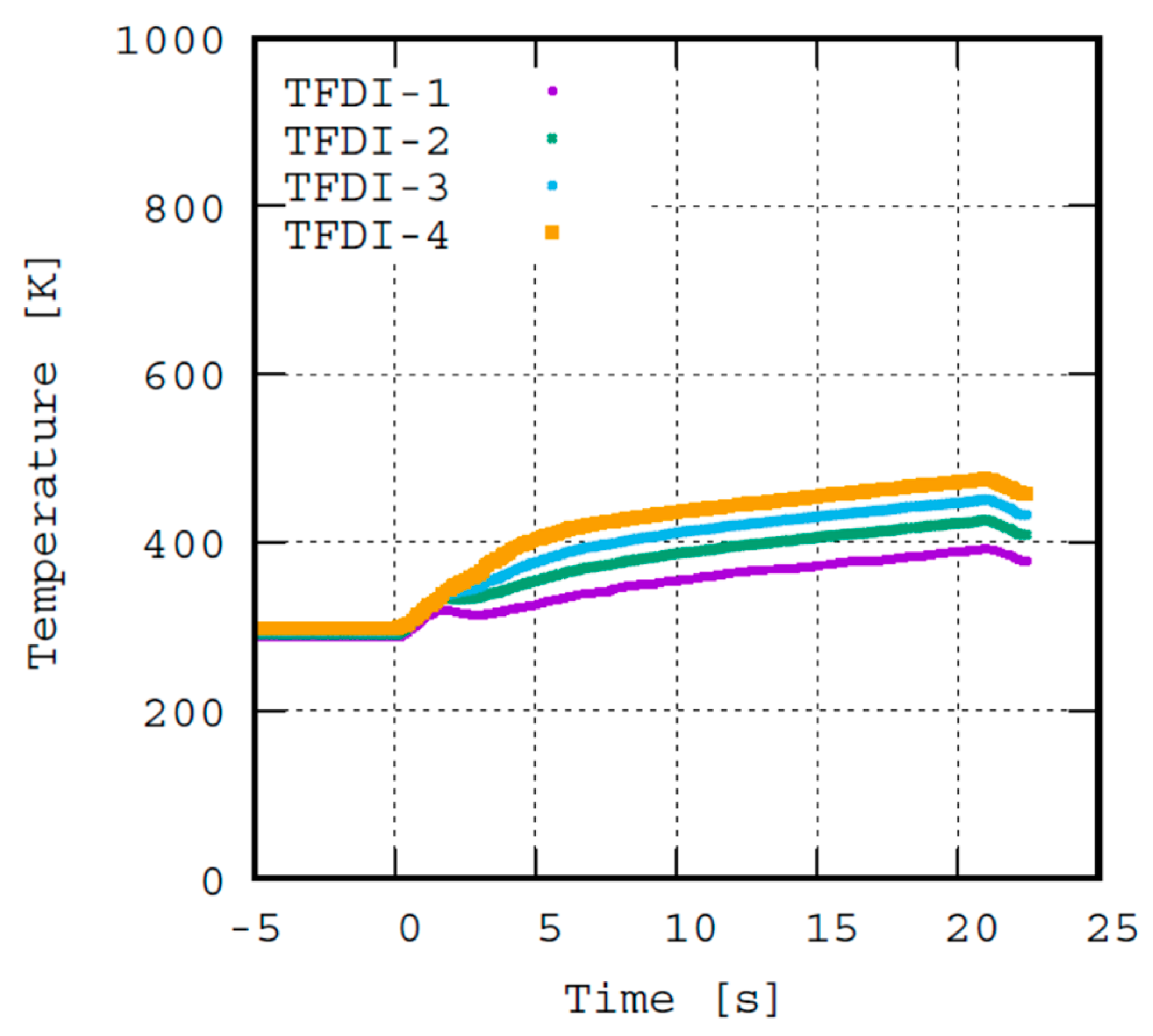

Figure 10 shows the time history of air temperature at the pre-cooler exit. The temperature also increased gradually. There was a temperature distortion from 390 K to 470 K at 20 s. The average temperature was around 430 K. The temperature decrease at the pre-cooler was 470 K. High stress due to the large temperature gradient was estimated by structural analysis near the fuel manifold. However, there was no damage to the part, as expected.

5.4. Heat Exchange Performances

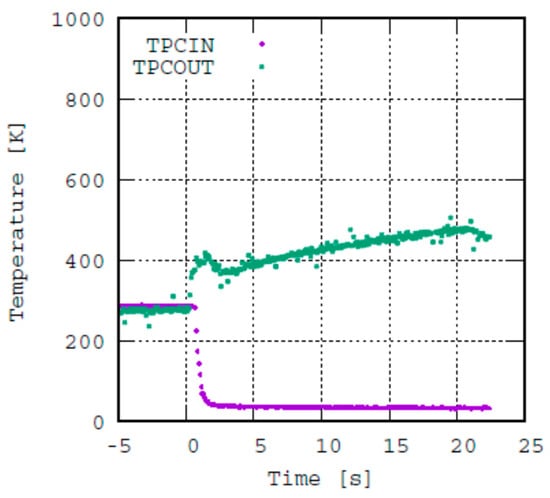

Figure 11 shows the time history of fuel temperature at the pre-cooler. The supply pressure of hydrogen was 2 MPa. The pre-cooler inlet temperature (TPCIN) was 40 K at 2 s, which indicated that supercritical hydrogen reached the pre-cooler inlet at 2 s. The hydrogen flow inside the heat exchange tube was estimated as turbulent flow because the Reynolds number was 5.7 × 10⁵. The convective heat transfer coefficient was 9.2 kW/m² K. The pre-cooler exit temperature (TPCOUT) was 480 K. The absorbed heat was utilized to increase thrust at the exhaust nozzle.

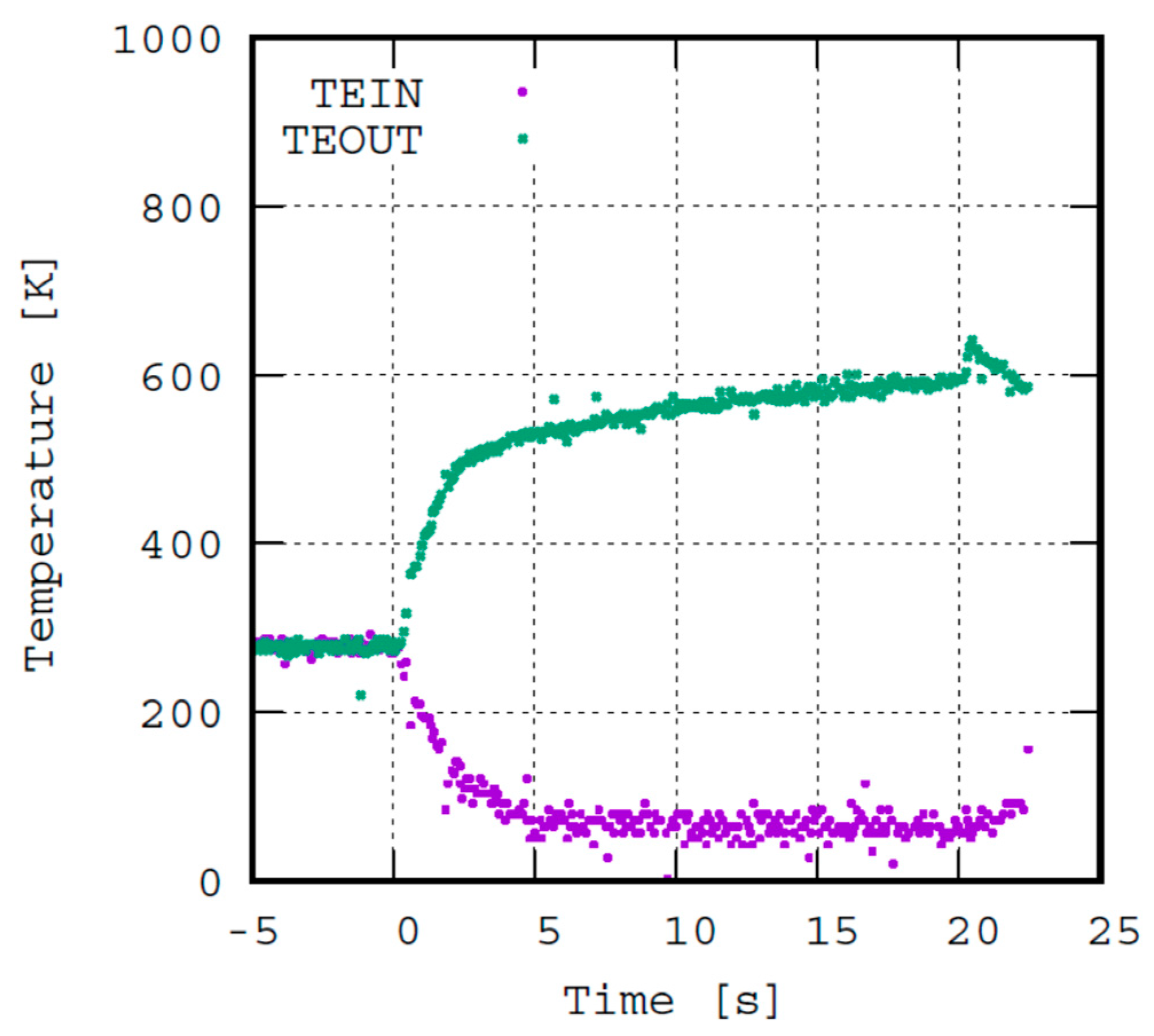

Figure 12 shows the fuel temperature at the evaporator. The evaporator increased the temperature of supercritical hydrogen, and the hydrogen was supplied to the main burner. The evaporator inlet temperature (TEIN) was near 80 K at 5 s. The evaporator exit temperature (TEOUT) reached 600 K by 20 s. The fuel flow rate was reduced by the temperature rise of hydrogen, which has a large heat capacity.

5.5. Pressure Decrease in the Pre-Cooler

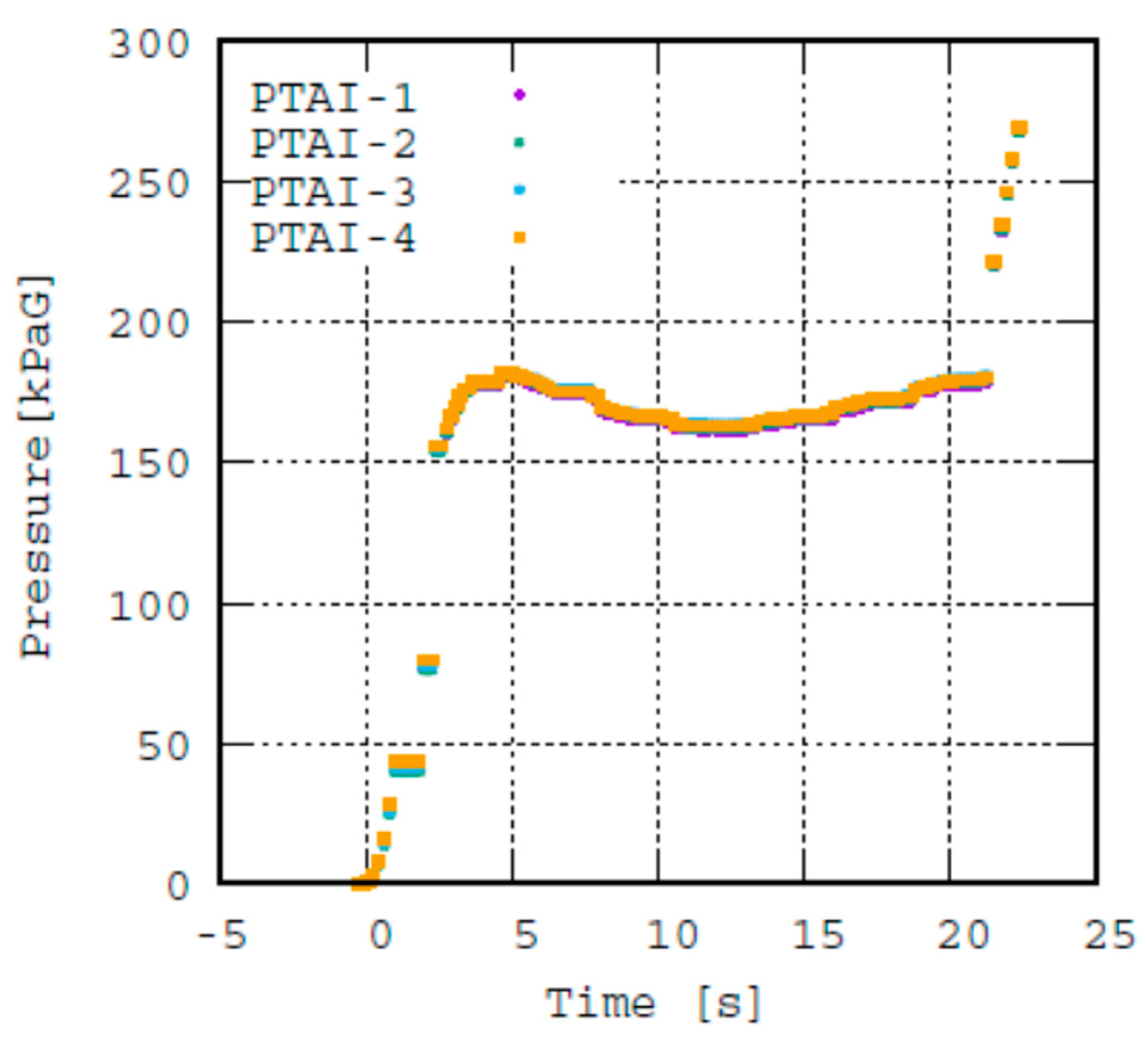

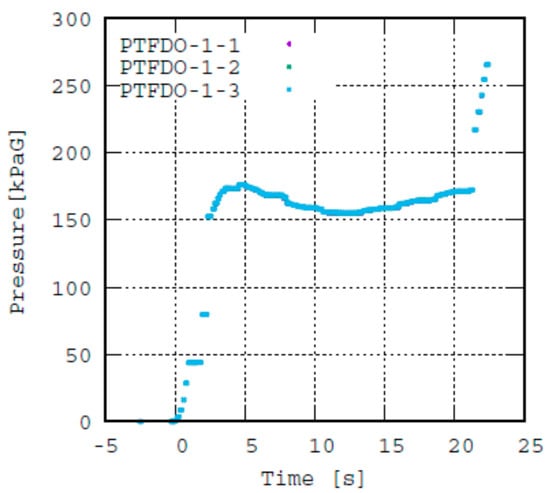

Figure 13 shows the time history of the gauge pressures at the inlet of the pre-cooler. The pre-cooler inlet gauge pressure (PTAI) was 180 kPa at 20 s. Figure 14 shows the time history of the gauge pressures at the exit of the S-shaped duct, which is downstream of the pre-cooler. The pre-cooler exit gauge pressure (PTFDO) was 170 kPa at 20 s. The pressure decrease was 10 kPa, 3.6% of the absolute pressure.

5.6. Pressure Ratio of Compressor and Turbine

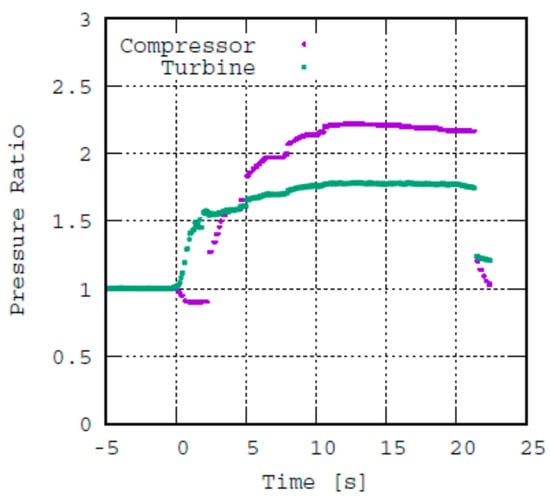

Figure 15 shows the time history of pressure ratios. The compressor pressure ratio was 0.9 from 0 s to 2.5 s, indicating that the compressor was operating as a windmill turbine. The pressure ratio rose above 1.2 at around 3 s, which means the compressor started compression. The pressure ratio was 2.2 at 10 s. The turbine pressure ratio increased gradually from 0 s to 10 s. The pressure ratio was around 1.8 at 10 s.

6. Conclusions

A Mach 4 simulated experiment of the pre-cooled turbojet engine was conducted using liquid hydrogen. As a result, the following results were obtained.

-

The starting sequence of the engine components was confirmed under Mach 4 simulated conditions using liquid hydrogen fuel;

-

There was no damage to the rotating parts of the core engine due to the pre-cooling effect by the end of the experiment;

-

Stable fuel-lean combustion at the main burner and stable fuel-rich combustion at the afterburner were obtained as planned;

-

The temperature decrease in the airflow from 900 K to 430 K was obtained at the pre-cooler;

-

Temperature increases in supercritical hydrogen were obtained at the pre-cooler and fuel evaporator as planned;

-

The compressor pressure ratio of 2.2 and turbine pressure ratio of 1.8 were obtained under simulated Mach 4 flight conditions.
