# Strength Analysis of Alternative Airframe Layouts of Regional Aircraft on the Basis of Automated Parametrical Models

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

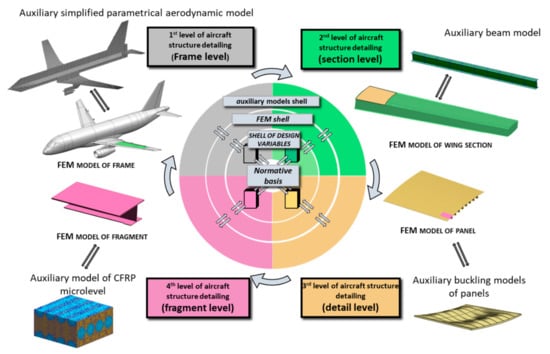

- Global parameterization of airframe structure on the base of common special four-level database.
- Four-level nested FE models according to detailing of the structure.
- Full automation of initial data definition and analysis of calculations results.
- Parallel solving strength tasks on both nested FE models and auxiliary analytical strength models.
- Standard format of input and output data.

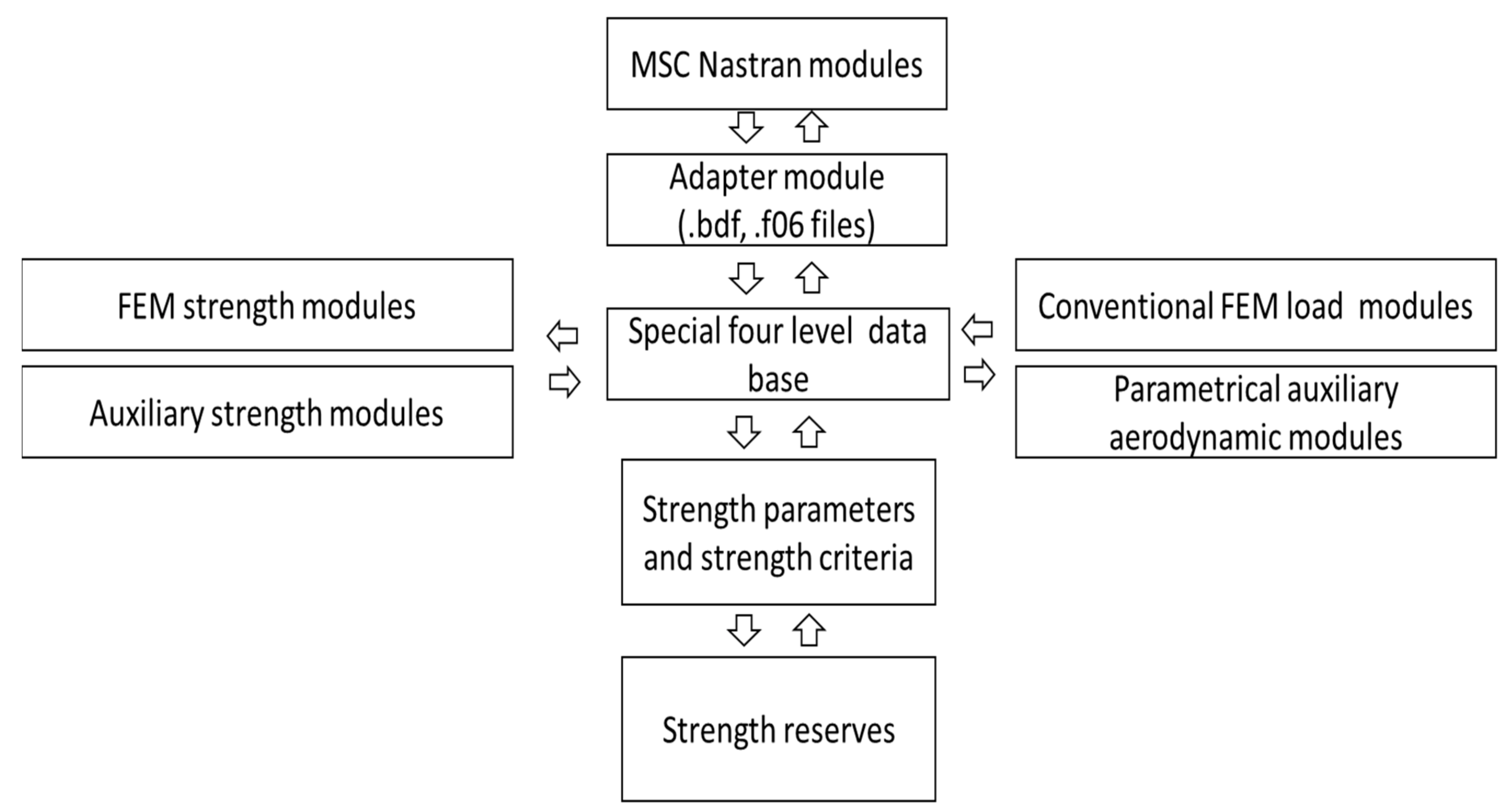

## 2. Airframe Strength Analysis within FLA

## 3. Parametrical Auxiliary Aerodynamic Model for FLA

- Building of surfaces of fuselage crossing,
- Building of lifting surfaces of wing and empennage,
- Building of “bridges” for correct fluid motion,
- Building of surfaces of cowlings and pylons,
- Setting of control surfaces from range of lifting surfaces.

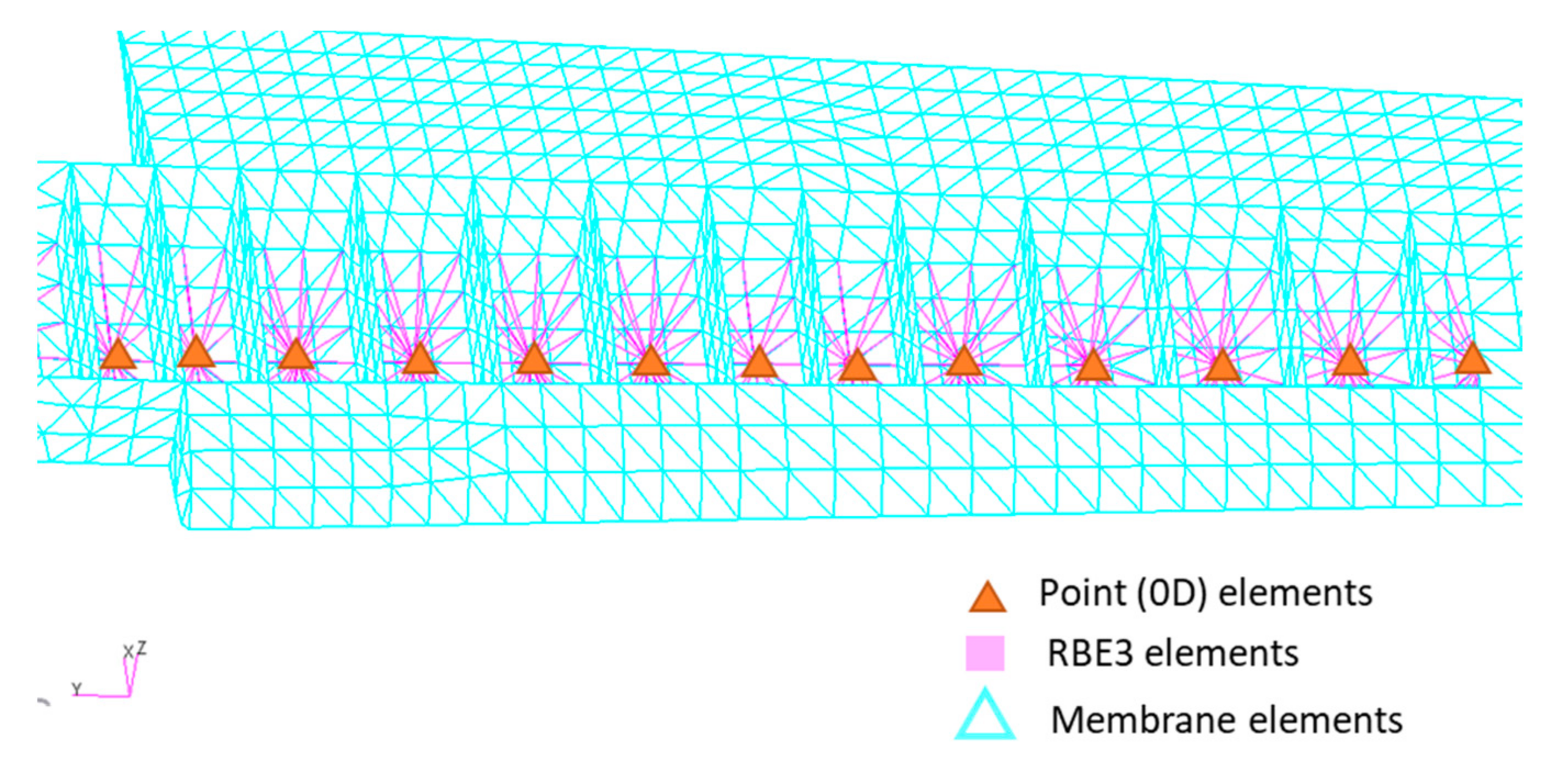

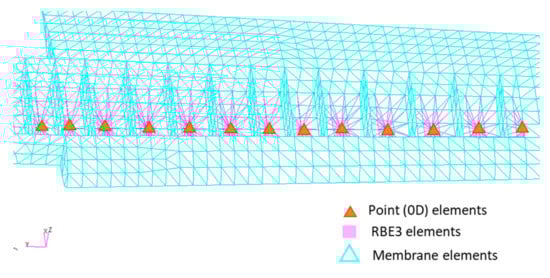

- Structure,
- Fuel,
- Payload,
- Equipment and facility,
- Power unit,
- Landing gear.

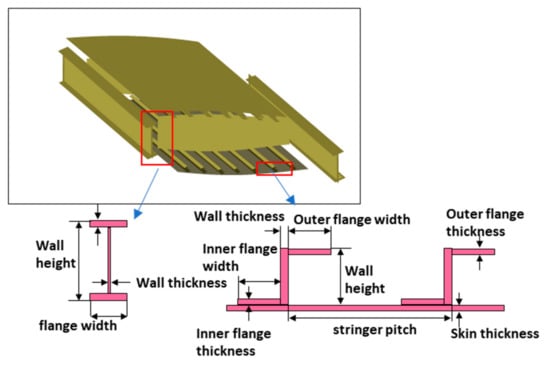

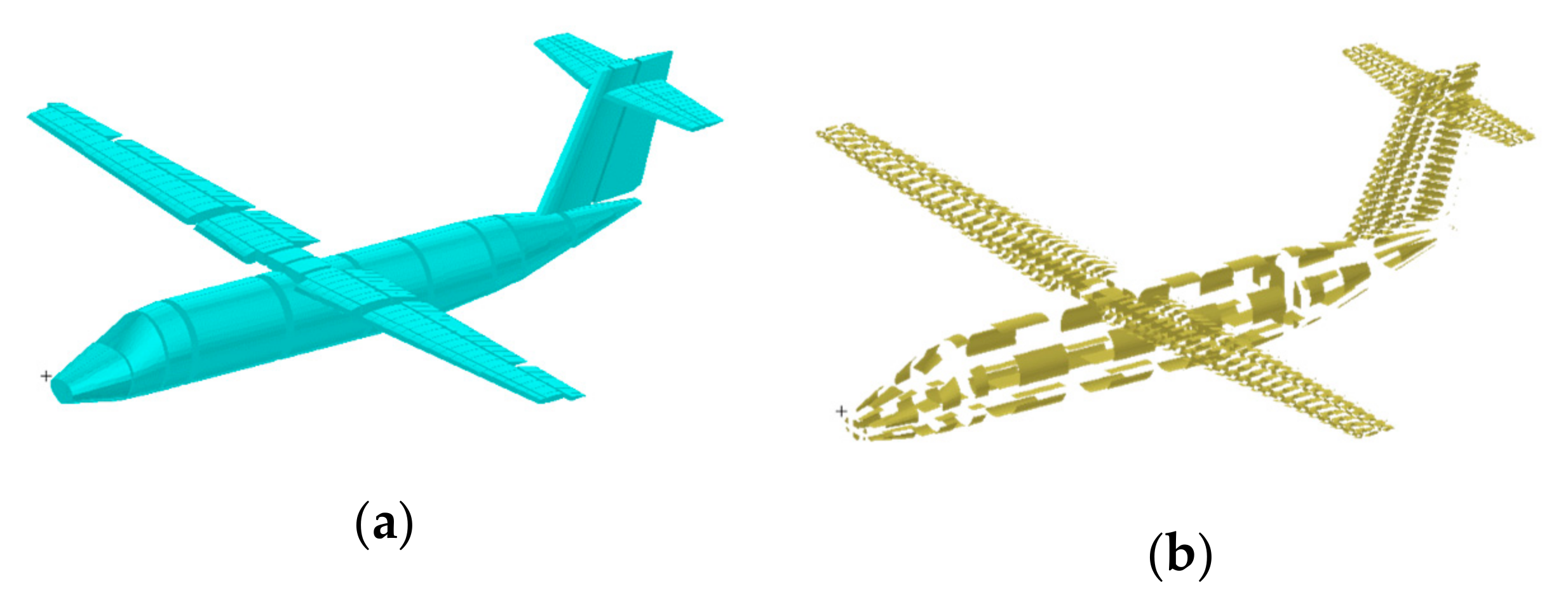

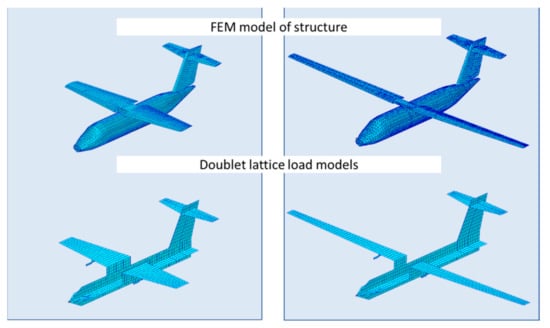

## 4. Validation of SAPAM within the FLA

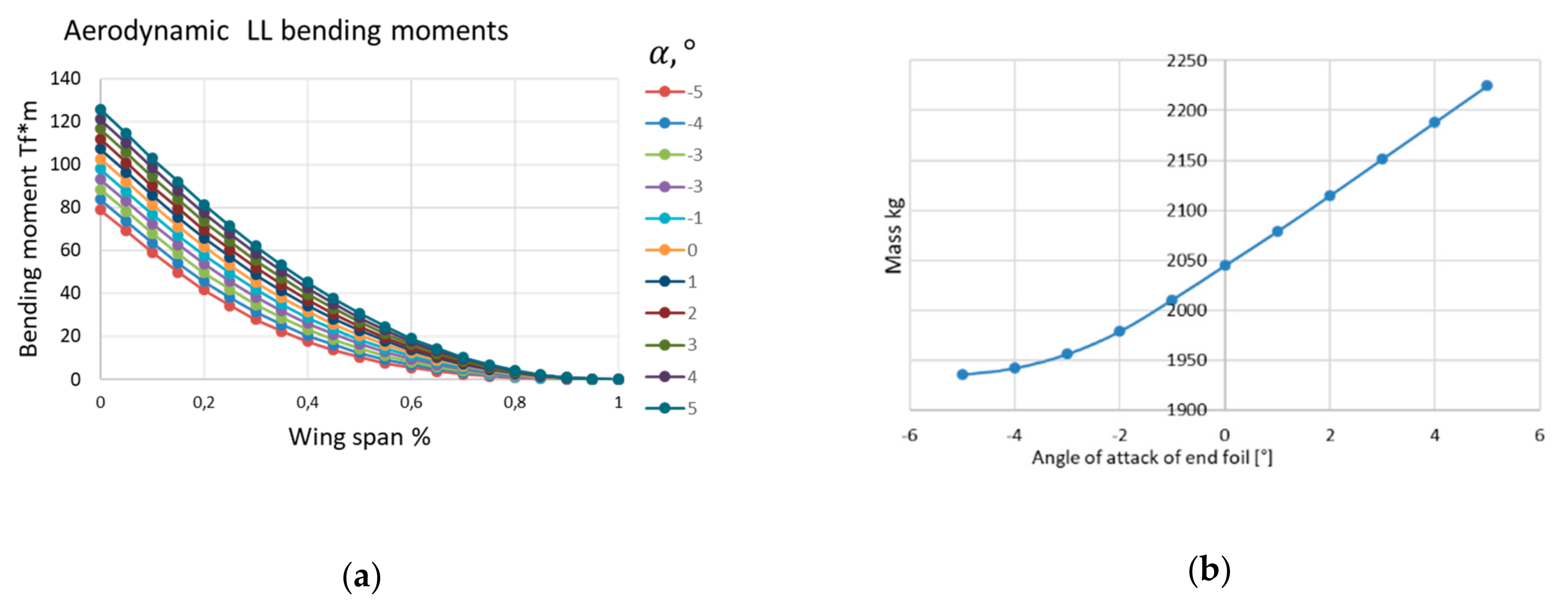

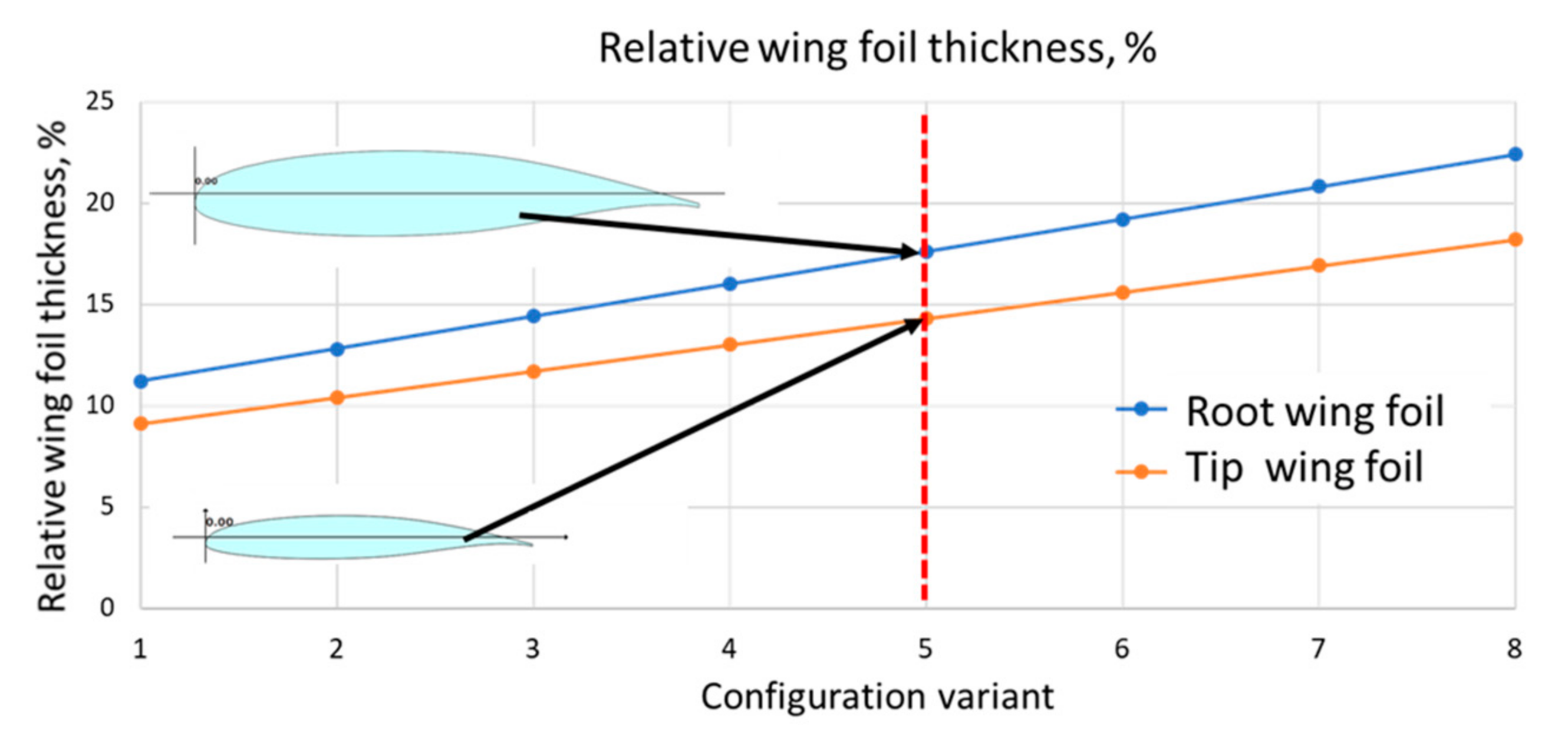

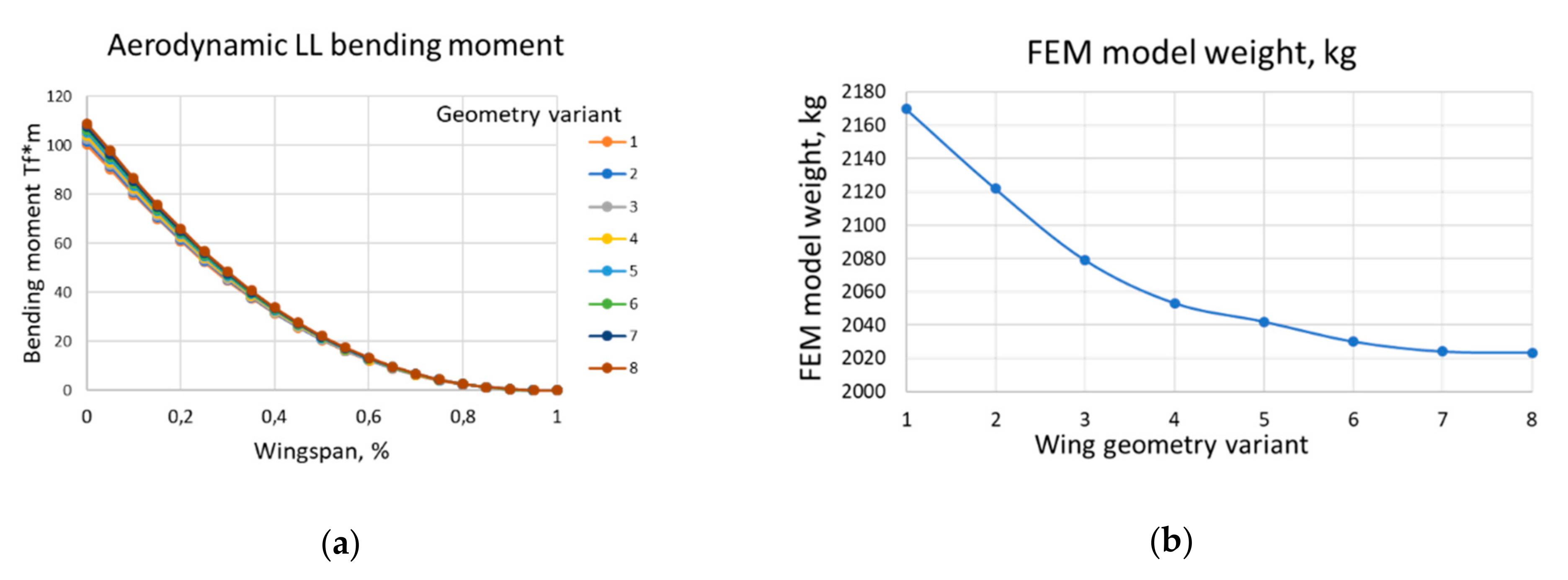

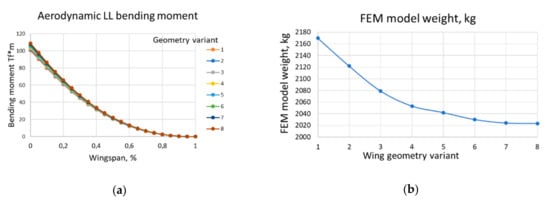

## 5. Validation of the Modified FLA as a Part of Design Procedure

## 6. Time Efficiency of the FLA of Strength Analysis

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Elham, A.; La Rocca, G.; van Tooren, M.J.L. Development and implementation of an advanced, design-sensitive method for wing weight estimation. Aerosp. Sci. Technol.
**2013**, 29, 100–113. [Google Scholar] [CrossRef] - Schuhmacher, G.; Murra, I.; Wang, L.; Laxander, A.; O’Leary, O.; Herold, M. Multidisciplinary Design Optimization of A Regional Aircraft Wing Box. In Proceedings of the 9th AIAA/ISSMO Symposium on Multidisciplinary Analysis and Optimization, Atlanta, GA, USA, 6 September 2002. [Google Scholar]
- Werner-Westphal, C.; Heinze, W.; Horst, P. Structural sizing for an unconventional, environment-friendly aircraft configuration within integrated conceptual design. Aerosp. Sci. Technol.
**2008**, 12, 184–194. [Google Scholar] [CrossRef] - Cavagna, L.; Ricci, S.; Travaglini, L. NeoCASS: An integrated tool for structural sizing, aeroelastic analysis and MDO at conceptual design level. Prog. Aerosp. Sci.
**2011**, 47, 621–635. [Google Scholar] [CrossRef] - Frediani, A.; Oliviero, F. Conceptual Design of an Innovative Large Prandtl Plane Freighter. In Proceedings of the 10th European Workshop on Aircraft Design Education, Naples, Italy, 25 May 2011. [Google Scholar]
- Hürlimann, F. Mass Estimation of Transport Aircraft Wingbox Structures with a CAD/CAE-Based Multidisciplinary Process. Ph.D. Thesis, ETH Zürich, Zürich, Switherland, 2010. [Google Scholar]
- Röhl, P.; Dimitri, N.; Daniel, P. A multilevel decomposition procedure for the preliminary wing design of a high-speed civil transport aircraft. In Proceedings of the 1st Industry/Academy Symposium on Research for Future Supersonic and Hypersonic Vehicles, Greensboro, NC, USA, 4–6 December 1994. [Google Scholar]
- La Rocca, G.; van Tooren, M.J.L. Knowledge-Based Engineering Approach to Support Multidisciplinary Design and Optimization. J. Aircr.
**2009**, 46, 6. [Google Scholar] [CrossRef] [Green Version] - Dorbath, F. A Flexible Wing Modeling and Physical Mass Estimation System for Early Aircraft Design Stages; DLR: Müllheim, Germany, 2014. [Google Scholar]
- Dorbath, F.; Gaida, U. Large Civil Jet Transport (MTOM > 40 t)—Statistical Mass Estimation. In Luftfahrttechnisches Handbuch (LTH) Band Massenanalyse; Luftfahrttechnisches: Handbuch, MA, USA, 2013. [Google Scholar]
- FP7 ALaSCA Project. Available online: http://cordis.europa.eu/result/rcn/149775_en.html (accessed on 12 March 2021).
- FP7 PoLaRBEAR Project. Available online: https://cordis.europa.eu/result/rcn/197045/en (accessed on 12 March 2021).
- Shanygin, A.; Fomin, V.; Zamula, G. 4th-level approach for strength and weight analyses of composite airframe structures. In Proceedings of the 27th Congress of the International Council of the Aeronautical Sciences, Nice, France, 19–24 September 2010. [Google Scholar]
- Dubovikov, E.A. Novel approach and algorithm for searching rational nonconventional airframe concepts of new generation aircrafts. In Proceedings of the 28th Congress of the International Council of the Aeronautical Sciences (ICAS 2012), Brisbane, Australia, 23–28 September 2012. [Google Scholar]
- Albano, E.; Rodden, W.P. A Doublet Lattice Method for Calculating Lift Distributions on Oscillating Surfaces in Subsonic Flows. AIAA J.
**1969**, 7, 279–285. [Google Scholar] [CrossRef] - Rodden, W.P.; Taylor, P.F.; McIntosh, S.C. Further Refinement of the Subsonic Doublet-Lattice Method. AIAA J.
**1998**, 35, 720–727. [Google Scholar] [CrossRef] - MSC.Nastran 2017 Aeroelastic Analysis User’s Guide. Available online: http//mscsoftware.com (accessed on 12 March 2021).
- MSC.Nastran 2017 Installation and Operations Guide. Available online: http//mscsoftware.com (accessed on 12 March 2021).
- Available online: https://www.ecfr.gov/cgi-bin/text-idx?node=14:1.0.1.3.11#sp14.1.25.c (accessed on 12 March 2021).
- Fomin, V.; Mareskin, I.; Sidorova, I. Method of buckling analysis of hybrid rods at preliminary designing of wing caisson with truss structural layout. In Proceedings of the 7th EASN International Conference on Innovation in European Aeronautics Research, Warszawa, Poland, 26–28 September 2017. [Google Scholar]
- Mareskin, I. Multidisciplinary optimization of pro-composite structural layouts of high loaded aircraft constructions. In Proceedings of the 30th Congress of the International Council of the Aeronautical Sciences, Daejeon, Korea, 25–30 September 2016. [Google Scholar]

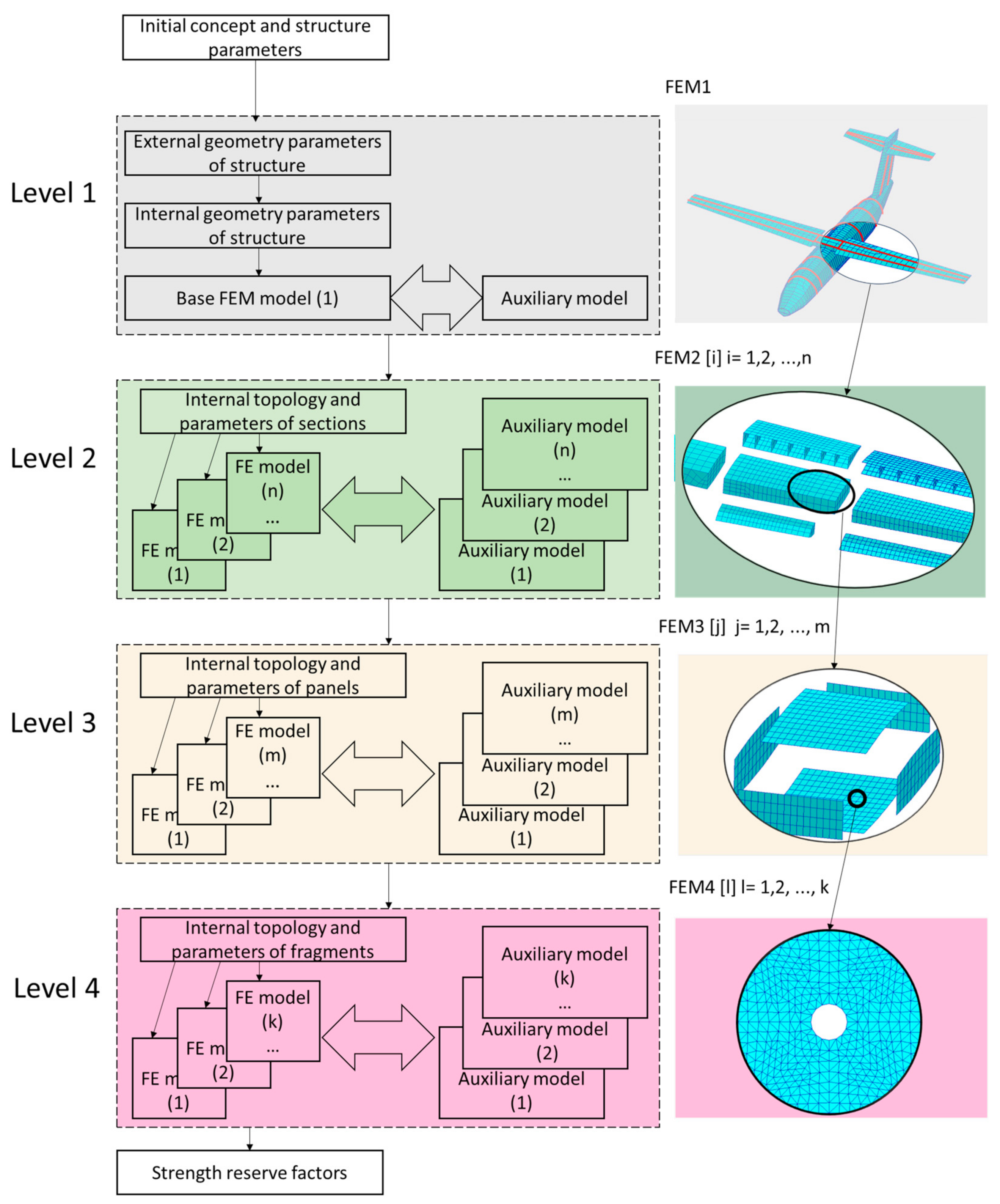

**Figure 3.**Block scheme of the four-level airframe strength models decomposition in strength analysis.

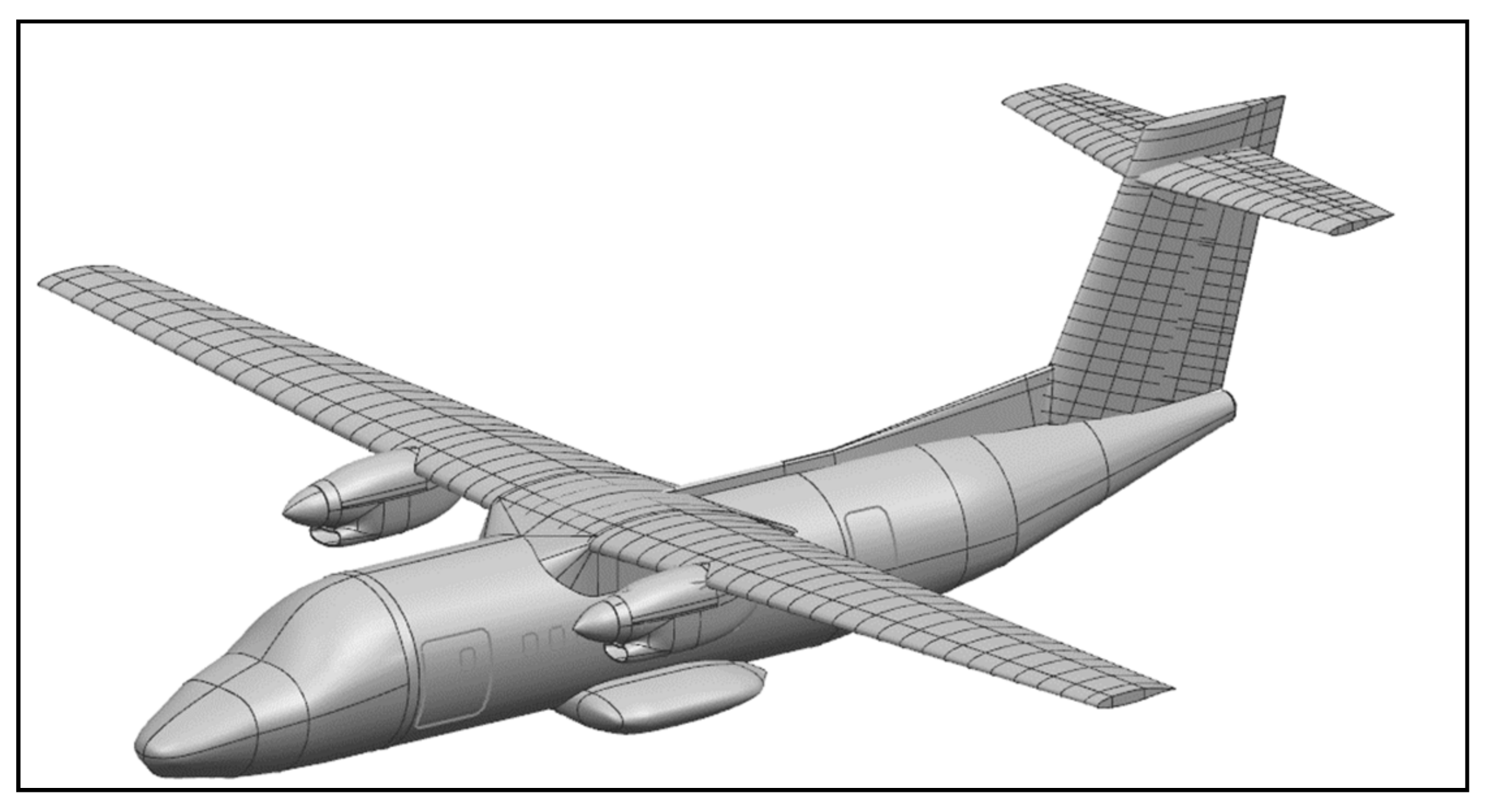

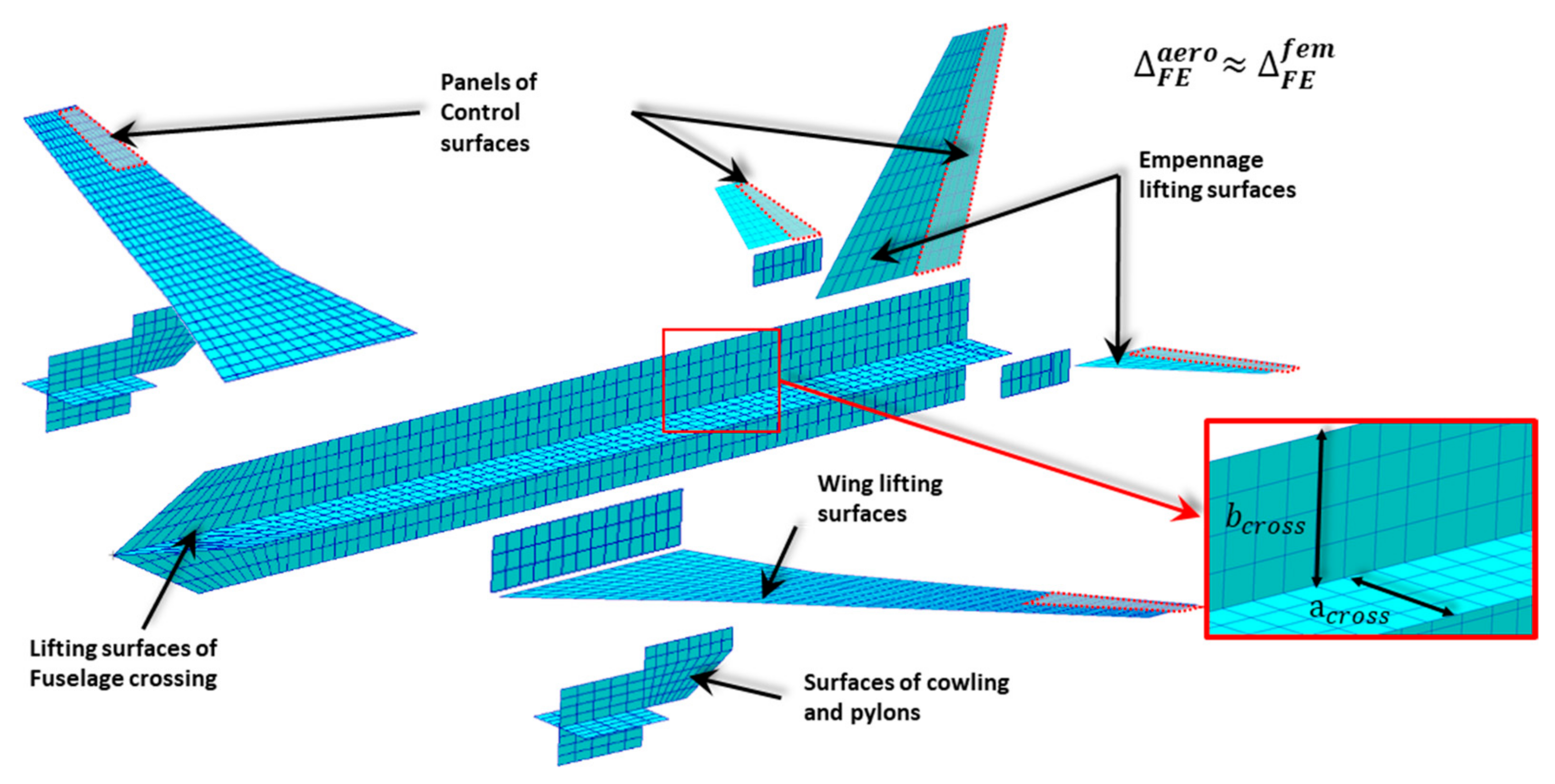

**Figure 4.**General view of simplified auxiliary parametrical aerodynamic model (SAPAM) of an aircraft.

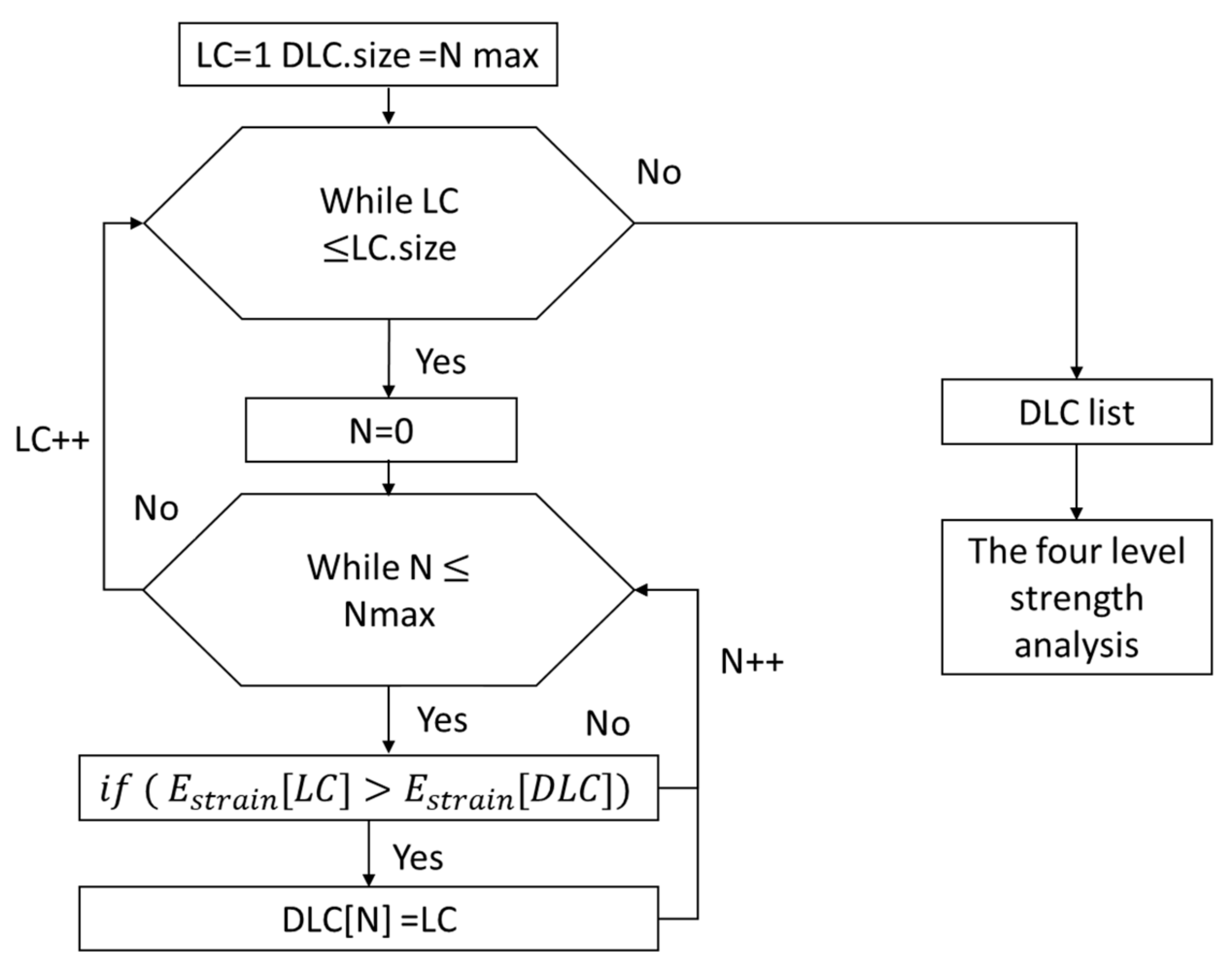

**Figure 16.**The scheme of searching of the wing-design load cases on the base of simple analytic beam model.

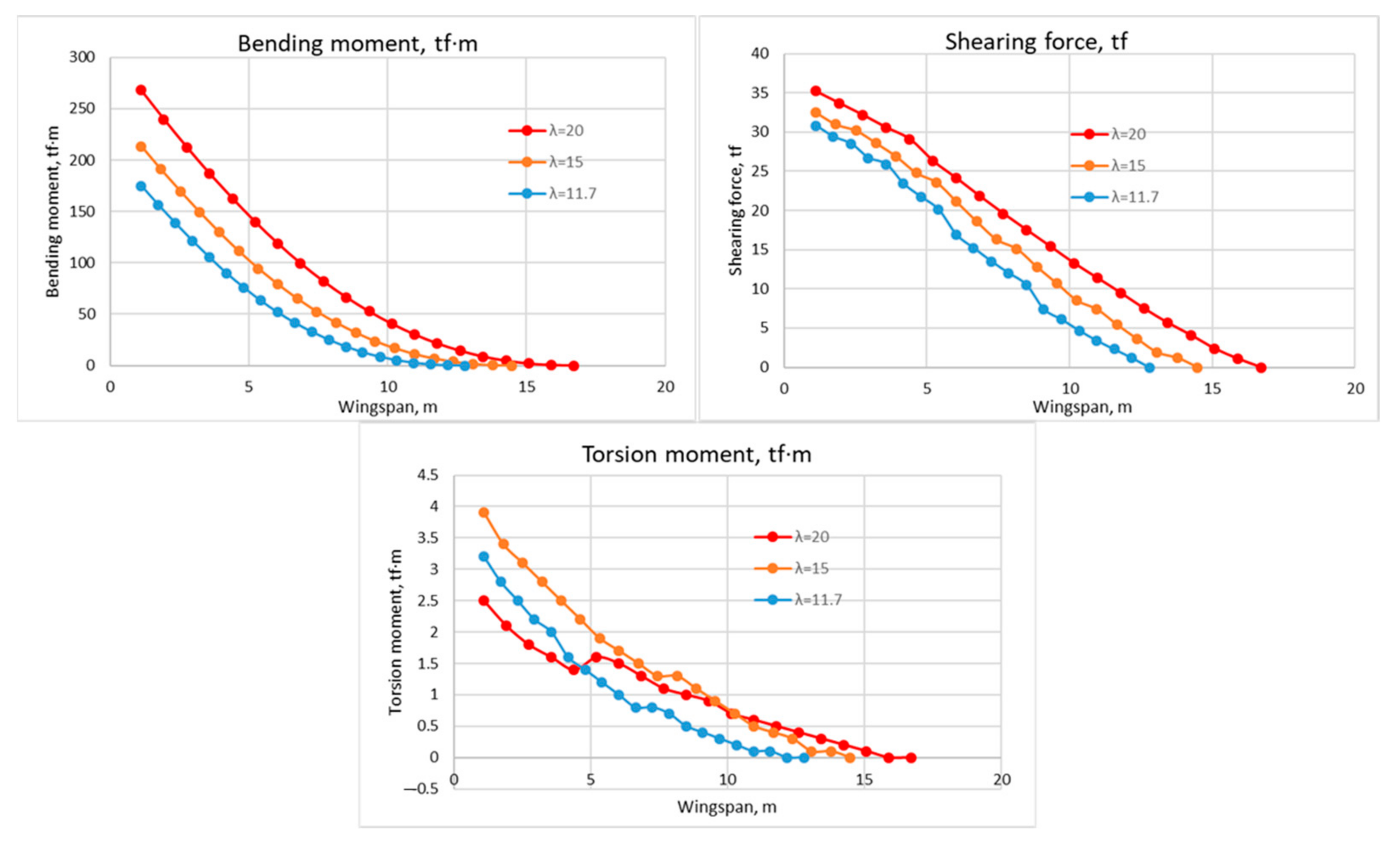

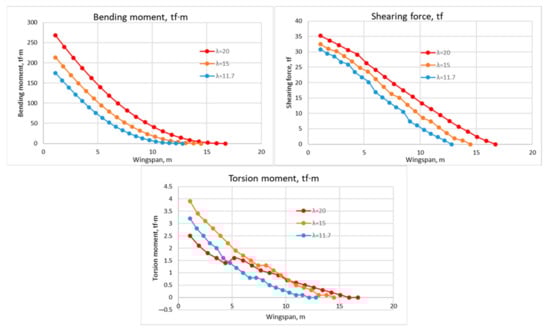

**Figure 17.**Ultimate bending and torsion moments and shearing forces for three variants of wing aspect ratio.

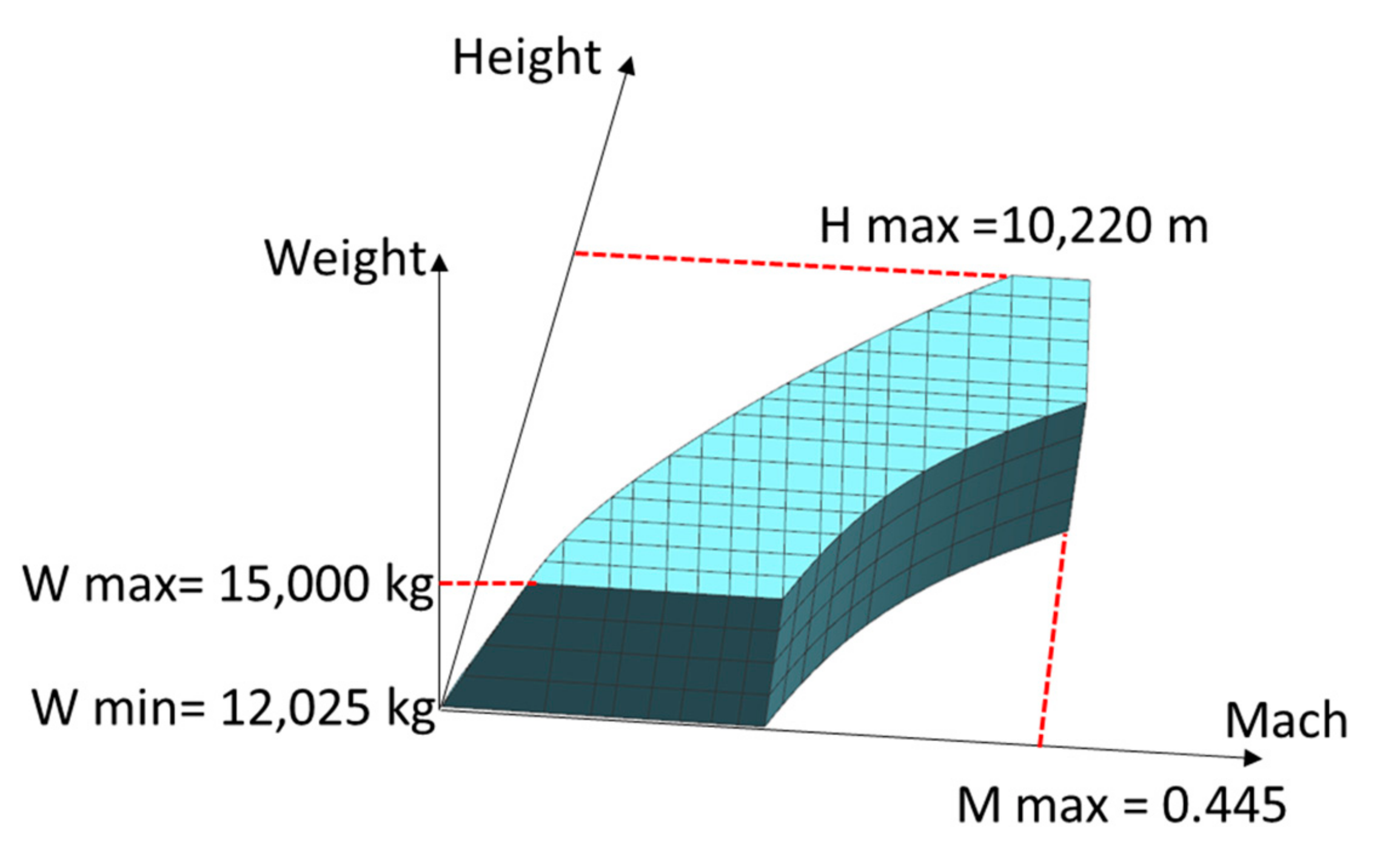

Parameter | Value |
---|---|

Maximum altitude, m | 10,250 |

Maximum speed, km/h | 500 |

Maximum Mach number | 0.445 |

Maximum dynamic pressure, kgf/m^{2} | 1120 |

Altitude at start of cruising, m | 7200 |

Cruise speed, km/h | 400 |

Cruise Mach number | 0.36 |

Maximum Take of Weight, kg | 15,000 |

Maximum landing weight, kg | 13,775 |

Payload, kg | 2750 |

Fuel weight (with maximum payload), kg | 2750 |

Minimum flight weight, kg | 12,025 |

Maximum front gravity center, m | 7.93 |

Maximum aft gravity center, m | 8.155 |

Wingspan, m | 26.1 |

Wing square, m^{2} | 58 |

Fuselage length, m | 19.9 |

Wing Aspect ratio | 11.7 |

Property | Value |
---|---|

Young modulus, Pa | 7.2 × 10^{10} |

Poison ratio | 0.3 |

Shear modulus, Pa | 2.76 × 10^{10} |

Allowable tensile stress, Pa | 3.6 × 10^{8} |

Allowable compress stress, Pa | 4 × 10^{8} |

Allowable shear stress, Pa | 2.05 × 10^{8} |

Density, kg/m^{3} | 2750 |

Case ID | Dynamic Pressure, kgf/mm^{2} | Ny | Mach |
---|---|---|---|

LC1 | 1100 | 2.5 | 0.45 |

LC2 | 324 | 2.5 | 0.212 |

LC3 | 1100 | −1 | 0.45 |

LC4 | 324 | −1 | 0.212 |

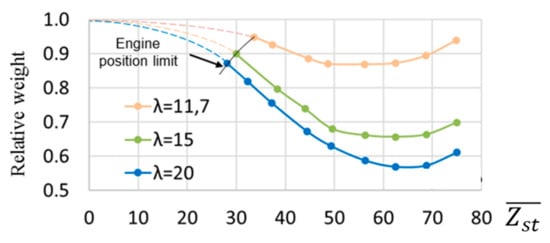

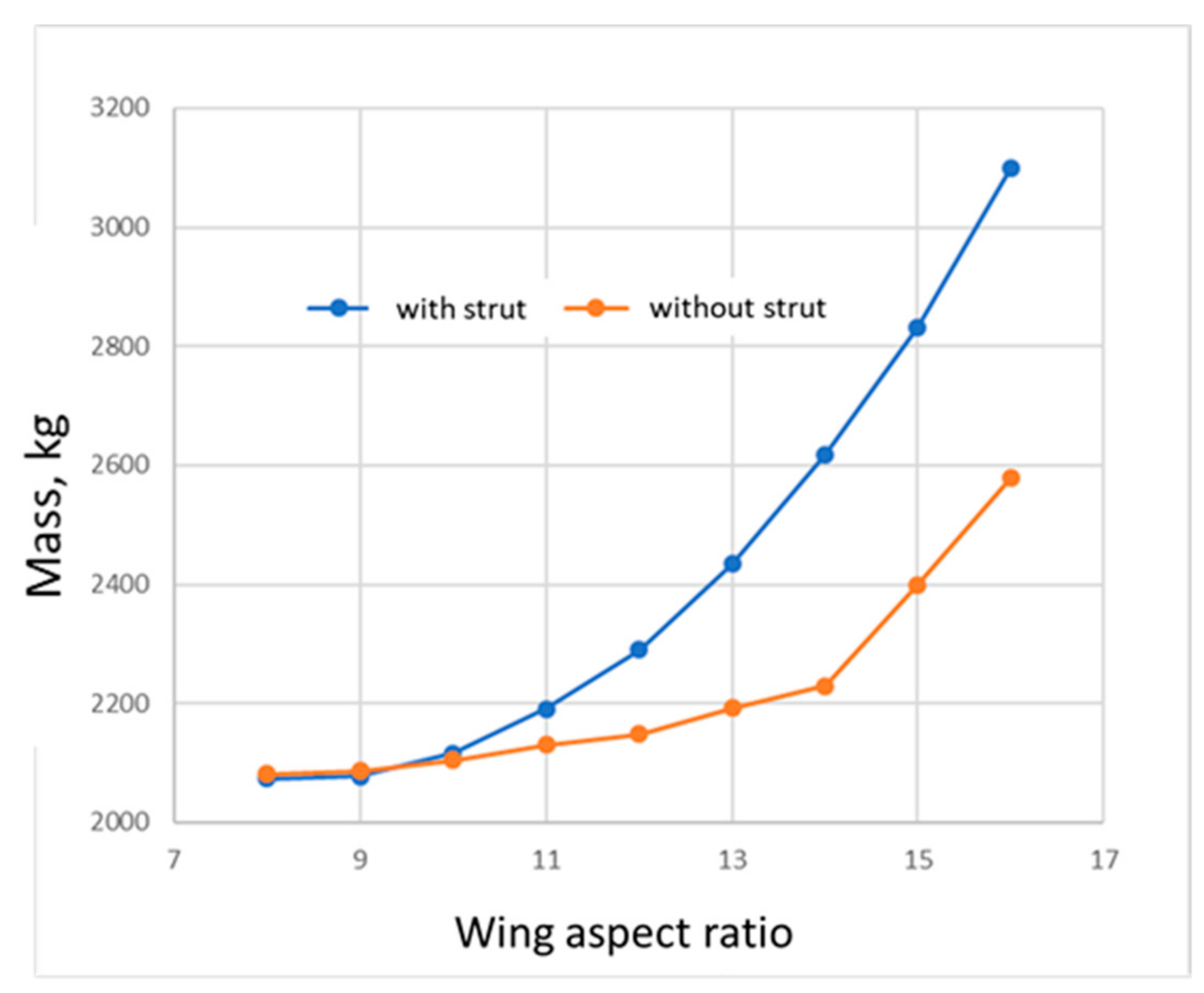

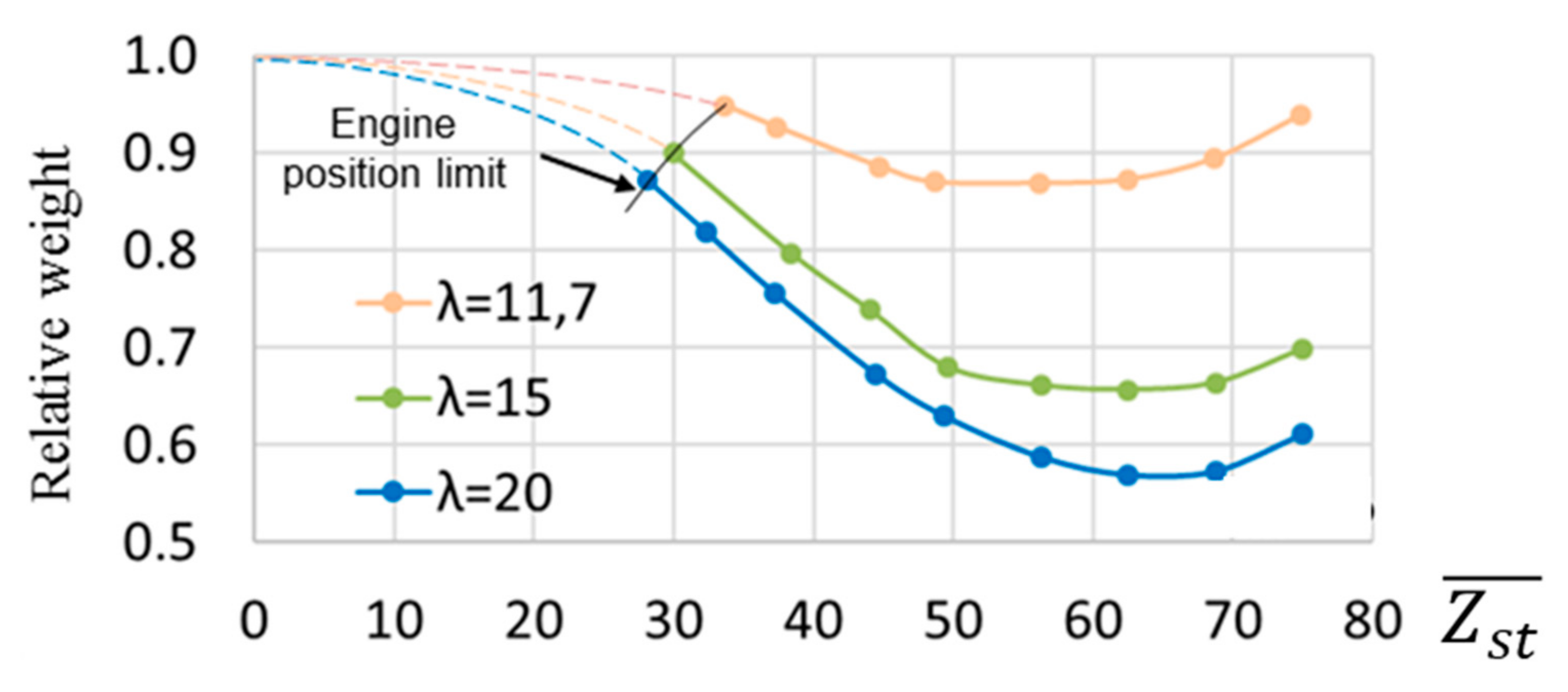

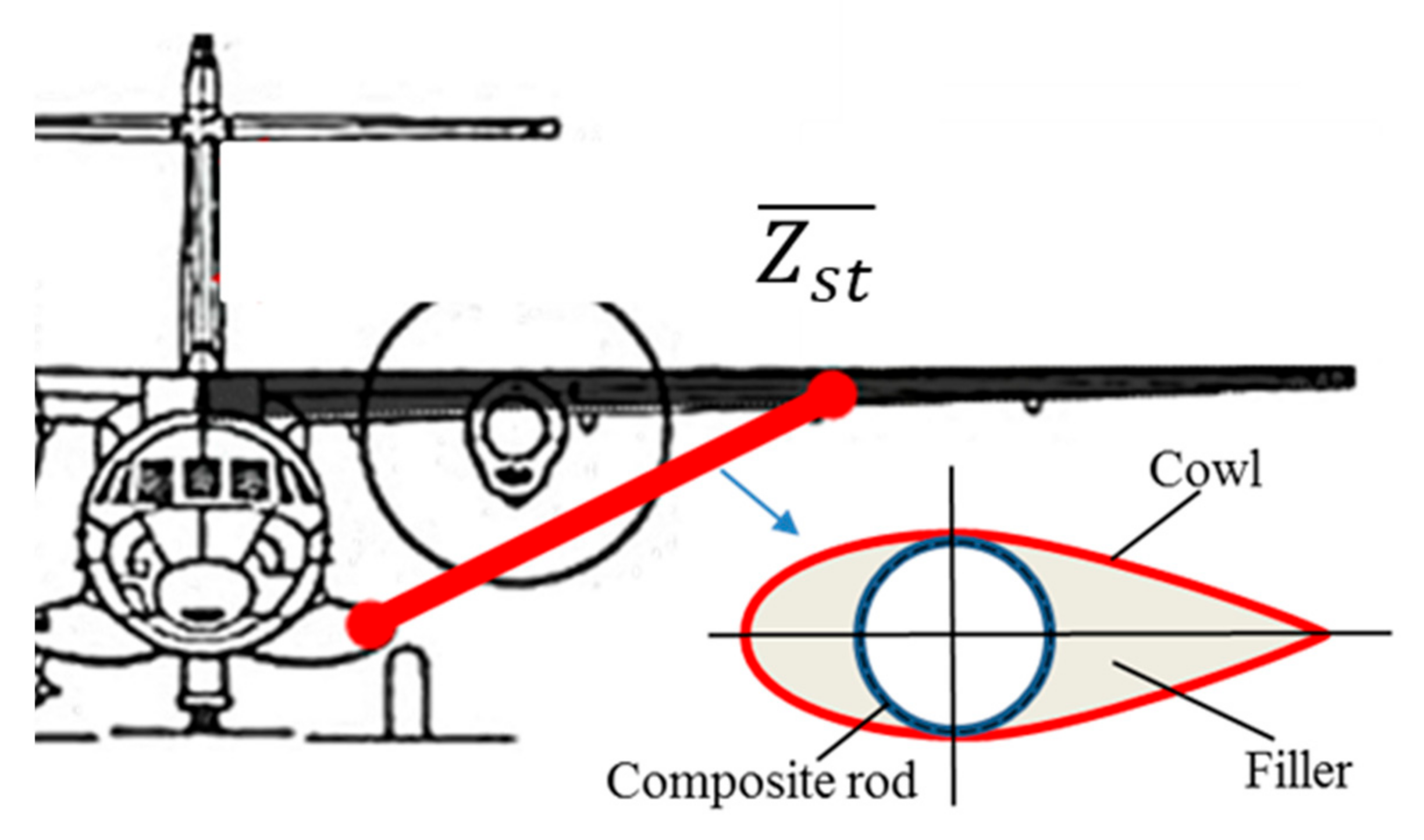

**Table 4.**Weight characteristics of wing, with and without strut, compared to base variant without strut.

Variant | Wing Aspect Ratio | m/m_{0} without Strut, % | m/m_{0} c with Strut, % |
---|---|---|---|

Base | 11.7 | 100 | 87.7 |

1 | 15 | 134 | 93.3 |

2 | 20 | 183 | 116.5 |

**Table 5.**Analysis of labor intensiveness of strength analysis of regional aircraft airframe structure.

Operations | The Base FLA | The Modified FLA | Labor Saving (Time) |
---|---|---|---|

Initial data definition, work hours | 80 | 4 | ≥20 |

Model validation, work hours | 16 | 2 | ≥8 |

Analysis, work hours | 112 | 4 | ≥28 |

Post-processing, work hours | 32 | 2 | ≥16 |

Total, work hours | 240 | 12 | ≥20 |

Finite Element Size, m | ≤0.5 | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.1 |
---|---|---|---|---|---|

Error, strain energy of FEM model, % | 11.6 | 7.6 | 5.3 | 3.9 | 2.1 |

Amount of nodes | 9000 | 16,000 | 28,000 | 40,000 | 112,000 |

Memory, Gb | 0.75 | 1.1 | 2.2 | 4 | 9.6 |

Time of FEM model generation, s | 0.07 | 0.1 | 0.6 | 1.1 | 4.3 |

Nastran simulation time, s | 16 | 23 | 48 | 114 | 480 |

Reading the results of simulations, s | 0.3 | 0.61 | 2.2 | 4.3 | 9.63 |

Buckling analysis, s | 5 | 5 | 5 | 5 | 5 |

Calculation of weight and strength reserves, s | 0.13 | 0.5 | 1.2 | 6.3 | 12.4 |

Total time of iteration, s | 21.5 | 29.21 | 57 | 130.7 | 511.33 |
