Oil Fumes, Flight Safety, and the NTSB
2. Materials and Methods
3.1. Accident Reports

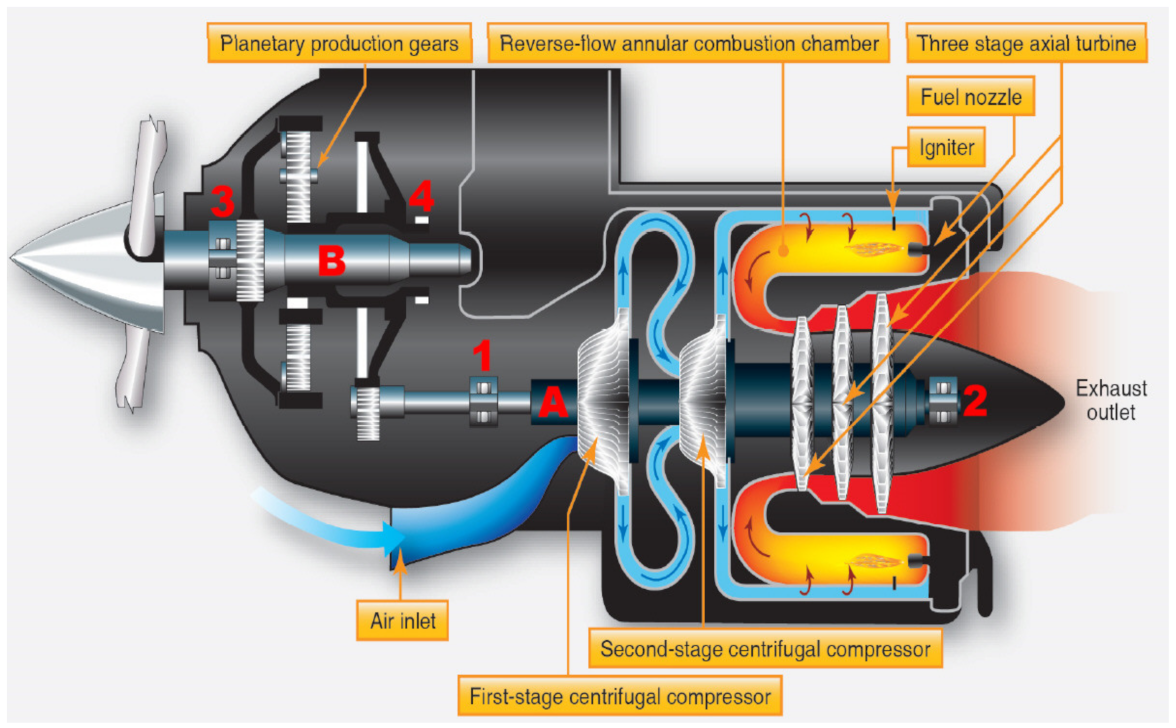

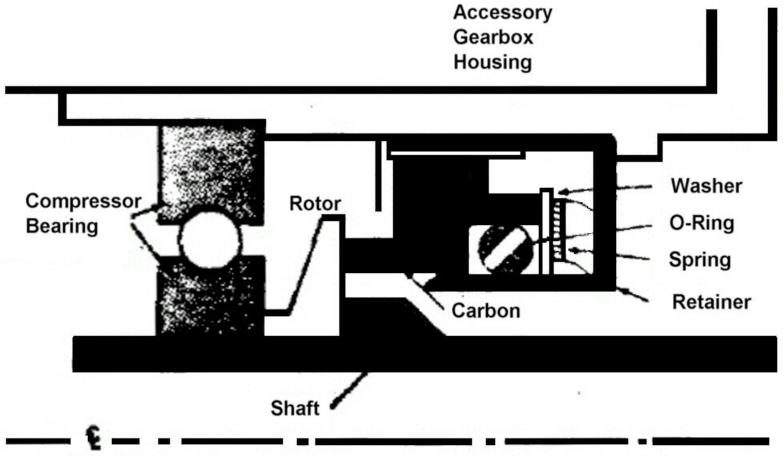

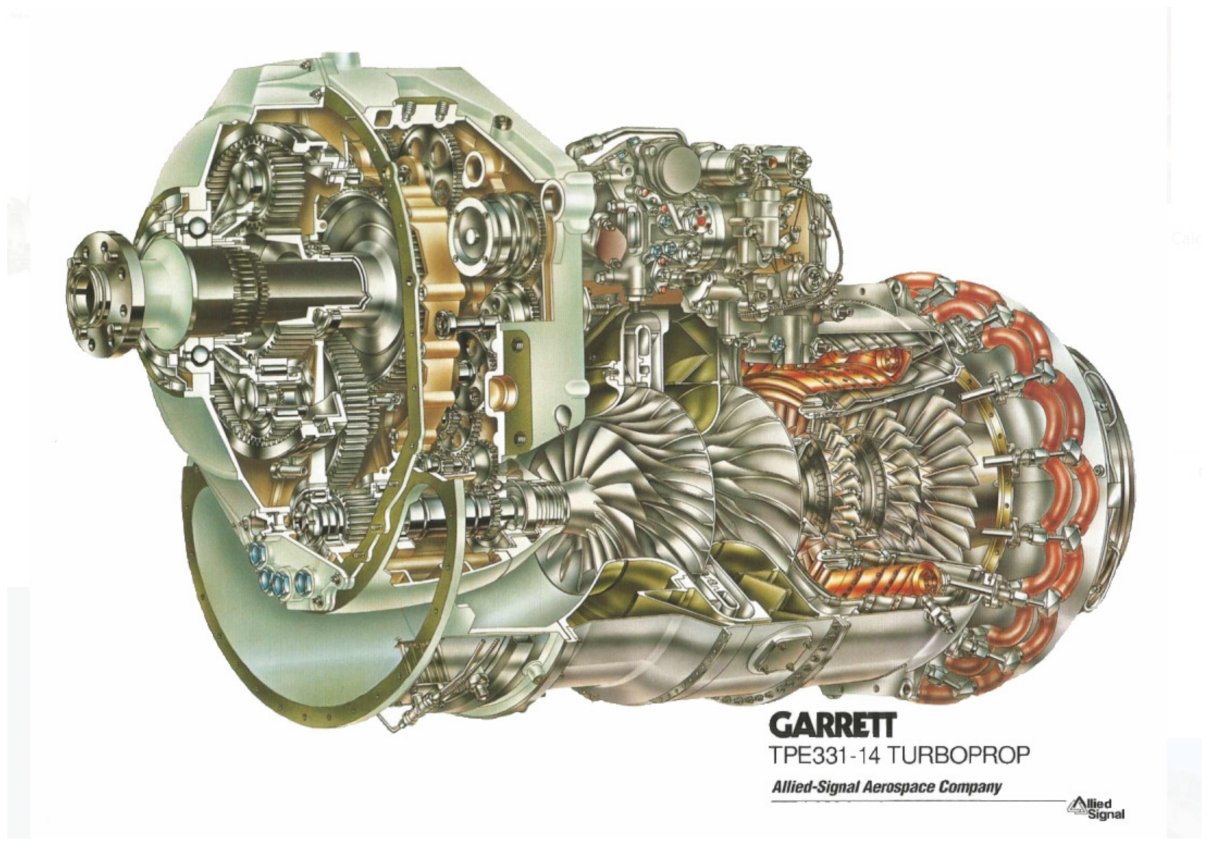

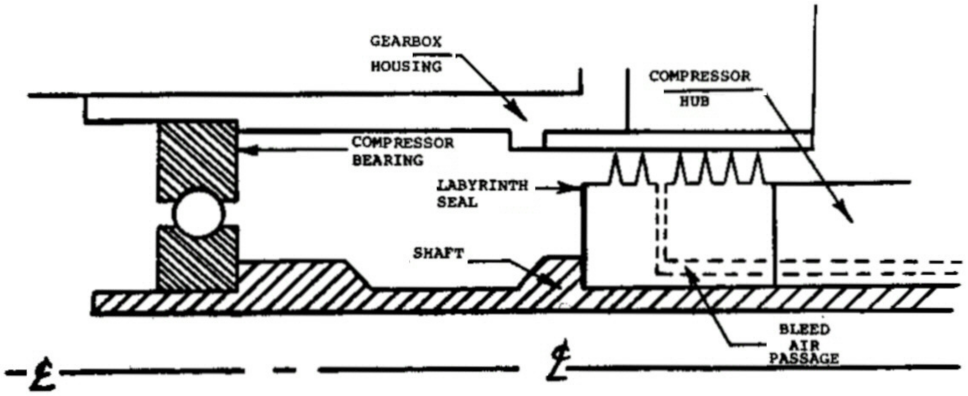

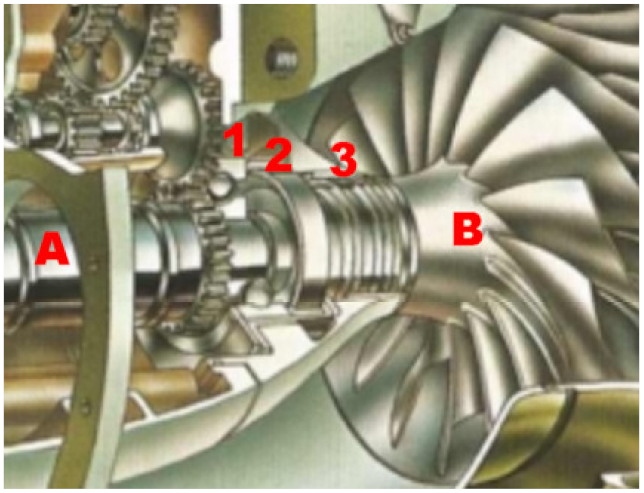

3.2. Description of the TPE331 Engine and Seal Assembly
3.3. Bleed Air Testing
3.3.1. Primary Bleed Air Testing Conditions
3.3.2. Additional Engine Bleed Air Testing
4.1. Accident Reports
4.2. Bearing and Seal Failures in the TPE331 Engine
4.3. Bleed Air Testing
4.5. Exposure Control Measures
- For current aircraft that are equipped with bleed air systems, engineering control measures such as sensors and filters should be mandated to prevent inflight exposure to fumes and, thus, improve flight safety. For new aircraft types, non-bleed air supply systems should be standard.
- Given the flight safety implications, all crewmembers should be trained to recognize and respond to the presence of bleed air contaminants .
- The NTSB should reopen the 1984 report and update the conclusions based on what was known then about oil fumes and flight safety, and considering the data and reports published since then. The NTSB should also issue recommendations to the FAA on necessary actions to minimize the flight safety impacts of exposure to oil fumes.
- Until suitably protective measures are implemented fleet-wide, the NTSB should consider pilot impairment from bleed-sourced fumes as a potential casual factor in future aircraft accident investigations. This is particularly important when an accident includes either relevant maintenance history or a pilot’s failure to communicate, for example.
- If only to avoid the appearance of bias, future investigations should be independent of all commercial interests. Even though it is not unusual for the NTSB to include the FAA and manufacturers in accident investigations, both the poorly conceived design of the air sampling trials and the sweeping conclusions, suggest that commercial conflicts influenced this project.
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
|CAMI||United States Civil Aeromedical Institute|
|CFR||United States Code of Federal Regulations|
|CS||Certification Specification (issued by EASA)|
|EASA||European Union Aviation Safety Agency|
|FAA||United States Federal Aviation Administration (issued by the FAA)|
|FAR||United States Federal Aviation Regulation|
|lb/hr||pounds per hour|
|NTSB||United States National Transportation Safety Board|
|psia||pound-force per square inch absolute (relative to zero or absolute vacuum)|
|psig||pound-force per square inch gauge (relative to atmospheric pressure; at sea level 14.7psi)|
|rpm||revolution per minute|
- Scholz, D. Aircraft cabin air and engine oil—An engineering view. In Proceedings of the 2017 International Aircraft Cabin Air Conference, London, UK, 19–20 September 2017. [Google Scholar] [CrossRef]
- Michaelis, S. Aircraft clean air requirements using bleed air systems. Engineering 2018, 10, 142–172. [Google Scholar] [CrossRef][Green Version]
- UK Air Accidents Investigation Branch (AAIB). Bulletin No. AAIB-26125, Airbus A320-232, G-EUYB; UK Department for Transport: Aldershot, UK, 2020; Available online: https://perma.cc/GWD2-RWVW (accessed on 30 September 2021).
- Bundesstelle für Flugunfalluntersuchung (BFU). Study of Reported Occurrences in Conjunction with Cabin Air Quality in Commercial Transport Aircraft. Report No. BFU 803.1-14; German Federal Bureau of Aviation Accident Investigation: Braunschweig, Germany, 2014; Available online: https://perma.cc/XPR9-GE6E (accessed on 30 September 2021).
- Civil Aviation Accident and Incident Investigation Commission (CIAIAC). Interim Statement A-008/2013: Accident Occurred to Aircraft Boeing B-757-300, Registration D-ABOC, Operated by Condor Flugdienst GmbH, at Gran Canaria Airport on 22 March 2013; Civil Aviation Accident and Incident Investigation Commission (CIAIAC): Madrid, Spain, 2014; Available online: https://perma.cc/89DJ-Y42Q (accessed on 1 October 2021).
- UK Air Accidents Investigation Branch (AAIB). Bulletin No. 3/2013, Boeing 757-28A, G-FCLA, EW/G2012/10/09; UK Department for Transport: Aldershot, UK, 2013; Available online: https://perma.cc/QE5D-SLDX (accessed on 30 September 2021).
- Swiss Aircraft Accident Investigation Bureau (SAAIB). Investigation Report Concerning the Serious Incident to Aircraft AVRO 146-RJ 100, HB-IXN Operated by Swiss International Air Lines Ltd. Under Flight Number LX1103 on 19 April 2005 on Approach to Zurich-Kloten Airport; Swiss Aircraft Accident Investigation Bureau (SAAIB): Berne, Switzerland, 2006; Available online: https://perma.cc/3GK4-KPPE (accessed on 1 October 2021).
- Federal Aviation Administration (FAA). Airworthiness Directive 2004-12-05: BAE Systems (Operations) Limited Model BAe 146 Series Airplanes. Docket No. 2003-NR-94-AD; Federal Aviation Administration (FAA): Washington, DC, USA, 2004. [Google Scholar]
- Bobb, A.J.; Still, K.R. Known Harmful Effects of Constituents of Jet Oil Smoke; Naval Health Research Center, Toxicology Detachment, Wright-Patterson Air Force Base: Dayton, OH, USA, 2003. [Google Scholar] [CrossRef]
- Kelso, A.G.; Charlesworth, J.M.; McVea, G.G. Contamination of Environmental Control Systems in Hercules Aircraft: MRL-R-1116, AR-005-230; Australian Government Department of Defence: Melbourne, Australia, 1988; Available online: https://perma.cc/WS8C-B83F (accessed on 22 October 2021).
- Rayman, R.B.; McNaughton, G.B. Smoke/fumes in the cockpit. Aviat. Space Environ. Med. 1983, 54, 738–740. [Google Scholar] [PubMed]
- Montgomery, M.R.; Wier, G.T.; Zieve, F.J.; Anders, M.W. Human intoxication following inhalation exposure to synthetic jet lubricating oil. Clin. Toxicol. 1977, 11, 423–426. [Google Scholar] [CrossRef]
- White, J.J. Carbon Monoxide and Its Relation to Aircraft. United States Naval Medical Bulletin; United States Government Printing Office: Washington, DC, USA, 1932; Available online: https://perma.cc/B4NW-DULT (accessed on 1 October 2021).
- Armstrong, H.G. Noxious fluids and gases in aviation: Hot oil fumes. In Principles and Practice of Aviation Medicine; Williams and Wilkins Company: Baltimore, MD, USA, 1939; pp. 178–180. [Google Scholar]
- Douglas Aircraft Corporation (DAC). Suitability of Engine High Pressure Bleed Air for Environmental Control Usage—Assurance Tests; Douglas Aircraft Corporation (DAC): Santa Monica, CA, USA, 1966; Available online: https://perma.cc/6EPA-DM8X (accessed on 1 October 2021).
- US National Transportation Safety Board (NTSB). Special Investigation Report: An Evaluation of the Garrett TPE 331 Engine’s Potential for Turbine Oil By-Product Contamination of an Aircraft Cabin Environmental System. Report No. NTSB/SIR-84/01; US National Transportation Safety Board (NTSB): Washington, DC, USA, 1984; Available online: https://perma.cc/T46K-FRUS (accessed on 1 October 2021).
- Crane, C.R.; Sanders, D.C.; Endecott, B.R.; Abbott, J.K. Inhalation Toxicology: III. Evaluation of Thermal Degradation Products from Aircraft and Automobile Engine Oils, Aircraft Hydraulic Fluid, and Mineral Oil; Report No. FAA-AM-83-12; US Federal Aviation Administration (FAA) Office of Aviation Medicine: Washington, DC, USA, 1983; Available online: https://perma.cc/V6CN-GCDU (accessed on 1 October 2021).
- US Federal Aviation Administration (FAA). Airplanes Flying Handbook, FAA-H-8083-3C; US Federal Aviation Administration Flight Standards Service: Washington, DC, USA, 2021; Available online: https://n2t.net/ark:/13960/t3720ss1s (accessed on 28 October 2021).
- Kugellager Express GmbH. Ball-Bearing 6204, Open. Picture. 2021. Available online: https://perma.cc/E6C6-93GJ (accessed on 4 November 2021).
- The Archive. British Aerospace Memorabilia, Garrett TPE331 Turboprop. 2020. Available online: https://perma.cc/3CXE-NQQ9 (accessed on 3 November 2021).
- Hecker, S. IV.B.1. Engine oil and hydraulic fluid sample analysis. In Cabin Air Quality Incidents Project Report; Occupational Health Research Consortium in Aviation (OHRCA): Eugene, OR, USA, 2014; Available online: https://perma.cc/WD9K-499J (accessed on 22 October 2021).
- Anderson, J. Sources of onboard fumes and smoke reported by U.S. airlines. Aerospace 2021, 8, 122. [Google Scholar] [CrossRef]
- Horne, T.A. Turbine Pilot Used Turbine Review: Mitsubishi MU-2s; Aircraft Owners and Pilots Association (AOPA): Frederick, MD, USA, 1994; Available online: https://perma.cc/P5FK-RQHF (accessed on 22 October 2021).
- Bureau of Air Safety Investigation (BASI). MU-2 Accident Investigation and Research Report; Bureau of Air Safety Investigation (BASI): Canberra, Australia, 1992; Available online: https://perma.cc/3FLS-LL82 (accessed on 22 October 2021).
- Lebeda, A. Mitsubishi MU-2B. Photograph. 2005. Available online: https://commons.wikimedia.org/wiki/File:Mitsubishi_MU-2B_AN1706942.jpg (accessed on 21 October 2021).
- McDougall, G.; Cho, D.W. Estimating practical maximum flight hours for general aviation turboprop and jet aircraft. Transp. Res. Rec. 1989, 1214, 52–55. Available online: https://perma.cc/SHX7-5YQ4 (accessed on 22 October 2021).
- Michaelis, S. Air Accident Bureau incident reports—Case study review. In Proceedings of the 2021 International Aircraft Cabin Air Conference, Online, 15–18 March 2021. [Google Scholar] [CrossRef]
- UK Air Accidents Investigation Branch (AAIB). Bulletin No. 6/2009, Boeing 757-204, G-BYAO, EW/C2006/10/08; UK Air Accidents Investigation Branch (AAIB): Aldershot, UK, 2009; Available online: https://perma.cc/TQX5-TASE (accessed on 29 October 2021).
- UK Air Accidents Investigation Branch (AAIB). Bulletin No. 5/2013, Airbus A321-131, D-AIRX, EW/G2012/10/12; UK Air Accidents Investigation Branch (AAIB): Aldershot, UK, 2009; Available online: https://perma.cc/JRK4-CKSZ (accessed on 29 October 2021).
- Blumenfeld, L. A clean APU means clean cabin air. Flight Airworth. Support Technol. (FAST) 2013, 52, 4–9, Airbus SAS. Available online: https://perma.cc/ZK7P-JZ8V (accessed on 29 October 2021).
- French Bureau of Enquiry and Analysis for Civil Aviation Safety (BEA). Serious Incident to the Airbus A320-214 Registered EC-HQJ on 17 November 2017 en Route between Geneva and Barcelona. Report No. BEA2017-0658; French Bureau of Enquiry and Analysis for Civil Aviation Safety (BEA): Paris, France, 2020; Available online: https://perma.cc/2FMQ-VGVW (accessed on 2 November 2021).
- Australian Transport Safety Bureau (ATSB). An Analysis of Fumes and Smoke Events in Australian Aviation, 2008–2012; Aviation Research Report AR-2013-213; Australian Transport Safety Bureau (ATSB): Canberra, Australia, 2014; Available online: https://perma.cc/7P3W-WDDU (accessed on 5 October 2021).
- Parliament of the Commonwealth of Australia (PCA). Air Safety and Cabin Air Quality in the BAE 146 Aircraft; Senate Rural and Regional Affairs and Transport References Committee of the Parliament of the Commonwealth of Australia: Canberra, Australia, 2000; Available online: https://perma.cc/QPB3-RUL3 (accessed on 6 October 2021)ISBN 0-642-71093-7.
- Rannsóknarnefnd Flugslysa (RNF). Final Report: Aircraft Serious Incident—Smoke in Flight Deck and Cabin, Engine Shut Down and an Emergency Landing; Report No. M-01409/AIG-09; Rannsóknarnefnd Flugslysa (RNF): Reykjavik, Iceland, 2009; Available online: https://perma.cc/6DDS-R9TA (accessed on 6 October 2021).
- Air Accident Investigation Unit (AAIU). Serious Incident: Boeing 737-8AS, EI-EFB near Stansted, United Kingdom; Report No. 2016-013; Ireland Department of Transport, Tourism, and Sport Air Accident Investigation Unit: Dublin, Ireland, 2016; Available online: https://perma.cc/DKR2-AZNX (accessed on 25 October 2021).
- New Zealand Transport Accident Investigation Commission (TAIC). Dornier 228-202 ZK-VIR. Partial Incapacitation of Flight Crew en Route Westport to Christchurch, 30 March 2007; Report No. 07-002; New Zealand Transport Accident Investigation Commission (TAIC): Auckland, New Zealand, 2008; Available online: https://perma.cc/9A4F-RMTA (accessed on 8 October 2021).
- Statens Haverikommission (SHK). Accident Investigation into Incident Onboard Aircraft SE-DRE during Flight between Stockholm and Malmo M County, Sweden; Report No. RJ 2001:41e; Statens Haverikommission (SHK): Stockholm, Sweden, 2001; Available online: https://perma.cc/K2RT-FXKZ (accessed on 1 October 2021).
- Scholz, D. Aircraft cabin air and engine oil—An engineering view. J. Health Pollut. 2019, 9, 93–98. [Google Scholar] [CrossRef]
- Australian Transport Safety Bureau (ATSB). In-Flight Engine Failure 23 km N of Ardrossan, SA 25 July 2007 VH-OAA Cessna Aircraft Company “Conquest II” 441. Aviation Occurrence Investigation—AO-2007-030; Australian Transport Safety Bureau (ATSB): Canberra, Australia, 2009; Available online: https://perma.cc/A3WS-3R7Q (accessed on 2 November 2021).
- Crump, D.; Harrison, P.; Walton, C. Aircraft Cabin Air Sampling Study: Part 1 of the Final Report; Institute of Environment and Health: Cranfield, UK, 2011; Available online: https://perma.cc/G3FA-Q8LL (accessed on 22 October 2021).
- Michaelis, S.; Loraine, T.; Howard, C.V. Ultrafine particle levels measured on board short-haul commercial passenger jet aircraft. Environ. Health 2021, 20, 1–14. [Google Scholar] [CrossRef] [PubMed]
- Williams, P.I.; Trembath, J. Simultaneous inboard and outboard, inflight measurements of ultrafine particle concentrations. Aerosol Sci. Technol. 2021, 55, 614–622. [Google Scholar] [CrossRef]
- Howard, C.V.; Johnson, D.W.; Morton, J.; Michaelis, S.; Supplee, D.; Burdon, J. Is a cumulative exposure to a background aerosol of nanoparticles part of the causal mechanism of aerotoxic syndrome? J. Nanomed. Nanosci. Res. 2018, 139, https://perma.cc/2CU6–L7HN. Available online: https://perma.cc/2CU6-L7HN (accessed on 15 October 2021).
- Jones, B.W.; Amiri, S.N.; Roth, J.W.; Hosni, M.H. The nature of particulates in aircraft bleed air resulting from oil contamination. Paper no. LV-17-C046. In Proceedings of the 2017 ASHRAE Winter Conference, Las Vegas, NV, USA, 28 January–1 February 2017; American Society of Heating Refrigerating and Air Conditioning Engineers: Atlanta, GA, USA. Available online: https://perma.cc/UAS8-BTLH (accessed on 22 October 2021).
- Civil Aeronautics Board (CAB). Section 4b.371(b): Ventilation, Heating, and Pressurization. Civil Air Regulations Part 4b: Airplane Airworthiness Transport Categories; Civil Aeronautics Board (CAB): Washington, DC, USA, 1953; Available online: https://perma.cc/JS2Y-TMPH (accessed on 22 October 2021).
- Federal Aviation Administration Office (FAA). Aircraft Cabin Bleed Air Contaminants: A Review. Report No. DOT/FAA/AM-15/20; Federal Aviation Administration Office of Aerospace Medicine: Washington, DC, USA, 2015; Available online: https://perma.cc/ZF7Z-P45P (accessed on 5 October 2021).
- Spengler, J.D.; Vallarino, J.; McNeely, E.; Estephan, H. In-Flight/Onboard Monitoring: ACER’s Component for ASHRAE 1262, Part 2; Report No. RITE-ACER-CoE-2012-6; National Air Transportation Center of Excellence for Research in the Intermodal Transport Environment (RITE), Airliner Cabin Environment Research (ACER) Program: Boston, MA, USA, 2012; Available online: https://perma.cc/D68W-XW56 (accessed on 6 October 2021).
- UK Civil Aviation Authority (CAA). Cabin Air Quality: Report 2004/04; UK Civil Aviation Authority (CAA): West Sussex, UK, 2004; Available online: https://perma.cc/MP4H-3AUG (accessed on 22 October 2021).
- Chen, R.; Fang, L.; Liu, J.; Herbig, B.; Norrefeldt, V.; Mayer, F.; Fox, R.; Wargocki, P. Cabin air quality on non-smoking commercial flights: A review of published data on airborne pollutants. Indoor Air 2021, 31, 926–957. [Google Scholar] [CrossRef] [PubMed]
- Waters, M.A.; Bloom, T.F.; Grajewski, B.; Deddens, J. Measurements of indoor air quality on commercial transport aircraft. In Proceedings of the 9th International Conference on Indoor Air Quality and Climate, Santa Cruz, CA, USA, 30 June–5 July 2002; pp. 782–787. Available online: https://perma.cc/M86Y-QMP2 (accessed on 8 October 2021).
- Howard, C.V. Inappropriate use of risk assessment in addressing health hazards posed by civil aircraft cabin air. Open Access J. Toxicol. 2020, 4, 049–056. [Google Scholar] [CrossRef]
- Watterson, A.; Michaelis, S. Use of exposure standards in aviation. 2017 Int. Aircr. Cabin Air Conf. 2019, 9, S132–S137. [Google Scholar] [CrossRef][Green Version]
- Michaelis, S. Aviation Contaminated Air Reference Manual; Printed and bound by CPI Antony Rowe: Eastbourne, UK, 2007; ISBN 978-0-9555672-0-9. [Google Scholar]
- American Conference of Governmental Industrial Hygienists (ACGIH). Appendix E: Threshold limit values for mixtures. In TLVs and BEIs Based on the Documentation of Threshold Limit Values for Chemical Substances and Physical Agents and Biological Exposure Indices; American Conference of Governmental Industrial Hygienists: Cincinnati, OH, USA, 2021. [Google Scholar]
- Gilinskiy, V.A.; Chapek, A.V.; Kozlova, A.G.; Kulikova, N.M.; Loshak, A.Y. The effects of low concentrations of carbon monoxide on man in pressurized cabins of passenger planes. In Aviation and Space Medicine, NASA Technical Translation F-228; Parin, V.V., Ed.; US National Aeronautics and Space Administration: Washington, DC, USA, 1964; Available online: https://perma.cc/XAB2-KETY (accessed on 1 October 2021).
- United States Air Force (USAF). Environmental Control Airborne. Appendix B: Air Force Guide Specification MIL-E-87145A; United States Air Force Wright Patterson Air Force Base: Dayton, OH, USA, 1992; Available online: https://perma.cc/N8UV-CTAV (accessed on 1 October 2021).
- Reddall, H.A. Elimination of engine bleed air contamination. In Proceedings of the SAE Golden Anniversary Aeronautic Meeting, Los Angeles, CA, USA, 11–15 October 1955; Available online: https://perma.cc/9WMT-CESM (accessed on 1 October 2021).
- UK Air Accidents Investigation Branch (AAIB). Bulletin 4/2007, Bombardier DHC-8-400, G-JECE, EQ/C2005/08/10; UK Air Accidents Investigation Branch (AAIB): Aldershot, UK, 2007; Available online: https://perma.cc/L2GG-ZSLX (accessed on 6 October 2021).
- American Society of Heating, Refrigerating, and Air Conditioning Engineers (ASHRAE). Guideline 28-2021: Air Quality within Commercial Aircraft; American Society of Heating, Refrigerating, and Air Conditioning Engineers (ASHRAE): Atlanta, GA, USA, 2021. Available online: https://www.techstreet.com/ashrae/searches/33473309 (accessed on 28 October 2021).
- American Society of Heating, Refrigerating, and Air Conditioning Engineers (ASHRAE). ANSI/ASHRAE Standard 161-2018: Air Quality within Commercial Aircraft; American Society of Heating, Refrigerating, and Air Conditioning Engineers (ASHRAE): Atlanta, GA, USA, 2018. Available online: https://www.techstreet.com/ashrae/searches/33473313 (accessed on 28 October 2021).
- International Civil Aviation Organization (ICAO). Guidelines on Education, Training, and Reporting Practices Related to Fume Events. Circular 344-AN/202; International Civil Aviation Organization (ICAO): Montreal, QC, Canada, 2015; Available online: https://www.icao.int (accessed on 1 November 2021).
|Location||Aircraft Type||Registration No.|
|1||1979-08-03||Hays, Kansas||Mitsubishi MU-2B||N208MA|
|2||1979-11-01||Nashville, Tennessee||Mitsubishi MU-2F||N8730|
|3||1979-12-21||Provo, Utah||Mitsubishi MU-2B-20||N2-OBR|
|4||1980-01-11||Atlantic Ocean||Cessna 441||N441NC|
|5||1980-02-14||Near Houston, Texas||Mitsubishi MU_2B-35||N346MA|
|6||1980-02-23||New Orleans, Louisiana||Mitsubishi MU-2-40||N962MA|
|7||1980-12-06||Ramsey, Minnesota||Mitsubishi MU-2-40||N969MA|
|8||1980-12-15||Richmond, Indiana||Mitsubishi MU-2B-30||N93UM|
|9||1981-01-07||Burns, Oregon||Aero Commander 690B||N81521|
|10||1981-04-22||Alpena, Michigan||Mitsubishi MU-2B-20||N9JS|
|Crash No.||NTSB Report No.||Flight Phase, Time of Day, Weather||Pilot Age (Years), Flight Time (h)||Probable Causes/Factors (per NTSB)||No. Deaths ***|
|1 **||MKC79FA046||cruise, night, “clear”||34;|
|Forward main shaft bearing failed; improper inflight decisions; failed to obtain or maintain flying speed.||7|
|2||IAD80FA007||descent, night, three-mile visibility, dry, light fog||PIC age redacted; 1498.|
Copilot age redacted;
|Pilot-in-command (PIC) misjudged the distance and altitude on final approach; inadequate supervision of flight; failed to use checklist.||5|
|3||DEN80FA012||approach, night, “visibility was around one mile”||46;|
|Inadequate pre-flight preparation or planning; improper Instrument Flight Rules (IFR) operation; misjudged altitude; Pilot could not find runway; aircraft came to rest in water.||2|
|4 *||IAD80AA018||descent, night, check||47;|
|Miscellaneous, undetermined; unable to obtain a response from crew; uncontrolled descent; aircraft came to rest in water.||3|
|5||FTW80FA042||approach, evening, two-mile visibility, rain showers||45;|
|Improper IFR operation; altimeter setting incorrect.||4|
|6 **||FTW80FA048||approach, morning, 0.25-mile visibility, fog||51;|
hrs. not reported
|Improper IFR operation; crashed into water.||7|
|7 **||CHI81FA010||approach, afternoon, “good” weather||54;|
|Failed to obtain/maintain speed; icing conditions, including sleet, frozen rain, etc.||5|
|8||CHI81FEG03||approach, night, dense fog||59;|
|Improper IFR operation; icing conditions, including sleet, frozen rain, etc.||0|
|9 **||SEA81FA015||approach, afternoon, overcast, 15-mile visibility, wind calm||32;|
|Miscellaneous/undetermined; uncontrolled collision with ground/water.||2|
|10||CHI81FA051||approach, night, two-mile visibility, light rain, fog||53;|
|Improper IFR operation; crash on final approach, 1.6 miles short of runway; cause unknown.||3|
|Test No.||Carbon Seal Intact|
|Oil Added to|
|Glass Filter in Bleed Air Line?||Reflects Potential Onboard|
|3a–3f||intact||yes; 2–12 lb/hr||yes||no|
|5b||missing||yes; “dirty start”||yes||no|
|14 CFR § 25.831(b) * “Ventilation”||Design||“The aircraft air supply system must be designed to ensure that crew and passenger compartment air [is] free from harmful or hazardous concentrations of gases or vapors.”|
|14 CFR § 25.831(b)(1)“Ventilation”||Design||The carbon monoxide concentration in the cabin and flight deck supply air must not exceed 50 ppm.|
|14 CFR § 25.1309(c) “Equipment, systems, and installation”||Design||“Warning information must be provided to alert the crew to unsafe system operating conditions, and to enable them to take appropriate corrective action. Systems, controls, and associated monitoring and warning means must be designed to minimize crew errors which could create additional hazards.”|
|14 CFR § 121.703(a)(5) “Service difficulty reports”||Operation||Airlines “shall report the occurrence or detection of each failure, malfunction, or defect concerning…[a] aircraft component that causes accumulation or circulation of smoke, vapor, or toxic or noxious fumes in the crew compartment or passenger cabin during flight.”|
|14 CFR § 121.705“Mechanical interruption summary report”||Operation||Airlines shall report each “interruption to a scheduled flight,” such as a diversion, cancellation, or tail swap, caused by known or suspected mechanical difficulties or malfunctions that are not required to be reported under the 14 CFR § 121.703.|
|FAA Order 8020.11D (Chapter 6 and FAA Form 8020-23)||Operation||Airlines shall report accidents and occurrences which are associated with the operation of an aircraft and affect (or could affect) the safety of operation, including smoke/fumes.|
|Crash No.||Description of Crash Conditions|
|1||The NTSB report describes how, when the pilot was en route, at what may have been top of climb, the pilot “reported a loss of oil pressure in the right engine.” At the same time, “the pilot reported smoke and fumes in the cabin.” A few minutes later, the pilot reported that he had shut down the right engine. He then stopped communicating with air traffic control and crashed into a field without putting the landing gear down (per witness reports). The subsequent teardown of the right engine “revealed that the forward main shaft bearing had failed.”|
|6||The NTSB report describes how, on approach, the pilot stopped responding to air traffic control. The aircraft descended into a lake and “all aboard perished.” The report goes on to say that “[d]uring the course of the investigation, it was reported by various persons that the aircraft had a history of smoke, fumes, and carbon monoxide collecting in the cockpit and cabin area...Examination of the interior of the subject aircraft environmental control system revealed an oily residue in the portion which is supplied by the left engine [with a history of a cracked carbon seal] while that supplied by the right engine was clean.”|
|7||The NTSB report describes how, on approach, the pilot did not respond to air traffic control instructions. Witness reports described how the aircraft came out of the clouds spinning with the nose down and crashed into a field. In the engine tear down report, there were references to “black dirt deposits found throughout the entire gas path of the engine… [including] the bleed air ports…” The NTSB report stated that the pilot had failed to obtain/maintain speed and the cause of the crash was unknown.|
|9||The NTSB report describes how ground witnesses observed the aircraft flying away from the airport maneuvering erratically. The aircraft crossed a highway, pitched up steeply, fell, and crashed. The engine tear down was “to determine the condition of the carbon seal and bearing located between the compressor section and gearbox section.” The report concluded that “one carbon seal, due to the discoloring of the oil slinger, was leaking some oil past the face.“ The report also noted that “Bonneville Power maintenance personnel felt the amount of leakage was insignificant,” but the basis for their claim and their qualification to make it were not provided.|
|Trial No.||Description of Sampling Conditions|
|1–2||These two trials were intended to characterize background levels of contaminants in the bleed air stream. The engine compressor carbon seal was intact, and a glass wool filter was installed in the bleed line. Moreover, oil was not purposefully injected into the bleed air stream.|
|3a–3f||These six trials were intended to characterize levels of oil-based contaminants in the bleed air stream through an intact engine compressor carbon seal and a glass wool filter. Oil was injected into the bleed air stream for 90 min at a rate of 2–12 pounds per hour while the bleed air was sampled for carbon monoxide, carbon dioxide, nitrous oxides, and hydrocarbons.|
|3g||This trial was intended to characterize levels of oil-based contaminants in the bleed air stream through an intact engine compressor carbon seal but without a glass wool filter in the bleed stream. The tester injected oil for 15 min, during which time the same gaseous bleed air measurements were made.|
|4||This trial was intended to simulate the potential for worst-case bleed air contamination by removing the engine compressor carbon seal. Of note, though, a glass wool filter was installed in the sampling line and no oil was injected.|
|5a||During this trial, the tester did not collect measurements but ran the engine for 10 min and then shut it down to prepare for a “dirty start” in the following test.|
|5b||During this trial, the engine underwent a simulated “dirty start” which involved internal oil ingestion. The tester measured the concentrations of carbon monoxide, carbon dioxide, nitrous oxides, and hydrocarbons for the first 10 min after the engine was started.|
