Turbojet Thrust Augmentation through a Variable Exhaust Nozzle with Active Disturbance Rejection Control

Abstract

Turbojets require variable exhaust nozzles to fit high-demanding applications; however, few reports on nozzle control are available. The purpose of this paper is to investigate the possible advantages of an exhaust gas control through a variable exhaust nozzle. The control design method combines successful linear active disturbance rejection control ($LADRC$) capabilities with a loop shaping controller ($LSC$) to: (i) allow designing the closed-loop characteristics in terms of gain margin, phase margin and bandwidth, and (ii) increase the LSC disturbance rejection capabilities with an extended state observer. A representation of the nozzle dynamics is obtained from first principles and adapted to achieve a stream-velocity-based control loop. The results show that the resulting controller allows improving the expansion of the exhaust gas to the ambient pressure for the whole operating range of the turbojet, increasing the estimated thrust by 14.23% during the tests with experimental data.

1. Introduction

Turbojet subsonic–sonic nozzles are devices that accelerate the hot gas incoming from the turbine by reducing the output area, generating more thrust. These devices are usually designed to optimally expand the gas at a particular operating point. The optimum expansion occurs when the aeroengine exhaust gas static pressure matches the ambient pressure, maximizing the produced thrust [1]. In the context of variable geometry, studies have shown that modifying the turbine nozzle can positively impact the fuel consumption [2] and reduce the exhaust emissions [3] when operating in off-design conditions. Hence, it is possible to conclude that the exhaust area must also be continuously adapted to the mission profile to improve the operating fuel efficiency.

Small-scale turbojets applications usually involve operating in environments with different sources of disturbances, from wind gusts and variations in the ambient conditions to more complex situations, such as variations in the effective payload [4] that modify the required throttle turbojet setting. These turbojet disturbances translate into disturbances in both the nozzle input and nozzle output, since the turbojet thermal state directly affects the input nozzle gas-path properties [5]. Maximizing the thrust production requires variable exhaust nozzles that reject the operating disturbances while optimally expanding the exhaust gas to the ambient conditions. Most of these difficulties can be assessed through suitable nozzle constriction and an adequate automatic control algorithm.

Although variable exhaust nozzles are highly attractive for military and some civilian applications, only limited information regarding nozzle automatic control is available. In the existing literature, several control schemes for variable exhaust nozzles are based on LQI control schemes [6], which do not explicitly consider the possible sources of uncertainty and disturbances. Proper disturbance rejection consideration is a key element required to achieve reliable and efficient nozzle autonomy.

Turbojet control, on the other hand, has been a subject of interest of many researchers and different methods to overcome its difficulties have been developed. For instance, H${}_{\infty }$ synthesis algorithms [7], single neural adaptive propositional-integral-derivative PID controllers [8] and non-linear controllers based on a linear control-loop with an exogenous non-linearity [4] have been developed to handle the process non-linearities. On the other hand, model uncertainty has been handled through model predictive control in [9,10]. Control schemes focused on disturbance rejection have also been developed, such as those based on local optimum PID controllers [11] and those based on Active Disturbance Rejection Control ADRC schemes [12]. The ADRC schemes showed promising capabilities to improve disturbance rejections in turbojets; however, a more realistic analysis on the disturbances is required. This shows an interesting area of opportunity to develop suitable variable exhaust nozzle controllers considering the particular difficulties of this process, which involve different sources of disturbances and model uncertainty.

This article presents a practical method combining the disturbance rejection capabilities of ADRC with the advantages of well-known classical control design techniques for variable exhaust nozzle control. Although in principle the application requires a non-linear controller due to the fundamental relationship among static pressure and gas velocity, the proposed design method allows designing the controller with linear control design techniques without compromising the non-linear stability condition. Moreover, this approach also allows designing the controller considering the desired robustness margins, model mismatch and input disturbances, ensuring closed-loop stability and safe operation. Finally, simulations performed with real-measured data from turbojet operation show that the proposed approach is able to increase the produced thrust when compared to a fixed-nozzle turbojet for the whole operating range in the presence of input disturbances.

2. Nozzle Modeling and Control Structure

Different aeroengine digital simulations have been developed based on AMESim [13], Modelica [13] and Simulink [13,14]; however, there are few reports dealing with variable exhaust nozzles with useful models from the control design point of view. Moreover, most of these models are dependent on nozzle geometry and variation mechanism. Thus, an appropriate model must be developed before attempting any control scheme. A useful and effective method for modeling aeroengines is the so called first principle modeling approach, which departs from known physic fundamental laws to derive accurate dynamic representations [15]. In this section, a novel variable exhaust nozzle model is derived from first principles and adapted for control design purposes.

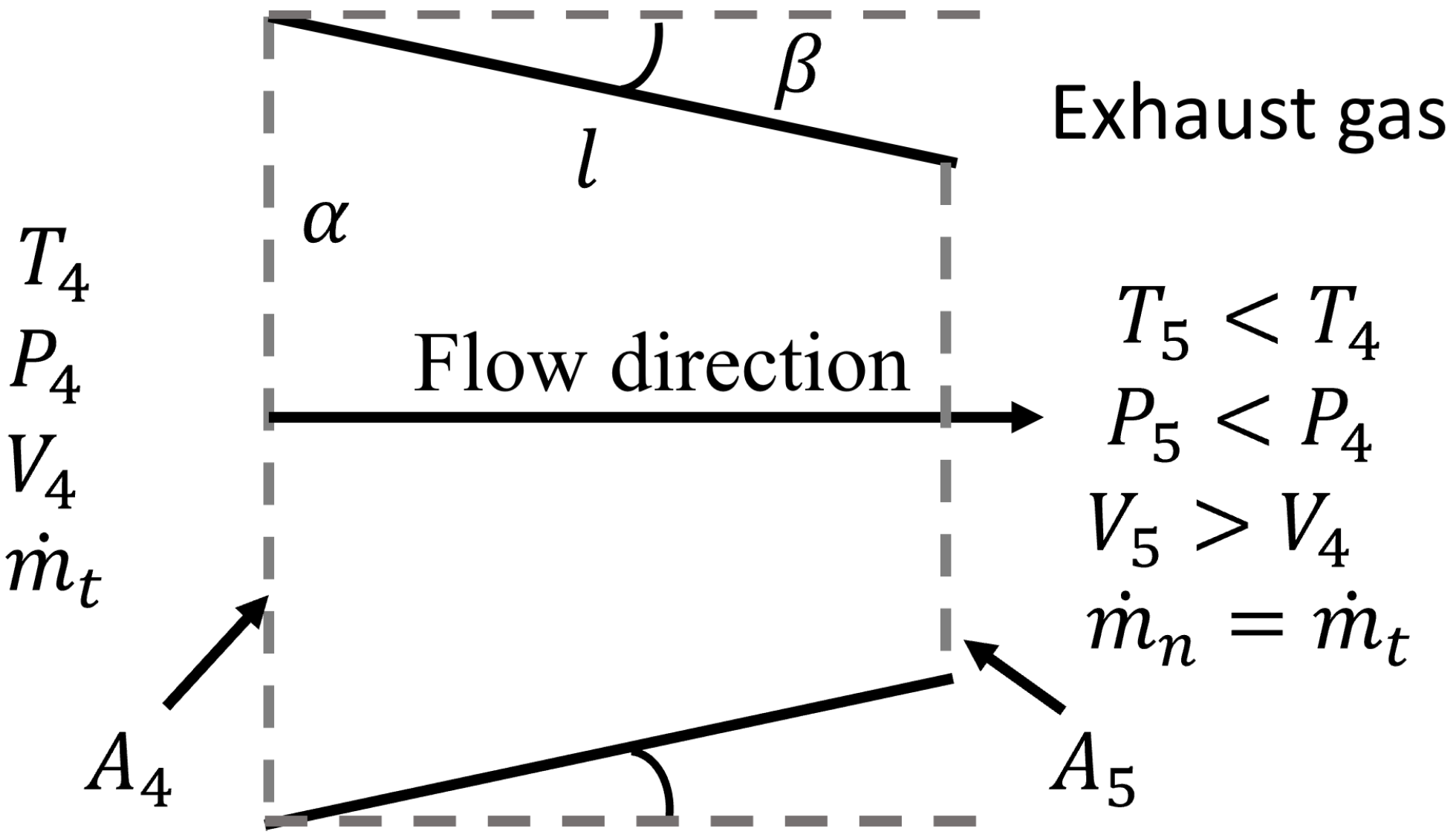

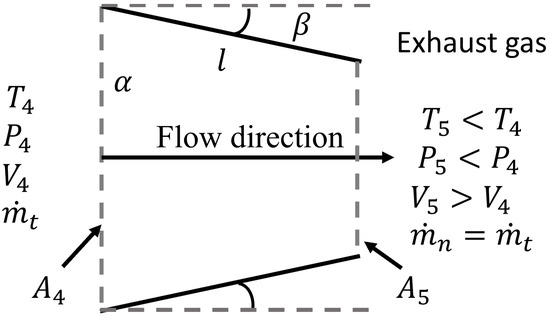

Turbojet nozzles expand the incoming flow of the turbine output as shown in Figure 1, where $\alpha$ is the nozzle input radius with area $A_4$ and the input flow properties are given by its temperature $T_4$, pressure $P_4$ and velocity $V_4$. The nozzle increases the output speed $V_5$ and thus reduces the exhaust gas pressure $P_5$ and temperature $T_5$. If the mass flow holds constant, the only means for actively modifying the flow speed is to increase or reduce the output area $A_5$ by modifying constriction angle $\beta$. Whereas traditional aeroengine controllers normally regulate shaft-speed by modifying the input fuel flow [16], variable exhaust nozzles effectively introduce an additional control input, introducing the possibility of implementing a secondary control loop.

Since the velocity varies within a bounded neighborhood of operating points near the design point, the density can be assumed as steady and constant in space. This implies that:

$$\nabla ·u=0$$

(1)

where u is the advective field. This results in the following momentum and energy, e, equations:

$$\nabla ·\left(\frac{1}{2}{V}^2+\frac{P}{\rho }\right)=0$$

(2)

where V is the flow velocity, P is the pressure and $\rho$ its density.

$$u·\nabla e=0$$

(3)

Considering the nozzle configuration and the variables defined in Figure 1, then the mass conservation integral for incompressible flow yields:

$${\int }_{C_s}\nabla ·u=A_4{V}_4-A_5{V}_5=0$$

(4)

where $C_s$ is the control surface contour.

Recalling that the nozzle inlet area $A_4$ remains constant it is possible to obtain the change of the nozzle velocity with respect to time by calculating the time derivative to both sides of Equation (4), which yields:

$${\dot{V}}_5=\frac{1}{A_5}\left(\dot{V_4}{A}_4-{\dot{A}}_5{V}_5\right)$$

(5)

The turbine output velocity can be approximated through the mass conservation principle if the gas path properties (i.e., turbine output pressure, $T_4$ and turbine output pressure $P_4$) are known. That is:

$${\dot{m}}_t=\frac{P_4{A}_4{V}_4}{T_{4}R}$$

(6)

where ${\dot{m}}_t$ is the turbine mass flow and R is the universal gas constant. Thus, the nozzle inlet velocity derivative with respect to time is:

$$\frac{D{V}_4}{Dt}=\frac{\partial V_4}{\partial T_4}\frac{\partial T_4}{\partial t}+\frac{\partial V_4}{\partial P_4}\frac{\partial P_4}{\partial t}+\frac{\partial V_4}{\partial {\dot{m}}_t}\frac{\partial {\dot{m}}_t}{\partial t}$$

(7)

Therefore, the nozzle inlet velocity change can be written as:

$${\dot{V}}_4=\frac{R{T}_4}{A_4{P}_4}{\ddot{m}}_t+\frac{R{\dot{m}}_t}{A_4{P}_4}{\dot{T}}_4-\frac{R{\dot{m}}_t{T}_4}{A_4{P}_4^2}{\dot{P}}_4$$

(8)

If the nozzle length l is fixed, then the output area becomes:

$$A_5=\pi {\left(\alpha -lsin\left(\beta \right)\right)}^2$$

(9)

and the nozzle output area change with respect to time:

$$\frac{D{A}_5}{D_t}=\frac{\partial A_5}{\partial \beta }\frac{\partial \beta }{\partial t}=-2\pi lcos\left(\beta \right)\left[\alpha -lsin\left(\beta \right)\right]\dot{\beta }$$

(10)

Recalling Equation (5), the nozzle dynamic behavior is described as:

$${\dot{V}}_5=\frac{1}{\pi {\left(\alpha -lsin\left(\beta \right)\right)}^2}\left(\frac{R{T}_4}{P_4}{\ddot{m}}_t+\frac{R{\dot{m}}_t}{P_4}{\dot{T}}_4-\frac{R{\dot{m}}_t{T}_4}{P_4^2}{\dot{P}}_4-2\pi lcos\left(\beta \right)\left[\alpha -lsin\left(\beta \right)\right]\dot{\beta }{V}_5\right)$$

(11)

2.1. Model Linearization

Then, the linearized velocity ${\dot{\mathcal{V}}}_5$ is described through:

$${\dot{\mathcal{V}}}_5=\frac{\partial {\dot{V}}_5}{\partial \beta }\widehat{\beta }+\frac{\partial {\dot{V}}_5}{\partial \dot{\beta }}\widehat{\dot{\beta }}+\frac{\partial {\dot{V}}_5}{\partial T_4}{\widehat{T}}_4+\frac{\partial {\dot{V}}_5}{\partial {\dot{T}}_4}{\widehat{\dot{T}}}_4+\frac{\partial {\dot{V}}_5}{\partial P_4}{\widehat{P}}_4+\frac{\partial {\dot{V}}_5}{\partial {\dot{P}}_4}{\widehat{\dot{P}}}_4+\frac{\partial {\dot{V}}_5}{\partial {\dot{m}}_t}{\widehat{\dot{m}}}_t+\frac{\partial {\dot{V}}_5}{\partial {\ddot{m}}_t}{\widehat{\ddot{m}}}_t+\frac{\partial {\dot{V}}_5}{\partial V_5}{\widehat{\mathcal{V}}}_5$$

(12)

where circumflex character indicates the deviation from the equilibrium conditions $x_0$, i.e., $\widehat{x}=x-x_0$. The elements of Equation (12) are computed through:

$$\frac{\partial {\dot{V}}_5}{\partial T_4}={\left.\frac{1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\left(\frac{R}{P_4}{\ddot{m}}_t-\frac{R{\dot{m}}_t}{P_4^2}{\dot{P}}_4\right)\right|}_0$$

(13)

$$\frac{\partial {\dot{V}}_5}{\partial {\dot{T}}_4}={\left.\frac{1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\left(\frac{R{\dot{m}}_t}{P_4}\right)\right|}_0$$

(14)

$$\frac{\partial {\dot{V}}_5}{\partial P_4}={\left.\frac{1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\left(\frac{2R{\dot{m}}_t{T}_4}{P_4^3}{\dot{P}}_4-\frac{R{\dot{m}}_t{\dot{T}}_4}{P_4^2}-\frac{R{T}_4{\ddot{m}}_t}{P_4^2}\right)\right|}_0$$

(15)

$$\frac{\partial {\dot{V}}_5}{\partial {\dot{P}}_4}={\left.\frac{-1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\frac{R{\dot{m}}_t{T}_4}{P_4^2}\right|}_0$$

(16)

$$\frac{\partial {\dot{V}}_5}{\partial {\dot{m}}_t}={\left.\frac{1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\left(\frac{R{\dot{T}}_4}{P_4}-\frac{R{T}_4}{P_4^2}{\dot{P}}_4\right)\right|}_0$$

(17)

$$\frac{\partial {\dot{V}}_5}{\partial {\ddot{m}}_t}={\left.\frac{1}{\pi {(\alpha -lsin\left(\beta \right))}^2}\left(\frac{R{T}_4}{P_4}\right)\right|}_0$$

(18)

$$\frac{\partial {\dot{V}}_5}{\partial V_5}={\left.\frac{2lcos\left(\beta \right)\dot{\beta }}{\alpha -lsin\left(\beta \right)}\right|}_0$$

(19)

$$\frac{\partial {\dot{V}}_5}{\partial \dot{\beta }}={\left.\frac{2lcos\left(\beta \right)V_5}{\alpha -lsin\left(\beta \right)}\right|}_0$$

(20)

$$\frac{\partial {\dot{V}}_5}{\partial \beta }={\left.\left(\frac{2lRcos\left(\beta \right)}{\pi {(\alpha -lsin\left(\beta \right))}^3}\left(Z_{GP}\right)+\frac{2lsin\left(\beta \right)\dot{\beta }{V}_5}{(\alpha -lsin(\beta \left)\right)}-\frac{2l^{2}co{s}^2\left(\beta \right)\dot{\beta }{V}_5}{{(\alpha -lsin\left(\beta \right))}^2}\right)\right|}_0$$

(21)

with $Z_{GP}$ being the gas-path derivatives:

$$Z_{GP}=\frac{T_4}{P_4}{\ddot{m}}_t+\frac{{\dot{m}}_t}{P_4}{\dot{T}}_4-\frac{{\dot{m}}_t{T}_4}{P_4^2}{\dot{P}}_4$$

(22)

Considering that the linearization corresponds to an arbitrary equilibrium point so that ${\dot{\beta }}_0={\dot{T}}_{40}={\dot{P}}_{40}={\ddot{m}}_{t0}=0$, Equation (12) yields:

$${\dot{\mathcal{V}}}_5={\left.\frac{2lcos\left(\beta \right)V_5}{\alpha -sin\left(\beta \right)}\right|}_0\widehat{\dot{\beta }}+\frac{1}{A_{50}}\left[{\left.\left(\frac{R{\dot{m}}_t}{P_4}\right)\right|}_0{\widehat{\dot{T}}}_4-{\left.\left(\frac{R{\dot{m}}_t{T}_4}{P_4^2}\right)\right|}_0{\widehat{\dot{P}}}_{p2}+{\left.\left(\frac{R{T}_4}{P_4}\right)\right|}_0{\widehat{\ddot{m}}}_t\right]$$

(23)

where $A_{50}={(\alpha -lsin\left({\beta }_0\right))}^2$. Transforming Equation (23) into a Laplace domain yields:

$${\mathcal{V}}_5\left(s\right)=\frac{1}{s}\left(C_1\beta \left(s\right)s+C_2{T}_4\left(s\right)s+C_3{P}_4\left(s\right)s+C_4{\dot{m}}_t\left(s\right)s\right)$$

(24)

where $C_i$ are the constant coefficients of the linear approximation (23).

Since only the constriction angle can be directly manipulated, all the remaining elements of Equation (25) are considered to be input disturbances to the process. That is:

$${\mathcal{V}}_5\left(s\right)=\frac{1}{s}\left(C_1\beta \left(s\right)s+{\overline{f}}_d(T_4,P_4,{\dot{m}}_t,s)\right)$$

(25)

where ${\overline{f}}_d(T_4,P_4,{\dot{m}}_t,s)$ is the Laplace transform of the perturbation signal.

2.2. Model Uncertainty Quantification

Equation (25) shows that the nozzle input/output dynamics depend mainly on $C_1$. Thus, recalling Equation (20), for feedback control, the main sources of plant parametric uncertainty are:

• The turbojet thermal state in which the model is linearized. The linearization point within the turbojet equilibrium manifold plays an important role. Its effects are translated into the equilibrium output speed, $V_{50}$. This represents the turbojet exhaust gas speed at equilibrium conditions in a given thermal state with a fixed nozzle.
• The equilibrium constriction angle, ${\beta }_0$. This is the constriction angle in which the model is linearized.

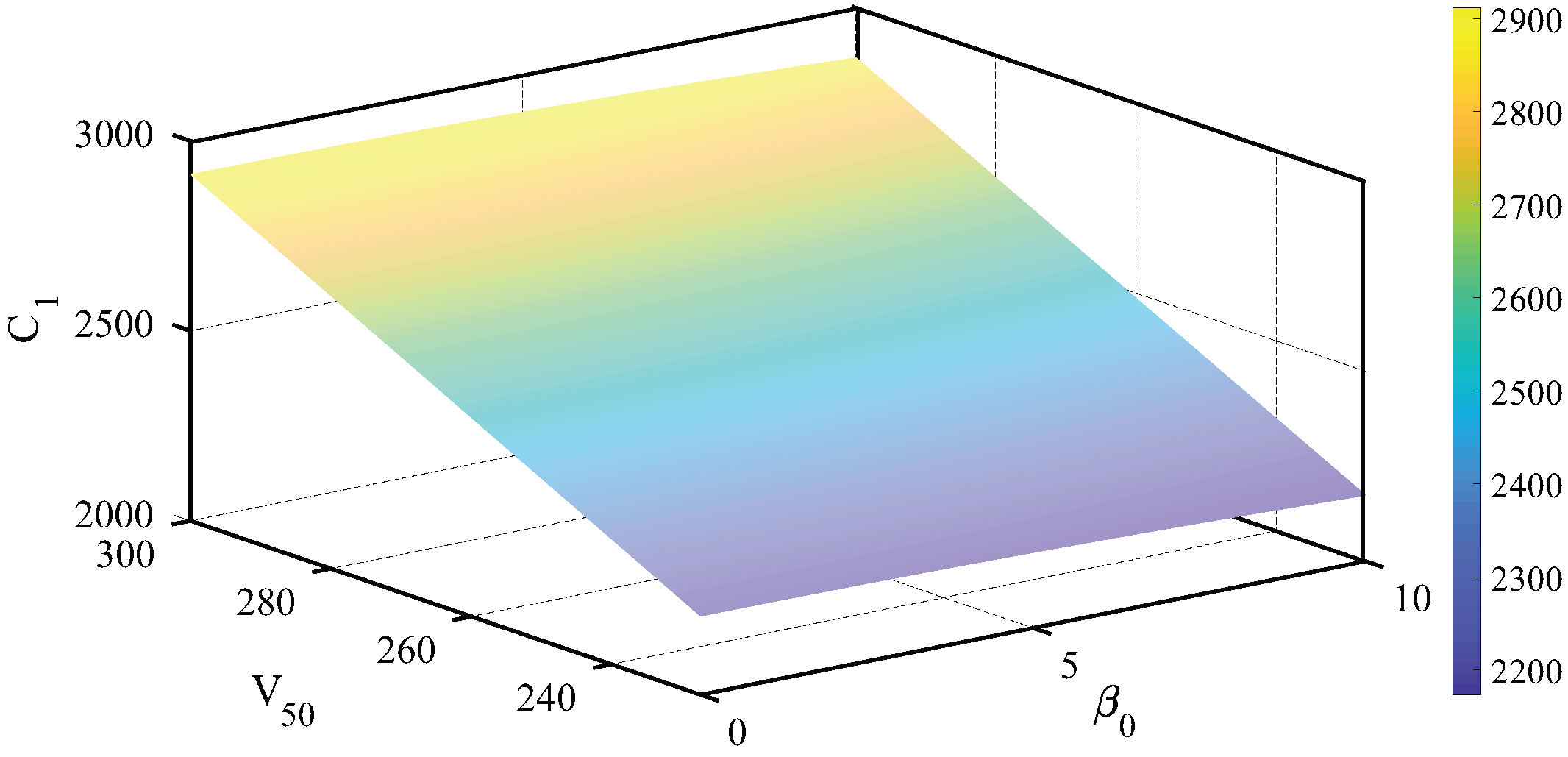

To reduce the effects of this parametric uncertainty, a family of model parameters can be computed for each possible operating condition and nozzle constriction configuration. This is presented in Figure 2, which shows the resulting values of $C_1$ from Equation (25) with respect of the turbojet operating condition and nozzle constriction angle.

If a nominal model (25) is obtained at the operating point $V_{50}=$260 m/s and ${\beta }_0=0$, according to the turbojet operating limits, the uncertainty corresponding to $C_1$ is bounded such that $C_1\in [{\delta }_{max}\widehat{C},{\delta }_{min}{\widehat{C}}_1]$ with ${\delta }_{min}=0.894$, ${\delta }_{max}=1.22$ and ${\widehat{C}}_1$ the nominal value.

2.3. Control Structure

The control objective is to maximize the thrust T generation for a given throttle setting and environmental conditions. The thrust is defined through [17,18]:

$$T={\dot{m}}_t{V}_5-{\dot{m}}_0{V}_0-(P_5-P_0)A_5$$

(26)

where $P_0$ represents the ambient pressure, ${\dot{m}}_0$ the inlet mass flow and $V_0$ the free-stream wind speed. Therefore, the optimal exit pressure for a maximum thrust is $P_0=P_5$. Thus, it is convenient to define a pressure-based control error $\widehat{e}$ as follows:

$$\widehat{e}=P_0-P_5$$

(27)

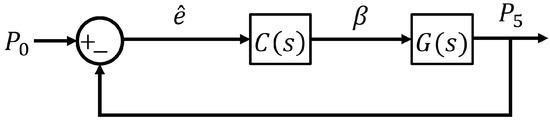

Figure 3 presents an ideal pressure-based control loop considering the optimal expansion of the exhaust gas. However, directly controlling the static pressure without acting through the dynamic pressure $P_d$ may be too complicated in a practical setup.

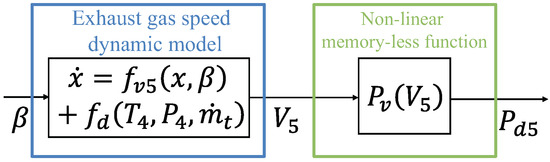

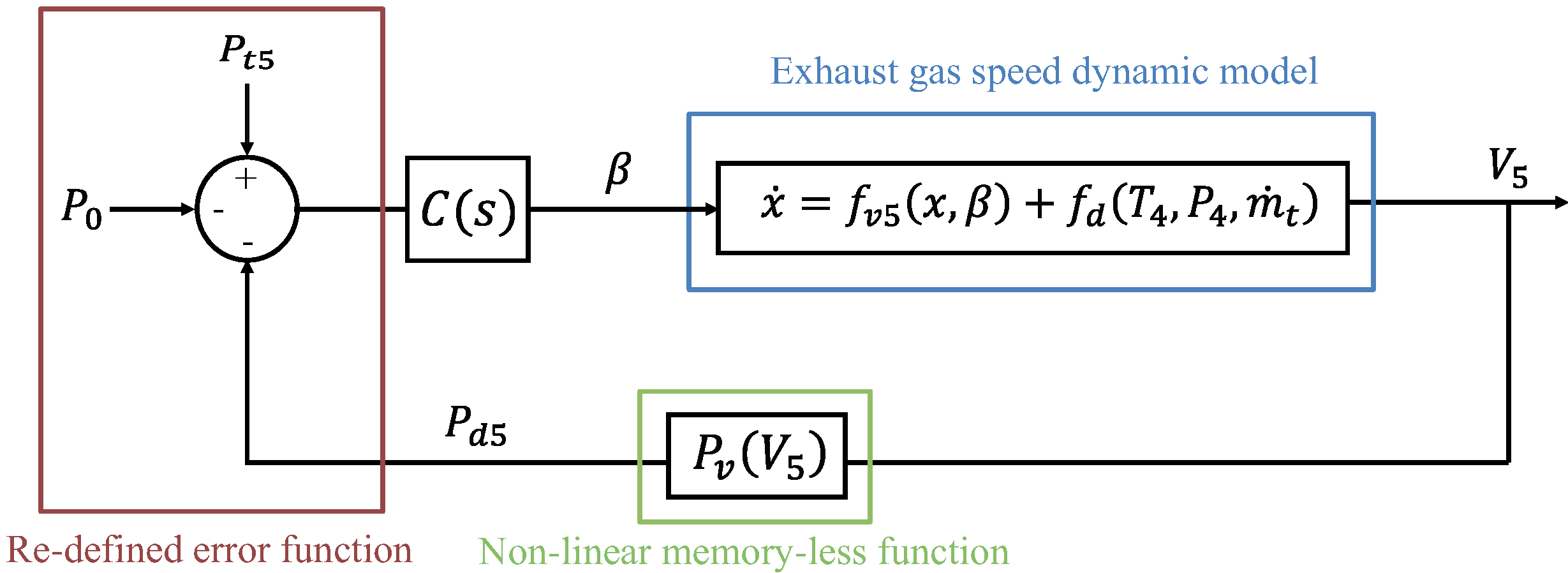

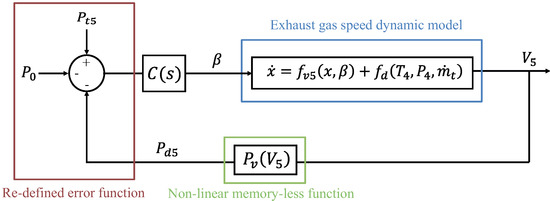

Alternatively, it is possible to complement the exhaust gas velocity model (11) with an output mapping function $P_v\left(V_5\right)$ that relates the flow velocity and the flow dynamic pressure. Considering this arrangement, the Wiener-like structure of Figure 4 is obtained where $x=V_5$ and:

$$f_{v5}(x,\beta )=\frac{1-2\pi lcos\left(\beta \right)\left[\alpha -lsin\left(\beta \right)\right]\dot{\beta }x}{\pi {\left(\alpha -lsin\left(\beta \right)\right)}^2}$$

(28)

$$f_d(T_4,P_4,{\dot{m}}_t)=\frac{1}{\pi {\left(\alpha -lsin\left(\beta \right)\right)}^2}\left(\frac{R{T}_4}{P_4}{\ddot{m}}_t+\frac{R{\dot{m}}_t}{P_4}{\dot{T}}_4-\frac{R{\dot{m}}_t{T}_4}{P_4^2}{\dot{P}}_4\right)$$

(29)

The total pressure $P_t$ is related to the static P and dynamic pressure $P_d$ through: $P_5=P_{t5}-P_{d5}$. If this relationship holds, combining the Wiener model of Figure 4 into the proposed control structure of Figure 3 yields the novel control structure of Figure 5. This scheme closes the exhaust gas velocity control loop through the constriction angle, while maintaining the effects of the turbojet operation configuration (i.e., $f_d$) as input disturbances. The advantage of this representation is that the controller can be designed using the exhaust gas velocity linear model (25) if adequate disturbance rejection and uncertainty specifications are considered. Note that the error function has now been re-defined to maintain a negative feedback and to suit the velocity-based control scheme, yielding:

$$e=P_{t5}-P_0-P_{d5}$$

(30)

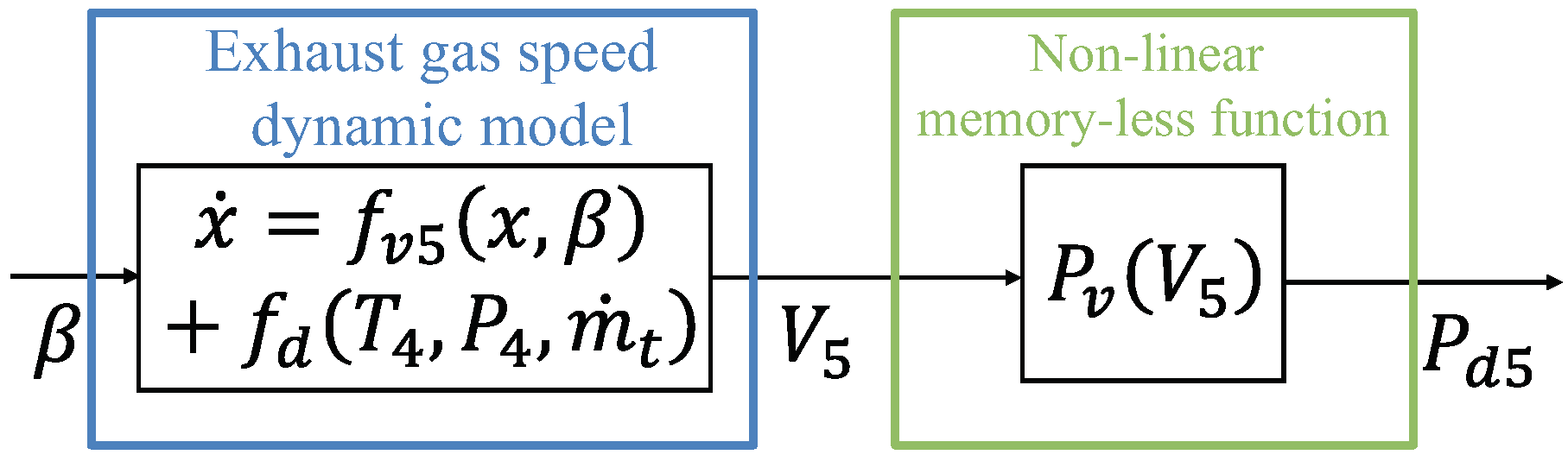

The physical interpretation of the involved variables shows that the non-linear static function $P_v$ is a polynomial that associates the air speed to the dynamic pressure, which is a well know flow property [17,18]:

$$P_{d5}=P_v\left({\mathcal{V}}_5\right)=\frac{{\rho }_5}{2}{\mathcal{V}}_5^2$$

(31)

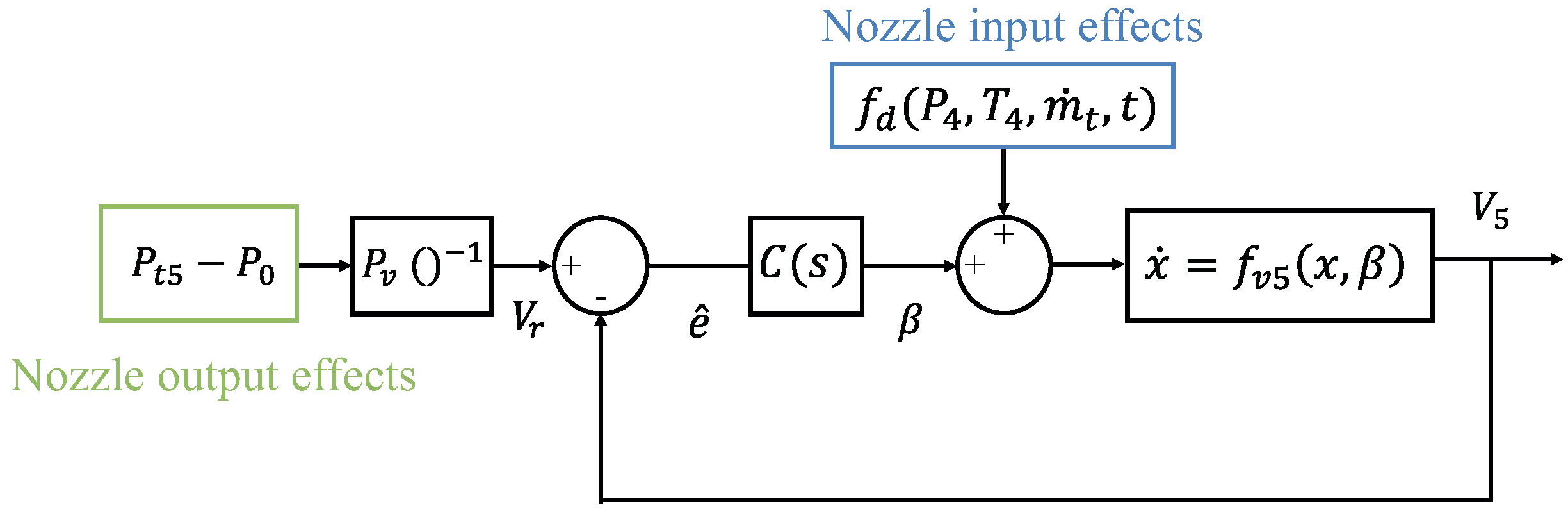

Moreover, a key advantage of this structure is that the non-linear element can be inverted to realize a linear exhaust air-speed control loop, allowing to implement classical control design tools. Inverting this polynomial determines a reference air-speed, $V_r$, in terms of the turbojet output pressure (strongly related to the throttle settings) and the environmental pressure. This reference air-speed describes the required air-speed to optimally expand the output nozzle flow:

$$V_r=\sqrt{\frac{2(P_{t5}-P_0)}{{\rho }_5}}$$

(32)

From a practical standpoint, the turbojet inlet mass flow, compressor output pressure and temperature are influenced by the throttle setting and environmental conditions. The variations of these variables are external to the nozzle and are thus considered as disturbances to the nozzle dynamics. The controller aim is to reject its influence into the output air-speed. Considering the influence of each variable into the airspeed yields the control scheme of Figure 6.

This control structure allows minimizing the error among the measured exhaust gas velocity and the velocity required to completely expand the exhaust gas, while handling the input disturbances caused by the turbojet operation (changes in the thermal state). The previous discussion during the modeling and control structure design shows that it is fundamental for a nozzle controller to successfully reject disturbances.

3. Robust Nozzle Control

In recent years, the Active Disturbance Rejection Control (ADRC) has emerged to fit the necessity of controllers that succeed in applications that demand high accuracy, robustness and simplicity. This approach combines the simplicity and applicability of known classical control methods with a model-based approach. For instance, the resulting controllers of the linear case of the ARDC are compatible with most frequency-response based analyses [19], allowing its evaluation in terms of bandwidth and stability margins.

The main difference from other model-based approaches that assume canonical models of the actual process dynamics, such as model predictive control or embedded model control, is that in ARDC the model is not dependent upon accurate mathematical modeling of the plant [20]. The central idea of these controllers is to use an Extended State Observer (ESO) to estimate the process disturbances, parameter variations and uncertainties in real time. This is presented in Figure 7, for a first-order Linear Active Disturbance Rejection Control (LADRC). Although at first glance, the LADRC is simple, it provides remarkable robustness to variations in the process dynamics and external disturbances [21].

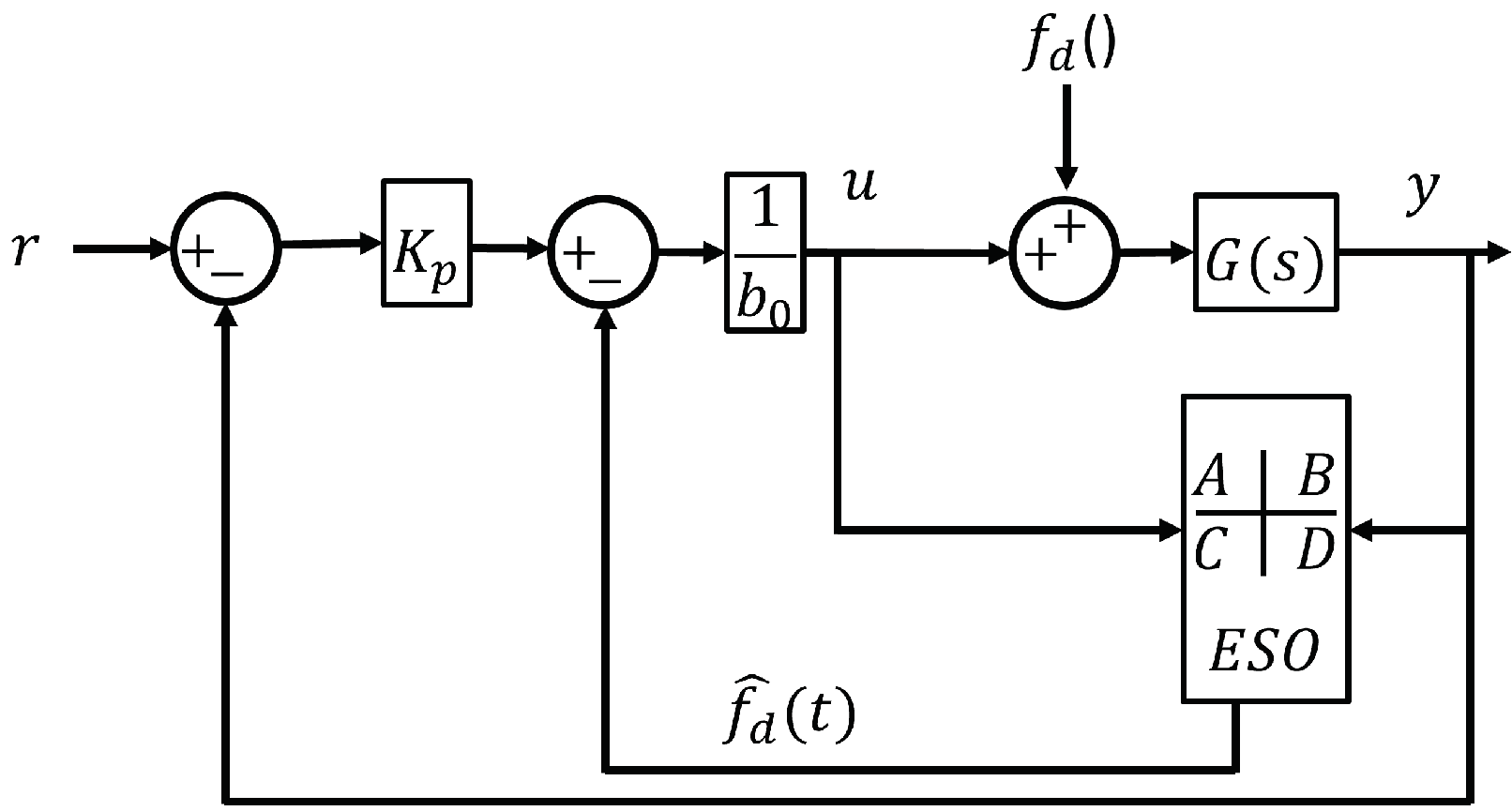

LADRC can be developed by considering a state space control with disturbance estimation and compensation based on the internal model principle. Thus, showing additional compatibility with analysis and design tools based on state space representations.

3.1. The concept of Linear Active Disturbance Rejection

A basic derivation of LADRC is shown as follows. Consider the first order plant:

$$\dot{y}=f(y,w,t)+bu\left(t\right)$$

(33)

where y is the system output, w the process disturbances, u the input and b a constant. Then, it is possible to define that $b=b_0+\mathrm{\Delta }b$, $b_0$ being the known part of b obtained through the modeling process and $\mathrm{\Delta }b$ the uncertainty in this parameter. Thus, the combination of $f(y,w,t)+u\mathrm{\Delta }b$ can be defined as a generalized disturbance $f_d\left(t\right)$ so that:

$$\dot{y}=b_{0}u\left(t\right)+f_d\left(t\right)$$

(34)

If the disturbance $f_d\left(t\right)$ can be estimated and compensated, the system is reduced from a first order to a single integrator plant with a scaling factor $b_0$. The estimation of $f_d\left(t\right)$ can be achieved by introducing an ESO for the following system:

$$\left[\begin{array}{c}{\dot{x}}_1\left(t\right)\\ {\dot{x}}_2\left(t\right)\end{array}\right]=\left[\begin{array}{cc}0& 1\\ 0& 0\end{array}\right]\left[\begin{array}{c}{x}_1\left(t\right)\\ x_2\left(t\right)\end{array}\right]+\left[\begin{array}{c}{b}_0\\ 0\end{array}\right]u\left(t\right)+\left[\begin{array}{c}0\\ 1\end{array}\right]{\dot{f}}_d\left(t\right)$$

(35)

with $x_1=y$ and $x_2=f_d\left(t\right)$.

The ESO of Equation (35) was augmented to include the additional state $x_2=f_d$, since it can only be reconstructed using the process input, $u\left(t\right)$, and output, $y\left(t\right)$. In LADRC, a Luenberger observer can be used to estimate the state:

$$\left[\begin{array}{c}{\dot{\widehat{x}}}_1\left(t\right)\\ {\dot{\widehat{x}}}_2\left(t\right)\end{array}\right]=\left[\begin{array}{cc}-l_1& 1\\ -l_2& 0\end{array}\right]\left[\begin{array}{c}{\widehat{x}}_1\left(t\right)\\ {\widehat{x}}_2\left(t\right)\end{array}\right]+\left[\begin{array}{c}{b}_0\\ 0\end{array}\right]u\left(t\right)+\left[\begin{array}{c}{l}_1\\ l_2\end{array}\right]y\left(t\right)$$

(36)

where ${\widehat{x}}_1\left(t\right)$ and ${\widehat{x}}_2\left(t\right)$ are estimations of y and $f_d$ correspondingly. If using bandwidth parameterization, the observer gain vector $L=\left[l_1{l}_2\right]$ can be chosen to locate its eigenvalues at the desired observer bandwidth [20], $-w_o$:

$$L=\left[\begin{array}{cc}2w_o& w_o^2\end{array}\right]$$

(37)

With a well-tuned observer (i.e., if the ESO dynamics are fast enough to follow the disturbances) the estimated disturbance ${\widehat{x}}_2\left(t\right)={\widehat{f}}_d\left(t\right)$ can be used to implement the actual disturbance rejection controller:

$$u\left(t\right)=\frac{u_0\left(t\right)-{\widehat{f}}_d\left(t\right)}{b_0}$$

(38)

This reduces the plant to an integral process:

$$\dot{y}=u_0\left(t\right)$$

(39)

If the control law is defined as:

$$u_0\left(t\right)=K(r\left(t\right)-y\left(t\right))$$

(40)

the controller acts on $\dot{y}\left(t\right)$ rather than $y\left(t\right)$, making K an integral controller gain. Thus, K can be tuned according to the desired settling time $T_s$:

$$K=\frac{4}{T_s}$$

(41)

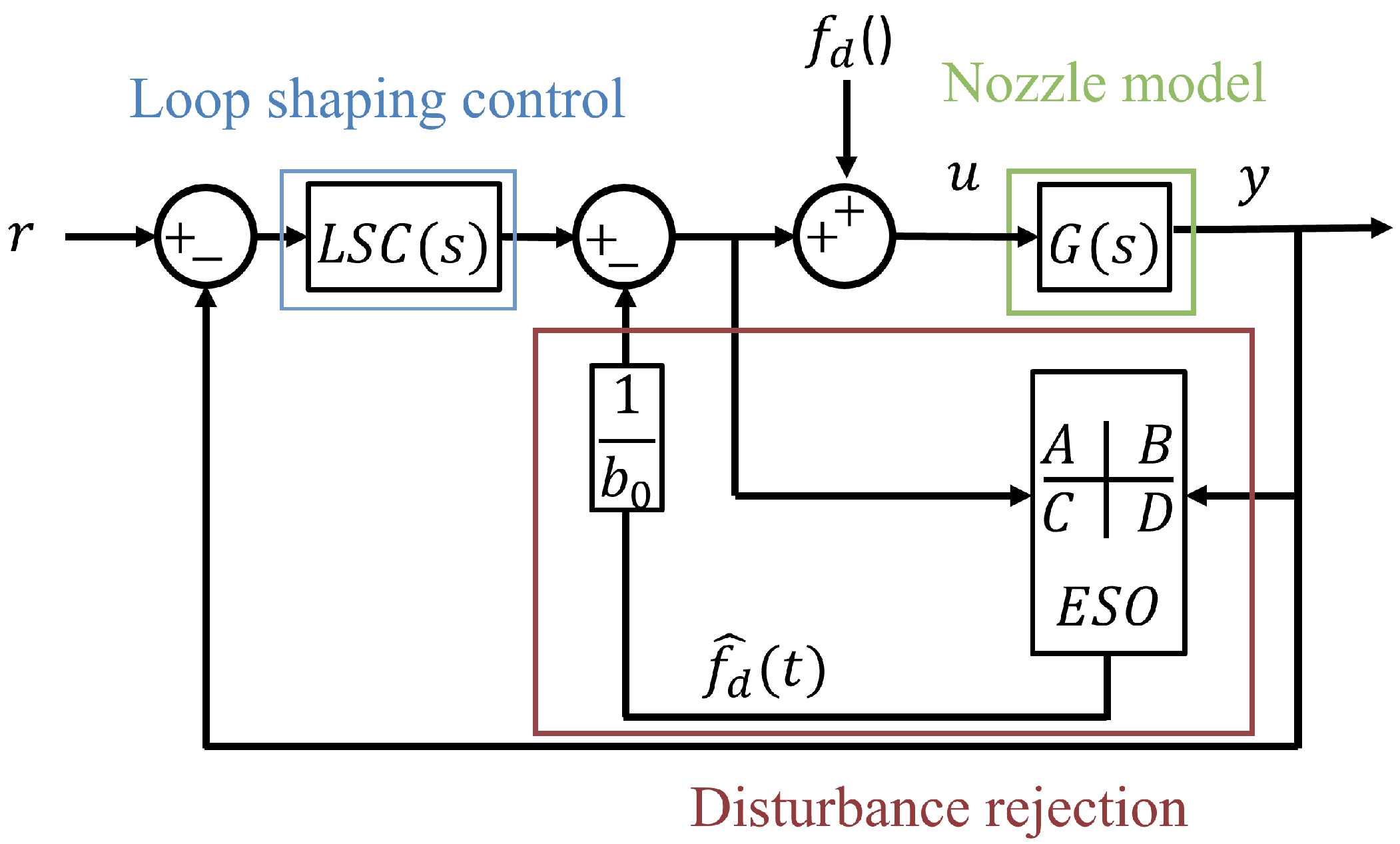

3.2. LADRC+Classical Controllers

Although being practical and useful for processes that operate in environments with high level of disturbances, the LADRC does not provide a priori insight on the frequency-domain characteristics of the resulting controlled plant. That is, classical design elements such as bandwidth, sensitivity, phase margins, gain margins and sensor noise rejection cannot be used directly as a source of information for the controller design. Figure 8 presents a novel control scheme achieved by combining a loop-shaping controller (LSC) with the estimation of the disturbance from the LADRC. This approach allows designing a classical controller for the known process dynamics considering key frequency-domain specifications, while taking advantage of the LADRC disturbance rejection capabilities.

In order to elucidate the effects of each controller in the closed-loop dynamics, as follows an alternative representation is derived by dividing the ESO into its respective individual transfer functions. This is presented in Figure 9.

In absence of disturbances, the closed-loop response is given by:

$$\frac{y\left(s\right)}{r\left(s\right)}=\frac{LSC\left(s\right)Ob{s}_{loop}\left(s\right)}{1+LSC\left(s\right)Ob{s}_{loop}\left(s\right)}$$

(42)

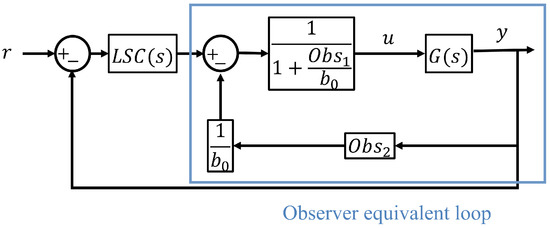

with the observer equivalent loop, $Ob{s}_{loop}$, being:

$$Ob{s}_{loop}=\frac{\frac{G\left(s\right)}{1+Ob{s}_1\left(s\right)/b_0}}{1+\frac{G\left(s\right)Ob{s}_2\left(s\right)/b_0}{1+Ob{s}_1\left(s\right)/b_0}}=\frac{G\left(s\right)}{1+Ob{s}_1/b_0+G\left(s\right)Ob{s}_2/b_0}$$

(43)

Correspondingly, from (36) and (37), the equivalent observer transfer functions parameterized to $w_o$ and $b_0$ can be shown to be:

$$Ob{s}_1=\frac{-b_0{w}_o^2}{{(s+w_o)}^2}$$

(44)

$$Ob{s}_2=\frac{w_o^{2}s}{{(s+w_o)}^2}$$

(45)

Substituting Equations (44) and (45) into Equation (43) yields:

$$Ob{s}_{loop}=G\left(s\right)$$

(46)

This implies that, in the absence of disturbances (i.e., $f_d=0$) the estimated disturbance ${\widehat{f}}_d$ will also tend to 0. Thus, the closed loop will defined by the plant and LSC if no input perturbation is present, that is:

$$\frac{y\left(s\right)}{r\left(s\right)}=\frac{LSC\left(s\right)G\left(s\right)}{1+LSC\left(s\right)G\left(s\right)}$$

(47)

Equation (47) shows that LADRC is separable from any feedback controller if only the disturbance rejection element is used. Thus, the effects of the LADRC are only visible when considering the input disturbance and noise sensitivity functions.

4. Control Design and Assessment

Four controllers are designed considering Equation (25). The evaluated controllers are a proportional-integral $PI$ control, a single loop shaping control $LSC$, a linear active disturbance rejection control $LADRC$ and a combined $LSC+LADRC$ scheme. This section includes the controller evaluation within time-domain and frequency-domain frameworks.

4.1. Control Objectives

The control specifications are aimed at following common aeronautical certifications for high performance applications, including air-to-air and air-to-ground tracking as well refueling and close formation flying for small or unmanned aerial vehicles. Being able to introduce these standard classical specifications is one of the advantages of the proposed approach, making the resulting controllers compatible with most certifications. The specifications are summarized as follows:

• Settling time smaller than 5 s [22];
• Bandwidth $w_b$ range of 6 rad/s to 11 rad/s [23];
• Minimum 6 B gain margins Gm [24];
• Minimum of 45 deg phase margin Pm [24].

4.2. Control Design

The controllers are designed as follows:

1.

Proportional-Integral control

PID controllers are an important industrial standard [25] and are thus, added into this evaluation. In the absence of disturbances, the dynamic model (25) yields a zero-order representation of the nozzle dynamics. Thus, the controller in series with the plant is [26]:

$$PI\left(s\right)G\left(s\right)=C_1\left(\frac{K_i}{s}+K_p\right)$$

(48)

Since the integrator provides a phase of −90 deg, the gain margin is infinite. Thus, it is not considered in this analysis. The magnitude equation in a frequency-domain is:

$$\left|PI\left(jw\right)G\left(jw\right)\right|=\sqrt{{\left(C_1{K}_p\right)}^2+{\left(\frac{C_1{K}_i}{w}\right)}^2}$$

(49)

Since the amplitude at the bandwidth frequency ${\omega }_b$ is approximately 1, Equation (49) yields:

$$\frac{1}{C_1^2}=K_p^2+{\left(\frac{K_i}{w_b}\right)}^2$$

(50)

The corresponding closed-loop response and settling time are given by:

$$\frac{y\left(s\right)}{r\left(s\right)}=\frac{C_1{K}_i+C_1{K}_{p}s}{C_1{K}_i+(C_i{K}_p+1)s}$$

(51)

$$T_s=\frac{4(C_1{K}_p+1}{C_1{K}_i)}$$

(52)

Thereafter, the parameters of Equations (50) and (52) are computed through numerical optimization to find the controller configuration that provides a settling time $T_s$ with a bandwidth $w_b$. The resulting PI controller is:

$$PI\left(s\right)=\frac{3.90\times {10}^{-3}}{s}+8.78\times {10}^{-5}$$

(53)

2.

Loop shaping control

A similar process is carried out for the LSC, which is proposed as a lead/lag compensator. The LSC in series with the plant is [27,28]:

$$LSC\left(s\right)G\left(s\right)=C_1\frac{K_{LSC}(s+a)}{s+b}$$

(54)

Here, the objective is to compute the LSC gain $K_{LSC}$, zero location $-a$ and pole location $-b$. Following the analysis performed for the PI controller, the corresponding phase margin (55), gain at the bandwidth frequency (56) and settling time (57) equations for the LSC are given by:

$$\measuredangle \left(LSC\left(j{w}_b\right)G\left(j{w}_b\right)\right)=atan\left(\frac{-(w_b^2+ab)}{w_b(w_b^2+b^2)}\right)-\pi$$

(55)

$$\frac{1}{C_1^2{K}_{LSC}^2}={\left(\frac{b-a}{w_b^2+b^2}\right)}^2+{\left(\frac{w_b^2+ab}{w_b(w_b^2+b^2)}\right)}^2$$

(56)

$$T_s=\frac{8}{b+C_1{K}_{LSC}}$$

(57)

Moreover, it is a good practice for loop shaping compensators to locate the poles equally distant from the banwidth in the frequency plane. Thus, the following design rule is added:

$$2lo{g}_{10}{w}_b=lo{g}_{10}a+lo{g}_{10}b$$

(58)

Parameter optimization of Equations (55)–(58) yields the following lead-lag compensator:

$$LSC\left(s\right)=\frac{0.0030761(s+13.030)}{s(s+7.6730)}$$

(59)

3.

Linear Active Disturbance Rejection Control

The parameters of this controller are computed according to the process described in Section 3.1. The settling time is defined such that it provides a similar response time than the PI controller. To achieve a settling time of 0.5 s, the gain K is:

$$K=\frac{4}{T_s}=8$$

(60)

Since the desired control bandwidth is about 10 rad/s, the observer bandwidth is located at $10w_b$. Using Equation (37), the corresponding Luenberger observer gain is:

$$L=\left[\begin{array}{cc}200& 10,000\end{array}\right]$$

(61)

4.

LADRC + LSC design

It was demonstrated in Section 3.2 that the LADRC and LSC can be designed separately, if only the disturbance estimation of the LADRC is used. Thus, this model combines the previously developed LSC (59) and a LADRC with the parameters (60) and (61) within the structure of Figure 8.

4.3. Time-Domain Analysis

Typical aeronautical control applications involve operating in environments with frequent disturbances and sensor noise from the wind-speed measurements. These are analyzed individually through the following simulations.

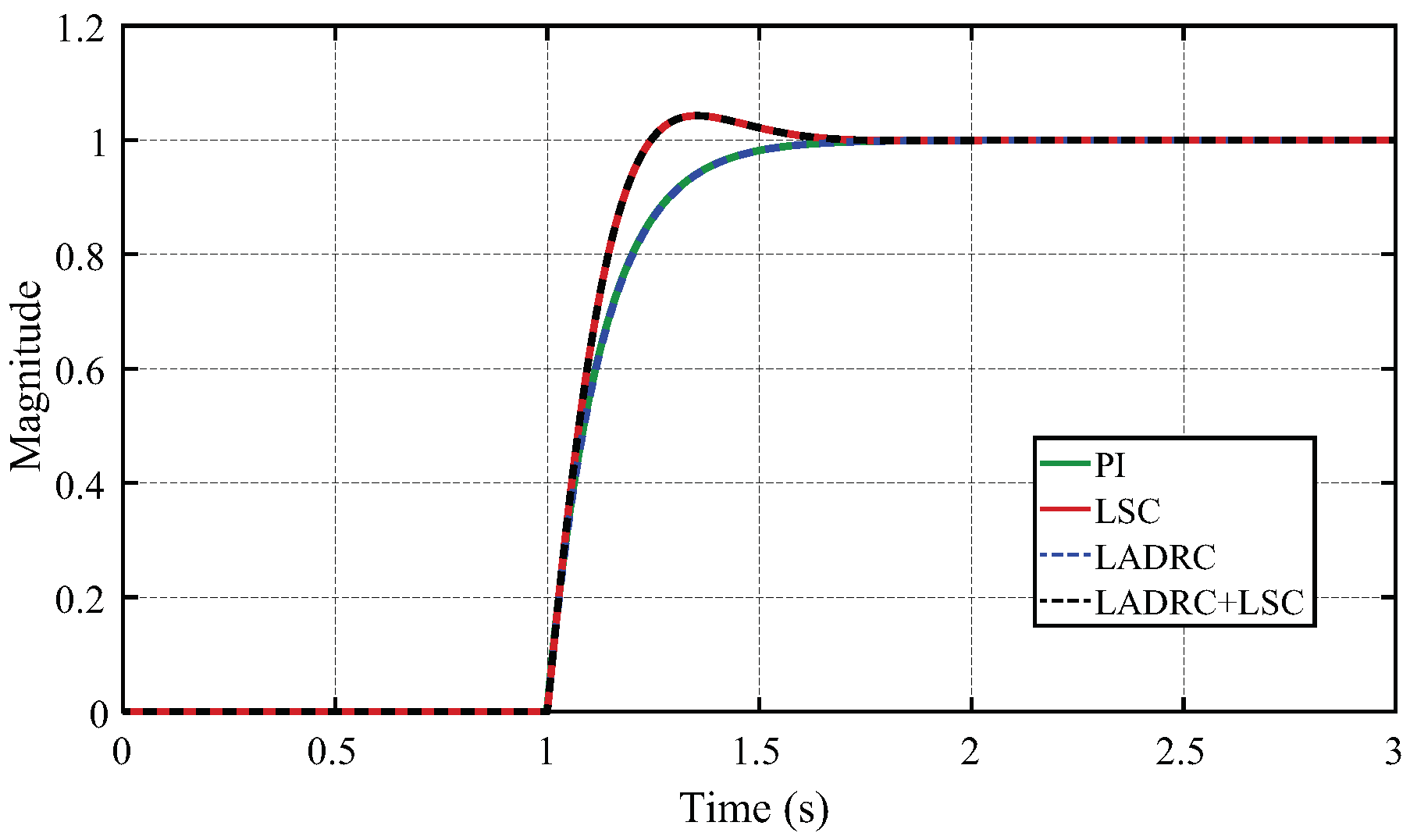

Figure 10 shows the step response of the controlled plant with each controller. It is possible to conclude that, in absence of noise and disturbances, the LADRC provides a similar response than a classic PI controller. The similitude among the LSC and the LADRC + LSC is not surprising, since the closed-loop robustness and stability are determined solely by the LSC.

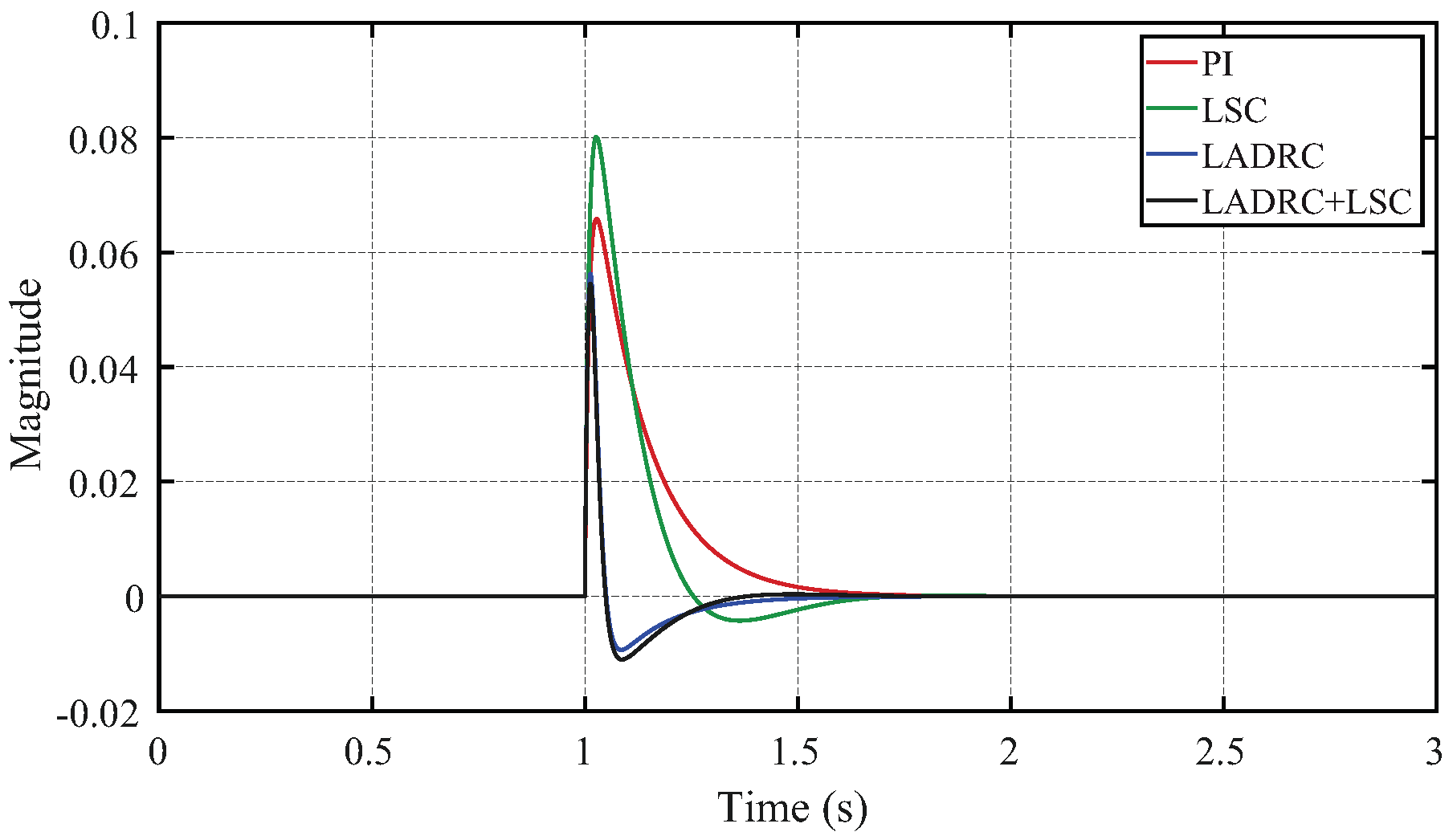

The disturbance rejection capabilities of the controllers are evaluated in the simulation of Figure 11. The LSC provides a faster disturbance rejection than the PI, at the cost of a higher overshoot. The PI controller follows a more conservative response with a slow disturbance rejection. The LADRC and the LADRC + LSC are the fastest and effectively cancel the disturbance effects with little overshoot. It is remarkable that the LADRC + LSC maintains the effects of the LADRC disturbance rejection capabilities.

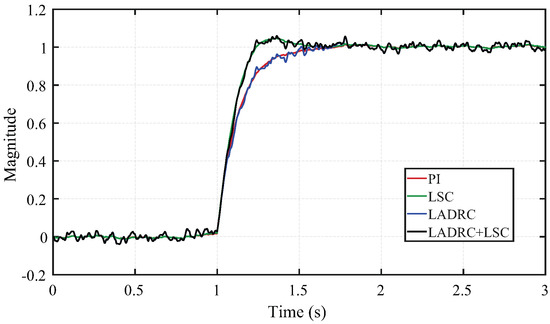

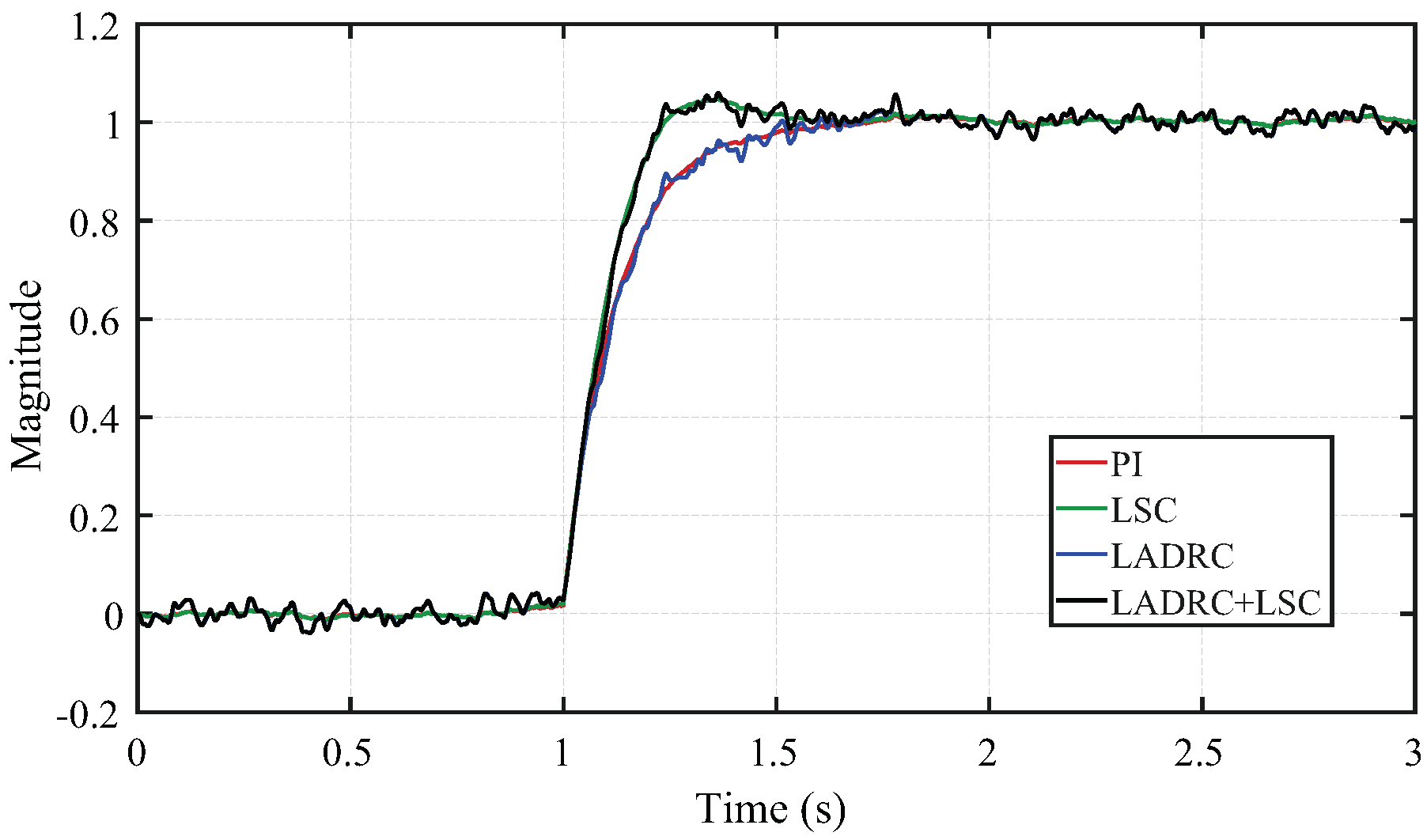

Figure 12 shows the unit-step response of the controllers with simulated sensor noise. Both the LSC and PI reject the noise effectively, while the sensor noise mostly affects the LADR-based controllers. This is more evident when analyzing the frequency-domain response of these controllers shown in the next section.

4.4. Frequency-Domain Analysis

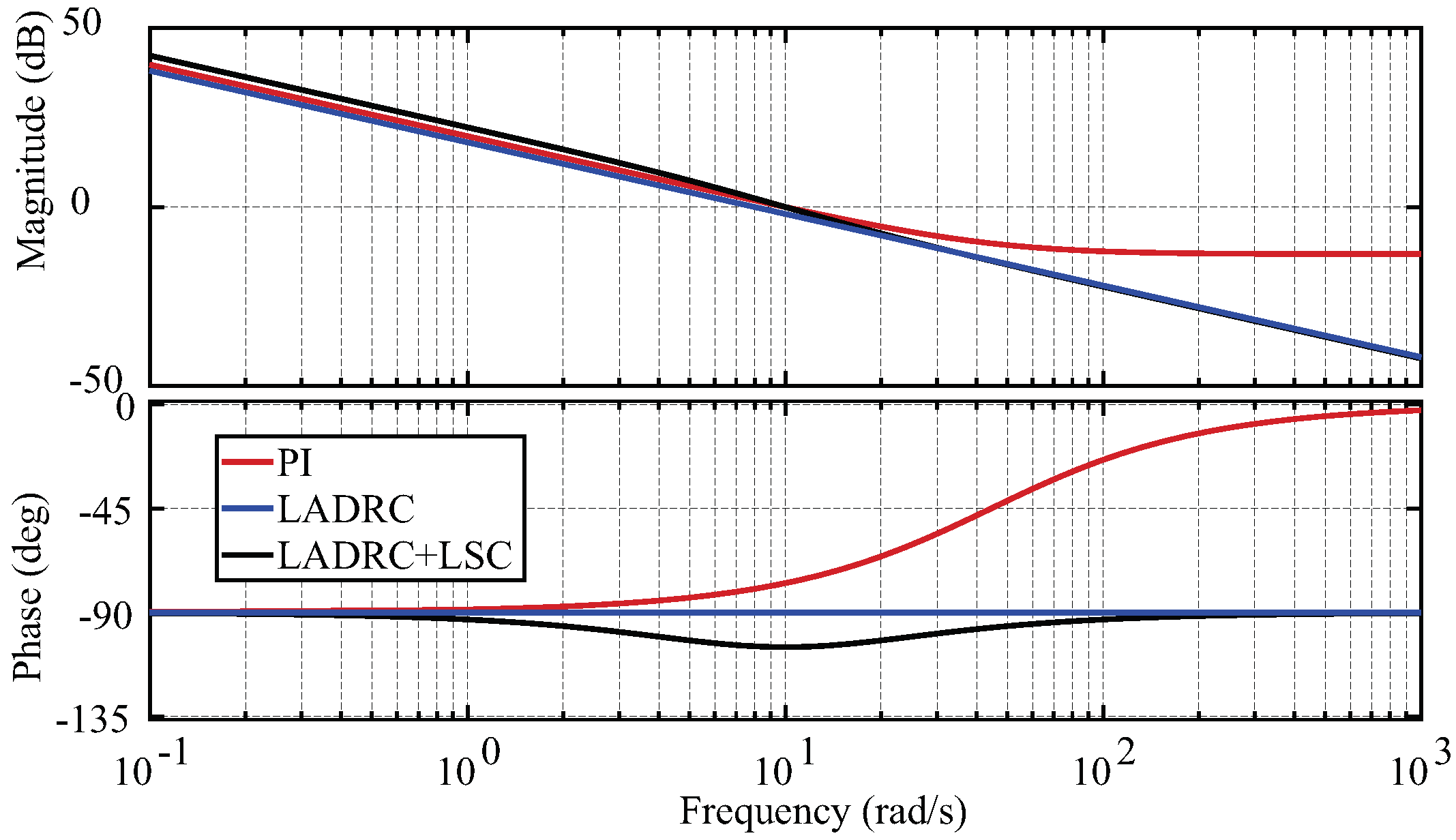

This section studies the frequency-domain response of the controllers. The frequency-domain analysis of the LADRC is calculated by reducing the system into a set of transfer functions, after replacing the ESO by the respective transfer functions for each channel. The PI and the LSC were computed such that the bandwidth was located at a specific value. This is important when handling the bandwidth limits stated by the sensors and actuators. The LADRC; however, automatically allocates the bandwidth and presents a challenge to design the controller when considering this parameter. Thus, rendering its application impractical for some applications. This problem can be reduced when using the LADRC + LSC configuration.

Table 1. Non-linear models performance metrics.

Indicator	PI	LSC	LADRC	LADRC + LSC
Gain margin (dB)	$Inf$	$Inf$	$Inf$	$Inf$
Phase margin (deg)	103	$75.0$	$90.0$	$75.0$
Bandwidth (rad/s)	$10.0$	$10.0$	$8.00$	$10.0$

shows the gain margin, phase margin and bandwidth of the resulting plant + controllers, while Figure 13 shows their open loop frequency response. Overall, most controllers succeed with the stated control objectives.

4.5. Interaction of LSC and LSC + LADRC

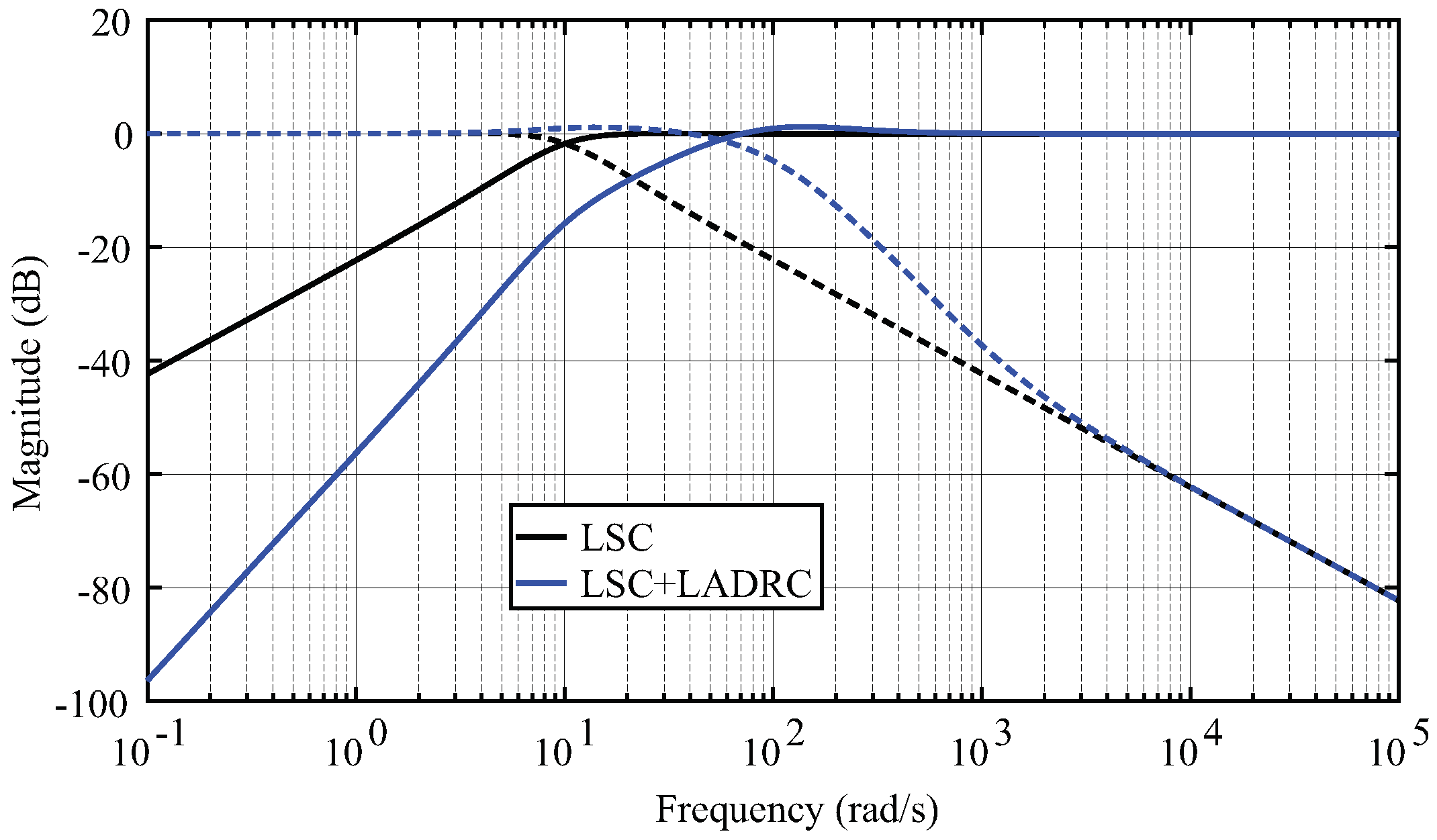

As stated in Section 3.2, the difference among the LSC and the LADRC + LSC schemes can be observed better in the input disturbance and noise sensitivity functions, presented in Figure 14. The addition of the LADRC greatly improves the disturbance sensitivity in low frequencies, at the cost of increased noise sensitivity. It is notable that the increased perturbation rejection of the LADRC + LSC (over 15 dB around the bandwidth compared with the LSC) is achieved without increasing the closed loop bandwidth. This shows that the LADRC + LSC has remarkable perturbation rejection properties.

The previous analysis suggests that LADRC + LSC schemes are useful for applications with (i) uncertainties in the plant dynamics, (ii) changing environments with frequent disturbances and (iii) availability of measurements with a sufficiently low noise level.

4.6. Stability Evaluation with the Non-Linear Static Gain Uncertainty

Since the nozzle process inherently faces different sources uncertainties, it is important to account for its effects with respect to the developed models [29]. The uncertainties can be introduced by the incompressibility approximation, possible measurement error and model mismatches caused by the linear approximation. Figure 15 presents the uncertainty effects in the transformed-model non-linear gain. Recalling Figure 2, the slight differences from the nominal gain to the model maximum and minimum gains are bounded by the sector limits defined by the slopes ${\delta }_{min}$ and ${\delta }_{max}$.

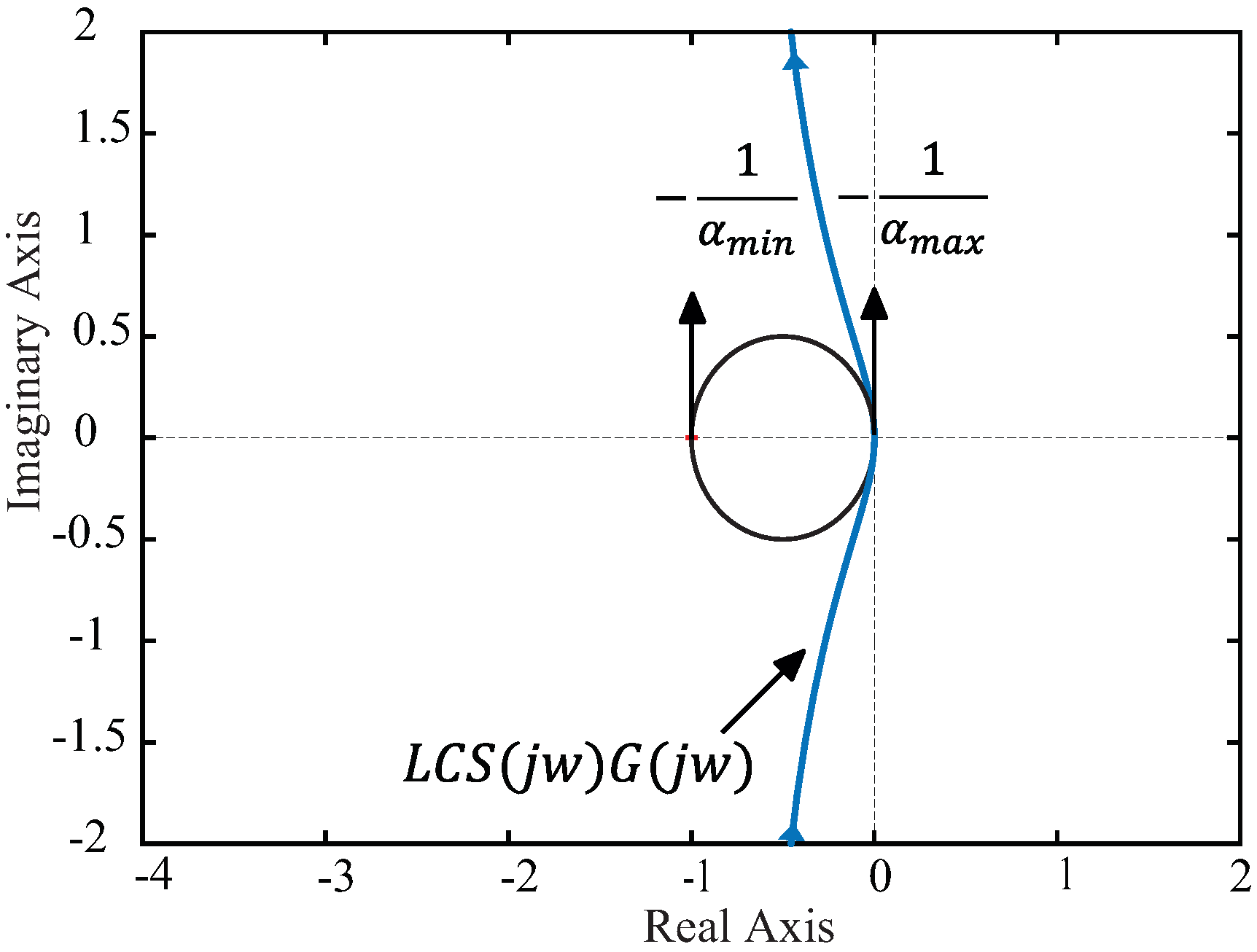

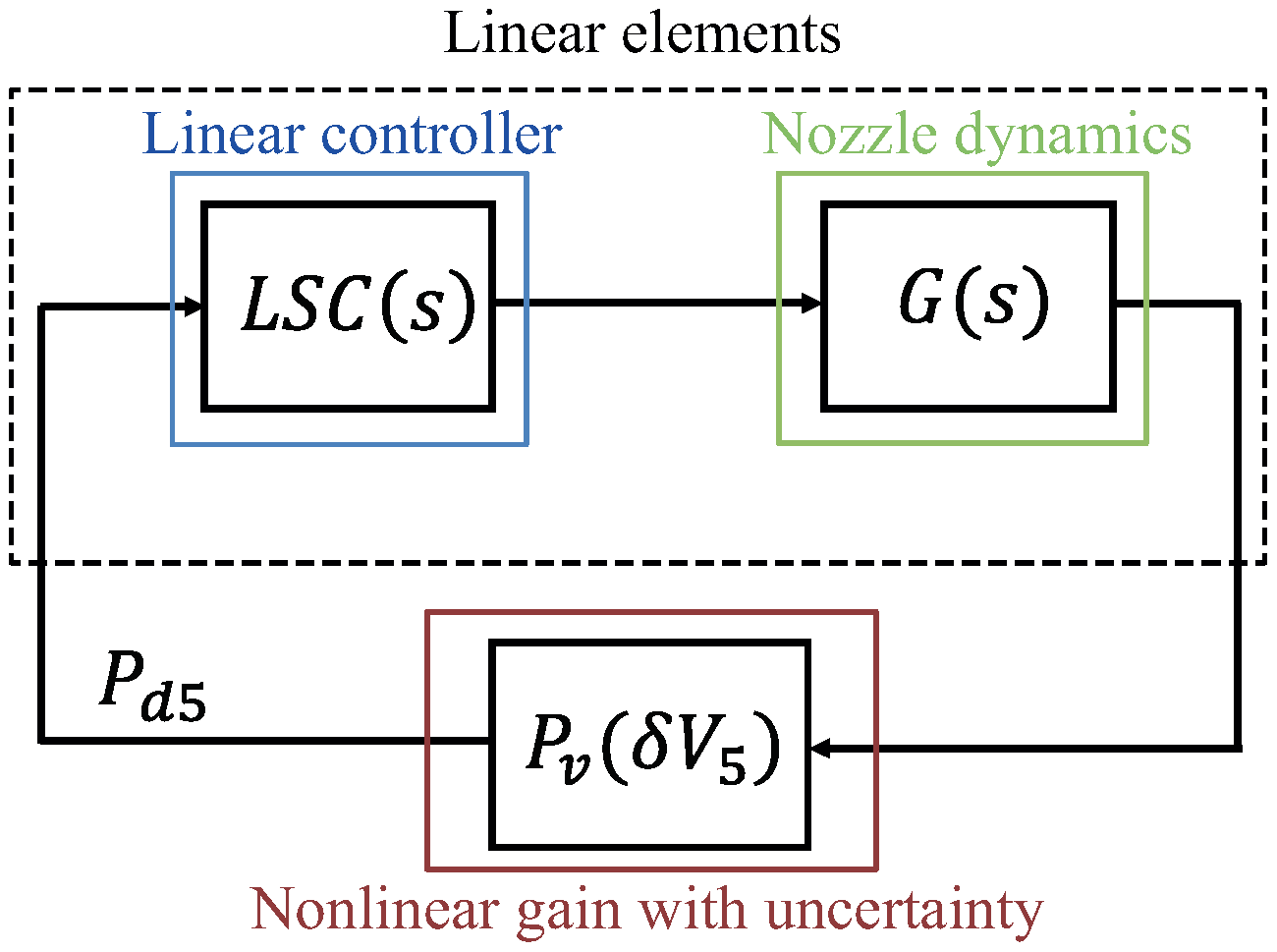

With this context in mind, the closed loop stability is evaluated with the best-suited controller for this application among the evaluated control schemes, the LADRC + LSC. The uncertainty caused by the mismatches among the linear approximation and the non-linear model may present adverse effects in the stability of the system. Thus, prior to its application, it is important to evaluate the resulting controllers with the non-linear static gain uncertainty. This is achieved by transforming Figure 6 into the structure of Figure 16. This structure includes the linearization uncertainty within the static pressure non-linear gain, yielding an autonomous representation that allows analyzing the model robustness properties with absolute stability tools [30].

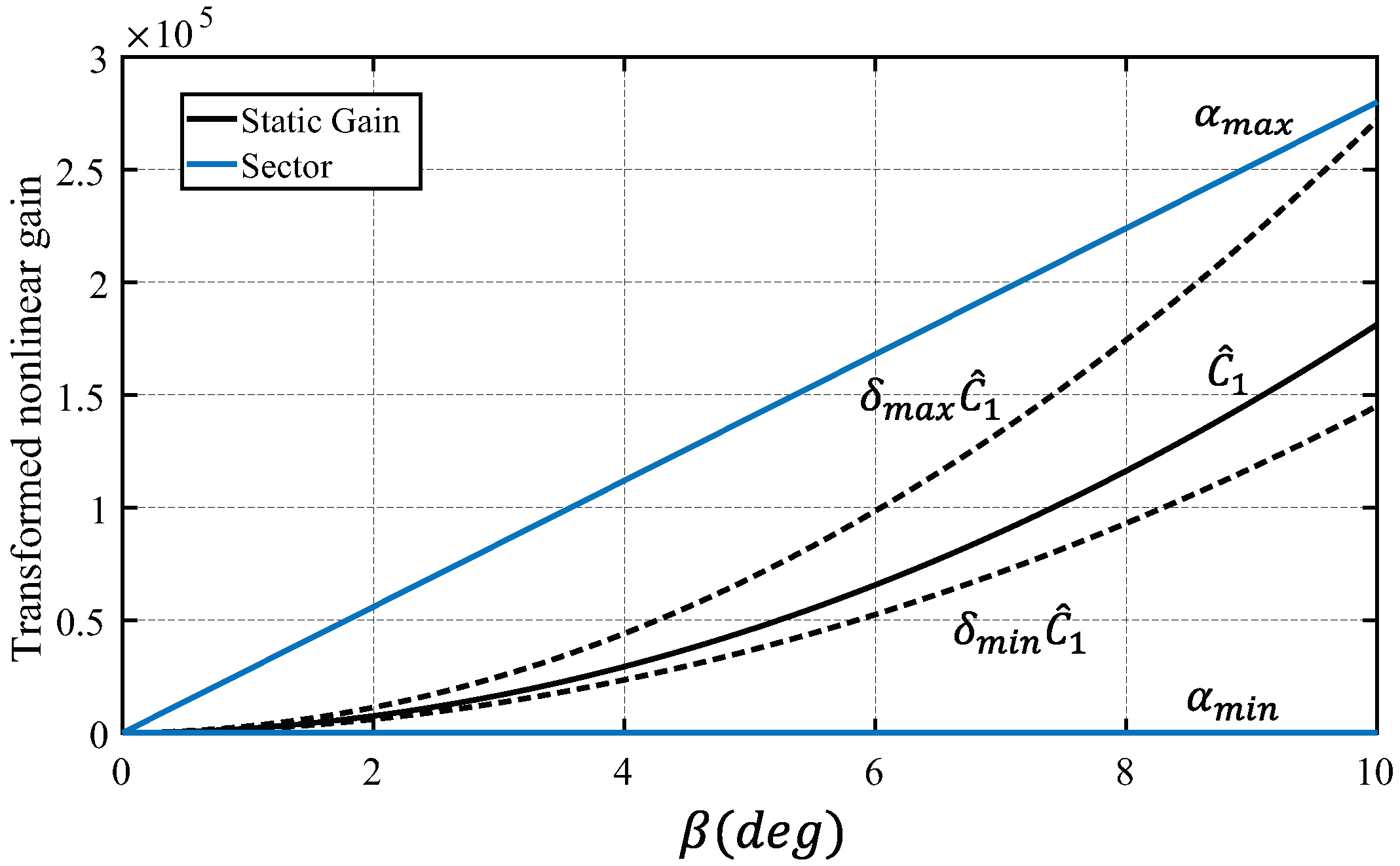

The transformed non-linear gain of Figure 15 lies within a sector that includes the effects of the linearization uncertainty. Thus, the linear elements of the autonomous system representation can be analyzed with sufficient stability conditions [31]. A practical test for asymptotic stability is the circle criterion, as presented in Figure 17. The Nyquist path for the linear elements (i.e., $LCS\left(jw\right)G\left(jw\right)$) does not encircle nor touch the circle defined by $-1/{\alpha }_{min}$ and $-1/{\alpha }_{max}$. This shows that the exhaust gas velocity loop is asymptotically stable for the analyzed operating range.

5. Case of Study: Exhaust Nozzle Area Control

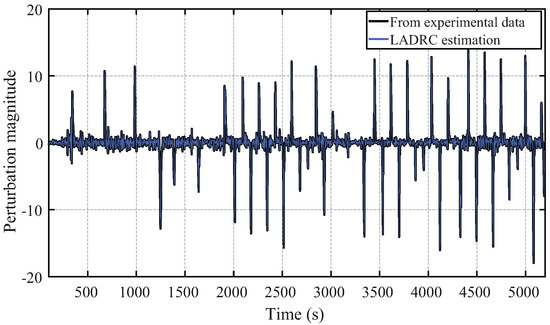

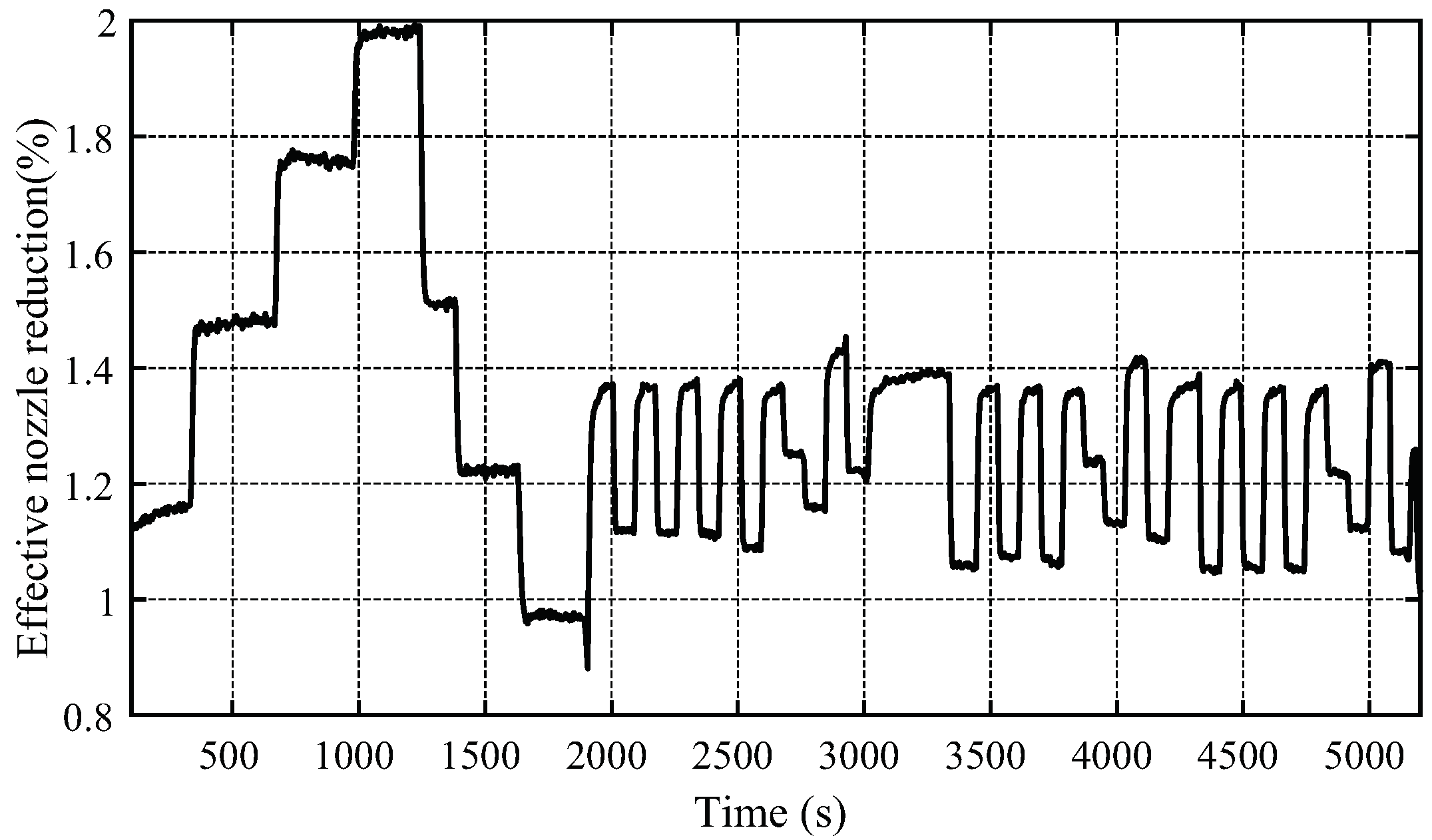

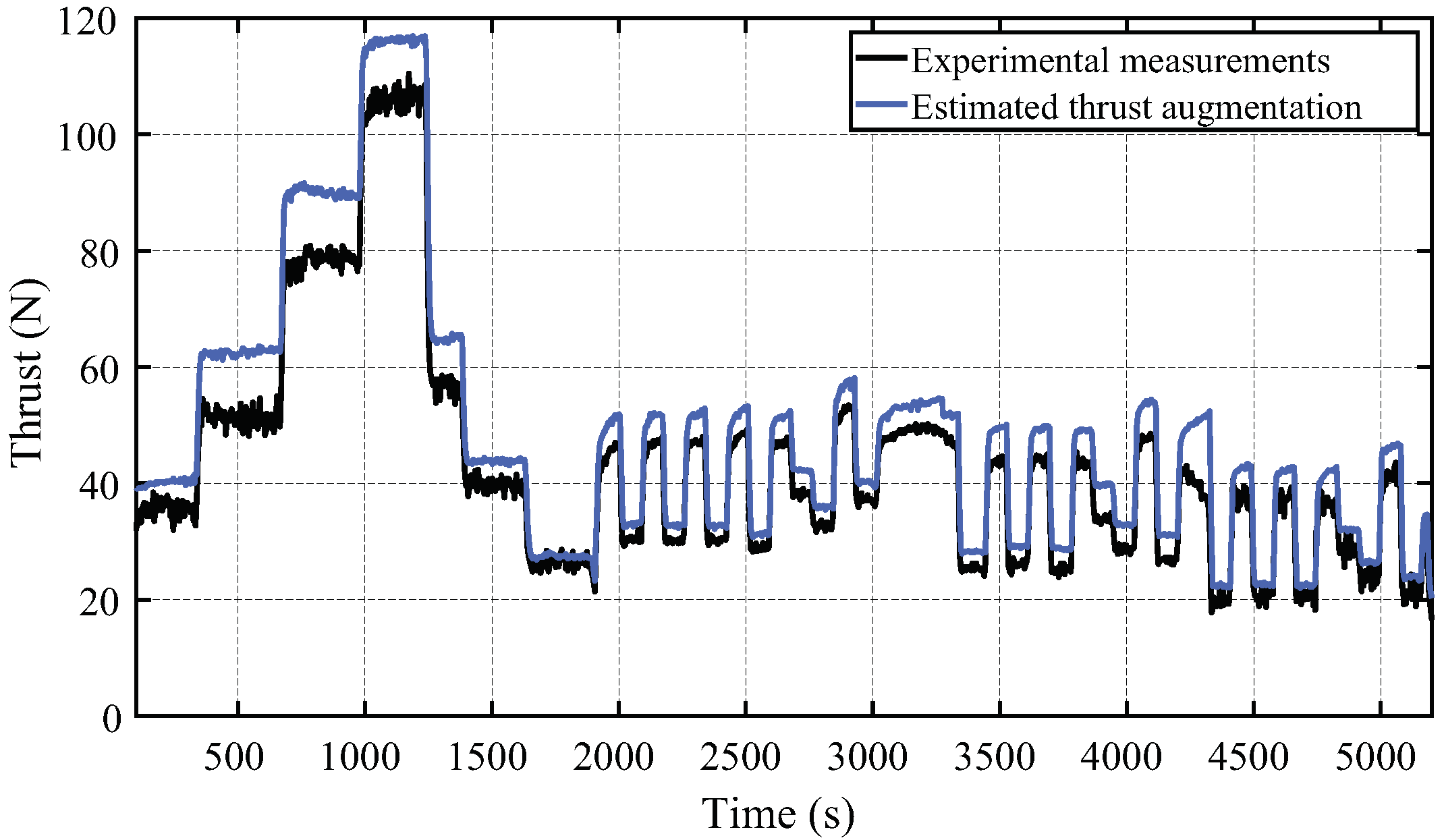

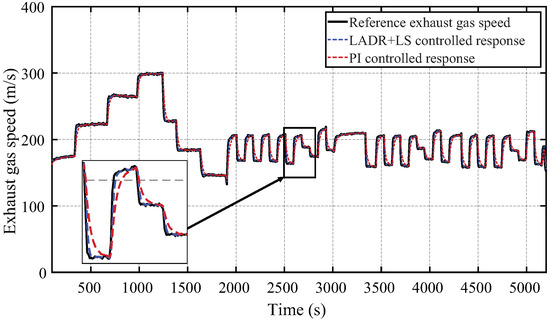

The resulting LADRC + LSC is evaluated with real operational data measured from turbojet operation and the non-linear simulation of the variable exhaust nozzle of Equation (11). The data was measured with the SR-30 turbojet test bench, which has been previously used to perform thermodynamic and data-mining analyses [5]. This test-bench allows measuring the generated thrust, shaft speed, fuel flow and gas-path properties at the input and output of each component. Figure 18 presents the reference tracking of the objective exhaust gas speed required to maximize the thrust of the SR-30 turbojet. The controlled system effectively expands the exhaust gas in every tested operating condition, considering the non-linear dynamic nozzle model (11).

On the other hand, the ESO designed of the LADRC scheme effectively estimates the disturbances caused by the turbojet thermal state changes (i.e., throttle setting changes). This is shown in Figure 19, where the estimation closely follows the input disturbance $f_d(P_4,T_4,{\dot{m}}_t,t)$. This disturbance is caused by changes in the aeroengine thermal state. That is, when the fuel flow is increased or decreased, the corresponding changes in the gas path variables ($P_4$ and $T_4$) and mass flow affect the nozzle input gas speed. The combination of the effects of each individual variable into the nozzle input gas speed are encompassed in the disturbance $f_d$.

6. Discussions

This article shows that it is feasible to develop a suitable nozzle control considering the most common issues inherent to this process. As summary, these issues involve:

• Developing comprehensive mathematical representations to capture the nozzle dynamics and adapting them for efficient controller design.
• Elucidating the possible disturbance sources that affect the nozzle performance.
• Evaluating the resulting model in terms of parametric uncertainty.
• Structuring a suitable closed-loop control scheme that considers the nozzle area manipulation and its effects into the exhaust gas flow.
• Achieving a control that specifically handles the possible nozzle disturbances and uncertainties observed during the modeling process.
• Evaluating the resulting closed-loop scheme in terms of robustness margins and classical performance metrics.
• Determine the non-linear stability condition of the closed loop system with respect to the process uncertainty.

The resulting control scheme allows maximizing the produced thrust with respect to the environmental and total exhaust gas properties. This is a novel approach that, according to a comprehensive literature review and the best knowledge of the authors, has not been presented yet in any public academic database.

The proposed combination of a LSC with an LADRC yields a practical method for controller design with improved disturbance rejection characteristics. The main advantages are that the LSC can be designed considering the control objectives in terms of classical stability and performance margins, bandwidth and additional criteria that the designer considers appropriate (such as loop attenuation at high-frequency). Thereafter, the LADRC can be designed with respect to the LSC bandwidth. However, it is important to consider the resulting trade-off among the improved disturbance rejection characteristics of the system and the resulting noise sensitivity. Nonetheless, the presented procedure allows a clear evaluation of this compromise.

When considering the uncertainty caused by the linearization, the resulting LSC + LADRC can maintain the desired performance properties, while classical controllers struggle when handling the nozzle non-linear dynamics. This is shown in Figure 18, where the PI controller provides a slower response when compared to the the LSC + LADRC, which follows more closely the desired exhaust gas speed. It should be noted that the differences among both control schemes (i.e., PI and LSC + LADRC) are reduced if the linear engine model is used for the simulation. This shows that the improvements observed in the LSC + LADRC scheme are due to it successfully rejecting engine non-linearities.

6.1. Thrust Augmentation

After optimally expanding the exhaust gas it is expected for the turbojet to provide an increased thrust with the same throttle settings. This result is confirmed in Figure 20, which shows the estimated thrust with the proposed control scheme in comparison with the measurements using a fixed nozzle turbojet. The thrust is estimated to increase up to 20 %. For the whole experiment considering different maneuvers and throttle settings, the average percentile augmented thrust is 14.41%. This thrust augmentation can provide major improvements for the turbojet fuel economy.

The effective nozzle area reduction is presented in Figure 21. The nozzle adapts to the new throttle setting by increasing or reducing the output area according to the exhaust total pressure and ambient density, while rejecting the disturbances during transient operation. Since the nozzle is reduced most of the time to achieve optimal expansion, it is possible to conclude that the turbojet is probably designed to operate near sea-level conditions (larger ambient pressures) and it requires adaption to operate at higher altitudes.

6.2. Key Advantages of Variable Exhaust Nozzle Control

Firstly, it was demonstrated in Section 3.2 that if only the disturbance rejection elements of the LADRC are used, the resulting system retains the stability and performance properties of the plant controlled by the LSC. This allowed designing the LSC + LADRC considering the requirements stated from aeronautical certifications for high performance applications, shown in Section 4.1. This simplifies the controller design process.

On the vein of fuel economy, Figure 20 shows that the resulting thrust generated with a variable exhaust nozzle is greater in every condition tested at this particular application. This augmentation could allow reducing the operating thermal state (i.e., less fuel flow) to achieve the same mission when compared to a fixed exhaust nozzle. In consequence, variable exhaust nozzles can improve the fuel economy of aircraft propelled by small-scale turbojets.

Finally, a salient property can be observed when considering the stall margin, which is is one of the main serviceability limits of aeroengines [32]. Although these margins are clearly defined for static operating conditions, when the aeroengine undergoes harsh maneuvers, the compressor faces a fast increase in the pressure ratio with a quasi-constant mass flow [33]. Considering the causality of shaft speed, pressure and mass-flow, the following statement becomes clear: in the time period among the compressor pressure rise and the respective increase in the mass flow the static stall line limit can be exceeded, which may induce engine malfunction. To reduce this possibility, aeroengine controllers are designed to limit the thrust response velocity to avoid stall margin peaks and protecting the aeroengine structural safety. The implementation of a variable exhaust nozzle may allow operating the aeroengine more aggressively without reducing the stall margin (i.e., having a higher nozzle control bandwidth to increase the thrust without fuel flow modifications, as shown in Figure 10 and Figure 13). If the nozzle handles the fast dynamics of the thrust demand, then the fuel flow can be slowly adjusted to the new set-point without reducing the stall margin during fast transient conditions.

Thus, when considering practical applications, key properties of the resulting turbojet + variable exhaust nozzle control scheme are that it (i) is compatible with aeronautical controls certification metrics, (ii) reduces operating costs through fuel flow savings and (iii) opens the possibility of achieving a faster thrust response without sacrificing the engine serviceability limit margins.

7. Conclusions

A novel variable exhaust nozzle control scheme is presented in this article. The combination the closed-loop performance and classical control specifications of a loop-shaping-controller (LSC) with the disturbance rejection properties of a linear-active-disturbance-rejection controller (LADRC) is the major characteristic of this novel scheme. The LSC is designed to meet the robustness and performance requirements by needed in common aeronautical certifications, and to provide the desired closed-loop characteristics.

The proposed approach integrates the LADRC with a classical LSC in such a manner that the system robustness margins are completely defined by the LSC. This key finding allows designing the LSC and LADRC independently with well-known design tools. This is a powerful combination that maintains the properties of well-known classical linear controllers with a modern perspective on disturbance rejection.

On the other hand, a novel mathematical representation of the nozzle dynamics was obtained from first principles and adapted into the control-loop to achieve a stream-velocity-based control loop. The integration of this nozzle model allowed developing a clear approach to improve the exhaust gas expansion by increasing the exhaust gas speed up to the optimum expansion speed. This speed is defined by the turbojet exhaust gas total pressure and the ambient pressure. Due to the incompressibility assumption, the resulting algorithm is limited to operate under small exhaust gas speed changes. Salient properties of the proposed control scheme of the variable exhaust nozzle are that the resulting turbojet+variable exhaust nozzle control scheme:

• Increases the produced thrust for the whole turbojet operating range by optimizing the flow expansion.
• Highly reduces the input disturbance sensitivity when compared to classical controllers.
• Maintains homogeneous performance properties along the operating range.
• Is compatible with aeronautical control certifications.
• Opens the possibility for achieving a faster thrust response without reducing the margin limits in transient operation.

Implementing the variable nozzle requires introducing hardware and software modifications to the turbojet; which in addition of increasing initial cost, can also result in additional weight. These modifications can include integrating additional sensors, actuators as well as the respective controller design. These are important considerations that must be weighted against possible benefits in any practical application. In this context, the results using real operational data from a turbojet showed that it is possible to increase the thrust production of the analyzed micro turbojet up to 20% when using an adaptive exhaust nozzle in combination with the proposed controller. The total augmented thrust adds up rapidly, requiring less fuel to operate within the same flight envelope and reducing the breach for a more environment-friendly operation. Finally, it can be concluded that applications that require multiple thrust set-points during operation could indeed benefit from this modification.
