On the Application of Actively and Passively Excited Guided Elastic Waves for the Monitoring of Fiber-Reinforced Plastics

Fraunhofer Institute for Ceramic Technologies and Systems IKTS, 01109 Dresden, Germany
*
Author to whom correspondence should be addressed.
This paper is an extended version of our paper published in 12th International Workshop on Structural Health Monitoring (IWSHM 2019).
Aerospace 2020, 7(5), 53; https://doi.org/10.3390/aerospace7050053
Received: 31 March 2020 / Revised: 25 April 2020 / Accepted: 27 April 2020 / Published: 30 April 2020
(This article belongs to the Special Issue Selected Papers from IWSHM 2019)
Nowadays, fiber-reinforced plastics are found in numerous industrial applications, such as aerospace, automotive engineering, railway, and naval engineering. These materials have high tensile and flexural strengths and nevertheless a low density at the same time. The use of fiber-reinforced plastics is particularly relevant in areas where large masses have to be moved and accelerated. However, testing and monitoring these structures is still a challenge caused by the different damage behavior compared to metal structures. Non-visible structural changes, such as delaminations and fiber-fractures, may cause local degradation and finally the failure of the components. In this work, active and passive ultrasonic methods based on guided elastic waves are investigated for their applicability to carbon fiber-reinforced structures. Therefore, tensile tests with cyclically increasing load are carried out on specimens with different fiber orientations until complete failure. The acoustic emissions in the specimen during the load are recorded. As a second technique, actively excited guided waves are transmitted and received during the rest periods between the measuring ramps. Different parameters are extracted from the measured data, which allow the monitoring of the specimen’s degradation. A comparison of the results of the active and passive method follows. Finally, a combination of both methods is carried out addressing issues like its informative value and its sensitivity. View Full-Text
Keywords: structural health monitoring; guided waves; acousto ultrasonic; acoustic emission testing; hybrid method; fiber-reinforced composites structural health monitoring; guided waves; acousto ultrasonic; acoustic emission testing; hybrid method; fiber-reinforced composites
Show Figures

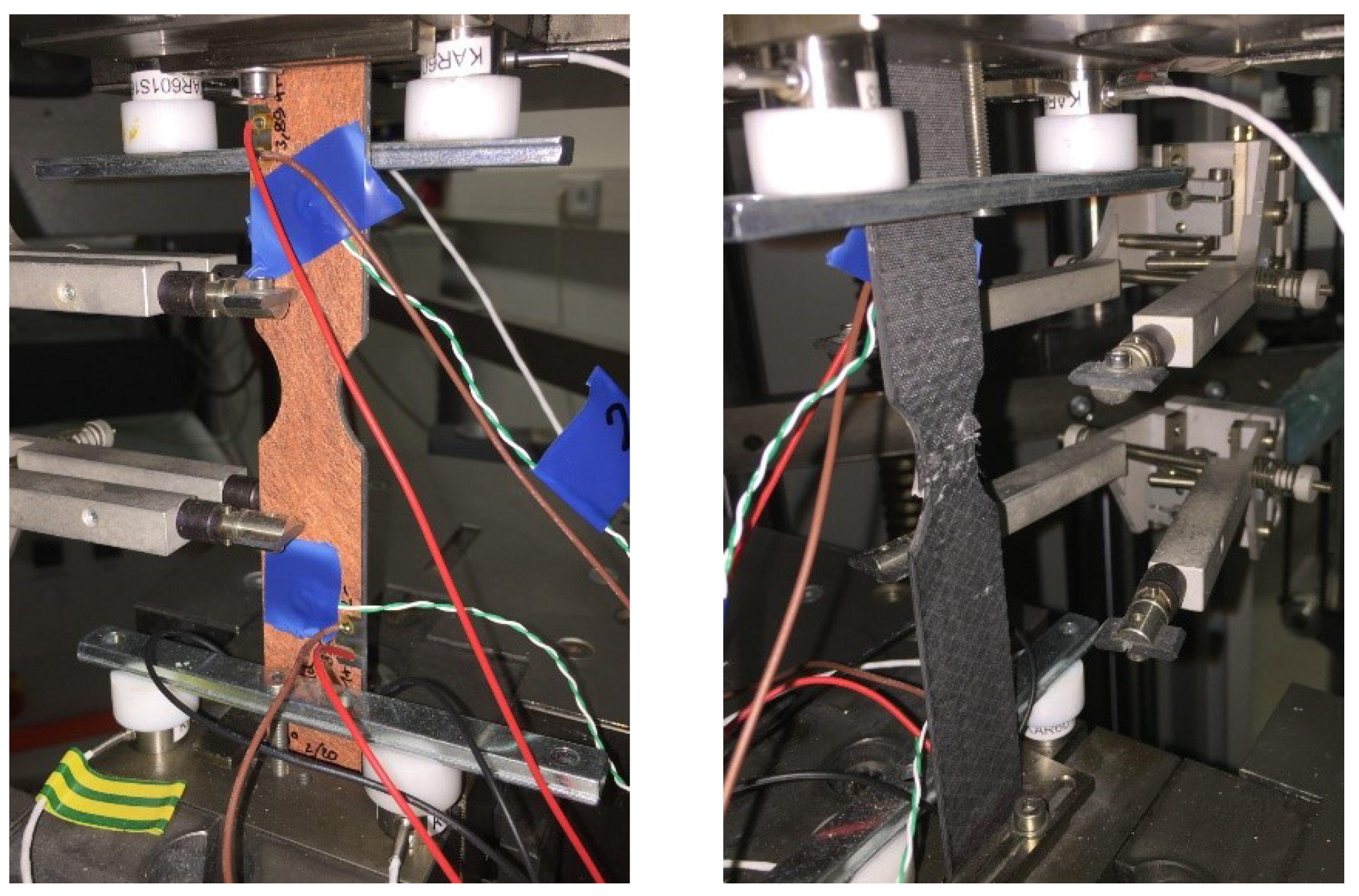

Figure 1
