Aerospace 2018, 5(3), 81; doi:10.3390/aerospace5030081

Article
Life Cycle Assessment of Ramie Fiber Used for FRPs
1
School of Civil Engineering, Harbin Institute of Technology (HIT), 73 Hanghe Road, Nangang District, Harbin 150090, China
2
Faculty of Science & Engineering, University of Nottingham Ningbo China (UNNC), Ningbo 315000, China
3
National Key Laboratory of Advanced Composites, AVIC Composite Technology Center, AVIC Composite Corporation Ltd. (ACC), Beijing 101300, China
*
Author to whom correspondence should be addressed.
Received: 15 June 2018 / Accepted: 31 July 2018 / Published: 3 August 2018

Abstract

:
With the depletion of natural resources and the deterioration of environment, natural fiber based biomaterials are attracting more and more attentions. Natural fibers are considered to be renewable, biodegradable, and ecofriendly, and have been applied to be used as alternative reinforcements to traditional glass fibers for polymer based composites (GFRP). Natural fiber reinforced polymer (NFRP) composites have been found to be manufactured as secondary structures or interior parts of aircrafts or automobiles. In this paper, a cradle-to-gate life cycle assessment (LCA) study was performed to demonstrate the possible advantages of ramie fiber on environmental impacts and to provide fundamental data for the further assessment of ramie fiber reinforced polymers (RFRP) and its structures. By collecting the material inventories of the production process of ramie fiber, the environmental impacts of ramie fiber (characterized by eight main impact categories, which are climate change, terrestrial acidification, freshwater eutrophication, human toxicity potential, ozone depletion, photochemical oxidant creation, freshwater ecotoxicity, and fossil depletion) were calculated and compared with that of glass fiber. Found if spinning process is ignored within the production of the ramie fiber, ramie fiber exhibits better ozone depletion and they have almost the same values of climate change and terrestrial acidification in terms of glass fiber. However, if the spinning process is included, ramie fiber only performs better in terms of ozone depletion. And degumming and carding and spinning processes are the processes that cause more pollution.
Keywords:
ramie fiber; life cycle assessment; glass fibre; environmental impacts

1. Introduction

Fiber reinforced polymers (FRPs) have been widely used in modern industries because of their numerous advantages, like high specific strength and modulus, excellent fatigue performances, resistance to corrosion, and so on. The areas in which FRPs have been applied include aircraft, automotive, marine, sporting goods, infrastructure, and so on [1].
The fiber reinforcements used for FRPs are generally carbon- or glass-fibers. The production of such traditional fibers will bring in high emissions of greenhouse gases and the depletion of raw material natural resources (e.g., fossil fuel). Natural fibers are introduced and used in secondary or decorative structures considering their mechanical properties, because they are considered to be raw materials available, biodegradable, eco-friendly. Recently, natural fibers (e.g., ramie fiber, flax fiber, etc.) have been developed and utilized as a substitute for traditional glass fiber, to serve as fiber reinforcements of FRPs [2,3,4].
The life cycle assessment (LCA) of FRPs has received extensive attention for a better understanding of the environmental problems of FRPs and its structures. For example, regarding the traditional carbon FRPs (CFRPs) and glass FRPs (GFRPs), Foraboschi [5,6] studied the environmental problems of using FRP to strengthen masonry and reinforced concrete (RC) structures. For natural fiber reinforced polymers (NFRPS), there are many LCA studies on various natural fibers. Le Duigou et al. [7], and Summerscales and Dissanayake [8] have studied the environmental problems of flax fiber used in FRPs. Also, a comparative life cycle assessment (LCA) study was done between two bus body components made of hemp fiber reinforced polymers (HFRP) and GFRP [3]. It was found that the hemp-based composites show a lower environmental impact. Furthermore, LCA studies of jute fiber and sisal fiber have also been found [9,10].
In this article, the LCA of another widely used natural fiber, ramie fiber, was studied, because it is one of the best fibers that has better mechanical properties [11] in natural fibers and it can be used in ramie fiber reinforced polymers (RFRP). To the best of our knowledge, research about the environmental problems of ramie fiber is still limited.
Ramie, known as Chinese grass, is a perennial herbaceous plant of the Urticaceae family and it is mainly cultivated in Asia [12]. China contributes more than 90% of the cultivation of ramie in the world [13]. In Chinese major production areas, ramie can be harvested three times in one year [12]. As ramie fibers are abundant and can meet the requirements of FRP manufacturing, in the European Union’s Horizon 2020 research and innovation programme between China and European (Grant No., 690638), ramie fiber was selected to manufacture some of the secondary structures of airports.
In the present study, a cradle-to-gate LCA was performed for the ramie fiber in order to demonstrate the possible advantages of ramie fiber on the environmental impacts and to provide fundamental data for further the assessment of RFRP and its structures. The inventories of the processes, including ramie cultivation, harvesting, peeling, transportation, degumming, and carding and spinning, were collected and calculated. Then, eight environmental categories, namely, climate change, terrestrial acidification, freshwater eutrophication, human toxicity potential, ozone depletion, photochemical oxidant creation, freshwater ecotoxicity, and fossil depletion, were used to characterize the environmental impacts of the ramie fiber. Finally, the environmental impacts of the ramie fiber were compared with that of glass fiber, based on the same mass. A professional LCA software, GaBi, was used to perform the LCA study [14]. The results show that if the spinning process is ignored within the production of the ramie fiber, the ramie fiber exhibits better ozone depletion and they have almost the same values on categories like climate change and terrestrial acidification, in terms of glass fibre. However, if the spinning process is included, the ramie fiber performs only better in term of the ozone depletion. The degumming, and carding and spinning processes are the processes that cause more pollution.

2. Methodology

Quantitative LCA was the research methodology that was used in the present study to quantify the environmental performance of the ramie fiber. LCA is an internationally accepted method to assess the environmental impacts of a product or product system. With the collected and/or calculated inputs and outputs of the whole life cycle of a product or product system, LCA can be performed according to some standards (ISO 14040 and ISO 14044 [15,16]), in order to evaluate the related environmental impacts quantitatively. A complete LCA study includes four stages, goal and scope definition, life cycle inventory analysis (LCI), life cycle impact assessment (LCIA), and life cycle interpretation [15]. The following explicitly explains the calculation and/or estimation methods used.

2.1. Goal and Scope Definition

The goal of an LCA study is related to its intended application and audience, while the scope of an LCA is related to the studied system. The goal of the present study is to get the fundamental data regarding the environmental impacts of ramie fibers. The scope of this study includes ramie cultivation and harvesting, peeling, transportation, degumming, carding and spinning (shown in Figure 1).

2.2. Functional Unit

The functional unit is specified to provide a reference to which the inputs and outputs are connected. As the specific modulus of the ramie fiber and glass fiber are both 29 × 105 m [17], the functional unit was defined as 1000 kg of ramie fiber, which can offer the same stiffness as glass fiber on a weight-for-weight basis. However, where the composites are concerned, the lower density of the ramie fiber would lead to an increasing use of polymers in the RFRP rather than in the GFRP, if the volume content of polymers in both FRPs is the same.

2.3. Allocation Principle

Allocation is very important during the performance of LCA, and different allocation methods and a different set up of the primary products would affect the final environmental burdens of the product or product system studied [8,18]. In the present study, the allocation was performed twice based on the mass ratio of primary products to the by-products. At first, the allocation was done in the ramie cultivation, harvesting, and peeling process, where raw ramie fiber was considered as the primary product and the ramie leaves, ramie stalk, and ramie bark (excluding raw ramie fiber) were considered as by-products. Also, in the carding and spinning process, allocation was performed again and long fibers were considered as a primary product, while short fibers and shives were considered as by-products.
The environmental impacts are characterized by eight categories, which are climate change, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidant creation and terrestrial acidification, freshwater ecotoxicity, and fossil depletion, and were allocated based on the principle stated above.

2.4. Life Cycle Inventory Analysis

The life cycle inventory analysis is the second step to complete a LCA. In this step, all of the inputs and outputs related to the processes within the scope need to be collected. According to the scope of the study, the inputs and outputs of the ramie cultivation, harvesting, peeling, transportation, degumming, and spinning processes need to be collected. The data used in this article comes from published papers, theses, websites, and also a ramie textile mill, named Hunan Huansheng Dongting Maye Company Limited, which is located in Yueyang city, Hunan province, China.

2.4.1. Inputs and Outputs of Ramie Cultivation, Harvesting, and Peeling

As for the inputs of ramie cultivation, there is no need for seeding after each harvesting, because ramie is a perennial herbaceous plant and cuttage propagation is the main method for planting ramie. Averagely 12.8 kg N, 3.2 kg P2O5, and 16.5 kg K2O are needed for producing 100 kg of raw ramie fiber [19,20]. To decrease the weeds, 7.5 kg diuron together with 40 kg water per hectare [19] are used, and 0.42 kg cyhalothrin together with 675 kg water per hectare are assumed to be used for reducing the number of pesticides. It is assumed that a chisel plough was used in winter for weeding once a year, and the amount of diesel consumed was set as 8.8 L/ha [21]. The amount of diesel consumed by agricultural equipment for spraying agrochemicals was set as 1 L/ha [21]. It is assumed that no irrigation was applied during the growth of ramie fiber.
Concerning the outputs of ramie cultivation, 3142.9 kg ramie leaves, 2357.1 kg ramie stalk, together with 1642.9 kg ramie bark (including raw ramie fiber) will be obtained when 1000 kg of raw ramie fiber is obtained [19]. An average value (2337 kg per year per hectare) of raw ramie fiber yield was set according to the real situation in Hunan province, China, because Hunan province (central area of China) is the main ramie production area in China and the cooperative ramie textile mill is located in Hunan province. Table 1 shows the annual raw ramie yield of Hunan province from 2000 to 2016, with missed data of 2009–2014, which is reported by the ministry of agriculture, China [22]. Moreover, the application of fertilizers will cause emissions of nitrogen gaseous fluxes and nitrogen leaching, which can be estimated according to Intergovernmental Panel on Climate Change (IPCC) tier 1 method [23]. Also, the emission factors of cyhalothrin to air, water, and soil are set as 0.01, 0.005, and 0.013 [24]. Phosphorus leaching was estimated according to the emission factor 0.01 [25]. The emissions of producing fertilizers, pesticide, herbicide, and water were acquired from GaBi databases and the pesticide and herbicide used in GaBi software to compute the environmental impacts were an unspecific type.
The emissions from producing and the combustion of diesel are the main causes for environmental pollution in the ramie harvesting process. A 4 LMZ 160 crawler-type ramie harvester with 25.7 kW auxiliary power was used for harvesting the ramie fiber and its average harvesting rate is 0.15 hectare per hour [26]. When the consumption of diesel used for harvesting was computed, the specific fuel consumption was set as 0.2448 kg/kW·h, according to the data sheet of T35 type of diesel engine (whose power is 24 kW) of Changchai Company Limited [27]. As for diesel combustion, the emission factors of carbon monoxide, carbon dioxide, nitrogen oxides, sulfur dioxide, and non-methane volatile organic compounds (NMVOC) were set as 0.0291 g/kg, 3.04 g/kg, 0.0571 g/kg, 0.00415 g/kg, and 0.00916 g/kg, respectively [24].
As for the peeling process, generating electricity is the main reason accounting for emissions to the natural environment. A 6BZ-400 model ramie barker was assumed to peel the bark from the ramie stem, and its auxiliary power and peeling rate are 2.8 kW and 10 kg/h. The emissions of generating electricity were taken from GaBi.
An allocation was performed during this process based on the mass of raw ramie fiber, ramie leaves, ramie stalk, and ramie barks (excluding raw ramie fiber) and 14% of the environmental burdens were assigned to raw ramie fiber. The allocation was performed with the help of GaBi software. The biogenetic carbon storage of the ramie fiber was also considered in this work. The amount of carbon stored by the natural fiber depends on its cellulose content [28]. The degummed ramie fiber mainly consists of cellulose, and according to the literature [28], and when 1 kg of natural fiber is produced, 1.5 kg CO2 would be absorbed.
Table 2 summarizes the inputs and outputs of producing 1000 kg of raw ramie fiber.

2.4.2. Inputs and Outputs of Transportation

The GaBi software contains almost all of the transport modes. In the present paper, the transportation process was modeled with GaBi. The transportation distance between the ramie field and the manufacturing factory is assumed as 50 km. A Euro 5 diesel truck with a 3.3 ton payload capacity was set to be the transportation method, considering the yield of the ramie fiber. Although the distance from field to factory is difficult to determine precisely, the environmental impacts of this process contribute very little to the overall environmental impacts, which can be seen from later parts.

2.4.3. Inputs and Outputs of Degumming Process

Because there are gummy matters (20–40% of the mass of raw ramie fiber), mainly composed of hemicellulose and pectin in raw ramie fibers [29], the raw ramie fiber cannot be used directly in FRPs until they are degummed. Degumming methods mainly include chemical, enzymatic, and microbial methods [30], and in the present study, enzymes together with chemicals (shown in Figure 2) were used to get the degummed fiber in this study.
The inputs of the degumming process were the chemicals (shown in Table 3) used to dissolve and remove the gummy matters, which were collected from the cooperative company mentioned above. It is known that, when 100 kg of raw ramie fibers were degummed, 60 kg degummed ramie fiber would be obtained, and 11 kg sulphuric acid, 20.25 kg sodium hydroxide, 2.4 kg hypochlorous, and 1.4 kg degumming agent would be consumed. The emissions for producing the chemicals used in this process were taken from the GaBi databases, except for degumming agent because of commercial confidentiality. As the dosage of the degumming agent is usually very small, the environmental impacts of producing and using the degumming agent have not been taken into consideration in this study. The environmental impacts of producing enzymes were not included in this paper, because of a lack of reliable data. A lack of data regarding the environmental impacts of hypochlorous acid, when the GaBi model was built, led to the use of calcium hypochlorite in order to produce hypochlorous acid, according to a chemical reaction among calcium hypochlorite, carbon dioxide, and water.
The outputs of the degumming process were mainly wastewater and it mainly comes from the pickling, boiling, washing, and bleaching processes. The wastewater from ramie degumming process usually has high pH value, high contents of chemical oxygen demand (COD), and biochemical oxygen demand (BOD). The wastewater cannot be discharged directly until it has been well treated. In this study, the wastewater treatment method was set based on the literature [31], in which a acidifying hydrolysis/biological oxidation/photochemical process method was utilized in a sewage treatment plant to make the wastewater meet the requirements of the national sewage discharge standard in China. To run the whole treatment process, electricity and chlorine need to be supplied constantly and the environmental impacts of producing electricity and chlorine were also within the system boundary in the present study. After treatment, the contents of COD, BOD, and sulfide were set as 300 mg/L, 100 mg/L according to the national wastewater discharge standard in China.
Table 3 shows the inputs and outputs for producing 1000 kg of degummed ramie fiber and the emissions of producing water, electricity, chlorine, sulphuric acid, and sodium hydroxide were taken from GaBi software.

2.4.4. Inputs and Outputs of Carding and Spinning Process

Degummed ramie fibers could be spun to get yarns, which were used to for the comparison to glass filaments. Before spinning, carding is necessary to get long degummed ramie fibers suitable for spinning, and short fibers and shives that could be used in other ways like building particle boards or animal beddings. Therefore, the allocation was performed again in this stage, based on the mass of long fibers and others. Based on the data from the cooperative factory, only 30% of the degummed fibers will be formed into yarns. The electricity consumption for the carding and spinning are based on the data for the flax fiber carding and spinning [21], because of no reliable data are available for ramie carding and spinning. Table 4 shows the inputs and outputs of the ramie carding and spinning process.

2.5. Life Cycle Impact Assessment (LCIA)

In the LCIA stage, the emissions and resource extraction will be translated into several environmental impact scores by multiplying the corresponding characterization factors. There are mainly two types of characterization factors, which are at a midpoint level and endpoint level, respectively.
In this paper, the ReCiPe method was chosen to model the environmental impacts of different fibers with the help of GaBi software. The environmental impact categories used to characterize the overall environmental performance of every fiber are climate change, terrestrial acidification, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidants creation, freshwater eco-toxicity, and fossil depletion.
The inputs and outputs of the processes involved in the scope of this study were used to build models in GaBi software.

2.6. Interpretation

Interpretation was the final step of an LCA study, and by interpretating the results from LCIA stage, the processes that have a high potential for pollution would be identified, and some useful conclusions and recommendations can be made.

3. Results and Discussions

Using the inputs and outputs from the LCI stage, the ReCiPe method and the eight main environmental categories to characterize the environmental performance of the ramie fiber, the LCIA results are shown in Table 5 and Figure 3.
As can be seen from Table 5 and Figure 3, when the environmental burdens of the ramie yarns were compared to that of the glass fibers, the ramie yarns only performed better in terms of ozone depletion, with a reduction rate of 98.29%. However, as for the other categories, the glass fibers are more eco-friendly compared with the ramie yarns. When the environmental performance of the ramie fibers (after carding and without spinning) are compared to that of the glass fibers, the ramie fibers (after carding and without spinning) perform better on ozone depletion, with a reduction rate of 98.37%, and it has almost the same values for climate change and terrestrial acidification compared to glass fiber.
Concerning identifying the processes that contribute the most to the overall environment pollution, as can be seen Table 6 and Figure 4, the degumming process and carding and spinning process are the main causes for massive environmental pollution. The percentages of the degumming process and spinning and carding process that contributes to climate change, terrestrial acidification, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidant formation, freshwater ecotoxicity, and fossil depletion is 65.2% and 58.3%, 76.9% and 20.4%, 74.2% and 0.28%, 94.3% and 5.05%, 81.4% and 17.5%, 79.2% and 18.8%, 68.7% and 0.95%, and 53.7% and 41.1%, respectively. The cultivation, harvesting, and peeling processes mainly contribute to freshwater eutrophication, ozone depletion, and freshwater ecotoxicity, and the negative value caused by these processes are due to the absorption of carbon dioxide. The transportation process contributes little to all eight of these categories, compared to other processes.
From the results above, it seems that the environmental performance of ramie fiber is not so competitive compared with glass fiber, especially when the spinning process was included into the whole manufacturing system of the ramie fiber. However, this idea may not be true. Because, at first, compared with the manufacturing technology of glass fiber, the production techniques of the ramie fiber are still not perfect and there is still a lot of room for improvement in the production techniques of ramie fiber. Then, there are no production techniques just for RFRP. For example, during the degumming process of the ramie fiber, when ramie fibers are used in FRPs, there may be no need for bleaching, which will reduce the consumption of sodium hypochlorite, washing water, and the releasing of treated wastewater. Then, the residual gum rate of the degummed ramie fiber should be less than 2% in the textile industry, while in the FRPs, the residual gum rate may be not so strict, which means that less chemicals may be used in the degumming process. Next, the spinning requirements for the textiles and FRPs may be different too. Finally, ramie fibers can degrade automatically, which can reduce the energy required for handling the disposals made of RFRP.
Based on the discussion above, more research should be performed to establish the manufacturing technologies of the ramie fiber just for RFRP. Degumming and spinning processes are the main processes that can be targeted to decrease the environmental burdens of ramie fibers used for FRPs.
Although some results have been obtained, there are also some limitations in this article. Firstly, the data used in the calculation is relatively limited, which means there will be more uncertainty regarding the final results. Then, data from the cooperative ramie textile mill was collected by the local workers in the mill, because of commercial confidentiality, which means there may be some variation because they know nothing about LCA principles. However, this study did provide some useful information and conclusions in general.

4. Conclusions

According to LCA, the input and output data of the production processes of ramie fibers were summarized and analyzed. The comparison of LCA between the ramie fibers and glass fibers were performed. The following conclusions can be drawn based on the above study.
According to the results of LCA, if the spinning process was included within the manufacturing of the ramie fiber, the ramie fiber performs better than glass fiber only in ozone depletion. If the spinning process was not included, the ramie fiber performs better in the ozone depletion and has almost the same values of climate change and terrestrial acidification.
The degumming, and carding and spinning processes are the main causes of pollution during the production of ramie fibers. The cultivation, harvesting, and peeling processes mainly contribute to the categories of freshwater eutrophication, ozone depletion, and freshwater ecotoxicity. The transportation process contributes little to the overall pollution.
More research should be done toward developing production techniques for the ramie fibers for the RFRP.

Author Contributions

G.X. and X.-S.Y. conceived and guided the study; S.D. collected the data and wrote the paper.

Funding

This work was financially supported by the Chinese MIIT Special Research Plan on Civil Aircraft, grant No. MJ-2015-H-G-103 and European Union’s Horizon 2020 research and innovation programme, under grant agreement No. 690638.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mallick, P.K. Fiber-Reinforced Composites: Materials, Manufacturing, and Design, 3rd ed.; CRC Press: Boca Raton, FL, USA; London, UK; New York, NY, USA, 2007; ISBN 9780849342059-CAT# 4205. [Google Scholar]
  2. Wötzell, K.; Wirth, R.; Flake, M. Life cycle studies on hemp fibre reinforced components and ABS for automotive part. Die Angew. Makromol. Chem. 1999, 272, 121–127. [Google Scholar] [CrossRef]
  3. Schmehl, M.; Müssig, J.; Schönfeld, U.; Von Buttlar, H.B. Life Cycle Assessment on a Bus Body Component Based on Hemp Fiber and PTP. J. Polym. Environ. 2008, 16, 51–60. [Google Scholar] [CrossRef]
  4. Scarponi, C.; Messano, M. Comparative evaluation between E-Glass and hemp fiber composites application in rotorcraft interiors. Compos. Part B Eng. 2015, 69, 542–549. [Google Scholar] [CrossRef]
  5. Foraboschi, P. Analytical model to predict the lifetime of concrete members externally reinforced with FRP. Theor. Appl. Fract. Mech. 2015, 75, 137–145. [Google Scholar] [CrossRef]
  6. Foraboschi, P. Effectiveness of novel methods to increase the FRP-masonry bond capacity. Compos. Part B Eng. 2016, 107, 214–232. [Google Scholar] [CrossRef]
  7. Le Duigou, A.; Davies, P.; Baley, C. Environmental impact analysis of the production of flax fibres to be used as composite material reinforcement. J. Biobased Mater. Bioenergy 2011, 5, 153–165. [Google Scholar] [CrossRef]
  8. Summerscales, J.; Dissanayake, N.P.J. Allocation in the life cycle assessment (LCA) of flax fibres for the reinforcement of composites. In Proceedings of the 21st International Conference on Composite Materials, Xi’an, China, 20–25 August 2017. [Google Scholar]
  9. Islam, M.S.; Ahmed, S.K. The impacts of jute on environment: An analytical review of Bangladesh. J. Environ. Earth Sci. 2012, 2, 24–32. [Google Scholar]
  10. Broeren, M.L.M.; Dellaert, S.N.C.; Cok, B.; Patel, M.K.; Worrell, E.; Shen, L. Life cycle assessment of sisal fibre—Exploring how local practices can influence environmental performance. J. Clean. Prod. 2017, 149, 818–827. [Google Scholar] [CrossRef]
  11. Saheb, D.N.; Jog, J.P. Natural fiber polymer composites: A review. Adv. Polym. Technol. 1999, 18, 351–363. [Google Scholar] [CrossRef]
  12. Liu, F.; Liu, Q.; Liang, X.; Huang, H.; Zhang, S. Morphological, anatomical, and physiological assessment of ramie [Boehmeria nivea (L.) Gaud.] tolerance to soil drought. Genet. Resour. Crop. Evol. 2005, 52, 497–506. [Google Scholar] [CrossRef]
  13. Bo, W.; Dingxia, P.; Lijun, L.; Zhenxia, S.; Na, Z.; Shimei, G. An effcient adventitious shoot regeneration system for ramie (Bohehmeria nivea Gaud) using thidiazuron. Bot. Study 2007, 48, 173–180. [Google Scholar]
  14. Thinkstep GaBi. Available online: www.gabi-software.com (accessed on 24 April 2018).
  15. ISO 14040:2006 Environmental Management—Life Cycle Assessment—Principles and Framework. Available online: www.iso.org (accessed on 24 April 2018).
  16. ISO 14044:2006 Environmental management—Life cycle Assessment—Requirements and Guidelines. Available online: www.iso.org (accessed on 24 April 2018).
  17. Paul, W.; Ivens, J.; Ignaas, V. Natural fibres: Can they replace glass in fibre reinforced plastics? Compos. Sci. Technol. 2003, 63, 1259–1264. [Google Scholar]
  18. Ekvall, T.; Finnveden, G. Allocation in ISO 14041—A critical review. J. Clean. Prod. 2001, 9, 197–208. [Google Scholar] [CrossRef]
  19. Ramie Institute of Hunan Agricultural University. Available online: http://chinagrass.hunau.edu.cn/ (accessed on 24 April 2018).
  20. Wang, C.T.; Li, Z.D.; Yu, T.W.; Liu, M.S.; Xiao, Z.P.; Cui, G.X.; Xue, N.D.; Li, G.S.; Deng, M.Q. Fertilization programma in ducing fine quality and high yield of ramie and its application technique. J. Hunan Agric. Coll. 1994, 20, 318–324. [Google Scholar]
  21. Dissanayake, N.P.J. Life Cycle Assessment of Flax Fibres for the Reinforcement of Polymer Matrix Composites. Ph.D. Thesis, University of Plymouth, Plymouth, UK, May 2011. [Google Scholar]
  22. Ministry of Agriculture of the People’s Republic of China. Available online: www.moa.gov.cn (accessed on 24 April 2018).
  23. 2006 IPCC Guidelines for National Greenhouse Gas Inventories—Volume 4—Agriculture, Forestry and Other Land Use. Available online: www.ipcc-nggip.iges.or.jp/public/2006gl/index.html (accessed on 24 April 2018).
  24. EU Concerted Action Report Harmonization of Environmental Life Cycle Assessment for Agriculture Final Report. Concerted Action AIR3-CT94-2028. Available online: www.researchgate.net (accessed on 24 April 2018).
  25. Bioenergy for Europe: Which One Fits Best? A Comparative Analysis for the Community. Available online: https://www.researchgate.net/publication/320258744_Bioenergy_for_Europe_Which_Ones_Fit_Best_-_A_Comparative_Analysis_for_the_Community (accessed on 24 April 2018).
  26. Huang, J.C.; Li, X.W.; Zhang, B.; Tian, K.P.; Shen, C.; Wang, J.G. Research on the 4LMZ160 crawler ramie combine harvester. J. Agric. Mech. Res. 2015, 9, 155–158. [Google Scholar] [CrossRef]
  27. Changchai Company Limited’s Product Sheet. Available online: http://www.changchai.com.cn/show.asp?id=18 (accessed on 24 April 2018).
  28. Benoît, C.; Xavier, P.; André, G.; Fritz, S.; Gérard, C. Contributions of hemicellulose, cellulose and lignin to the mass and the porous properties of chars and steam activated carbons from various lignocellulosic precursors. Bioresour. Technol. 2009, 100, 292–298. [Google Scholar]
  29. Shengwen, D.; Zhengchu, L.; Xiangyuan, F.; Ke, Z.; Lifeng, C.; Xia, Z. Diversity and characterization of ramie-degumming strains. Sci. Agricola 2011, 69, 119–125. [Google Scholar]
  30. Deb, P.R.; Pratik, S.; Sabyasachi, M.; Pradipta, B.; Rakesh, K.G. Degumming of ramie: Challenge to the queen of fibres. Int. J. Bioresour. Sci. 2014, 1, 37–41. [Google Scholar]
  31. Bao, H.F.; Bao, J.G.; Li, H.W. Treatment of ramie retting wastewater using acidifying hydrolysis/biological oxidation/photochemical process. China Water Wastewater 2006, 22, 52–55. [Google Scholar]

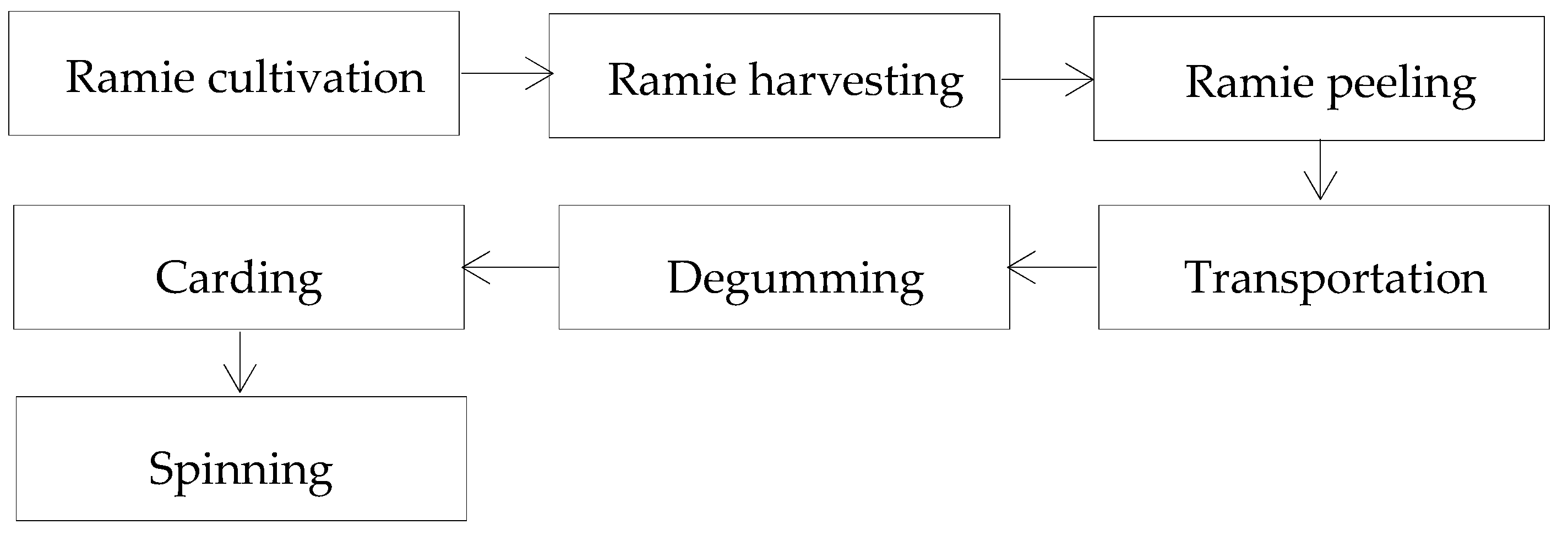

Figure 1. Production processes of ramie fiber.
Figure 1. Production processes of ramie fiber.
Aerospace 05 00081 g001

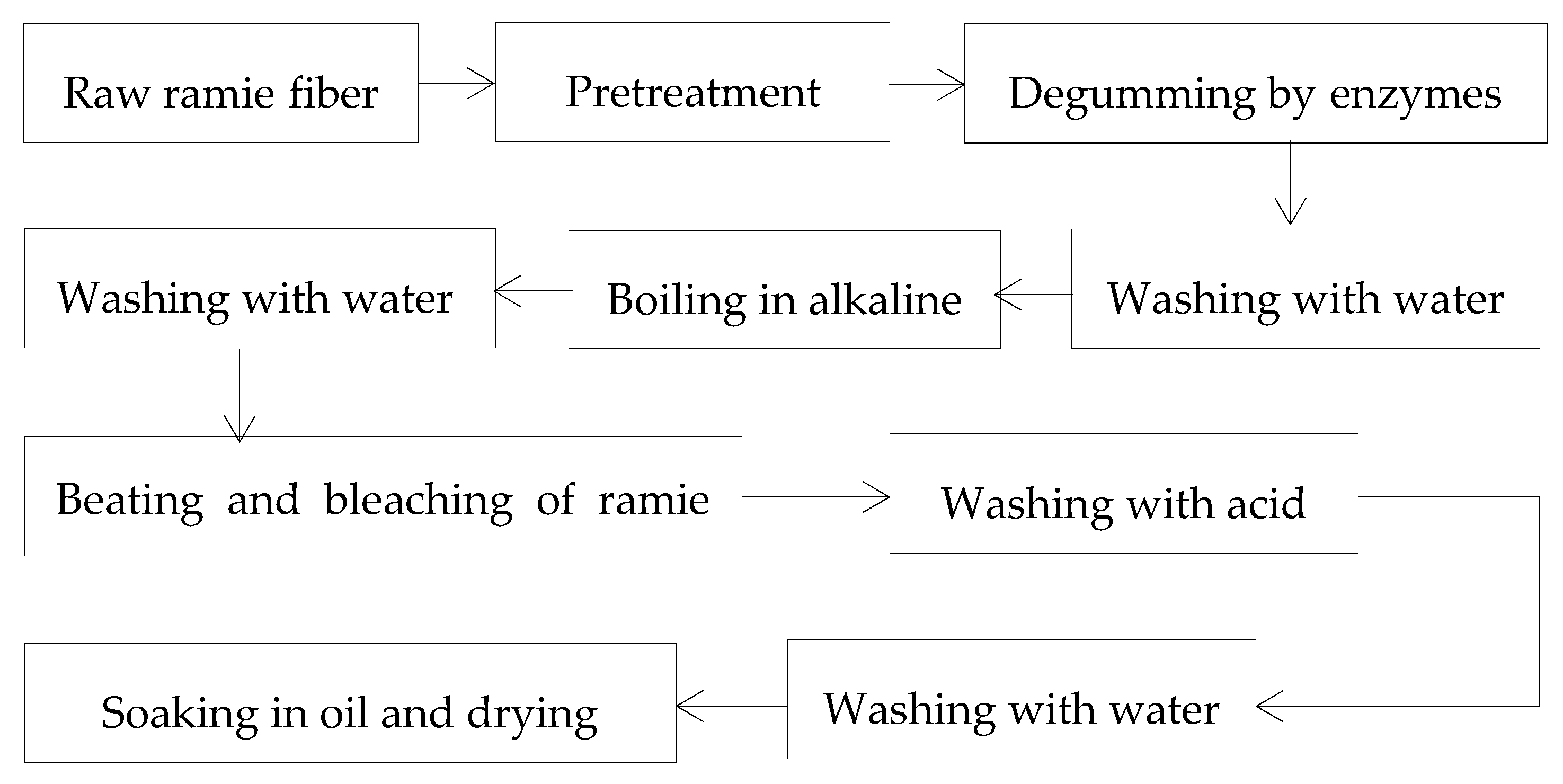

Figure 2. Typical enzymatic degumming processes of ramie fiber.
Figure 2. Typical enzymatic degumming processes of ramie fiber.
Aerospace 05 00081 g002

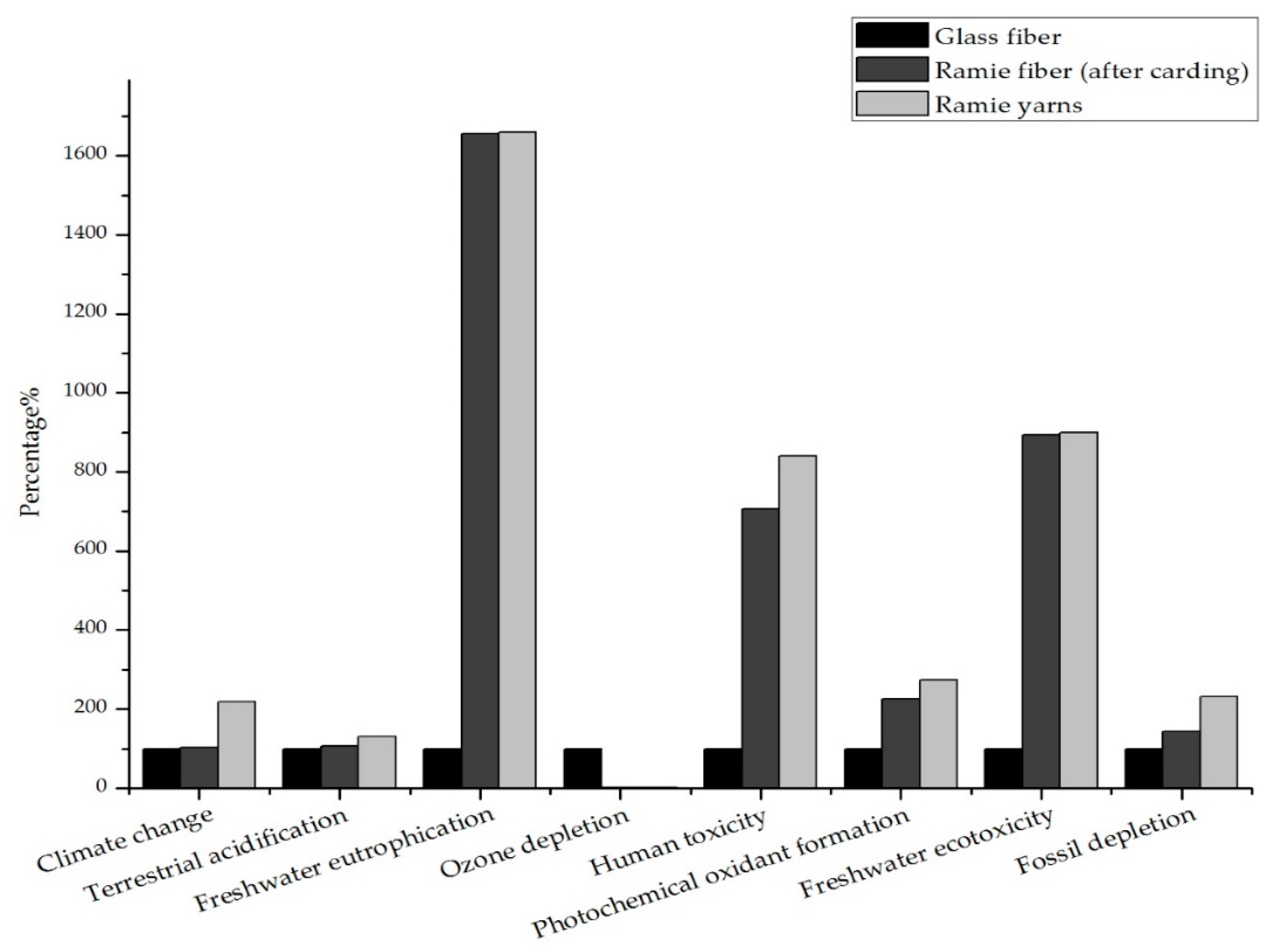

Figure 3. Comparison between three different kinds of fibers in terms of the eight main environmental categories.
Figure 3. Comparison between three different kinds of fibers in terms of the eight main environmental categories.
Aerospace 05 00081 g003

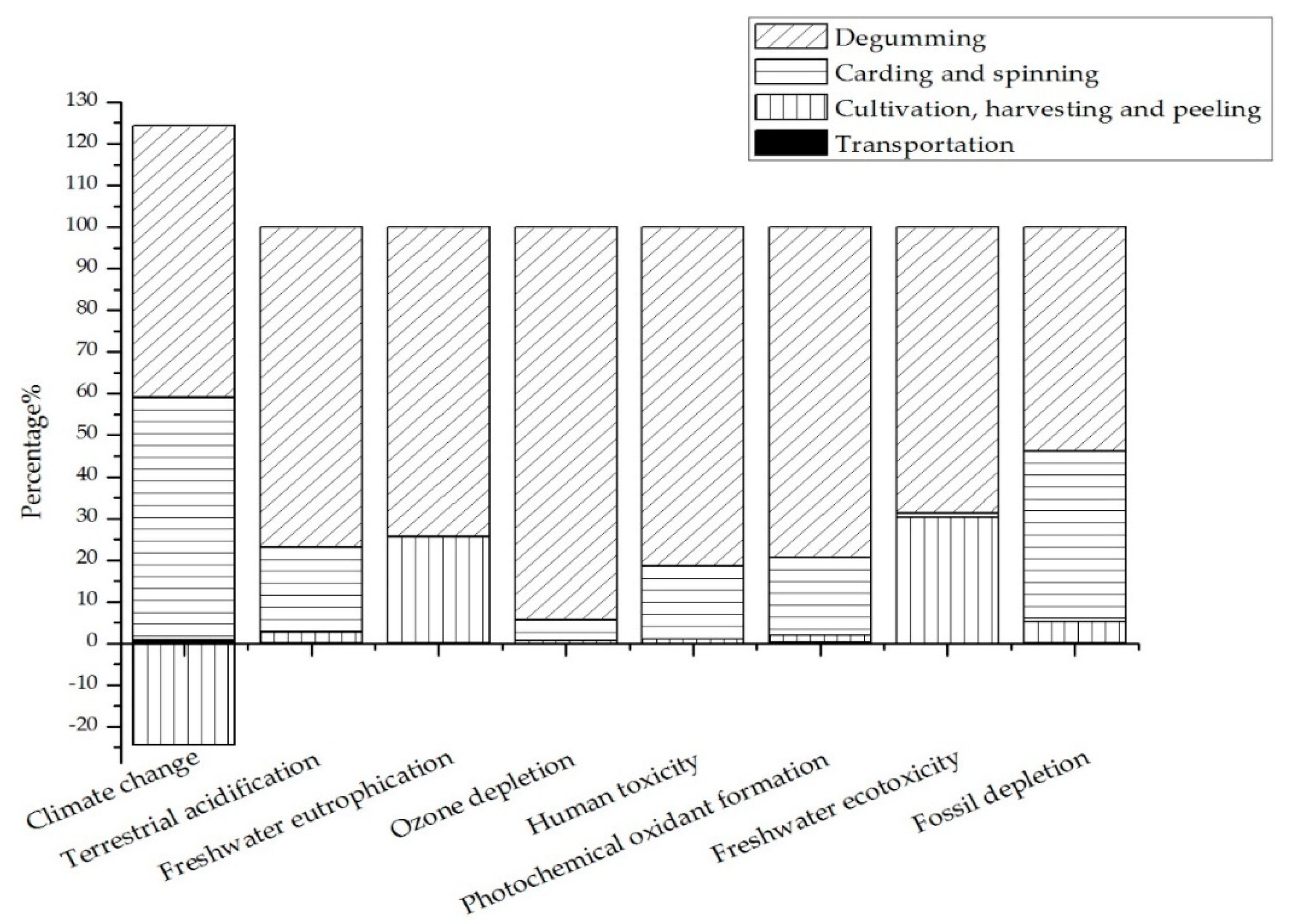

Figure 4. Percentages of different processes that contribute to the eight different environmental impact categories of ramie yarns.
Figure 4. Percentages of different processes that contribute to the eight different environmental impact categories of ramie yarns.
Aerospace 05 00081 g004
Table 1. Yields of ramie fiber of 2000–2016 with missed data of 2009–2014 in Hunan province.
Table 1. Yields of ramie fiber of 2000–2016 with missed data of 2009–2014 in Hunan province.
Year20002001200220032004200520062007200820152016
Yield/kg19642002235923042443254125162494250222972285
Table 2. Inputs and output of producing 1000 kg of raw ramie fiber.
Table 2. Inputs and output of producing 1000 kg of raw ramie fiber.
InputQuantityOutputQuantity
Ammonium nitrate
(33.5% N)
382.1 kgRaw ramie fiber1000 kg
Triple superphosphate
(46% P2O5)
69.6 kgRamie bark
(excluding raw ramie fiber)
642.9 kg
Potassium chloride
(60% K2O)
275 kgRamie leaf3142.9 kg
Diuron9.6 kgRamie stalk2357.1 kg
Cyhalothrin0.5 kgCarbon monoxide1.7 g
Water917.8 kgCarbon dioxide176.5 g
Electricity280 kW·hNitrous oxide5.4 kg
Diesel58 kgNitrogen oxides3.3 g
Sequestered atmospheric CO21500 kgSulfur dioxide0.2 g
Emission of cyhalothrin to air5 g
Emission of cyhalothrin to water2.5 g
Emission of cyhalothrin to soil6.5 g
Phosphate to water0.14 kg
NMVOC0.5 g
This table does not include the inputs of the ramie rootstock and soil components consumed, which are about four tons. NMVOC—non-methane volatile organic compounds.
Table 3. Inputs and outputs of producing 1000 kg of degummed ramie fiber. COD—chemical oxygen demand; BOD—biochemical oxygen demand.
Table 3. Inputs and outputs of producing 1000 kg of degummed ramie fiber. COD—chemical oxygen demand; BOD—biochemical oxygen demand.
InputQuantityOutputQuantity
Water733 tonsDegummed ramie fiber1000 kg
Electricity1475.52 kW·hPectin, lignin, and hemicellulose666.7 kg
Chlorine8.8 kgWastewater (treated)733 tons
Sulphuric acid183.3 kgCOD300 mg/L
Sodium hydroxide337.5 kgBOD100 mg/L
Hypochlorous acid40.0 kg
Ramie degumming agent23.3 kg
Steam from biomass16.7 tons
Raw ramie fiber1666.7 kg
Table 4. Inputs and outputs of producing 1000 kg ramie yarns.
Table 4. Inputs and outputs of producing 1000 kg ramie yarns.
InputQuantityOutputQuantity
Electricity7260 kW·hRamie yarns1000 kg
Degummed ramie fiber3333.3 kgShort fibers and shives2333.3 kg
Table 5. Life cycle impact assessment (LCIA) results of one ton ramie yarns, ramie fiber (after carding), and glass fibers.
Table 5. Life cycle impact assessment (LCIA) results of one ton ramie yarns, ramie fiber (after carding), and glass fibers.
Environmental Impact CategoryUnitGlass FibersRamie Fiber
(after Carding)
Ramie Yarns
Climate changekg CO2-Equiv.174017703790
Terrestrial acidificationkg SO2 eq.10.310.913.4
Freshwater eutrophicationkg P eq.5.25 × 10−386.9 × 10−387.1 × 10−3
Ozone depletionkg CFC-11 eq.483 × 10−107.88 × 10−108.26 × 10−10
Human toxicity potentialkg 1,4-DB eq.20.8147175
Photochemical oxidant formationkg NMVOC5.2611.914.4
Freshwater ecotoxicitykg 1,4-DB eq.0.4614.124.15
Fossil depletionkg oil eq.5788321.34 × 103
Table 6. Values of the eight categories contributed by different production processes of ramie yarns.
Table 6. Values of the eight categories contributed by different production processes of ramie yarns.
Environmental Impact CategoryUnitTransportationCultivation, Harvesting and PeelingCarding and SpinningDegumming
Climate changekg CO2-Equiv.31−92122102400
Terrestrial acidificationkg SO2 eq.0.0240.3462.744.94
Freshwater eutrophicationkg P eq.5.9 × 10−50.012524.1 × 10−50.027
Ozone depletionkg CFC-11 eq.05.30 × 10−1241.7 × 10−12738 × 10−12
Human toxicity potentialkg 1,4-DB eq.01.830.663
Photochemical oxidant formationkg NMVOC0.04310.3532.74.39
Freshwater ecotoxicitykg 1,4-DB eq.1.25 × 10−111.260.03952.51
Fossil depletionkg oil eq.1.467.6550701
