Life Cycle Assessment of Ramie Fiber Used for FRPs

Abstract

With the depletion of natural resources and the deterioration of environment, natural fiber based biomaterials are attracting more and more attentions. Natural fibers are considered to be renewable, biodegradable, and ecofriendly, and have been applied to be used as alternative reinforcements to traditional glass fibers for polymer based composites (GFRP). Natural fiber reinforced polymer (NFRP) composites have been found to be manufactured as secondary structures or interior parts of aircrafts or automobiles. In this paper, a cradle-to-gate life cycle assessment (LCA) study was performed to demonstrate the possible advantages of ramie fiber on environmental impacts and to provide fundamental data for the further assessment of ramie fiber reinforced polymers (RFRP) and its structures. By collecting the material inventories of the production process of ramie fiber, the environmental impacts of ramie fiber (characterized by eight main impact categories, which are climate change, terrestrial acidification, freshwater eutrophication, human toxicity potential, ozone depletion, photochemical oxidant creation, freshwater ecotoxicity, and fossil depletion) were calculated and compared with that of glass fiber. Found if spinning process is ignored within the production of the ramie fiber, ramie fiber exhibits better ozone depletion and they have almost the same values of climate change and terrestrial acidification in terms of glass fiber. However, if the spinning process is included, ramie fiber only performs better in terms of ozone depletion. And degumming and carding and spinning processes are the processes that cause more pollution.

1. Introduction

Fiber reinforced polymers (FRPs) have been widely used in modern industries because of their numerous advantages, like high specific strength and modulus, excellent fatigue performances, resistance to corrosion, and so on. The areas in which FRPs have been applied include aircraft, automotive, marine, sporting goods, infrastructure, and so on [1].

The fiber reinforcements used for FRPs are generally carbon- or glass-fibers. The production of such traditional fibers will bring in high emissions of greenhouse gases and the depletion of raw material natural resources (e.g., fossil fuel). Natural fibers are introduced and used in secondary or decorative structures considering their mechanical properties, because they are considered to be raw materials available, biodegradable, eco-friendly. Recently, natural fibers (e.g., ramie fiber, flax fiber, etc.) have been developed and utilized as a substitute for traditional glass fiber, to serve as fiber reinforcements of FRPs [2,3,4].

The life cycle assessment (LCA) of FRPs has received extensive attention for a better understanding of the environmental problems of FRPs and its structures. For example, regarding the traditional carbon FRPs (CFRPs) and glass FRPs (GFRPs), Foraboschi [5,6] studied the environmental problems of using FRP to strengthen masonry and reinforced concrete (RC) structures. For natural fiber reinforced polymers (NFRPS), there are many LCA studies on various natural fibers. Le Duigou et al. [7], and Summerscales and Dissanayake [8] have studied the environmental problems of flax fiber used in FRPs. Also, a comparative life cycle assessment (LCA) study was done between two bus body components made of hemp fiber reinforced polymers (HFRP) and GFRP [3]. It was found that the hemp-based composites show a lower environmental impact. Furthermore, LCA studies of jute fiber and sisal fiber have also been found [9,10].

In this article, the LCA of another widely used natural fiber, ramie fiber, was studied, because it is one of the best fibers that has better mechanical properties [11] in natural fibers and it can be used in ramie fiber reinforced polymers (RFRP). To the best of our knowledge, research about the environmental problems of ramie fiber is still limited.

Ramie, known as Chinese grass, is a perennial herbaceous plant of the Urticaceae family and it is mainly cultivated in Asia [12]. China contributes more than 90% of the cultivation of ramie in the world [13]. In Chinese major production areas, ramie can be harvested three times in one year [12]. As ramie fibers are abundant and can meet the requirements of FRP manufacturing, in the European Union’s Horizon 2020 research and innovation programme between China and European (Grant No., 690638), ramie fiber was selected to manufacture some of the secondary structures of airports.

In the present study, a cradle-to-gate LCA was performed for the ramie fiber in order to demonstrate the possible advantages of ramie fiber on the environmental impacts and to provide fundamental data for further the assessment of RFRP and its structures. The inventories of the processes, including ramie cultivation, harvesting, peeling, transportation, degumming, and carding and spinning, were collected and calculated. Then, eight environmental categories, namely, climate change, terrestrial acidification, freshwater eutrophication, human toxicity potential, ozone depletion, photochemical oxidant creation, freshwater ecotoxicity, and fossil depletion, were used to characterize the environmental impacts of the ramie fiber. Finally, the environmental impacts of the ramie fiber were compared with that of glass fiber, based on the same mass. A professional LCA software, GaBi, was used to perform the LCA study [14]. The results show that if the spinning process is ignored within the production of the ramie fiber, the ramie fiber exhibits better ozone depletion and they have almost the same values on categories like climate change and terrestrial acidification, in terms of glass fibre. However, if the spinning process is included, the ramie fiber performs only better in term of the ozone depletion. The degumming, and carding and spinning processes are the processes that cause more pollution.

2. Methodology

Quantitative LCA was the research methodology that was used in the present study to quantify the environmental performance of the ramie fiber. LCA is an internationally accepted method to assess the environmental impacts of a product or product system. With the collected and/or calculated inputs and outputs of the whole life cycle of a product or product system, LCA can be performed according to some standards (ISO 14040 and ISO 14044 [15,16]), in order to evaluate the related environmental impacts quantitatively. A complete LCA study includes four stages, goal and scope definition, life cycle inventory analysis (LCI), life cycle impact assessment (LCIA), and life cycle interpretation [15]. The following explicitly explains the calculation and/or estimation methods used.

2.1. Goal and Scope Definition

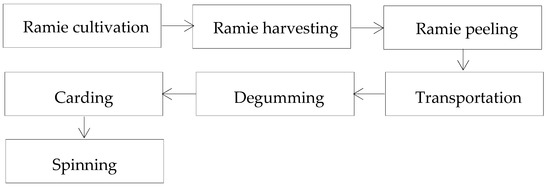

The goal of an LCA study is related to its intended application and audience, while the scope of an LCA is related to the studied system. The goal of the present study is to get the fundamental data regarding the environmental impacts of ramie fibers. The scope of this study includes ramie cultivation and harvesting, peeling, transportation, degumming, carding and spinning (shown in Figure 1).

2.2. Functional Unit

The functional unit is specified to provide a reference to which the inputs and outputs are connected. As the specific modulus of the ramie fiber and glass fiber are both 29 × 10⁵ m [17], the functional unit was defined as 1000 kg of ramie fiber, which can offer the same stiffness as glass fiber on a weight-for-weight basis. However, where the composites are concerned, the lower density of the ramie fiber would lead to an increasing use of polymers in the RFRP rather than in the GFRP, if the volume content of polymers in both FRPs is the same.

2.3. Allocation Principle

Allocation is very important during the performance of LCA, and different allocation methods and a different set up of the primary products would affect the final environmental burdens of the product or product system studied [8,18]. In the present study, the allocation was performed twice based on the mass ratio of primary products to the by-products. At first, the allocation was done in the ramie cultivation, harvesting, and peeling process, where raw ramie fiber was considered as the primary product and the ramie leaves, ramie stalk, and ramie bark (excluding raw ramie fiber) were considered as by-products. Also, in the carding and spinning process, allocation was performed again and long fibers were considered as a primary product, while short fibers and shives were considered as by-products.

The environmental impacts are characterized by eight categories, which are climate change, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidant creation and terrestrial acidification, freshwater ecotoxicity, and fossil depletion, and were allocated based on the principle stated above.

2.4. Life Cycle Inventory Analysis

The life cycle inventory analysis is the second step to complete a LCA. In this step, all of the inputs and outputs related to the processes within the scope need to be collected. According to the scope of the study, the inputs and outputs of the ramie cultivation, harvesting, peeling, transportation, degumming, and spinning processes need to be collected. The data used in this article comes from published papers, theses, websites, and also a ramie textile mill, named Hunan Huansheng Dongting Maye Company Limited, which is located in Yueyang city, Hunan province, China.

2.4.1. Inputs and Outputs of Ramie Cultivation, Harvesting, and Peeling

As for the inputs of ramie cultivation, there is no need for seeding after each harvesting, because ramie is a perennial herbaceous plant and cuttage propagation is the main method for planting ramie. Averagely 12.8 kg N, 3.2 kg P₂O₅, and 16.5 kg K₂O are needed for producing 100 kg of raw ramie fiber [19,20]. To decrease the weeds, 7.5 kg diuron together with 40 kg water per hectare [19] are used, and 0.42 kg cyhalothrin together with 675 kg water per hectare are assumed to be used for reducing the number of pesticides. It is assumed that a chisel plough was used in winter for weeding once a year, and the amount of diesel consumed was set as 8.8 L/ha [21]. The amount of diesel consumed by agricultural equipment for spraying agrochemicals was set as 1 L/ha [21]. It is assumed that no irrigation was applied during the growth of ramie fiber.

Concerning the outputs of ramie cultivation, 3142.9 kg ramie leaves, 2357.1 kg ramie stalk, together with 1642.9 kg ramie bark (including raw ramie fiber) will be obtained when 1000 kg of raw ramie fiber is obtained [19]. An average value (2337 kg per year per hectare) of raw ramie fiber yield was set according to the real situation in Hunan province, China, because Hunan province (central area of China) is the main ramie production area in China and the cooperative ramie textile mill is located in Hunan province.

Table 1. Yields of ramie fiber of 2000–2016 with missed data of 2009–2014 in Hunan province.

Year	2000	2001	2002	2003	2004	2005	2006	2007	2008	2015	2016
Yield/kg	1964	2002	2359	2304	2443	2541	2516	2494	2502	2297	2285

shows the annual raw ramie yield of Hunan province from 2000 to 2016, with missed data of 2009–2014, which is reported by the ministry of agriculture, China [22]. Moreover, the application of fertilizers will cause emissions of nitrogen gaseous fluxes and nitrogen leaching, which can be estimated according to Intergovernmental Panel on Climate Change (IPCC) tier 1 method [23]. Also, the emission factors of cyhalothrin to air, water, and soil are set as 0.01, 0.005, and 0.013 [24]. Phosphorus leaching was estimated according to the emission factor 0.01 [25]. The emissions of producing fertilizers, pesticide, herbicide, and water were acquired from GaBi databases and the pesticide and herbicide used in GaBi software to compute the environmental impacts were an unspecific type.

The emissions from producing and the combustion of diesel are the main causes for environmental pollution in the ramie harvesting process. A 4 LMZ 160 crawler-type ramie harvester with 25.7 kW auxiliary power was used for harvesting the ramie fiber and its average harvesting rate is 0.15 hectare per hour [26]. When the consumption of diesel used for harvesting was computed, the specific fuel consumption was set as 0.2448 kg/kW·h, according to the data sheet of T35 type of diesel engine (whose power is 24 kW) of Changchai Company Limited [27]. As for diesel combustion, the emission factors of carbon monoxide, carbon dioxide, nitrogen oxides, sulfur dioxide, and non-methane volatile organic compounds (NMVOC) were set as 0.0291 g/kg, 3.04 g/kg, 0.0571 g/kg, 0.00415 g/kg, and 0.00916 g/kg, respectively [24].

As for the peeling process, generating electricity is the main reason accounting for emissions to the natural environment. A 6BZ-400 model ramie barker was assumed to peel the bark from the ramie stem, and its auxiliary power and peeling rate are 2.8 kW and 10 kg/h. The emissions of generating electricity were taken from GaBi.

An allocation was performed during this process based on the mass of raw ramie fiber, ramie leaves, ramie stalk, and ramie barks (excluding raw ramie fiber) and 14% of the environmental burdens were assigned to raw ramie fiber. The allocation was performed with the help of GaBi software. The biogenetic carbon storage of the ramie fiber was also considered in this work. The amount of carbon stored by the natural fiber depends on its cellulose content [28]. The degummed ramie fiber mainly consists of cellulose, and according to the literature [28], and when 1 kg of natural fiber is produced, 1.5 kg CO₂ would be absorbed.

Table 2. Inputs and output of producing 1000 kg of raw ramie fiber.

Input	Quantity	Output	Quantity
Ammonium nitrate (33.5% N)	382.1 kg	Raw ramie fiber	1000 kg
Triple superphosphate (46% P2O5)	69.6 kg	Ramie bark (excluding raw ramie fiber)	642.9 kg
Potassium chloride (60% K2O)	275 kg	Ramie leaf	3142.9 kg
Diuron	9.6 kg	Ramie stalk	2357.1 kg
Cyhalothrin	0.5 kg	Carbon monoxide	1.7 g
Water	917.8 kg	Carbon dioxide	176.5 g
Electricity	280 kW·h	Nitrous oxide	5.4 kg
Diesel	58 kg	Nitrogen oxides	3.3 g
Sequestered atmospheric CO2	1500 kg	Sulfur dioxide	0.2 g
		Emission of cyhalothrin to air	5 g
		Emission of cyhalothrin to water	2.5 g
		Emission of cyhalothrin to soil	6.5 g
		Phosphate to water	0.14 kg
		NMVOC	0.5 g

This table does not include the inputs of the ramie rootstock and soil components consumed, which are about four tons. NMVOC—non-methane volatile organic compounds.

summarizes the inputs and outputs of producing 1000 kg of raw ramie fiber.

2.4.2. Inputs and Outputs of Transportation

The GaBi software contains almost all of the transport modes. In the present paper, the transportation process was modeled with GaBi. The transportation distance between the ramie field and the manufacturing factory is assumed as 50 km. A Euro 5 diesel truck with a 3.3 ton payload capacity was set to be the transportation method, considering the yield of the ramie fiber. Although the distance from field to factory is difficult to determine precisely, the environmental impacts of this process contribute very little to the overall environmental impacts, which can be seen from later parts.

2.4.3. Inputs and Outputs of Degumming Process

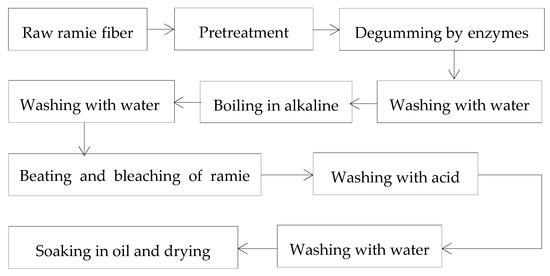

Because there are gummy matters (20–40% of the mass of raw ramie fiber), mainly composed of hemicellulose and pectin in raw ramie fibers [29], the raw ramie fiber cannot be used directly in FRPs until they are degummed. Degumming methods mainly include chemical, enzymatic, and microbial methods [30], and in the present study, enzymes together with chemicals (shown in Figure 2) were used to get the degummed fiber in this study.

The inputs of the degumming process were the chemicals (shown in

Table 3. Inputs and outputs of producing 1000 kg of degummed ramie fiber. COD—chemical oxygen demand; BOD—biochemical oxygen demand.

Input	Quantity	Output	Quantity
Water	733 tons	Degummed ramie fiber	1000 kg
Electricity	1475.52 kW·h	Pectin, lignin, and hemicellulose	666.7 kg
Chlorine	8.8 kg	Wastewater (treated)	733 tons
Sulphuric acid	183.3 kg	COD	300 mg/L
Sodium hydroxide	337.5 kg	BOD	100 mg/L
Hypochlorous acid	40.0 kg
Ramie degumming agent	23.3 kg
Steam from biomass	16.7 tons
Raw ramie fiber	1666.7 kg

) used to dissolve and remove the gummy matters, which were collected from the cooperative company mentioned above. It is known that, when 100 kg of raw ramie fibers were degummed, 60 kg degummed ramie fiber would be obtained, and 11 kg sulphuric acid, 20.25 kg sodium hydroxide, 2.4 kg hypochlorous, and 1.4 kg degumming agent would be consumed. The emissions for producing the chemicals used in this process were taken from the GaBi databases, except for degumming agent because of commercial confidentiality. As the dosage of the degumming agent is usually very small, the environmental impacts of producing and using the degumming agent have not been taken into consideration in this study. The environmental impacts of producing enzymes were not included in this paper, because of a lack of reliable data. A lack of data regarding the environmental impacts of hypochlorous acid, when the GaBi model was built, led to the use of calcium hypochlorite in order to produce hypochlorous acid, according to a chemical reaction among calcium hypochlorite, carbon dioxide, and water.

The outputs of the degumming process were mainly wastewater and it mainly comes from the pickling, boiling, washing, and bleaching processes. The wastewater from ramie degumming process usually has high pH value, high contents of chemical oxygen demand (COD), and biochemical oxygen demand (BOD). The wastewater cannot be discharged directly until it has been well treated. In this study, the wastewater treatment method was set based on the literature [31], in which a acidifying hydrolysis/biological oxidation/photochemical process method was utilized in a sewage treatment plant to make the wastewater meet the requirements of the national sewage discharge standard in China. To run the whole treatment process, electricity and chlorine need to be supplied constantly and the environmental impacts of producing electricity and chlorine were also within the system boundary in the present study. After treatment, the contents of COD, BOD, and sulfide were set as 300 mg/L, 100 mg/L according to the national wastewater discharge standard in China.

Table 3 shows the inputs and outputs for producing 1000 kg of degummed ramie fiber and the emissions of producing water, electricity, chlorine, sulphuric acid, and sodium hydroxide were taken from GaBi software.

2.4.4. Inputs and Outputs of Carding and Spinning Process

Degummed ramie fibers could be spun to get yarns, which were used to for the comparison to glass filaments. Before spinning, carding is necessary to get long degummed ramie fibers suitable for spinning, and short fibers and shives that could be used in other ways like building particle boards or animal beddings. Therefore, the allocation was performed again in this stage, based on the mass of long fibers and others. Based on the data from the cooperative factory, only 30% of the degummed fibers will be formed into yarns. The electricity consumption for the carding and spinning are based on the data for the flax fiber carding and spinning [21], because of no reliable data are available for ramie carding and spinning.

Table 4. Inputs and outputs of producing 1000 kg ramie yarns.

Input	Quantity	Output	Quantity
Electricity	7260 kW·h	Ramie yarns	1000 kg
Degummed ramie fiber	3333.3 kg	Short fibers and shives	2333.3 kg

shows the inputs and outputs of the ramie carding and spinning process.

2.5. Life Cycle Impact Assessment (LCIA)

In the LCIA stage, the emissions and resource extraction will be translated into several environmental impact scores by multiplying the corresponding characterization factors. There are mainly two types of characterization factors, which are at a midpoint level and endpoint level, respectively.

In this paper, the ReCiPe method was chosen to model the environmental impacts of different fibers with the help of GaBi software. The environmental impact categories used to characterize the overall environmental performance of every fiber are climate change, terrestrial acidification, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidants creation, freshwater eco-toxicity, and fossil depletion.

The inputs and outputs of the processes involved in the scope of this study were used to build models in GaBi software.

2.6. Interpretation

Interpretation was the final step of an LCA study, and by interpretating the results from LCIA stage, the processes that have a high potential for pollution would be identified, and some useful conclusions and recommendations can be made.

3. Results and Discussions

Using the inputs and outputs from the LCI stage, the ReCiPe method and the eight main environmental categories to characterize the environmental performance of the ramie fiber, the LCIA results are shown in

Table 5. Life cycle impact assessment (LCIA) results of one ton ramie yarns, ramie fiber (after carding), and glass fibers.

Environmental Impact Category	Unit	Glass Fibers	Ramie Fiber (after Carding)	Ramie Yarns
Climate change	kg CO2-Equiv.	1740	1770	3790
Terrestrial acidification	kg SO2 eq.	10.3	10.9	13.4
Freshwater eutrophication	kg P eq.	5.25 × 10−3	86.9 × 10−3	87.1 × 10−3
Ozone depletion	kg CFC-11 eq.	483 × 10−10	7.88 × 10−10	8.26 × 10−10
Human toxicity potential	kg 1,4-DB eq.	20.8	147	175
Photochemical oxidant formation	kg NMVOC	5.26	11.9	14.4
Freshwater ecotoxicity	kg 1,4-DB eq.	0.461	4.12	4.15
Fossil depletion	kg oil eq.	578	832	1.34 × 103

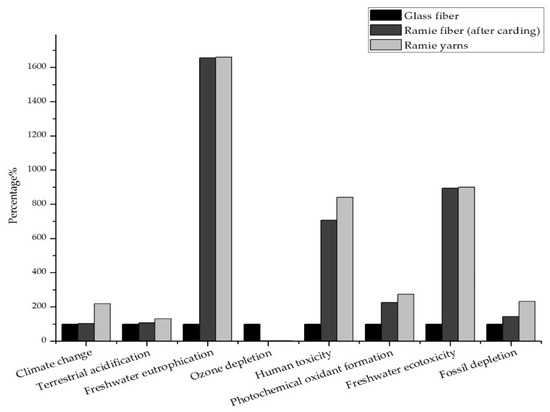

and Figure 3.

As can be seen from Table 5 and Figure 3, when the environmental burdens of the ramie yarns were compared to that of the glass fibers, the ramie yarns only performed better in terms of ozone depletion, with a reduction rate of 98.29%. However, as for the other categories, the glass fibers are more eco-friendly compared with the ramie yarns. When the environmental performance of the ramie fibers (after carding and without spinning) are compared to that of the glass fibers, the ramie fibers (after carding and without spinning) perform better on ozone depletion, with a reduction rate of 98.37%, and it has almost the same values for climate change and terrestrial acidification compared to glass fiber.

Concerning identifying the processes that contribute the most to the overall environment pollution, as can be seen

Table 6. Values of the eight categories contributed by different production processes of ramie yarns.

Environmental Impact Category	Unit	Transportation	Cultivation, Harvesting and Peeling	Carding and Spinning	Degumming
Climate change	kg CO2-Equiv.	31	−921	2210	2400
Terrestrial acidification	kg SO2 eq.	0.024	0.346	2.74	4.94
Freshwater eutrophication	kg P eq.	5.9 × 10−5	0.0125	24.1 × 10−5	0.027
Ozone depletion	kg CFC-11 eq.	0	5.30 × 10−12	41.7 × 10−12	738 × 10−12
Human toxicity potential	kg 1,4-DB eq.	0	1.8	30.6	63
Photochemical oxidant formation	kg NMVOC	0.0431	0.353	2.7	4.39
Freshwater ecotoxicity	kg 1,4-DB eq.	1.25 × 10−11	1.26	0.0395	2.51
Fossil depletion	kg oil eq.	1.4	67.6	550	701

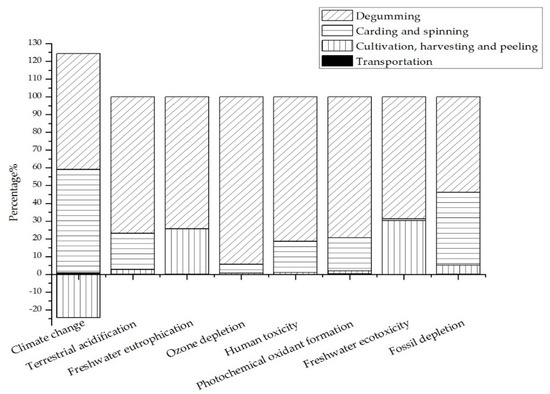

and Figure 4, the degumming process and carding and spinning process are the main causes for massive environmental pollution. The percentages of the degumming process and spinning and carding process that contributes to climate change, terrestrial acidification, freshwater eutrophication, ozone depletion, human toxicity, photochemical oxidant formation, freshwater ecotoxicity, and fossil depletion is 65.2% and 58.3%, 76.9% and 20.4%, 74.2% and 0.28%, 94.3% and 5.05%, 81.4% and 17.5%, 79.2% and 18.8%, 68.7% and 0.95%, and 53.7% and 41.1%, respectively. The cultivation, harvesting, and peeling processes mainly contribute to freshwater eutrophication, ozone depletion, and freshwater ecotoxicity, and the negative value caused by these processes are due to the absorption of carbon dioxide. The transportation process contributes little to all eight of these categories, compared to other processes.

From the results above, it seems that the environmental performance of ramie fiber is not so competitive compared with glass fiber, especially when the spinning process was included into the whole manufacturing system of the ramie fiber. However, this idea may not be true. Because, at first, compared with the manufacturing technology of glass fiber, the production techniques of the ramie fiber are still not perfect and there is still a lot of room for improvement in the production techniques of ramie fiber. Then, there are no production techniques just for RFRP. For example, during the degumming process of the ramie fiber, when ramie fibers are used in FRPs, there may be no need for bleaching, which will reduce the consumption of sodium hypochlorite, washing water, and the releasing of treated wastewater. Then, the residual gum rate of the degummed ramie fiber should be less than 2% in the textile industry, while in the FRPs, the residual gum rate may be not so strict, which means that less chemicals may be used in the degumming process. Next, the spinning requirements for the textiles and FRPs may be different too. Finally, ramie fibers can degrade automatically, which can reduce the energy required for handling the disposals made of RFRP.

Based on the discussion above, more research should be performed to establish the manufacturing technologies of the ramie fiber just for RFRP. Degumming and spinning processes are the main processes that can be targeted to decrease the environmental burdens of ramie fibers used for FRPs.

Although some results have been obtained, there are also some limitations in this article. Firstly, the data used in the calculation is relatively limited, which means there will be more uncertainty regarding the final results. Then, data from the cooperative ramie textile mill was collected by the local workers in the mill, because of commercial confidentiality, which means there may be some variation because they know nothing about LCA principles. However, this study did provide some useful information and conclusions in general.

4. Conclusions

According to LCA, the input and output data of the production processes of ramie fibers were summarized and analyzed. The comparison of LCA between the ramie fibers and glass fibers were performed. The following conclusions can be drawn based on the above study.

According to the results of LCA, if the spinning process was included within the manufacturing of the ramie fiber, the ramie fiber performs better than glass fiber only in ozone depletion. If the spinning process was not included, the ramie fiber performs better in the ozone depletion and has almost the same values of climate change and terrestrial acidification.

The degumming, and carding and spinning processes are the main causes of pollution during the production of ramie fibers. The cultivation, harvesting, and peeling processes mainly contribute to the categories of freshwater eutrophication, ozone depletion, and freshwater ecotoxicity. The transportation process contributes little to the overall pollution.

More research should be done toward developing production techniques for the ramie fibers for the RFRP.
