Investigation of Combustion Performance of Hypergolic Ionic Liquid Fuels Through Injector Design

Abstract

Hypergolic ionic liquid fuels are promising alternatives to the toxic hydrazine-based propellants. The present study investigates the combustion performance of a fuel composed of 1-ethyl-3-methylimidazolium thiocyanate ([EMIM][SCN]) and copper(I) thiocyanate (CuSCN) with 95 wt% hydrogen peroxide (H₂O₂) in a 50 N thruster. Two injectors, DM1 (low pressure drop) and DM2 (high pressure drop), were tested at chamber pressures of 10 and 15 bar. The DM1 injector at 15 bar chamber pressure showed high combustion efficiency but suffered from strong pressure oscillations (>10% instability). Switching to the DM2 injector reduced instability (<5%) by increasing the pressure drop. Combustion stability was also improved as the fuel injector orifice diameter/fuel jet velocity (D/V) decreased. FFT analysis showed an instability frequency of 253 Hz with DM1/15 bar, which was higher than the DM1/10 bar test results. In conclusion, the test results revealed the injector or chamber design and pressure drop are the key factors in improving combustion stability for hypergolic propulsion systems.

1. Introduction

The development of low-toxicity hypergolic propulsion systems is a rapidly growing research area in the propulsion field, driven by the increasing demand for safer and more environmentally sustainable rocket propulsion technologies. Conventional hypergolic propellants, viz., hydrazine and their derivatives, are highly toxic, flammable, and carcinogenic. The permissible exposure limit for hydrazine is 0.01 ppm, significantly below the odor detection threshold (1–3 ppm), making it hazardous even when undetectable by smell (

Table 1. Comparative study of propellants.

	Order Threshold, ppm	Exposure Limit, ppm	Vapor Pressure, Psia at 25 °C	Viscosity, cP
Hydrazine	2–3	0.01	0.96	0.97 at 298 K
MMH	1–3	0.01	3.23	0.855 at 293 K
N2O4	1–3	3.0	17.4	0.47 at 293 K

). Furthermore, the commonly used oxidizer dinitrogen tetroxide (N₂O₄) is also extremely toxic and corrosive. In liquid form, N₂O₄ exists in equilibrium with nitrogen dioxide (NO₂) vapors, which, upon contact with human tissue, especially within the respiratory system, can form nitric or nitrous acid, leading to severe health issues and even death upon prolonged exposure.

In light of these concerns, there has been a significant shift towards the development of green hypergolic propulsion systems. Since then, high-test peroxide (HTP) has emerged as one of the promising monopropellants and oxidizers for bipropellants. It has high density, low vapor pressure, ease of handling, and environmentally benign combustion products [1,2]. Several pioneering studies have reported low-toxicity hypergolic propellants using HTP, including research from the Naval Air Warfare Center [3], Purdue University [4], Korea Advanced Institute of Science and Technology (KAIST) [5,6,7], National Institute for Space Research [8], Deutsches Zentrum für Luft- und Raumfahrt (DLR, German Aerospace Center) [9,10], and Lukasiewicz Institute of Aviation [11]. Despite these efforts, no green hypergolic propulsion system has yet reached commercial deployment, and only a few fuel combinations are currently considered viable for future applications.

Recent advancements in ionic liquid (IL) technology have introduced new opportunities in green hypergolic propulsion [12,13,14]. Ionic liquids possess desirable properties such as low vapor pressure, high energy density, and the ability to undergo hypergolic reactions with hydrogen peroxide. Notably, in 2022, DLR conducted the first hot-firing test of a green hypergolic propellant system, HIP_11, which combined 97% H₂O₂ with an ionic liquid fuel comprising 1-ethyl-3-methylimidazolium thiocyanate ([EMIM][SCN]) and 5 wt% copper(I) thiocyanate (CuSCN) [10]. This system achieved steady-state combustion in a 25 N thruster, demonstrating combustion efficiencies exceeding 93%. Additional studies on combustion performance were conducted using various injector configurations (triplet and pentad) and chamber geometries [9]. It was found that a 2-on-1 impinging injector provided more stable combustion, and the elongated combustion chambers (with a characteristic length of 1.2 m) yielded better performance than shorter designs. However, high-frequency pressure oscillations (~1000 Hz) were still observed, posing risks of structural damage. Thus, further evaluations of these propellants across different thruster scales are necessary.

Space Solutions Co., Ltd. (Daejeon, Republic of Korea) has also contributed to the advancement of HTP-based green hypergolic systems. In our recent studies, the combustion characteristics of an ionic liquid fuel, ILethCu01, combined with 95 wt% H₂O₂, were investigated in a 50 N rocket engine [5]. This combination achieved combustion efficiencies exceeding 90% in several cases, although instabilities ranging between 3% and 5% were noted. In this study, experimental campaigns were conducted using different injectors and chambers with another fuel formulation ([EMIM][SCN] + CuSCN). Two type of injectors, DM1 (low pressure drop) and DM2 (high pressure drop), were developed, and tests were conducted at chamber pressures of 10 and 15 bar. The influence of these parameters on combustion efficiency and stability was systematically assessed.

2. Materials and Methods

The ionic liquid [EMIM][SCN] (95%) and copper(I) thiocyanate (CuSCN, 99%) were purchased from Sigma-Aldrich Korea, Seoul. The oxidizer, 95 wt% hydrogen peroxide (H₂O₂), was obtained from HABO, Shanghai, China. The concentration (95.5 (±2)%) was measured prior to the hot fire test by using a refractometer (PR-59HO, ATAGO Co., Ltd., Tokyo, Japan).

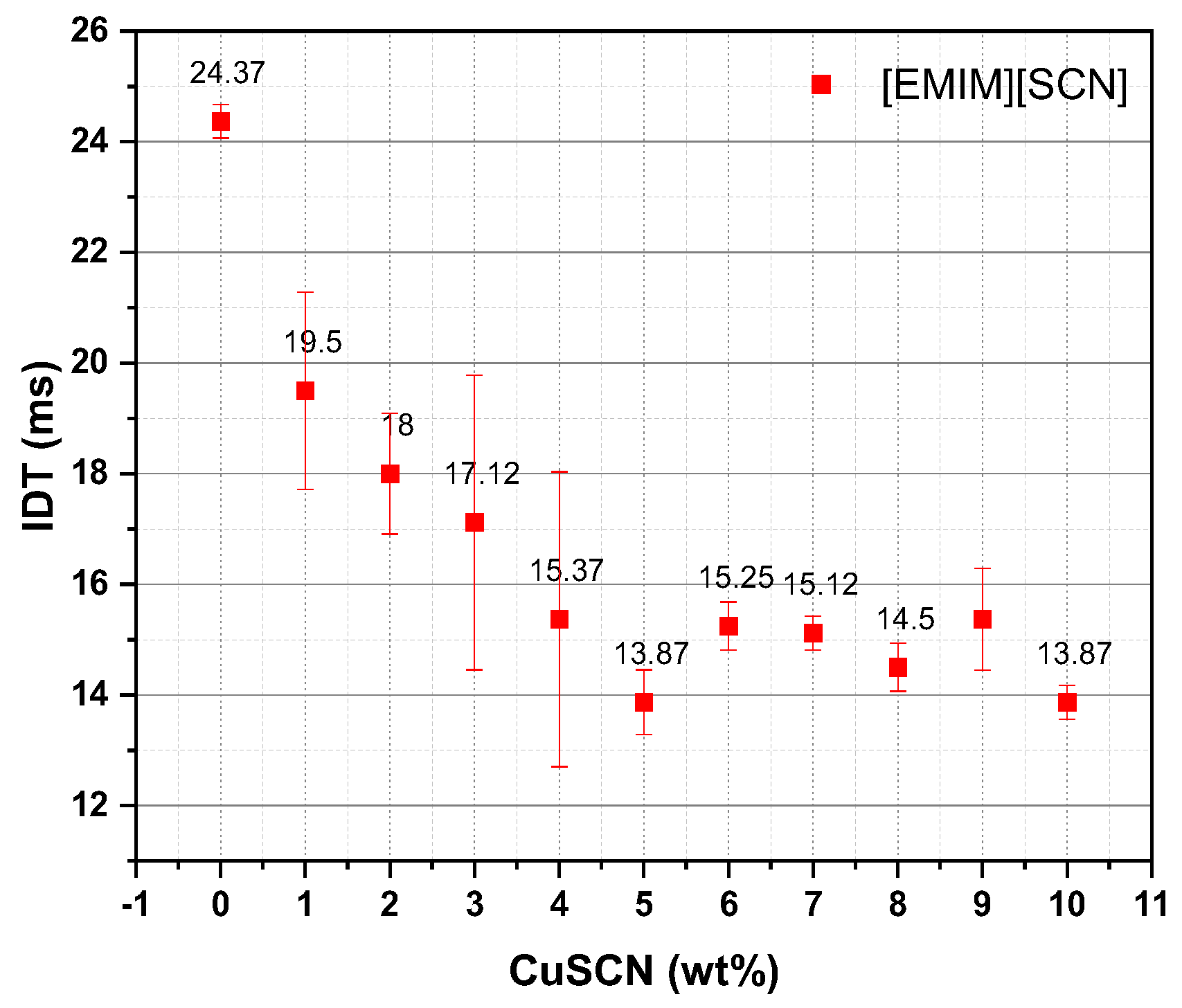

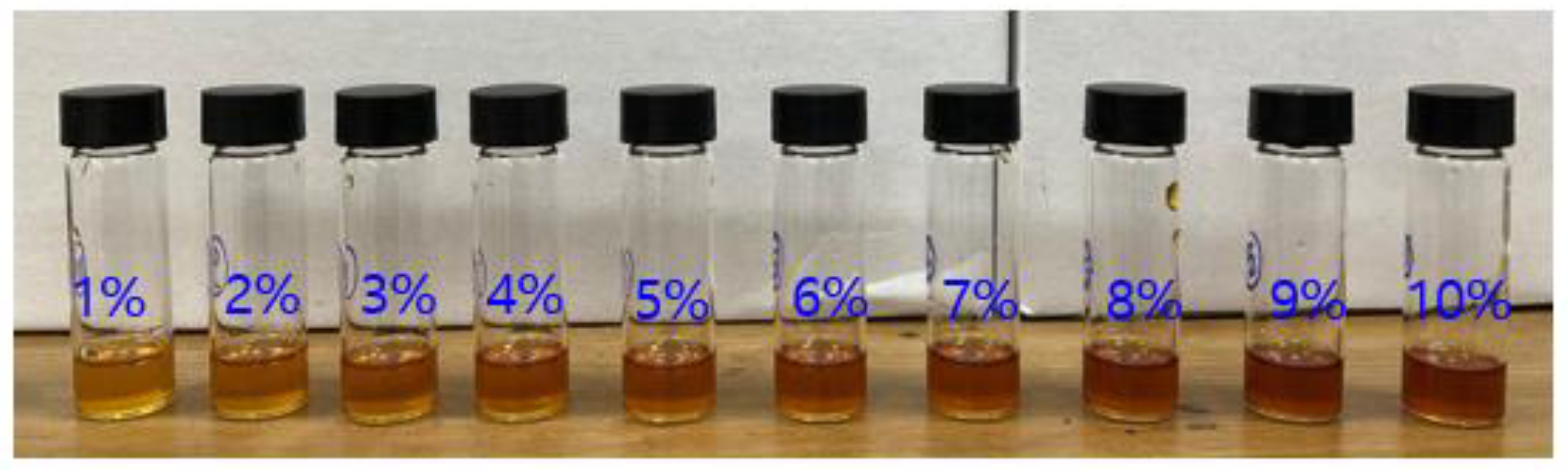

Initially, various concentrations (1–10 wt%) of CuSCN were dissolved in [EMIM][SCN] to prepare fuel blends (Figure 1). Hypergolic drop tests of theses fuels were performed with 95 wt% H₂O₂. The oxidizer (~40 μL) was dropped into the fuel pool (~200 μL). The distance (110 mm) between the oxidizer dispense point and the fuel surface was constant throughout the experiment. Hypergolic drop tests were then conducted using [EMIM][SCN], both neat and in a solution with CuSCN, with 95 wt% H₂O₂. A high-speed camera (4000 fps, FASTCAM Mini UX-100, Photron, Tokyo, Japan) was used to capture the ignition event. Based on drop test results, the fuel formulation ILCu01 was optimized for further study. Differential scanning calorimetry (DSC) was performed to evaluate thermal properties using a DSC 4000 instrument (PerkinElmer, Shelton, CT, USA) with a nitrogen flow rate of 20 mL/min. Weight loss as a function of temperature was analyzed using a simultaneous DSC-TGA system (STA 6000, PerkinElmer, Shelton, CT, USA) under the nitrogen flow rate of 20 mL/min. Physical properties such as density and viscosity were measured using an Anton Paar viscometer (SVM 3001 Cold Properties, Anton Paar, Graz, Austria). The Newtonian or non-Newtonian behavior of the fuels was measured using ViscoQC 300-L (Anton Paar, Graz, Austria) instrument with spindle type CP-41.

Theoretical performance, such as characteristics velocity, and specific impulse of ILCu01/95 wt% H₂O₂ and MMH/NTO propellants, was simulated using NASA Chemical Equilibrium with Applications (CEA) code. An infinite-area combustion model under frozen flow conditions was applied. The heat of combustion for CuSCN, measured via a bomb calorimeter, was used to determine the heat of formation. The heats of formation of [EMIM][SCN], CuSCN, and H₂O₂ of 52.80 kJ/mol, 308.69 kJ/mol, and −187.79 kJ/mol, respectively, were used for performance calculation (Supporting Information SI-7). These calculations were performed at a constant chamber pressure of 10 bar and nozzle expansion ratio of 100, across a range of oxidizer-to-fuel (O/F) ratios.

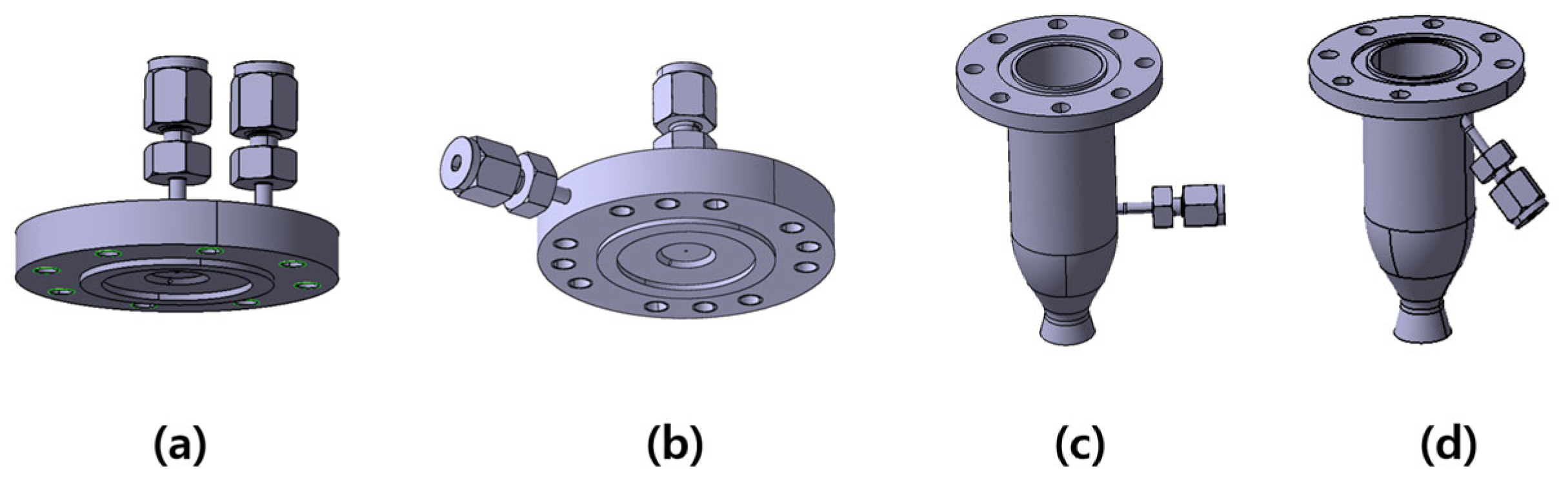

The static fire test bed setup is described in a previous study [5], and a schematic is provided in Supporting Information SI-2. The engine (injectors and chambers) was designed based on theoretical calculations, targeting chamber pressures of 10 and 15 bar and a vacuum thrust of 50 N at area ratio of 2.52 for 10 bar, and 3.79 for 15 bar (Figure 2). Moreover, the injector and chamber images are given in Supporting Information SI-6. Single-element, unlike triplet (O-F-O) injectors were developed: Development Model 1 (DM1) and Development Model 2 (DM2). The impinging angle was fixed at 90° with standard deviation 1°. The DM1 injector was designed with a pressure drop equal to 20% of the chamber pressure, as a baseline for liquid thruster ignition [15,16].

Based on the hot-fire test results, the DM2 injector was developed with a higher pressure drop of 40–50% of the chamber pressure. The detailed specifications of the DM1 and DM2 injectors and chambers are given in the Supporting Information SI-1. The mass flow rate of the fuel and oxidizer was measured using the differential pressure transducer (±0.25% FSO). The ETM (Engineering Treatment Model) pressure transducer with accuracy of ±0.5% (FSO) was used to measure the pressure data. All pressures were measured as absolute (bar). Static fire tests were performed with a maximum duration of 2 s, across different O/F ratios. Key performance parameters such as experimental characteristic velocity, combustion efficiency, and combustion instability were calculated using experimental data, with equations reported elsewhere [5]. Fast Fourier Transform (FFT) analysis was performed using Matlab wavelet function. The combined standard uncertainty of measured quantities was calculated by using Equation (1), which is described in [9].

$$u_f^2=\sum _{i=1}^n{\left({\displaystyle \frac{\mathit{\partial }f}{{\mathit{\partial }x}_i}}\right)}^2{u}^2 (x_i)$$

(1)

where u_f is the combined standard uncertainty as function of f, u(x_i) is the standard uncertainty in the input variable x_i, and $\left({\displaystyle \frac{\mathit{\partial }f}{{\mathit{\partial }x}_i}}\right)$ is the sensitivity coefficient.

3. Results and Discussion

3.1. Hypergolic Drop Test

The measurement of hypergolic fuel ignition properties in terms of ignition delay time (IDT) has significance in choosing a fuel candidate for propellant application. Ignition delay time was measured by calculating time difference between the fuel with oxidizer contact and the first visible flame seen. An oxidizer dropper and a fuel pool were employed and the distance between the drop point of the oxidizer and the fuel pool surface was kept constant throughout the experiment. [EMIM][SCN] exhibited an IDT of 24 ms with 95 wt% H₂O₂. Further, 1–10 wt% CuSCN in [EMIM][SCN] were dissolved and tested with 95 wt% H₂O₂, the IDT was lowered to 14 ms for 5 wt% CuSCN, as shown in Figure 3. Further increases in additive concentration did not improve the IDT. Similar results were also reported by DLR [10,17]. The fuel combination 5 wt% Cu in [EMIM][SCN] is named hereafter as ‘ILCu01’. Figure 4 shows the high-speed camera images with the lowest IDT of [EMIM][SCN] and ILCu01 fuel. As the CuSCN concentration increased in the [EMIM][SCN], ignition of fuel with 95 wt% H₂O₂ revealed an intense ignition behavior [17].

3.2. Physicochemcial Properties of Fuel

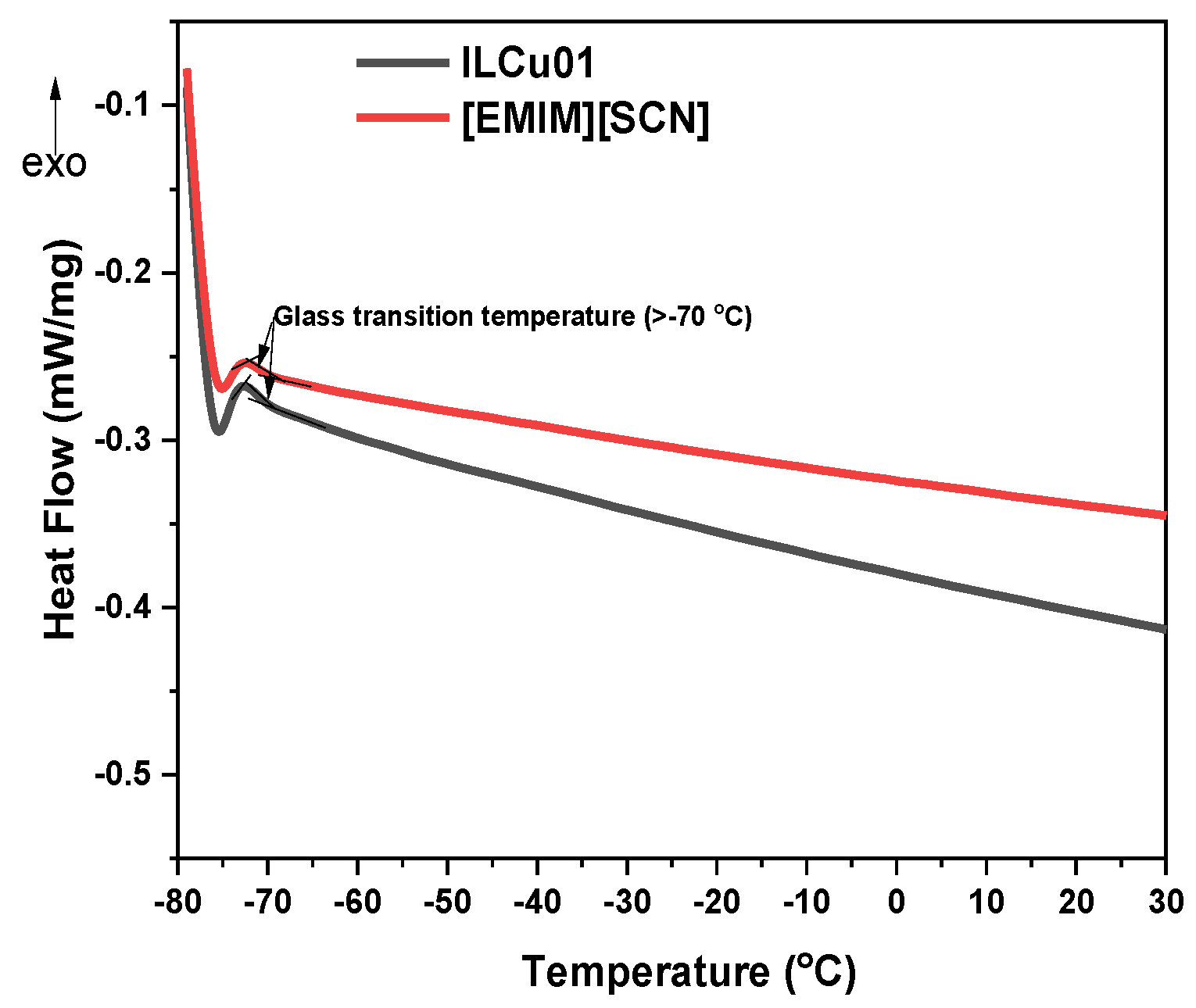

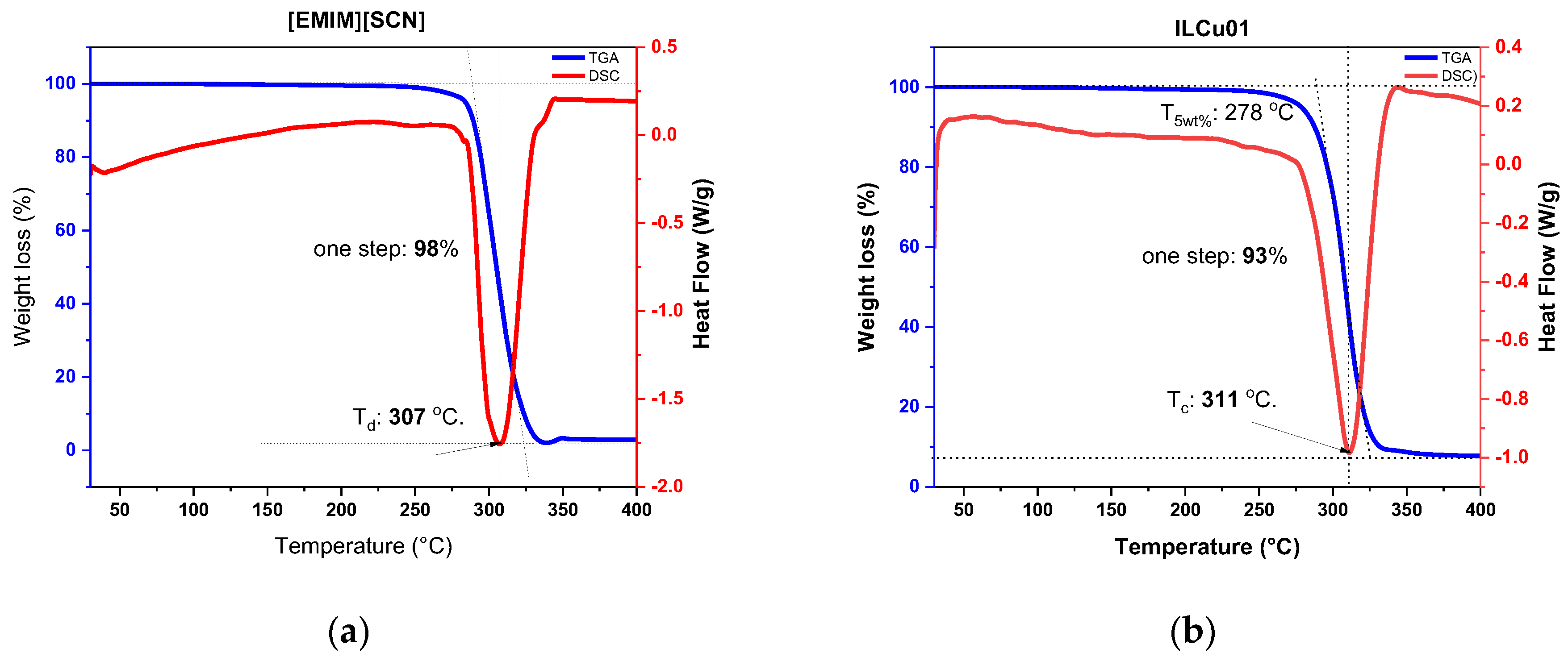

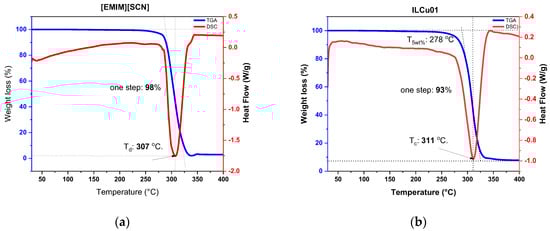

Ionic liquids are viscous materials compared to hydrazine-based fuels [9]. The viscosity of [EMIM][SCN] was 22 mPa·s. However, the addition of an additive to an ionic liquid makes it more viscous; hence, ILCu01 revealed a viscosity of 32 mPa·s. Another significant property of fuel is density, which was (ILCu01: 1.11 g/cm³) higher than MMH (0.78) fuel. High density values can help to improve the density-specific impulse of a propellant. Moreover, ILCu01 exhibited a wide liquid range from −80 °C to 278 °C (temperature at 5 wt% weight loss), which demonstrates the working ability of the fuel at different temperatures (Figure 5 and Figure 6). A negative DSC peak was observed during the thermal decomposition of the fuel in a nitrogen atmosphere, indicating an endothermic process. Furthermore, it was observed that the thermal stability of ILCu01 was improved by 4 °C compared to the [EMIM][SCN] fuel. This may be due to intermolecular interactions between CuSCN and [EMIM][SCN], and similar results were also reported by Lauck et al. [17].

3.3. Theoretical Performance

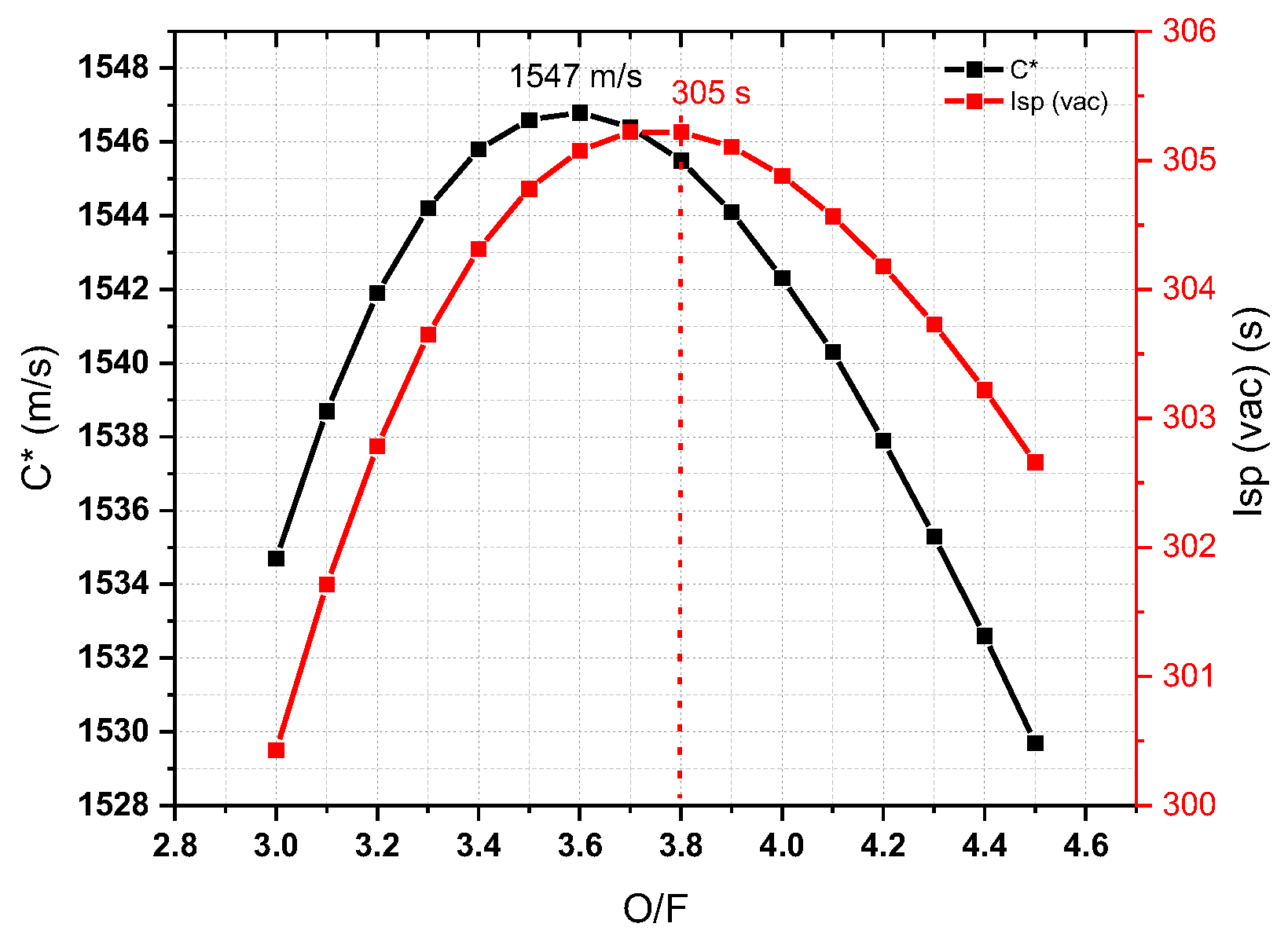

The rocket performance, such as characteristic velocity and specific impulse, is a significant factor for measuring the efficiency of a propellant. In chemical propulsion, the performance is in the order of cryogenic propellant > liquid propellant > solid propellant. The NASA chemical equilibrium calculation (CEA) can be used to find the best performing chemicals before testing in a real rocket engine [18,19]. Based on the theoretical results, it was easy to select the fuel for further study. The performance parameters were used to design a rocket engine under vacuum condition. The specific impulse and characteristic velocity of ILCu01/95 wt% H₂O₂ were increased then decreased with increasing O/F ratios (Figure 7). A concave downward curve was observed with optimum performance of C* of 1547 m/s at O/F 3.6. However, the optimum Isp of 305 s was observed at O/F of 3.8. MMH/NTO gives the maximum C* and Isp values of 1704 m/s and 325 s, respectively, under similar conditions, which were higher than those of ILCu01/95 wt% H₂O_2. Interestingly, the density-specific impulse of ILCu01/95 wt% H₂O₂ was 409 g.s/cm³, which was 7.34% higher than that of MMH/NTO (379 g.s/cm³). The maximum C* and Isp performance were observed at different O/F ratios, because C* was independent of nozzle dimensions. The adiabatic temperature of ILCu01/95 wt% H₂O₂ was 2775 K, which was lower than that of the MMH/NTO (3084 K) propellant.

3.4. Hot Fire Test Results

3.4.1. Mass Flow Rate Calibration

Prior to conducting the firing test, the calibration of the mass flow rate is a critical step. Several methods are available for measuring the mass flow rate. In this study, a differential pressure transducer was used to measure the mass flow rate based on the pressure drop across an orifice plate installed in the line. The metering valve was adjusted to vary the mass flow rate while maintaining a constant inlet pressure. The differential pressure was recorded, corresponding to changes in mass flow rate. Multiple measurements were taken for the fuel and oxidizer at different pressure drops, and the results are presented in Figure 8.

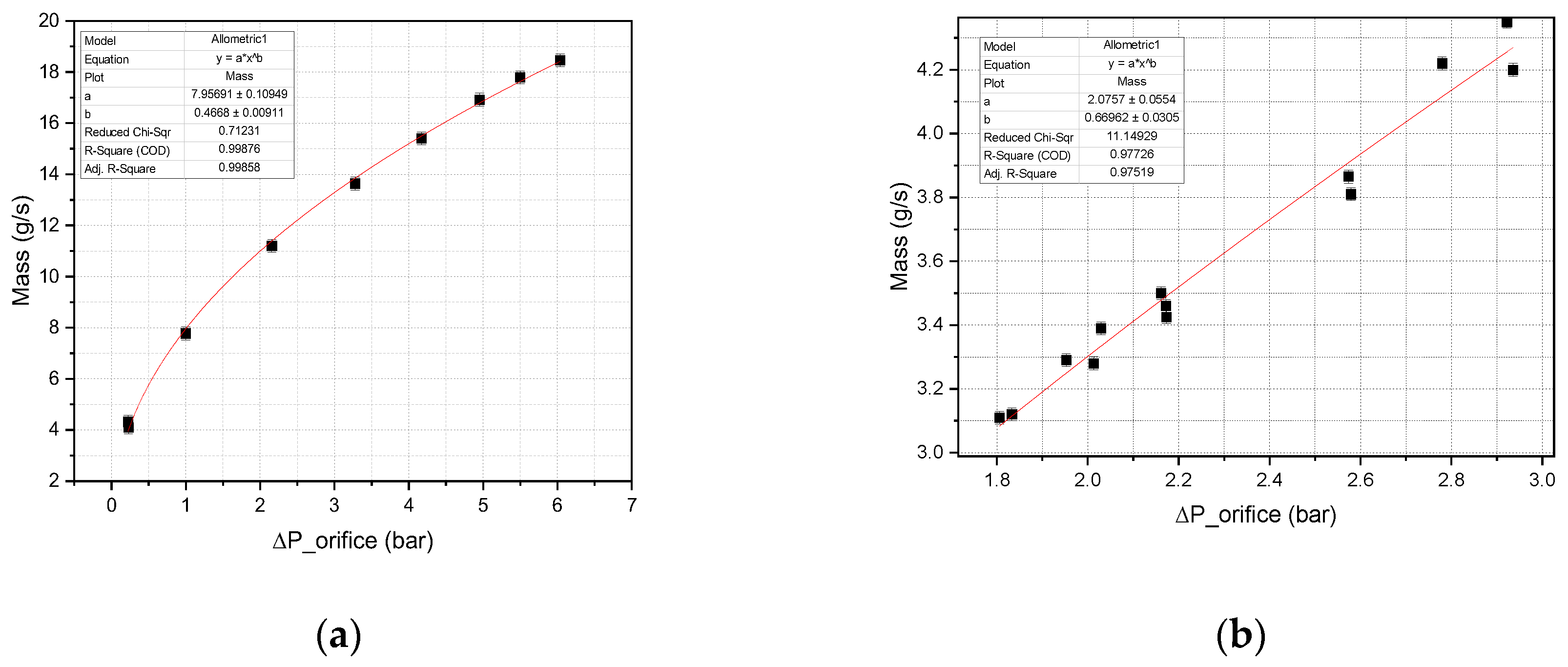

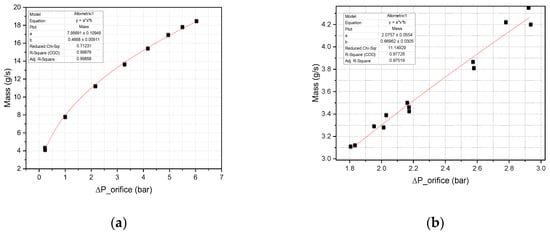

As shown in Figure 8a, the oxidizer mass flow rate vs. pressure drop (∆P) shows an allotropic fitting curve. Since hydrogen peroxide behaves as a Newtonian fluid with a Reynolds number greater than 1000, the curve fitting was accurate. In Figure 8b, the fuel mass measurements showed a scattered trend, even for fluids that show a Newtonian nature (Supporting Information Figure S4), of mass flow rate vs. pressure drop (∆P) along with the fitting line. This may be due to the low Reynolds number below 1000, where the discharge coefficient was not constant during measurement [20]. Furthermore, an allotropic curve was fitted to measure the mass flow rate of the fuel.

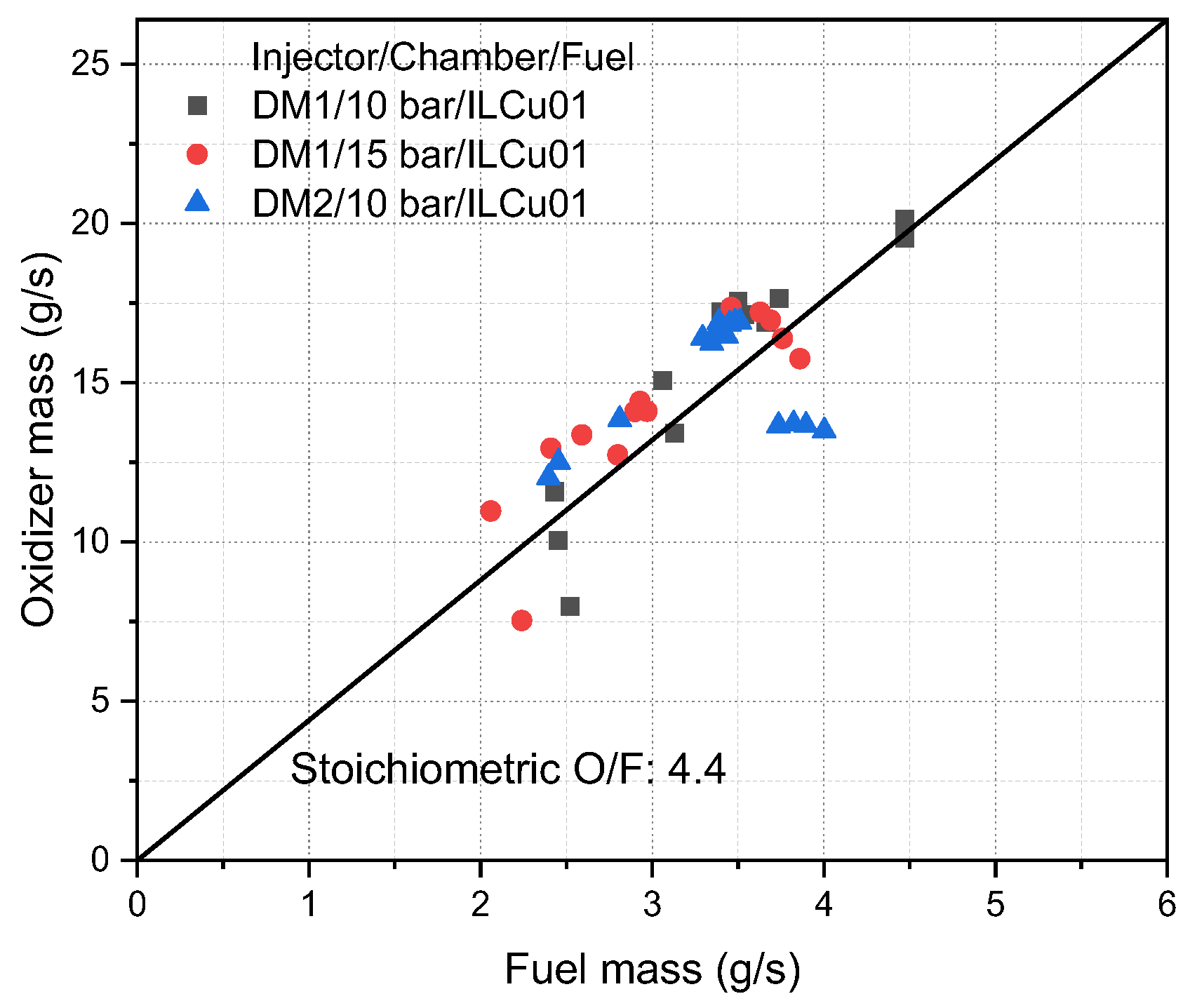

Three different tests were conducted by considering the injector model/chamber pressure/fuel such as DM1/10 bar/ILCu01, DM1/15 bar/ILCu01, and DM2/10 bar/ILCu01. The stoichiometric O/F ratio of this propellant was 4.4 with control precision of ±1.05% with different O/F values (Figure 9). As the fuel and oxidizer were controlled by the metering valve, keeping a constant chamber tank pressure, it was difficult to adjust the exact mass flow rate at a stoichiometric ratio.

3.4.2. Thruster Behavior During Firing Test

Initially, the firing tests were conducted using the DM1 injector at two different chamber pressures, 10 bar and 15 bar, and a further DM2 injector was used with a 10 bar chamber (Supporting Information SI-3). A total of three tests series were conducted by using the ILCu01/95 wt% H₂O₂ propellant. The propellant composition was different from that studied by Lauck et al. for a 22 N thruster [10]. A representative case with a similar O/F ratios for DM1 at 10 bar and 15 bar was selected for comparison (Figure 10). In both tests, the oxidizer and fuel mass flow rates were set at ~17 g/s and ~3.7 g/s, respectively, resulting in an O/F ratio of 4.6 and a relatively high total mass flow rate.

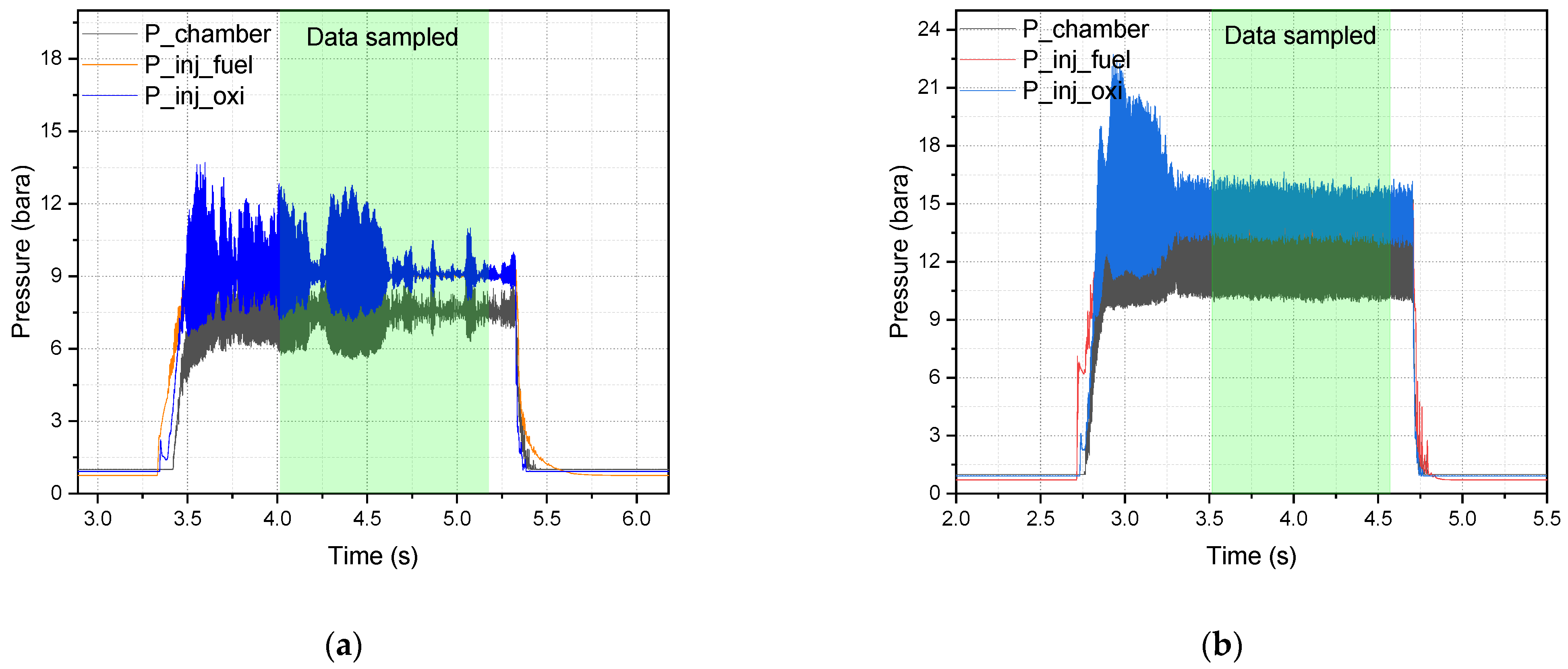

The pressure drops for Test 11 (DM1/10 bar) were 1.79 bar and 1.81 bar for the fuel and oxidizer injectors, respectively. A similar pressure drop was also observed in the DM1/15 bar chamber test (Test 12, Supporting Information Table S4). Figure 10a,b clearly illustrate the differences in chamber pressure oscillations. More pronounced oscillations are exhibited at the 15 bar chamber; however, the characteristic velocity and combustion efficiency improve by approximately 147 m/s and a corresponding 9%, respectively, when compared to the 10 bar chamber (Test 10, DM1/10 bar). A similar combustion instability was also reported by Sarritzu et al. [9] during their study in a large chamber.

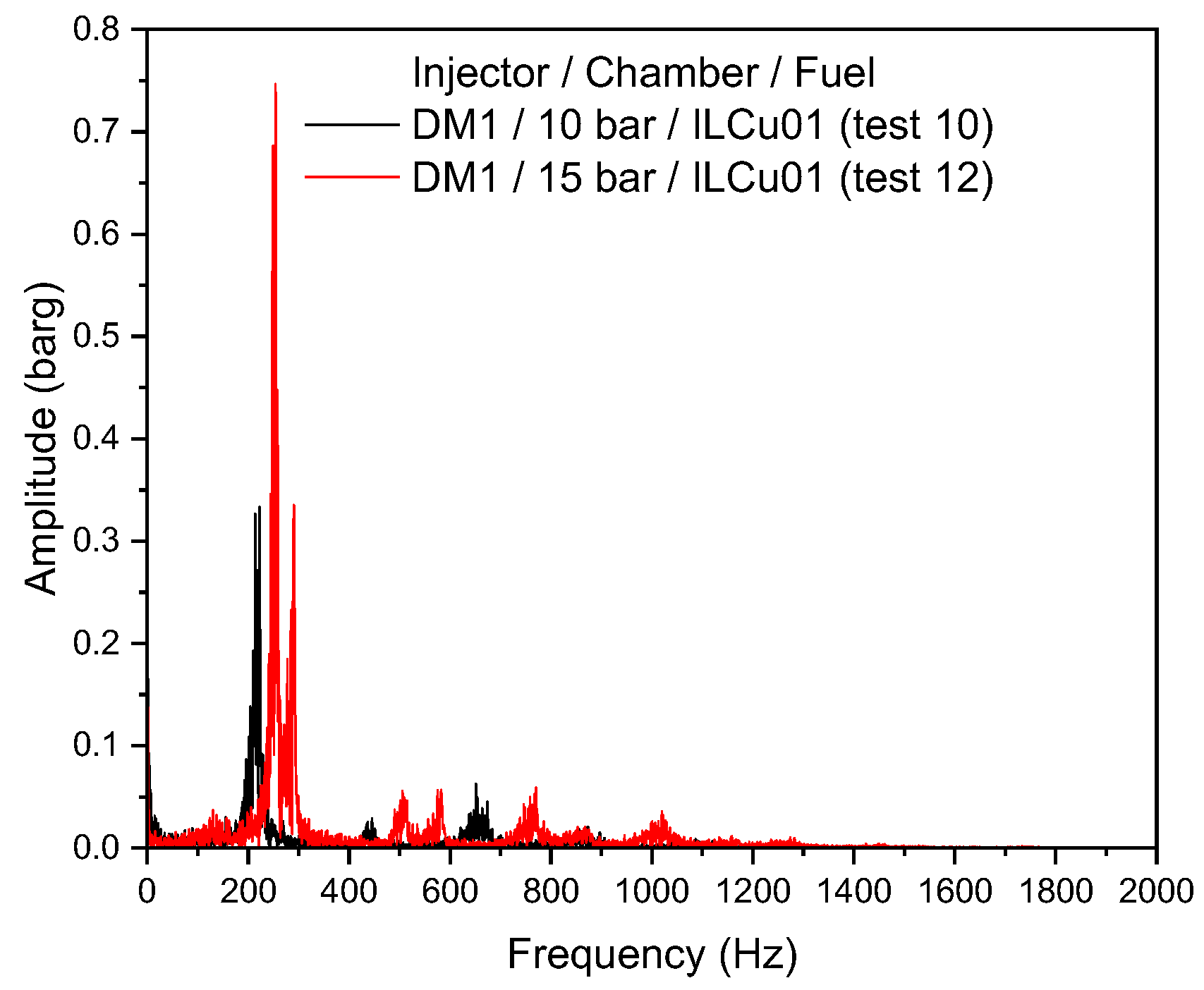

Despite these improvements, combustion instability was higher for the 15 bar chamber experiment. Combustion instability values for DM1/10 bar (Test 10) and DM1/15 bar (Test 12) were 9.4% and 13.4%, respectively. A Fast Fourier Transform (FFT) analysis was conducted to compare the instability intensities and peak frequencies across the tests. Previous studies [21] have shown that modifications in propellant properties or thruster geometry, particularly the characteristic length, can reduce instabilities. The frequency amplitude graph clearly shows differences in instability amplitudes between the 10 bar and 15 bar chambers for the DM1 injector (Figure 11). A high-intensity low-frequency instability was observed in the 15 bar chamber compared to the 10 bar chamber. The peak frequency recorded by the FFT for the DM1/15 bar test was 253 Hz, with an amplitude of 0.75 bar. In contrast, for the DM1/10 bar test, the peak frequency was 222 Hz with an amplitude of 0.27 bar. These results clearly demonstrate that combustion chamber pressure significantly influences combustion instability, similarly to the DLR study [9]. This low-frequency combustion instability occurs due to the coupling between the feed system and the combustion chamber, a phenomenon known as chugging [16,22]. SST time–frequency studies also reveal the instability over time (Supporting Information Figure S2). Further testing is necessary to analyze instability behavior across a broader range of chamber pressures. It was assessed that the low injector pressure drop may have contributed to the observed instabilities. Therefore, to improve stability, a new injector model, DM2, was developed, targeting a pressure drop of 40–50% of the chamber pressure.

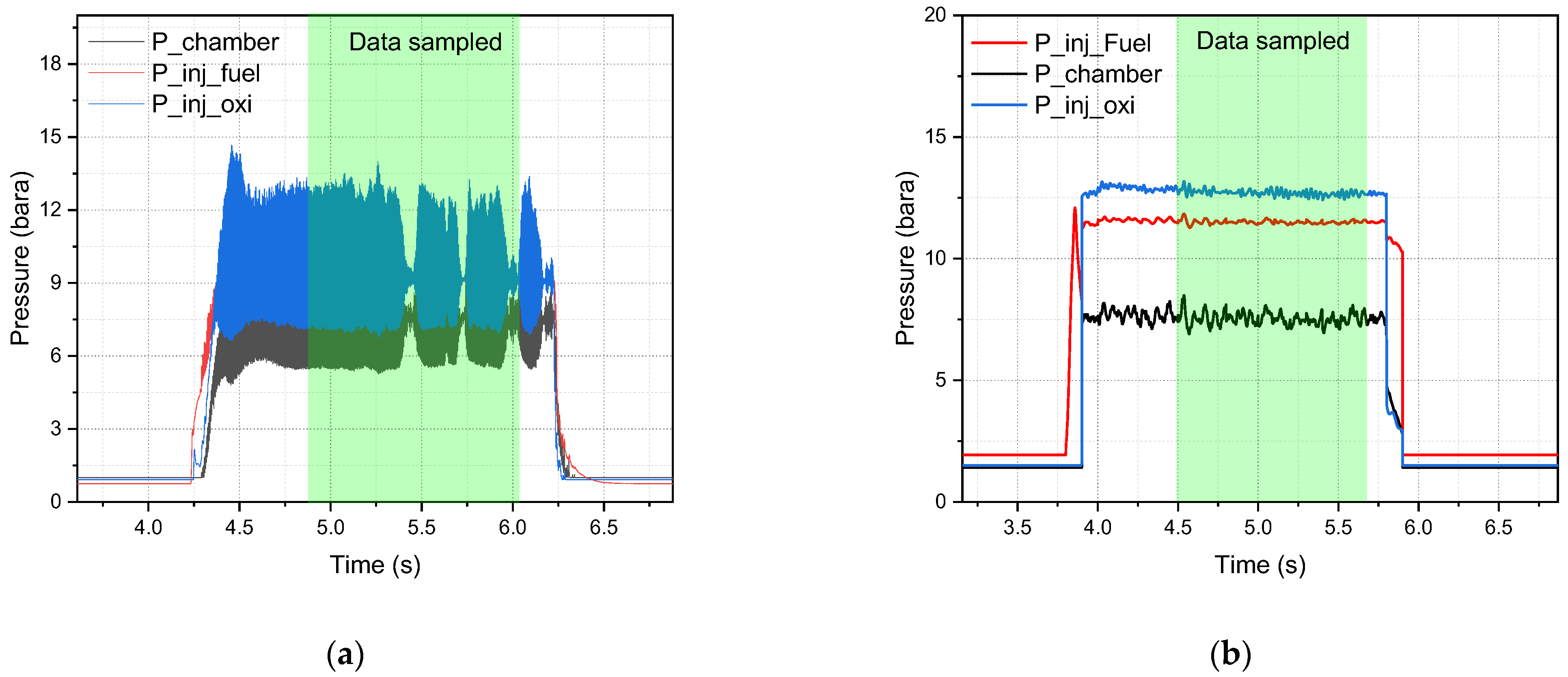

The performance of the DM1 and DM2 injectors was compared at a chamber pressure of 10 bar (Figure 12). For consistency, the oxidizer mass flow rate was maintained at 17 g/s, and the fuel mass flow rate was adjusted to 3.5 g/s, resulting in an O/F ratio of 4.8 for both tests. The pressure drops from the oxidizer and fuel injectors for the DM2 injector (Test 12) were 5.2 bar and 4.0 bar, respectively. This higher pressure drop may have contributed to the reduced instability observed with the DM2 injector compared to DM1.

In comparison with DM1, the combustion instability for DM2 was notably lower, below 5% (Supporting Information Table S5). The FFT analysis for the DM2/10 bar test did not yield a clear instability frequency, likely due to the lower data sampling rate of 1000 Hz, whereas the DM1 tests were conducted at 10,000 Hz. Consequently, while instabilities were still observed in Test 12 (Supporting Information Figure S3a), particularly around a peak frequency of 220 Hz, these results require confirmation through higher-resolution testing.

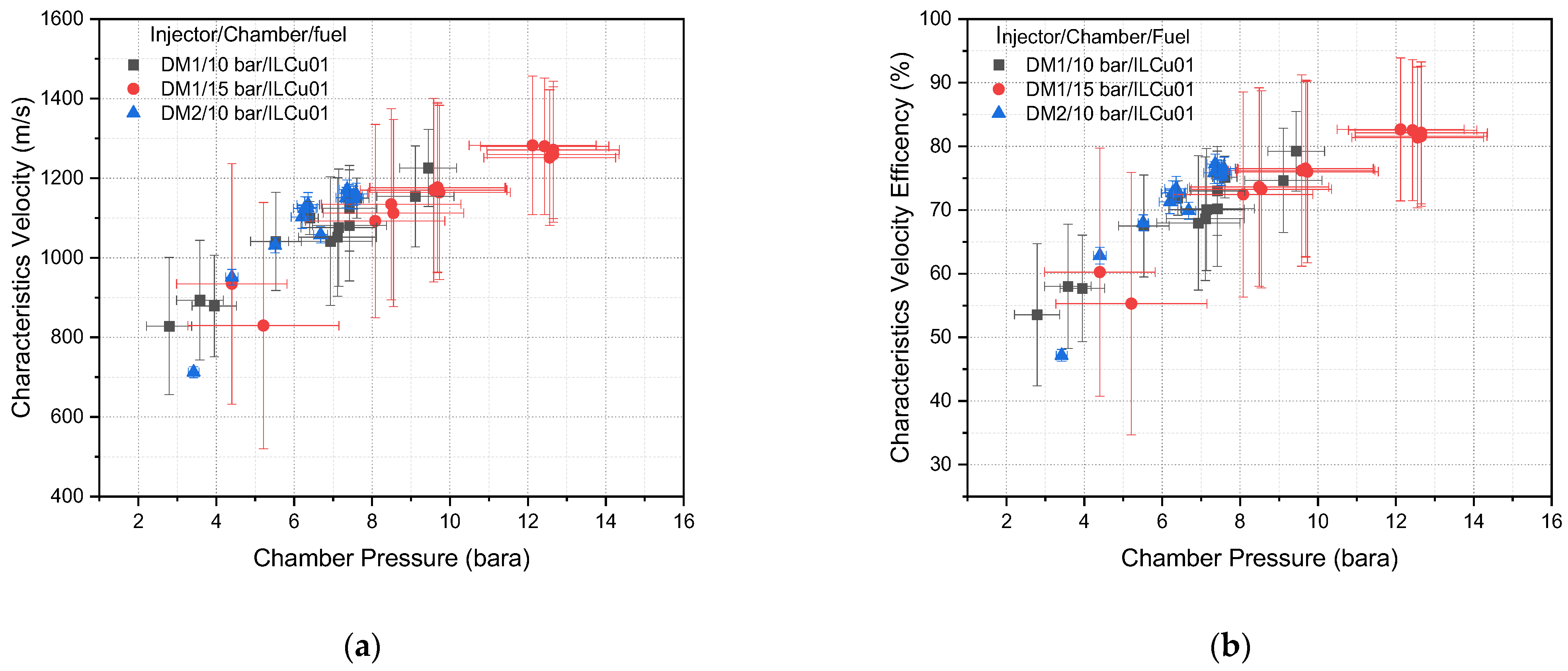

Based on the combustion data, experimental characteristic velocities from the DM1 and DM2 injector tests were calculated (Figure 13a), and combustion efficiency was estimated by comparing with the ideal characteristic velocity (Figure 13b). Figure 13a,b reveals that the characteristics velocity (C*) and characteristic velocity efficiency (ղC*) were improved with the increase in chamber pressure. The standard uncertainties for the DM1 injector with 10 and 15 bar chambers were higher than for DM2/10 bar. This is attributed to the higher pressure fluctuations associated with the DM1 injector test results, which resulted in greater standard uncertainty in chamber pressure. Combustion efficiency and standard uncertainty were highest for the DM1/15 bar test. For example, the DM1/10 bar (Test 12) showed a characteristic velocity of 1226 m/s, whereas DM1/15 bar (Test 11) achieved 1280 m/s at a similar O/F ratios. Accordingly, the combustion efficiency for the 10 bar test was 79%, compared to 83% for the 15 bar test for DM1. Moreover, the combustion instability was significantly lower for DM2/10 bar (below 5%) compared to DM1, which showed instabilities exceeding 5% for both the 10 and 15 bar tests. These findings suggest that injector pressure drop plays a critical role in the steady operation of a thruster.

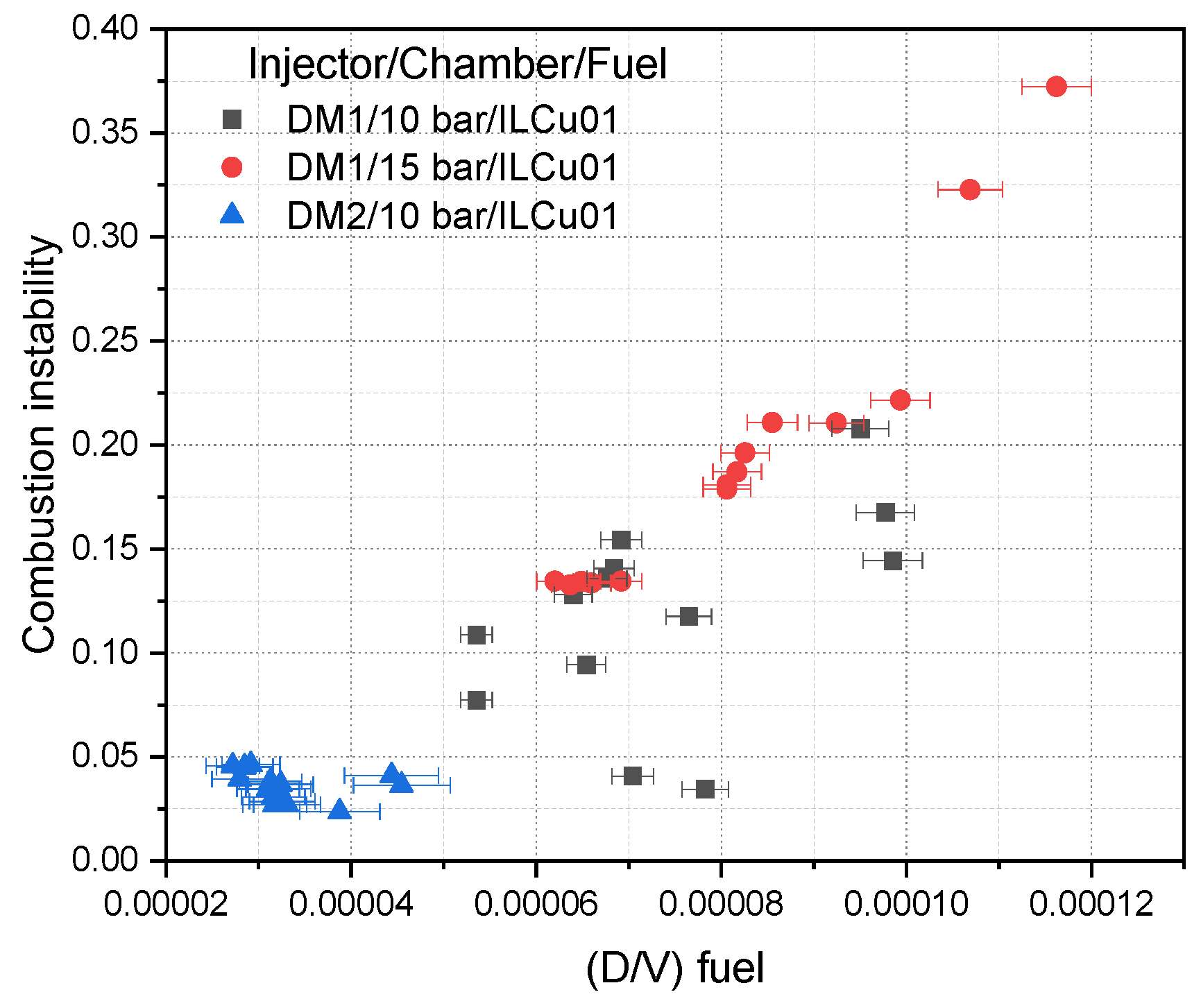

Furthermore, the relationship between the fuel orifice diameter to velocity ratio (D/V)fuel) and combustion instability was investigated (Figure 14). The results indicated that combustion instability decreased as (D/V)fuel decreased. Using the DM2 injector, it was observed that when (D/V)fuel dropped below 0.05, stable combustion was achieved. Thus, estimating (D/V)fuel during the thruster design phase may allow for optimization of thruster performance while minimizing instabilities.

4. Conclusions

In this study, the influence of injector design was evaluated for a thruster using hydrogen peroxide and a hypergolic fuel. The ignition delay time (IDT) and thermal properties of ILCu01 were reproduced to confirm the performance and thermal stability, and the results were compared with studies from DLR. Furthermore, ILCu01 was tested with 95% H₂O₂ in a 50 N thruster to investigate combustion behavior under different injector designs. The DM1 injector design was initially considered with a 10–20% injector pressure drop relative to the chamber pressure. However, it was found that this pressure drop was not sufficient to sustain steady-state combustion, despite yielding better combustion efficiency. In contrast, the DM2 injector design, which employed a 40–50% pressure drop, showed improved combustion stability. Additionally, the ratio between the injector diameter and fuel injection velocity appears to determine a critical threshold (~0.05 m/s), beyond which combustion instability occurs. Further experiments are recommended to verify whether these design parameters are applicable to other types of propellants.
