An Approximate Torque Model for Electromagnetic De-Tumbling of Space Debris: Finite-Element Correction and Experimental Verification

Abstract

The rapid accumulation of space debris poses a serious threat to operational spacecraft, with the capture and removal of rapidly tumbling non-cooperative targets being a primary challenge. Non-contact electromagnetic de-tumbling technology is a promising solution due to its enhanced safety. This paper addresses the issue of torque modeling and validation in the electromagnetic de-tumbling process for a specific configuration involving a magnetic dipole and a spherical shell under a symmetrically distributed magnetic field. Based on the principles of electromagnetic induction, an approximate analytical expression for the electromagnetic eddy current torque on a rotating spherical shell within a dipole magnetic field is first derived. A high-fidelity finite element model is then established, which reveals a systematic discrepancy between the initial theoretical model and numerical simulation results. A distance-dependent power-law correction factor is introduced to calibrate the theoretical model, significantly improving its accuracy and reducing the average error to 1.5 percent. Finally, a ground-based experimental platform is designed and implemented. The experimental results demonstrate that the corrected approximate analytical model agrees well with the empirical data, verifying its validity and accuracy under the given conditions and providing a reliable theoretical basis for the design of future space debris de-tumbling controllers.

1. Introduction

The orbital environment has seen a rapid proliferation of artificial objects since the beginning of the Space Age in 1957 [1]. The current catalog includes over 54,000 tracked objects exceeding 10 cm in size, with only around 17% remaining functional satellites [2]. The remaining objects are classified as space debris, comprising non-functional satellites, expended rocket stages, and fragmentation debris. Active debris removal (ADR) plays a vital role in mitigating orbital debris accumulation and tackling the escalating space debris problem [3]. Current research has investigated various ADR approaches, such as robotic arms [4], nets [5], tentacles [6], the tether-gripper mechanism [7], and harpoons [8].

The superposition of residual angular momentum, solar radiation pressure, and gravitational gradient torques induces complex tumbling dynamics in space debris. Observations indicate that certain space debris can attain angular velocities exceeding several hundred degrees per second while exhibiting continuous rotational axis precession. Such hyper-rotational states constitute unstable, high-energy configurations that significantly elevate fragmentation risks. The direct capture of rapidly rotating, large-scale debris poses substantial hazards, including potential catastrophic collisions and complete loss of spacecraft control, primarily due to the limited dynamic operational range of existing orbital robotic manipulators. Current space robotic systems demonstrate a maximum capture capability for targets with rotation rates below 5°/s [9], necessitating a mandatory de-tumbling phase to stabilize the debris prior to capture operation [10,11,12,13,14].

Recent years have witnessed significant advancements in both contact and non-contact de-tumbling techniques for space debris mitigation. Contact-based approaches, such as brush-contact systems [15], mechanical pulse [16], tethered space net robots [17], and space-tug systems [18], require precise close-proximity operations that inherently increase mission complexity and collision probability. Non-contact alternatives, including plume impingement [19], laser ablation [20], and electrostatic force applications [21], offer reduced operational risks but demonstrate performance characteristics that are highly sensitive to target debris geometry parameters.

Non-contact de-tumbling techniques utilizing eddy currents have attracted considerable attention due to their benefits, such as clean operation, intrinsic safety, and few geometric limitations. Sugai et al. [22] and Du et al. [23,24] introduced an approach for de-tumbling non-functional targets by employing AC electromagnetic coils as end-effectors on space robotic arms. Gómez et al. [25] and Walker et al. [26] described a technique that uses a large high-temperature superconducting (HTS) coil carried onboard a spacecraft to generate a nearly uniform magnetic field around a target. Liu et al. [27] and Meng et al. [28] suggested a method that uses rotating permanent magnets to produce a traveling magnetic field in the target’s vicinity, thereby increasing the de-tumbling torque.

The precise modeling of electromagnetic forces and torques is fundamental to analyzing the dynamics of the de-tumbling process and to developing effective control strategies for de-tumbling. Analytical expressions for calculating eddy current torque have been provided by Smith et al. [29] and Ormsby et al. [30], who derived them by simplifying structures such as a cylindrical shell, a conical shell, and a spherical shell in a uniform magnetic field.

Analytical expressions for eddy current torque or force are available only for a restricted set of configurations, making numerical methods essential in the majority of practical scenarios. Praly et al. [31] developed a comprehensive framework for modeling induction effects, which predicts an exponential decay in the spin rate of conductive space debris. The study by Gómez et al. [25] introduces an approach for evaluating eddy current torque via a magnetic tensor, obtainable through finite element analysis. Li et al. [32] suggested a finite element technique to determine the eddy current torque on an arbitrarily shaped rotating conductor within a magnetic field. Nurge et al. [33] obtained an asymptotic expression for the force and torque on a slowly rotating sphere subjected to an axisymmetric magnetic field. Furthermore, Yu et al. [34] established an asymptotic expression characterizing the electromagnetic interaction between two magnetic dipoles and a spherical shell in an axisymmetric field. However, the calculation of the torque exerted on the shell’s surface for a magnetic dipole interacting with a spherical shell under axisymmetric magnetic field conditions relies on numerical methods, for which no corresponding analytical approach has been developed nor has any experimental verification been conducted.

This paper proposes and validates an approximate analytical model of magnetic dipole-spherical shell electromagnetic torque applicable to symmetric magnetic field distribution conditions. Section 2 models the electromagnetic de-tumbling system and the electromagnetic interaction between the magnetic dipole and the spherical shell. Section 3 derives an approximate analytical expression for the electromagnetic eddy current torque acting on a rotating spherical shell under symmetric magnetic field distribution. Section 4 details the finite element modeling process, where simulation analysis reveals discrepancies between the initial analytical model and the numerical results, leading to the introduction of a power-law correction factor to enhance the model’s computational accuracy. Based on this, a rigid-body dynamic model of the spherical shell is further established to simulate its angular velocity decay process under the corrected electromagnetic torque. Section 5 describes the setup of the experimental platform and the experimental methods, comparing the measured results with the corrected analytical solutions. Section 6 summarizes this research work and presents conclusions.

2. The Formulation of the De-Tumbling Problem

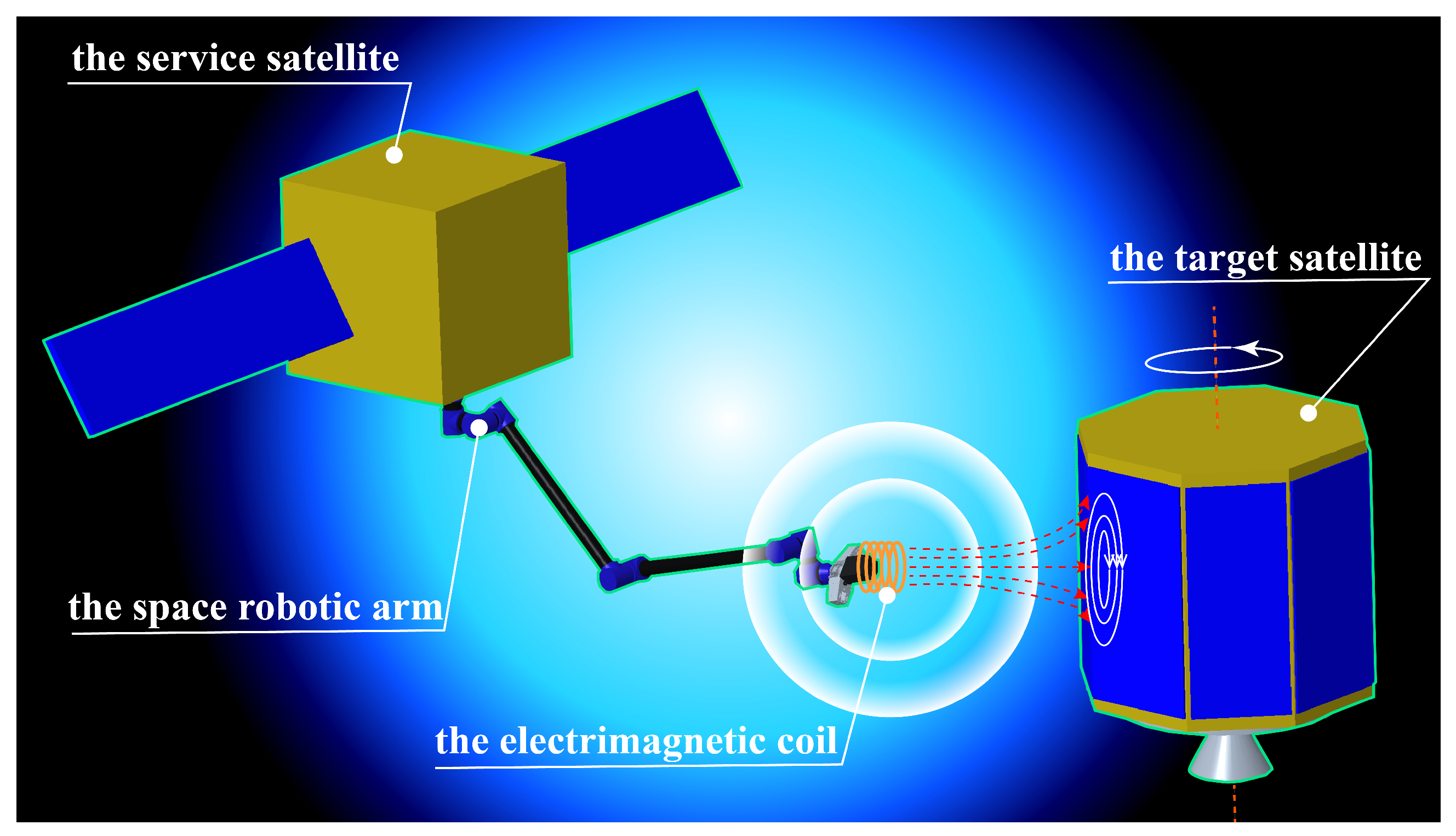

The de-tumbling system configuration, comprising a service satellite, a single space robotic arm, an electromagnetic coil, and an uncooperative target, is depicted in Figure 1.

Three assumptions are made here to simplify the model’s complexity:

1.

Firstly, the target is simplified as a non-magnetic, homogeneous conducting spherical shell;

2.

secondly, the electromagnetic device is simplified to a magnetic dipole, because the relative distance between the electromagnetic device and the target is much greater than the diameter of the electromagnetic device, to avoid collisions;

3.

finally, the magnetic moment of the electromagnetic device is perpendicular to the angular velocity of the spherical shell.

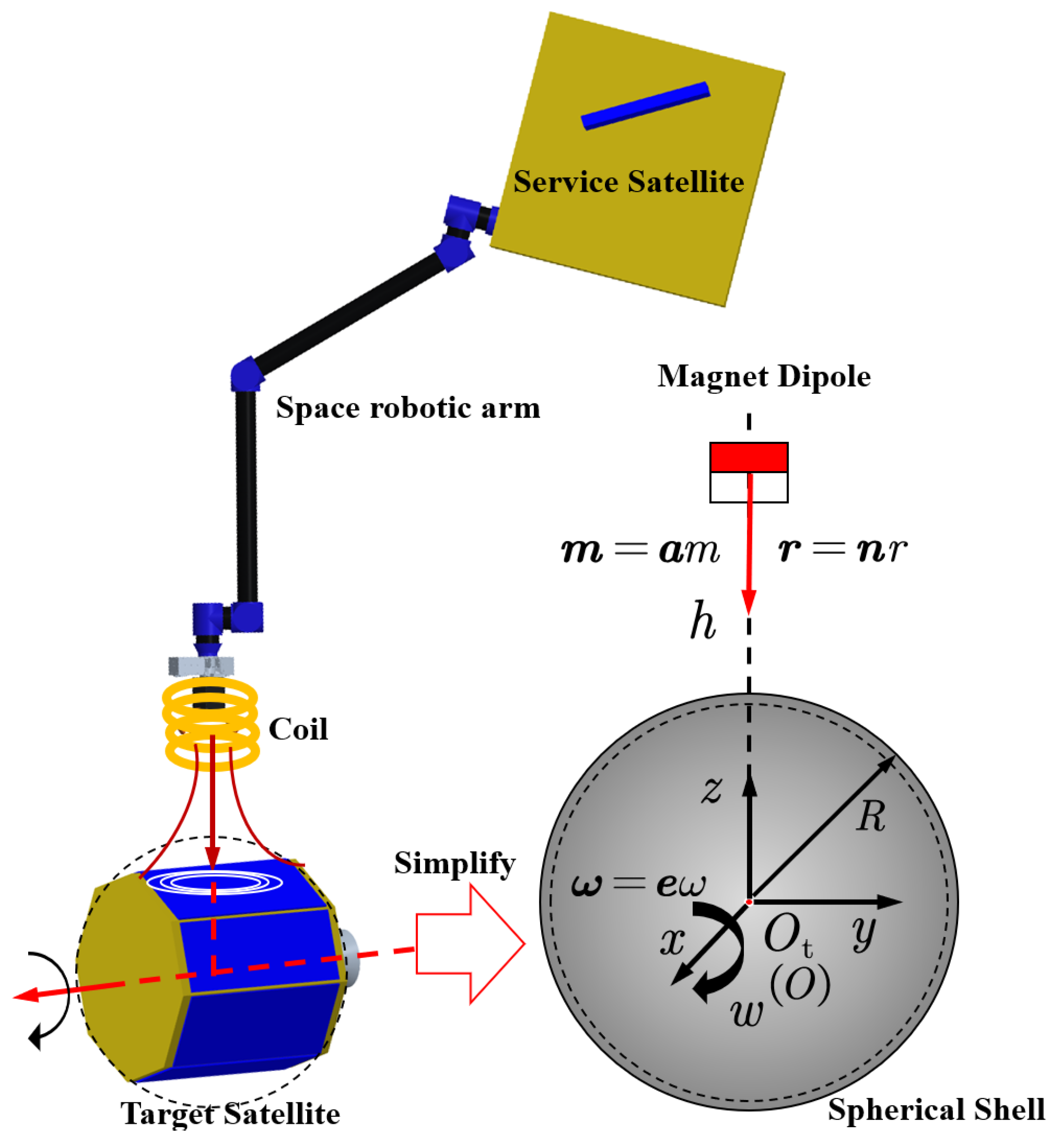

As shown in Figure 2, a Cartesian inertial coordinate system $O_{xyz}$ is established with origin point O and orthonormal basis vectors $({\mathbf{e}}_{\mathbf{x}},{\mathbf{e}}_{\mathbf{y}},{\mathbf{e}}_{\mathbf{z}})$. Consider a spherical shell with radius R, thickness e, origin point $O_t$, electrical conductivity $\sigma$, and magnetic permeability ${\mu }_0=4\pi \times {10}^{-7}\mathrm{H}·{\mathrm{m}}^{-1}$. Coordinate systems $O_t$ and $O_{xyz}$ share the same origin. Assume that the spherical shell rotates with angular velocity $\mathit{\omega }=\omega \mathbf{e}$, under the influence of a magnetic dipole with a magnetic moment $\mathbf{m}=m\mathbf{a}$, where $\mathbf{e}={\mathbf{e}}_{\mathbf{x}}$ and $\mathbf{a}={-\mathbf{e}}_{\mathbf{z}}$. The magnetic dipole is fixed at position (0,0,h) in the coordinate system O, where h is the distance from the origin (0,0,0) to the dipole along the z-axis. The vector $\mathbf{r}=r\mathbf{n}$, passing though the shell’s center, represents the displacement from a magnetic dipole located at (0,0,h) to a point on the surface of the spherical shell, where $r=\left|h\right|$ and $\mathbf{n}=\mathbf{r}/\left|r\right|$.

The magnetic field generated by a magnetic dipole on a spherical shell can be described as follows [35].

$$\mathbf{B}\left(\mathbf{r}\right)={\displaystyle \frac{{\mu }_0}{4\pi }}\left(3\mathbf{m}·\left(\mathbf{r}\right){\displaystyle \frac{\mathbf{r}}{{\left|\mathbf{r}\right|}^5}}-{\displaystyle \frac{\mathbf{m}}{{\left|\mathbf{r}\right|}^3}}\right)$$

(1)

When a spherical shell moves through a magnetic field generated by a dipole, eddy currents are induced in accordance with Ohm’s law, which can be expressed as follows [36].

$$\mathbf{j}=\sigma \left(-\nabla \phi +\mathbf{v}\times \mathbf{B}\right)$$

(2)

where $\phi$ represents the induced electric potential, $\mathbf{B}$ is the primary magnetic field, and $\mathbf{v}$ represents the velocity of the spherical shell relative to the primary magnetic field.

The induced eddy currents satisfy the principle of charge conservation throughout the conducting volume.

$$\nabla ·\mathbf{j}=0$$

(3)

The boundary condition for eddy currents is governed by their confinement within the conducting medium, which can be expressed as follows [33].

$${\displaystyle \frac{\partial \phi }{\partial \mathbf{n}}}=\mathbf{n}·\left(\mathbf{v}\times \mathbf{B}\right)=0$$

(4)

Consequently, the induced electric potential satisfies the Poisson equation.

$${\nabla }^2\phi =\nabla ·\left(\mathbf{v}\times \mathbf{B}\right)$$

(5)

The Lorentz force density acting on the spherical shell under an applied magnetic field can be formulated as follows [34]

$$\mathbf{f}=\mathbf{j}\times \mathbf{B}$$

(6)

The total electromagnetic force acting on the spherical shell is obtained through volume integration of the Lorentz force density distribution.

$$\mathbf{F}={\int }_V\mathbf{f}\mathrm{d}V={\int }_V\mathbf{j}\times \mathbf{B}\mathrm{d}V$$

(7)

where V is the volume of the spherical shell. The electromagnetic torque exerted on the spherical shell is expressed as follows:

$$\mathbf{T}={\int }_V\mathbf{r}\times \mathbf{f}\mathrm{d}V={\int }_V\mathbf{r}\times \left(\mathbf{j}\times \mathbf{B}\right)\mathrm{d}V$$

(8)

3. Derivation of the Approximate Torque Analytical Expression

In practical electromagnetic de-tumbling missions, a service satellite typically maneuvers a magnetic source (e.g., an electromagnetic coil mounted on a space manipulator) toward a tumbling uncooperative target, idealized here as a homogeneous, non-magnetic spherical shell. Due to limitations in manipulator performance and positioning accuracy, it is challenging to maintain perfect coaxial alignment between the coil’s center and the target’s center of mass or to ensure that the coil’s axis remains perpendicular to the target’s angular velocity vector.

As indicated by Equations (6) and (8), the maximum braking torque on the spherical shell under a symmetrically distributed, non-uniform magnetic field is achieved only when Assumption 3 is satisfied. Any deviation from the coaxial configuration or misalignment with the angular velocity direction will result in a reduction in the electromagnetic torque. Thus, while the ideal conditions outlined in Assumption 3 are not fully representative of real operational scenarios, they represent the configuration for maximal torque generation.

This study begins with the simplest ideal case, where Assumption 3 holds, to derive an approximate analytical expression for the torque on a rotating spherical shell in a symmetrically distributed, non-uniform magnetic field. This approach provides a fundamental baseline and represents a crucial first step toward understanding more complex, real-world de-tumbling scenarios. The primary focus of this work is therefore the derivation of an approximate analytical solution for the coaxial configuration between a magnetic dipole and a spherical shell. To facilitate the derivation, Equation (1) is reformulated in terms of unit vector ($\mathbf{a}$, $\mathbf{n}$, $\mathbf{e}$) representation.

$$\mathbf{B}={\displaystyle \frac{{\mu }_{0}m}{4\pi r^3}}\left(3(\mathbf{a}·\mathbf{n})\mathbf{n}-\mathbf{a}\right)$$

(9)

where $\mathbf{a}={(0,0,-1)}^{\mathrm{T}}$ and $\mathbf{r}={(0,0,h)}^{\mathrm{T}}$.

Equation (9) can thus be simplified to the following form:

$$\mathbf{B}=-{\displaystyle \frac{{\mu }_{0}m}{2\pi h^3}}{\mathbf{e}}_{\mathrm{z}}$$

(10)

The induced magnetic moment of a conducting spherical shell immersed in an external dipole field is given by [35]

$${\mathbf{m}}_{\mathrm{s}}={\displaystyle \frac{4\pi }{15}}\sigma \omega e{R}^5(\mathbf{e}\times \mathbf{B})$$

(11)

By combining Equation (10) with Equation (11), the analytical expression for the induced magnetic moment of the spherical shell in an external dipole field is obtained, as presented in Equation (12):

$${\mathbf{m}}_{\mathrm{s}}={\displaystyle \frac{2{\mu }_{0}m\sigma \omega e{R}^5}{15h^3}}{\mathbf{e}}_{\mathbf{y}}$$

(12)

Under Assumption 2, the torque acting on a rotating spherical shell in a magnetic dipole field can be calculated using Equation (13) [35]:

$${\mathbf{T}}_{\mathrm{s}}={\mathbf{m}}_{\mathrm{s}}\times \mathbf{B}$$

(13)

By substituting Equations (10) and (12) into Equation (13), the approximate analytical expressions for the torque acting on a rotating spherical shell under a magnetic dipole field are obtained as follows:

$${\mathbf{T}}_{\mathrm{s}}={\displaystyle \frac{{\mu }_0^2{m}^2\sigma we{R}^5}{15\pi h^6}}{\mathbf{e}}_{\mathbf{x}}$$

(14)

4. Simulation Analysis and Parameter Calibration

A finite element model is developed to verify the correctness of the approximate analytical expression for the electromagnetic torque that has been derived.

4.1. Finite Element Modeling

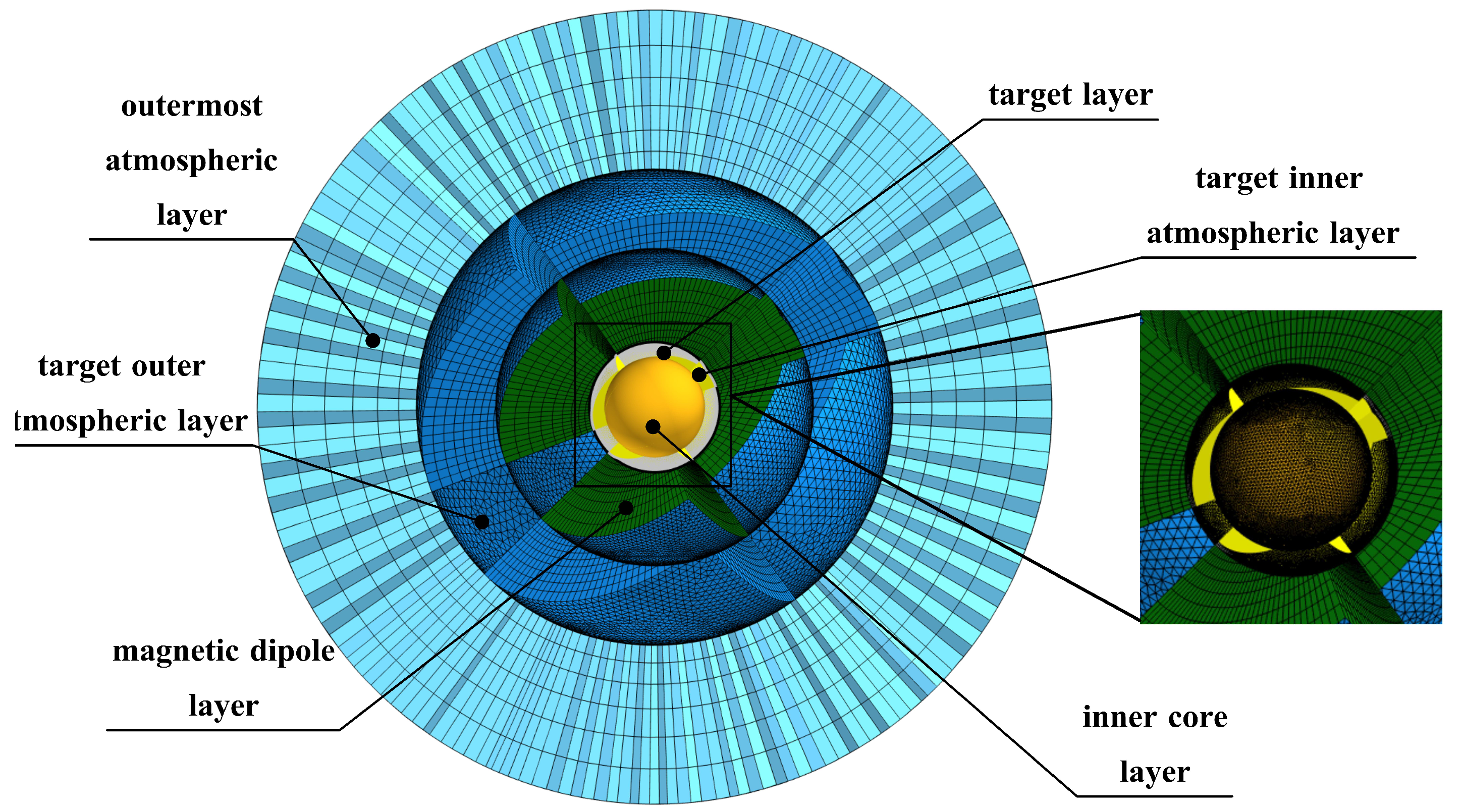

To achieve the goals of precise numerical accuracy, computation speedup, and good convergence behavior, it is necessary to ensure reasonable meshing grid operations. The first effective approach is mesh parameterization, where the magnetic field of the spherical shell generated by the magnetic dipole is precomputed. This can enhance the mesh’s geometric quality extremely and decrease the computational time to avoid the influence of meshing the point of the magnetic dipole. Then, the next effective step is to layer the grid into six layers—outermost atmospheric layer, target outer atmospheric layer, magnetic dipole layer, target layer, target inner atmospheric layer, and inner core layer—as shown in the Figure 3.

To ensure rapid convergence and accuracy, the radius of the outermost atmospheric layer needs to be six times the radius of the spherical shell, and the mesh near the spherical shell is refined due to the rapid variation in the eddy currents on its surface. The specific thickness and radius of each layer are shown in

Table 1. Parameters used in numerical calculation.

Layer	Thickness (mm)	Radius (mm)	Grid Number
Outermost Atmospheric	240	600	104,652
Target Outer Atmospheric	120	360	156,978
Magnetic Dipole	140	240	156,978
Target	4	100	52,326
Target Inner Atmospheric	20	96	69,768
Inner Core	76	76	85,122

. The high-quality meshes can mainly be obtained with an average mesh quality of 0.9095 by sweeping each layer to generate the hexahedron. By optimizing the parameter settings, the computational time is significantly reduced while maintaining the accuracy of the results.

4.2. Modification and Error Analysis of the Analytical Expression for Torque

To verify the correctness and accuracy of the derived approximate analytical expression for electromagnetic eddy current torque, finite element simulation was used. The parameters used in the simulation are provided in

Table 2. Finite element simulation parameter table.

Parameter	Value
Magnetic Dipole Moment (m)	$500\mathrm{A}·{\mathrm{m}}^2$
Dipole-to-Shell Distance (h)	0.3–0.5 $\mathrm{m}$
Electrical Conductivity ($\sigma$)	$3.7\times {10}^7$  $\mathrm{S}/\mathrm{m}$
Vacuum Permeability (${\mu }_0$)	$4\pi \times {10}^{-7}$  $\mathrm{T}·\mathrm{m}/\mathrm{A}$
Spherical Shell Thickness (e)	$0.004\mathrm{m}$
Angular Velocity ($\omega$)	10 × $\pi \mathrm{rad}/\mathrm{s}$
Shell Radius (R)	100 $\mathrm{mm}$

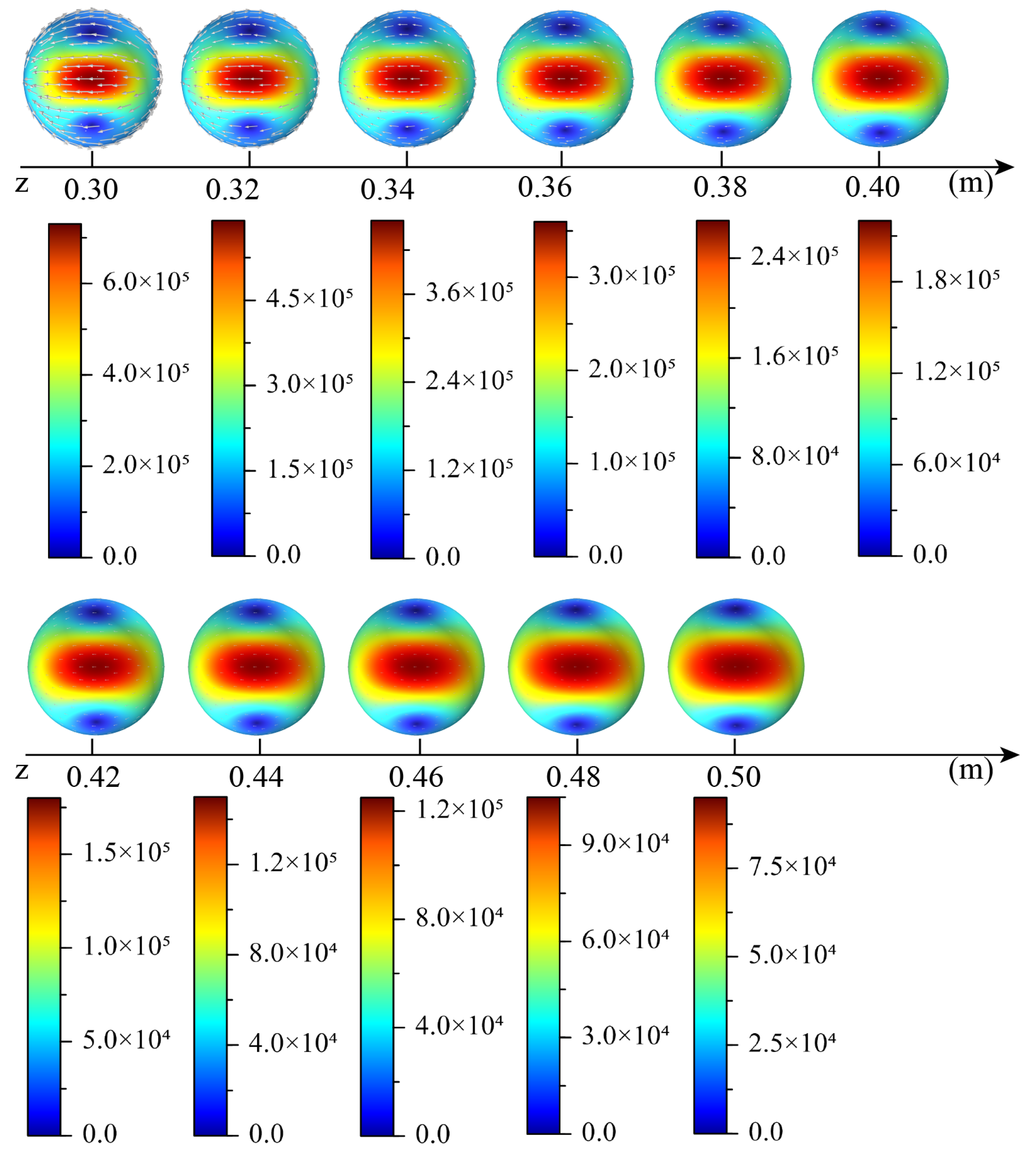

. The distribution and variation of current density on the spherical shell’s surface, as well as the torque experienced by the shell, were calculated under the symmetric magnetic field distribution of a magnetic dipole with the same magnetic moment presented in Figure 4. From the common characteristics of the spherical shell distribution, an electromagnetic eddy current loop is formed, with its center at the position where the magnetic dipole moment points toward the shell. The current density distribution follows the principle of electromagnetic induction, with the eddy current’s path perpendicular to the magnetic field variation.

When the spherical shell is $0.3\mathrm{m}$ away from the magnetic dipole, the eddy current loop generated on the shell’s surface is the strongest, with a maximum value of 726,000 $\mathrm{A}/{\mathrm{m}}^2$ and a minimum of $686\mathrm{A}/{\mathrm{m}}^2$, exhibiting the largest current density gradient in all directions. As the distance h increases (from $z=0.30\mathrm{m}$ to $z=0.50\mathrm{m}$), the current density significantly decreases when the shell is $0.5\mathrm{m}$ away from the dipole, with a maximum of 90,800 $\mathrm{A}/{\mathrm{m}}^2$ and a minimum of $476\mathrm{A}/{\mathrm{m}}^2$. The rate of decrease in current density is indeed faster than the increase in distance. Specifically, the distance increases from $0.30\mathrm{m}$ to $0.50\mathrm{m}$ (approximately 1.67 times), but the maximum current density drops from about $7.26\times {10}^5$ to about $9.08\times {10}^4$ (a decrease of about 8-fold). This indicates a strong inverse power-law relationship between current density and distance, exceeding the order of $h^6$, which aligns with the general trend of the derived electromagnetic formula.

The theoretical formula for electromagnetic torque derived in this study is based on three idealized assumptions, thereby inherently deviating from the finite element simulation results. To enable the theoretical model to more accurately calculate electromagnetic eddy current torque at different distances, thereby laying the foundation for subsequent electromagnetic de-tumbling strategy formulation and controller design, we introduced a distance-dependent correction factor, expressed as follows:

$$C\left(h\right)=a\times h^b$$

(15)

where a is the amplitude coefficient, compensating for the overall amplitude deviation of the theoretical model, while b is the distance exponent, capturing the non-linear variation characteristics of torque with distance.

This form has clear physical significance, with the $h^b$ term reflecting the influence of magnetic field attenuation. Parameters a and b can be determined by fitting finite element data. Compared to complex physical models, the power-law form is computationally simple and efficient. The correction factor parameters are determined by minimizing the error between theoretical predictions and finite element data. The 11 sets of finite element data were collected within a typical distance range, where h ranges from 0.3 $\mathrm{m}$ to 0.5 $\mathrm{m}$ with an interval of 0.002 $\mathrm{m}$. The established error function is shown below.

$$E(a,b)={\displaystyle \frac{1}{11}}\sum _{i=1}^{11}{T}_{\mathrm{FEM}}\left(h_i\right)-a·h_i^b·T_{\mathrm{theory}}\left(h_i\right)$$

(16)

where $T_{FEM}$ is the electromagnetic torque value obtained from the finite element simulation, and $T_{theory}$ is the theoretical derivation value, which is the same as $T_s$.

The parameters were optimized using the Levenberg–Marquardt algorithm, resulting in a final fitting quality of $R^2$ = $0.9787$ and an average error of $E(a,b)$ = $1.5\%$. The optimized parameter values are $a=16.7258$ and $b=-0.7294$.

This indicates that the correction factor $C\left(h\right)$ effectively corrects the deviation of the theoretical formula $T_s$.

Therefore, the expression for the electromagnetic eddy current torque corrected by the correction factor is as follows:

$${\mathbf{T}}_{\mathrm{s}}^c=-C\left(h\right)·{\displaystyle \frac{{\mu }_0^2{m}^2\sigma we{R}^5}{15\pi h^6}}{\mathbf{e}}_{\mathbf{x}}$$

(17)

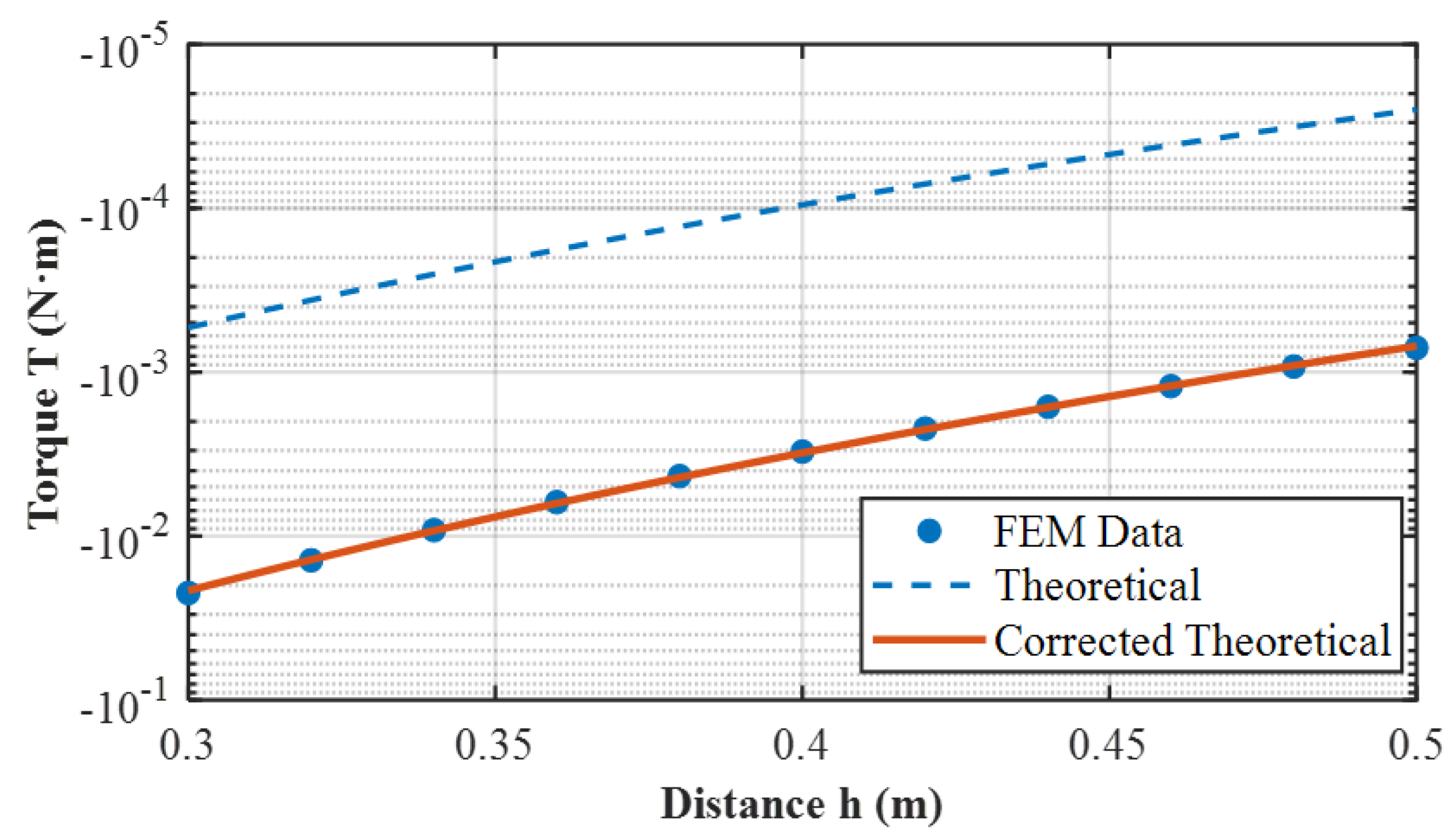

Figure 5 shows a comparison diagram of the analytical expression of electromagnetic eddy current torque before and after correction, as well as a comparison diagram between the finite element simulation value and the corrected approximate analytical solution of electromagnetic eddy current torque.

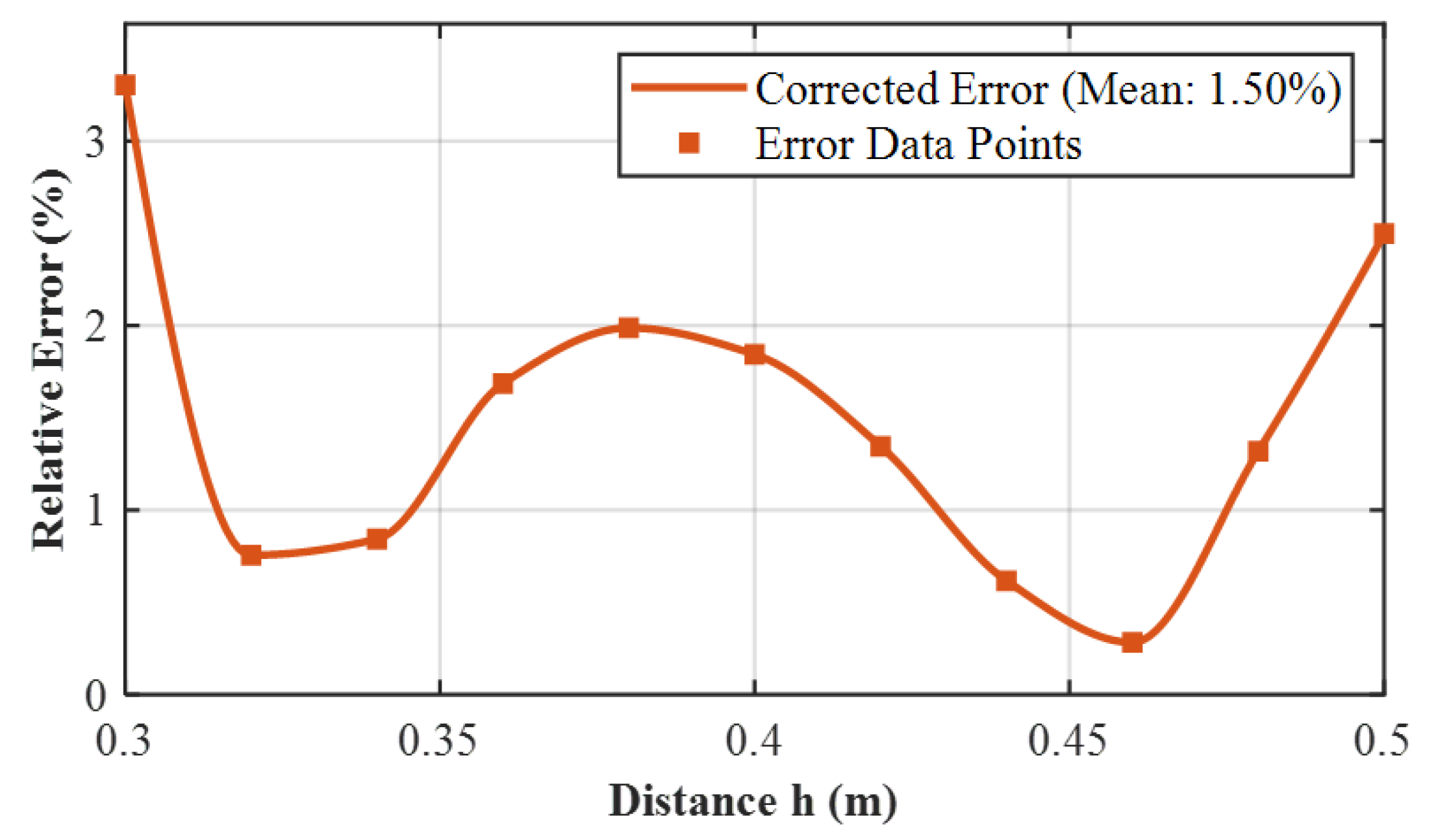

As shown in Figure 6, the average error of $T_c^s$ is only 1.5%, and within the entire test distance range ($0.3\mathrm{m}$ to $0.5\mathrm{m}$, in $0.002\mathrm{m}$ increments), the maximum error is consistently controlled within 3%. Such minor fluctuations are acceptable, indicating that there are higher-order terms between the theoretical model and the finite element simulation, which more closely approximates the real physical environment. These terms can be excluded without affecting computational accuracy and speed.

4.3. Dynamics of Electromagnetic De-Tumbling

The variation in the angular velocity $\omega$ of a non-cooperative target rotating in a magnetic dipole field is investigated under the following assumptions: All components of the electromagnetic de-tumbling system are modeled as rigid bodies. The electromagnetic device (e.g., an electromagnetic coil), which is mounted at the end of a space manipulator, is assumed to maintain a constant relative distance from the spherical shell of the non-cooperative target under specific control conditions. Based on these premises, the Euler dynamical model of the target is established, with the origin of the inertial coordinate system located at $O_t$, as presented below.

$${\mathbf{I}}_{\mathrm{s}}\dot{\mathit{\omega }}+\mathit{\omega }\times \left({\mathbf{I}}_{\mathrm{s}}\mathit{\omega }\right)={\mathbf{T}}_{\mathrm{s}}^{\mathrm{c}}$$

(18)

where ${\mathbf{I}}_{\mathrm{s}}$ is the inertia matrix of the spherical shell, and ${\mathbf{I}}_{\mathrm{s}}=\mathrm{diag}(I_x,I_y,I_z)$.

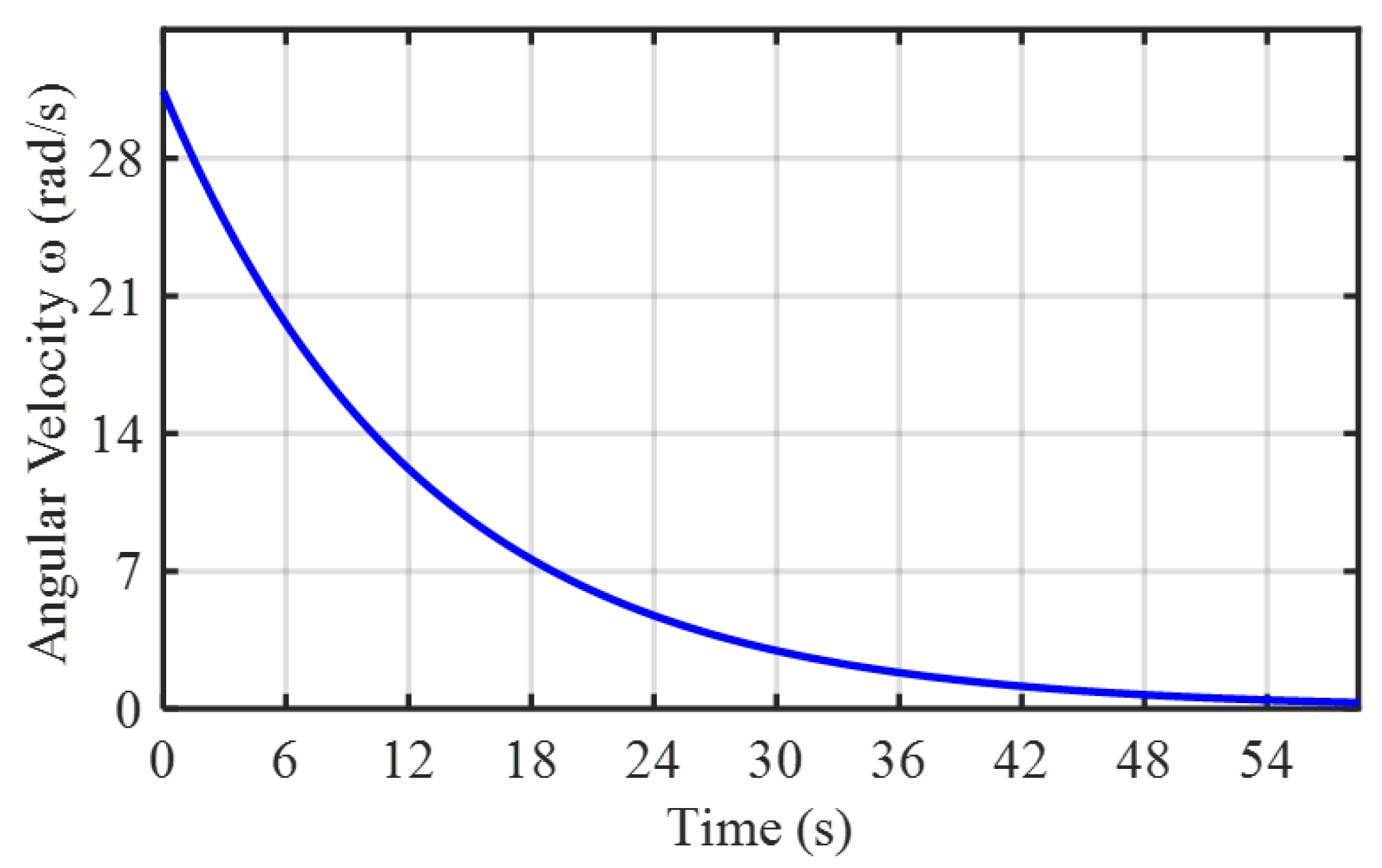

As shown in Figure 7, the initial angular velocity of the target spherical shell is $10\pi \mathrm{rad}/\mathrm{s}$. When placed $0.3\mathrm{m}$ away from a magnetic dipole with a magnetic moment $m=500\mathrm{A}·{\mathrm{m}}^2$, its angular velocity decays to one percent of the original speed after approximately $60\mathrm{s}$. The curve in the figure approximates an exponential decay.

5. Experimental Verification of the Electromagnetic Model

This section presents the relevant experiments conducted to further verify the correctness and accuracy of the proposed corrected approximate analytical formula for calculating electromagnetic de-tumbling torque.

The experimental platform comprised the following key components: a permanent magnet for generating the external magnetic field, a target spherical shell, an air bearing, optical encoders, a braking disc, servo motors, a ball-screw lifting platform, a 7-DOF robotic manipulator, data acquisition cards, and a control computer. In the experimental setup, a cylindrical neodymium iron boron (NdFeB) permanent magnet was employed as the magnetic field source, serving as a practical alternative to electromagnetic coils.

5.1. Experiment Setup

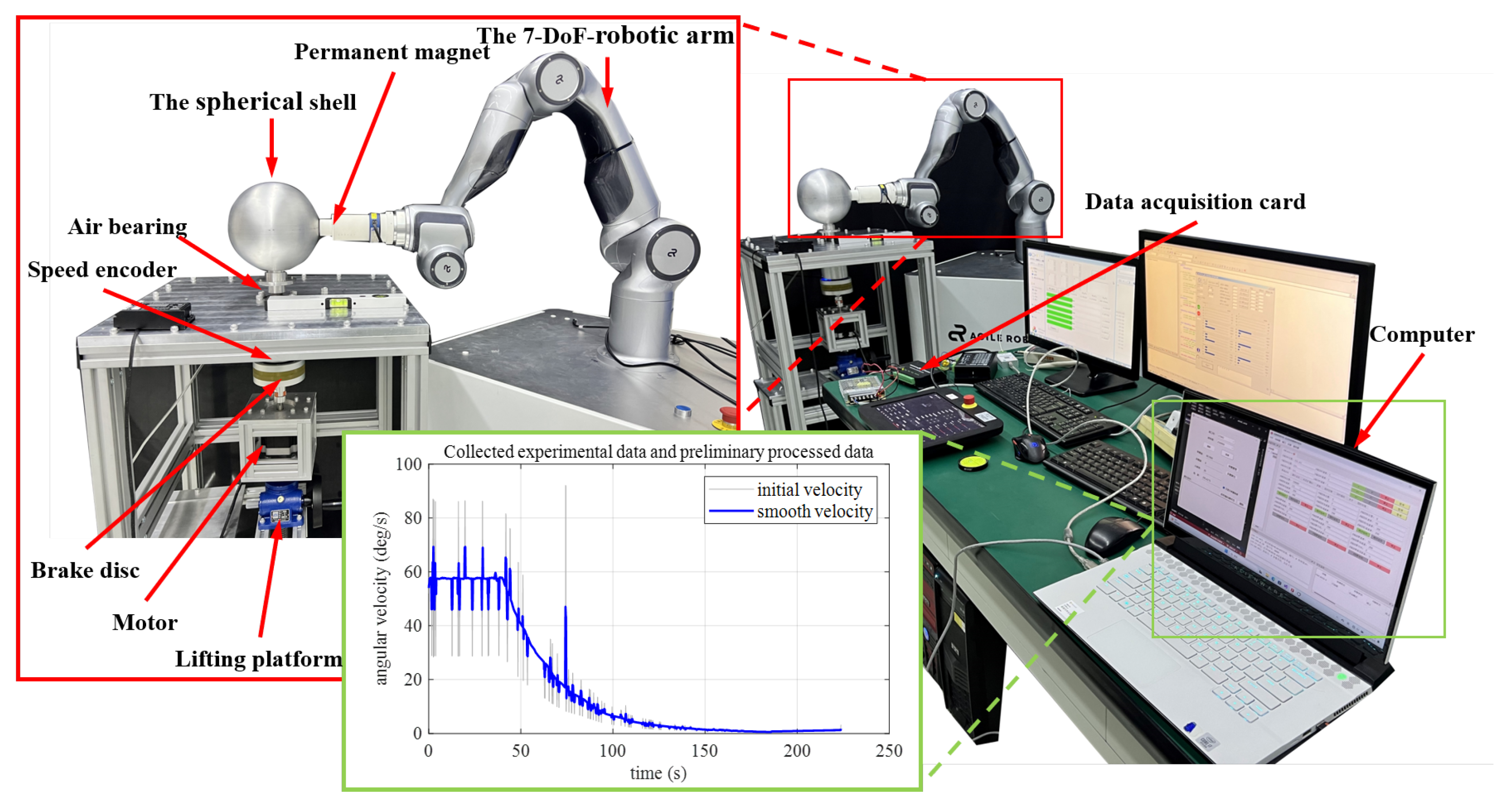

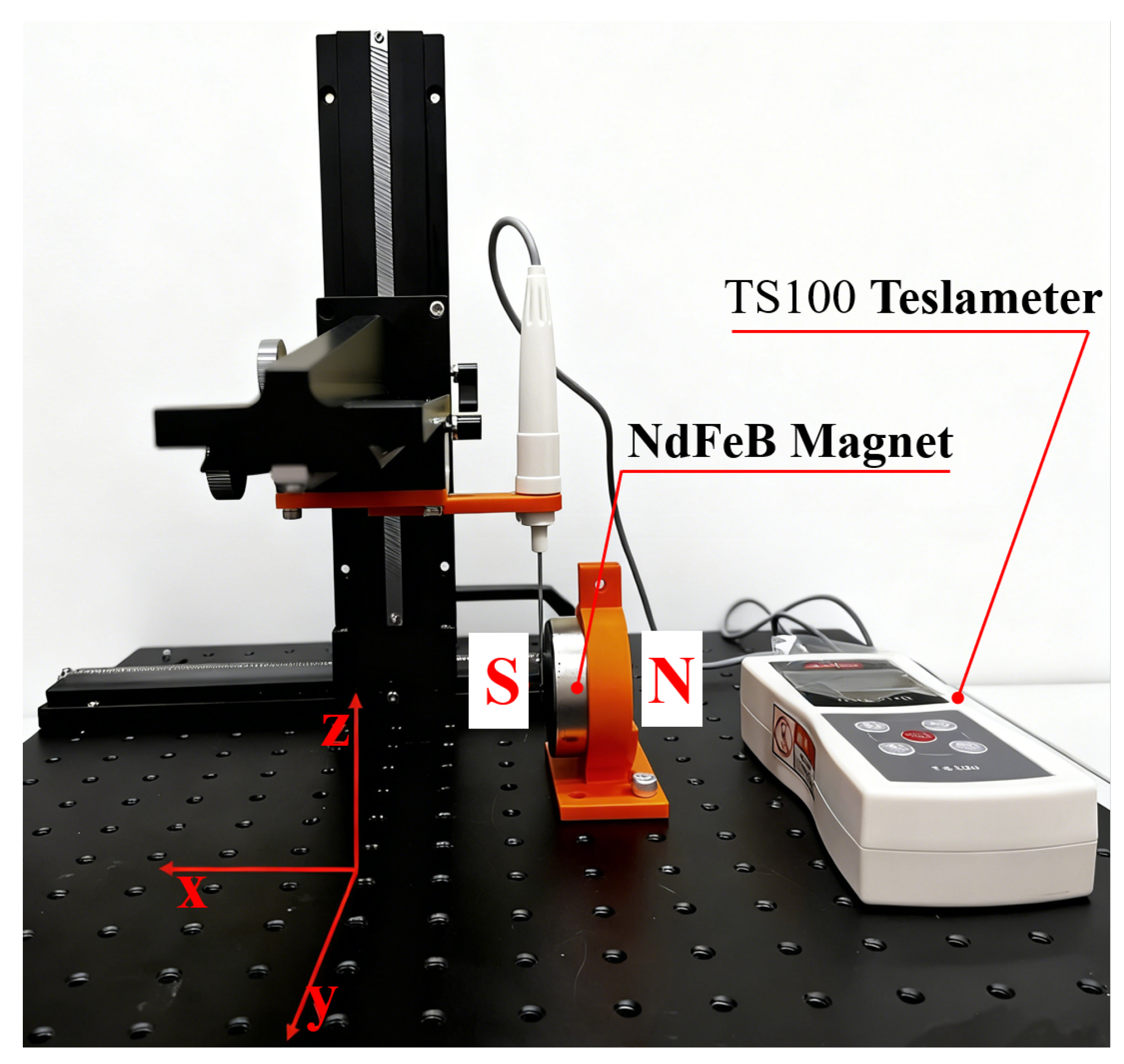

Figure 8 illustrates the experimental platform for validating the approximate analytical model of torque acting on a spherical shell in an axisymmetric configuration with a central magnetic dipole.

The 7-DOF robotic arm not only maintains precise alignment between the target spherical shell and the permanent magnet, ensuring coaxiality of their geometric centers, but also regulates the relative position and orientation between the target spherical shell and the permanent magnet. To initiate rotational motion, the ball-screw lifting platform elevates a servo motor with an attached lower brake disc until it contacts the upper disc connected to the shell, transferring torque through frictional coupling. The shell assembly integrates optical encoders, the upper brake disc, and air-bearing supports, where the latter significantly reduce the frictional rotating system’s torque (typically $<0.0001 \mathrm{N}·\mathrm{m}$) to ensure measurement accuracy.

Real-time angular velocity monitoring via encoders allows the system to disengage the brake discs by lowering the platform once the preset initial speed is achieved. The spherical shell is rotating at a prescribed initial angular velocity within the external magnetic field. Consequently, the accuracy and correctness of the proposed corrected approximate torque analytical expression for specific positions are verified by observing the decay time of the spherical shell’s angular velocity.

The equivalent magnetic moment ${\mathbf{m}}_e$ of a cylindrical permanent magnet can be calculated using Equation (19).

$${\mathbf{m}}_{\mathbf{e}}={\displaystyle \frac{2\pi l^3}{{\mu }_0}}{\mathbf{B}}_{\mathrm{u}}$$

(19)

where ${\mathbf{B}}_{\mathrm{u}}$ is the magnitude of the induced magnetic flux density on the axis of the permanent magnet, and l is the distance from the measurement point to the center of the magnet.

The differential equations of motion for the spherical shell and its rotating components can be described by Equation (20):

$$I{\displaystyle \frac{\mathrm{d}\mathit{\omega }}{\mathrm{d}t}}=-\left({\mathbf{T}}_{\mathrm{m}}+{\mathbf{T}}_{\mathrm{f}}\right)$$

(20)

where ${\mathbf{T}}_{\mathrm{m}}$ is the induced eddy current torque, and ${\mathbf{T}}_{\mathrm{f}}$ is the air damping torque and friction torque acting on the spherical shell.

From the corrected approximate analytical model of eddy current torque derived in Section 3, it can be seen that the magnitude of the electromagnetic torque induced by the rotation of the target object in the magnetic field is proportional to the rotational speed of the target. Therefore, the magnitude of the electromagnetic torque can be expressed as follows:

$${\mathbf{T}}_{\mathrm{m}}=k_{\mathrm{m}}\mathit{\omega }$$

(21)

where $k_{\mathrm{m}}$ is the electromagnetic damping coefficient.

The air resistance torque and bearing friction torque ${\mathbf{T}}_{\mathrm{f}}$ acting on the target can be expressed as follows:

$${\mathbf{T}}_{\mathrm{f}}=k_{\mathrm{f}}\mathit{\omega }+{\mathbf{T}}_{\mathbf{0}}$$

(22)

where $k_{\mathrm{f}}$ is the friction damping coefficient, and ${\mathbf{T}}_{\mathbf{0}}$ is the constant friction torque related to the load.

The general solution of Equation (20) can be expressed as follows:

$$\omega =c{e}^{-{\displaystyle \frac{t}{{\tau }_{\mathrm{total}}}}}-{\displaystyle \frac{T_0}{I}}{\tau }_{\mathrm{total}}$$

(23)

where c is the constant of integration, and ${\tau }_{\mathrm{total}}$ is the total characteristic time of angular velocity decay due to electromagnetic damping and frictional damping.

Due to the air bearing, ${\mathbf{T}}_{\mathbf{0}}$ is negligible. The relationship between ${\tau }_{\mathrm{total}}$, $k_{\mathrm{m}}$, and $k_{\mathrm{f}}$ is shown in Equations (24)–(26).

$${\displaystyle \frac{1}{{\tau }_{\mathrm{total}}}}={\displaystyle \frac{1}{{\tau }_{\mathrm{m}}}}+{\displaystyle \frac{1}{{\tau }_{\mathrm{f}}}}$$

(24)

$${\tau }_{\mathrm{m}}={\displaystyle \frac{I}{k_{\mathrm{m}}}}$$

(25)

$${\tau }_{\mathrm{f}}={\displaystyle \frac{I}{k_{\mathrm{f}}}}$$

(26)

where ${\tau }_{\mathrm{m}}$ is the characteristic time of angular velocity decay due to electromagnetic damping, and ${\tau }_{\mathrm{f}}$ is the characteristic time of angular velocity decay due to frictional damping.

When no external magnetic field is applied, the motor drives the target to accelerate to a certain speed, and then the brake discs are disengaged, allowing the target to rotate freely. The computer records the change in the target’s rotational speed over time, and $1/{\tau }_{\mathrm{f}}$ can be calculated according to Equation (23). After applying an external magnetic field, the same method is used to measure the decay of the target’s rotational angular velocity over time, $1/{\tau }_{\mathrm{total}}$ can be calculated, and then $1/{\tau }_{\mathrm{m}}$ is calculated according to Equation (24).

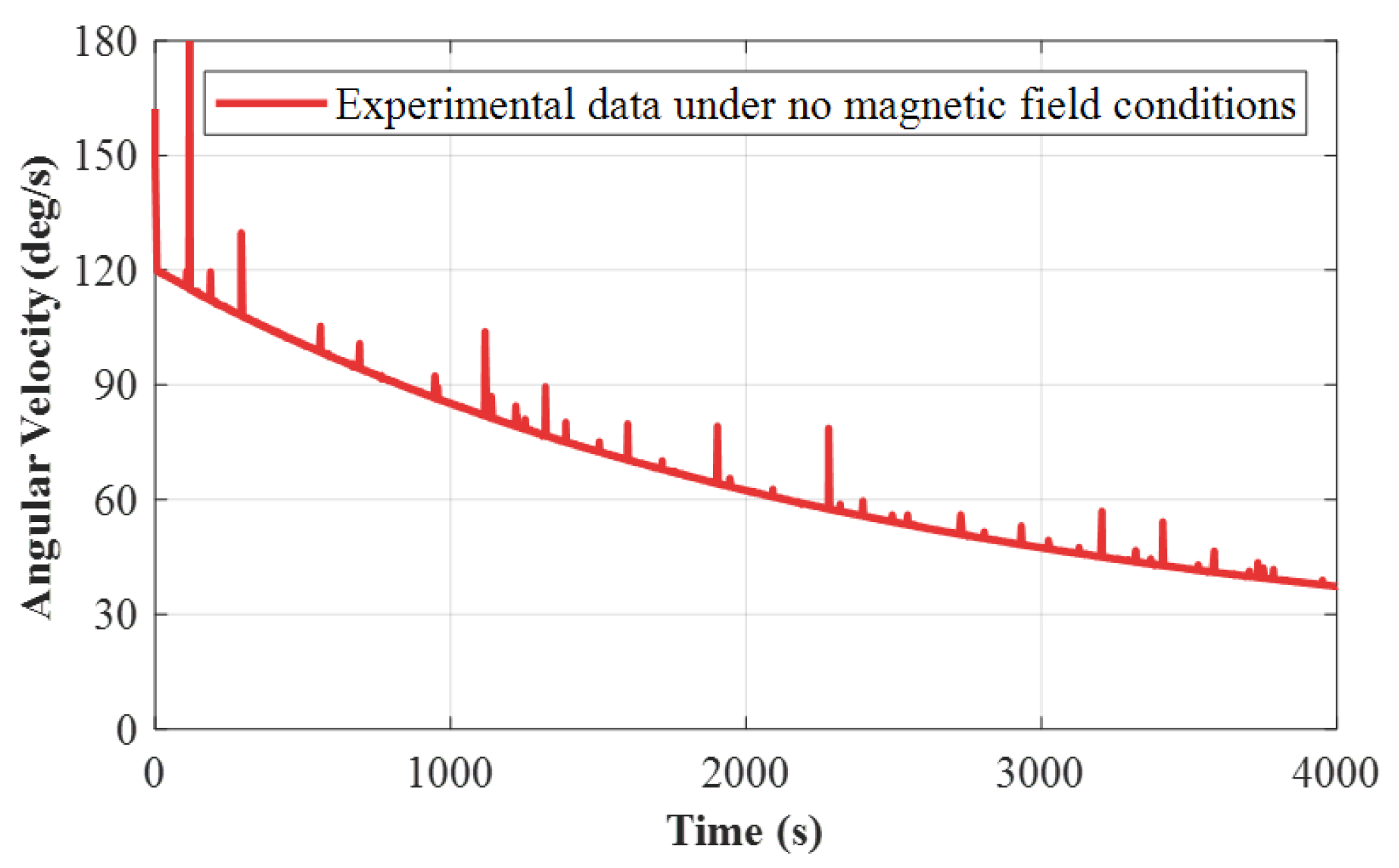

The angular velocity decay of the spherical shell without the action of an external magnetic field is shown in Figure 9.

Through calculations, it was determined that, under the action of an air bearing, when the spherical shell freely rotates with a given initial angular velocity in a non-magnetic field, its characteristic time ${\tau }_{\mathrm{f}}$ is 3308.55 $\mathrm{s}$, and the friction damping coefficient reaches 0.000003 $\mathrm{N}·\mathrm{m}·\mathrm{s}/\mathrm{rad}$. The spherical shell exhibited a complete rotational decay from its initial angular velocity to a rest state over a duration of 15,219.33 s. This allows for more accurate experimental data to verify the theoretical results.

To select an appropriate distance between the magnetic source and the spherical shell, and to more accurately validate the proposed approximate analytical formula, an experimental setup for measuring the magnetic flux density of a NdFeB permanent magnet was established, as illustrated in Figure 10. The setup primarily consisted of a NdFeB permanent magnet, a Tesla meter (Model TS100) (SANLIANG, Hyogo, Janpan), a three-degree-of-freedom manual displacement fine-tuning stage, and an optical platform. The coordinate system is indicated in Figure 10.

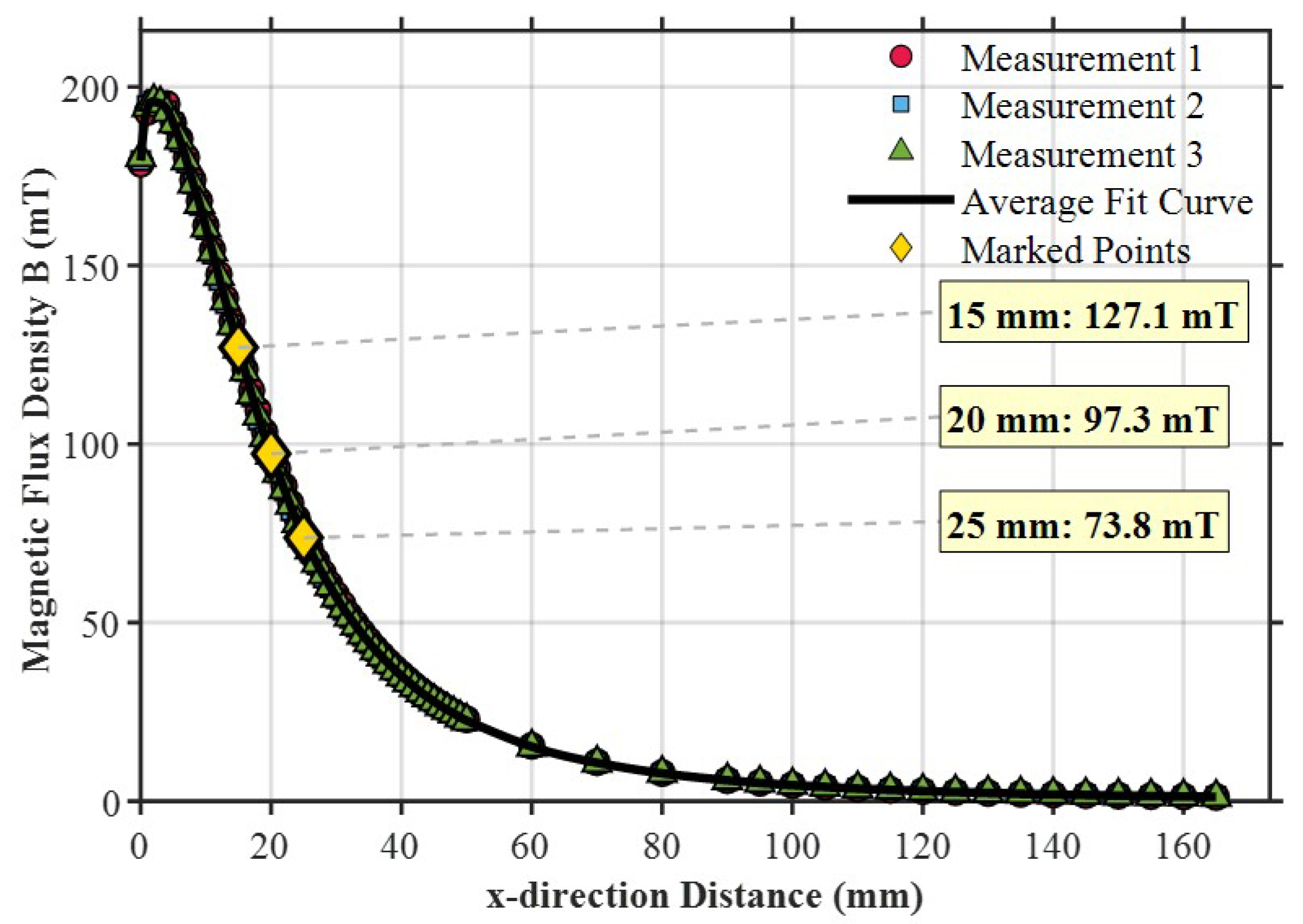

The measurement results, shown in Figure 11, indicate that at a distance of 165 $\mathrm{mm}$ along the x-axis from the center of the cylindrical NdFeB permanent magnet’s end face, the magnetic flux density is 1.22 $\mathrm{mT}$, which does not meet the minimum requirement for conducting the experiment. To ensure that sufficient eddy current torque is generated when the spherical shell rotates at a certain angular velocity, the required electromagnetic damping characteristic time was calculated based on the current encoder accuracy. Therefore, distances of 15 $\mathrm{mm}$, 20 $\mathrm{mm}$, and 25 $\mathrm{mm}$ along the x-axis from the center of the magnet’s end face were selected as suitable experimental distances to validate the proposed approximate analytical expression of the electromagnetic torque.

The essential experimental parameters are summarized in

Table 3. Experimental Parameter Settings.

Layer	Thickness (mm)
Magnetic Dipole Moment ($m_e$)	$24.38\mathrm{A}·{\mathrm{m}}^2$
Dipole-to-Shell Distance (h)	15/20/25 $\mathrm{mm}$
Electrical Conductivity ($\sigma$)	$2.42\times {10}^6$  $\mathrm{S}/\mathrm{m}$
Vacuum Permeability (${\mu }_0$)	$4\pi \times {10}^{-7}$  $\mathrm{T}·\mathrm{m}/\mathrm{A}$
Spherical Shell Thickness (e)	0.004 $\mathrm{m}$
Angular Velocity ($\omega$)	0.333 $\pi \mathrm{rad}/\mathrm{s}$
Shell Radius (R)	100 $\mathrm{mm}$
Total Rotational Inertia of Rotating System (I)	0.01034 $\mathrm{kg}·{\mathrm{m}}^2$

. Under the coaxial condition between the spherical shell’s center and the permanent magnet’s axis, experimental validation of the proposed corrected approximate analytical torque model was conducted with three representative relative distances (15 $\mathrm{mm}$, 20 $\mathrm{mm}$, and 25 $\mathrm{mm}$) between the spherical shell and the magnetic dipole.

5.2. Experimental Results

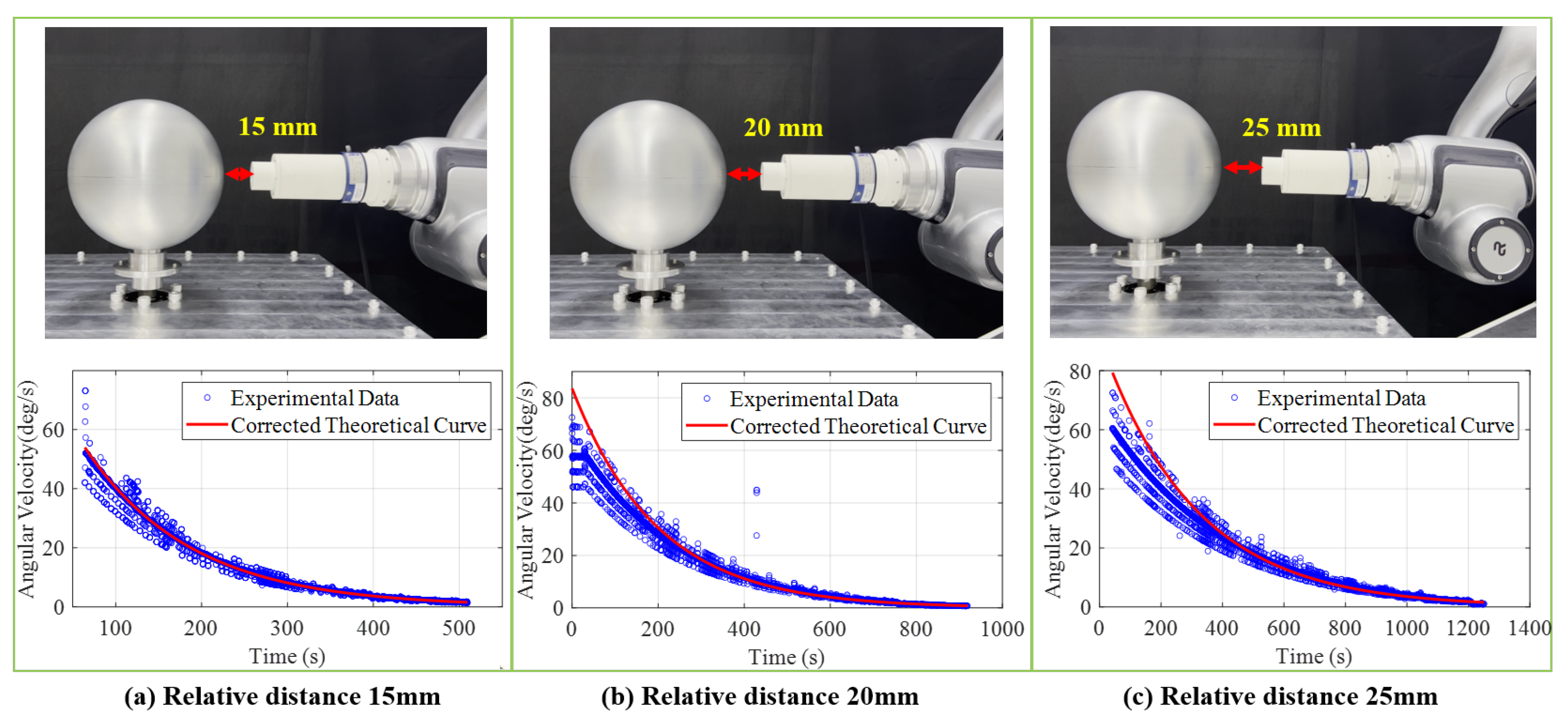

As illustrated in Figure 12, the proposed corrected approximate analytical expression for the electromagnetic torque demonstrates approximate agreement with the experimental data across three distances (15 $\mathrm{mm}$, 20 $\mathrm{mm}$, and 25 $\mathrm{mm}$) under identical initial angular velocities and magnetic field conditions. These results confirm the validity of the derived torque model under the investigated operating conditions.

As can be seen from

Table 4. Comparison between the measured and predicted characteristic decay times under different distances.

Distance Measured (mm)	${\mathit{\tau }}_{\mathbf{pre}}$(s)	${\mathit{\tau }}_{\mathbf{exp}}$(s)	$\mathit{E}\left(\mathit{\tau }\right)$(%)
15	136.36	129.13	5.6
20	224.76	211.44	6.3
25	373.32	340.00	9.8

, the measured electromagnetic damping characteristic times ${\tau }_{\exp }$ of the spherical shell at distances of 15 $\mathrm{mm}$, 20 $\mathrm{mm}$, and 25 $\mathrm{mm}$ are 129.13 $\mathrm{s}$, 211.44 $\mathrm{s}$, and 340.00 $\mathrm{s}$, respectively. The corresponding theoretically predicted values ${\tau }_{\mathrm{pre}}$ from the corrected model are 136.36 $\mathrm{s}$, 224.76 $\mathrm{s}$, and 373.32 $\mathrm{s}$, respectively. The percentage deviation $E\left(\tau \right)$ between the measured characteristic time ${\tau }_{\exp }$ and the predicted characteristic time ${\tau }_{\mathrm{pre}}$ can be calculated using Equation (27):

$$E\left(\tau \right)={\displaystyle \frac{{\tau }_{\mathrm{pre}}-{\tau }_{exp}}{{\tau }_{exp}}}\times 100\%$$

(27)

The calculated percentage errors $E\left(\tau \right)$ at these distances are 5.6%, 6.3%, and 9.8%, respectively. These results indicate that the theoretically predicted electromagnetic damping characteristic times are in good agreement with the experimentally measured values. However, the theoretical predictions are consistently slightly higher than the measured values. This minor systematic overestimation is primarily attributable to the limited resolution of the encoder used for rotational speed measurement, which may lead to an underestimation of the measured speed and, consequently, a shorter measured characteristic time. Additionally, this measurement limitation could result in an incomplete accounting of frictional damping contributions caused by factors such as air resistance or rotational inertia in the axis system.

6. Conclusions

This paper addresses the application requirements for electromagnetic de-tumbling missions targeting space debris, focusing on the electromagnetic interaction between a magnetic dipole and a coaxial rotating spherical shell under symmetric magnetic field distribution conditions. Firstly, an approximate analytical expression for the electromagnetic eddy current torque under this specific configuration was derived. Finite element analysis revealed that, within typical interaction distances (0.3–0.5 $\mathrm{m}$), the initial theoretical model and simulation results exhibited consistent trends but with amplitude discrepancies. Secondly, a distance correction factor $C\left(h\right)$ based on a power-law form was proposed. After applying this correction, the average error between the approximate analytical expression for the electromagnetic torque and the finite element simulation results was reduced to 1.5%, with a maximum error not exceeding 3%, demonstrating high computational accuracy and speed. Finally, a ground experimental system was constructed, effectively minimizing frictional torque. The measured electromagnetic damping characteristic time constants at different distances (15, 20, and 25 $\mathrm{mm}$) aligned well with the theoretical predictions of the corrected electromagnetic torque model, experimentally confirming the model’s correctness and practicality. This research provides an experimentally validated, computationally efficient analytical torque model for the electromagnetic de-tumbling of non-cooperative space targets, laying a solid foundation for optimizing de-tumbling strategies and designing precise controllers in future work.

The scope of our future work will be expanded in three key directions to bridge the gap between theoretical modeling and practical application: First, we will evaluate the analytical torque model under near-coaxial conditions, beyond the ideal coaxial case studied here, to enhance its relevance to realistic de-tumbling missions. Second, we plan to optimize the experimental setup by employing a magnetic source with higher flux density, facilitating investigations into rotational deceleration at extended ranges. Finally, we will leverage the analytical formula as a foundation for designing and analyzing model-based electromagnetic de-tumbling control strategies.
