LisseMars: A Lightweight Semantic Segmentation Model for Mars Helicopter

Abstract

With the continuous deepening of Mars exploration missions, the Mars helicopter has become a key platform for acquiring high-resolution near-ground imagery. However, accurate semantic segmentation of the Martian surface remains challenging due to complex terrain morphology, sandstorm interference, and the limited onboard computational resources that restrict real-time processing. Existing models either introduce high computational overhead unsuitable for deployment on Mars aerial platforms or fail to jointly capture fine-grained local texture and global contextual structure information. To address these limitations, we propose LisseMars, a lightweight semantic segmentation network designed for efficient onboard perception. The model integrates a Window Movable Attention (WMA) module for enhanced global context extraction and a multi-convolutional feedforward module (CFFN) to strengthen local detail representation. A Dynamic Polygon Convolution (DPC) module is further introduced to improve segmentation performance on geometrically heterogeneous objects, while a Group Fusion Module (GFM) enables effective multi-scale semantic integration. Extensive experiments are conducted on both real Tianwen-1 Mars helicopter imagery and synthetic datasets. The results show that our method achieved a mean IoU of 78.56% with only 0.12 MB of model parameters, validating the effectiveness of the proposed framework. The real-time performance of proposed method on edge device deployment further demonstrate potential application for real Mars airborne missions.

1. Introduction

In Mars exploration, researchers are seeking new technologies to enable smooth navigation and the discovery of scientific objects across the complex Martian terrain [1,2,3]. The success of the Mars helicopter “Ingenuity” [4,5] has reached a milestone as the first powered flight on another planet. It provides unprecedented perspectives and data for the Mars rover. The exploration of the Martian surface is crucial and indispensable to the Mars exploration mission. By processing image data, different scientific objects on the surface of Mars can be quickly identified [6,7] and therefore will effectively optimise the trajectory planning and exploration of the Mars rover [8,9,10].

With the continuous development of deep learning, neural networks have achieved remarkable success in the field of computer vision, particularly in semantic segmentation [11], object detection [12,13,14,15], 3D reconstruction [16,17,18] and object classification [19,20,21] tasks. For extraterrestrial exploration missions, semantic segmentation technology is crucial as it enables accurate identification and distinction of various surface objects, such as rocks, sand, and gravel. This capability not only aids in enhancing the navigation accuracy of Mars rovers but also has significant implications for effectively discovering scientific objects. However, Mars has diverse and complex unstructured terrain with harsh sandstorm environments, making it challenging to clearly distinguish the objects from the surrounding ground. As a result, it becomes essential for semantic segmentation networks to capture global contextual information so as to accurately explore the scene. Some studies [22,23] introduce pyramid structures embedded in CNNs to capture global contextual information at different scales. However, such methods typically extract local features from CNNs and then aggregate to global information, rather than directly encoding the global context. Consequently, in case of complex Martian scenes, CNN-based models often struggle to capture clear global information.

A type of solution is to design the transformer model [24], which can sufficiently extract global information. However, transformer-based methods still have some limitations, especially in the Martian environment. The original transformer architecture relies primarily on global contextual information and pays relatively limited attention to local details. The surface of Mars is scattered with various objects, which requires more precise processing of object locations and associated complex details, making the limited local focus of transformers even more problematic. To address this challenge, some researchers [25,26] have introduced convolutional position encoding and relative position encoding to improve the model’s ability to capture spatial and sequential dependencies. However, these methods may not fully express the spatial structure of the objects, which could adversely affect the model’s performance in complex, dynamic environments.

The deployment of sophisticated models on Mars rovers and helicopters is significantly constrained by their limited computational resources, necessitating a careful trade-off between model complexity and accuracy. Existing CNN-based or heavy Transformer-based models often fail to jointly preserve fine local boundaries and global contextual terrain cues, and many are unsuitable for deployment on Mars aerial platforms due to limited onboard computational resources. To this end, in this paper we proposed LisseMars, a lightweight Transformer-based segmentation network tailored for the unstructured, low-texture, and scale-varying Martian environments. LisseMars is built upon a U-shaped encoder–decoder architecture with skip connections. For the encoder, we proposed a Window Movable Attention (WMA) mechanism, which combines the local window partitioning with cross-window interaction to adaptively balance global context modeling and local detail preservation. This design will significantly enhance the robustness of semantic segmentation against the low-contrast and complex geological textures of Mars environment. Furthermore, to better handle rocks with geometrically heterogeneous structures, we design a Dynamic Polygon Convolution (DPC) that adjusts its sampling geometry according to local shape variations, allowing the network to more precisely characterize uneven, non-uniform object boundaries. For the decoder, we employ an enhanced Group Fusion Module (GFM), derived from UperNet [27], to hierarchically integrate multi-scale features and maintain semantic consistency across regions of varying size. As illustrated in Figure 1, the proposed LisseMars achieves a favorable balance between segmentation accuracy and model efficiency, demonstrating clear advantages over existing state-of-the-art methods and strong potential for real deployment in Mars exploration missions. The main contributions are as follows:

(1)

We proposed a lightweight semantic segmentation model (LisseMars) for the Mars helicopter, which can effectively segment objects on Mars.

(2)

We designed a novel Window Movable Attention Module (WMA), which enhances feature extraction and effectively promote the fusion of global and local information.

(3)

We developed a Dynamic Polygon Convolution (DPC) that effectively focuses on irregular and uneven local features, enabling accurate segmentation of polygonal structures.

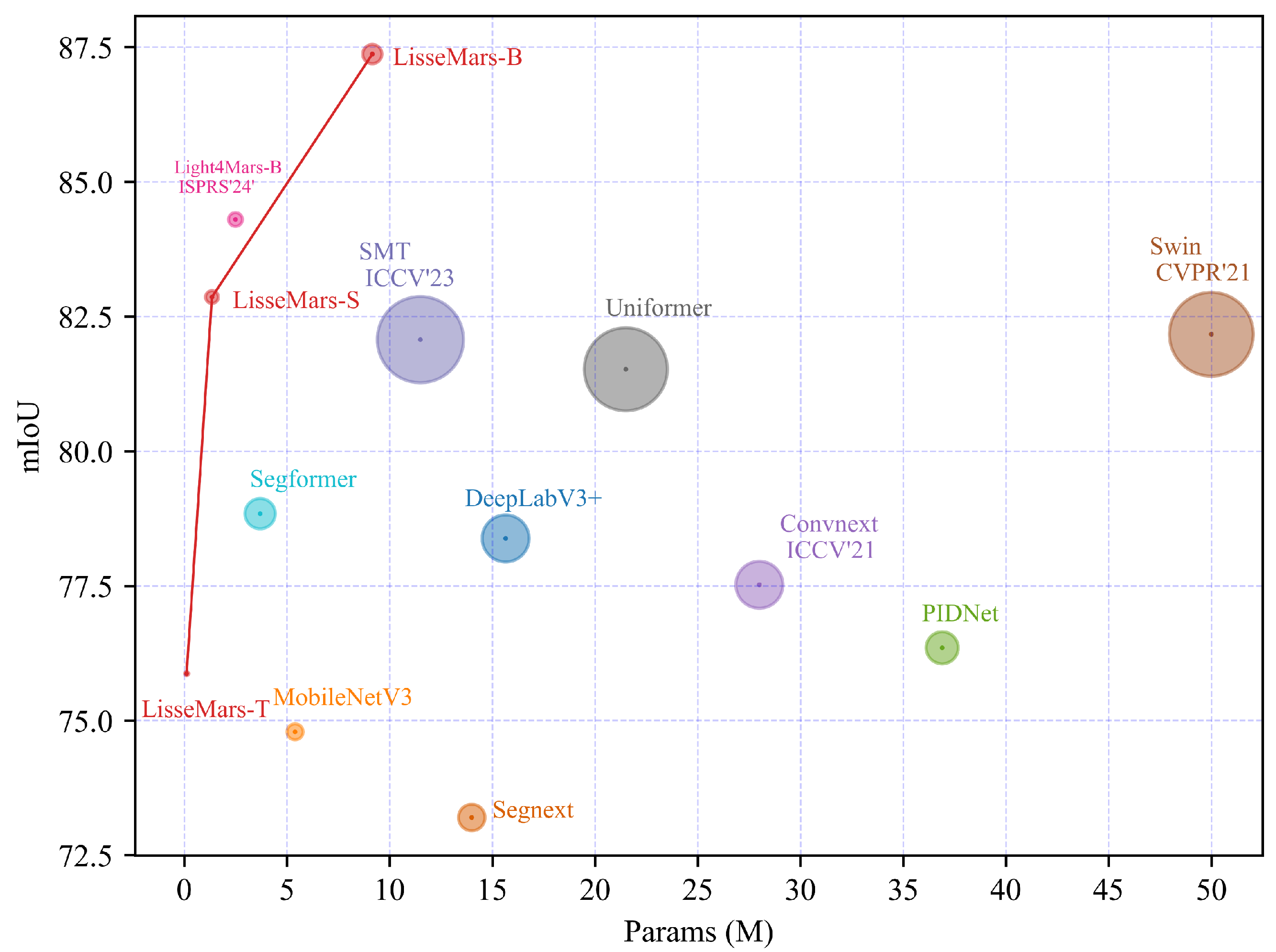

Figure 1. $mIoU$ values of current SOTA models on SynMars-Air. Our proposed LisseMars model outperforms all the baselines.

Figure 1. $mIoU$ values of current SOTA models on SynMars-Air. Our proposed LisseMars model outperforms all the baselines.

2. Related Works

2.1. Deep Learning for Mars

Perceiving unstructured environments on Mars has always been a key factor in autonomous navigation for current Mars missions [28,29]. For the Mars helicopter, accurately assessing the environment and identifying scientific objects are prerequisites for future successfully completing large-scale Mars exploration missions. This can provide crucial supports for the rovers’ navigation and path planning, thereby improving overall exploration efficiency [30,31]. Edge-based detection [32] and region-based detection [33] have been widely applied in the past. However, due to the complex and dynamic environment of Mars, relying solely on traditional methods is no longer sufficient to meet the requirements of future Mars exploration missions. With the rapid advancement of artificial intelligence, deep learning is gaining increasing attention [17].

Compared with classical semantic segmentation methods, CNN-based methods have significant advantages in feature extraction. Ref. [13] developed a lightweight deep learning framework named mini-SDD to detect various types of landforms on Mars. Ref. [34] using multi-scale dilated convolution in the extended path, integrating with the U-Net network for accurate segmentation of objects on Mars. Ref. [35] proposed Mobile-DeepRFB, a lightweight segmentation framework for Martian terrain classification.

Although existing studies have made notable progress in Martian terrain segmentation, several limitations remain insufficiently addressed. Traditional CNN-based approaches struggled to capture multi-scale contextual relationships and long-range dependencies, which are crucial for delineating geometrically heterogeneous rock boundaries and low-texture surface. To overcome these issues, recent works have attempted to integrate Transformers with convolutional architectures. SegMarsViT [36] combined ViT module with CNN model to jointly extract local and global features; MarsFormer [37] enhanced remote contextual modeling while preserving local details. RockFormer [38] designed a layered encoder–decoder structure for precise rock segmentation. HASS [39] incorporated multi-scale attention modules to improve the segmentation consistency. Light4Mars [40] further designed a lightweight window attention mechanism for Mars rover to characterize complex, unstructured surface. However, despite these advancements, current methods still face significant challenges, including insufficient fine-grained geometric modeling, limited robustness in extreme multi-scale scenarios, high computational and memory overhead due to heavy global-attention modules, and difficulty achieving lightweight onboard deployment on Mars aerial or rover platforms with strict power and hardware constraints.

2.2. Mars Terrain Datasets

A high-quality dataset is the foundation of deep learning methods. Currently, there exist various types of unstructured terrain datasets. For Mars, there are three types of datasets: the real data captured by Mars rovers or helicopter, the physical simulation data, and synthetic simulation data. Ref. [41] established the first large-scale Mars landscape dataset, AI4Mars, using real images from Curiosity mission. Ref. [42] created the first real dataset for Martian rock segmentation, MarsData, and later refined it to MarsDataV2 [38]. Ref. [43] developed the first Mars panoramic dataset, called MarsScapes.

Physical simulation and synthetic simulation datasets also play a crucial role in supplementing real Martian data. These datasets provide controlled conditions and allow the generation of diverse scenarios, which are difficult or impossible to capture on Mars. Ref. [44] verified the feasibility of Mars helicopter navigation by simulating Martian terrain in the desert. Ref. [37] proposed a publicly available synthetic Martian surface dataset, SynMars, for rock segmentation and extended to SynMars-TW dataset [40] based on images of Zhurong Rover.

The aforementioned datasets have propelled advances in the progress of Mars exploration by Mars rovers. However, the viewpoint between the Rover and the helicopter is quite different, which leads to entirely distinct observations of the surrounding environment and objects. In the case of occlusion and partial visibility, the segmentation networks designed for Mars rovers may not be suitable for Mars helicopter. Differences in sensor types and data processing methods can lead to an incomplete understanding of the object’s position and size, affecting object segmentation. Currently, there are still few real Mars images captured from a helicopter. To this end, Ref. [45] proposed the first aerial perspective dataset of Mars, SynMars-Air. Sample images from these datasets are shown Figure 2.

3. Method

In this section, we first introduce the overall framework of our lightweight semantic segmentation model, LisseMars. Then, we provide a detailed description of the proposed Window Moving Attention Module (WMA), the Improved Feedforward Network (CFFN), and the Dynamic Polygon Convolution (DPC), as well as the Group Fusion Module (GFM).

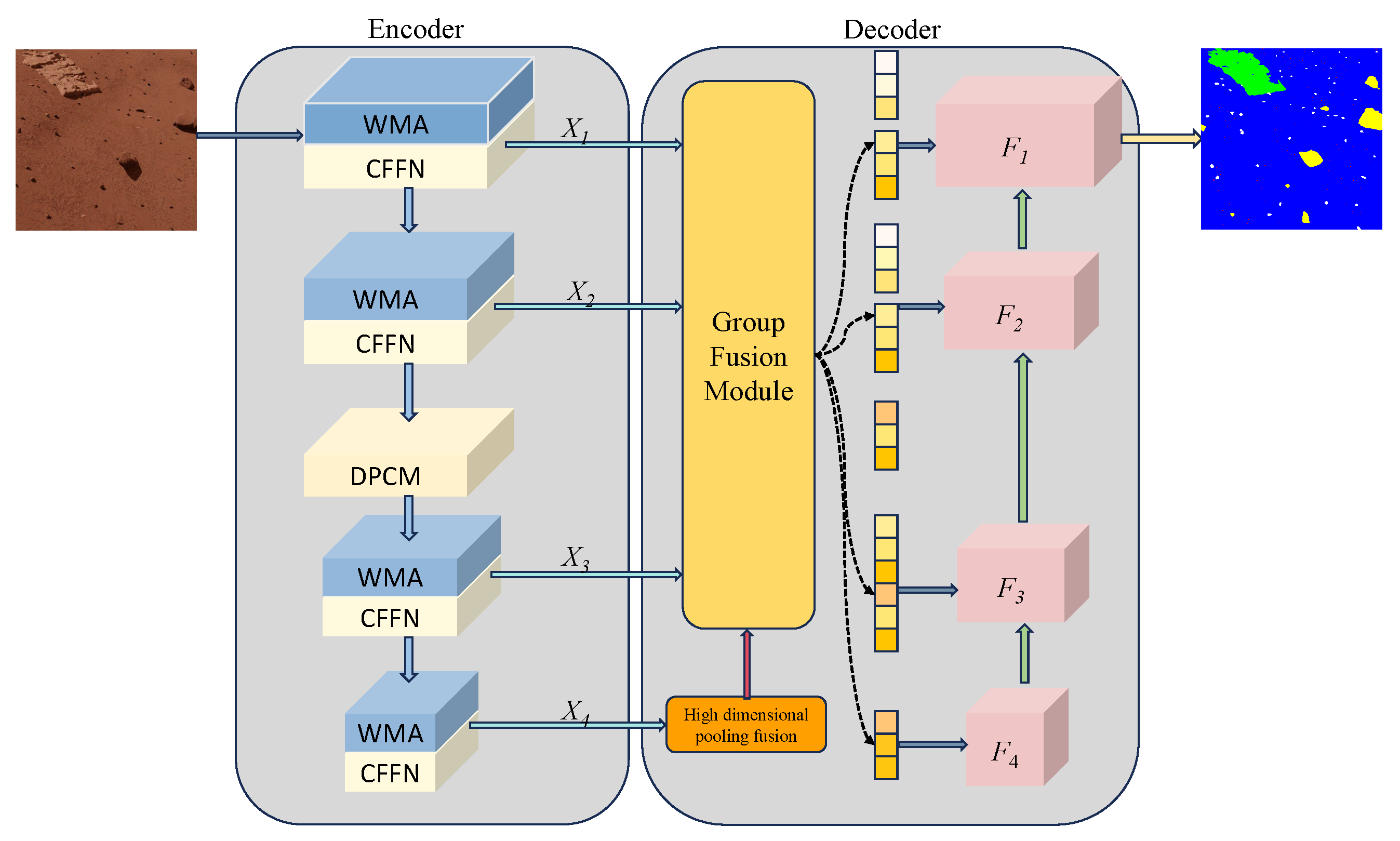

3.1. Overrall Framework

LisseMars model balanced modularity and flexibility, aiming to provide a scalable system architecture. As shown in Figure 3, it followed the encoder-decoder structure of U-Net. The input image $X\in H\times W\times 3$ is first fed into the encoder, which includes four improved self-attention modules and a dynamic polygon convolution module (DPCM). Each improved attention module consists of a WMA and CFFN structure, which is repeated multiple times to obtain four hierarchical feature maps: $X_i\in R^{H_i\times W_i\times C_i}$.

Subsequently, the obtained feature $X_i$ is processed through the Group Fusion Module (GFM), which plays a crucial role in fusing and enhancing multi-scale feature maps. The high-dimensional feature layer $X_4$ undergoes pooling operations at multiple scales in the High Dimensional Pooling Fusion Module and then merges with features from other layers in the GFM to obtain different output features: $F_i\in R^{H_i\times W_i\times C_i}$. Finally, these features $F_i$ are sampled and fused, and the predicted semantic segmentation map is output.

3.2. Window Movable Attention (WMA)

The working principle of WMA is illustrated in Figure 4. In order to reduce computational costs while maintaining high accuracy, we adopted the window partitioning strategy to extract feature $X_i$ from feature X and project it onto the Q tensor, the K tensor, and the V tensor. During the process again, $W_h$ and $W_w$ represent the window pooling sizes in the vertical and horizontal directions, while C is the number of channels. The specific steps are as follows:

$$\begin{array}{cc}\hfill Q& =LN\left({\displaystyle \frac{X_i{W}^Q}{W_h{W}_w}}\sum _{i=0}^{W_h-1}\sum _{j=0}^{W_w-1}{Q}^C(i,j)\right)\hfill \\ \hfill K& =LN\left({\displaystyle \frac{X_i{W}^K}{W_h{W}_w}}\sum _{i=0}^{W_h-1}\sum _{j=0}^{W_w-1}{K}^C(i,j)\right)\hfill \\ \hfill V& =LN\left(X{W}^V\right)\hfill \end{array}$$

(1)

In this context, $LN$ denotes Layer Normalization, while i and j represent the indices in the horizontal and vertical directions of the feature map, respectively. As shown in Figure 5c, we applied deep convolutions for feature aggregation to the Q, K, and V tensors to aggregate more global context. This enables the model to focus on the relationships between adjacent elements in the input sequence, thereby enhancing its ability to capture spatial features. The main process is as follows:

$$\begin{array}{cc}\hfill Q& =DPCN(r_i,Q)+DPCN1(r_i,Q)+Q\hfill \\ \hfill K& =DPCN(r_i,K)+DPCN1(r_i,K)+K\hfill \\ \hfill V& =DPCN(r_i,V)+DPCN1(r_i,V)+V\hfill \end{array}$$

(2)

DPCN represents the application of deep convolution to input X, utilizing contextual information from $r_i$. This operation captures complex spatial relationships and enhances the local features of each component effectively. This dual-branch mechanism preserves and amplifies significant information within Q, K, and V while dynamically capturing the contextual details of surrounding elements. The complete workflow of WMA is depicted in Figure 6, and self-attention is defined as follows:

$$Attention(Q,K,V)=Softmax\left({\displaystyle \frac{Q{K}^T}{\sqrt{d_h}}}\right)V$$

(3)

Figure 5. Different implementation forms of local attention. (a) Swin extracts local features by dividing the image into windows and achieves feature fusion by shifting windows. (b) Slide Transformer [46] extracts local information through window partitioning and convolution. (c) Our model extracts local information through window partitioning and fuses multi-scale information extracted through convolution.

Figure 5. Different implementation forms of local attention. (a) Swin extracts local features by dividing the image into windows and achieves feature fusion by shifting windows. (b) Slide Transformer [46] extracts local information through window partitioning and convolution. (c) Our model extracts local information through window partitioning and fuses multi-scale information extracted through convolution.

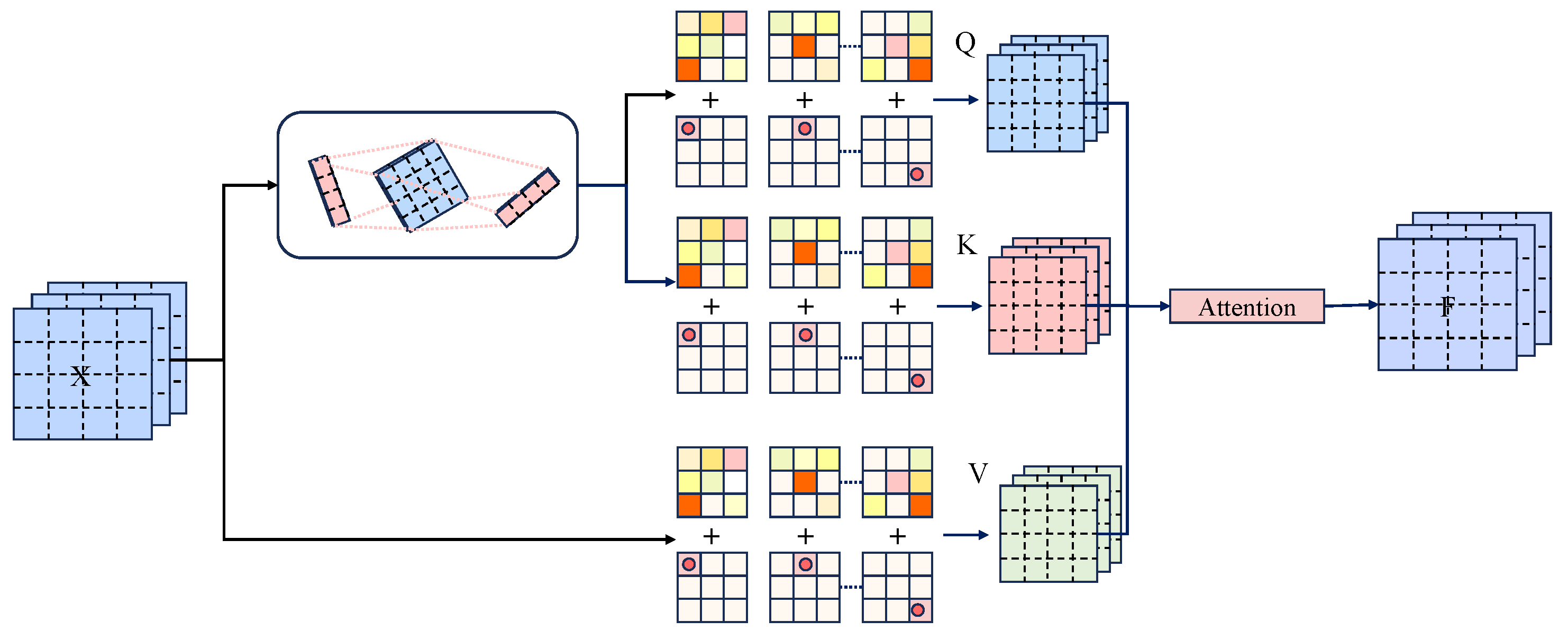

Figure 6. Structure of Window Movable Attention.

Figure 6. Structure of Window Movable Attention.

3.3. Convolutional Feedforward Neural Network

The extraction and expression of local features provide detailed contextual information, which is crucial for processing subsequent global features. In the WMA, effectively fusing global and local information from feature maps can significantly improve segmentation performance. Ref. [47] has demonstrated that convolutions of various sizes can capture multi-scale features. However, the Martian surface is complex, with numerous small objects, making it essential to preserve important local and multi-scale information for effective segmentation. Inspired by this challenge, we designed the Convolutional Feedforward Neural Network (CFFN) module, which better guides feature fusion while preserving the locality of the fused features.

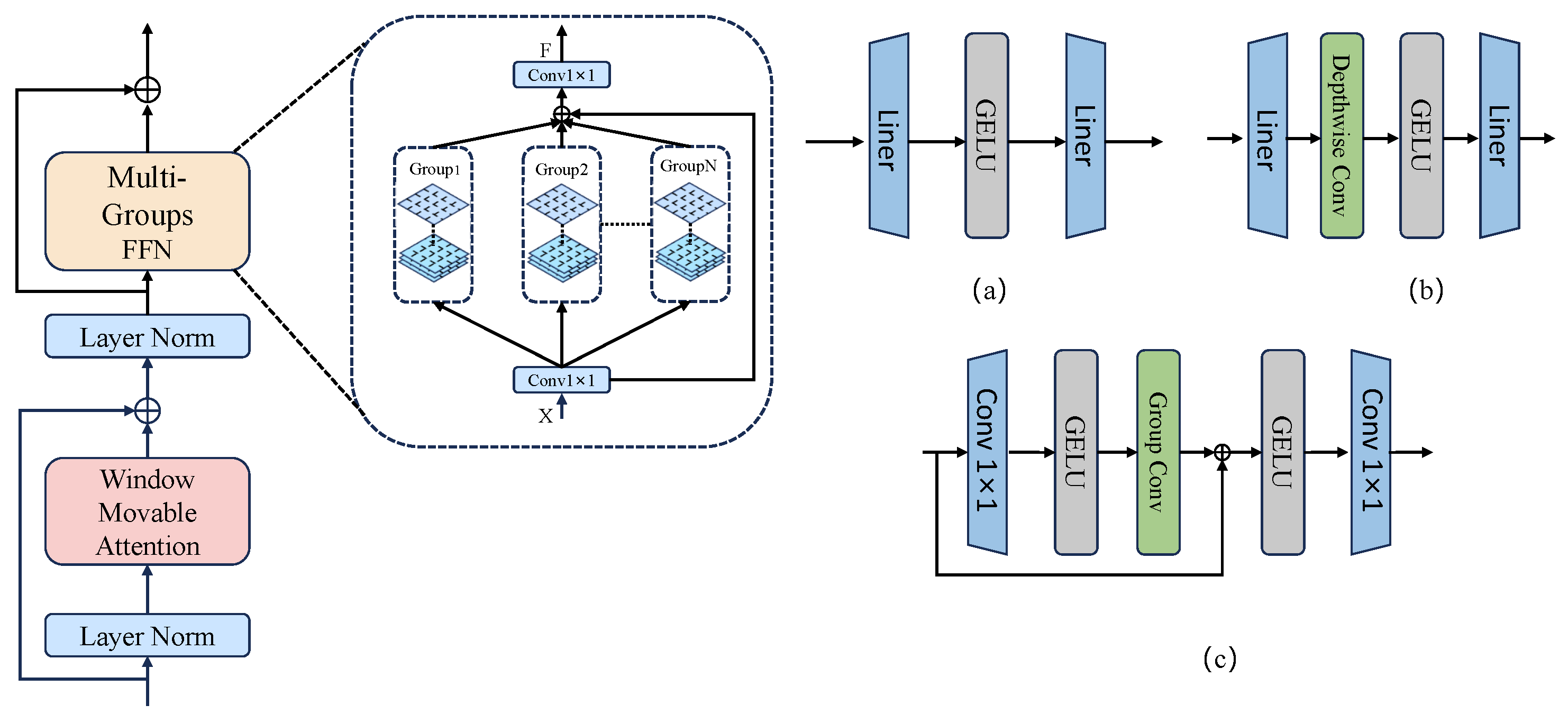

As shown in the Figure 7, we use a 1 × 1 convolution instead of a linear layer, which effectively performs a linear transformation of features while preserving spatial integrity. Using a 1 × 1 convolution, we can increase the network’s non-linear capacity without increasing computational complexity, thus improving feature fusion. Deep convolutions with varying kernel sizes are used to extract multi-scale features. It effectively captures detailed information at multiple scales. Combining varied kernel sizes and receptive fields enhances feature learning, thus improving the identification and segmentation of small objects on the surface of Mars. The specific steps are as follows:

$$\begin{array}{cc}\hfill x_1& =LCon{v}_{1\times 1}\left(x_{in}\right)\hfill \\ \hfill x_2& =GELU\left(x_1\right)\hfill \\ \hfill x_3& =GPCN(x_2,r_i,k_i)+x_2\hfill \\ \hfill x_4& =GELU\left(x_3\right)\hfill \\ \hfill x_{out}& =LCon{v}_{1\times 1}\left(x_4\right)\hfill \end{array}$$

(4)

where $x_{in}$ is the output of the WMA module, $LConv$ represents point-wise convolution using 1 × 1 convolution, GELU represents a nonlinear activation function, and GPCN stands for grouped convolution, where $r_i,k_i$ represents group convolution with different convolution kernels and stride sizes.

3.4. Dynamic Polygon Convolution Module

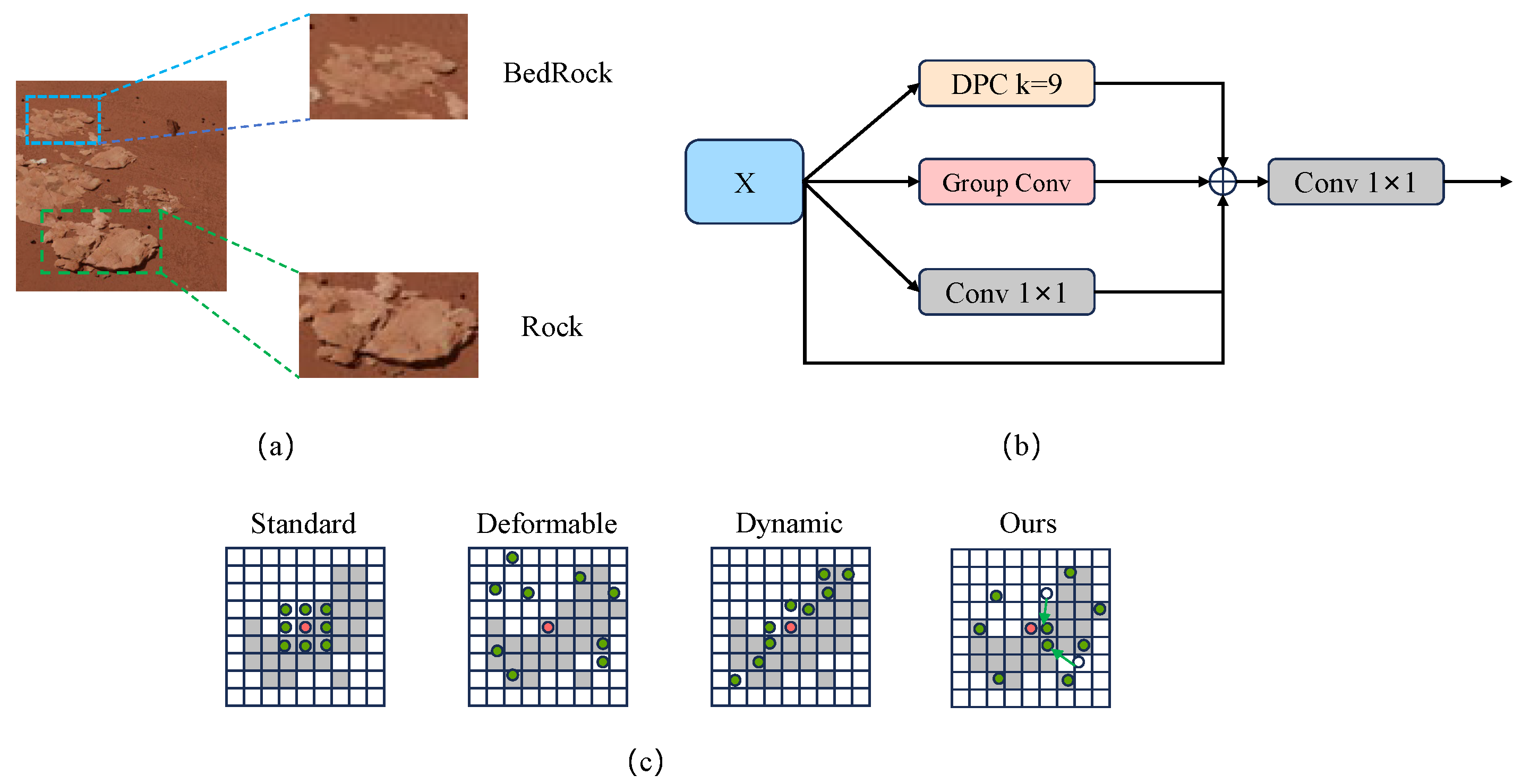

To enhance the adaptability of convolutional kernels to complex and geometrically heterogeneous shapes, we designed the DPCM module with a Dynamic Polygon Convolution (DPC) cooperation, as shown in Figure 8.

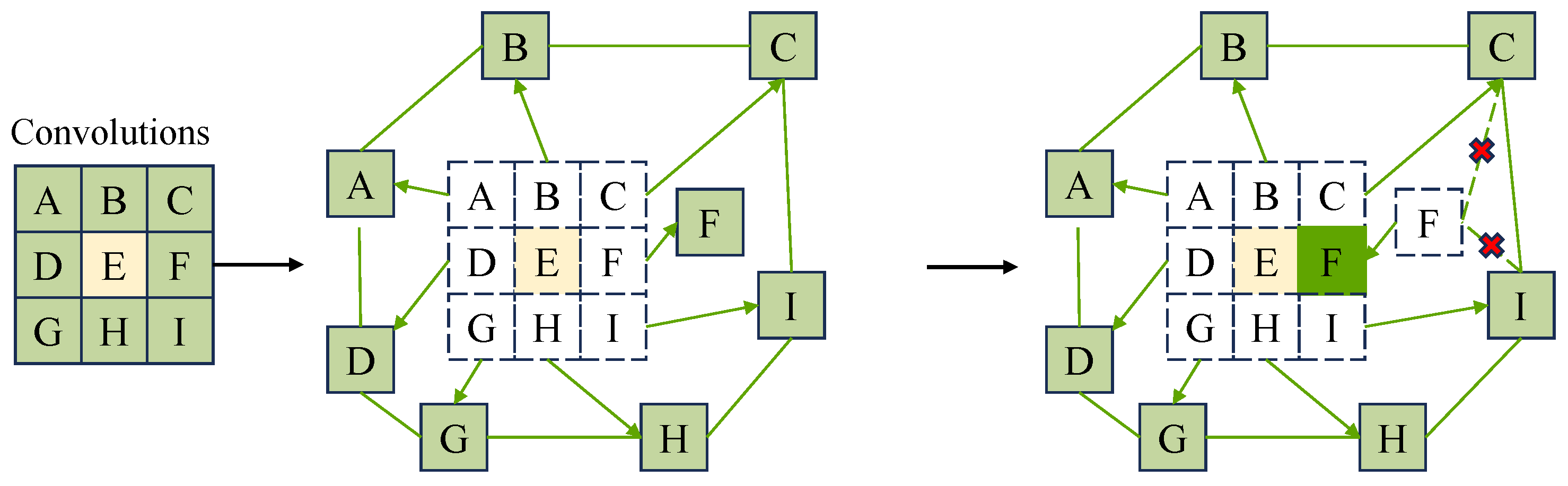

Inspired by deformable convolutions [48] and serpentine convolutions [49], in our DPC, only the central coordinate of a standard convolution kernel is fixed; the remaining kernels are configured into irregular polygonal shapes by the Convex Hull algorithm [50], as shown in Figure 9. It is utilized to define the polygonal boundaries and to verify the interior membership of spatial points. If a point is outside the irregular polygon, it will be moved back to the base coordinate. Such an irregular receptive field can significantly improve the feature extraction capability for diverse complex objects on Mars.

Under such, the process of DPCM can be represented as follows:

$$\begin{array}{cc}\hfill x_1& =ConvexHUll(K,X)\hfill \\ \hfill x_2& =DPC\left(x_1\right)\hfill \\ \hfill x_3& =GPCN\left(X\right)\hfill \\ \hfill x_4& =Con{v}_{1\times 1}\left(X\right)\hfill \\ \hfill x_{out}& =Con{v}_{1\times 1}\left(Cat(x_2+x_3+x_4+X)\right)\hfill \end{array}$$

(5)

where K denotes the center coordinates of convolution $K_i=(x_i,y_i)$, and X is the input feature. By fusing features under different channels through 1 × 1 convolution, multiple scales through group convolution, and irregular receptive fields through DPC, DPCM will accurately identify complex and irregular geometric targets in the Martian terrain.

3.5. Group Fusion Module

Feature fusion combined low-level detailed information with high-level semantic features, which can effectively improve the model’s performance on complex tasks. For accurate segmentation of Martian rocks, it preserves fine-grained structures while simultaneously improving the overall contextual understanding. However, most existing feature fusion methods focus on separately extracting internal information from each individual scale, which may introduce noisy or irrelevant features. In fact, it has been demonstrated in [51] that not all feature maps obtained through feature fusion contribute positively to the final prediction of the decoder. To mitigate the instability caused by feature fusion and achieve a lightweight design while preserving accuracy, we proposed the Group Fusion Module (GFM), as shown in Figure 10. By leveraging multi-scale information obtained through high-dimensional pooling and group fusion, the GFM module can efficiently increase the capability of feature representation, which is particularly important for object segmentation on complex Martian scenes.

The denoted feature $X_i\left(i\in 1,2,3,4\right)$ is obtained through the encoder. We first performed pooling fusion on the high-dimensional feature $X_4$ :

$$\begin{array}{cc}\hfill P_{S_i}\left(x_{4}in\right)& =AdaptiveAvgPool2d(x,S_i)(i=1,2,3)\hfill \\ \hfill Y& =\underset{i=1}{\overset{n}{⨁}}{\widehat{P}}_{S_i}\hfill \\ \hfill x_4& =GPCN(Y,r_1,k_1)\hfill \end{array}$$

(6)

where $S_i$ represents different adaptive average pooling scales, and the obtained feature $x_4$ is grouped and fused with other features $X_i,(i=1,2,3)$. The $F_i$ (i = 1, 2, 3, 4), here, represents the output from different channels.

3.6. Architecture Details and Variants

To balance performance and accuracy, we designed three lightweight models: LisseMars-T, LisseMars-S, and LisseMars-B. The corresponding network structure parameters are listed in

Table 1. Model variants of LisseMars. N represents the number of blocks, $head$ represents the number of heads, and p and K represent the size of patches and the number of convolution kernels, respectively.

	Module	LisseMars-T	LisseMars-S	LisseMars-B
Stage 1	WMA	p = 4	p = 4	p = 4
		$C_1$ = 8, $head$ = 1, $N_1$ = 1	$C_1$ = 32, $head$ = 2, $N_1$ = 1	$C_1$ = 32, $head$ = 2, $N_1$ = 2
Stage 2	WMA	p = 2	p = 2	p = 2
		$C_2$ = 16, $head$ = 2, $N_2$ = 1	$C_2$ = 64, $head$ = 2, $N_2$ = 1	$C_2$ = 64, $head$ = 2, $N_2$ = 2
Stage 3	DPCM	K = 9	K = 9	K = 9
		$N_3$ = 1	$N_3$ = 1	$N_3$ = 1
		$C_3$ = 32,	$C_3$ = 64	$C_3$ = 128
Stage 4	WMA	p = 2	p = 2	p = 2
		$C_4$ = 32, $head$ = 4, $N_4$ = 1	$C_4$ = 128, $head$ = 4, $N_4$ = 1	$C_4$ = 128, $head$ = 4, $N_4$ = 2
Stage 5	WMA	p = 2	p = 2	p = 2
		$C_5$ = 64, $head$ = 8, $N_5$ = 1	$C_5$ = 256, $head$ = 8, $N_5$ = 1	$C_5$ = 256, $head$ = 8, $N_5$ = 2

. Given an input image with a size of $H\times W\times 3$, the output feature map size obtained through Patch Embedding is $(H/2^i)\times (W/2^i)$ ($i\in 1,2,3,4$). Each model comprises five stages, including four stages of WMA and an intermediate DPCM layer. The output feature maps at each stage have sizes [32, 64, 128, 256], denoted as $F_1,F_2,F_3,F_4$.

4. Experiments

In this section, we will describe the experimental setup and conduct an extensive analysis to validate the performance of the LisseMars on three datasets: SynMars-Air, MarsScapes, and the TianWen dataset.

4.1. Dataset

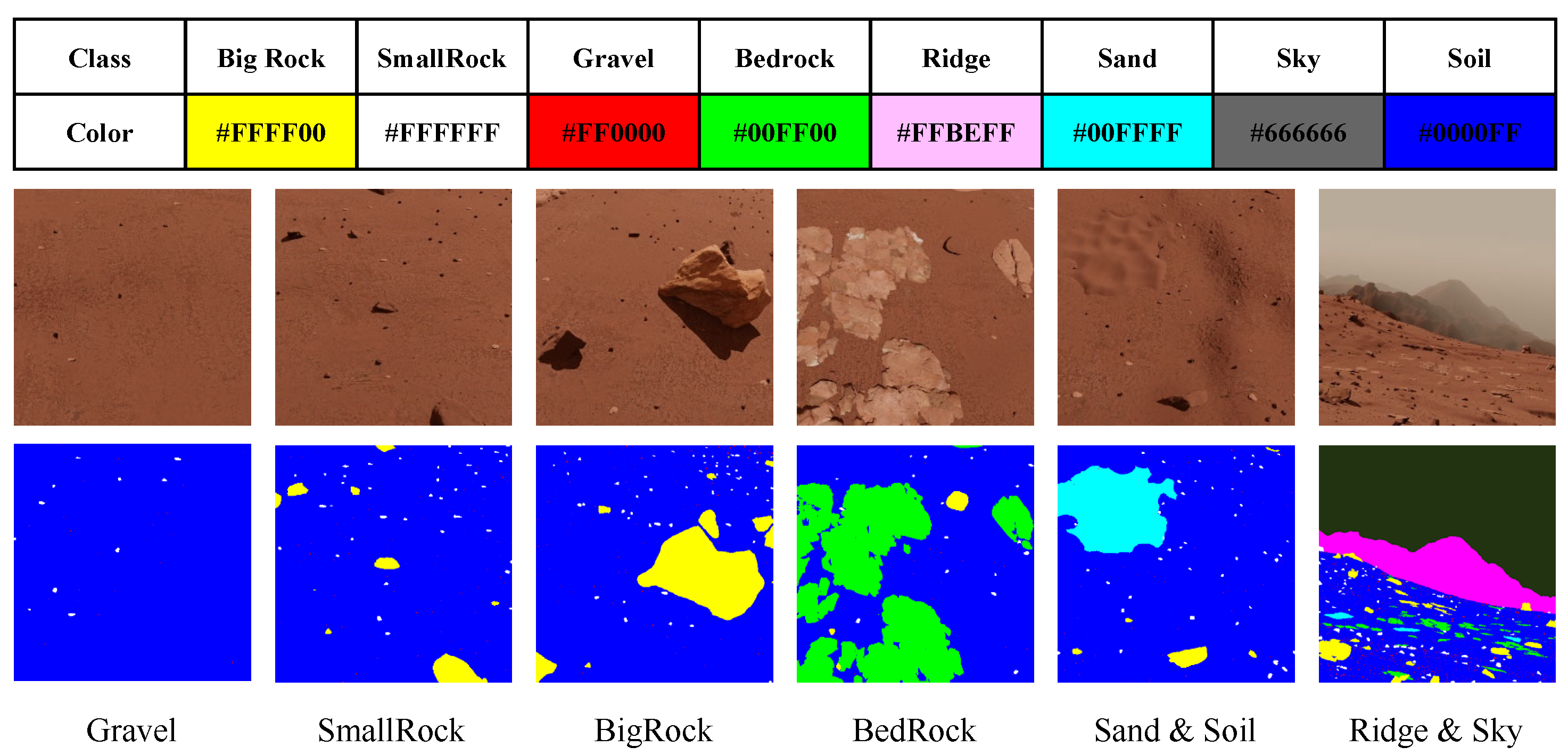

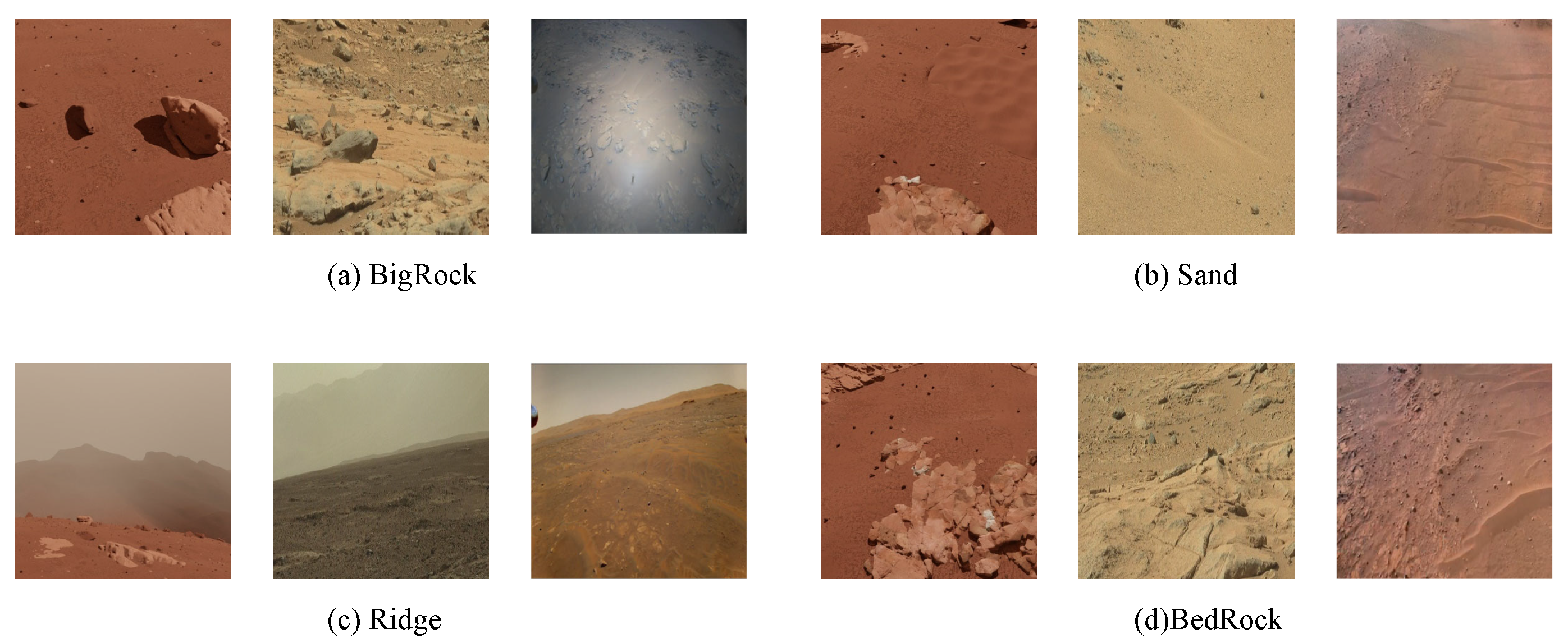

The SynMars-Air dataset is the first synthetic aerial viewpoint dataset of Mars helicopter released by [45]. It consists of 8 categories: Gravel, SmallRock, Big rock, Bedrock, Ridge, Sand, Soil, and Sky, as shown in Figure 11. Totally, 11,700 images with semantic annotation are divided into training with 9400 images, testing, and validation; each has 1150 images.

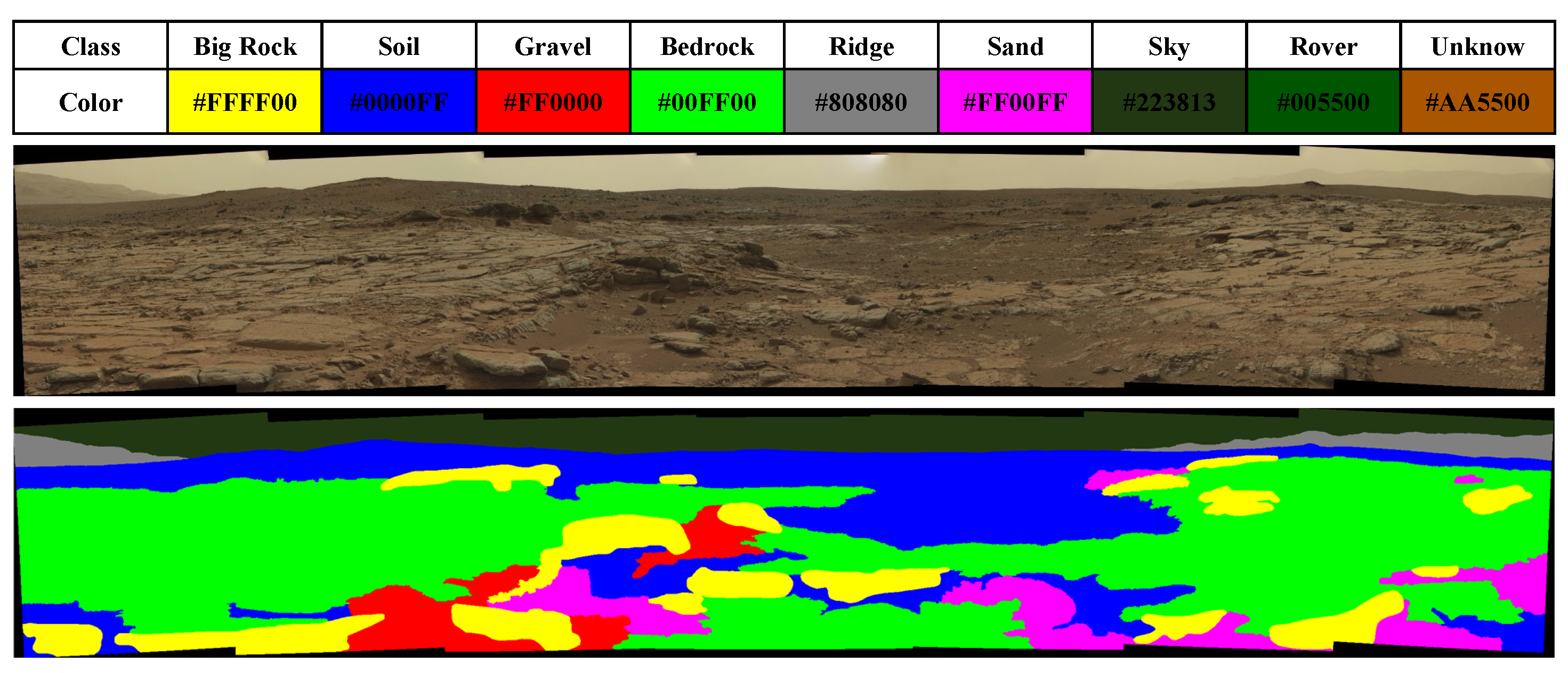

MarsScapes [43] is a region-level object annotation panoramic dataset created from images collected by the Curiosity rover, as shown in Figure 12. The dataset contains 9 categories: Big Rock, Soil, Gravel, Bedrock, Ridge, Sand, Sky, Rover, and Unknown. Totally 13,002 images for training, 4192 for testing, and 3608 for validation.

The TianWen dataset is composed of Martian images collected by NaTeCam of the Zhurong rover in the Tianwen-1 mission (Courtesy of NAOC/GRAS: https://www.nssdc.ac.cn/nssdc_zh/html/task/tianwen1.html (accessed on 10 January 2025)), as shown in Figure 13. We labeled all the rocks in 1194 images with a resolution of 512 × 512, and split them into a training set with 896 images and a testing set with 298 images.

4.2. Implement Details

Our model is implemented based on the mmsegmentation framework for semantic segmentation. We trained the model using an NVIDIA GeForce RTX 3090 GPU and deployed it on the JETSON XAVIER NX platform. The batch sizes for training LisseMars-T, LisseMars-S, and LisseMars-B were set to 15, 10, and 5, respectively. The AdamW optimizer is used with a learning rate of $2\times {10}^{-4}$.

Metrics like Params (Parameters) and mIoU (Mean Intersection over Union) are used to evaluate the performance of the proposed method. Params evaluates the network’s parameter count, while mIoU measures segmentation accuracy. The mIOU calculation formula is as follows:

$$\begin{array}{cc}\hfill IoU& ={\displaystyle \frac{TP}{TP+FP+FN}}\hfill \\ \hfill mIoU& ={\displaystyle \frac{1}{N}}\sum _{i=1}^N{\mathrm{IoU}}_i\hfill \end{array}$$

(7)

where TP, FN, and FP represent the number of samples correctly classified as positive, the number of positive samples misclassified as negative, and the number of negative samples misclassified as positive, respectively.

4.3. Comparative Experiment

4.3.1. Semantic Segmentation on SynMars-Air

To better validate the superiority of our framework, we compared LisseMars with the most advanced semantic segmentation algorithms currently available. For fairness, other algorithms adopt the mmsegmentation framework and are evaluated based on the Upernet as the decoder. In

Table 2. Semantic Segmentation with 160 K on SynMars-Air (the first and second best results are highlighted in red and underlined, respectively).

Backbone	Params	FLOPs	160 K
	(M)	(G)	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
Bisenetv2 [52]	3.35	12.31	0	29.14	81.48	88.43	95.36	98.47	98.11	99.78	73.85
MobileNetV3 [53]	3.28	8.60	0.77	36.22	80.9	88.97	94.65	98.71	98.33	99.76	74.79
Crossformer++-T [54]	23.3	4.9	0.01	44.05	80.5	88.34	96.0	98.87	98.17	99.56	75.79
Convnext-T [55]	28	4.5	2.81	54.22	85.94	91.48	95.87	98.83	91.97	99.05	77.52
Cswin-T [56]	38.9	61.5	0.0	0	31.64	62.34	25.21	94.76	75.7	92.97	47.83
EMO-1M [57]	5.6	2.4	0.0	0.04	65.17	78.14	91.28	97.33	94.66	99.2	65.72
Pvtv2-B0 [58]	29.1	45.8	2.62	47.62	77.14	84.34	95.61	98.8	97.53	99.59	75.41
Poolformer-s12 [59]	12.47	54.31	0.03	27.11	55.96	79.27	83.26	97.51	88.55	98.03	66.21
DeepLabV3+-r18 [60]	15.65	30.75	1.15	56.22	89.88	93.13	82.82	98.12	90.55	99.47	76.44
Segformer-b0 [61]	3.7	6.41	2.9	38.96	84.87	88.44	86.98	98.04	95.98	99.56	74.46
Segnext-T [62]	4.3	6.6	0	24.83	79.63	88.41	96.04	98.44	98.52	99.75	73.2
Light4Mars-T [40]	0.1	0.53	4.73	41.38	76.8	85.6	93.42	98.61	94.23	98.44	74.15
LisseMars-T	0.12	0.90	7.25	48.46	84.53	89.91	96.26	98.93	96.33	98.97	77.58
Crossformer++-S [54]	52.0	9.5	1.36	51.69	80.18	87.57	96.1	98.9	94.27	98.18	76.03
Convnext-S [55]	50	8.7	3.91	60.96	86.62	91.77	95.79	99.16	99.38	99.93	79.69
Swin-T [63]	60.0	236	3.03	55.09	76.33	83.41	94.84	98.94	84.41	95.14	73.90
Swin-S [63]	81.0	329	2.29	57.21	82.67	88.17	95.79	99.1	93.61	97.99	77.10
Cswin-S [56]	51.3	73.7	0	17.33	49.1	70.39	77.07	97.14	97.34	98.28	62.64
EMO-2M [57]	6.9	3.5	0.0	0.02	67.15	79.31	92.21	97.33	94.23	98.99	66.16
SMT-B [64]	51.7	76.2	1.9	56.9	91.05	94.35	97.94	99.25	99.0	99.82	82.19
Uniformer-B [65]	70.0	90.34	7.49	69.13	90.1	92.71	97.49	99.3	98.4	99.93	82.51
Pvtv2-B3 [58]	49.0	62.4	5.53	66.38	88.64	91.63	97.88	99.35	99.5	99.93	81.11
PIDNet-s [66]	7.6	47.6	0	31,52	87.48	91.23	97.2	98.86	98.53	99.78	75.58
Poolformer-s36 [59]	34.6	42.0	0.01	27.1	57.19	78.83	83.46	97.52	88.65	97.96	66.34
DeepLabV3+-r50 [60]	47.0	62.7	0.9	56.37	90.18	93.44	97.41	99.13	98.34	99.84	79.45
Segformer-b2 [61]	25.4	15.1	0.99	53.42	89.92	94.04	97.69	99.19	98.94	99.79	79.25
Segnext-B [62]	27.8	35.7	0.09	47.5	86.65	90.01	96.15	99.01	99.14	99.89	77.31
SMT-B [64]	61.8	328	8.27	70.03	89.87	92.11	98.4	99.41	99.37	99.88	82.17
Uniformer-B [65]	80	471	7.49	69.13	90.1	92.71	97.49	99.38	98.4	99.5	81.78
Light4Mars-S [40]	1.50	5.45	15.09	63.97	90.98	93.91	97.6	99.34	99.77	99.96	82.51
LisseMars-S	1.355	6.49	17.63	67.77	91.53	94.04	97.63	99.41	99.3	99.85	83.39
Crossformer++-B [54]	92.0	16.6	1.94	49.97	80.31	87.61	95.36	98.87	96.79	99.83	76.33
Convnext-B [55]	89	45.0	5.33	64.64	86.91	92.07	96.48	99.2	99.42	99.94	80.50
Swin-B [63]	121.0	479	1.9	56.9	91.05	94.35	97.94	99.25	99.0	99.82	80.03
Cswin-B [56]	96.7	115.53	0	25.02	56.92	77.16	79.0	97.37	78.59	94.8	63.61
EMO-5M [57]	10.3	5.8	0.0	0.01	71.14	80.88	92.77	97.53	93.83	98.82	66.87
SMT-L [64]	97.1	132.2	9.05	70.17	90.32	92.49	98.35	99.42	99.56	99.95	82.41
Light4Mars-B [40]	2.57	9.43	16.61	67.38	91.53	94.45	97.87	99.4	99.28	99.9	83.30
Uniformer-L [65]	119.0	130.6	10.36	71.51	91.64	93.65	98.31	99.44	99.56	99.95	83.05
Pvtv2-B5 [58]	85.7	91.1	8.76	69.35	89.59	92.45	97.87	99.4	99.58	99.95	82.12
PIDNet-L [66]	36.9	275.8	0	33.62	89.35	92.63	97.74	98.94	98.75	99.78	76.35
Poolformer-m48 [59]	77.1	47.2	0.94	50.32	86.76	91.88	97.33	99.1	99.09	99.83	78.16
DeepLabV3+-r101 [60]	66.7	83.4	2.19	60.11	89.94	93.16	96.87	99.18	98.58	99.82	79.98
Segformer-b5 [61]	82.0	22.5	3.91	63.4	90.68	94.07	97.76	99.29	99.32	99.88	81.04
Segnext-L [62]	48.9	70.0	0.15	47.36	87.61	90.72	96.36	99.02	99.12	99.9	77.53
SMT-L [64]	102	546	9.05	70.17	90.32	92.49	98.35	99.42	99.56	99.95	82.41
Uniformer-L [65]	100	490	10.36	71.51	91.64	93.65	98.31	99.44	99.56	99.95	83.05
LisseMars-B	9.16	21.7	36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.95	87.37

, we separated the results of SOTA backbones into three parts sorted by parameters. Our LisseMars-B model achieved the highest mIoU of 87.37%, with relatively fewer parameters compared to other algorithms. Furthermore, it demonstrated exceptional performance in the segmentation of Gravel (0 to 10 pixels) and SmallRock (10 to 100 pixels), reaching 36.48% and 77.65%, respectively, which are 19.87% and 10.27% higher than the second-best Light4Mars model. Gravel and Smallrock are the main objects distributed on the surface of Mars. Accurate identification of them would help the Mars rover proactively plan obstacle-avoidance paths, effectively preventing them from damaging the rover’s wheels while also providing valuable support for scientific exploration.

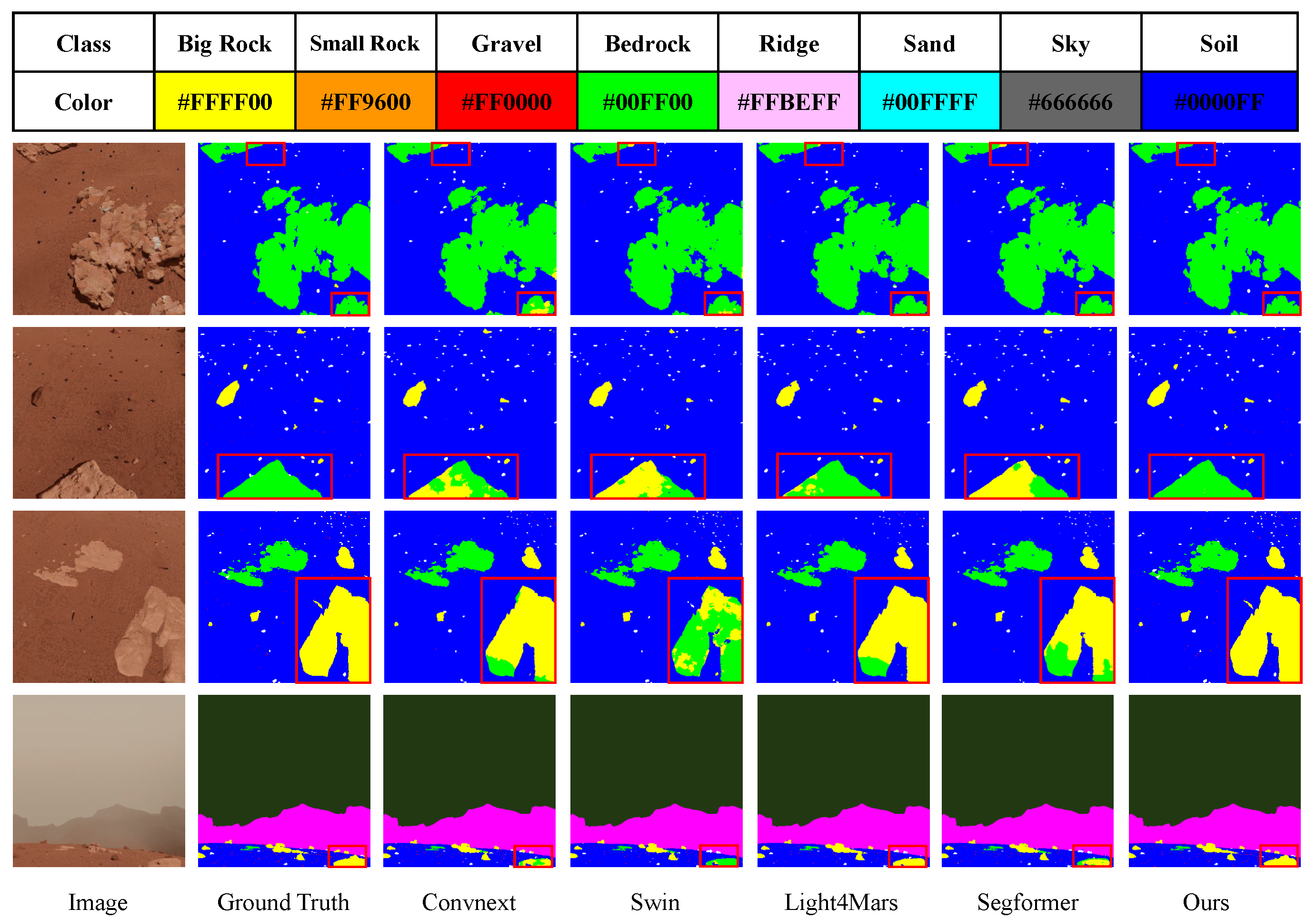

We visualized the segmentation results of these methods on the SynMars-Air test set, as shown in Figure 14. Other SOATs failed to identify gravel (red pixels) accurately, and our method has better recognition results for both large and small objects. The red boxes in Figure 14 highlight the significant differences between methods. Specifically, our model accurately segments the objects, as shown in the middle two rows of Figure 14, while other methods either fail or predict incorrect segmentation results. when handling low-contrast objects, as seen in the first and last rows of Figure 14, our model successfully segments the objects and captures their boundaries with high precision, whereas the other methods fail to do so.

4.3.2. Semantic Segmentation on MarsScapes

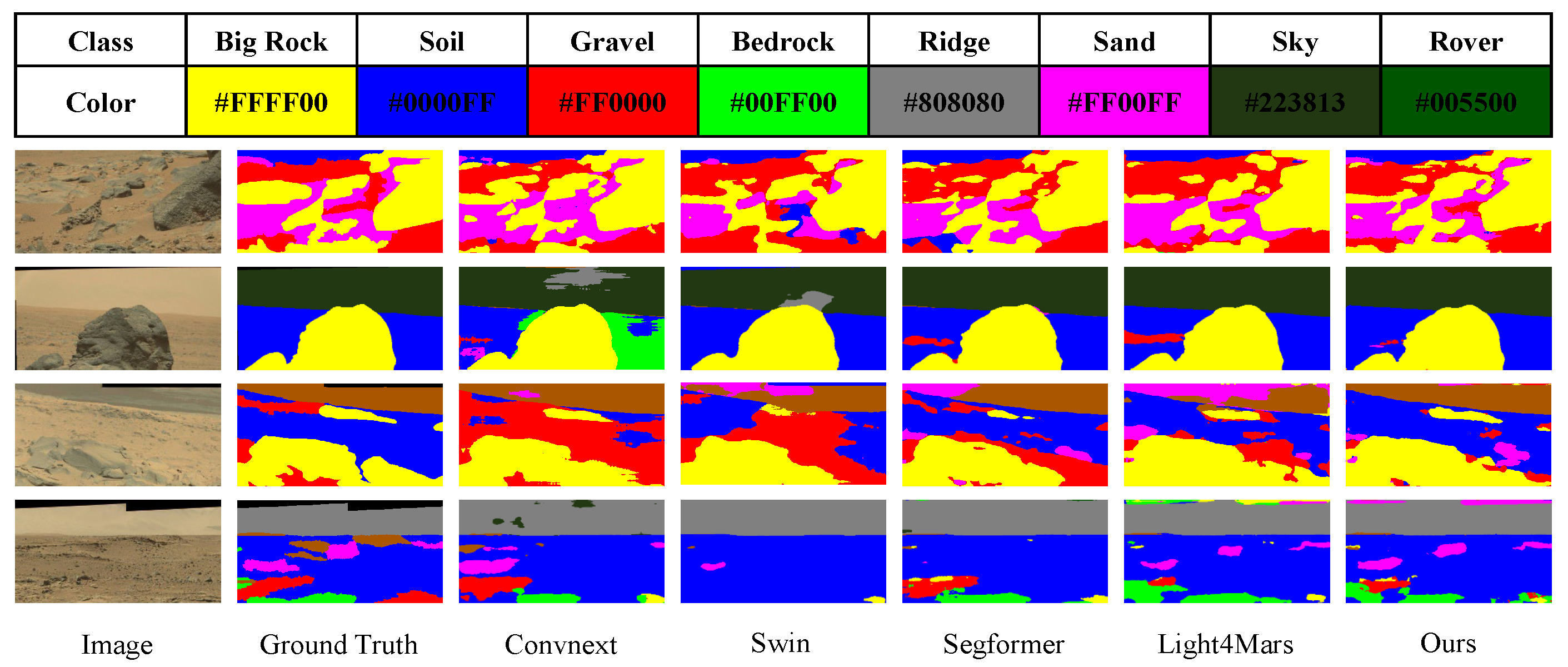

To verify the robustness of our proposed LisseMars, we conducted comparative experiments on the real Mars dataset, MarsScapes. As listed in

Table 3. Semantic Segmentation with 160 K on MarsScapes. (the first and second best results are highlighted in red and underlined, respectively).

Backbone	Params	FLOPs	160 K
	(M)	(G)	Soil	BedRock	Gravel	Sand	BigRock	Ridge	Sky	Rover	Unknow	mIoU (%)
Bisenetv2 [52]	3.35	6.16	66.78	64.79	37.80	59.46	44.02	45.94	70.63	81.98	46.01	57.49
MobileNetV3 [53]	3.28	4.37	69.42	73.48	49.64	65.43	47.47	48.84	77.38	62.30	45.91	59.99
Crossformer++-T [54]	23.3	4.9	61.9	60.17	33.11	48.44	31.55	42.34	64.87	64.14	43.72	50.03
Convnext-T [55]	28	4.5	63.81	49.58	38.64	49.9	38.64	54.88	79.13	60.64	43.09	53.15
EMO-2M [57]	6.9	3.5	57.29	50.55	23.85	43.01	33.83	36.39	71.98	36.67	25.56	42.12
Light4Mars-T [40]	0.1	0.53	69.35	70.25	50.82	60.29	45.61	53.87	81.88	55.42	45.89	59.26
Pvtv2-B0 [58]	7.25	11.79	64.91	59.17	37.63	51.77	36.66	49.54	75.18	86.08	48.54	56.61
Segnext-T [62]	40.0	52.3	62.51	57.74	43.72	49.55	40.41	28.32	63.92	12.79	0	39.89
Uniformer-S [65]	52.0	247	65.85	57.25	38.45	52.67	41.75	46.61	77.66	63.41	39.68	53.7
PIDNet-s [66]	7.6	47.6	60.79	55.84	32.32	53.98	39.9	34.39	49.61	87.45	46.67	51.22
LisseMars-T	0.12	0.90	68.95	67.51	45.81	58.94	40.74	62.24	83.84	89.9	53.43	63.48
MarsNet [67]	33.21	120.29	76.02	56.39	44.77	56.44	35.45	35.83	79.72	71.59	45.69	55.77
Crossformer++-S [54]	52.0	9.5	70.12	61.67	49.33	60.43	39.4	38.63	75.05	42.26	51.71	54.30
Convnext-S [55]	50	8.7	64.42	51.13	40.0	51.22	39.63	48.4	73.85	92.59	45.32	56.28
EMO-3M [57]	6.9	3.5	58.88	55.5	33.77	50.47	34.28	46.39	75.44	61.68	31.03	49.71
Light4Mars-S [40]	1.50	5.45	69.41	71.57	46.15	60.72	47.67	60.84	82.13	95.00	46.26	64.30
Segnext-B [62]	27.8	35.7	53.83	39.01	22.53	46.06	35.81	34.58	57.87	69.29	44.83	44.87
Uniformer-B [65]	80.0	471	65.24	55.51	38.75	52.24	42.37	51.32	80.24	69.91	40.66	55.14
Poolformer [59]	15.65	15.38	67.21	66.50	43.61	60.78	45.96	51.58	78.00	94.79	48.20	61.85
DeepLabV3+ [60]	12.47	27.16	69.53	73.99	43.48	61.86	48.58	58.40	82.54	97.80	46.81	64.78
LisseMars-S	1.355	6.49	70.21	71.92	50.08	58.74	46.98	62.72	80.76	92.32	53.31	65.23
Crossformer++-B [54]	92.0	16.6	69.54	66.53	44.89	59.55	43.62	44.0	64.61	83.18	49.82	58.42
Convnext-B [55]	89	45.0	62.79	51.02	41.61	50.22	38.2	56.45	78.04	95.19	49.2	58.06
EMO-5M [57]	10.28	3.05	68.01	71.06	40.03	58.67	42.76	48.97	80.32	95.79	45.33	61.22
Light4Mars-B [40]	2.57	9.43	70.46	73.44	51.62	62.14	48.65	60.40	84.10	92.08	52.39	66.14
PIDNet-L [66]	36.9	275.8	66.70	65.12	36.45	57.04	39.31	51.87	76.67	89.65	46.01	58.76
Segnext-L [62]	48.0	70.0	63.48	60.42	36.83	53.28	40.21	41.84	72.11	60.97	0	47.68
Uniformer-L [65]	100	490	67.11	62.53	41.49	51.01	42.91	46.49	77.69	75.05	40.3	56.06
Cswin [56]	52.01	115.41	64.18	63.03	33.42	52.07	35.34	49.38	75.30	86.91	46.42	56.23
Swin [63]	58.95	121.86	69.28	75.50	46.47	61.13	47.11	66.65	83.53	96.17	53.13	66.55
SMT [64]	52.24	117.0	68.94	75.96	44.76	64.19	51.02	58.04	80.72	96.66	47.32	65.29
Segformer [61]	3.72	3.70	69.48	75.26	46.62	62.85	48.96	61.98	80.52	98.00	53.13	66.31
LisseMars-B	9.16	21.7	70.48	70.81	50.31	61.28	48.14	67.73	81.51	96.41	54.7	66.81

, although test accuracy decreased, our Base model (LisseMars-B) still achieved the most competitive mIoU of 66.81%, outperforming other state-of-the-art methods by 0.26% and 0.5% over Swin and Segformer, respectively. Taking the prediction results in Figure 15 as an example, LisseMars demonstrates superior segmentation performance compared to other models. As shown in the first and third rows of Figure 15, LisseMars accurately segments the boundary contours of multiple objects. The second and fourth rows demonstrate that the object categories predicted by LisseMars are closer to the true categories. The segmentation results indicate that our model demonstrates outstanding performance in real Martian scenes. On very large rocks (in BigRock category), LisseMars-T does not rank the top performance. This is because, for the segmentation of large-scale rocks, the core strategy of learning-based methods focuses on employing deeper network architectures to achieve a larger receptive field, thus enabling the effective extraction of large-scale features. The proposed modules in LisseMars, however, are primarily optimized for small-scale object segmentation and for edge device deployment. Driven by such constraints, the segmentation model necessitated a lightweight design, at the expense of segmentation performance on large rocks.

4.3.3. Semantic Segmentation on TianWen

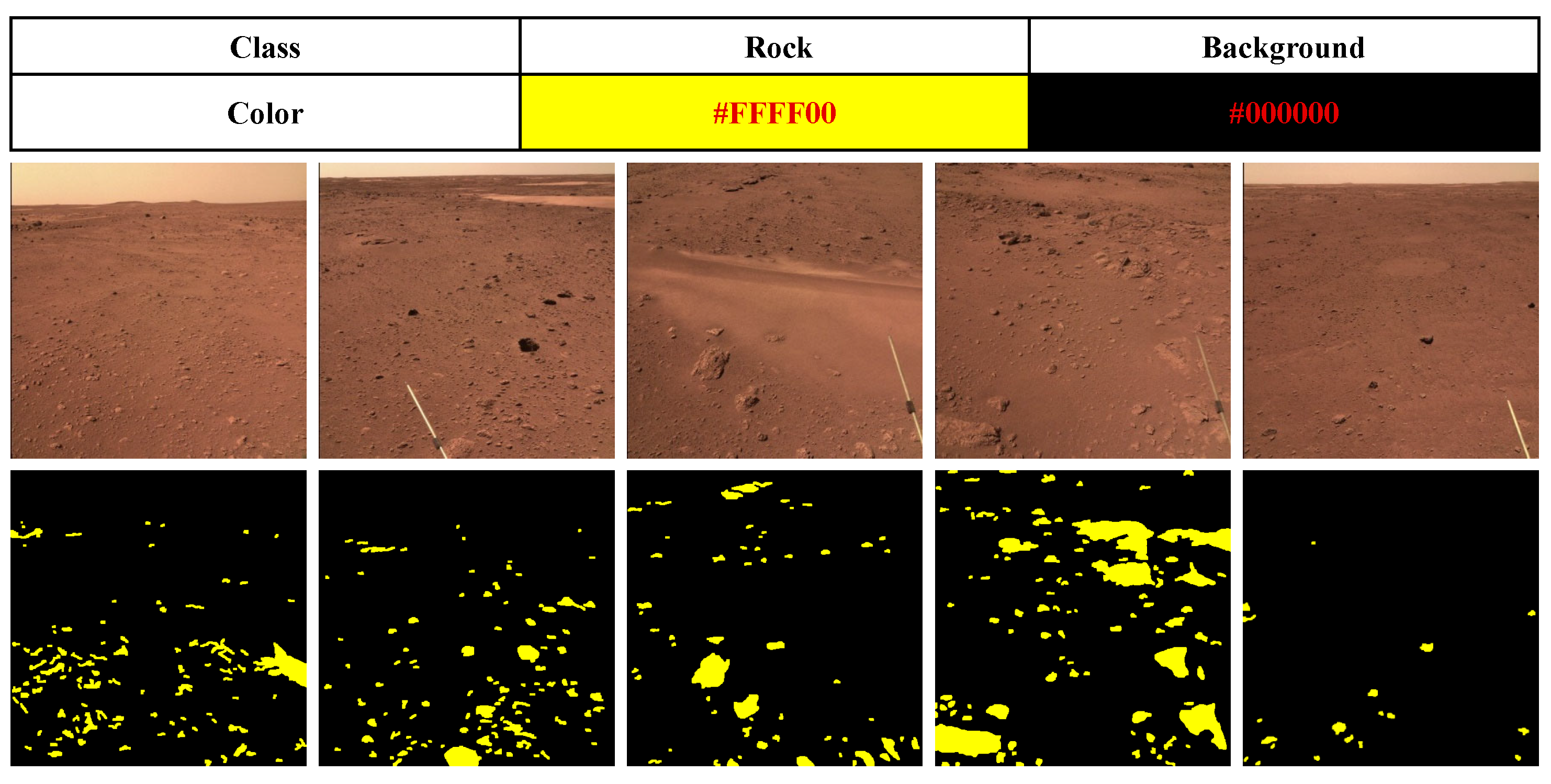

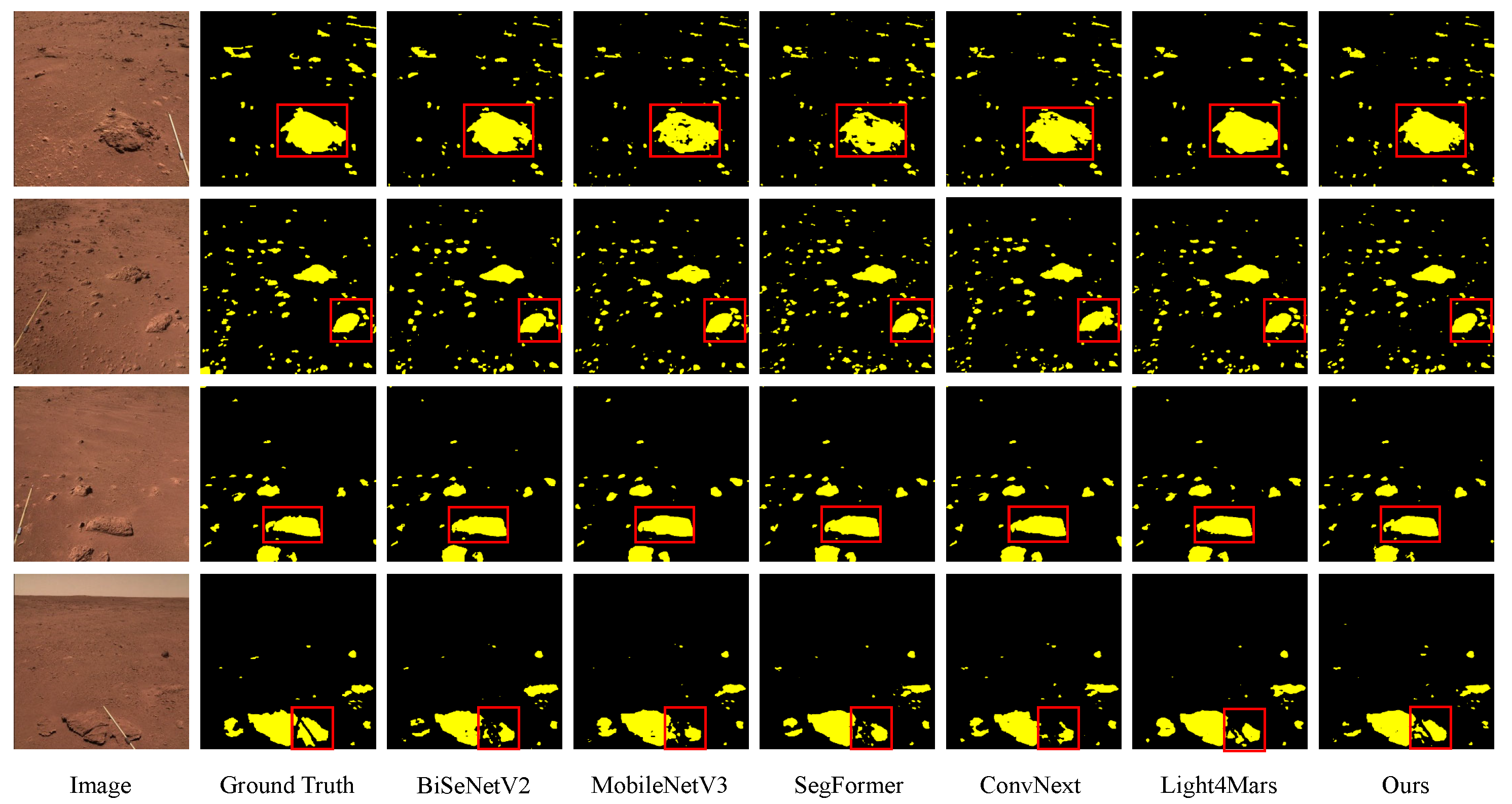

We further used the real Mars images of the TianWen-1 mission to validate the genrealizataion of our model. As shown in

Table 4. Semantic Segmentation with 160 K on TianWen. (the first and second best results are highlighted in red and underlined, respectively).

Backbone	Params	FLOPs	160 K		mIoU (%)
	(M)	(G)	Background	Rock
Bisenetv2 [52]	3.35	12.31	99.19	53.58	76.39
MobileNetV3 [53]	3.28	8.60	99.27	57.34	78.30
Convnext-T [55]	28.0	4.5	99.22	56.29	77.76
Light4Mars-T [40]	0.1	0.53	99.18	56.15	77.84
Segformer-b0 [61]	3.7	6.41	99.17	53.41	76.74
LisseMars-T	0.12	0.904	99.19	57.93	78.56

, we compared the Tiny model (LisseMars-T) with other Tiny SOATs; our model outperformed MobileNetV3 and Segformer by 0.26% and 0.72% in mIoU. In addition, LisseMars attained the most competitive mIoU 57.93% in Rock segmentation, achieved 0.6% and 1.64% mIoU higher than those of MobileNetV3 and Convnext, respectively. Compared with SOTA, the visualization of the segmentation results of our method is shown in Figure 16. The red box in Figure 16 shows a significant difference in the segmentation results. Our model accurately segmented the object, as shown in the first and last rows of Figure 16, while other methods exhibit a false negative. For the excessive clustering of multiple targets shown in the second and third rows of Figure 16, our model accurately captures the precise object boundaries, while other models suffer from over-segmentation and mistakenly identify multiple objects as a single object. The results demonstrate that our model exhibits excellent generalization ability in real Martian scenes.

4.4. Ablation Studies

4.4.1. The Impact of Different Proposed Modules

We conducted further research and improvements to validate the efficiency of the proposed modules. As shown in

Table 5. Effect of different proposed modules (The improvement is highlighted in red).

Backbone	Fusion	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
BaseFormer		16.61	67.38	91.53	94.45	97.87	99.4	99.28	99.9	83.30
	+WMA	20.64	69.75	92.03	94.26	95.69	99.45	98.37	99.9	83.76 (↑0.46)
	+CFFN	19.4	69.25	92.18	94.7	98.05	99.44	99.36	99.92	84.04 (↑0.28)
	+GFM	33.64	77.02	91.73	94.13	98.28	99.6	99.7	99.96	86.76 (↑2.72)
	+DPCM	36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.91	87.37 (↑0.61)

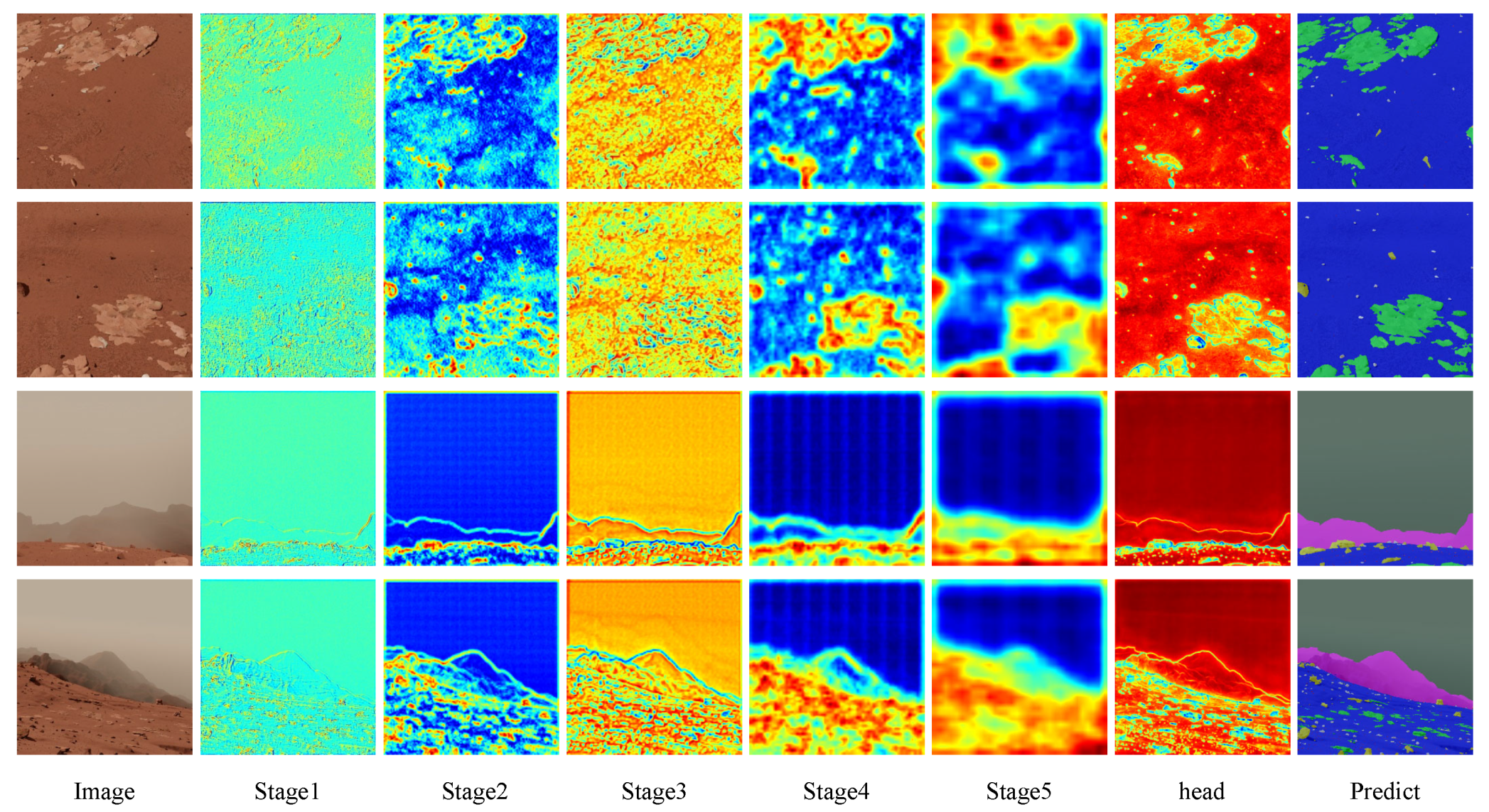

, we progressively added the WMA, CFFN, GFM, and DPCM modules to the BaseFormer model and analyzed their impact on various categories. The results in Table 5 demonstrate that the model’s performance improves with the incremental addition of each module. Specifically, after adding the WMA module, the model exhibited notable improvements in the Gravel and Smallrock, with increases of 4% and 2.37%, respectively. The next module, CFFN, brings further improvements, particularly in BedRock (+0.44%) and Sand (+2.36%). Adding the GFM module provides a more noticeable enhancement, especially in categories such as Gravel (+14.24%) and SmallRock (+7.8%). Finally, the addition of the DPCM module further enhanced the model’s performance, leading to significant improvements in object segmentation, with the final mIoU reaching 87.37%. These results demonstrate the effectiveness of our proposed modules. As shown in the visualization results in Figure 17, as the number of stages in the model increases, the heatmap shows that the model’s attention area to the objects becomes clearer and distinct, ultimately successfully segmenting the objects.

4.4.2. The Impact of WMA

To validate the efficiency of WMA, we changed the transformer module of the encoder while keeping the GFM decoder unchanged. As shown in

Table 6. Comparison of different decoders based on LisseMars-B on SynMars-Air (the first and second best results are highlighted in red and underlined, respectively).

AttentionEncoder	Decoder	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
CBAM [68]		0	26.25	73.14	79.56	89.85	88.32	90.63	94.75	67.81
SE attention [69]		0	22.24	61.55	70.47	84.21	83.37	86.78	92.42	62.63
Shift Window Attention [61]		2.11	57.06	92.14	94.84	97.84	99.6	99.33	99.75	80.3
Effcient Attention [61]		5.9	65.96	91.8	94.47	98.0	99.30	99.5	99.99	81.8
Linear Spatial Reduction Attention [58]		10.26	70.17	90.45	93.13	97.90	99.49	98.80	99.99	82.52
Mix Attention [24]		14.0	65.2	93.81	94.68	95.13	98.21	99.52	99.76	82.53
Scale-Aware Aggregation [27]	GFM	9.3	70.04	90.38	92.58	98.04	99.41	99.54	99.95	82.5
Multi-head Relation Attention [65]		12.31	72.2	92.02	95.4	98.27	99.58	99.56	99.9	83.65
Squeeze Window Attention [40]		23.04	70.94	92.37	95.0	97.9	99.47	99.44	99.88	84.7
Window Movable Attention (Ours)		36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.91	87.37

, our model ranked the top with mIoU of 87.37%, which is 2.67% higher than the second Light4Mars. In addition, WMA performs better than other models in terms of Gravel, SmallRock, Ridge, etc. This indicates that WMA can effectively improve the overall performance of image segmentation by fully integrating global and local information to optimize the encoder module without changing the GFM decoder.

4.4.3. The Impact of CFFN

To verify the role of CFFN, we replaced the multilayer while keeping the other structures of the network unchanged. As shown in

Table 7. Comparison of different multi-layer perceptrons based on LisseMars-B on SynMars-Air (the first and second best results are highlighted in red and underlined, respectively).

Model	Multi-Layer	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
LisseMars	CMLP [65]	22.01	70.4	90.87	93.44	92.99	99.46	97.12	99.85	83.27
	MLP [70]	21.88	70.46	90.44	93.02	91.58	99.46	96.28	99.82	82.87
	UFFN [40]	21.75	70.28	90.55	93.17	92.52	99.46	96.84	99.83	83.05
	CFFN (Ours)	36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.91	87.37

, CFFN achieves significantly better segmentation performance for various objects compared to CMLP and UFFN. While CMLP and UFFN effectively capture local information through their layer-by-layer fully connected structures, our CFFN incorporates multi-head convolution to enhance global information extraction, enabling more effective fusion of both global and local features.

4.4.4. The Impact of GFM

As shown in

Table 8. Comparison of different decoders based on LisseMars-B on SynMars-Air (the first and second best results are highlighted in red and underlined, respectively).

Encoder	Decoder	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
WMA	EncHead [61]	0	18.11	86.74	89.1	97.09	98.6	98.33	99.75	73.47
	SegformerHead [61]	23.07	71.17	90.45	93.33	95.32	99.49	98.45	99.99	83.89
	FPN [71]	26.0	72.77	91.95	94.68	98.03	99.51	99.52	99.91	85.35
	UPerHead [27]	31.53	76.2	92.02	94.3	98.27	99.58	99.46	99.9	86.41
	FCNHead [72]	23.04	70.94	92.37	95.0	97.9	99.47	99.44	99.88	84.77
	ALA [40]	20.64	69.75	92.03	94.26	95.69	99.45	98.37	99.9	83.76
	GFM (Ours)	36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.91	87.37

, we explore the performance of different decoders in our model. Among the evaluated decoders, GFM consistently outperforms other methods in predicting various objects. In particular, GFM achieved the highest segmentation accuracy of 36.48% and 77.65%, respectively, in detecting Gravel and small rocks, which proves the effectiveness of GFM in small object segmentation.

4.4.5. The Impact of DPC

To prove the advantages of our proposed DPC, we replaced it with the state-of-the-art convolution, as shown in

Table 9. The effects of different convolutions in DPC (the first and second best results are highlighted in red and underlined, respectively).

BaseMoudle	Convolution	Gravel	SmallRock	BigRock	BedRock	Sand	Soil	Ridge	Sky	mIoU (%)
DPCM	Conv	35.62	77.21	92.4	94.77	98.09	99.61	99.66	99.95	87.16
	DWConv [73]	35.39	77.2	92.69	95.0	98.27	99.61	99.4	99.85	87.18
	GConv [74]	35.86	77.21	92.33	94.78	98.19	99.61	99.63	99.93	87.19
	DCN [75]	35.92	77.22	92.6	95.0	98.1	99.61	99.44	99.86	87.22
	DPC (Ours)	36.48	77.65	92.71	95.0	98.04	99.61	99.56	99.91	87.37

. Our DPC achieved an mIoU that is 0.15% higher than that of DCN and 0.18% higher than Gconv. In addition, our DPC achieved the highest prediction accuracy of 92.71% and 99.61% respectively in Segmenting BedRock and Soil, and ranked the top in the accuracy of predicting Grave and SmallRock. These results prove the effectiveness of DPC. Moreover, to further validate the impact of DPCM’s position in different stages on the performance of the LisseMars model, we conducted additional experiments by adjusting the placement of DPCM. As shown in

Table 10. The position of DPCM (the first result is highlighted in red).

Position	Stage 1	Stage 2	Stage3	Stage 4	Stage 5	mIoU (%)
DPCM	✓					86.07
		✓				86.83
				✓		86.92
					✓	86.5
			✓			87.37

, when DPCM is positioned in stage 3, it achieves optimal segmentation accuracy by better integrating low-level features and low-level features.

4.5. Runtime Performance

To demonstrate the performance of the proposed model on an edge device, we deployed a resource-efficient and high-precision LisseMars-T model on Nvidia Jeston NX platform. It is a credit card-sized and low-power (10 W/15 W) system-on-a-chip, making it capable of being deployed on a lightweight helicopter or as a key component for deploying algorithms in deep space exploration applications.

The model is exported in TensorRT format (https://developer.nvidia.cn/tensorrt (accessed on 10 April 2025)) with $512\times 512$ resolution of the input image. As shown in

Table 11. Run-time performance of LisseMars on Nvidia Jetson Xavier NX (NX).

Metrics	SynMars-Air	MarsScapes	TianWen
Times (s)	0.048	0.04	0.044
mIoU (%)	77.58	61.48	78.56

, the average inference time per image of LisseMars on NX is 0.048 s on the SynMras-Air, 0.04 s on MarsScapes, respectively. On real TianWen datasets, our model achieved a processing time of 0.044 s per image, showcasing its potential for deployment in future Mars helicopter missions.

5. Conclusions

In this paper, we propose a novel lightweight model semantic segmentation LisseMars, specifically designed for the Mars helicopter. The model integrates a new window movable attention (WMA) module to enhance the fusion of global and local information. Additionally, we developed a multi-head convolutional feedforward network (CFFN) to further improve feature extraction and fusion, along with a dynamic polygon convolutional (DPC) to achieve precise segmentation of polygonal structures. The proposed method was evaluated on the challenging SynMars-Air, MarsScapes, and TianWen datasets. Experimental results demonstrated that LisseMars effectively segmented object contours across various complex Martian scenes. It has achieved or approached state-of-the-art results across most terrain categories, and only fell short on large rocks due to the constraints of its lightweight architecture. Furthermore, the model was successfully deployed on the edge device, validating its real-time performance and potential integration for future Mars helicopter mission. Future research will be dedicated to refining model lightweighting and multi-scale feature extraction, ultimately enabling accurate semantic segmentation for the diverse range of object on the Martian surface.
