# Simplified Maneuvering Strategies for Rendezvous in Near-Circular Earth Orbits

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Problem Statement

## 3. Reconfiguration Strategies

## 4. Results

#### 4.1. Test Case 1—In-Plane Control

#### 4.2. Test Case 2—3D Control

## 5. Trajectory Constraints

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Woffinden, D.C.; Geller, D.K. Navigating the Road to Autonomous Orbital Rendezvous. J. Spacecr. Rocket.
**2007**, 44, 898–909. [Google Scholar] [CrossRef] - Gurfil, P. Relative motion between elliptic orbits: Generalized boundedness conditions and optimal formationkeeping. J. Guid. Control Dyn.
**2005**, 28, 761–767. [Google Scholar] [CrossRef] - Pontani, M.; Conway, B.A. Minimum-fuel finite-thrust relative orbit maneuvers via indirect heuristic method. J. Guid. Control Dyn.
**2015**, 38, 913–924. [Google Scholar] [CrossRef] - Yang, X.; Cao, X. A new approach to autonomous rendezvous for spacecraft with limited impulsive thrust: Based on switching control strategy. Aerosp. Sci. Technol.
**2015**, 43, 454–462. [Google Scholar] [CrossRef] - Sullivan, J.; Grimberg, S.; D’Amico, S. Comprehensive survey and assessment of spacecraft relative motion dynamics models. J. Guid. Control Dyn.
**2017**, 40, 1837–1859. [Google Scholar] [CrossRef] - Anderson, P.; Schaub, H. N-impulse formation flying feedback control using nonsingular element description. J. Guid. Control Dyn.
**2014**, 37, 540–548. [Google Scholar] [CrossRef] - Schaub, H.; Alfriend, K.T. Impulsive feedback control to establish specific mean orbit elements of spacecraft formations. J. Guid. Control Dyn.
**2001**, 24, 739–745. [Google Scholar] [CrossRef] - De Iuliis, A.; Costigliola, D.; Casalino, L. Optimal Control for Formation Reconfiguration Problems using Pseudospectral Methods. In Proceedings of the 33rd Space Flight Mechanics Meeting, Austin, TX, USA, 15–19 January 2023. [Google Scholar]
- Roscoe, C.W.; Westphal, J.; Griesbach, J.; Schaub, H. Formation establishment and reconfiguration using differential elements in J2-perturbed orbits. In Proceedings of the 2014 IEEE Aerospace Conference, Big Sky, MT, USA, 1–8 March 2014. [Google Scholar]
- Lawden, D.F. Optimal Trajectories for Space Navigation, 3rd ed.; Butterworths: London, UK, 1963; pp. 96–123. [Google Scholar]
- Jezewski, D.J. (National Aeronautics and Space Administration): Primer Vector Theory and Applications. Technical Report, ID 19760004112. Available online: https://ntrs.nasa.gov/api/citations/19760004112/downloads/19760004112.pdf (accessed on 27 February 2022).
- Ping, L.; Liu, X. Autonomous Trajectory Planning for Rendezvous and Proximity Operations by Conic Optimization. J. Guid. Control Dyn.
**2013**, 36, 375–389. [Google Scholar] [CrossRef] - Zhang, Z.; Zhao, D.; Li, X.; Kong, C.; Su, M. Convex Optimization for Rendezvous and Proximity Operation via Birkhoff Pseudospectral Method. Aerospace
**2022**, 9, 505. [Google Scholar] [CrossRef] - Zagaris, C.; Park, H.; Virgili-Llop, J.; Zappulla, R.; Romano, M.; Kolmanovsky, I. Model predictive control of spacecraft relative motion with convexified keep-out-zone constraints. J. Guid. Control Dyn.
**2018**, 41, 505. [Google Scholar] [CrossRef] - Kaczmarek, J.J.; Zagaris, C. Autonomous Multi-phase Rendezvous, Proximity Operations, and Docking via Model Predictive Control. In Proceedings of the 2023 IEEE Aerospace Conference, Big Sky, MT, USA, 20 May 2023; pp. 1–10. [Google Scholar] [CrossRef]
- Hablani, H.B.; Tapper, M.L.; Dana-Bashian, D.J. Guidance and relative navigation for autonomous rendezvous in a circular orbit. J. Guid. Control Dyn.
**2002**, 25, 553–562. [Google Scholar] [CrossRef] - Clohessy, W.H.; Wiltshire, R.S. Terminal guidance system for satellite rendezvous. J. Aerosp. Sci.
**1960**, 27, 653–658. [Google Scholar] [CrossRef] - Bevilacqua, R.; Romano, M. Rendezvous maneuvers of multiple spacecraft using differential drag under J2 perturbation. J. Guid. Control Dyn.
**2008**, 31, 1595–1607. [Google Scholar] [CrossRef] - Shuster, S.; Geller, D.; Harris, M. Analytic maneuver sequence for safety ellipse reconfigurations using relative orbital elements. J. Guid. Control Dyn.
**2021**, 44, 1593–1606. [Google Scholar] [CrossRef] - Gaias, G.; D’Amico, S. Impulsive maneuvers for formation reconfiguration using relative orbital elements. J. Guid. Control Dyn.
**2015**, 38, 1036–1049. [Google Scholar] [CrossRef] - Chernick, M.; D’Amico, S. New closed-form solutions for optimal impulsive control of spacecraft relative motion. J. Guid. Control Dyn.
**2018**, 41, 301–319. [Google Scholar] [CrossRef] - Costigliola, D.; Casalino, L. Autonomous Phasing Maneuvers in Near Circular Earth Orbits. In Proceedings of the Astrodynamics Specialist Conference, Charlotte, NC, USA, 7–11 August 2022. [Google Scholar]
- Gaias, G.; D’Amico, S.; Ardaens, J.S. Generalised multi-impulsive manoeuvres for optimum spacecraft rendezvous in near-circular orbit. Int. J. Space Sci. Eng.
**2015**, 3, 68–88. [Google Scholar] [CrossRef] - Gaias, G.; Ardaens, J.S. Flight demonstration of autonomous noncooperative rendezvous in low earth orbit. J. Guid. Control Dyn.
**2018**, 41, 1337–1354. [Google Scholar] [CrossRef] - Gaias, G.; Ardaens, J.S. In-orbit experience and lessons learned from the AVANTI experiment. Acta Astronaut.
**2018**, 153, 383–393. [Google Scholar] [CrossRef] - D’Amico, S. Autonomous Formation Flying in Low Earth Orbit. Ph.D. Thesis, TU Delft, Delft, The Netherlands, 2010. [Google Scholar]
- D’Amico, S.; Montenbruck, O. Proximity operations of formation-flying spacecraft using an eccentricity/inclination vector separation. J. Guid. Control Dyn.
**2006**, 29, 554–563. [Google Scholar] [CrossRef] - Chernick, M.; D’Amico, S. Closed-form optimal impulsive control of spacecraft formations using reachable set theory. J. Guid. Control Dyn.
**2021**, 44, 25–44. [Google Scholar] [CrossRef] - Battin, R.H. An Introduction to the Mathematics and Methods of Astrodynamics; AIAA: Reston, VA, USA, 1999; pp. 200, 490–494. [Google Scholar]
- D’Amico, S. Relative Orbital Elements as Integration Constants of Hill’s Equations. DLR-GSOC, TN-05-08, Oberpfaffenhofen, Germany, December 2005. Available online: https://scholar.google.it/scholar?hl=en&as_sdt=0%2C5&q=Relative+orbital+elements+as+integration+constants+of+Hill%27s+equations&btnG= (accessed on 27 February 2022).
- Larbi, M.K.; Stoll, E. Spacecraft Formation Control Using Analytical Integration of Gauss’ Variational Equations. In Proceedings of the 6th International Conference on Astrodynamics Tools and Techniques, Darmstadt, Germany, 14–17 March 2016. [Google Scholar]
- Betts, J.T. Practical Methods for Optimal Control and Estimation Using Nonlinear Programming, 2nd ed.; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 2010; pp. 1–35. [Google Scholar]
- Schaub, H.; Junkins, J.L. Analytical Mechanics of SPACE Systems, 2nd ed.; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 2003; pp. 693–696. [Google Scholar]
- DiPrinzio, M. Methods of Orbital Maneuvering; American Institute of Aeronautics and Astronautics, Inc.: Reston, VA, USA, 2019; pp. 511–530. [Google Scholar]

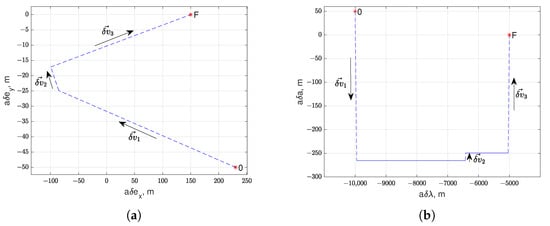

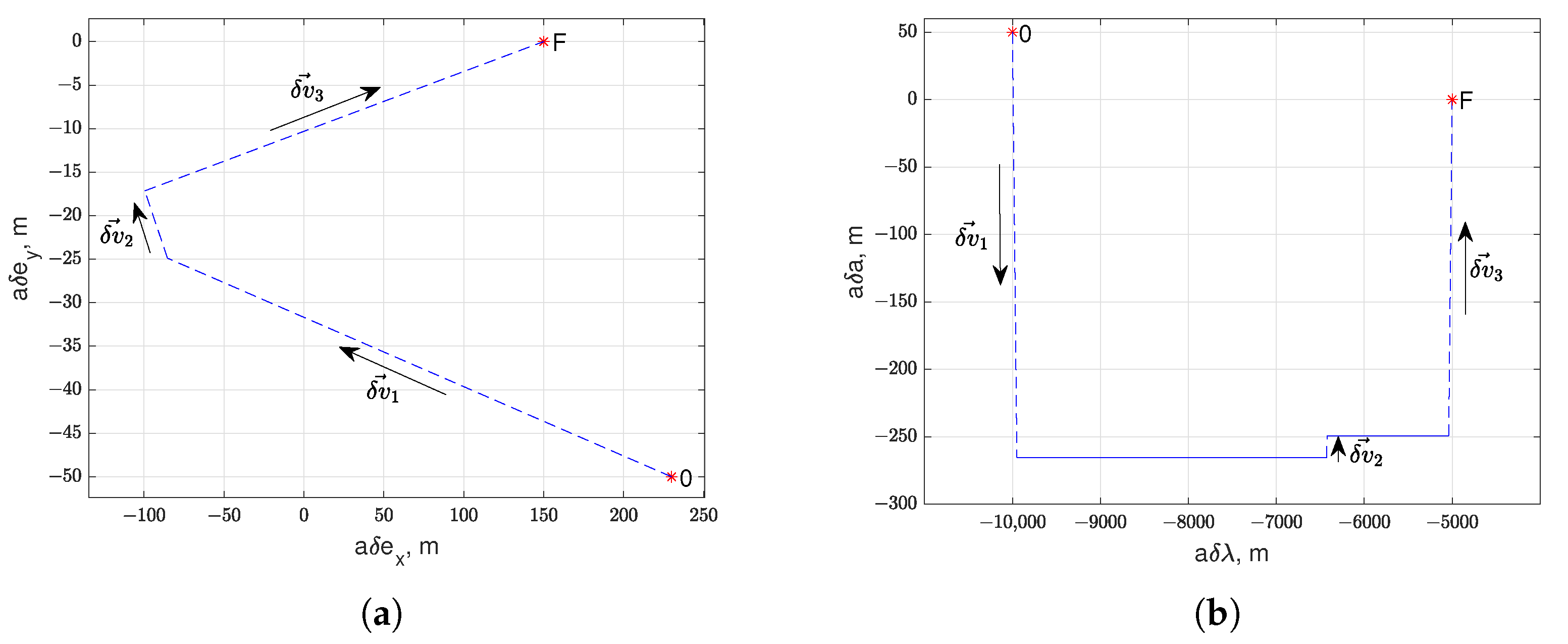

**Figure 4.**Relative Orbital Element changes. (

**a**) Transfer in Relative Eccentricity Vector Plane. (

**b**) Transfer in Relative Semi-Major Axis—Relative Mean Longitude Plane.

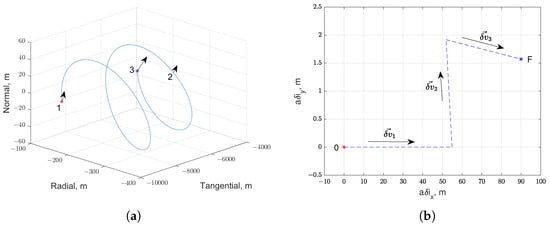

**Figure 10.**Reconfiguration using Scheme 3. (

**a**) Relative 3D Trajectory in Hill’s Coordinates. (

**b**) Trajectory in the Relative Inclination Vector Plane.

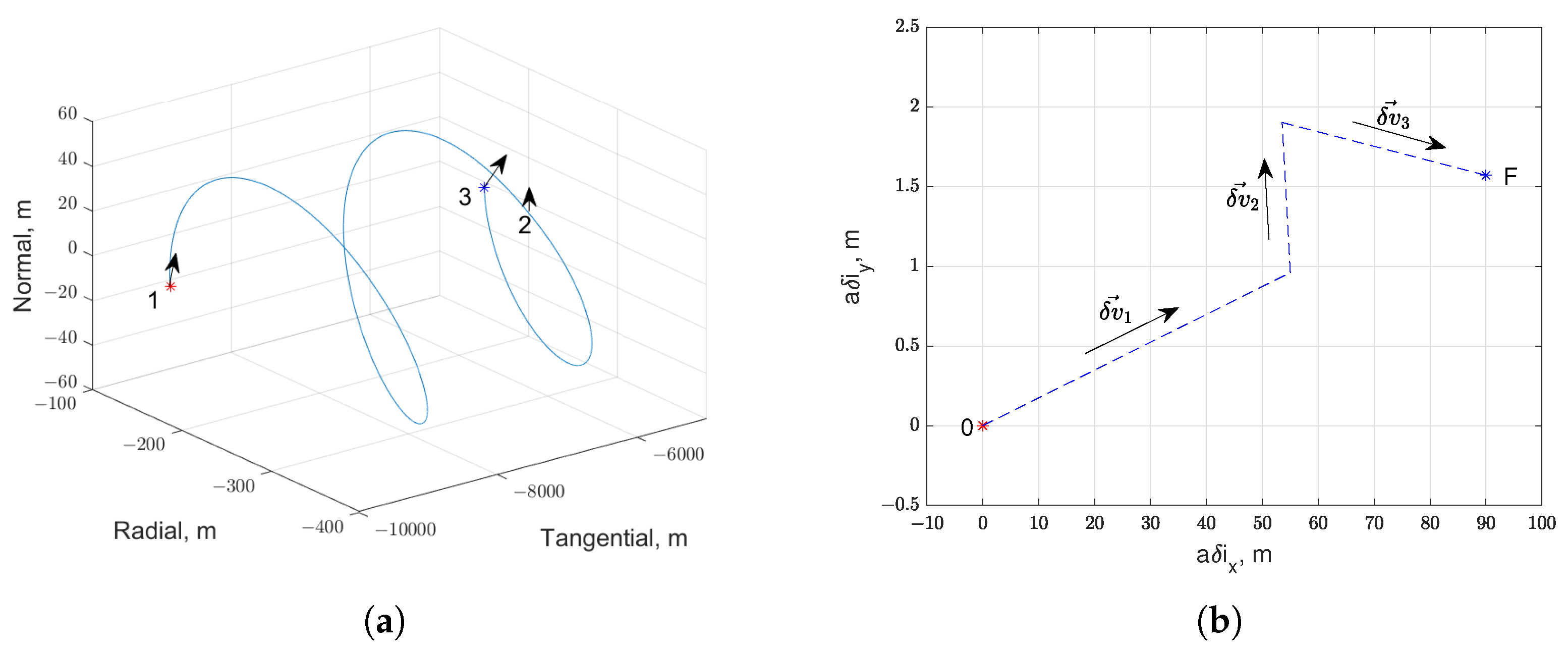

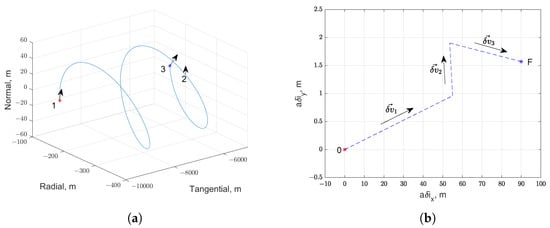

**Figure 11.**Reconfiguration using Scheme 4. (

**a**) Relative 3D Trajectory in Hill’s Coordinates. (

**b**) Trajectory in the Relative Inclination Vector Plane.

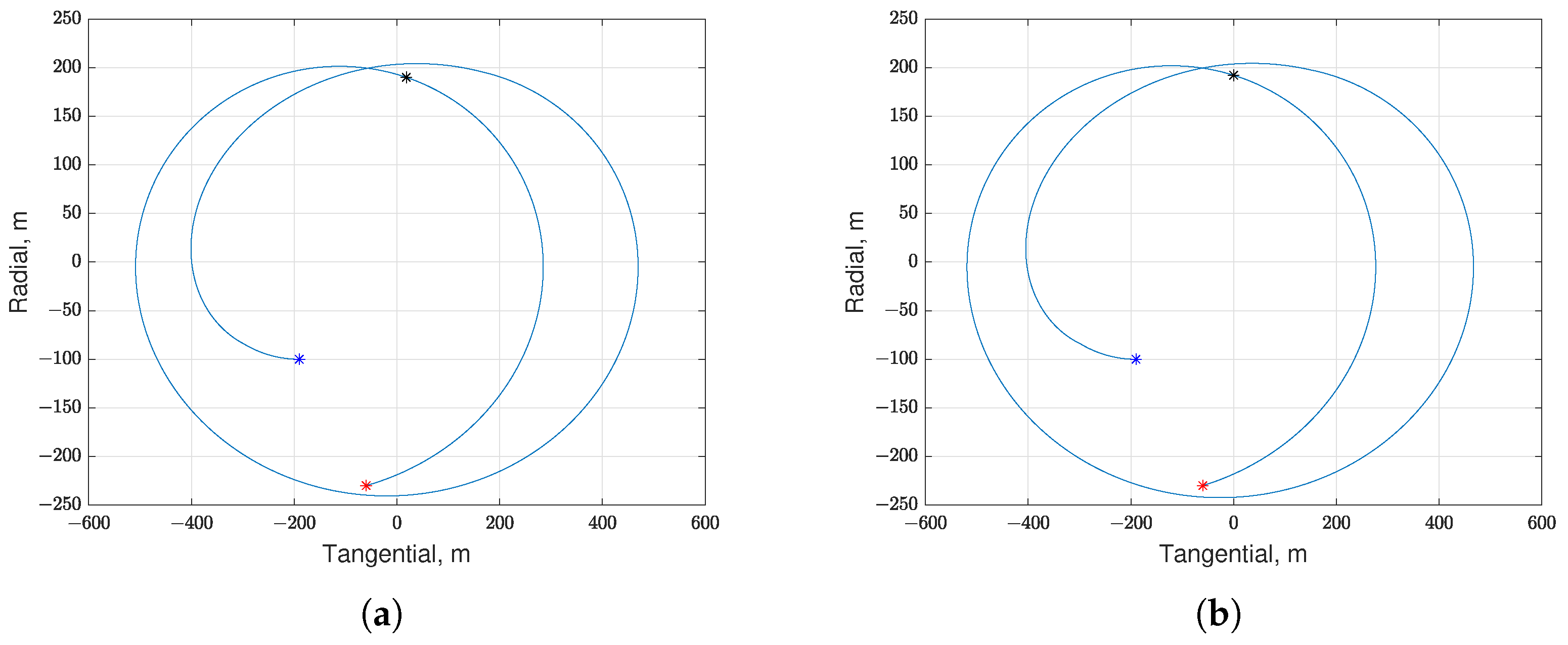

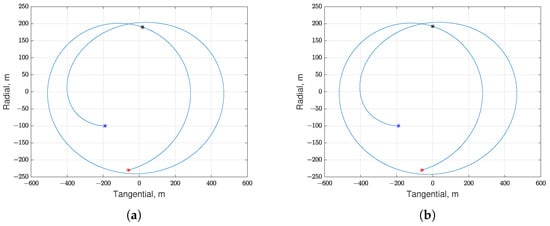

**Figure 12.**Relative 2D Trajectory in Hill’s Coordinates. (

**a**) Unconstrained Trajectory using Scheme 1. (

**b**) Constrained Trajectory using Scheme 1.

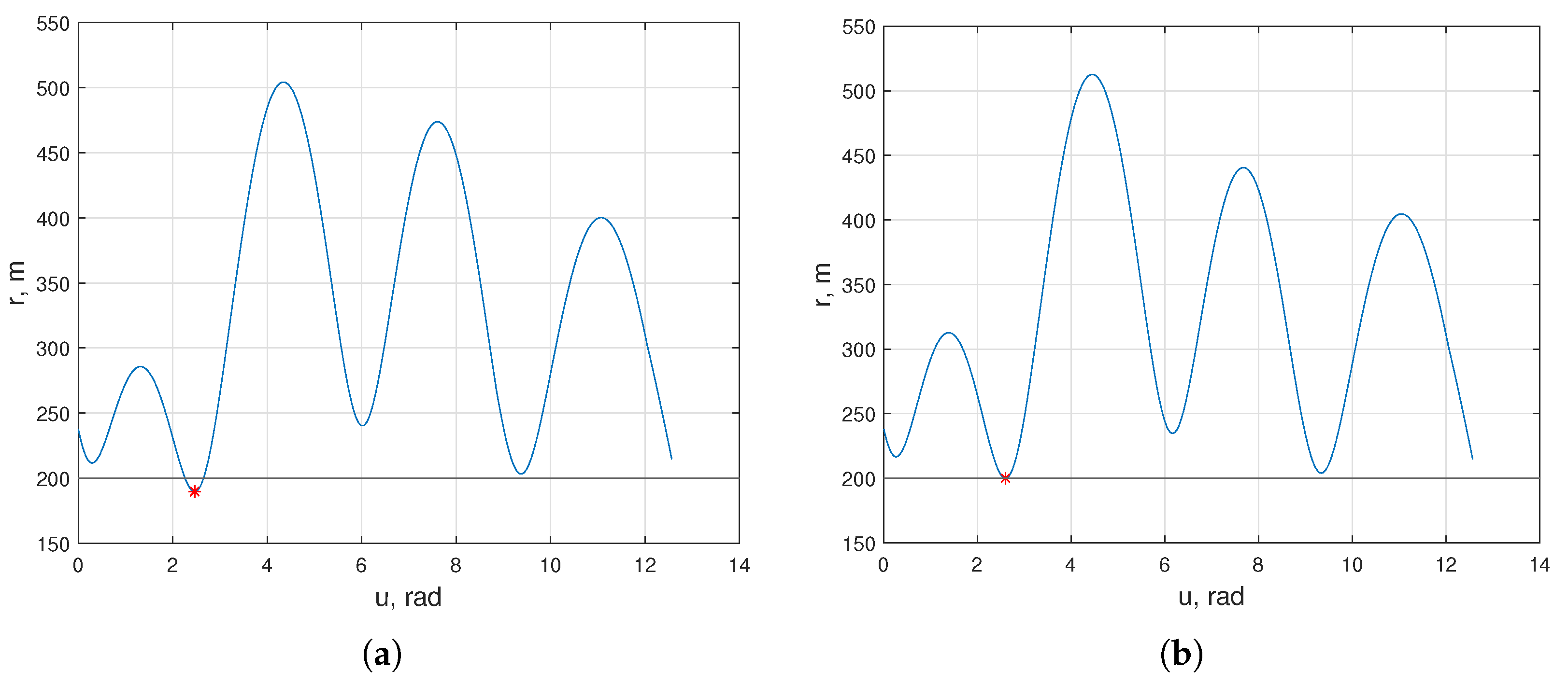

**Figure 13.**Evolution of Relative Distance. (

**a**) Unconstrained Distance using Scheme 1. (

**b**) Constrained Distance using Scheme 1.

Scheme Identifier | Dimensionality | Number of Impulses | Maneuver Type |
---|---|---|---|

1 | 2D | 3 | RT-RT-RT |

2 | 3D | 4 | RT-RT-RT-N |

3 | 3D | 3 | RTN-RTN-RTN |

4 | 3D | 3 | RTN-RTN-RTN |

Step, ${}^{\circ}$ | Time, s | Samples | Best Points, m/s | Optimized Value, m/s | Deviation, % |
---|---|---|---|---|---|

20 | 0.01 | 350 | 0.3106 | 0.3075 | 0.9992 |

1 | 0.03 | 130139 | 0.3105 | 0.3075 | 0.9799 |

0.05 | 2.53 | 51850799 | 0.3105 | 0.3075 | 0.9799 |

- | Scheme 1 | AVANTI | Numerical |
---|---|---|---|

${u}_{1},\mathrm{rad}$ | 0 | 2.5830 | 0 |

${u}_{2},\mathrm{rad}$ | 8.8550 | 5.7246 | 9.4540 |

${u}_{3},\mathrm{rad}$ | 12.5573 | 8.8662 | 12.5664 |

$\delta {v}_{1T},\mathrm{m}/\mathrm{s}$ | −0.1654 | −0.2964 | −0.1645 |

$\delta {v}_{2T},\mathrm{m}/\mathrm{s}$ | 0.0084 | −0.0379 | 0.0079 |

$\delta {v}_{3T},\mathrm{m}/\mathrm{s}$ | 0.1308 | 0.3080 | 0.1304 |

$\delta {v}_{1R},\mathrm{m}/\mathrm{s}$ | −0.0264 | 0 | −0.0296 |

$\delta {v}_{2R},\mathrm{m}/\mathrm{s}$ | −0.0012 | 0 | −0.0002 |

$\delta {v}_{3R},\mathrm{m}/\mathrm{s}$ | −0.0204 | 0 | −0.0235 |

$\sqrt{J},\mathrm{m}/\mathrm{s}$ | 0.3083 | 0.6422 | 0.3075 |

% | 0.2716 | 108.8497 | - |

Mean Relative Orbital Elements, m | ||||
---|---|---|---|---|

${\mathit{a}}_{\mathit{c}}\mathit{\delta}\mathit{a}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}\mathit{\lambda}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{e}}_{\mathit{x}}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{e}}_{\mathit{y}}$ | |

Desired | 0 | −5000 | 150 | 0 |

Achieved | −0.2386 | −5000.5059 | 150.1075 | −2.7300 |

Mean Relative Orbital Elements, m | |||||||
---|---|---|---|---|---|---|---|

Algorithm | Metric | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}\mathit{a}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}\mathit{\lambda}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{e}}_{\mathit{x}}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{e}}_{\mathit{y}}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{i}}_{\mathit{x}}$ | ${\mathit{a}}_{\mathit{c}}\mathit{\delta}{\mathit{i}}_{\mathit{y}}$ |

Scheme 2 | Desired | 0 | −5000 | 150 | 0 | 89.9863 | 1.5707 |

Achieved | −0.2774 | −5001.5310 | 150.1351 | −2.7309 | 89.9618 | 0.2859 | |

Scheme 3 | Desired | 0 | −5000 | 150 | 0 | 89.9863 | 1.5707 |

Achieved | −0.2781 | −5001.0765 | 150.1301 | −2.7313 | 89.9647 | −0.7769 | |

Scheme 4 | Desired | 0 | −5000 | 150 | 0 | 89.9863 | 1.5707 |

Achieved | −0.2897 | −4992.6705 | 150.6405 | 2.7705 | 89.9661 | −1.7231 |
