Article

Microbial Consortium of PGPR, Rhizobia and Arbuscular Mycorrhizal Fungus Makes Pea Mutant SGECdt Comparable with Indian Mustard in Cadmium Tolerance and Accumulation

by
Andrey A. Belimov
1,*,
Alexander I. Shaposhnikov
1,
Tatiana S. Azarova
1,
Natalia M. Makarova
1,
Vera I. Safronova
1,
Vladimir A. Litvinskiy
2,
Vladimir V. Nosikov
2,
Aleksey A. Zavalin
2 and
Igor A. Tikhonovich
1,3
1
All-Russia Research Institute for Agricultural Microbiology, Podbelskogo sh. 3, Pushkin, 196608 Saint-Petersburg, Russia
2
Pryanishnikov Institute of Agrochemisty, Pryanishnikova str. 31A, 127434 Moscow, Russia
3
Saint-Petersburg State University, University Embankment, 199034 Saint-Petersburg, Russia
*
Author to whom correspondence should be addressed.
Plants 2020, 9(8), 975; https://doi.org/10.3390/plants9080975
Submission received: 19 June 2020 / Revised: 25 July 2020 / Accepted: 28 July 2020 / Published: 31 July 2020
(This article belongs to the Special Issue Pea-Rhizobial and Pea-Mycorrhizal Symbioses)
Browse Figures
Versions Notes

Abstract

:
Cadmium (Cd) is one of the most widespread and toxic soil pollutants that inhibits plant growth and microbial activity. Polluted soils can be remediated using plants that either accumulate metals (phytoextraction) or convert them to biologically inaccessible forms (phytostabilization). The phytoremediation potential of a symbiotic system comprising the Cd-tolerant pea (Pisum sativum L.) mutant SGECdt and selected Cd-tolerant microorganisms, such as plant growth-promoting rhizobacterium Variovorax paradoxus 5C-2, nodule bacterium Rhizobium leguminosarum bv. viciae RCAM1066, and arbuscular mycorrhizal fungus Glomus sp. 1Fo, was evaluated in comparison with wild-type pea SGE and the Cd-accumulating plant Indian mustard (Brassica juncea L. Czern.) VIR263. Plants were grown in pots in sterilized uncontaminated or Cd-supplemented (15 mg Cd kg−1) soil and inoculated or not with the microbial consortium. Cadmium significantly inhibited growth of uninoculated and particularly inoculated SGE plants, but had no effect on SGECdt and decreased shoot biomass of B. juncea. Inoculation with the microbial consortium more than doubled pea biomass (both genotypes) irrespective of Cd contamination, but had little effect on B. juncea biomass. Cadmium decreased nodule number and acetylene reduction activity of SGE by 5.6 and 10.8 times, whereas this decrease in SGECdt was 2.1 and 2.8 times only, and the frequency of mycorrhizal structures decreased only in SGE roots. Inoculation decreased shoot Cd concentration and increased seed Cd concentration of both pea genotypes, but had little effect on Cd concentration of B. juncea. Inoculation also significantly increased concentration and/or accumulation of nutrients (Ca, Fe, K, Mg, Mn, N, P, S, and Zn) by Cd-treated pea plants, particularly by the SGECdt mutant. Shoot Cd concentration of SGECdt was twice that of SGE, and the inoculated SGECdt had approximately similar Cd accumulation capacity as compared with B. juncea. Thus, plant–microbe systems based on Cd-tolerant micro-symbionts and plant genotypes offer considerable opportunities to increase plant HM tolerance and accumulation.

1. Introduction

Most of the commonly known plants recommended for phytoremediation of heavy metal (HM) polluted soils belong to the family Brassicaceae, because of their relatively high metal tolerance and accumulation [1,2,3]. Species such as the agricultural crop Indian mustard (Brassica juncea (L.) Czern & Coss) have lower HM tolerance than hyperaccumulators but produce more biomass and thus extract more HMs. Although HM-hyperaccumulating species (e.g., Thlaspi caerulescens J.Presl & C.Presl) are very HM-tolerant, their low growth rate and biomass limit their utility for phytoremediation of new sites. This has stimulated the search for suitable plants of other families, including legumes (family Fabaceae), which grow rapidly to produce high biomass but are characterized by relatively low tolerance to HMs [4,5] and translocation of HMs from roots to shoots [6,7].
Unlike representatives of Brassicaceae, legumes form nitrogen-fixing symbiosis with nodule bacteria (rhizobia) and obligate symbiosis with arbuscular mycorrhizal fungi (AMF), which mainly supply the plant with nitrogen and phosphorus, respectively. In addition, associative symbiosis of legumes with plant growth-promoting rhizobacteria (PGPR) exerts multiple beneficial effects on plant growth and nutrition. An advanced symbiotic potential of legumes helps improve soil fertility, biodiversity and activity of soil biota, soil genesis and hence maintains and restores healthy ecosystems. Symbiotic interactions of legumes with rhizobia [8,9], AMF [10,11,12,13], and PGPR [11,14,15,16,17] substantially increased legume adaptation to abiotic stresses, potentially allowing these technologies to be used to remediate arid and contaminated soils. While these interactions have been discussed in detail [18], of particular note is the important role of the bacterial enzyme 1-aminocyclopropane-1-carboxylate (ACC) deaminase in increasing the resistance of plants, including legumes, to HMs by decreasing biosynthesis of stress phytohormone ethylene [19,20,21].
Additive and synergistic effects on plant growth and nutrition, as well as positive interactions between microorganisms, were achieved when legume plants were inoculated with various combinations of the abovementioned symbiotic microorganisms [22,23,24]. However, there are few reports of combined inoculations with micro-symbionts enhancing adaptation of legumes to HM stress. When Trifolium repens was cultivated in Cd-supplemented soil, co-inoculation with Glomus mosseae and Brevibacillus brevis had additive effects on plant growth, accumulation of nutrient elements and toxic Cd [25]. Moreover, B. brevis stimulated nodulation on roots by native rhizobia present in soil, probably due to the indole acetic acid produced by the bacterium [26]. Similar results were obtained with Glomus mosseae and PGPR strain Bacillus cereus [27]. Synergistic increase in shoot biomass, nodulation frequency and accumulation of Cd, Pb, and Zn, along with better uptake of nutrients (n, P, K, Ca, Mg, and Fe), was observed in Lotus edulis plants cultivated in HM-contaminated soil and inoculated with a mixture of Mesorhizobium loti and Variovorax paradoxus [28]. Combined inoculation with Sinorhizobium meliloti and Paenibacillus mucilaginosus improved growth and increased shoot Cu concentration, but decreased oxidative stress in Medicago lupulina plants grown in Cu-contaminated soil [29]. Synergistic effect on decrease in Cd, Cu, and Zn concentrations was observed in Lupinus albus plants inoculated with Bradyrhizobium lupini, Ochrobactrum sp. and Pseudomonas sp. [30]. Since polluted sites often contain a mixture of toxic metals and are subjected to other stresses (aridity, low nutrients, erosion, and extreme pH values), applying microbial consortia with multiple complementary beneficial traits may improve the phytoremediation processes.
Selecting resistant microbes and plants is needed for effective symbiotic function in the presence of toxic metals because legumes are relatively sensitive to heavy metals. Although plant mutants with altered metal tolerance and accumulation have been used to study physiological mechanisms regulating these traits [31,32,33], using these plants to study the role of microorganisms in plant–HMs interactions and phytoremediation of polluted soils is very limited. In this respect, the pea (Pisum sativum L.) mutant SGECdt with increased Cd tolerance and Cd accumulation [34] is of particular interest. This mutant maintained better growth, nutrient homeostasis [34,35], water relations [36], and root function [37] than the wild-type SGE line when grown in Cd-containing nutrient solutions. Inoculation with the PGPR V. paradoxus strain 5C-2 containing ACC deaminase alleviated the negative effect of Cd on nodulation and nitrogen fixation in SGECdt, suggesting that plant genotype mediates the legume–rhizobia symbiosis [38]. Recently rhizobial ACC deaminase of Rhizobium leguminosarum bv. viciae strain RCAM1066 was shown to increase nodulation, nutrient uptake, and Cd tolerance of SGECdt grown in Cd-supplemented soil [39].
This report aimed to investigate a beneficial role of plant–microbe interactions for tolerance of legume plants to toxic Cd and to evaluate the phytoremediation potential of a symbiotic system comprising the Cd-tolerant pea mutant SGECdt and a consortium of previously selected Cd-tolerant microorganisms (PGPR V. paradoxus, nodule bacterium R. leguminosarum bv. Viciae, and AMF Glomus sp.). It was compared with wild-type plants and the Indian mustard (Brassica juncea) plant, which is actively used in phytoremediation [1,2,3].

2. Results

2.1. Plant Growth Parameters

Cadmium significantly inhibited shoot, seed, and total biomass production of uninoculated and particularly inoculated SGE plants (Figure 1a,b,d). Root growth of inoculated SGE plants was also inhibited by Cd and a corresponding tendency was observed for uninoculated SGE roots (p = 0.025; n = 5; Student’s t test). Contrary to this, biomass production of the SGECdt mutant was not affected by Cd treatment, except for decreased root biomass (by 15%) of inoculated plants (Figure 1c). Inoculation with symbiotic microorganisms significantly (by 2–3 times, p < 0.01) increased biomass of all plant organs of both pea genotypes in the absence and presence of toxic Cd concentration (Figure 1). Growth of B. juncea was less affected by Cd than SGE, with significant negative effects on shoot biomass of uninoculated and inoculated plants and on total biomass of uninoculated plants (Figure 1a). Inoculation with microorganisms did not affect B. juncea biomass (Figure 1). Representative plants of pea genotypes and B. juncea photographed at 42 DAP are presented in Figure 2.

2.2. Symbiotic Activities of Microorganisms and Plants

When the pea genotypes were grown in uncontaminated soil, there were no genotypic differences in the symbiotic parameters measured (Table 1). At 14 DAP, the number of V. paradoxus 5C-2 on pea roots was about three times bigger than on B. juncea roots. Over the course of the experiment, this difference became insignificant and at 83 DAP the number of V. paradoxus 5C-2 decreased about 10 times independently of soil Cd concentration (Table 1). Treatment with Cd decreased nodule number and acetylene reduction activity of SGE by 5.6 and 10.8 times, respectively, whereas the decrease in these parameters in SGECdt roots was 2.1 and 2.8 times only (Table 1). Frequency of mycorrhizal structures decreased in roots of Cd-treated SGE by 25%. Significant difference (p = 0.02) between SGE and SGECdt grown in Cd-supplemented soil was observed for relative arbuscular richness in roots (Table 1). B. juncea did not form nodules or mycorrhiza, as expected.

2.3. Cadmium Concentration in Plants

Inoculation decreased shoot Cd concentration of both pea genotypes but increased shoot Cd concentration of B. juncea (Figure 3a). On the contrary, Cd concentration in pea seeds increased due to inoculation (Figure 3b). The mutant seeds had a higher Cd concentration compared to wild-type SGE, and this trend was observed for shoots of inoculated plants (p = 0.005; n = 5; Student’s t test). B. juncea had a maximal value of shoot Cd concentration, whereas mutant SGECdt possessed maximal Cd concentration in seeds, particularly in inoculated plants. Accumulation of Cd (Cd content) in B. juncea shoots was about three and two times more than in shoots of SGE and SGECdt, respectively (Figure 3c). Inoculation increased content Cd in pea seeds by about 10 times with a maximal value for SGECdt, but scarcely affected Cd content in B. juncea seeds (Figure 3d). As a result, Cd content in the aboveground part of SGECdt was twice that of SGE, and the inoculated SGECdt had approximately similar Cd accumulation capacity as compared with uninoculated B. juncea (Figure 3e).

2.4. Plant Nutrient Uptake

Both pea genotypes grown in Cd-supplemented soil had lower N concentration, N content, and 15N content in shoots of inoculated plants than the inoculated plants grown in uncontaminated soil (Table 2). Nevertheless, the Cd-treated and inoculated mutant SGECdt had higher shoot N content and 15N content than SGE. In addition, shoot N concentration of the mutant was greater after inoculation of Cd-untreated plants and in uninoculated Cd-treated plants. Cadmium treatment decreased N and 15N content in seeds of inoculated wild-type SGE, leading to significant genotypic differences against SGECdt (Table 2). B. juncea shoots and seeds showed higher values of 15N fraction as compared with pea, suggesting better assimilation of mineral nitrogen from fertilizer by this plant species (Table 2). However, N concentration and N content were generally lower in B. juncea shoots and seeds.
Inoculation with the microbial consortium significantly increased the concentration of many other nutrient elements in pea shoots (Figure 4). This effect varied according to pea genotype and soil Cd status. The most pronounced effect of inoculation was observed on Ca, Fe, Mg, Mn, and P concentrations. Cadmium treatment had no effect on shoot nutrient concentrations of uninoculated plants, except increased S concentration in SGE (Figure 4g) and Zn concentration in SGECdt (Figure 4h). In inoculated plants, the Cd treatment increased Fe, Mg, P, and S concentrations in SGECdt shoots, and K, Mg, and S concentrations in SGE shoots, respectively. Inoculation also induced genotypic differences, with higher Fe, Mg, and Mn concentrations in the inoculated SGECdt (Figure 4b,d,e) than wild-type (WT) plants. In contrast to their effect on pea plants, inoculation and Cd treatment did not affect elemental concentration of B. juncea shoots (Figure 4).
Generally, inoculation did not affect seed nutrient concentration except for increased K and P concentration in both pea genotypes grown in both soils, and increased Zn concentration in Cd-treated SGECdt (Figure 5). Cadmium treatment also had little effect on seed nutrient concentrations except for decreased Ca concentration in inoculated SGE, decreased K concentration in inoculated SGECdt, and decreased Zn concentration in uninoculated SGECdt. Pea genotype had no effect on seed nutrient concentrations, with the only significant differences being the higher Ca concentration (Figure 5a) and the lower K concentration (Figure 5c) in inoculated and uninoculated SGECdt, respectively.
Inoculated pea plants accumulated several times more nutrients in shoots (Table S1) and seeds (Table S2) than uninoculated plants. This occurred for both pea genotypes, but not for B. juncea. The SGECdt mutant accumulated about twice as many nutrients in shoots and seeds than SGE, when pea plants were grown in Cd-supplemented soil and inoculated with the microbial consortium. A similar tendency was observed for Cd-treated uninoculated pea plants if genotypic difference was estimated by Student’s t test (p < 0.05; n = 5; Student’s t test). Treatment with Cd decreased Ca, Fe, K, and P contents in shoots (Table S1) and Ca, K, Mg, P, S, and Zn contents in seeds (Table S2) of SGE. However, Cd treatment did not affect nutrient accumulation in the uninoculated SGECdt mutant, and even increased shoot nutrient status of inoculated plants, e.g., Fe, Mg, Mn, P, and S (Table S1). Also, Cd treatment decreased K, Mg, Mn, P, S, and Zn concentration in shoots and/or seeds of B. juncea (Tables S1 and S2).

3. Discussion

3.1. Plant Growth

The Cd-tolerant SGECdt mutant grew better than the WT when exposed to Cd, as expected and consistent with previous observations when these genotypes were grown in Cd-supplemented soil and inoculated with R. leguminosarum bv. viciae RCAM1066 [39]. Here inoculation with the microbial consortium significantly increased biomass of both pea genotypes, but particularly of the SGECdt mutant grown in Cd-supplemented soil, suggesting establishment of efficient symbiotic interactions under stressful conditions. This was most probably due to initial specific selection of the introduced strains V. paradoxus 5C-2 [40], nodule bacterium R. leguminosarum bv. viciae RCAM1066 [41], and Glomus sp. 1Fo [42] as Cd-tolerant and efficient micro-symbionts.
Inoculating with symbiotic microorganisms promoted growth and nutrition of various legume plants grown in HM-contaminated soils [9,17,18]. Pea plants grown in Cd-contaminated soil had bigger shoot and root biomass after inoculation with PGPR Pseudomonas brassicacearum Am3 and P. marginalis Dp1 having ACC deaminase activity [43]. ACC-utilizing PGPR V. paradoxus 5C-2 stimulated growth and development nitrogen-fixing symbiosis in pea mutant SGECdt in the presence of toxic Cd in quartz sand culture [38]. Inoculation with various Cd-tolerant R. leguminosarum bv. viciae strains increased biomass and accumulation of N in Cd-treated pea varieties [44]. The important role of rhizobia and their ACC deaminase activity in alleviation of Cd stress for pea plants was recently demonstrated using R. leguminosarum bv. viciae RCAM1066 and the SGECdt mutant [39]. Inoculating pea plants with the AMF Glomus intraradices BEG141 attenuated the negative effects of toxic soil Cd on pea growth and leaf chlorophyll fluorescence due to sequestration of Cd in roots [45]. Similarly, G. intraradices BEG141 stimulated biomass of the same pea genotypes in another experiment with Cd-contaminated soil; however, additional inoculation with R. leguminosarum bv. viciae strain G and/or with ACC-utilizing PGPR P. brassicacearum Am3 had no further effects [46]. Thus, successful application of microbial consortia requires active interaction between the microbial components and the plant.
Cd tolerance of B. juncea was higher than of pea SGE, as estimated by percentage of Cd-induced decrease in biomass production (Figure 1). However, the microbial consortium counteracted the negative effect of Cd on SGE, thus stimulating biomass production even of uninoculated plants grown in uncontaminated soil. On the contrary, the microorganisms had little effect on B. juncea growth, as it cannot form symbiosis with rhizobia and AMF. R. leguminosarum bv. viciae RCAM1066 together with Glomus sp. 1Fo seemed to play a crucial role in pea growth promotion, while V. paradoxus 5C-2 was insufficient to stimulate growth of B. juncea. Positive effects of V. paradoxus 5C-2 on pea were likely caused by stimulating nitrogen-fixing symbiosis via ACC deaminase activity. Indeed, an ACC deaminase mutant of this strain had limited effects on nodulation in pea plants subjected to drought [47], and wild-type V. paradoxus 5C-2 restored nodulation of Cd-treated SGE and SGECdt after inoculation with R. leguminosarum bv. viciae RCAM1066 [38].
Applying microbial consortia of PGPR, rhizobia, and AMF showed additive positive effects on growth and nutrition of other legume plants: (1) Medicago sativa [48] and (2) M. arborea [49] inoculated with Enterobacter sp., Sinorhizobium meliloti, and G. mosseae and grown in uncontaminated soil; (3) Trigonella foenum-graecum inoculated with ACC-utilizing Bacillus subtilis, S. meliloti, and Rhizophagus irregularis and grown in arid soil [50]. In addition, Barnawal et al. [51] presented similar positive results on inoculation of pea with ACC-utilizing Arthrobacter protophormiae, R. leguminosarum bv. Viciae, and G. mosseae and subjected to salinity stress. These reports support the view that microbial consortia can increase adaptation of plants to adverse soil factors, including plants subjected to HM toxicity, more efficiently than their components.

3.2. Assessing Microbial Symbioses

Strain V. paradoxus 5C-2 was initially isolated from the rhizosphere of B. juncea cultivated in Cd-contaminated soil and possessed high Cd tolerance, produced auxins, and showed ACC deaminase activity [40]. Here, V. paradoxus 5C-2 colonized the roots of both pea genotypes grown in Cd-contaminated soil even more actively than B. juncea roots, and the number of bacteria was comparable to our previous experiments with pea cultivar Sparkle grown in uncontaminated soil [47]. This indicates that the pea rhizosphere is a favorable ecological niche for this strain. Therefore, it is logical to assume its active association with pea roots can be expressed in positive effects on plant growth and nodule formation [38,47]. Plant growth promotion by V. paradoxus 5C-2 might be related to production of auxins and ACC deaminase activity, since these traits are considered as the main mechanisms for stimulating plant growth and promoting nitrogen-fixing symbiosis by PGPR under stressful conditions, including HM toxicity [14,17,20].
It was assumed that symbiosis between legumes and rhizobia is sensitive to HMs, thus creating difficulties in using such plant–microbe systems for phytoremediation [9,52]. Therefore genetic engineering of HM-tolerant plants was proposed as a promising approach to solve this problem [15]. High Cd toxicity for nodulation of pea was also shown [39,53]. Our previous experiments with pea showed that the plant is more sensitive to Cd than rhizobia [41]. Inhibition of growth, uptake of nutrients, and induction of oxidative stress in pea plants caused by Cd was repeatedly demonstrated [53,54,55,56]. At the same time, many isolated R. leguminosarum bv. viciae strains, including RCAM1066, were described as Cd-tolerant [41,44]. These findings align with the results obtained here demonstrating the ability of Cd-tolerant pea genotype to form efficient nitrogen-fixing symbiosis with Cd-tolerant rhizobia in the presence of toxic Cd. Previously, the ACC deaminase of R. leguminosarum bv. viciae RCAM1066 counteracted the negative effects of Cd on nodulation of SGECdt [39]. Rhizobial ACC deaminase plays important role in adaptation of legumes to abiotic stresses [21,24], including HM toxicity [57]. In our experiments a combination of ACC deaminase activities of rhizobia and PGPR may contribute to the formation of symbiosis and growth stimulation of the SGECdt mutant.
The important role of AMF in the adaptation of various plants to unfavorable environmental conditions and in the phytoremediation of HM-polluted soils is well documented [12,58]. Because many AMF are highly resistant to HMs, mycorrhizal associations form in toxic soils [10,13]. In our experiments Glomus sp. 1Fo was able to form mycorrhiza on pea roots and Cd had little effect on formation of mycorrhizal structures even on relatively Cd-sensitive genotype SGE. This suggests successful development and function of this symbiosis under Cd stress.
It is important to emphasize that PGPR, rhizobia, and AMF possess functional compatibility and can exert positive effects on each other’s development [22,23,59]. For example, increased nodulation and mycorrhization was observed on chickpea (Cicer arietinum L.) inoculated with both Mesorhizobium ciceri and Glomus etunicatum [60]. Inoculation with P. putida and an unidentified AMF stimulated nodulation of subterranean clover (Trifolium subterraneum L.) with indigenous rhizobia [61]. Positive interactions between microorganisms introduced as triple consortia were also described. Namely: (1) M. sativa [48] and M. arborea [49] inoculated with Enterobacter sp., S. meliloti, and G. mosseae; (2) Trigonella foenum-graecum inoculated with B. subtilis, S. meliloti, and R. irregularis [50]; (3) pea inoculated with A. protophormiae, R. leguminosarum bv. Viciae, and G. mosseae [51]. Whether the introduced microorganisms interacted with each other could not be assessed in the present experiment since only the microbial consortium was applied. Such interactions are assumed since V. paradoxus 5C-2 stimulated nodulation of pea cv. Sparkle with indigenous rhizobia under water stress [47] and of mutant SGECdt with R. leguminosarum bv. viciae RCAM1066 in the presence of toxic Cd [38].

3.3. Plant Cadmium Concentration and Accumulation

Decreased shoot Cd concentration of the inoculated pea SGE and SGECdt can be explained by a dilution effect due to microbial stimulation of shoot growth, along with a limited amount of supplied Cd in pots. In accordance with this assumption, inoculation did not affect B. juncea shoot biomass but shoot Cd concentration slightly increased (Figure 3a). Increased shoot Cd concentration caused by inoculation of B. juncea with PGPR Bacillus megaterium was previously reported [62]. Shoots of B. juncea plants inoculated with ACC-utilizing and IAA-producing Bacillus sp. increased accumulation of Ni [63]. In contrast to shoots, inoculation increased Cd concentration in seeds of both pea and B. juncea, suggesting that microorganisms stimulated Cd translocation from roots into shoots and further into seeds. V. paradoxus 5C-2 seems to play a crucial role in this phenomenon, since this effect occurred in both plant species. The increased translocation of Cd from shoots to seeds was previously observed in pea plants inoculated with ACC-utilizing PGPR P. brassicacearum [46]. However, the effect of PGPR on translocation of Cd from shoots to seeds of B. juncea was not studied. Accepting this hypothesis, it can be assumed that V. paradoxus 5C-2 improved Cd tolerance mechanisms of plants via ACC deaminase activity and/or production of auxins, allowing plant tissues to tolerate Cd. Although the strain studied here, R. leguminosarum bv. viciae RCAM1066, contains ACC deaminase, the role of this trait in accumulation of Cd by SGE and SGECdt was insignificant, since similar effects were observed for RCAM1066 and its ACC deaminase minus mutant [39].
Analysis of literature showed that the effects of symbiotic microorganisms on accumulation of HMs significantly varied from positive to negative, suggesting opposing approaches to using microbes for phytoremediation technologies, both phytoextraction and phytostabilization. This is relevant for various symbionts such as PGPR [15,16,17,20,64], rhizobia [8,9,10,18], and AMF [10,12,13]. Legume plants inoculated with rhizobia or AMF often had decreased HM concentrations since enhanced plant biomass diluted the effect of HM uptake; however, the effect of PGPR on shoot HM concentration in legumes was more often neutral or positive [18]. Moreover, microorganisms, particularly PGPR [65,66] and AMF [10,13], can increase or decrease mobility and availability of HMs for plants, with the resultant effect depending on many factors, such as type and properties of microorganism, plant genotype, and soil HM concentration. Interestingly, when SGE and SGECdt were grown in heavily contaminated soil (30 mg Cd kg−1) shoot biomass halved, but inoculation with R. leguminosarum bv. viciae RCAM1066 increased shoot Cd concentration, particularly in the SGECdt mutant [39]. Comparing that report with the present results also indicates that the components of the microbial consortium used here could have the opposite effects on plant Cd accumulation, and most likely that strain Glomus sp. 1Fo affected the decrease in shoot Cd concentration.
Shoot Cd content of inoculated pea plants was increased even as shoot Cd concentration decreased (Figure 3c). Cadmium content in pea seeds was also increased, particularly in the SGECdt mutant (Figure 3d). Moreover, accumulation of Cd in the aerial part of SGECdt was similar to that of the uninoculated B. juncea (Figure 3e), the plant considered as one of the most efficient species for HM phytoextraction technologies [1,2,3]. Inoculation with the microbial consortium and the high Cd tolerance of the SGECdt mutant allowed high biomass accumulation. In addition, positive interactions between the introduced microorganisms might alter Cd accumulation. Examples confirming this hypothesis can be synergistic effects on growth and Cd accumulation by Lotus edulis and L. ornithopodioides co-inoculated with nodule bacterium M. loti and PGPR V. paradoxus 5C-2 [28], and by T. repens co-inoculated with AMF G. mosseae and PGPR B. brevis [25]. However, comparisons with metal-accumulating plant species like B. juncea were not performed in previous studies. Creating a symbiotic system comprising a Cd-tolerant legume plant and microorganisms allowed Cd phytoextraction that was as effective as using metal accumulators. Our result is an original contribution to the view that the high symbiotic potential allows legumes to be promising for phytoremediating polluted soils [9,15,18,21].

3.4. Plant Nutrient Uptake

The microbial consortium significantly improved N nutrition of pea plants subjected to Cd stress (Table 2) by forming a symbiosis with R. leguminosarum bv. viciae RCAM1066 that contributed to fixation of atmosphere N2. This also indirectly confirms the low percentage of 15N in pea plants compared to B. juncea, which does not form a symbiosis with rhizobia. On the other hand, the increased 15N content in inoculated pea plants grown in Cd-supplemented soil suggested better assimilation of mineral N originated from fertilizer. AMF play an important role in the uptake of mineral N from soil and fertilizers by plants [67]. Increased N uptake by pea plants inoculated with V. paradoxus 5C-2 under salinity [68] or with other ACC-utilizing and IAA-producing PGPR under Cd stress [43] was also reported. Therefore we propose that both Glomus sp. 1Fo and V. paradoxus 5C-2 can enhance mineral N nutrition of Cd-treated pea. Cadmium decreased nitrogen nutrition of inoculated plants when both N sources (N2 fixation and uptake of N fertilizer) became less available. This observation confirms the view that plant–microbe symbiosis is HM-sensitive [9,13,15]. Interestingly, significant genotypic differences in 15N content in shoots and seeds of SGECdt demonstrated that the mutant better assimilates mineral N under stressful conditions.
That inoculation increased biomass and concentration of many nutrients in pea shoots suggested that growth of uninoculated plants was constrained by a lack of mineral nutrition. Nutrients uptake from Cd-supplemented soil by pea shoots and seeds was significantly higher in SGECdt than SGE (Tables S1 and S2), suggesting better adaptation of the mutant to Cd toxicity. Indeed, maintaining nutrient homeostasis is an important mechanism of the Cd tolerance of this mutant [35]. AMF [10,13] and PGPR [16,17,23] supply plants with P and other nutrient elements from arid and HM-contaminated soils. Particularly, inoculation with ACC-utilizing and IAA-producing PGPR V. paradoxus 5C-2 [68] or P. brassicacearum Am3 and P. marginalis Dp1 [43] improved uptake of P, K, Ca, Mg, and Fe by pea plants treated with Cd or NaCl, respectively. The increased uptake of nutrients by the inoculated and Cd-treated SGECdt agrees with the better formation of mycorrhizal structures in the Cd-treated mutant than in SGE (Table 1). Therefore, we propose that Glomus sp. 1Fo and V. paradoxus 5C-2 contributed together and probably complemented each other by improving uptake of mineral nutrients by pea, particularly by the Cd-tolerant SGECdt mutant. It might be also proposed that Glomus sp. 1Fo was more efficient in stimulating nutrient uptake in pea as compared with V. paradoxus 5C-2, since the effect of the microbial consortium on B. juncea, which does not form symbiosis with AMF but does with PGPR, was for the most part insignificant.

4. Materials and Methods

4.1. Plants and Microorganisms

Two pea (Pisum sativum L.) genotypes, namely the wild-type laboratory line SGE and its Cd-tolerant mutant SGECdt described previously [34], were used. Pea seeds were propagated by the authors. Seeds of Indian mustard (Brassica juncea L. Czern.) genotype VIR263 having high Cd tolerance [69] were obtained from the N.I. Vavilov Institute of Plant Genetic Resources (Saint-Petersburg, Russian Federation). Cadmium-tolerant strains of PGPR V. paradoxus strain 5C-2 [40], nodule bacterium R. leguminosarum bv. viciae strain RCAM1066 [41], and AMF strain Glomus sp. 1Fo [42] were obtained from the Russian Collection of Agricultural Microorganisms (RCAM, St.-Petersburg, Russian Federation, http://www.arriam.ru/kollekciya-kul-tur1/). During the experimental work the bacteria were maintained on agar yeast extract mannitol (YM) agar [70]. Inoculum Glomus sp. 1Fo was obtained by growing mycorrhized plants of Swedish ivy (Plectranthus australis L.) in sterilized soil and preparing a mixture of soil and roots with a total intensity of mycorrhizal infection of 80%. A similar soil–root mixture containing no endomycorrhizal fungi was used for inoculation as a control treatment.

4.2. Plant Growth Conditions

A sod-podzolic light loamy soil was dried, sieved through 5 mm mesh, sterilized by autoclaving for 4 h at 120 °C, and then incubated under sterile conditions for one month at room temperature for stabilization. Then the following soil characteristics were determined using standard methods (mg kg−1): total C, 25,000 ± 550; total N, 1800 ± 100; nitrate N, 10 ± 1; ammonium N, 15 ± 3; available P, 81 ± 5; available K, 87 ± 7; total Cd, 0.2 ± 0.1; total exchangeable bases, 63 ± 4 mg equiv; pHKCl = 4.7 ± 0.1; pHH2O = 5.5 ± 0.5. Pots were filled with 2 kg soil and each pot was fertilized with nutrient solutions resulting in (mg kg−1): KCl, 300; MgSO4, 30; CaCl2, 20; H3BO3, 3; MnSO4, 3; ZnSO4, 3; Na2MoO4, 2. Nitrogen fertilizer was added as 15NH415NO3 in the amount of 15 mg kg−1 with a final enrichment by 35 atom % 15N. The soil was supplemented (or not) with CdCl2, yielding a concentration of 15 mg Cd kg−1 soil. Then the soil was watered to 80% of water holding capacity (WHC) and incubated at room temperature for 10 days for stabilization.
A pot experiment was carried out in a polyethylene greenhouse with natural lighting and temperature in summer (June–August, St.-Petersburg). The average monthly temperature, humidity, and daylight hours were for June +15.2 °C, 67.3%, 18 h; for July +19.5 °C, 71.2%, 18 h; and for August +16.2 °C, 74.3%, 18 h, respectively (Gismeteo, https://www.gismeteo.ru/). Seeds of pea and B. juncea were selected for homogeneity of seed weight, then surface-sterilized and scarified by treatment with 98% H2SO4 for 10 min, rinsed with sterile water, and germinated on moistened filter paper (Whatman #1) in the dark at 25 °C for 3 days. Each seedling was inoculated with a mixture of microorganisms: 1 mL of R. leguminosarum bv. viciae RCAM1066 and 1 mL of V. paradoxus 5C-2 water suspensions containing 107 cells mL−1 each and supplemented with 5 g of mycorrhizal inoculum immediately after sowing. Control seeds were treated with 5 g of soil–root mixture containing no endomycorrhizal fungi. Seven pots with four uniform seedlings per pot were prepared for each plant genotype and treatment. Pots were watered up to 70% WHC with evapotranspirational losses replenished every day by weighing the pots. The plants were cultivated for 83 days until maturity and harvested.

4.3. Parameters of Symbiotic Activities of Microorganisms and Plants

Several times (14, 42, and 83 days after planting—DAP), the roots of one pot of each treatment were used to monitor the presence of the introduced V. paradoxus 5C-2 on roots as described previously [71]. Briefly, the roots of four individual plants (n = 4) were thoroughly shaken to remove adhering soil particles and equal portions of 100 mg fresh weight (FW) without nodules were selected. Each root portion was gently washed in sterile tap water and homogenized with mortar and pestle. The homogenates were serially diluted in 10-fold steps and 50 µL aliquots were plated in two replicates on BPF agar medium supplemented with antibiotics (30 µg mL−1 kanamycin and 20 µg mL−1 rifampicin) to which V. paradoxus 5C-2 is resistant. The BPF medium was additionally supplemented with 40 µg mL−1 nystatin to prevent fungal growth. Characteristic yellow colonies of V. paradoxus 5C-2, which were absent on plates containing homogenates of uninoculated roots, were counted after incubation at 30 °C for four days. Data were expressed as the number of colony forming units (CFUs) per g of root fresh weight (FW).
At 42 DAP, the remaining root tissues of each plant, together with the attached nodules, were placed separately in hermetically sealed glass flasks (four flasks per treatment, n = 4) and incubated for 1 h with 10% acetylene in a gas phase. The reaction was terminated by addition of Nessler’s reagent to the flasks. The nitrogen fixation activity was measured by the acetylene-reduction method [72] using a gas chromatograph GC-2014 (Shimadzu, Kyoto, Japan). After that, the roots were removed from the flasks, washed, and used for calculation of nodules.
At the end of the experiment (83 DAP) the roots of four plants from each of the remaining five pots were combined (n = 5), washed, dried, weighed, and prepared for estimation of mycorrhizal colonization as described by Turnau et al. [58] with some modifications. The roots were treated with 10% KOH for 10 min at 95 °C and washed with water three times. Then, the mycelium in the roots was stained by treatment for 3 min in 10% acetic acid supplemented with 5% black mascara solution (Sheaffer Pen, Shelton, Connecticut, USA) and thoroughly washed with water. Microscopy of roots was performed using light microscope Axio Lab.A1 (Carl Zeiss, Oberkochen, Germany). Frequency of mycorrhizal structures (F), colonization intensity within mycorrhizal roots (M), relative arbuscular richness (A), and relative vesicular richness (V) were assessed as described previously [73].

4.4. Cadmium and Nutrient Concentrations in Plants

The dried plant shoots (leaves, stems, and pod walls) and seeds were ground to a powder. Nitrogen concentration and atom % 15N in the ground samples were determined using the elemental analyzer (FlashEA 1112, Thermo Scientific, Italy) coupled with the isotope ratio mass spectrometer Delta V Advantage (Thermo Fisher Scientific, Dreieich, Germany) and the continuous flow interface ConFlo III following manufacturer’s instructions. To determine Cd and nutrient (Ca, Fe, K, Mg, Mn, S, P, and Zn) concentrations, the ground shoot samples were digested in a mixture of concentrated HNO3 and 38% H2O2 at 70 °C using DigiBlock digester (LabTech, Sorisole, Italy). Elemental concentrations of digested plant samples were determined using an inductively coupled plasma emission spectrometer ICPE-9000 (Shimadzu, Kyoto, Japan).

4.5. Statistical Analysis

Statistical analysis of the data was performed using the software STATISTICA version 10 (TIBCO Software Inc., Carlsbad, CA, USA). ANOVA analysis with Fisher’s LSD test and Student’s t test was used to evaluate differences between means.

5. Conclusions

A microbial consortium comprising types of micro-symbionts (PGPR, rhizobia, and AMF) stimulated growth and Cd accumulation by legume plants grown in Cd-contaminated soil. Using a specific legume–microbe system based on an HM-tolerant plant and selected microbes with high Cd tolerance and symbiotic efficiency was original: pea mutant SGECdt accompanied with V. paradoxus 5C-2, R. leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. This system showed high symbiotic potential under stress conditions caused by Cd toxicity, allowing Cd tolerance and accumulation similar to the cruciferous plant Indian mustard (B. juncea) that is often applied for phytoremediation of HM-contaminated soils. The results emphasize that legume plants can be used for phytoremediation when accompanied by a consortium of symbiotic microorganisms successfully integrating with the HM-tolerant plant genotype.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/8/975/s1, Table S1: Nutrient contents in shoots of plants grown in uncontaminated and Cd-supplemented soil; Table S2: Nutrient contents in seeds of plants grown in uncontaminated and Cd-supplemented soil.

Author Contributions

Investigation, A.A.B., A.I.S., T.S.A., N.M.M., V.I.S. and V.A.L.; methodology, A.I.S., V.V.N.; writing, A.A.B.; visualization, T.S.A.; project administration and data curation, V.I.S.; supervision, A.A.Z.; editing and review, I.A.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in the main by the Ministry of Education and Science of the Russian Federation, grant number 16.512.11.2162, and the Russian Science Foundation funded determination of nutrient concentrations in plants, grant number 19-16-00097, and deposition of AMF strain Glomus sp. 1Fo in the RCAM collection, grant number 16-16-00080.

Acknowledgments

We are very grateful to Puhalsky J.V. for valuable assistance in conducting pot experiment and preparation of samples for elemental analysis and to Ian C. Dodd for critically reading the manuscript and helping to improve the English language. The research was supported by using the equipment of the research resource centers Molecular and Cell Technologies and Chemical Analysis and Materials of St. Petersburg State University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gisbert, C.; Clemente, R.; Navarro-Aviñó, J.; Baixauli, C.; Ginér, A.; Serrano, R.; Walker, D.J.; Bernal, M.P. Tolerance and Accumulation of Heavy Metals by Brassicaceae Species Grown in Contaminated Soils from Mediterranean Regions of Spain. Environ. Exp. Bot. 2006, 56, 19–27. [Google Scholar] [CrossRef]
  2. Vamerali, T.; Bandiera, M.; Mosca, G. Field Crops for Phytoremediation of Metal-Contaminated Land. A Review. Environ. Chem. Lett. 2009, 8, 1–17. [Google Scholar] [CrossRef]
  3. Dar, M.I.; Khan, F.A.; Rehman, F.; Masoodi, A.; Ansari, A.A.; Varshney, D.; Naushin, F.; Naikoo, M.I. Roles of Brassicaceae in Phytoremediation of Metals and Metalloids. In Phytoremediation; Ansari, A., Gill, S., Gill, R., Lanza, G., Newman, L., Eds.; Springer: Cham, Switzerland, 2014; pp. 201–215. [Google Scholar] [CrossRef]
  4. Inouhe, M.; Ninomiya, S.; Tohoyama, H.; Joho, M.; Murayama, T. Different Characteristics of Root in the Cadmium-Tolerance and Cd-Binding Complex Formation between Mono- and Dicotyledonous Plants. J. Plant Res. 1994, 107, 201–207. [Google Scholar] [CrossRef]
  5. Mazen, A.M.A. Assessment of Heavy Metal Accumulation and Performance of Some Physiological Parameters in Zea Mays L. and Vicia Faba L. Grown on Soil Amended by Sewage Sludge Resulting from Sewage Water Treatment in the State of Qatar. Qatar Univ. Sci. J. 1995, 5, 353–359. [Google Scholar]
  6. Pettersson, O. Differences in Cadmium Uptake between Plant Species and Cultivars. Swed. J. Agric. Res. 1977, 7, 21–24. [Google Scholar]
  7. Kuboi, T.; Noguchi, A.; Yazaki, J. Family-Dependent Cadmium Accumulation Characteristics in Higher Plants. Plant Soil 1986, 92, 405–415. [Google Scholar] [CrossRef]
  8. Oves, M.; Zaidi, A.; Khan, M.S. Role of Metal Tolerant Microbes in Legume Improvement. In Microbes for Legume Improvement; Khan, M.S., Musarrat, J., Zaidi, A., Eds.; Springer: Wienna, Austria, 2010; pp. 337–352. [Google Scholar] [CrossRef]
  9. Hao, X.; Taghavi, S.; Xie, P.; Orbach, M.J.; Alwathnani, H.A.; Rensing, C.; Wei, G. Phytoremediation of Heavy and Transition Metals Aided by Legume-Rhizobia Symbiosis. Int. J. Phytoremediation 2013, 16, 179–202. [Google Scholar] [CrossRef]
  10. Leyval, C.; Turnau, K.; Haselwandter, K. Effect of Heavy Metal Pollution on Mycorrhizal Colonization and Function: Physiological, Ecological and Applied Aspects. Mycorrhiza 1997, 7, 139–153. [Google Scholar] [CrossRef]
  11. Artursson, V.; Finlay, R.D.; Jansson, J.K. Interactions between Arbuscular Mycorrhizal Fungi and Bacteria and Their Potential for Stimulating Plant Growth. Environ. Microbiol. 2006, 8, 1–10. [Google Scholar] [CrossRef]
  12. Göhre, V.; Paszkowski, U. Contribution of the Arbuscular Mycorrhizal Symbiosis to Heavy Metal Phytoremediation. Planta 2006, 223, 1115–1122. [Google Scholar] [CrossRef] [Green Version]
  13. Giasson, P.; Karam, A.; Jaouich, A. Arbuscular Mycorrhizae and Alleviation of Soil Stresses on Plant Growth. In Mycorrhizae: Sustainable Agriculture and Forestry; Siddiqui, Z.A., Akhtar, M.S., Futai, K., Eds.; Springer: Heidelberg, Germany, 2008; pp. 99–134. [Google Scholar] [CrossRef]
  14. de-Bashan, L.E.; Hernandez, J.-P.; Bashan, Y. The Potential Contribution of Plant Growth-Promoting Bacteria to Reduce Environmental Degradation—A Comprehensive Evaluation. Appl. Soil Ecol. 2012, 61, 171–189. [Google Scholar] [CrossRef]
  15. Gomez-Sagasti, M.T.; Marino, D. PGPRs and Nitrogen-Fixing Legumes: A Perfect Team for Efficient Cd Phytoremediation? Front. Plant Sci. 2015, 6, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Ullah, A.; Heng, S.; Farooq, M.; Munis, H.; Fahad, S.; Yang, X. Phytoremediation of Heavy Metals Assisted by Plant Growth Promoting (PGP) Bacteria: A Review. Environ. Exp. Bot. 2015, 117, 28–40. [Google Scholar] [CrossRef]
  17. Sharma, R.K.; Archana, G. Cadmium Minimization in Food Crops by Cadmium Resistant Plant Growth Promoting Rhizobacteria. Appl. Soil Ecol. 2016, 107, 66–78. [Google Scholar] [CrossRef]
  18. Safronova, V.I.; Piluzza, G.; Bullitta, S.; Belimov, A.A. Use of Legume-Microbe Symbioses for Phytoremediation of Heavy Metal Polluted Soils: Advantages and Potential Problems (Review). In Handbook for Phytoremediation; Golubev, I.A., Ed.; NOVA Science Publishers: New York, NY, USA, 2011; pp. 443–469. [Google Scholar]
  19. Arshad, M.; Saleem, M.; Hussain, S. Perspectives of Bacterial Acc Deaminase in Phytoremediation. Trends Biotechnol. 2007, 25, 356–362. [Google Scholar] [CrossRef]
  20. Glick, B.R. Using Soil Bacteria to Facilitate Phytoremediation. Biotechnol. Adv. 2010, 28, 367–374. [Google Scholar] [CrossRef]
  21. Nascimento, F.X.; Rossi, M.J.; Glick, B.R. Role of ACC Deaminase in Stress Control of Leguminous Plants. In Plant Growth Promoting Actinobacteria; Subramaniam, G., Arumugam, S., Rajendran, V., Eds.; Springer: Singapore, 2016; pp. 179–192. [Google Scholar] [CrossRef]
  22. Barea, J.M.; Azcón, R.; Azcón-Aguilar, C. Vesicular-Arbuscular Mycorrhizal Fungi in Nitrogen-Fixing Systems. Method Microbiol. 1992, 24, 391–416. [Google Scholar] [CrossRef]
  23. Nadeem, S.M.; Ahmad, M.; Zahir, Z.A.; Javaid, A.; Ashraf, M. The role of Mycorrhizae and Plant Growth Promoting Rhizobacteria (PGPR) in Improving Crop Productivity under Stressful Environments. Biotechnol. Adv. 2014, 32, 429–448. [Google Scholar] [CrossRef]
  24. Gupta, S.; Pandey, S. Unravelling the Biochemistry and Genetics of ACC Deaminase—An Enzyme Alleviating the Biotic and Abiotic Stress in Plants. Plant Gene 2019, 18, 100175. [Google Scholar] [CrossRef]
  25. Vivas, A.; Azcón, R.; Biró, B.; Barea, J.M.; Ruiz-Lozano, J.M. Influence of Bacterial Strains Isolated from Lead-Polluted Soil and Their Interactions with Arbuscular Mycorrhizae on the Growth of Trifolium pratense L. under Lead Toxicity. Can. J. Microbiol. 2003, 49, 577–588. [Google Scholar] [CrossRef]
  26. Vivas, A.; Barea, J.M.; Azcón, R. Interactive effect of Brevibacillus brevis and Glomus mosseae, both Isolated from Cd Contaminated Soil, on Plant Growth, Physiological Mycorrhizal Fungal Characteristics and Soil Enzymatic Activities in Cd Polluted Soil. Environ. Pollut. 2005, 134, 257–266. [Google Scholar] [CrossRef] [PubMed]
  27. Azcón, R.; Medina, A.; Roldán, A.; Biró, B.; Vivas, A. Significance of Treated Agrowaste Residue and Autochthonous Inoculates (Arbuscular Mycorrhizal Fungi and Bacillus cereus) on Bacterial Community Structure and Phytoextraction to Remediate Soils Contaminated with Heavy Metals. Chemosphere 2009, 75, 327–334. [Google Scholar] [CrossRef] [PubMed]
  28. Safronova, V.I.; Piluzza, G.; Zinovkina, N.Y.; Kimeklis, A.K.; Belimov, A.A.; Bullitta, S. Relationships between Pasture Legumes, Rhizobacteria an Nodule Bacteria in Heavy Metal Polluted Mine Waste of SW Sardinia. Symbiosis 2012, 58, 149–159. [Google Scholar] [CrossRef]
  29. Ju, W.; Liu, L.; Fang, L.; Cui, Y.; Duan, C.; Wu, H. Impact of Co-Inoculation with Plant-Growth-Promoting Rhizobacteria and Rhizobium on the Biochemical Responses of Alfalfa-Soil System in Copper Contaminated Soil. Ecotox. Environ. Safe 2019, 167, 218–226. [Google Scholar] [CrossRef]
  30. Pajuelo, E.; Dary, M.; Palomares, A.J.; Rodriguez-Llorente, I.D.; Carrasco, J.A.; Chamber, M.A. Biorhizoremediation of heavy metals toxicity using Rhizobium-legume symbioses. In Biological Nitrogen Fixation: Towards Poverty Alleviation through Sustainable Agriculture. Current Plant Science and Biotechnology in Agriculture; Dakora, F.D., Chimphango, S.B.M., Valentine, A.J., Elmerich, C., Newton, W.E., Eds.; Springer: Dordrecht, The Netherlands, 2008; Volume 42, pp. 101–104. [Google Scholar] [CrossRef]
  31. Pilon-Smith, E.; Pilon, M. Phytoremediation of Metals Using Transgenic Plants. Crit. Rev. Plant Sci. 2002, 21, 439–456. [Google Scholar] [CrossRef]
  32. Zhang, R.Q.; Tang, C.F.; Wen, S.Z.; Liu, Y.G.; Li, K.L. Advances in Research on Genetically Engineered Plants for Metal Resistance. J. Integr. Plant Biol. 2006, 48, 1257–1265. [Google Scholar] [CrossRef]
  33. Hassan, Z.; Aarts, M.G.M. Opportunities and Feasibilities for Biotechnological Improvement of Zn, Cd or Ni Tolerance and Accumulation in Plants. Environ. Exp. Bot. 2011, 72, 53–63. [Google Scholar] [CrossRef]
  34. Tsyganov, V.E.; Belimov, A.; Borisov, A.Y.; Safronova, V.I.; Georgi, M.; Dietz, K.-J.; Tikhonovich, I.A. A Chemically Induced New Pea (Pisum sativum L.) Mutant SGECdt with Increased Tolerance to, and Accumulation of Cadmium. Ann. Bot. 2007, 99, 227–237. [Google Scholar] [CrossRef]
  35. Belimov, A.A.; Malkov, N.V.; Puhalsky, J.V.; Safronova, V.; Tikhonovich, I.A. High Specificity in Response of Pea Mutant Sgecdt to Toxic Metals: Growth and Element Composition. Environ. Exp. Bot. 2016, 128, 91–98. [Google Scholar] [CrossRef]
  36. Belimov, A.A.; Dodd, I.C.; Safronova, V.I.; Malkov, N.V.; Davies, W.J.; Tikhonovich, I.A. The Cadmium Tolerant Pea (Pisum sativum L.) Mutant SGECdt is more Sensitive to Mercury: Assessing Plant Water Relations. J. Exp. Bot. 2015, 66, 2359–2369. [Google Scholar] [CrossRef] [Green Version]
  37. Belimov, A.A.; Malkov, N.V.; Puhalsky, J.V.; Tsyganov, V.E.; Bodyagina, K.B.; Safronova, V.; Dietz, K.-J.; Tikhonovich, I.A. The Crucial Role of Roots in Increased Cd-tolerance and Cd-accumulation in the Pea (Pisum sativum L.) Mutant SGECdt. Biol. Plant 2018, 62, 543–550. [Google Scholar] [CrossRef]
  38. Malkov, N.V.; Zinovkina, N.Y.; Safronova, V.I.; Belimov, A.A. Increase in Resistance of Legume-Rhizobial Complex to Cadmium Using Rhizosphere Bacteria Containing ACC Deaminase. Achiev. Sci. Technol. Agro-Industrial Complex 2012, 9, 53–57. [Google Scholar]
  39. Belimov, A.A.; Zinovkina, N.Y.; Safronova, V.I.; Litvinsky, V.A.; Nosikov, V.V.; Zavalin, A.A.; Tikhonovich, I.A. Rhizobial ACC Deaminase Contributes to Efficient Symbiosis with Pea (Pisum sativum L.) under Single and Combined Cadmium and Water Deficit Stress. Environ. Exp. Bot. 2019, 167, 103859. [Google Scholar] [CrossRef]
  40. Belimov, A.A.; Hontzeas, N.; Safronova, V.I.; Demchinskaya, S.V.; Piluzza, G.; Bullitta, S.; Glick, B.R. Cadmium-Tolerant Plant Growth-Promoting Bacteria Associated with the Roots of Indian Mustard (Brassica juncea L. Czern.). Soil Biol. Biochem. 2005, 37, 241–250. [Google Scholar] [CrossRef]
  41. Belimov, A.A.; Puhalsky, I.V.; Safronova, V.I.; Shaposhnikov, A.I.; Vishnyakova, M.A.; Semenova, E.V.; Zinovkina, N.Y.; Makarova, N.M.; Wenzel, W.; Tikhonovich, I.A. Role of Plant Genotype and Soil Conditions in Symbiotic Plant-Microbe Interactions for Adaptation of Plants to Cadmium Polluted Soils. Water Air Soil Poll. 2015, 226, 264. [Google Scholar] [CrossRef]
  42. Belimov, A.A.; Puhalsky, Y.V.; Shaposhnikov, A.I.; Azarova, T.S.; Makarova, N.M.; Safronova, V.I.; Tikhonovich, I.A.; Nosikov, V.V.; Litvinsky, V.A.; Zavalin, A.A. Plant-Microbe Symbiotic System Based on Cadmium Tolerant Pea Mutant, Mycorrhizal Fungus, Rhizobia and PGPR. In Proceedings of the 18-th International Conference “Heavy Metals in the Environment”, Ghent, Belgium, 12–15 September 2016; pp. 621–622. [Google Scholar]
  43. Safronova, V.I.; Stepanok, V.V.; Engqvist, G.L.; Alekseyev, Y.V.; Belimov, A.A. Root-Associated Bacteria Containing 1-Aminocyclopropane-1-Carboxylate Deaminase Improve Growth and Nutrient Uptake by Pea Genotypes Cultivated in Cadmium Supplemented Soil. Biol. Fertil. Soils 2006, 42, 267–272. [Google Scholar] [CrossRef]
  44. Ausili, P.; Borisov, A.; Lindblad, P.; Mårtensson, A. Cadmium Affects the Interaction between Peas and Root Nodule Bacteria. Acta Agric. Scand. Sect. B 2002, 52, 8–17. [Google Scholar] [CrossRef]
  45. Rivera-Becerril, F.; Calantzis, C.; Turnau, K.; Caussanel, J.; Belimov, A.A.; Gianinazzi, S.; Strasser, R.J.; Gianinazzi-Pearson, V. Cadmium Accumulation and Buffering of Cadmium-Induced Stress by Arbuscular Mycorrhiza in Three Pisum sativum L. Genotypes. J. Exp. Bot. 2002, 53, 1177–1185. [Google Scholar] [CrossRef] [Green Version]
  46. Engqvist, L.; Mårtensson, A.; Orlowska, E.; Turnau, K.; Belimov, A.; Borisov, A.; Gianinazzi-Pearson, V. For a Successful Pea Production on Polluted Soils, Inoculation with Beneficial Microbes Requires Active Interaction between the Microbial Components and the Plant. Acta Agric. Scand. Sect. B 2006, 56, 9–16. [Google Scholar] [CrossRef]
  47. Belimov, A.A.; Dodd, I.C.; Hontzeas, N.; Theobald, J.C.; Safronova, V.I.; Davies, W.J. Rhizosphere Bacteria Containing Acc Deaminase Increase Yield of Plants Grown in Drying Soil via both Local and Systemic Hormone Signalling. New Phytol. 2009, 181, 413–423. [Google Scholar] [CrossRef]
  48. Toro, M.; Azcón, R.; Barea, J.M. The Use of Isotopic Dilution Techniques to Evaluate the Interactive Effects of Rhizobium Genotype, Mycorrhizal Fungi, Phosphate-Solubilizing Rhizobacteria and Rock Phosphate on Nitrogen and Phosphorus Acquisition by Medicago sativa. New Phytol. 1998, 138, 265–273. [Google Scholar] [CrossRef]
  49. Valdenegro, M.; Barea, J.M.; Azcón, R. Influence of Arbuscular Mycorrhizal Fungi, Rhizobium Meliloti Strains and Pgpr Inoculation on the Growth of Medicago Arborea Used as Model Legume for Revegetation and Biological Reactivation in a Semi-Arid Mediterranean Area. Plant Growth Regul. 2001, 34, 233–240. [Google Scholar] [CrossRef]
  50. Barnawal, D.; Maji, D.; Bharti, N.; Chanotiya, C.S.; Kalra, A. ACC Deaminase-Containing Bacillus subtilis Reduces Stress Ethylene-Induced Damage and Improves Mycorrhizal Colonization and Rhizobial Nodulation in Trigonella foenum-graecum Under Drought Stress. J. Plant Growth Regul. 2013, 32, 809–822. [Google Scholar] [CrossRef]
  51. Barnawal, D.; Bharti, N.; Maji, D.; Chanotiya, C.; Kalra, A. ACC Deaminase-Containing Arthrobacter protophormiae Induces NaCl Stress Tolerance through Reduced ACC Oxidase Activity and Ethylene Production Resulting in Improved Nodulation and Mycorrhization in Pisum sativum. J. Plant Physiol. 2014, 171, 884–894. [Google Scholar] [CrossRef]
  52. Neumann, H.; Bode-Kirchhoff, A.; Madeheim, A.; Wetzel, A. Toxicity Testing of Heavy Metals with the Rhizobium-Legume Symbiosis: High Sensitivity to Cadmium and Arsenic Compounds. Environ. Sci. Pollut. Res. 1998, 5, 28–36. [Google Scholar] [CrossRef]
  53. Hernandez, L.E.; Gárate, A.; Carpena-Ruiz, R. Effect of Cadmium on Nitrogen Fixing Pea Plants Grown in Perlite and Vermiculite. J. Plant Nutr. 1995, 18, 287–303. [Google Scholar] [CrossRef]
  54. McCarthy, I.; Romero-Puertas, M.C.; Palma, J.M.; Sandalio, L.M.; Corpas, F.J.; Gómez, M.; Del Río, L.A. Cadmium Induces Senescence Systems in Leaf Peroxisomes of Pea Plants. Plant Cell Environ. 2001, 24, 1065–1073. [Google Scholar] [CrossRef]
  55. Sandalio, L.M.; Dalurzo, H.C.; Gómez, M.; Romero-Puertas, M.C.; del Río, L.A. Cadmium-Induced Changes in the Growth and Oxidative Metabolism of Pea Plants. J. Exp. Bot. 2001, 52, 2115–2126. [Google Scholar] [CrossRef]
  56. Romero-Puertas, M.C.; Rodríguez-Serrano, M.; Corpas, F.J.; Gomez, M.D.; Del Rio, L.A.; Sandalio, L.M. Cadmium-Induced Subcellular Accumulation of O2– and H2O2 in Pea Leaves. Plant Cell Environ. 2004, 27, 1122–1134. [Google Scholar] [CrossRef]
  57. Kong, Z.; Glick, B.R.; Duan, J.; Ding, S.; Tian, J.; McConkey, B.J.; Wei, G. Effects of 1-Aminocyclopropane-1-Carboxylate (ACC) Deaminase-Overproducing Sinorhizobium meliloti on Plant Growth and Copper Tolerance of Medicago lupulina. Plant Soil 2015, 391, 383–398. [Google Scholar] [CrossRef]
  58. Turnau, K.; Anielska, T.; Ryszka, P.; Gawroński, S.; Ostachowicz, B.; Jurkiewicz, A. Establishment of arbuscular Mycorrhizal Plants Originating from Xerothermic Grasslands on Heavy Metal Rich Industrial Wastes—New Solution for Waste Revegetation. Plant Soil 2008, 305, 267–280. [Google Scholar] [CrossRef]
  59. Barea, J.M. Mycorrhiza-Bacteria Interactions on Plant Growth Promotion. In Plant Growth Promoting Rhizobacteria; Ogoshi, A., Kobayashi, K., Homma, Y., Kodama, F., Kondo, N., Akino, S., Eds.; OECD Press: Paris, France, 1997; pp. 150–158. [Google Scholar]
  60. Tavasolee, A.; Aliasgharzad, N.; SalehiJouzani, G.; Mardi, M.; Asgharzadeh, A. Interactive Effects of Arbuscular Mycorrhizal Fungi and Rhizobial Strains on Chickpea Growth and Nutrient Content in Plant. Afr. J. Biotechnol. 2011, 10, 7585–7591. [Google Scholar] [CrossRef]
  61. Meyer, J.R.; Linderman, R.G. Response of Subterranean Clover to Dual Inoculation with Vesicular-Arbuscular Mycorrhizal Fungi and a Plant Growth-Promoting Bacterium, Pseudomonas putida. Soil Biol. Biochem. 1986, 18, 185–190. [Google Scholar] [CrossRef]
  62. Jeong, S.; Moon, H.S.; Nam, K.; Kim, J.Y.; Kim, T.S. Application of Phosphate-Solubilizing Bacteria for Enhancing Bioavailability and Phytoextraction of Cadmium (Cd) from Polluted Soil. Chemosphere 2012, 88, 204–210. [Google Scholar] [CrossRef]
  63. Ma, Y.; Rajkumar, M.; Freitas, H. Isolation and Characterization of Ni Mobilizing PGPB from Serpentine Soils and Their Potential in Promoting Plant Growth and Ni Accumulation by Brassica spp. Chemosphere 2009, 75, 719–725. [Google Scholar] [CrossRef] [Green Version]
  64. Sessitsch, A.; Kuffner, M.; Kidd, P.; Vangronsveld, J.; Wenzel, W.W.; Fallmann, K.; Puschenreiter, M. The Role of Plant-Associated Bacteria in the Mobilization and Phytoextraction of Trace Elements in Contaminated Soils. Soil Biol. Biochem. 2013, 60, 182–194. [Google Scholar] [CrossRef] [Green Version]
  65. Gadd, G.M. Microbial Influence on Metal Mobility and Application to Bioremediation. Geoderma 2004, 122, 109–119. [Google Scholar] [CrossRef]
  66. Wenzel, W.W. Rhizosphere Processes and Management in Plant-Assisted Bioremediation (Phytoremediation) of Soils. Plant Soil 2009, 321, 385–408. [Google Scholar] [CrossRef]
  67. George, E.; Marshner, H.; Jakobsen, I. Role of Arbuscular Mycorrhizal Fungi in Uptake of Phosphorus and Nitrogen from Soil. Crit. Rev. Biotechnol. 1995, 15, 257–270. [Google Scholar] [CrossRef]
  68. Jiang, F.; Chen, L.; Belimov, A.A.; Shaposhnikov, A.I.; Gong, F.; Meng, X.; Hartung, W.; Jeschke, D.W.; Davies, W.J.; Dodd, I.C. Multiple Impacts of the Plant Growth Promoting Rhizobacterium Variovorax paradoxus 5C-2 on Nutrient and ABA Relations of Pisum sativum. J. Exp. Bot. 2012, 63, 6421–6430. [Google Scholar] [CrossRef]
  69. Belimov, A.A.; Safronova, V.I.; Demchinskaya, S.V.; Dzyuba, O.O. Intraspecific Variability of Cadmium Tolerance in Hydroponically Grown Indian Mustard (Brassica juncea (L.) Czern.) Seedlings. Acta Physiol. Plant 2007, 29, 473–478. [Google Scholar] [CrossRef]
  70. Vincent, J.M. A Manual for the Practical Study of Root Nodule Bacteria. In IBP Handbook No 15; Blackwell Scientific Publisher: Oxford, UK, 1970; p. 164. [Google Scholar] [CrossRef]
  71. Belimov, A.A.; Dodd, I.C.; Safronova, V.I.; Shaposhnikov, A.I.; Azarova, T.S.; Makarova, N.M.; Davies, W.J.; Tikhonovich, I.A. Rhizobacteria that Produce Auxins and Contain ACC Deaminase Decrease Amino Acid Concentrations in the Rhizosphere and Improve Growth and Yield of Well-Watered and Water-Limited Potato (Solanum tuberosum). Ann. Appl. Biol. 2015, 167, 11–25. [Google Scholar] [CrossRef]
  72. Turner, G.L.; Gibson, A.H. Measurement of Nitrogen Fixation by Indirect Means. In Methods for Evaluating Biological Nitrogen Fixation; Bergensen, F.J., Ed.; Wiley: Toronto, ON, Canada, 1980; pp. 111–138. [Google Scholar]
  73. Trouvelot, A.; Kough, J.L.; Gianinazzi-Pearson, V. Mesure Du Taux De Mycorhization Va D’un Systeme Radiculaire. Recherche De Methodes D’estimation Ayant Une Signification Fonctionnelle. In Mycorrhizae: Physiology and Genetic Aspects; Gianinazzi-Pearson, V., Gianinazzi, S., Eds.; INRA Press: Paris, France, 1986; pp. 217–221. [Google Scholar]
Plants 09 00975 g001 550

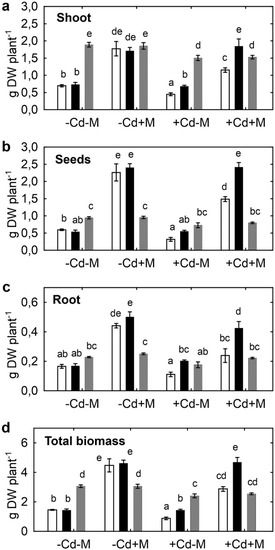

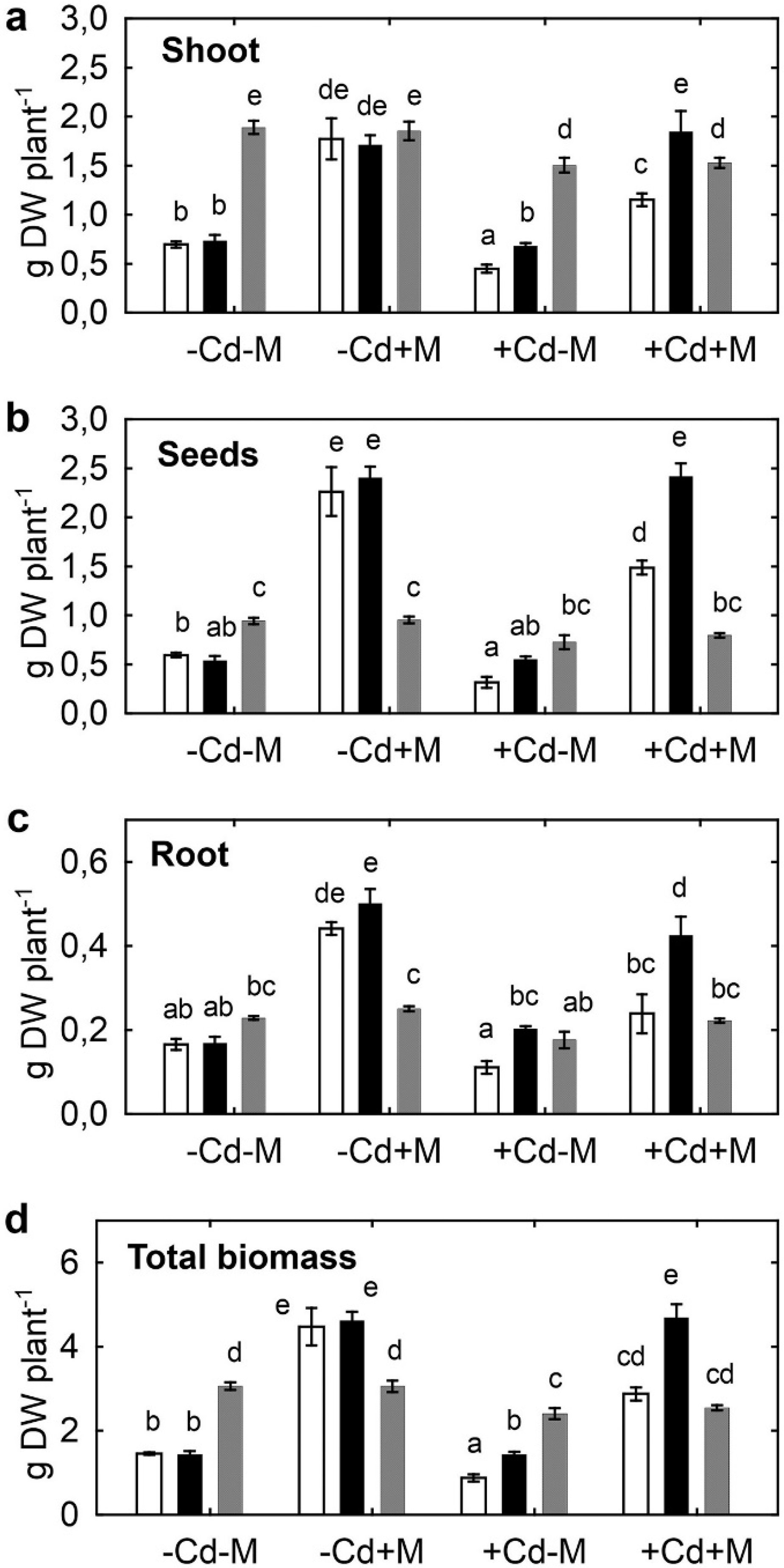

Figure 1. Shoot (a), seeds (b), root (c), and total (d) biomass of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 20). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Figure 1. Shoot (a), seeds (b), root (c), and total (d) biomass of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 20). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Plants 09 00975 g001
Plants 09 00975 g002 550
Figure 2. Representative plants of SGE, SGECdt, and Indian mustard (B. juncea) photographed on the 42nd day after planting. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo.
Figure 2. Representative plants of SGE, SGECdt, and Indian mustard (B. juncea) photographed on the 42nd day after planting. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo.
Plants 09 00975 g002
Plants 09 00975 g003 550

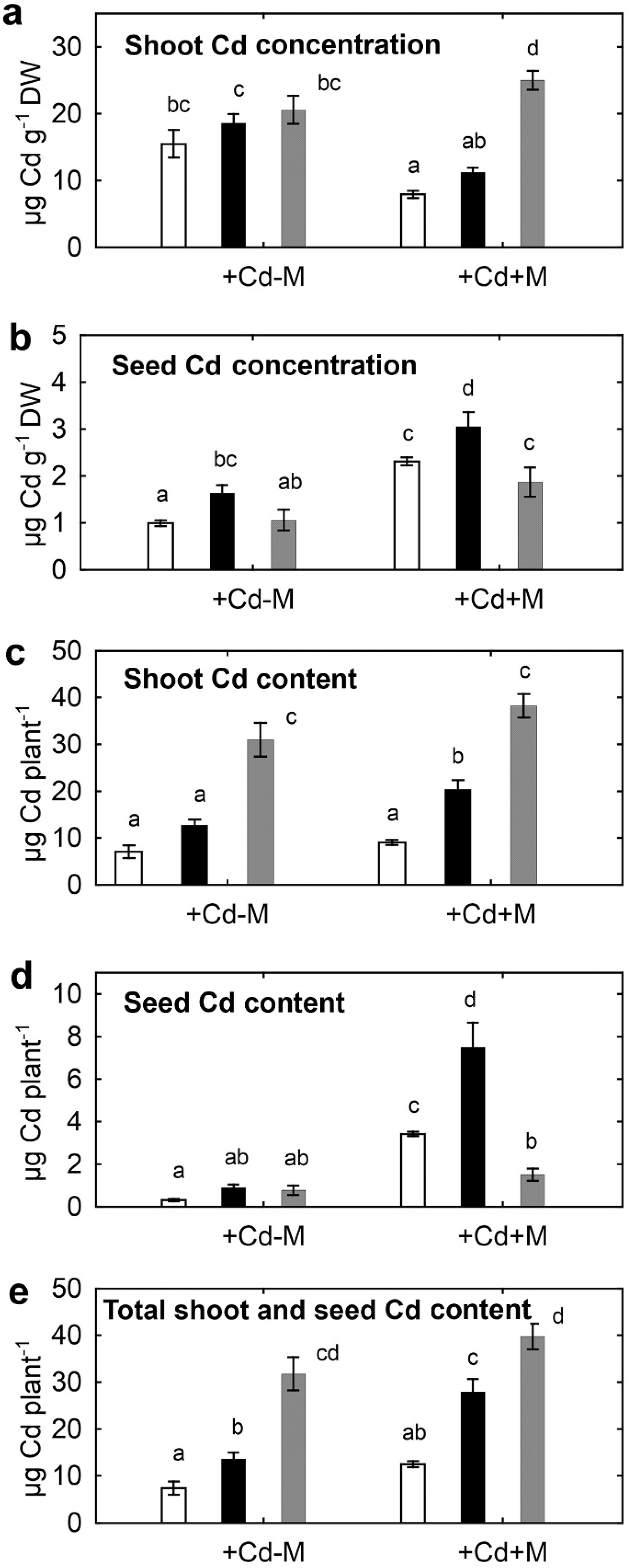

Figure 3. Cadmium concentration in shoot (a) and seeds (b), and Cd content in shoot (c), seeds (d) and aerial part (e) of pea SGE (unfilled columns), SGECdt (filled columns) and B. juncea (gray columns) grown in Cd-supplemented soil. Treatments: +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Figure 3. Cadmium concentration in shoot (a) and seeds (b), and Cd content in shoot (c), seeds (d) and aerial part (e) of pea SGE (unfilled columns), SGECdt (filled columns) and B. juncea (gray columns) grown in Cd-supplemented soil. Treatments: +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Plants 09 00975 g003
Plants 09 00975 g004 550

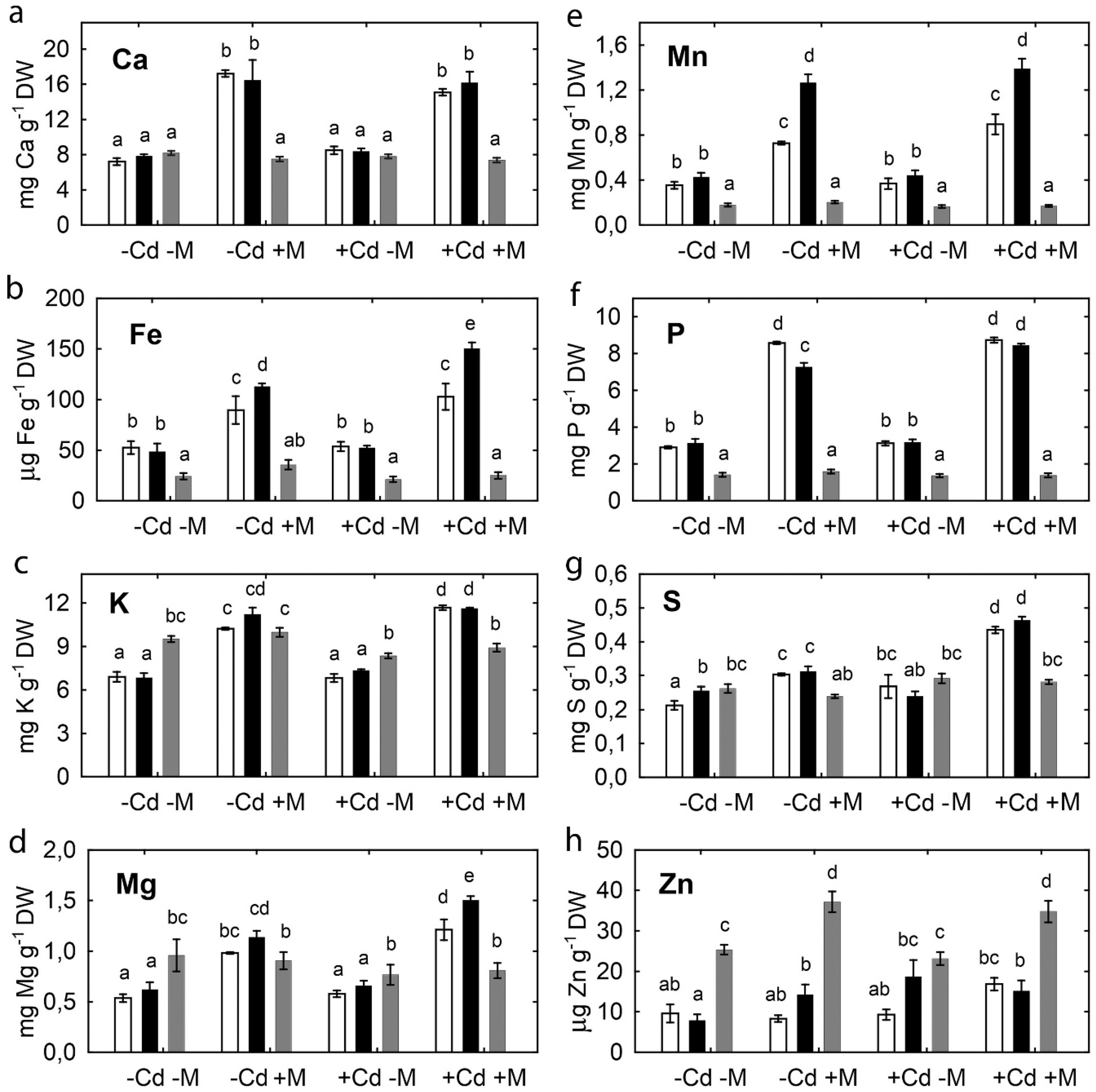

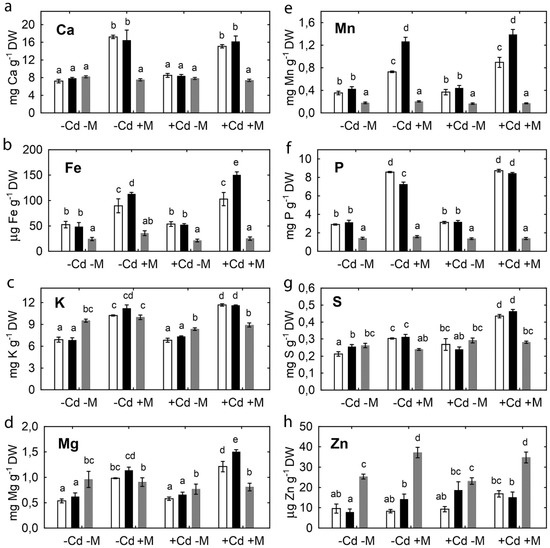

Figure 4. Calcium (a), iron (b), potassium (c), magnesium (d), manganese (e), phosphorus (f), sulfur (g), and zinc (h) in shoots of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed at the 83-rd day after planting.
Figure 4. Calcium (a), iron (b), potassium (c), magnesium (d), manganese (e), phosphorus (f), sulfur (g), and zinc (h) in shoots of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed at the 83-rd day after planting.
Plants 09 00975 g004
Plants 09 00975 g005 550

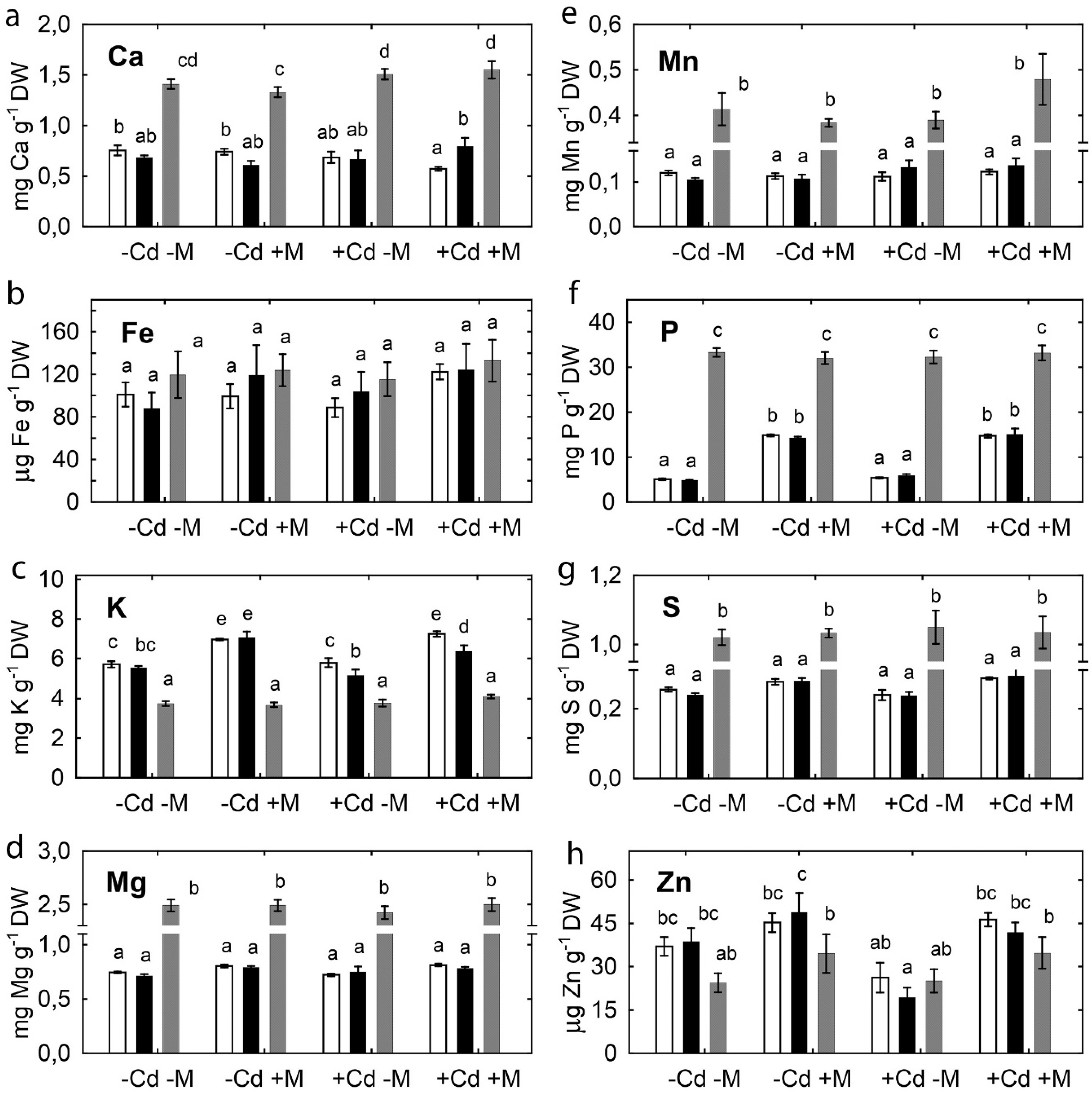

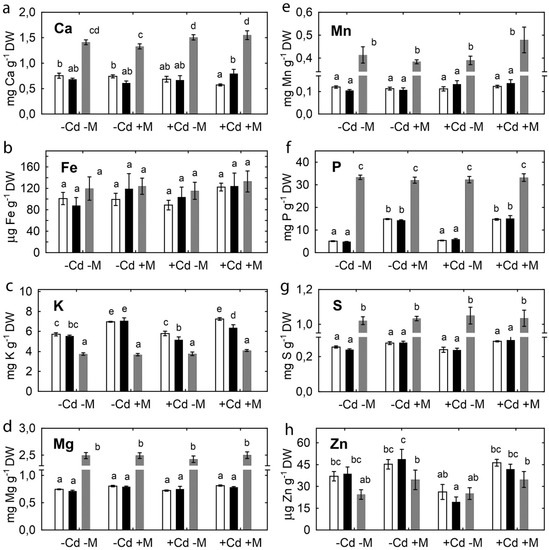

Figure 5. Calcium (a), iron (b), potassium (c), magnesium (d), manganese (e), phosphorus (f), sulfur (g), and zinc (h) in seeds of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Figure 5. Calcium (a), iron (b), potassium (c), magnesium (d), manganese (e), phosphorus (f), sulfur (g), and zinc (h) in seeds of pea SGE (unfilled columns), SGECdt (filled columns), and B. juncea (gray columns) grown in uncontaminated or Cd-supplemented soil. Treatments: -Cd-M—uncontaminated soil with uninoculated plants, -Cd+M—uncontaminated soil with inoculated plants, +Cd-M—Cd-supplemented soil with uninoculated plants, +Cd+M—Cd-supplemented soil with inoculated plants. Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Vertical bars show standard errors. Different letters show significant differences between treatments (least significant difference test, p < 0.05, n = 5). DW stands for dry weight. Plants were analyzed on the 83rd day after planting.
Plants 09 00975 g005
Table
Table 1. Parameters of symbiotic activities of the plants inoculated with a microbial consortium and grown in uncontaminated or Cd-supplemented soil.
Table 1. Parameters of symbiotic activities of the plants inoculated with a microbial consortium and grown in uncontaminated or Cd-supplemented soil.
TreatmentsNodule Number Per PlantAcetylene Reduction Activity (Nmol C2H4 plant−1 h−1)Mycorrhizal Structures in Roots (%)Number of V. paradoxus 5C-2 (106 CFU g−1 Root FW)
FMAV14 DAP42 DAP83 DAP
Uncontaminated soil with inoculation
SGE68 ± 4 c592 ± 36 c81 ± 8 b36 ± 13 ab7 ± 2 ab22 ± 8 a9.7 ± 1.2 b4.0 ± 2.0 ab0.7 ± 0.2 a
SGECdt81 ± 12 c673 ± 61 c90 ± 5 b48 ± 5 b11 ± 3 ab36 ± 7 a8.7 ± 1.2 b4.3 ± 0.9 b1.1 ± 0.4 a
B. junceaNFNDNFNFNFNF3.7 ± 0.9 a1.2 ± 0.4 ab0.5 ± 0.2 a
Soil supplemented with 15 mg Cd kg−1 with inoculation
SGE12 ± 4 a55 ± 8 a62 ± 3 a26 ± 4 a3 ± 2 a20 ± 3 a8.0 ± 0.6 b3.3 ± 1.5 ab1.6 ± 0.7 a
SGECdt39 ± 7 b236 ± 17 b86 ± 5 b44 ± 6 ab16 ± 5 b26 ± 6 a8.0 ± 1.5 b3.7 ± 1.2 ab1.9 ± 0.7 a
B. junceaNFNDNFNFNFNF3.3 ± 0.3 a0.9 ± 0.6 a0.4 ± 0.3 a
Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Different superscript letters (a, b and c) show significant differences between treatments within a column (least significant difference test, p < 0.05, n varied from 4 to 5 depending on the parameter measured). Data are means ± SE. CFU stands for colony forming units. DAP stands for days after planting. FW stands for fresh weight. ND stands for not determined. NF stands for not found. Mycorrhizal structures: frequency of mycorrhizal structures (F), colonization intensity within mycorrhizal roots (M), relative arbuscular richness (A), and relative vesicular richness (V). Nodule number and acetylene reduction activity were analyzed on the 42nd day after planting. Mycorrhizal structures were analyzed on the 83rd day after planting.
Table
Table 2. Concentration and content of nitrogen in shoots and seeds of plants grown in uncontaminated or Cd-supplemented soil.
Table 2. Concentration and content of nitrogen in shoots and seeds of plants grown in uncontaminated or Cd-supplemented soil.
TreatmentsShootsSeeds
N Concentration (mg g−1 DW)15N Fraction (%)N Content (mg Plant−1)15N Content (mg Plant−1)N Concentration (mg g−1 DW)15N Fraction (%)N Content (mg Plant−1)15N Content (mg Plant−1)
Uncontaminated soil without inoculation
SGE7.4 ± 0.2 ab1.7 ± 0.1 a5.2 ± 0.3 ab0.09 ± 0.01 ab29.9 ± 1.7 c1.9 ± 0.1 ab17.8 ± 1.5 a0.33 ± 0.04 ab
SGECdt8.2 ± 0.6 b2.0 ± 0.1 abc6.0 ± 0.7 ab0.12 ± 0.01 ab27.8 ± 1.4 c2.0 ± 0.1 ab14.9 ± 1.5 a0.29 ± 0.03 ab
B. juncea6.1 ± 0.2 a2.5 ± 0.1 cd11.6 ± 0.5 bc0.29 ± 0.02 bc17.9 ± 1.1 ab2.5 ± 0.1 de16.9 ± 1.3 a0.42 ± 0.04 ab
Uncontaminated soil with inoculation
SGE14.6 ± 1.5 d1.8 ± 0.2 ab26.3 ± 4.6 de0.50 ± 0.12 de44.0 ± 1.7 d1.7 ± 0.2 a98.3 ± 8.6 c1.68 ± 0.28 d
SGECdt17.7 ± 0.6 e1.8 ± 0.1 ab30.3 ± 2.0 e0.57 ± 0.06 e44.0 ± 2.1 d1.8 ± 0.1 ab105.6 ± 7.0 c1.92 ± 0.13 d
B. juncea7.1 ± 0.1 ab2.6 ± 0.1 d13.2 ± 0.6 c0.34 ± 0.02 cd20.7 ± 0.4 b2.7 ± 0.1 e19.7 ± 0.9 a0.54 ± 0.02 b
Soil supplemented with 15 mg Cd kg−1 without inoculation
SGE6.7 ± 0.1 a1.8 ± 0.2 ab3.0 ± 0.3 a0.06 ± 0.01 a28.9 ± 1.6 c2.0 ± 0.2 ab9.4 ± 2.0 a0.19 ± 0.05 a
SGECdt8.7 ± 0.8 b1.9 ± 0.2 ab5.9 ± 0.6 ab0.12 ± 0.02 ab30.8 ± 1.9 c1.8 ± 0.1 ab17.0 ± 1.7 a0.31 ± 0.03 ab
B. juncea5.9 ± 0.5 a2.3 ± 0.1 c8.9 ± 0.7 bc0.20 ± 0.02 bc16.4 ± 1.0 a2.2 ± 0.2 cd12.0 ± 1.6 a0.25 ± 0.03 ab
Soil supplemented with 15 mg Cd kg−1 with inoculation
SGE11.4 ± 0.7 c2.1 ± 0.1 bc13.0 ± 0.4 c0.28 ± 0.01 c42.6 ± 0.4 d2.2 ± 0.1 bc63.4 ± 3.1 b1.36 ± 0.06 c
SGECdt12.2 ± 0.7 c1.9 ± 0.1 ab22.0 ± 1.7 d0.42 ± 0.03 d40.8 ± 0.6 d1.9 ± 0.1 ab98.5 ± 5.0 c1.88 ± 0.12 d
B. juncea5.6 ± 0.5 a2.1 ± 0.1 bc8.5 ± 0.9 b0.18 ± 0.01 bc16.7 ± 1.5 a2.4 ± 0.1 de13.3 ± 1.3 a0.32 ± 0.05 ab
Plants were inoculated with a microbial consortium consisting of Variovorax paradoxus 5C-2, Rhizobium leguminosarum bv. viciae RCAM1066, and Glomus sp. 1Fo. Different superscript letters (a, b, c, d and e) show significant differences between treatments within a column (least significant difference test, p < 0.05, n = 5). Different letters (a, b and c) show significant differences between treatments. Data are means ± SE. Plants were analyzed on the 83rd day after planting.

Share and Cite

MDPI and ACS Style

Belimov, A.A.; Shaposhnikov, A.I.; Azarova, T.S.; Makarova, N.M.; Safronova, V.I.; Litvinskiy, V.A.; Nosikov, V.V.; Zavalin, A.A.; Tikhonovich, I.A. Microbial Consortium of PGPR, Rhizobia and Arbuscular Mycorrhizal Fungus Makes Pea Mutant SGECdt Comparable with Indian Mustard in Cadmium Tolerance and Accumulation. Plants 2020, 9, 975. https://doi.org/10.3390/plants9080975

AMA Style

Belimov AA, Shaposhnikov AI, Azarova TS, Makarova NM, Safronova VI, Litvinskiy VA, Nosikov VV, Zavalin AA, Tikhonovich IA. Microbial Consortium of PGPR, Rhizobia and Arbuscular Mycorrhizal Fungus Makes Pea Mutant SGECdt Comparable with Indian Mustard in Cadmium Tolerance and Accumulation. Plants. 2020; 9(8):975. https://doi.org/10.3390/plants9080975

Chicago/Turabian Style

Belimov, Andrey A., Alexander I. Shaposhnikov, Tatiana S. Azarova, Natalia M. Makarova, Vera I. Safronova, Vladimir A. Litvinskiy, Vladimir V. Nosikov, Aleksey A. Zavalin, and Igor A. Tikhonovich. 2020. "Microbial Consortium of PGPR, Rhizobia and Arbuscular Mycorrhizal Fungus Makes Pea Mutant SGECdt Comparable with Indian Mustard in Cadmium Tolerance and Accumulation" Plants 9, no. 8: 975. https://doi.org/10.3390/plants9080975

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
