Review

Perspectives on microRNAs and Phased Small Interfering RNAs in Maize (Zea mays L.): Functions and Big Impact on Agronomic Traits Enhancement

by
Zhanhui Zhang
1,*,
Sachin Teotia
1,2,3,
Jihua Tang
1 and
Guiliang Tang
1,2,*
1
State Key Laboratory of Wheat and Maize Crop Science, Henan Agricultural University, Zhengzhou 450002, China
2
Department of Biological Sciences, Michigan Technological University, Houghton, MI 49931, USA
3
Department of Biotechnology, Sharda University, Greater Noida 201306, India
*
Authors to whom correspondence should be addressed.
Plants 2019, 8(6), 170; https://doi.org/10.3390/plants8060170
Submission received: 24 March 2019 / Revised: 10 June 2019 / Accepted: 11 June 2019 / Published: 12 June 2019
(This article belongs to the Special Issue The Role of MicroRNAs in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Small RNA (sRNA) population in plants comprises of primarily micro RNAs (miRNAs) and small interfering RNAs (siRNAs). MiRNAs play important roles in plant growth and development. The miRNA-derived secondary siRNAs are usually known as phased siRNAs, including phasiRNAs and tasiRNAs. The miRNA and phased siRNA biogenesis mechanisms are highly conserved in plants. However, their functional conservation and diversification may differ in maize. In the past two decades, lots of miRNAs and phased siRNAs have been functionally identified for curbing important maize agronomic traits, such as those related to developmental timing, plant architecture, sex determination, reproductive development, leaf morphogenesis, root development and nutrition, kernel development and tolerance to abiotic stresses. In contrast to Arabidopsis and rice, studies on maize miRNA and phased siRNA biogenesis and functions are limited, which restricts the small RNA-based fundamental and applied studies in maize. This review updates the current status of maize miRNA and phased siRNA mechanisms and provides a survey of our knowledge on miRNA and phased siRNA functions in controlling agronomic traits. Furthermore, improvement of those traits through manipulating the expression of sRNAs or their targets is discussed.

1. Introduction

Plant and animal small RNAs (sRNAs) are short noncoding regulatory RNAs in the size range of ~20 to 30 nucleotides (nt) [1,2]. These sRNAs play crucial roles in various biological regulatory processes through mediating gene silencing at both transcriptional and posttranscriptional levels [1,3]. According to the origin and biogenesis, plant sRNAs can be categorized into several major classes, micro RNAs (miRNAs), heterochromatic small interfering RNAs (hc-siRNAs), phased small interfering RNAs (phased siRNAs), and natural antisense transcript small interfering RNAs (NAT-siRNAs) [4].
Plants miRNAs are processed from long MIRNA transcripts by a microprocessor and dicing complexes [5,6,7]. Compared to animal miRNAs, plant miRNAs tend to have fewer targets that mainly encode transcription factors and F-box proteins [8]. This indicates that miRNA is at the central position of gene expression regulatory networks of plant growth and development. The accumulating studies proved miRNAs to be key regulators of various biological regulatory processes in plants, including developmental timing, plant architecture, organ polarity, inflorescence development and responses to biotic and abiotic stresses [9,10]. Additionally, miRNAs also drive secondary siRNA generation that are defined as phased siRNAs. Such secondary siRNAs, including canonical phased siRNAs (phasiRNAs) and phased trans-acting siRNAs (tasiRNAs), also play key roles in plant development [11,12,13]. Moreover, manipulation of mRNA transcript abundance via miRNA control provides a unique strategy for the improvement of the complex agronomic traits of crops [14,15]. Thus, understanding the functions of miRNAs and related secondary siRNAs in various plant species, especially in crops like maize, is essential for crop improvement.
Maize is not only a model plant genetic system, but is also an important crop species for food, fuel and feed [16]. Like Drosophila and the worm Caenorhabditis elegans, maize has been a significant contributor to a number of important discoveries, including the so-called “jumping genes” (transposons), activator/dissociation (Ac/Ds) and Mutator, as well as the epigenetic phenomenon termed paramutation [17,18]. However, there have been limited studies on the roles of miRNAs and miRNA-derived secondary siRNAs in maize metabolism, development and stress responses [12,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34], making it far from utilized in agronomic traits improvement through genetic engineering. Compared to Arabidopsis and rice, maize sRNA and RNAi mechanisms remain only partially resolved.
This review examines the current status of our understanding of the biogenesis and functions of miRNA and phased siRNA in maize, with a focus on their key components and the missing links of the pathways. Such study can help evaluate the potential roles of maize sRNAs in the enhancement of agronomic traits. First, we survey the recent findings regarding miRNA and phased siRNA working mechanisms in maize. We further compare the mechanistic differences for those mechanisms between maize and the model plants Arabidopsis and rice highlighting the missing links in maize. Furthermore, we review the identified miRNA and phased siRNA functions in regulating important agronomic traits in maize. Finally, we discuss the potential applications of these small regulatory RNAs or of their target genes in agronomic traits enhancement.

2. MiRNA and phasiRNA Biogenesis in Maize

2.1. Core Components of sRNA Biogenesis in Plants

In plants, the sRNAs biogenesis and gene silencing mainly depends on the activities of three kinds of proteins, dicer or dicer-like proteins (DCLs), argonautes (AGOs) and RNA-dependent RNA polymerases (RDRs) [1,32,35,36]. The sRNA-mediated gene silencing is initiated by double stranded RNA (dsRNA) generation by RDRs or the folding of MIRNA gene transcripts [1,36]. The dsRNA is processed into sRNAs, 20–30 nt in length, by the cleavages of microprocessors, DCLs [1,5,36]. Different classes of sRNAs are recognized by specific AGOs to assemble RNA-induced silencing complex (RISC) [1,36]. In Arabidopsis, 4 DCLs, 10 AGOs and six RDRs are encoded, while in rice, eight DCLs, 19 AGOs and five RDRs are encoded [35]. In maize, these major components have also been identified mainly based on their orthologs in Arabidopsis and rice genomes, which include five ZmDCL, 17 ZmAGO and five ZmRDR genes (Table 1, Figure 1A) [32,37]. Among them, only a few ones have been experimentally verified so far, including fuzzy tassel (fzt, ZmDCL1) [22], ragged seedling2 (rgd2, ZmAGO7) [38], ZmRDR1 [37], mediator of paramutation 1 (mop1, ZmRDR2) [39].

2.2. MiRNA-Mediated Gene Silencing in Maize

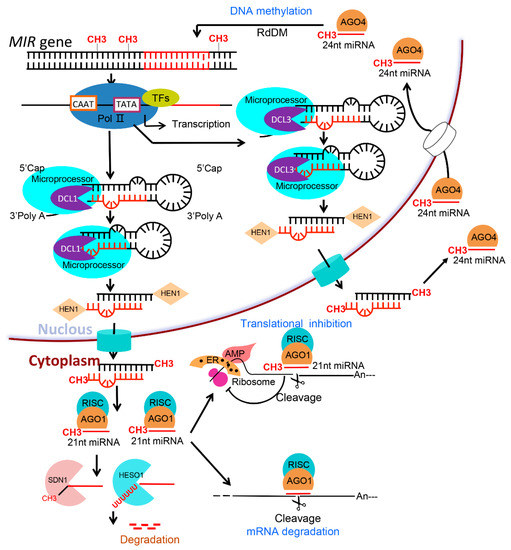

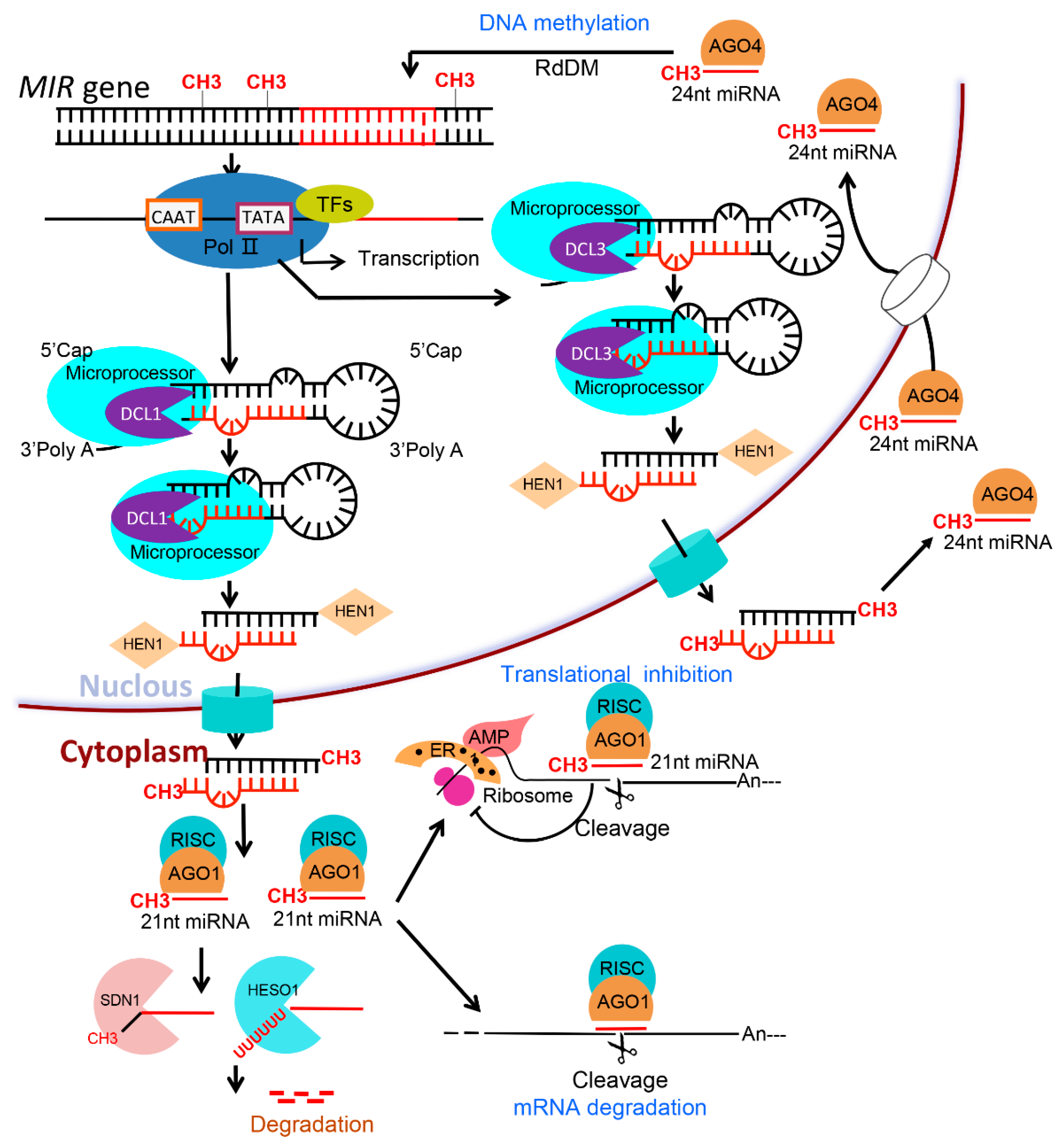

In plants, 21-nt miRNA biogenesis includes four steps (Figure 1): (1) MIRNAs transcription; (2) precursor miRNA (pre-miRNA) generation by dicer-like RNase III protein I (DCL1) cleavage; (3) miRNA duplexes release; (4) miRNA duplexes methylation and export to cytoplasm and miRNA-RISC assembly [6,7,40,41,42]. In the cytoplasm, the miRNA-RISCs mediate their target mRNA degradation [43,44], or translational inhibition in plants [45]. In contrast to the 21 nt miRNAs, a class of 24 nt miRNAs was discovered in plants (Figure 1). These 24 nt miRNAs are processed by DCL3 during their biogenesis [46,47]. In RNA-directed DNA methylation (RdDM), these 24 nt miRNAs are sorted into AGO4 to direct DNA methylation at the loci of their origin, thus regulating their target genes in trans [46,47]. After their biogenesis, miRNAs are also subjected to catabolism [48], in which demethylated or uridylated miRNAs are degraded by small RNA degrading nucleases (SDNs) [40,49].

2.3. Origin and Biogenesis of phasiRNAs in Maize

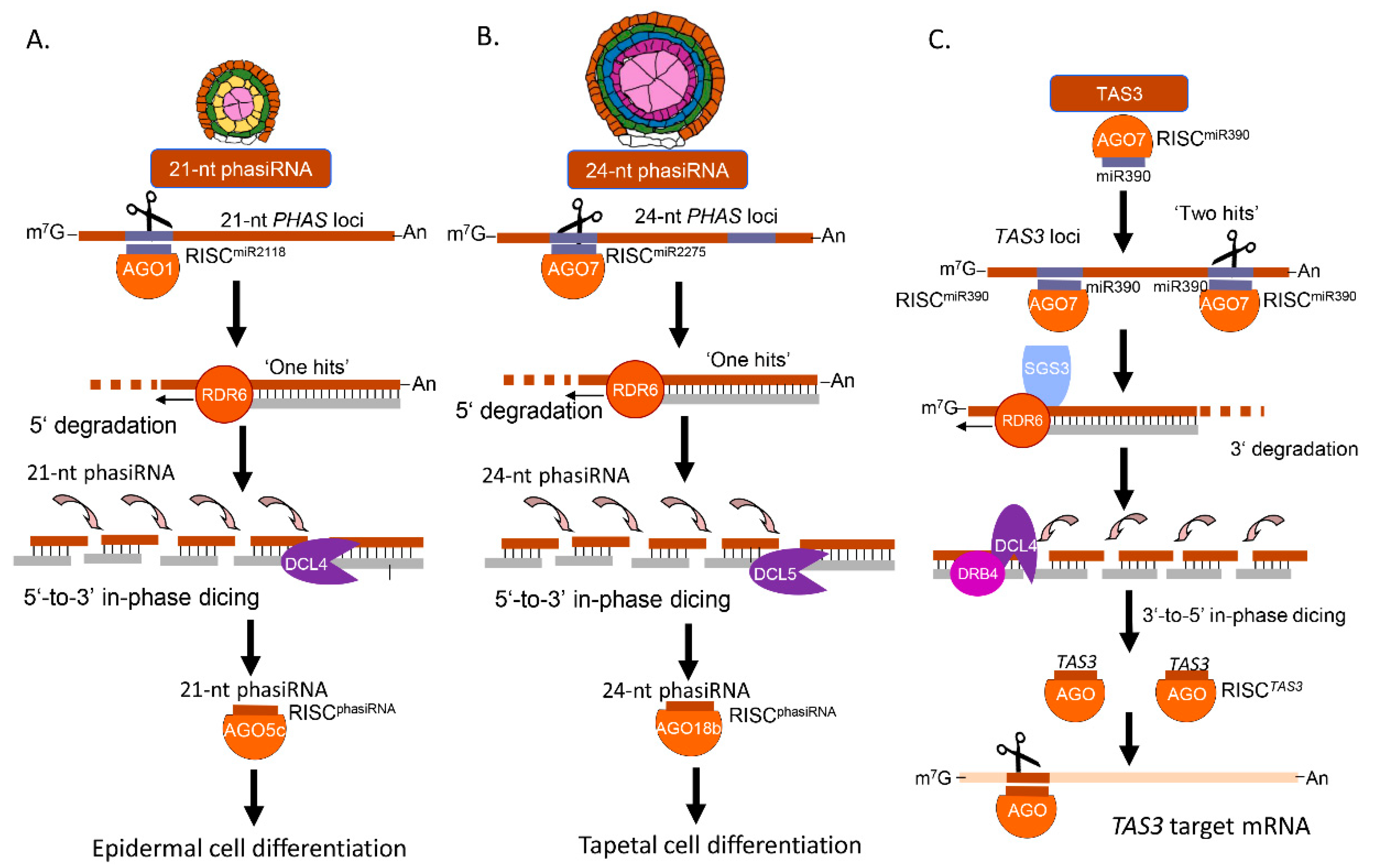

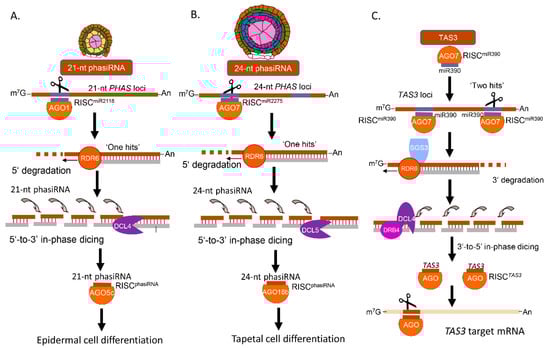

Generally, phasiRNA biogenesis is initiated by cleavage of single-stranded PHAS loci transcripts by 22 nt miRNAs. Then, those cleaved single-stranded RNAs are used to generate dsRNAs by RDRs. DCLs further phase dsRNAs to produce 21 or 24 nt phasiRNAs. PhasiRNAs are subsequently loaded to AGOs to regulate gene expression network [11,50] (Figure 2A,B). In grasses, including maize, phasiRNA precursors, PHAS loci transcripts, are transcribed by RNA polymerase II. These long noncoding precursor transcripts are internally cleaved, guided by 22 nt miR2118 to generate the 21 nt phasiRNAs or by miR2275 for the 24 nt phasiRNA. Such special class of small RNAs are specifically expressed in reproductive organs, conferring male fertility [11,12,51]. In maize, the biogenesis of 21 and 24 nt phasiRNAs are regulated by DCL4 and DCL5, respectively (Figure 2A,B). Next, 21 and 24 nt phasiRNAs are recruited by AGO5c and AGO18b, respectively, to assemble RISC and regulate gene expression [12].
The production of the 21-nt tasiRNAs is initiated by a miRNA through RDR6 and DCL4 [52]. In Arabidopsis, miR173, miR390 and miR828 trigger the production of TAS1a-c/TAS2, TAS3, and TAS4 siRNAs, respectively [53,54]. The maize TAS3 pathway has been identified through the mutations, leafbladeless1 (ldl1) and ragged seedling2 (rgd2), which encode the orthologs of SGS3 and AGO7 of Arabidopsis (Figure 2C) [55]. After TAS3 siRNAs is generated, they are recruited by AGO7 to assemble RISC and induce ARF3 gene silencing by targeting mRNA transcripts.

2.4. Functional Redundancy and Divergence of the Key Components in Maize sRNA Biogenesis Pathways

2.4.1. DCLs

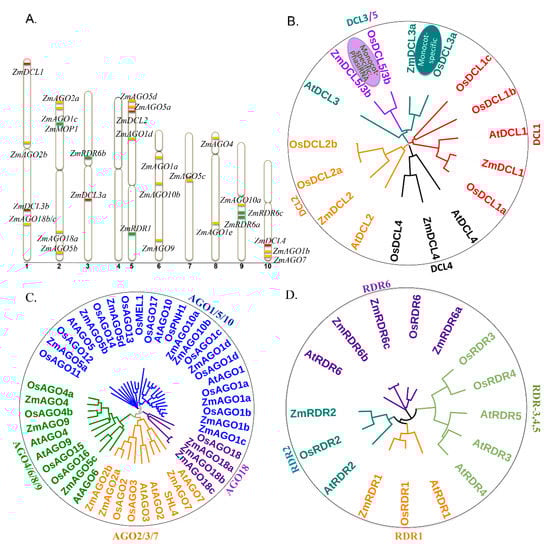

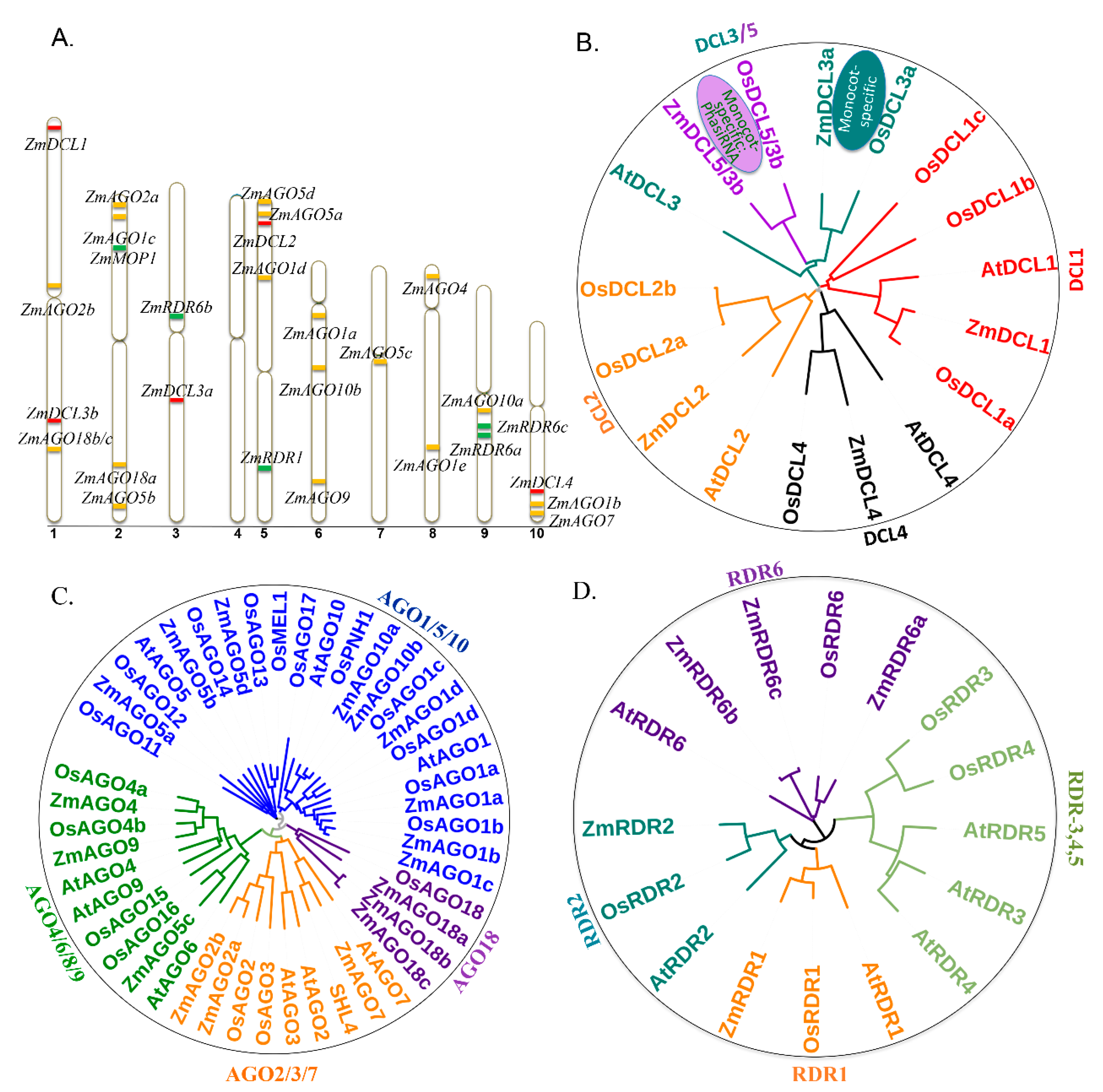

Based on the phylogenetic analysis, different DCLs from Arabidopsis, rice and maize were classified into four subgroups (Table 1, Figure 3A,B). ZmDCL1 showed high similarity with Arabidopsis AtDCL1 and rice OsDCL1a–1c; ZmDCL3a and ZmDCL5/3b are similar to Arabidopsis DCL3 and rice OsDCL3a–3b; and ZmDCL2 and ZmDCL4 are most similar to AtDCL2 and AtDCL4, respectively [23,32]. In Arabidopsis, AtDCL1 produces mature miRNAs [56]; AtDCL2 is involved in virus defense-related siRNA generation and has functional redundancy with AtDCL4 [57]; while AtDCL3 catalyzes the production of 24-nt siRNAs [58]; and AtDCL4 is mainly for the production of tasiRNAs [59]. Although the DCL family proteins are largely functionally conserved among the three plant species, DCL3a and DCL3b are considered specific to monocots and predate the divergence of rice and maize [60].

2.4.2. AGOs

In Arabidopsis, AtAGO1 is associated with miRNA-mediated gene silencing [61]; AtAGO7 is preferentially associated with a single miRNA, miR390, to trigger production of TAS3 [52]; and AtAGO5 is a putative germline-specific Argonaute complex associated with miRNAs in mature Arabidopsis pollen [62]. In addition, AtAGO2 was identified to have a stand-in role for AtAGO1 in antivirus defense when AGO1-targeted silencing is overcome by viral suppressors [63], AtAGO4 is associated with endogenous siRNAs that direct DNA methylation [64].
In maize, 17 genes encoding 18 AGO family proteins were identified, almost double the number reported in Arabidopsis (Table 1, Figure 3A,C) [24,32]. These ZmAGOs were divided phylogenetically into five subgroups: AGO1 (ZmAGO1a-1d and ZmAGO10a, b), MEL1/AGO5 (ZmAGO5a-5d), AGO7 (ZmAGO2 and ZmAGO7), AGO4 (ZmAGO4), and finally the ZmAGO18 (ZmAGO18a-c) [32]. The ZmAGO18 subgroup, ZmAGO18a, ZmAGO18b and ZmAGO18c, are encoded by two genes (GRMZM2G105250 encodes ZmAGO18a, and ZmAGO18b and ZmAGO18c are encoded by two transcripts of GRMZM2G457370) [32]. They displayed high structural similarity to OsAGO18, whose expression is strongly induced by viral infection in rice and confers broad-spectrum virus resistance by sequestering the OsmiR168 from targeting OsAGO1 [65]. Nonetheless, ZmAGO18a is highly expressed in ears, while ZmAGO18b is mostly enriched in tassels, suggesting that ZmAGO18 family may have functional diversities from the OsAGO18 [66]. In fact, ZmAGO18b was proposed to bind the 24 nt phasiRNAs that are suggested to be the products of ZmDCL5/3b in the phasiRNA pathway, based on their concurrent spatial and temporal expression in developing maize ear/tassel development [12]. The mutant ragged seedling2 (rgd2) has been identified to encode an AGO7-like protein required to produce TAS3 [38], and its functions are highly conserved among Arabidopsis, rice and maize [67,68,69].

2.4.3. RDRs

Six, five and five RDRs have been identified in Arabidopsis, rice and maize, respectively (Table 1, Figure 1D) [32,35]. These RDRs were divided phylogenetically into four subgroups: RDR1, RDR2, RDR3/4/5, and RDR6. AtRDR1 and its homolog in maize, ZmRDR1, have been reported to be involved in antiviral defense [37]. AtRDR2 plays a crucial role in RNA-directed DNA methylation and repressive chromatin modifications of certain transgenes, endogenous genes and centromeric repeats that correlate with the production of 24 nt interfering sRNAs [72]. In maize, MOP1 (a homolog of AtRDR2) has proven to be essential for a siRNA-directed gene-silencing pathway, and is also involved in the maintenance of transposon silencing and paramutation [39]. The remaining three RDR homologs of Arabidopsis RDR6 in maize, ZmRDR6a-c, are involved in tasiRNA biogenesis [67,73]. We tentatively renamed these three RDRs, previously known as ZmRDR3 and ZmRDR4 [32], to be ZmRDR6a, ZmRDR6b, and ZmRDR6c. ZmRDR6, such a multiple membered family, can be better revealed by identifying their double/triple mutants. Similar to how RDR6 was identified to be important in production of tasiRNAs, an unidentified RDR is expected to play a key role in production of phasiRNAs in maize [12].

3. Functions of miRNAs and phasiRNAs in Maize

3.1. The Interaction of miR156 and miR172 Fine Tunes Plant Developmental Timing

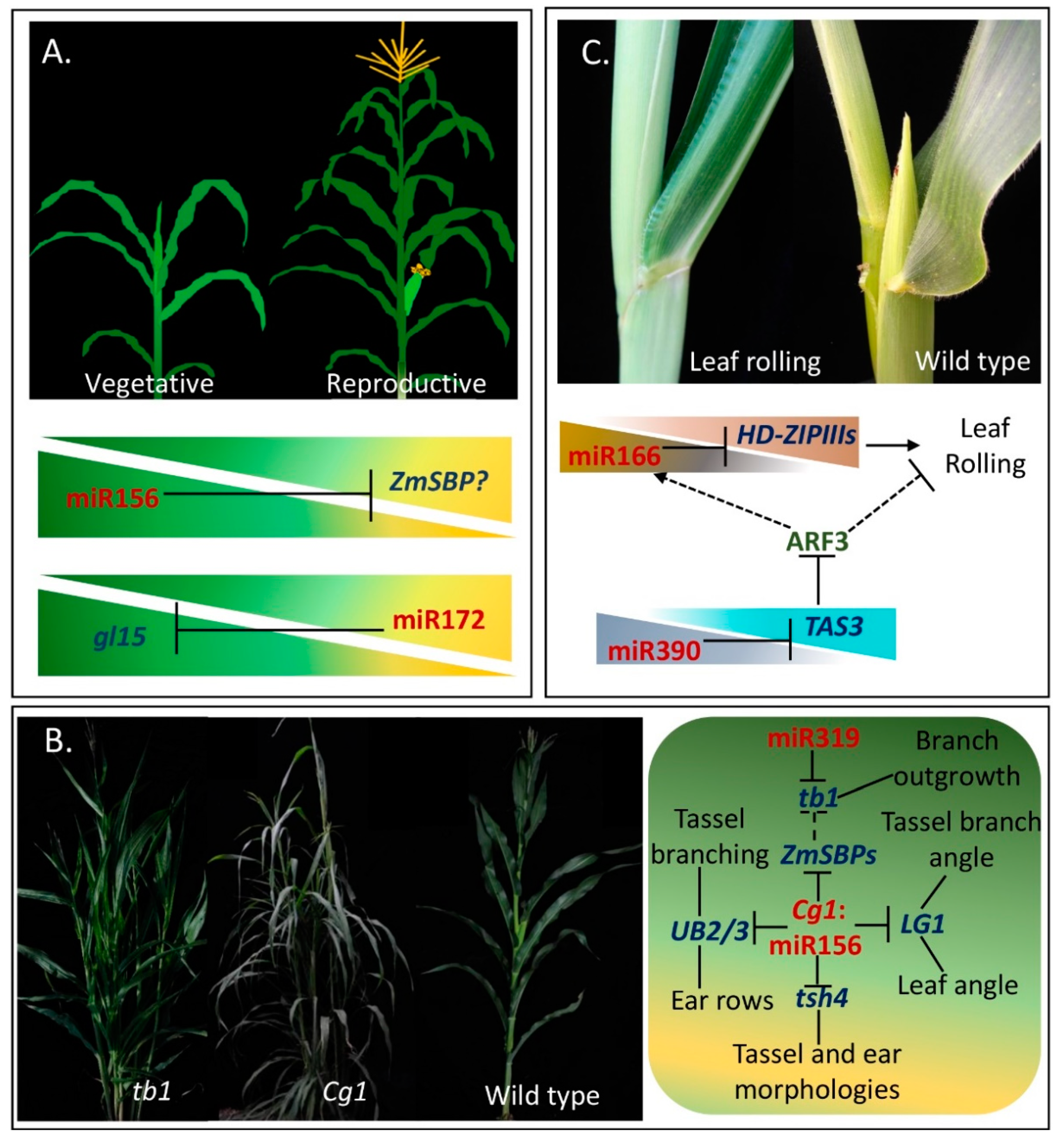

In maize, the transition from juvenile to adult leaves is marked by changes in cell shape, the production of epidermal wax deposits and of specialized cell types like leaf hairs, and a change in the identity of organs that grow from their axillary meristems. In maize and Arabidopsis, the roles of miR156 and miR172 interaction in developmental transitions have been widely explored [25,27,74,75,76]. MiR156 expression levels decrease with leaf age, while that of miR172 increase (Figure 5A). Their targets, encoding squamosa promoter binding protein-like (SBP-Like) and Apetala 2 (AP2) transcription factors, respectively, are expressed in complementary patterns. The mutant Corngrass1 (Cg1) with increased levels of miR156 and reduced miR172 activity, displays restrained developmental transitions, prolonged juvenile features and delayed flowering (Figure 4) [25,77]. In turn, releasing SPLs from miR156 regulation leads to premature acquisition of adult leaf features and early flowering, resembling phenotypes of glossy15 (gl15) plants, with reduced activity of miR172 targets (Figure 4) [27,29].

3.2. Plant Architecture Modulated by miR156 and miR319

In maize, plant architecture is mainly determined by tillers, plant height, leaf number, leaf angle and tassel branches. Compared with its ancestor, teosinte (Zea mays ssp. parviglumis), maize exhibits a profound increase in apical dominance with a single tiller [78]. Previous researches have proved teosinte branched1 (tb1) gene, encoding a TCP transcription factor that is targeted by miR319, as a major contributor to this domestication change in maize (Figure 4 and Figure 5B) [79,80]. By increasing JA levels, the tb1 mutant of maize causes a complete loss of apical dominance, allowing the unrestrained outgrowth of axillary buds and inflorescent architectural alterations [79,81]. MiR156 has been proved to be the important regulator in maize and rice plant architecture formation [25,82]. The dominant Corngrass1 (Cg1) mutant of maize has phenotypic changes that are present in the grass-like ancestors of maize, exhibiting numerous tillers, inflorescent architectural alterations and erect leaves (Figure 5B) [25]. The research by Lu et al. [83] in rice revealed that the ideal plant architecture1 (IPA1, OsSPL14) could directly bind to the promoter of rice teosinte branched1 (Ostb1), to suppress rice tillering. Likewise, the maize tillering related ZmSPL (miR156 target) gene is possible at the upstream of tb1 in related regulatory pathway. The roles of miR156 in leaf angle and inflorescent architectural modulation have been identified in the corresponding ZmSPL mutants, such as LIGULELESS1 (LG1), tasselsheath4 (tsh4, ZmSBP2), UNBRANCHED 2 (UB2) and UB3 [30,33,84,85]( Figure 4; Figure 5B).

3.3. Roles of miR172, miR156 and miR159 in Sex Determination

In maize, inflorescence development and sex determination are key factors for grain yield. MiR172 has been identified to play important roles in inflorescence development and sex determination (Figure 4) [86]. Especially, the interplay of miR156 and miR172 contributes largely in maize sex determination and meristem cell fate. In Cg1 mutant, increased levels of miR156 cause similar phenotypic alterations as seen in ts4 mutants [25]. Moreover, STTMmiR172 and ts4 mutants have reduced expression of miR172 and increased expression of at least two of its targets, ids1 (indeterminate spikelet1) and sid1 (sister of indeterminate spikelet1). These mutants displayed irregular branching within the inflorescence and feminization of the tassel caused by a lack of pistil abortion [86,87,88]. Decreased levels of miR156 have been detected in feminized tassels of maize mop1 and ts1 (tasselseed1), implying the missing link of miR156-SPLs with sex-determination genes ts1, ts2, ts4, Ts6, and mop1 [34,89]. Additionally, the mutants of fuzzy tassel (encoding dicer-like1 protein) exhibit indeterminate meristems, fasciation, and alterations in sex determination [22]. Such reproductive development alterations are possibly associated with miR159-GAMYB pathway, with miR159 and its targets playing the important roles in another development [21,90].

3.4. Leaf Patterns Are Shaped by miR166 and miR390-TAS3

Leaves are the most important photosynthetic organs in land plants, which are nearly flat organs designed to efficiently capture light and perform photosynthesis. In maize the specification of abaxial/adaxial polarity was found to be intimately associated with sRNAs, such as miR166, miR390 and TAS3 (Figure 4; Figure 5C) [26,38,91,92]. The miR166 targets belong to class III homeodomain/leucine zipper (HD-ZIPIII) genes. The maize miR166 knockdown and miR166 target over-expression mutants, STTMmiR166 and rolled leaf1 (rld1), displays an upward curling of the leaf blade that causes adaxialization or partial reversal of leaf polarity [26,88]. The roles of miR166 and HD-ZIPIII in leaf polarity are conserved between Arabidopsis and maize [93,94]. In plants, miR390 triggers TAS3-tasiRNA biogenesis, which interplay with ARF3 to take part in plant development regulation [54,67]. In maize, the mutants of tasiRNA biogenesis pathway components exhibit leaf polarity alterations, ragged seedling2 (rgd2) or leaf bladeless1 (lbl1) [13]. Moreover, several researches proposed that miR390-TAS3 define the adaxial side of the leaf by restricting the expression domain of miR166, which in turn demarcates the abaxial side of leaves by restricting the expression of adaxial determinants [38,92,95].

3.5. PhasiRNAs and Maize Male Fertility

In hybrid maize, male sterility has been widely studied due to both its biological significance and commercial use in hybrid seed production [96]. Maize male fertility is determined by dozens of genes and sRNAs, especially phasiRNAs (Figure 2A,B and Figure 4) [11,12,96]. Indeed, a study reported that two classes of phasiRNAs, 21 and 24 nt in length, were detected to be highly expressed in maize anthers and confer male fertility [12]. The mutant lacking 21 nt phasiRNA, ocl4, showed male sterility due to defects in epidermal signaling. Meanwhile, the mutant lacking 24 nt phasiRNA lacking mutants also showed male sterility for due to defective anther subepidermis. This indicated that two types of phasiRNAs regulate anther development independently, with 21 nt premeiotic phasiRNAs regulating epidermal and 24 nt meiotic phasiRNAs regulating tapetal cell differentiation [12].

3.6. Other miRNA Functions in Maize

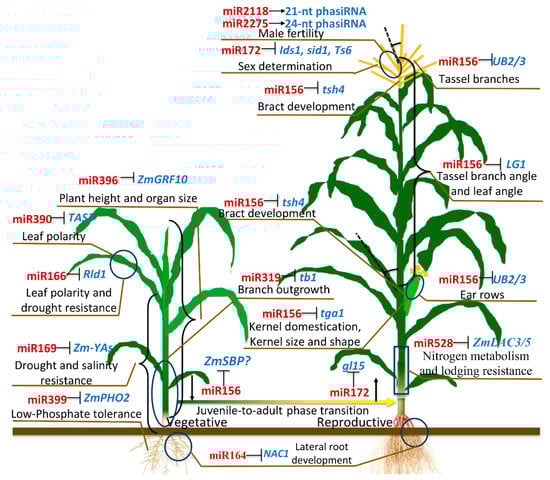

Several miRNAs have been identified to regulate important maize agronomic traits, such as kernel development, plant growth, abiotic stress tolerance, root development, and nutrition metabolism (Figure 4). The miR156 target, tga1, not only confers the domestication of maize naked grains, but also determines the maize kernel shape and size [97,98]. A report on ZmGRF10, a miR396 target, indicated that this miRNA is a potential regulator for maize leaf size and plant height [99]. The overexpression ZmGRF10 mutant displayed reduction in leaf size and plant height by decreasing cell proliferation. Other studies have shown that drought and salinity stresses induce aberrant expression of many miRNAs in maize, for example miR166 and miR169. In maize, miR169 plays a critical role during plant drought, salt and ABA stress response by targeting NUCLEAR FACTOR-Y subunit A (NF-YA) genes [28]. In Arabidopsis and rice, miR166-HD-ZIP IIIs have been proven to be associated with drought and ABA stress resistance through maintaining ABA homeostasis [100,101]. Based on our unpublished data, the maize miR166 probably affects tolerance to drought and salinity stresses like in rice and Arabidopsis. In maize, miR164 was experimentally identified to be an important regulator in lateral root development by targeting ZmNAC1 [31,102].
A recent research identified miR528, a monocot-specific miRNA, to be an important regulator for maize nitrogen metabolism in maize. In the miR528 knock-down mutant of maize, under nitrogen-luxury conditions, targets of miR528 are upregulated and mediate increase in lignin content along with superior lodging resistance [20]. The miR399 was identified to regulate the low-phosphate responses in maize [103]. The transgenic plant with miR399 over-expression showed significant phosphorus-toxicity phenotypes, indicating that miR399 is functionally conserved in monocots and dicots.

4. Exploiting the Roles of Maize Small RNAs in Important Agronomic Traits Improvement

Most of agronomic traits are quantitative traits, which are controlled by multiple loci and complex regulatory networks. MiRNAs and phased siRNAs are important participants in these complex regulatory networks. Manipulating the expression levels of miRNAs, miRNA targets, and phased siRNAs is a possible way for agronomic traits improvement. With grain yield increasing, the agronomic traits of maize have been improved through genetic selection [104], which is probably consistent with the elite allele selection of miRNAs and their targets in breeding. Compared with old maize varieties, modern varieties usually have reduced stature, more upright leaves, decreased tassel size, rolling leaf, superior staygreen, less tillers, shorter anthesis-silking interval, less ears per plant and superior stress resistance [104]. Based upon the knowledge about miRNA and phased siRNA functions, manipulating the expression of these small regulatory RNAs and their targets is a possible approach for agronomic traits improvement.
Flowering time represents the developmental transition from vegetative to reproductive phase. Maize spread from its origin to worldwide places with the gradually adaption of flowering time to the local climate [105]. Flowering time determines the length of vegetative phase, biomass and grain yield in maize. The interplay between miR156 and miR172 fine tunes the maize developmental timing and tillering [25,86,88]. Increasing the expression levels of miR156 can elongate the vegetative phase and tillering in maize, which is important to achieve high biomass for silage feed. MiR156 silencing or miR172 over-expression is able to impel maize flowering and precocity, which is in favor of maize mechanized harvest in special regions.
Ideal plant architecture is highly associated with maize planting density and lodging resistance, thereby achieving higher yield. Maize miR156 also regulates plant architectural traits through binding its target genes, such as tsh4, LG1, UB2 and UB3 [30,33,84,85,106,107]. Manipulating the expression of these ZmSBPs at optimal levels is needed for idea plant architectural traits. For instance, decreased expression of LG1 can promote the leaf angle and reduce tassel branches. Furthermore, manipulating the expression of UB2 and UB3 in tassel branches and ear rows by using tissue-specific promotor is helpful to get ideal tassel and ear architecture. Additionally, repressing the expression of miR166 or increasing the expression of its targets will increase the leaf rolling, which can be helpful for improving the leaf shapes [88].
In global maize production, lodging and drought are two main abiotic stresses that accounts for large yield loss annually. In a recent research, miR528 has been proved to affect lodging resistance through regulating lignin biosynthesis [20]. Gene silencing of miR528 or overexpression of its targets is helpful for enhancing maize lodging resistance. Knock-down of miR164 promotes maize lateral root development, which can help toward drought and lodging resistance [31]. In the response toward abiotic stress, such as drought, ABA and salinity, miR169 and its targets (NF-YAs) contribute the major regulatory roles through ABA signaling [108]. Lowering the expression of miR169, or increasing that of NF-YAs, can facilitate maize resistance to drought. MiR166 silencing confers resistance against drought in rice and Arabidopsis, which is likely conserved in maize too [88,100,101].

5. Future Perspectives

As discussed above, enhanced knowledge on miRNA and phased siRNA functions will be helpful for improving some agronomic traits, including developmental timing, plant architecture, and abiotic stress resistance. Genetic engineering for elite maize germplasms and hybrids still face several hurdles. First, only a small proportion of miRNAs and phased siRNAs have been studied in maize, their complex regulatory networks remain largely unknown. The functional identification of sRNAs is largely dependent upon creating mutants. In maize, the abundant genetic variations or mutations in germplasm pools can provide useful raw materials for the study of these regulatory sRNAs or their targets [109]. Creating new mutants for specific sRNA using artificial miRNA, Short tandem target mimic (STTM) or target mimic (TM) techniques, are efficient strategies for uncovering the functions of these regulatory sRNAs in maize [110,111,112]. Second, plant miRNA and phased siRNA usually express in spatial and temporal manner. Thus, manipulating the expression of miRNA and phased siRNA in specific tissues and developmental stages can precisely target the traits for improvement. This can be achieved by expressing the transgene expression using tissue- or development-specific promoters, or inducible promoters. Fine genome editing of miRNAs, phased siRNAs and target genes by the CRISPR/Cas9 system can facilitate more subtle manipulations for the target agronomic traits, which is an alternative strategy. Third, for maize hybrids worldwide planted, screening elite hybrid is the most important mask in maize breeding. Usually, the ideal phenotypes in parental inbred lines do not always transfer to the corresponding hybrid. Screening of an elite hybrid is bit of an art and magic, which requires all the yield related traits to reach a balance, and with high heterosis and stress resistance. The current theory of heterosis model facilitate the breeders to make hybrid crosses with high heterosis. Screening the inbred lines with elite genotype/haplotype of miRNAs, phased siRNAs and their targets is fundamental in breeding. Introgressing the elite genotype or haplotype into inbred lines based on heterosis model/heterotic groups will enable the parental elite phenotypes get transferred to their hybrids.

Author Contributions

G.T. and J.T. provided the guideline, Z.Z. collected related references and wrote the manuscript, Z.Z. drew the Figures, J.T., G.T. and S.T. modified the Figures and revised the manuscript.

Funding

This study received the support of funds from National Key Research and Development Program of China (No. 2017YFD0101203), and NSFC (No. 31571679). G.T. is supported by NSF grants (IOS-1048216 and IOS-1340001).

Acknowledgments

We are thankful to anonymous reviewers for their valuable suggestions to improve this article.

Conflicts of Interest

No conflict of interest declared.

References

  1. Chen, X. Small RNAs and their roles in plant development. Annu. Rev. Cell Dev. Biol. 2009, 25, 21–44. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, V.N.; Han, J.; Siomi, M.C. Biogenesis of small RNAs in animals. Nat. Rev. Mol. Cell Biol. 2009, 10, 126–139. [Google Scholar] [CrossRef] [PubMed]
  3. Fei, Q.; Xia, R.; Meyers, B.C. Phased, secondary, small interfering RNAs in posttranscriptional regulatory networks. Plant Cell 2013, 25, 2400–2415. [Google Scholar] [CrossRef] [PubMed]
  4. Axtell, M.J. Classification and comparison of small RNAs from plants. Annu. Rev. Plant Biol. 2013, 64, 137–159. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, Z.; Ma, Z.; Castillo-González, C.; Sun, D.; Li, Y.; Yu, B.; Zhao, B.; Li, P.; Zhang, X. SWI2/SNF2 ATPase CHR2 remodels pri-miRNAs via Serrate to impede miRNA production. Nature 2018, 557, 516–521. [Google Scholar] [CrossRef]
  6. Rogers, K.; Chen, X. Biogenesis, turnover, and mode of action of plant microRNAs. Plant Cell 2013, 25, 2383–2399. [Google Scholar] [CrossRef] [PubMed]
  7. Voinnet, O. Origin, biogenesis, and activity of plant microRNAs. Cell 2009, 136, 669–687. [Google Scholar] [CrossRef]
  8. Rhoades, M.W.; Reinhart, B.J.; Lim, L.P.; Burge, C.B.; Bartel, B.; Bartel, D.P. Prediction of plant microRNA targets. Cell 2002, 110, 513–520. [Google Scholar] [CrossRef]
  9. Cuperus, J.T.; Fahlgren, N.; Carrington, J.C. Evolution and functional diversification of MIRNA Genes. Plant Cell 2011, 23, 431–442. [Google Scholar] [CrossRef]
  10. Jones-Rhoades, M.W.; Bartel, D.P.; Bartel, B. MicroRNAs and their regulatory roles in plants. Annu. Rev. Plant Biol. 2006, 57, 19–53. [Google Scholar] [CrossRef]
  11. Yu, Y.; Zhou, Y.; Zhang, Y.; Chen, Y. Grass phasiRNAs and male fertility. Sci. China Life Sci. 2018, 61, 148–154. [Google Scholar] [CrossRef] [PubMed]
  12. Zhai, J.; Zhang, H.; Arikit, S.; Huang, K.; Nan, G.L.; Walbot, V.; Meyers, B.C. Spatiotemporally dynamic, cell-type-dependent premeiotic and meiotic phasiRNAs in maize anthers. Proc. Natl. Acad. Sci. USA 2015, 112, 3146–3151. [Google Scholar] [CrossRef]
  13. Juarez, M.T.; Twigg, R.W.; Timmermans, M.C. Specification of adaxial cell fate during maize leaf development. Development 2004, 131, 4533–4544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Wang, H.; Wang, H. The miR156/SPL module, a regulatory hub and versatile toolbox, gears up crops for enhanced agronomic traits. Mol. Plant 2015. [Google Scholar] [CrossRef] [PubMed]
  15. Tang, J.; Chu, C. MicroRNAs in crop improvement: Fine-tuners for complex traits. Nat. Plants 2017, 3, 17077. [Google Scholar] [CrossRef] [PubMed]
  16. Gore, M.A.; Chia, J.M.; Elshire, R.J.; Sun, Q.; Ersoz, E.S.; Hurwitz, B.L.; Peiffer, J.A.; McMullen, M.D.; Grills, G.S.; Ross-Ibarra, J.; et al. A first-generation haplotype map of maize. Science 2009, 326, 1115–1117. [Google Scholar] [CrossRef] [PubMed]
  17. Brutnell, T.P. Transposon tagging in maize. Funct. Integr. Genom. 2002, 2, 4–12. [Google Scholar] [CrossRef]
  18. Arteaga-Vazquez, M.A.; Chandler, V.L. Paramutation in maize: RNA mediated trans-generational gene silencing. Curr. Opin. Genet. Dev. 2010, 20, 156–163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Sun, W.; Xiang, X.; Zhai, L.; Zhang, D.; Cao, Z.; Liu, L.; Zhang, Z. AGO18b negatively regulates determinacy of spikelet meristems on the tassel central spike in maize. J. Integr. Plant Biol. 2018, 60, 65–78. [Google Scholar] [CrossRef] [PubMed]
  20. Sun, Q.; Liu, X.; Yang, J.; Liu, W.; Du, Q.; Wang, H.; Fu, C.; Li, W.X. MicroRNA528 affects lodging resistance of maize by regulating lignin biosynthesis under nitrogen-luxury conditions. Mol. Plant 2018, 11, 806–814. [Google Scholar] [CrossRef]
  21. Field, S.; Thompson, B. Analysis of the Maize dicer-like1 Mutant, fuzzy tassel, Implicates MicroRNAs in Anther Maturation and Dehiscence. PLoS ONE 2016, 11, e0146534. [Google Scholar] [CrossRef] [PubMed]
  22. Thompson, B.E.; Basham, C.; Hammond, R.; Ding, Q.; Kakrana, A.; Lee, T.F.; Simon, S.A.; Meeley, R.; Meyers, B.C.; Hake, S. The dicer-like1 homolog fuzzy tassel is required for the regulation of meristem determinacy in the inflorescence and vegetative growth in maize. Plant Cell 2014, 26, 4702–4717. [Google Scholar] [CrossRef] [PubMed]
  23. Petsch, K.; Manzotti, P.S.; Tam, O.H.; Meeley, R.; Hammell, M.; Consonni, G.; Timmermans, M.C. Novel DICER-LIKE1 siRNAs bypass the requirement for DICER-LIKE4 in maize development. Plant Cell 2015, 27, 2163–2177. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, D.; Yang, H.; Zou, C.; Li, W.X.; Xu, Y.; Xie, C. Identification and functional characterization of the AGO1 ortholog in maize. J. Integr. Plant Biol. 2016, 58, 749–758. [Google Scholar] [CrossRef] [PubMed]
  25. Chuck, G.; Cigan, A.M.; Saeteurn, K.; Hake, S. The heterochronic maize mutant Corngrass1 results from overexpression of a tandem microRNA. Nat. Genet. 2007, 39, 544–549. [Google Scholar] [CrossRef] [PubMed]
  26. Juarez, M.T.; Kui, J.S.; Thomas, J.; Heller, B.A.; Timmermans, M.C. MicroRNA-mediated repression of rolled leaf1 specifies maize leaf polarity. Nature 2004, 428, 84–88. [Google Scholar] [CrossRef] [PubMed]
  27. Lauter, N.; Kampani, A.; Carlson, S.; Goebel, M.; Moose, S.P. MicroRNA172 down-regulates glossy15 to promote vegetative phase change in maize. Proc. Natl. Acad. Sci. USA 2005, 102, 9412–9417. [Google Scholar] [CrossRef] [PubMed]
  28. Luan, M.; Xu, M.; Lu, Y.; Zhang, L.; Fan, Y.; Wang, L. Expression of zma-miR169 miRNAs and their target ZmNF-YA genes in response to abiotic stress in maize leaves. Gene 2015, 555, 178–185. [Google Scholar] [CrossRef] [PubMed]
  29. Xu, D.; Wang, X.; Huang, C.; Xu, G.; Liang, Y.; Chen, Q.; Wang, C.; Li, D.; Tian, J.; Wu, L.; et al. Glossy15 plays an important role in the divergence of the vegetative transition between maize and its progenitor, teosinte. Mol. Plant 2017, 10, 1579–1583. [Google Scholar] [CrossRef] [PubMed]
  30. Chuck, G.S.; Brown, P.J.; Meeley, R.; Hake, S. Maize SBP-box transcription factors unbranched2 and unbranched3 affect yield traits by regulating the rate of lateral primordia initiation. Proc. Natl. Acad. Sci. USA 2014, 111, 18775–18780. [Google Scholar] [CrossRef] [PubMed]
  31. Li, J.; Guo, G.; Guo, W.; Guo, G.; Tong, D.; Ni, Z.; Sun, Q.; Yao, Y. miRNA164-directed cleavage of ZmNAC1 confers lateral root development in maize (Zea mays L.). BMC Plant Biol. 2012, 12, 220. [Google Scholar] [CrossRef] [PubMed]
  32. Qian, Y.; Cheng, Y.; Cheng, X.; Jiang, H.; Zhu, S.; Cheng, B. Identification and characterization of Dicer-like, Argonaute and RNA-dependent RNA polymerase gene families in maize. Plant Cell Rep. 2011, 30, 1347–1363. [Google Scholar] [CrossRef] [PubMed]
  33. Chuck, G.; Whipple, C.; Jackson, D.; Hake, S. The maize SBP-box transcription factor encoded by tasselsheath4 regulates bract development and the establishment of meristem boundaries. Development 2010, 137, 1243–1250. [Google Scholar] [CrossRef] [PubMed]
  34. Hultquist, J.F.; Dorweiler, J.E. Feminized tassels of maize mop1 and ts1 mutants exhibit altered levels of miR156 and specific SBP-box genes. Planta 2008, 229, 99–113. [Google Scholar] [CrossRef] [PubMed]
  35. Kapoor, M.; Arora, R.; Lama, T.; Nijhawan, A.; Khurana, J.P.; Tyagi, A.K.; Kapoor, S. Genome-wide identification, organization and phylogenetic analysis of Dicer-like, Argonaute and RNA-dependent RNA Polymerase gene families and their expression analysis during reproductive development and stress in rice. BMC Genom. 2008, 9, 451. [Google Scholar] [CrossRef] [PubMed]
  36. Matzke, M.A.; Birchler, J.A. RNAi-mediated pathways in the nucleus. Nat. Rev. Genet. 2005, 6, 24–35. [Google Scholar] [CrossRef]
  37. He, J.; Dong, Z.; Jia, Z.; Wang, J.; Wang, G. Isolation, expression and functional analysis of a putative RNA-dependent RNA polymerase gene from maize (Zea mays L.). Mol. Biol. Rep. 2010, 37, 865–874. [Google Scholar] [CrossRef]
  38. Douglas, R.N.; Wiley, D.; Sarkar, A.; Springer, N.; Timmermans, M.C.; Scanlon, M.J. Ragged seedling2 Encodes an ARGONAUTE7-like protein required for mediolateral expansion, but not dorsiventrality, of maize leaves. Plant Cell 2010, 22, 1441–1451. [Google Scholar] [CrossRef]
  39. Dorweiler, J.E.; Carey, C.C.; Kubo, K.M.; Hollick, J.B.; Kermicle, J.L.; Chandler, V.L. Mediator of paramutation1 is required for establishment and maintenance of paramutation at multiple maize loci. Plant Cell 2000, 12, 2101–2118. [Google Scholar] [CrossRef]
  40. Ramachandran, V.; Chen, X. Small RNA metabolism in Arabidopsis. Trends Plant Sci. 2008, 13, 368–374. [Google Scholar] [CrossRef]
  41. Yu, B.; Yang, Z.; Li, J.; Minakhina, S.; Yang, M.; Padgett, R.W.; Steward, R.; Chen, X. Methylation as a crucial step in plant microRNA biogenesis. Science 2005, 307, 932–935. [Google Scholar] [CrossRef] [PubMed]
  42. Reinhart, B.J.; Weinstein, E.G.; Rhoades, M.W.; Bartel, B.; Bartel, D.P. MicroRNAs in plants. Genes Dev. 2002, 16, 1616–1626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Llave, C.; Xie, Z.; Kasschau, K.D.; Carrington, J.C. Cleavage of Scarecrow-like mRNA targets directed by a class of Arabidopsis miRNA. Science 2002, 297, 2053–2056. [Google Scholar] [CrossRef]
  44. Zhang, Z.; Hu, F.; Sung, M.W.; Shu, C.; Castillo-Gonzalez, C.; Koiwa, H.; Tang, G.; Dickman, M.; Li, P.; Zhang, X. RISC-interacting clearing 3′-5′exoribonucleases (RICEs) degrade uridylated cleavage fragments to maintain functional RISC in Arabidopsis thaliana. eLife 2017, 6, e24466. [Google Scholar] [CrossRef] [PubMed]
  45. Huntzinger, E.; Izaurralde, E. Gene silencing by microRNAs: Contributions of translational repression and mRNA decay. Nat. Rev. Genet. 2011, 12, 99–110. [Google Scholar] [CrossRef]
  46. Pontes, O.; Costa-Nunes, P.; Vithayathil, P.; Pikaard, C.S. RNA polymerase V functions in Arabidopsis interphase heterochromatin organization independently of the 24-nt siRNA-directed DNA methylation pathway. Mol. Plant 2009, 2, 700–710. [Google Scholar] [CrossRef] [PubMed]
  47. Teotia, S.; Singh, D.; Tang, G. DNA Methylation in plants by microRNAs. In Plant Epigenetics; Rajewsky, N., Jurga, S., Barciszewski, J., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 247–262. [Google Scholar]
  48. Axtell, M.J. Lost in translation? microRNAs at the rough ER. Trends Plant Sci. 2017, 22, 273–274. [Google Scholar] [CrossRef] [PubMed]
  49. Yu, Y.; Ji, L.; Le, B.H.; Zhai, J.; Chen, J.; Luscher, E.; Gao, L.; Liu, C.; Cao, X.; Mo, B.; et al. ARGONAUTE10 promotes the degradation of miR165/6 through the SDN1 and SDN2 exonucleases in Arabidopsis. PLoS Biol. 2017, 15, e2001272. [Google Scholar] [CrossRef] [PubMed]
  50. Borges, F.; Martienssen, R.A. The expanding world of small RNAs in plants. Nat. Rev. Mol. Cell Biol. 2015, 16, 727–741. [Google Scholar] [CrossRef] [Green Version]
  51. Arikit, S.; Zhai, J.; Meyers, B.C. Biogenesis and function of rice small RNAs from non-coding RNA precursors. Curr. Opin. Plant Biol. 2013, 16, 170–179. [Google Scholar] [CrossRef] [PubMed]
  52. Axtell, M.J.; Jan, C.; Rajagopalan, R.; Bartel, D.P. A two-hit trigger for siRNA biogenesis in plants. Cell 2006, 127, 565–577. [Google Scholar] [CrossRef] [PubMed]
  53. Allen, E.; Howell, M.D. miRNAs in the biogenesis of trans-acting siRNAs in higher plants. Semin. Cell Dev. Biol. 2010, 21, 798–804. [Google Scholar] [CrossRef] [PubMed]
  54. De Felippes, F.F.; Marchais, A.; Sarazin, A.; Oberlin, S.; Voinnet, O. A single miR390 targeting event is sufficient for triggering TAS3-tasiRNA biogenesis in Arabidopsis. Nucleic Acids Res. 2017, 45, 5539–5554. [Google Scholar] [CrossRef]
  55. Dotto, M.C.; Petsch, K.A.; Aukerman, M.J.; Beatty, M.; Hammell, M.; Timmermans, M.C. Genome-wide analysis of leafbladeless1-regulated and phased small RNAs underscores the importance of the TAS3 ta-siRNA pathway to maize development. PLoS Genet. 2014, 10, e1004826. [Google Scholar] [CrossRef] [PubMed]
  56. Park, W.; Li, J.; Song, R.; Messing, J.; Chen, X. CARPEL FACTORY, a Dicer homolog, and HEN1, a novel protein, act in microRNA metabolism in Arabidopsis thaliana. Curr. Biol. 2002, 12, 1484–1495. [Google Scholar] [CrossRef]
  57. Parent, J.S.; Bouteiller, N.; Elmayan, T.; Vaucheret, H. Respective contributions of Arabidopsis DCL2 and DCL4 to RNA silencing. Plant J. Cell Mol. Biol. 2015, 81, 223–232. [Google Scholar] [CrossRef]
  58. Xie, Z.; Johansen, L.K.; Gustafson, A.M.; Kasschau, K.D.; Lellis, A.D.; Zilberman, D.; Jacobsen, S.E.; Carrington, J.C. Genetic and functional diversification of small RNA pathways in plants. PLoS Biol. 2004, 2, e104. [Google Scholar] [CrossRef]
  59. Xie, Z.; Allen, E.; Wilken, A.; Carrington, J.C. DICER-LIKE 4 functions in trans-acting small interfering RNA biogenesis and vegetative phase change in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2005, 102, 12984–12989. [Google Scholar] [CrossRef]
  60. Margis, R.; Fusaro, A.F.; Smith, N.A.; Curtin, S.J.; Watson, J.M.; Finnegan, E.J.; Waterhouse, P.M. The evolution and diversification of Dicers in plants. FEBS Lett. 2006, 580, 2442–2450. [Google Scholar] [CrossRef]
  61. Vaucheret, H.; Vazquez, F.; Crete, P.; Bartel, D.P. The action of ARGONAUTE1 in the miRNA pathway and its regulation by the miRNA pathway are crucial for plant development. Genes Dev. 2004, 18, 1187–1197. [Google Scholar] [CrossRef]
  62. Borges, F.; Pereira, P.A.; Slotkin, R.K.; Martienssen, R.A.; Becker, J.D. MicroRNA activity in the Arabidopsis male germline. J. Exp. Bot. 2011, 62, 1611–1620. [Google Scholar] [CrossRef] [PubMed]
  63. Harvey, J.J.; Lewsey, M.G.; Patel, K.; Westwood, J.; Heimstadt, S.; Carr, J.P.; Baulcombe, D.C. An antiviral defense role of AGO2 in plants. PLoS ONE 2011, 6, e14639. [Google Scholar] [CrossRef]
  64. Zilberman, D.; Cao, X.; Johansen, L.K.; Xie, Z.; Carrington, J.C.; Jacobsen, S.E. Role of Arabidopsis ARGONAUTE4 in RNA-directed DNA methylation triggered by inverted repeats. Curr. Biol. 2004, 14, 1214–1220. [Google Scholar] [CrossRef] [PubMed]
  65. Wu, J.; Yang, Z.; Wang, Y.; Zheng, L.; Ye, R.; Ji, Y.; Zhao, S.; Ji, S.; Liu, R.; Xu, L.; et al. Viral-inducible Argonaute18 confers broad-spectrum virus resistance in rice by sequestering a host microRNA. eLife 2015, 4. [Google Scholar] [CrossRef] [PubMed]
  66. Zhai, L.; Sun, W.; Zhang, K.; Jia, H.; Liu, L.; Liu, Z.; Teng, F.; Zhang, Z. Identification and characterization of Argonaute gene family and meiosis-enriched Argonaute during sporogenesis in maize. J. Integr. Plant Biol. 2014, 56, 1042–1052. [Google Scholar] [CrossRef] [PubMed]
  67. Marin, E.; Jouannet, V.; Herz, A.; Lokerse, A.S.; Weijers, D.; Vaucheret, H.; Nussaume, L.; Crespi, M.D.; Maizel, A. miR390, Arabidopsis TAS3 tasiRNAs, and their AUXIN RESPONSE FACTOR targets define an autoregulatory network quantitatively regulating lateral root growth. Plant Cell 2010, 22, 1104–1117. [Google Scholar] [CrossRef] [PubMed]
  68. Montgomery, T.A.; Howell, M.D.; Cuperus, J.T.; Li, D.; Hansen, J.E.; Alexander, A.L.; Chapman, E.J.; Fahlgren, N.; Allen, E.; Carrington, J.C. Specificity of ARGONAUTE7-miR390 interaction and dual functionality in TAS3 trans-acting siRNA formation. Cell 2008, 133, 128–141. [Google Scholar] [CrossRef] [PubMed]
  69. Xia, R.; Meyers, B.C.; Liu, Z.; Beers, E.P.; Ye, S.; Liu, Z. MicroRNA superfamilies descended from miR390 and their roles in secondary small interfering RNA Biogenesis in Eudicots. Plant Cell 2013, 25, 1555–1572. [Google Scholar] [CrossRef] [PubMed]
  70. Sievers, F.; Higgins, D.G. Clustal Omega for making accurate alignments of many protein sequences. Protein Sci. 2018, 27, 135–145. [Google Scholar] [CrossRef]
  71. Letunic, I.; Bork, P. Interactive Tree of Life v2: Online annotation and display of phylogenetic trees made easy. Nucleic Acids Res. 2011, 39, W475–W478. [Google Scholar] [CrossRef]
  72. Zaratiegui, M.; Irvine, D.V.; Martienssen, R.A. Noncoding RNAs and gene silencing. Cell 2007, 128, 763–776. [Google Scholar] [CrossRef] [PubMed]
  73. Cho, S.H.; Coruh, C.; Axtell, M.J. miR156 and miR390 regulate tasiRNA accumulation and developmental timing in Physcomitrella patens. Plant Cell 2012, 24, 4837–4849. [Google Scholar] [CrossRef]
  74. Aukerman, M.J.; Sakai, H. Regulation of flowering time and floral organ identity by a microRNA and its APETALA2-like target genes. Plant Cell 2003, 15, 2730–2741. [Google Scholar] [CrossRef] [PubMed]
  75. Jung, J.H.; Seo, Y.H.; Seo, P.J.; Reyes, J.L.; Yun, J.; Chua, N.H.; Park, C.M. The GIGANTEA-regulated microRNA172 mediates photoperiodic flowering independent of CONSTANS in Arabidopsis. Plant Cell 2007, 19, 2736–2748. [Google Scholar] [CrossRef] [PubMed]
  76. Wu, G.; Poethig, R.S. Temporal regulation of shoot development in Arabidopsis thaliana by miR156 and its target SPL3. Development 2006, 133, 3539–3547. [Google Scholar] [CrossRef] [PubMed]
  77. Chuck, G.S.; Tobias, C.; Sun, L.; Kraemer, F.; Li, C.; Dibble, D.; Arora, R.; Bragg, J.N.; Vogel, J.P.; Singh, S.; et al. Overexpression of the maize Corngrass1 microRNA prevents flowering, improves digestibility, and increases starch content of switchgrass. Proc. Natl. Acad. Sci. USA 2011, 108, 17550–17555. [Google Scholar] [CrossRef] [PubMed]
  78. Doebley, J.; Stec, A.; Hubbard, L. The evolution of apical dominance in maize. Nature 1997, 386, 485–488. [Google Scholar] [CrossRef] [PubMed]
  79. Kidner, C.A.; Martienssen, R.A. Spatially restricted microRNA directs leaf polarity through ARGONAUTE1. Nature 2004, 428, 81–84. [Google Scholar] [CrossRef] [PubMed]
  80. Palatnik, J.F.; Allen, E.; Wu, X.; Schommer, C.; Schwab, R.; Carrington, J.C.; Weigel, D. Control of leaf morphogenesis by microRNAs. Nature 2003, 425, 257–263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  81. Schommer, C.; Palatnik, J.F.; Aggarwal, P.; Chetelat, A.; Cubas, P.; Farmer, E.E.; Nath, U.; Weigel, D. Control of jasmonate biosynthesis and senescence by miR319 targets. PLoS Biol. 2008, 6, e230. [Google Scholar] [CrossRef]
  82. Jiao, Y.; Wang, Y.; Xue, D.; Wang, J.; Yan, M.; Liu, G.; Dong, G.; Zeng, D.; Lu, Z.; Zhu, X.; et al. Regulation of OsSPL14 by OsmiR156 defines ideal plant architecture in rice. Nat. Genet. 2010, 42, 541–544. [Google Scholar] [CrossRef] [PubMed]
  83. Lu, Z.; Yu, H.; Xiong, G.; Wang, J.; Jiao, Y.; Liu, G.; Jing, Y.; Meng, X.; Hu, X.; Qian, Q.; et al. Genome-wide binding analysis of the transcription activator ideal plant architecture1 reveals a complex network regulating rice plant architecture. Plant Cell 2013, 25, 3743–3759. [Google Scholar] [CrossRef] [PubMed]
  84. Moreno, M.A.; Harper, L.C.; Krueger, R.W.; Dellaporta, S.L.; Freeling, M. liguleless1 encodes a nuclear-localized protein required for induction of ligules and auricles during maize leaf organogenesis. Genes Dev. 1997, 11, 616–628. [Google Scholar] [CrossRef] [PubMed]
  85. Liu, L.; Du, Y.; Shen, X.; Li, M.; Sun, W.; Huang, J.; Liu, Z.; Tao, Y.; Zheng, Y.; Yan, J.; et al. KRN4 controls quantitative variation in maize kernel row number. PLoS Genet. 2015, 11, e1005670. [Google Scholar] [CrossRef] [PubMed]
  86. Chuck, G.; Meeley, R.; Irish, E.; Sakai, H.; Hake, S. The maize tasselseed4 microRNA controls sex determination and meristem cell fate by targeting Tasselseed6/indeterminate spikelet1. Nat. Genet. 2007, 39, 1517–1521. [Google Scholar] [CrossRef] [PubMed]
  87. Banks, J.A. MicroRNA, sex determination and floral meristem determinacy in maize. Genome Biol. 2008, 9, 204. [Google Scholar] [CrossRef] [PubMed]
  88. Peng, T.; Qiao, M.; Liu, H.; Teotia, S.; Zhang, Z.; Zhao, Y.; Wang, B.; Zhao, D.; Shi, L.; Zhang, C.; et al. A resource for inactivation of microRNAs using Short Tandem Target Mimic technology in model and crop plants. Mol. Plant 2018, 11, 1400–1417. [Google Scholar] [CrossRef] [PubMed]
  89. Donaire, L.; Barajas, D.; Martinez-Garcia, B.; Martinez-Priego, L.; Pagan, I.; Llave, C. Structural and genetic requirements for the biogenesis of tobacco rattle virus-derived small interfering RNAs. J. Virol. 2008, 82, 5167–5177. [Google Scholar] [CrossRef] [PubMed]
  90. Tsuji, H.; Aya, K.; Ueguchi-Tanaka, M.; Shimada, Y.; Nakazono, M.; Watanabe, R.; Nishizawa, N.K.; Gomi, K.; Shimada, A.; Kitano, H.; et al. GAMYB controls different sets of genes and is differentially regulated by microRNA in aleurone cells and anthers. Plant J. Cell Mol. Biol. 2006, 47, 427–444. [Google Scholar] [CrossRef] [PubMed]
  91. Archak, S.; Nagaraju, J. Computational prediction of rice (Oryza sativa) miRNA targets. Genom. Proteom. Bioinform. 2007, 5, 196–206. [Google Scholar] [CrossRef]
  92. Nogueira, F.T.; Madi, S.; Chitwood, D.H.; Juarez, M.T.; Timmermans, M.C. Two small regulatory RNAs establish opposing fates of a developmental axis. Genes Dev. 2007, 21, 750–755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. McConnell, J.R.; Emery, J.; Eshed, Y.; Bao, N.; Bowman, J.; Barton, M.K. Role of PHABULOSA and PHAVOLUTA in determining radial patterning in shoots. Nature 2001, 411, 709–713. [Google Scholar] [CrossRef] [PubMed]
  94. Emery, J.F.; Floyd, S.K.; Alvarez, J.; Eshed, Y.; Hawker, N.P.; Izhaki, A.; Baum, S.F.; Bowman, J.L. Radial patterning of Arabidopsis shoots by class III HD-ZIP and KANADI genes. Curr. Biol. 2003, 13, 1768–1774. [Google Scholar] [CrossRef] [PubMed]
  95. Nogueira, F.T.; Chitwood, D.H.; Madi, S.; Ohtsu, K.; Schnable, P.S.; Scanlon, M.J.; Timmermans, M.C. Regulation of small RNA accumulation in the maize shoot apex. PLoS Genet. 2009, 5, e1000320. [Google Scholar] [CrossRef] [PubMed]
  96. Shkibbe, D.S.; Schnable, P.S. Male sterility in maize. Maydica 2005, 50, 367–376. [Google Scholar]
  97. Wang, H.; Nussbaum-Wagler, T.; Li, B.; Zhao, Q.; Vigouroux, Y.; Faller, M.; Bomblies, K.; Lukens, L.; Doebley, J.F. The origin of the naked grains of maize. Nature 2005, 436, 714–719. [Google Scholar] [CrossRef]
  98. Wang, H.; Studer, A.J.; Zhao, Q.; Meeley, R.; Doebley, J.F. Evidence that the origin of naked kernels during maize domestication was caused by a single amino acid substitution in tga1. Genetics 2015, 200, 965–974. [Google Scholar] [CrossRef]
  99. Wu, L.; Zhang, D.; Xue, M.; Qian, J.; He, Y.; Wang, S. Overexpression of the maize GRF10, an endogenous truncated growth-regulating factor protein, leads to reduction in leaf size and plant height. J. Integr. Plant Biol. 2014, 56, 1053–1063. [Google Scholar] [CrossRef]
  100. Yan, J.; Zhao, C.; Zhou, J.; Yang, Y.; Wang, P.; Zhu, X.; Tang, G.; Bressan, R.A.; Zhu, J.K. The miR165/166 mediated regulatory module plays critical roles in ABA homeostasis and response in Arabidopsis thaliana. PLoS Genet. 2016, 12, e1006416. [Google Scholar] [CrossRef]
  101. Zhang, J.; Zhang, H.; Srivastava, A.K.; Pan, Y.; Bai, J.; Fang, J.; Shi, H.; Zhu, J.K. Knockdown of rice microRNA166 confers drought resistance by causing leaf rolling and altering stem xylem development. Plant Physiol. 2018, 176, 2082–2094. [Google Scholar] [CrossRef]
  102. Hochholdinger, F.; Yu, P.; Marcon, C. Genetic control of root system development in maize. Trends Plant Sci. 2018, 23, 79–88. [Google Scholar] [CrossRef] [PubMed]
  103. Du, Q.; Wang, K.; Zou, C.; Xu, C.; Li, W.X. The PILNCR1-miR399 regulatory module is important for low phosphate tolerance in maize. Plant Physiol. 2018, 177, 1743–1753. [Google Scholar] [CrossRef]
  104. Duvick, D.N. The contribution of breeding to yield advances in maize (Zea mays L.). Adv. Agron. 2005, 86, 83–145. [Google Scholar] [CrossRef]
  105. Buckler, E.S.; Holland, J.B.; Bradbury, P.J.; Acharya, C.B.; Brown, P.J.; Browne, C.; Ersoz, E.; Flint-Garcia, S.; Garcia, A.; Glaubitz, J.C.; et al. The genetic architecture of maize flowering time. Science 2009, 325, 714–718. [Google Scholar] [CrossRef]
  106. Lackey, E.; Ng, D.W.; Chen, Z.J. RNAi-mediated down-regulation of DCL1 and AGO1 induces developmental changes in resynthesized Arabidopsis allotetraploids. New Phytol. 2010, 186, 207–215. [Google Scholar] [CrossRef] [PubMed]
  107. Moon, J.; Candela, H.; Hake, S. The Liguleless narrow mutation affects proximal-distal signaling and leaf growth. Development 2013, 140, 405–412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  108. Luan, M.; Xu, M.; Lu, Y.; Zhang, Q.; Zhang, L.; Zhang, C.; Fan, Y.; Lang, Z.; Wang, L. Family-wide survey of miR169s and NF-YAs and their expression profiles response to abiotic stress in maize roots. PLoS ONE 2014, 9, e91369. [Google Scholar] [CrossRef]
  109. Portwood, J.L., 2nd; Woodhouse, M.R.; Cannon, E.K.; Gardiner, J.M.; Harper, L.C.; Schaeffer, M.L.; Walsh, J.R.; Sen, T.Z.; Cho, K.T.; Schott, D.A.; et al. MaizeGDB 2018: The maize multi-genome genetics and genomics database. Nucleic Acids Res. 2019, 47, D1146–D1154. [Google Scholar] [CrossRef] [PubMed]
  110. Yan, J.; Gu, Y.; Jia, X.; Kang, W.; Pan, S.; Tang, X.; Chen, X.; Tang, G. Effective small RNA destruction by the expression of a short tandem target mimic in Arabidopsis. Plant Cell 2012, 24, 415–427. [Google Scholar] [CrossRef]
  111. Franco-Zorrilla, J.M.; Valli, A.; Todesco, M.; Mateos, I.; Puga, M.I.; Rubio-Somoza, I.; Leyva, A.; Weigel, D.; Garcia, J.A.; Paz-Ares, J. Target mimicry provides a new mechanism for regulation of microRNA activity. Nat. Genet. 2007, 39, 1033–1037. [Google Scholar] [CrossRef]
  112. Jeong, D.H.; Park, S.; Zhai, J.; Gurazada, S.G.; De Paoli, E.; Meyers, B.C.; Green, P.J. Massive analysis of rice small RNAs: Mechanistic implications of regulated microRNAs and variants for differential target RNA cleavage. Plant Cell 2011, 23, 4185–4207. [Google Scholar] [CrossRef] [PubMed]
Plants 08 00170 g001 550
Figure 1. An overview showing micro RNA (miRNA) biogenesis and functioning in plants. MIRNA genes are transcribed to form primary miRNAs, from which 21 and 24 nt miRNAs are processed by DCL1 and DCL3, respectively. Their 3′ ends are methylated by HEN1. While the 21 nt species are involved in cleavage or translational inhibition of the target mRNAs, the 24 nt miRNAs are involved in DNA methylation.
Figure 1. An overview showing micro RNA (miRNA) biogenesis and functioning in plants. MIRNA genes are transcribed to form primary miRNAs, from which 21 and 24 nt miRNAs are processed by DCL1 and DCL3, respectively. Their 3′ ends are methylated by HEN1. While the 21 nt species are involved in cleavage or translational inhibition of the target mRNAs, the 24 nt miRNAs are involved in DNA methylation.
Plants 08 00170 g001
Plants 08 00170 g002 550
Figure 2. Phased small interfering RNA (phasiRNA) and trans-acting simple interfering RNA (tasiRNA) biogenesis pathways in maize. (A) The 21 nt phasiRNA biogenesis pathway. (B) The 24 nt phasiRNA biogenesis pathway. The regulatory mechanism of 24 nt has not been fully uncovered. (C) TAS3-tasiRNA biogenesis pathway.
Figure 2. Phased small interfering RNA (phasiRNA) and trans-acting simple interfering RNA (tasiRNA) biogenesis pathways in maize. (A) The 21 nt phasiRNA biogenesis pathway. (B) The 24 nt phasiRNA biogenesis pathway. The regulatory mechanism of 24 nt has not been fully uncovered. (C) TAS3-tasiRNA biogenesis pathway.
Plants 08 00170 g002
Plants 08 00170 g003 550
Figure 3. Chromosomal locations and phylogenetic analysis of known and putative components of the RNAi and miRNA pathways in maize. The protein sequences of dicer-like (DCL), argonautes (AGOs) and RNA-dependent RNA polymerase (RDR) in Arabidopsis, rice and maize AGOs were obtained from protein database (http://www.ncbi.nlm.nih.gov/protein). The neighbor-joining tree was constructed using Clustal omega [70] and iTol online software [71]. (A) The abbreviation of At represents Arabidopsis thaliana, Os for Oryza sativa, and Zm for Zea mays. Red bars indicate the chromosomal locations of ZmDCLs, yellow bars for ZmAGOs, and green bars for ZmRDRs. (B) Plants have four types of DCL proteins. There are 4 DCLs encoded in Arabidopsis genome, 4 DCL family members in rice, and 4 DCLs in maize. Of these DCL proteins, DCL3a and DCL3b are considered specific to monocots and predate the divergence of rice and maize. (C) 10, 19 and 18 AGOs are encoded by Arabidopsis, rice and maize, respectively, that can be divided phylogenetically into five subgroups in maize: AGO1, MEL1/AGO5, AGO7, AGO4, and AGO18. AGO18 subgroup has three members in maize. ZmAGO18a-c are considered specific to monocots along with OsAGO18. (D) Plants have six types of functionally distinct RDRs. While Arabidopsis has all the six types, rice lacks RDR5 and maize lacks RDR3, 4, and 5. In contrast to Arabidopsis and rice which have only single member RDR6 family, maize has a multiple member RDR6 family, which is composed of ZmRDR6a, ZmRDR6b, and ZmRDR6c.
Figure 3. Chromosomal locations and phylogenetic analysis of known and putative components of the RNAi and miRNA pathways in maize. The protein sequences of dicer-like (DCL), argonautes (AGOs) and RNA-dependent RNA polymerase (RDR) in Arabidopsis, rice and maize AGOs were obtained from protein database (http://www.ncbi.nlm.nih.gov/protein). The neighbor-joining tree was constructed using Clustal omega [70] and iTol online software [71]. (A) The abbreviation of At represents Arabidopsis thaliana, Os for Oryza sativa, and Zm for Zea mays. Red bars indicate the chromosomal locations of ZmDCLs, yellow bars for ZmAGOs, and green bars for ZmRDRs. (B) Plants have four types of DCL proteins. There are 4 DCLs encoded in Arabidopsis genome, 4 DCL family members in rice, and 4 DCLs in maize. Of these DCL proteins, DCL3a and DCL3b are considered specific to monocots and predate the divergence of rice and maize. (C) 10, 19 and 18 AGOs are encoded by Arabidopsis, rice and maize, respectively, that can be divided phylogenetically into five subgroups in maize: AGO1, MEL1/AGO5, AGO7, AGO4, and AGO18. AGO18 subgroup has three members in maize. ZmAGO18a-c are considered specific to monocots along with OsAGO18. (D) Plants have six types of functionally distinct RDRs. While Arabidopsis has all the six types, rice lacks RDR5 and maize lacks RDR3, 4, and 5. In contrast to Arabidopsis and rice which have only single member RDR6 family, maize has a multiple member RDR6 family, which is composed of ZmRDR6a, ZmRDR6b, and ZmRDR6c.
Plants 08 00170 g003
Plants 08 00170 g004 550
Figure 4. Summary of functionally validated miRNAs and their targets in maize. Nine miRNAs (in red font) and three phasiRNAs (in red font) that regulate specific agronomic traits (in black font) by inducing their targets (in blue font) gene silencing. Question marks indicate that specific ZmSBP taking part in juvenile-to-adult phase transition is not known.
Figure 4. Summary of functionally validated miRNAs and their targets in maize. Nine miRNAs (in red font) and three phasiRNAs (in red font) that regulate specific agronomic traits (in black font) by inducing their targets (in blue font) gene silencing. Question marks indicate that specific ZmSBP taking part in juvenile-to-adult phase transition is not known.
Plants 08 00170 g004
Plants 08 00170 g005 550
Figure 5. miRNAs or miRNA-phasiRNA interactions in agronomic traits. (A) Maize plant developmental timing is fine-tuned by the interaction between miR156 and miR172. However, the misslink between the two miRNAs still need to be addressed; (B) plant architectural modulation by the interaction of miR156 and miR319. Representative plants, tb1 (leaf), Cg1 (middle), and wild type (right) (all in the background of Chinese inbred line Zheng58) (Unpublished data), are shown. The potential ZmSBP gene probably connects the phenotype of apical dominance loss between maize mutants tb1 and Cg1. In this context, the connection between ZmSBPs and tb1 still need to be experimentally identified; (C) leaf shapes are being regulated by miR166 and miR390-TAS3 regulatory networks. STTMmiR166 mutants have rolling leaf phenotype (left), the wild type is ZZC01 (right). In this context, the connection between miR166 and ARF3 is still unclear.
Figure 5. miRNAs or miRNA-phasiRNA interactions in agronomic traits. (A) Maize plant developmental timing is fine-tuned by the interaction between miR156 and miR172. However, the misslink between the two miRNAs still need to be addressed; (B) plant architectural modulation by the interaction of miR156 and miR319. Representative plants, tb1 (leaf), Cg1 (middle), and wild type (right) (all in the background of Chinese inbred line Zheng58) (Unpublished data), are shown. The potential ZmSBP gene probably connects the phenotype of apical dominance loss between maize mutants tb1 and Cg1. In this context, the connection between ZmSBPs and tb1 still need to be experimentally identified; (C) leaf shapes are being regulated by miR166 and miR390-TAS3 regulatory networks. STTMmiR166 mutants have rolling leaf phenotype (left), the wild type is ZZC01 (right). In this context, the connection between miR166 and ARF3 is still unclear.
Plants 08 00170 g005
Table
Table 1. Known and putative components of the micro RNA (miRNA) and simple interfering (siRNA) pathways in maize.
Table 1. Known and putative components of the micro RNA (miRNA) and simple interfering (siRNA) pathways in maize.
GeneAccession NumberChromosomal Location (5′-3′)Type
1. ZmDCLs
ZmDCL1GRMZM2G040762_P01Chr. 1: 4,600,841–4,608,248DCL1
ZmDCL2GRMZM2G301405_P01Chr. 5: 19,916,753–19,927,967DCL2
ZmDCL3aGRMZM5G814985_P01Chr. 3: 164,415,209–164,418,189DCL3
ZmDCL5/3bGRMZM2G413853_P01Chr. 1: 229,801,762–229,819,069DCL3
ZmDCL4GRMZM2G160473_P01Chr. 10: 129,990,456–129,992,917DCL4
2. ZmAGOs
ZmAGO1aGRMZM2G441583_P01Chr. 6: 43,253,105–43,261,555AGO1
ZmAGO1bAC209206.3_FGP011Chr. 10: 137,506,877–137,513,415AGO1
ZmAGO1cGRMZM2G039455_P01Chr. 2: 17,563,301–17,573,156AGO1
ZmAGO1dGRMZM2G361518_P01Chr. 5: 64,791,077–64,796,881AGO1
ZmAGO2aGRMZM2G007791_P01Chr. 2: 9,973,816–9,981,340ZIPPY
ZmAGO2bGRMZM2G354867_P01Chr. 1:142,397,812–142,403,450ZIPPY
ZmAGO4GRMZM2G589579_P01Chr. 8: 2,511,663–2,519,008AGO4
ZmAGO5aGRMZM2G461936_P02Chr. 5: 13,611,800–13,618,698MEL1
ZmAGO5bGRMZM2G059033_P01Chr. 2: 233,385,077–233,392,000MEL1
ZmAGO5cGRMZM2G347402_P01Chr. 7: 72,044,775–72,053,779MEL1
ZmAGO5dGRMZM2G123063_P01Chr. 5:4,000,995–4,009,425MEL1
ZmAGO7GRMZM2G354867_P01Chr. 10: 141,823,070–141,828,449ZIPPY
ZmAGO9GRMZM2G141818_P03Chr. 6: 168,642,369–168,650,358AGO4
ZmAGO10aAC189879.3_FG003Chr. 9: 87,408,375–87,414,276 AGO1
ZmAGO10bGRMZM2G079080_P02Chr. 6: 103,286,236–103,293,200AGO1
ZmAGO18aGRMZM2G105250_P01Chr. 2: 199,510,528–199,516,085OsAGO18
ZmAGO18bGRMZM2G457370_P01Chr. 1: 250,132,189–250,137,737OsAGO18
ZmAGO18cGRMZM2G457370_P02Chr. 1: 250,132,189–250,137,737OsAGO18
3. ZmRDRs
ZmRDR1GRMZM2G481730_P01Chr. 5: 205,385,818–205,389,710RDR1
ZmMOP1GRMZM2G042443_P01Chr. 2: 41,131,324–41,136,928RDR2
ZmRDR6aGRMZM2G357825_P01Chr. 9: 109,055,576–109,093,885RDR6
ZmRDR6bGRMZM2G145201_P01Chr. 3: 102,532,883–102,536,036RDR6
ZmRDR6cGRMZM2G347931_P01 Chr. 9: 106,302,354–106,306,175RDR6
Note: this information for maize dicer-like (DCL), argonaute (AGO), and RNA-dependent RNA polymerase (RDR), including accession number, chromosomal location and ORFs, was retrieved from the B73 maize sequence database (http://www.maizesequence.org/index.html).

Share and Cite

MDPI and ACS Style

Zhang, Z.; Teotia, S.; Tang, J.; Tang, G. Perspectives on microRNAs and Phased Small Interfering RNAs in Maize (Zea mays L.): Functions and Big Impact on Agronomic Traits Enhancement. Plants 2019, 8, 170. https://doi.org/10.3390/plants8060170

AMA Style

Zhang Z, Teotia S, Tang J, Tang G. Perspectives on microRNAs and Phased Small Interfering RNAs in Maize (Zea mays L.): Functions and Big Impact on Agronomic Traits Enhancement. Plants. 2019; 8(6):170. https://doi.org/10.3390/plants8060170

Chicago/Turabian Style

Zhang, Zhanhui, Sachin Teotia, Jihua Tang, and Guiliang Tang. 2019. "Perspectives on microRNAs and Phased Small Interfering RNAs in Maize (Zea mays L.): Functions and Big Impact on Agronomic Traits Enhancement" Plants 8, no. 6: 170. https://doi.org/10.3390/plants8060170

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
