J. Dev. Biol. 2019, 7(1), 5; https://doi.org/10.3390/jdb7010005

Article
Distinct Activities of Gli1 and Gli2 in the Absence of Ift88 and the Primary Cilia
1,2,†, 1,† and 1,*
1
Department of Biology, Eberly College of Sciences, Center for Cellular Dynamics, Huck Institute of Life Science, The Penn State University, University Park, PA 16802, USA
2
Department of Occupational Health, School of Public Health, China Medical University, No.77 Puhe Road, Shenyang North New Area, Shenyang 110122, China
*
Correspondence: [email protected]; Tel.: +1-814-865-7043
These authors contributed equally to this work.
Received: 2 November 2018 / Accepted: 16 February 2019 / Published: 19 February 2019

Abstract

:
The primary cilia play essential roles in Hh-dependent Gli2 activation and Gli3 proteolytic processing in mammals. However, the roles of the cilia in Gli1 activation remain unresolved due to the loss of Gli1 transcription in cilia mutant embryos, and the inability to address this question by overexpression in cultured cells. Here, we address the roles of the cilia in Gli1 activation by expressing Gli1 from the Gli2 locus in mouse embryos. We find that the maximal activation of Gli1 depends on the cilia, but partial activation of Gli1 by Smo-mediated Hh signaling exists in the absence of the cilia. Combined with reduced Gli3 repressors, this partial activation of Gli1 leads to dorsal expansion of V3 interneuron and motor neuron domains in the absence of the cilia. Moreover, expressing Gli1 from the Gli2 locus in the presence of reduced Sufu has no recognizable impact on neural tube patterning, suggesting an imbalance between the dosages of Gli and Sufu does not explain the extra Gli1 activity. Finally, a non-ciliary Gli2 variant present at a higher level than Gli1 when expressed from the Gli2 locus fails to activate Hh pathway ectopically in the absence of the cilia, suggesting that increased protein level is unlikely the major factor underlying the ectopic activation of Hh signaling by Gli1 in the absence of the cilia.
Keywords:
Hh signaling; Shh; neural tube; patterning; intraflagellar transport; Gli3; Sufu; Smo; mouse

1. Introduction

The Hedgehog (Hh) family of signaling molecules underlies numerous developmental processes and malignancies in humans and mice [1]. Hh signaling in mammals requires the primary cilia, a cell surface organelle present in almost all post-mitotic cells in the mammalian body [2]. The glioma-associated oncogene homolog (Gli) family of transcription factors mediates the transcriptional response of Hh signaling, and all three members of the family are localized to the tips of the cilia upon Hh stimulation [3,4]. Given the importance of Hh signaling and the primary cilia in development and diseases, it is critical to understand the roles of the cilia in the activation of Gli proteins.
Sonic hedgehog (Shh), one of the Hh family members, is secreted from cells of the notochord and the floor plate, a group of glia at the ventral midline of the neural tube, and induces various cell fates in the ventral neural tube [1]. Loss of Shh results in the complete loss of ventral cell types including the floor plate, V1, V2 and V3 interneurons and motor neurons [5]. Gli2 is the primary activator downstream of Shh and is essential for the fates of the floor plate and V3 interneurons [6,7]. Gli3 plays a predominantly negative role in Hh signaling, and removing Gli3 restores motor neurons in Shh;Gli3 double mutant neural tube [8]. Gli1 expression is dependent on Gli2 and Gli3, and loss of Gli1 does not disrupt mouse development [9,10,11]. However, loss of Gli1 leads to defects in Shh pathway activation and ventral neural tube development when one copy of Gli2 is removed, suggesting that it contributes to a threshold of Gli activator activity required for the full activation of the Shh pathway [9]. More importantly, Gli1 appears to be critical in pathogenesis of multiple types of malignancies, hence understanding the mechanism of its activation is clinically important [12,13,14,15].
The requirement for the cilia in Hh signaling was first revealed by the loss of floor plate and V3 interneurons, as well as reduced Hh target gene expression, in a few mutants that fail to grow cilia [16]. Specifically, both the activation of full-length Gli2 and the generation of Gli3 repressor through proteolytic processing are dependent on the cilia (e.g., [17,18,19]). We recently showed that removing Gli2 from the tips of the cilia prevents its Hh-dependent activation, further confirming the critical role of cilia in Gli2 activation [20].
Suppressor of fused (Sufu) is an essential negative regulator of Hh signaling in mammals, loss of which results in severe disruption of embryonic development including extreme ventralization of the neural tube [21,22]. Our previous double and triple mutant analyses indicated that all three Gli proteins underlie the extreme Hh pathway activation in Sufu mutants [23]. Biochemical analyses suggested that Sufu acts through direct physical interaction with Gli proteins, both in the cytoplasm and inside the nucleus [24,25,26,27]. Interestingly, loss of Sufu in the absence of the cilia leads to the over activation of Hh pathway, suggesting that the roles of the cilia in Hh signaling is to mediate the Hh-induced alleviation of repression on Gli proteins by Sufu [28,29]. Subsequent biochemical studies showed that separation between Sufu and Gli proteins was indeed dependent on the cilia [30,31].
Although the roles of the primary cilia in Gli2 activation and Gli3 processing have been elucidated, whether the activation of Gli1 is dependent on the cilia remains enigmatic. Gli1 transcription is severely reduced in cilia mutants, precluding the direct analysis of the roles of the cilia in Gli1 activation with these mutants [16,18]. The roles of cilia in Gli1 activation cannot be revealed by overexpressing Gli1 in cultured cilia mutant cells either, as insufficient Sufu is present in the cells to antagonize the activity of overexpressed Gli1, making it constitutively active independent of Hh signaling input and the primary cilia [28,29]. In the current study, we test the roles of the cilia in Gli1 activation by expressing Gli1 at a physiological level from the Gli2 locus (Gli21ki) in cilia mutants. We find that loss of cilia prevented the maximal activation of Gli1 and the formation of the floor plate. Surprisingly, Gli1 was partially activated in the absence of the cilia, resulting in drastic dorsal expansion of the V3 interneuron and motor neuron domains. We show that expressing Gli1 from the Gli2 locus leads to increased motor neuron formation with reduced Gli3 dosage, suggesting that compromised Gli3 repressor production in the absence of cilia may contribute to the partial activation of Hh signaling in the neural tube when Gli1 is expressed from the Gli2 locus in the absence of the cilia. This cilia-independent activation of Gli1 is dependent on Hh signaling because expressing Gli1 from the Gli2 locus does not change neural tube patterning in the absence of Smo. Furthermore, Gli1 expression from the Gli2 locus did not alter neural tube patterning with reduced dosage of Sufu, suggesting it did not activate Hh pathway by changing the balance between dosages of Gli and Sufu proteins. Finally, replacing endogenous Gli2 with a stable, non-ciliary form of Gli2, Gli2∆CLR, failed to induce ectopic V3 interneurons and motor neurons in the absence of the cilia, suggesting that the cilia-independent Gli1 activity was not simply the result of higher protein level. In summary, we show different degrees of dependence of Gli1 and Gli2 on the cilia for their activation, suggesting that blocking ciliogenesis may not inhibit malignancies caused by aberrant Gli1 activation.

2. Materials and Methods

2.1. Animals

Mutant mouse strains used in this study include Gli2tm3(Gli1)Alj (a.k.a Gli21kie) [32], Gli2tm3.1(Gli1)Alj (a.k.a. Gli21ki) [32], Gli2tm1.1(Gli2*)Aliu (a.k.a. Gli2∆CLRki) [20], Ift88tm1Rpw [33], Gli3Xt-J [34], N-Tg(EIIa-cre)C5379Lmgd/J [35], and Sufutm1Rto [22], and were genotyped as previously published. All animals were kept on 129/SvPasCrl (Charles River Laboratories) background. The use of the animals in this work was approved by the Institutional Animal Care and Use Committee at the Penn State University.

2.2. Immunofluorescence Assay on Cryosections

Mouse embryos were fixed in 4% paraformaldehyde (PFA) in phosphate-balanced saline (PBS) for up to 1 h, washed with PBS briefly and left in 30% sucrose overnight, embedded in O.C.T freezing media and frozen at −80 °C. Cryosections at 10 µm thickness were cut with a Leica LM1900 Cryostat. For immunofluorescence assays, sections were allowed to dry at room temperature for 1 h, blocked in blocking buffer (PBS plus 0.1% Triton X-100 and 1% goat serum). They were then incubated in blocking buffer with appropriate primary antibodies at 4 °C overnight, washed in blocking buffer three times and incubated in blocking buffer with Cy3-conjugated secondary antibodies, wash three more times and mounted with DABCO (Sigma-Aldrich, Saint Louis, MO, USA). Antibodies used: Foxa2, Nk2.2, Nkx6.1, Pax6, Pax7, Shh (DSHB) and Olig2 (Millipore, AB9610). Photos were taken on a Nikon E600 microscope with a Micropublisher CCD camera (QImaging, Surrey, BC, Canada).

2.3. Immunoblot Analyses

Whole-cell protein lysates were prepared, separated on SDS polyacrylamide gel and transferred to nitrocellulose membrane according to a previously described protocol [36]. After primary antibody incubation, membranes were incubated with IRD680- and IRD800-conjugated secondary antibodies (LI-COR), and scanned on a LICOR Odyssey CLx imaging system. Antibodies against FLAG and β-tubulin were purchased from Sigma-Aldrich. Quantitative analyses were performed using NIH Image J.

2.4. RNA In Situ Hybridization on Cryosections

Embryos were fixed in 4% PFA at 4 °C overnight, washed in DEPC-treated PBS and processed for cryosection. RNA in situ hybridization with Digoxigenin-labeled riboprobes against Gli1 was performed on the transverse sections through the neural tube according to the protocol described in [37]. Photos were taken on a Nikon E600 microscope with a Micropublisher CCD camera.

3. Results

3.1. Gli1 Expression Was Uncoupled from Hh Signaling in Gli21ki Embryos

More than a decade of research has started to reveal the essential roles of the primary cilia in the activation of Gli2 [16,20,28,29] and proteolytic processing of Gli3 [17,18,19] in mammals. However, how the Gli1 protein responds to the loss of cilia remains an open question because Gli1 expression is dependent on Hh signaling and is greatly reduced in the absence of the cilia [18]. We and others also showed that an overexpression approach was not appropriate for addressing this question as it rendered both Gli1 and Gli2 cilia-independent due to the disruption of the stoichiometry between Gli proteins and their direct inhibitor Sufu [28,29]. Therefore, the only proper way to address this question is to express Gli1 at a physiological level independent of Hh pathway activation.
To achieve such a goal, we took advantage of a Gli21ki mouse strain in which the Gli1 open reading frame was inserted into the first coding exon of Gli2 [32]. Bai and Joyner (2001) showed that Gli1 was expressed in the same pattern as Gli2 in this knock-in animal [32]. To determine whether Gli1 expression became cilia-independent in Gli21ki embryos, we performed RNA in situ hybridization analyses. As reported, Gli1 was expressed in a ventral-to-dorsal gradient in the wild type neural tube (Figure 1A) [38,39]. As a control, Sufu mutant embryos exhibited widespread high levels of Gli1 expression (Figure 1B) [22]. Consistent with compromised Hh signaling activity in the absence of the cilia, Gli1 expression was greatly reduced in the Ift88 mutant neural tube that failed to grow cilia (Figure 1C) [16,33]. In contrast, Gli1 was expressed throughout the progenitors of the neural tube in Gli21ki/+;Ift88−/− double mutants, suggesting that Gli1 expression from the Gli2 locus was independent of the cilia (Figure 1D). These data indicated that Gli1 expression from the Gli2 locus was independent of Hh signaling and the presence of cilia, making it possible to analyze the roles of cilia in Gli1 activation.

3.2. The Cilia Are Essential for Maximal Activation of Gli1

Bai and Joyner (2001) showed that expressing Gli1 from the Gli2 locus rescued most aspects of embryonic development in the absence of Gli2, suggesting functional redundancy between these two proteins [32]. We hypothesized that if Gli1 activation was independent of the cilia, expressing Gli1 from the Gli2 locus should rescue embryonic development in the absence of the cilia. To test this hypothesis, we crossed Gli21ki mice to Ift88 mutants. At E10.5, Gli21ki/+ embryos looked normal, consistent with a previous report (Figure 2A,A’; [32]). Ift88 null mutants exhibited frequent exencephaly and twisted body (Figure 2A”). Gli21ki/+;Ift88−/− double mutants also exhibited frequent exencephaly and twisted body (Figure 2A”’). The failure to rescue the Ift88 mutant phenotype appears to suggest that Gli1 activation is under the influence of the primary cilia.
To better determine the roles of cilia in Gli1 activation, we examined the dorsal/ventral (D/V) patterning of the neural tube at both the thoracic (anterior) and lumbar (posterior) levels. As similar neural tube patterning changes were present at both levels, we will focus on the results at the thoracic level. The floor plate at the ventral midline of the wild type neural tube expresses Foxa2 at E10.5 (Figure 2B). Confirming a previous report [32], we found that Foxa2 was expressed properly in the Gli21ki/+ neural tube (Figure 2B’). Foxa2 expression was absent in the Ift88 mutant neural tube due to compromised Gli2 activation in the absence of the cilia (Figure 2B”; [16]). Foxa2 expression was also absent in Gli21ki/+;Ift88−/− double mutants, suggesting that the maximal activation of Gli1 was dependent on the cilia (Figure 2B”’). Shh was produced in the notochord and floor plate in the wild type and Gli21ki/+ neural tubes (Figure 2C,C’). Consistent with the loss of floor plates, Shh was present in the notochords, but not in the ventral neural tubes in the Ift88 mutant (Figure 2C”) and Gli21ki/+;Ift88−/− double mutant (Figure 2C”’) neural tubes.

3.3. Gli1 Was Partially Activated in the Absence of Cilia

Nkx2.2-expressing V3 interneurons and their progenitors were adjacent to the floor plate and required lower levels of Shh signaling than those required for floor plate (Figure 2D). The number and location of V3 interneurons were not altered in Gli21ki/+ mutants as previously reported (Figure 2D’) [32]. Consistent with an essential role of cilia in Gli2 activation, these neurons were completely absent in Ift88 null mutants (Figure 2D”). To our surprise, the domain of V3 interneurons was not only present, but also greatly expanded dorsally in the Gli21ki/+;Ift88−/− double mutant neural tube, implying an increase in Hh pathway activity (Figure 2D”’). Motor neuron progenitors expressing Olig2 were dorsal to V3 interneuron progenitors in both the wild type and Gli21ki/+ neural tubes, and required moderate activation of the Hh pathway (Figure 2E,E’). Olig2 expression was expanded to the ventral midline in the Ift88−/− mutant neural tube, consistent with the loss of floor plate and V3 interneurons (Figure 2E”). The motor neuron domain was expanded both ventrally and dorsally in Gli21ki/+;Ift88−/− neural tube, suggesting that although maximal activation of Hh signaling was not achieved, an intermediate level of Hh pathway activation was present in more cells than in the wild type neural tube (Figure 2E”’). Nkx6.1 labeled ventral half of the neural tube spanning the floor plate to V1 interneuron progenitors in the wild type, Gli21ki/+ and Ift88−/− single mutant neural tubes (Figure 2F–F”). Consistent with more widespread intermediate Hh pathway activation, the domain of Nkx6.1 expression was expanded dorsally in the Gli21ki/+;Ift88−/− double mutant neural tube (Figure 2F”’). Finally, Pax6 was expressed in the dorsal and lateral parts of the wild type and Gli21ki/+ neural tubes (Figure 2G,G’), and was expanded ventrally in Ift88−/− neural tube as a result of compromised Hh pathway activation (Figure 2G”). Pax6 expression was limited to the dorsal half of the Gli21ki/+;Ift88−/− double mutant neural tube, reflecting increased Hh pathway activation in the ventral and lateral regions of the neural tube (Figure 2G”’). In summary, we found that Gli1 could be partially activated in the absence of the cilia.

3.4. Ectopic Gli1 Partially Ventralized the Neural Tube in the Presence of Reduced Gli3

Paradoxically, the neural tube patterning indicated that more cells in the Gli21ki/+;Ift88−/− neural tube experienced intermediate levels of Hh pathway activation than those of the Gli21ki/+ neural tube, suggesting a negative role of the cilia in Hh pathway activation. As it was known that the cilia were essential for the proteolytic processing of Gli3 [18,19,30], we hypothesized that the reduction in Gli3 repressor activity contributed to the increase in Hh pathway activation in lateral regions of the Gli21ki/+;Ift88−/− neural tube. To test this hypothesis, we crossed Gli21ki/+ mice to Gli3+/− mice to generate Gli21ki/+;Gli3+/− double mutant embryos. At E10.5, Gli21ki/+ and Gli3+/− embryos were indistinguishable from wild type embryos (Figure 3A,B and data not shown). Gli3−/− embryos exhibited smaller telencephalon (compare the brackets in Figure 3A,C; n = 4/6) and occasional exencephaly (data not shown; n = 2/6). Interestingly, Gli21ki/+;Gli3+/− double mutants exhibited frequent exencephaly (Figure 3D; n = 4/7), suggesting strong genetic interaction between ectopic Gli1 expression and reduced Gli3 dosage in the patterning and/or proliferation of the brain. We further analyzed the neural tube patterning and found that the size and location of the floor plate and V3 interneuron domains in the Gli21ki/+;Gli3+/− double mutant neural tube were similar to those in the wild type, Gli21ki/+ and Gli3−/− neural tubes (Figure 3F–I,K–N). However, we observed a moderate dorsal expansion of the motor neuron progenitor domain in the Gli21ki/+;Gli3+/− double mutant neural tube (Figure 3S, compared to Figure 3P–R), suggesting that reducing Gli3 repressor activity did allow ectopically expressed Gli1 to moderately ventralize the lateral part of the neural tube through activating lower levels of Hh signaling.
Gli21ki/+;Gli3+/− pups were sickly and died shortly after weaning, preventing further breeding. Gli21kie was similar to Gli21ki, but contained a floxed neo cassette interfering with the expression of Gli1 from the Gli2 locus [32]. Gli21kie/+;Gli3+/− male were viable and fertile. Therefore, we crossed these mice with Gli3+/−;EIIaCre female mice to obtain Gli21kie/+;Gli3−/−;EIIaCre embryos. As EIIaCre was expressed ubiquitously in the embryos [35], removing the floxed neo cassette and restoring the full expression of Gli1 from the Gli2 locus, these embryos were equivalent to Gli21ki/+;Gli3−/−. We found that these embryos also exhibited frequent exencephaly (Figure 3E; n = 5/5). Although the floor plate and V3 interneurons were defined properly in these mutants (Figure 3J,O), the motor neuron progenitor domain was drastically expanded dorsally in the neural tube of these embryos (Figure 3T). These data suggest that Gli3 repressor prevents abnormal neural tube patterning when Gli1 is ectopically expressed from the Gli2 locus, and the reduction in Gli3 repressor likely contributes to the dorsal expansion of the ventral neural progenitor domains of the Gli21ki/+;Ift88−/− double mutant neural tube.

3.5. Gli1 Expression from the Gli2 Locus Failed to Alter the Smo Mutant Phenotype

The ectopic moderate activation of the Hh pathway in the Gli21ki/+;Ift88−/− neural tube was in striking contrast to the Ift88−/− mutant neural tube where both high and intermediate levels of Hh pathway activities were compromised [16], suggesting a functional difference between Gli1 and Gli2. It is possible that Hh signaling may activate Gli1 independent of the cilia. Alternatively, Gli1 may exhibit Hh-independent basal activity that is sufficient to drive ventral neural tube cell fates in more dorsal regions with the reduction in Gli3 repressor. We hypothesized that if Gli1 exhibited a Hh-independent activity, expressing Gli1 from the Gli2 locus should allow some ventral neural cell fates in the absence of Smo. To test this hypothesis, we analyzed the patterning of the Gli21ki;Smo double mutant neural tube.
Smo−/− mutants were significantly smaller than control littermates at E9.5 and died shortly after [40]. Gli21ki/1ki;Smo−/− double mutant embryos were morphologically identical to those of Smo−/− mutants (data not shown). In the neural tube, replacing both copies of Gli2 with Gli1 did not alter the expression of the floor plate marker Foxa2 (Figure 4A,B), V3 interneuron marker Nkx2.2 (Figure 4D,E), motor neuron progenitor marker Olig2 (Figure 4G,H) and Nkx6.1, which marked V1, V2, V3 interneurons, motor neurons and floor plate (Figure 4J,K). Consistent with the morphological similarity, Gli21ki/1ki;Smo−/− exhibited loss of the floor plate (Figure 4C), V3 interneurons (Figure 4F), motor neurons (Figure 4I), V1 and V2 neurons (Figure 4L), similar to Smo−/− mutants [40]. On the other hand, the dorsal neural tube marker Pax7 (Figure 4M,N) was expanded ventrally in Gli21ki/1ki;Smo−/− neural tubes (Figure 4O). These observations indicated that Gli1 was not activated independent of Hh signaling, suggesting that the cilia-independent partial activation of Gli1 was dependent on Hh signaling.

3.6. Increased Protein Level Was Not the Major Reason for the Cilia-Independent Gli1 Activation

Gli1 is resistant to both Cul1-mediated proteolytic processing and Cul3-mediated degradation, making it a more stable protein than Gli2 and Gli3 [41,42,43,44]. It is possible that replacing Gli2 with the more stable Gli1 protein in Gli21ki mutant embryos brings a challenge to the Sufu-based negative regulation of Hh signaling, lowering the threshold for Hh pathway activation. If this is true, reducing the dosage of Sufu in the presence of ectopic Gli1 expression, as in the Gli21ki/+;Sufu+/− and Gli21ki/1ki;Sufu+/− neural tubes, should lead to excess Hh pathway activation and dorsal expansion of some ventral progenitor domains. Our results showed that Gli21ki/+;Sufu+/− embryos were morphologically normal at E10.5 (Figure 5A,B, n = 6), whereas one out of 4 Gli21ki/1ki;Sufu+/− embryos exhibit midbrain exencephaly (Figure 5C). In the neural tube, the floor plate (Figure 5D–F), V3 interneuron (Figure 5G–I) and motor neurons (Figure 5J–L) were all formed in their proper D/V locations in the Gli21ki/+;Sufu+/− and Gli21ki/1ki;Sufu+/− double mutant neural tubes. Furthermore, Pax6 expression domains in the Gli21ki/+, Gli21ki/+;Sufu+/− and Gli21ki/1ki;Sufu+/− neural tubes were similar in size and location (Figure 5M–O), suggesting that the overall level of Gli proteins in Gli21ki/+ mutant neural tube was not high enough to override the inhibitory function of Sufu and change the D/V patterning.
We recently generated a mouse strain in which Gli2 was replaced by Gli2∆CLR, a variant that did not enter the cilia but retained its transcriptional activity in the absence of Sufu [20]. Interestingly, the level of Gli2∆CLR was higher than full-length Gli2 in E10.5 embryos, enabling us to directly test whether moderately increasing the level of Gli proteins was sufficient for a moderate activation of Hh signaling in the lateral regions of the neural tube in the absence of cilia. As shown in Figure 6, E10.5 Gli2∆CLRki/∆CLRki mutants were similar to wild type littermates morphologically (Figure 6A,B), whereas Gli2∆CLRki/∆CLRki;Ift88−/− double mutant embryos exhibited exencephaly, twisted body and other morphological defects reminiscent of Ift88−/− mutants (Figure 6C, compare to Figure 2C). In the neural tube, Gli2∆CLRki/∆CLRki mutants exhibited a reduction of the floor plate (Figure 6D,E) and V3 interneurons (Figure 6G,H). On the other hand, Olig2-expressing motor neuron progenitors expanded ventrally in these embryos (Figure 6J,K), whereas Pax6 expression remained unchanged (Figure 6M,N). Different from Gli21ki/+;Ift88−/− mutants in which Nkx2.2 and Olig2 expression domains were expanded dorsally, the expression of Foxa2 and Nkx2.2 was absent in Gli2∆CLRki/∆CLRki;Ift88−/− double mutant neural tube (Figure 6F,I), and the Olig2 expression was expanded ventrally (Figure 6L). The only sign of moderate rescue of the ventral neural fate in the Gli2∆CLRki/∆CLRki;Ift88−/− neural tube was the absence of Pax6 expression in the ventral-most part of the neural tube, in contrast to the expression of Pax6 throughout the Ift88−/− mutant neural tube (Figure 6O, compared to Figure 2G) [16,18]. These results indicated that Gli2∆CLR, albeit exhibiting higher stability than wild type Gli2, did not activate Hh pathway ectopically as did Gli1 in the absence of cilia.
One potential explanation for the difference between the Gli21ki/+;Ift88−/− and Gli2∆CLRki/∆CLRki;Ift88−/− neural tubes was that the level of Gli1 in the former was higher than that of Gli2∆CLR in the latter. As a FLAG tag was introduced to the N-termini of both proteins in the knock-in embryos [32], we directly compared the expression levels of these two proteins in E10.5 embryos through immunoblot analyses. We found that the level of Gli2∆CLR in Gli2∆CLRki/+ embryos was nearly three fold of that of Gli1 in Gli21ki/+ embryos (Figure 7, n = 4 embryos for each strain). This result suggested that the surprising activation of the Hh signaling in the lateral neural tube of Gli21ki/+;Ift88−/− was not simply the result of higher Gli1 protein level.

4. Discussion

In this study, we compare the relationships between the cilia and two Gli family proteins, Gli1 and Gli2, in mouse neural tube patterning. Previous studies have shown that these relationships could not be addressed properly by in vitro overexpression due to the override of Sufu-mediated negative regulation [28,29]. To address this question properly, we compared neural tube patterning between Ift88 mutant and Gli21ki;Ift88 double mutants. We found that although the cilia were required for the full activation of both Gli1 and Gli2, and the formation of the floor plate, they were not required for V3 interneuron and motor neuron progenitor formation when Gli1 was expressed from the Gli2 locus, suggesting that Gli1 activation was not fully dependent on the cilia (Figure 8).
Genetic analyses using Ift88 or Kif3a mutants have been widely used to test the roles of cilia in numerous biological processes (e.g., [45,46,47]). Although Ift88 has been shown to regulate mitotic spindle orientation, immune synapse, and cell migration independent of the cilia, to our best knowledge, no solid evidence exists to support a cilia-independent role for Ift88 in Shh-mediated neural tube patterning [48,49,50,51]. Therefore, we strongly believe that the neural tube patterning changes in the absence of Ift88 likely indicate the roles of the primary cilia in the activation of various Gli variants, rather than a cilia-independent function of Ift88.
One possible explanation for this cilia-independent partial Gli1 activation was that Gli1 was more stable than Gli2, leading to either Hh-independent activation of target gene expression or a lower threshold of cellular response to Hh signaling. Our results appeared to counter this explanation. First, we did not see any difference between Smo and Gli21ki;Smo double mutant neural tube, suggesting that Gli1 was not activated in the absence of upstream Hh pathway input (Figure 8). Second, reducing the dosage of Sufu in Gli21ki embryos did not result in an increase in Hh pathway activity and a change in neural tube patterning, suggesting that it was unlikely that increased Gli1 level led to a lower threshold to Hh response through overriding Sufu function. Finally, we show that Gli2∆CLR, with a protein level significantly higher than that of Gli1 in their respective knock-in embryos, did not support ectopic V3 and motor neuron progenitor formation in the absence of cilia, suggesting that the phenotype in Gli21ki/+;Ift88−/− double mutants did not result from a simple increase in Gli protein level.
Interestingly, Gli21ki neural tube exhibits normal pattern along its D/V axis whereas V3 and motor neuron domains were expanded dorsally in Gli21ki;Ift88 double mutants, suggesting a negative role of the cilia in Hh signaling. We show that reducing Gli3 dosage in Gli21ki neural tube similarly resulted in dorsal expansion of these ventral neuronal domains, suggesting that reduced Gli3 repressor activity in the absence of cilia contributed to this negative role of the cilia. Similar negative roles of the cilia have been reported in previous studies of skin and brain tumors caused by activating mutations in Gli proteins [45,46].
One remaining question is why Gli1, but not Gli2, appears to be partially activated in the absence of cilia if the elevated protein level is not likely the major contributing factor. It is possible that Gli1 has a unique response to Hh signaling outside of the cilia. Alternatively, the difference may be quantitative as Gli1 does not appear to have a repressor domain at its N-terminus, making it a much stronger transcriptional activator [3]. Therefore, if a cilia-independent activation mechanism exists to activate Gli proteins at a very low level, the effect should be more detectable with Gli1 (Figure 8). Although such a cilia-independent pathway for Gli-mediated transcription has not been detected, a non-canonical, transcription-independent Hh/Smo pathway appears to be independent of the cilia [52,53,54]. Further investigation will be needed to reveal the detailed molecular mechanism of the cilia-independent Gli1 activity.

Author Contributions

Conceptualization, A.L.; methodology, Y.W. and H.Z. investigation, Y.W. and H.Z.; data curation, Y.W. and H.Z.; writing—original draft preparation, A.L.; writing—review and editing, Y.W., H.Z. and A.L.; supervision, A.L.; project administration, A.L.; funding acquisition, A.L.

Funding

This research has been supported by the US NSF (IOS-0949877 and IOS-1257540) and a Penn State University new faculty start-up fund.

Acknowledgments

We would like to thank N. Murcia, A. Joyner, R. Toftgard and M. Scott for sharing reagent. The monoclonal antibodies against Foxa2, Nkx2.2, Nkx6.1, Pax6, Pax7 and Shh developed by Jessell, Madsen, and Kawakami were obtained from the Developmental Studies Hybridoma Bank developed under the auspices of the NICHD and maintained by The University of Iowa, Department of Biological Sciences, Iowa City, IA 52242, USA.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Briscoe, J.; Therond, P.P. The mechanisms of Hedgehog signalling and its roles in development and disease. Nat. Re. Mol. Cell Biol. 2013, 14, 416–429. [Google Scholar] [CrossRef] [PubMed]
  2. Nozawa, Y.I.; Lin, C.; Chuang, P.T. Hedgehog signaling from the primary cilium to the nucleus: an emerging picture of ciliary localization, trafficking and transduction. Curr. Opin. Genet. Dev. 2013, 23, 429–437. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Matise, M.P.; Joyner, A.L. Gli genes in development and cancer. Oncogene 1999, 18, 7852–7859. [Google Scholar] [CrossRef]
  4. Haycraft, C.J.; Banizs, B.; Aydin-Son, Y.; Zhang, Q.; Michaud, E.J.; Yoder, B.K. Gli2 and Gli3 localize to cilia and require the intraflagellar transport protein polaris for processing and function. PLoS Genet. 2005, 1, e53. [Google Scholar] [CrossRef] [PubMed]
  5. Chiang, C.; Litingtung, Y.; Lee, E.; Young, K.E.; Corden, J.L.; Westphal, H.; Beachy, P.A. Cyclopia and defective axial patterning in mice lacking Sonic hedgehog gene function. Nature 1996, 383, 407–413. [Google Scholar] [CrossRef] [PubMed]
  6. Ding, Q.; Motoyama, J.; Gasca, S.; Mo, R.; Sasaki, H.; Rossant, J.; Hui, C.C. Diminished Sonic hedgehog signaling and lack of floor plate differentiation in Gli2 mutant mice. Development 1998, 125, 2533–2543. [Google Scholar] [PubMed]
  7. Matise, M.P.; Epstein, D.J.; Park, H.L.; Platt, K.A.; Joyner, A.L. Gli2 is required for induction of floor plate and adjacent cells, but not most ventral neurons in the mouse central nervous system. Development 1998, 125, 2759–2770. [Google Scholar] [PubMed]
  8. Litingtung, Y.; Chiang, C. Specification of ventral neuron types is mediated by an antagonistic interaction between Shh and Gli3. Nat. Neurosci. 2000, 3, 979–985. [Google Scholar] [CrossRef]
  9. Park, H.L.; Bai, C.; Platt, K.A.; Matise, M.P.; Beeghly, A.; Hui, C.C.; Nakashima, M.; Joyner, A.L. Mouse Gli1 mutants are viable but have defects in SHH signaling in combination with a Gli2 mutation. Development 2000, 127, 1593–1605. [Google Scholar]
  10. Bai, C.B.; Auerbach, W.; Lee, J.S.; Stephen, D.; Joyner, A.L. Gli2, but not Gli1, is required for initial Shh signaling and ectopic activation of the Shh pathway. Development 2002, 129, 4753–4761. [Google Scholar]
  11. Bai, C.B.; Stephen, D.; Joyner, A.L. All mouse ventral spinal cord patterning by hedgehog is Gli dependent and involves an activator function of Gli3. Dev. Cell 2004, 6, 103–115. [Google Scholar] [CrossRef]
  12. Mastrangelo, E.; Milani, M. Role and inhibition of GLI1 protein in cancer. Lung Cancer (Auckl) 2018, 9, 35–43. [Google Scholar] [CrossRef] [PubMed]
  13. Kasai, K. GLI1, a master regulator of the hallmark of pancreatic cancer. Pathol. Int. 2016, 66, 653–660. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, L.; Wu, M.; Zhao, F.; Fu, W.; Li, W.; Li, X.; Liu, T. Prognostic and clinicopathological value of Gli-1 expression in gastric cancer: A meta-analysis. Oncotarget 2016, 7, 69087–69096. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Palle, K.; Mani, C.; Tripathi, K.; Athar, M. Aberrant GLI1 Activation in DNA Damage Response, Carcinogenesis and Chemoresistance. Cancers 2015, 7, 2330–2351. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Huangfu, D.; Liu, A.; Rakeman, A.S.; Murcia, N.S.; Niswander, L.; Anderson, K.V. Hedgehog signalling in the mouse requires intraflagellar transport proteins. Nature 2003, 426, 83–87. [Google Scholar] [CrossRef]
  17. Huangfu, D.; Anderson, K.V. Cilia and Hedgehog responsiveness in the mouse. Proc. Natl. Acad. Sci. USA 2005, 102, 11325–11330. [Google Scholar] [CrossRef][Green Version]
  18. Liu, A.; Wang, B.; Niswander, L.A. Mouse intraflagellar transport proteins regulate both the activator and repressor functions of Gli transcription factors. Development 2005, 132, 3103–3111. [Google Scholar] [CrossRef][Green Version]
  19. May, S.R.; Ashique, A.M.; Karlen, M.; Wang, B.; Shen, Y.; Zarbalis, K.; Reiter, J.; Ericson, J.; Peterson, A.S. Loss of the retrograde motor for IFT disrupts localization of Smo to cilia and prevents the expression of both activator and repressor functions of Gli. Dev. Biol. 2005, 287, 378–389. [Google Scholar] [CrossRef][Green Version]
  20. Liu, J.; Zeng, H.; Liu, A. The loss of Hh responsiveness by a non-ciliary Gli2 variant. Development 2015, 142, 1651–1660. [Google Scholar] [CrossRef][Green Version]
  21. Cooper, A.F.; Yu, K.P.; Brueckner, M.; Brailey, L.L.; Johnson, L.; McGrath, J.M.; Bale, A.E. Cardiac and CNS defects in a mouse with targeted disruption of suppressor of fused. Development 2005, 132, 4407–4417. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Svard, J.; Heby-Henricson, K.; Persson-Lek, M.; Rozell, B.; Lauth, M.; Bergstrom, A.; Ericson, J.; Toftgard, R.; Teglund, S. Genetic elimination of Suppressor of fused reveals an essential repressor function in the mammalian Hedgehog signaling pathway. Dev. Cell 2006, 10, 187–197. [Google Scholar] [CrossRef]
  23. Liu, J.; Heydeck, W.; Zeng, H.; Liu, A. Dual function of suppressor of fused in Hh pathway activation and mouse spinal cord patterning. Dev. Biol. 2012, 362, 141–153. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Kogerman, P.; Grimm, T.; Kogerman, L.; Krause, D.; Unden, A.B.; Sandstedt, B.; Toftgard, R.; Zaphiropoulos, P.G. Mammalian suppressor-of-fused modulates nuclear-cytoplasmic shuttling of Gli-1. Nat. Cell Biol. 1999, 1, 312–319. [Google Scholar] [CrossRef] [PubMed]
  25. Dunaeva, M.; Michelson, P.; Kogerman, P.; Toftgard, R. Characterization of the physical interaction of Gli proteins with SUFU proteins. J. Biol. Chem. 2003, 278, 5116–5122. [Google Scholar] [CrossRef] [PubMed]
  26. Paces-Fessy, M.; Boucher, D.; Petit, E.; Paute-Briand, S.; Blanchet-Tournier, M.F. The negative regulator of Gli, Suppressor of fused (Sufu), interacts with SAP18, Galectin3 and other nuclear proteins. Biochem. J. 2004, 378, 353–362. [Google Scholar] [CrossRef]
  27. Lin, C.; Yao, E.; Wang, K.; Nozawa, Y.; Shimizu, H.; Johnson, J.R.; Chen, J.N.; Krogan, N.J.; Chuang, P.T. Regulation of Sufu activity by p66beta and Mycbp provides new insight into vertebrate Hedgehog signaling. Genes Dev. 2014, 28, 2547–2563. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, M.H.; Wilson, C.W.; Li, Y.J.; Law, K.K.; Lu, C.S.; Gacayan, R.; Zhang, X.; Hui, C.C.; Chuang, P.T. Cilium-independent regulation of Gli protein function by Sufu in Hedgehog signaling is evolutionarily conserved. Genes Dev. 2009, 23, 1910–1928. [Google Scholar] [CrossRef] [PubMed]
  29. Jia, J.; Kolterud, A.; Zeng, H.; Hoover, A.; Teglund, S.; Toftgard, R.; Liu, A. Suppressor of Fused inhibits mammalian Hedgehog signaling in the absence of cilia. Dev. Biol. 2009, 330, 452–460. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Humke, E.W.; Dorn, K.V.; Milenkovic, L.; Scott, M.P.; Rohatgi, R. The output of Hedgehog signaling is controlled by the dynamic association between Suppressor of Fused and the Gli proteins. Genes Dev. 2010, 24, 670–682. [Google Scholar] [CrossRef][Green Version]
  31. Tukachinsky, H.; Lopez, L.V.; Salic, A. A mechanism for vertebrate Hedgehog signaling: Recruitment to cilia and dissociation of SuFu-Gli protein complexes. J. Cell Biol. 2010, 191, 415–428. [Google Scholar] [CrossRef] [PubMed]
  32. Bai, C.B.; Joyner, A.L. Gli1 can rescue the in vivo function of Gli2. Development 2001, 128, 5161–5172. [Google Scholar] [PubMed]
  33. Murcia, N.S.; Richards, W.G.; Yoder, B.K.; Mucenski, M.L.; Dunlap, J.R.; Woychik, R.P. The Oak Ridge Polycystic Kidney (orpk) disease gene is required for left-right axis determination. Development 2000, 127, 2347–2355. [Google Scholar] [PubMed]
  34. Buscher, D.; Grotewold, L.; Ruther, U. The XtJ allele generates a Gli3 fusion transcript. Mamm Genome 1998, 9, 676–678. [Google Scholar] [PubMed]
  35. Lakso, M.; Pichel, J.G.; Gorman, J.R.; Sauer, B.; Okamoto, Y.; Lee, E.; Alt, F.W.; Westphal, H. Efficient in vivo manipulation of mouse genomic sequences at the zygote stage. Proc. Natl. Acad. Sci. USA 1996, 93, 5860–5865. [Google Scholar] [CrossRef] [PubMed]
  36. Zeng, H.; Jia, J.; Liu, A. Coordinated translocation of mammalian Gli proteins and suppressor of fused to the primary cilium. PLoS ONE 2010, 5, e15900. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, J.; Liu, A. Immunohistochemistry and RNA in situ hybridization in mouse brain development. Methods Mol. Biol. 2014, 1082, 269–283. [Google Scholar] [CrossRef] [PubMed]
  38. Walterhouse, D.; Ahmed, M.; Slusarski, D.; Kalamaras, J.; Boucher, D.; Holmgren, R.; Iannaccone, P. Gli, a zinc finger transcription factor and oncogene, is expressed during normal mouse development. Dev. Dyn. 1993, 196, 91–102. [Google Scholar] [CrossRef] [PubMed]
  39. Hui, C.C.; Slusarski, D.; Platt, K.A.; Holmgren, R.; Joyner, A.L. Expression of three mouse homologs of the Drosophila segment polarity gene cubitus interruptus, Gli, Gli-2, and Gli-3, in ectoderm- and mesoderm-derived tissues suggests multiple roles during postimplantation development. Dev. Biol. 1994, 162, 402–413. [Google Scholar] [CrossRef] [PubMed]
  40. Goodrich, L.V.; Milenkovic, L.; Higgins, K.M.; Scott, M.P. Altered neural cell fates and medulloblastoma in mouse patched mutants. Science 1997, 277, 1109–1113. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, B.; Fallon, J.F.; Beachy, P.A. Hedgehog-regulated processing of Gli3 produces an anterior/posterior repressor gradient in the developing vertebrate limb. Cell 2000, 100, 423–434. [Google Scholar] [CrossRef]
  42. Pan, Y.; Bai, C.B.; Joyner, A.L.; Wang, B. Sonic hedgehog signaling regulates Gli2 transcriptional activity by suppressing its processing and degradation. Mol. Cell Biol. 2006, 26, 3365–3377. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, Q.; Zhang, L.; Wang, B.; Ou, C.Y.; Chien, C.T.; Jiang, J. A hedgehog-induced BTB protein modulates hedgehog signaling by degrading Ci/Gli transcription factor. Dev. Cell 2006, 10, 719–729. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, Q.; Shi, Q.; Chen, Y.; Yue, T.; Li, S.; Wang, B.; Jiang, J. Multiple Ser/Thr-rich degrons mediate the degradation of Ci/Gli by the Cul3-HIB/SPOP E3 ubiquitin ligase. Proc. Natl. Acad. Sci. USA 2009, 106, 21191–21196. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Han, Y.G.; Kim, H.J.; Dlugosz, A.A.; Ellison, D.W.; Gilbertson, R.J.; Alvarez-Buylla, A. Dual and opposing roles of primary cilia in medulloblastoma development. Nat. Med. 2009, 15, 1062–1065. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Wong, S.Y.; Seol, A.D.; So, P.L.; Ermilov, A.N.; Bichakjian, C.K.; Epstein, E.H., Jr.; Dlugosz, A.A.; Reiter, J.F. Primary cilia can both mediate and suppress Hedgehog pathway-dependent tumorigenesis. Nat. Med. 2009, 15, 1055–1061. [Google Scholar] [CrossRef]
  47. Moore, E.R.; Yang, Y.; Jacobs, C.R. Primary cilia are necessary for Prx1-expressing cells to contribute to postnatal skeletogenesis. J. Cell Sci. 2018, 131. [Google Scholar] [CrossRef]
  48. Finetti, F.; Paccani, S.R.; Riparbelli, M.G.; Giacomello, E.; Perinetti, G.; Pazour, G.J.; Rosenbaum, J.L.; Baldari, C.T. Intraflagellar transport is required for polarized recycling of the TCR/CD3 complex to the immune synapse. Nat. Cell Biol. 2009, 11, 1332–1339. [Google Scholar] [CrossRef][Green Version]
  49. Boehlke, C.; Janusch, H.; Hamann, C.; Powelske, C.; Mergen, M.; Herbst, H.; Kotsis, F.; Nitschke, R.; Kuehn, E.W. A Cilia Independent Role of Ift88/Polaris during Cell Migration. PLoS ONE 2015, 10, e0140378. [Google Scholar] [CrossRef]
  50. Delaval, B.; Bright, A.; Lawson, N.D.; Doxsey, S. The cilia protein IFT88 is required for spindle orientation in mitosis. Nat. Cell Biol. 2011, 13, 461–468. [Google Scholar] [CrossRef][Green Version]
  51. Borovina, A.; Ciruna, B. IFT88 plays a cilia- and PCP-independent role in controlling oriented cell divisions during vertebrate embryonic development. Cell Rep. 2013, 5, 37–43. [Google Scholar] [CrossRef] [PubMed]
  52. Wei, L.H.; Arastoo, M.; Georgiou, I.; Manning, D.R.; Riobo-Del Galdo, N.A. Activation of the Gi protein-RHOA axis by non-canonical Hedgehog signaling is independent of primary cilia. PLoS ONE 2018, 13, e0203170. [Google Scholar] [CrossRef]
  53. Yuan, X.; Cao, J.; He, X.; Serra, R.; Qu, J.; Cao, X.; Yang, S. Ciliary IFT80 balances canonical versus non-canonical hedgehog signalling for osteoblast differentiation. Nat. Commun. 2016, 7, 11024. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Bijlsma, M.F.; Damhofer, H.; Roelink, H. Hedgehog-stimulated chemotaxis is mediated by smoothened located outside the primary cilium. Sci. Signal. 2012, 5, ra60. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Expression of Gli1 from the Gli2 locus was independent of the primary cilia. RNA in situ hybridization images of transverse sections through the E10.5 neural tubes. (A) Gli1 was expressed in a ventral-to-dorsal gradient in the wild type (wt) neural tube. (B) Widespread Gli1 expression was found in Sufu−/− mutant embryos. (C) Gli1 expression was greatly reduced in Ift88−/− mutant embryos. (D) Gli1 expression was present in all progenitor cells in the Gli21ki/+;Ift88−/− double mutant neural tubes. Dashed lines outline the neural tubes. n = 3 embryos for each genotype. Gli: Glioma-associated oncogene homolog.
Figure 1. Expression of Gli1 from the Gli2 locus was independent of the primary cilia. RNA in situ hybridization images of transverse sections through the E10.5 neural tubes. (A) Gli1 was expressed in a ventral-to-dorsal gradient in the wild type (wt) neural tube. (B) Widespread Gli1 expression was found in Sufu−/− mutant embryos. (C) Gli1 expression was greatly reduced in Ift88−/− mutant embryos. (D) Gli1 expression was present in all progenitor cells in the Gli21ki/+;Ift88−/− double mutant neural tubes. Dashed lines outline the neural tubes. n = 3 embryos for each genotype. Gli: Glioma-associated oncogene homolog.
Jdb 07 00005 g001
Figure 2. Partial activation of Gli1 in the absence of cilia. (AA”’) Lateral views of E10.5 embryos. Wild type (A) and Gli21ki/+ (A’) embryos look similar. Ift88−/− (A”) and Gli21ki/+;Ift88−/− (A”’) embryos exhibit exencephaly (arrowheads) and twisted body axes. (BG”’) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (BB”’) Foxa2 was expressed in the floor plates of the wild type (B) and Gli21ki/+ (B’) neural tubes. It was absent in the Ift88 (B”) and Gli21ki/+;Ift88−/− (B”’) neural tubes. (CC”’) Shh protein was present in the notochords and ventral neural tubes of wild type (C) and Gli21ki/+ (C’) embryos. In Ift88−/− (C”) and Gli21ki/+;Ift88−/− (C”’) embryos, Shh was present in the notochords, but not in the neural tubes. (D-D”’) Nkx2.2 labels V3 interneurons in the wild type (D) and Gli21ki/+ (D’) neural tubes. It was absent in the Ift88−/− (D”) neural tube. The Nkx2.2 expression domain was expanded both ventrally and dorsally in the Gli21ki/+;Ift88−/− (D”’) neural tube. (E–E”’) Olig2 labels motor neuron progenitors in the wild type (E) and Gli21ki/+ (E’) neural tubes. It was expanded ventrally in the Ift88−/− (E”) neural tube. The Olig2 expression domain was expanded both ventrally and dorsally in the Gli21ki/+;Ift88−/− (E”’) neural tube. (FF”’) Nkx6.1 labels progenitors of V1-3 interneurons, motor neurons and the floor plate in the wild type (F) and Gli21ki/+ (F’) neural tubes. It appears normal in the Ift88−/− (F”) neural tube. The Nkx6.1 expression domain was expanded dorsally in the Gli21ki/+;Ift88−/− (F”’) neural tube. (GG”’) Pax6 was expressed in the dorsal and lateral regions of the wild type (G) and Gli21ki/+ (G’) neural tubes. It was expanded ventrally in the Ift88−/− (G”) neural tube. Pax6 expression was restricted more dorsally in the Gli21ki/+;Ift88−/− (G”’) neural tube. Dashed lines outline the neural tubes and brackets mark the expression domains. n = 3 embryos for each genotype.
Figure 2. Partial activation of Gli1 in the absence of cilia. (AA”’) Lateral views of E10.5 embryos. Wild type (A) and Gli21ki/+ (A’) embryos look similar. Ift88−/− (A”) and Gli21ki/+;Ift88−/− (A”’) embryos exhibit exencephaly (arrowheads) and twisted body axes. (BG”’) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (BB”’) Foxa2 was expressed in the floor plates of the wild type (B) and Gli21ki/+ (B’) neural tubes. It was absent in the Ift88 (B”) and Gli21ki/+;Ift88−/− (B”’) neural tubes. (CC”’) Shh protein was present in the notochords and ventral neural tubes of wild type (C) and Gli21ki/+ (C’) embryos. In Ift88−/− (C”) and Gli21ki/+;Ift88−/− (C”’) embryos, Shh was present in the notochords, but not in the neural tubes. (D-D”’) Nkx2.2 labels V3 interneurons in the wild type (D) and Gli21ki/+ (D’) neural tubes. It was absent in the Ift88−/− (D”) neural tube. The Nkx2.2 expression domain was expanded both ventrally and dorsally in the Gli21ki/+;Ift88−/− (D”’) neural tube. (E–E”’) Olig2 labels motor neuron progenitors in the wild type (E) and Gli21ki/+ (E’) neural tubes. It was expanded ventrally in the Ift88−/− (E”) neural tube. The Olig2 expression domain was expanded both ventrally and dorsally in the Gli21ki/+;Ift88−/− (E”’) neural tube. (FF”’) Nkx6.1 labels progenitors of V1-3 interneurons, motor neurons and the floor plate in the wild type (F) and Gli21ki/+ (F’) neural tubes. It appears normal in the Ift88−/− (F”) neural tube. The Nkx6.1 expression domain was expanded dorsally in the Gli21ki/+;Ift88−/− (F”’) neural tube. (GG”’) Pax6 was expressed in the dorsal and lateral regions of the wild type (G) and Gli21ki/+ (G’) neural tubes. It was expanded ventrally in the Ift88−/− (G”) neural tube. Pax6 expression was restricted more dorsally in the Gli21ki/+;Ift88−/− (G”’) neural tube. Dashed lines outline the neural tubes and brackets mark the expression domains. n = 3 embryos for each genotype.
Jdb 07 00005 g002
Figure 3. Gli3 antagonized Gli1 activity in the Gli21ki neural tube. (AE) Lateral views of E10.5 embryos. Wild type (A) and Gli21ki/+ (B) embryos looked similar. Gli3−/− embryo (C) exhibited reduced telencephalon (bracket, compare to the one in A). Gli21ki/+;Gli3+/− (D) and Gli21ki/+;Gli3−/− (E) embryos exhibit exencephaly (arrowheads). (FT) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. Dashed lines outline the neural tubes and brackets mark the expression domains. (FJ) Foxa2 was expressed in the floor plates of the wild type (F), Gli21ki/+ (G), Gli3−/− (H), Gli21ki/+;Gli3+/− (I) and Gli21ki/+;Gli3−/− (J) neural tubes. (KO) Nkx2.2 labels V3 interneurons in the wild type (K), Gli21ki/+ (L), Gli3−/− (M), Gli21ki/+;Gli3+/− (N) and Gli21ki/+;Gli3−/− (O) neural tubes. (PT) Olig2 labels motor neuron progenitors in the wild type (P), Gli21ki/+ (Q) and Gli3−/− (R) neural tubes. The Olig2 expression domain was expanded dorsally in the Gli21ki/+;Gli3+/− (S) neural tube, and the expansion was more drastic in the Gli21ki/+;Gli3−/− (T) neural tube. n = 3 embryos for each genotype unless otherwise mentioned in the text.
Figure 3. Gli3 antagonized Gli1 activity in the Gli21ki neural tube. (AE) Lateral views of E10.5 embryos. Wild type (A) and Gli21ki/+ (B) embryos looked similar. Gli3−/− embryo (C) exhibited reduced telencephalon (bracket, compare to the one in A). Gli21ki/+;Gli3+/− (D) and Gli21ki/+;Gli3−/− (E) embryos exhibit exencephaly (arrowheads). (FT) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. Dashed lines outline the neural tubes and brackets mark the expression domains. (FJ) Foxa2 was expressed in the floor plates of the wild type (F), Gli21ki/+ (G), Gli3−/− (H), Gli21ki/+;Gli3+/− (I) and Gli21ki/+;Gli3−/− (J) neural tubes. (KO) Nkx2.2 labels V3 interneurons in the wild type (K), Gli21ki/+ (L), Gli3−/− (M), Gli21ki/+;Gli3+/− (N) and Gli21ki/+;Gli3−/− (O) neural tubes. (PT) Olig2 labels motor neuron progenitors in the wild type (P), Gli21ki/+ (Q) and Gli3−/− (R) neural tubes. The Olig2 expression domain was expanded dorsally in the Gli21ki/+;Gli3+/− (S) neural tube, and the expansion was more drastic in the Gli21ki/+;Gli3−/− (T) neural tube. n = 3 embryos for each genotype unless otherwise mentioned in the text.
Jdb 07 00005 g003
Figure 4. Expression of Gli1 from the Gli2 locus did not change neural tube patterning in the absence of Smo. Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (AC) Foxa2 was expressed in the floor plates of the wild type (A) and Gli21ki/1ki (B), but not in the Gli21ki/1ki;Smo−/− (C) neural tubes. (DF) Nkx2.2 labeled V3 interneurons in the wild type (D) and Gli21ki/1ki (E), but was absent in Gli21ki/1ki;Smo−/− (F) neural tubes. (GI) Olig2 labels motor neuron progenitors in the wild type (G) and Gli21ki/1ki (H), but not in Gli21ki/1ki;Smo−/− (I) neural tubes. (JL) Nkx6.1 was expressed in the wild type (J) and Gli21ki/1ki (K), but not in Gli21ki/1ki;Smo−/− (L) neural tubes. (MO) Pax7 was expressed in the dorsal region of the wild type (M) and Gli21ki/1ki (N), and was expanded ventrally in the Gli21ki/1ki;Smo−/− (O) neural tubes. Dashed lines outline the neural tubes and brackets mark the expression domains. Note the Gli21ki/1ki;Smo−/− images are of higher magnification to show the details of the neural tubes that are significantly smaller than those of their littermates. n = 3 embryos for each genotype.
Figure 4. Expression of Gli1 from the Gli2 locus did not change neural tube patterning in the absence of Smo. Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (AC) Foxa2 was expressed in the floor plates of the wild type (A) and Gli21ki/1ki (B), but not in the Gli21ki/1ki;Smo−/− (C) neural tubes. (DF) Nkx2.2 labeled V3 interneurons in the wild type (D) and Gli21ki/1ki (E), but was absent in Gli21ki/1ki;Smo−/− (F) neural tubes. (GI) Olig2 labels motor neuron progenitors in the wild type (G) and Gli21ki/1ki (H), but not in Gli21ki/1ki;Smo−/− (I) neural tubes. (JL) Nkx6.1 was expressed in the wild type (J) and Gli21ki/1ki (K), but not in Gli21ki/1ki;Smo−/− (L) neural tubes. (MO) Pax7 was expressed in the dorsal region of the wild type (M) and Gli21ki/1ki (N), and was expanded ventrally in the Gli21ki/1ki;Smo−/− (O) neural tubes. Dashed lines outline the neural tubes and brackets mark the expression domains. Note the Gli21ki/1ki;Smo−/− images are of higher magnification to show the details of the neural tubes that are significantly smaller than those of their littermates. n = 3 embryos for each genotype.
Jdb 07 00005 g004
Figure 5. Reducing the dosage of Sufu did not alter the patterning in the Gli21ki neural tube. (AC) Lateral views of E10.5 embryos. Gli21ki/+ (A) Gli21ki/+;Sufu+/− (B) embryos looked similar. One out of 4 Gli21ki/1ki;Sufu+/− embryos (C) exhibited midbrain exencephaly (arrowheads). (DO) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (DF) Foxa2 was expressed in the floor plates of the Gli21ki/+ (D), Gli21ki/+; Sufu+/− (E) and Gli21ki/1ki;Sufu+/− (F) neural tubes. (GI) Nkx2.2 labeled V3 interneurons in the Gli21ki/+ (G), Gli21ki/+; Sufu+/− (H) and Gli21ki/1ki;Sufu+/− (I) neural tubes. (JL) Olig2 labeled motor neuron progenitors in the Gli21ki/+ (J), Gli21ki/+; Sufu+/− (K) and Gli21ki/1ki;Sufu+/− (L) neural tubes. (MO) Pax6 was expressed in the dorsal and lateral regions of the Gli21ki/+ (M), Gli21ki/+; Sufu+/− (N) and Gli21ki/1ki;Sufu+/− (O) neural tubes. Dashed lines outline the neural tubes and brackets mark the expression domains. n = 3 embryos for each genotype unless otherwise mentioned in the text.
Figure 5. Reducing the dosage of Sufu did not alter the patterning in the Gli21ki neural tube. (AC) Lateral views of E10.5 embryos. Gli21ki/+ (A) Gli21ki/+;Sufu+/− (B) embryos looked similar. One out of 4 Gli21ki/1ki;Sufu+/− embryos (C) exhibited midbrain exencephaly (arrowheads). (DO) Transverse sections of E10.5 embryos processed for immunofluorescence analyses. (DF) Foxa2 was expressed in the floor plates of the Gli21ki/+ (D), Gli21ki/+; Sufu+/− (E) and Gli21ki/1ki;Sufu+/− (F) neural tubes. (GI) Nkx2.2 labeled V3 interneurons in the Gli21ki/+ (G), Gli21ki/+; Sufu+/− (H) and Gli21ki/1ki;Sufu+/− (I) neural tubes. (JL) Olig2 labeled motor neuron progenitors in the Gli21ki/+ (J), Gli21ki/+; Sufu+/− (K) and Gli21ki/1ki;Sufu+/− (L) neural tubes. (MO) Pax6 was expressed in the dorsal and lateral regions of the Gli21ki/+ (M), Gli21ki/+; Sufu+/− (N) and Gli21ki/1ki;Sufu+/− (O) neural tubes. Dashed lines outline the neural tubes and brackets mark the expression domains. n = 3 embryos for each genotype unless otherwise mentioned in the text.
Jdb 07 00005 g005
Figure 6. Gli2∆CLR failed to activate ectopic Hh signaling in the absence of cilia. (AC) Lateral views of E10.5 embryos. Wild type (A) and Gli2∆CLRki/∆CLRki (B) embryos looked similar. Gli2∆CLRki/∆CLRki;Ift88−/− embryo (C) exhibited exencephaly and twisted body. (DO)Immunofluorescent images of transverse sections through the E10.5 neural tubes. (DF) Foxa2 labeled floor plates in the wild type (D) neural tube. It was absent in the Gli2∆CLRki/∆CLRki (E) and Gli2∆CLRki/∆CLRki;Ift88−/− (F) mutant neural tubes. (GI) Nkx2.2 was expressed in the V3 interneurons of the wild type neural tube (G) but was absent in the Gli2∆CLRki/∆CLRki (H) and Gli2∆CLRki/∆CLRki;Ift88−/− (I) mutant neural tubes. (JL) Olig2 was expressed in motor neuron progenitors in the wild type neural tube (J). It was expanded ventrally in the Gli2∆CLRki/∆CLRki (K) and Gli2∆CLRki/∆CLRki;Ift88−/− (L) mutant neural tubes. (MO) Pax6 was excluded from the ventral-most regions of the wild type (M), Gli2∆CLRki/∆CLRki (N) and Gli2∆CLRki/∆CLRki;Ift88−/− (O) mutant neural tubes. Dashed lines outline the neural tubes. Brackets show the expression domains. n = 3 for each genotype.
Figure 6. Gli2∆CLR failed to activate ectopic Hh signaling in the absence of cilia. (AC) Lateral views of E10.5 embryos. Wild type (A) and Gli2∆CLRki/∆CLRki (B) embryos looked similar. Gli2∆CLRki/∆CLRki;Ift88−/− embryo (C) exhibited exencephaly and twisted body. (DO)Immunofluorescent images of transverse sections through the E10.5 neural tubes. (DF) Foxa2 labeled floor plates in the wild type (D) neural tube. It was absent in the Gli2∆CLRki/∆CLRki (E) and Gli2∆CLRki/∆CLRki;Ift88−/− (F) mutant neural tubes. (GI) Nkx2.2 was expressed in the V3 interneurons of the wild type neural tube (G) but was absent in the Gli2∆CLRki/∆CLRki (H) and Gli2∆CLRki/∆CLRki;Ift88−/− (I) mutant neural tubes. (JL) Olig2 was expressed in motor neuron progenitors in the wild type neural tube (J). It was expanded ventrally in the Gli2∆CLRki/∆CLRki (K) and Gli2∆CLRki/∆CLRki;Ift88−/− (L) mutant neural tubes. (MO) Pax6 was excluded from the ventral-most regions of the wild type (M), Gli2∆CLRki/∆CLRki (N) and Gli2∆CLRki/∆CLRki;Ift88−/− (O) mutant neural tubes. Dashed lines outline the neural tubes. Brackets show the expression domains. n = 3 for each genotype.
Jdb 07 00005 g006
Figure 7. The level of Gli1 in Gli21ki/+ embryos was lower than that of Gli2CLR in Gli2∆CLRki/+ embryos. Immunoblots of E10.5 whole embryo lysates with antibodies against FLAG and β-tubulin. **: p = 0.0018 in two-tailed student t-test.
Figure 7. The level of Gli1 in Gli21ki/+ embryos was lower than that of Gli2CLR in Gli2∆CLRki/+ embryos. Immunoblots of E10.5 whole embryo lysates with antibodies against FLAG and β-tubulin. **: p = 0.0018 in two-tailed student t-test.
Jdb 07 00005 g007

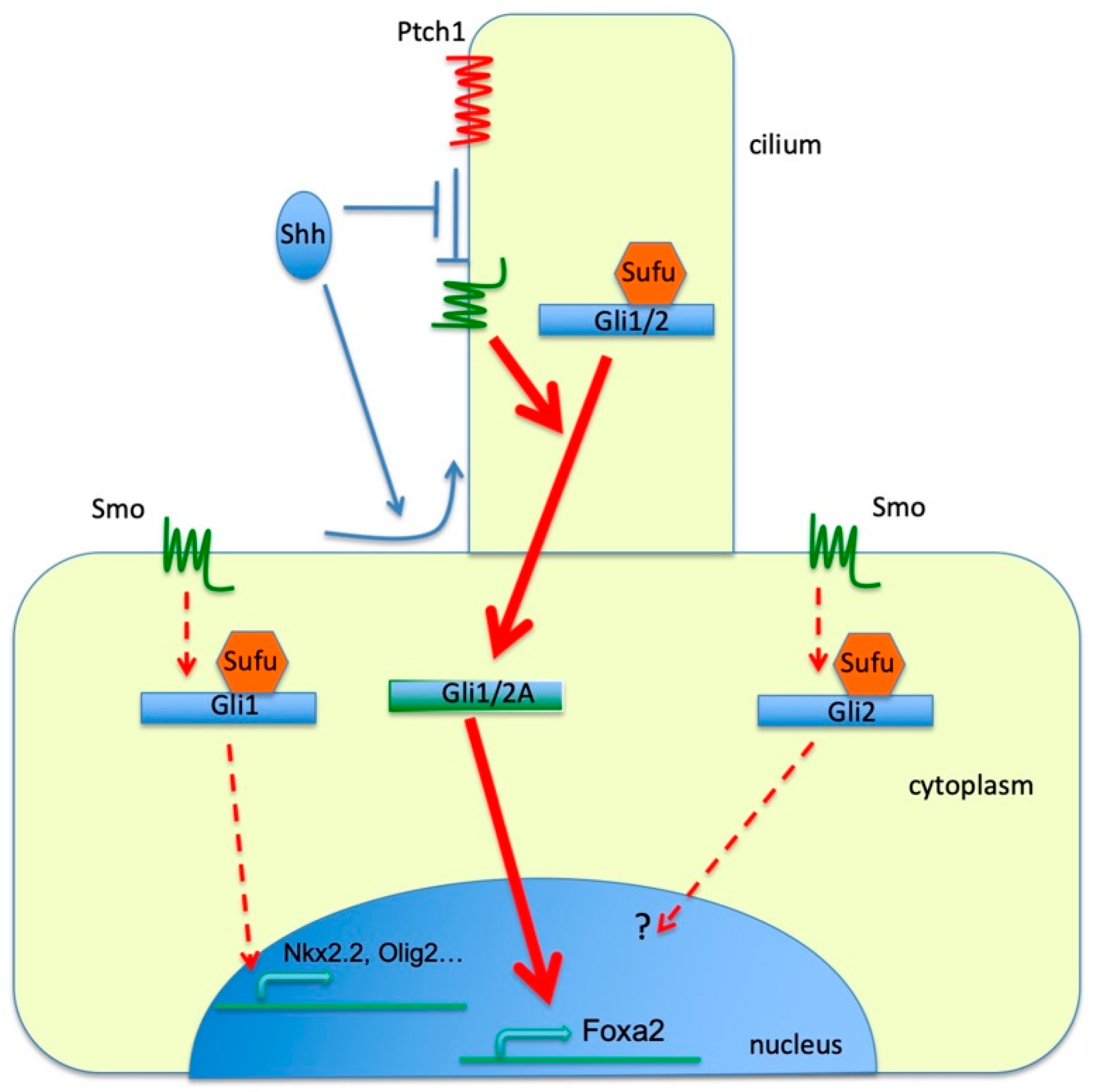

Figure 8. Cilia-dependent and independent activation of Gli proteins. Both Gli1 and Gli2 are activated by Smo-mediated Sonic hedgehog (Shh) pathway inside the cilia, leading to maximal activation (thick arrows) of target gene transcription (Foxa2). Outside of the cilia, Smo partially activates Gli1 and lower levels of transcriptional response (arrows with dashed lines, Nkx2.2 and Olig2). There is no direct evidence for cilia-independent Gli2 activation, but this possibility cannot be completely ruled out yet.
Figure 8. Cilia-dependent and independent activation of Gli proteins. Both Gli1 and Gli2 are activated by Smo-mediated Sonic hedgehog (Shh) pathway inside the cilia, leading to maximal activation (thick arrows) of target gene transcription (Foxa2). Outside of the cilia, Smo partially activates Gli1 and lower levels of transcriptional response (arrows with dashed lines, Nkx2.2 and Olig2). There is no direct evidence for cilia-independent Gli2 activation, but this possibility cannot be completely ruled out yet.
Jdb 07 00005 g008
