Mapping Canopy Heights of Poplar Plantations in Plain Areas Using ZY3-02 Stereo and Multispectral Data
Previous Article in Journal
A Fusion Visualization Method for Disaster Information Based on Self-Explanatory Symbols and Photorealistic Scene Cooperation
Article Menu

Export Article

Open AccessArticle
ISPRS Int. J. Geo-Inf. 2019, 8(3), 105; https://doi.org/10.3390/ijgi8030105

An Algorithm based on the Weighted Network Voronoi Diagram for Point Cluster Simplification

1,2
,
1,2,*
,
3
,
1,2
and
4
1
Faculty of Geomatics, Lanzhou Jiaotong University, Lanzhou 730070, China
2
Gansu Provincial Engineering Laboratory for National Geographic State Monitoring, Lanzhou 730070, China
3
School of Resource and Environmental Sciences, Wuhan University, Wuhan 430079, China
4
Faculty of Geomatics; Information Engineering University, Zhengzhou 450000, China
*
Author to whom correspondence should be addressed.
Received: 4 January 2019 / Revised: 10 February 2019 / Accepted: 23 February 2019 / Published: 27 February 2019
Full-Text   |   PDF [8140 KB, uploaded 27 February 2019]   |

Abstract

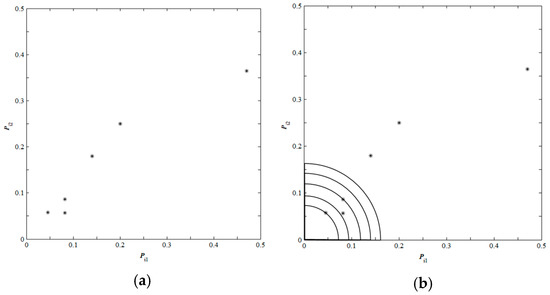

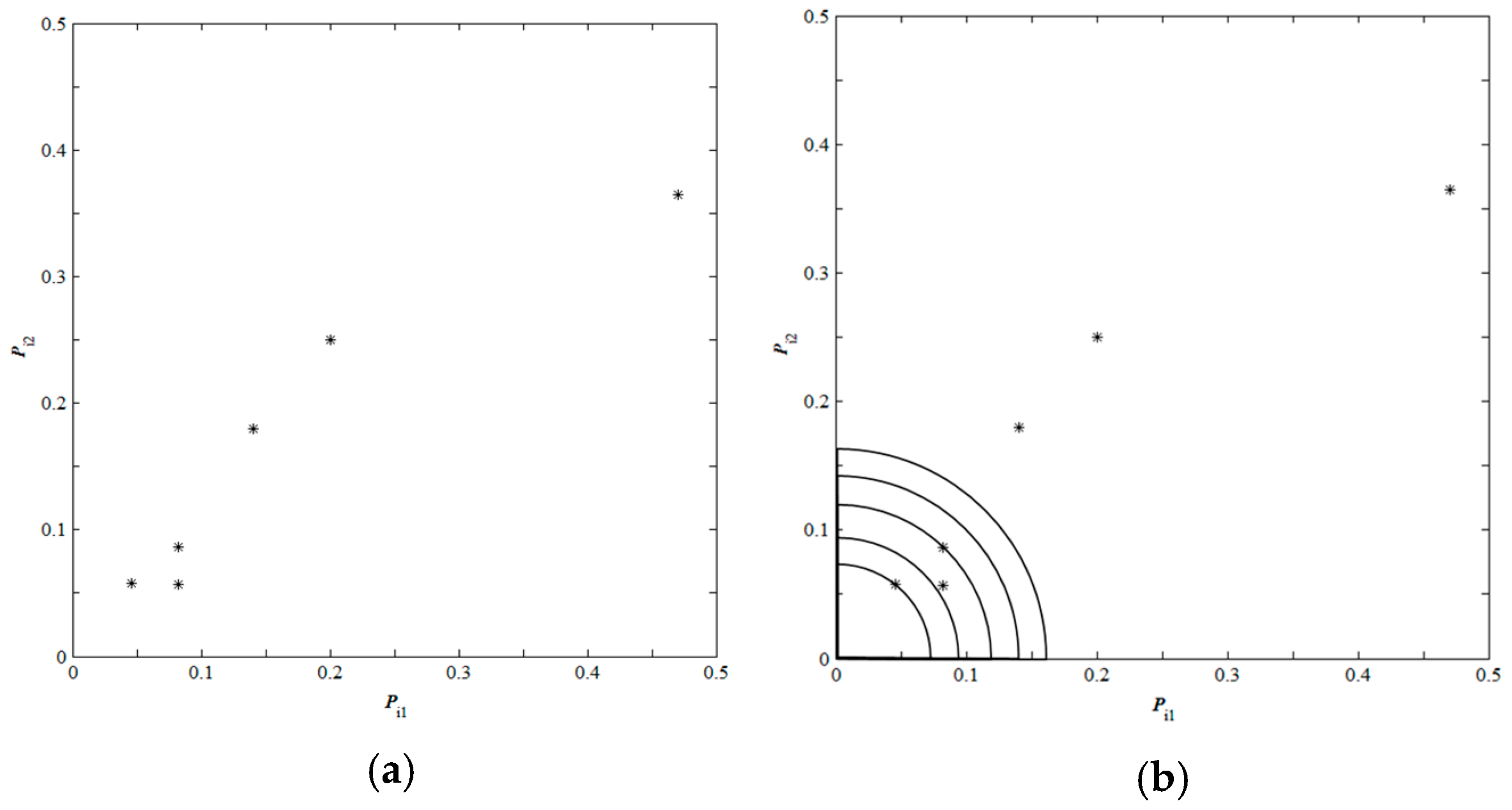

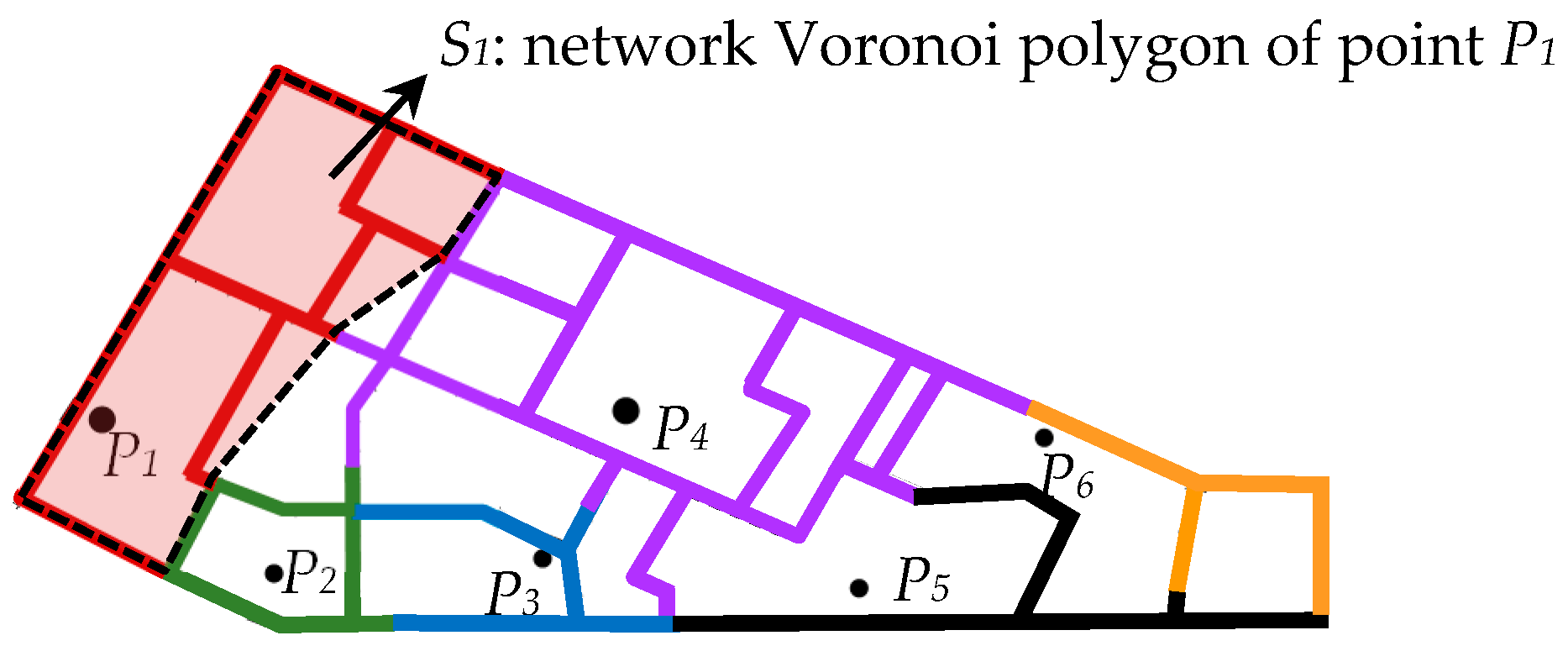

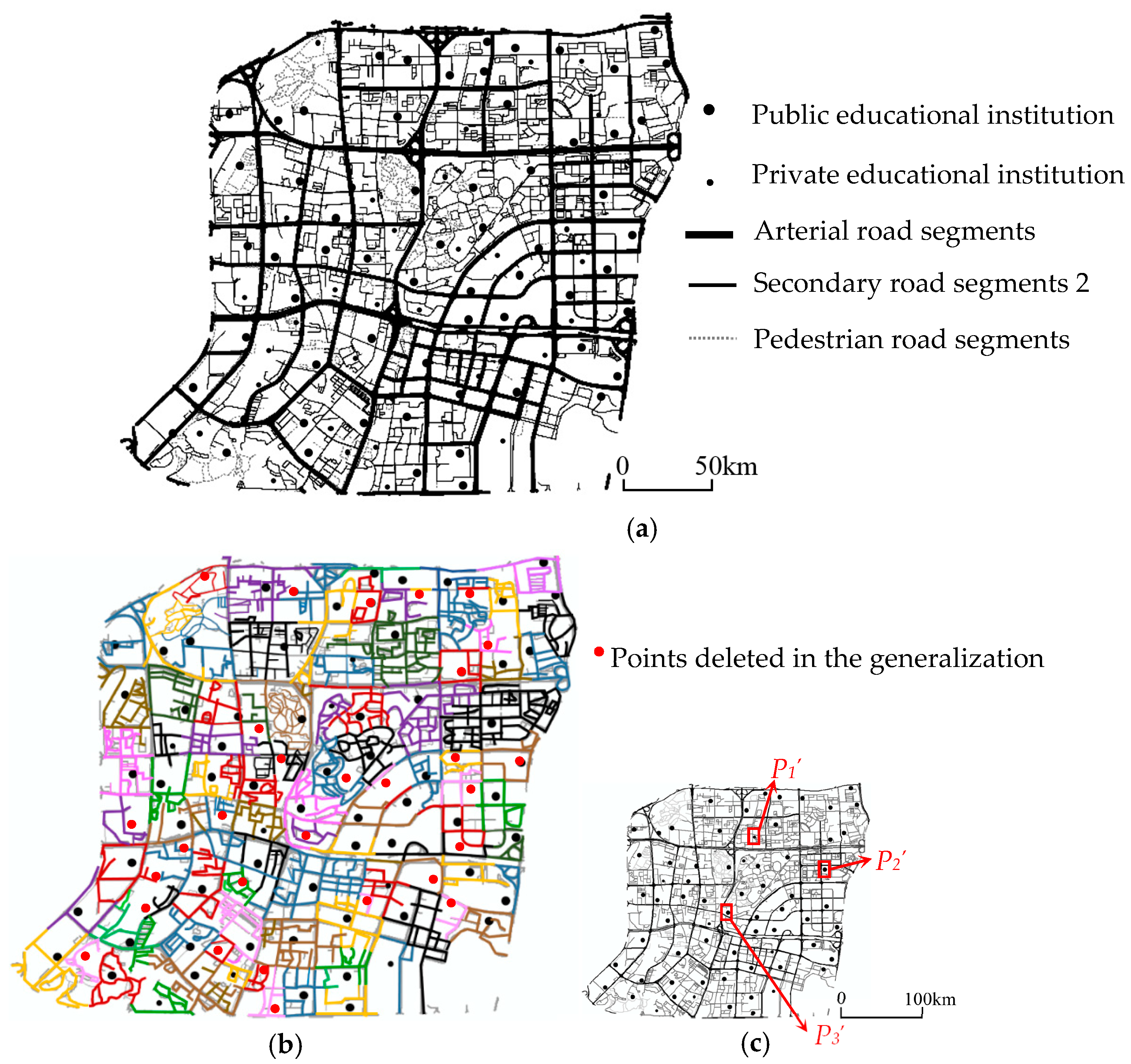

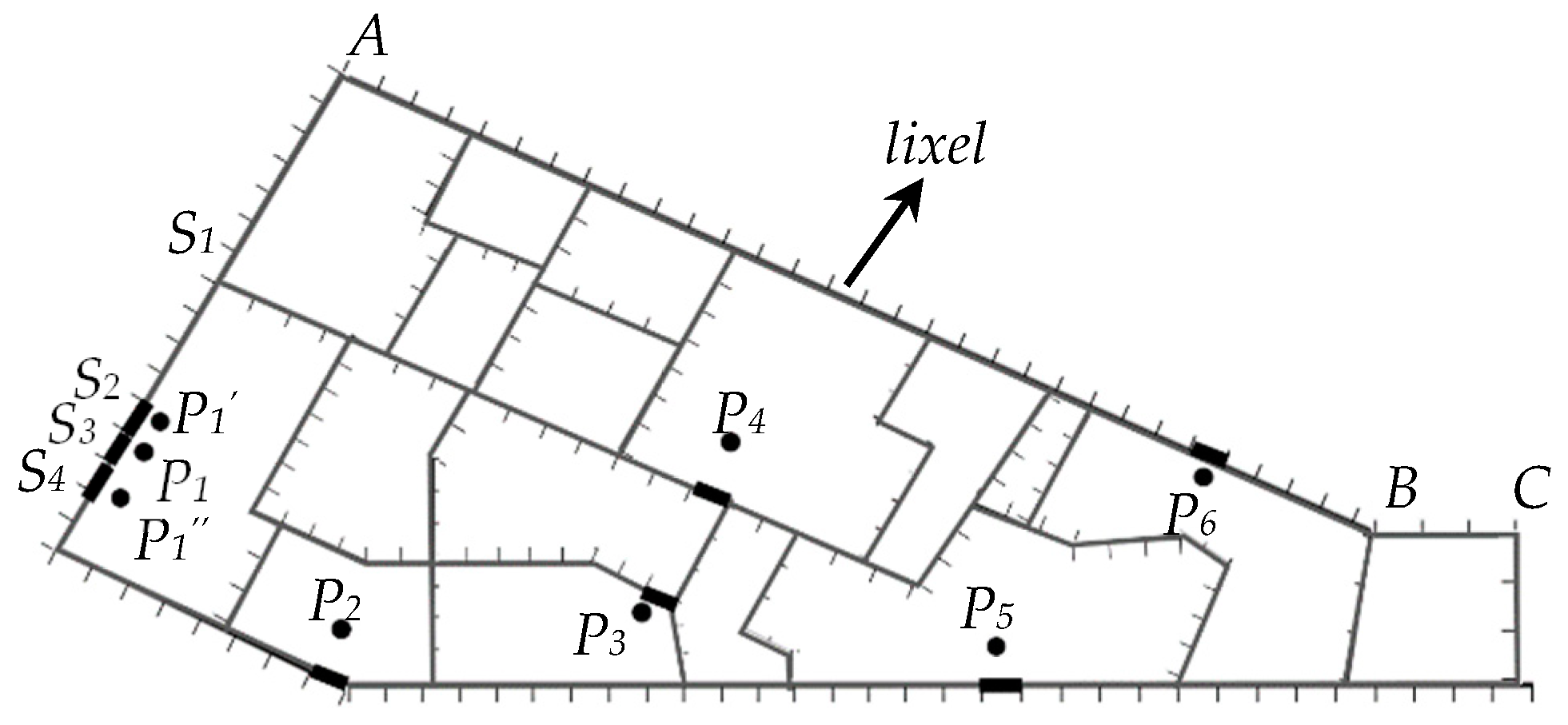

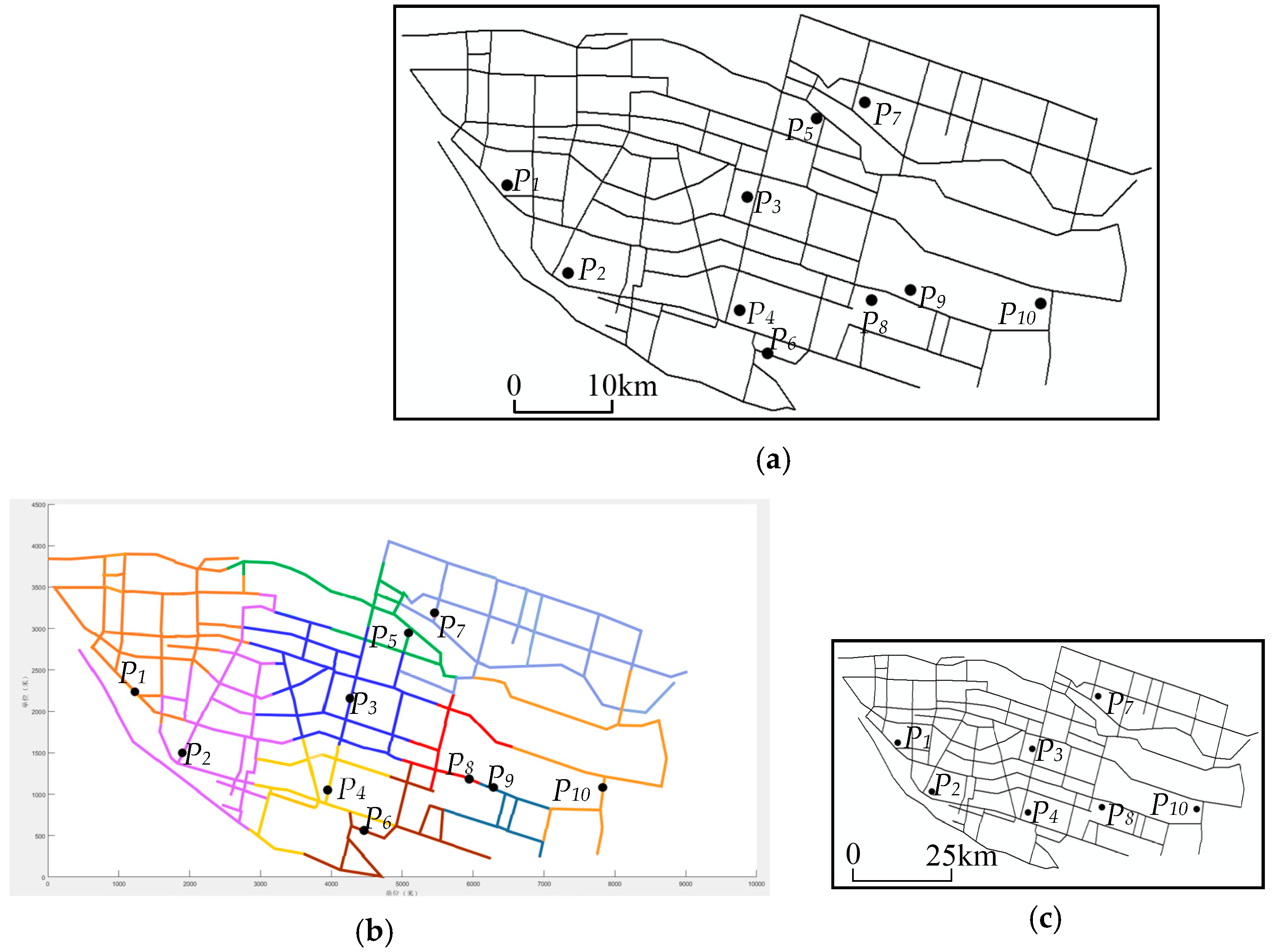

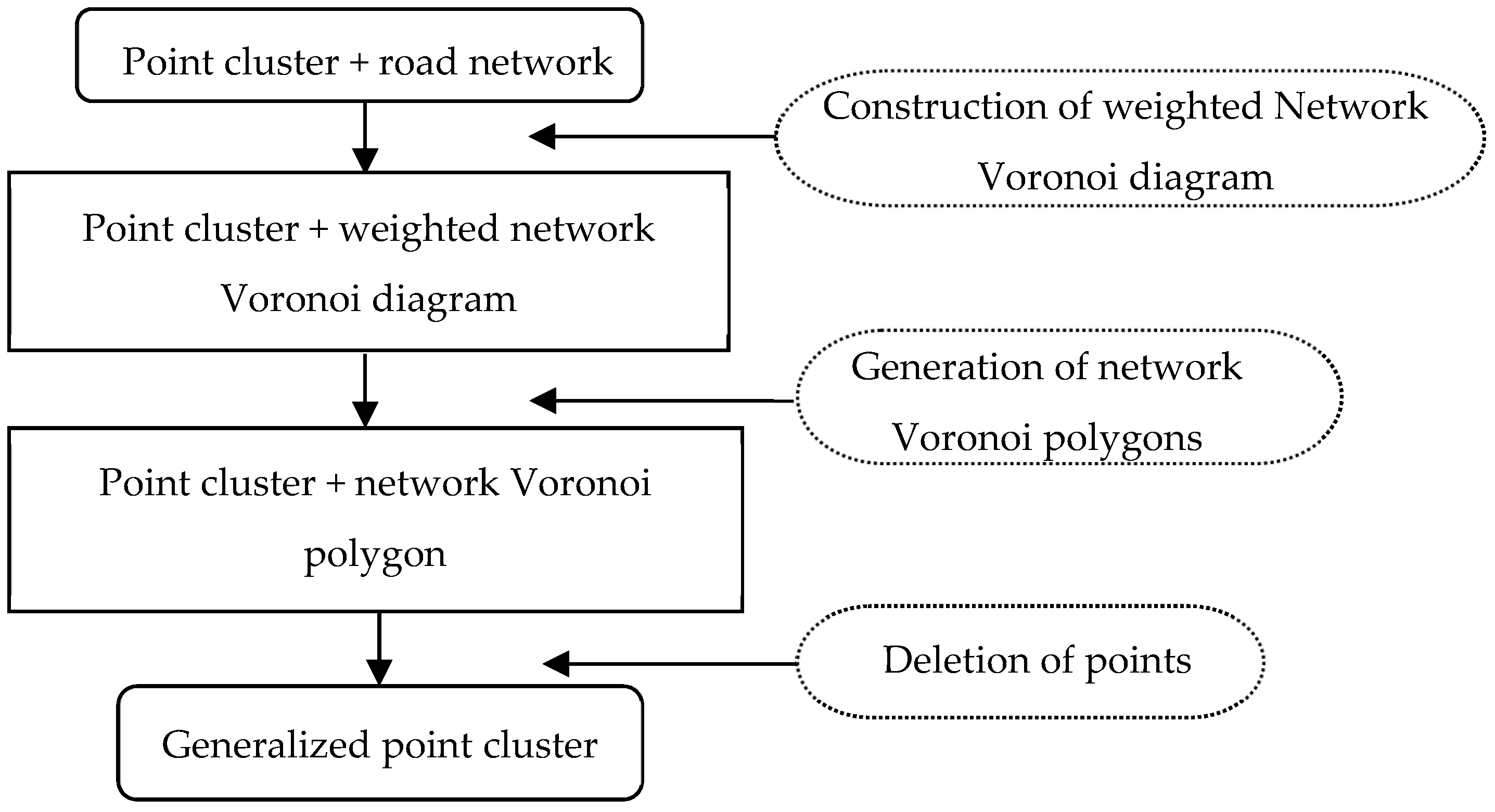

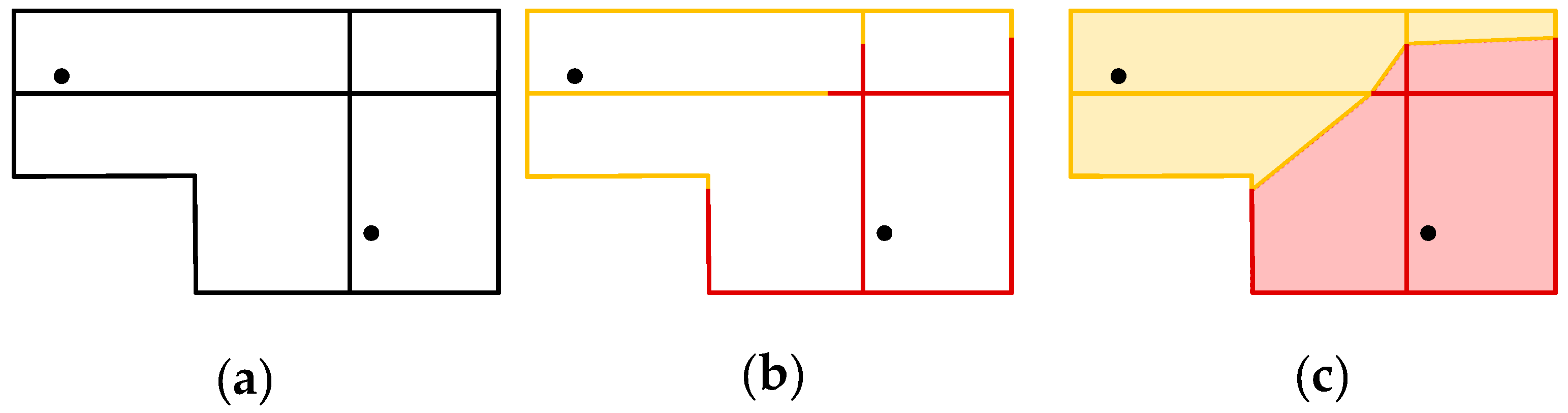

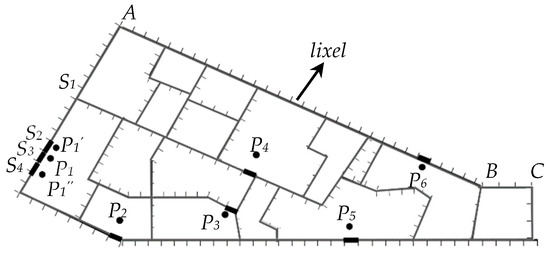

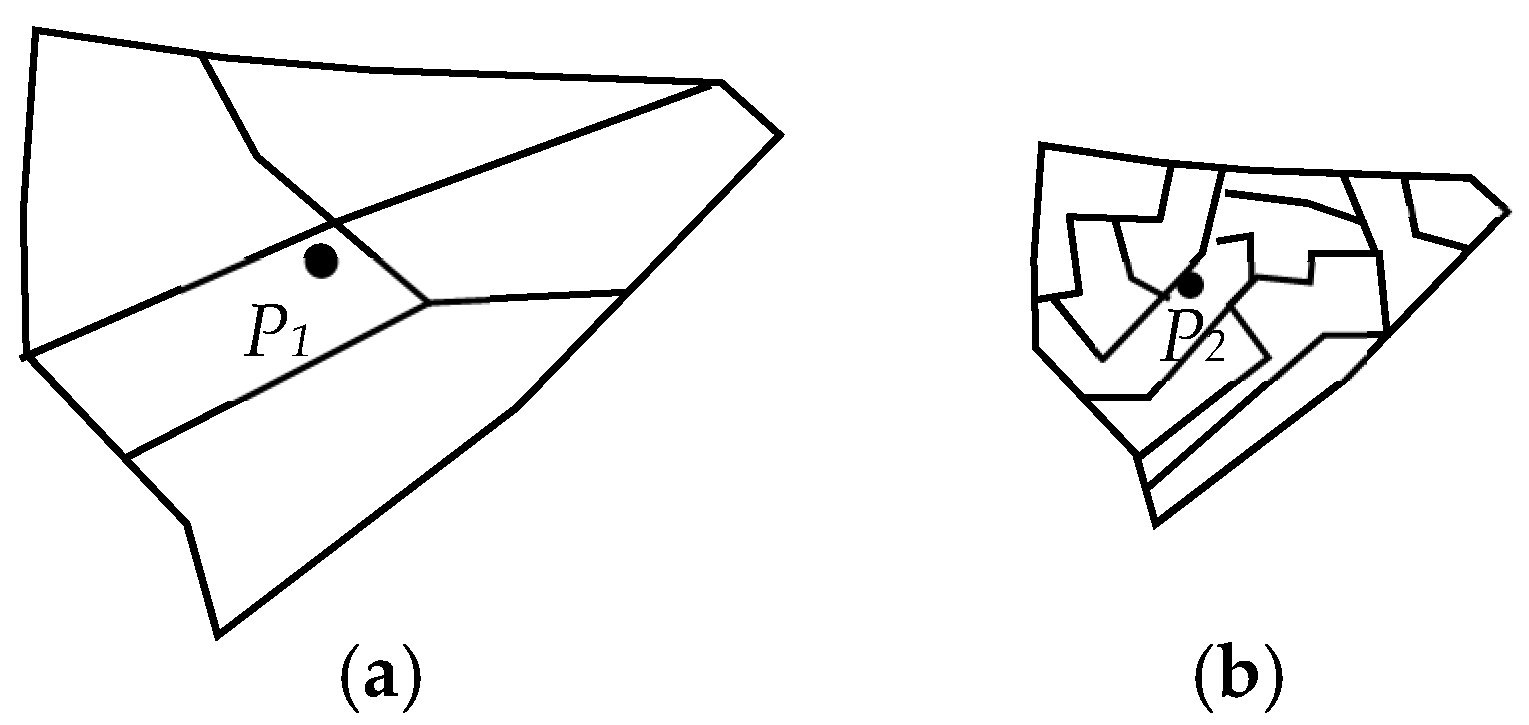

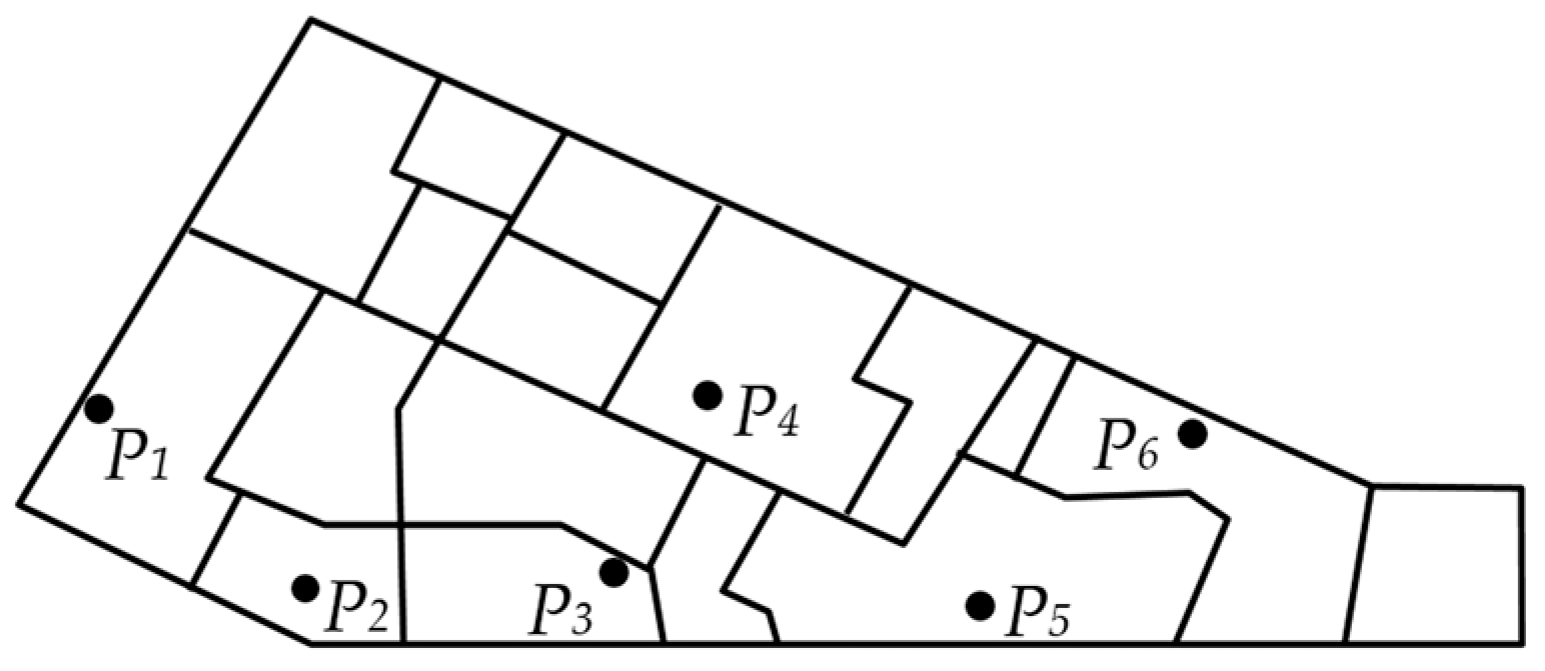

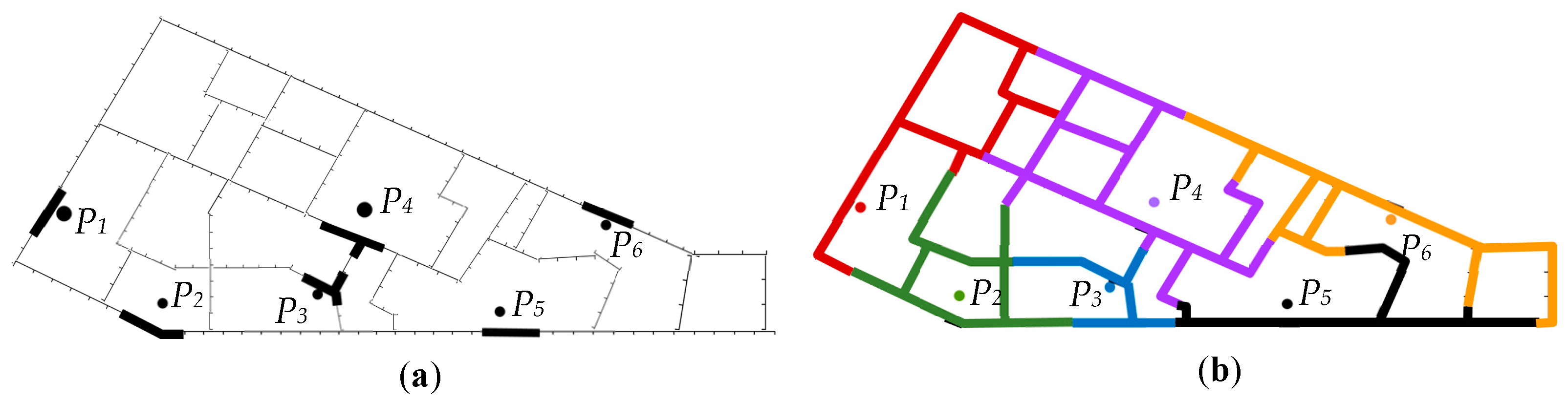

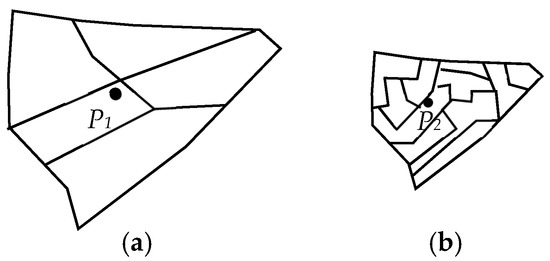

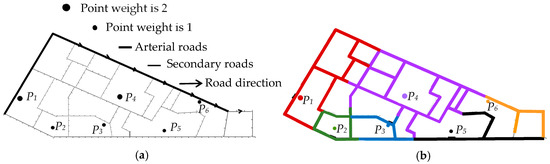

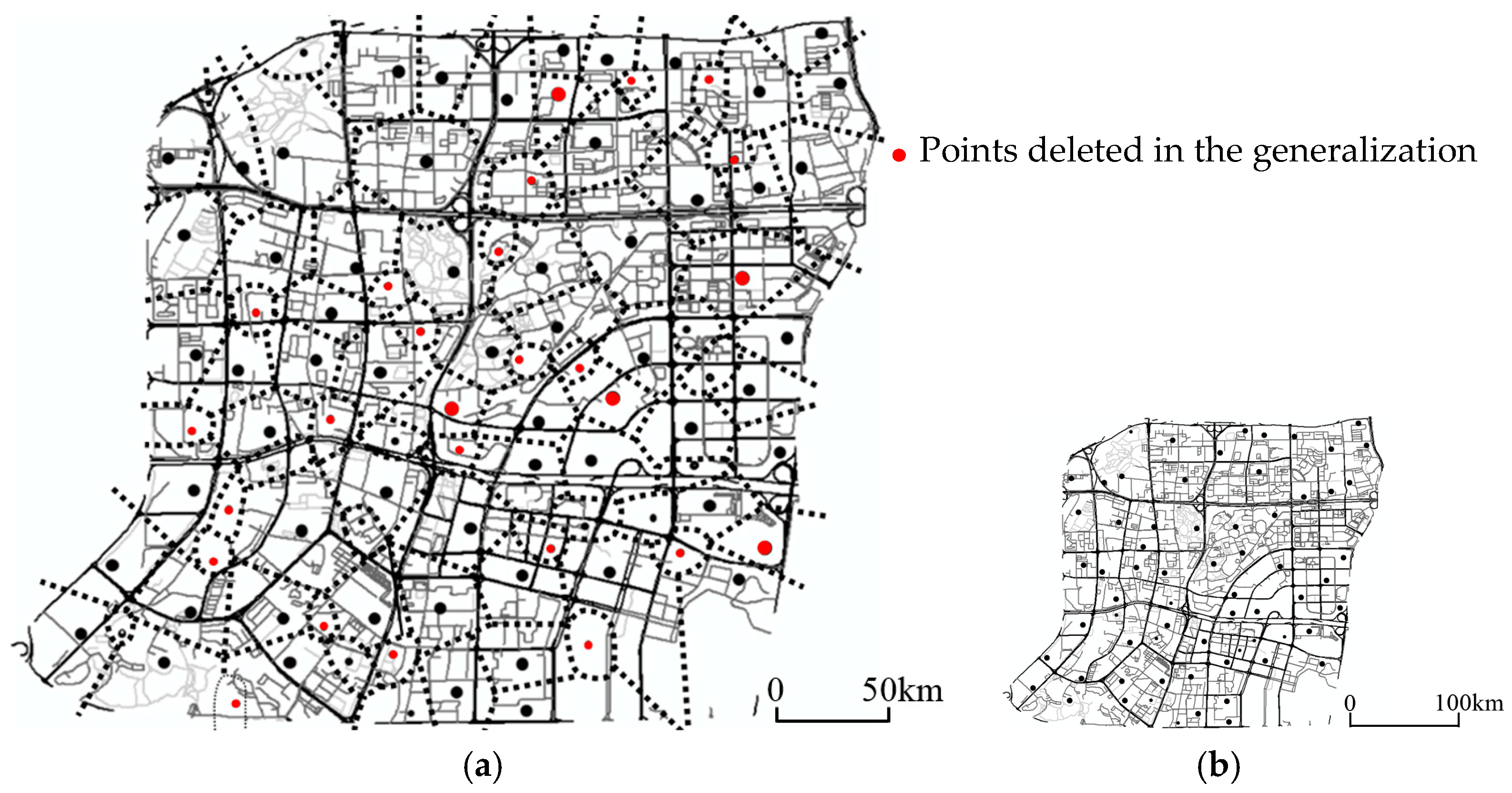

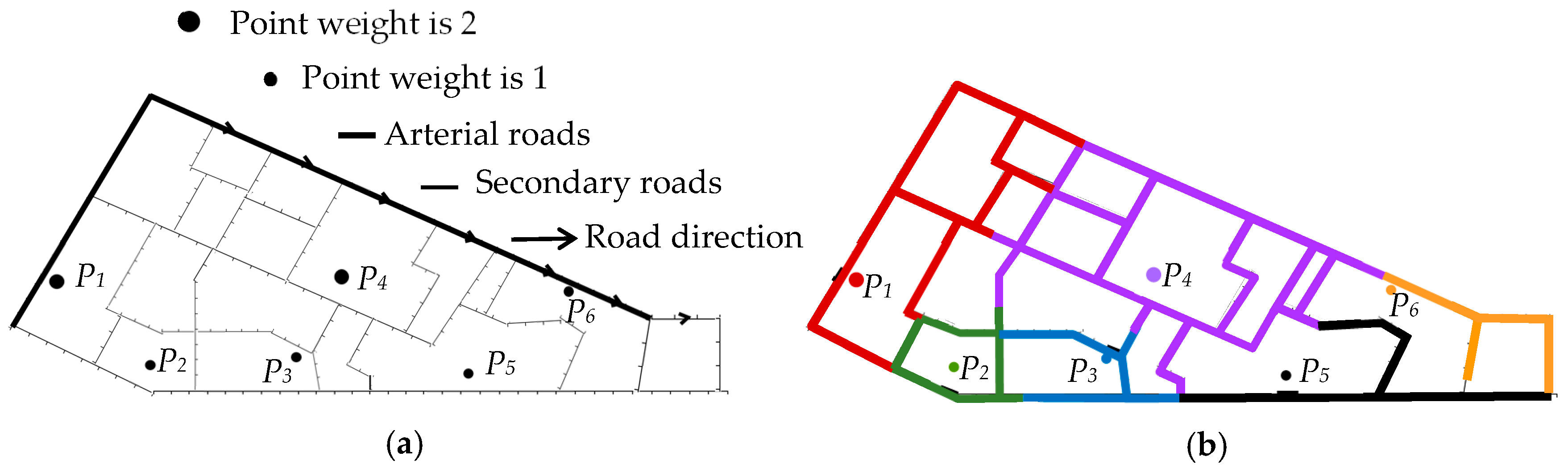

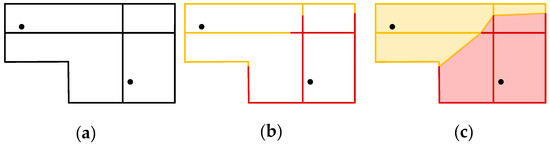

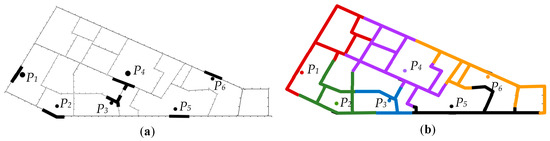

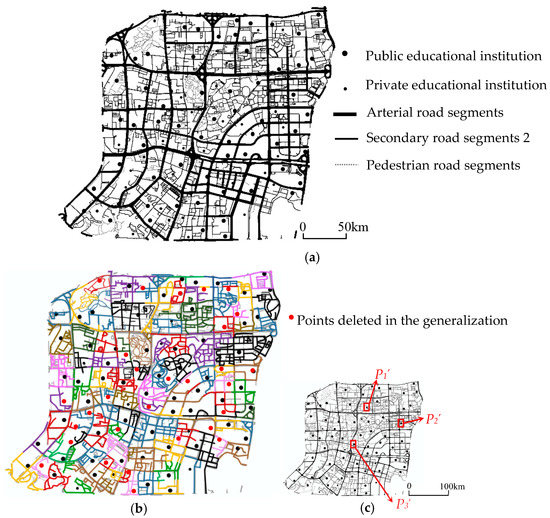

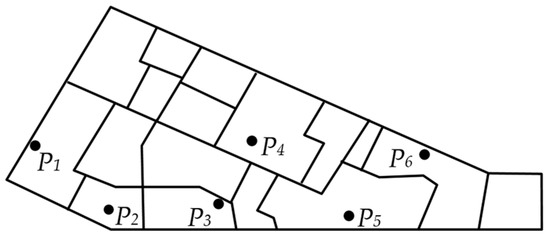

Points on maps that stand for geographic objects such as settlements are generally connected by road networks. However, in the existing algorithms for point cluster simplification, points are usually viewed as discrete objects or their distances are considered in Euclidean spaces, and therefore the point cluster generalization results obtained by these algorithms are sometimes unreasonable. To take roads into consideration so that point clusters can be simplified in appropriate ways, the network Voronoi diagram is used and a new algorithm is proposed in this paper. First, the weighted network Voronoi diagram is constructed taking into account the weights of the points and the properties of the related road segments. Second, the network Voronoi polygons are generated and two factors (i.e., the area of the network Voronoi polygon and the total length of the dilated road segments in the polygon) are considered as the basis for point simplification. Last, a Cartesian coordinate system is built based on the two factors and the point clusters are simplified by means of the “concentric quadrants”. Our experiments show that the algorithm can effectively and correctly transmit types of information in the process of point cluster simplification, and the results are more reasonable than that generated by the ordinary Voronoi-based algorithm and the weighted Voronoi-based algorithm. View Full-Text
Keywords: map generalization; weighted network Voronoi diagram; point cluster simplification; network Voronoi polygon map generalization; weighted network Voronoi diagram; point cluster simplification; network Voronoi polygon
Figures

Figure 1
