A Quaternion-Based Piecewise 3D Modeling Method for Indoor Path Networks

1
Key Laboratory of Digital Earth Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
2
Key Laboratory for Earth Observation of Hainan Province, Sanya Institute of Remote Sensing, Hainan 572029, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Received: 15 December 2018 / Revised: 8 February 2019 / Accepted: 13 February 2019 / Published: 15 February 2019
Full-Text   |   PDF [5070 KB, uploaded 15 February 2019]   |
  |   Review Reports

Abstract

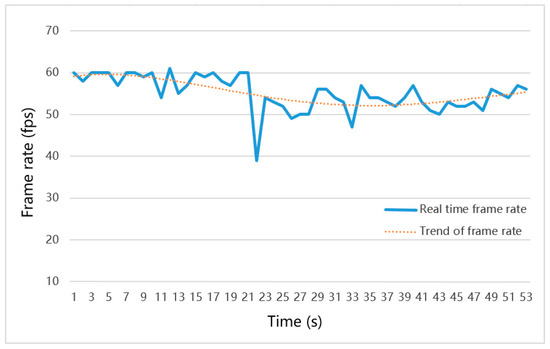

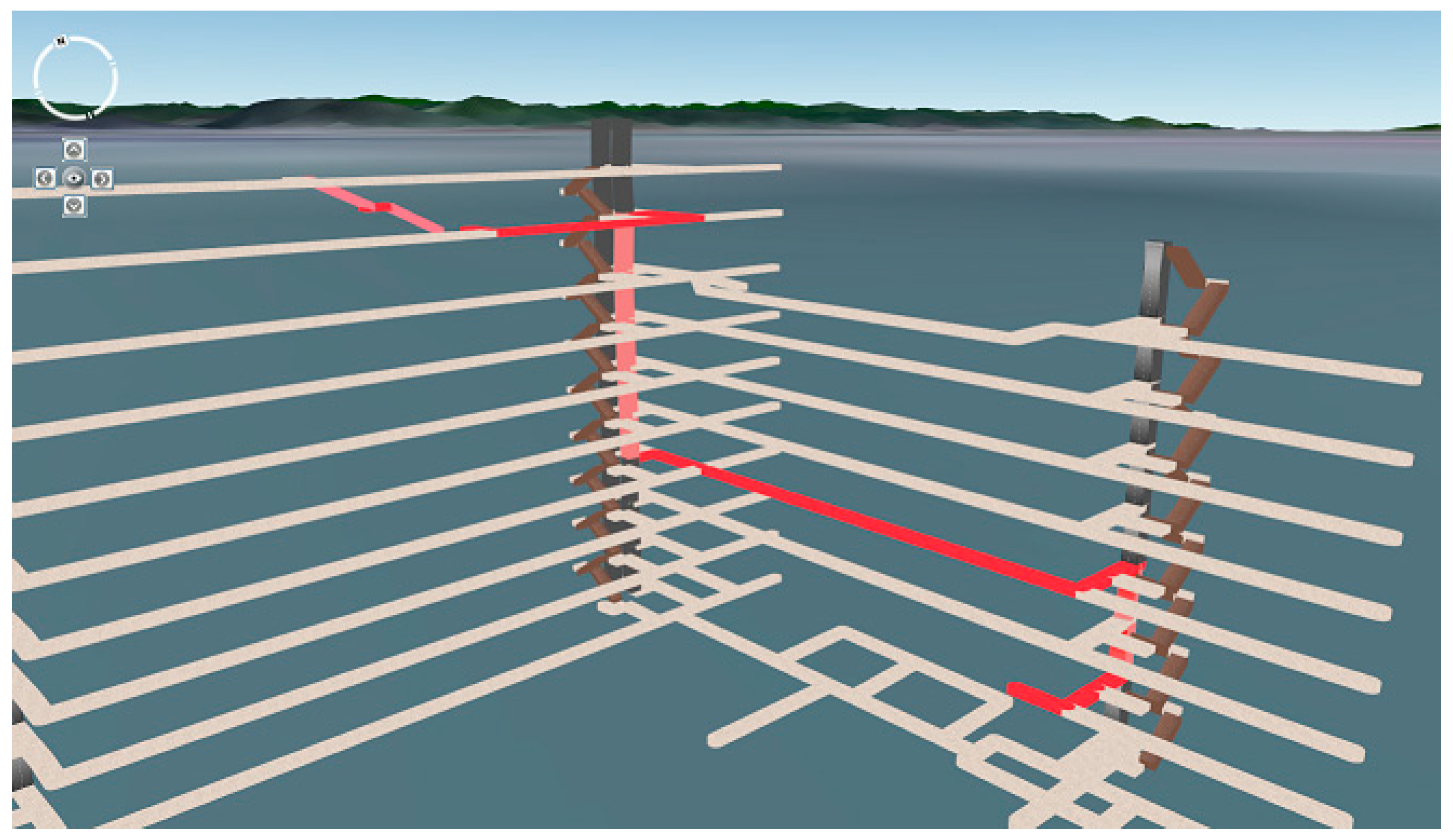

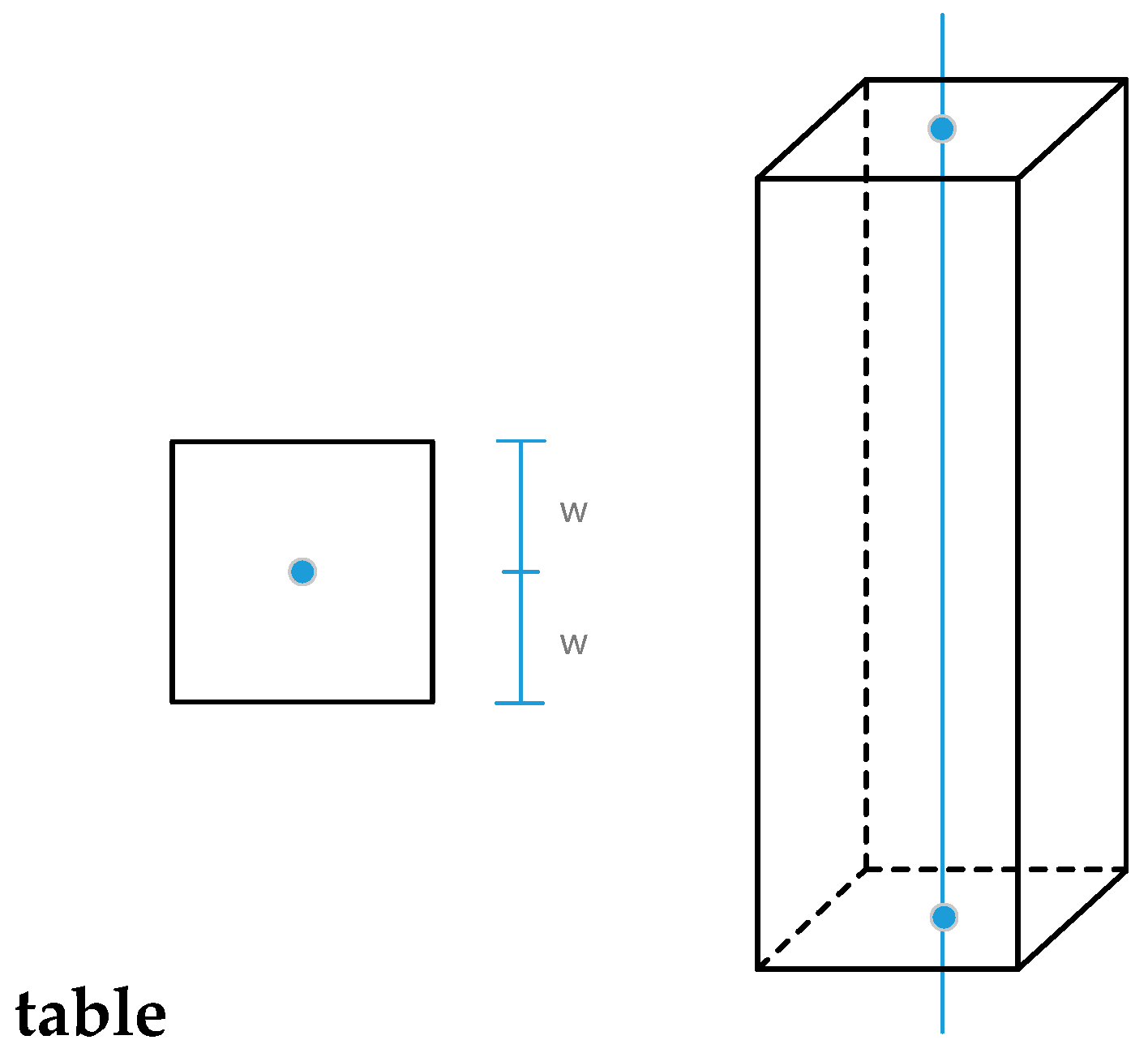

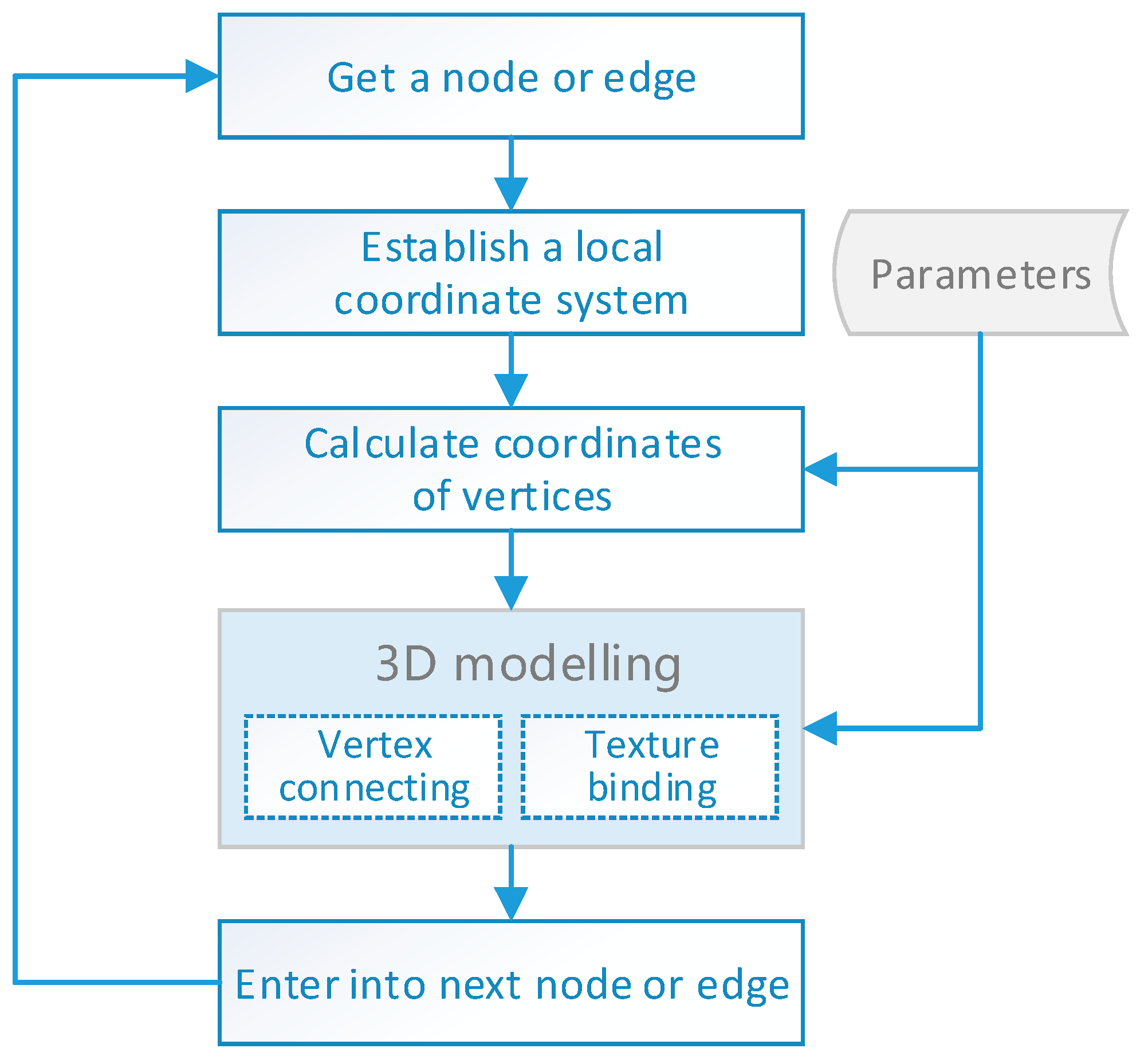

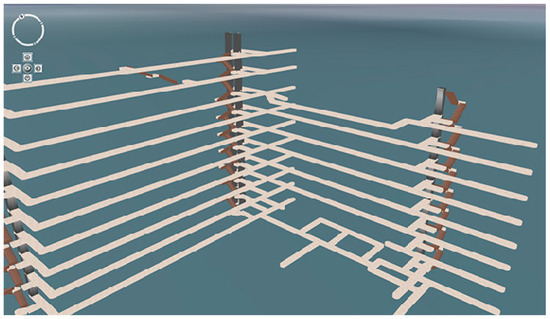

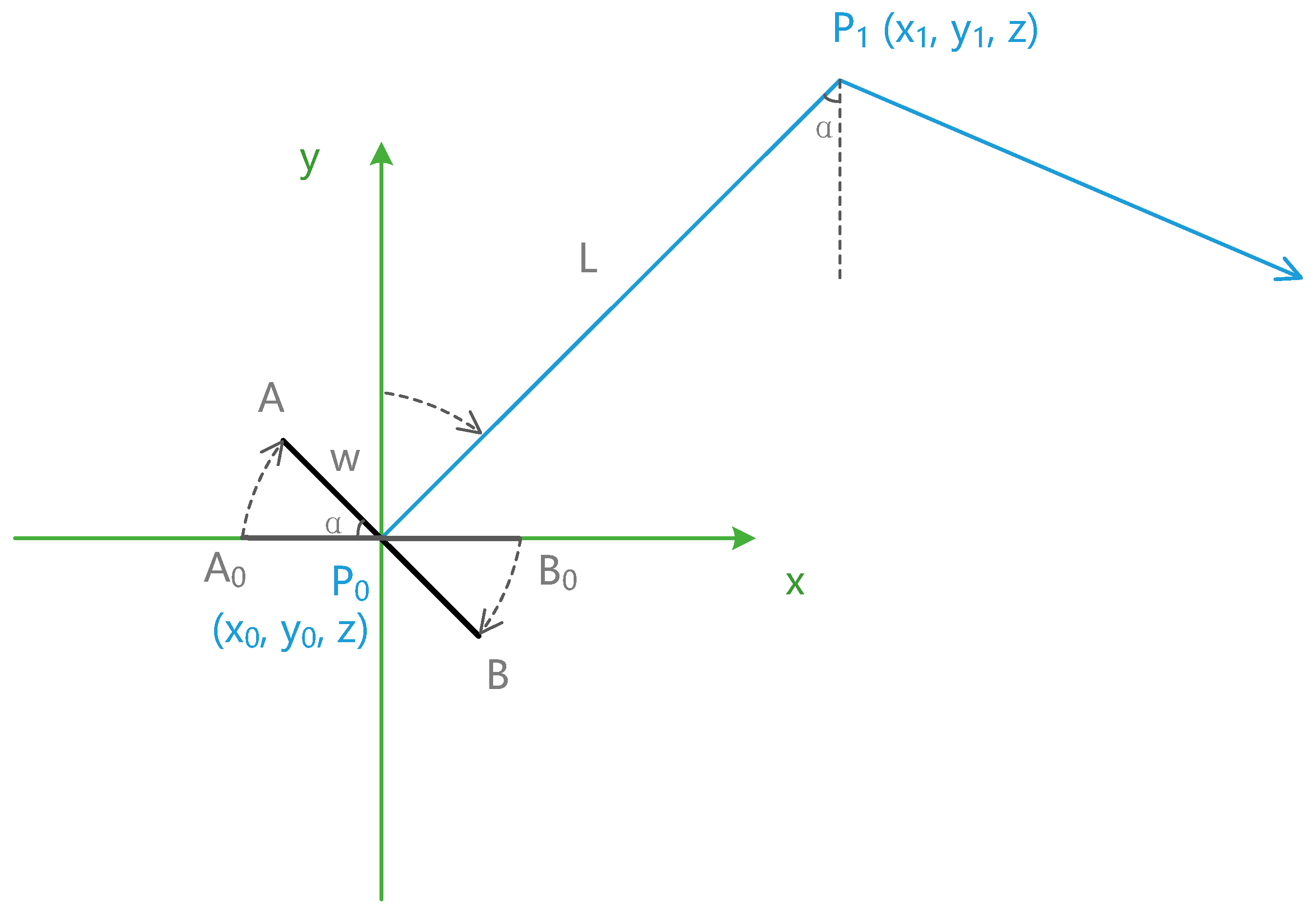

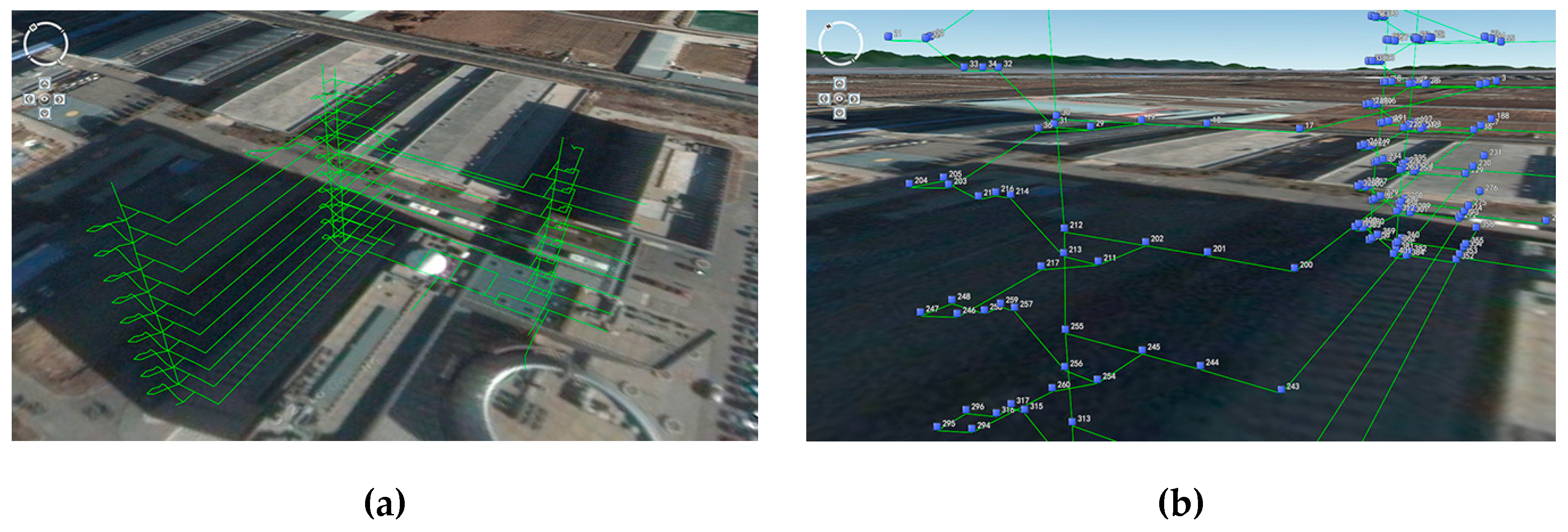

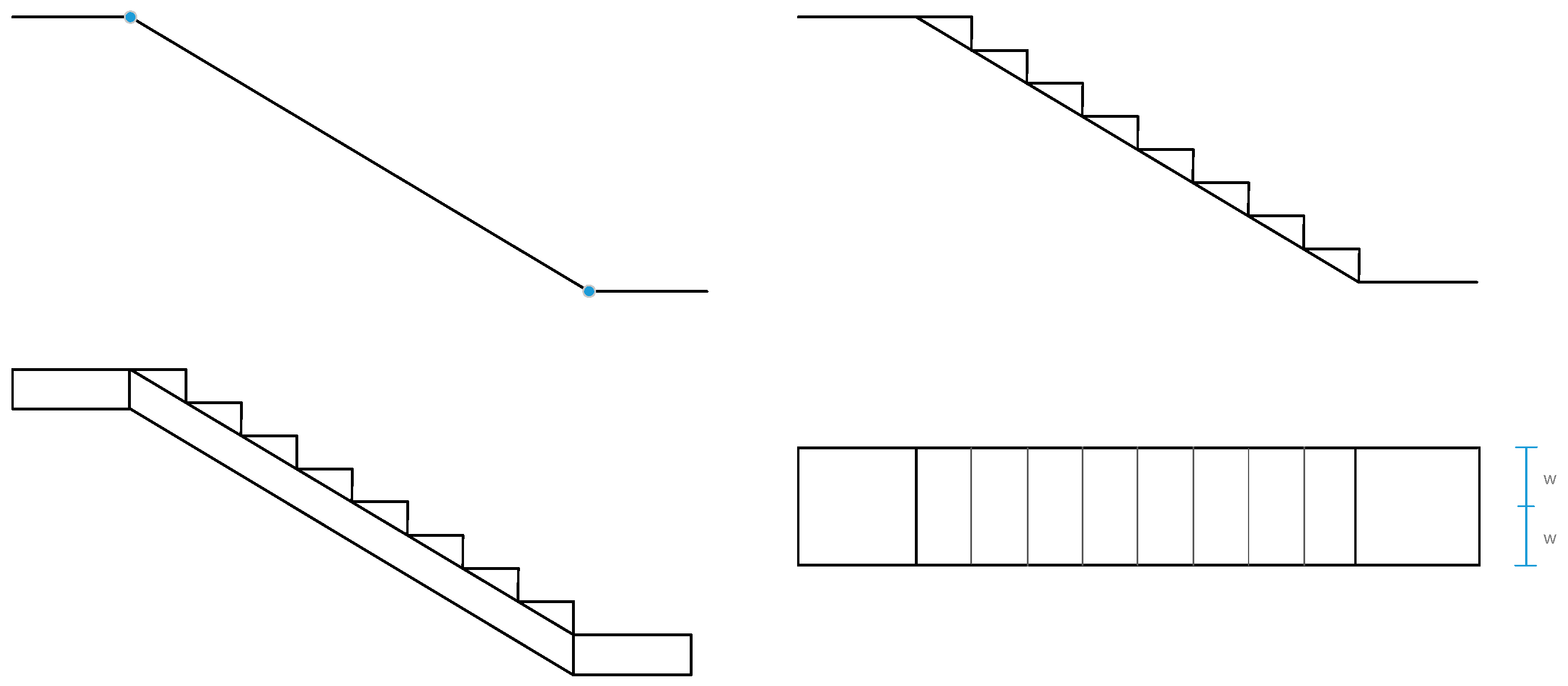

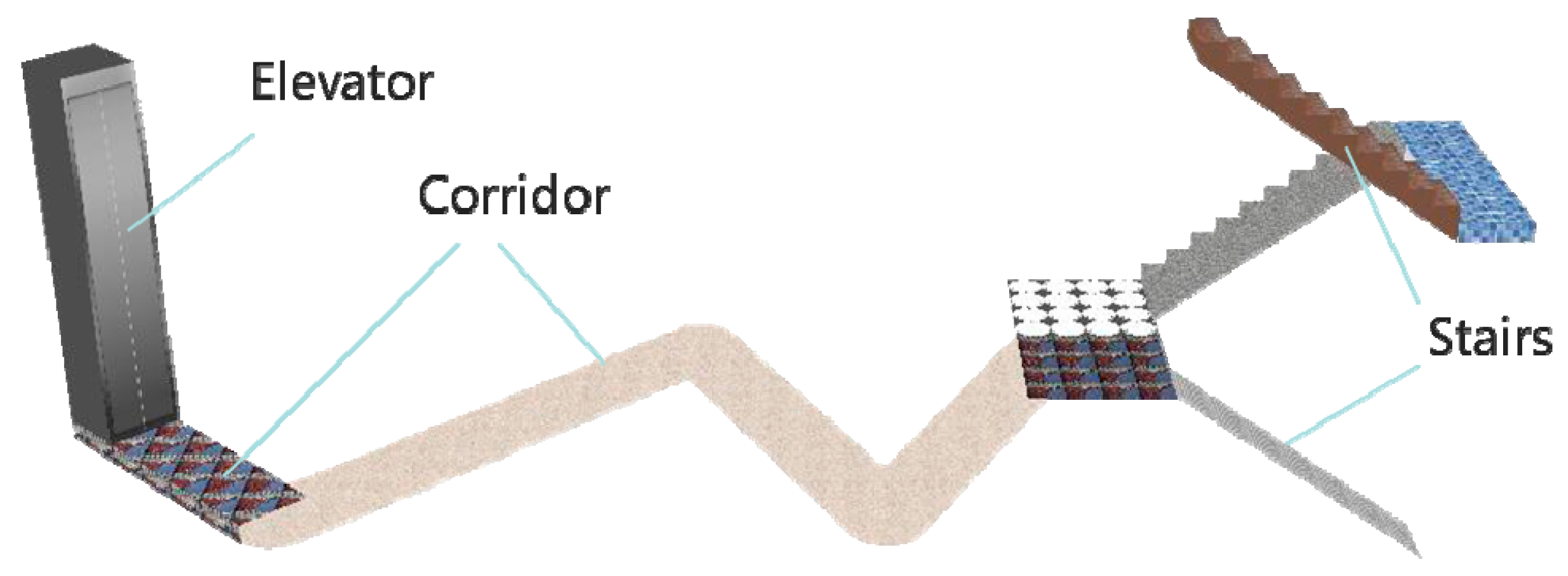

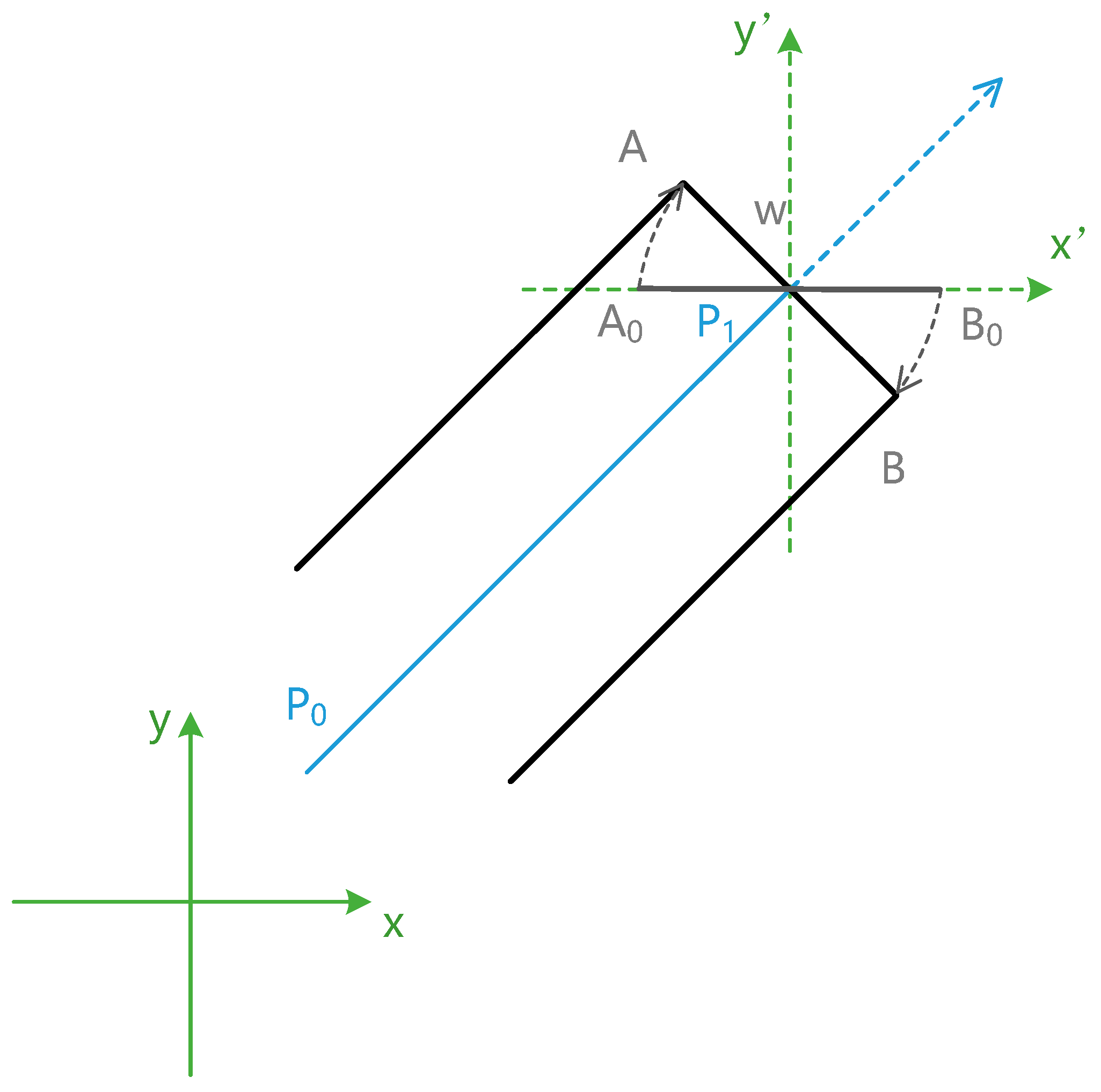

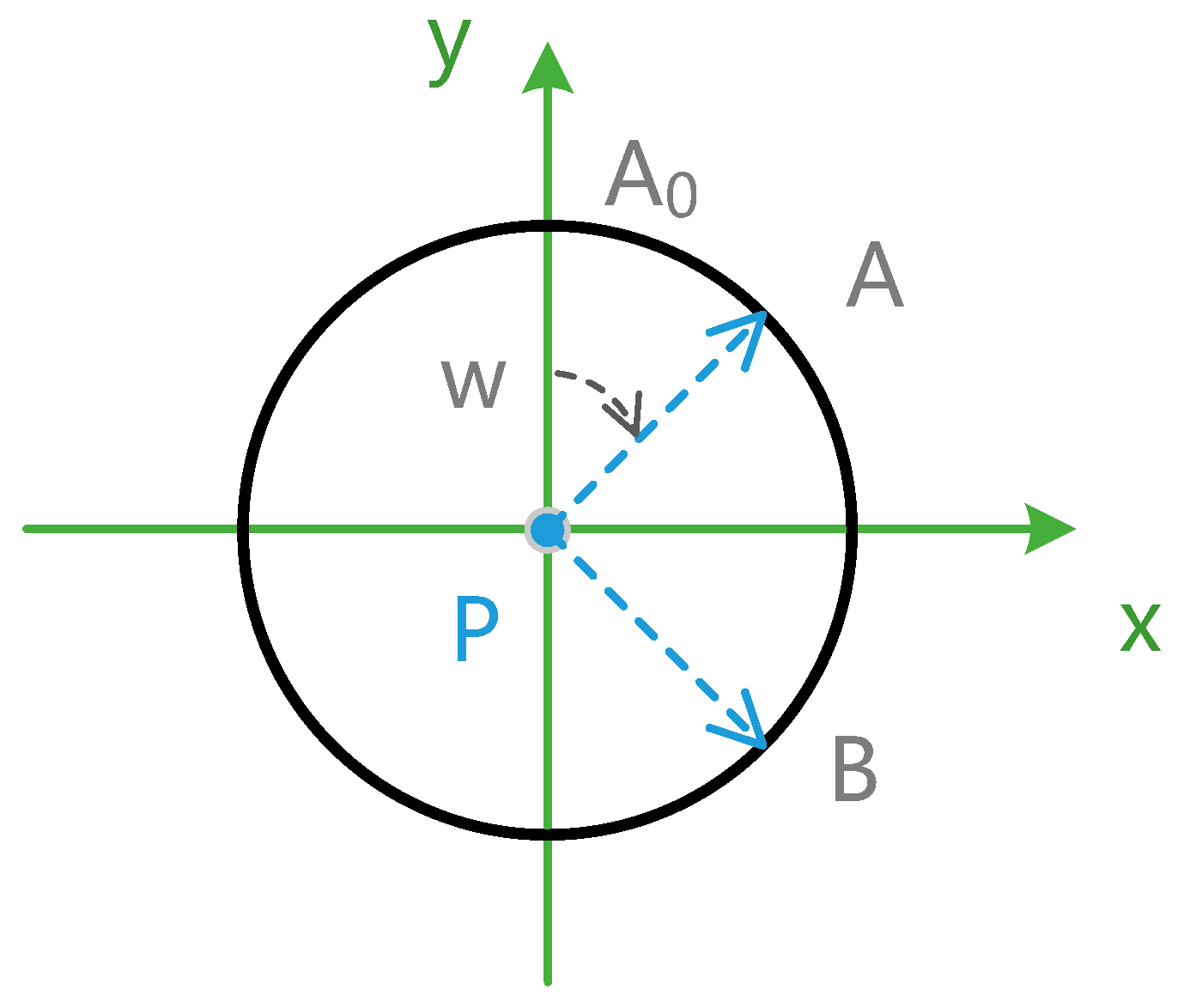

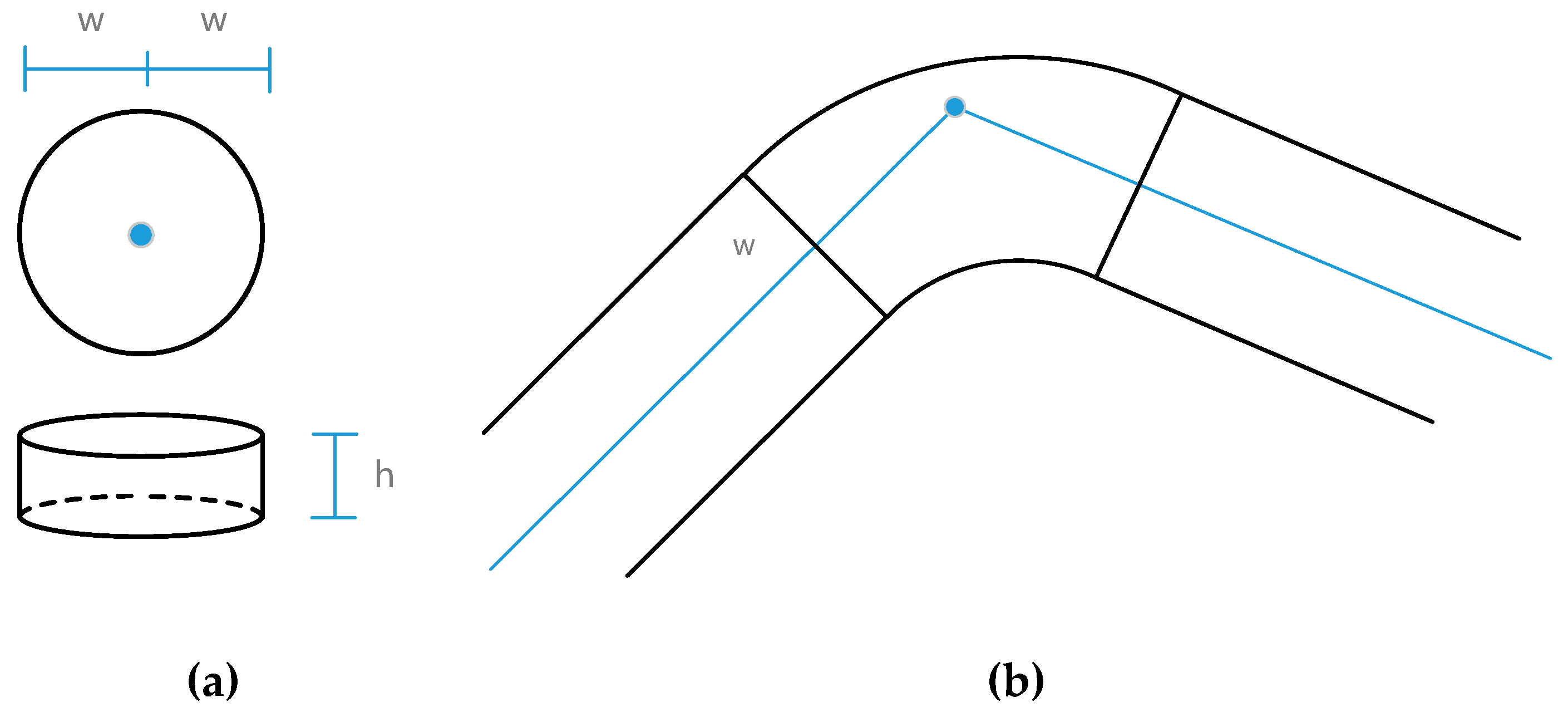

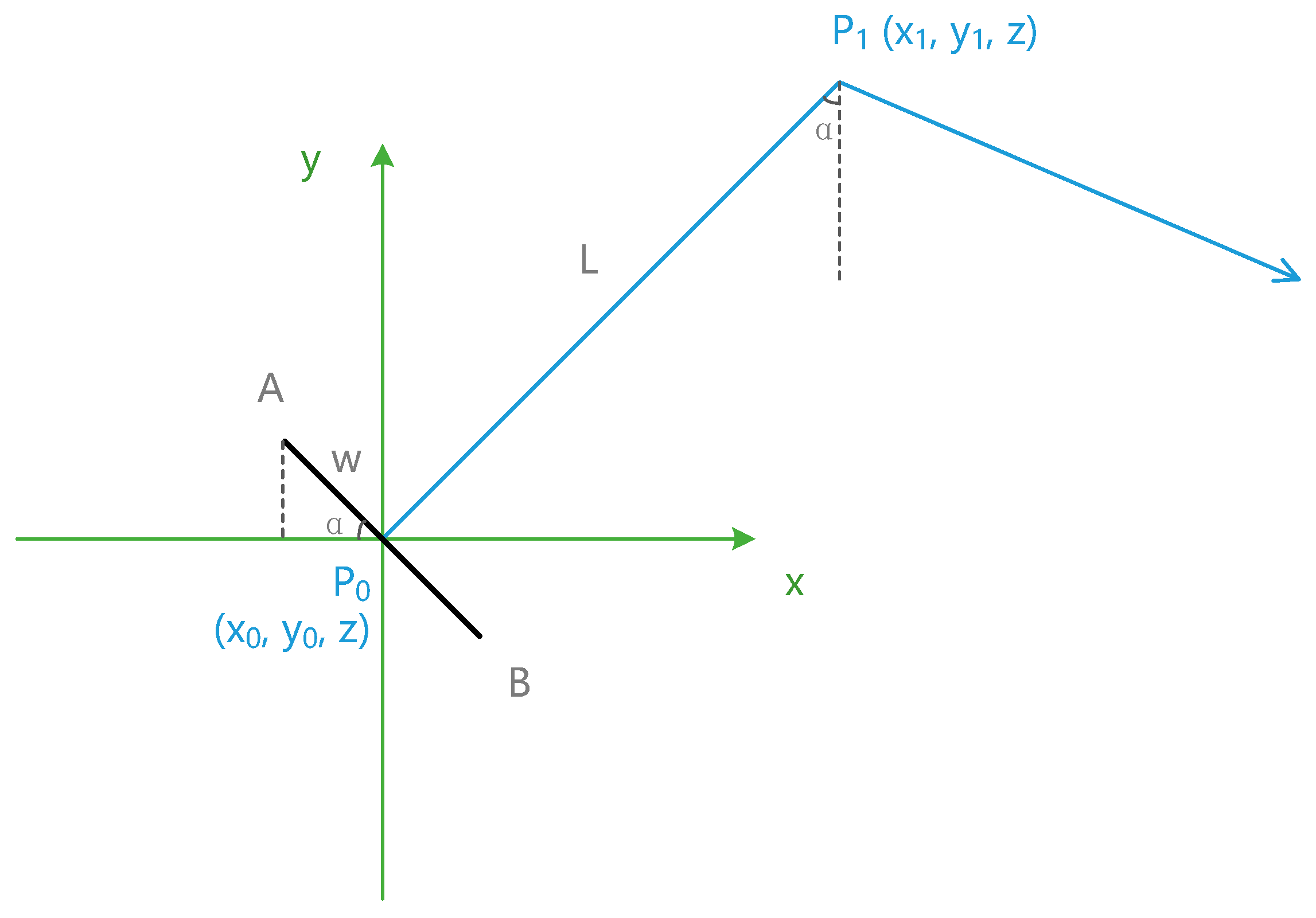

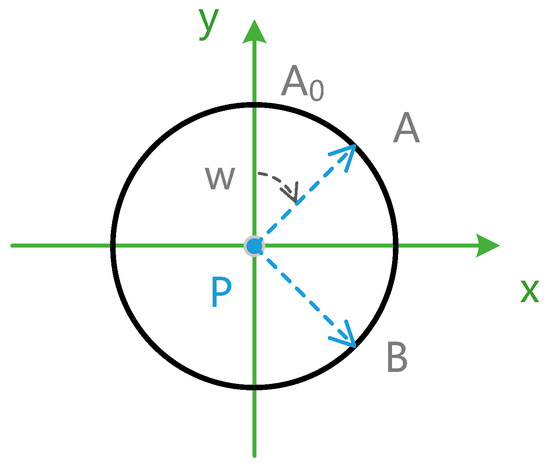

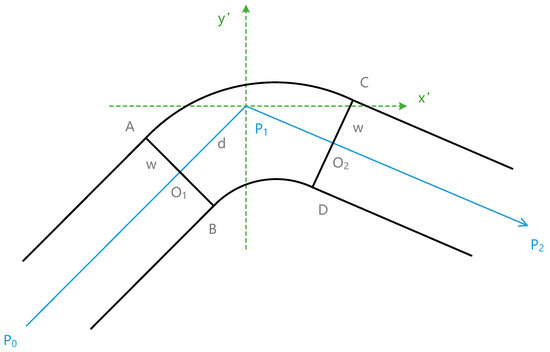

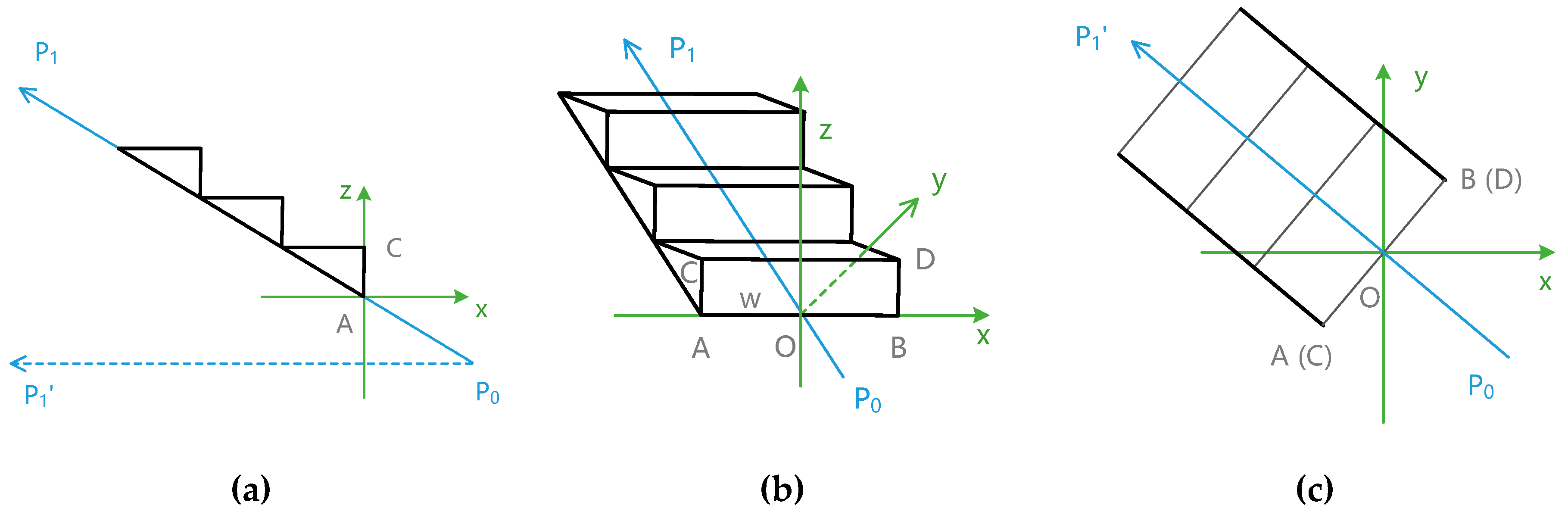

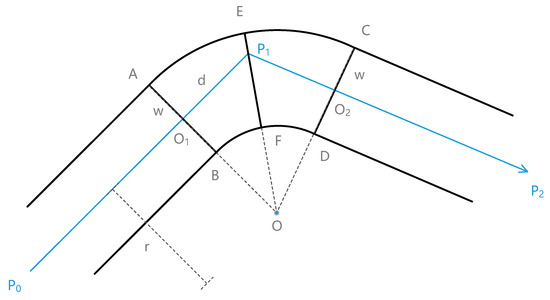

Generating 3D path models (with textures) from indoor paths is a good way to improve the visualization performance of 3D indoor path analysis. In this paper, a quaternion-based piecewise 3D modeling method is proposed to automatically generate highly recognizable 3D models for indoor path networks. To create such models, indoor paths are classified into four types of basic elements: corridor, stairs, elevator and node, which contain six kinds of edges and seven kinds of nodes. A quaternion-based method is devised to calculate the coordinates of the designed elements, and a piecewise 3D modeling method is implemented to create the entire 3D indoor path models in a 3D GIS scene. The numerical comparison of 3D scene primitives in different visualization modes indicates that the proposed method can generate detailed and irredundant models for indoor path networks. The result of 3D path analysis shows that indoor path models can improve the visualization performance of a 3D indoor path network by displaying paths with different shapes, textures and colors and that the models can maintain a high rendering efficiency (above 50 frames per second) in a 3D GIS scene containing more than 50,000 polygons and triangles. View Full-Text
Keywords: indoor path network; 3D modeling; quaternion; path analysis indoor path network; 3D modeling; quaternion; path analysis
