# Analyzing Urban Human Mobility Patterns through a Thematic Model at a Finer Scale

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

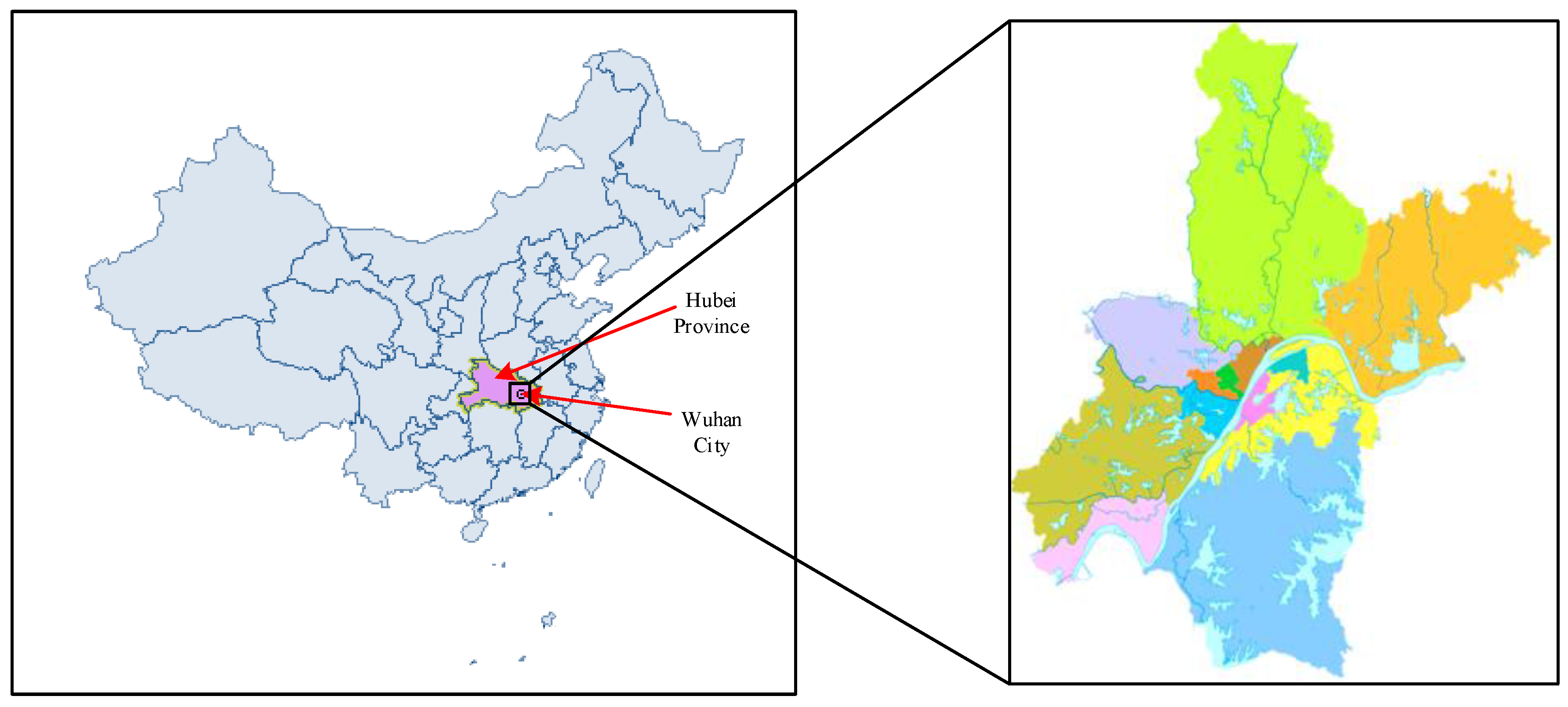

## 2. Trip Extraction and Analysis

#### 2.1. Trip Extraction

**Definition 1:**

**Definition 2:**

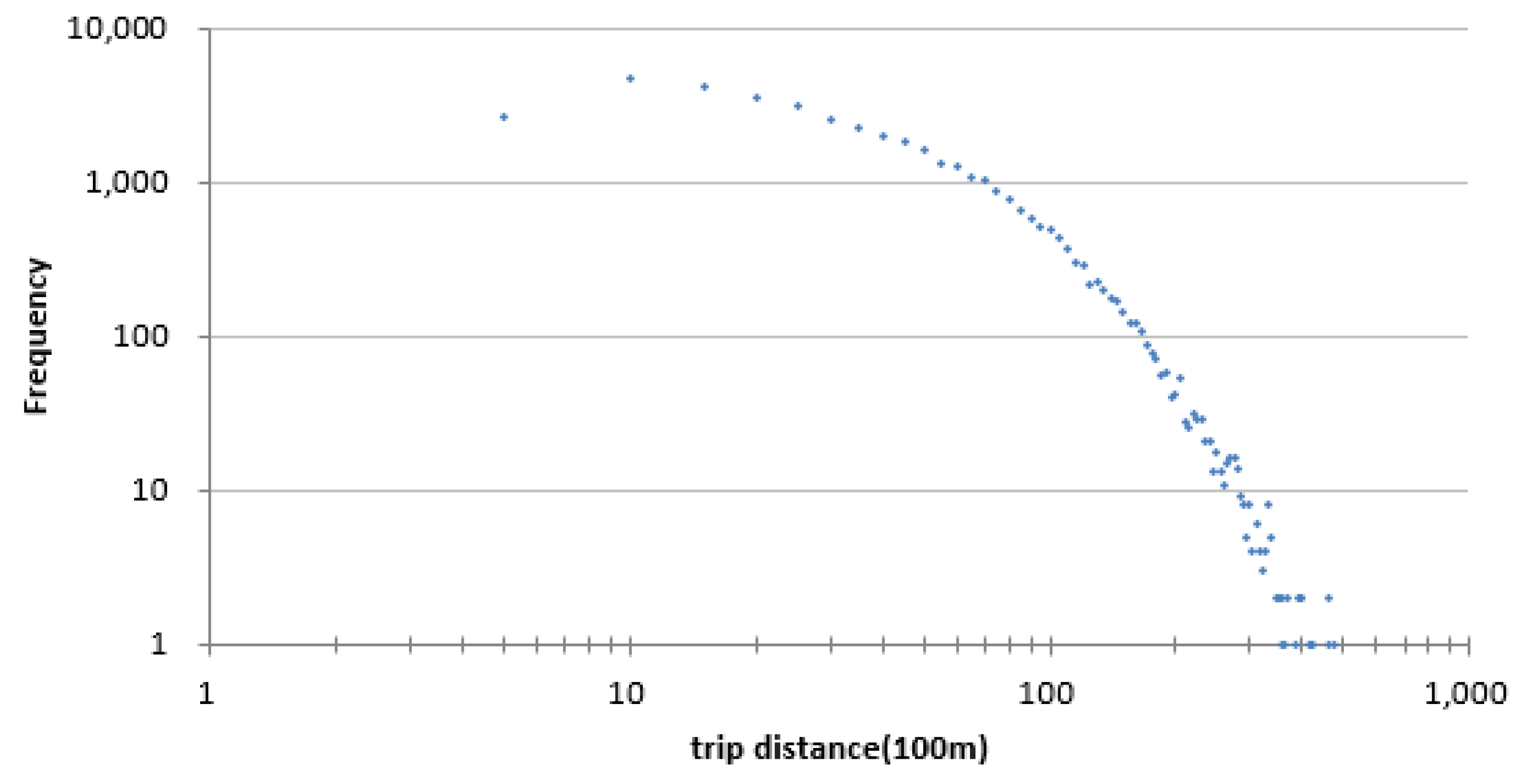

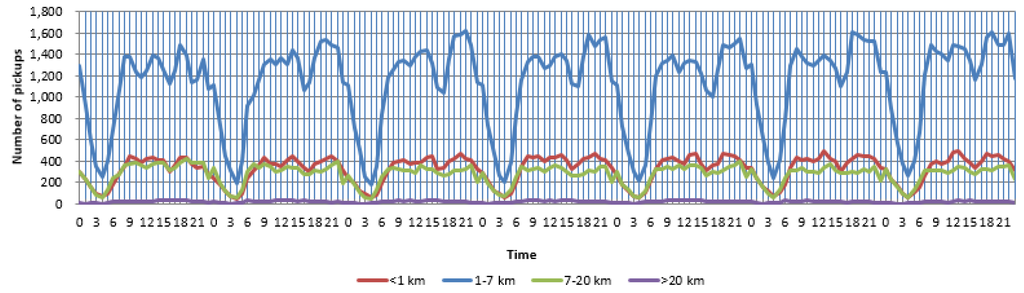

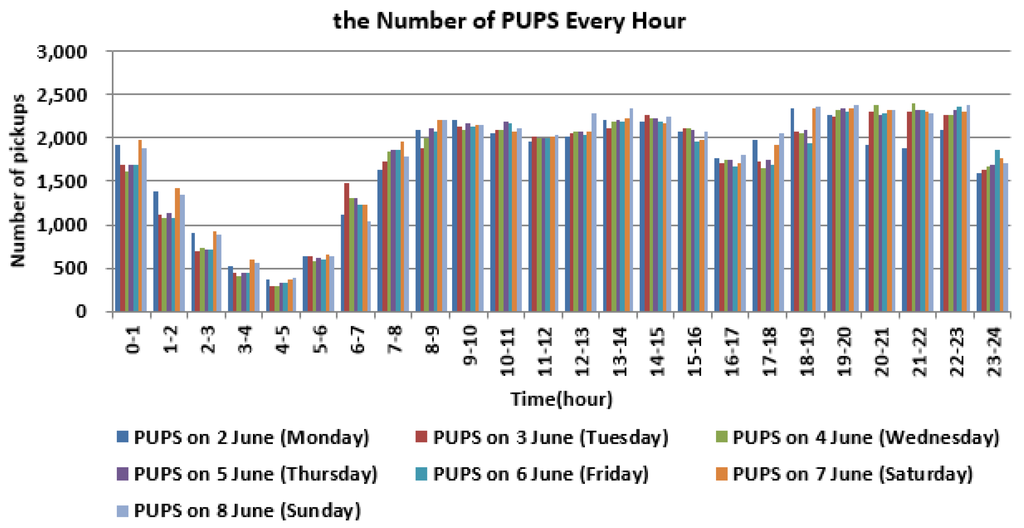

#### 2.2. Distribution of Trips

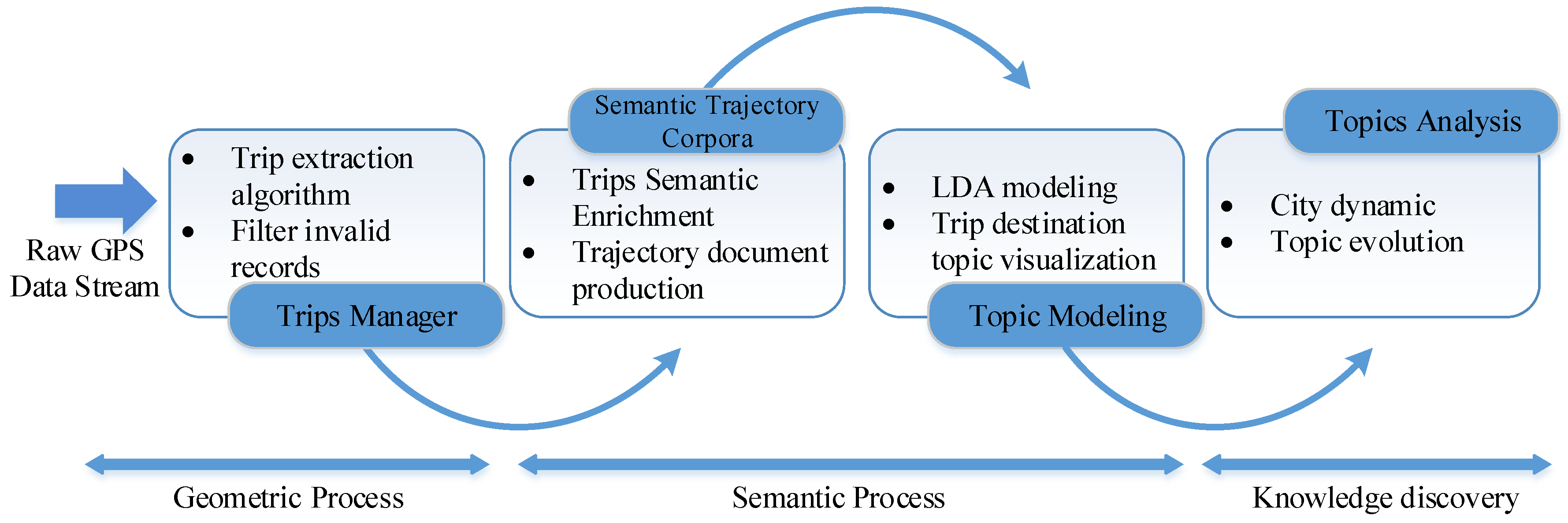

## 3. Semantic Analysis

## 4. Trip Topic Modeling with LDA

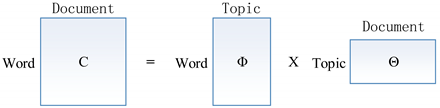

#### 4.1. Latent Dirichlet Allocation

#### 4.2. Significance Definition

**Trip topic significance:**The topic is a concept or an aspect of a document, and it is characterized by a series of related words. The more correlated with the theme the words are, the more possible it is that they gather into a theme. The significance of a trip topic, F

_{t}, is defined as the total frequency of the trip destination (F) that supports the topic (t) in the hidden thematic knowledge, representing the topic importance. The greater the F

_{t}is, the more trip destinations the topic attracts. In Table 4, 10 topics are presented by the order of their topic significance (i.e., total frequency) from Topic00 to Topic09. The frequency of Topic08, which has the highest trip topic significance, F

_{t}, is 2460, while Topic05 saw the lowest F

_{t}, only having less than half of that at 1003. Therefore, among the 10 topics, Topic08 attracted more trip destinations attached to people’s trip behavior than any other topic.

**Trip destination significance:**Trip destination significance, denoted by ${F}_{w}\left(t\right)$, is the significance level of a trip destination (i.e., words) w in a given trip topic. A bigger value, ${F}_{w}\left(t\right)$, means that the word of a trip destination (w) offers more contributions to the production of trip topic t than other topics. The same trip destination may contribute to the production of several trip topics with different trip destination significance. For example, in Table 4, Link 22921, as a trip destination, contributes greatly to Topic01 and Topic06 with 25 percent and 44 percent support, respectively. At the same time, it plays a less important role in Topic00, Topic02, Topic04 and Topic09. However, it has no significance for Topic03, Topic05 and Topic07. In contrast, Link 10229 mainly contributes to two topics, amounting to 99% in total. One topic is Topic08 with 60% support, and another is Topic01 with 39%. Only one percent contributes to Topic00. All in all, this shows that the same link is more associated with some topics than other topics.

**Trip topic probability distribution:**Each trip topic is in fact a probability distribution of different trip destinations attached to various mobility patterns under the condition of this topic, namely ${\phi}_{t}<{p}_{{w}_{1}},\dots ,{p}_{{w}_{m}}>$, in which ${p}_{{w}_{i}}$ represents the probability of a trip destination, ${w}_{i}$, generating topic t. This is the ratio of trip destination significance over trip topic significance, $p\left({w}_{i}|t\right)={F}_{{w}_{i}}\left(t\right)/{F}_{t}$; a conditional probability of trip destination under the condition of topic t. Here, the conditional probability of all trip destinations over the topic sum to one, $\sum _{i}{p}_{{w}_{i}}=1$. The bigger the value $p\left({w}_{i}|t\right)$, the more representative the trip destination is expressed by topic t. Consequently, if a threshold δ is defined, then all trip destinations with a conditional probability higher than the threshold are considered as representative trip destinations for topic t, which will be used for the visual analysis of topics.

## 5. Trip Topic Analysis of Mobility Patterns in Wuhan

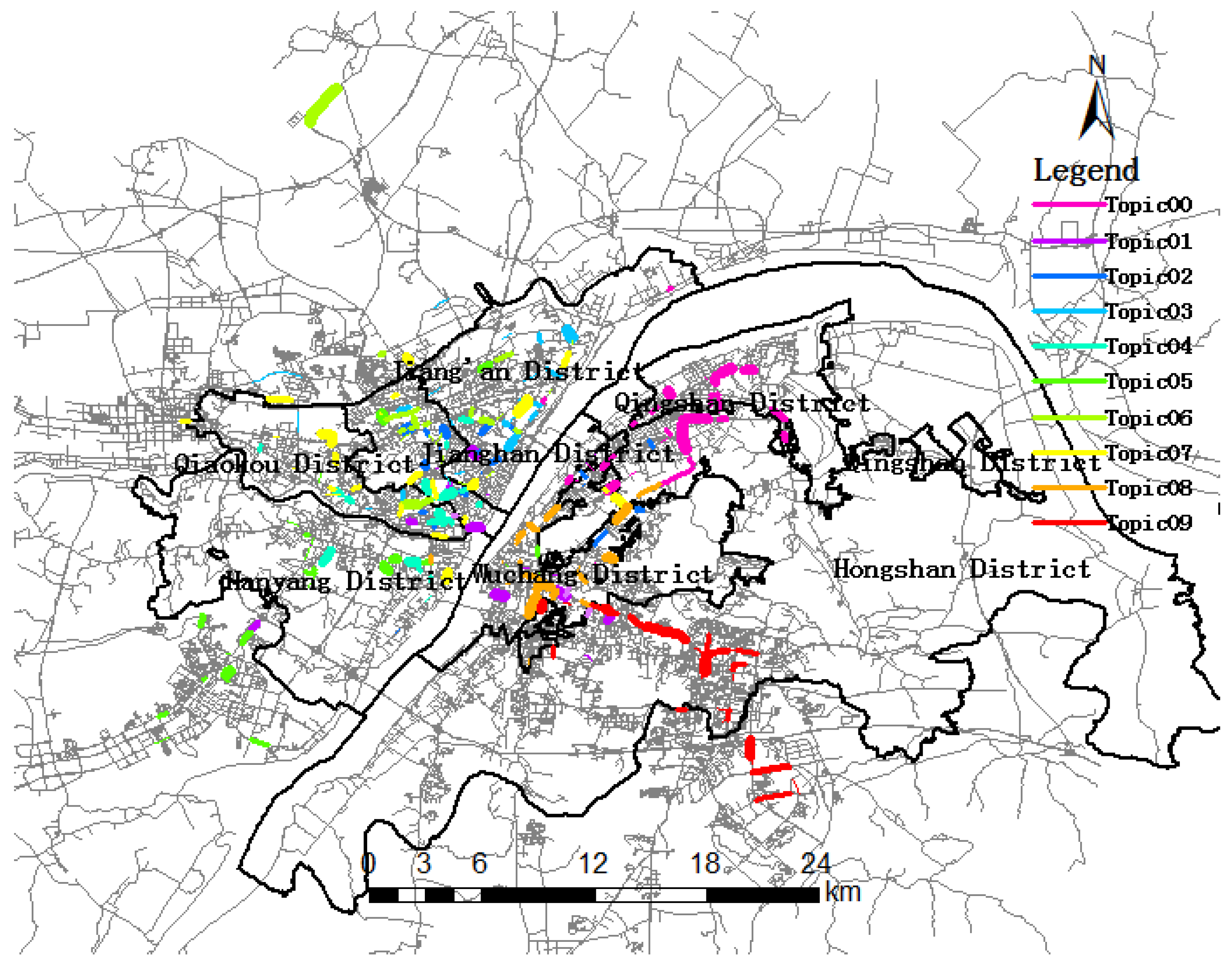

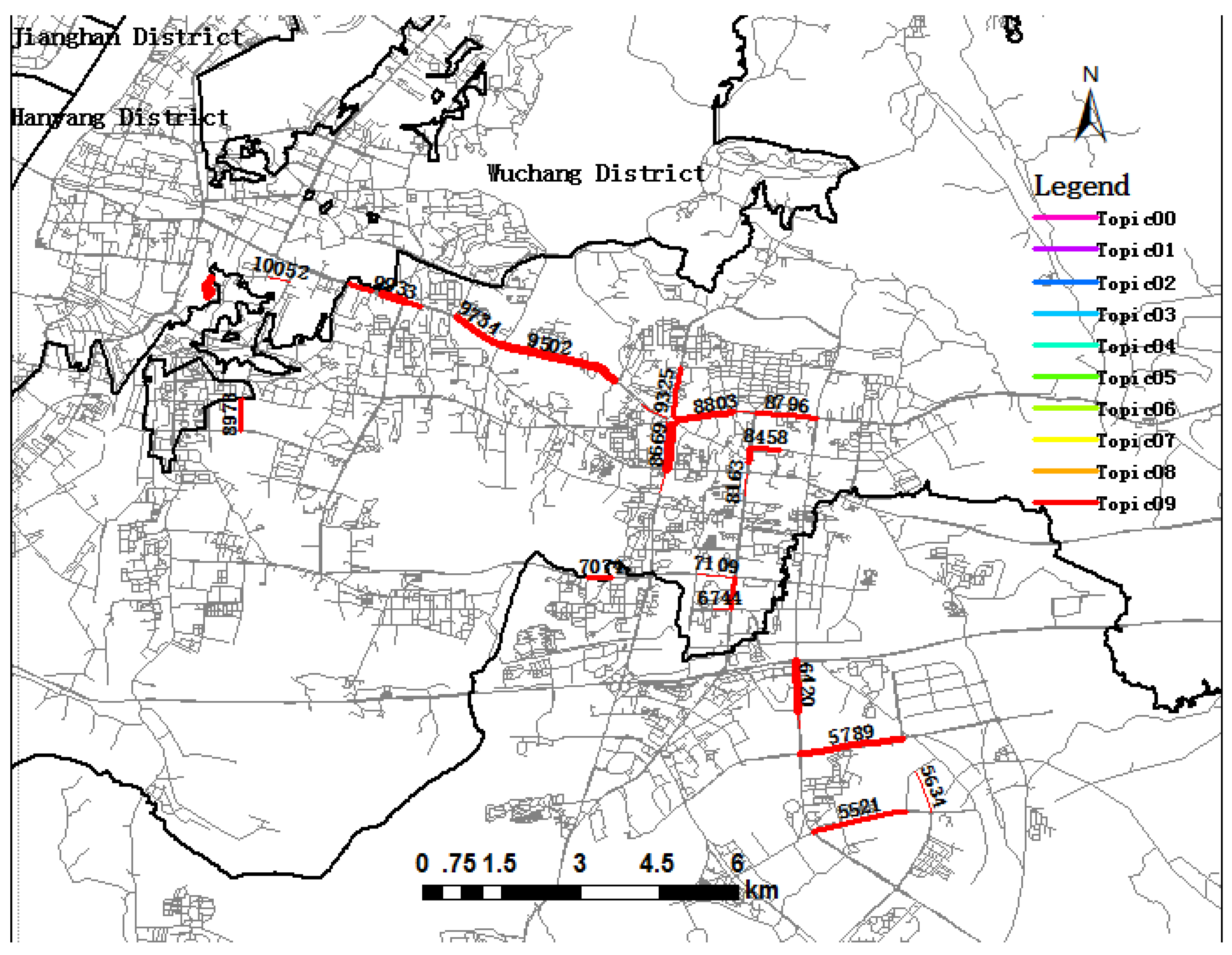

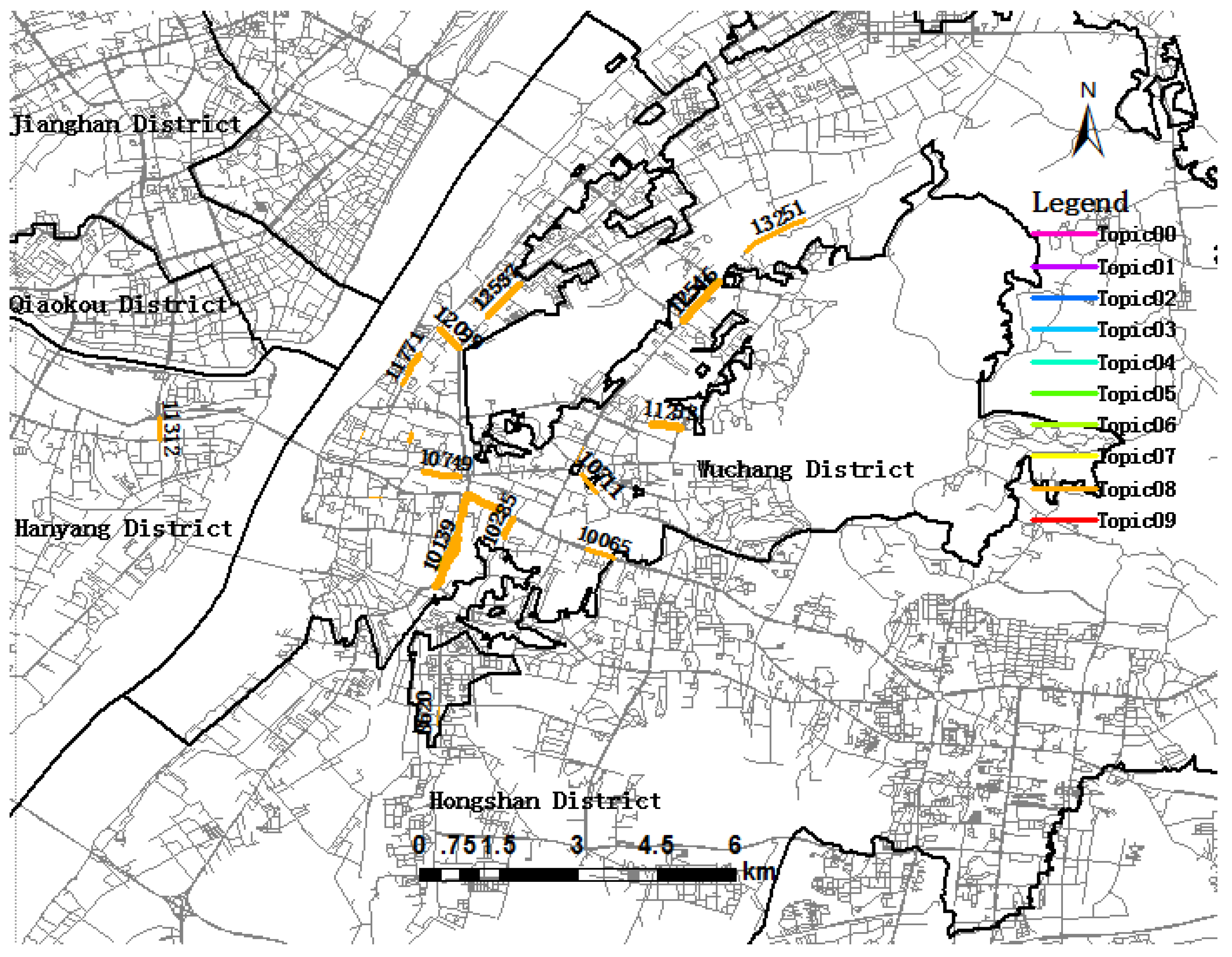

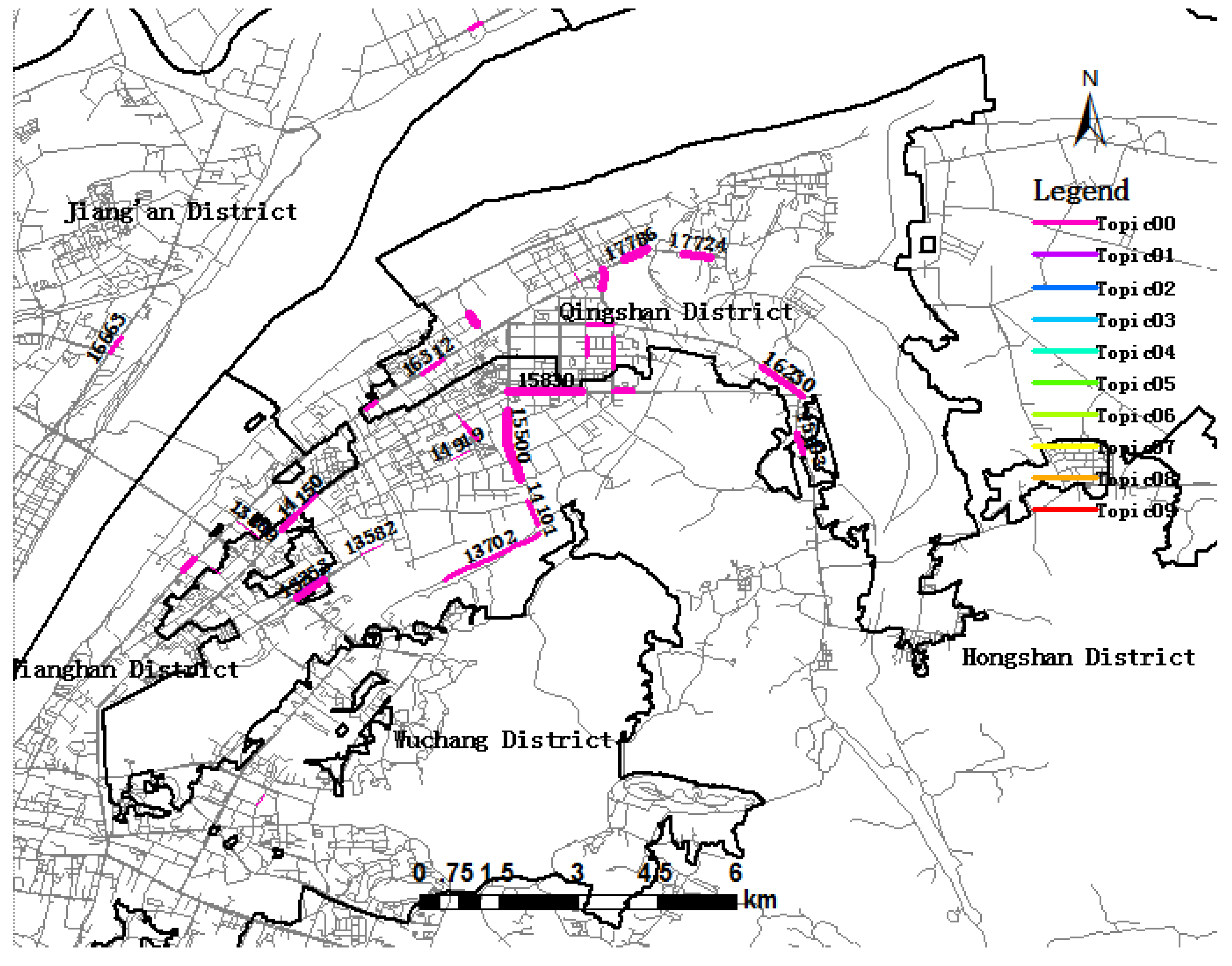

#### 5.1. Trip Topic Extraction and Visualization

#### 5.2. Trip Topic and Urban Dynamics

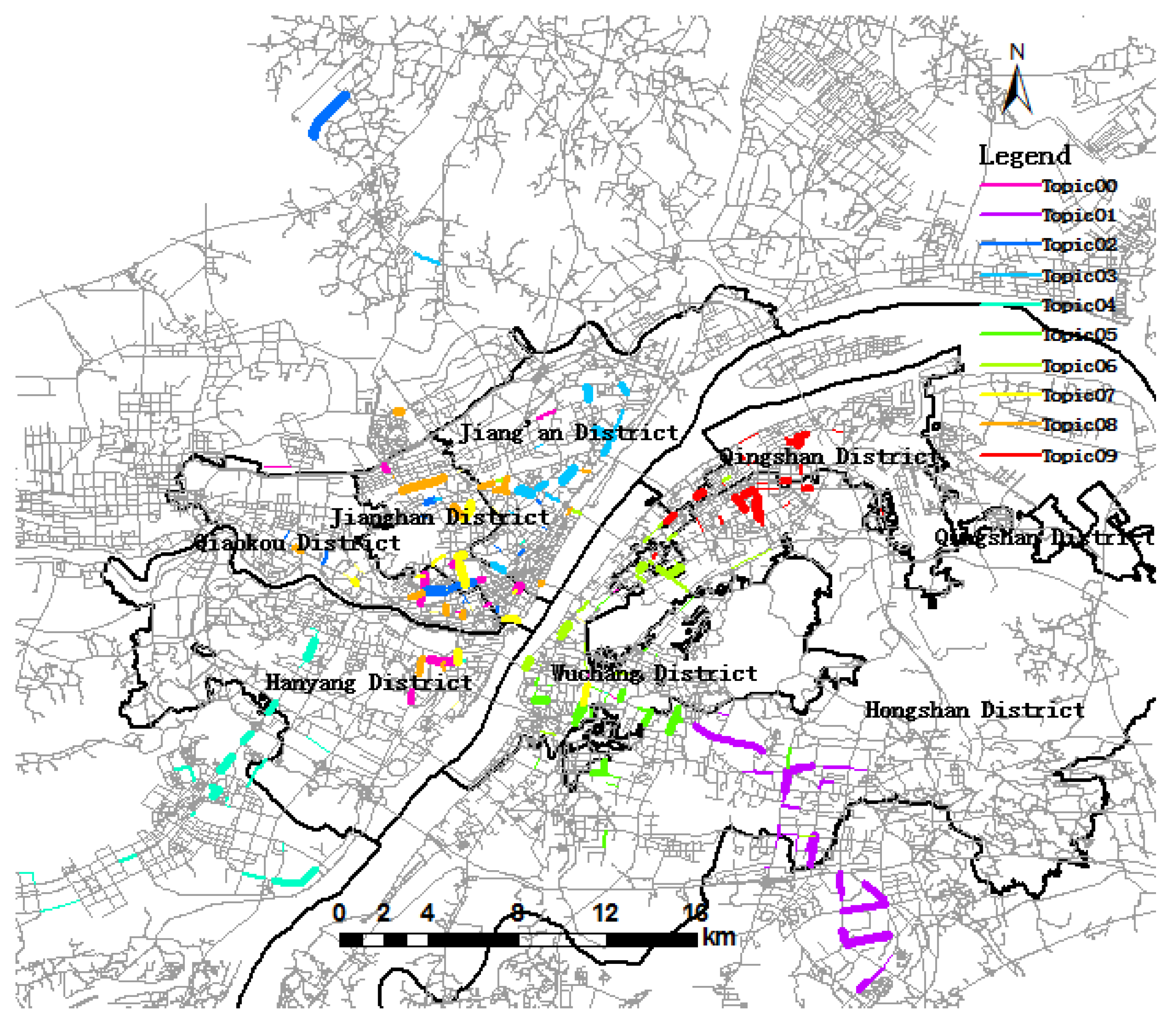

#### 5.3. Trip Topic Evolution

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Candia, J.; Gonzalez, M.C.; Wang, P.; Schoenharl, T.; Madey, G.; Barabasi, A.-L. Uncovering individual and collective human dynamics from mobile phone records. J. Phys. A Math. Theor.
**2008**. [Google Scholar] [CrossRef] - Jiang, B.; Yin, J.; Zhao, S. Characterizing the human mobility pattern in a large street network. Phys. Rev. E
**2009**, 80. [Google Scholar] [CrossRef] [PubMed] - Bai, F.; Helmy, A. A Survey of Mobility Models. In Wireless Adhoc Networks; University of Southern California: Los Angeles, CA, USA, 2004; pp. 1–30. [Google Scholar]
- Chaix, B.; Kestens, Y.; Perchoux, C.; Karusisi, N.; Merlo, J.; Labadi, K. An interactive mapping tool to assess individual mobility patterns in neighborhood studies. Am. J. Prev. Med.
**2012**, 43, 440–450. [Google Scholar] [CrossRef] [PubMed] - Miller, H.J.; Shaw, S.L. Geographic information systems for transportation in the 21st Century. Geogr. Compass
**2015**, 9, 180–189. [Google Scholar] [CrossRef] - Song, C.; Koren, T.; Wang, P.; Barabasi, A.-L. Modelling the scaling properties of human mobility. Nat. Phys.
**2010**, 6, 818–823. [Google Scholar] [CrossRef] - Song, C.; Qu, Z.; Blumm, N.; Barabasi, A.-L. Limits of predictability in human mobility. Science
**2010**, 327, 1018–1021. [Google Scholar] [CrossRef] [PubMed] - Yuan, Y.; Raubal, M.; Liu, Y. Correlating mobile phone usage and travel behavior: A case study of Harbin, China. Comput. Environ. Urban Syst.
**2012**, 36, 118–130. [Google Scholar] [CrossRef] - Hawelka, B.; Sitko, I.; Beinat, E.; Sobolevsky, S.; Kazakopoulos, P.; Ratti, C. Geo-Located Twitter as Proxy for Global Mobility Patterns. Cartogr. Geogr. Inf. Sci.
**2014**. [Google Scholar] [CrossRef] [PubMed] - Rhee, I.; Shin, M.; Hong, S.; Lee, K.; Kim, S.J.; Chong, S. On the Levy-Walk Nature of Human Mobility. IEEE/ACM Trans. Netw.
**2011**. [Google Scholar] [CrossRef] - Chen, C.; Bian, B.; Ma, J. From Traces to Trajectories: How Well Can We Guess Activity Locations from Mobile Phone Traces? Transp. Res. Part C
**2014**. [Google Scholar] [CrossRef] - Lu, Y.; Liu, Y. Pervasive location acquisition technologies: Opportunities and challenges for geospatial studies. Comput. Environ. Urban Syst.
**2012**, 36, 105–108. [Google Scholar] [CrossRef] - Veloso, M.; Phithakkitnukoon, S.; Bento, C. Sensing urban mobility with taxi flow. In Proceedings of the 3rd ACM SIGSPATIAL International Workshop on Location-Based Social Networks, Chicago, IL, USA, 1–4 November 2011.
- Zheng, Y.; Liu, Y.; Yuan, J.; Xie, X. Urban computing with taxicabs. In Proceedings of the 13th International Conference on Ubiquitous Computing, Beijing, China, 17–21 September 2011.
- Gao, S.; Wang, Y.; Gao, Y.; Liu, Y. Understanding urban traffic-flow characteristics: A rethinking of betweenness centrality. Environ. Plan. B Plan. Des.
**2013**, 40, 135–153. [Google Scholar] - Qi, G.; Li, X.; Li, S.; Pan, G.; Wang, Z.; Zhang, D. Measuring social functions of city regions from large-scale taxi behaviors. In Proceedings of the 2011 IEEE International Conference on Pervasive Computing and Communications Workshops (PERCOM Workshops), Seattle, WA, USA, 21–25 March 2011; pp. 384–388.
- Yuan, J.; Zheng, Y.; Xie, X. Discovering regions of different functions in a city using human mobility and POIs. In Proceedings of the 18th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Beijing, China, 12–16 August 2012; pp. 186–194.
- Zheng, F.; Van Zuylen, H. Urban link travel time estimation based on sparse probe vehicle data. Transp. Res. Part C Emerg. Technol.
**2013**, 31, 145–157. [Google Scholar] [CrossRef] - Cheng, Z.Y.; Caverlee, J.; Lee, K.; Sui, D.Z. Exploring millions of footprints in location sharing services. In Proceedings of the Fifth International AAAI Conference on Weblogs and Social Media, Barcelona, Spain, 17–21 July 2011; pp. 81–88.
- Lee, K.; Hong, S.; Kim, S.J.; Rhee, I.; Chong, S. SLAW: A mobility model for human walks. In Proceedings of the IEEE International Conference on Computer Communications, Rio de Janeiro, Brazil, 19–25 April 2009; pp. 855–863.
- Rhee, I.; Shin, M.; Hong, S.; Lee, K.; Chong, S. On the levy-walk nature of human mobility. In Proceedings of the IEEE INFOCOM, Phoenix, AZ, USA, June 2011; pp. 630–643.
- Liang, X.; Zheng, X.; Lv, W.; Zhu, T.; Xu, K. The scaling of human mobility by taxis is exponential. Phys. A
**2012**, 391, 2135–2144. [Google Scholar] [CrossRef] - Liu, Y.; Kang, C.; Gao, S.; Xiao, Y.; Tian, Y. Understanding intra-urban trip patterns from taxi trajectory data. J. Geogr. Syst.
**2012**, 14, 463–483. [Google Scholar] [CrossRef] - Liu, Y.; Wang, F.; Xiao, Y.; Gao, S. Urban land uses and traffic “source-sink areas”: Evidence from GPS-enabled taxi data in Shanghai. Landsc. Urban Plan.
**2012**, 106, 73–87. [Google Scholar] [CrossRef] - Ballatore, A.; Wilson, D.C.; Bertolotto, M. Computing the semantic similarity of geographic terms using volunteered lexical definitions. Int. J. Geogr. Inf. Sci.
**2013**, 27, 2099–2118. [Google Scholar] [CrossRef] - Chu, D.; Sheets, D.A.; Zhao, Y.; Wu, Y.Y.; Yang, J.; Zheng, M.; Chen, G. Visualizing Hidden Themes of Taxi Movement with Semantic Transformation. In Proceedings of the IEEE Pacific Visualization Symposium (PacificVis), Yokohama, Japan, 4–7 March 2014.
- Gong, L.; Liu, X.; Wu, L.; Liu, Y. Inferring trip purposes and uncovering travel patterns from taxi trajectory data. Cartogr. Geogr. Inf. Sci.
**2015**, 43, 1–12. [Google Scholar] - Blei, D.M.; Ng, A.Y.; Jordan, M.I. Latent dirichlet allocation. J. Mach. Learn. Res.
**2003**, 3, 993–1022. [Google Scholar] - Hashemi, M.; Karimi, H.A. A critical review of real-time map-matching algorithms: Current issues and future directions. Comput. Environ. Urban Syst.
**2014**, 48, 153–165. [Google Scholar] [CrossRef] - Quddus, M.A.; Ochieng, W.Y.; Noland, R.B. Current map-matching algorithms for transport applications: State-of-the art and future research directions. Transp. Res. Part C Emerg. Technol.
**2007**, 15, 312–328. [Google Scholar] [CrossRef] [Green Version] - Zheng, Y.; Lou, Y.; Zhang, C.; Xie, X.; Wang, W.; Huang, Y. Map-Matching for Low-Sampling-Rate GPS Trajectories. U.S. Patent Application 12/712,857, 25 February 2010. [Google Scholar]
- Chen, B.Y.; Yuan, H.; Li, Q.; Lam, W.H.K.; Shaw, S.-L.; Yan, K. Map-matching algorithm for large-scale low-frequency floating car data. Int. J. Geogr. Inf. Sci.
**2014**, 28, 22–38. [Google Scholar] [CrossRef] - Ahas, R.; Aasa, A.; Silm, S.; Tiru, M. Daily rhythms of suburban commuter’s movements in the Tallinn metropolitan area: Case study with mobile positioning data. Transp. Res. C Emerg.
**2010**, 18, 45–54. [Google Scholar] [CrossRef] - Schonfelder, S.; Axhausen, K.W. Urban Rhythms and Travel Behaviour: Spatial and Temporal Phenomena of Daily Travel; Ashgate Publishing: London, UK, 2010. [Google Scholar]
- Härri, J.; Filali, F.; Bonnet, C. Mobility models for vehicular ad hoc networks: A survey and taxonomy. Commun. Surv. Tutor.
**2009**, 11, 19–41. [Google Scholar] [CrossRef] - Zonoozi, M.M.; Dassanayake, P. User mobility modeling and characterization of mobility patterns. IEEE J. Sel. Areas Commun.
**1997**, 15, 1239–1252. [Google Scholar] [CrossRef] - Fang, Z.; Li, Q.; Shaw, S.L. What about people in pedestrian navigation? Geo-Spat. Inf. Sci.
**2015**, 18, 135–150. [Google Scholar] [CrossRef] - Parent, C.; Spaccapietra, S.; Renso, C.; Andrienko, G.; Andrienko, N.; Bogorny, V.; Damiani, M.L.; Gkoulalas-Divanis, A.; Macedo, J.; Pelekis, N.; Theodoridis, Y.; et al. Semantic trajectories modeling and analysis. ACM Comput. Surv.
**2013**, 45, 1–32. [Google Scholar] [CrossRef] - Li, Q.; Bo, H.; Yang, Y. Flowing car data map-matching based on constrained shortest path algorithm. Geomat. Inf. Sci. Wuhan Univ.
**2013**, 38, 805–808. [Google Scholar] - Zhang, Y.; Yang, B.; Luan, X. Automated matching urban road networks using probabilistic relaxation. Acta Geod. Catogr. Sin.
**2012**, 41, 933–939. [Google Scholar] - Blei, D.M. Probabilistic topic models. Commun. ACM
**2012**, 55, 77–84. [Google Scholar] [CrossRef] - Ramage, D.; Rosen, E. Standford TMT (online). Palo Alto: The Stanford Natural Language Processing Group, 2015. Available online: http://nlp.stanford.edu/software/tmt/tmt-0.4/ (accessed on 31 January 2015).
- Wang, H.; Zou, H.; Yue, Y.; Li, Q. Visualizing hot spot analysis result based on mashup. In Proceedings of the 2009 International Workshop on Location Based Social Networks, LBSN ’09, Seattle, WA, USA, 3 November 2009; pp. 45–48.
- Speckmann, B.; Verbeek, K. Necklace maps. IEEE Trans. Vis. Comput. Graph.
**2010**, 16, 881–889. [Google Scholar] [CrossRef] [PubMed]

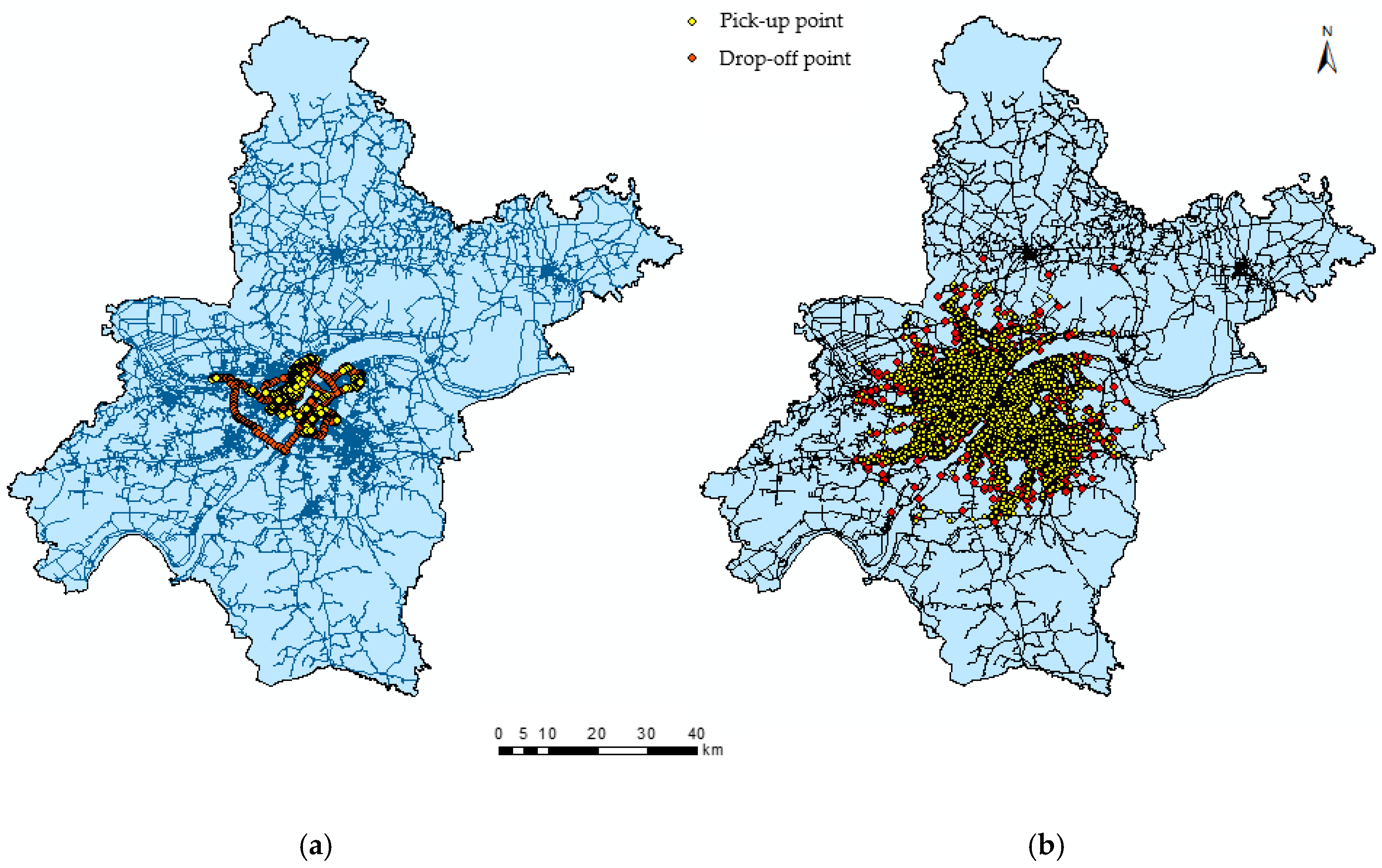

**Figure 2.**(

**a**) Spatial distribution of pickups and drop offs of a taxicab on 2 June 2014; (

**b**) spatial distribution of pickups and drop offs of all taxicab on 2 June 2014. Yellow points and red points denote pick-up points and drop-off points, respectively.

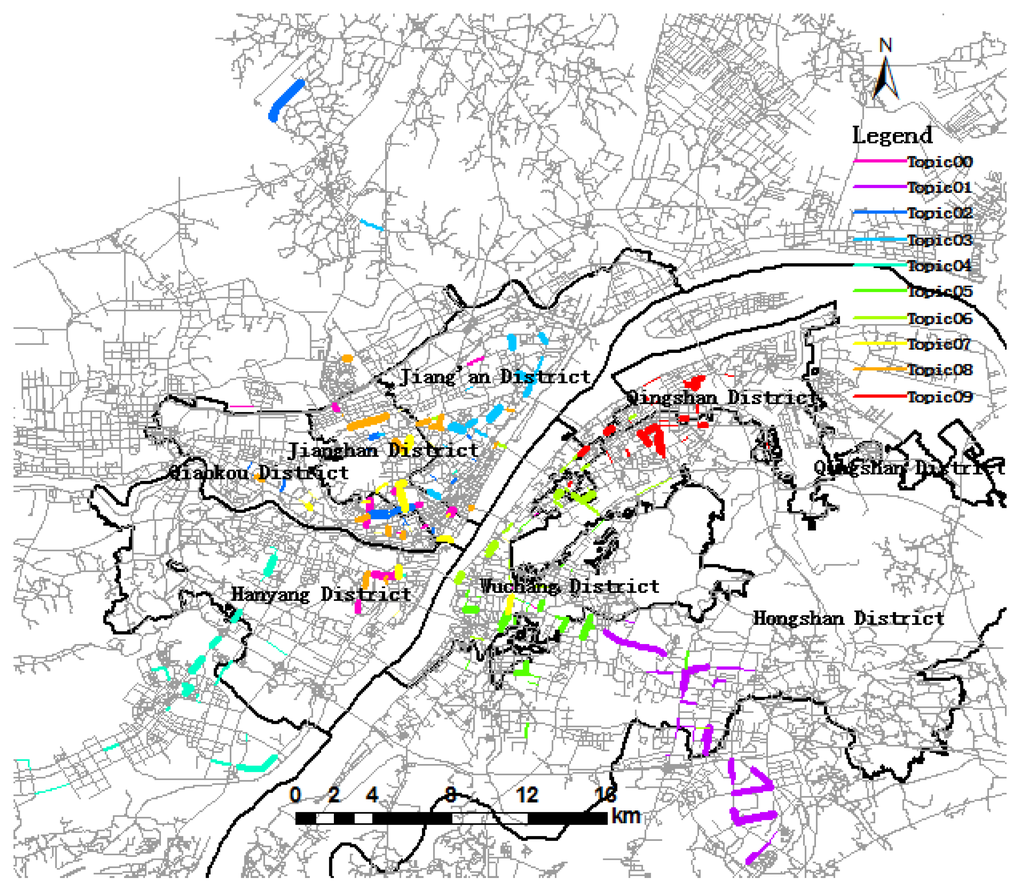

**Figure 12.**(

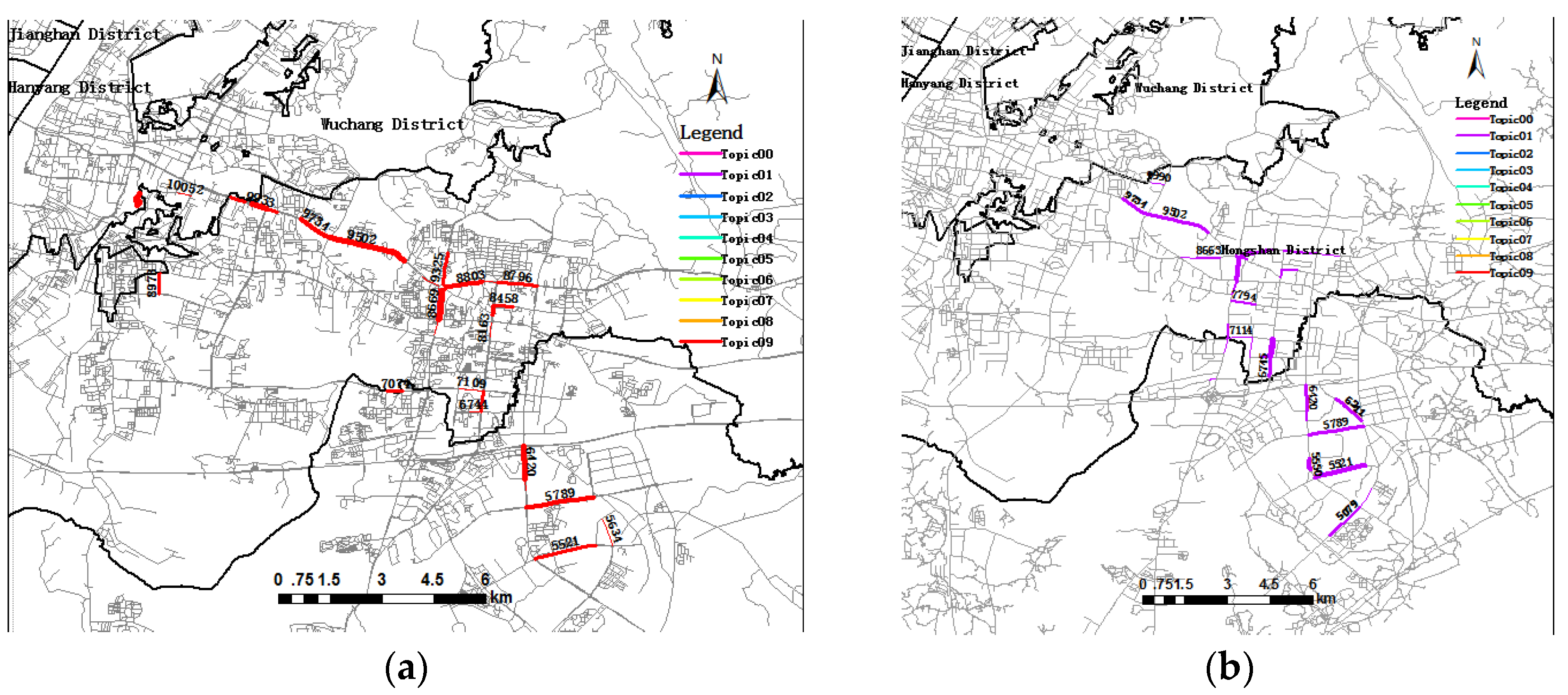

**a**) Visualization of trip Topic09 during the morning rush hour; (
