# A Long Baseline Three Carrier Ambiguity Resolution with a New Ionospheric Constraint

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

_{5}signal, in addition to the current L

_{1}and L

_{2}signals. Chinese Beidou satellites can transmit L

_{2}, L

_{7}and L

_{6}signals, and Galileo was designed to provide signals centred at L

_{1}, E6, E5B and E5A. The third frequency is close to the second frequency, which creates favourable conditions for directly fixing extra wide-lane (EWL) ambiguity and further achieving wide-lane (WL) and narrow-lane (NL) ambiguity resolutions (AR). Thus, using triple-frequency signals to improve the efficiency and reliability of AR in long baselines has become an active research topic.

## 2. On the Fundamental Combinations Concerning TCAR

_{1}, f

_{2}, f

_{3}are the frequencies of the three carriers, and they satisfy f

_{1}> f

_{2}> f

_{3}; N

_{(1,0,0)}, N

_{(0,1,0)}and N

_{(0,0,1)}are DD ambiguities on the three frequencies; the subscribe represents different frequency for the corresponding DD phase observables. The DD non-dispersive delay mainly consists of geometric distances and tropospheric delay. I

_{1}denotes the DD ionospheric delay with respect to the first frequency. The parameters at the end of the equations represent the pseudorange and phase measurement noise, respectively. In the following sections, the standard deviations of pseudorange and phased observables are assumed to be 0.2 m and 0.003 m, respectively [2]. Assuming that the combination coefficients i, j and k are arbitrary integers, the linear combined DD pseudorange observation can be modelled as follows:

## 3. The Current TCAR Method

#### 3.1. EWL and WL Resolutions

#### 3.2. NL Resolution

_{EWL}, V

_{WL}and V

_{1}are the residual vector of phase observables, respectively; and I

_{EWL}, I

_{WL}and I

_{1}are the corresponding OMC vectors. In the filtering process, the LAMBDA algorithm is used to search and fix narrow ambiguity [18,19,20,21]. Equation (6) can be used to estimate the ionospheric delay. However, the precision of its estimate is approximately 0.3 m; thus, the ionospheric estimations only minimally contribute to the ambiguity resolution even if it is treated as a constraint (Equation (5)) [8,17]. For comparison with the new ionospheric model, Equation (6) is defined as the “ionospheric combination method” in the following sections.

## 4. New Ionosphere-Weighted Model

#### 4.1. New Model of Estimating DD Ionospheric Delay

- Geometry-free condition:${x}_{1}+{x}_{2}+{x}_{3}+{x}_{4}+{x}_{5}+{x}_{6}=0$
- Retain the remaining DD ionosphere delay:$-{x}_{1}\cdot {\eta}_{(1,0,0)}-{x}_{2}\cdot {\eta}_{(0,1,0)}-{x}_{3}\cdot {\eta}_{(0,0,1)}+{x}_{4}\cdot {\eta}_{(1,0,0)}+{x}_{5}\cdot {\eta}_{(0,1,0)}+{x}_{6}\cdot {\eta}_{(0,0,1)}=1$
- Eliminate N
_{(1,0,0)}:$-{x}_{1}\cdot {\lambda}_{(1,0,0)}+{x}_{7}+{x}_{8}=0$ - Eliminate N
_{(0,1,0)}:$-{x}_{2}\cdot {\lambda}_{(0,1,0)}-{x}_{7}=0$ - Eliminate N
_{(0,0,1)}:$-{x}_{3}\cdot {\lambda}_{(0,0,1)}-{x}_{8}=0$ - Minimize the noise condition:$({x}_{1}^{2}+{x}_{2}^{2}+{x}_{3}^{2})\cdot {\sigma}_{p}^{2}+({x}_{4}^{2}+{x}_{5}^{2}+{x}_{6}^{2})\cdot {\sigma}_{\varphi}^{2}=\mathrm{min}$

#### 4.2. Smoothed Ionospheric Delay Estimates

#### 4.3. NL Ambiguity Resolution

## 5. Experiments and Analysis

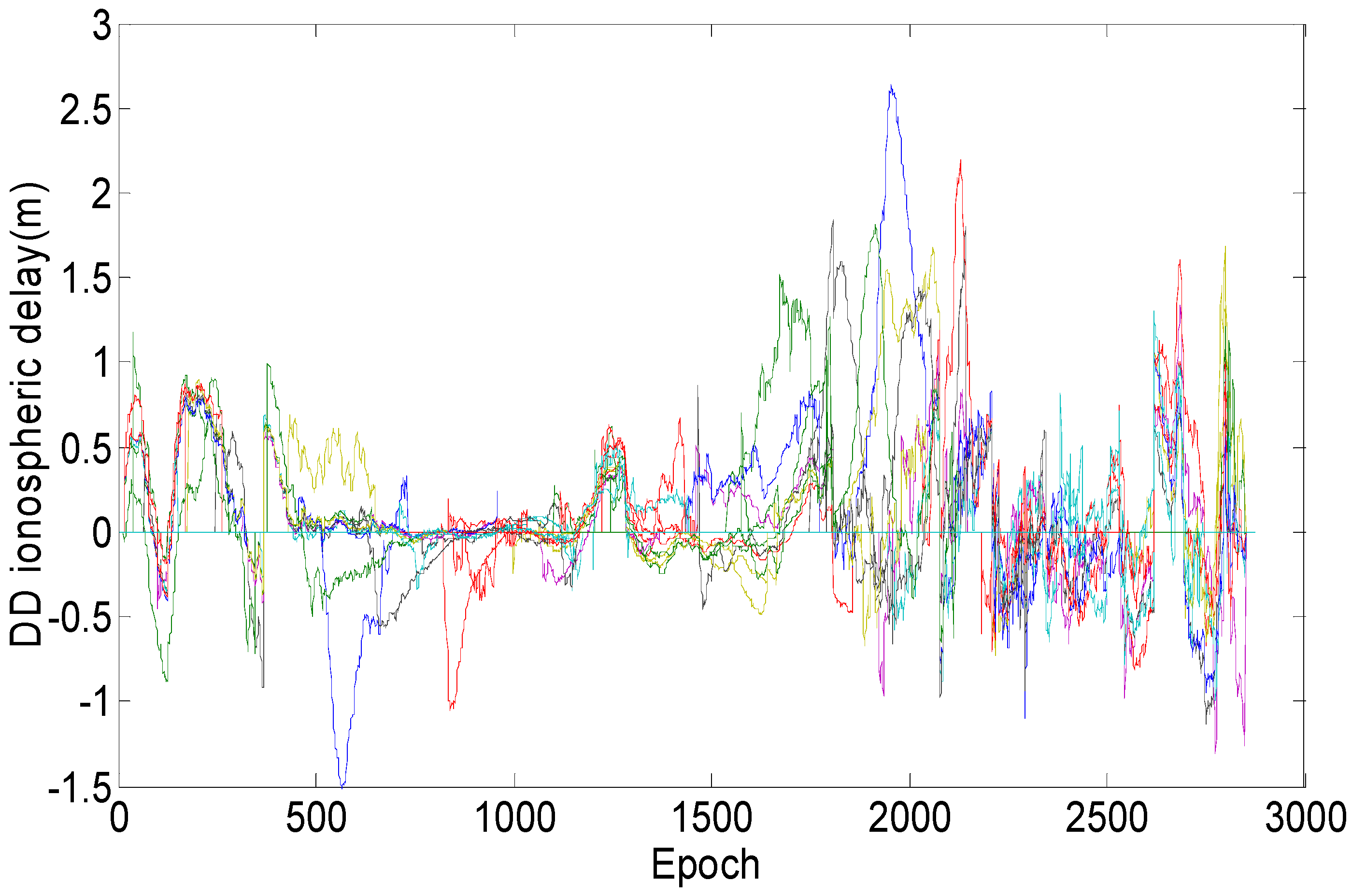

#### 5.1. Evaluate the Precision of the Ionospheric Estimates

#### 5.2. Evaluate the Performance of NL Resolution

_{1}and T

_{2}, respectively, represent the TFFS for the old and the new method, I represents the improvement, and the calculation process is as follows:

## 6. Summary

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Li, B.; Shen, Y.; Feng, Y. Long-range real-time precise navigation with three frequency GNSS. Geomat. Inf. Sci. Wuhan Univ.
**2009**, 34, 782–786. [Google Scholar] - Zhao, Q.; Dai, Z.; Hu, Z.; Sun, B.; Shi, C.; Liu, J. Three-carrier ambiguity resolution using the modified TCAR method. GPS Solut.
**2015**, 19, 589–599. [Google Scholar] [CrossRef] - Gao, W.; Gao, C.; Pan, S. Single-epoch positioning method in network RTK with BDS triple-frequency wide lane combinations. J. Navig.
**2016**, 69, 1293–1309. [Google Scholar] [CrossRef] - Feng, Y.; Rizos, C. Three carrier approaches for future global, regional and local GNSS positioning services: Concepts and performance perspectives. In Proceedings of the ION GNSS 2005, Tampa, FL, USA, 14–18 September 2005.
- Ji, S. Positioning Performance Improvements with European Multiple-Frequency Satellite Navigation System-Galileo. Ph.D. Thesis, Hong Kong Polytechnic University, Hong Kong, China, 2008. [Google Scholar]
- Zhang, W.; Cannon, M.E.; Julien, O.; Alves, P. Investigation of combined GPS/Galileo cascading ambiguity resolution schemes. In Proceedings of the ION GPS/GNSS 2003, Portland, OR, USA, 9–12 September 2003.
- Vollath, U. The factorized multi-carrier ambiguity resolution (FAMCAR) approach for efficient carrier-phase ambiguity estimation. In Proceedings of the ION GNSS 2004, Long Beach, CA, USA, 21–24 September 2004.
- Feng, Y. GNSS three carrier ambiguity resolution using ionosphere-reduced virtual signals. J. Geod.
**2008**, 82, 847–862. [Google Scholar] [CrossRef] - Hatch, R. A new three-frequency, geometry-free technique for ambiguity resolution. In Proceedings of the ION GPS/GNSS 2006, Fort Worth, TX, USA, 26–29 September 2006.
- Li, X.; Ge, M.; Dai, X.; Ren, X.; Fritsche, M.; Wickert, J.; Schuh, H. Accuracy and reliability of multi-GNSS real-time precise positioning: GPS, GLONASS, BeiDou, and Galileo. J. Geod.
**2015**, 89, 607–635. [Google Scholar] [CrossRef] - Li, X.; Ge, M.; Zhang, H.; Nischan, T.; Wickert, J. The GFZ real-time GNSS precise positioning service system and its adaption for compass. Adv. Space Res.
**2013**, 51, 1008–1018. [Google Scholar] [CrossRef] - Li, X.; Zus, F.; Lu, C.; Dick, G.; Ning, T.; Ge, M.; Wickert, J.; Schuh, H. Retrieving of atmospheric parameters from multi-GNSS in real time: Validation with water vapor radiometer and numerical weather model. J. Geophys. Res. Atmos.
**2015**, 120, 7189–7204. [Google Scholar] [CrossRef] - Xu, Y.; Ji, S.; Chen, W.; Weng, D. A new ionosphere-free ambiguity resolution method for long-range baseline with GNSS triple-frequency signals. Adv. Space Res.
**2015**, 56, 1600–1612. [Google Scholar] [CrossRef] - Tang, W.; Deng, C.; Shi, C.; Liu, J. Triple-frequency carrier ambiguity resolution for BeiDou navigation satellite system. GPS Solut.
**2014**, 18, 335–344. [Google Scholar] [CrossRef] - Odijk, D. Weighting ionospheric corrections to improve fast GPS positioning over medium distances. In Proceedings of the ION GPS 2000, Salt Lake City, UT, USA, 19–22 September 2000.
- Yuan, Y. Study on Theories and Methods of Correcting Ionospheric Delay and Monitoring Ionosphere Baseon GPS. Ph.D. Thesis, Institute of Geodesy and Geophysics Chinese Academy of Sciences, Wuhan, China, 2002. [Google Scholar]
- Li, B.; Shen, Y.; Zhou, Z. A new method for medium and long range three frequency GNSS rapid ambiguity resolution. Acta Geod. Cartogr. Sin.
**2009**, 38, 296–301. [Google Scholar] - Teunissen, P.J. A new method for fast carrier phase ambiguity estimation. In Proceedings of the Position Location and Navigation Symposium 1994, Las Vegas, NV, USA, 11–15 September 1994.
- Teunissen, P.J. The least-squares ambiguity decorrelation adjustment: A method for fast GPS integer ambiguity estimation. J. Geod.
**1995**, 70, 65–82. [Google Scholar] [CrossRef] - Teunissen, P.J. An optimality property of the integer least-squares estimator. J. Geod.
**1999**, 73, 587–593. [Google Scholar] [CrossRef] - Verhagen, S.; Li, B.; Teunissen, P.J. Ps-lambda: Ambiguity success rate evaluation software for interferometric applications. Comput. Geosci.
**2013**, 54, 361–376. [Google Scholar] [CrossRef] - Li, B.; Feng, Y.; Shen, Y. Three carrier ambiguity resolution: Distance-independent performance demonstrated using semi-generated triple frequency GPS signals. GPS Solut.
**2010**, 14, 177–184. [Google Scholar] [CrossRef] - Vollath, U.; Sauer, K. Famcar approach for efficient multi-carrier ambiguity estimation. In Proceedings of the ENC-GNSS 2004, Rotterdam, The Netherlands, 16–19 May 2004.
- Yuan, Y.; Huo, X.; Ou, J. Models and methods for precise determination of ionospheric delay using GPS. Prog. Nat. Sci.
**2007**, 17, 187–196. [Google Scholar] - Yuan, Y.; Ou, J. An improvement to ionospheric delay correction for single-frequency GPS users—The APR-I scheme. J. Geod.
**2001**, 75, 331–336. [Google Scholar] [CrossRef] - Zhang, B.; Ou, J.; Yuan, Y.; Zhong, S. Yaw attitude of eclipsing GPS satellites and its impact on solutions from precise point positioning. Chin. Sci. Bull.
**2010**, 55, 3687–3693. [Google Scholar] [CrossRef] - Zhang, B.; Teunissen, P. Zero-baseline analysis of GPS/BeiDou/Galileo between-receiver differential code biases (BR-DCBS): Time-wise retrieval and preliminary characterization. Navigation
**2016**. [Google Scholar] [CrossRef] - Zhang, B. Three methods to retrieve slant total electron content measurements from ground-based GPS receivers and performance assessment. Radio Sci.
**2016**, 51, 972–988. [Google Scholar] [CrossRef] - Zhang, B.; Yuan, Y.; Chai, Y. QIF-based GPS long-baseline ambiguity resolution with the aid of atmospheric delays determined by PPP. J. Navig.
**2016**. [Google Scholar] [CrossRef] - Tan, B.; Yuan, Y.; Zhang, B.; Hsu, H.Z.; Ou, J. A new analytical solar radiation pressure model for current BeiDou satellites: IGGBSPM. Sci. Rep.
**2016**. [Google Scholar] [CrossRef] [PubMed]

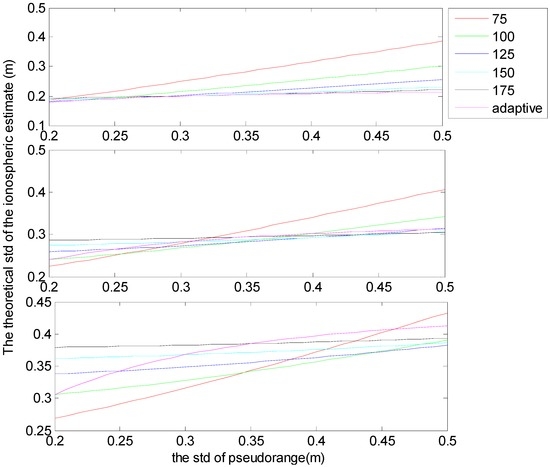

**Figure 1.**The theoretical standard deviations (std) of the DD ionospheric delay estimates versus the std of the pseudorange observations; the std of the phase observation is 2 mm (

**top**); 3 mm (

**middle**) and 4 mm (

**bottom**). “Adaptive” represents the estimation where the ratio satisfies the real value, and the other lines with different colours represent estimations when the ratios are constants (75, 100, 125, 150, and 175).

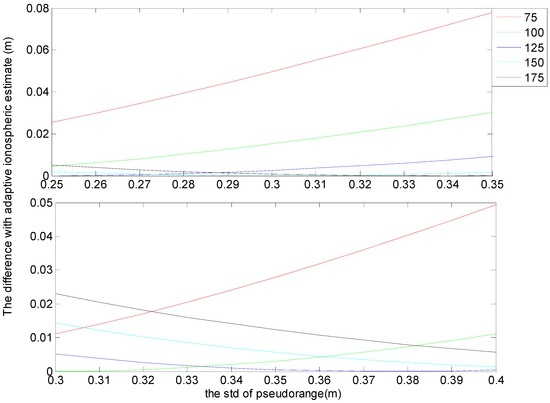

**Figure 2.**The differences between theoretical std of the DD ionospheric delay estimates and the adaptive estimates; the std of the phase observation is, respectively, 2 mm (

**top**) and 3 mm (

**bottom**). The “adaptive” represents the estimation with the ratio is satisfied with the real one, and the other lines with different colours represent the estimations when the ratios are constants (75, 100, 125, 150, and 175).

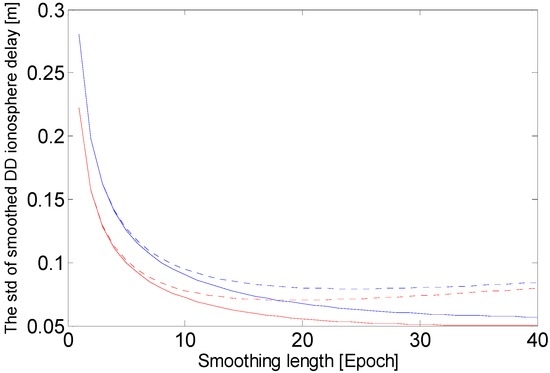

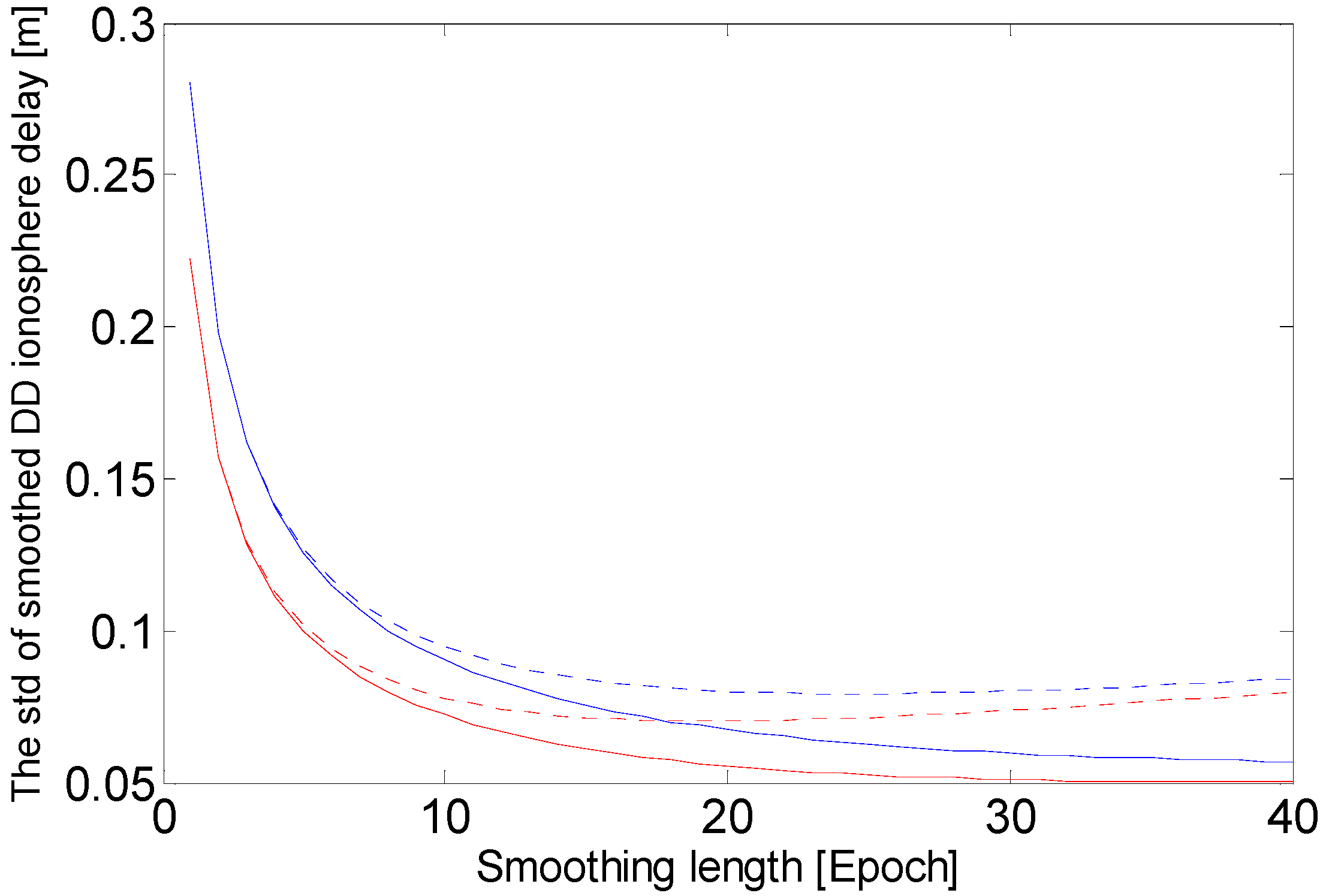

**Figure 3.**The theoretical standard deviation (std) of ionospheric versus the smoothing length. Blue indicates the results when the std of ionospheric is 0.02 m, red indicate the results when the std of ionospheric is 0.01 m, solid lines represent the results from the new ionospheric model, and dashed lines represent the estimates of ionospheric delay derived from the combination method.

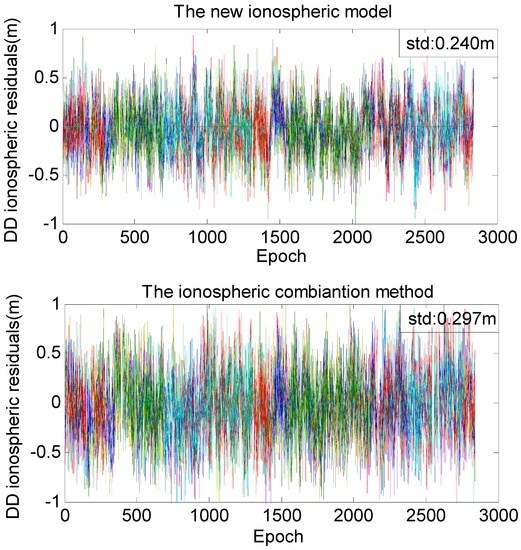

**Figure 5.**Differences between ionospheric estimates and actual values as estimated by the new ionospheric model (

**top**) and the combination method (

**bottom**).

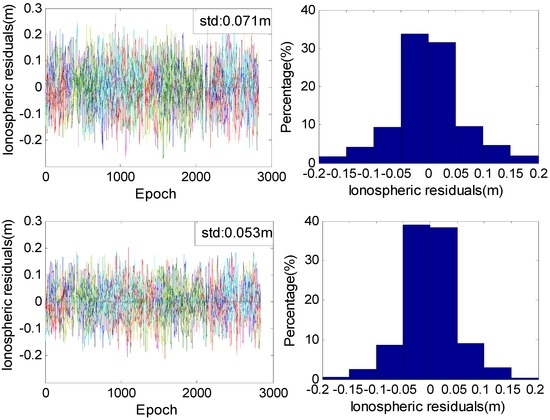

**Figure 6.**Differences between smoothed ionospheric delay estimates and the actual values when the smoothing length is 10 (

**top**) and 16 (

**bottom**) epochs. Detailed distributions are depicted on the right.

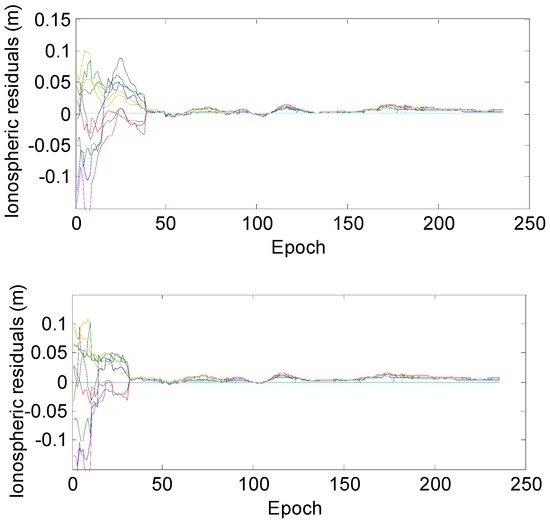

**Figure 7.**Ionospheric residuals derived by the old method (

**top**) and the new method (

**bottom**) for the first portion.

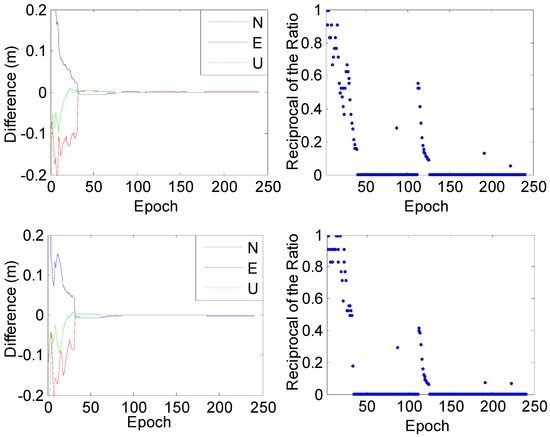

**Figure 8.**Positioning results with the old method (

**top**) and the new method (

**bottom**) for the first portion; the reciprocals of their ratio values are described on the right.

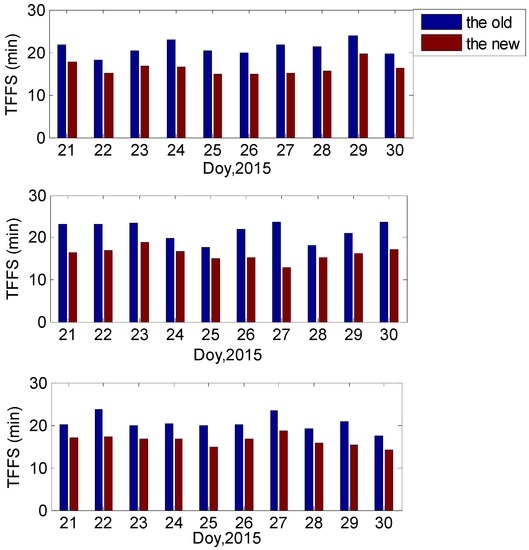

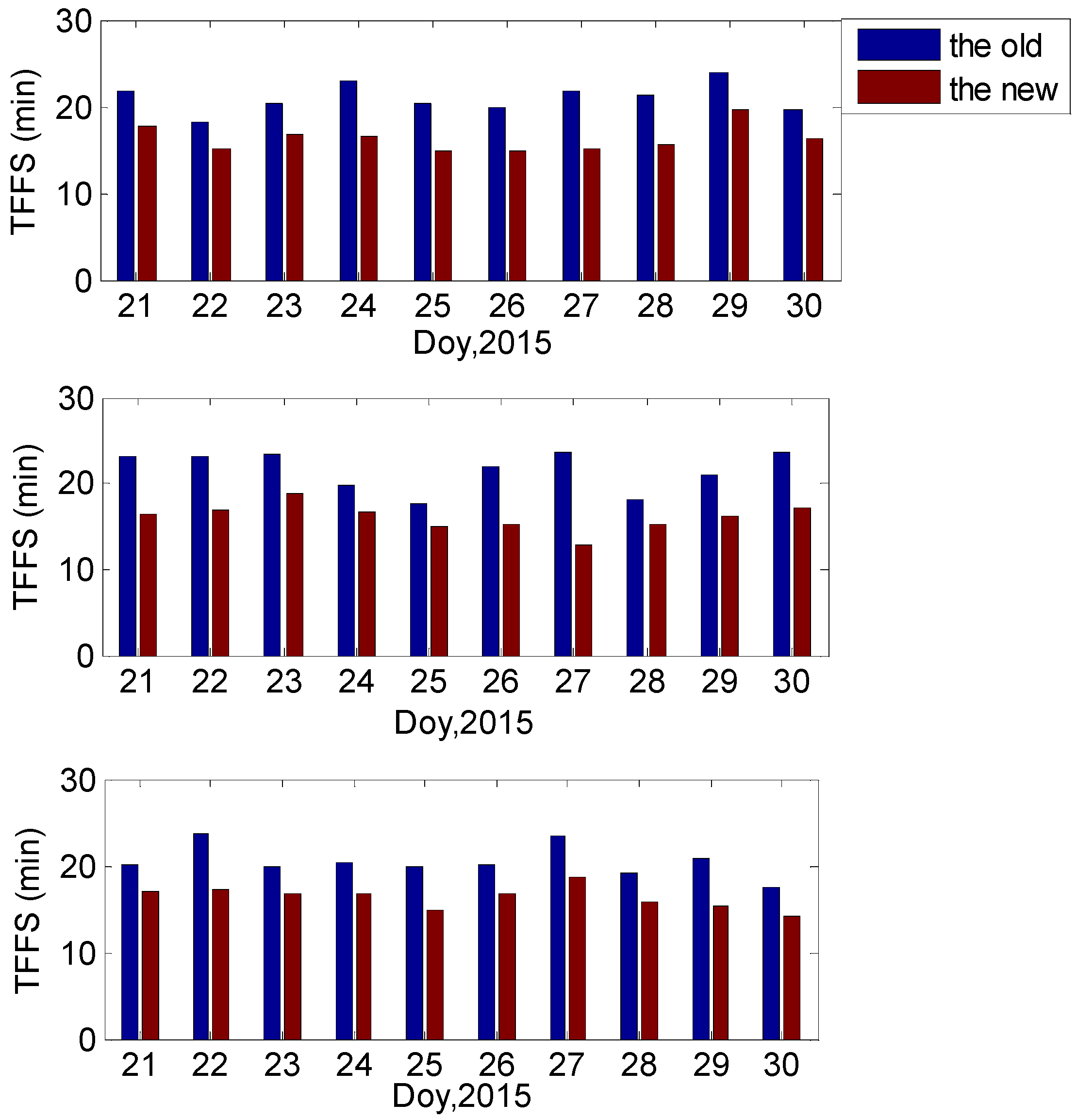

**Figure 9.**Average TFFS on the baselines of HOFN-MYVA (

**top**); OBE4-WTZ3 (

**middle**) and LLAG-MASL (

**bottom**).

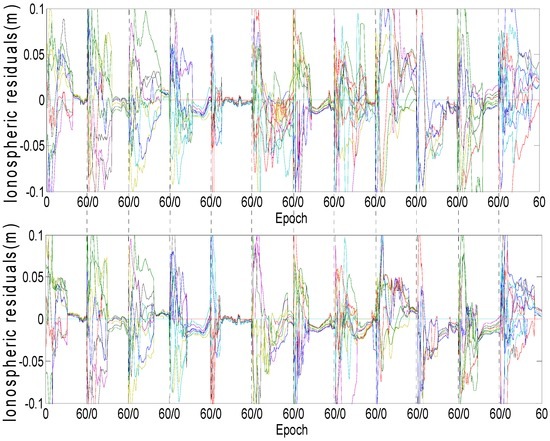

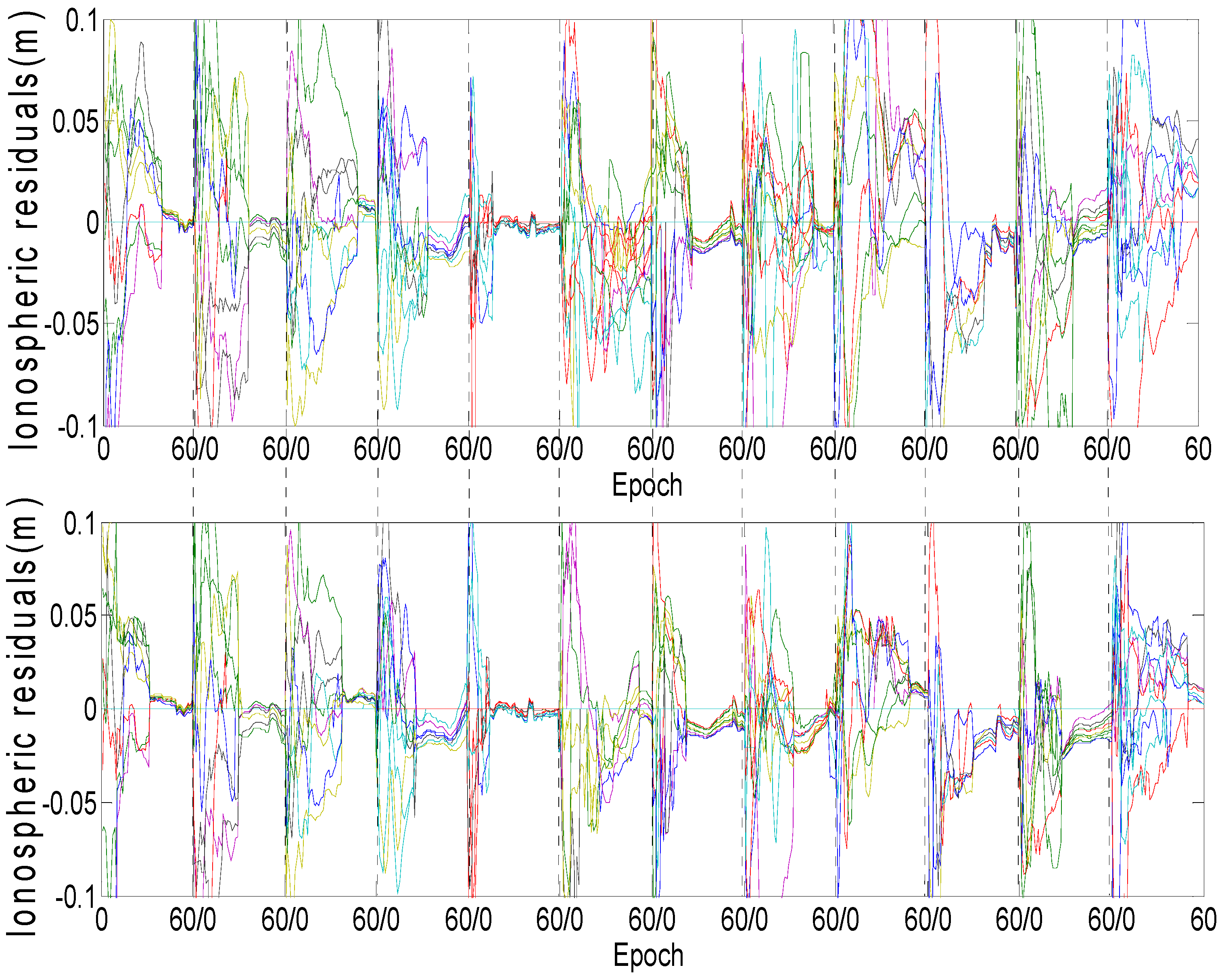

**Figure 10.**Ionospheric residuals estimated by the old (

**top**) and the new (

**bottom**) methods during the first 60 epochs for the 12 cases.

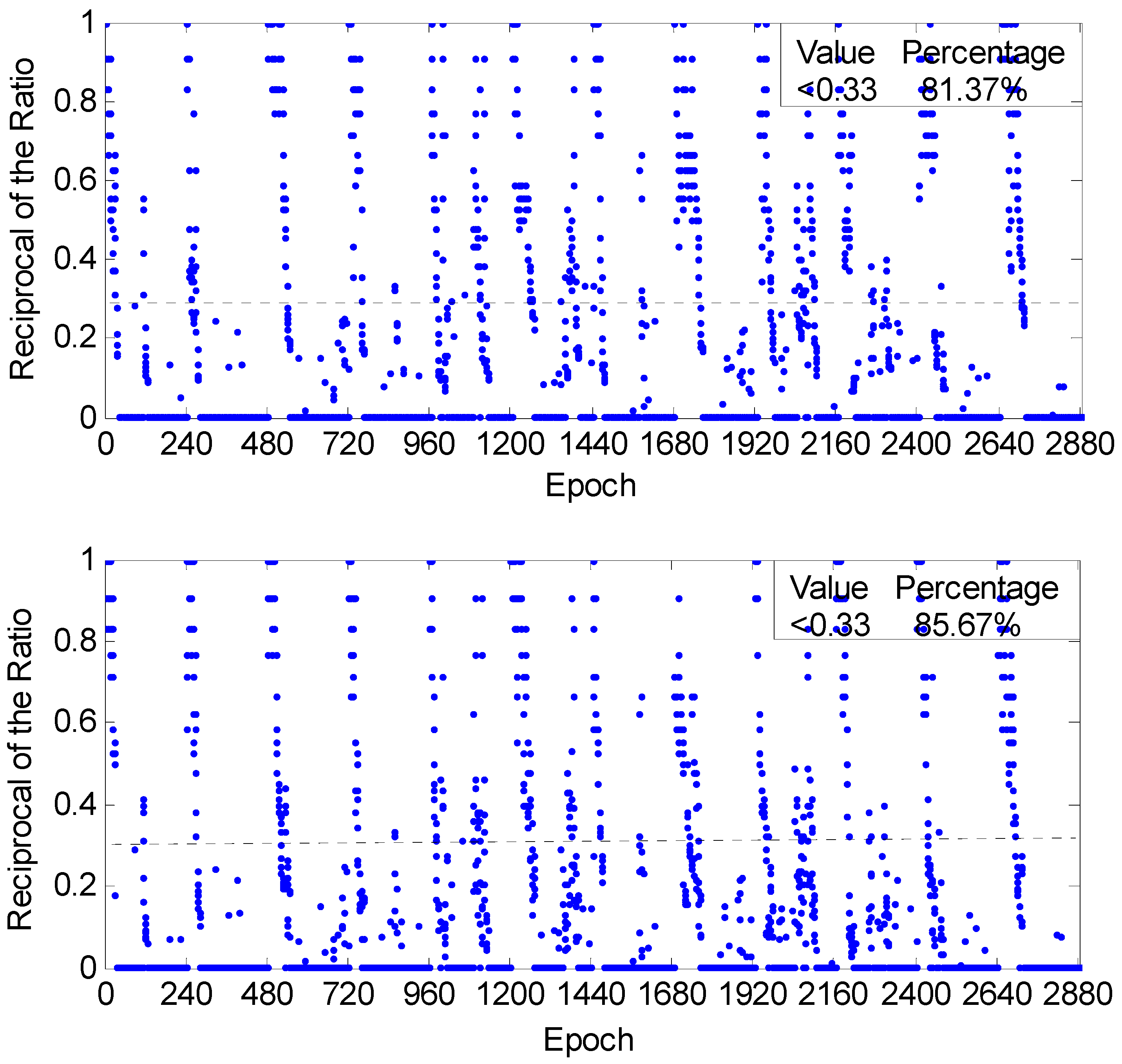

**Figure 11.**Reciprocals of the ratios of the 12 portions; they are, respectively derived by the old (

**top**) and the new (

**bottom**) methods. The annotation 1 indicates that ratio = 1, the annotation 0 corresponds to fixed epochs, and the dash indicates that the ratio is 3.

**Table 1.**The wavelength, ionospheric scalar factor and noise amplitude factor for the NL/WL/EWL combinations.

Class | ${\mathit{\varphi}}_{(\mathit{i},\mathit{j},\mathit{k})}$ | ${\mathit{\lambda}}_{(\mathit{i},\mathit{j},\mathit{k})}$ | ${\mathit{\eta}}_{(\mathit{i},\mathit{j},\mathit{k})}$ | ${\mathit{\mu}}_{(\mathit{i},\mathit{j},\mathit{k})}$ |
---|---|---|---|---|

NL | ${\varphi}_{(1,0,0)}$ | 0.190 | 1 | 1 |

${\varphi}_{(0,1,0)}$ | 0.244 | 1.647 | 1 | |

${\varphi}_{(0,0,1)}$ | 0.255 | 1.793 | 1 | |

WL | ${\varphi}_{(1,0,-1)}$ | 0.751 | −1.339 | 4.930 |

${\varphi}_{(1,-1,0)}$ | 0.862 | −1.283 | 5.740 | |

EWL | ${\varphi}_{(1,-6,5)}$ | 3.256 | −0.0744 | 103.80 |

${\varphi}_{(0,1,-1)}$ | 5.861 | −1.719 | 33.24 |

x_{1} | x_{2} | x_{3} | x_{4} | x_{5} | x_{6} | x_{7} | x_{8} |
---|---|---|---|---|---|---|---|

−12.46 | 68.29 | −56.07 | −0.14 | 0.15 | 0.21 | −16.66 | 14.30 |

Observation Time Span | T_{1} (Epoch) | T_{2} (Epoch) | I (%) |
---|---|---|---|

1 | 39 | 32 | 17.95 |

2 | 36 | 30 | 16.67 |

3 | 50 | 39 | 22.00 |

4 | 34 | 25 | 26.47 |

5 | 16 | 15 | 6.25 |

6 | 61 | 51 | 16.39 |

7 | 27 | 22 | 18.52 |

8 | 71 | 53 | 25.35 |

9 | 39 | 29 | 25.64 |

10 | 48 | 37 | 22.92 |

11 | 40 | 30 | 25.00 |

12 | 65 | 50 | 23.08 |

Mean | 43.76 | 34.34 | 21.53 |

Baseline Name | Baseline Length (km) | T1 (min) | T2 (min) | I (%) |
---|---|---|---|---|

BJF1-BJXT | 78 | 20.67 | 17.01 | 17.71 |

LLAG-MASL | 104 | 21.42 | 17.30 | 19.23 |

OBE4-MTZ3 | 166 | 25.71 | 18.99 | 26.14 |

HOFN-MYVA | 173 | 23.39 | 19.61 | 16.16 |

SHA1-ZJKD | 207 | 28.50 | 22.42 | 21.33 |

WUH1-HBF2 | 244 | 27.82 | 23.64 | 15.03 |

CHA1-CHSW | 258 | 28.95 | 25.07 | 13.40 |
