Abstract

Of all the eukaryotic algal groups, diatoms make the most substantial contributions to photosynthesis in the contemporary ocean. Understanding the biological innovations that have occurred in the diatom chloroplast may provide us with explanations to the ecological success of this lineage and clues as to how best to exploit the biology of these organisms for biotechnology. In this paper, we use multi-species transcriptome datasets to compare chloroplast metabolism pathways in diatoms to other algal lineages. We identify possible diatom-specific innovations in chloroplast metabolism, including the completion of tocopherol synthesis via a chloroplast-targeted tocopherol cyclase, a complete chloroplast ornithine cycle, and chloroplast-targeted proteins involved in iron acquisition and CO2 concentration not shared between diatoms and their closest relatives in the stramenopiles. We additionally present a detailed investigation of the chloroplast metabolism of the oil-producing diatom Fistulifera solaris, which is of industrial interest for biofuel production. These include modified amino acid and pyruvate hub metabolism that might enhance acetyl-coA production for chloroplast lipid biosynthesis and the presence of a chloroplast-localised squalene synthesis pathway unknown in other diatoms. Our data provides valuable insights into the biological adaptations underpinning an ecologically critical lineage, and how chloroplast metabolism can change even at a species level in extant algae.
Keywords: MMETSP; stramenopiles; biotechnology; secondary endosymbiosis; isoprenoids; plastid proteome MMETSP; stramenopiles; biotechnology; secondary endosymbiosis; isoprenoids; plastid proteome

1. Diatoms: Powerhouses and Bellweathers in the Contemporary Ocean

Against the backdrop of rising atmospheric carbon dioxide concentrations and anthropogenic climate change, it is increasingly important to understand how photosynthesis functions in the ocean [1]. Among the diverse photosynthetic marine organisms in the contemporary ocean, diatoms are the most prominent and are estimated to be directly responsible for 40% total marine photosynthesis ([2] and references therein). In particular, diatoms dominate in polar waters and provinces that are chronically low in iron [3] and are the main photosynthetic producers in waters classified as ‘high in nutrients, low in chlorophyll’ (HNLC), notably large swathes of the Southern Ocean, equatorial Pacific Ocean, and north Pacific Ocean. However, they are not obligately oligotrophic species and bloom seasonally when nutrient or physical conditions change. This occurs mostly in coastal regions, following seasonal thermocline breaks, nutrient influx from the land, or aeolean fertilization.
The environmental abundance of diatoms is in contrast to other related algal groups [4,5]. This may reflect underlying physiological innovations in diatoms, which are better able to tolerate physiological stresses, such as abnormal light regimes [6,7] and carbon dioxide limitation [6], than other algal lineages. In addition, diatoms display superior abilities to capture and utilise nutrients, including nitrogen [8] and iron [9,10]. Conversely, diatom abundance is being adversely affected by global environmental changes that reduce nutrient availability in the ocean. For example, in high latitude environments in which diatoms currently flourish, increased freshwater input from melting ice caps will depress nutrient concentration, likely favouring species with smaller cell sizes than diatoms [11]. Ocean acidification may also adversely affect nutrient acquisition and photoprotection in diatoms, although this remains debated [9].
Alongside their environmental abundance, the diatom group includes various phenotypes with possible agricultural and industrial applications, many of which may be lineage- or even species-specific. Diatoms can be applied as aquafeeds for fish because they contain suitable nutrients, and particularly lipid profiles such as eicosapentaenoic acid (EPA) and docosahexaenoic acid (DHA) [12,13]. Prior field trials with Phaeodactylum, Nanofrustulum, and Navicula have demonstrated the success of up to 5–10% replacement of conventional fishmeal with diatom stocks, and these may form the basis of next-generation ‘circular’ aquaculture techniques with increased capacity and reduced environmental impact [12,14].
Potential biotechnological applications of diatoms include the use of pigments (e.g., from Phaeodactylum) in cosmetics [15,16], diatom-derived polyunsaturated fatty acids as food supplements [17,18], diatom frustules (e.g., from benthic pennate diatoms) as UV-resistant coatings for photovoltaic cells [19], and even use in next-generation biomedical technologies, e.g., the use of diatom derived ice-binding proteins (from the polar species Navicula glaciei) in blood cryopreservation [20]. Much of current research is focused on oleaginous diatom species, which might be of particular interest for the production of algal biodiesel; for example, the raphid pennate species Fistulifera solaris is a can contain up to 60% of its dry mass as lipids [21], including high amounts of the valuable polyunsaturated fatty eicosapentenoic acid [22]. Techniques for mass cultivation [21,23] and transformation are established in some diatom species, including F. solaris and Phaeodactylum tricornutum [4,21,24], opening up significant windows for synthetic engineering and practical use of these species.
Understanding diatom biology, and particularly which factors of their metabolism make them unique, may help us understand better how they will respond to environmental perturbation and offer new routes for the modification and exploitation of algal systems for industrial aquaculture. In this paper, we focus on which pathways delineate and optimise metabolic functions in the diatom chloroplast. To elucidate which of these processes have specifically contributed to the success of the diatom lineage, we reconstruct the probable metabolic functions contained in the diatom common ancestor, following its divergence from other algal lineages. We also explore specific biochemical adaptations associated with the chloroplasts of one diatom species, the biofuel producer F. solaris.

2. Taxonomic and Ecological Diversity of Diatoms

Diatoms arose within the stramenopile supergroup, which otherwise includes both non-photosynthetic and photosynthetic members [4,25]. Diatoms possess a silicon-rich cell wall called the frustule, which is an important trait for taxonomic classification [26,27]. Diatoms are classified into two major morphological categories (Figure 1A). The centric diatoms have radial symmetry, generally undergo anisogamous sexual reproduction, and contain multiple chloroplasts per cell [4,28] (Figure 1A). In contrast, the pennate diatoms have linear symmetry, typically have bigger frustules than centric diatoms [29], produce isomorphic gametes, and only have one chloroplast per cell (Figure 1A). Both centric and pennate diatoms are further divided into two sub-groups: the centrics into radial and polar types, based on descriptors of frustule symmetry, and the pennates into raphid and araphid types, based on the presence or absence, respectively, of a slit known as raphe at the centre of the frustule that facilitates motility on surfaces (Figure 1A).
Phylogenetic evidence places the radial centric diatoms as paraphyletic to all other lineages, the polar centric diatoms as paraphyletic to the pennate diatoms, the araphid pennates as paraphyletic to the raphid species, and the raphid pennates as monophyletic [36]. Fossil-calibrated molecular clock estimates place diatom origins in the Permian period (~320 Mya) with a shared common ancestor to another stramenopile group, the bolidophytes, at ~375 Mya [34]. Radial centric diatoms arose at least 250 million years before the present (Figure 1B), potentially placing them on a similar degree of evolutionary antiquity as flowering plants [34,37]. Polar centric and araphid pennate diatoms appear to have arisen in the Jurassic and Cretaceous (Figure 1B) [3,26], alongside falling atmospheric carbon dioxide concentrations [38]. Finally, the raphid pennate diatoms diversified in the early Oligocene (~40 Mya) (Figure 1B), alongside rising oceanic silicate concentrations, following the opening of the Drake Passage between South America and Antarctica [38].
Genome sequences have been completed for both centric (Thalassiosira pseudonana, T. oceanica) [39,40] and pennate diatom species (e.g., Phaeodactylum, Fistulifera) [21,24], revealing that these two distinct diatom morphogroups are more genetically distant to one another than humans are to pufferfish [24]. However, both diatom morphogroups are ecologically successful, with the most abundant genera (each comprising at least 4% of total diatom OTUs) in the Tara Oceans library including radial centric (Corethron, Leptocylindrus), polar centric (Thalassiosira), and pennate taxa (Fragilariopsis, Pseudo-nitzschia) [3]. Typically, centric diatoms are found predominantly in the open oceans, and pennate species are found in coastal and benthic waters [3,27]. By comparison, their immediate sister group within the stramenopiles, the bolidophytes, which do not ever form more 4% of the total photosynthetic abundance in any one Tara Oceans station [5].

3. Diatom Chloroplast Structure and Genomes

Diatoms and other photosynthetic members of the stramenopile algae possess a chloroplast derived from the secondary endosymbiosis of a red alga (Figure 2a). This chloroplast is closely related to the chloroplasts found in other lineages with secondary red chloroplasts (i.e., cryptomonads, haptophytes, and alveolates). Alternative origins have also been proposed, in particular a tertiary endosymbiotic origin, in which a red alga was acquired through secondary endosymbiosis through another algal group (e.g., cryptomonads [4,25]), which were in turn engulfed by the photosynthetic stramenopile ancestor (Figure 2b). The diatom chloroplast has a distinctive structure, consisting of an annular set of unstacked thylakoids around the periphery of the stroma (« girdle lamella »), enclosing a diffuse pyrenoid, and a ring-like genophore, and contains chlorophyll a, c1, and c2, as well as fucoxanthin and hexanoylfucoxanthin as typical pigments (Figure 2c) [4,41]. All of these features are shared with the bolidophytes and hence are not diatom-specific.
The diatom chloroplast retains a genome containing between 164 (Astrosyne radiata) and 204 genes (Eunotia naegelii) [4,46], with functions in photosynthesis, genome expression and protein import, cofactor (chlorophyll, thiamine, Fe-S cluster) biosynthesis, and a select number of conserved ycf genes of unknown function [46]. Some diatom species retain additional chloroplast-encoded functions, e.g., acetolactate synthase typically found in centric diatom chloroplast genomes [47], and a chloroplast-encoded light-independent protochorophyllide reductase so far known to be chloroplast-encoded solely in the polar centric diatom Toxarium [48].
Some diatoms, in particular within the genus Nitzschia, have lost the capacity to photosynthesize [49,50]. These species lack most chloroplast genes involved in photosynthesis and associated metabolisms, although intriguingly they retain components of a chloroplast ATP synthase. This complex has been proposed to function in the catabolism, rather than synthesis, of ATP, generating a trans-thylakoid proton gradient facilitating protein import through the tat translocase complex [50].

4. Import and Mosaic Origin of Diatom Nucleus-Encoded Chloroplast Proteins

As with other photosynthetic eukaryotes, the overwhelming majority of proteins that function in the diatom chloroplast are not encoded in its genome but are instead encoded in the nucleus and imported from the cytoplasm [25]. The diatom chloroplast, like those of other stramenopiles, haptophytes, and cryptomonads, is surrounded by four membranes which are, from inside out, the inner envelope membrane (iEM), the outer envelope membrane (oEM), the periplasmic membrane (PPM), and the chloroplast endoplasmic reticular membrane (cERM), which is contiguous with the endoplasmic reticulum (Figure 2c) [4].
Proteins encoded in the diatom nucleus are transported across each chloroplast membrane through individual transporter complexes, each of which recognises a different component of the chloroplast presequence. Diatom chloroplast-targeted proteins commence with an N-terminal signal peptide, recognised by a conventional ER import machinery in the cERM; followed by an aromatic amino acid or leucine, allowing recognition by a specialised protein import complex, « SELMA », that resides in the PPM; and finally a hydrophilic chloroplast transit peptide that allows import through the iEM and oEM [51,52].
Different proteins localise to different sub-compartments within this chloroplast, including the space between the PPM and oEM (the « perichloroplast compartment ») [53,54]; the pyrenoid and thylakoids [25,54]; and the intermembrane space between the iEM and oEM [10,25]. Other proteins may be trafficked into the chloroplast following glycosylation in the ER/Golgi body [55] or may be dual-targeted to the chloroplast and other compartments, such as the mitochondria [25,56].
A further level of complexity is contributed by the chimeric origins of the diatom chloroplast proteome (Figure 2B). Previously, we have characterised 770 nucleus-encoded and chloroplast-targeted proteins that are shared across, hence ancestral to, photosynthetic stramenopiles [4,25]. We noted that although 60% of the proteins with clearly attributable origins resolved with red algae, consistent with the endosymbiotic origin of the chloroplast, the remaining 40% originated from other sources [25]. These include a sizeable number of chloroplast-targeted proteins of green algal origin that are not found in red algae [25,57], alongside chloroplast-targeted proteins of bacterial origin, and proteins repurposed from other cellular compartments within the stramenopile host [25]. Most intriguingly, over 90 of the proteins identified in this study did not have obvious homologues (as inferred using BLAST top hit searches, with threshold evalue 1 × 10−5) outside of algae with secondary chloroplasts [25] and thus might have specifically evolved within this lineage [10,25].

5. Metabolic and Evolutionary Complexity of the Diatom Chloroplast

In the time that diatoms have separated from related stramenopile groups, they have accumulated innovations that have allowed this group to rise to ecological prominence. This begs the question, how are diatom chloroplasts different to their nearest relatives with which they share ancestry? Here, we study stramenopile sequence libraries to infer innovations in the diatom chloroplast that may enable enhanced primary productivity, resistance to photochemical damage, and ability to effectively utilise key organic and inorganic nutrients in ocean environments [4]. We focus on four themes: iron metabolism, biosynthesis of organic metabolites, photoprotection, and CO2 concentrating mechanisms.

5.1. The Chloroplast Proteome of the Diatom Common Ancestor

We profiled the metabolic innovations that are likely to underpin the origins of the diatom chloroplast using methodology adapted from previous studies [25,58]. This involved subsets of chloroplast-targeted proteins from different stramenopile transcriptomes and genomes, identified via in silico prediction, for homologues of 9531 evolutionarily non-redundant chloroplast-targeted proteins identified in species with chloroplasts of secondary red algal origin via a composite BLAST pathway, based on reciprocal BLAST best-hit searches, using a floating e-value threshold.
We mapped the distributions identified onto previously calculated diatom and stramenopile phylogenetic trees [4,25] to identify the most probable origin points of each protein, inferred to be the last common ancestor of all species in which the protein was detected. We also identified possible loss events, defined if a chloroplast-targeted protein was not detected in any members of the clade, the clade contained multiple species and at least one genome sequence, and the protein was detected in at least two successive sister-groups to the clade. A KEGG map of two salient time points—the common ancestor of pennate and polar centric diatoms and the common ancestor of all diatoms, bolidophytes, and hypogyristea (pelagophytes and dictyochophytes)—is provided in Figure 3A. A comparison of the proteins identified through this approach, via reciprocal BLAST best-hit analysis, to analogous chloroplast protein datasets from plants, red algae, and their closest relatives [59,60,61,62] is provided in Figure 3B. Complete outputs are provided in Table S1.

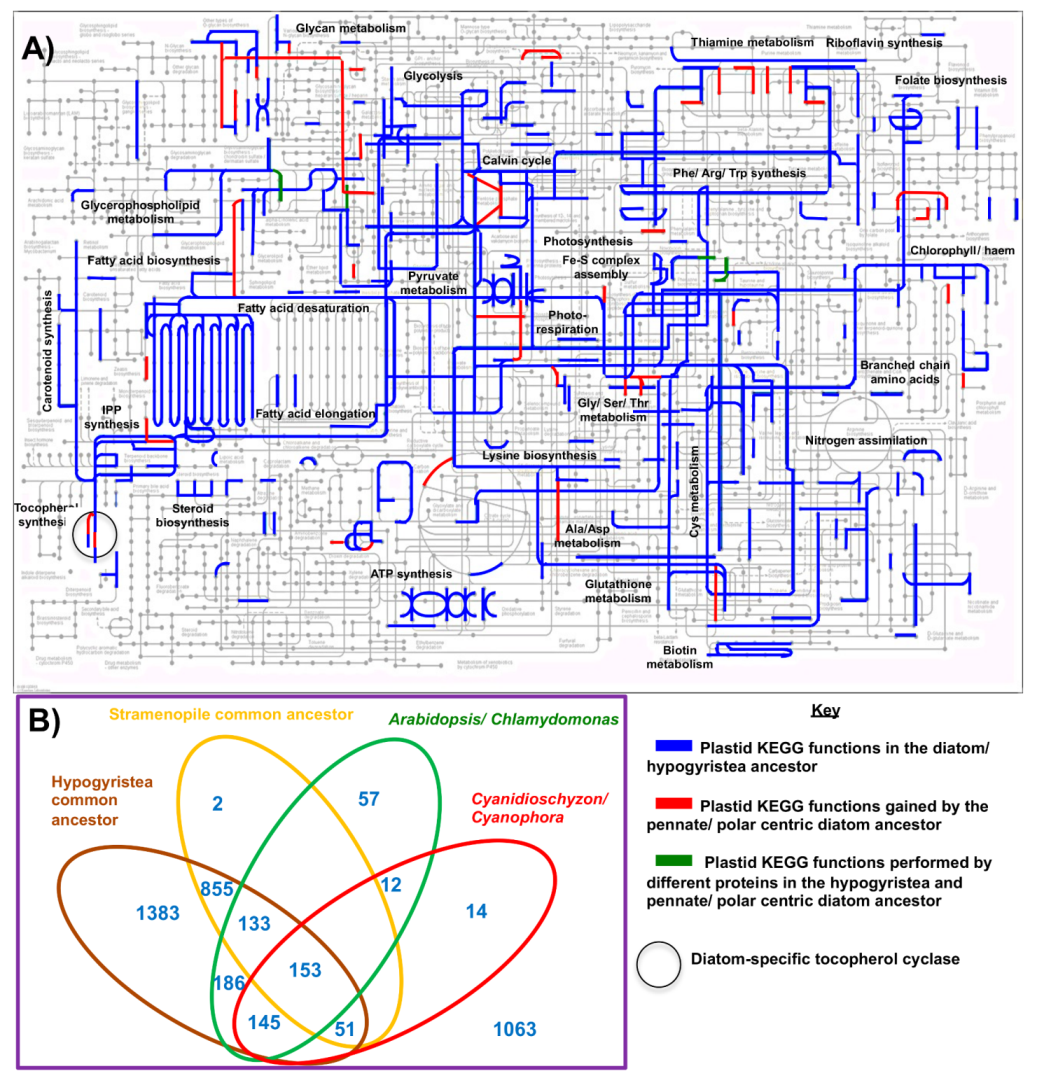

The diatom chloroplast performs effectively all of the essential pathways identified in plant chloroplasts, including photosynthesis, central carbon and lipid metabolism, synthesis of plastidial amino acids (e.g., glutamate/ glutamine, cysteine, lysine, branched chain, and aromatic amino acids), chlorophyll and carotenoid synthesis, and essential plastid biogenesis pathways associated with expression of the chloroplast genome and protein import [25,58,61] (Figure 3A). However, it differs substantially in protein content from that of its ancestors, including (for example) substantial numbers of proteins exclusively shared with green algae and plants and not detectable in red algae and large numbers not present in primary chloroplast lineage (Figure 3B). Moreover, the diatom chloroplast is not identical to that of other stramenopiles, possessing a wider range of predicted metabolism pathways (Figure 3A), and as much as 1063 proteins not found in either the hypogyristea or stramenopile common ancestor (Figure 3B).
Below, we outline key innovations in the chloroplasts of diatoms compared to close relatives within the stramenopiles, focusing on iron and nitrogen metabolism, photoprotection, and carbon dioxide acquisition.

5.2. Iron Metabolism

Iron is essential for cellular life. Its flexible redox chemistry is at the heart of the fundamental metabolic processes of photosynthesis and nitrogen fixation, including three of the four major photosystem complexes (photosystem II, cytochrome b6/f, and in particular in photosystem I). The majority of iron in the contemporary ocean is in the insoluble form of Fe3+ complexed to oxyhydroxides, which is generally not as readily bioavailable as the more soluble Fe2+ or organically bound iron. The ecological success of diatoms is frequently linked to their unique and highly adapted iron physiologies, which match the chemical speciation of iron in the water column [4,36].
Diatoms may be able to better tolerate chronic iron deprivation by replacing iron-dependent proteins in chloroplast photosystems with iron-free alternatives (Figure 4A). These can include plastocyanin (which contains copper) instead of cytochrome c6 [64,65] and flavodoxin as an iron-free alternative to the photosystem I acceptor ferredoxin [66]. While plastocyanin genes are widespread across diatom species and are upregulated under Fe-limiting conditions [67,68], very few of the identified diatom plastocyanin sequences contain recognisable chloroplast-targeting peptides, and it remains to be confirmed where in the cell this protein functions [64]. Diatom flavodoxin genes, by contrast, are universally distributed, and many have chloroplast-targeting sequences. However, chloroplast-targeted flavodoxin protein at least arose in the common ancestor of diatoms, pelagophytes, and dictyochophytes (Figure 4A), rather than being an adaptation specifically confined to diatoms.
Diatoms may additionally be able to tolerate iron limitation by efficiently mobilising iron, when it becomes available in the water column. This is evidenced during periods of transient enrichment of Fe, e.g., experimentally during artificial Fe fertilization in situ, which results in diatom-dominated blooms [4]. This effective iron acquisition is partly due to a novel pathway, allowing diatom chloroplasts to utilise iron complexed to siderophore molecules. Siderophores are iron-chelators, are typically biosynthesized by bacteria and fungi, comprise 99% of the organic iron pool, and were previously not considered accessible to photosynthetic eukaryotes [70]. Siderophore-bound iron is taken up from the diatom cell surface via an endocytosis pathway mediated by ISIP1, an ‘iron-starvation induced protein’ [10,71]. The ISIP1-siderophore complex is then trafficked toward the chloroplast, and possibly into the PPC, where reduction occurs, releasing iron from its organic chelator [10,72]. Notably, ISIP1 does not have conventional chloroplast targeting peptide, and the exact mechanism by which it is transported from the plasma membrane to this compartment remains unknown (Figure 4A) [10]. However, ISIP1 is only found in diatoms, with a distantly divergent homologue found in some pelagophyte, haptophyte, and dinoflagellate libraries, suggesting that it may be a diatom-specific strategy to facilitate iron delivery to the chloroplast (Figure 4) [10].
Finally, diatom chloroplasts may possess large internal reserves of iron, allowing them to maintain a large reserve of iron resources and correct for temporal differences in iron availability. For example, the iron storage protein ferritin [10] is predicted to be chloroplast-targeted across a wide range of diatoms, and is absent from other stramenopiles, although chloroplast-targeted equivalents are detectable in haptophytes and cryptomonads (Figure 4A). What is unclear is the cellular function of ferritin in cells, as a storage protein (as evidenced for Pseudo-nitzschia [73]) or as a homeostatic buffer. We should stress it is unlikely to be the only storage protein or the only mechanism for homeostasis, as other whole-cell mechanisms for iron homeostasis have been proposed [72].

5.3. Nitrogen Metabolism

Recently, it was proposed that diatoms possess a chloroplast-targeted glutamine-ornithine cycle, allowing them to recycle chloroplastidial glutamine to ornithine, which could then be exchanged with the cytoplasm [4]. This is particularly intriguing as it complements the finding that diatoms possess a mitochondria-targeted urea cycle, which would conversely allow them to synthesize glutamine in the mitochondria from ornithine [74]. Working in parallel, the organelles can sensitively equilibrate the availabilities of free amino acids, achieving a level of cellular integration not observed in other species [8,75]. Crucially, enzymes in this pathway are upregulated under nitrogen limitation and are coregulated with chloroplast-targeted nitrate reductase, suggesting roles in mediating nitrate assimilation [8,74,76].
We have localised all four of the involved enzymes in this cycle to the chloroplast of P. tricornutum, either through the localisation of full-length GFP constructs (acetylornithine transaminase, acetylglutamate kinase, glutamate N-acetyltransferase) or N-terminal GFP constructs (N-acetyl-δ-glutamyl-phosphate reductase; Figure S1A), following previous methodology [25]. Chloroplast-targeted copies of all four enzymes can be detected in other stramenopiles, cryptomonads, and haptophytes, although the complete cycle of four enzymes appears to only be chloroplast-targeted in diatoms (Figure 4B). Understanding the exact function of this pathway will depend on the characterisation of mutant lines for each protein.

5.4. Photoprotection

Diatoms possess a number of photo-physiological strategies for tolerating excess light that are shared with green algae, but not with the red antecedents of their chloroplasts [76]. These include an inferred xanthophyll cycle, which allows diatoms to effect non-photochemical quenching through the conversion of the accessory pigment diadinoxanthin into diatoxanthin and an expanded set of LHCx/Li818 family light harvesting proteins, which are implicated in the tolerance of light stress, not least by inducing a functional xanthophyll cycle [77]. The exact evolutionary origin of these pathways, including whether they can be truly considered as absent from red algae, has been considered elsewhere [78]. However, the effector enzymes of the xanthophyll cycle (violaxanthin de-epoxidase and zeaxanthin epoxidase), and LHCx/Li818 family proteins, are broadly conserved across algae with secondary red algal chloroplasts and are therefore not a diatom-specific innovation [57,79].
Recently, an additional photoprotective strategy has been evidenced in diatoms, in which excess chloroplast reducing potential is translocated into the mitochondria and dissipated through respiratory electron transport [25,79]. Excess mitochondrial ATP might conversely be imported into the chloroplast and used to activate ATP-dependent metabolic strategies (such as the Calvin Cycle) in the absence of chloroplast ATP, e.g., following the dark-light transition of a seasonal or circadian light cycle [7,80]. This process has been documented in other lineages (e.g., the green model alga Chlamydomonas), but only in cases where alternative photochemical quenching strategies have diminished function [7,75]. Thus, diatoms depend on this metabolite exchange much more substantially than other lineages of algae. Ultimately, identifying which effector proteins are involved in this process may provide clues into whether it is a diatom-specific or more widespread chloroplast evolutionary adaptation.
Finally, we have uncovered evidence for a diatom-specific chloroplast antioxidant strategy. We note that, in our KEGG map of chloroplast functions, the last common ancestor of the pennate and polar centric diatom lineages (Figure 3A, circled) is predicted to possess a complete chloroplast-targeted tocopherol (vitamin E) biosynthesis pathway. In contrast, other stramenopile algae lack a chloroplast tocopherol cyclase, with one possible exception in dictyochophytes (Figure 4C; Table S1). Tocopherol is a known antioxidant, having overlapping functions to xanthophylls in scavenging of singlet oxygen and preventing the propagation of lipid peroxidation in plant chloroplasts [7,81]. Understanding the physiological significance of this pathway will depend first on identifying whether tocopherol is indeed present in diatom chloroplast preparations [82], and phenotyping mutants of the tocopherol cyclase, and/or its downstream methyltransferase (Figure 4C).

5.5. CO2 Concentrating Mechanisms (CCM)

Photosynthetic efficiency is a likely candidate trait for determining ecological success in marine environments. Minor adjustments that increase the proportion of fixed carbon could quickly translate to enhanced growth and standing biomass. In particular, carbon dioxide has limited solubility in water; this may therefore limit the carbon catalytic activity, and increase the relative proportion of wasteful oxygenase activity of RuBisCO in aquatic photosynthesis [32,83]. As a result, many photosynthetic algae utilise CO2 concentrating mechanisms that enrich carbon dioxide availability to RuBisCO.
To date, it has been demonstrated that diatoms, including Phaeodactylum tricornutum and Thalassiosira pseudonana, have a biophysical CCM (using carbonic anhydrases and bicarbonate transporters) [54,83,84]. Some diatoms may additionally utilise biochemical strategies such as C4 photosynthesis [85], although an evident C4 operation has so far been detected solely in one centric species, T. weissflogii [83,85]. Previously, we and others have shown that diatoms possess a diverse set of carbonic anhydrases, at least some of which localise to different chloroplast sub-compartments [86], and which may confer an advantage in dynamic open ocean environments. These enzymes include an unusual, theta-class carbonic anhydrase, which in P. tricornutum localises within the lumen of pyrenoid-penetrating thlaykoid membranes and is directly implicated in the release of CO2 into chloroplast RuBisCO [54].
To gain a sense of how these proteins evolved, we profiled the distribution of all experimentally characterised carbonic anhydrases from P. tricornutum and T. pseudonana across stramenopile, haptophyte and cryptomonad genomes and transcriptomes, as above (Table S2; Figure 5A) [54,86]. Through this approach, we identified 434 chloroplast-targeted theta-carbonic anhydrases in 48 of the 86 species studied, including the early-diverging radial centric genus Leptocylindrus (Figure S2). This implicates chloroplast theta-carbonic anhydrases as being present in the diatom common ancestor. We observed much more restricted evolutionary distributions for chloroplast-targeted isoforms of other diatom chloroplast carbonic anhydrases, including the Phaeodactylum pyrenoidal beta-carbonic anhydrases PtCA1 and PtCA2 (Phatr3_45443, 51305), and the Thalassiosira stromal alpha carbonic anhydrase TpCA1 [54,86,87,88] (Figure S2). Although we could identify chloroplast-targeted theta-carbonic anhydrases in other stramenopile, cryptomonad, and haptophyte lineages, we noted that diatom theta-carbonic anhydrases contained a much larger proportion of chloroplast-targeted proteins than orthologues identified in other lineages, suggesting this predominance is a specific innovation within the diatom chloroplast (Figure 5A).

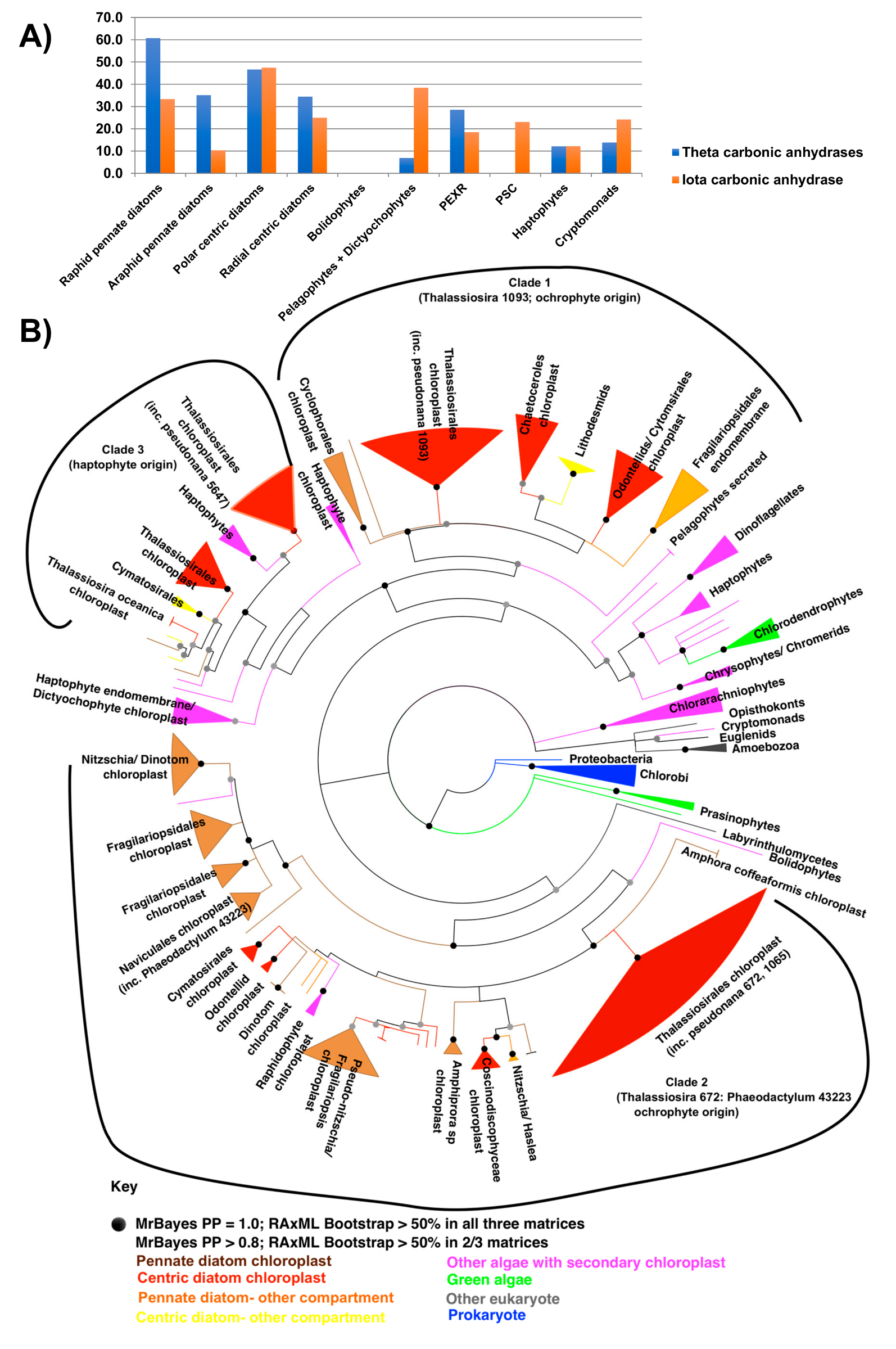

A consensus Bayesian and RAxML tree of theta carbonic anhydrases revealed three distinct groups of diatom chloroplast proteins (Figure 5B). Two of the clades (clades 1 and 2) possess immediate sister-groups within the stramenopiles (respectively, pelagophytes and bolidophytes), suggesting probable vertical inheritances, although the sister-group sequences appear not to be chloroplast-targeted (Figure 5). The final clade of diatom chloroplast theta carbonic anhydrases (clade 3) resolves within a paraphyletic clade of haptophyte algae, suggesting a probable horizontal transfer event from haptophytes into the diatom common ancestor. At least some of the haptophyte sequences have chloroplast-targeting sequences, so it is possible that this anhydrase already possessed chloroplast functions prior to its acquisition by the diatom ancestor (Figure 5A,B). Overall, our data is consistent with theta carbonic anhydrases being recruited through horizontal gene transfer and the recycling of enzymes from other cellular compartments in the diatom ancestor.
Finally, using similar methodology, we considered the distribution and inferred subcellular localisation of the new, iota-class of carbonic anhydrases, recently reported to function in the T. pseudonana chloroplast (Figure 5A and Figure S3) [89]. We noted that chloroplast-targeted copies of this enzyme are widespread across diatoms and are present in extremely high numbers in certain species, including 10 or more in F. solaris, Odontella aurita, and Ditylum brightwellii (Figure S3). We could not detect chloroplast-targeted copies of this enzyme in the genus Proboscia, and a subclade of Chaetoceros (sp., UNC1202, curvisetus, brevis) from which chloroplast-targeted theta-carbonic anhydrases were also globally absent (Figures S2 and S3). In contrast to the situation for theta-carbonic anhydrases, there was no apparent bias in favour of chloroplast-targeted proteins in diatoms compared to other stramenopile, haptophyte or cryptomonad groups, with a greater proportion of pelagophyte and dictyochophyte sequences possessing chloroplast-targeting peptides (Figure 5A; Table S2), suggesting it is an evolutionary innovation that precedes the origins of the diatom chloroplast.

6. Industrial Futures: Remodelling Chloroplast Metabolism in the Oil-Producing Diatom Fistulifera solaris

Diatoms show diverse phenotypes, and some species produce valuable products for industrial application. For instance, the raphid pennate diatom F. solaris accumulates large quantities of lipids, which is of interest for conversion to biodiesel (Figure 6A) [21]. Since photosynthetic eukaryotes including diatoms typically synthesize glycerolipids in the chloroplast and ER [21], F. solaris may have unique alterations to its chloroplast metabolism to facilitate lipid production.

6.1. Remodelling of Lipid and Amino Acid Metabolism in the F. solaris Chloroplast

Using the methodology described above, we compared the complement of nucleus-encoded and chloroplast-targeted proteins inferred from the F. solaris genome to those of other diatom species. We noted distinct differences between F. solaris and other diatoms. These include the probable absence of a chloroplast-targeted pyruvate carboxylase (PC), pyruvate phosphate dikinase (PPDK), and phosphoenolpyruvate synthase (PEPS), which catalyze the conversion of pyruvate to phosphoenolpyruvate (Figure 6(Bi,Ci)) (Table S3) and are otherwise widespread across diatoms.
Conversely, only F. solaris among diatoms has a chloroplast-targeted pyruvate/2-oxoglutarate dehydrogenase complex (PDC), which generates acetyl-CoA, a substrate for fatty acid synthesis (Figure 6(Bi,Ci)) (Table S3). We confirmed that the F. solaris PDC protein transit peptide cleavage site is upstream of the conserved PDC domain (Figure S4A) and is therefore unlikely to be an annotation artefact or internal region of a non-chloroplast-targeted protein. The chloroplast-targeted PDC might participate in supplying acetyl CoA for chloroplast fatty acid synthesis, as has previously been proposed to occur in higher plants and C. reinhardtii [90], contributing to its oleaginous phenotype.
We found a possible remodeling of branched-chain amino acid (BCAA) synthesis pathways, which convert 2-oxybutyrate and pyruvate into isoleucine, valine, and leucine, in F. solaris. Unlike P. tricornutum and T. pseudonana, no chloroplast-targeted homologs of acetohydroxyacid isomeroreductase (AHAIR) and branched-chain amino acid transferase (BCAT) were identified in F. solaris (Figure 6(Bii,6Cii)) (Table S3). We could identify equivalents of these enzymes functioning in the mitochondria (BACT) and the cytoplasm (AHAIR), suggesting that these essential amino acids are synthesized elsewhere in the F. solaris cell.
The absence of chloroplast-targeted copies of each enzyme might relate to the oleaginous phenotype of F. solaris, as both are related to NADPH metabolism. AHAIR directly utilises NADPH as a reducing agent, and BCAT requires NADPH to regenerate its substrate glutamate from 2-oxoglutarate by glutamate synthase [91]. The absence of these pathways from the F. solaris chloroplast might indirectly increase NADPH availability for alternative pathways, such as chloroplast fatty acid synthesis. It has previously been shown that both the downregulation of plastidial amino acid biosynthesis and overexpression of NADPH-producing enzymes in diatoms accelerates neutral lipid accumulation in diatoms [92,93]. Ultimately, the absence of these enzymes, and the phenotypic consequences for the F. solaris chloroplast, awaits experimental verification.

6.2. Modified Chloroplast Isoprenoid Synthesis in Specific Diatoms

Unlike other diatoms, F. solaris encodes a chloroplast-targeted squalene synthase in its nuclear genome (Figure 6(Biii,Ciii)) (Table S3). Squalene is synthesized from farnesyl and geranylgeranyl diphosphate, which are converted by squalene synthase (SQS) and farnesyl diphosphate synthase (FPPS), respectively. As per the situation in most other diatoms [92], SQS in F. solaris is fused with isopentenyl diphosphate isomerase (IDI) (Figure 6Ciii). We confirmed that the F. solaris FPPS target sequence was positioned upstream of the conserved domain, indicating that it is genuinely chloroplast-targeted (Figure S4C). We localized SQS in F. solaris using a full-length intron-containing C-terminal fusion GFP overexpression construct, and it localized in the vicinity of the chloroplast (Figure 6D). This localization pattern is similar to PPM proteins in P. tricornutum [94].
Elsewhere within our dataset, we identified chloroplast-targeted isoprenoid biosynthesis enzymes in Pseudo-nitzschia sp., Synedra acus, and Rhizosolenia setigera (Figure 4, Figure 6Ciii); chloroplast FPP synthesis has also been predicted in Haslea ostrearia. By contrast, plant FPPS are found to localise in the cytosol, mitochondria, peroxisome, and possibly the chloroplast [98], while SQS localizes to the ER membrane in Arabidopsis thaliana [99]. Squalene production has been documented in other microalgae (e.g., the green alga Botryococcus braunii [100]), although the localisations of the enzymes involved remain unknown. Notably, the enzymes contributing to these metabolic fluxes vary between each species, with only F. solaris possessing a chloroplast-targeted IDI-SQS and FPPS, compared to, e.g., a chloroplast-targeted IDI in R. setigera. Thus, a complex chloroplast isoprenoid metabolism may have evolved in parallel in different diatoms.
The exact function of these enzymes in diatom chloroplasts remains to be determined. The enzymatic activity of isopentenyl diphosphate isomerase can be compensated by another enzyme, hydroxymethylbillance-CoA reductase, which is chloroplast-targeted across the stramenopiles, so it is therefore not essential for carotenoid synthesis [25,100]. However, the presence of chloroplast-targeted IDI-SQS and FPPS might facilitate the production of secondary metabolites that would allow diatoms to survive diverse biotic and abiotic pressures, similar to the functions of polyprenoid biosynthesis in plants [77] Isopentenyl diphosphate synthase activity in R. setigera has been proposed to be involved in the synthesis of highly branched isoprenoids, which may function in cryoprotection 92, and may include the diatom-specific isoprenoid IP25, which can be used as a biomarker for primary production in sea ice [92,101]. The adoption of different polyprenoid biosynthesis pathways in different diatoms might therefore confer different functions to these species.

7. Concluding Remarks

In this review, we discussed the mosaic origins, complex structure, and metabolic diversity of the diatom chloroplast. Focusing on innovations that might help explain the success of diatoms in the contemporary ocean, we have noted that diatoms possess unique chloroplast features, specifically within iron metabolism, biosynthesis of organic metabolites, photoprotection, and CO2 concentrating mechanisms. However, there are many other chloroplast proteins that may be unique to diatoms, with limited structural homology to other annotated proteins [25]. Characterisation of mutant lines of these proteins remains imperative to understanding their function. Environmental sampling projects (e.g., the Tara Oceans Survey [3]) may be instrumental in allowing us to deduce transcriptional patterns and the environmental relevance of understudied diatom proteins in current and future climates.
Comparing the chloroplast-targeted proteins of species with industrially desirable phenotypes, such as F. solaris, may reveal candidate pathways for engineering in other organisms. For example, it will be interesting to determine if suppressing chloroplast pyruvate or BCAA metabolism in P. tricornutum can enhance lipid production, which would support a link between these proteins and the oleaginous phenotype of F. solaris. Similarly, heterologous expression of chloroplast-targeted proteins aimed at modifying isoprenoid metabolism in F. solaris and other diatoms may reveal the function of these enzymes and might also allow us to generate new and industrially relevant metabolites in easily cultivable species.
Overall, the unique chloroplast metabolic pathways identified within multi-species transcriptome datasets help us understand more clearly the features underpinning diatom biology.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/9/8/322/s1, Figure S1: Experimental localisations of diatom ornithine cycle enzymes, Figure S2: Evolutionary distribution and localisation of diatom theta-carbonic anhydrases, Figure S3: Evolutionary distributions of diatom iota-carbonic anhydrases, Figure S4: Chloroplast targeting sequence of Fistulifera solaris chloroplast proteins, Table S1: Overview of plastid protein content across diatom and related algal lineages, Table S2: Evolutionary and subcellular distributions of diatom carbonic anhydrases, Table S3: Tabulated sequences of Fistulifera and other diatom chloroplast pyruvate hub, branched chain amino-acid, and isoprenoid-associated synthesis enzymes.

Funding

This research was funded by a CNRS Momentum Fellowship to RGD, and a JSPS PhD studentship to TN. The APC was funded by Tokyo University of Agriculture and Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hinder, S.L.; Hays, G.C.; Edwards, M.; Roberts, E.C.; Waine, A.W.; Gravenor, M.B. Changes in marine dinoflagellate and diatom abundance under climate change. Nat. Clim. Chang. 2012, 2, 271–275. [Google Scholar] [CrossRef]
  2. Field, C.B.; Behrenfeld, M.J.; Randerson, J.T.; Falkowski, P.A. Primary production of the biosphere: Integrating terrestrial and oceanic components. Science 1998, 281, 4. [Google Scholar] [CrossRef] [PubMed]
  3. Malviya, S.; Scalco, E.; Audic, S.; Vincent, F.; Veluchamy, A.; Poulain, J.; Wincker, P.; Iudicone, D.; de Vargas, C.; Bittner, L.; et al. Insights into global diatom distribution and diversity in the world’s ocean. Proc. Natl. Acad. Sci. USA 2016, 113, E1516–E1525. [Google Scholar] [CrossRef] [PubMed]
  4. Dorrell, R.G.; Bowler, C. Secondary Plastids of Stramenopiles. In Adv Bot Res: Secondary Endosymbiosis; Hirakawa, Y., Ed.; Elsevier: Amsterdam, The Netherlands, 2017; Volume 84, pp. 59–104. [Google Scholar]
  5. Ichinomiya, M.; Dos Santos, A.L.; Gourvil, P.; Yoshikawa, S.; Kamiya, M.; Ohki, K.; Audic, S.; de Vargas, C.; Noël, M.H.; Vaulot, D.; et al. Diversity and oceanic distribution of the Parmales (Bolidophyceae), a picoplanktonic group closely related to diatoms. ISME J. 2016, 10, 2419–2434. [Google Scholar] [CrossRef] [PubMed]
  6. Lepetit, B.; Sturm, S.; Rogato, A.; Gruber, A.; Sachse, M.; Falciatore, A.; Kroth, P.G.; Lavaud, J. High light acclimation in the secondary plastids containing diatom Phaeodactylum tricornutum is triggered by the redox state of the plastoquinone pool. Plant Physiol. 2013, 161, 853–865. [Google Scholar] [CrossRef] [PubMed]
  7. Bailleul, B.; Berne, N.; Murik, O.; Petroutsos, D.; Prihoda, J.; Tanaka, A.; Villanova, V.; Bligny, R.; Flori, S.; Falconet, D.; et al. Energetic coupling between plastids and mitochondria drives CO2 assimilation in diatoms. Nature 2015, 524, 366. [Google Scholar] [CrossRef] [PubMed]
  8. Levering, J.; Broddrick, J.; Dupont, C.L.; Peers, G.; Beeri, K.; Mayers, J.; Gallina, A.A.; Allen, A.E.; Palsson, B.O.; Zengler, K. Genome-scale model reveals metabolic basis of biomass partitioning in a model diatom. PLoS ONE 2016, 11, e0155038. [Google Scholar] [CrossRef]
  9. McQuaid, J.B.; Kustka, A.B.; Oborník, M.; Horák, A.; McCrow, J.P.; Karas, B.J.; Zheng, H.; Kindeberg, T.; Andersson, A.J.; Barbeau, K.A.; et al. Carbonate-sensitive phytotransferrin controls high-affinity iron uptake in diatoms. Nature 2018, 555, 534–537. [Google Scholar] [CrossRef]
  10. Kazamia, E.; Sutak, R.; Paz-Yepes, J.; Dorrell, R.G.; Vieiria, F.R.J.; Mach, J.; Morrissey, J.; Leon, S.; Lam, F.; Pelletier, E.; et al. Endocytosis-mediated siderophore uptake as a strategy for Fe acquisition in diatoms. Sci. Adv. 2018, 4, 4536. [Google Scholar]
  11. Li, W.K.; McLaughlin, F.A.; Lovejoy, C.; Carmack, E.C. Smallest algae thrive as the Arctic Ocean freshens. Science 2009, 326, 539. [Google Scholar] [CrossRef]
  12. Yarnold, J.; Karan, H.; Oey, M.; Hankamer, B. Microalgal aquafeeds as part of a circular bioeconomy. Trends Plant Sci. 2019, in press. [Google Scholar] [CrossRef] [PubMed]
  13. Sprague, M.; Betancor, M.B.; Tocher, D.R. Microbial and genetically engineered oils as replacements for fish oil in aquaculture feeds. Biotechnol. Lett. 2017, 39, 1599–1609. [Google Scholar] [CrossRef]
  14. Sørensen, M.; Gong, Y.; Bjarnason, F.; Vasanth, G.K.; Dahle, D.; Huntley, M.; Kiron, V. Nannochloropsis oceania-derived defatted meal as an alternative to fishmeal in Atlantic salmon feeds. PLoS ONE 2017, 12, e0179907. [Google Scholar] [CrossRef] [PubMed]
  15. Abida, H.; Ruchaud, S.; Rios, L.; Humeau, A.; Probert, I.; De Vargas, C.; Bach, S.; Bowler, C. Bioprospecting marine plankton. Mar. Drugs 2013, 11, 4594–4611. [Google Scholar] [CrossRef]
  16. Hamilton, M.L.; Warwick, J.; Terry, A.; Allen, M.J.; Napier, J.A.; Sayanova, O. Towards the industrial production of omega-3 long chain polyunsaturated fatty acids from a genetically modified diatom Phaeodactylum tricornutum. PLoS ONE 2015, 10, e0144054. [Google Scholar] [CrossRef]
  17. Kim, S.M.; Jung, Y.J.; Kwon, O.N.; Cha, K.H.; Um, B.H.; Chung, D.; Pan, C.H. A potential commercial source of fucoxanthin extracted from the microalga Phaeodactylum tricornutum. Appl. Biochem. Biotechnol. 2012, 166, 1843–1855. [Google Scholar] [CrossRef]
  18. Kuczynska, P.; Jemiola-Rzeminska, M.; Strzalka, K. Photosynthetic pigments in diatoms. Mar. Drugs 2015, 13, 5847–5881. [Google Scholar] [CrossRef] [PubMed]
  19. Allert, S.; Wulff, A. Frustules Extracted from Benthic Pennate Diatoms Harvested from an Industrial Biofilm Process. U.S. Patent US20190106672A1, 18 April 2019. [Google Scholar]
  20. Kang, J.S.; Raymond, J.A. Reduction of freeze-thaw-induced hemolysis of red blood cells by an algal ice-binding protein. Cryoletters 2004, 25, 307–310. [Google Scholar]
  21. Tanaka, T.; Maeda, Y.; Veluchamy, A.; Tanaka, M.; Abida, H.; Marechal, E.; Bowler, C.; Muto, M.; Sunaga, Y.; Yoshino, T.; et al. Oil accumulation by the oleaginous diatom Fistulifera solaris as revealed by the genome and transcriptome. Plant Cell 2015, 27, 162–176. [Google Scholar] [CrossRef]
  22. Tanaka, T.; Yabuuchi, T.; Maeda, Y.; Nojima, D.; Matsumoto, M.; Yoshino, T. Production of eicosapentaenoic acid by high cell density cultivation of the marine oleaginous diatom Fistulifera solaris. Bioresour. Technol. 2017, 245 (Pt A), 567–572. [Google Scholar] [CrossRef]
  23. Matsumoto, M.; Nojima, D.; Nonoyama, T.; Ikeda, K.; Maeda, Y.; Yoshino, T.; Tanaka, T. Outdoor cultivation of marine diatoms for year-round production of biofuels. Mar. Drugs 2017, 15, 94. [Google Scholar] [CrossRef] [PubMed]
  24. Rastogi, A.; Maheswari, U.; Dorrell, R.G.; Vieira, F.R.J.; Maumus, F.; Kustka, A.; McCarthy, J.; Allen, A.E.; Kersey, P.; Bowler, C.; et al. Integrative analysis of large scale transcriptome data draws a comprehensive landscape of Phaeodactylum tricornutum genome and evolutionary origin of diatoms. Sci. Rep. 2018, 8, 4834. [Google Scholar] [CrossRef]
  25. Dorrell, R.G.; Gile, G.; McCallum, G.; Méheust, R.; Bapteste, E.P.; Klinger, C.M.; Brillet-Guéguen, L.; Freeman, K.D.; Richter, D.J.; Bowler, C. Chimeric origins of ochrophytes and haptophytes revealed through an ancient plastid proteome. eLife 2017, 6, 23717. [Google Scholar] [CrossRef] [PubMed]
  26. McNair, H.M.; Brzezinski, M.A.; Krause, J.W. Diatom populations in an upwelling environment decrease silica content to avoid growth limitation. Environ. Microbiol. 2018, 20, 4184–4193. [Google Scholar] [CrossRef] [PubMed]
  27. De Tommasi, E.; Gielis, J.; Rogato, A. Diatom Frustule Morphogenesis and Function: A Multidisciplinary Survey. Mar. Genom. 2017, 35, 1–18. [Google Scholar] [CrossRef] [PubMed]
  28. Armbrust, E.V.; Chisholm, S.W.; Olson, R.J. Role of light and the cell cycle on the induction of spermatogenesis in a centric diatom. J. Phycol. 1990, 26, 470–478. [Google Scholar] [CrossRef]
  29. Finkel, Z.V.; Katz, M.E.; Wright, J.D.; Schofield, O.M.; Falkowski, P.G. Climatically driven macroevolutionary patterns in the size of marine diatoms over the Cenozoic. Proc. Natl. Acad. Sci. USA 2005, 102, 8927–8932. [Google Scholar] [CrossRef]
  30. Brunner, E.; Richthammer, P.; Ehrlich, H.; Paasch, S.; Simon, P.; Ueberlein, S.; van Pée, K.H. Chitin-based organic networks: An integral part of cell wall biosilica in the diatom Thalassiosira pseudonana. Angew. Chem. Int. Ed. Engl. 2009, 48, 9724–9727. [Google Scholar] [CrossRef]
  31. Mock, T.; Otillar, R.P.; Strauss, J.; McMullan, M.; Paajanen, P.; Schmutz, J.; Salamov, A.; Sanges, R.; Toseland, A.; Ward, B.J.; et al. Evolutionary genomics of the cold-adapted diatom Fragilariopsis cylindrus. Nature 2017, 541, 536–540. [Google Scholar] [CrossRef]
  32. Dorrell, R.G.; Smith, A.G. Do red and green make brown?: Perspectives on plastid acquisitions within chromalveolates. Eukaryot. Cell 2011, 10, 856–868. [Google Scholar] [CrossRef]
  33. Lewitus, E.; Bittner, L.; Malviya, S.; Bowler, C.; Morlon, H. Clade-specific diversification dynamics of marine diatoms since the Jurassic. Nat. Ecol. Evol. 2018, 2, 1715–1723. [Google Scholar] [CrossRef] [PubMed]
  34. Brown, J.W.; Sorhannus, U. A molecular genetic timescale for the diversification of autotrophic stramenopiles (Ochrophyta): Substantive underestimation of putative fossil ages. PLoS ONE 2010, 5, 12759. [Google Scholar] [CrossRef] [PubMed]
  35. Kooistra, W.; Forlani, G.; De Stefano, M. Adaptations of araphid pennate diatoms to a planktonic existence. Mar. Ecol. 2009, 30, 1–15. [Google Scholar] [CrossRef]
  36. Parks, M.B.; Wickett, N.J.; Alverson, A.J. Signal, uncertainty, and conflict in phylogenomic data for a diverse lineage of microbial eukaryotes (Diatoms, Bacillariophyta). Mol. Biol. Evol. 2018, 18, 80–93. [Google Scholar] [CrossRef] [PubMed]
  37. Kooistra, W.; Medlin, L.K. Evolution of the diatoms (bacillariophyta): IV. Reconstruction of their age from small subunit rRNA coding regions and the fossil record. Mol. Phylogenet. Evol. 1996, 6, 391–407. [Google Scholar] [CrossRef] [PubMed]
  38. Guidi, L.; Chaffron, S.; Bittner, L.; Eveillard, D.; Larhlimi, A.; Roux, S.; Darzi, Y.; Audic, S.; Berline, L.; Brum, J.R.; et al. Plankton networks driving carbon export in the oligotrophic ocean. Nature 2016, 532, 465–470. [Google Scholar] [CrossRef] [PubMed]
  39. Lommer, M.; Specht, M.; Roy, A.S.; Kraemer, L.; Andreson, R.; Gutowska, M.A.; Wolf, J.; Bergner, S.V.; Schilhabel, M.B.; Klostermeier, U.C.; et al. Genome and low-iron response of an oceanic diatom adapted to chronic iron limitation. Genom. Biol. 2012, 13, R66. [Google Scholar] [CrossRef] [PubMed]
  40. Armbrust, E.V.; Berges, J.A.; Bowler, C.; Green, B.R.; Martinez, D.; Putnam, N.H.; Zhou, S.G.; Allen, A.E.; Apt, K.E.; Bechner, M.; et al. The genome of the diatom Thalassiosira pseudonana: Ecology, evolution, and metabolism. Science 2004, 306, 79–86. [Google Scholar] [CrossRef]
  41. Andersen, R.A. Biology and systematics of heterokont and haptophyte algae. Am. J. Bot. 2004, 91, 1508–1522. [Google Scholar] [CrossRef]
  42. Stiller, J.W.; Schreiber, J.; Yue, J.; Guo, H.; Ding, Q.; Huang, J. The evolution of photosynthesis in chromist algae through serial endosymbioses. Nat. Commun. 2014, 5, 5764. [Google Scholar] [CrossRef]
  43. Moustafa, A.; Beszteri, B.; Maier, U.G.; Bowler, C.; Valentin, K.; Bhattacharya, D. Genomic footprints of a cryptic plastid endosymbiosis in diatoms. Science 2009, 324, 1724–1726. [Google Scholar] [CrossRef] [PubMed]
  44. Deschamps, P.; Moreira, D. Re-evaluating the green contribution to diatom genomes. Genome Biol. Evol. 2012, 4, 683–688. [Google Scholar] [CrossRef] [PubMed]
  45. Burki, F.; Flegontov, P.; Oborník, M.; Cihlár, J.; Pain, A.; Lukes, J.; Keeling, P.J. Re-evaluating the green versus red signal in eukaryotes with secondary plastid of red algal origin. Genome Biol. Evol. 2012, 4, 626–635. [Google Scholar] [CrossRef] [PubMed]
  46. Yu, M.; Ashworth, M.; Hajrah, N.; Khiyami, M.; Sabir, M.; Alhebshi, A.; Al-Malki, A.; Sabir, J.; Theriot, E.C.; Jansen, R. Evolution of the Plastid Genomes in Diatoms. In Plastid Genome Evolution; Chaw, S., Jansen, R., Eds.; Elsevier: Amsterdam, The Netherlands, 2018; Volume 85, pp. 129–155. [Google Scholar]
  47. Sabir, J.S.M.; Yu, M.J.; Ashworth, M.P.; Baeshen, N.A.; Baeshen, M.N.; Bahieldin, A.; Theriot, E.C.; Jansen, R.K. Conserved gene order and expanded inverted repeats characterize plastid genomes of Thalassiosirales. PLoS ONE 2014, 9, 107854. [Google Scholar] [CrossRef] [PubMed]
  48. Ruck, E.C.; Linard, S.R.; Nakov, T.; Theriot, E.C.; Alverson, A.J. Hoarding and horizontal transfer led to an expanded gene and intron repertoire in the plastid genome of the diatom, Toxarium undulatum (Bacillariophyta). Curr. Genet. 2017, 63, 499–507. [Google Scholar] [CrossRef] [PubMed]
  49. Kamikawa, R.; Yubuki, N.; Yoshida, M.; Taira, M.; Nakamura, N.; Ishida, K.; Leander, B.S.; Miyashita, H.; Hashimoto, T.; Mayama, S.; et al. Multiple losses of photosynthesis in Nitzschia (Bacillariophyceae). Phycol. Res. 2015, 63, 19–28. [Google Scholar] [CrossRef]
  50. Kamikawa, R.; Tanifuji, G.; Ishikawa, S.A.; Ishii, K.I.; Matsuno, Y.; Onodera, N.T.; Ishida, K.I.; Hashimoto, T.; Miyashita, H.; Mayama, S.; et al. Proposal of a twin arginine translocator system-mediated constraint against loss of ATP synthase genes from nonphotosynthetic plastid genomes. Mol. Biol. Evol. 2015, 32, 2598–2604. [Google Scholar] [CrossRef] [PubMed]
  51. Gruber, A.; Rocap, G.; Kroth, P.G.; Armbrust, E.V.; Mock, T. Plastid proteome prediction for diatoms and other algae with secondary plastids of the red lineage. Plant J. 2015, 81, 519–528. [Google Scholar] [CrossRef] [PubMed]
  52. Felsner, G.; Sommer, M.S.; Gruenheit, N.; Hempel, F.; Moog, D.; Zauner, S.; Martin, W.; Maier, U.G. ERAD components in organisms with complex red plastids suggest recruitment of a preexisting protein transport pathway for the periplastid membrane. Genom. Biol. Evol. 2011, 3, 140–150. [Google Scholar] [CrossRef]
  53. Gould, S.B.; Sommer, M.S.; Kroth, P.G.; Gile, G.H.; Keeling, P.J.; Maier, U.G. Nucleus-to-nucleus gene transfer and protein retargeting into a remnant cytoplasm of cryptophytes and diatoms. Mol. Biol. Evol. 2006, 23, 2413–2422. [Google Scholar] [CrossRef]
  54. Kikutani, S.; Nakajima, K.; Nagasato, C.; Tsuji, Y.; Miyatake, A.; Matsuda, Y. Thylakoid luminal theta-carbonic anhydrase critical for growth and photosynthesis in the marine diatom Phaeodactylum tricornutum. Proc. Natl. Acad. Sci. USA 2016, 113, 9828–9833. [Google Scholar] [CrossRef] [PubMed]
  55. Peschke, M.; Moog, D.; Klingl, A.; Maier, U.G.; Hempel, F. Evidence for glycoprotein transport into complex plastids. Proc. Natl. Acad. Sci. USA 2013, 110, 10860–10865. [Google Scholar] [CrossRef] [PubMed]
  56. Gile, G.H.; Moog, D.; Slamovits, C.H.; Maier, U.G.; Archibald, J.M. Dual organellar targeting of aminoacyl-tRNA synthetases in diatoms and cryptophytes. Genom. Biol. Evol. 2015, 7, 1728–1742. [Google Scholar] [CrossRef] [PubMed]
  57. Dautermann, O.; Lohr, M. A functional zeaxanthin epoxidase from red algae shedding light on the evolution of light-harvesting carotenoids and the xanthophyll cycle in photosynthetic eukaryotes. Plant. J. 2017, 92, 879–891. [Google Scholar] [CrossRef] [PubMed]
  58. Dorrell, R.G.; Azuma, T.; Nomura, M.; Audren de Kerdrel, G.; Paoli, L.; Yang, S.; Bowler, C.; Ishii, K.I.; Miyashita, H.; Gile, G.H.; et al. Principles of plastid reductive evolution illuminated by nonphotosynthetic chrysophytes. Proc. Natl. Acad. Sci. USA 2019, 116, 6914–6923. [Google Scholar] [CrossRef] [PubMed]
  59. Qiu, H.; Price, D.C.; Weber, A.P.; Facchinelli, F.; Yoon, H.S.; Bhattacharya, D. Assessing the bacterial contribution to the plastid proteome. Trends Plant Sci. 2013, 18, 680–687. [Google Scholar] [CrossRef]
  60. Kleffmann, T.; Russenberger, D.; von Zychlinski, A.; Christopher, W.; Sjolander, K.; Gruissem, W.; Baginsky, S. The Arabidopsis thaliana chloroplast proteome reveals pathway abundance and novel protein functions. Curr. Biol. 2004, 14, 354–362. [Google Scholar] [CrossRef]
  61. Terashima, M.; Specht, M.; Hippler, M. The chloroplast proteome: A survey from the Chlamydomonas reinhardtii perspective with a focus on distinctive features. Curr. Genet. 2011, 57, 151–168. [Google Scholar] [CrossRef]
  62. Suzuki, K.; Miyagishima, S. Eukaryotic and eubacterial contributions to the establishment of plastid proteome estimated by large-scale phylogenetic analyses. Mol. Biol. Evol. 2010, 27, 581–590. [Google Scholar] [CrossRef]
  63. Karlsen, E.; Schulz, C.; Almaas, E. Automated generation of genome-scale metabolic draft reconstructions based on KEGG. BMC Bioinformat. 2018, 19, 467. [Google Scholar] [CrossRef]
  64. Marchetti, A.; Schruth, D.M.; Durkin, C.A.; Parker, M.S.; Kodner, R.B.; Berthiaume, C.T.; Morales, R.; Allen, A.E.; Armbrust, E.V. Comparative metatranscriptomics identifies molecular bases for the physiological responses of phytoplankton to varying iron availability. Proc. Natl. Acad. Sci. USA 2012, 109, E317–E325. [Google Scholar] [CrossRef] [PubMed]
  65. Morrissey, J.; Bowler, C. Iron utilization in marine cyanobacteria and eukaryotic algae. Front. Microbiol. 2012, 3, 43. [Google Scholar] [CrossRef] [PubMed]
  66. Peers, G.; Price, N.M. Copper-containing plastocyanin used for electron transport by an oceanic diatom. Nature 2006, 441, 341–344. [Google Scholar] [CrossRef] [PubMed]
  67. Groussman, R.D.; Parker, M.S.; Armbrust, E.V. Diversity and Evolutionary History of Iron Metabolism Genes in Diatoms. PLoS ONE 2015, 10, 25. [Google Scholar] [CrossRef] [PubMed]
  68. Lommer, M.; Roy, A.S.; Schilhabel, M.; Schreiber, S.; Rosenstiel, P.; LaRoche, J. Recent transfer of an iron-regulated gene from the plastid to the nuclear genome in an oceanic diatom adapted to chronic iron limitation. BMC Genom. 2010, 11, 718. [Google Scholar] [CrossRef] [PubMed]
  69. Burki, F.; Kaplan, M.; Tikhonenkov, D.V.; Zlatogursky, V.; Minh, B.Q.; Radaykina, L.V.; Smirnov, A.; Mylnikov, A.P.; Keeling, P.J. Untangling the early diversification of eukaryotes: A phylogenomic study of the evolutionary origins of Centrohelida, Haptophyta and Cryptista. Proc. Biol. Sci. 2016, 283, 20152802. [Google Scholar] [CrossRef] [PubMed]
  70. Boyd, P.W.; Jickells, T.; Law, C.S.; Blain, S.; Boyle, E.A.; Buesseler, K.O.; Coale, K.H.; Cullen, J.J.; de Baar, H.J.; Follows, M.; et al. Mesoscale iron enrichment experiments 1993–2005: Synthesis and future directions. Science 2007, 315, 612–617. [Google Scholar] [CrossRef] [PubMed]
  71. Gledhill, M.; Buck, K.N. The organic complexation of iron in the marine environment: A review. Front. Microbiol. 2012, 3, 69. [Google Scholar] [CrossRef]
  72. Allen, A.E.; Laroche, J.; Maheswari, U.; Lommer, M.; Schauer, N.; Lopez, P.J.; Finazzi, G.; Fernie, A.R.; Bowler, C. Whole-cell response of the pennate diatom Phaeodactylum tricornutum to iron starvation. Proc. Natl. Acad. Sci. USA 2008, 105, 10438–10443. [Google Scholar] [CrossRef]
  73. Lampe, R.H.; Mann, E.L.; Cohen, N.R.; Till, C.P.; Thamatrakoln, K.; Brzezinski, M.A.; Bruland, K.W.; Twining, B.S.; Marchetti, A. Different iron storage strategies among bloom-forming diatoms. Proc. Natl. Acad. Sci. USA 2018, 115, E12275–E12284. [Google Scholar] [CrossRef]
  74. Allen, A.E.; Dupont, C.L.; Obornik, M.; Horak, A.; Nunes-Nesi, A.; McCrow, J.P.; Zheng, H.; Johnson, D.A.; Hu, H.; Fernie, A.R.; et al. Evolution and metabolic significance of the urea cycle in photosynthetic diatoms. Nature 2011, 473, 203–207. [Google Scholar] [CrossRef] [PubMed]
  75. Broddrick, J.T.; Du, N.; Smith, S.R.; Tsuji, Y.; Jallet, D.; Ware, M.A.; Peers, G.; Matsuda, Y.; Dupont, C.L.; Mitchell, B.G.; et al. Cross-compartment metabolic coupling enables flexible photoprotective mechanisms in the diatom Phaeodactylum tricornutum. New Phytol. 2019, 222, 1364–1379. [Google Scholar] [CrossRef] [PubMed]
  76. McCarthy, J.K.; Smith, S.R.; McCrow, J.P.; Tan, M.; Zheng, H.; Beeri, K.; Roth, R.; Lichtle, C.; Goodenough, U.; Bowler, C.P.; et al. Nitrate reductase knockout uncouples nitrate transport from nitrate assimilation and drives repartitioning of carbon flux in a model pennate diatom. Plant Cell 2017, 29, 2047–2070. [Google Scholar] [CrossRef] [PubMed]
  77. Coesel, S.; Obornik, M.; Varela, J.; Falciatore, A.; Bowler, C. Evolutionary origins and functions of the carotenoid biosynthetic pathway in marine diatoms. PLoS ONE 2008, 3, e2896. [Google Scholar] [CrossRef] [PubMed]
  78. Lepetit, B.; Gelin, G.; Lepetit, M.; Sturm, S.; Vugrinec, S.; Rogato, A.; Kroth, P.G.; Falciatore, A.; Lavaud, J. The diatom Phaeodactylum tricornutum adjusts nonphotochemical fluorescence quenching capacity in response to dynamic light via fine-tuned Lhcx and xanthophyll cycle pigment synthesis. New Phytol. 2017, 214, 205–218. [Google Scholar] [CrossRef] [PubMed]
  79. Büchel, C. Evolution and function of light harvesting proteins. J. Plant Physiol. 2015, 172, 62–75. [Google Scholar] [CrossRef]
  80. Murik, O.; Tirichine, L.; Prihoda, J.; Thomas, Y.; Araújo, W.L.; Allen, A.E.; Fernie, A.R.; Bowler, C. Downregulation of mitochondrial alternative oxidase affects chloroplast function, redox status and stress response in a marine diatom. New Phytol. 2019, 221, 1303–1316. [Google Scholar] [CrossRef]
  81. Dang, K.V.; Plet, J.; Tolleter, D.; Jokel, M.; Cuiné, S.; Carrier, P.; Auroy, P.; Richaud, P.; Johnson, X.; Alric, J.; et al. Combined increases in mitochondrial cooperation and oxygen photoreduction compensate for deficiency in cyclic electron flow in Chlamydomonas reinhardtii. Plant Cell 2014, 26, 3036–3050. [Google Scholar] [CrossRef]
  82. Dłużewska, J.; Szymańska, R.; Gabruk, M.; Kós, P.; Nowicka, B.; Kruk, J. Tocopherol Cyclases—substrate specificity and phylogenetic Relations. PLoS ONE 2016, 11, 0159629. [Google Scholar] [CrossRef]
  83. Roberts, K.; Granum, E.; Leegood, R.C.; Raven, J.A. Carbon acquisition by diatoms. Photosynth. Res. 2007, 93, 79–88. [Google Scholar] [CrossRef]
  84. Holdsworth, E.S.; Colbeck, J. The pattern of carbon fixation in the marine unicellular alga Phaeodactylum tricornutum. Mar. Biol. 1976, 3, 11. [Google Scholar] [CrossRef]
  85. Reinfelder, J.R.; Kraepiel, A.M.; Morel, F.M. Unicellular C4 photosynthesis in a marine diatom. Nature 2000, 407, 996–999. [Google Scholar] [CrossRef] [PubMed]
  86. Tanaka, Y.; Nakatsuma, D.; Harada, H.; Ishida, M.; Matsuda, Y. Localization of soluble beta-carbonic anhydrase in the marine diatom Phaeodactylum tricornutum. Sorting to the chloroplast and cluster formation on the girdle lamellae. Plant Physiol. 2005, 138, 207–217. [Google Scholar] [CrossRef] [PubMed]
  87. Samukawa, M.; Shen, C.; Hopkinson, B.M.; Matsuda, Y. Localization of putative carbonic anhydrases in the marine diatom, Thalassiosira pseudonana. Photosynth Res. 2014, 121, 235–249. [Google Scholar] [CrossRef] [PubMed]
  88. Tachibana, M.; Allen, A.E.; Kikutani, S.; Endo, Y.; Bowler, C.; Matsuda, Y. Localization of putative carbonic anhydrases in two marine diatoms, Phaeodactylum tricornutum and Thalassiosira pseudonana. Photosynth Res. 2011, 109, 205–221. [Google Scholar] [CrossRef] [PubMed]
  89. Jensen, E.L.; Clement, R.; Kosta, A.; Maberly, S.C.; Gontero, B.A. A new widespread subclass of carbonic anhydrase in marine phytoplankton. ISME J. 2019, 13, 2094–2106. [Google Scholar] [CrossRef]
  90. Shtaida, N.; Khozin-Goldberg, I.; Boussiba, S. The role of pyruvate hub enzymes in supplying carbon precursors for fatty acid synthesis in photosynthetic microalgae. Photosynth. Res. 2015, 125, 407–422. [Google Scholar] [CrossRef]
  91. Bromke, M.A. Amino Acid biosynthesis pathways in diatoms. Metabolites 2013, 3, 294–311. [Google Scholar] [CrossRef]
  92. Osada, K.; Maeda, Y.; Yoshino, T.; Nojima, D.; Bowler, C.; Tanaka, T. Enhanced NADPH production in the pentose phosphate pathway accelerates lipid accumulation in the oleaginous diatom Fistulifera solaris. Algal Res. 2017, 23, 126–134. [Google Scholar] [CrossRef]
  93. Ge, F.; Huang, W.; Chen, Z.; Zhang, C.; Xiong, Q.; Bowler, C.; Yang, J.; Xu, J.; Hu, H. Methylcrotonyl-coA carboxylase regulates triacylglycerol accumulation in the model diatom Phaeodactylum tricornutum. Plant Cell 2014, 26, 1681–1697. [Google Scholar] [CrossRef]
  94. Smith, S.R.; Abbriano, R.M.; Hildebrand, M. Comparative analysis of diatom genomes reveals substantial differences in the organization of carbon partitioning pathways. Algal Res. 2012, 1, 2–16. [Google Scholar] [CrossRef]
  95. Ferriols, V.M.E.N.; Yaginuma-Suzuki, R.; Fukunaga, K.; Kadono, T.; Adachi, M.; Matsunaga, S.; Okada, S. An exception among diatoms: Unique organization of genes involved in isoprenoid biosynthesis in Rhizosolenia setigera CCMP 1694. Plant J. 2017, 92, 822–833. [Google Scholar] [CrossRef] [PubMed]
  96. Muto, M.; Fukuda, Y.; Nemoto, M.; Yoshino, T.; Matsunaga, T.; Tanaka, T. Establishment of a genetic transformation system for the marine pennate diatom Fistulifera sp. strain JPCC DA0580--a high triglyceride producer. Mar. Biotechnol. 2013, 15, 48–55. [Google Scholar] [CrossRef] [PubMed]
  97. Liu, X.J.; Hempel, F.; Stork, S.; Bolte, K.; Moog, D.; Heimerl, T.; Maier, U.G.; Zauner, S. Addressing various compartments of the diatom model organism Phaeodactylum tricornutum via sub-cellular marker proteins. Algal Res. 2016, 20, 249–257. [Google Scholar] [CrossRef]
  98. Szkopiñska, A.; Plochocka, D. Farnesyl diphosphate synthase; regulation of product specificity. Acta Biochim. Pol. 2005, 52, 45–55. [Google Scholar] [PubMed]
  99. Busquets, A.; Keim, V.; Closa, M.; Del Arco, A.; Boronat, A.; Arró, M.; Ferrer, A. Arabidopsis thaliana contains a single gene encoding squalene synthase. Plant Mol. Biol. 2008, 67, 25–36. [Google Scholar] [CrossRef] [PubMed]
  100. Metzger, P.; Largeau, C. Botryococcus braunii: A rich source for hydrocarbons and related ether lipids. Appl Microbiol. Biotechnol. 2005, 66, 486–496. [Google Scholar] [CrossRef] [PubMed]
  101. Brown, T.A.; Belt, S.T.; Tatarek, A.; Mundy, C.J. Source identification of the Arctic sea ice proxy IP25. Nat. Commun. 2014, 5, 4197. [Google Scholar] [CrossRef]
Figure 1. Diatom diversity and origins. Panel (A) shows scanning electron micrograph images of (i) Thalassiosira pseudonana (polar centric diatom, scale bar: 2 µm; [30]); (ii) Leptocylindrus hargravesii (radial centric diatom, scale bar: 5 µm); (iii) Fragilariopsis cylindrus (raphid pennate diatom, [31]); (iv) Fistulifera solaris JPCC DA0580 (raphid pennate diatom, authors’ own image). Panel (B) shows a global timeline of atmospheric CO2 (orange) and O2 concentrations (blue), adapted from [32], with key events in diatom evolution, as described in [33,34,35]. Abbreviated geological epochs are as follows: Camb., Cambrian; Ordo., Ordovician; Sil., Silurian; Dev., Devonian; Carb., Carboniferous. Green arrows show key points in diatom evolution: (A), median inferred radiation from molecular clock data of photosynthetic stramenopiles (>600 MYA); (B), median inferred date from molecular clock data for divergence of diatoms and bolidophytes (350 MYA); (C), earliest identifiable diatom fossils (250 MYA); (D), earliest identifiable pennate diatom fossils (125 MYA); (E), earliest identifiable polar centric diatom fossils (95 MYA); (F), earliest identifiable raphid pennate diatom fossils (20 MYA). Purple arrows show corresponding events in geological history that may have impacted diatom evolution and diversification: 1, subduction of Tethyan trench (150 MYA); 2, uplift of Himalayan plateau and opening of Drake passage and Southern circumpolar current (between 55 and 41 MYA). Figure 1Ai: Reproduced with permission from Eike Brunner, Patrick Richthammer, Hermann Ehrlich, Silvia Paasch, Paul Simon, Susanne Ueberlein, Karl-Heinz van Pée, Angewandte Chemie International Edition; published by John Wiley and Sons, 2009. Figure 1Aii: Reproduced with permission from Deepak Nanjappa, Wiebe H. C. F. Kooistra, Adriana Zingone, Journal of Phycology; published by John Wileyand Sons, 2013. Figure 1Aiii: Reproduced under the Creative Commons license from Thomas Mock, Robert P. Otillar, Jan Strauss, Mark McMullan, Pirita Paajanen, Jeremy Schmutz, Asaf Salamov, Remo Sanges, Andrew Toseland, Ben J. Ward, Andrew E. Allen, Christopher L. Dupont, Stephan Frickenhaus, Florian Maumus, Alaguraj Veluchamy, Taoyang Wu, Kerrie W. Barry, Angela Falciatore, Maria I. Ferrante, Antonio E. Fortunato, Gernot Glöckner, Ansgar Gruber, Rachel Hipkin, Michael G. Janech, Peter G. Kroth, Florian Leese, Erika A. Lindquist, Barbara R. Lyon, Joel Martin, Christoph Mayer, Micaela Parker, Hadi Quesneville, James A. Raymond, Christiane Uhlig, Ruben E. Valas, Klaus U. Valentin, Alexandra Z. Worden, E. Virginia Armbrust, Matthew D. Clark, Chris Bowler, Beverley R. Green, Vincent Moulton, Cock van Oosterhout, Igor V. Grigoriev, Nature; published by Springer Nature Publishing AG, 2017. Figure 1B: Reproduced with permission from Richard G. Dorrell, Alison G. Smith, Eukaryotic Cell; published by American Society for Microbiology, 2011.
Figure 1. Diatom diversity and origins. Panel (A) shows scanning electron micrograph images of (i) Thalassiosira pseudonana (polar centric diatom, scale bar: 2 µm; [30]); (ii) Leptocylindrus hargravesii (radial centric diatom, scale bar: 5 µm); (iii) Fragilariopsis cylindrus (raphid pennate diatom, [31]); (iv) Fistulifera solaris JPCC DA0580 (raphid pennate diatom, authors’ own image). Panel (B) shows a global timeline of atmospheric CO2 (orange) and O2 concentrations (blue), adapted from [32], with key events in diatom evolution, as described in [33,34,35]. Abbreviated geological epochs are as follows: Camb., Cambrian; Ordo., Ordovician; Sil., Silurian; Dev., Devonian; Carb., Carboniferous. Green arrows show key points in diatom evolution: (A), median inferred radiation from molecular clock data of photosynthetic stramenopiles (>600 MYA); (B), median inferred date from molecular clock data for divergence of diatoms and bolidophytes (350 MYA); (C), earliest identifiable diatom fossils (250 MYA); (D), earliest identifiable pennate diatom fossils (125 MYA); (E), earliest identifiable polar centric diatom fossils (95 MYA); (F), earliest identifiable raphid pennate diatom fossils (20 MYA). Purple arrows show corresponding events in geological history that may have impacted diatom evolution and diversification: 1, subduction of Tethyan trench (150 MYA); 2, uplift of Himalayan plateau and opening of Drake passage and Southern circumpolar current (between 55 and 41 MYA). Figure 1Ai: Reproduced with permission from Eike Brunner, Patrick Richthammer, Hermann Ehrlich, Silvia Paasch, Paul Simon, Susanne Ueberlein, Karl-Heinz van Pée, Angewandte Chemie International Edition; published by John Wiley and Sons, 2009. Figure 1Aii: Reproduced with permission from Deepak Nanjappa, Wiebe H. C. F. Kooistra, Adriana Zingone, Journal of Phycology; published by John Wileyand Sons, 2013. Figure 1Aiii: Reproduced under the Creative Commons license from Thomas Mock, Robert P. Otillar, Jan Strauss, Mark McMullan, Pirita Paajanen, Jeremy Schmutz, Asaf Salamov, Remo Sanges, Andrew Toseland, Ben J. Ward, Andrew E. Allen, Christopher L. Dupont, Stephan Frickenhaus, Florian Maumus, Alaguraj Veluchamy, Taoyang Wu, Kerrie W. Barry, Angela Falciatore, Maria I. Ferrante, Antonio E. Fortunato, Gernot Glöckner, Ansgar Gruber, Rachel Hipkin, Michael G. Janech, Peter G. Kroth, Florian Leese, Erika A. Lindquist, Barbara R. Lyon, Joel Martin, Christoph Mayer, Micaela Parker, Hadi Quesneville, James A. Raymond, Christiane Uhlig, Ruben E. Valas, Klaus U. Valentin, Alexandra Z. Worden, E. Virginia Armbrust, Matthew D. Clark, Chris Bowler, Beverley R. Green, Vincent Moulton, Cock van Oosterhout, Igor V. Grigoriev, Nature; published by Springer Nature Publishing AG, 2017. Figure 1B: Reproduced with permission from Richard G. Dorrell, Alison G. Smith, Eukaryotic Cell; published by American Society for Microbiology, 2011.
Biomolecules 09 00322 g001
Figure 2. Origins and structure of the diatom chloroplast. This schematic figure shows two alternative hypotheses for the origins of the diatom chloroplast [4,25,42]: (a) secondary endosymbiosis of a red alga by a common ancestor of photosynthetic stramenopiles or (b) tertiary endosymbiosis of a cryptomonad-like organism, itself harbouring a chloroplast of secondary, red algal endosymbiotic origin. Either the host or the endosymbionts may have possessed genes retained from a cryptic endosymbiont of green algal origin [25,43,44,45], although this remains debated [44,45]. Other chloroplast-targeted proteins (indicated by the presence of coloured diamonds) may have been recruited from bacterial sources, either in the host or symbiont, proteins or paralogous copies of proteins previously targeted to other host cell organelles or may even have evolved de novo at the point of endosymbiosis [25]. (c) shows a schematic diagram of the four membranes surrounding the diatom chloroplast, adapted from [4]. Abbreviations are as follows: cERM; chloroplast endoplasmic reticular membrane; ER, endoplasmic reticulum; iEM, inner envelope membrane; IMS, intermembrane space; oEM, outer envelope membrane; PPC, periplastid compartment; PPM, periplastid membrane.
Figure 2. Origins and structure of the diatom chloroplast. This schematic figure shows two alternative hypotheses for the origins of the diatom chloroplast [4,25,42]: (a) secondary endosymbiosis of a red alga by a common ancestor of photosynthetic stramenopiles or (b) tertiary endosymbiosis of a cryptomonad-like organism, itself harbouring a chloroplast of secondary, red algal endosymbiotic origin. Either the host or the endosymbionts may have possessed genes retained from a cryptic endosymbiont of green algal origin [25,43,44,45], although this remains debated [44,45]. Other chloroplast-targeted proteins (indicated by the presence of coloured diamonds) may have been recruited from bacterial sources, either in the host or symbiont, proteins or paralogous copies of proteins previously targeted to other host cell organelles or may even have evolved de novo at the point of endosymbiosis [25]. (c) shows a schematic diagram of the four membranes surrounding the diatom chloroplast, adapted from [4]. Abbreviations are as follows: cERM; chloroplast endoplasmic reticular membrane; ER, endoplasmic reticulum; iEM, inner envelope membrane; IMS, intermembrane space; oEM, outer envelope membrane; PPC, periplastid compartment; PPM, periplastid membrane.
Biomolecules 09 00322 g002
Figure 3. Innovations in metabolic complexity in the diatom chloroplast. Panel (A) shows KEGG (Kyoto Encyclopedia of Genes and Genomes) pathways that could be assigned to the chloroplasts of diatoms and their close relatives, based on the evolutionary distributions of 9531 chloroplast-targeted proteins identified by Dorrell et al. [25,58]. KEGG functions were identified using KEGG mapper [63], and key chloroplast metabolism pathways are annotated following [60]. Blue lines show metabolic pathways present in the common ancestor of diatoms, bolidophytes, pelagophytes, and dictyochophytes; red lines show pathways subsequently gained by a common ancestor of the chloroplasts of pennate and polar centric diatoms; and green lines show pathways conserved between but performed by different enzymes in each lineage. Panel (B) compares the protein sets identified in the ochrophyte common ancestor; the common ancestor of diatoms, bolidophytes, pelagophytes, and dictyochophytes; and the common ancestor of pennate and polar centric diatoms to published experimental and phylogenomic plastid protein datasets for Arabidopsis [60], the green alga Chlamydomonas [61], the red alga Cyanidioschyzon [62], and the glaucophyte Cyanophora [59]. Protein co-occurrence is detected by reciprocal BLASTp/BLASTp search best-hit between each dataset with bidirectional threshold evalue 1 × 10−5. Complete plastid proteome outputs for each species, and reciprocal BLAST best hit analysis between proteome datasets, are provided in Table S1.
Figure 3. Innovations in metabolic complexity in the diatom chloroplast. Panel (A) shows KEGG (Kyoto Encyclopedia of Genes and Genomes) pathways that could be assigned to the chloroplasts of diatoms and their close relatives, based on the evolutionary distributions of 9531 chloroplast-targeted proteins identified by Dorrell et al. [25,58]. KEGG functions were identified using KEGG mapper [63], and key chloroplast metabolism pathways are annotated following [60]. Blue lines show metabolic pathways present in the common ancestor of diatoms, bolidophytes, pelagophytes, and dictyochophytes; red lines show pathways subsequently gained by a common ancestor of the chloroplasts of pennate and polar centric diatoms; and green lines show pathways conserved between but performed by different enzymes in each lineage. Panel (B) compares the protein sets identified in the ochrophyte common ancestor; the common ancestor of diatoms, bolidophytes, pelagophytes, and dictyochophytes; and the common ancestor of pennate and polar centric diatoms to published experimental and phylogenomic plastid protein datasets for Arabidopsis [60], the green alga Chlamydomonas [61], the red alga Cyanidioschyzon [62], and the glaucophyte Cyanophora [59]. Protein co-occurrence is detected by reciprocal BLASTp/BLASTp search best-hit between each dataset with bidirectional threshold evalue 1 × 10−5. Complete plastid proteome outputs for each species, and reciprocal BLAST best hit analysis between proteome datasets, are provided in Table S1.
Biomolecules 09 00322 g003
Figure 4. Evolutionary distributions of chloroplast proteins restricted to diatoms and their close relatives. This figure shows the evolutionary distributions of chloroplast-targeted proteins involved in (A) iron metabolism, (B) ornithine metabolism, and (C) organic compound synthesis, inferred from the pipeline used in Figure 3A, across photosynthetic stramenopiles, haptophytes, and cryptomonads. Lineages are arranged into monophyletic taxonomic groups, following published phylogenies [36,69]. The inner wheel of each diagram (bounded with black lines) shows the total numbers of species within a given lineage for which chloroplast-targeted proteins were identified, and the outer wheel of each diagram shows the number of species within a given lineage for any protein homologue (including those with non-chloroplast or ambiguous targeting signals) could be identified. Exemplar GFP localisations for enzymes associated with the probable diatom chloroplast ornithine cycle are shown in Figure S1. Presence and absence distributions of each protein, listed by species, are provided in Table S1.
Figure 4. Evolutionary distributions of chloroplast proteins restricted to diatoms and their close relatives. This figure shows the evolutionary distributions of chloroplast-targeted proteins involved in (A) iron metabolism, (B) ornithine metabolism, and (C) organic compound synthesis, inferred from the pipeline used in Figure 3A, across photosynthetic stramenopiles, haptophytes, and cryptomonads. Lineages are arranged into monophyletic taxonomic groups, following published phylogenies [36,69]. The inner wheel of each diagram (bounded with black lines) shows the total numbers of species within a given lineage for which chloroplast-targeted proteins were identified, and the outer wheel of each diagram shows the number of species within a given lineage for any protein homologue (including those with non-chloroplast or ambiguous targeting signals) could be identified. Exemplar GFP localisations for enzymes associated with the probable diatom chloroplast ornithine cycle are shown in Figure S1. Presence and absence distributions of each protein, listed by species, are provided in Table S1.
Biomolecules 09 00322 g004
Figure 5. Evolution of chloroplast-targeted diatom carbonic anhydrases. Panel (A) shows the number (labels) and proportion of chloroplast-targeted sequences (bars) identified for theta and iota carbonic anhydrases in diatoms and other stramenopile, cryptomonad and haptophyte lineages, by reciprocal BLAST best hit analysis. Detailed outputs are provided for the distribution of theta, alpha, and beta carbonic anhydrases and iota carbonic anhydrases, across diatom species in Figures S2 and S3, respectively. Panel (B) shows the consensus Bayesian topology of a 204 taxa × 210 aa alignment of theta-carbonic anhydrase sequences across the tree of life. Three clades of diatom chloroplast-targeted proteins are shown with circular brackets. Sequence names are shaded by taxonomic origin and are labelled with predicted localisations (chloroplast, endomembrane system, and/or mitochondria). Alignment and tree topologies under each programme and matrix considered are shown in Table S2.
Figure 5. Evolution of chloroplast-targeted diatom carbonic anhydrases. Panel (A) shows the number (labels) and proportion of chloroplast-targeted sequences (bars) identified for theta and iota carbonic anhydrases in diatoms and other stramenopile, cryptomonad and haptophyte lineages, by reciprocal BLAST best hit analysis. Detailed outputs are provided for the distribution of theta, alpha, and beta carbonic anhydrases and iota carbonic anhydrases, across diatom species in Figures S2 and S3, respectively. Panel (B) shows the consensus Bayesian topology of a 204 taxa × 210 aa alignment of theta-carbonic anhydrase sequences across the tree of life. Three clades of diatom chloroplast-targeted proteins are shown with circular brackets. Sequence names are shaded by taxonomic origin and are labelled with predicted localisations (chloroplast, endomembrane system, and/or mitochondria). Alignment and tree topologies under each programme and matrix considered are shown in Table S2.
Biomolecules 09 00322 g005

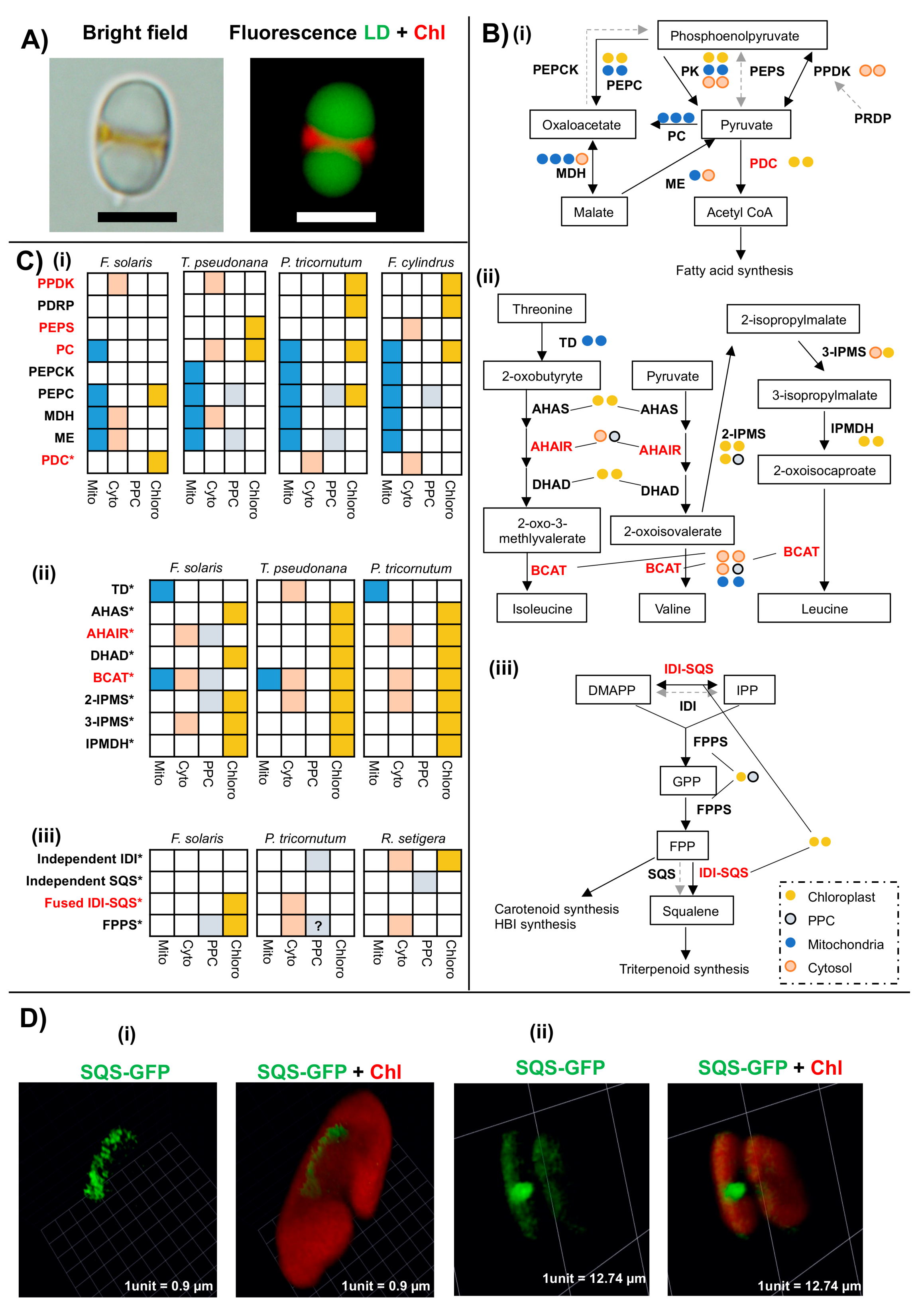

Figure 6. Innovations in the Fistulifera solaris chloroplast. Panel (A) shows a Fistulifera solaris cell visualized under bright field and fluorescence microscopy. The conspicuous lipid droplets (LD) are visualized using BODIPY (boron-dipyrromethene) 505/515 staining (in green) and chlorophyll fluorescence (Chl) is shown in red; scale bar = 5 µm. Panel (B) shows schematic pathway diagrams for (i) pyruvate hub metabolism; (ii) branched chain amino acid synthesis; and (iii) isoprenoid metabolism as inferred from the F. solaris genome [21]. Each circle equates to one distinct copy of each gene. Genes labelled in red are those for which F. solaris has different metabolic arrangements to other diatom species considered. Panel (C) shows detailed localisation predictions for homologues of key enzymes implicated in modified chloroplast metabolism in F. solaris [21], alongside equivalent data for (i) T. pseudonana, P. tricornutum, and F. cylindrus [94], (ii) T. pseudonana and P. tricornutum [91], and (iii) P. tricornutum and R. setigera [24,95]. The symbol ‘?’ depicts a sequence without a cleavable signal peptide but predicted as a transmembrane protein. Sequence IDs shown in this figure are provided in Table S3. Panel (D) shows a three-dimensional fluorescence microscope image of a line of F. solaris expressing a C-terminal GFP full length fusion construct of native squalene synthase protein, following previous methodology [21,25,96]. Cells visualised show two localisation patterns, both previously indicated to the periplastid compartment [97]—either (i) elongated localisation along the chloroplast periphery or (ii) across the mid-band of dividing chloroplasts. A diagram of the targeting sequence of this protein is provided in Figure S4.
Figure 6. Innovations in the Fistulifera solaris chloroplast. Panel (A) shows a Fistulifera solaris cell visualized under bright field and fluorescence microscopy. The conspicuous lipid droplets (LD) are visualized using BODIPY (boron-dipyrromethene) 505/515 staining (in green) and chlorophyll fluorescence (Chl) is shown in red; scale bar = 5 µm. Panel (B) shows schematic pathway diagrams for (i) pyruvate hub metabolism; (ii) branched chain amino acid synthesis; and (iii) isoprenoid metabolism as inferred from the F. solaris genome [21]. Each circle equates to one distinct copy of each gene. Genes labelled in red are those for which F. solaris has different metabolic arrangements to other diatom species considered. Panel (C) shows detailed localisation predictions for homologues of key enzymes implicated in modified chloroplast metabolism in F. solaris [21], alongside equivalent data for (i) T. pseudonana, P. tricornutum, and F. cylindrus [94], (ii) T. pseudonana and P. tricornutum [91], and (iii) P. tricornutum and R. setigera [24,95]. The symbol ‘?’ depicts a sequence without a cleavable signal peptide but predicted as a transmembrane protein. Sequence IDs shown in this figure are provided in Table S3. Panel (D) shows a three-dimensional fluorescence microscope image of a line of F. solaris expressing a C-terminal GFP full length fusion construct of native squalene synthase protein, following previous methodology [21,25,96]. Cells visualised show two localisation patterns, both previously indicated to the periplastid compartment [97]—either (i) elongated localisation along the chloroplast periphery or (ii) across the mid-band of dividing chloroplasts. A diagram of the targeting sequence of this protein is provided in Figure S4.
Biomolecules 09 00322 g006
Back to TopTop
