Article

The Structural Versatility of the BTB Domains of KCTD Proteins and Their Recognition of the GABAB Receptor

1
Institute of Biostructures and Bioimaging, CNR, Via Mezzocannone 16, 80134 Napoli, Italy
2
IRCCS SDN, Via Gianturco 113, 80143 Napoli, Italy
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomolecules 2019, 9(8), 323; https://doi.org/10.3390/biom9080323
Received: 21 June 2019 / Revised: 29 July 2019 / Accepted: 30 July 2019 / Published: 31 July 2019

Abstract

:
Several recent investigations have demonstrated that members of the KCTD (Potassium Channel Tetramerization Domain) protein family are involved in fundamental processes. However, the paucity of structural data available on these proteins has frequently prevented the definition of their biochemical role(s). Fortunately, this scenario is rapidly changing as, in very recent years, several crystallographic structures have been reported. Although these investigations have provided very important insights into the function of KCTDs, they have also raised some puzzling issues. One is related to the observation that the BTB (broad-complex, tramtrack, and bric-à-brac) domain of these proteins presents a remarkable structural versatility, being able to adopt a variety of oligomeric states. To gain insights into this intriguing aspect, we performed extensive molecular dynamics simulations on several BTB domains of KCTD proteins in different oligomeric states (monomers, dimers, tetramers, and open/close pentamers). These studies indicate that KCTD-BTB domains are stable in the simulation timescales, even in their monomeric forms. Moreover, simulations also show that the dynamic behavior of open pentameric states is strictly related to their functional roles and that different KCTDs may form stable hetero-oligomers. Molecular dynamics (MD) simulations also provided a dynamic view of the complex formed by KCTD16 and the GABAB2 receptor, whose structure has been recently reported. Finally, simulations carried out on the isolated fragment of the GABAB2 receptor that binds KCTD16 indicate that it is able to assume the local conformation required for the binding to KCTD.

1. Introduction

Studies carried out in the last decade have demonstrated that members of the KCTD family, proteins containing a Potassium (K) Channel Tetramerization Domain, are involved in fundamental physiopathological processes [1,2,3,4,5]. Although initial investigations have highlighted the involvement of these proteins in brain diseases, more recent studies have indicated that they play roles in many other biological processes. In particular, KCTD11 is involved in the etiology of medulloblastoma [6], KCTD7 in epilepsy [7], KCTD2/KCTD5/INC in sleep homeostasis [8,9,10], KCTD8/12/16 in GABAB receptor (GABABR) modulation [11], while KCTD13 is believed to play an important role in autism [12,13]. Nevertheless, these proteins also play key roles in other processes that include obesity [14], breast carcinoma [15], and SEN syndrome [16,17].
Although the involvement of KCTD proteins in these key processes is well documented, their biochemical function is frequently unknown. From the molecular point of view, KCTDs are multi-domain proteins characterized by the presence of a BTB (broad-complex, tramtrack, and bric-à-brac) domain in the N-terminal region of their sequences [2]. In KCTD proteins the BTB domain presents the canonical structural organization characterized by a single three/four-stranded β-sheet surrounded by five α-helices (Figure 1A,B) [18]. The rest of the sequence of KCTD proteins may be totally unrelated among different members of the family [2]. In general terms, these proteins may be sub-divided in two major groups. The first one includes the members of the family that are able to bind Cullin3 and that likely function as adaptors in Cullin-RING ubiquitin ligases for substrate ubiquitination and degradation [2,3,19,20,21]. In other members, the incapacity to bind Cullin3 is coupled with the ability to bind AP-2α (KCTD1/KCTD15) [22] or GABABR (KCTD8/KCTD12/KCTD16).
Structural data available on these proteins have been rather poor for many years. Indeed, the data were limited to the KCTD5 member whose pentameric structure was determined a decade ago [23]. Very recently, other structural information derived through the application of different approaches became available [19,21,24,25,26,27,28]. These studies have provided some interesting clues on the structure and partnerships of these proteins. Nevertheless, they also opened some puzzling questions. Of particular interest is the observation that BTB domains of these proteins may appear in a variety of oligomeric states (Figure S1). In contrast to the tetrameric states (C4 symmetry) observed in the closest homologs [21,24,27], the BTB domains of KCTD proteins are able to adopt monomeric, tetrameric (222 symmetry), and open/close pentameric states. The functional relevance of these states is debated as some of them could be artefactual. In this scenario, we present here extensive molecular dynamics (MD) simulations on the various oligomeric states of KCTD-BTB domains (Figure S1). Present findings provide interesting insights into the basis of the structural versatility shown by these domains. Moreover, simulations carried out on the BTB domain of KCTD16 (KCTD16BTB) and on the C-terminal region of the GABAB2 receptor (GABAB2R) have provided clues on the molecular mechanism that regulates the recognition between these two biological partners.

2. Results

The extensive analyses of the dynamic/structural properties of the BTB domains of the KCTD proteins here reported were undertaken by considering different oligomeric states of these domains (Figure S1). MD simulations were performed on systems with a progressive structural complexity, starting from monomers to end up with pentamers (Figure 1C). The convergence of the trajectories was assessed by computing the root mean square inner product (RMSIP) (Table 1) and the autocorrelation function of the energy (see Materials and Methods for details).

2.1. Analysis of the Structure and Stability of the KCTD-BTB Domains in Their Monomeric Forms

2.1.1. The BTB Domain of SHKBP1

The recently reported crystal structure of the BTB domain of SHKBP1 (SHKBP1BTB) surprisingly showed that this domain is monomeric in the crystal state [21] despite its established role in protein oligomerization. Although this finding could be biased by the removal of the C-terminal region of the protein, we here evaluated the stability of the SHKBP1BTB monomer in a crystal-free environment.
A collective analysis of the indicators commonly used to evaluate the stability of the system along the trajectory indicates that SHKBP1BTB is stable as monomer in the simulation timescale (Figure 2A,B). Indeed, secondary structure elements are rather well preserved (Figure 2B). During the simulation, the formation of a transient extra β-strand within the sheet is observed in the α2-β3 region. Notably, a similar four-stranded β-sheet is present in the crystallographic structure of the BTB domain of KCTD1 (KCTD1BTB) (PDB ID: 5BXB) [27]. This indicates that the size of the β-sheet of these proteins is somehow variable. The inspection of the RMSD values indicates that the system undergoes significant structural rearrangements at the very early stage of the simulation (Figure 2A). As commonly observed in MD studies, this rapid increase of the RMSD values of the trajectory structures compared to the crystallographic model can be attributed to the relaxation of the system that is transferred from the crystal state to a solution-like environment. However, the RMSDs reach rather constant values (~3–4 Å) within the first ~20 ns of the simulation. It is worth mentioning that the sudden increase of the overall RMSD values observed at ~160 ns is due to the local reorganization of the last six residues at the C-terminus. This is not surprising since this region of the protein does not make contacts with the rest of the protein body (Figure 2C). In line with this observation, a shortening of the fifth helix emerges from the analysis of the secondary structure (Figure 2B). We also evaluated the dynamics of this domain by monitoring the RMSF values calculated on the Cα atoms in the 50–200 ns trajectory region. As shown in Figure 2D, most of the protein regions display rather limited motions (RMSF values of 1–1.5 Å) despite the monomeric state. Flexible regions correspond to loops and to the very end C-terminal residues (RMSF values > 6 Å) that do not make contact with the main body of the protein.

2.1.2. The BTB Domain of KCTD1, KCTD5, KCTD9, KCTD10, KCTD13, KCTD16, and KCTD17

The results obtained for SHKBP1BTB monomer prompted us to perform similar analyses on the other KCTD-BTB domains whose structures were reported in higher oligomeric states. In particular, we extracted monomers from tetramers (KCTD10 and KCTD13) and close (KCTD1, KCTD5, KCTD9, and KCTD17) or open (KCTD16) pentameric states. An overview of the structures obtained in the MD trajectories indicates that all of these monomers are rather stable in the simulation timescale (200 ns) (Figure 3 and Figure S2). In Figure 3, we show as representative examples the RMSD values calculated against the starting crystallographic models, the secondary structure and the RMSF values obtained for the BTB domains of KCTD5 (KCTD5BTB) and KCTD13 (KCTD13BTB) monomers that were derived from pentameric or tetrameric assemblies, respectively. Similar results have been obtained for the other monomers as reported in Figure S2 of the Supplementary Material. In all cases, an equilibrated state is reached within ~50 ns. Moreover, highly flexible regions are confined to loops and to the end of the polypeptide chain as observed for SHKBP1BTB. Collectively, these findings indicate that the BTB domains may share a common property related to the stability of their monomeric species, so far crystallographically observed only for SHKBP1BTB.

2.2. Analysis of the Structure and Stability of the KCTD-BTB Domains in Tetrameric and Dimeric States

In the next step of our characterization of the dynamic/structural properties of these domains we focused our attention on the tetramers that are formed by the BTB domains of KCTD10 (KCTD10BTB) and KCTD13 (KCTD13BTB) [21]. Moreover, since these assemblies are made by the association of dimers (the tetramer is a dimer of dimers) that present interfaces also observed in pentameric forms, we also checked the stability of this basic building block.
The inspection of the RMSD values computed against the starting crystallographic model (~1.5 Å for t > 10 ns) highlighted a remarkable rigidity of this assembly that is also confirmed by the preservation of all secondary structure elements (Figure 4). In line with this observation, very low RMSF values are observed (<1.5 Å) with the exception of the α2-β3 loop region and the C-terminal end (RMSF values in the interval 2–4 Å). The same behavior is also exhibited by the closely related KCTD10BTB tetramer (Figure S3). Finally, the MD simulation performed on the dimeric building block that constitutes the asymmetric tetramer confirmed the high stability and rigidity of this basic architecture (Figure S4).
Although the biological role of the tetrameric assembly is undermined by the observation that both KCTD10BTB and KCTD13BTB switch toward the formation of pentameric state in the presence of their biological partner (Cullin 3) [21], these findings highlight the versatility of these domains to oligomerize in different architectures.

2.3. Analysis of the Structure and Stability of the KCTD-BTB Domains in Pentameric States

2.3.1. Close States (KCTD1BTB, KCTD17BTB, and KCTD9BTB)

MD simulations carried out on the close pentameric states exhibited by KCTD1BTB, KCTD9BTB, and KCTD17BTB indicate that these assemblies are very stable in the simulation timescale in line with the results we previously reported for the pentameric state of KCTD5BTB [19,25,29] (Figures S5–S7). A comparative analysis of the RMSF values of the same chains in the monomeric and pentameric states did not highlight significant differences. This finding corroborates the observation that BTB domains of KCTD proteins are also rather rigid in the monomeric state.

2.3.2. Open States (KCTD1BTB and KCTD16BTB)

The crystallographic characterization of some BTB domains (KCTD1BTB and KCTD16BTB) has led to the discovery of peculiar forms in which open pentamers are observed [21,27]. We also confirmed the occurrence of these unexpected states by negative stain electron microscopy [24]. Although the biological significance of these states is yet to be assessed, we here evaluated their dynamic properties. For both KCTD1BTB and KCTD16BTB, no major structural reorganization was observed (Figure S8). Secondary structure elements are rather well-preserved in the simulation timescale for both proteins. On the other hand, KCTD16BTB is endowed with higher average RMSF values (~1.5 Å) than those (<1 Å) observed for KCTD1BTB (Figure S9A). A deeper inspection of Figure S9C indicates that this is due to the higher fluctuations (RMSF values in the range 1.5–4 Å) exhibited by residues belonging to the external chains that delimitate the gap compared with those of the internal domains (RMSF values < 1 Å). It is worth noting that this distinct behavior of the different (internal/external) chains is essentially limited to the loop regions in the simulation of the open KCTD1BTB (Figure S9B).
A further inspection of the gap present within the open pentamers highlights other significant differences. A comparative analysis of the RMSD values computed against the starting models shows that both KCTD1BTB and KCTD16BTB systems undergo an initial structural transition in the first 40–50 ns of simulations (Figure 5A). Interestingly, larger RMSD values are observed for KCTD1BTB compared to KCTD16BTB. On the other hand, KCTD16BTB reaches a sort of equilibrated region characterized by much larger fluctuations of the RMSDs although the average value (~2.5 Å) is essentially preserved. This is not surprising as some variations of the open pentamer of this BTB domain have also been highlighted through comparison of the crystallographic structures detected starting from different crystal forms ([26,28], in particular Figure S1 of [28]).
Altogether, present results indicate that KCTD1BTB undergoes a larger structural transition compared to KCTD16BTB that leads to the formation of more rigid states. To get deeper insights into the reorganizations of these systems, we performed additional analyses of the evolution of the gap that characterizes the open states. As shown in Figure 5B, in KCTD1BTB, the two domains that delimitate the gap get quite close to generate a sort of closed state. Indeed, the distance between the centers of mass of these two domains stabilizes at ~32 Å from 39 Å of the starting model. Although this state is not coincident with the crystallographic one, the external domains make several contacts that stabilize it. In contrast to KCTD1BTB, in KCTD16BTB a dynamic open state is preserved throughout the simulation as shown by the superimposition of the average protein structures computed in the equilibrated region (50–200 ns) of trajectories (Figure 5C). Furthermore, the number of atoms of the two domains that are within 6.0 Å is significantly higher (up to 13) in KCTD1BTB compared to KCTD16BTB (up to 4) (Figure 5D,E). Altogether, these findings indicate that KCTD1BTB and KCTD16BTB have a different propensity to preserve the open state in the MD simulation. To better characterize this different propensity, we evaluated analogies and differences in the interactions that stabilize the domain–domain interfaces in the different systems. We focused our attention into the interface formed by the central domain i.e., the farthest chain from the gap. As shown in Figure S10, these interfaces contain a significant larger number of hydrogen bonds in KCTD16BTB compared to KCTD1BTB (on average 17 versus 11). It is likely that the strongest interactions present in KCTD16BTB prevent its evolution toward a close state, thus, preserving its functional open state (see below).

2.3.3. Mixed Open Pentamer Formed by KCTD12BTB and KCTD16BTB

One intriguing feature of KCTD proteins is that some specific members of the family are able to mix in the same oligomeric assembly. Among others, of particular interest is the functional role exhibited by the hetero-oligomer formed by KCTD12 and KCTD16 [30]. Since this ability of KCTDs has never been explored at atomic level, we here generated a mixed pentameric assembly formed by the BTB domains of KCTD12 and KCTD16 (KCTD12-16BTB) (see Methods for details). This model was used as a starting structure for an MD simulation run. The analysis of the resulting trajectory indicates that, despite the sequence heterogeneity of its constitutive polypeptide chains, this assembly is rather stable in the simulation timescale as it preserves the secondary structure content of all chains (Figure S11A). Interestingly, the mixed oligomer retains its open pentameric structure thus reproducing the behavior shown by the KCTD16BTB pentamer (Figure 6A). Indeed, although the terminal domains of this assembly come closer than those of KCTD16BTB (Figure 6B), they do exhibit a significant mobility as indicated by the fluctuations of the RMSD values (Figure S11B). Moreover, the RMSF values of residues of the external domains (chains A and E) are significantly higher (>1.5 Å) than those exhibited by those belonging to the central chains (<1 Å) as previously observed for KCTD16BTB (Figures S9C and S11C). Also, the number of atoms of the two external domains that come within 6.0 Å is rather limited and is clearly lower (6 versus 13) than those found in KCTD1BTB that, as previously shown, evolves toward a close state in the simulation (Figure 6C and Figure 5D).

2.4. Mechanism of GABAB2R Recognition by KCTD16

While this work was in progress, two independent structures of the complex formed by the BTB domain of KCTD16 with C-terminal peptide(s) of GABAB2 receptor were reported [26,28]. Although the complexes described in these papers share important structural analogies, the interactions between the protein and the peptides are not completely coincident (Figure S12). This is likely due to the different length of the GABAB2R peptide used in the two studies (residues 881-913 or 895-909). In order to get further insights into the recognition process of these proteins, we performed MD simulations on this system. In particular, to achieve a dynamic view of the interaction between KCTD16BTB and the GABAB2R peptide (residues 881-913), we performed an MD simulation on the complex. Moreover, since we have experimentally shown that the C-terminal region of the peptide adopts a limited but significant level of secondary structure [31], we also carried out an MD run on the isolated peptide to get information on its intrinsic structural properties.
The simulation performed on the complex unravels the tight binding of the two partners as no detachment is observed in the trajectory structures. As indicated by the time evolution of the RMSD values computed against the starting model, the system reaches a stable state (RMSDs ~2.5 Å) after ~40 ns (Figure S13A). Secondary structure elements of both KCTD16BTB and GABAB2R peptide are essentially retained in the simulation timescale (Figure S13B,C). Interestingly, in contrast to what we observe for the isolated KCTD16BTB pentamer (Figure S9C), no significant differences can be observed in the RMSF values of residues belonging to the external chains compared to those of the internal ones (Figure S13D). Evidently the formation of the complex makes the terminal domains of KCTD16BTB open pentamer more rigid. A global analysis of the protein–peptide interactions suggests a dynamic behavior of the KCTD16BTB-GABAB2R recognition process. Several H-bonding interactions detected in the starting crystallographic model are conserved in trajectory structures (Tyr36Oη-Gly908O, Gly33O-L894N, Gln34Oε1-Leu896N, Lys67O-Arg891Nη1) (Figure 7) whereas others are either sporadic or lost (Val35N-Val910O, Glu28Oε2-Ser913O, Glu102Oε2-Tyr903Oη, Ser69N-Arg891O, Ser69Oγ-Gln889Oε1, Asp91Oδ1-Glu886Oε12, and Asp91Oδ2-Arg890Nη1) (Figure S14). Interestingly, we also found interactions that were not present in the starting crystallographic structure but that were present in the structure of the complex between KCTD16BTB and the GABAB2R peptide encompassing residues 895-909 (Gln34Oε1-His901Nε2, Gly33O-Gln895N, and Gln34Oε1-Gln895N) (Figure 7).
The simulation carried out on the isolated peptide was started using a fully extended conformation (see Methods for details) (Figure 8A). As shown by the analysis of the gyration radius (Rg), a collapse (from ~29 to ~10 Å) of the model occurs after ~80 ns of the simulation (Figure 8B); this is coupled with strong deviations of the trajectory structures from the starting fully extended conformation (Figure S15A). Interestingly, some small secondary structure elements (310 helices) start to appear after 100 ns (Figure 8C). Interestingly, these correspond to the helical regions of the peptide observed in the complex (residues 885-890 and 899-903, Figure 8A). As shown in Figure 8D, the local conformation of the peptide in the regions 885-890 and 899-903 observed in some trajectory structures is nearly coincident with that detected in the crystallographic structure of the complex. It is also worth mentioning that, in line with our previous experimental data [31], the fraction of structures in which these helical states are observed is rather limited (~14%) (see also Figure 8C). Nevertheless, as shown in Figure S15B,C almost all of trajectory structures of these regions present very low RMSD values compared to the crystallographic structure (<1.0 Å). These observations indicate that the peptide is intrinsically able to adopt the conformation required to bind KCTD16BTB.

3. Discussion

BTB domains, also denoted as POZ domains, are widespread structural modules that are present in a variety of multidomain proteins [18,32,33]. They are typically considered as domains specifically devoted to homo-oligomerization and more rarely involved in hetero-oligomerization. Their ability to self-associate to allow homo-oligomerization of multidomain proteins is observed in voltage-gated potassium channels. These proteins possess a cytoplasmic BTB domain (T1) that favors the functionally important tetramerization of the membrane channels [34]. Although BTB domains of KCTD proteins share significant sequence and structural similarities with the T1 domains [2], their role in homo-oligomerizaton appears to be less stringent. Indeed, recent independent studies have highlighted unsuspected oligomeric associations of these domains [21,24,27]. These peculiar findings may be, at least in part, due to the fact that these characterizations have been conducted on isolated KCTD-BTB domains. Nevertheless, we believe that is of interest that domains that are considered to be the driving factors for homo-oligomerization easily dissociate generating a variety of different states (monomers, tetramers, and open/close pentamers). In this framework, we here report extensive MD analyses of KCTD BTB domains in different oligomeric architectures.
The characterization of a variety of KCTD-BTB domains in their monomeric state indicates that they are quite stable in the simulation timescale. Interestingly, individual residues of these monomers present fluctuations similar to those detected in higher oligomeric states. In general, the larger flexibility of the main body of this domain was detected for the α2-β3 linker. Since this loop is, in some KCTDs, implicated in Cullin3 binding [19], the observed mobility may have a functional role.
The stability of the individual monomers of KCTD BTB domains is in line with their versatility in adopting different architectures. In this scenario, it is not surprising that larger and likely non-functional states such as dimers and tetramers with a 222 symmetry are also stable. These findings also suggest that other oligomeric assemblies, not yet reported, formed by these proteins are in principle possible. In line with our previous characterization of the pentameric state of KCTD5 protein [19,25], the compact BTB pentamers of KCTD1, KCTD9, and KCTD17 are also stable in the simulation timescale. These findings well agree with the idea that close pentameric assemblies are the functional states of the sub-class of KCTD proteins that bind Cullin3 [20,21].
The characterization of KCTD1 and KCTD16 open pentameric states highlights that these assemblies are endowed with different dynamic/structural properties. Indeed, in the simulation timescale, the KCTD1BTB open pentamer evolves toward a rather closed and rigid state whereas KCTD16BTB presents a highly dynamic behavior and essentially retains its open structure. Interestingly, while this work was in progress, two independent investigations have shown that the open pentamer is the functional form of KCTD16BTB as it anchors the C-terminal region of the GABAB2 receptor, a key partner of KCTD16, using the gap between the external domains present in this assembly [26,28]. By showing that this gap is preserved in KCTD16BTB trajectory structures, present MD results indicate that the highly dynamic BTB domain of this protein retains the open binding-prone functional state that was experimentally observed in the complex with the GABAB2R peptide.
A very interesting result reported in recent literature is the observation that mixed KCTD12/KCTD16 assemblies are functional [30]. We here analyzed the structural and the dynamic behavior of a mixed KCTD12BTB/KCTD16BTB pentamer. The results of the MD simulation indicate that it behaves as the KCTD16BTB homopentamer with an open structure that allows the binding of the receptor. The ability of KCTD12/KCTD16 to form mixed species is not unique in this protein family [14,30,35]. KCTD proteins may use this property as a mechanism to modulate their activity. The observed structural versatility of the BTB domains, which seem to be stable also in their monomeric forms, may be important to achieve this goal as the formation of mixed species will likely proceed through intermediates with non-canonical oligomeric structures.
The determination of the structure of the complex between KCTD16BTB and the GABAB2 receptor gave us the possibility to extend our MD analyses to these systems. The dynamic view of the assembly shows that this complex is stabilized by interactions that were alternatively present in one of the two crystallographic structures [26,28]. More interestingly, we evaluated the intrinsic structural properties of the C-terminal region of the GABAB2 receptor to estimate whether the isolated peptide was able to adopt the conformations experimentally observed in the complex.
Notably, the present analysis of the intrinsic conformational properties of the isolated peptide clearly indicates that two of its regions present a limited, but significant, propensity to adopt the helical structure that is the motif it assumes in the complex with KCTD16BTB [26,28]. This indicates that the ensemble of structural states of the GABAB2R peptide contains conformations that are intrinsically structured to bind KCTD16BTB. Notably, present MD data indicate that, as found in other peptide-protein interactions [36,37], both partners of the KCTD16BTB-GABAB2R complex are endowed with an intrinsic propensity to adopt conformations experimentally detected in this hetero-assembly.
Collectively, our findings here highlight the role that structural versatility of BTB domains plays in the architecture and functionality of this common module present in all members of the emerging class of KCTD proteins.

4. Material and Methods

4.1. Notations and System

As revealed by the crystallographic structures of KCTD proteins so far reported, the BTB domain of these proteins may adopt a remarkable variety of oligomerization states, including monomer (SHKBP1), two-fold rotationally symmetric tetramers (KCTD10, and KCTD13), close pentamers (KCTD5, KCTD9 and KCTD17), and open pentamers (KCTD1 and KCTD16) (Figure S1). For these proteins, MD simulations were carried out considering both the monomeric state of the domain and the oligomeric architecture experimentally observed. The crystal structure of the monomeric BTB of SHKBP1 (SHKBP1BTB, PDB ID: 4CRH) has been considered [21]. For the other KCTDs, the structure of a single BTB chain was used as starting model in the simulations performed on protein monomers. In detail, monomeric models have been generated from the following PDB codes: 5BXB for KCTD1 [27], 3DRZ for KCTD5 [23], 5BXH for KCTD9 [27], 5FTA for KCTD10 [21], 4UIJ for KCTD13 [21], 5A15 for KCTD16 [21], and 5A6R for KCTD17 [21]. Additional MD simulations were performed on KCTD oligomers using the experimental crystallographic structures as starting models: KCTD10BTB tetramer (PDB ID: 5FTA), KCTD13BTB tetramer (PDB ID: 4UIJ), KCTD1BTB close pentamer (PDB ID: 5BXB), KCTD17BTB close pentamer (PDB ID: 5A6R), KCTD9BTB close pentamer (PDB ID: 5BXH), KCTD1BTB open pentamer (PDB ID: 5BXD), and KCTD16BTB open pentamer (PDB ID: 5A15). A simulation run was also carried out considering the dimeric building block of KCTD13BTB tetramer (PDB ID: 4UIJ) as model. Moreover, a mixed open pentamer (KCTD12-16BTB) composed of three chains of KCTD16BTB (chains A, C, and E) and two of KCTD12BTB (chains B and D) built using the open KCTD16BTB pentamer (PDB ID: 5A15) as template was used as starting model in a novel simulation. For open pentamers, the two BTB chains (A and E) that delimitate the gap have been denoted as external chains whereas the others (chains B, C, and D) have been denoted as internal chains.
Two crystallographic structures of the BTB domain of KCTD16 in complex with the peptide corresponding to the C-terminal domain of the human GABAB2 receptor have been recently reported (Figure S12) [26,28]. The structure containing the GABAB2R peptide encompassing residues 881-913 has been used as starting model in the MD simulation (PDB ID: 6M8R). A fully extended structure (φ = −120°, ψ = 130°, ω = 180°) of the GABAB2R peptide encompassing the same portion was modeled and used as starting structure in a novel MD simulation.

4.2. MD Protocol

Molecular Dynamics (MD) simulations were performed on KCTD proteins using the GROMACS software package with Amber99sb as force field [38]. The models were immersed in triclinic boxes filled with water molecules (TIP3P water model) and counterions (Na+ or Cl) to balance charges. Timescales and several parameters of the simulations (timescale, box dimensions, number of water molecules) are reported in Table 1. The simulations were carried out applying periodic boundary conditions. Systems were first energy minimized for 50,000 steps using steepest descent. Equilibration of each system was first conducted for 500 ps at 300 K temperature (NVT ensemble) and then for 500 ps at 1 atm pressure (NPT ensemble). The Parrinello–Rahman and the Velocity Rescaling methods were used for pressure and temperature control, respectively. The Particle Mesh Ewald (PME) with a grid spacing of 1.6 Å was used to compute the electrostatic interactions [39]. For Lennard–Jones interactions, a cut-off of 10 Å was applied. Bond lengths were constrained using the LINCS algorithm [40]. An integration time step of 2 fs was used. Analysis of MD trajectories was performed by using GROMACS routines and the VMD program [41]. The root mean square inner product (RMSIP) parameter [42], computed between the two halves of the reduced trajectories (starting from 50 ns to the end) considering the protein motions of the Cα atoms along the first 10 eigenvectors, was used to check the achievement of an adequate convergence by MD simulations [43,44]. As indicated by the RMSIP values reported in Table 1, all simulations reach a satisfactory level of convergence. A rapid drop of the autocorrelation function of the potential energy as function of time is also observed for all simulations (Figure S16).

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/9/8/323/s1. Figure S1. Cartoon representation of the BTB domains of KCTD proteins used as starting models in the MD simulations of monomers, tetramers, dimer, close and open pentamers. PDB codes are reported in bracket. Figure S2. Structure stability of KCTD1BTB (A), KCTD9BTB (B), KCTD10BTB (C), KCTD16BTB (D), and KCTD17BTB (E) monomers throughout the simulations: Cα-based RMSD values of trajectory structures computed against the starting model, time evolution of the secondary structure content, Cα- based RMSF values computed in the equilibrated region of the trajectories (50–200 ns). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S3. Structure stability of KCTD10BTB tetramer throughout the MD simulation: Cα-based RMSD values of trajectory structures computed against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50–150 ns region of the trajectory (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S4. Structure stability throughout the MD simulation of the dimeric building block that constitutes the asymmetric KCTD13BTB tetramer: Cα-based RMSD values of trajectory structures computed against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50-150 ns region of the trajectory (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S5. Structure stability of KCTD1BTB closed pentamer throughout the MD simulation: Cα-based RMSD values of trajectory structures computed against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50-150 ns region of the trajectory (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S6. Structure stability of KCTD9BTB closed pentamer throughout the MD simulation: Cα-based RMSD values of trajectory structures computed against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50–150 ns region of the trajectory (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S7. Structure stability of KCTD17BTB closed pentamer throughout the MD simulation: Cα-based RMSD values of trajectory structures computed against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50–150 ns region of the trajectory (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S8. Time evolution of the secondary structure content of KCTD1BTB (A) and KCTD16BTB (B) open pentamers throughout the MD simulations. Figure S9. Cα-based RMSFs of KCTD1BTB and KCTD16BTB open pentamers (A). RMSF values have been computed in the 50–200 ns region of the trajectories by averaging the values detected for each chain. The individual values per chain are reported in panels B (KCTD1BTB) and C (KCTD16BTB). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S10. Time evolution of the number of H-bonds formed by the central domain of the pentamer with the adjacent ones: interface between chains B–C (A) and C–D (B) throughout the MD simulations of KCTD1BTB (black) and KCTD16BTB (red) open pentamers. Figure S11. Structure stability of the KCTD12-16BTB open pentamer throughout the MD simulation: time evolution of the secondary structure content (A), Cα-based RMSD values of trajectory structures against the starting model (B), Cα-based RMSF values computed in the equilibrated region of the trajectory (50–150 ns) for KCTD16BTB chains (C) and for KCTD12BTB chains (D). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S12. Structural superimposition of the two crystallographic structures of KCTD16BTB domain in complex with the peptide corresponding to the C-terminal domain of the human GABAB2 receptor. The structure containing the GABAB2R peptide encompassing residues 895-909 is in cyan (PDB ID: 6OCP) [28] whereas the structure containing a longer portion of the peptide (residues 881-913) is in red (PDB ID: 6M8R) [26]. Figure S13. Structure stability of the complex formed by KCTD16BTB and GABAB2R peptide (residues 881-913) throughout the MD simulation: Cα-based RMSD values of trajectory structures against the starting model (B), time evolution of the secondary structure content of GABAB2R peptide (B) and KCTD16BTB pentamer (C), Cα-based RMSF values computed in the 50–150 ns region of the trajectory for the individual KCTD16BTB chains (D). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red). Figure S14. Cartoon representation of the crystal structure of the complex between KCTD16BTB and GABAB2 peptide (PDB ID: 6M8R) used as starting model in the MD simulation. Time evolution of the distances between pairs of atoms involved in the formation of H-bonding interactions in the complex. These H-bonds (Val35N-Val910O, Glu28Oε2-Ser913O, Glu102Oε2-Tyr903Oη, Ser69N-Arg891O, Ser69Oγ-Gln889Oε1, Asp91Oδ1-Glu886Oε12, and Asp91Oδ2-Arg890Nη1) that are present in the starting crystallographic model are either sporadic or lost in the simulation. Plots are colored to identify the chains of KCTD16BTB that interact with the peptide (in grey). Figure S15. Cα-based RMSD values of trajectory structures computed against the starting fully extended model of GABAB2R peptide (residues 881-913) (black) and against the crystallographic model extracted from the complex with KCTD16BTB (PDB ID: 6M8R, grey) (A). Cα-based RMSD values computed against the crystallographic GABAB2R peptide structure by considering the helical residues 885-890/885-888 (B) or 899-903/900-903 (C). Figure S16. Autocorrelation function of potential energy (ACF) computed for all MD simulations performed in this study.

Author Contributions

Conceptualization, N.B. and L.V.; Methodology, N.B. and G.S.; Validation, N.B., G.S. and L.V.; Formal Analysis, N.B. and G.S.; Investigation, N.B. and G.S.; Data Curation, N.B. and G.S.; Writing—Original Draft Preparation, L.V.; Writing—Review & Editing, N.B. and G.S.; Supervision, N.B and L.V.; Project Administration, N.B. and L.V.; Funding Acquisition, N.B. and G.S.

Funding

This work was supported by “Progetti di Ricerca Corrente” founded by the Italian Ministry of Health.

Acknowledgments

The authors thank Luca De Luca and Maurizio Amendola for technical support. CINECA Supercomputing (framework [email protected]—project codes HP10CN9BBI KCTDOLI and HP10C0V052 GABABR) is acknowledged for computational support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Z.; Xiang, Y.; Sun, G. The KCTD family of proteins: Structure, function, disease relevance. Cell Biosci. 2013, 3, 45. [Google Scholar] [CrossRef]
  2. Skoblov, M.; Marakhonov, A.; Marakasova, E.; Guskova, A.; Chandhoke, V.; Birerdinc, A.; Baranova, A. Protein partners of KCTD proteins provide insights about their functional roles in cell differentiation and vertebrate development. BioEssays 2013, 35, 586–596. [Google Scholar] [CrossRef] [PubMed]
  3. Chen, Y.; Yang, Z.; Meng, M.; Zhao, Y.; Dong, N.; Yan, H.; Liu, L.; Ding, M.; Peng, H.B.; Shao, F. Cullin Mediates Degradation of RhoA through Evolutionarily Conserved BTB Adaptors to Control Actin Cytoskeleton Structure and Cell Movement. Mol. Cell 2009, 35, 841–855. [Google Scholar] [CrossRef] [PubMed]
  4. Teng, X.; Aouacheria, A.; Lionnard, L.; Metz, K.A.; Soane, L.; Kamiya, A.; Hardwick, J.M. KCTD: A new gene family involved in neurodevelopmental and neuropsychiatric disorders. CNS Neurosci. Ther. 2019, 25, 887–902. [Google Scholar] [CrossRef] [PubMed]
  5. Brockmann, M.; Blomen, V.A.; Nieuwenhuis, J.; Stickel, E.; Raaben, M.; Bleijerveld, O.B.; Altelaar, A.F.M.; Jae, L.T.; Brummelkamp, T.R. Genetic wiring maps of single-cell protein states reveal an off-switch for GPCR signalling. Nature 2017, 546, 307–311. [Google Scholar] [CrossRef] [PubMed]
  6. Canettieri, G.; Di Marcotullio, L.; Greco, A.; Coni, S.; Antonucci, L.; Infante, P.; Pietrosanti, L.; De Smaele, E.; Ferretti, E.; Miele, E.; et al. Histone deacetylase and Cullin3–RENKCTD11 ubiquitin ligase interplay regulates Hedgehog signalling through Gli acetylation. Nature 2010, 12, 132–142. [Google Scholar] [CrossRef] [PubMed]
  7. Van Bogaert, P.; Azizieh, R.; Desir, J.; Aeby, A.; De Meirleir, L.; Laes, J.-F.; Christiaens, F.; Abramowicz, M.J. Mutation of a potassium channel-related gene in progressive myoclonic epilepsy. Ann. Neurol. 2007, 61, 579–586. [Google Scholar] [CrossRef] [PubMed]
  8. Pirone, L.; Smaldone, G.; Esposito, C.; Balasco, N.; Petoukhov, M.V.; Spilotros, A.; Svergun, D.I.; Di Gaetano, S.; Vitagliano, L.; Pedone, E.M. Proteins involved in sleep homeostasis: Biophysical characterization of INC and its partners. Biochimie 2016, 131, 106–114. [Google Scholar] [CrossRef]
  9. Li, Q.; Kellner, D.A.; Hatch, H.A.M.; Yumita, T.; Sanchez, S.; Machold, R.P.; Frank, C.A.; Stavropoulos, N. Conserved properties of Drosophila Insomniac link sleep regulation and synaptic function. PLoS Genet. 2017, 13, e1006815. [Google Scholar] [CrossRef] [PubMed]
  10. Pfeiffenberger, C.; Allada, R. Cul3 and the BTB Adaptor Insomniac Are Key Regulators of Sleep Homeostasis and a Dopamine Arousal Pathway in Drosophila. PLoS Genet. 2012, 8. [Google Scholar] [CrossRef]
  11. Schwenk, J.; Metz, M.; Zolles, G.; Turecek, R.; Fritzius, T.; Bildl, W.; Tarusawa, E.; Kulik, A.; Unger, A.; Ivankova, K.; et al. Native GABAB receptors are heteromultimers with a family of auxiliary subunits. Nature 2010, 465, 231–235. [Google Scholar] [CrossRef] [PubMed]
  12. Escamilla, C.O.; Filonova, I.; Walker, A.K.; Xuan, Z.X.; Holehonnur, R.; Espinosa, F.; Liu, S.; Thyme, S.B.; López-García, I.A.; Mendoza, D.B.; et al. Kctd13 deletion reduces synaptic transmission via increased RhoA. Nature 2017, 551, 227–231. [Google Scholar] [CrossRef] [PubMed]
  13. Golzio, C.; Willer, J.; Talkowski, M.E.; Oh, E.C.; Taniguchi, Y.; Jacquemont, S.; Reymond, A.; Sun, M.; Sawa, A.; Gusella, J.F.; et al. KCTD13 is a major driver of mirrored neuroanatomical phenotypes of the 16p11.2 copy number variant. Nature 2012, 485, 363–367. [Google Scholar] [CrossRef] [PubMed]
  14. Smaldone, G.; Pirone, L.; Capolupo, A.; Vitagliano, L.; Monti, M.C.; Di Gaetano, S.; Pedone, E. The essential player in adipogenesis GRP78 is a novel KCTD15 interactor. Int. J. Boil. Macromol. 2018, 115, 469–475. [Google Scholar] [CrossRef] [PubMed]
  15. Murakami, A.; Maekawa, M.; Kawai, K.; Nakayama, J.; Araki, N.; Semba, K.; Taguchi, T.; Kamei, Y.; Takada, Y.; Higashiyama, S. Cullin-3/KCTD10 E3 complex is essential for Rac1 activation through RhoB degradation in human epidermal growth factor receptor 2-positive breast cancer cells. Cancer Sci. 2019, 110, 650–661. [Google Scholar] [CrossRef] [PubMed]
  16. Marneros, A.G.; Beck, A.E.; Turner, E.H.; McMillin, M.J.; Edwards, M.J.; Field, M.; Sobreira, N.L.D.M.; Perez, A.B.A.; Fortes, J.A.; Lampe, A.K.; et al. Mutations in KCTD1 Cause Scalp-Ear-Nipple Syndrome. Am. J. Hum. Genet. 2013, 92, 621–626. [Google Scholar] [CrossRef][Green Version]
  17. Smaldone, G.; Balasco, N.; Pirone, L.; Caruso, D.; Di Gaetano, S.; Pedone, E.M.; Vitagliano, L. Molecular basis of the scalp-ear-nipple syndrome unraveled by the characterization of disease-causing KCTD1 mutants. Sci. Rep. 2019, 9, 10519. [Google Scholar] [CrossRef]
  18. Stogios, P.J.; Downs, G.S.; Jauhal, J.J.S.; Nandra, S.K.; Privé, G.G. Sequence and structural analysis of BTB domain proteins. Genome Boil. 2005, 6, R82. [Google Scholar] [CrossRef]
  19. Balasco, N.; Pirone, L.; Smaldone, G.; Di Gaetano, S.; Esposito, L.; Pedone, E.M.; Vitagliano, L. Molecular recognition of Cullin3 by KCTDs: Insights from experimental and computational investigations. Biochim. Biophys. Acta Proteins Proteom. 2014, 1844, 1289–1298. [Google Scholar] [CrossRef]
  20. Smaldone, G.; Pirone, L.; Balasco, N.; Di Gaetano, S.; Pedone, E.M.; Vitagliano, L. Cullin 3 Recognition Is Not a Universal Property among KCTD Proteins. PLoS ONE 2015, 10, e0126808. [Google Scholar] [CrossRef]
  21. Pinkas, D.M.; Sanvitale, C.E.; Bufton, J.C.; Sorrell, F.J.; Solcan, N.; Chalk, R.; Doutch, J.; Bullock, A.N. Structural complexity in the KCTD family of Cullin3-dependent E3 ubiquitin ligases. Biochem. J. 2017, 474, 3747–3761. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Zarelli, V.E.; Dawid, I.B. Inhibition of neural crest formation by Kctd15 involves regulation of transcription factor AP-2. Proc. Natl. Acad. Sci. USA 2013, 110, 2870–2875. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Dementieva, I.S.; Tereshko, V.; McCrossan, Z.A.; Solomaha, E.; Araki, D.; Xu, C.; Grigorieff, N.; Goldstein, S.A.N. Pentameric Assembly of Potassium Channel Tetramerization Domain-Containing Protein 5 (KCTD5). J. Mol. Boil. 2009, 387, 175–191. [Google Scholar] [CrossRef] [PubMed]
  24. Smaldone, G.; Pirone, L.; Pedone, E.; Marlovits, T.; Vitagliano, L.; Ciccarelli, L. The BTB domains of the potassium channel tetramerization domain proteins prevalently assume pentameric states. FEBS Lett. 2016, 590, 1663–1671. [Google Scholar] [CrossRef][Green Version]
  25. Barone, D.; Balasco, N.; Vitagliano, L. KCTD5 is endowed with large, functionally relevant, interdomain motions. J. Biomol. Struct. Dyn. 2016, 34, 1725–1735. [Google Scholar] [CrossRef]
  26. Zheng, S.; Abreu, N.; Levitz, J.; Kruse, A.C. Structural basis for KCTD-mediated rapid desensitization of GABAB signalling. Nature 2019, 567, 127–131. [Google Scholar] [CrossRef]
  27. Ji, A.X.; Chu, A.; Nielsen, T.K.; Benlekbir, S.; Rubinstein, J.L.; Privé, G.G. Structural Insights into KCTD Protein Assembly and Cullin3 Recognition. J. Mol. Boil. 2016, 428, 92–107. [Google Scholar] [CrossRef][Green Version]
  28. Zuo, H.; Glaaser, I.; Zhao, Y.; Kurinov, I.; Mosyak, L.; Wang, H.; Liu, J.; Park, J.; Frangaj, A.; Sturchler, E.; et al. Structural basis for auxiliary subunit KCTD16 regulation of the GABAB receptor. Proc. Natl. Acad. Sci. USA 2019, 116, 8370–8379. [Google Scholar] [CrossRef]
  29. De Paola, I.; Pirone, L.; Palmieri, M.; Balasco, N.; Esposito, L.; Russo, L.; Mazzà, D.; Di Marcotullio, L.; Di Gaetano, S.; Malgieri, G.; et al. Cullin3—BTB Interface: A Novel Target for Stapled Peptides. PLoS ONE 2015, 10, e0121149. [Google Scholar] [CrossRef]
  30. Fritzius, T.; Turecek, R.; Seddik, R.; Kobayashi, H.; Tiao, J.; Rem, P.D.; Metz, M.; Kralikova, M.; Bouvier, M.; Gassmann, M.; et al. KCTD Hetero-oligomers Confer Unique Kinetic Properties on Hippocampal GABAB Receptor-Induced K+ Currents. J. Neurosci. 2017, 37, 1162–1175. [Google Scholar] [CrossRef]
  31. Correale, S.; Esposito, C.; Pirone, L.; Vitagliano, L.; Di Gaetano, S.; Pedone, E.M. A biophysical characterization of the folded domains of KCTD12: insights into interaction with the GABAB2receptor. J. Mol. Recognit. 2013, 26, 488–495. [Google Scholar] [CrossRef] [PubMed]
  32. Stogios, P.; Prive, G. The BACK domain in BTB-kelch proteins. Trends Biochem. Sci. 2004, 29, 634–637. [Google Scholar] [CrossRef] [PubMed]
  33. Zollman, S.; Godt, D.; Prive, G.G.; Couderc, J.L.; Laski, F.A. The BTB domain, found primarily in zinc finger proteins, defines an evolutionarily conserved family that includes several developmentally regulated genes in Drosophila. Proc. Natl. Acad. Sci. USA 1994, 91, 10717–10721. [Google Scholar] [CrossRef] [PubMed]
  34. Bixby, K.A.; Nanao, M.H.; Shen, N.V.; Kreusch, A.; Bellamy, H.; Pfaffinger, P.J.; Choe, S. Zn2+-binding and molecular determinants of tetramerization in voltage-gated K+ channels. Nat. Struct. Mol. Biol. 1999, 6, 38–43. [Google Scholar]
  35. De Smaele, E.; Di Marcotullio, L.; Moretti, M.; Pelloni, M.; Occhione, M.A.; Infante, P.; Cucchi, D.; Greco, A.; Pietrosanti, L.; Todorovic, J.; et al. Identification and Characterization of KCASH2 and KCASH3, 2 Novel Cullin3 Adaptors Suppressing Histone Deacetylase and Hedgehog Activity in Medulloblastoma. Neoplasia 2011, 13, 374–385. [Google Scholar] [CrossRef] [PubMed]
  36. Balasco, N.; Barone, D.; Iaccarino, E.; Sandomenico, A.; De Simone, A.; Ruvo, M.; Vitagliano, L. Intrinsic structural versatility of the highly conserved 412–423 epitope of the Hepatitis C Virus E2 protein. Int. J. Boil. Macromol. 2018, 116, 620–632. [Google Scholar] [CrossRef] [PubMed]
  37. Kumar, S.; Ma, B.; Tsai, C.J.; Sinha, N.; Nussinov, R. Folding and binding cascades: Dynamic landscapes and population shifts. Protein Sci. 2000, 9, 10–19. [Google Scholar] [CrossRef] [PubMed]
  38. Van Der Spoel, D.; Lindahl, E.; Hess, B.; Groenhof, G.; Mark, A.E.; Berendsen, H.J.C. GROMACS: Fast, flexible, and free. J. Comput. Chem. 2005, 26, 1701–1718. [Google Scholar] [CrossRef] [PubMed]
  39. Darden, T.; York, D.; Pedersen, L. Particle mesh Ewald: An N⋅log(N) method for Ewald sums in large systems. J. Chem. Phys. 1993, 98, 10089–10092. [Google Scholar] [CrossRef]
  40. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A linear constraint solver for molecular simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  41. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  42. Amadei, A.; Ceruso, M.A.; Di Nola, A. On the convergence of the conformational coordinates basis set obtained by the essential dynamics analysis of proteins’ molecular dynamics simulations. Proteins Struct. Funct. Bioinform. 1999, 36, 419–424. [Google Scholar] [CrossRef]
  43. Besker, N.; Molina, R.; Marcaida, M.J.; Montoya, G.; Prieto, J.; D’Abramo, M. Key Players in I-DmoI Endonuclease Catalysis Revealed from Structure and Dynamics. ACS Chem. Boil. 2016, 11, 1401–1407. [Google Scholar]
  44. Merlino, A.; Vitagliano, L.; Ceruso, M.A.; Mazzarella, L. Subtle functional collective motions in pancreatic-like ribonucleases: From ribonuclease A to angiogenin. Proteins Struct. Funct. Bioinform. 2003, 53, 101–110. [Google Scholar] [CrossRef] [PubMed]

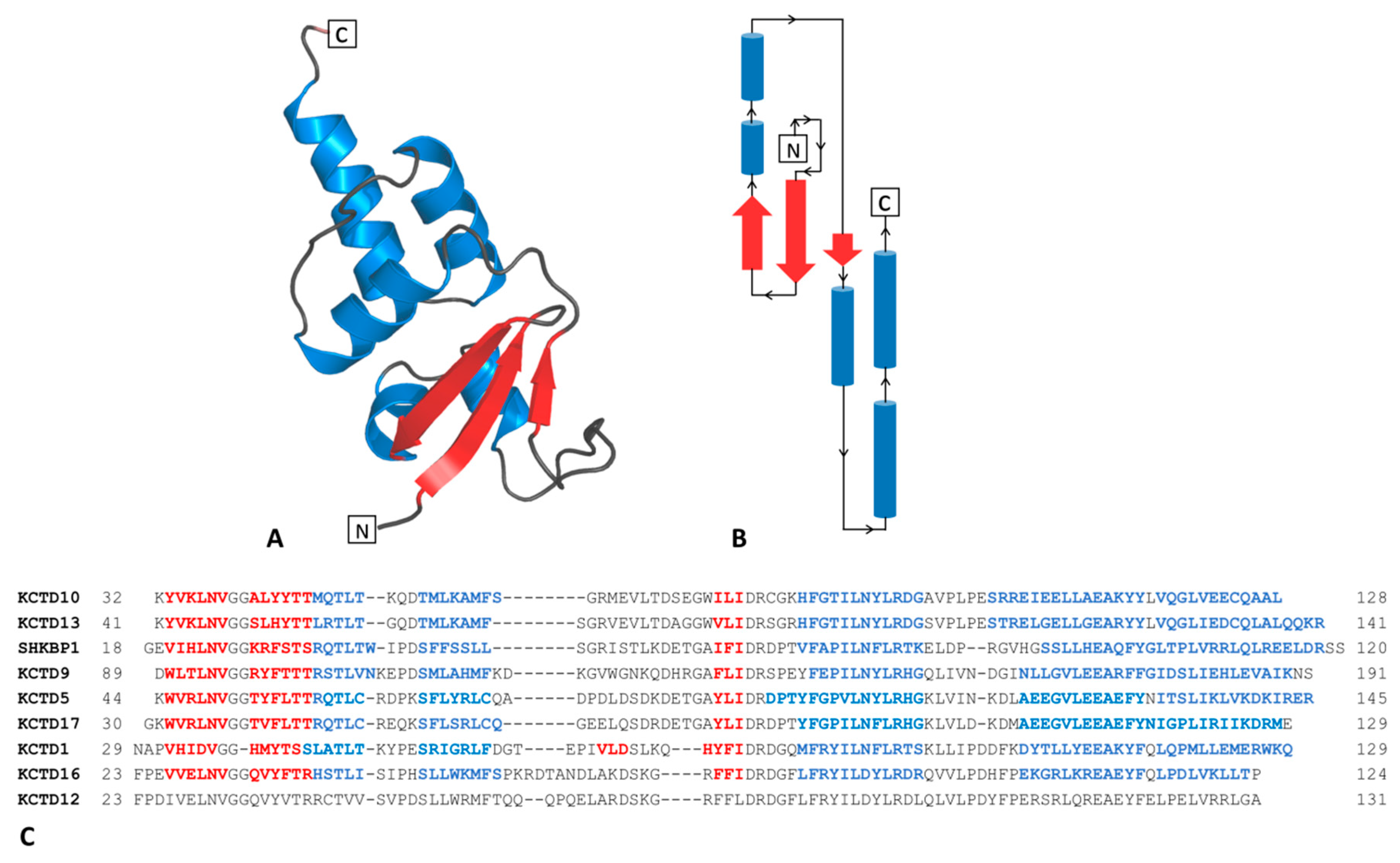

Figure 1. Cartoon representation (A) and topology (B) of the five α-helices and the three/four-stranded β-sheet motif of the BTB domain. Sequence alignment of the BTB domains of the KCTD proteins considered in this study (C). Residues belonging to α-helices and β-strands are colored in blue and red, respectively. For KCTD12, whose structure has not been experimentally determined, the assignment of the secondary structure is not reported on the sequence.
Figure 1. Cartoon representation (A) and topology (B) of the five α-helices and the three/four-stranded β-sheet motif of the BTB domain. Sequence alignment of the BTB domains of the KCTD proteins considered in this study (C). Residues belonging to α-helices and β-strands are colored in blue and red, respectively. For KCTD12, whose structure has not been experimentally determined, the assignment of the secondary structure is not reported on the sequence.
Biomolecules 09 00323 g001

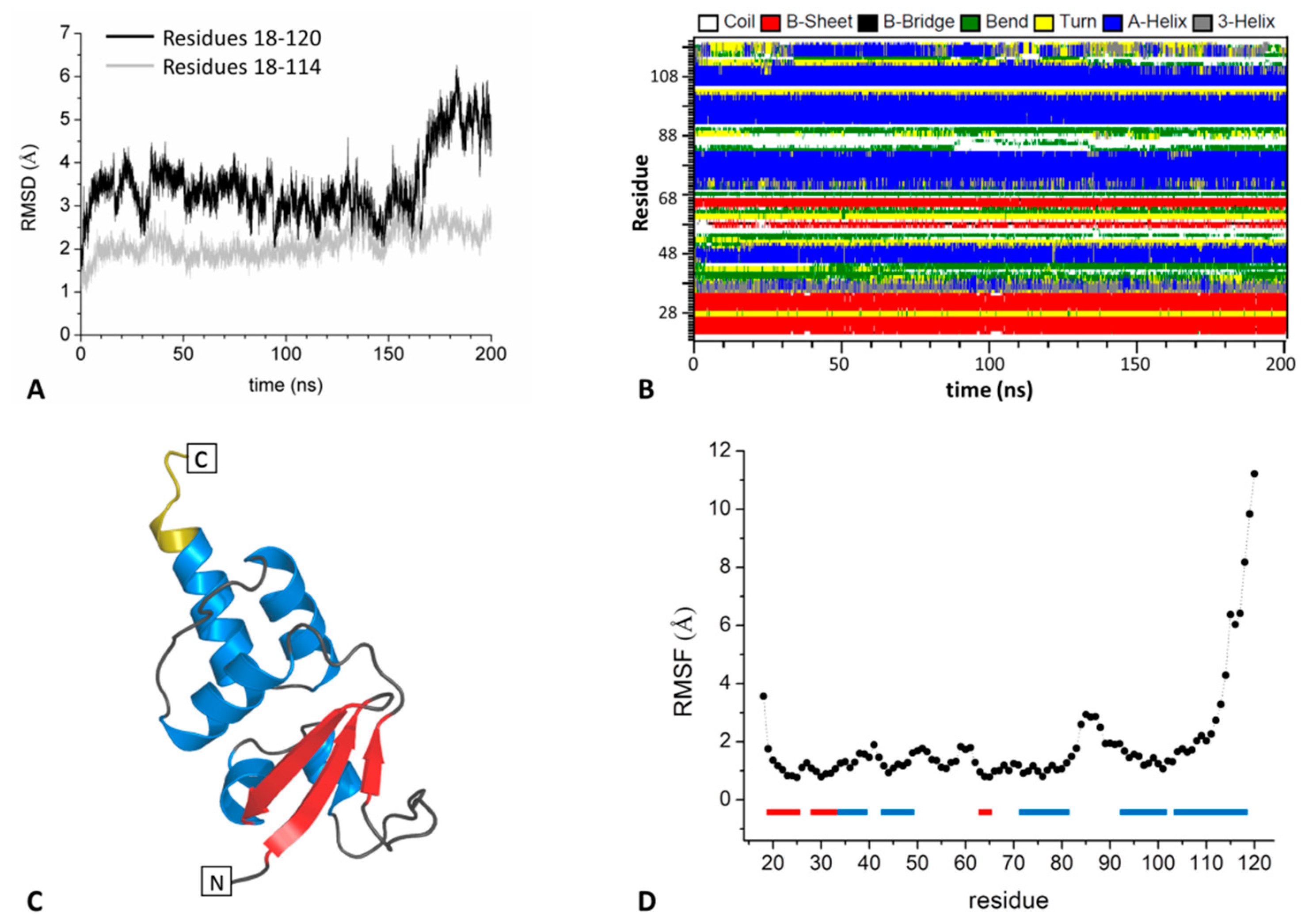

Figure 2. Structure stability of SHKBP1BTB throughout the simulation: Cα-based RMSD values of trajectory structures calculated against the starting crystallographic model (A), time evolution of the secondary structure content (B). The RMSD values have been calculated on the whole structure (residues 18-120, black) or by excluding the last six residues at the C-terminus (residues 18-114, grey). Cartoon representation of SHKBP1BTB (C), α-helices and β-strands are colored in blue and red, respectively. The last six residues at the C-terminus are in yellow. Cα-based RMSF values of residues of SHKBP1BTB calculated in the 50–200 ns trajectory region (D). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Figure 2. Structure stability of SHKBP1BTB throughout the simulation: Cα-based RMSD values of trajectory structures calculated against the starting crystallographic model (A), time evolution of the secondary structure content (B). The RMSD values have been calculated on the whole structure (residues 18-120, black) or by excluding the last six residues at the C-terminus (residues 18-114, grey). Cartoon representation of SHKBP1BTB (C), α-helices and β-strands are colored in blue and red, respectively. The last six residues at the C-terminus are in yellow. Cα-based RMSF values of residues of SHKBP1BTB calculated in the 50–200 ns trajectory region (D). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Biomolecules 09 00323 g002

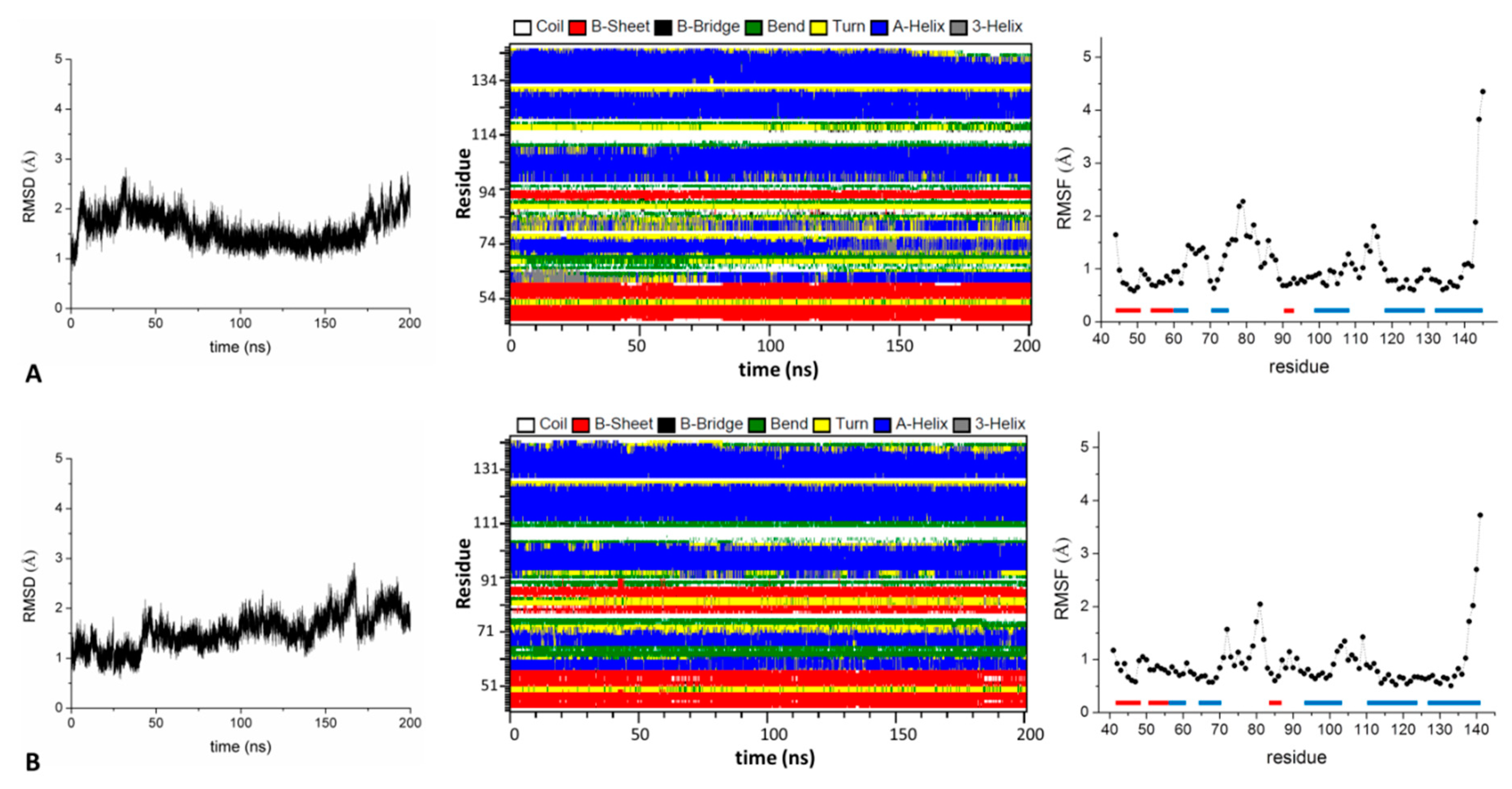

Figure 3. Structure stability of KCTD5BTB (A) and KCTD13BTB (B) monomers throughout the MD simulations: Cα-based RMSD values of trajectory structures computed against the starting model, time evolution of the secondary structure content, Cα-based RMSF values computed in the equilibrated region of the trajectory (50–200 ns). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Figure 3. Structure stability of KCTD5BTB (A) and KCTD13BTB (B) monomers throughout the MD simulations: Cα-based RMSD values of trajectory structures computed against the starting model, time evolution of the secondary structure content, Cα-based RMSF values computed in the equilibrated region of the trajectory (50–200 ns). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Biomolecules 09 00323 g003

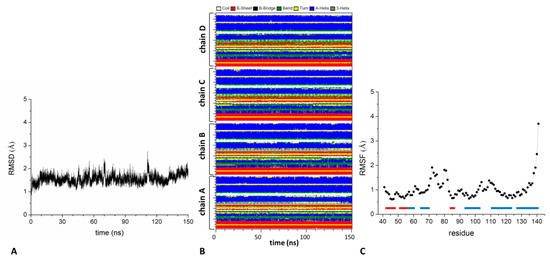

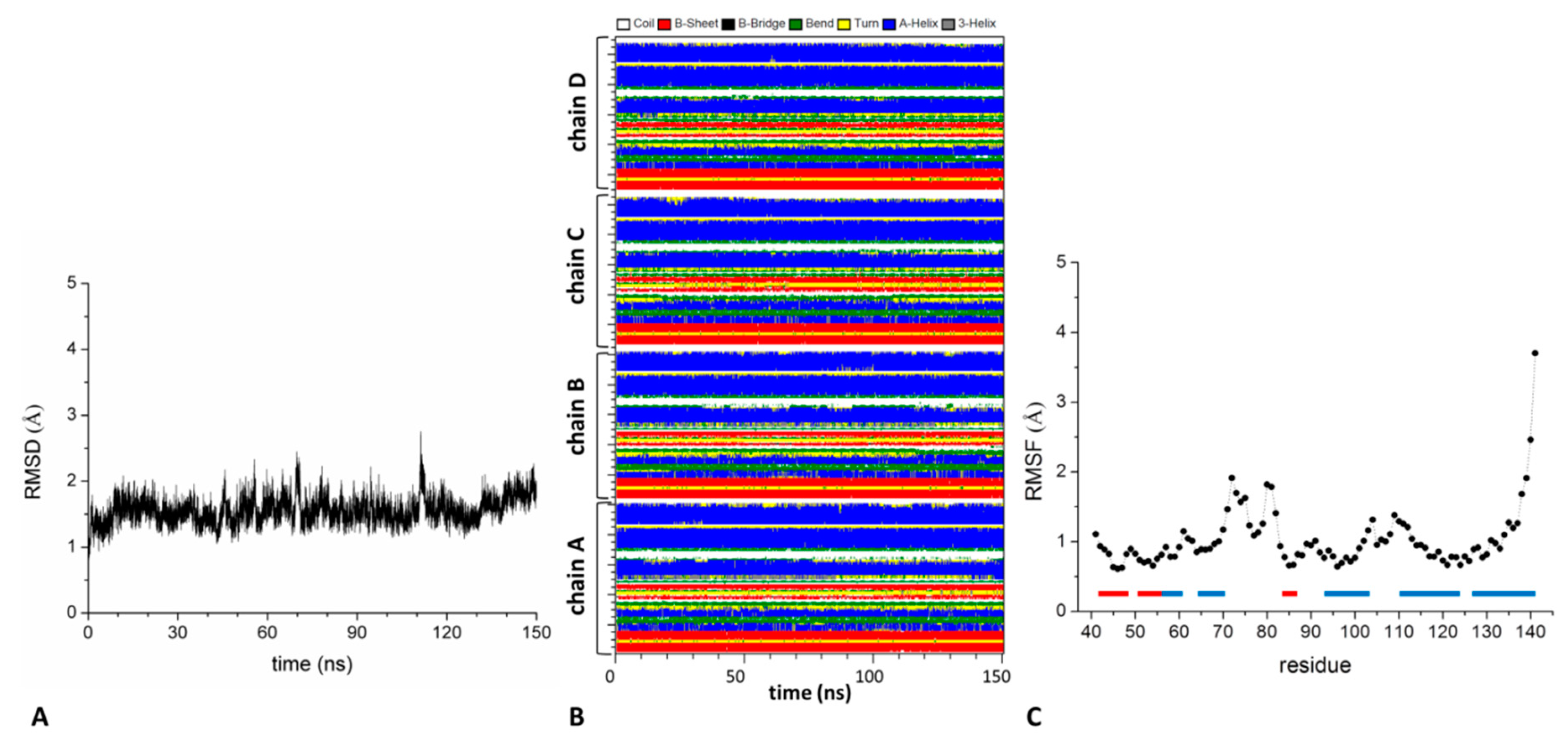

Figure 4. Structure stability of KCTD13BTB tetramer throughout the MD simulation: Cα-based RMSD values of trajectory structures against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50–150 ns trajectory region (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Figure 4. Structure stability of KCTD13BTB tetramer throughout the MD simulation: Cα-based RMSD values of trajectory structures against the starting model (A), time evolution of the secondary structure content (B), Cα-based RMSF values computed in the 50–150 ns trajectory region (C). The protein secondary structure elements are reported as bars (α-helices in blue and β-strands in red).
Biomolecules 09 00323 g004

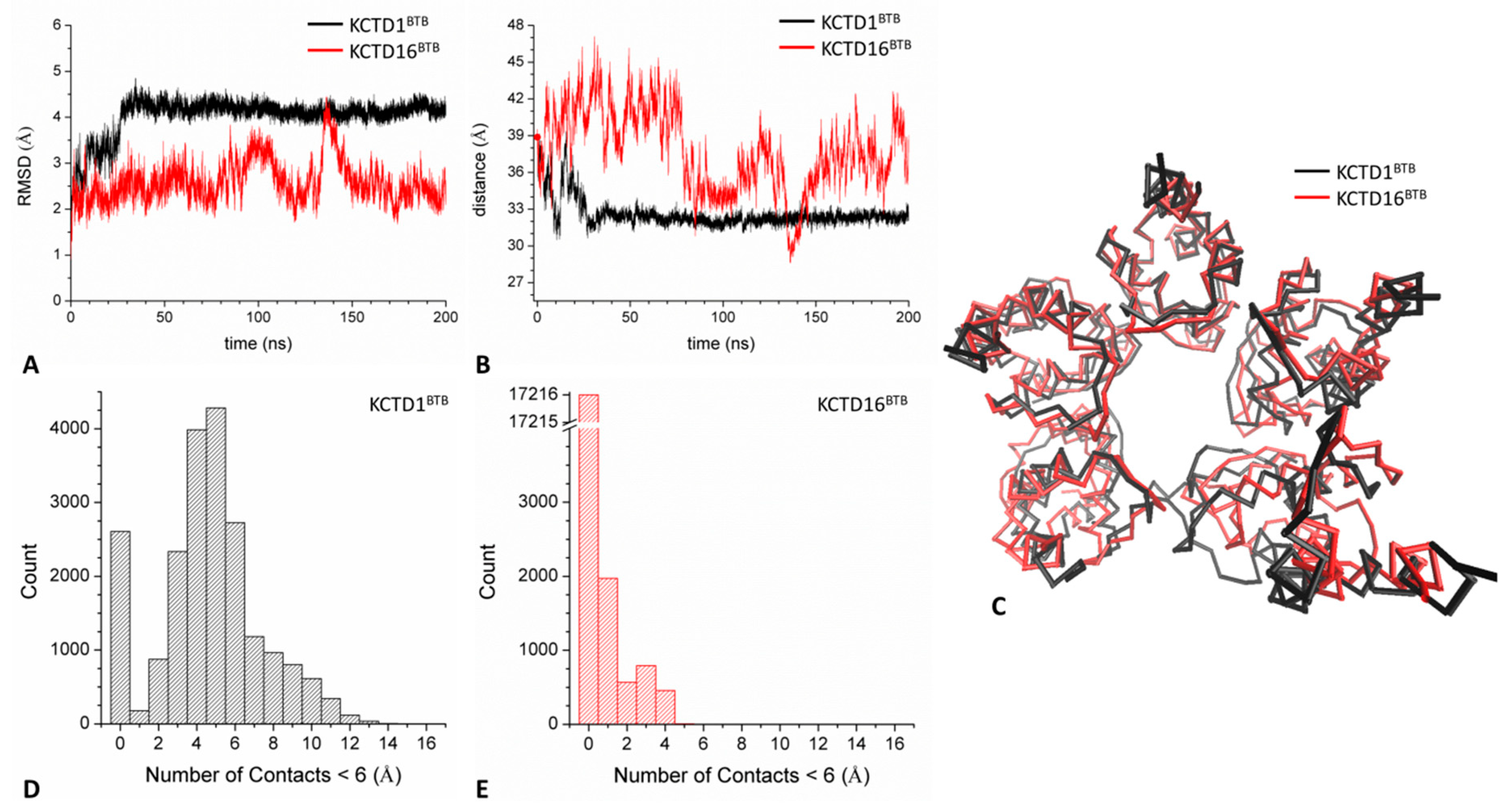

Figure 5. Cα-based RMSD values of trajectory structures against the starting model obtained in the MD simulations performed on KCTD1BTB and KCTD16BTB open pentamers (A). Distance between the centers of mass of the two external domains that delimitate the gap in KCTD1BTB and KCTD16BTB open pentamers (B). The red dot indicates the common starting value (~39 Å). Superimposition of the Cα-trace of KCTD1BTB and KCTD16BTB average structures computed in the equilibrated region of trajectories (50–200 ns) (C). Distribution of the number of atoms of the two external domains that are within 6.0 Å in KCTD1BTB (D) and KCTD16BTB (E).
Figure 5. Cα-based RMSD values of trajectory structures against the starting model obtained in the MD simulations performed on KCTD1BTB and KCTD16BTB open pentamers (A). Distance between the centers of mass of the two external domains that delimitate the gap in KCTD1BTB and KCTD16BTB open pentamers (B). The red dot indicates the common starting value (~39 Å). Superimposition of the Cα-trace of KCTD1BTB and KCTD16BTB average structures computed in the equilibrated region of trajectories (50–200 ns) (C). Distribution of the number of atoms of the two external domains that are within 6.0 Å in KCTD1BTB (D) and KCTD16BTB (E).
Biomolecules 09 00323 g005

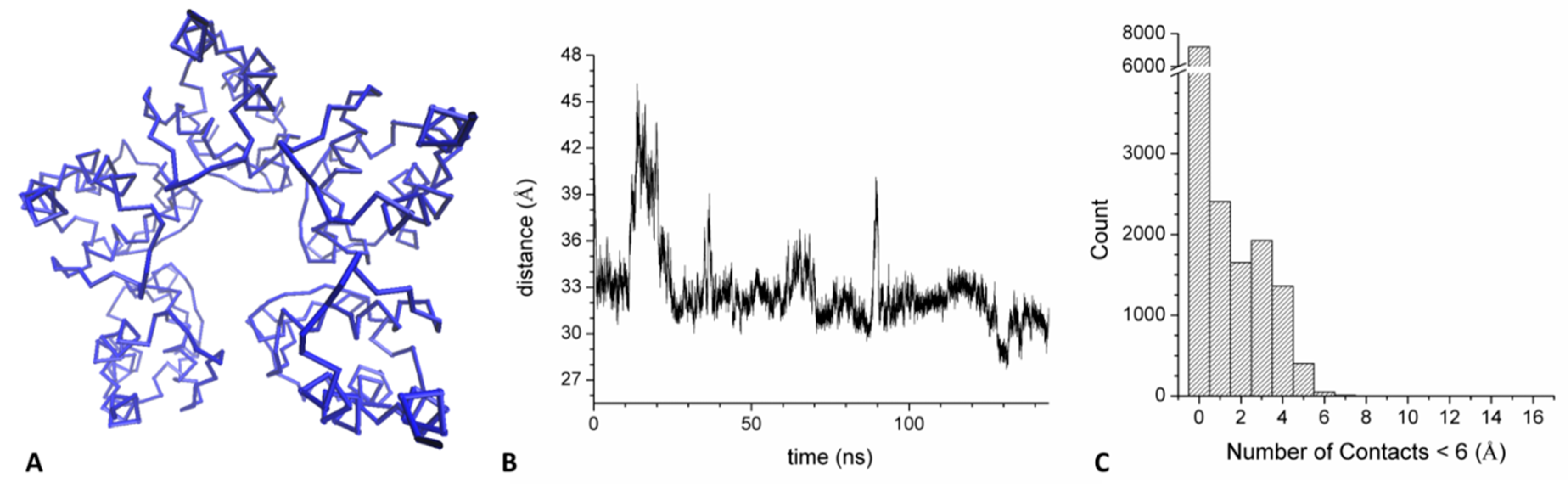

Figure 6. Average structure of KCTD12-16BTB hetero-pentamer computed in the 50–150 ns region of the MD trajectory (A). Distance between the centers of mass of the two external domains that delimitate the gap (B). Distribution of the number of atoms of the two external domains that are within 6.0 Å (C).
Figure 6. Average structure of KCTD12-16BTB hetero-pentamer computed in the 50–150 ns region of the MD trajectory (A). Distance between the centers of mass of the two external domains that delimitate the gap (B). Distribution of the number of atoms of the two external domains that are within 6.0 Å (C).
Biomolecules 09 00323 g006

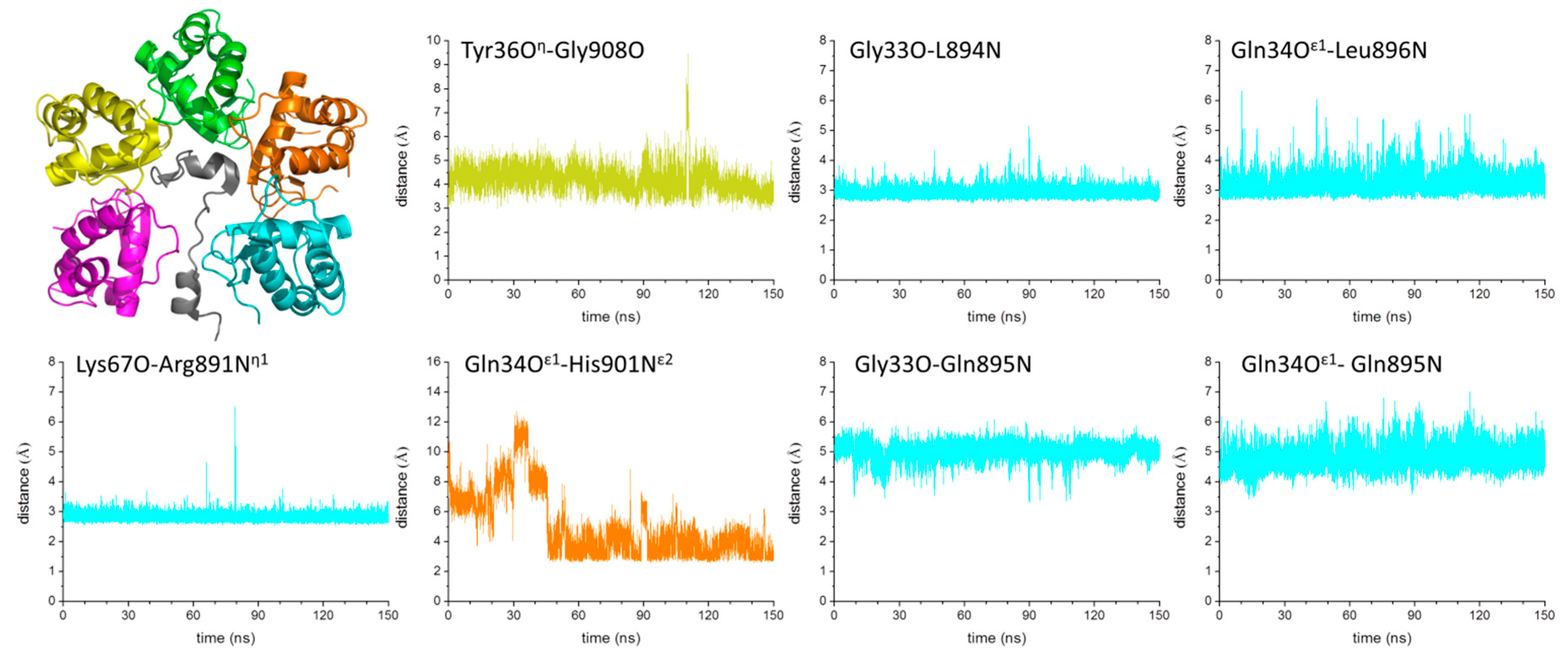

Figure 7. Cartoon representation of the crystal structure of the complex between KCTD16BTB and GABAB2R peptide (PDB ID: 6M8R) used as starting model in the MD simulation. Time evolution of the distances between pairs of atoms involved in the formation of H-bonding interactions in the complex. The H-bonds between atoms Tyr36Oη-Gly908O, Gly33O-L894N, Gln34Oε1-Leu896N, and Lys67O-Arg891Nη1 that are present in the starting crystallographic model are conserved throughout the simulation. The H-bonds between atoms Gln34Oε1-His901Nε2, Gly33O-Gln895N, and Gln34Oε1-Gln895N that are not present in the starting structure but are present in the structure of the complex between KCTD16BTB and the GABAB2R peptide encompassing residues 895-909 are formed in the simulation. Plots are colored to identify the chains of KCTD16BTB that interact with the peptide (in grey).
Figure 7. Cartoon representation of the crystal structure of the complex between KCTD16BTB and GABAB2R peptide (PDB ID: 6M8R) used as starting model in the MD simulation. Time evolution of the distances between pairs of atoms involved in the formation of H-bonding interactions in the complex. The H-bonds between atoms Tyr36Oη-Gly908O, Gly33O-L894N, Gln34Oε1-Leu896N, and Lys67O-Arg891Nη1 that are present in the starting crystallographic model are conserved throughout the simulation. The H-bonds between atoms Gln34Oε1-His901Nε2, Gly33O-Gln895N, and Gln34Oε1-Gln895N that are not present in the starting structure but are present in the structure of the complex between KCTD16BTB and the GABAB2R peptide encompassing residues 895-909 are formed in the simulation. Plots are colored to identify the chains of KCTD16BTB that interact with the peptide (in grey).
Biomolecules 09 00323 g007

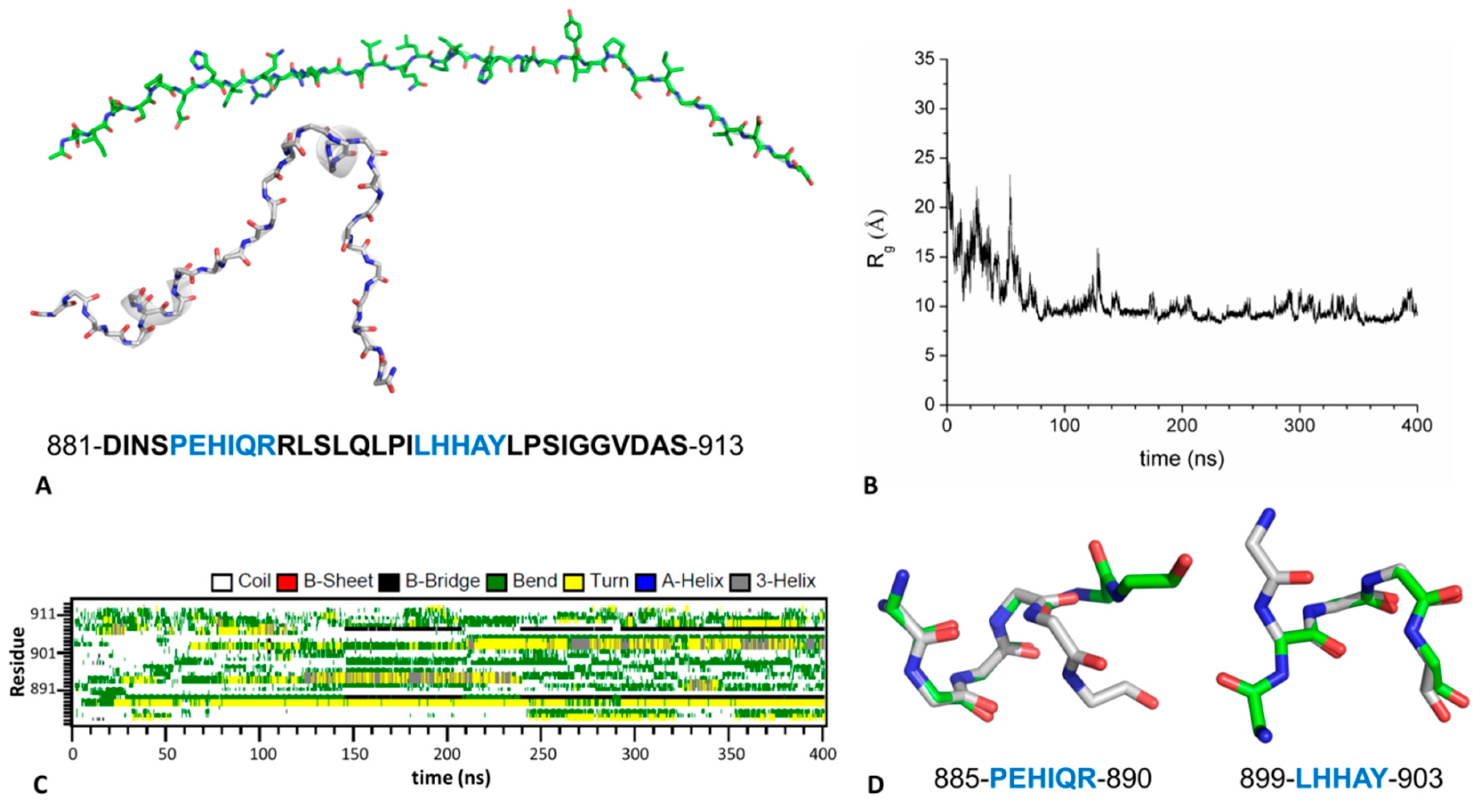

Figure 8. Representation of the fully extended structure (φ = −120°, ψ = 130°, ω = 180°) (green) of the GABAB2R peptide (residues 881-913) used as starting model in the MD simulation of the isolated peptide. The aminoacid sequence and the structure (grey) of the peptide extracted from the crystallographic complex with KCTD16BTB (PDB ID: 6M8R) are also shown. Residues 885-890 and 899-903 which adopt a helical conformation are colored in blue in the sequence (A). Time evolution of the radius of gyration Rg (B) and of the secondary structure content (C) of GABAB2R peptide. Representative examples of the conformational states detected in the simulation (green) superimposed to the crystallographic model (grey) in the regions 885-890 and 899-903 (D).
Figure 8. Representation of the fully extended structure (φ = −120°, ψ = 130°, ω = 180°) (green) of the GABAB2R peptide (residues 881-913) used as starting model in the MD simulation of the isolated peptide. The aminoacid sequence and the structure (grey) of the peptide extracted from the crystallographic complex with KCTD16BTB (PDB ID: 6M8R) are also shown. Residues 885-890 and 899-903 which adopt a helical conformation are colored in blue in the sequence (A). Time evolution of the radius of gyration Rg (B) and of the secondary structure content (C) of GABAB2R peptide. Representative examples of the conformational states detected in the simulation (green) superimposed to the crystallographic model (grey) in the regions 885-890 and 899-903 (D).
Biomolecules 09 00323 g008
Table 1. Parameters and statistics of MD simulations.
Table 1. Parameters and statistics of MD simulations.
SystemTimescale
(ns)
Box Dimensions
(nm3)
No. of Water MoleculesRMSIP a
SHKBP1BTB monomer2005.24 × 5.20 × 7.0257700.78
KCTD1BTB monomer2006.43 × 5.22 × 4.9649240.80
KCTD5BTB monomer2004.83 × 5.56 × 6.3951580.72
KCTD9BTB monomer2005.15 × 4.91 × 6.6149850.68
KCTD10BTB monomer2005.23 × 5.00 × 6.6952840.82
KCTD13BTB monomer2006.89 × 5.25 × 5.1655890.78
KCTD16BTB monomer2006.43 × 6.05 × 5.4463180.72
KCTD17BTB monomer2005.95 × 5.23 × 6.5362450.77
KCTD13BTB tetramer1507.73 × 7.46 × 9.07156180.65
KCTD10BTB tetramer1507.67 × 9.06 × 7.23145700.79
KCTD13BTB dimer1507.32 × 6.84 × 6.5197350.78
KCTD1BTB close pentamer1508.58 × 6.87 × 8.38138450.60
KCTD9BTB close pentamer1508.93 × 9.16 × 6.87159880.49
KCTD17BTB close pentamer1508.73 × 9.09 × 8.13187240.60
KCTD1BTB open pentamer2007.65 × 9.93 × 8.47182800.67
KCTD16BTB open pentamer2007.87 × 10.41 × 8.99218090.72
KCTD12-16BTB open pentamer1507.83 × 9.79 × 8.99198860.73
KCTD16BTB-GABAB2R complex1507.84 × 9.62 × 9.07196240.66
GABAB2R peptide40011.15 × 6.10 × 4.77105090.73
a The RMSIP values have been calculated by dividing the reduced trajectories (starting from 50 ns to the end) in two equivalent halves.
