GLYI4 Plays A Role in Methylglyoxal Detoxification and Jasmonate-Mediated Stress Responses in Arabidopsis thaliana

by
Silvia Proietti
1,*,†,
Gaia Salvatore Falconieri
1,†,
Laura Bertini
1,†,
Ivan Baccelli
2,
Elena Paccosi
1,
Antonio Belardo
1,
Anna Maria Timperio
1 and
Carla Caruso
1
1
Department of Ecological and Biological Sciences, University of Tuscia, 01100 Viterbo, Italy
2
Institute for Sustainable Plant Protection, National Research Council of Italy, Sesto Fiorentino, 50019 Florence, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomolecules 2019, 9(10), 635; https://doi.org/10.3390/biom9100635
Received: 12 August 2019 / Revised: 17 October 2019 / Accepted: 18 October 2019 / Published: 22 October 2019
(This article belongs to the Special Issue Phytohormones)
Browse Figures
Versions Notes

Abstract

:
Plant hormones play a central role in various physiological functions and in mediating defense responses against (a)biotic stresses. In response to primary metabolism alteration, plants can produce also small molecules such as methylglyoxal (MG), a cytotoxic aldehyde. MG is mostly detoxified by the combined actions of the enzymes glyoxalase I (GLYI) and glyoxalase II (GLYII) that make up the glyoxalase system. Recently, by a genome-wide association study performed in Arabidopsis, we identified GLYI4 as a novel player in the crosstalk between jasmonate (JA) and salicylic acid (SA) hormone pathways. Here, we investigated the impact of GLYI4 knock-down on MG scavenging and on JA pathway. In glyI4 mutant plants, we observed a general stress phenotype, characterized by compromised MG scavenging, accumulation of reactive oxygen species (ROS), stomatal closure, and reduced fitness. Accumulation of MG in glyI4 plants led to lower efficiency of the JA pathway, as highlighted by the increased susceptibility of the plants to the pathogenic fungus Plectospherella cucumerina. Moreover, MG accumulation brought about a localization of GLYI4 to the plasma membrane, while MeJA stimulus induced a translocation of the protein into the cytoplasmic compartment. Collectively, the results are consistent with the hypothesis that GLYI4 is a hub in the MG and JA pathways.

1. Introduction

Plants have developed efficient detection mechanisms and effective signal transduction pathways to respond to diverse biotic and abiotic stresses and activate finely tuned regulatory mechanisms, largely orchestrated by small molecules [1]. Among them phytohormones such as salicylic acid (SA), jasmonic acid (JA), ethylene (ET), and abscisic acid (ABA), are considered as the main players in coordinating signaling pathways involved in the adaptive response of plants to its (a) biotic environment, together with cytokinin, brassinosteroids, and auxin [1,2,3,4]. Moreover, many defense strategies are regulated by more than one phytohormone and often multiple processes are induced simultaneously. Consequently, antagonistic and synergistic interactions between diverse hormone signal transduction pathways, the so-called cross-talk, add another layer of regulation [1].
Beside hormones, plants under stress can produce small molecules, and depending on their concentration they can be either toxic or can act as signal molecules. For instance, in stressful conditions and also in response to primary metabolism alterations can produce toxic aldehydes among which methylglyoxal (MG) appears as the most ubiquitous [5,6,7,8,9,10]. It is an alpha-oxoaldehyde compound, highly reactive and cytotoxic, produced as a side product of various metabolic reactions such as glycolysis, protein degradation, lipid peroxidation, and photosynthesis [11,12]. It has been extensively reported that MG at low doses plays a role as signal molecule in bacteria [13], yeast [14,15], animals [16,17,18,19], and plants [7,20,21]. In addition, in plants MG exerts a positive effect on shoot differentiation and morphogenesis [22] and a negative effect on seed germination and root elongation [6]. Moreover, the presence of MG has been also correlated to the opening and closing of stomata [23]. MG triggers stomatal closure by inducing reactive oxygen species (ROS) accumulation in the guard cells through the Ca2+-dependent pathway. Unfortunately, at higher concentration, MG is detrimental for the cell as it reacts with major macromolecules including DNA, RNA, and proteins and lipids modifying or disrupting their physiological functions [10,11,24]. MG-affected genes are also involved in hormone signaling, cell-to-cell communications, and chromatin remodeling [10]. The only way to counteract the toxic effects of MG is its removal by an efficient detoxification system [11].
Glyoxalase (GLY) system is the major MG detoxifying pathway in all organisms including bacteria, yeast, humans, plants, and animals [11]. The GLY system is a two-step scavenging pathway involving two phylogenetically distinct enzymes, glyoxalase I (GLYI) and glyoxalase II (GLYII) able to detoxify MG [25]. In the first step, MG is scavenged by reduced glutathione (GSH) forming a hemithioacetal, a non-enzymatic adduct, which is the real substrate for the first reaction catalyzed by GLYI, leading to S-D-lactoylglutathione. In a second step, S-D-lactoylglutathione is converted into D-lactate by the GLYII, thus releasing GSH [25]. Another enzyme, D-lactate dehydrogenase (D-LDH) is linked with MG detoxification since it catalyzes the oxidation of the end product of the glyoxalase system, D-lactate, into D-pyruvate which eventually enters into TCA cycle for energy production [14]. GLYI overexpressing cells were highly efficient in detoxifying MG showing also better growth than wild-type cells [11]. In addition, a shorter route for MG detoxification mediated by glyoxalase III (GLYIII) has been proposed in few organisms [23]. In particular, GLYIII transforms MG into D-lactate in a single step, without using glutathione. Interestingly, its activity appeared significantly lower than the GLYI/GLYII system [23].
In plants, glyoxalases exist as a multigene family whose functions probably go beyond the canonical role of MG detoxification [23]. Indeed, increase in glyoxalase enzyme activities occurs in plants in response to osmotic stress, extreme temperatures, heavy metals, and exposure to stress-related hormones, including methyl jasmonate (MeJA), ABA, and SA [10,26,27]. Accordingly, several biotic/abiotic stress-responsive cis-acting elements have been found in the promoter regions of GmGLYI and GmGLYII family members from Glycine max, suggesting an hormone-regulated gene expression [28]. Moreover, transgenic plants over-expressing either GLYI or GLYII showed improved tolerance against several abiotic stresses, as drought, salinity, and heavy metal in various plant species by maintaining the basal level of MG and mitigating oxidative stress [29,30,31,32,33,34,35]. Based on these observation, MG and glyoxalases could be targeted as potential biomarkers for plant stress physiology [21].
The Arabidopsis genome annotation includes 11 GLYI genes, encoding for 22 proteins that are members of the vicinal oxygen chelate (VOC) superfamily [36,37]. The molecular mechanism, functional roles, and subcellular localization of the different isoforms are still to be unraveled. Among GLYI members, GLYI4 is highly expressed in pistil tissue, stigma, and dry pollen, suggesting a role in development and reproduction [23]. Moreover, GLYI4 transcripts are highly abundant in roots, flowers, and seeds [25,37]. In Arabidopsis AtGLYI4 is likely a key component of the gene network interaction responsible for detoxifying MG [37], although it has not yet been demonstrated experimentally. Expression of AtGLYI4 is also induced in response to abiotic stresses in either shoot and root tissues [37]. Recently, by a genome-wide association study we identified GLYI4 as a novel player in the SA-JA crosstalk [38]. This novel role has been confirmed by T-DNA insertion mutant analysis. In particular, the glyI4 knock-down mutant was insensitive to SA-mediated suppression of MeJA-induced PDF1.2 gene expression, while it displayed wild-type levels of SA-induced PR-1 gene expression. Moreover, the lack of SA-mediated antagonism on the JA pathway in glyI4 mutant was associated with enhanced level of resistance against the fungal pathogen B. cinerea [38].
In this study, we first investigated the impact of GLYI4 on MG scavenging and on plant health. In the T-DNA insertion line glyI4 we observed compromised MG scavenging, ROS accumulation, and stomatal closure. All these phenomena could be responsible for the altered fitness parameters observed in glyI4 plants. In addition, we investigated the impact of MG on the JA pathway. Accumulation of MG in the mutant glyI4 led to lower efficiency of the JA pathway, causing an increased susceptibility to the fungal necrotrophic pathogen Plectospherella cucumerina. Moreover, MG accumulation led to a subcellular localization of GLYI4 on the plasma membrane, while MeJA treatment induced a translocation of the protein into the cytoplasm. In-depth studies of MG interactions with plant hormones and the glyoxalase system will likely reveal more regulatory roles of MG in plant stress responses and tolerance.

2. Materials and Methods

2.1. Plant Material and Growth Conditions

Arabidopsis thaliana T-DNA lines in Col-8 background (glyI4) were obtained from NASC (http://arabidopsis.info/) and genotyped as previously described [38]. Seeds of the Arabidopsis glyI4 and Col-8 were sown in cultivation containers filled with autoclaved river sand. Sand was supplied with half-strength Hoagland solution [39]. (Sigma, Steinheim, Germany). To achieve a high relative humidity for germination, cultivation containers were enclosed in a tray with water and covered with a transparent lid. Seeds were stratified for two days at 4 °C in the dark to ensure a homogeneous germination after which the tray was moved to a growth chamber with an 8-h day/16-h night period, a temperature of 21 °C, and a light intensity of 100 µmol m−2 s−1. After eight days, the lids of the trays were slightly opened and gradually removed over a two-day period. Ten-day-old seedlings were transplanted to individual pots containing an autoclaved mixture of river sand and potting soil (1:1 (v:v)). Plants were watered from the bottom three times per week. From three weeks and onwards, the plants were supplied once a week with half-strength Hoagland solution.

2.2. Chemical Treatments

Five-week-old Arabidopsis plants (Col-8 and glyI4 T-DNA line) were treated with MeJA (Serva, Brunschwig Chemie, Amsterdam, the Netherlands), MG (Sigma, Steinheim, Germany), or a combination of MeJA/MG, by dipping plants for about 5 s in a solution containing 100 μM MeJA or 10 mM MG or a combination of 100 μM MeJA/10 mM MG, all with 0.015% (v/v) Silwet L77 (Van Meeuwen Chemicals BV, Weesp, the Netherlands). MeJA was diluted from a 1000-fold concentrated stock in 96% ethanol. The mock solution contained 0.015% Silwet L77 only. Twenty-four hours after treatment, two leaves from each three plants per treatment were harvested. The harvested leaves were the fifth and 11th, both middle-aged. immediately frozen in liquid nitrogen and then stored at −80 °C until further analysis.

2.3. RNA Extraction and RT-qPCR

Total RNA was isolated as previously described [40]. DNAse treatment was performed by using DNAse I (Fermentas, St. Leon-Rot, Germany) at a concentration of 0.5 U/g RNA. RevertAid H minus Reverse Transcriptase (Fermentas, St. Leon-Rot, Germany) was used to convert DNA-free total RNA into cDNA. PCR reactions were performed in optical 96-well plates (Applied Biosystems, Carlsbad, CA, USA) with an ABI PRISM® 7900 HT sequence detection system using SYBR® Green to monitor the synthesis of double-stranded DNA. A standard thermal profile was used: 50 °C for 2 min, 95 °C for 10 min, 40 cycles of 95 °C for 15 s and 60 °C for 1 min. Amplicon dissociation curves were recorded after cycle 40 by heating from 60 to 95 °C with a ramp speed of 1.0 °C min−1. Transcript levels were calculated relative to the Arabidopsis reference gene PP2AA3 [41] using the 2−ΔΔCT method described previously [42]. Gene expression fold change was calculated relative to mock-treated wild-type plants. The Arabidopsis gene identifier (AGI) numbers of the studied genes are At5g44420 (PDF1.2), At1g15380 (GLYI4), At1g13320 (PP2AA3). Primers are the following: PDF1.2 (Fw: CACCCTTATCTTCGCTGCTCTT; Rv: GCCGGTGCGTCGAAAG), GLYI4 (Fw: GAAGGAAGACGCAGGAAACC; Rv: TCGGCACAAGACAGAGACAT); PP2AA3 (Fw: TAACGTGGCCAAAATGATGC; Rv: GTTCTCCACAACCGCTTGGT)

2.4. Total Protein Extraction and Western Blotting

Five-week-old Arabidopsis ecotype Col-8 and glyI4 leaves (500 mg) were ground to fine powder in a pre-chilled mortar in the presence of liquid nitrogen. Extraction buffer, containing 50 mM HEPES pH 7.5, 1% (w/v) polyvinylpolypyrrolidone, 10 mM MgCl2, 1 mM EDTA, Triton 0.1%, and a cocktail of protease inhibitors (Roche, Basel, Switzerland), was added to the powder. The total extract was then centrifuged at 13,000× g for 15 min at 4 °C, and the clear supernatant was used for SDS-PAGE.
Western blot analysis was carried out following the method previously described [43]. Forty g of protein extract was separated by 15% (w/v) SDS-PAGE and electrophoretically transferred onto nitrocellulose membrane. Protein markers were used to assess molecular weights (SMOBIO-PM 2610, SMOBIO Technology, Hsinchu City, Taiwan). Following electroblotting, the membrane was blocked for 30 min in PBS buffer (6.5 mM Na2HPO4, 1.5 mM KH2PO4, 3 mM KCl, 0.15 M NaCl, pH 7.4) containing 0.5% (v/v) Triton X-100 and 3% (w/v) BSA and then incubated overnight at room temperature with a Mouse Anti-Methylglyoxal monoclonal antibody (dilution 1:1000) as primary antibody (STA-011, Cell Biolabs, San Diego, CA, USA). The immunoreactive bands were detected with HRP-conjugated goat-anti-mouse IgG (dilution 1:7000) as secondary antibody using the peroxidase substrate 4-chloro-1-naphthole (Sigma Aldrich, St. Louis, MO, USA). The same membrane was re-probed with Ponceau S (Advansta, Menlo Park, CA, USA) to normalize the protein loading, as indicated. Densitometric analysis of the selected MG protein-adduct band has been performed using Image J software (http://rsbweb.nih.gov/ij/).

2.5. Metabolite Extraction and LC-MS Analysis

Two hundred mg of Col-8 or glyI4 leaves were finely ground in liquid nitrogen and powder was used for metabolite extractions. Briefly, cells were lysed by thermal shock (freezing/heating). A cold (−20 °C) solution of 60% methanol/40% chloroform was added to each tube. The tubes were mixed for 30 min and subsequently centrifuged at 1000× g for 1 min at 4 °C, before being transferred to −20 °C for 2–8 h. After thawing, liquid phases were recovered and samples were incubated at 4 °C for 20 min, centrifuged at 13,500× g for 10 min at 4 °C and the collected supernatants were dried to obtain visible pellets. Finally, the dried samples were re-suspended in water, 5% formic acid and transferred to glass autosampler vials for LC/MS analysis. Twenty l of samples (3 technical replicates) were injected into an Ultra High-Performance Liquid Cromatography (UHPLC) system (Ultimate 3000, Thermo Fisher Scientific, Waltham, MA, USA) and run in positive ion mode. A Reprosil C18 column (2.0 mm by 150 mm, 2.5 μm- Dr Maisch HPLC GmbH, Ammerbuch, Germany) was used for metabolite separation. Chromatographic separations were achieved at a column temperature of 30 °C and flow rate of 0.2 mL/min. A 0–100% linear gradient of solvent A (double-distilled water, 0.1% formic acid) to B (acetonitrile, 0.1% formic acid) was employed over 20 min, returning to 100% A in 2 min and a 6-min post-time solvent A hold. The UHPLC system was coupled online with a mass spectrometer Q-Exactive (Thermo Fisher Scientific, Waltham, MA, USA) scanning in full MS mode (2 μscans) at 70,000 resolution in the 67 to 1000 m/z range, target of 1 × 106 ions and a maximum ion injection time (IT) of 35 ms. Source ionization parameters were: spray voltage, 3.8 kV; capillary temperature, 300 °C; sheath gas, 40; auxiliary gas, 25; S-Lens level, 45. Calibration was performed before each analysis against positive ion mode calibration mixes (Piercenet, Thermo Fisher Scientific, Waltham, MA, USA) to ensure sub ppm error of the intact mass.

2.6. Metabolomic Data Processing and Statistical Analysis

Raw files of replicates were exported and converted into mzXML format through MassMatrix (Cleveland, OH), then processed by MAVEN.52 (available at http://genomics-pubs.princeton.edu/mzroll/) [44]. Spectrograms were analyzed for peak alignment, matching and comparison of parent and fragment ions, and for tentative metabolite identification (within a 2 ppm mass-deviation range between observed and expected results against the imported KEGG database). Results were graphed with Graphpad Prism 5.01 (Graphpad Software Inc, San Diego, CA, USA). Verification of accepted metabolites was conducted manually using HMDB, KEGG, and PubChem DBs.

2.7. Plant Fitness Parameters

Leaf areas were measured by using a ruler. The flowering time was calculated as the time of appearance of the first flower after the treatment. Leaf dry weight was determined on a microbalance with a 0.001 g resolution when the leaves had fully dried in a 60 °C stove. To determine seed production, plants were watered every other day until they stopped producing new flowers. Inflorescences were harvested when all plants had finished flowering and the seeds were weighed on a microbalance with a 0.0001 g resolution.

2.8. ROS Detection in Arabidopsis Leaves

ROS detection was performed as previously described [45,46]. Briefly, ROS production was revealed by the specific probe 2′,7′-dichlorofluorescein diacetate (DCFH2-DA; Sigma Aldrich, St. Louis, MO, USA), which is rapidly oxidized to highly fluorescent dichlorofluorescein (DCF) in the presence of ROS. Five-week-old Col-8 and glyI4 leaves were harvested. Two leaves from each of six plants were collected. One leaf from each plant was incubated at room temperature in a solution of 20 mM DCFH2-DA in 10 mM Tris-HCl (pH 7.4) for 45 min in the dark. As a negative technical control, the remaining half was incubated in 10 mM Tris-HCl (pH 7.4) only, under the same conditions. After staining, the samples were washed three times in fresh buffer for 10 min to remove the excess of fluorophore and mounted on glass slides. Fluorescence was then observed under a LSM 710 confocal microscope (Carl Zeiss Microscopy GmbH, Jena, Germany) with Plan Neofluar 20/1.30 objective. Two laser excitations lines were used (i.e., 488 nm for probe detection and 561 nm for chlorophyll auto-fluorescence). Data were processed using Image J software (http://rsbweb.nih.gov/ij/).

2.9. Stomata Staining

Leaves from five-week-old Col-8 and glyI4 plants were collected. Epidermal peels were obtained from intact leaves by scraping on the abaxial sides using precision tweezers. The isolated adaxial epidermis was stained with 0.1% (w/v) acridine orange in water (Biotium, Fremont, CA, USA) for 15 min; then were washed twice in distilled water for 10 min, mounted on glass slides. Fluorescence was observed under a LSM 710 confocal microscope (Carl Zeiss Microscopy GmbH, Jena, Germany) with Plan Neofluar 20/1.30 or 63/1.30 objective. Two laser excitations lines were used (i.e., 488 for AO staining and 561 nm for chlorophyll autofluorescence). Data were processed using Image J software (http://rsbweb.nih.gov/ij/).

2.10. Resistance Assays

Infections with the fungus Plectosphaerella cucumerina BMM or the bacterium Pseudomonas syringae pv. tomato (Pst) DC3000 were performed on five-week-old Col-8 and glyI4 plants. P. cucumerina conidia were collected from fungal cultures grown on half strength potato dextrose agar (PDA), at 20 °C, and suspended in 0.5× potato dextrose broth (PDB) (Sigma, Steinheim, Germany) at a concentration of 5 × 106 conidia/mL. Infections were carried out by applying a single 6-µL drop of conidial suspension on three to five leaves per plant, on the adaxial leaf surface. Plants were incubated under high relative humidity (RH) conditions (˃80%) in closed boxes for seven days, after which the diameter of the necrotic lesions were determined. Pst DC3000 was grown overnight in King’s medium B (12 mM MgSO4 × 7H2O, 8 mM K2HPO4, 81 mM peptone, and 100 mM glycerol) containing 60 µM of rifampicin. Bacterial suspension was centrifuged at low speed and washed twice in 10 mM MgCl2. Infections were carried out by dipping plant leaves for 4 s in a bacterial suspension containing 106 colony-forming units (CFU)/mL in 10 mM MgCl2 and 0.01 % v/v of the surfactant Silwet L-77 (Van Meeuwen Chemicals BV, Weesp, the Netherlands). Infected plants were incubated under high RH (˃80%) in closed boxes for the first 6 h. After 2 h (time zero) and 72 h the whole aerial part of each plant was harvested, weighed, washed twice, and ground in 10 mM MgCl2 in order to extract bacterial cells. Serial dilutions were plated on King’s B agar containing 50 µg/mL of rifampicin in order to count CFU and determine the bacterial load of each plant (expressed as Log CFU/mg).

2.11. GLYI4 Subcellular Localization

The GLYI4 coding sequence was subcloned into the pUC57 vector (pUC57::GLYI4, purchased from Synbio Technologies, Monmouth Junction, NJ, USA). GLYI4 coding sequence was excised from pUC57::GLYI4 vector by digestion with PinAI enzyme and ligated into the same sites of the pUC-35S::EYFP vector, upstream and in frame to EYFP sequence under the control of 35S promoter of cauliflower mosaic virus. The vector (pUC-35S::GLYI4-EYFP) was fully sequenced to confirm the correct frame of the insert.
Cellular localization of GLYI4 was investigated by protoplast transient expression approach followed by confocal microscope observation of the transformed fluorescent protoplasts. Protoplasts were isolated from five-week-old glyI4 mutant and transformed with the vector (pUC-35S::GLYI4-EYFP) using the polyethylene glycol (PEG)-calcium transfection protocol described [47]. PEG-calcium transfection was performed with protoplasts at a density of 1 × 106/mL. Two different sets of protoplasts were independently transformed with the vector. One set was treated with 100 µM MeJA prior transformation and the other one was treated with water. Protoplasts were harvested 20 h after transformation and were analyzed for chimeric protein localization using a Zeiss LSM 710 confocal microscope (Carl Zeiss Microscopy GmbH, Germany) with Plan Neofluar × 40/1.30 objective. Two laser excitations lines were used (i.e., 514 nm for EYFP, and 563 nm for chloroplast autofluorescence). Data were processed using Image J software (http://rsbweb.nih.gov/ij/).

2.12. Statistical Analyses

Expression of PDF1.2 and GLYI4 genes have been compared between treatments and between genotypes using two-way analysis of variance (ANOVA) and Tukey’s multiple-comparison posttest. Differences between data were significant at a p value of < 0.0001. Pst DC3000 bacterial proliferation has been compared between time points and between genotypes using two-way analysis of variance and Tukey’s multiple-comparison posttest. Differences between data were significant at a p value of <0.0001. Student’s t-test for normally distributed data was performed when two groups were considered. Differences were considered when * p < 0.05; ** p < 0.005; *** p < 0.005. Statistical analyses were performed with GraphPad Prism 7.0 (GraphPad Software Inc., San Diego, CA, USA).

3. Results

3.1. GLYI4 Acts in the MG Scavenging Pathway

To investigate whether GLYI4 plays a role in the MG detoxification pathway, we first tested the effect of MG on GLYI4 expression in wild-type Arabidopsis accession Col-8 and in glyI4 mutant. GLYI4 expression was monitored in 5-week-old plants, 24 h after exogenous application of MG, and compared with the GLYI4 expression level in mock-treated. In Col-8, GLYI4 transcript was significantly induced after MG treatment showing 18-fold induction compared to mock, while in glyI4 mutant was not detectable (Figure 1).
In order to confirm the importance of GLYI4 in MG scavenging, MG and two other key compounds of the scavenging pathway (lactate and -GSH-) were analyzed in the T-DNA insertion mutant glyI4 and in Col-8, by LC-MS/MS. MG is detoxified via the glyoxalase system composed of glyoxalase I and glyoxalase II, which catalyze the detoxification of MG to D-lactate using GSH as a cofactor. At the end of the reaction, GSH is recycled because the availability of GSH is an important factor for detoxifying MG via the glyoxalase system [48]. We found that the concentration of MG detected in glyI4 mutant was higher than in Col-8. By contrast, the levels of lactate and GSH were lower in glyI4, compared to that in Col-8 (Figure 2).
MG accumulation can be detrimental by reacting with several macromolecules causing their inactivation or degradation. In fact, it has been reported that MG forms adducts with arginine, lysine and cysteine residues of proteins, generating advanced glycation end-products (AGEs) [10,23]. AGEs adversely affect the whole organism, causing oxidative damage to key cellular components [49,50,51]. In order to assess the accumulation of MG-protein adducts in glyI4 mutant, Western blot analyses with antibody detecting MG-adducts were carried out (Figure 3). This antibody specifically recognizes methylglyoxal 5-hydro-5-methylimidazolones (MG-H1), formed with the amino groups of the arginine side chain.
As shown in Figure 3A, there was a significant net increase in MG-protein adducts in glyI4 mutant compared to Col-8. Moreover, the densitometric analysis carried out on the most intense protein band detected on the membrane showed an 18-fold increase of adduct formation in glyI4, compared to Col-8 (Figure 3B).

3.2. GLYI4 Impacts Fitness and Physiology of Arabidopsis Plants

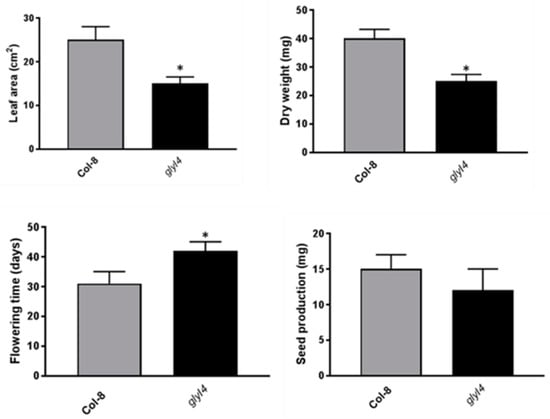

To investigate whether MG accumulation impacted the fitness of the plants, leaf area, dry weight, flowering time, and seed production were measured in five-week-old glyI4 and Col-8 plants at selected timing. As shown in Figure 4, glyI4 phenotype was characterized by a significantly reduced leaf area and dry weight, as well as prolonged flowering time compared to Col-8.
Moreover, we observed a moderate, but not statistically significant, reduction in seed production. Thus, MG accumulation had a negative effect on the analyzed fitness parameters indicating a moderate stress phenotype of glyI4 plants.
In the presence of an excess of MG, plants have been reported to be subjected to a strong oxidative stress, due to an enhanced reactive oxygen species production [48]. In order to demonstrate MG-related ROS increase in the glyI4 mutant with respect to Col-8, five-week-old Arabidopsis leaves were incubated with 2′,7′-dichlorofluorescein diacetate (2′,7′-DCFH2-DA).This compound and its derivatives are largely used as ROS-sensitive dyes [52].This compound diffuses through the plasma membrane into the cytoplasm where is deacetylated by intracellular esterase and then oxidized by ROS producing the green fluorescent dye 2′,7′-DCF. Originally, oxidation of DCFH2 to DCF was thought to be specific for H2O2, but recent evidence has shown that other ROS such as hydroxyl radical, hydroperoxides, and peroxynitrite can also oxidize DCFH2, although with greatly reduced sensitivity as compared with that of H2O2 [53].
Col-8 plants treated with buffer showed the red fluorescence due to chlorophyll only, while glyI4 mutants showed very strong green fluorescence due to 2′,7′-DCF highlighting the presence of high levels of ROS (Figure 5).
It has been reported that MG can induce stomatal closure by modulating ROS production and cytosolic free Ca2+ concentration increase in the Arabidopsis leaf guard cells [48]. Moreover, MG can cross both prokaryotic and eukaryotic membranes leading to increased acidification in the cellular compartments related to stomatal closure [48,54,55,56,57,58]. Thus, we addressed the question whether MG accumulation affected stomatal behavior in our model system. The fluorochrome acridine orange (AO) has been widely exploited to stain stomata in diverse plant species [58]. AO is a cell permeable pH-sensitive fluorescent dye and has a maximum emission at 540 nm (green light) in its neutral form. However, when AO enters acidic compartments, it becomes protonated remaining sequestered in these compartments, shifting its maximum emission to 660 nm (red light). When the abaxial epidermis of glyI4 and Col-8 leaves was peeled off and stained with AO, red fluorescence was observed only in stomata of the glyI4 mutant at the level of outer cell layers as well as in the cell compartments close to stomatal aperture, indicating their acidification (Figure 6).

3.3. GLYI4 Affects JA-Dependent Defense Responses

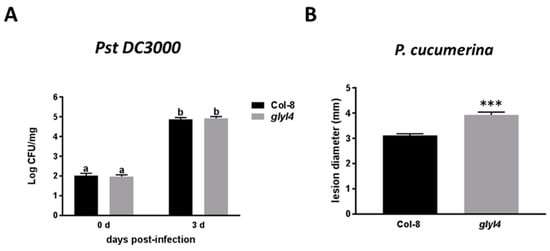

GLYI4 was demonstrated to play a role in SA-mediated suppression of JA signaling pathway and in the defense response against fungal pathogen triggering both hormones [38]. Moving further, we asked a question whether GLYI4 could influence the plant defense reaction against pathogens that trigger SA or JA signaling pathways. For this purpose, glyI4 mutant plants were tested for their level of resistance against Pseudomonas syringae pv. tomato strain DC3000 (Pst DC3000) and Plectosphaerella cucumerina (P. cucumerina). Pst DC3000 is known to activate SA signaling [59], while JA is the main hormone mediating resistance against P. cucumerina [60,61]. When five-week-old glyI4 and Col-8 plants were infected with Pst DC3000 and colony forming units were counted three days later there were no significant differences between the mutant and wild-type plants (Figure 7A).
This result strengthens previous findings that indicate no significant alteration of the SA signaling pathway in glyI4 mutants, compared to Col-8 [38]. Moreover, when five-week-old glyI4 and Col-8 plants were inoculated with P. cucumerina spores, and disease symptoms were scored seven days later, glyI4 mutant plants developed significantly more severe disease symptoms than Col-8 (Figure 7B), thus suggesting that GLYI4 loss-of-function negatively affects JA pathway responses. To confirm this observation, PDF1.2 expression was evaluated as it represents the principal marker of this pathway. As expected, in Col-8 plants this marker gene was highly induced upon MeJA treatment, but interestingly its expression was significantly suppressed by MG, indicating an antagonistic role of this compound on JA-mediated defenses. Noteworthy, in glyI4 mutant MeJA-induced PDF1.2 expression was significantly reduced compared to that in Col-8 (Figure 8).
Finally, to gain more insight into the molecular function of GLYI4, we determined the GLYI4 subcellular localization. GLYI4 cDNA was cloned in a plasmid upstream of the enhanced yellow fluorescent protein (EYFP) coding sequence. The resulting chimeric protein GLYI4-EYFP was transiently expressed into glyI4 Arabidopsis mesophyll protoplasts, MeJA-treated for 6 h prior to the transformation and in mock-treated. Figure 9 shows that in mock-treated protoplasts GLYI4 was mainly localized to the plasma membrane, where it is likely to play a role in the MG detoxification pathway. Interestingly, in MeJA-treated protoplasts the protein accumulated in the cytoplasm.

4. Discussion

Methylglyoxal production is an unavoidable consequence of metabolism, even under normal physiological conditions in any organisms. Nevertheless, excessive MG accumulation in plant cells can have detrimental effects on plant physiology, leading to disruption of several cellular functions [8]. The glyoxalase enzymes belonging to GLY I and GLY II families act coordinately to detoxify MG [48]. Recently, by GWA study we identified the glyoxalase GLYI4 as a positive regulator of the SA-mediated antagonism on JA pathway, with potential effect in the regulation of pathogen resistance [38]. However, GLYI4 has been poorly characterized, so it is worthy to gain deeper into the involvement of GLYI4 in both MG scavenging and in JA signaling, to unravel a possible role of this enzyme as hub in both pathways.
In this work, we investigated the impact of GLYI4 on MG scavenging. GLYI4 gene was highly expressed in Arabidopsis Col-8 after exogenous treatment with MG, suggesting that the toxic compound regulates its expression (Figure 1). This is consistent with the observation that GLYI genes from O. sativa were up-regulated after MG stress [37]. Moreover, we found that MG level is higher in glyI4 knock-down mutant than in Col-8 plants, while the levels of its detoxification products, i.e., lactate and GSH, were lower compared to that in Col-8 (Figure 2). Thus, our results underline that a loss-of-function of GLYI4 leads not only to MG accumulation, but also to a general alteration in the amounts of the final products of the scavenging pathway. Accumulation of MG has been also reported in yeast mutants impaired in MG detoxification enzymes [11]. Furthermore, MG-mediated GSH depletion has been already observed in human cells [62]. The accumulation of MG is often called dicarbonyl stress, which has been implicated as a cause of tissue damage and aging [63]. The dicarbonyl group within MG can readily react with the amine groups of proteins, lipids and nucleic acids, forming advanced glycation end products, which can cause oxidative damage to key cellular components [49,50]. In particular, MG preferably reacts with arginine, lysine and cysteine residues of proteins to form AGEs. The result obtained by Western blotting confirmed that glyI4 mutant shows higher accumulation of MG-protein adducts, compared to the control (Figure 3). Taken together, these results indicate that although there are 22 GLYI protein members in Arabidopsis that could potentially work redundantly, it seems that the lacking of GLYI4 is crucial for MG accumulation.
As widely reported, high levels of intracellular MG strongly impair plant growth and development [48,64,65]. Accordingly, we found a reduced plant fitness of glyI4 mutants, compared to Col-8. Plant fitness can be measured by morphometric parameters such as growth, flowering time and seed set, suggesting a typical stress phenotype in glyI4 mutant characterized by lower vegetative development, early flowering time, and lower seed production (Figure 4). This suggests that GLYI4 could be a crucial component for a successful plant development and fitness. Under stress, MG increases ROS formation in plant cells which also play a key role in plant physiology and in stress responses [66]. One of the best investigated ROS is hydrogen peroxide (H2O2), which accumulates in response to stress and it is responsible for several phenomena, including stomatal closure and cell death [67]. It has been found that MG-induced stomatal closure accompanied by production of ROS and cellular compartment acidification [7,54,55,56,57,58]. In our study, we observed that the glyI4 mutant showed both increased ROS formation and stomatal closure (Figure 5; Figure 6, respectively), likely due to MG accumulation. Stomatal closure is a unique adaptive phenomenon in plants to withstand extreme stress conditions [68]. MG-induced stomatal closure may contribute to plant adaptation during stress by preventing water loss through transpiration and representing also an effective barrier against pathogens [7].
On the other hands, plant responses to biotic stresses are very complex and involve numerous signal molecules, often communicating with each other. Based on this, it is possible to hypothesize that MG cooperates with other compounds in mediating defense responses or susceptibility against biotic threats. In order to characterize the resistance of glyI4 mutants against biotic cues, we used the bacterial pathogen Pst DC3000 and the fungal necrotrophic pathogen P. cucumerina. Resistance against Pst DC3000 is mainly orchestrated by SA [59], while JA pathway mainly contributes to the host resistance against P. cucumerina [60,61]. Interestingly, glyI4 mutant showed significant increased susceptibility to P. cucumerina, compared to Col-8 while no difference in resistance against Pst DC3000 was found (Figure 7). These results strengthen previous findings that demonstrated a significant impairment of the JA-dependent defense responses in glyI4 mutant compared to Col-8, while SA-dependent responses were not affected [38]. In order to highlight the involvement of MG on JA defense pathway, the expression of PDF1.2 was evaluated in Col-8 plants after MeJA alone or in combination with MG. MG induced a strong inhibition of the MeJA-induced expression of PDF1.2, highlighting an antagonistic interaction on the JA pathway (Figure 8). In this perspective, the interaction between MG and hormone pathways could represent a barrier that prevents defense against necrotrophic pathogens.
Finally, to help unravel the function of GLYI4, we investigated its subcellular localization in protoplasts of glyI4 mutants. Interestingly, we found that GLYI4 accumulated at the plasma membrane (Figure 9), suggesting that MG detoxification and signaling could also take place in this compartment, by recruiting the first enzyme of the MG scavenging pathway. Previous studies demonstrated MG accumulation and activity at the level of the plasma membrane, where the compound can bring about lipid peroxidation [69]; in fact, MG rapidly reacts with membrane phospholipids, producing AGEs leading to membrane dismantling [70]. Interestingly, there is evidence that AGEs interact with plasma membrane receptors called receptor for advanced glycation end products (RAGEs), leading either to their endocytosis and degradation or to immune responses [71,72]. A striking feature of RAGE signaling is its multi-ligand capacity. Interestingly, they are classified as receptors that respond to damage associated molecular patterns (DAMPs) and which are able to activate MAPK cascades, inducing inflammatory cytokines [72]. Most of the RAGE ligands are involved in inflammation and cell migration processes [73], therefore it is not surprising that RAGEs are enrolled in defense mechanisms. Interestingly, after MeJA stimulus GLYI4 translocated to the cytoplasm (Figure 9), where MeJA signaling usually takes place [74,75]. The signal for GLYI4 re-localization could be either an accumulation of MG due to MeJA or an involvement of GLYI4 in MeJA signaling pathway. This translocation could be possible due to post-translational modifications (PTMs)of GLYI4. In fact, members of Arabidopsis glyoxalase I family are subjected to phosphorylation [76], which plays important roles in regulation of cell signaling and growth. Moreover, PTMs can lead to modification of enzyme activity, protein structure, and protein-protein interaction that can lead to cellular re-localization and new biological function [76]. In conclusion, our results support the emerging novel cross-communication between MG and MeJA. Accumulation of MG in glyI4 mutant clearly impacts the JA signaling pathway in Arabidopsis. Furthermore, we demonstrated that MG levels and JA pathway are closely associated with biotic stress responses. In the future, in-depth understanding on how MG and JA pathway cross-communicate will likely reveal other intriguing regulatory roles for GLYI4 as a potential hub.

Author Contributions

Conceptualization, S.P., C.C.; Methodology, S.P., G.S.F., L.B.; Validation, S.P., G.S.F., L.B., I.B., E.P., A.B.; Formal Analysis, S.P., G.S.F., L.B., I.B., E.P., A.B., A.M.T.; Investigation, S.P., G.S.F., L.B.; Resources, C.C.; Data Curation, S.P., L.B.; Writing—Original Draft Preparation, S.P.; Writing—Review & Editing, S.P., L.B., C.C.; Visualization, S.P., G.S.F., L.B.; Supervision, S.P., C.C.; Project Administration, S.P., C.C.; Funding Acquisition, C.C.

Funding

This research was founded by Ministero dell’Istruzione, Università e Ricerca Scientifica (MIUR), project MIUR_FIRB of CNR-IGV, Consiglio Nazionale delle Ricerche-Istituto di Genetica Vegetale, Portici, Italy (grant number RBNE01KZE7).

Acknowledgments

Confocal analysis was performed at the Centro Grandi Attrezzature (CGA) of the University of Tuscia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pieterse, C.M.J.; Van der Does, D.; Zamioudis, C.; Leon-Reyes, A.; Van Wees, S.C.M. Hormonal modulation of plant immunity. Annu. Rev. Cell Dev. Biol. 2012, 28, 489–521. [Google Scholar] [CrossRef] [PubMed]
  2. O’Brien, J.A.; Benková, E. Cytokinin cross-talking during biotic and abiotic stress responses. Front. Plant Sci. 2013, 4, 451. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Robert-Seilaniantz, A.; Grant, M.; Jones, J.D.G. Hormone crosstalk in plant disease and defense: More than just JASMONATE-SALICYLATE antagonism. Annu. Rev. Phytopathol. 2011, 49, 317–343. [Google Scholar] [CrossRef] [PubMed]
  4. Kazan, K.; Lyons, R. Intervention of phytohormone pathways by pathogen effectors. Plant Cell 2014, 26, 2285–2309. [Google Scholar] [CrossRef]
  5. Hoque, T.S.; Okuma, E.; Uraji, M.; Furuichi, T.; Sasaki, T.; Hoque, M.A.; Nakamura, Y.; Murata, Y. Inhibitory effects of methylglyoxal on light-induced stomatal opening and inward KC channel activity in Arabidopsis. Biosci. Biotechnol. Biochem. 2012, 76, 617–619. [Google Scholar] [CrossRef]
  6. Hoque, T.S.; Uraji, M.; Tuya, A.; Nakamura, Y.; Murata, Y. Methylglyoxal inhibits seed germination and root elongation and up-regulates transcription of stress-responsive genes in ABA-dependent pathway in Arabidopsis. Plant Biol. 2012, 14, 854–858. [Google Scholar] [CrossRef]
  7. Hoque, T.S.; Uraji, M.; Ye, W.; Hossain, M.A.; Nakamura, Y.; Murata, Y. Methylglyoxal-induced stomatal closure accompanied by peroxidase-mediated ROS production in Arabidopsis. J. Plant Physiol. 2012, 169, 979–986. [Google Scholar] [CrossRef]
  8. Hoque, M.A.; Uraji, M.; Banu, M.N.A.; Mori, I.C.; Nakamura, Y.; Murata, Y. Methylglyoxal inhibition of cytosolic ascorbate peroxidase from Nicotiana tabacum. J. Biochem. Mol. Toxicol. 2012, 26, 315–321. [Google Scholar] [CrossRef]
  9. Mano, J. Reactive carbonyl species: Their production from lipid peroxides, action in environmental stress, and the detoxification mechanism. Plant Physiol. Biochem. 2012, 59, 90–97. [Google Scholar] [CrossRef]
  10. Hoque, T.S.; Hossain, M.A.; Mostofa, M.G.; Burritt, D.J.; Fujita, M.; Tran, L.S. Methylglyoxal: An Emerging Signaling Molecule in Plant Abiotic Stress Responses and Tolerance. Front. Plant Sci. 2016, 7, 1341. [Google Scholar] [CrossRef][Green Version]
  11. Jain, M.; Nagar, P.; Sharma, A.; Batth, R.; Aggarwal, S.; Kumari, S.; Mustafiz, A. GLYI and D-LDH play key role in methylglyoxal detoxification and abiotic stress tolerance. Sci. Rep. 2018, 8, 5451. [Google Scholar] [CrossRef] [PubMed]
  12. Yadav, S.K.; Singla-Pareek, S.L.; Sopory, S.K. An overview on the role of methylglyoxal and glyoxalases in plants. Drug Metabol. Drug Interact. 2008, 23, 51–68. [Google Scholar] [CrossRef] [PubMed]
  13. Campbell, A.K.; Naseem, R.; Holland, I.B.; Matthews, S.B.; Wann, K.T. Methylglyoxal and other carbohydrate metabolites induce lanthanum-sensitive Ca2+ transients and inhibit growth in E coli. Arch. Biochem. Biophys. 2007, 468, 107–113. [Google Scholar] [CrossRef] [PubMed]
  14. Takatsume, Y.; Izawa, S.; Inoue, Y. Methylglyoxal as a signal initiator for activation of the stress-activated protein kinase cascade in the fission yeast. Schizosaccharomyces pombe. J. Biol. Chem. 2006, 281, 9086–9092. [Google Scholar] [CrossRef]
  15. Nomura, W.; Maeta, K.; Kita, K.; Izawa, S.; Inoue, Y. Role of Gcn4 for adaptation to methylglyoxal in Saccharomyces cerevisiae: Methylglyoxal attenuates protein synthesis through phosphorylation of eIF2α. Biochem. Biophys. Res. Commun. 2008, 376, 738–742. [Google Scholar] [CrossRef]
  16. Akhand, A.A.; Hossain, K.; Mitsui, H.; Kato, M.; Miyata, T.; Inagi, R.; Du, J.; Takeda, K.; Kawamoto, Y.; Suzuki, H.; et al. Glyoxal and methylglyoxal trigger distinct signals for map family kinases and caspase activation in human endothelial cells. Free Radic. Biol. Med. 2001, 31, 20–30. [Google Scholar] [CrossRef]
  17. Fukunaga, M.; Miyata, S.; Higo, S.; Hamada, Y.; Ueyama, S.; Kasuga, M. Methylglyoxal induces apoptosis through oxidative stress-mediated activation of p38 mitogen-activated protein kinase in rat Schwann Cells. Ann. N. Y. Acad. Sci. 2005, 1043, 151–157. [Google Scholar] [CrossRef]
  18. Riboulet-Chavey, A.; Pierron, A.; Durand, I.; Murdaca, J.; Giudicelli, J.; Van Obberghen, E. Methylglyoxal impairs the insulin signaling pathways independently of the formation of intracellular reactive oxygen species. Diabetes 2006, 55, 1289–1299. [Google Scholar] [CrossRef]
  19. Jia, X.; Chang, T.; Wilson, T.W.; Wu, L. Methylglyoxal mediates adipocyte proliferation by increasing phosphorylation of Akt1. PLoS ONE 2012, 7, e36610. [Google Scholar] [CrossRef]
  20. Sharma, S.; Mustafiz, A.; Singla-Pareek, S.L.; Shankar Srivastava, P.; Sopory, S.K. Characterization of stress and methylglyoxal inducible triose phosphate isomerase (OscTPI) from rice. Plant Signal. Behav. 2012, 7, 1337–1345. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Kaur, C.; Singla-Pareek, S.L.; Sopory, S.K. Glyoxalase and methylglyoxal as biomarkers for plant stress tolerance. CRC. Crit. Rev. Plant Sci. 2014, 33, 429–456. [Google Scholar] [CrossRef]
  22. Ray, A.; Ray, S.; Mukhopadhyay, S.; Ray, M. Methylglyoxal with glycine or succinate enhances differentiation and shoot morphogenesis in Nicotiana tabacum callus. Biol. Plant. 2013, 57, 219–223. [Google Scholar] [CrossRef]
  23. Sankaranarayanan, S.; Jamshed, M.; Kumar, A.; Skori, L.; Scandola, S.; Wang, T.; Spiegel, D.; Samuel, M.A. Glyoxalase goes green: The expanding roles of glyoxalase in plants. Int. J. Mol. Sci. 2017, 18, 898. [Google Scholar] [CrossRef] [PubMed]
  24. Nokin, M.-J.; Durieux, F.; Peixoto, P.; Chiavarina, B.; Peulen, O.; Blomme, A.; Turtoi, A.; Costanza, B.; Smargiasso, N.; Baiwir, D.; et al. Methylglyoxal, a glycolysis side-product, induces Hsp90 glycation and YAP mediated tumor growth and metastasis. eLife 2016, 5, e19375. [Google Scholar] [CrossRef]
  25. Schmitz, J.; Rossoni, A.W.; Maurino, V.G. Dissecting the physiological function of plant glyoxalase I and glyoxalase I-like proteins. Front. Plant Sci. 2018, 9, 1618. [Google Scholar] [CrossRef]
  26. Hossain, M.A.; Fujita, M. Purification of glyoxalase I from onion bulbs and molecular cloning of its cDNA. Biosci. Biotechnol. Biochem. 2009, 73, 2007–2013. [Google Scholar] [CrossRef]
  27. Hossain, M.A.; Hossain, M.Z.; Fujita, M. Stress-induced changes of methylglyoxal level and glyoxalase I activity in pumpkin seedlings and cDNA cloning of glyoxalase I gene. Aust. J. Crop Sci. 2009, 3, 53–64. [Google Scholar]
  28. Ghosh, A.; Islam, T. Genome-wide analysis and expression profiling of glyoxalase gene families in soybean (Glycine max) indicate their development and abiotic stress specific response. BMC Plant Biol. 2016, 16, 87. [Google Scholar] [CrossRef]
  29. Singla-Pareek, S.; Reddy, M.; Sopory, S. Genetic engineering of the glyoxalase pathway in tobacco leads to enhanced salinity tolerance. Proc. Natl. Acad. Sci. USA 2003, 100, 14672–14677. [Google Scholar] [CrossRef][Green Version]
  30. Ghosh, A.; Pareek, A.; Sopory, S.K.; Singla-Pareek, S.L. A glutathione responsive rice glyoxalase II, OsGLYII-2, functions in salinity adaptation by maintaining better photosynthesis efficiency and anti-oxidant pool. Plant J. 2014, 80, 93–105. [Google Scholar] [CrossRef][Green Version]
  31. Kaur, C.; Ghosh, A.; Pareek, A.; Sopory, S.K.; Singla-Pareek, S.L. Glyoxalases and stress tolerance in plants. Biochem. Soc. Trans. 2014, 42, 485–490. [Google Scholar] [CrossRef] [PubMed]
  32. Mustafiz, A.; Ghosh, A.; Tripathi, A.K.; Kaur, C.; Ganguly, A.K.; Bhavesh, N.S.; Tripathi, J.K.; Pareek, A.; Sopory, S.K.; Singla-Pareek, S.L. A unique Ni2+ -dependent and methylglyoxal-inducible rice glyoxalase I possesses a single active site and functions in abiotic stress response. Plant J. 2014, 78, 951–963. [Google Scholar] [CrossRef] [PubMed]
  33. Ghosh, A. Genome-wide identification of glyoxalase genes in Medicago truncatula and their expression profiling in response to various developmental and environmental stimuli. Front. Plant Sci. 2017, 8, 836. [Google Scholar] [CrossRef] [PubMed]
  34. Singla-Pareek, S.L.; Yadav, S.K.; Pareek, A.; Reddy, M.K.; Sopory, S.K. Transgenic tobacco overexpressing glyoxalase pathway enzymes grow and set viable seeds in zinc-spiked soils. Plant Physiol. 2006, 140, 613–623. [Google Scholar] [CrossRef] [PubMed]
  35. Alvarez Viveros, M.F.; Inostroza-Blancheteau, C.; Timmermann, T.; González, M.; Arce-Johnson, P. Overexpression of GlyI and GlyII genes in transgenic tomato (Solanum lycopersicum Mill.) plants confers salt tolerance by decreasing oxidative stress. Mol. Biol. Rep. 2013, 40, 3281–3290. [Google Scholar] [CrossRef] [PubMed]
  36. He, P.; Moran, G.R. Structural and mechanistic comparisons of the metal-binding members of the vicinal oxygen chelate (VOC) superfamily. J. Inorg. Biochem. 2011, 105, 1259–1272. [Google Scholar] [CrossRef]
  37. Mustafiz, A.; Singh, A.K.; Pareek, A.; Sopory, S.K.; Singla-Pareek, S.L. Genome-wide analysis of rice and Arabidopsis identifies two glyoxalase genes that are highly expressed in abiotic stresses. Funct. Integr. Genom. 2011, 11, 293–305. [Google Scholar] [CrossRef]
  38. Proietti, S.; Caarls, L.; Coolen, S.; Van Pelt, J.A.; Van Wees, S.C.M.; Pieterse, C.M.J. Genome-wide association study reveals novel players in defense hormone crosstalk in Arabidopsis. Plant Cell Environ. 2018, 41, 2342–2356. [Google Scholar] [CrossRef]
  39. Hoagland, D.R.; Arnon, D.I. The water culture method for growing plants without soil. Calif. Agric. Exp. Stn. Bull. 1938, 347, 36–39. [Google Scholar]
  40. Oñate-Sánchez, L.; Vicente-Carbajosa, J. DNA-free RNA isolation protocols for Arabidopsis thaliana, including seeds and siliques. BMC Res. Notes 2008, 1, 93. [Google Scholar]
  41. Czechowski, T.; Stitt, M.; Altmann, T.; Udvardi, M.K.; Scheible, W.-R. Genome-wide identification and testing of superior reference genes for transcript normalization in Arabidopsis. Plant Physiol. 2005, 139, 5–17. [Google Scholar] [CrossRef] [PubMed]
  42. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  43. Towbin, H.; Staehelin, T.; Gordon, J. Electrophoretic transfer of proteins from acrylamide gels to nitrocellulose sheets: Procedure and some applications. Proc. Natl. Acad. Sci. USA 1979, 76, 4350–4354. [Google Scholar] [CrossRef] [PubMed]
  44. Melamud, E.; Vastag, L.; Rabinowitz, J.D. Metabolomic analysis and visualization engine for LC-MS data. Anal. Chem. 2010, 82, 9818–9826. [Google Scholar] [CrossRef] [PubMed]
  45. Proietti, S.; Giangrande, C.; Amoresano, A.; Pucci, P.; Molinaro, A.; Bertini, L.; Caporale, C.; Caruso, C. Xanthomonas campestris lipooligosaccharides trigger innate immunity and oxidative burst in Arabidopsis. Plant Physiol. Biochem. 2014, 85, 51–62. [Google Scholar] [CrossRef] [PubMed]
  46. Bertini, L.; Palazzi, L.; Proietti, S.; Pollastri, S.; Arrigoni, G.; Polverino de Laureto, P.; Caruso, C. Proteomic analysis of MeJa-induced defense responses in rice against wounding. Int. J. Mol. Sci. 2019, 20, 2525. [Google Scholar] [CrossRef]
  47. Yoo, S.-D.; Cho, Y.-H.; Sheen, J. Arabidopsis mesophyll protoplasts: A versatile cell system for transient gene expression analysis. Nat. Protoc. 2007, 2, 1565–1572. [Google Scholar] [CrossRef]
  48. Hasanuzzaman, M.; Nahar, N.; Hossain, M.S.; Mahmud, J.A.; Rahman, A.; Inafuku, M.; Oku, H.; Fujita, M. Coordinated actions of glyoxalase and antioxidant defense systems in conferring abiotic stress tolerance in plants. Int. J. Mol. Sci. 2017, 18, 200. [Google Scholar] [CrossRef]
  49. Sharma, C.; Kaur, A.; Thind, S.S.; Singh, B.; Raina, S. Advanced glycation End-products (AGEs): An emerging concern for processed food industries. J. Food Sci. Technol. 2015, 52, 7561–7576. [Google Scholar] [CrossRef]
  50. Møller, I.M.; Rogowska-Wrzesinska, A.; Rao, R.S. Protein carbonylation and metal-catalyzed protein oxidation in a cellular perspective. J. Proteom. 2011, 74, 2228–2242. [Google Scholar]
  51. Shumilina, J.; Kusnetsova, A.; Tsarev, A.; Janse van Rensburg, H.C.; Medvedev, S.; Demidchik, V.; Van den Ende, W.; Frolov, A. Glycation of plant proteins: Regulatory roles and interplay with sugar signalling? Int. J. Mol. Sci. 2019, 20, 2366. [Google Scholar] [CrossRef] [PubMed]
  52. Kristiansen, K.A.; Jensen, P.E.; Møller, I.M.; Schulz, A. Monitoring reactive oxygen species formation and localisation in living cells by use of the fluorescent probe CM-H(2)DCFDA and confocal laser microscopy. Physiol. Plant. 2009, 136, 369–383. [Google Scholar] [CrossRef] [PubMed]
  53. Yang, C.; Jiang, L.; Zhang, H.; Shimoda, L.A.; DeBerardinis, R.J.; Semenza, G.L. Analysis of hypoxia-induced metabolic reprogramming. Methods Enzymol. 2014, 542, 425–455. [Google Scholar]
  54. Ferguson, G.P.; McLaggan, D.; Booth, I.R. Potassium channel activation by glutathione-S-conjugates in Escherichia coli: Protection against methylglyoxal is mediated by cytoplasmic acidification. Mol Microbiol. 1995, 17, 1025–1033. [Google Scholar] [CrossRef] [PubMed]
  55. Cook, L.J.; Davies, J.; Yates, A.P.; Elliott, A.C.; Lovell, J.; Joule, J.A.; Pemberton, P.; Thornalley, P.J.; Best, L. Effects of methylglyoxal on rat pancreatic beta-cells. Biochem Pharmacol. 1998, 55, 1361–1367. [Google Scholar] [CrossRef]
  56. Kniep, E.M.; Roehlecke, C.; Özkucur, N.; Steinberg, A.; Reber, F.; Knels, L.; Funk, R.H.W. Inhibition of apoptosis and reduction of intracellular pH decrease in retinal neural cell cultures by a blocker of carbonic anhydrase. Investig. Ophthalmol. Vis. Sci. 2006, 47, 1185–1192. [Google Scholar] [CrossRef]
  57. Chakraborty, S.; Gogoi, M.; Chakravortty, D. Lactoylglutathione lyase, a critical enzyme in methylglyoxal detoxification, contributes to survival of Salmonella in the nutrient rich environment. Virulence 2015, 6, 50–65. [Google Scholar] [CrossRef]
  58. Bak, G.; Lee, E.J.; Lee, Y.; Kato, M.; Segami, S.; Sze, H.; Maeshima, M.; Hwang, J.U.; Lee, Y. Rapid structural changes and acidification of guard cell vacuoles during stomatal closure require phosphatidylinositol 3,5-bisphosphate. Plant Cell. 2013, 25, 2202–2216. [Google Scholar] [CrossRef]
  59. Liu, Y.; Wang, L.; Cai, G.; Jiang, S.; Sun, L.; Li, D. Response of tobacco to the Pseudomonas syringae pv. Tomato DC3000 is mainly dependent on salicylic acid signaling pathway. FEMS Microbiol. Lett. 2013, 344, 77–85. [Google Scholar] [CrossRef]
  60. Yan, C.; Xie, D. Jasmonate in plant defence: Sentinel or double agent? Plant Biotechnol. J. 2015, 13, 1233–1240. [Google Scholar] [CrossRef]
  61. Pétriacq, P.; Stassen, J.H.; Ton, J. Spore density determines infection strategy by the plant pathogenic fungus Plectosphaerella cucumerina. Plant Physiol. 2016, 170, 2325–2339. [Google Scholar] [CrossRef] [PubMed]
  62. Seo, K.; Seo, S.; Han, J.Y.; Ki, S.H.; Shin, S.M. Resveratrol attenuates methylglyoxal-induced mitochondrial dysfunction and apoptosis by Sestrin2 induction. Toxicol. Appl. Pharmacol. 2014, 280, 2–314. [Google Scholar] [CrossRef] [PubMed]
  63. Rabbani, N.; Thornalley, P.J. Dicarbonyl proteome and genome damage in metabolic and vascular disease. Biochem. Soc. Trans. 2014, 42, 425–432. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, M.; Thelen, J.J. The plastid isoform of triose phosphate isomerase is required for the postgerminative transition from heterotrophic to autotrophic growth in Arabidopsis. Plant Cell 2010, 22, 77–90. [Google Scholar] [CrossRef]
  65. Yadav, S.K.; Singla-Pareek, S.L.; Ray, M.; Reddy, M.K.; Sopory, S.K. Methylglyoxal levels in plants under salinity stress are dependent on glyoxalase I and glutathione. Biochem. Biophys. Res. Commun. 2005, 337, 61–67. [Google Scholar] [CrossRef]
  66. Huang, H.; Ullah, F.; Zhou, D.X.; Yi, M.; Zhao, Y. Mechanisms of ROS Regulation of Plant Development and Stress Responses. Front. Plant Sci. 2019, 10, 800. [Google Scholar] [CrossRef]
  67. Niu, L.; Liao, W. Hydrogen Peroxide Signaling in Plant Development and Abiotic Responses: Crosstalk with Nitric Oxide and Calcium. Front. Plant Sci. 2016, 7, 230. [Google Scholar] [CrossRef][Green Version]
  68. Khokon, A.R.; Okuma, E.; Hossain, M.A.; Munemasa, S.; Uraji, M.; Nakamura, Y.; Mori, I.C.; Murata, Y. Involvement of extracellular oxidative burst in salicylic acid-induced stomatal closure in Arabidopsis. Plant Cell Environ. 2011, 34, 434–444. [Google Scholar] [CrossRef]
  69. Nokin, M.J.; Durieux, F.; Bellier, J.; Peulen, O.; Uchida, K.; Spiegel, D.A.; Cochrane, J.R.; Hutton, C.A.; Castronovo, V.; Bellahcène, A. Hormetic potential of methylglyoxal, a side-product of glycolysis, in switching tumours from growth to death. Sci. Rep. 2017, 7, 11722. [Google Scholar] [CrossRef]
  70. Chaplin, A.K.; Chernukhin, I.; Bechtold, U. Profiling of advanced glycation end products uncovers abiotic stress-specific target proteins in Arabidopsis. J. Exp. Bot. 2018, 70, 653–670. [Google Scholar] [CrossRef]
  71. Lee, E.J.; Park, J.H. Receptor for advanced glycation endproducts (RAGE), its ligands, and soluble RAGE: Potential biomarkers for diagnosis and therapeutic targets for human renal diseases. Genom. Inform. 2013, 11, 224–229. [Google Scholar] [CrossRef] [PubMed]
  72. Heil, M.; Land, W.G. Danger signals - damaged-self recognition across the tree of life. Front. Plant Sci. 2014, 5, 578. [Google Scholar] [CrossRef] [PubMed]
  73. Xie, J.; Méndez, J.D.; Méndez-Valenzuela, V.; Aguilar-Hernández, M.M. Cellular signalling of the receptor for advanced glycation end products (RAGE). Cell Signal. 2013, 25, 2185–2197. [Google Scholar] [CrossRef] [PubMed]
  74. Reyes-Díaz, M.; Lobos, T.; Cardemil, L.; Nunes-Nesi, A.; Retamales, J.; Jaakola, L.; Alberdi, M.; Ribera-Fonseca, A. Methyl Jasmonate: An alternative for improving the quality and health properties of fresh fruits. Molecules 2016, 21, 567. [Google Scholar]
  75. Ruan, J.; Zhou, Y.; Zhou, M.; Yan, J.; Khurshid, M.; Weng, W.; Cheng, J.; Zhang, K. Jasmonic acid signaling pathway in plants. Int. J. Mol. Sci. 2019, 20, 2479. [Google Scholar] [CrossRef] [PubMed]
  76. Shin, R.; Alvarez, S.; Burch, A.Y.; Jez, J.M.; Schachtman, D.P. Phosphoproteomic identification of targets of the Arabidopsis sucrose non fermenting-like kinase SnRK2.8 reveals a connection to metabolic processes. Proc. Natl. Acad. Sci. USA 2007, 104, 6460–6465. [Google Scholar] [CrossRef]
Biomolecules 09 00635 g001 550

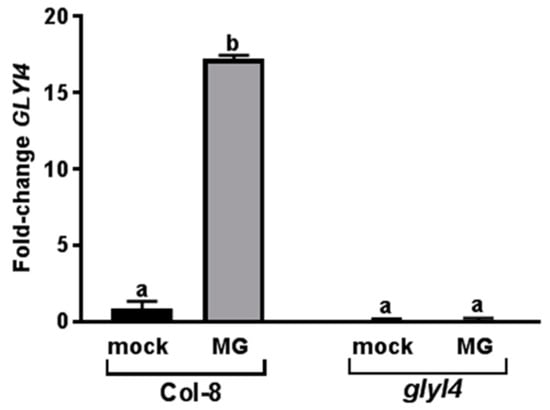

Figure 1. Glyoxalase (GLYI4) gene expression analysis in Arabidopsis Col-8 and glyI4 mutant after methylglyoxal (MG) treatment. qRT-PCR analysis of GLYI4 in Col-8 and glyI4 leaves treated with MG and a mock solution. Fold change is relative to the expression in mock-treated plants and normalized to the reference gene PP2AA3. GLYI4 gene expression analyses were performed 24 h after MG treatment of five-week-old plants. Shown data are means of three biological replicates. Error bars represent SEM. Different letters indicate significant statistical differences (Two-ways ANOVA, Tukey’s post-hoc, p < 0.0001).
Figure 1. Glyoxalase (GLYI4) gene expression analysis in Arabidopsis Col-8 and glyI4 mutant after methylglyoxal (MG) treatment. qRT-PCR analysis of GLYI4 in Col-8 and glyI4 leaves treated with MG and a mock solution. Fold change is relative to the expression in mock-treated plants and normalized to the reference gene PP2AA3. GLYI4 gene expression analyses were performed 24 h after MG treatment of five-week-old plants. Shown data are means of three biological replicates. Error bars represent SEM. Different letters indicate significant statistical differences (Two-ways ANOVA, Tukey’s post-hoc, p < 0.0001).
Biomolecules 09 00635 g001
Biomolecules 09 00635 g002 550

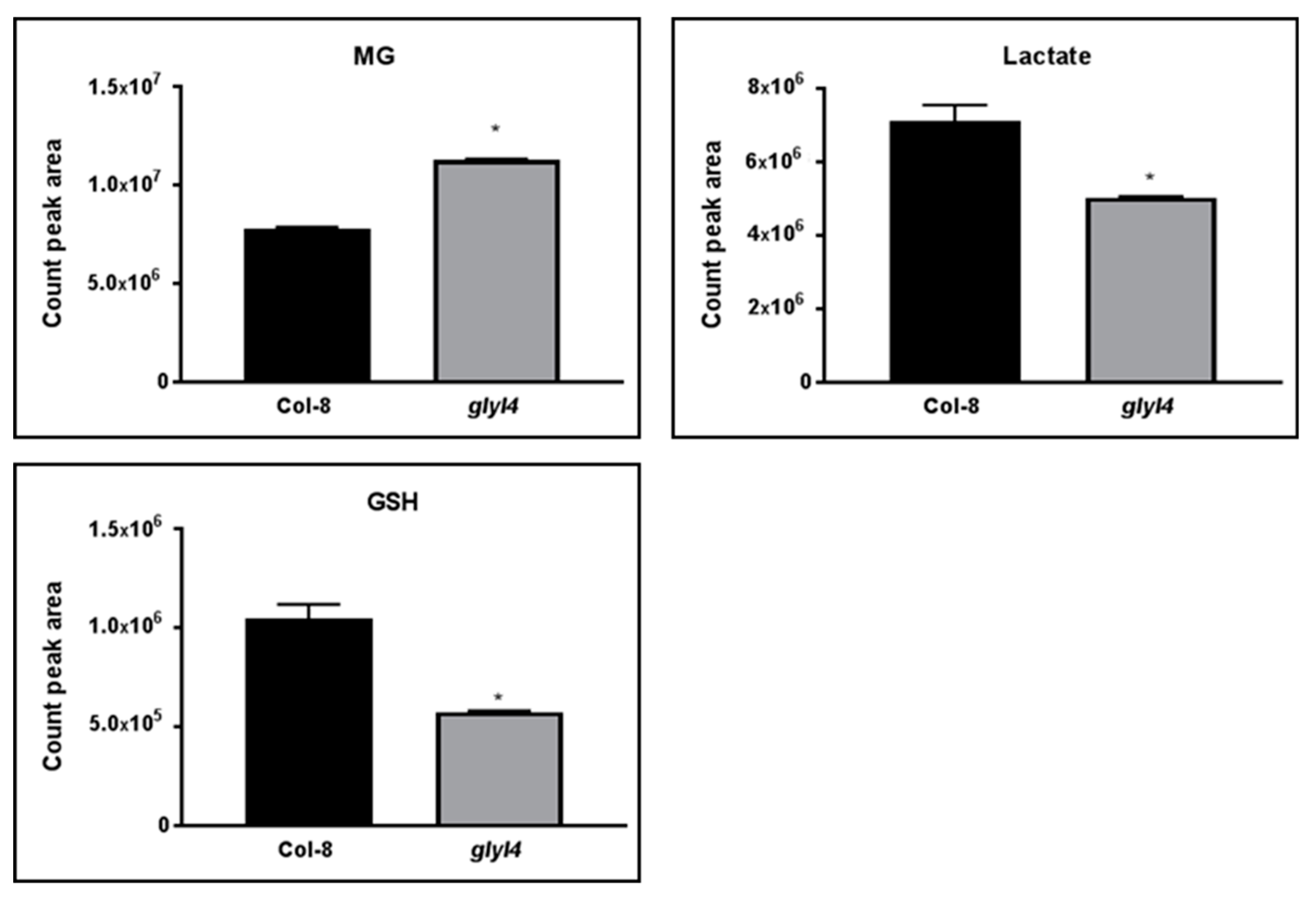

Figure 2. Analysis of MG-scavenging pathway metabolites in Arabidopsis Col-8 and glyI4 mutant. MG, lactate, and glutathione (GSH) amounts were analyzed in Col-8 and glyI4 leaves. Shown data are means of three biological replicates. Error bars represent SEM. Asterisk indicates the statistically significant difference between Col-8 and glyI4 plants (t-test; * p < 0.05).
Figure 2. Analysis of MG-scavenging pathway metabolites in Arabidopsis Col-8 and glyI4 mutant. MG, lactate, and glutathione (GSH) amounts were analyzed in Col-8 and glyI4 leaves. Shown data are means of three biological replicates. Error bars represent SEM. Asterisk indicates the statistically significant difference between Col-8 and glyI4 plants (t-test; * p < 0.05).
Biomolecules 09 00635 g002
Biomolecules 09 00635 g003 550

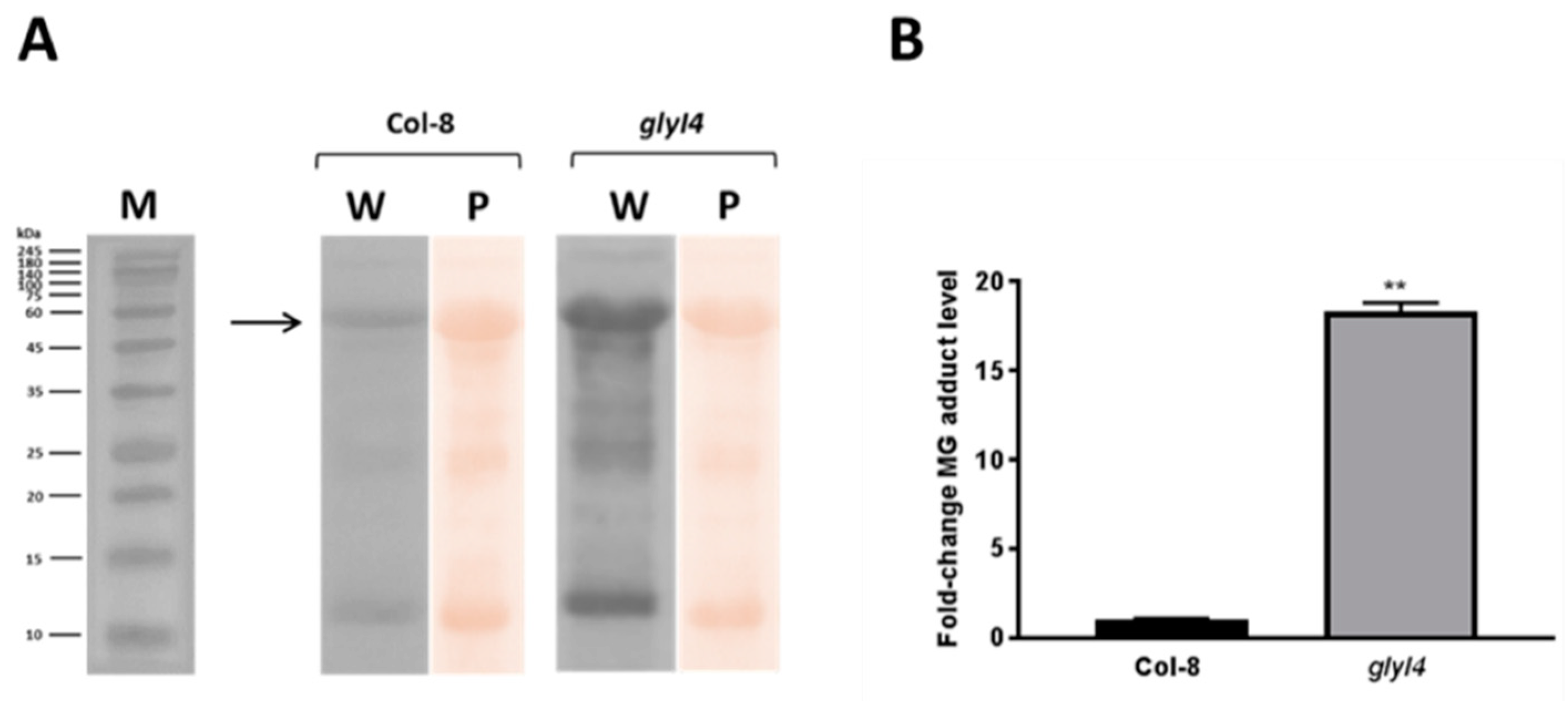

Figure 3. MG-protein adducts level in Arabidopsis Col-8 and glyI4 leaves. (A) Western blot performed with anti-methylglyoxal monoclonal antibody using Col-8 and glyI4 total protein extracts (40 g) from five-week-old plant leaves (W). Ponceau S staining (P) was used to normalize protein loading. Protein molecular weight markers are also shown (M). (B) Densitometric analysis of the most intense MG protein-adduct band, as indicated by the arrow in A. Fold-change is relative to the expression in Col-8 plants and normalized to the Ponceau stained band. Shown data are means of three biological replicates. Error bars represent SEM. Asterisks indicate the statistically significant difference between Col-8 and glyI4 (t-test; ** p < 0.005).
Figure 3. MG-protein adducts level in Arabidopsis Col-8 and glyI4 leaves. (A) Western blot performed with anti-methylglyoxal monoclonal antibody using Col-8 and glyI4 total protein extracts (40 g) from five-week-old plant leaves (W). Ponceau S staining (P) was used to normalize protein loading. Protein molecular weight markers are also shown (M). (B) Densitometric analysis of the most intense MG protein-adduct band, as indicated by the arrow in A. Fold-change is relative to the expression in Col-8 plants and normalized to the Ponceau stained band. Shown data are means of three biological replicates. Error bars represent SEM. Asterisks indicate the statistically significant difference between Col-8 and glyI4 (t-test; ** p < 0.005).
Biomolecules 09 00635 g003
Biomolecules 09 00635 g004 550
Figure 4. Fitness parameters of Arabidopsis Col-8 and glyI4. Leaf area (cm2), dry weight (mg), flowering time (days), and seed production (mg), per plant, were analyzed in Col-8 and glyI4 plants. Error bars represent SEM. Asterisk indicates a statistically significant difference between glyI4 and Col-8 (t-test; * p < 0.05, n = 15). The experiments have been repeated three times with similar results.
Figure 4. Fitness parameters of Arabidopsis Col-8 and glyI4. Leaf area (cm2), dry weight (mg), flowering time (days), and seed production (mg), per plant, were analyzed in Col-8 and glyI4 plants. Error bars represent SEM. Asterisk indicates a statistically significant difference between glyI4 and Col-8 (t-test; * p < 0.05, n = 15). The experiments have been repeated three times with similar results.
Biomolecules 09 00635 g004
Biomolecules 09 00635 g005 550
Figure 5. Detection of ROS in Arabidopsis Col-8 and glyI4 leaves. Detection on Col-8 and glyI4 leaves was carried out by using 2′,7′-DCFH2-DA or buffer (negative technical control). Fluorescence was observed under an LSM 710 confocal microscope with Plan Neofluar 20/1.30 objective. Two laser excitations lines were used [i.e., 488 for probe detection (green) and 561 nm for chlorophyll autofluorescence (red)]. Bar corresponds to 50 μm.
Figure 5. Detection of ROS in Arabidopsis Col-8 and glyI4 leaves. Detection on Col-8 and glyI4 leaves was carried out by using 2′,7′-DCFH2-DA or buffer (negative technical control). Fluorescence was observed under an LSM 710 confocal microscope with Plan Neofluar 20/1.30 objective. Two laser excitations lines were used [i.e., 488 for probe detection (green) and 561 nm for chlorophyll autofluorescence (red)]. Bar corresponds to 50 μm.
Biomolecules 09 00635 g005
Biomolecules 09 00635 g006 550
Figure 6. Confocal microscope representative images of stomatal guard cells of Arabidopsis Col-8 and glyI4 leaves. Abaxial peeled epidermis of Col-8 and glyI4 leaves was stained with acridine orange (AO) and observed by the confocal microscope. AO is colored in green in not acidified cell compartments while AO red color indicates an acidification of cellular compartments. Magnification of guards cells is also shown (lower panels). Fluorescence images were acquired using a Zeiss LSM 710 confocal microscope with Plan Neofluar 20/1.30 objective (upper panel) and Plan Neofluar 63/1.30 objective (lower panel). Fluorescence emissions of AO in the red and green channels (615 to 660 nm and 530 to 540 nm, respectively) after excitation with a 488-nm laser were obtained. Bar corresponds to 100 μm (upper panels) or 10 μm (lower panels).
Figure 6. Confocal microscope representative images of stomatal guard cells of Arabidopsis Col-8 and glyI4 leaves. Abaxial peeled epidermis of Col-8 and glyI4 leaves was stained with acridine orange (AO) and observed by the confocal microscope. AO is colored in green in not acidified cell compartments while AO red color indicates an acidification of cellular compartments. Magnification of guards cells is also shown (lower panels). Fluorescence images were acquired using a Zeiss LSM 710 confocal microscope with Plan Neofluar 20/1.30 objective (upper panel) and Plan Neofluar 63/1.30 objective (lower panel). Fluorescence emissions of AO in the red and green channels (615 to 660 nm and 530 to 540 nm, respectively) after excitation with a 488-nm laser were obtained. Bar corresponds to 100 μm (upper panels) or 10 μm (lower panels).
Biomolecules 09 00635 g006
Biomolecules 09 00635 g007 550
Figure 7. Bacterial proliferation and disease rate in Arabidopsis Col-8 and glyI4 plants infected with Pst DC3000 and P. cucumerina, respectively. (A) Plants were challenged with Pst DC3000 by dipping the aerial part in a bacterial suspension (106 colony-forming units (CFU)/mL). The values reported represent means of the log of the proliferation values, recorded at zero and three days post inoculation. Data represent the average from six infected plants. The experiment was repeated two more times with similar results. Error bars represent SEM. Different letters mean significant statistical differences (Two-ways ANOVA, Tukey’s post-hoc, p < 0.0001). (B) Plants were infected with P. cucumerina by inoculating leaves with 6 L-drop of a suspension containing 5 × 106 conidia/mL. Disease symptoms were recorded at seven days post inoculation by measuring the diameter of the necrotic lesions (mm). The figure shows a representative experiment from three independent repetitions. Data represent the average from 45 lesions produced on 12 plants per genotype. Error bars represent SEM. Asterisk indicates significant statistical differences compared with Col-8 (t-test, *** p < 0.0001).
Figure 7. Bacterial proliferation and disease rate in Arabidopsis Col-8 and glyI4 plants infected with Pst DC3000 and P. cucumerina, respectively. (A) Plants were challenged with Pst DC3000 by dipping the aerial part in a bacterial suspension (106 colony-forming units (CFU)/mL). The values reported represent means of the log of the proliferation values, recorded at zero and three days post inoculation. Data represent the average from six infected plants. The experiment was repeated two more times with similar results. Error bars represent SEM. Different letters mean significant statistical differences (Two-ways ANOVA, Tukey’s post-hoc, p < 0.0001). (B) Plants were infected with P. cucumerina by inoculating leaves with 6 L-drop of a suspension containing 5 × 106 conidia/mL. Disease symptoms were recorded at seven days post inoculation by measuring the diameter of the necrotic lesions (mm). The figure shows a representative experiment from three independent repetitions. Data represent the average from 45 lesions produced on 12 plants per genotype. Error bars represent SEM. Asterisk indicates significant statistical differences compared with Col-8 (t-test, *** p < 0.0001).
Biomolecules 09 00635 g007
Biomolecules 09 00635 g008 550
Figure 8. PDF1.2 gene expression analysis in Arabidopsis Col-8 and glyI4 mutant after methyl jasmonate (MeJA) and MeJA+MG treatment. qRT-PCR analysis of PDF1.2 expression in Col-8 and glyI4 leaves treated with a mock solution, MeJA or MeJA+MG. Fold change is relative to the expression in mock-treated plants and normalized to the reference gene PP2AA3. PDF1.2 gene expression analyses were performed 24 h after each treatment using five-week-old plants. Shown data are means of three biological replicates. Error bars represent SEM. Different letters indicate statistically significant difference between treatments (two-way ANOVA; Tukey’s test p < 0.0001).
Figure 8. PDF1.2 gene expression analysis in Arabidopsis Col-8 and glyI4 mutant after methyl jasmonate (MeJA) and MeJA+MG treatment. qRT-PCR analysis of PDF1.2 expression in Col-8 and glyI4 leaves treated with a mock solution, MeJA or MeJA+MG. Fold change is relative to the expression in mock-treated plants and normalized to the reference gene PP2AA3. PDF1.2 gene expression analyses were performed 24 h after each treatment using five-week-old plants. Shown data are means of three biological replicates. Error bars represent SEM. Different letters indicate statistically significant difference between treatments (two-way ANOVA; Tukey’s test p < 0.0001).
Biomolecules 09 00635 g008
Biomolecules 09 00635 g009 550
Figure 9. GLYI4 localization in Arabidopsis protoplasts. glyI4 leaf protoplasts were MeJA- and mock-treated and then transformed with pUC-35S::GLYI4- enhanced yellow fluorescent protein (EYFP). Fluorescence images were acquired using a Zeiss LSM 710 confocal microscope with Plan Neofluar 40/1.30 objective. Two laser excitation wavelengths were used (i.e., λexc = 514 nm for EYFP (green), and λexc = 561 nm for chloroplast autofluorescence (red)). The merged images are also presented. Bars correspond to 50 μm.
Figure 9. GLYI4 localization in Arabidopsis protoplasts. glyI4 leaf protoplasts were MeJA- and mock-treated and then transformed with pUC-35S::GLYI4- enhanced yellow fluorescent protein (EYFP). Fluorescence images were acquired using a Zeiss LSM 710 confocal microscope with Plan Neofluar 40/1.30 objective. Two laser excitation wavelengths were used (i.e., λexc = 514 nm for EYFP (green), and λexc = 561 nm for chloroplast autofluorescence (red)). The merged images are also presented. Bars correspond to 50 μm.
Biomolecules 09 00635 g009

Share and Cite

MDPI and ACS Style

Proietti, S.; Falconieri, G.S.; Bertini, L.; Baccelli, I.; Paccosi, E.; Belardo, A.; Timperio, A.M.; Caruso, C. GLYI4 Plays A Role in Methylglyoxal Detoxification and Jasmonate-Mediated Stress Responses in Arabidopsis thaliana. Biomolecules 2019, 9, 635. https://doi.org/10.3390/biom9100635

AMA Style

Proietti S, Falconieri GS, Bertini L, Baccelli I, Paccosi E, Belardo A, Timperio AM, Caruso C. GLYI4 Plays A Role in Methylglyoxal Detoxification and Jasmonate-Mediated Stress Responses in Arabidopsis thaliana. Biomolecules. 2019; 9(10):635. https://doi.org/10.3390/biom9100635

Chicago/Turabian Style

Proietti, Silvia, Gaia Salvatore Falconieri, Laura Bertini, Ivan Baccelli, Elena Paccosi, Antonio Belardo, Anna Maria Timperio, and Carla Caruso. 2019. "GLYI4 Plays A Role in Methylglyoxal Detoxification and Jasmonate-Mediated Stress Responses in Arabidopsis thaliana" Biomolecules 9, no. 10: 635. https://doi.org/10.3390/biom9100635

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
