Comparative Analyses of Bioactive Compounds in Inonotus obliquus Conks Growing on Alnus and Betula

Chair of Silviculture and Forest Ecology, Institute of Forestry and Engineering, Estonian University of Life Sciences, 51006 Tartu, Estonia
Polli Horticultural Research Centre, Chair of Horticulture, Institute of Agricultural and Environmental Sciences, Estonian University of Life Sciences, 69108 Polli, Estonia
Chair of Hydrobiology and Fisheries, Institute of Agricultural and Environmental Sciences, Estonian University of Life Sciences, 51006 Tartu, Estonia
Inopure OÜ, 51010 Tartu, Estonia
Faculty of Medicine, Institute of Pharmacy, University of Tartu, 50411 Tartu, Estonia
Author to whom correspondence should be addressed.
Biomolecules 2022, 12(9), 1178;
Submission received: 20 July 2022 / Revised: 17 August 2022 / Accepted: 22 August 2022 / Published: 25 August 2022


Inonotus obliquus grows in the Northern Hemisphere on some living broadleaved tree species as a pathogen, causing stem rot. In Estonia, the fungus is well known in the Betula species but can also be found on Alnus. Sterile conks of I. obliquus contain different bioactive compounds, but the quantitative and comparative research of these compounds in conks on different host species is limited. In the current work, I. obliquus was isolated and, evidently, determined from Alnus incana (L.) Moench., Alnus glutinosa (L.) Gaertn., and Betula pendula Roth, and the content of bioactive compounds in conks on these hosts were analysed. All the analysed conks sampled from A. incana and B. pendula contained betulin that varied from 111 to 159 µg/g. A significantly (p < 0.05) higher betulinic acid content was found in conks sampled from A. incana when compared with B. pendula: 474–635 and 20–132 µg/g, respectively. However, the conks from Betula were richer in total polyphenols, flavonols, and glucans. The content of inotodiol was quite similar in the conks from A. incana (7455–8961 µg/g) and B. pendula (7881–9057 µg/g). Also, no significant differences in the lanosterol content were found between the samples from these two tree species. To the best of our knowledge, this study is the first investigation of the chemical composition of I. obliquus parasitizing on Alnus. The results demonstrate that the bioactive compounds are promising in conks of I. obliquus growing not only on Betula but also on the Alnus species. It supports the opportunity to cultivate I. obliquus, also on the Alnus species, thus increasing the economic value of growing this tree species in forestry.

1. Introduction

Interest in non-timber forest products is increasing among landowners and foresters because consumer attention to bio- and other nature-based products has clearly risen, demonstrating, also, a growing trend in the national and international markets [1]. Naturally growing fungi are a good example of these non-timber forest products, and, already today, the cultivation of I. obliquus is evidently a higher interest of forest owners. The cultivation of fungi is one possibility, especially for small landowners, to increase their income from their land and forest.
Fungi belong to the most diverse organisms on earth [2], some of which have played an important role in human society since prehistoric times. The picking of edible mushrooms has been an important source of income in different areas of Europe [1]. Step by step, until recent years, they have become a strategic asset, not only in the politics of the conservation and management of ecosystems but have also retained their value as a resource for rural areas, for example, as in southern Europe [3].
Fungi with pharmacological potential represent a special interest. The history of picking one of them from nature in northern Asia and north-eastern Europe and using it for medical purposes reaches hundreds of years back. It is Chaga (Inonotus obliquus (Fr.) Pilát). By today, already the cultivation of I. obliquus has been recommended for integration into forestry, e.g., into the management of birch (Betula spp.) stands in Finland [4]. It is considered to become one way of alternative usage of forests instead of producing timber, especially in lower productive sites.
Inonotus obliquus, a basidiomycete, is naturally spread in the Northern Hemisphere [5]. It is a pathogenic fungus that grows mostly on Betula spp. but as well as on Alnus spp., which is more rear on some other broadleaved trees [6,7]. It is thought to be a real parasite, while it kills the host for fulfilling its entire lifecycle [8]. It means that the fungus forms its fruit bodies practically only on dead host trunks. However, the fungus also produces sterile conks (it means that these represent not fruitbodies of the fungus, but non-reproductive conks). The fungus is long known as Chaga to the North Asian indigenous peoples. The name “Chaga” actually originates from the language of a small Finno-Ugric nation, Komi, in North-Easternmost Europe but was disseminated to the world through the Russian language.
The conks of I. obliquus have traditionally been used in China, Korea, Japan, Russia, and the Baltics as an anti-tumor, antioxidant, anti-inflammatory, antibacterial, and hepatoprotective natural remedy. It promotes lipid metabolism and modulates cardiac function. In vitro, the properties of the conks were found to be mostly antioxidative, antiviral, and anti-inflammatory [9,10]. Inonotus obliquus can be even one of the potential candidates against the SARS-CoV-2 virus, but also several other antiviral effects of the conks have been shown in vitro and in vivo [11]. The triterpene and steroid compounds of these conks have demonstrated hepatoprotective, hypoglycemic, antifungal, antioxidant, and anti-inflammatory properties; in addition, they can regulate cholesterol biosynthesis [12]. In summary, I. obliquus is characterized as a promising natural material of biologically active substances against cancer and for immunotherapy [9,12,13,14,15,16,17,18].
In Estonian ethnomedicine, the conks of I. obliquus have been a popular folk anti-cancer remedy [19]. As was shown in the in vitro studies, the methanol extract of I. obliquus conks growing in Estonia exhibited the strongest cytotoxic effects against promyelocytic leukaemia and lung adenocarcinoma cells (the IC50 values were 32.2 and 38.0 μg/mL, respectively), and modest cytotoxic effects (41.3–57.7 μg/mL) against the cells of colon adenocarcinoma, liver hepatocellular carcinoma, oral epidermoid carcinoma, and prostate cancer cells [16].
Some recent studies concentrated on the resource incidence and ecology of I. obliquus on birch trees in North America [20] and on the inoculation and cultivation aspects of this fungus on birches (Betula spp.) in Finland [4]. However, little is known about the incidence and potential resources of the fungus on Alnus incana and A. glutinosa. These tree species are widely spread in northern Europe and are commonly used as fire and timber wood. Alnus incana has generally been considered to have a lower economic value and is suitable mostly for firewood. For example, in Estonia (with a forest land area of 2.33 mil. ha), A. incana dominated the stands cover by approximately 9% and A. glutinosa by 4% of the total forest area. At the same time, of the private forest area, A. incana covers 14.1% and A. glutinosa 4.3% [21].
As already mentioned, the conks of I. obliquus can also be found on Alnus spp. [5]. It is now worth considering that the collation data of fungi in Estonia revealed that the conks of I. obliquus are found on both alder species (A. incana and A. glutinosa), more frequently from A. incana [7]. At once, the question was raised about the value of the conks grown on alders in comparison to that on birches, which should estimate the cultivation potential of I. obliquus in alder stands.
Answering these questions was posed as the specific aim of this paper and solved by determining the bioactive compounds from the conks of I. obliquus grown on Alnus incana, A. glutinosa, and B. pendula. Additionally, as existing published articles about the conks of I. obliquus generally show a lack of quantitative data, this was also considered an essential motivation of the current study.

2. Material and Methods

2.1. Sample Sites and Fungal Isolation and Detection

Conks of I. obliquus were collected from Estonia and Finland between 21.12.2019 and 03.02.2020 (Table 1). The fungus was isolated directly from fresh conks to 2% malt-extract agar (Biolife, Milano, Italy) plates and sub-cultured several times to purify the isolates. Until biochemical analysis, the conks were kept in a freezer at –20 °C. The isolates were stored at −80 °C at the laboratory of forest pathology, Estonian University of Life Sciences.
The DNA of I. obliquus isolates was extracted using a GeneJET Genomic DNA Purification Kit (Thermo Scientific, Vilnius, Lithuania). The fungus was detected using ITS PCR primers ITS1-F [23] and ITS4 [24], carried out as described by Drenkhan et al. [25]. The PCR products were visualized on 1% agarose (SeaKem®® LE Agarose, Lonza, Rockland, ME, USA) gels under UV light using a Quantum ST4-system (VilberLourmat SAS, Marne-la-all’ee, France). ITS-PCR products from the isolates were sequenced at the Estonian Biocentre in Tartu using the primer ITS5 [24]. The ITS sequences were edited using the BioEdit program, Version 7.2.5 [26] and deposited in a Genbank (see Table 1). BLAST searches for the fungal taxa confirmation were performed in the GenBank database (NCBI). All the pure cultures were deposited to the Fungal Culture Collection (TFC); the data are available in the data management and publishing platform, PlutoF ( (accessed on 20 July 2022).

2.2. Preparation and Bioactive Compound’s Detection in Inonotus Obliquus Conks

The collected conks were dried in a laboratory oven with a forced circulation Venticell (MMM Medcenter Einrichtungen GmbH, Planegg, Germany) at 50 °C, and all the material was ground to a coarse powder using a cutting mill Retch SM 300 with a 1 mm sieve (Retsch, Haan, Germany). The ground material was sealed airtight and stored in the freezer at −40 °C. For further analysis, a representative sample of 50 g was taken from the coarsely ground material and then further ground into a fine powder (particle size ~ 5 µm) using a Retsch MM400 homogenizer (Retsch, Haan, Germany) for 90 s at 30 Hz. Dry matter content in the samples was determined at 105 °C using a moisture analyser Precisa EM 120 HR (Precisa Gravimetrics AG, Dietikon, Switzerland).
For the determination of the α- and β-glucans, a Megazyme β-Glucan (Yeast & Mushroom) Assay Kit (Megazyme, Ireland) was used [27]. Then, 90 mg of the finely powdered material was dissolved in 2.0 mL of ice-cold 12 M sulphuric acid; after 2 h, 10 mL of water was added and suspension-mixed before being placed in a water bath at 99 °C and hydrolysed. Glucan fragments were quantitatively hydrolysed to glucose using specific enzymes (exo-1,3-β-glucanase and β-glucosidase, Megazyme, Wicklow, Ireland). The content of the β-glucans was determined by the glucose content produced by the splitting of the glucans, using only β-glycaemic enzymes and the GOPOD reagent (Megazyme, Wicklow, Ireland). The samples were analysed in two repetitions. All results are expressed as a % of the dry weight.
For the determination of free radical scavenging activity, the polyphenols and triterpenes content in the samples, 10 mL of 80% ethanol was added to 1 g of the finely ground sample and shaken on a Mini-rotator Multi RS-24 (Biosan, Riga, Latvia) for 24 h at room temperature. Then, 80% ethanol was selected for the extraction based on a pre-trial with different solvents (ethyl acetate, hexane, 80% EtOH, and a mixture of dichloromethane, MetOH, waterin propotion 5:3:2) (data not shown). Samples were centrifuged to remove insoluble material before analysis. Extracts were prepared in triplicate.
Measurements of the free radical scavenging activity were performed in duplicate using a 2.2-diphenyl-picrylhydrazyl (DPPH) assay with slight modifications [28]. Briefly, the gallic acid calibration for the analysis was prepared as follows: 0.125, 0.100, 0.0625, 0.050, 0.025, and 0.010 mg/mL. For the measurement, 0.1 mL of each standard was pipetted into a 4 mL spectrophotometer cuvette, to which 3.7 mL of the DPPH radical (103.9 µM) was added. The samples were incubated for 60 min in the dark at room temperature. The absorbance values of the samples were measured at 515 nm using a spectrophotometer (UV-1800, Shimadzu, Japan). The results were expressed in milligrams of gallic acid equivalent per gram of dry weight (mg GA eq./g).
The levels of the superoxide dismutase (SOD)-like free radical scavenging activity in the ethanol extracts were measured using a SOD Assay Kit-WST, according to the technical manual provided by Dojindo Molecular Technologies, Inc (Rockville, MD, USA). This assay relies on WST-1 (2-(4-iodophenyl)-3-(4-nitrophenyl-5-(2,4-disulfophenyl)-2H-tetrazolium, monosodium salt), which produces a water-soluble formazan dye upon reduction with superoxide ions, a reaction inhibited by the SOD. Briefly, in a 96-well microplate 20 μL, the sample was mixed with 200 μL of a WST working solution, and 20 μL of an enzyme working solution was added to each sample well. The plate was incubated at 37 °C for 20 min, and the OD was determined at 450 nm using a microplate reader, FLUOstar Omega (BMG Labtech, Ortenberg, Germany). One unit of the SOD activity was defined as the amount of enzyme having a 50% inhibitory effect on WST-1.
Qualitative and quantitative analyses were performed on a Shimadzu Nexera X2 UHPLC with a mass spectrometer, LCMS 8040 (Shimadzu Scientific Instruments, Kyoto, Japan). The UHPLC system was equipped with a binary solvent delivery pump, LC-30AD, an autosampler, Sil-30AC, a column oven, CTO-20AC, and a diode array detector, SPD-M20A. A reverse phase column, ACE Excel 3 (C18, PFP, 100 × 2.1 mm from ACE®® Advanced Chromatography Technologies Ltd., Aberdeen, Scotland), and pre-column (Security Guard ULTRA, C18 from Phenomenex, Torrance, CA, USA) were used at 40 °C for the separation of the individual compounds. The flow rate of the mobile phase was 0.25 mL/min, and the injected sample size was 1 µL.
The mobile phases consisted of 1% formic acid in Milli-Q water (mobile phase A) and 1% formic acid in methanol (mobile phase B). The separation was carried out for 40 min under the following conditions: gradient 0–27 min, 15–80% B; 27–29 min, 80–95% B; 29–38 min, isocratic 95% B, and re-equilibration of the system with 15% B 6 min prior to the next injection. All samples were kept at 4 °C during the analysis.
The total polyphenol content, expressed as micrograms of chlorogenic acid equivalents per gram of dry weight (µg ChlA eq./g), and the total flavonols, expressed as micrograms of quercetin equivalents per gram of dry weight (µg Q eq./g), were quantified at the wavelengths of 280 nm and 360 nm, respectively.
Four triterpenoids (betulinic acid, betulin, lanosterol, and inotodiol) were identified by comparing the retention times, UV spectra, and parent and daughter ion masses with those of the standard compounds. MS data acquisitions were performed on LCMS 8040 with the ESI source operating in positive mode. All samples were analysed in triplicate, and the results were expressed as micrograms per gram of dry weight (µg/g).
The standards betulin, betulinic acid, and lanosterol were purchased from Cayman Chemical Company (Ann Arbor, MI, USA) and inotodiol from Aobious (Gloucester, MA USA). All other standards (chlorogenic acid and quercetin) and chemicals (formic acid and methanol) used were of an analytical grade and purchased from Sigma (Darmstadt Germany).
The statistical analysis was performed using a one-way ANOVA. Data analysis and visualization were aided by Daniel’s XL Toolbox adding for Excel, version 7.2.6, by Daniel Kraus, Würzburg, Germany [29].

3. Results and Discussion

As said, the conks of I. obliquus are well known in the living Betula species, but sometimes they are also formed on the Alnus species [5,6,7,30]. These conks contain different groups of bioactive substances [31], some of which have been studied quite a lot phytochemically and biologically, but the comparative quantitative research of these substances in conks formed on different host species is limited. This is the first appropriate comparative analysis of bioactive compounds in the conks of I. obliquus from Betula pendula, Alnus incana, and A. glutinosa.

3.1. Fungal Species Detection

Inonotus obliquus was isolated from the conks, and the fungus was evidently determined by molecular methods from three different host species: Alnus incana, A. glutinosa, and Betula pendula (see Table 1). Two fungal strains were isolated from Alnus incana, one from A. glutinosa, and three from Betula pendula (see Table 1). In the share of six isolates, five of them originated from Estonia and one from northern Finland. This study is the first where all chemically analysed conks strains (isolates) of I. obliquus were also deposited in a culture collection and GenBank for future research.

3.2. Determination of Bioactive Compounds

3.2.1. Contents of Betulin and Betulinic Acid

Betulin and betulinic acid were present in all the samples, except for the conks collected from northern Finland (Betula FIN), where the named compounds were not identified. Although betulin was detected in the samples of A. glutinosa and Betula EST I (from B. pendula), the amount of betulin there was under the quantitation limit (Table 2). The content of betulin varied between 111 to 159 µg/g and was present in all the analysed conk samples of Alnus incana but varying from not quantifiable amounts to as high as 159 µg/g in the conk sample of B. pendula (Betula EST II).
The contents of the betulinic acid were statistically significantly (p < 0.05) different in all the analysed samples and varied from 20 µg/g in the strain Betula EST II to 635 µg/g in strain A. incana II (Table 2). The highest value of the content of betulinic acid was established in both of the conk samples of A. incana compared to the samples of the Estonian birch conks (474–635 and 20–132 µg/g, respectively). Relatively low was the content of betulinic acid in the sample of A. glutinosa but yet, more than two times higher than in the conk sample of Betula EST II (Table 2).
Betulin and betulinic acid are obtained through the oxidation of pentacyclic triterpene, which has been shown to have antiproliferative, anti-inflammatory, and antineovascular activity. It has an effect on various types of cancer, in vitro and in vivo [32]. Betulin, betulinic acid, lupenone, and other pentacyclic triterpenes have been found to be cytotoxic in vitro against the human adenocarcinoma and melanoma models [33]. Betulin, with low toxicity, shows activity against colon cancer cells [17]. Unfortunately, betulin has low aqueous solubility and variable bioavailability. Therefore, the nanosuspensions (sub-micron colloidal dispersions) of betulin were studied by John et al. [34], and, in this study, betulin demonstrated significantly higher cytotoxicity compared to betulinic acid (IC50 38 and 70 µg/mL, respectively) against the resistant triple-negative human breast cancer cell line, MDA-MB-231.

3.2.2. Contents of Inotodiol and Lanosterol

Inotodiol and lanosterol were present in all the samples and all three tested tree species. The inotodiol content varied from 6300 to 15,223 µg/g, being the lowest in the conks of A. glutinosa and the highest in the conks of the B. pendula sample from Finland. There were significant (p < 0.05) differences in the inotodiol content within the species among the samples collected from Estonia, but the inotodiol content had a quite similar range between the conk samples of A. incana (7455 to 8961 µg/g) and B. pendula (7881 to 9057 µg/g). the lanosterol content varied from 1021 to 2220 µg/g, and it was significantly higher (p < 0.05) in the originating from Finland conk of B. pendula compared to the samples from Estonia. No significant differences in the lanosterol content were established between the conk samples of Estonian origin from both the Alnus species and from B. pendula.
It is important to note that the use of various organic solvents may end with different results. For example, the conks originating from Canadian, Ukrainian, and French formulations yielded betulin, betulinic acid, and inotodiol of up to 1100, 53, and 465 mg/L, respectively [35]. In our study (Table 2), in contrast, betulin was in the lowest and inotodiol in the highest concentration. Other authors [36], who recently studied the biologically active substances isolated from different conks of I. obliquus by different extraction methods, found 0.6–17 mg% of betulin, 1.3–179 mg% of lanosterol, and 1.3–76 mg% of inotodiol.
Although the number of analysed samples in our investigation was relatively small, we can presume, based on these preliminary results, that inotodiol and lanosterol in north-eastern Europe can be found in the conks from all three of the investigated tree species. We also found the average positive correlation (r = 0.73) between the inotodiol and lanosterol contents in the analysed samples, which is logical due to the adjacent structures of these both tetracyclic triterpenoids. Although there was significant variation in the content of inotodiol and lanosterol compounds within different samples from the same tree species, the content of these compounds did not differ significantly between A. incana and B. pendula, indicating that both these tree species could be the real source of these compounds. Both of the triterpenes are important biologically active compounds, which obviously account for the manifestation of the I. obliquus conks’ antitumor effects through different pharmacological mechanisms [13,14]. Also, lanosterol and both of these terpenoids isolated from the conks on birch showed immunological activity [18,37].

3.2.3. Contents of Total Polyphenols and Flavonols

In the current work, the conk samples growing on B. pendula contained about half more of the total polyphenols than the strains on Alnus spp. (663–841 and 277–477 µg/g, respectively; Table 2). In terms of total flavonols, birch conks are 5–8 times richer than Alnus spp. conks. However, the total content of polyphenols and flavonols does not necessarily correlate with the effect of the extract; the amount of individual key compounds in the natural material is more important.
Zhang et al. [38] concluded that there was a direct relationship between the phenolic compound concentration and antioxidant activity in the ethanol extracts, but polysaccharides played an important role in the antioxidant activities of the water extracts. Also, among the samples of I. obliquus conks studied by them, the ethanol extracts demonstrated the highest antioxidant properties and the best antioxidant activities with the highest total phenol and flavonoid content [38]. However, in the current study, the ethanol extracts of the Alnus spp. samples contained fewer polyphenols and showed weaker antioxidant activity than the B. pendula samples (Table 2).

3.2.4. Contents of Glucans

Glucans are structural polysaccharides; beta-glucan plays a key role in the enhancement of immune function and the reduction of blood cholesterol and blood glucose levels [39]. The alpha-glucans’ content varied between 0.26% in the sample of Betula EST I to 0.60% in the sample of A. glutinosa (Table 3). No significant differences in the α-glucan content were between the analysed conks’ samples from A. incana and B. pendula, but the content of α-glucan in the sample from A. glutinosa was significantly different (p < 0.05). The β-glucans’ content varied between 2.34% in the sample from A. incana I to 6.75% in the sample from Betula EST I (Table 3). A significantly (p < 0.05) lower β-glucan content was observed in the conk samples from Alnus spp. compared to the samples from Betula. For example, in a previous study [39], the content of β-glucans in birch conks was 8.10–8.30%, depending on the extraction method.
The results showed (Table 2 and Table 3) that conks from birch contained more polyphenols, flavonols, and glucans than the samples grown on Alnus spp., but A. incana’s conks also contained inotodiol and lanosterol and even more betulinic acid than well-known birch conks.
The antioxidant activity of the ethanol extracts from the conks was determined by evaluating their DPPH free radical scavenging activity and was expressed as gallic acid equivalents per 100 g of dry material (mg GA eq./100 g). There were statistically significant differences between the samples from the different host species and within the samples from B. pendula, but no significant differences were observed within the samples from A. incana. Additionally, the samples from A. incana expressed the lowest radical scavenging activity within all of the analysed samples (Figure 1).
Glamočlija et al. [9] studied the antioxidant potential of aqueous and ethanolic extracts and showed that the DPPH scavenging activity of the aqueous extract of I. obliquus conks from Russia and Finland was double weaker, and the activity of the ethanolic extract from Finnish origin was about 40 times weaker than the extracts from conks growing in Thailand. In another study [40], the scavenging activity of the water, ethanol, and methanol extracts of I. obliquus conks on the DPPH radical was found to be concentration-dependent (12.50–200 mg/mL), respectively. The IC50 values for the water, ethanol and methanol extracts were 18.96, 16.25, and 24.90 mg/mL, respectively. Thus, in further studies, it is important to compare the effects of extracts made with different solvents.
The results from the SOD inhibitory assay were expressed as SOD units per gram of dry material (SOD U/g). The ethanol extracts from all the Betula samples expressed higher SOD activity than the rest of the samples (Figure 2), similarly to the DPPH assay. There was a strong positive correlation (r = 0.983) between the DPPH and SOD results.
Which of these substances would be more important in terms of the effects of bioactive compounds? In view of the biological activity of I. obliquus conks, especially their anti-cancer and immune-mediating effects on alder-grown conks, they may be a substitute for birch conks. The Alnus species are growing well in the northern Baltics. It would be one opportunity to increase the still comparatively low economic value of A. incana by cultivating this host I. obliquus. However, the cultivating profitability and production ability of conks on the Alnus species, but also the risk of the spread of this pathogen to other forest stands, needs deeper research in the future. Additionally, before a campaign for the cultivation of I. obliquus on the alder species, the biological activity of birch and alder conks should also be compared on the level of the effects of different cell lines of human cancers. A comparison of the chemical composition and biological activity of the two alder species (A. incana and A. glutinosa) on the base of many more individual conks from different regions of the Northern Hemisphere also requires further investigation.

4. Conclusions

The results contain the first comparative analysis of the content of several bioactive compounds in the so-called sterile conks of I. obliquus originating from Alnus incana, A. glutinosa, and Betula pendula in Estonia and Finland. In the current work, betulin, betulinic acid, lanosterol, inotodiol, α- and β-glucan, and the total polyphenols and flavonols in the conks of I. obliquus were analysed. The content of the betulinic acid had the highest value in the two conk samples of A. incana compared to the samples of the birch conks (474–635 and 20–132 µg/g, respectively). There was a significant variation in the content of inotodiol and lanosterol within the samples from the same tree species, but the content of these compounds did not differ significantly between A. incana and B. pendula. Betulin, α- and β-glucan, and the total polyphenols and flavonols were present in the conks of Betula and Alnus. The results indicate that I. obliquus conks, on both the Betula and Alnus tree species, could be the real source of these compounds, and it would be an opportunity also to cultivate I. obliquus on the Alnus species. However, further research is needed to establish the comparative effectiveness of fungal cultivation and profitability on different host tree species, to analyse the risk of the uncontrolled spread of the pathogen in forests, and to establish the effects of the biological activity of these substances on different cancer cell lines in medicine.

Author Contributions

Conceptualization, methodology, sampling, formal analysis, writing—original draft, and funding acquisition, R.D., H.K., A.R. and M.S.; writing—review & editing, K.A. and U.B.; review and editing and funding acquisition, M.E.; formal analysis, A.A. All authors have read and agreed to the published version of the manuscript.


This research was funded by Inopure OÜ, Estonian University of Life Sciences project PM220078MIME, the Estonian Research Council, Grant PRG1615 and the European Regional Development Fund’s project “PlantValor—full-scale product development service in synergy with the traditional activities of Polli Horticultural Research Centre“ 2014-2020.5.04.19-0373.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


We would like to thank Aarne Suu and Antti Jääskeläinen (Tapu Oy), who helped to collect the conks, and Märt Hanso for their valuable comments on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Wolfslehner, B.; Prokofieva, I.; Mavsar, R. Non-wood forest products in Europe: Seeing the forest around the trees. In What Science Can Tell Us; European Forest Institute: Barcelona, Spain, 2019; 116p. [Google Scholar]
  2. Tedersoo, L.; Bahram, M.; Põlme, S.; Kõljalg, U.; Yorou, N.S.; Wijesundera, R.; Ruiz, L.V.; Vasco-Palacios, A.M.; Thu, P.Q.; Suija, A.; et al. Global diversity and geography of soil fungi. Science 2014, 346, 6213. [Google Scholar] [CrossRef] [PubMed]
  3. Martínez-Ibarra, E.; Gómez-Martín, M.B.; Armesto-López, X.A. Climatic and Socioeconomic Aspects of Mushrooms: The Case of Spain. Sustainability 2019, 11, 1030. [Google Scholar] [CrossRef]
  4. Miina, J.; Peltola, R.; Veteli, P.; Linnakoski, R.; Escribano, M.C.; Haveri-Heikkilä, J.; Mattila, P.; Marnila, P.; Pihlava, J.-M.; Hellström, J.; et al. Inoculation success of Inonotus obliquus in living birch (Betula spp.). For. Ecol. Manag. 2021, 492, 119244. [Google Scholar] [CrossRef]
  5. Lee, M.-W.; Hur, H.; Chang, K.-C.; Lee, T.-S.; Ka, K.-H.; Jankovsky, L. Introduction to distribution and ecology of sterile conks of Inonotus obliquus. Mycobiology 2008, 36, 199–202. [Google Scholar] [CrossRef] [PubMed]
  6. Niemelä, T. Polypores in Finland and Estonia; Eesti Loodusfoto: Tartu, Estonia, 2008; 320p. (In Estonian) [Google Scholar]
  7. Drenkhan, R.; Adamson, K.; Hanso, M. Majanduslikku tulu tõotav must pässik võib kahandada oluliselt puidu väärtust (Inonotus obliquus gives economical income and it may significantly decrease value of wood). Eesti Mets 2020, 3, 34–41. (In Estonian) [Google Scholar]
  8. Herron, S. Ethnobotany of the Anishinaabek Northern Great Lakes Indians; Southern Illinois University at Carbondale ProQuest Dissertations Publishing: Carbondale, IL, USA, 2002. [Google Scholar]
  9. Glamočlija, J.; Ćirić, A.; Nikolić, M.; Fernandes, Â.; Barros, L.; Calhelha, R.C.; Ferreira, I.C.F.R.; Soković, M.; van Griensven, L.J.L.D. Chemical characterization and biological activity of Chaga (Inonotus obliquus), a medicinal “mushroom”. J. Ethnopharmacol. 2015, 162, 323–332. [Google Scholar] [CrossRef]
  10. Fang, J.; Gao, S.; Islam, R.; Teramoto, Y.; Maeda, H. Extracts of Phellinus linteus, bamboo (Sasa senanensis) leaf and chaga mushroom (Inonotus obliquus) exhibit antitumor activity through activating innate immunity. Nutrients 2020, 12, 2279. [Google Scholar] [CrossRef]
  11. Shahzad, F.; Anderson, D.; Najafzadeh, M. The antiviral, anti-inflammatory effects of natural medicinal herbs and mushrooms and SARS-CoV-2 infection. Nutrients 2020, 12, 2573. [Google Scholar] [CrossRef]
  12. Nikitina, S.A.; Habibrakhmanova, V.R.; Sysoeva, M.A. Chemical composition and biological activity of triterpenes and steroids of chaga mushroom. Biochemistry 2016, 10, 63–69. [Google Scholar] [CrossRef]
  13. Ryzhova, G.L.; Kravtsova, S.S.; Matasova, S.A.; Gribel, N.V.; Pashinskii, V.G.; Dychko, K.A. Chemical and Parmaceutical characteristics of dry extract from black birch fungus. Pharm. Chem. J. 1997, 10, 44–47. [Google Scholar]
  14. Park, E.; Jeon, K.; Byun, B.H. Ethanol extract of Inonotus obliquus shows antigenotoxic effect on hydrogen peroxide induced DNA damage in human lymphocytes. Cancer Prev. Res. 2005, 10, 54–59. [Google Scholar]
  15. Zheng, W.; Miao, K.; Liu, Y.; Zhao, Y.; Zhang, M.; Pan, S.; Dai, S. Chemical diversity of biologically active metabolites in the sclerotia of Inonotus obliquus and submerged culture strategies for up-regulating their production. Appl. Microbiol. Biotechnol. 2010, 87, 1237–1254. [Google Scholar] [PubMed]
  16. Nguyen, H.T.; Ho, D.V.; Nguyen, P.D.Q.; Vo, H.Q.; Do, T.T.; Raal, A. Cytotoxic evaluation of compounds isolated from the aerial parts of Hedyotis pilulifera and methanol extract of Inonotus obliquus. Nat. Prod. Commun. 2018, 13, 939–941. [Google Scholar]
  17. Bebenek, E.; Chrobak, E.; Piechowska, A.; Gluszek, S.; Boryczka, S. Betulin a natural product with promising anticancer activity against colorectal cancer cells. Med. Stud. Stud. Med. 2020, 36, 297–301. [Google Scholar]
  18. Kim, T.I.; Choi, J.-G.; Kim, J.H.; Li, W.; Chung, H.-S. Blocking effect of chaga mushroom (Inonotus oliquus) extract for immune checkpoint CTLA-4/CD80 interaction. Appl. Sci. 2020, 10, 5774. [Google Scholar] [CrossRef]
  19. Sak, K.; Jürisoo, K.; Raal, A. Estonian folk traditional experiences on natural anticancer remedies: From past to the future. Pharm. Biol. 2014, 52, 855–866. [Google Scholar]
  20. Brydon-Williams, R.; Munck, I.A.; Asbjornsen, H. Incidence and ecology of the chaga fungus (Inonotus obliquus) in hardwood New England—Acadian forests. Can. J. For. Res. 2021, 51, 122–131. [Google Scholar] [CrossRef]
  21. Radusaar, M.; Valgepea, M. Yearbook Forest 2019; Estonian Environment Agency: Tallinn, Estonia, 2020; 310p.
  22. Lõhmus, E. Estonian Forest Site Types; Eesti NSV Agrotööstuskoondise Info-ja Juurutusvalitsus: Tallinn, Estonia, 1984; 80p. (In Estonian) [Google Scholar]
  23. Gardes, M.; Bruns, T.D. ITS primers with enhanced specificity for basidiomycetes—Application to the identification of mycorrhizae and rusts. Mol. Ecol. 1993, 2, 113–118. [Google Scholar]
  24. White, T.J.; Bruns, T.D.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR—Protocols and Applications—A Laboratory Manual; Innis, M.A., Gelfand, D.H., Sninsky, J.J., White, T.J., Eds.; Academic Press: New York, NY, USA, 1990; pp. 315–322. [Google Scholar]
  25. Drenkhan, R.; Adamson, K.; Jürimaa, K.; Hanso, M. Dothistroma septosporum on firs (Abies spp.) in the northern Baltics. For. Pathol. 2014, 44, 250–254. [Google Scholar] [CrossRef]
  26. Hall, T.A. Biological Sequence Alignment Editor and Analysis Program for Windows 95/98/NT/2000/XP/7 [WWW Document]. BioEdit. 2013. Available online: (accessed on 20 July 2022).
  27. McCleary, B.V.; Draga, A. Measurement of β-Glucan in Mushrooms and Mycelial Products. J. AOAC Int. 2016, 99, 364–373. [Google Scholar] [CrossRef]
  28. Brand-Williams, W.; Cuvelier, M.E.; Berset, C. Use of a free radical method to evaluate antioxidant activity. LWT Food Sci. Technol. 1995, 28, 25–30. [Google Scholar] [CrossRef]
  29. Kraus, D. Consolidated data analysis and presentation using an open-source add-in for the Microsoft Excel®® spreadsheet software. Med. Writ. 2014, 23, 25–28. [Google Scholar] [CrossRef]
  30. Parmasto, E. Distribution Maps of Estonian Fungi. 3. Pore Fungi; Estonian Academy Publishers: Tartu, Estonia, 2004; 224p. [Google Scholar]
  31. Huynh, N.; Beltrame, G.; Tarvainen, M.; Suomela, J.-P.; Yang, B. Supercritical CO2 Extraction of Triterpenoids from Chaga Sterile Conk of Inonotus obliquus. Molecules 2022, 27, 1880. [Google Scholar] [CrossRef]
  32. Güttler, A.; Eiselt, Y.; Funtan, A.; Thiel, A.; Petrenko, M.; Keßler, J.; Thondorf, I.; Paschke, R.; Vordermark, D.; Bache, M. Betulin sulfonamides as carbonic anhydrase inhibitors and anticancer agents in breast cancer cells. Int. J. Mol. Sci. 2021, 22, 8808. [Google Scholar] [CrossRef]
  33. Bhui, K.; Srivastava, A.K.; Shukla, Y. Cytotoxic action of natural pentacyclic triterpenes of cancer cells: Lupane-type compounds. In Pentacyclic Troterpenes as Promising Agents in Cancer; Book Series Cancer Etiology Diagnosis and, Treatments; Salvador, J.A.R., Ed.; Nova Science Publishers: New York, NY, USA, 2010; pp. 49–87. [Google Scholar]
  34. John, R.; Dalal, B.; Shankarkumar, A.; Devarajan, P.V. Innovative betulin nanosuspension exhibits enhanced anticancer activity in a triple negative breast cancer cell line and Zebrafish angiogenesis model. Int. J. Pharm. 2021, 600, 120511. [Google Scholar]
  35. Géry, A.; Dubreule, C.; André, V.; Rioult, J.-P.; Bouchart, V.; Heutte, N.; Pécoulas, P.-E.; de Krivomaz, T.; Garon, D. Chaga (Inonotus obliquus), a future potential medicinal fungus in oncology? A chemical study and a comparison of the cytotoxicity against human lung adenocarcinoma cells (A549) and human bronchial epithelial cells (BEAS-2B). Integr. Cancer Ther. 2018, 17, 832–843. [Google Scholar] [CrossRef]
  36. Upska, K.; Klavins, L.; Radenkovs, V.; Nikolajeva, V.; Faven, L.; Isosaari, E.; Lauberts, M.; Busa, L.; Viksna, A.; Klavins, M. Extraction possibilities of lipid fraction and authentication assessment of chaga (Inonotus obliquus). Biomass Convers. Biorefnery 2022. [Google Scholar] [CrossRef]
  37. Rios, J. Effects of triterpenes on the immune system. J. Ethnopharmacol. 2010, 128, 1–14. [Google Scholar] [CrossRef]
  38. Zhang, N.; Chen, H.; Zhang, Y.; Xing, L.; Li, S.; Wang, X.; Sun, Z. Chemical composition and antioxidant properties of five edible Hymenomycetes mushrooms. Int. J. Food Sci. Technol. 2015, 50, 465–471. [Google Scholar] [CrossRef]
  39. Rheea, S.J.; Chob, S.Y.; Kimb, K.M.; Chaa, D.-S.; Parka, H.-J. A comparative study of analytical methods for alkali-soluble β-glucan in medicinal mushroom, Chaga (Inonotus obliquus). LWT Food Sci. Technol. 2008, 41, 545–549. [Google Scholar] [CrossRef]
  40. Debnath, T.; Park, D.K.; Lee, B.R.; Jin, H.L.; Lee, S.Y.; Samad, N.B.; Lim, B.O. Antioxidant activity of Inonotus obliquus grown on germinated brown rice extracts. J. Food Biochem. 2013, 37, 456–464. [Google Scholar] [CrossRef]

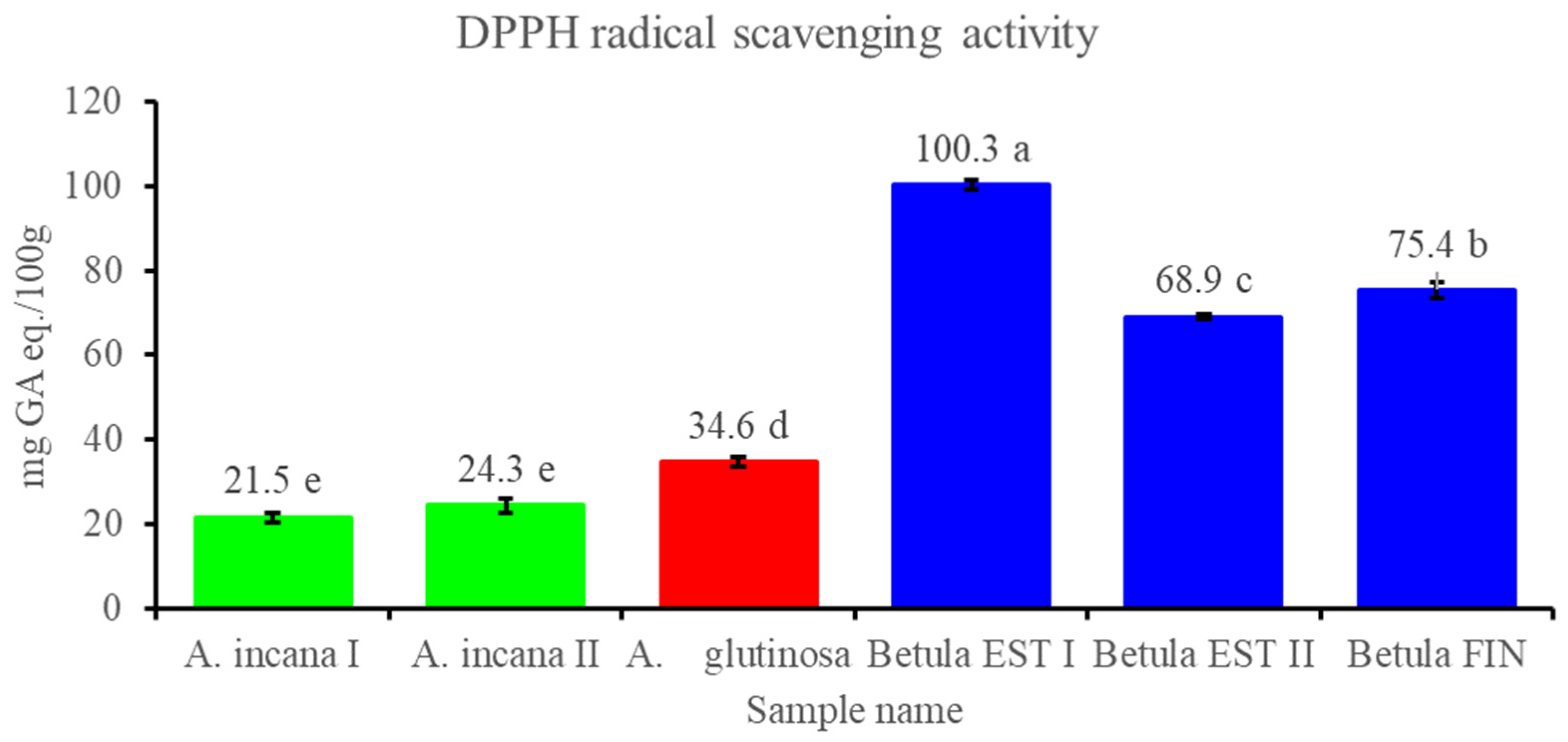

Figure 1. DPPH radical scavenging activity of 80% ethanol extracts from the conks expressed as gallic acid equivalents per 100 g of dry material (mg GA eq./100 g). All values are means, n = 3; mean values within a column with different letters are significantly different at p < 0.05.
Figure 1. DPPH radical scavenging activity of 80% ethanol extracts from the conks expressed as gallic acid equivalents per 100 g of dry material (mg GA eq./100 g). All values are means, n = 3; mean values within a column with different letters are significantly different at p < 0.05.
Biomolecules 12 01178 g001

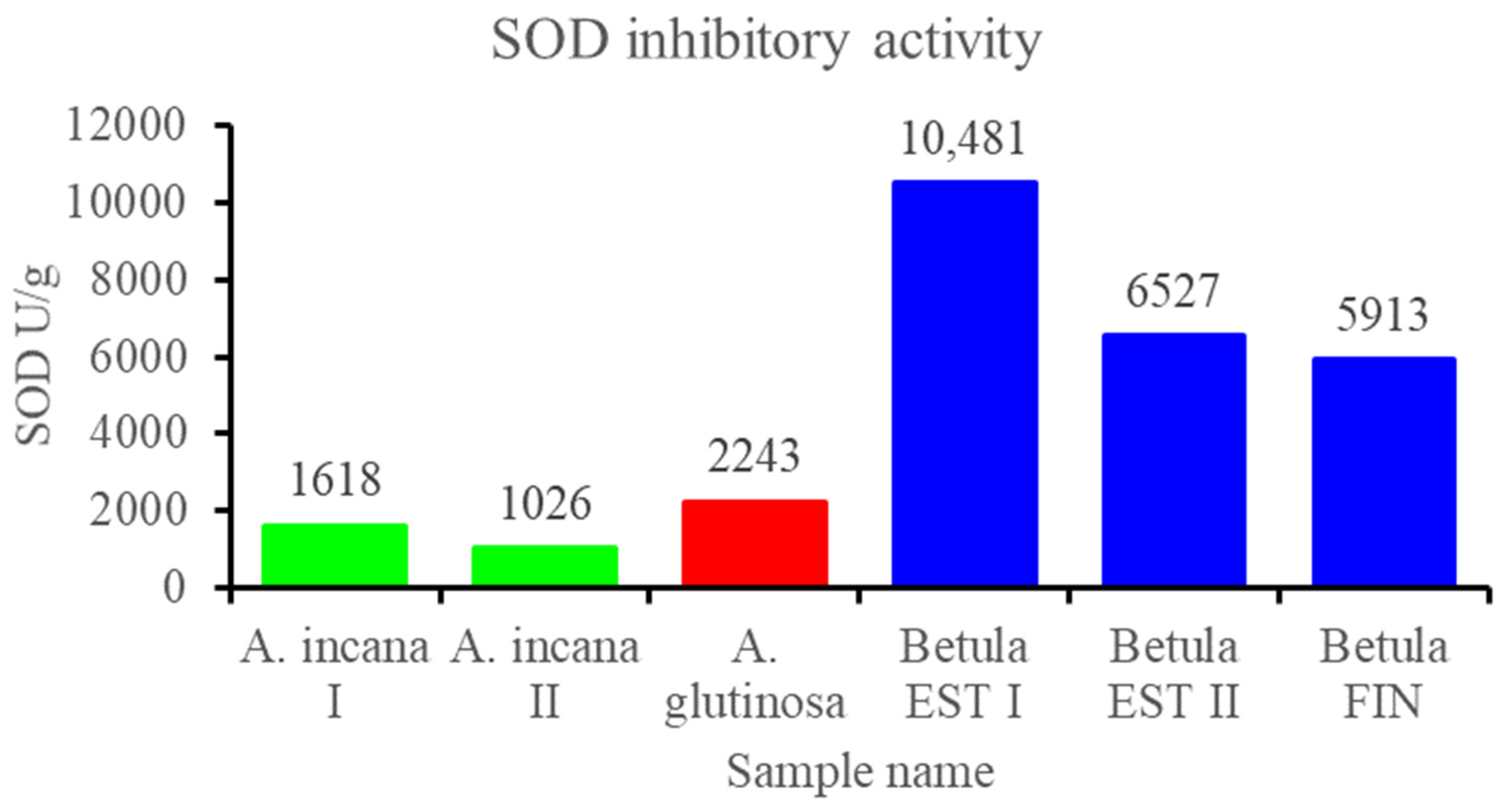

Figure 2. SOD inhibitory activity of 80% ethanol extracts from the conks expressed as SOD units per g of dry material (SOD U/g). One unit of SOD activity was defined as the amount of enzyme having a 50% inhibitory effect on WST-1.
Figure 2. SOD inhibitory activity of 80% ethanol extracts from the conks expressed as SOD units per g of dry material (SOD U/g). One unit of SOD activity was defined as the amount of enzyme having a 50% inhibitory effect on WST-1.
Biomolecules 12 01178 g002
Table 1. Origin and hosts of Inonotus obliquus, isolated from the conks and used in this study’s fungal strains.
Table 1. Origin and hosts of Inonotus obliquus, isolated from the conks and used in this study’s fungal strains.
Strain No aHostSample NameSite Type bSampling Site and TimeGeographical CoordinatesFungal Culture Collection Code c, GenBank
Accession No d
PAT29023Alnus incanaA. incana IAegopodiumEstonia, Leemeti; 30.11.2019N58.344944, E25.387528TFC101255, OP019322
PAT29031A. incanaA. incana IIAegopodiumEstonia, Pedajamäe; 30.12.2019N58.068278, E26.428222TFC101256,
PAT29036A. glutinosaA. glutinosaDryopterisEstonia, Jalametsa; 03.02.2020N58.794250, E25.834667TFC101257,
Betula EST IAegopodiumEstonia, Kaavere; 21.12.2019N58.903734, E26.446721TFC101258,
PAT29043B. pendulaBetula EST IIOxalisEstonia, Vissi; 14.01.2020N58.160778, E26.732750TFC101259, OP019326
PAT29027B. pendulaBetula FINUnknownFinland, Luosto; Jan. 2020N67.115336, E26.899869TFC101260,
a In the collection of the Laboratory of Forest Pathology and Genetics of the Estonian University of Life Sciences; b according to Lõhmus [22]; c Tartu Fungal Collection in the Estonian University of Life Sciences, Estonia (TFC); d Genbank:
Table 2. Triterpenoids and polyphenolic compounds in the conk samples.
Table 2. Triterpenoids and polyphenolic compounds in the conk samples.
Sample NameBetulinBetulinic AcidInotodiolLanosterolTotal PolyphenolsTotal Flavonols
µg/gµg/gµg/gµg/gµg GA eq/gµg Q eq/g
A. incana I154 ± 8.6 a474 ± 10.8 b8961 ± 217.8 b1023 ± 29.0 c287 ± 11.1 d336 ± 22.9 c
A. incana II111 ± 6 b635 ± 34.7 a7455 ± 172.9 c1162 ± 21.1 b277 ± 7.4 d219 ± 9.2 d
A. glutinosanq49 ± 3.8 d6300 ± 90.1 d1248 ± 26.3 b477 ± 5.5 c364 ± 13.5 c
Betula EST Inq132 ± 19.9 c9057 ± 343.5 b1080 ± 43.9 bc708 ± 7.5 b2879 ± 38.5 a
Betula EST II159 ± 26.3 a20 ± 5.0 e7881 ± 286.7 c1021 ± 24.0 c841 ± 18.7 a1137 ± 8.9 b
Betula FIN0015223 ± 103.1 a2220 ± 29.8 a663 ± 24.4 b1126 ± 21.5 b
nq—not quantified (signal to noise ratio < 10); µg GA eq./g: µg gallic acid equivalent/g; µg Q eq./g: µg quercetin equivalent/g. All values are means ± standard deviation, n = 3; mean values within a column with different letters (a–e) are significantly different at p < 0.05.
Table 3. Total content of glucan and α and β-glucan in the conk samples (in % per dry weight).
Table 3. Total content of glucan and α and β-glucan in the conk samples (in % per dry weight).
Sample NameTotal Glucan %α-Glucan %β-Glucan %
A. incana I2.72 ± 0.64 d0.38 ± 0.03 e2.34 ± 0.66 c
A. incana II3.96 ± 0.11 c0.53 ± 0.01 b3.43 ± 0.09 c
A. glutinosa3.58 ± 0.08 d0.60 ± 0.01 a2.98 ± 0.09 c
Betula EST I7.01 ± 0.37 a0.26 ± 0.02 f6.75 ± 0.35 a
Betula EST II5.94 ± 0.3 b0.49 ± 0.01 c5.45 ± 0.29 b
Betula FIN6.04 ± 0.71 ab0.46 ± 0 d5.58 ± 0.71 ab
All values are means ± standard deviation, n = 3; values within a column with different letters are significantly different at p < 0.05.
