# Optical Rotation Approach to Search for the Electric Dipole Moment of the Electron

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

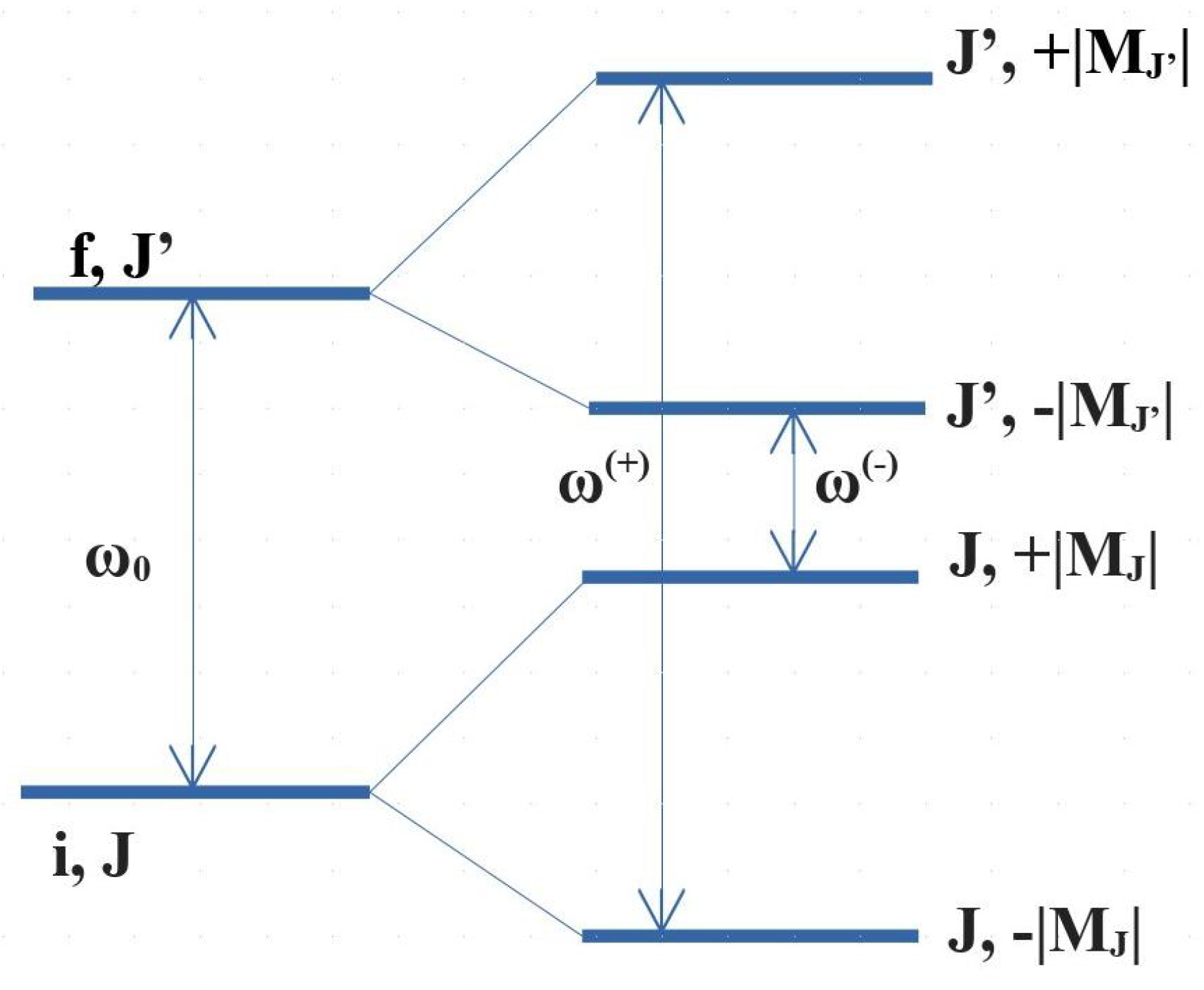

## 2. Theory of the $\mathcal{P}$,$\mathcal{T}$-Odd Faraday Effect

## 3. Application to Transitions in Different Atomic Species

#### 3.1. Ra Atom ($Z=88$)

#### 3.2. Pb Atom ($Z=82$)

- (1)
- The first one is the E1 $6{p}^{2}{(1/2,1/2)}_{0}\to 6p7s{(1/2,1/2)}_{1}$ with the transition wavelength $\lambda =283$ nm. We employ the value for the eEDM enhancement factor of the $6p7s{(1/2,1/2)}_{1}$ state from [18]: $\left(\right)open="("\; close=")">{R}_{d}^{i}+{R}_{d}^{f}$. Assuming $T\sim 300$ K and employing ${\omega}_{0}=6.7\times {10}^{15}$ s${}^{-1}$, according to Equation (19) ${\Gamma}_{D}\approx 3.4\times {10}^{9}$ s${}^{-1}$. The natural line width for the chosen transition is ${\Gamma}_{n}=1.79\times {10}^{8}$ s${}^{-1}$ [49]. For $\mathcal{E}={10}^{5}$ V/cm, ${d}_{e}={10}^{-29}$e cm and $u\approx 4$ from Equation (28) it follows$${\psi}_{\mathrm{max}}\approx 1.6\times {10}^{-14}\phantom{\rule{0.166667em}{0ex}}\mathrm{rad}.$$
- (2)
- Now we consider the M1 transition $6{p}^{2}{(1/2,1/2)}_{0}\to 6{p}^{2}{(3/2,1/2)}_{1}$ with $\lambda =1279$ nm. Here we also employ the value for the eEDM enhancement factor of the $6{p}^{2}{(3/2,1/2)}_{1}$ state from [18]: $\left(\right)open="("\; close=")">{R}_{d}^{i}+{R}_{d}^{f}$. Assuming $T\sim 300$ K and employing ${\omega}_{0}=1.5\times {10}^{15}$ s${}^{-1}$, according to Equation (19) ${\Gamma}_{D}\approx 7.7\times {10}^{8}$ s${}^{-1}$. The natural line width for the chosen transition (for the $6{p}^{2}{(3/2,1/2)}_{1}$ metastable state) is ${\Gamma}_{n}=7$ s${}^{-1}$ according to [49]. Let us estimate the value of the collisional broadening ${\Gamma}_{\mathrm{col}}$ according to Equation (4). The characteristic value for the collisional cross-section is ${\sigma}_{\mathrm{col}}\approx 0.5\times {10}^{-14}$ cm${}^{2}$ [41]. Then in terms of density $\rho $ we obtain ${\Gamma}_{\mathrm{col}}=7.6\times {10}^{-11}\rho \left[{\mathrm{cm}}^{-3}\right]$ s${}^{-1}$. So in this case the dimensionless $v=\frac{\Gamma}{2{\Gamma}_{D}}\approx 4.6\times {10}^{-9}+{10}^{-19}\rho \left[{\mathrm{cm}}^{-3}\right]$. It appears that for $\rho >{10}^{11}$ cm${}^{-3}$ the collisional broadening mechanism dominates over the natural broadening one. Since now the maximum rotation angle (Equation (28)) (optimal for the experiment) depends on $\rho $ (${\psi}_{\mathrm{max}}\sim 1/\rho $) and the column density according to Equation (26) is not fixed (the fixed quantity is ${\rho}^{2}l$, i.e., $1/\rho \sim \sqrt{l}$) then let us employ the maximum feasible value for the optical path lengths in our estimates. In [39] path length of 70,000 km for the cavity of the same size as in [38] was reported. If such a large electric field ($\mathcal{E}={10}^{5}$ V/cm) can be implemented in the cavity in a volume of a several centimetres size then the optical path length appears to be $l={10}^{8}$ cm. It corresponds to the optimal number density, according to Equation (26), $\rho \approx 5\times {10}^{14}$ cm${}^{-3}$. Then, for ${d}_{e}={10}^{-29}$e cm and $u\approx 4$ from Equation (28) it follows$${\psi}_{\mathrm{max}}\approx 1.1\times {10}^{-11}\phantom{\rule{0.166667em}{0ex}}\mathrm{rad}.$$

#### 3.3. Tl Atom ($Z=81$)

#### 3.4. Hg Atom ($Z=80$)

- (1)
- The first one is from the metastable $6s6p{(}^{3}{P}_{1})$ state to the excited $6s7s{(}^{3}{S}_{1})$ state with $\lambda =436$ nm. The population of the lower metastable level can be obtained with the laser pumping [38]. The eEDM enhancement factors were calculated in [42] and $\left(\right)open="("\; close=")">{R}_{d}^{i}+{R}_{d}^{f}$. In [42] ${R}_{d}$ factors are presented for definite hyperfine levels. Here these values are recalculated for the levels $i,J|{M}_{J}|$ and $f,{J}^{\prime}\left|{M}_{{J}^{\prime}}\right|$. The natural line width for the chosen transition is ${\Gamma}_{n}=1.0\times {10}^{8}$ s${}^{-1}$ [49]. Assuming the room temperature $T\sim 300$ K and employing the transition frequency value ${\omega}_{0}=4\times {10}^{15}$ s${}^{-1}$, according to Equation (19) we obtain the value for the Doppler width ${\Gamma}_{D}=5.2\times {10}^{-7}{\omega}_{0}\approx 2\times {10}^{9}$ s${}^{-1}$. For $\mathcal{E}={10}^{5}$ V/cm, ${d}_{e}={10}^{-29}$e cm and $u\approx 4$ from Equation (28) it follows$${\psi}_{\mathrm{max}}\approx 8\times {10}^{-15}\phantom{\rule{0.166667em}{0ex}}\mathrm{rad}.$$
- (2)
- The second transition of E1 type is from the ground $6{s}^{2}{(}^{1}{S}_{0})$ to the metastable $6s6p{(}^{3}{P}_{1})$ state with $\lambda =254$ nm. According to [42], $\left(\right)open="("\; close=")">{R}_{d}^{i}+{R}_{d}^{f}$. Employing ${\omega}_{0}=7.4\times {10}^{15}$ s${}^{-1}$, according to Equation (19), ${\Gamma}_{D}=5.2\times {10}^{-7}{\omega}_{0}\approx 3.7\times {10}^{9}$ s${}^{-1}$. The natural line width for the chosen transition is ${\Gamma}_{n}=2.0\times {10}^{7}$ s${}^{-1}$. For $\mathcal{E}={10}^{5}$ V/cm, ${d}_{e}={10}^{-29}$e cm and $u\approx 4$ from Equation (28) it follows$${\psi}_{\mathrm{max}}\approx 8\times {10}^{-14}\phantom{\rule{0.166667em}{0ex}}\mathrm{rad}.$$

#### 3.5. Cs Atom ($Z=55$)

#### 3.6. Xe Atom ($Z=54$)

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Pospelov, M.; Khriplovich, I. Electric dipole moment of the W boson and the electron in the Kobayashi-Maskawa model. Sov. Nucl. Phys.
**1991**, 53, 638. [Google Scholar] - Salpeter, E.E. Some atomic effects of an electronic electric dipole moment. Phys. Rev.
**1958**, 112, 1642. [Google Scholar] [CrossRef] - Sandars, P.G.H. The electric dipole moment of an atom. Phys. Lett.
**1965**, 14, 194. [Google Scholar] [CrossRef] - Sandars, P.G.H. The search for violation of P or T invariance in atoms or molecules. At. Phys.
**1975**, 4, 71. [Google Scholar] - Gorshkov, V.G.; Labzowsky, L.N.; Moskalev, A.N. Space and time parity nonconservation effects in the diatomic molecule spectra. Sov. Phys. JETP
**1979**, 49, 209. [Google Scholar] - Pospelov, M.; Ritz, A. CKM benchmarks for electron electric dipole moment experiments. Phys. Rev. D
**2014**, 89, 056006. [Google Scholar] [CrossRef] - Chubukov, D.V.; Labzowsky, L.N. P, T-odd electron-nucleus interaction in atomic systems as an exchange by Higgs bosons. Phys. Rev. A
**2016**, 93, 062503. [Google Scholar] [CrossRef] - Bondarevskaya, A.A.; Chubukov, D.V.; Andreev, O.Y.; Mistonova, E.A.; Labzowsky, L.N.; Plunien, G.; Liesen, D.; Bosch, F. On the electric dipole moment of the electron and the P, T-odd electron-nucleus interaction in highly-charged heavy ions. J. Phys. B
**2015**, 48, 144007. [Google Scholar] [CrossRef] - Ginges, J.S.; Flambaum, V.V. Violations of fundamental symmetries in atoms and tests of unification theories of elementary particles. Phys. Rep.
**2004**, 397, 63–154. [Google Scholar] [CrossRef] - Regan, B.C.; Commins, E.D.; Schmidt, C.J.; DeMille, D. New limit on the electron electric dipole moment. Phys. Rev. Lett.
**2002**, 88, 071805. [Google Scholar] [CrossRef] - Hudson, J.J.; Kara, D.M.; Smallman, I.J.; Sauer, B.E.; Tarbutt, M.R.; Hinds, E.A. Improved measurement of the shape of the electron. Nature
**2011**, 473, 493. [Google Scholar] [CrossRef] [PubMed] - Baron, J.; Campbell, W.C.; DeMille, D.; Doyle, J.M.; Gabrielse, G.; Gurevich, Y.V.; Hess, P.W.; Hutzler, N.R.; Kirilov, E.; Kozyryev, I.; et al. Order of magnitude smaller limit on the electric dipole moment of the electron. Science
**2014**, 343, 269–272. [Google Scholar] - Andreev, V.; Hutzler, N.R. Improved limit on the electric dipole moment of the electron. Nature
**2018**, 562, 355–360. [Google Scholar] - Cairncross, W.B.; Gresh, D.N.; Grau, M.; Cossel, K.C.; Roussy, T.S.; Ni, Y.; Zhou, Y.; Ye, J.; Cornell, E.A. Precision measurement of the electron’s electric dipole moment using trapped molecular ions. Phys. Rev. Lett.
**2017**, 119, 153001. [Google Scholar] [CrossRef] - Liu, Z.W.; Kelly, H.P. Analysis of atomic electric dipole moment in thallium by all-order calculations in many-body perturbation theory. Phys. Rev. A
**1992**, 45, R4210(R). [Google Scholar] [CrossRef] - Dzuba, V.A.; Flambaum, V.V. Calculation of the (T,P)-odd electric dipole moment of thallium and cesium. Phys. Rev. A
**2009**, 80, 062509. [Google Scholar] [CrossRef] - Porsev, S.G.; Safronova, M.S.; Kozlov, M.G. Electric dipole moment enhancement factor of thallium. Phys. Rev. Lett.
**2012**, 108, 173001. [Google Scholar] [CrossRef] - Chubukov, D.V.; Skripnikov, L.V.; Labzowsky, L.N. P,T-odd Faraday rotation in heavy neutral atoms. Phys. Rev. A
**2018**, 97, 062512. [Google Scholar] [CrossRef] - Quiney, H.M.; Skaane, H.; Grant, I.P. Hyperfine and PT-odd effects in YbF. J. Phys. B
**1998**, 31, 85. [Google Scholar] [CrossRef] - Parpia, F. Ab initio calculation of the enhancement of the electric dipole moment of an electron in the YbF molecule. J. Phys. B
**1998**, 31, 1409. [Google Scholar] [CrossRef] - Mosyagin, N.S.; Kozlov, M.G.; Titov, A.V. Electric dipole moment of the electron in the YbF molecule. J. Phys. B At. Mol. Opt. Phys.
**1998**, 31, L763. [Google Scholar] [CrossRef] - Abe, M.; Gopakumar, G.; Hada, M.; Das, B.P.; Tatewaki, H.; Mukherjee, D. Application of relativistic coupled-cluster theory to the effective electric field in YbF. Phys. Rev. A
**2014**, 90, 022501. [Google Scholar] [CrossRef] - Skripnikov, L.V.; Petrov, A.N.; Titov, A.V. Communication: Theoretical study of ThO for the electron electric dipole moment search. J. Chem. Phys.
**2013**, 139, 221103. [Google Scholar] [CrossRef] [Green Version] - Skripnikov, L.V.; Titov, A.V. Theoretical study of thorium monoxide for the electron electric dipole moment search: Electronic properties of H
^{3}Δ1 in ThO. J. Chem. Phys.**2015**, 142, 024301. [Google Scholar] [CrossRef] [PubMed] - Skripnikov, L.V. Combined 4-component and relativistic pseudopotential study of ThO for the electron electric dipole moment search. J. Chem. Phys.
**2016**, 145, 214301. [Google Scholar] [CrossRef] [PubMed] - Denis, M.; Fleig, T. In search of discrete symmetry violations beyond the standard model: Thorium monoxide reloaded. J. Chem. Phys.
**2016**, 145, 214307. [Google Scholar] [CrossRef] [PubMed] - Petrov, A.N.; Mosyagin, N.S.; Isaev, T.A.; Titov, A.V. Theoretical study of HfF
^{+}in search of the electron electric dipole moment. Phys.Rev. A**2007**, 76, 030501(R). [Google Scholar] [CrossRef] - Skripnikov, L.V. Communication: Theoretical study of HfF
^{+}cation to search for the T,P-odd interactions. J. Chem. Phys.**2017**, 147, 021101. [Google Scholar] [CrossRef] [PubMed] - Fleig, T. P,T-odd and magnetic hyperfine-interaction constants and excited-state lifetime for HfF
^{+}. Phys. Rev. A**2017**, 96, 040502. [Google Scholar] [CrossRef] - Petrov, A.N.; Skripnikov, L.V.; Titov, A.V.; Flambaum, V.V. Evaluation of C P violation in HfF
^{+}. Phys. Rev. A**2018**, 98, 042502. [Google Scholar] [CrossRef] - Zel’dovich, Y.B. Parity nonconservation in the first Order in the weak-interaction constant in electron scattering and other Effects. Sov. Phys. JETP
**1959**, 9, 682. [Google Scholar] - Khriplovich, I.B. Feasibility of observing parity nonconservation in atomic transitions. Sov. Phys. JETP Letters
**1974**, 20, 315. [Google Scholar] - Barkov, L.M.; Zolotorev, M.S. Observation of parity non-conservation in atomic transitions. Sov. Phys.
**1978**, 27, 357. [Google Scholar] - Baranova, N.B.; Bogdanov, Y.V.; Zel’dovich, B.Y. New electro-optical and magneto-optical effects in liquids. Sov.Phys.Usp
**1977**, 20, 870. [Google Scholar] [CrossRef] - Sushkov, O.P.; Flambaum, V.V. Parity breaking effects in diatomic molecules. Sov. Phys. JETP
**1978**, 48, 608. [Google Scholar] - Budker, D.; Gawlik, W.; Kimball, D.; Rochester, S.M.; Yashchuk, V.; Weis, A. Resonant nonlinear magneto-optical effects in atoms. Rev. Mod. Phys.
**2002**, 74, 1153. [Google Scholar] [CrossRef] - Chubukov, D.V.; Labzowsky, L.N. P,T-odd Faraday effect in intracavity absorption spectroscopy. Phys. Rev. A
**2017**, 96, 052105. [Google Scholar] [CrossRef] - Bougas, L.; Katsoprinakis, G.E.; von Klitzing, W.; Rakitzis, T.P. Fundamentals of cavity-enhanced polarimetry for parity-nonconserving optical rotation measurements: Application to Xe, Hg, and I. Phys. Rev. A
**2014**, 89, 052127. [Google Scholar] [CrossRef] - Baev, V.M.; Latz, T.; Toschek, P.E. Laser intracavity absorption spectroscopy. Appl. Phys. B
**1999**, 69, 171–202. [Google Scholar] [CrossRef] - Durand, M.; Morville, J.; Romanini, D. Shot-noise-limited measurement of sub-parts-per-trillion birefringence phase shift in a high-finesse cavity. Phys. Rev. A
**2010**, 82, 031803. [Google Scholar] [CrossRef] - Khriplovich, I.B. Parity Nonconservation in Atomic Phenomena; Gordon and Breach: London, UK, 1991. [Google Scholar]
- Chubukov, D.V.; Skripnikov, L.V.; Labzowsky, L.N.; Kutuzov, V.N.; Chekhovskoi, S.D. Evaluation of the P,T-odd Faraday effect in Xe and Hg atoms. Phys. Rev. A
**2019**, 99, 052515. [Google Scholar] [CrossRef] - Johnson, W.R.; Guo, D.S.; Idrees, M.; Sapirstein, J. Weak-interaction effects in heavy atomic systems. II. Phys.Rev. A
**1986**, 34, 1043. [Google Scholar] [CrossRef] - Lindroth, E.; Lynn, B.W.; Sandars, P.G.H. Order α2 theory of the atomic electric dipole moment due to an electric dipole moment on the electron. J. Phys. B
**1989**, 22, 559. [Google Scholar] [CrossRef] - Skripnikov, L.V.; Titov, A.V.; Petrov, A.N.; Mosyagin, N.S.; Sushkov, O.P. Enhancement of the electron electric dipole moment in Eu
^{2+}. Phys. Rev. A**2011**, 84, 022505. [Google Scholar] [CrossRef] - Skripnikov, L.V.; Maison, D.E.; Mosyagin, N.S. Scalar-pseudoscalar interaction in the francium atom. Phys. Rev. A
**2017**, 95, 022507. [Google Scholar] [CrossRef] [Green Version] - Roberts, G.J.; Baird, P.E.G.; Brimicombe, M.W.S.M.; Sandars, P.G.H.; Selby, D.R.; Stacey, D.N. The Faraday effect and magnetic circular dichroism in atomic bismuth. J. Phys. B At. Mol. Phys.
**1980**, 13, 1389. [Google Scholar] [CrossRef] - Scielzo, N.D.; Guest, J.R.; Schulte, E.C.; Ahmad, I.; Bailey, K.; Bowers, D.L.; Holt, R.J.; Lu, Z.-T.; O’Connor, T.P.; Potterveld, D.H. Measurement of the lifetimes of the lowest 3P1 state of neutral Ba and Ra. Phys. Rev. A
**2006**, 73, 010501(R). [Google Scholar] [CrossRef] - Radzig, A.A.; Smirnov, B.M. Reference Data on Atoms, Molecules, and Ions; Springer: Berlin, Germany, 1985. [Google Scholar]

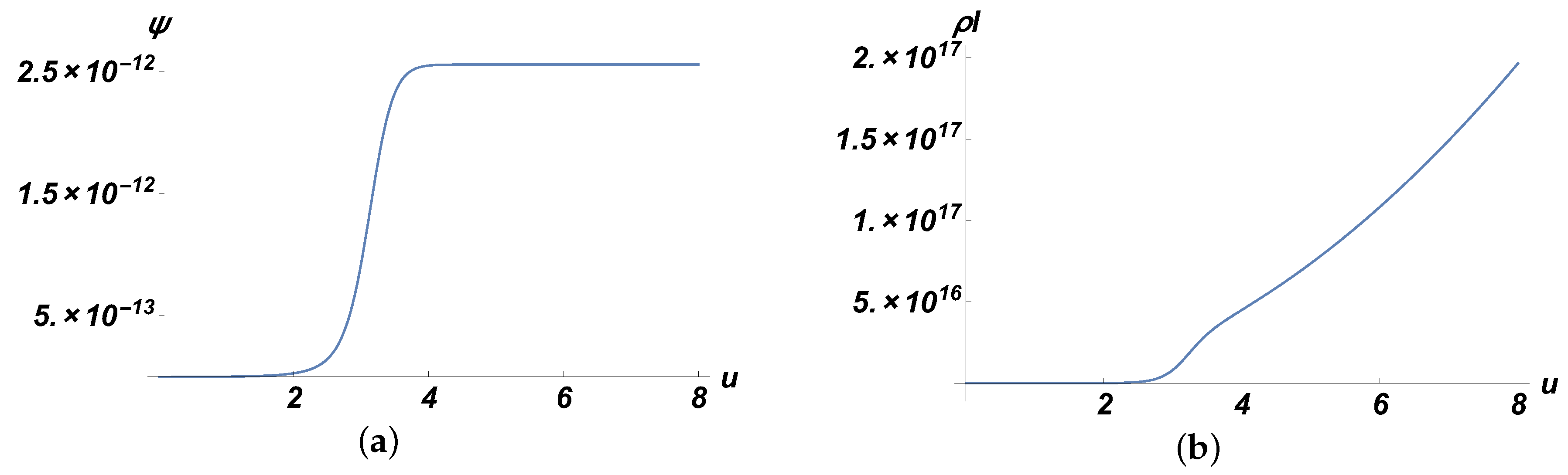

**Figure 2.**(

**a**) represents the behavior of the maximum value of the $\mathcal{P}$,$\mathcal{T}$-odd Faraday angle $\psi $ (in rad) on the dimensionless detuning u for the E1 transition $6{p}^{2}7{s}^{2}{}^{1}{S}_{0}\to 6{p}^{2}7s7p{}^{3}{P}_{1}$ in Ra atom, (

**b**) represents the behavior of the column density $\rho l$ (in cm${}^{-2}$) on the dimensionless detuning u for the E1 transition $6{p}^{2}7{s}^{2}{}^{1}{S}_{0}\to 6{p}^{2}7s7p{}^{3}{P}_{1}$ in Ra atom.

**Table 1.**The summary of the results of the $\mathcal{P}$,$\mathcal{T}$-odd Faraday optical rotation theoretical simulation for different atomic species. The maximum $\mathcal{P}$,$\mathcal{T}$-odd Faraday rotation angle ${\psi}_{\mathrm{max}}$ (in rad) corresponds to an external electric field $\mathcal{E}={10}^{5}$ V/cm [10] and to the present eEDM bound established in experiments with ThO molecules (${d}_{e}={10}^{-29}$e cm [13]).

Atom | Transition | Wavelength | Linewidth | Column Density | Rotation Angle |
---|---|---|---|---|---|

$\mathit{\lambda}$, nm | ${\mathbf{\Gamma}}_{\mathit{n}}$, s${}^{-1}$ | $\mathit{\rho}\mathit{l}$, cm${}^{-2}$ | ${\mathit{\psi}}_{\mathbf{max}}$, rad | ||

Ra | $6{p}^{2}7{s}^{2}{}^{1}{S}_{0}\to 6{p}^{2}7s7p{}^{3}{P}_{1}$ (M1) | 714 | $2.37\times {10}^{6}$ | $5.0\times {10}^{16}$ | $2.6\times {10}^{-12}$ |

Pb | $6{p}^{2}{(1/2,1/2)}_{0}\to 6p7s{(1/2,1/2)}_{1}$ (E1) | 283 | $1.79\times {10}^{8}$ | $3.7\times {10}^{14}$ | $1.6\times {10}^{-14}$ |

Pb | $6{p}^{2}{(1/2,1/2)}_{0}\to 6{p}^{2}{(3/2,1/2)}_{1}$ (M1) | 1279 | 7 | $5.0\times {10}^{22}$ | $1.1\times {10}^{-11}$ |

Tl | $6{p}_{1/2}\to 6{p}_{3/2}$ (M1) | 1283 | 4 | $6.6\times {10}^{22}$ | $2.0\times {10}^{-11}$ |

Hg | $6s6p{(}^{3}{P}_{1})\to 6s7s{(}^{3}{S}_{1})$ (E1) | 436 | $1.0\times {10}^{8}$ | $1.5\times {10}^{14}$ | $8.0\times {10}^{-15}$ |

Hg | $6{s}^{2}{(}^{1}{S}_{0})\to 6s6p{(}^{3}{P}_{1})$ (E1) | 254 | $2.0\times {10}^{7}$ | $4.2\times {10}^{16}$ | $8.0\times {10}^{-14}$ |

Cs | $6{s}_{1/2}\to 6{p}_{1/2}$ (E1) | 895 | $3.23\times {10}^{7}$ | $1.9\times {10}^{14}$ | $9.2\times {10}^{-14}$ |

Xe | ${(}^{2}{P}_{3/2}^{0})6s{[3/2]}_{2}^{0}\to {(}^{2}{P}_{3/2}^{0})6p{[1/2]}_{1}$ (E1) | 980 | $2.6\times {10}^{7}$ | $2.2\times {10}^{14}$ | $9.0\times {10}^{-15}$ |
