Communication

4D Einstein–Gauss–Bonnet Gravity Coupled to Modified Logarithmic Nonlinear Electrodynamics

by
Sergey Il’ich Kruglov
1,2
1
Department of Physics, University of Toronto, 60 St. Georges St., Toronto, ON M5S 1A7, Canada
2
Department of Chemical and Physical Sciences, University of Toronto, 3359 Mississauga Road North, Mississauga, ON L5L 1C6, Canada
Universe 2023, 9(1), 24; https://doi.org/10.3390/universe9010024
Submission received: 20 October 2022 / Revised: 20 November 2022 / Accepted: 27 December 2022 / Published: 30 December 2022
(This article belongs to the Special Issue Black Holes in Einstein–Gauss–Bonnet Theories)

Abstract

:
Spherically symmetric solution in 4D Einstein–Gauss–Bonnet gravity coupled to modified logarithmic nonlinear electrodynamics (ModLogNED) is found. This solution at infinity possesses the charged black hole Reissner–Nordström behavior. We study the black hole thermodynamics, entropy, shadow, energy emission rate and quasinormal modes. It was shown that black holes can possess the phase transitions and at some range of event horizon radii black holes are stable. The entropy has the logarithmic correction to the area law. The shadow radii were calculated for variety of parameters. We found that there is a peak of the black hole energy emission rate. The real and imaginary parts of the quasinormal modes frequencies were calculated. The energy conditions of ModLogNED are investigated.

1. Introduction

Nowadays, there are many theories of gravity that are alternatives to Einstein’s theory [1,2]. The motivation of generalisations of Einstein’s theory of General Relativity (GR) is to resolve some problems in cosmology and astrophysics. One of important modification of GR is the Einstein–Gauss–Bonnet (EGB) theory [3,4,5,6]. EGB theories do not include extra degrees of freedom and field equations have second derivatives of the metric. These theories also prevent Ostrogradsky instability [7]. The four dimensional (4D) EGB theory, that includes the Einstein–Hilbert action plus GB term, is a particular case of the Lovelock theory. It represents the generalization of Einstein’s GR for higher dimensions and EGB theory results covariant second-order field equations. The GB part of the action possesses higher order curvature terms. It is worth mentioning that at low energy the action of the heterotic string theory includes higher order curvature terms [8,9,10,11,12]. Therefore, it is of interest to study gravity action with the GB term. The GB term is a topological invariant in 4D and before a regularization it does not contribute to the equation of motion. However, Glavan and Lin [13] showed that re-scaling the coupling constant, after the regularization, GB term contributes to the equation of motion. The consistent theory of 4D EGB gravity, was proposed in [14,15,16], is in agreement with the Lovelock theorem [5] and possesses two dynamical degrees of freedom breaking the temporal diffeomorphism invariance. It is worth noting that the theory of [14,15,16], in the spherically-symmetric metrics, gives the solution which is a solution in the framework of [13] scheme (see [17]). Some aspects of 4D EGB gravity were considered in [18]. The black hole and wormhole type solutions in the effective gravity models, including higher curvature terms, were obtained in [19].
Here, we study the black hole thermodynamics, the entropy, the shadow, the energy emission rate and quasinormal modes in the framework of the ModLogNED model (proposed in [20]) coupled to 4D EGB gravity. It is worth noting that ModLogNED model is simpler compared with logarithmic model [21] and generalized logarithmic model [22] because the mass and metric functions here are expressed through simple elementary functions. The black hole quasinormal modes, deflection angles, shadows and the Hawking radiation were studied in [23,24,25,26,27,28,29].
The structure of the paper is as follows. In Section 2, we obtain the spherically symmetric solution of black holes in the 4D EGB gravity coupled to ModLogNED. At infinity the Reissner−Nordström behavior of the charged black holes takes place. The black hole thermodynamics is studied in Section 3. We calculate the Hawking temperature, the heat capacity and the entropy. At some parameters second order phase transitions occur. The entropy includes the logarithmic correction to Bekenstein–Hawking entropy. In Section 4, the black hole shadow is investigated. We calculate the photon sphere, the event horizon, and the shadow radii. The black hole energy emission rate is investigate in Section 5. In Section 6, we study quasinormal modes and find complex frequencies. Section 7 is a summary. In Appendix A energy conditions of ModLogNED model are investigated.

2. 4D EGB Model

The action of EGB gravity coupled to nonlinear electrodynamics (NED) in D-dimensions is given by
I = d D x g 1 16 π G R + α L G B + L N E D ,
where G is the Newton’s constant, α has the dimension of (length) 2 . The Lagrangian of ModLogNED, proposed in [20], is
L N E D = 2 F 8 π β ln 1 + β 2 F ,
where we use Gaussian units. The parameter β ( β 0 ) possesses the dimension of (length) 2 , F μ ν = μ A ν ν A μ is the field strength tensor, and F = ( 1 / 4 ) F μ ν F μ ν = ( B 2 E 2 ) / 2 , where B and E are the induction magnetic and electric fields, correspondingly. Making use of the limit β 0 in Equation (2), we arrive at the Maxwell’s Lagrangian L M = F / ( 4 π ) . The GB Lagrangian has the structure
L G B = R μ ν α β R μ ν α β 4 R μ ν R μ ν + R 2 .
By varying action (1) with respect to the metric we have EGB equations
R μ ν 1 2 g μ ν R + α H μ ν = 8 π G T μ ν ,
H μ ν = 2 R R μ ν 2 R μ α R ν α 2 R μ α ν β R α β R μ α β γ R ν α β γ 1 2 L G B g μ ν ,
where T μ ν is the stress (energy-momentum) tensor. To obtain the solution of field equations we need to use an ansatz for the interval. However, the validity of Birkhoff’s theorem [30] for our case of 4D EGB gravity coupled to ModLogNED model is not proven. Therefore, to simplify the problem we consider magnetic black holes with the static spherically symmetric metric in D dimension. In addition, we assume that components of the interval are restricted by the relation g 11 = g 00 1 . Thus, we suppose that the metric has the form
d s 2 = f ( r ) d t 2 + d r 2 f ( r ) + r 2 d Ω D 2 2 .
The d Ω D 2 2 is the line element of the unit ( D 2 ) -dimensional sphere. By following [13] we replace α by α α / ( D 4 ) and taking the limit D 4 . We study the magnetic black holes and find F = q 2 / ( 2 r 4 ) , where q is a magnetic charge. Then the magnetic energy density becomes [20]
ρ = T 0 0 = L = 2 F 8 π β ln 1 + β 2 F = q 8 π β r 2 ln 1 + β q r 2 .
At the limit D 4 and from Equation (4) we obtain
r ( 2 α f ( r ) r 2 2 α ) f ( r ) ( r 2 + α f ( r ) 2 α ) f ( r ) + r 2 α = 2 r 4 G ρ .
By virtue of Equation (7) one finds
4 π 0 r r 2 ρ d r = m M + q 2 β r ln 1 + β q r 2 2 β q arctan β q r ,
m M = 4 π 0 r 2 ρ d r = q 2 β 0 ln 1 + β q r 2 d r = π q 3 / 2 2 β ,
where m M is the black hole magnetic mass. Making use of Equations (9) and (10) we obtain the solution to Equation (8)
f ( r ) = 1 + r 2 2 α 1 ± 1 + 8 α G r 3 ( m + h ( r ) ,
h ( r ) = m M + q 2 β r ln 1 + β q r 2 2 β q arctan β q r ,
where m is the constant of integration (the Schwarzschild mass) and the total black hole mass is M = m + m M which is the ADM mass. At the limit β 0 one has
lim β 0 h ( r ) = m M q 2 / 2 r .
Then making use of Equation (11), for the negative branch, we obtain
lim β 0 , α 0 f ( r ) = 1 2 M G r + G q 2 r 2 ,
that corresponds to GR coupled to Maxwell electrodynamics (the Reissner–Nordström solution).
It is worth mentioning that for spherically symmetric D-dimensional line element (6), the Weyl tensor of the D-dimensional spatial part becomes zero [17]. Therefore, solution (11) corresponds to the consistent theory [14,15,16]. By introducing the dimensionless variable x = r / β q , Equation (11) is rewritten in the form
f ( x ) = 1 + C x 2 ± C x 4 + x ( A B g ( x ) ) ,
where
A = 8 α G M ( β q ) 3 / 2 , B = 4 α G β 2 , C = β q 2 α , g ( x ) = 2 arctan 1 x x ln 1 + 1 x 2 .
We will use the negative branch in Equations (11) and (12) with the minus sign of the square root to have black holes without ghosts.
As α 0 , r the metric function f ( r ) (11), for the negative branch, becomes
f ( r ) = 1 2 M G r + G q 2 r 2 + O ( r 3 ) ,
showing, at infinity, the Reissner−Nordström behavior of the charged black holes. The plot of function (12) for a particular chose of parameters, A = 15 , C = 1 (as an example), is depicted in Figure 1.
The expansion (14) was observed in other models (see, for example, ref. [31]). According to Figure 1 there can be two horizons or one (the extreme) horizon of black holes.

3. The Black Hole Thermodynamics

To study the black hole thermal stability we will calculate the Hawking temperature
T H ( r + ) = f ( r ) r = r + 4 π ,
where r + is the event horizon radius ( f ( r + ) = 0 ). From Equations (12) and (15) one finds the Hawking temperature
T H ( x + ) = 1 4 π β q 2 C x + 2 1 + B C 2 x + 2 g ( x + ) 2 x + ( 1 + C x + 2 ) ,
g ( x + ) = ln 1 + 1 x + 2 .
Parameter A was substituted into Equation (15) from equation f ( x + ) = 0 . The plot of the dimensionless function T H ( x + ) β q versus x + , for the case C = 1 , is represented in Figure 2.
Figure 2 shows that the Hawking temperature is positive for some interval of event horizon radii. We will calculate the heat capacity to study the black hole local stability
C q ( x + ) = T H S T H q = M ( x + ) T H ( x + ) = M ( x + ) / x + T H ( x + ) / x + ,
where M ( x + ) is the black hole gravitational mass as a function of the event horizon radius. Making use of equation f ( x + ) = 0 we obtain the black hole mass
M ( x + ) = ( β q ) 3 / 2 8 α G 1 + 2 C x + 2 C 2 x + + B g ( x + ) .
With the help of Equations (16) and (18) one finds
M ( x + ) x + = ( β q ) 3 / 2 8 α G 2 C x + 2 1 C 2 x + 2 + B g ( x + ) ,
T H ( x + ) x + = 1 8 π β q ( 5 C x + 2 2 C 2 x + 4 + 1 x + 2 ( 1 + C x + 2 ) 2
+ B C 2 [ g ( x + ) ( 1 C x + 2 ) + x + g ( x + ) ( 1 + C x + 2 ) ] ( 1 + C x + 2 ) 2 ) ,
g ( x + ) = 2 x + ( x + 2 + 1 ) .
In accordance with Equation (17) the heat capacity has a singularity when the Hawking temperature possesses an extremum ( T H ( x + ) / x + = 0 ). Equations (16) and (17) show that at one point, x + = x 1 , the Hawking temperature and heat capacity become zero and the black hole remnant mass is formed. In another point x + = x 2 with T H ( x + ) / x + = 0 , the heat capacity has a singularity where the second-order phase transition occurs. Black holes in the range x 2 > x + > x 1 are locally stable but at x + > x 2 black holes are unstable. Making use of Equations (17), (19) and (20) the heat capacity is depicted in Figure 3 at C = 1 .
The Hawking temperature and heat capacity are positive in the range x 2 > x + > x 1 and locally stable.
From the first law of black hole thermodynamics d M ( x + ) = T H ( x + ) d S + ϕ d q we obtain the entropy at the constant charge [32]
S = d M ( x + ) T H ( x + ) = 1 T H ( x + ) M ( x + ) x + d x + .
From Equations (16), (19) and (21) one finds the entropy
S = π ( β q ) 2 C 2 α G 1 + C x + 2 x + d x + = π r + 2 G + 4 π α G ln r + β q + C o n s t ,
with the integration constant C o n s t . The integration constant can be chosen in the form
C o n s t = 2 π α G ln π q β G .
Then making use of Equations (22) and (23) we obtain the black hole entropy
S = S 0 + 2 π α G ln S 0 ,
with S 0 = π r + 2 / G being the Bekenstein–Hawking entropy and with the logarithmic correction but without the coupling β . One can find same entropy (24) in other models [33,34,35].

4. Black Holes Shadows

The light gravitational lensing leads to the formation of black hole shadow and a black circular disk. The Event Horizon Telescope collaboration [36] observed the image of the super-massive black hole M87*. A neutral Schwarzschild black hole shadow was studied in [37]. We will consider photons moving in the equatorial plane, ϑ = π / 2 . With the help of the Hamilton−Jacobi method one obtains the equation for the photon motion in null curves [38]
H = 1 2 g μ ν p μ p ν = 1 2 L 2 r 2 E 2 f ( r ) + r ˙ 2 f ( r ) = 0 ,
where p μ is the photon momentum ( r ˙ = H / p r ). The photon energy and angular momentum are constants of motion, and they are E = p t and L = p ϕ , correspondingly. We can represent Equation (25) as
V + r ˙ 2 = 0 , V = f ( r ) L 2 r 2 E 2 f ( r ) .
Photon circular orbit radius r p can be found from equation V ( r p ) = V ( r ) | r = r p = 0 . Making use of Equation (26) we find
ξ L E = r p f ( r p ) , f ( r p ) r p 2 f ( r p ) = 0 ,
where ξ is the impact parameter. For a distant observer as r 0 , the shadow radius becomes r s = r p / f ( r p ) ( r s = ξ ). By virtue of Equation (12) and equation f ( r + ) = 0 we obtain parameters A, B and C versus x +
A = 1 + 2 C x + 2 C 2 x + + B g ( x + ) , B = A C 2 x + 2 C x + 2 1 C 2 x + g ( x + ) ,
C = x + 2 + x + 4 + x + ( A B g ( x + ) ) x + ( A B g ( x + ) ) ,

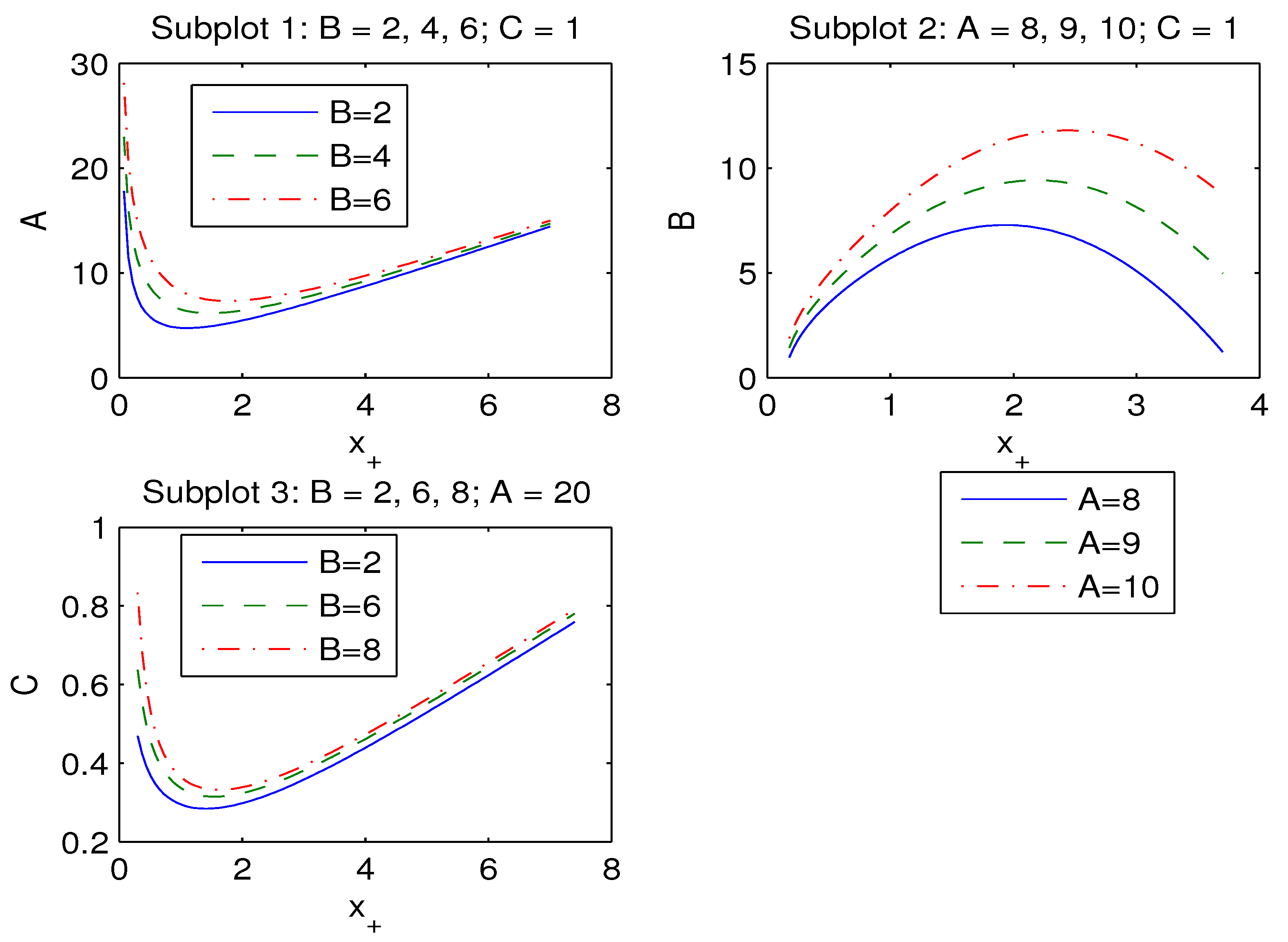

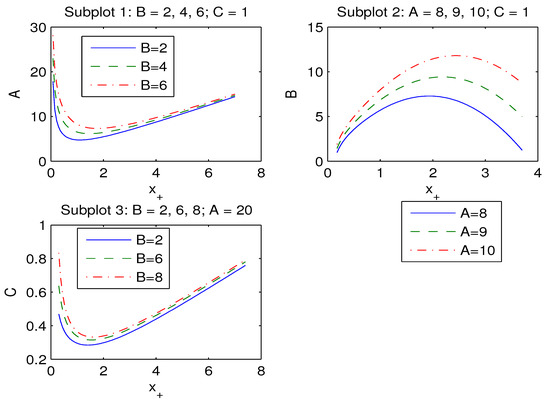

with x + = r + / β q . The functions (28) plots are depicted in Figure 4.
In accordance with Figure 4, Subplot 1, event horizon radius x + increases when parameter A increases and Subplot 2 indicates that if parameter B increases, the event horizon radius decreases. According to Subplot 3 of Figure 4, when parameter C increases the event horizon radius x + also increases.
The photon sphere radii ( x p ), the event horizon radii ( x + ), and the shadow radii ( x s ) for A = 15 and C = 1 are presented in Table 1. It is worth noting that the null geodesics radii x p correspond to the maximum of the potential V ( r ) ( V 0 ) and belong to unstable orbits.
Table 1 shows that when parameter B increases the shadow radius x s decreases. As x s > x + shadow radii are defined by r s = x s β q .
It is worth mentioning that currently there is not unique calculation of the shadow radius of M87* or SgrA* black holes within ModLogNED because our model possesses four free parameters M, α , β and q (or M, A, B and C) but from observations one knows only two values: the black hole mass and the shadow radius.

5. Black Holes Energy Emission Rate

The black hole shadow, for the observer at infinity, is connected with the high energy absorption cross Section [25,39]. At very high energies the absorption cross-section σ π r s 2 oscillates around the photon sphere. The energy emission rate of black holes is given by
d 2 E ( ω ) d t d ω = 2 π 3 ω 3 r s 2 exp ω / T H ( r + ) 1 ,
where ω is the emission frequency. By using dimensionless variable x + = r + / β q the black hole energy emission rate (29) becomes
β q d 2 E ( ω ) d t d ω = 2 π 3 ϖ 3 x s 2 exp ϖ / T ¯ H ( x + ) 1 ,
with T ¯ H ( x + ) = β q T H ( x + ) and ϖ = β q ω . The radiation rate versus the dimensionless emission frequency ω ¯ for C = 1 , A = 15 and B = 9 , 14 , 19 , is depicted in Figure 5.

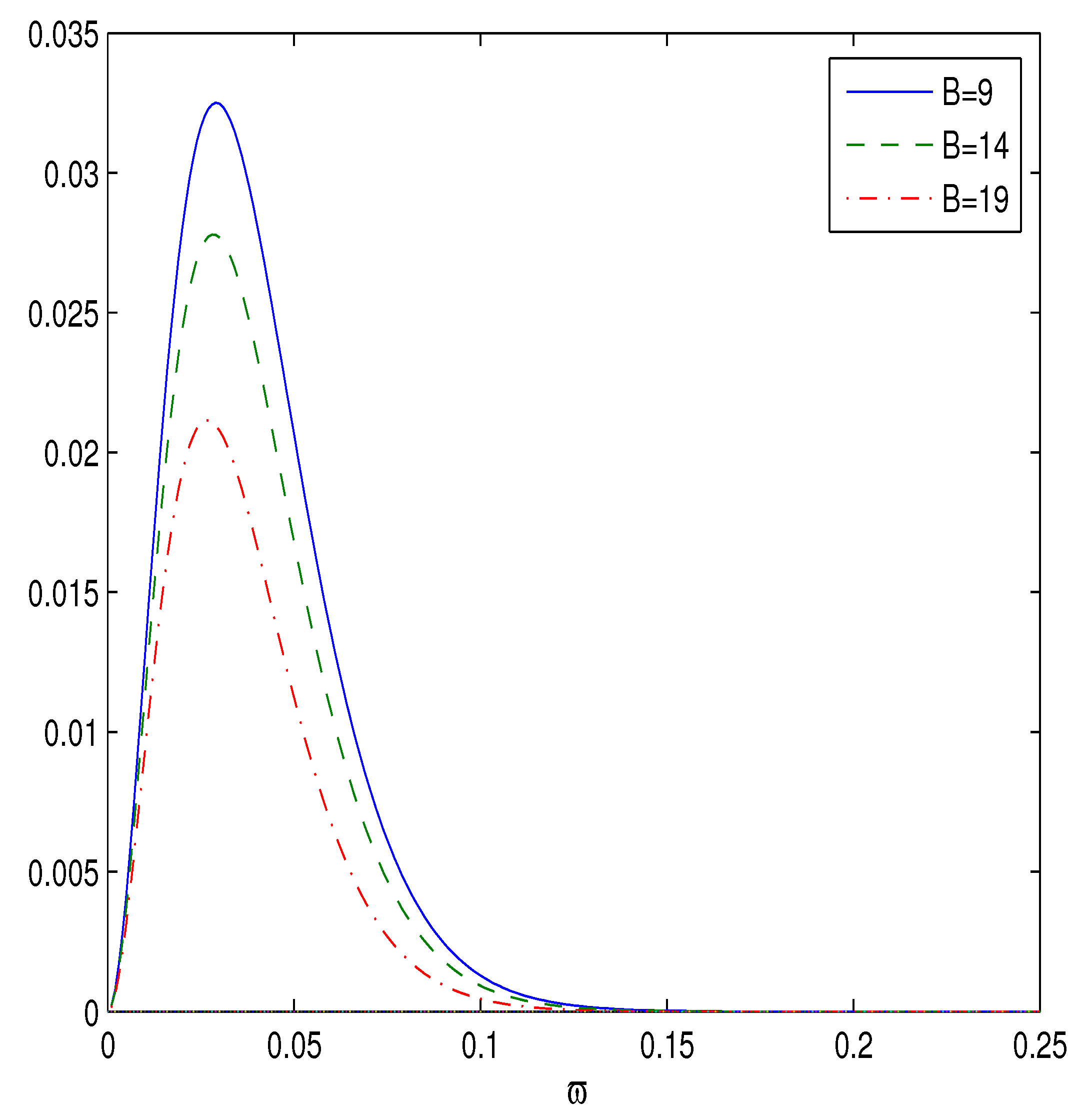

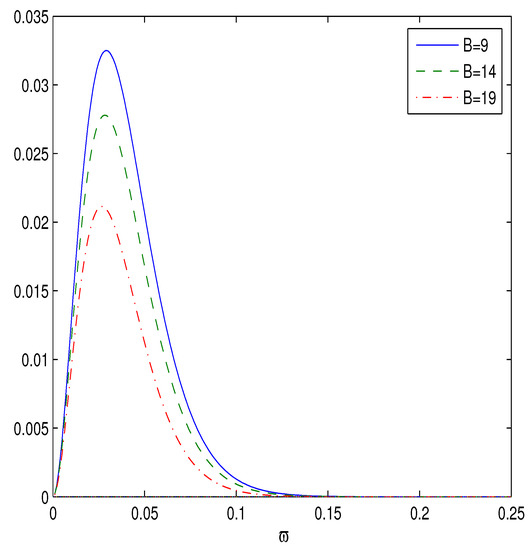

Figure 5 shows that there is a peak of the black hole energy emission rate. When parameter B increases, the energy emission rate peak becomes smaller and corresponds to the lower frequency. The black hole has a bigger lifetime when parameter B is bigger.

6. Quasinormal Modes

The stability of BHs under small perturbations are characterised by quasinormal modes (QNMs) with complex frequencies ω . When Im ω < 0 modes are stable but if Im ω > 0 modes are unstable. Re ω , in the eikonal limit, is linked with the black hole radius shadow [40,41]. Around black holes, the perturbations by scalar massless fields are described by the effective potential barrier
V ( r ) = f ( r ) f ( r ) r + l ( l + 1 ) r 2 ,
with l being the multipole number l = 0 , 1 , 2 , . Equation (31) can be rewritten in the form
V ( x ) β q = f ( x ) f ( x ) x + l ( l + 1 ) x 2 .

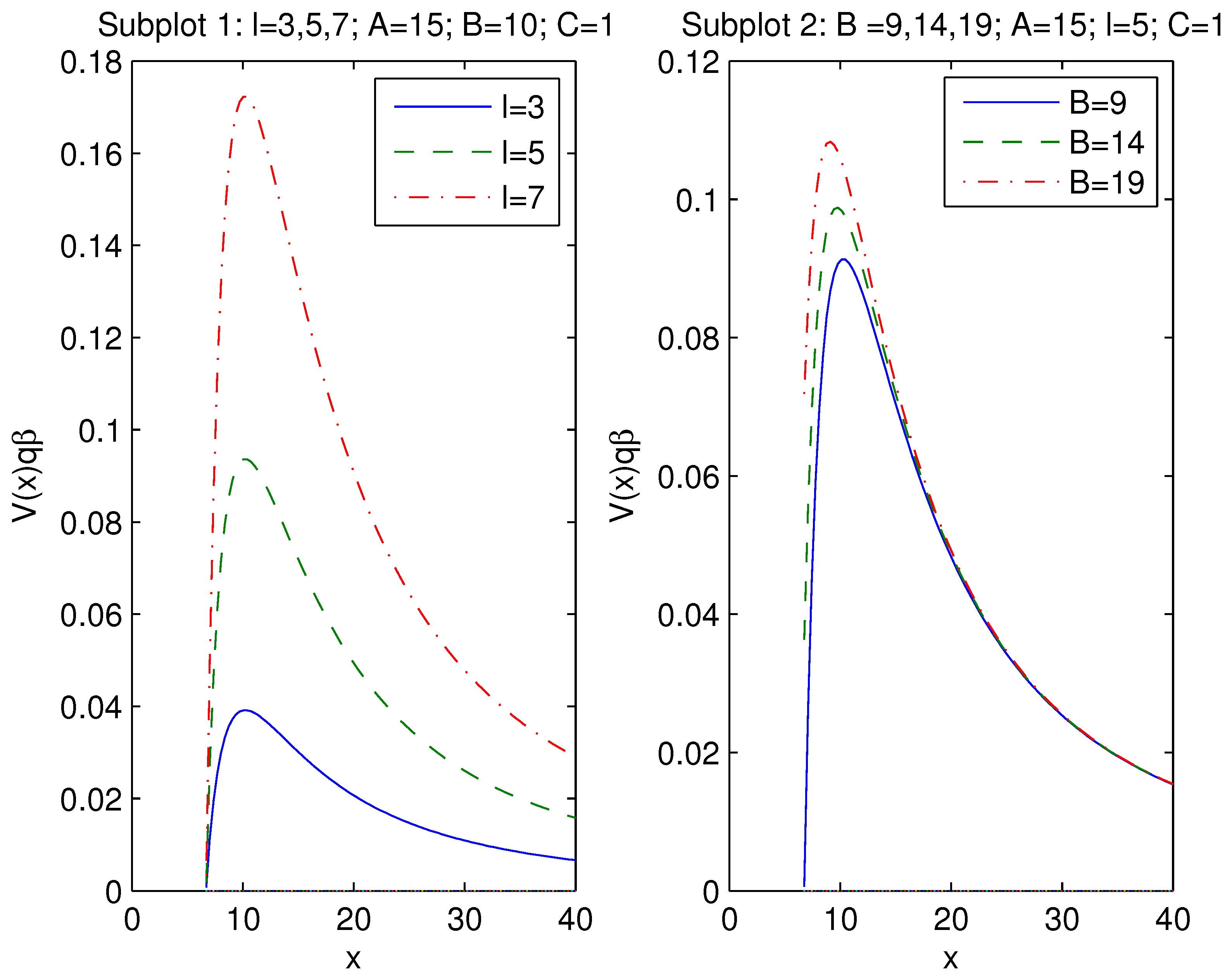

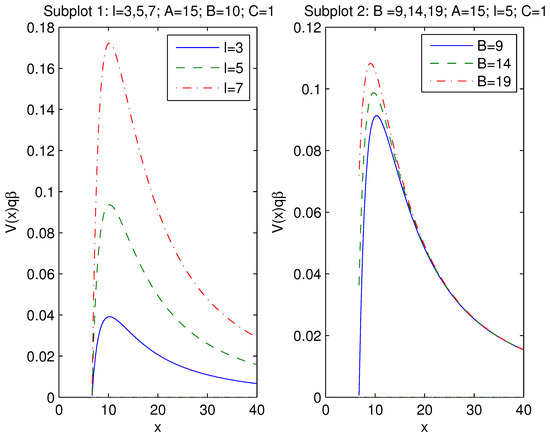

Dimensionless variable V ( x ) β q is depicted in Figure 6 for A = 15 , B = 10 , C = 1 (Subplot 1) and for A = 15 , C = 1 , l = 5 (Subplot 2).
According to Figure 6, Subplot l, the potential barriers of effective potentials have maxima. For l increasing the height of the potential increases. Figure 6, Subplot 2, shows that when the parameter B increases the height of the potential also increases. The quasinormal frequencies are given by [40,41]
R e ω = l r s = l f ( r p ) r p , I m ω = 2 n + 1 2 2 r s 2 f ( r p ) r p 2 f ( r p ) ,
where r s is the black hole shadow radius, r p is the black hole photon sphere radius, and n = 0 , 1 , 2 , is the overtone number. The frequencies, at A = 15 , C = 1 , n = 5 , l = 10 , are given in Table 2.
Because the imaginary parts of the frequencies in Table 2 are negative, modes are stable. The real part Re ω gives the oscillations frequency. In accordance with Table 2 when parameter B increasing the real part of frequency β q R e ω increases and the absolute value of the frequency imaginary part β q I m ω decreases. Therefore, when the parameter B increases the scalar perturbations oscillate with greater frequency and decay lower.

7. Summary

The exact spherically symmetric solution of magnetic black holes is obtained in 4D EGB gravity coupled to ModLogNED. We studied the thermodynamics and the thermal stability of magnetically charged black holes. The Hawking temperature and the heat capacity were calculated. The phase transitions occur when the Hawking temperature has an extremum. Black holes are thermodynamically stable at some range of event horizon radii when the heat capacity and the Hawking temperature are positive. The heat capacity has a discontinuity where the second-order phase transitions take place. The black hole entropy was calculated which has the logarithmic correction. We calculated the photon sphere radii, the event horizon radii, and the shadow radii. It was shown that when the model parameter B increases the black hole energy emission rate decreases and the black hole possesses a bigger lifetime. We show that when the parameter B increases the scalar perturbations oscillate with greater frequency and decay lower. Other solutions in 4D EGB gravity coupled to NED were found in [33,34,35].

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The author declares no conflict of interest.

Appendix A

With the spherical symmetry the energy-momentum tensor possesses the property T t t = T r r . Then, the radial pressure is p r = T r r = ρ . The tangential pressure p = T ϑ ϑ = T ϕ ϕ is given by [42]
p = ρ r 2 ρ ( r ) ,
with the prime being the derivative with respect to the radius r. The Weak Energy Condition (WEC) is valid when ρ 0 and ρ + p k 0 (k = 1, 2, 3) [43], and then the energy density is positive. According to Equation (7) ρ 0 . Making use of Equation (7) we obtain
ρ ( r ) = q β r 3 ln 1 + q β r 2 q 2 r 3 ( r 2 + β q ) 0 .
Therefore WEC, ρ 0 , ρ + p r 0 , ρ + p 0 , is satisfied. The Dominant Energy Condition (DEC) takes place if and only if [43] ρ 0 , ρ + p k 0 , ρ p k 0 , that includes WEC. One needs only to check the condition ρ p 0 . By virtue of Equations (7), (A1) and A(2) one finds
ρ p = q 2 β r 2 ln 1 + q β r 2 q β r 2 + β q .
One can verify that ρ p 0 for any parameters. DEC is satisfied and therefore the sound speed is less than the speed of light. The Strong Energy Condition (SEC) is valid when ρ + k = 1 3 p k 0 [43]. From Equations (8)–(10) we obtain
ρ + k = 1 3 p k = ρ + p + p r = p < 0 .
In accordance with Equation (A4) SEC is not satisfied.

References

  1. Clifton, T.; Ferreira, P.G.; Padilla, A.; Skordis, C. Modified Gravity and Cosmology. Phys. Rep. 2012, 513, 1–189. [Google Scholar] [CrossRef] [Green Version]
  2. Will, C.M. The Confrontation between General Relativity and Experiment. Living Rev. Relativ. 2014, 17, 4. [Google Scholar] [CrossRef] [Green Version]
  3. Lanczos, C. Elektromagnetismus als natürliche eigenschaft der riemannschen geometrie. Z. Phys. 1932, 73, 147–168. [Google Scholar] [CrossRef]
  4. Lanczos, C. A remarkable property of the riemann-christoffel tensor in four dimensions. Ann. Math. 1938, 39, 842–850. [Google Scholar] [CrossRef] [Green Version]
  5. Lovelock, D. Divergence-free tensorial concomitants. Aequationes Math. 1970, 4, 127–138. [Google Scholar] [CrossRef]
  6. Lovelock, D. The Einstein tensor and its generalizations. J. Math. Phys. 1971, 12, 498–501. [Google Scholar] [CrossRef]
  7. Ostrogradsky, M. Mémoires sur leséquations différentielles, relatives au problème des isopérimètres. Mem. Acad. St. Petersbourg 1850, 6, 385. [Google Scholar]
  8. Gross, D.J.; Witten, E. Superstring modifications of Einstein’s equations. Nucl. Phys. B 1986, 277, 1–10. [Google Scholar] [CrossRef]
  9. Gross, D.J.; Sloan, J.H. The quartic effective action for the heterotic string. Nucl. Phys. B 1987, 291, 41–89. [Google Scholar] [CrossRef]
  10. Metsaev, R.R.; Tseytlin, A.A. Two-loop β-function for the generalized bosonic sigma model. Phys. Lett. B 1987, 191, 354–362. [Google Scholar] [CrossRef]
  11. Metsaev, R.R.; Tseytlin, A.A. Order α’ (two-loop) equivalence of the string equations of motion and the σ-model Weyl invariance conditions: Dependence on the dilaton and the antisymmetric tensor. Nucl. Phys. B 1987, 293, 385–419. [Google Scholar] [CrossRef]
  12. Zwiebach, B. Curvature squared terms and string theories. Phys. Lett. B 1985, 156, 315–317. [Google Scholar] [CrossRef]
  13. Glavan, D.; Lin, C. Einstein–Gauss–Bonnet gravity in four-dimensional spacetime. Phys. Rev. Lett. 2020, 124, 081301. [Google Scholar] [CrossRef] [Green Version]
  14. Aoki, K.; Gorji, M.A.; Mukohyama, S. A consistent theory of D→4 Einstein–Gauss–Bonnet gravity. Phys. Lett. B 2020, 810, 135843. [Google Scholar] [CrossRef]
  15. Aoki, K.; Gorji, M.A.; Mukohyama, S. Cosmology and gravitational waves in consistent D→4 Einstein–Gauss–Bonnet gravity. arXiv 2021, arXiv:2010.03973. [Google Scholar]
  16. Aoki, K.; Gorji, M.A.; Mizuno, S.; Mukohyama, S. Inflationary gravitational waves in consistent D→4 Einstein–Gauss–Bonnet gravity. J. Cosmol. Astropart. Phys. 2021, 1, 54. [Google Scholar] [CrossRef]
  17. Jafarzade, K.; Zangeneh, M.K.; Lobo, F.S.N. Shadow, deflection angle and quasinormal modes of Born–Infeld charged black holes. J. Cosmol. Astropart. Phys. 2021, 4, 8. [Google Scholar] [CrossRef]
  18. Fernandes, P.G.; Carrilho, P.; Clifton, T.; Mulryne, D.J. The 4D Einstein–Gauss–Bonnet theory of gravity: A review. Class. Quant. Grav. 2022, 39, 063001. [Google Scholar] [CrossRef]
  19. Alexeyev, S.; Sendyuk, M. Black Holes and Wormholes in Extended Gravity. Universe 2020, 6, 25. [Google Scholar] [CrossRef] [Green Version]
  20. Kruglov, S.I. Magnetic black holes in AdS space with nonlinear electrodynamics, extended phase space thermodynamics and Joule–Thomson expansion. Int. J. Geom. Meth. Mod. Phys. 2023, 20, 2350008. [Google Scholar] [CrossRef]
  21. Soleng, H.H. Charged black points in General Relativity coupled to the logarithmic U(1) gauge theory. Phys. Rev. D 1995, 52, 6178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Kruglov, S.I. On Generalized Logarithmic Electrodynamics. Eur. Phys. J. C 2015, 75, 88. [Google Scholar] [CrossRef]
  23. Konoplya, R.A.; Zinhailo, A.F. Quasinormal modes, stability and shadows of a black hole in the 4D Einstein–Gauss–Bonnet gravity. Eur. Phys. J. C 2020, 80, 1049. [Google Scholar] [CrossRef]
  24. Konoplya, R.A.; Zinhailo, A.F. 4D Einstein–Lovelock black holes: Hierarchy of orders in curvature. Phys. Lett. B 2020, 807, 135607. [Google Scholar] [CrossRef]
  25. Belhaj, A.; Benali, M.; Balali, A.E.; Moumni, H.E.; Ennadifi, S.E. Deflection Angle and Shadow Behaviors of Quintessential Black Holes in arbitrary Dimensions. Class. Quant. Grav. 2020, 37, 215004. [Google Scholar] [CrossRef]
  26. Konoplya, R.A.; Stuchlik, Z. Are eikonal quasinormal modes linked to the unstable circular null geodesics. Phys. Lett. B 2017, 771, 597–602. [Google Scholar] [CrossRef]
  27. Stefanov, I.Z.; Yazadjiev, S.S.; Gyulchev, G.G. Connection between black-hole quasinormal modes and lensing in the strong deflection limit. Phys. Rev. Lett. 2010, 104, 251103. [Google Scholar] [CrossRef] [Green Version]
  28. Guo, Y.; Miao, Y.G. Null geodesics, quasinormal modes and the correspondence with shadows in high-dimensional Einstein–Yang–Mills spacetimes. Phys. Rev. D 2020, 102, 084057. [Google Scholar] [CrossRef]
  29. Wei, S.W.; Liu, Y.X. Null geodesics, quasinormal modes, and thermodynamic phase transition for charged black holes in asymptotically flat and dS spacetimes. Chin. Phys. C 2020, 44, 115103. [Google Scholar] [CrossRef]
  30. Birkhoff, G.D. Relativity and Modern Physics; Harvard University Press: Cambrige, MA, USA, 1923; p. 253. [Google Scholar]
  31. Mignemi, S.; Stewart, N.R. Charged black holes in effective string theory. Phys. Rev. D 1993, 47, 5259. [Google Scholar] [CrossRef] [Green Version]
  32. Medved, A.J.M.; Vagenas, E.C. When conceptual worlds collide: The GUP and the BH entropy. Phys. Rev. D 2004, 70, 124021. [Google Scholar] [CrossRef] [Green Version]
  33. Kruglov, S.I. Einstein–Gauss–Bonnet gravity with nonlinear electrodynamics. Ann. Phys. 2021, 428, 168449. [Google Scholar] [CrossRef]
  34. Kruglov, S.I. Einstein–Gauss–Bonnet Gravity with Nonlinear Electrodynamics: Entropy, Energy Emission, Quasinormal Modes and Deflection Angle. Symmetry 2021, 13, 944. [Google Scholar] [CrossRef]
  35. Kruglov, S.I. Einstein–Gauss–Bonnet gravity with rational nonlinear electrodynamics. EPL 2021, 133, 6. [Google Scholar] [CrossRef]
  36. Akiyama, K.; Alberdi, A.; Azulay, R.; Baczko, A.-K.; Baloković, M.; Barrett, J.; Blackburn, L.; Bouman, K.L.; Bower, G.C.; Brinkerink, C.D.; et al. First M87 Event Horizon Telescope Results.IV. Imaging the Central Supermassive Black Hole. Astrophys. J. 2019, 875, L1. [Google Scholar]
  37. Synge, J.L. The escape of photons from gravitationally intense stars. Mon. Not. R. Astron. Soc. 1966, 131, 463–466. [Google Scholar] [CrossRef]
  38. Kruglov, S.I. 4D Einstein–Gauss–Bonnet Gravity Coupled with Nonlinear Electrodynamics. Symmetry 2021, 13, 204. [Google Scholar] [CrossRef]
  39. Wei, S.W.; Liu, Y.X. Observing the shadow of Einstein–Maxwell-Dilaton-Axion black hole. J. Cosmol. Astropart. Phys. 2013, 11, 63. [Google Scholar] [CrossRef] [Green Version]
  40. Jusufi, K. Quasinormal Modes of Black Holes Surrounded by Dark Matter and Their Connection with the Shadow Radius. Phys. Rev. D 2020, 101, 084055. [Google Scholar] [CrossRef] [Green Version]
  41. Jusufi, K. Connection Between the Shadow Radius and Quasinormal Modes in Rotating Spacetimes. Phys. Rev. D 2020, 101, 124063. [Google Scholar] [CrossRef]
  42. Dymnikova, I. Regular electrically charged vacuum structures with de Sitter centre in nonlinear electrodynamics coupled to general relativity. Class. Quant. Grav. 2004, 21, 4417. [Google Scholar] [CrossRef]
  43. Hawking, S.W.; Ellis, G.F.R. The Large Scale Structure of Space-Time; Cambridge University Press: Cambridge, UK, 1973. [Google Scholar]

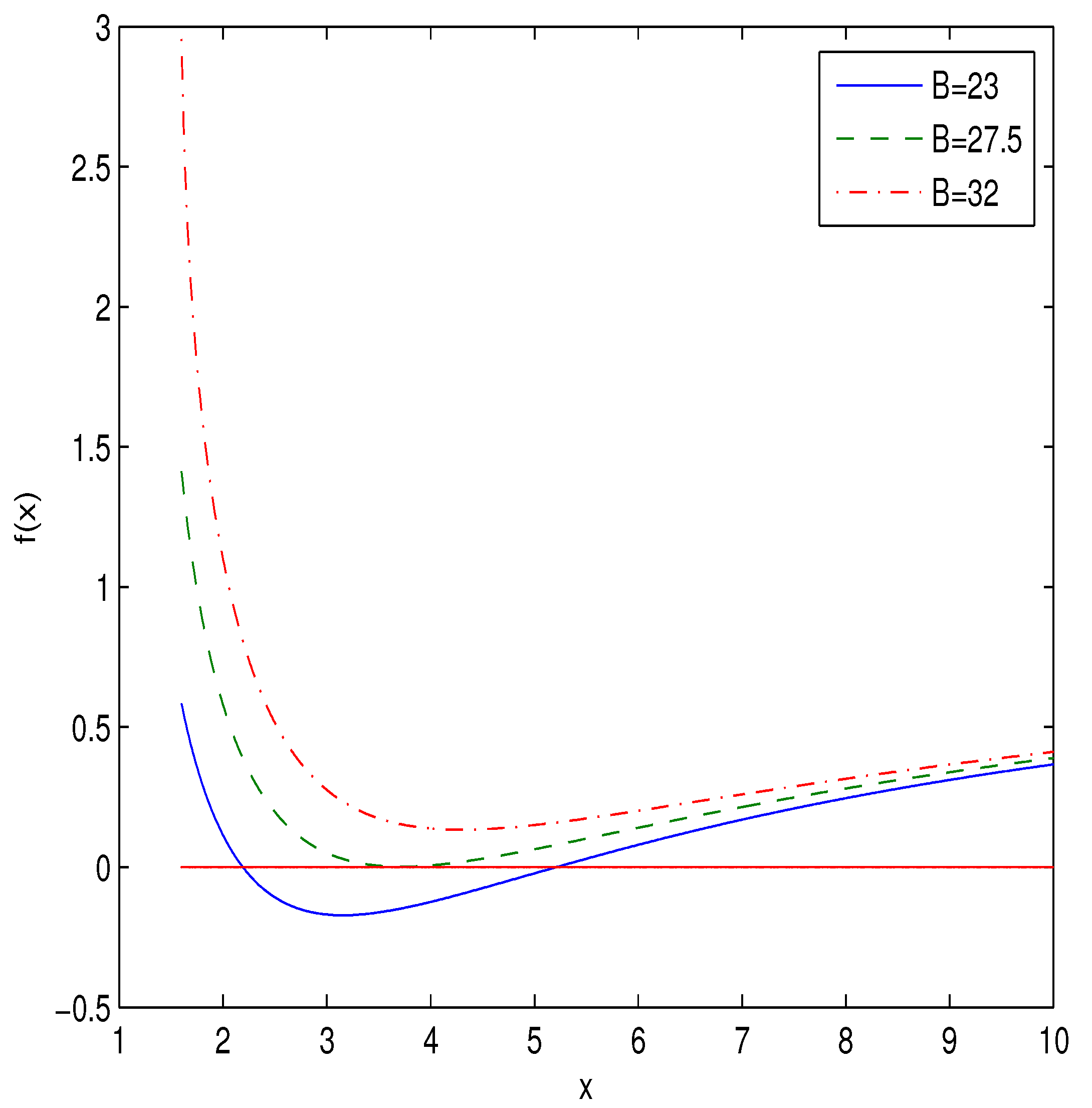

Figure 1. The plot of the function f ( x ) for A = 15 , C = 1 .
Figure 1. The plot of the function f ( x ) for A = 15 , C = 1 .
Universe 09 00024 g001

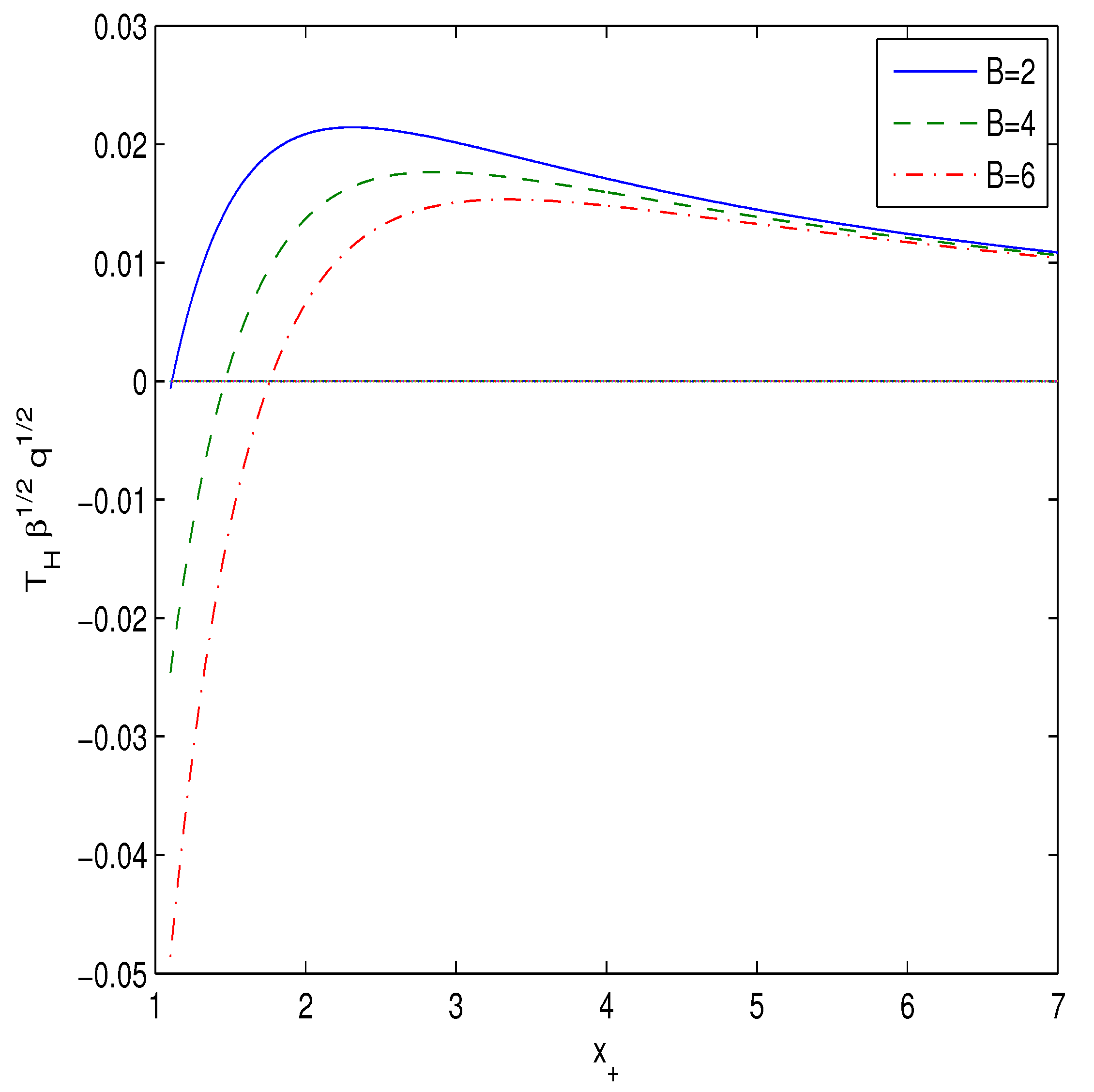

Figure 2. The plot of the function T H ( x + ) β q at C = 1 .
Figure 2. The plot of the function T H ( x + ) β q at C = 1 .
Universe 09 00024 g002

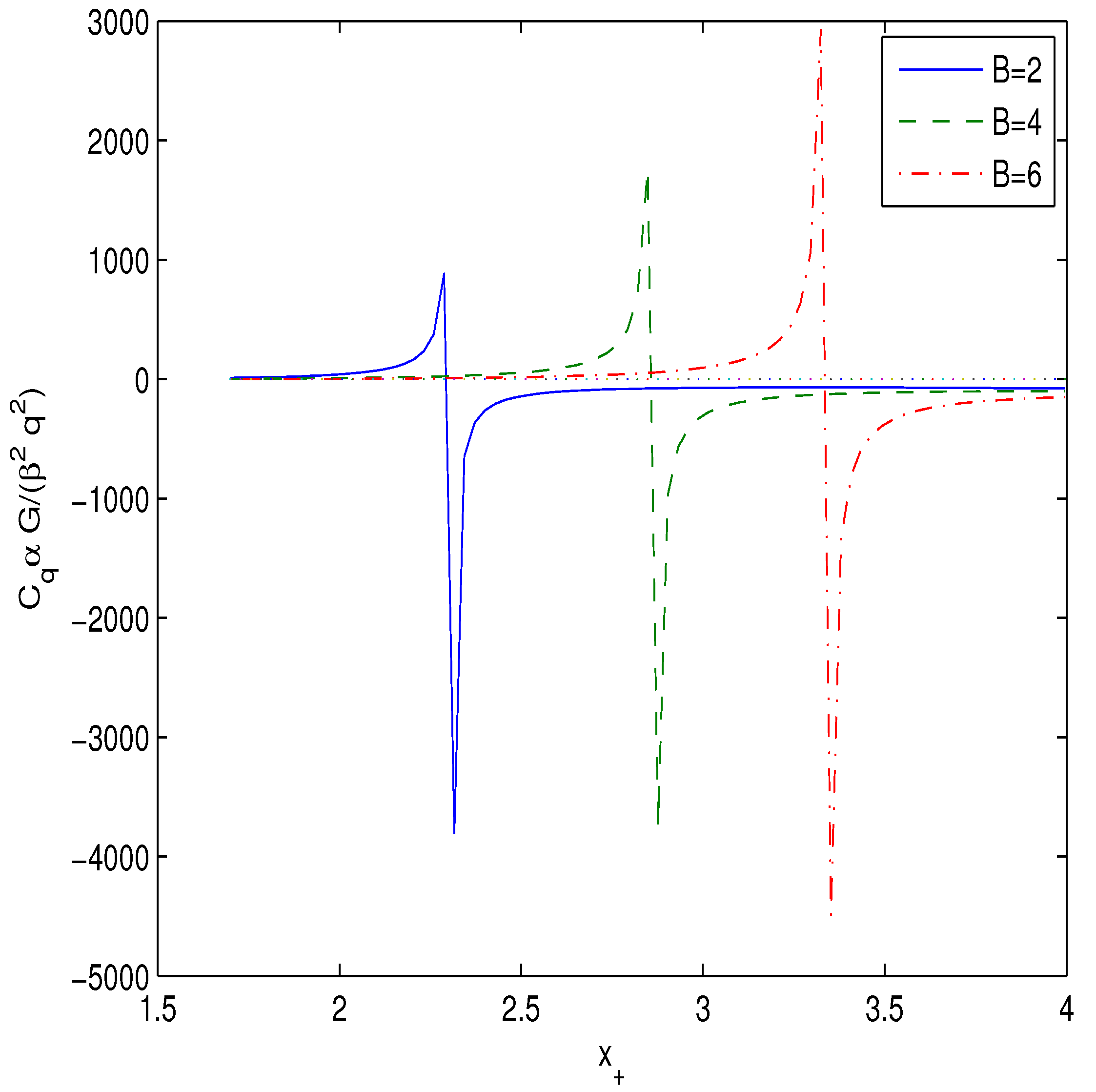

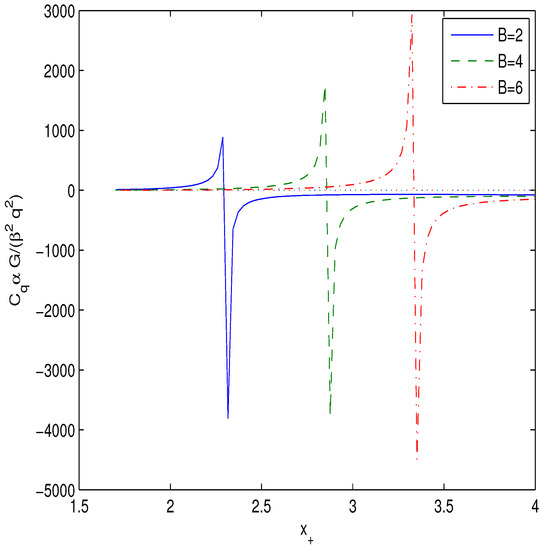

Figure 3. The plot of the function C q ( x + ) α G / ( β 2 q 2 ) at C = 1 .
Figure 3. The plot of the function C q ( x + ) α G / ( β 2 q 2 ) at C = 1 .
Universe 09 00024 g003
Figure 4. The plots of the functions A ( x + ) , B ( x + ) , C ( x + ) .
Figure 4. The plots of the functions A ( x + ) , B ( x + ) , C ( x + ) .
Universe 09 00024 g004
Figure 5. The plot of the function β q d 2 E ( ω ) d t d ω vs. ϖ for B = 9 , 14 , 19 , A = 15 , C = 1 .
Figure 5. The plot of the function β q d 2 E ( ω ) d t d ω vs. ϖ for B = 9 , 14 , 19 , A = 15 , C = 1 .
Universe 09 00024 g005
Figure 6. The plot of the function V ( x ) β q for A = 15 , C = 1 .
Figure 6. The plot of the function V ( x ) β q for A = 15 , C = 1 .
Universe 09 00024 g006
Table 1. The event horizon, photon sphere and shadow dimensionless radii for A = 15 , C = 1 .
Table 1. The event horizon, photon sphere and shadow dimensionless radii for A = 15 , C = 1 .
B913.5141516.517.51819
x + 6.7636.3656.3176.2196.0635.9535.8965.777
x p 10.3139.8069.7469.6239.4319.2989.2299.088
x s 18.31117.67717.60317.45117.21617.05416.97116.802
Table 2. The real and the imaginary parts of the frequencies vs. the parameter B at n = 5 , l = 10 , A = 15 , C = 1 .
Table 2. The real and the imaginary parts of the frequencies vs. the parameter B at n = 5 , l = 10 , A = 15 , C = 1 .
B141516.517.51819
β q R e ω 0.5680.5730.5810.5860.5890.595
β q I m ω 0.28530.28520.28490.28450.28420.2835
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kruglov, S.I. 4D Einstein–Gauss–Bonnet Gravity Coupled to Modified Logarithmic Nonlinear Electrodynamics. Universe 2023, 9, 24. https://doi.org/10.3390/universe9010024

AMA Style

Kruglov SI. 4D Einstein–Gauss–Bonnet Gravity Coupled to Modified Logarithmic Nonlinear Electrodynamics. Universe. 2023; 9(1):24. https://doi.org/10.3390/universe9010024

Chicago/Turabian Style

Kruglov, Sergey Il’ich. 2023. "4D Einstein–Gauss–Bonnet Gravity Coupled to Modified Logarithmic Nonlinear Electrodynamics" Universe 9, no. 1: 24. https://doi.org/10.3390/universe9010024

APA Style

Kruglov, S. I. (2023). 4D Einstein–Gauss–Bonnet Gravity Coupled to Modified Logarithmic Nonlinear Electrodynamics. Universe, 9(1), 24. https://doi.org/10.3390/universe9010024

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
