Metabolites 2019, 9(3), 46; https://doi.org/10.3390/metabo9030046
Ozone and Wounding Stresses Differently Alter the Temporal Variation in Formylated Phloroglucinols in Eucalyptus globulus Leaves
Chair of Crop Science and Plant Biology, Estonian University of Life Sciences, Kreutzwaldi 1, Tartu 51006, Estonia
Plant Biochemistry Laboratory, Department of Plant and Environmental Sciences, University of Copenhagen, Thorvaldsensvej 40, DK-1871 Frederiksberg C, Denmark
Institute of Biology, Faculty of Science, University of Neuchâtel, rue Emile-Argand 11, 2000 Neuchâtel, Switzerland
Estonian Academy of Sciences, Kohtu 6, 10130 Tallinn, Estonia
Author to whom correspondence should be addressed.
Received: 30 January 2019 / Accepted: 28 February 2019 / Published: 6 March 2019
Formylated phloroglucinol compounds (FPCs) are a class of plant specialized metabolite present in the Myrtaceae family, especially in the genus Eucalyptus. FPCs are widely investigated due to their herbivore deterrence properties and various bioactivities of pharmaceutical relevance. Despite the increasing number of studies elucidating new FPCs structures and bioactivity, little is known about the role of those compounds in planta, and the effects of environmental stresses on FPC concentration. Ozone (O3) and wounding are key stress factors regularly confronted by plants. In this study, we investigated how O3, wounding, and their combination affected individual and total FPC foliar concentration of the economically important species Eucalyptus globulus. Six individual FPCs, including five macrocarpals and one sideroxylonal, showed different response patterns to the single and combined stresses. Total macrocarpals only increased under single O3 treatment, whereas total sideroxylonals only increased in response to wounding treatment, suggesting different physiological roles played by the two groups of FPCs predominantly existing in E. globulus foliage. Total FPCs increased significantly under individual wounding and O3 treatments but not under the combined treatment. A principal component analysis indicated that all different treatments had unique FPC fingerprints. Total phenolic contents increased in all O3 and wounding treatments, and a marginally positive correlation was found between total FPCs and total phenolic contents. We suggest that, depending on the concentration and composition, FPCs play multiple physiological roles in planta, including serving as antioxidants to scavenge the reactive oxygen species brought about by O3 and wounding stresses.
Keywords:Eucalyptus globulus; formylated phloroglucinol compounds (FPCs); wounding; ozone; macrocarpal; sideroxylonal
Ozone (O3) is considered as a key air pollutant formed in the troposphere by photochemical reactions between nitrogen oxides (NOx), and volatile organic compounds (VOCs) such as hydrocarbons in the presence of the sunlight [1,2]. Due to increased anthropogenic activities, the tropospheric O3 levels have increased by 30% since the pre-industrial era . As a phytotoxic pollutant, ambient O3 can enter plants through the stomata and once inside the leaf, O3 will further lead to the endogenous formation of reactive oxygen species (ROS) and eventually trigger programmed cell death, particularly in O3-sensitive plant species [4,5,6]. Typically, high O3 concentrations are commonly applied as a tool to study the O3-induced ROS and signaling mechanisms [4,5,6,7].
Elevated O3 can cause acute morphological, physiological, and biochemical changes in plants. It can severely curb photosynthesis and other primary metabolic reactions and has an especially large effect on specialized plant metabolism, which plays an important role in directly and indirectly alleviating the damages caused by O3 [7,8,9,10,11,12,13,14]. For example, Kanagendran et al.  demonstrated that acute O3 fumigation induced a higher rate of isoprene, and strong mono- and sesquiterpene emissions associated with O3-scavenging mechanisms in Eucalyptus globulus leaves. In addition to changes in terpenoid metabolism, accumulation of phenolics including phenylpropanoids, flavonoids, tannins, and anthocyanins have been shown to be strongly enhanced by O3, and possibly involved in scavenging O3-induced ROS [11,15,16].
In the natural environment, plants frequently encounter multiple stress factors, including O3 stress, either simultaneously or sequentially, i.e., elevated O3 exposures, heavy precipitation, herbivore feeding, and acute heat episodes [17,18,19,20]. Wounding is a typical stress factor caused by both biotic (e.g., herbivore feeding) and abiotic (e.g., strong wind, heavy precipitations, and moving objects) agents in natural ecosystems [21,22,23]. To cope with the mechanical damages of wounding and prevent further pathogen infection or herbivore attack via the wounded tissues, plants often activate both constitutive and induced defense mechanisms, primarily involving massive production of specialized metabolites [23,24]. In fact, several reports have demonstrated the protective roles of phenolic compounds as a physical barrier and antimicrobial substances against abiotic and biotic stresses [22,23,25]. Among several groups of phenolic compounds, the formylated phloroglucinol compounds (FPCs) found in plants from the Myrtaceae family, primarily in Eucalyptus species have drawn attention due to their complex chemical structures and the efficient herbivore deterrence properties upon feeding of Eucalyptus leaves by folivores, especially for marsupials such as the iconic koala [26,27,28,29]. Under moderate environmental stresses, changes in photosynthesis and leaf water relations of eucalypt leaves can be minor, while changes in specialized metabolites constitute the main alterations in the phenotype [30,31,32].
FPCs are a group of specialized metabolites consisting of a phloroglucinol-based derivative often with an attached mono- or sesquiterpene moiety [26,33]. The simplest FPCs are fully substituted formylated acylphloroglucinols, such as jensenone. The units of jensenone form the basis of dimeric acylphloroglucinols, such as sideroxylonals A, B, and C. Sideroxylonals are compounds with a 2-phenylchromane skeleton, containing four formyl groups located in the aromatic rings at the positions C-3, C-5, C-3′, and C-5′, an isobutyl at C-7, and the isopropyl substituent at C-10′. The differences between individual sideroxylonals appear in the stereochemistry at C-7 and C-10’ . The formylated acylphloroglucinols can also form adducts with mono- and sesquiterpenes, such as euglobals and macrocarpals [26,28]. The macrocarpals possess an unusual skeleton that can be divided into two domains—one domain comprising a phloroglucinol dialdehyde moiety (common to all macrocarpals) and a second terpenoid domain .
Due to the pharmaceutical and therapeutical values such as inhibiting the reverse transcriptase of HIV , antimicrobial, anticancer , and antimalarial effects, previous studies have mostly focused on elucidating the chemical structure of novel FPCs extracted from different tissues, such as bark, leaf, fruit, and wood [28,38,39]. The most studied role of FPCs in planta relates to herbivore deterrence, with significant ecological importance. For example, the concentration of total FPCs was the most important variable determining feeding by marsupial folivores on Eucalyptus species [40,41,42] and played an important role in determining habitat patchiness of Australian forests . To a large extent, the limited information of the role of FPCs in planta has been due to challenges related to FPC identification and quantification, as the majority of FPCs occur as structurally similar isomers that are difficult to individually separate and distinguish between within a complex biological sample. Chemical synthesis of FPCs have been attempted , however, this is a difficult and costly process. Consequently, there is a limited number of commercially available authentic FPC standards, thereby constraining quantitative analysis of FPC levels in planta, such as measuring a differential response to various environmental conditions.
In this study, we used Eucalyptus globulus Labill. (Tasmanian blue gum), a fast-growing tree species from Southern Australia which is grown as a plantation tree in many warm temperate and subtropical regions all over the world. Its foliage is enriched with several groups of specialized metabolites—primarily terpenoids and FPCs—and it is considered as a promising species for pharmaceutical applications . Eucalyptus globulus has been demonstrated to be a strong constitutive volatile terpenoid emitter [7,12,45]. In addition, the presence of different FPCs, including macrocarpals A, B, D, H, I, J, N, P, Q, and sideroxylonal A, have also been observed in E. globulus leaf, bark, and wood tissues [26,28,46,47].
In the present study, we obtained a number of the commercially available FPC standards to quantitatively investigate how acute O3 and wounding stress affect the individual and total FPCs concentrations in E. globulus foliage. Our previous studies demonstrated that O3 and wounding stress differentially regulate terpene synthase gene expression and terpene emission responses in a time-dependent manner [7,12]. Therefore, we hypothesized that (i) the O3 and wounding treatments alone, as well as in combination, will affect FPC composition in E. globulus leaf tissues, and (ii) due to the general antioxidant properties of phenolic compounds, both total phenolic and FPC concentration will increase through time in response to O3 and wounding treatments. The results obtained in this study provide evidence of coordinated variation of different metabolic pathways and as such provide novel information of how specialized metabolism is affected by abiotic stress in Eucalyptus.
2.1. Wounding and O3 Treatments Alter Individual FPC Concentrations in E. globulus Leaves
In this study, the detected FPCs were classified into two main groups of FPCs—macrocarpals and sideroxylonals (herein defined as total FPCs; see material and methods)—and analyzed by the UHPLC-DAD-ESI-Q-TOF-MS/MS, combining parental ion accurate mass and diagnostic MS2 daughter ions (Table 1). Individual FPCs macrocarpal A, macrocarpal D, macrocarpal N, macrocarpal L, macrocarpal J, and sideroxylonal A were identified and quantified using authentic standards (Figure 1 and Figure 2). Among these six FPCs, sideroxylonal A was the most abundant compound in untreated leaf tissue, ranging from 4.72 ± 0.32 to 5.70 ± 0.97 mg g−1 DM, while the macrocarpal J was the least abundant compound with only 0.024 ± 0.011 mg g−1 DM (Figure 3). Wounding alone significantly affected the concentrations of macrocarpal L, macrocarpal N, macrocarpal J, and sideroxylonal A in E. globulus leaves (Figure 3 and Table 2). Both macrocarpal L and macrocarpal N reached the peak concentrations at 50 h, increasing approximately 2-fold to 2.12 ± 0.49 mg g−1 DM and 0.16 ± 0.07 mg g−1 DM, respectively in the wounded leaf tissue compared to control leaves (Figure 3c,d). In contrast, wounding resulted in decreased macrocarpal J beyond the detection limit at all recovery times (Figure 3e). Compared to the time taken for macrocarpal L and N to reach the maximum, sideroxylonal A was highly responsive for wounding treatment alone, as the concentration maximum of 11.1 ± 2.1 mg g−1 DM was observed at 25 h after the wounding treatment (Figure 3f). This maximal accumulation also made sideroxylonal A the most abundant FPC among all the detected compounds in wounded E. globulus leaves (Figure 2 and Figure 3f).
Ozone fumigation significantly affected the concentrations of all six identified FPCs (Table 2). The concentrations of macrocarpal A, macrocarpal D, macrocarpal N, and macrocarpal L all increased significantly in E. globulus leaves compared to controls (Figure 3a–d and Table 2). Of these four FPCs, macrocarpal A showed the fastest response to O3 treatment, significantly increasing to 0.60 ± 0.03 mg g−1 DM at 0.5 h after O3 treatment, more than 2-fold higher than control leaves (Figure 3a). In contrast to the wounding treatment where maximum macrocarpal response occurred at 50 h, O3 treatment induced an earlier response of macrocarpal A, D, N, and L, with maximum concentration measured after 25 h. For example, at 25 h, macrocarpal A concentration reached up to 1.12 ± 0.17 mg g−1 DM, more than a 3-fold increase compared to control leaves (Figure 3a). Similarly, peak concentrations of macrocarpals D, N, and L significantly increased more than 2-fold, reaching 2.95 ± 0.14 mg g−1 DM, 0.17 ± 0.037 mg g−1 DM, and 3.35 ± 0.14 mg g−1 DM, at 25 h of recovery, respectively (Figure 3b–d). In response to O3 treatment, macrocarpal J concentrations decreased at 0.5 h of recovery and were generally below the levels of detection during the recovery period thereafter (Figure 3e). Sideroxylonal A also increased to its maximum concentration of 6.67 ± 1.65 mg g−1 DM (1.2-fold of controls) at 25 h after the O3 treatment, but otherwise remained at lower or similar concentrations to control levels during the recovery period (Table 2 and Figure 3f).
Combined treatments of O3 and wounding (O3 + wounding) affected the concentrations of three FPCs—macrocarpal A, macrocarpal N, and sideroxylonal A (Table 2). The O3 + wounding treatments led to a significant increase of both macrocarpal A and macrocarpal N (Figure 3a,c). At 25 h of recovery after combined treatments of O3 + wounding, the concentrations of macrocarpal A and macrocarpal N reached concentration maxima of 0.55 ± 0.17 mg g−1 DM and 0.11 ± 0.03 mg g−1 DM, respectively. In contrast, sideroxylonal A concentrations exhibited a rapid and significant decrease at 0.5 h, to approximately 77% of the control levels. During the recovery period, sideroxylonal A concentrations gradually recovered to reach the control level at the end of the recovery phase (Figure 3f). Notably, in contrast to the individual wounding and O3 treatments, combined O3 + wounding did not significantly affect macrocarpal J concentrations (Figure 3e).
The principal component analysis (PCA) indicated that the first two principal components (PC1, 65.5% and PC2, 24.5%) described 90.0% of the variations among the concentrations of six individual FPCs in E. globulus leaves across different treatments and controls (Figure 4). The distribution of individual FPCs in the PCA loading plot (Figure 4a) and treatment clusters in the PCA score plot (Figure 4b) showed clear variation in individual FPC accumulation in controls, and in the separate and combined O3 and wounding treatments. The wounded leaves were distinctly differentiated from controls and all other treatments due to the increased accumulation of sideroxylonal A. In addition, changes in macrocarpal J concentration clearly differentiated controls from all treated leaves. Furthermore, separate O3 treatments led to stronger correlations among the concentrations of macrocarpal A, macrocarpal L, and macrocarpal D (Figure 4a,b). Overall, the strongest correlations were observed between the changes in macrocarpal L and macrocarpal D in leaves at different recovery times (Figure 4a,b). PCA further confirmed that the changes in foliar macrocarpal A, macrocarpal L, and macrocarpal D upon O3 exposure alone were almost identical throughout the recovery phase (Figure 3 and Figure 4a,b).
2.2. Wounding and O3 Treatments Affect Total FPC and Phenolic Content in E. globulus Leaves
In addition to the six individual FPCs identified, total FPCs and phenolics were measured. Specifically, total FPCs were measured by combining total macrocarpals and total sideroxylonals identified by UHPLC-DAD-ESI-Q-TOF-MS/MS analysis. The wounding treatment only showed significant impacts on total sideroxylonals compared to total macrocarpals (Table 3 and Figure 5). A clear increasing trend was observed in total macrocarpals in response to wounding. Total macrocarpal concentrations increased to 27.4 ± 7.4 mg g−1 DM (more than a 2-fold increase compared to control leaves) although this increase was only marginally significant (F = 4.42, Sig. = 0.08; Table 3 and Figure 5a). Notably, the concentration of total sideroxylonals in the wounded leaves was higher than that in O3 treated leaves, particularly at 25 and 50 h after the treatments (Figure 5b). Separate O3 treatments resulted in the greatest enhancement of total macrocarpals in E. globulus leaves, with the concentrations rising up to 33.7 ± 5.7 mg g−1 DM, compared to 17.5 ± 3.6 mg g−1 DM in control plants at 25 h after treatments (Figure 5a). In contrast, the combined O3 + wounding treatments only affected the foliar contents of total sideroxylonals, with a significant decrease in concentration (Table 3 and Figure 5b).
The concentration of total FPCs was more strongly affected by separate wounding and O3 treatments than by combined O3 and wounding treatment (Figure 6a and Table 3). The total FPCs concentration peaked at 25 h after treatment for wounding (total FPC concentration = 41.8 ± 8.5 mg g−1 DM) and for O3 (FPC concentration = 42.1 ± 5.2 mg g−1 DM) (Figure 6a). After 25 h, the total FPCs decreased to pre-stress level (18.9 ± 2.0 mg g−1 DM) under O3 treatment, whereas the total FPC in wounded leaves was still maintained at a significantly higher concentration (Figure 6a).
Total phenolic content was significantly affected by all separate and combined O3 + wounding treatments (Figure 6b and Table 3). In the wounded leaves, total phenolic content increased up to 2-fold compared with controls, reaching 250 ± 15 mg g−1 DM at 0.5 h. Thereafter, total phenolic content decreased to 238 ± 65 mg g−1 DM at 75 h after the treatment but remained more than 1.5-fold higher than control levels (Figure 6b). Similarly, O3 treatments resulted in significant increases in the accumulation of total phenolics until 50 h after the treatment but recovered to control levels at 75 h (Figure 6b). When subjected to a combined O3 and wounding treatment, increases in total phenolic content were only measured at 0.5 h (1.7-fold) and 75 h (1.4-fold) during the recovery period (Figure 6b). A marginally significant positive correlation (r = 0.49; P = 0.05) was observed between the total FPCs and total phenolic contents when pooling the data from all the treatments (Figure 6c).
2.3. Wounding and O3 Treatments Alter the FPC Composition in E. globulus Leaves
The composition of individual FPCs was significantly altered under different treatments (Table 4 and Table 5). Of the six FPCs identified in this study, the order of their proportions of total FPCs in control leaves was sideroxylonal A (25.3 ± 4.4%), macrocarpal L (7.7 ± 0.6%), macrocarpal D (5.99 ± 0.49%), macrocarpal A (1.33 ± 0.10%), macrocarpal N (0.240 ± 0.042%), and macrocarpal J (0.080 ± 0.015%). However, wounding and O3 treatments performed time-dependent effects on the composition of some compounds, e.g., macrocarpal A, macrocarpal D, macrocarpal N, and sideroxylonal A (Table 4). Generally, sideroxylonal A was the most abundant and macrocarpal J was least abundant among the six individual FPCs. In particular, except for macrocarpal N and sideroxylonal A, wounding alone led to general decreases in all other individual FPCs. Meanwhile, separate O3 and combined O3 and wounding treatments resulted in an overall enhancement of most individual macrocarpals, but the highest levels were observed at different recovery times for different treatments (Table 4 and Table 5). However, the proportion of macrocarpal J decreased to nearly zero in leaves under all treatments compared to control, and the concentration of macrocarpal J in controls was very low in all cases (Table 5 and Figure 3e).
FPCs constitute an interesting and valuable group of specialized metabolites in Eucalyptus trees. In this study, we investigated the effects of single and combined O3 and wounding stresses on the six selected FPCs present in E. globulus foliage [26,28,46,47]. Concentrations of different identified FPCs are highly variable in E. globulus leaves (Figure 2 and Figure 3) and have been reported previously by Lawler et al. . The stress-dependent changes in concentrations of different individual FPCs observed in our study can provide illuminating insight into their potential physiological functions in stressed leaf tissues. Taking macrocarpals as examples, the concentration of macrocarpal D was only impacted by O3 treatment, whereas the other macrocarpals were affected by either separate or combined application of O3 and wounding treatments (Figure 3 and Table 2). Considering that there are very few studies focusing on FPCs response to environmental stresses, the results presented here will improve our understandings of the possible role of individual FPCs in plant defense mechanisms.
3.1. FPCs Responses to O3 Stress
Depending on the concentrations, the exposure to elevated O3 leads to chronic or acute damages by first affecting the photosynthesis apparatus in exposed leaf tissues [48,49]. Compared with many other species, E. globulus has been proved to be an O3-tolerant tree species to both long- and short-term O3 treatments. For example, long-term elevated O3 fumigation resulted in no visible injury or dry-weight reduction in E. globulus . Our recent study also showed that the photosynthetic characteristics were resistant to the acute O3 fumigation in E. globulus leaves . Emissions of volatile terpenoids, such as isoprene, monoterpenes, and sesquiterpenes, are considered to play an important role to quench O3 oxidation in the very early stage of O3 stress [7,49,51]. Volatiles can play an antioxidant role primarily in the lipid phase or the gas phase (e.g., reducing potentially damaging volatile ROS effects), whereas condensation with phloroglucinols makes them non-volatile, suggesting that some FPCs could have antioxidant properties in lipid and liquid phases. To our knowledge, no studies have confirmed antioxidant properties of FPCs in Eucalyptus trees. The terpene moiety in some of the FPC structures suggests a possible antioxidant potential, and the aromatic phloroglucinol moiety is likely to have antioxidant properties as well [52,53]. Indeed, in the current study, we found a clear increasing trend from both individual and total FPCs across the recovery period in response to different stress applications (Figure 3 and Figure 6). This predominant increase, however, is mainly occurring in late recovery phases, particularly after 25 h of O3 treatment (Figure 3 and Figure 5). In contrast, terpenoid emission bursts occurred in early recovery phase applications, especially after 0.5–10 h of treatments in E. globulus leaves .
Interestingly, macrocarpals displayed higher sensitivity to O3 stress than sideroxylonals. It was further evident in our study that separate O3 treatment did not have a large impact on the concentration of total sideroxylonals, but separate O3 treatment substantially influenced total macrocarpal concentrations (Table 3). Furthermore, the proportion of macrocarpals and sideroxylonals in total FPCs was changed in O3 stressed leaves in a time-dependent manner (Table 4 and Table 5). We presume that the structural differences between macrocarpals and sideroxylonals might have resulted in such a different permanence under O3 oxidative stress. In fact, higher lipid solubility conferred by the terpene moiety allows the macrocarpals to carry the reactive aldehyde and phenol groups across the membranes more easily . Structurally, macrocarpals and sideroxylonals have the same acylphloroglucinol skeleton; however, macrocarpals have a free hydroxyl, whereas the sideroxylonals have an ether linkage connecting another phloroglucinol unit (Figure 1). This suggests that macrocarpals will be able to contribute significantly to antioxidant properties in the lipid phase, due to their higher membrane permeability. Moreover, due to the direct antioxidant property of terpenoids [49,51,55], it is more likely that macrocarpals with the terpene moieties also own similar antioxidant properties as for terpenoids. The direct antioxidant properties of macrocarpals deserve future studies.
As antioxidants, total phenolics content usually significantly increase in response to O3 stress in many plant species [15,16,56]. Consistently under O3 stress, we also observe such significant increases of total foliar phenolics as early as 0.5 h after the O3 treatments (Figure 6b), indicating a quick response of E. globulus leaves to O3 stress. However, different from total FPCs which have a peak concentration at 25 h, the total phenolic contents remained at a high level until 50 h and dropped to the control level 75 h after separate O3 treatment (Figure 6b). Furthermore, previous reports indicated that O3 treatment can quickly induce phenylalanine ammonia-lyase (PAL) activity in leaf tissues [57,58,59]. For example, the PAL activity concomitant with individual phenolic compounds including caffeic acid, ferulic acid, and catechin significantly increased 2 h after the O3 exposure in Vitis vinifera L. leaves . If the FPCs have antioxidant properties, as presumed before, they might not play a role in an early stage of the O3 stresses; but rather, other metabolites, including constitutive and induced terpenoids and other phenolic compounds, are involved in early oxidation resistance [7,14,58].
3.2. FPCs Responses to Wounding Stress
Wounding can occur instantaneously by herbivore feeding and other mechanical damages, such as those caused by wind. In response to wounding stress, plants instantly release volatile constitutive specialized metabolites such as mono- and sesquiterpenes, particularly those stored in the wounded tissues [7,60]. Despite FPCs being constitutively stored in the E. globulus foliage, we did not observe significant increases of individual FPCs in a short time (0.5 h) as the volatile terpenoid emission bursts happened. Here, the majority of individual FPCs significantly increased at least 25 h after the wounding treatment (Figure 3), which suggests that FPCs are involved in a cascade of defense mechanisms against wounding stress. In particular, the concentration of the most abundant FPC, sideroxylonal A, increased in the wounded leaves to levels nearly twice those in the controls (Figure 3f). In this study, we further found that O3, or its combination with wounding stress, can reduce sideroxylonal A concentration in E. globulus foliage, suggesting different physiological roles of sideroxylonal A in wounding and O3 stresses (Figure 3f and Table 2). This increase of sideroxylonal A in wounded leaf tissues is in agreement with the effective antifeedant role sideroxylonals possess towards marsupials and insects [28,61,62,63]. The increase in sideroxylonal A and other sideroxylonals was only sustained for 50 h before returning to control levels in wounded leaves (Figure 3f and Figure 5b, and Table 3). We, therefore, speculate that the subsequent deterrent effect after herbivore wounding, if any, might not depend on sideroxylonals alone but may operate in combination with FPC classes, such as macrocarpals. For example, following the wounding treatment, macrocarpal N showed a consistent higher concentration until the end of this experiment (Figure 3c), suggesting a possible deterrent role in a long-term herbivory response in E. globulus. In fact, complex mixtures of FPCs found in many trees provide an equivalent level of defense to that afforded by the same concentrations of single FPCs .
Among the six individual FPCs identified, macrocarpal J was the only compound to significantly decrease under all treatments (Figure 3e). The physiological function of this specific FPC is not known yet. Given a lack of antibacterial activity detected from macrocarpal J , together with a relatively low concentration (0.01–0.02 mg g−1 DM) and proportion (0.06%–0.09% of total FPCs) in this study (Figure 3e and Table 5), we infer that macrocarpal J may not play an essential role in wounding and O3 stress resistance in E. globulus foliage. Similarly, drought stress also led to an approximate 11% decrease of macrocarpal A and G in E. globulus leaf tissues, further indicating various physiological roles and response patterns of individual FPCs in plant stress resistance mechanisms .
In E. globulus wood tissues, macrocarpals were found to be present in higher concentrations compared to sideroxylonals . This is also the case in the leaf tissues as we found in this study, which shows that the concentration of total macrocarpals is more than twice that of the total sideroxylonals (Figure 5). The total FPCs in untreated leaves of this study are comparable to those in previous studies, ranging from 20–30 mg g−1 DM . Once wounded, the total foliar FPCs can significantly increase up to 45 mg g−1 DM (Figure 6a), indicating FPCs positively contribute to the environmental stress resistance, e.g., deterring herbivores from entering plants via the open wounds . As expected, the total phenolic content significantly increased in wounded leaves and is a widely reported response in many other plant species subjected to wounding treatments [65,66]. Here, however, we observed that the increase of total FPCs was not regulated in a synchronous pattern with the total phenolic content, with maximum total FPCs occurring between 25–50 h whilst total phenolics remained at a significantly high level from 0.5 h following the wounding treatment (Figure 6 and Table 3). This finding indicates that other phenolic classes beyond FPCs play an active role in the wounding stress response during the initial stages of recovery. The phenylpropanoids and their derivatives from shikimate and downstream pathways might partly account for the immediate increase in total phenolics, as instantaneous wounding stress can enhance the gene expression for PAL . For example, two flavonoids—luteolin and apigenin—were found to increase in 1 h in wounded liverwort Marchantia polymorpha plants .
3.3. FPCs Responses to Combination of O3 and Wounding
The consequence of simultaneously implementing several stress treatments can exacerbate the simple additive of single stresses on plants due to so-called “synergistic effects” [69,70]. However, the application of sequential stress treatment can result in a markedly different physiological plant response due to a priming stimulus activated by the previous treatment . In our current study, no such “synergistic effects” were observed that different from single O3 or wounding treatments, combined O3 + wounding did not affect the total FPCs despite some impacts on individual FPCs (Table 3). In contrast, we have demonstrated that there were synergistic effects of sequential O3 and wounding treatments on terpenoid emissions from E. globulus foliage, which showed significantly higher emission rates of monoterpenes and sesquiterpenes than from any single treatments . It cannot be ruled out that the combined stresses were too severe and suppressed both the physiological activities, including photosynthesis and the specialized metabolic activities . If this is not the case, other physiological functions of FPCs should be further considered. For example, in this study, we found that O3 fumigation can induce more macrocarpal rather than sideroxylonal accumulations in E. globulus leaves (Figure 5 and Table 3). Therefore, it can be inferred that the biosynthesis of macrocarpals is induced and accumulated in response to the initial O3 stress and before the subsequent wounding treatment. If antioxidant properties exist for macrocarpals, these compounds would be further consumed by scavenging ROS raised by the following wounding treatment . Although the subsequent wounding treatment can significantly induce sideroxylonal accumulation, this group of FPCs is only less than one third of the total FPCs in E. globulus foliage , which eventually results in unaffected concentrations of total FPCs in E. globulus foliage subjected to combined O3 and wounding stresses (Figure 4, Figure 5 and Figure 6 and Table 3).
3.4. Correlations of FPCs with Other Specialized Metabolites
Several biosynthetic pathways for FPCs have been proposed [37,73,74,75,76,77,78], but the biosynthesis has not yet been resolved. Due to the existence of a monoterpene or sesquiterpene moiety as part of the FPCs, particularly those found in E. globulus foliage, pathways responsible for the synthesis of terpenoids and phenolics are expected to be correlated in Eucalyptus species [79,80]. Moore et al.  found species–specific positive correlations between terpene and FPC concentrations. The results of their study confirm the possibility of dominant volatile monoterpenes acting as cues to folivores feeding on eucalypts containing complex mixtures of FPCs. Besides this, very few studies simultaneously focus on both terpenoid syntheses from the mevalonate (MVA) pathway or the 2-C-methyl-D-erythritol 4-phosphate/1-deoxy-D-xylulose 5-phosphate (MEP/DOXP) pathway, and phenolic syntheses from the shikimate/phenylpropanoid pathway as targets to explore plant resistance mechanisms against biotic and abiotic stresses [81,82]. Previously, we already found O3 and wounding resulted in emission bursts of mono- and sesquiterpenes in E. globulus leaves . The current investigation on FPCs in E. globulus leaves further contributed to understanding the connections between terpenoids and phenolics under O3 and wounding stresses.
In our study, there was a weak positive correlation (r = 0.49, P = 0.05) between the concentrations of total FPC and total phenolic contents under all treatments throughout the recovery phase (Figure 6c). It should be noted that the total FPCs contribute very little to the total phenolic contents measured here, as the total phenolics assay determines polar phenolic content, and the majority of FPCs are nonpolar . Accordingly, in another study on Eucalyptus nitens, total FPCs were demonstrated to comprise less than 1% of the total phenolics . This positive correlation between total FPCs and total phenolics in our study further indicated a coherent stress response from both FPCs and other groups of phenolics, such as phenylpropanoids and flavonoids, in E. globulus foliage under oxidative stress.
To date, only macrocarpal C has been chemically synthesized by adding bicyclogermacrene to the benzyl cation in the laboratory . In plants, immediate cross-talks between different metabolic pathways for macrocarpal biosynthesis can be identified by analyzing the terpene residues in their chemical structures (Figure 1). For example, globulol is structurally identical to terpene moiety of macrocarpal A; whereas α-, β-, or γ-eudesmol is connected to macrocarpal J which has a eudesmane-type skeleton (Figure 1; ). Furthermore, in FPCs, the terpene moieties, e.g., C5- in jensenone, C10- in euglobal Ia, or C15- in macrocarpal A, can be possibly derived from isopentenyl pyrophosphate (IDP) via the terpenoid pathway, namely the MVA pathway in cytosol and the MEP/DOXP pathway in plastids. If this is the case, competitions between terpenoid emissions and FPC syntheses will be highly anticipated to exist in stressed E. globulus foliage. Our previous study demonstrated that both monoterpenes and sesquiterpenes increased significantly as soon as the plants were subjected to O3 and wounding stresses, in which the emissions of 1,8-cineole, α-pinene, limonene, aromadendrene, α-gurjenene, and viridiflorene are the most abundant compounds representing more than 50% of total monoterpene and sesquiterpene emissions . To explore the relationships between terpenoids and FPCs, we correlated the total FPC concentrations with emission rates of isoprene and the aforementioned individual and total mono-/sesquiterpenes under stresses (Figures S1–S3). Surprisingly, we found negative correlations between terpenoid emissions and FPC concentrations, which contrasts to previous studies that demonstrated positive correlations between concentrations of total FPCs and terpenoids in Eucalyptus leaf extracts [28,41]. Such negatively correlated FPC concentrations and terpenoid emissions can be explained by the different response times of the two groups of metabolites in stressed leaf tissues, and a considerable amount of terpenoids are removed due to the reaction with ROS formed upon O3 and wounding treatments . Furthermore, this study and our previous study  indicated that a quick emission response of terpenoids compounds, together with the later accumulation of FPCs, built up a comprehensive and efficient stress-resistance mechanism in E. globulus leaves against oxidative stress. In addition, it should be noted that emitted volatile terpenoids do not necessarily reflect the current in vivo terpenoid concentrations, as emitted terpenoids generally represent a relatively small portion from the in vivo terpenoid pools. For example, the emission rate of 1,8-cineole is approximately 30 µg g−1 DM h−1, but the concentration of 1,8-cineole can reach 300 mg g−1 DM in storage pools of E. globulus leaves [7,28]. If the FPCs in stressed leaves were also positively correlated with the non-emitted in vivo terpenoids , it could be suggested that in a long-term recovery period, more carbon will be allocated to the synthesis of FPCs rather than terpenoids to cope with the stresses brought by O3 and wounding. At the current stage, our results provide the first hint that competitions might exist for the biosynthesis of FPCs and terpenoids in E. globulus leaves which can be further enhanced by environmental stresses such as O3 and wounding.
4. Material and Methods
4.1. Plant Materials
The present experiments were performed with 1-year-old E. globulus seedlings which were grown from seeds (OMC seeds Ltd., Lithuania) at the Estonian University of Life Sciences as described by Kanagendran et al. . In short, the seeds of E. globulus were sown in 5 L pots filled with 1:1 mixed quartz sand (AS Silikaat, Tallinn, Estonia) and commercial garden soil (N:P:K=10:3:20, Kekkilä Group, Vantaa, Finland). The seedlings were grown for three weeks in a growth chamber (Percival AR-95 HIL, CLF Plant Climatics GmbH, Wertingen, Germany) under 12 h light period with the light intensity of 400–500 µmol m−2 s−1 at leaf surface, day and night temperatures of 28/25 °C, ambient CO2 concentration of 380–400 ppm, and relative air humidity of 60%–70%. The 3-week-old seedlings were transplanted into 10 L pots filled with the same soil and grown under similar growth conditions in a plant growth room until the completion of the experiments. Plants were watered every two days to soil field capacity and fertilized once a week with a liquid fertilizer containing macronutrients N, P, and K (5:5:6), and micronutrients B (0.01%), Cu (0.03%), Fe (0.06%), Mn (0.028%), and Zn (0.007%) (Baltic Agro, Lithuania).
4.2. Wounding and O3 Treatments
In this study, four different sets of experiments, i.e., (i) control (no treatments), (ii) wounding (7 cm length of cut on leaf), (iii) acute O3 exposure (5 ppm), and iv) acute O3 exposure (5 ppm) followed by wounding were implemented as described by Kanagendran et al. . A custom-made chamber system  was used for O3 fumigation and volatile collection from control and treated leaf tissues. In this system, the chamber temperature was maintained at 25 °C (leaf temperature at 25–27 °C) by circulating water between the double layers of the glass chamber. Light intensity at the leaf surface in the chamber was kept at 700–750 µmol m−2 s−1 by four 50 W halogen lamps above the chamber. Chamber CO2 concentration was 380–400 ppm and relative air humidity 60%–70%. Ambient air was constantly pumped through a charcoal-filled filter and a custom-made O3 trap (passing less than 2 ppb O3) before going into the glass chamber. An ozonizer (Certizon C100, Erwin Sander Elektroapparatenbau GmbH, Germany) was connected to the chamber inlet to provide O3 as required. O3 concentrations in ingoing and outgoing air streams were monitored by a UV photometric O3 detector (Model-49i, Thermo Fisher Scientific, Franklin MA, USA).
A previous report indicated that continuous exposure of 0.8 ppm O3 for 6 h did not even cause physiological disturbances in E. globulus leaves and therefore, E. globulus are categorized as “extremely resistant” plant species to acute O3 exposures . In addition, a preliminary study by Kanagendran et al.  found that exposure of E. globulus leaves to 0.3–2 ppm O3 did not cause a considerable change in photosynthetic characteristics and lipoxygenase (LOX) pathway emission rates. Therefore, we used higher acute O3 exposures in this study. In fact, we observed that O3 stress influences plants in an O3-dose (O3-sum) dependent manner that is dependent on both the concentration and the duration of O3 exposures (O3 concentration above a threshold limit × exposure time) [7,12,87]. However, as chronic O3 stress impacts plant physiological activity quite differently due to secondary acclimation responses [87,88], we consider the higher acute O3 exposures as a representative for quantitative characterization of plant responses to different O3 stress levels [7,12,89].
In each experiment, a randomly selected branch consisting of six fully mature leaves was used. For the wounding treatment, four 25 mm2 holes (7 cm of total perimeter length cut) were rapidly (within 6 s) made in each leaf lamina by a paper punch. In the case of O3 treatments, a branch consisting of 6 leaves was exposed to 5 ppm O3 for 3 h. For the combination of O3 and wounding treatments, first 5 ppm O3 was applied for 3 h, and then the 4 holes were punched in leaf laminas as soon as O3 exposure was terminated. The fresh leaf material was collected at 0.5, 25, 50, and 75 h after each treatment and immediately frozen in liquid nitrogen and then, homogenized with a mortar and a pestle. The homogenized leaf tissue was stored at −80 °C for the analysis of FPCs and total phenolics.
4.3. FPCs Extraction and UHPLC-DAD-ESI-Q-TOF-MS/MS Analysis
The extraction, detection, and quantification of FPCs were performed according to Santos et al. . Briefly, FPCs were extracted from approximately 100 mg of frozen and homogenized plant material. Then, 5 µL of the extracts were separated using a Phenomenex Kinetex® column (150 × 2.1 mm) packed with 1.7 μm C18 material with a pore size of 100 Å. Extracts were eluted at a constant flow rate of 0.3 mL min−1 as follows: 50% solvent A (0.05% formic acid in water) and 50% solvent B (0.05% formic acid in acetonitrile) linearly increasing to 100% solvent B in 20 min, followed by hold time for 13 min, and finally decreasing to initial conditions and re-equilibrating the column for 10 min.
The UHPLC system was coupled to a compact™ (Bruker Daltonics) mass spectrometer with an electrospray ionization source. Eluted compounds were detected from m/z 50–1200 in negative ion mode.
Raw data were processed with the software DataAnalysis 4.2 from Bruker Daltonics. Extracted ion chromatograms (EIC) for specific [M−H]− ions were used to locate compounds. The identification of FPCs was based on the UV absorbance at 275 nm, measured [M−H]− with less than ± 2 ppm error when compared to the accurate [M−H]−, and the presence of the diagnostic fragment ions m/z 249, 207, and 181 observed in the authentic analytical standards (BOCSCI Inc. NY, USA). Calibration curves covered the range 0.5–75 µM and were used for absolute quantification of the six compounds, macrocarpal A, macrocarpal D, macrocarpal J, macrocarpal L, macrocarpal N, and sideroxylonal A corresponding to the analytical standards. The other FPCs detected were labeled as FPC1, FPC3, etc., and further divided into two major groups, macrocarpals and sideroxylonals due to their predominance in E. globulus foliage . Total macrocarpals (peaks at m/z 485.2544, 489.2857, and 471.2752 include macrocarpals and other FPCs with similar structure, such as euglobals; FPC1 to FPC20 in Table 1) were quantified using the calibration curve for macrocarpal A; while total sideroxylonals (peaks at 499.1609; FPC21 to FPC23 in Table 1) were quantified using the calibration curve for sideroxylonal A. The sum of total macrocarpals and total sideroxylonals were used for the quantification of total FPCs.
4.4. Total Phenolic Contents Extraction and Determination
The total phenolic contents were determined by a Folin-Ciocalteu assay [91,92] with modifications as explained here. To extract the total phenolics contents in eucalypt leaves, 1 mL 50% acetone (acetone/deionized H2O, v/v) was added to 50 mg frozen, homogenized leaf powder on ice and vortexed. After incubating the extraction mixture at room temperature with shaking for 15 min, the mixture was vortexed again and centrifuged at 10000× g for 5 min. The supernatant was transferred to new tubes, 1 mL 50% acetone was added to the pellet, and the extraction procedure was repeated twice. The supernatant of the three extractions was combined and stored on ice in darkness. For the Folin-Ciocalteu assay, gallic acid (Sigma-Aldrich GmbH, Germany) was used as the standard. The reaction mixture containing 40 µL standard solution/sample extracts, 1560 µL deionized H2O, and 100 µL Folin-Ciocalteu reagent (Sigma-Aldrich GmbH, Germany) was incubated for 8 min at room temperature and 300 µL 20% Na2CO3 (w/v in deionized H2O) was added to each tube and vortexed. After 2 h incubation at room temperature, the absorbance was determined at 765 nm with a Shimadzu UV2550PC spectrophotometer (Shimadzu, Kyoto, Japan). The total phenolic contents were expressed as gallic acid equivalents (mg of GAE g−1 DM) using the standard curve with gallic acid (0 to 1 mg ml−1; r = 0.99).
4.5. Statistical Analysis
In this study, three replicates from different plants were used in all the treatments. The statistical impacts of wounding, O3, and O3 + wounding combination, and different recovery times on time-dependent changes of the concentration of individual and total FPCs, total macrocarpals and sideroxylonals, the ratio of individual FPCs to the total FPCs, and the total phenolic contents were analyzed separately by using linear mixed models (SPSS 22.0, Chicago, IL, USA) with treatments (wounding, O3, or wounding+ O3) and recovery time as fixed effects. Log10 transformation was used where necessary to satisfy the assumption of the linear mixed model. In all cases, paired comparisons among the levels of the same factor were tested for significance by comparing differences of least squares means, at P < 0.05. Principal component analysis (PCA) was used to evaluate the effects of different treatments on the coordinated changes of individual FPCs concentrations across the recovery times. Loading and score plots were initially derived after mean-centering and cube root transformation by MetaboAnalyst version 3.0 [93,94] and then redrawn in OriginLab 8.0 (OriginLab Corporation, Northampton, MA, USA).
In this study, O3 and its combination with wounding were shown to influence the abundance of FPCs, resulting in temporal variations of specific compounds in the leaves of the ecologically and economically important tree E. globulus. These novel findings open the debate for different roles of this class of specialized metabolite in abiotic stresses, besides the defense against herbivores. The two predominant FPC classes in E. globulus leaves, macrocarpals and sideroxylonals, exhibited different response patterns to single and combined treatments of O3 and wounding. The single O3 treatments induced increased accumulation in individual and total macrocarpals but not in sideroxylonal A and total sideroxylonals; while the single wounding treatment had no effects on the total macrocarpals but resulted in changes in concentrations of several individual macrocarpals, sideroxylonal A, and total sideroxylonals. Combined O3 and wounding treatments only led to changes in total sideroxylonals and some individual FPCs but did not affect the concentration of total macrocarpals and total FPCs in E. globulus leaves. In particular, among the six quantified individual FPCs, the concentration of macrocarpal J decreased in all O3 and wounding treated leaves. A positive correlation between total FPCs and total phenolic contents and negative correlations between total FPCs and terpenoid emissions from stressed E. globulus leaves were observed. Changes in the concentration and composition of FPCs suggest their multiple roles in plant resistance mechanisms to environmental stresses. We presume that the group of sideroxylonals is of great importance in wounding stress, not only caused by herbivore feeding but also by other abiotically mechanical damages, while macrocarpals might play multiple roles such as antioxidants induced by both wounding and O3 treatments. Given the negative correlations between total FPC concentrations and terpenoid emissions, syntheses of FPC and terpenoid may be closely connected by competing for the same precursors that exist in terpenoid synthesis pathways.
Figure S1. Correlations between total FPC concentrations and isoprene emissions from wounding, O3, and O3 + wounding treated E. globulus leaves. Figure S2. Correlations between total FPC concentrations and monoterpene emissions from wounding, O3, and O3 + wounding treated E. globulus leaves. Figure S3. Correlations between total FPC concentrations and sesquiterpene emissions from wounding, O3, and O3 + wounding treated E. globulus leaves.
A.K., B.L., and Ü.N. designed the research; A.K., B.L., and B.M.d.S. performed the experiments; B.L. and B.M.d.S. analyzed and interpreted the data and wrote the first draft of the article; E.H.J.N. and Ü.N. interpreted the data; all authors revised and approved the final version of the article.
This research was funded by European Commission through the European Regional Development Fund (Centre of Excellence EcolChange); European Research Council (advanced grant 322603, SIP-VOL+), the Estonian Ministry of Science and Education (institutional grant IUT-8-3), a Villum Foundation Young Investigator Program Fellowship (EHJN; Project No. 13167), and a Danish Independent Research Council Post-Doctoral Stipend (EHJN; Grant No. 6111- 00379B).
Conflicts of Interest
The authors declare no conflicts of interest.
- Sillman, S. The relation between ozone, NOx and hydrocarbons in urban and polluted rural environments. Atmos. Environ. 1999, 33, 1821–1845. [Google Scholar] [CrossRef]
- Carter, W.P. Development of ozone reactivity scales for volatile organic compounds. Air Waste 1994, 44, 881–899. [Google Scholar] [CrossRef]
- Young, P.; Archibald, A.; Bowman, K.; Lamarque, J.-F.; Naik, V.; Stevenson, D.; Tilmes, S.; Voulgarakis, A.; Wild, O.; Bergmann, D. Pre-industrial to end 21st century projections of tropospheric ozone from the Atmospheric Chemistry and Climate Model Intercomparison Project (ACCMIP). Atmos. Chem. Phys. 2013, 13, 2063–2090. [Google Scholar] [CrossRef][Green Version]
- Wohlgemuth, H.; Mittelstrass, K.; Kschieschan, S.; Bender, J.; Weigel, H.J.; Overmyer, K.; Kangasjärvi, J.; Sandermann, H.; Langebartels, C. Activation of an oxidative burst is a general feature of sensitive plants exposed to the air pollutant ozone. Plant Cell Environ. 2002, 25, 717–726. [Google Scholar] [CrossRef][Green Version]
- Langebartels, C.; Wohlgemuth, H.; Kschieschan, S.; Grün, S.; Sandermann, H. Oxidative burst and cell death in ozone-exposed plants. Plant Physiol. Biochem. 2002, 40, 567–575. [Google Scholar] [CrossRef]
- Kangasjärvi, J.; Jaspers, P.; Kollist, H. Signalling and cell death in ozone-exposed plants. Plant Cell Environ. 2005, 28, 1021–1036. [Google Scholar] [CrossRef][Green Version]
- Kanagendran, A.; Pazouki, L.; Niinemets, Ü. Differential regulation of volatile emission from Eucalyptus globulus leaves upon single and combined ozone and wounding treatments through recovery and relationships with ozone uptake. Environ. Exp. Bot. 2018, 145, 21–38. [Google Scholar] [CrossRef] [PubMed]
- Shadkami, F.; Helleur, R.; Cox, R. Profiling secondary metabolites of needles of ozone-fumigated white pine (Pinus strobus) clones by thermally assisted hydrolysis/methylation GC/MS. J. Chem. Ecol. 2007, 33, 1467–1476. [Google Scholar] [CrossRef] [PubMed]
- He, X.; Huang, W.; Chen, W.; Dong, T.; Liu, C.; Chen, Z.; Xu, S.; Ruan, Y. Changes of main secondary metabolites in leaves of Ginkgo biloba in response to ozone fumigation. J. Environ. Sci. 2009, 21, 199–203. [Google Scholar] [CrossRef]
- Mikkelsen, B.L.; Olsen, C.E.; Lyngkjær, M.F. Accumulation of secondary metabolites in healthy and diseased barley, grown under future climate levels of CO2, ozone and temperature. Phytochemistry 2015, 118, 162–173. [Google Scholar] [CrossRef] [PubMed]
- Tonelli, M.; Pellegrini, E.; D’Angiolillo, F.; Petersen, M.; Nali, C.; Pistelli, L.; Lorenzini, G. Ozone-elicited secondary metabolites in shoot cultures of Melissa officinalis L. Plant Cell Tissue Organ Cult. 2015, 120, 617–629. [Google Scholar] [CrossRef]
- Kanagendran, A.; Pazouki, L.; Bichele, R.; Külheim, C.; Niinemets, Ü. Temporal regulation of terpene synthase gene expression in Eucalyptus globulus leaves upon ozone and wounding stresses: Relationships with stomatal ozone uptake and emission responses. Environ. Exp. Bot. 2018, 155, 552–565. [Google Scholar] [CrossRef] [PubMed]
- Fares, S.; Park, J.-H.; Ormeno, E.; Gentner, D.R.; McKay, M.; Loreto, F.; Karlik, J.; Goldstein, A.H. Ozone uptake by citrus trees exposed to a range of ozone concentrations. Atmos. Environ. 2010, 44, 3404–3412. [Google Scholar] [CrossRef]
- Fares, S.; Oksanen, E.; Lännenpää, M.; Julkunen-Tiitto, R.; Loreto, F. Volatile emissions and phenolic compound concentrations along a vertical profile of Populus nigra leaves exposed to realistic ozone concentrations. Photosynth. Res. 2010, 104, 61–74. [Google Scholar] [CrossRef] [PubMed]
- Saviranta, N.M.; Julkunen-Tiitto, R.; Oksanen, E.; Karjalainen, R.O. Leaf phenolic compounds in red clover (Trifolium pratense L.) induced by exposure to moderately elevated ozone. Environ. Pollut. 2010, 158, 440–446. [Google Scholar] [CrossRef] [PubMed]
- Saleem, A.; Loponen, J.; Pihlaja, K.; Oksanen, E. Effects of long-term open-field ozone exposure on leaf phenolics of European silver birch (Betula pendula Roth). J. Chem. Ecol. 2001, 27, 1049–1062. [Google Scholar] [CrossRef] [PubMed]
- Copolovici, L.; Kännaste, A.; Remmel, T.; Niinemets, Ü. Volatile organic compound emissions from Alnus glutinosa under interacting drought and herbivory stresses. Environ. Exp. Bot. 2014, 100, 55–63. [Google Scholar] [CrossRef] [PubMed]
- Niinemets, Ü. Mild versus severe stress and BVOCs: Thresholds, priming and consequences. Trends Plant Sci. 2010, 15, 145–153. [Google Scholar] [CrossRef] [PubMed]
- Mittler, R. Abiotic stress, the field environment and stress combination. Trends Plant Sci. 2006, 11, 15–19. [Google Scholar] [CrossRef] [PubMed]
- Roy, J. Response of Plants to Multiple Stresses; Academic Press: Cambridge, MA, USA, 2012. [Google Scholar]
- Kothari, A.R.; Burnett, N.P. Herbivores alter plant–wind interactions by acting as a point mass on leaves and by removing leaf tissue. Ecol. Evol. 2017, 7, 6884–6893. [Google Scholar] [CrossRef] [PubMed][Green Version]
- León, J.; Rojo, E.; Sánchez-Serrano, J.J. Wound signalling in plants. J. Exp. Bot. 2001, 52, 1–9. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Savatin, D.V.; Gramegna, G.; Modesti, V.; Cervone, F. Wounding in the plant tissue: The defense of a dangerous passage. Front. Plant Sci. 2014, 5, 470. [Google Scholar] [CrossRef] [PubMed]
- Kant, M.; Jonckheere, W.; Knegt, B.; Lemos, F.; Liu, J.; Schimmel, B.; Villarroel, C.; Ataide, L.; Dermauw, W.; Glas, J. Mechanisms and ecological consequences of plant defence induction and suppression in herbivore communities. Ann. Bot. 2015, 115, 1015–1051. [Google Scholar] [CrossRef] [PubMed][Green Version]
- War, A.R.; Paulraj, M.G.; Ahmad, T.; Buhroo, A.A.; Hussain, B.; Ignacimuthu, S.; Sharma, H.C. Mechanisms of plant defense against insect herbivores. Plant Signal. Behav. 2012, 7, 1306–1320. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Eschler, B.; Pass, D.; Willis, R.; Foley, W. Distribution of foliar formylated phloroglucinol derivatives amongst Eucalyptus species. Biochem. Syst. Ecol. 2000, 28, 813–824. [Google Scholar] [CrossRef]
- Foley, W.J.; Lassak, E.V. The Potential of Bioactive Constituents of Eucalyptus Foliage as Non-Wood Products from Plantations; Rural Industries Research and Development Corporation: Canberra, Australia, 2004; Publication no. 04/154. [Google Scholar]
- Moore, B.D.; Wallis, I.R.; Palá-Paúl, J.; Brophy, J.J.; Willis, R.H.; Foley, W.J. Antiherbivore chemistry of Eucalyptus--cues and deterrents for marsupial folivores. J. Chem. Ecol. 2004, 30, 1743–1769. [Google Scholar] [CrossRef] [PubMed]
- Wallis, I.; Watson, M.; Foley, W. Secondary metabolites in Eucalyptus melliodora: Field distribution and laboratory feeding choices by a generalist herbivore, the common brushtail possum. Aust. J. Zool. 2002, 50, 507–519. [Google Scholar] [CrossRef]
- McKiernan, A.B.; Hovenden, M.J.; Brodribb, T.J.; Potts, B.M.; Davies, N.W.; O’Reilly-Wapstra, J.M. Effect of limited water availability on foliar plant secondary metabolites of two Eucalyptus species. Environ. Exp. Bot. 2014, 105, 55–64. [Google Scholar] [CrossRef]
- McKiernan, A.B.; Potts, B.M.; Brodribb, T.J.; Hovenden, M.J.; Davies, N.W.; McAdam, S.A.; Ross, J.J.; Rodemann, T.; O’Reilly-Wapstra, J.M. Responses to mild water deficit and rewatering differ among secondary metabolites but are similar among provenances within Eucalyptus species. Tree Physiol. 2015, 36, 133–147. [Google Scholar] [PubMed]
- Niinemets, Ü. Uncovering the hidden facets of drought stress: Secondary metabolites make the difference. Tree Physiol. 2015, 36, 129–132. [Google Scholar] [CrossRef] [PubMed]
- Singh, I.P.; Bharate, S.B. Phloroglucinol compounds of natural origin. Nat. Prod. Rep. 2006, 23, 558–591. [Google Scholar] [CrossRef]
- Sidana, J.; Rohilla, R.K.; Roy, N.; Barrow, R.A.; Foley, W.J.; Singh, I.P. Antibacterial sideroxylonals and loxophlebal A from Eucalyptus loxophleba foliage. Fitoterapia 2010, 81, 878–883. [Google Scholar] [CrossRef] [PubMed]
- Alliot, J.; Gravel, E.; Larquetoux, L.; Nicolas, M.; Doris, E. Semisynthesis of macrocarpal C and analogues by selective dehydration of macrocarpal A or B. J. Nat. Prod. 2013, 76, 2346–2349. [Google Scholar] [CrossRef] [PubMed]
- Nishizawa, M.; Emura, M.; Kan, Y.; Yamada, H.; Ogawa, K.; Hamanaka, N. Macrocarpals: HIV-RTase inhibitors of Eucalyptus globulus. Tetrahedron Lett. 1992, 33, 2983–2986. [Google Scholar] [CrossRef]
- Qin, X.-J.; Yan, H.; Ni, W.; Yu, M.-Y.; Khan, A.; Liu, H.; Zhang, H.-X.; He, L.; Hao, X.-J.; Di, Y.-T. Cytotoxic meroterpenoids with rare skeletons from Psidium guajava cultivated in temperate zone. Sci. Rep. 2016, 6, 32748. [Google Scholar] [CrossRef] [PubMed]
- Eyles, A.; Davies, N.W.; Mohammed, C. Wound wood formation in Eucalyptus globulus and Eucalyptus nitens: Anatomy and chemistry. Can. J. For. Res. 2003, 33, 2331–2339. [Google Scholar] [CrossRef]
- Kim, J.-P.; Lee, I.-K.; Yun, B.-S.; Chung, S.-H.; Shim, G.-S.; Koshino, H.; Yoo, I.-D. Ellagic acid rhamnosides from the stem bark of Eucalyptus globulus. Phytochemistry 2001, 57, 587–591. [Google Scholar] [CrossRef]
- Jensen, L.M.; Wallis, I.R.; Foley, W.J. The relative concentrations of nutrients and toxins dictate feeding by a vertebrate browser, the greater glider Petauroides volans. PLoS ONE 2015, 10, e0121584. [Google Scholar] [CrossRef] [PubMed]
- Lawler, I.R.; Foley, W.J.; Eschler, B.M. Foliar concentration of a single toxin creates habitat patchiness for a marsupial folivore. Ecology 2000, 81, 1327–1338. [Google Scholar] [CrossRef]
- Moore, B.D.; Foley, W.J.; Wallis, I.R.; Cowling, A.; Handasyde, K.A. Eucalyptus foliar chemistry explains selective feeding by koalas. Biol. Lett. 2005, 1, 64–67. [Google Scholar] [CrossRef] [PubMed]
- Singh, I.P.; Sidana, J.; Bharate, S.B.; Foley, W.J. Phloroglucinol compounds of natural origin: Synthetic aspects. Nat. Prod. Rep. 2010, 27, 393–416. [Google Scholar] [CrossRef] [PubMed]
- Barbosa, L.; Filomeno, C.; Teixeira, R. Chemical variability and biological activities of Eucalyptus spp. essential oils. Molecules 2016, 21, 1671. [Google Scholar] [CrossRef] [PubMed]
- Loreto, F.; Delfine, S. Emission of isoprene from salt-stressed Eucalyptus globulus leaves. Plant Physiol. 2000, 123, 1605–1610. [Google Scholar] [CrossRef] [PubMed]
- Chenavas, S.; Fiorini-Puybaret, C.; Joulia, P.; Larrouquet, C.; Waton, H.; Martinez, A.; Casabianca, H.; Fabre, B. New formylated phloroglucinol compounds from Eucalyptus globulus foliage. Phytochem. Lett. 2015, 11, 69–73. [Google Scholar] [CrossRef]
- Osawa, K.; Yasuda, H.; Morita, H.; Takeya, K.; Itokawa, H. Macrocarpals H, I, and J from the leaves of Eucalyptus globulus. J. Nat. Prod. 1996, 59, 823–827. [Google Scholar] [CrossRef] [PubMed]
- Leipner, J.R.; Oxborough, K.; Baker, N.R. Primary sites of ozone-induced perturbations of photosynthesis in leaves: Identification and characterization in Phaseolus vulgaris using high resolution chlorophyll fluorescence imaging. J. Exp. Bot. 2001, 52, 1689–1696. [Google Scholar] [PubMed]
- Loreto, F.; Velikova, V. Isoprene produced by leaves protects the photosynthetic apparatus against ozone damage, quenches ozone products, and reduces lipid peroxidation of cellular membranes. Plant Physiol. 2001, 127, 1781–1787. [Google Scholar] [CrossRef] [PubMed]
- Monk, R.; Murray, F. The relative tolerance of some Eucalyptus species to ozone exposure. Water Air Soil Pollut. 1995, 85, 1405–1411. [Google Scholar] [CrossRef]
- Loreto, F.; Pinelli, P.; Manes, F.; Kollist, H. Impact of ozone on monoterpene emissions and evidence for an isoprene-like antioxidant action of monoterpenes emitted by Quercus ilex leaves. Tree Physiol. 2004, 24, 361–367. [Google Scholar] [CrossRef] [PubMed]
- Singleton, V.L.; Orthofer, R.; Lamuela-Raventós, R.M.  Analysis of total phenols and other oxidation substrates and antioxidants by means of folin-ciocalteu reagent. In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 1999; Volume 299, pp. 152–178. [Google Scholar]
- Yoshikawa, K.; Kawahara, Y.; Arihara, S.; Hashimoto, T. Aromatic compounds and their antioxidant activity of Acer saccharum. J. Nat. Med. 2011, 65, 191–193. [Google Scholar] [CrossRef] [PubMed]
- Pass, D.M.; Foley, W.J.; Bowden, B. Vertebrate herbivory on Eucalyptus—Identification of specific feeding deterrents for common ringtail possums (Pseudocheirus peregrinus) by bioassay-guided fractionation of Eucalyptus ovata foliage. J. Chem. Ecol. 1998, 24, 1513–1527. [Google Scholar] [CrossRef]
- Peñuelas, J.; Llusia, J.; Asensio, D.; Munne-Bosch, S. Linking isoprene with plant thermotolerance, antioxidants and monoterpene emissions. Plant Cell Environ. 2005, 28, 278–286. [Google Scholar] [CrossRef][Green Version]
- Severino, J.F.; Stich, K.; Soja, G. Ozone stress and antioxidant substances in Trifolium repens and Centaurea jacea leaves. Environ. Pollut. 2007, 146, 707–714. [Google Scholar] [CrossRef] [PubMed]
- Pasqualini, S.; Piccioni, C.; Reale, L.; Ederli, L.; Della Torre, G.; Ferranti, F. Ozone-induced cell death in tobacco cultivar Bel W3 plants. The role of programmed cell death in lesion formation. Plant Physiol. 2003, 133, 1122–1134. [Google Scholar] [CrossRef] [PubMed]
- Sgarbi, E.; Fornasiero, R.B.; Lins, A.P.; Bonatti, P.M. Phenol metabolism is differentially affected by ozone in two cell lines from grape (Vitis vinifera L.) leaf. Plant Sci. 2003, 165, 951–957. [Google Scholar] [CrossRef]
- Sharma, Y.K.; Davis, K.R. Ozone-induced expression of stress-related genes in Arabidopsis thaliana. Plant Physiol. 1994, 105, 1089–1096. [Google Scholar] [CrossRef] [PubMed]
- Loreto, F.; Barta, C.; Brilli, F.; Nogues, I. On the induction of volatile organic compound emissions by plants as consequence of wounding or fluctuations of light and temperature. Plant Cell Environ. 2006, 29, 1820–1828. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Jensen, L.M.; Wallis, I.R.; Marsh, K.J.; Moore, B.D.; Wiggins, N.L.; Foley, W.J. Four species of arboreal folivore show differential tolerance to a secondary metabolite. Oecologia 2014, 176, 251–258. [Google Scholar] [CrossRef] [PubMed]
- Stapley, J.; Foley, W.; Cunningham, R.; Eschler, B. How well can common brushtail possums regulate their intake of Eucalyptus toxins? J. Comp. Physiol. B 2000, 170, 211–218. [Google Scholar] [CrossRef] [PubMed]
- Matsuki, M.; Foley, W.J.; Floyd, R.B. Role of volatile and non-volatile plant secondary metabolites in host tree selection by Christmas beetles. J. Chem. Ecol. 2011, 37, 286–300. [Google Scholar] [CrossRef] [PubMed]
- Wallis, I.R.; Keszei, A.; Henery, M.L.; Moran, G.F.; Forrester, R.; Maintz, J.; Marsh, K.J.; Andrew, R.L.; Foley, W.J. A chemical perspective on the evolution of variation in Eucalyptus globulus. Perspect. Plant Ecol. Evol. Syst. 2011, 13, 305–318. [Google Scholar] [CrossRef]
- Kang, H.-M.; Saltveit, M.E. Antioxidant capacity of lettuce leaf tissue increases after wounding. J. Agric. Food Chem. 2002, 50, 7536–7541. [Google Scholar] [CrossRef] [PubMed]
- Reyes, L.F.; Villarreal, J.E.; Cisneros-Zevallos, L. The increase in antioxidant capacity after wounding depends on the type of fruit or vegetable tissue. Food Chem. 2007, 101, 1254–1262. [Google Scholar] [CrossRef]
- López-Gálvez, G.; Saltveit, M.; Cantwell, M. Wound-induced phenylalanine ammonia lyase activity: Factors affecting its induction and correlation with the quality of minimally processed lettuces. Postharvest Biol. Technol. 1996, 9, 223–233. [Google Scholar] [CrossRef]
- Yoshikawa, M.; Luo, W.; Tanaka, G.; Konishi, Y.; Matsuura, H.; Takahashi, K. Wounding stress induces phenylalanine ammonia lyases, leading to the accumulation of phenylpropanoids in the model liverwort Marchantia polymorpha. Phytochemistry 2018, 155, 30–36. [Google Scholar] [CrossRef] [PubMed]
- Alexieva, V.; Ivanov, S.; Sergiev, I.; Karanov, E. Interaction between stresses. Bulg. J. Plant Physiol. 2003, 29, 1–17. [Google Scholar]
- Niinemets, Ü.; Kahru, A.; Mander, Ü.; Nõges, P.; Nõges, T.; Tuvikene, A.; Vasemägi, A. Interacting environmental and chemical stresses under global change in temperate aquatic ecosystems: Stress responses, adaptation, and scaling. Reg. Environ. Chang. 2017, 17, 2061–2077. [Google Scholar] [CrossRef]
- Martinez-Medina, A.; Flors, V.; Heil, M.; Mauch-Mani, B.; Pieterse, C.M.; Pozo, M.J.; Ton, J.; van Dam, N.M.; Conrath, U. Recognizing plant defense priming. Trends Plant Sci. 2016, 21, 818–822. [Google Scholar] [CrossRef] [PubMed]
- Van Doorslaer, S.; Dedonder, A.; de Blocks, M.; Callens, F. Oxidative stress in plants: EPR monitoring in DMPO-DMSO based extracts. J. Plant Physiol. 1999, 154, 132–136. [Google Scholar] [CrossRef]
- Gao, Y.; Li, G.-T.; Li, Y.; Hai, P.; Wang, F.; Liu, J.-K. Guajadials CF, four unusual meroterpenoids from Psidium guajava. Nat. Prod. Bioprospecting 2013, 3, 14–19. [Google Scholar] [CrossRef]
- Jian, Y.Q.; Huang, X.J.; Zhang, D.M.; Jiang, R.W.; Chen, M.F.; Zhao, B.X.; Wang, Y.; Ye, W.C. Guapsidial A and guadials B and C: Three new meroterpenoids with unusual skeletons from the leaves of Psidium guajava. Chem. Eur. J. 2015, 21, 9022–9027. [Google Scholar] [CrossRef] [PubMed]
- Shao, M.; Wang, Y.; Jian, Y.-Q.; Huang, X.-J.; Zhang, D.-M.; Tang, Q.-F.; Jiang, R.-W.; Sun, X.-G.; Lv, Z.-P.; Zhang, X.-Q. Guadial A and psiguadials C and D, three unusual meroterpenoids from Psidium guajava. Org. Lett. 2012, 14, 5262–5265. [Google Scholar] [CrossRef] [PubMed]
- Tang, G.-H.; Dong, Z.; Guo, Y.-Q.; Cheng, Z.-B.; Zhou, C.-J.; Yin, S. Psiguajadials A–K: Unusual Psidium Meroterpenoids as Phosphodiesterase-4 Inhibitors from the Leaves of Psidium guajava. Sci. Rep. 2017, 7, 1047. [Google Scholar] [CrossRef] [PubMed]
- Yang, X.-L.; Hsieh, K.-L.; Liu, J.-K. Guajadial: An unusual meroterpenoid from guava leaves Psidium guajava. Org. Lett. 2007, 9, 5135–5138. [Google Scholar] [CrossRef] [PubMed]
- Yin, S.; Xue, J.-J.; Fan, C.-Q.; Miao, Z.-H.; Ding, J.; Yue, J.-M. Eucalyptals A− C with a new skeleton isolated from Eucalyptus globulus. Org. Lett. 2007, 9, 5549–5552. [Google Scholar] [CrossRef] [PubMed]
- Külheim, C.; Yeoh, S.H.; Wallis, I.R.; Laffan, S.; Moran, G.F.; Foley, W.J. The molecular basis of quantitative variation in foliar secondary metabolites in Eucalyptus globulus. New Phytol. 2011, 191, 1041–1053. [Google Scholar] [CrossRef] [PubMed]
- Henery, M.L.; Moran, G.F.; Wallis, I.R.; Foley, W.J. Identification of quantitative trait loci influencing foliar concentrations of terpenes and formylated phloroglucinol compounds in Eucalyptus nitens. New Phytol. 2007, 176, 82–95. [Google Scholar] [CrossRef] [PubMed]
- Tattini, M.; Loreto, F.; Fini, A.; Guidi, L.; Brunetti, C.; Velikova, V.; Gori, A.; Ferrini, F. Isoprenoids and phenylpropanoids are part of the antioxidant defense orchestrated daily by drought-stressed Platanus × acerifolia plants during Mediterranean summers. New Phytol. 2015, 207, 613–626. [Google Scholar] [CrossRef] [PubMed]
- Tounekti, T.; Hernández, I.; Munné-Bosch, S. Salicylic acid biosynthesis and role in modulating terpenoid and flavonoid metabolism in plant responses to abiotic stress. In Salicylic Acid; Springer: Berlin/Heidelberg, Germany, 2013; pp. 141–162. [Google Scholar]
- Close, D.C.; Davies, N.W.; Beadle, C.L. Temporal variation of tannins (galloylglucoses), flavonols and anthocyanins in leaves of Eucalyptus nitens seedlings: Implications for light attenuation and antioxidant activities. Funct. Plant Biol. 2001, 28, 269–278. [Google Scholar] [CrossRef]
- Tanaka, T.; Mikamiyama, H.; Maeda, K.; Iwata, C.; In, Y.; Ishida, T. Total synthesis of (−)-macrocarpal C. Stereoselective coupling reaction with a novel hexasubstituted benzene Cr (CO)3 complex as a biomimetic chiral benzyl cation equivalent. J. Org. Chem. 1998, 63, 9782–9793. [Google Scholar] [CrossRef]
- Copolovici, L.; Niinemets, Ü. Flooding induced emissions of volatile signalling compounds in three tree species with differing waterlogging tolerance. Plant Cell Environ. 2010, 33, 1582–1594. [Google Scholar] [CrossRef] [PubMed]
- O’Connor, J.; Parbery, D.; Strauss, W. The effects of phytotoxic gases on native Australian plant species: Part 2. Acute injury due to ozone. Environ. Pollut. (1970) 1975, 9, 181–192. [Google Scholar] [CrossRef]
- Beauchamp, J.; Wisthaler, A.; Hansel, A.; Kleist, E.; Miebach, M.; Niinemets, Ü.; Schurr, U.; Wildt, J. Ozone induced emissions of biogenic VOC from tobacco: Relationships between ozone uptake and emission of LOX products. Plant Cell Environ. 2005, 28, 1334–1343. [Google Scholar] [CrossRef]
- Calfapietra, C.; Wiberley, A.E.; Falbel, T.G.; Linskey, A.R.; Mugnozza, G.S.; Karnosky, D.F.; Loreto, F.; Sharkey, T.D. Isoprene synthase expression and protein levels are reduced under elevated O3 but not under elevated CO2 (FACE) in field-grown aspen trees. Plant Cell Environ. 2007, 30, 654–661. [Google Scholar] [CrossRef] [PubMed]
- Li, S.; Harley, P.C.; Niinemets, Ü. Ozone-induced foliar damage and release of stress volatiles is highly dependent on stomatal openness and priming by low-level ozone exposure in Phaseolus vulgaris. Plant Cell Environ. 2017, 40, 1984–2003. [Google Scholar] [CrossRef] [PubMed]
- Santos, B.M.d.; Zibrandtsen, J.F.S.; Gunbilig, D.; Sørensen, M.; Cozzi, F.; Boughton, B.A.; Heskes, A.M.; Neilson, E.H.J. Quantification and Localization of Formylated Phloroglucinol Compounds (FPCs) in Eucalyptus Species. Front. Plant Sci. 2019, 10. [Google Scholar] [CrossRef]
- Singleton, V.L.; Rossi, J.A. Colorimetry of total phenolics with phosphomolybdic-phosphotungstic acid reagents. Am. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
- Xu, B.; Chang, S. A comparative study on phenolic profiles and antioxidant activities of legumes as affected by extraction solvents. J. Food Sci. 2007, 72, S159–S166. [Google Scholar] [CrossRef] [PubMed]
- Xia, J.; Sinelnikov, I.V.; Han, B.; Wishart, D.S. MetaboAnalyst 3.0—Making metabolomics more meaningful. Nucleic Acids Res. 2015, 43, W251–W257. [Google Scholar] [CrossRef] [PubMed]
- Xia, J.; Wishart, D.S. Using MetaboAnalyst 3.0 for comprehensive metabolomics data analysis. Curr. Protoc. Bioinform. 2016, 55, 14.10.11–14.10.91. [Google Scholar] [CrossRef] [PubMed]

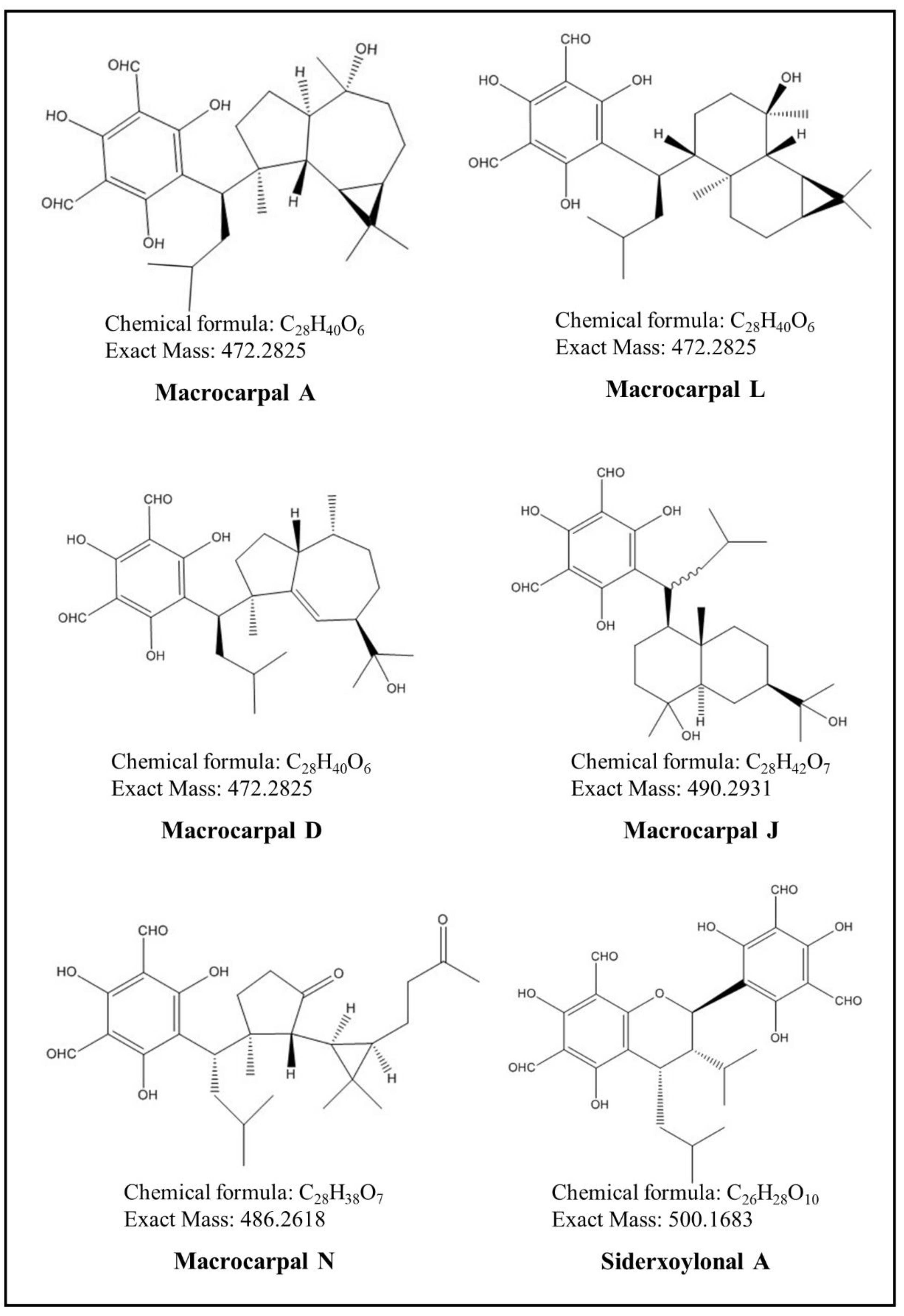

Figure 1. Structural formulas of six different FPCs identified in E. globulus leaves.
Figure 2. Representative UHPLC-DAD-qToF-MS/MS extracted ion chromatograms showing FPCs detected in E. globulus leaves. The FPCs detected in E. globulus leaves are divided into four groups according to m/z values [M−H]− of 489.2857 (a), 471.2752 (b), 485.2544 (c), and 499.1609 (d). Based on co-elution with authentic standards, known FPCs are indicated by arrows with letters. See FPC identification in Material and Methods and the peak details in Table 1. Abbreviations: A, macrocarpal A; D, macrocarpal D; J, macrocarpal J; L, macrocarpal L; N, macrocarpal N; and Sid A, sideroxylonal A.

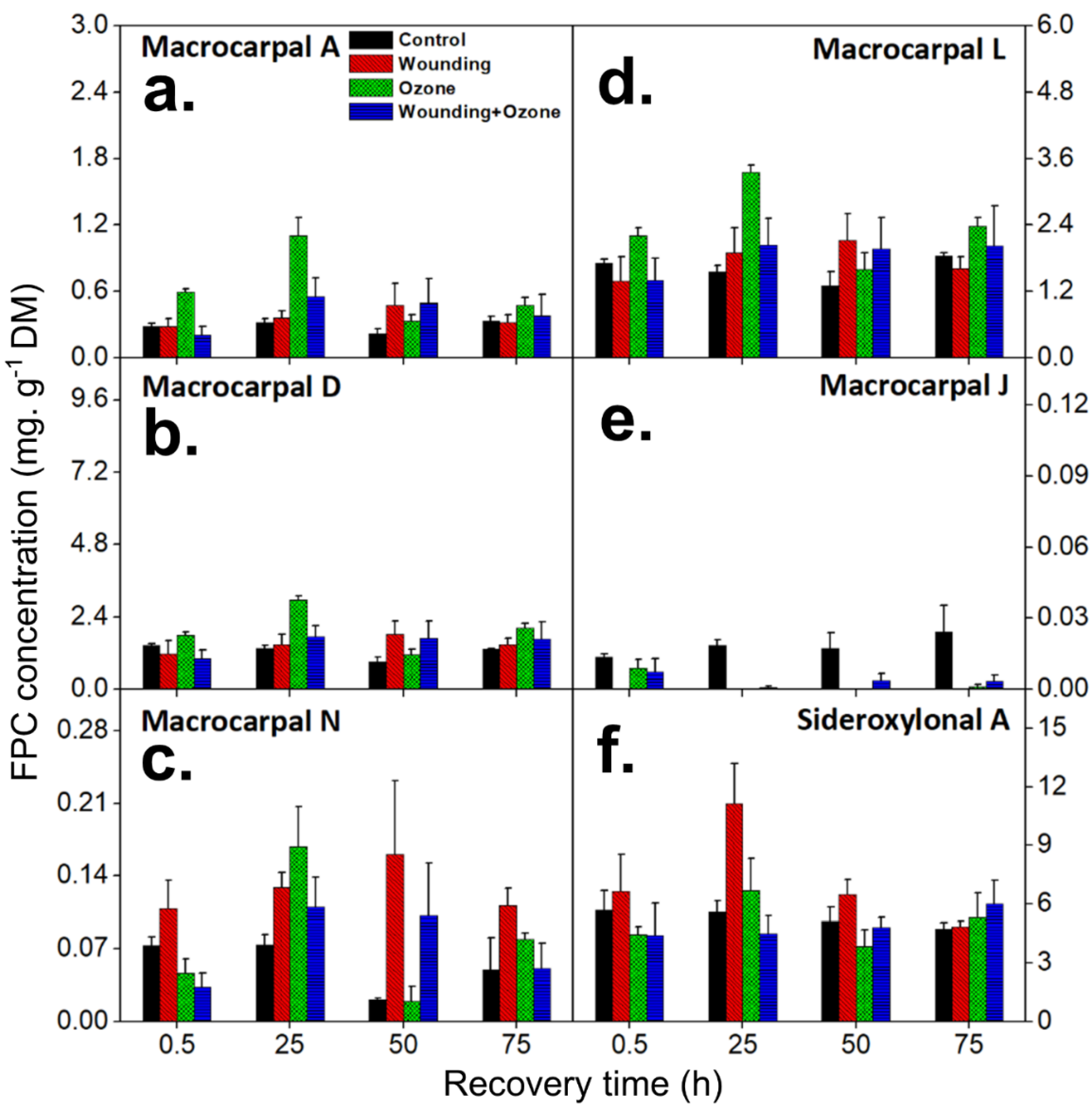

Figure 3. Temporal changes in individual FPCs (means ± SE, n = 3) in E. globulus leaves subjected to separate and combined ozone (O3) and wounding treatments. Linear mixed models were applied to analyze the fixed effects of different treatments (wounding, O3, and O3 + wounding) and recovery times on the temporal changes in FPCs concentrations in E. globulus leaves. The summary of the linear mixed model is shown in Table 2.

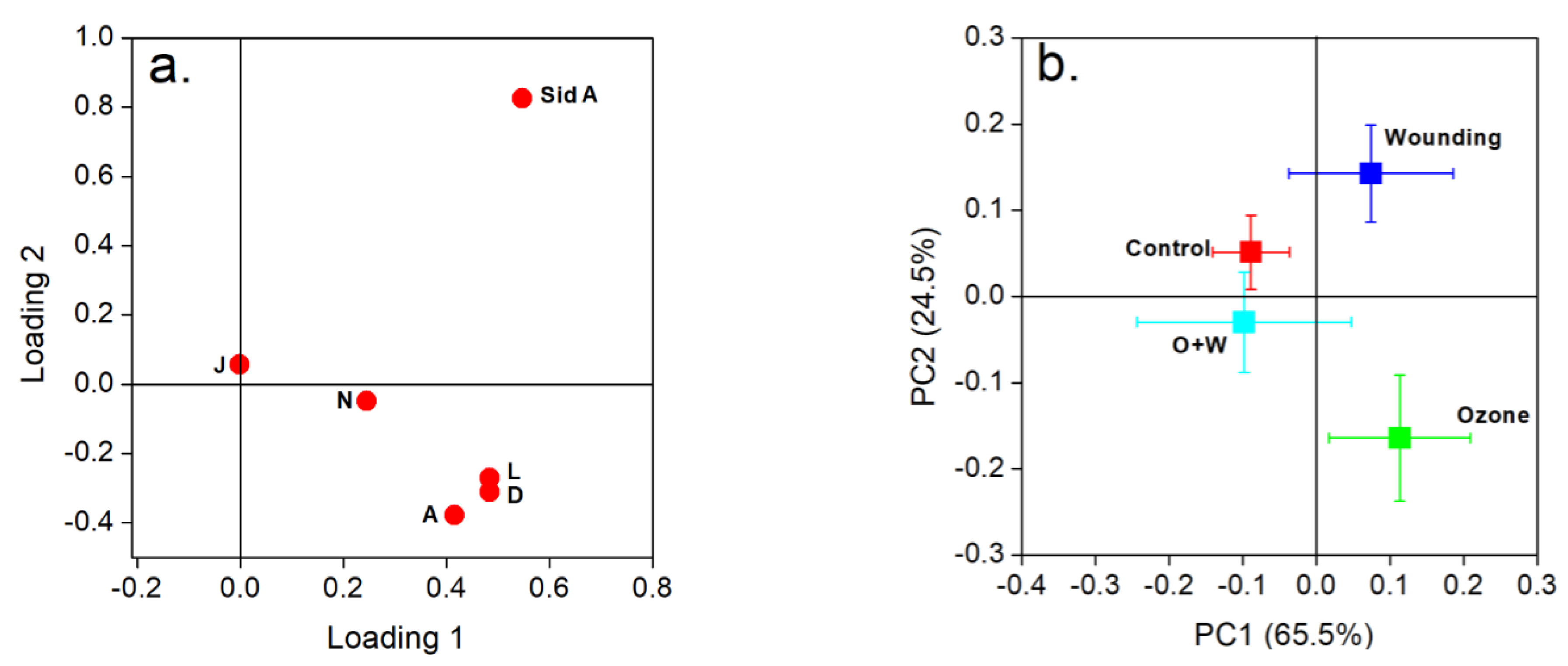

Figure 4. Principal component analysis (PCA) of FPCs as affected by wounding and O3 treatments in E. globulus leaves—loading (a) and score plot (b). Individual FPCs concentrations across the recovery period were used in this analysis. The O + W in (b) corresponds to the combined O3 and wounding treatment. Abbreviations: A, macrocarpal A; D, macrocarpal D; J, macrocarpal J; L, macrocarpal L; N, macrocarpal N; and Sid A, sideroxylonal A.

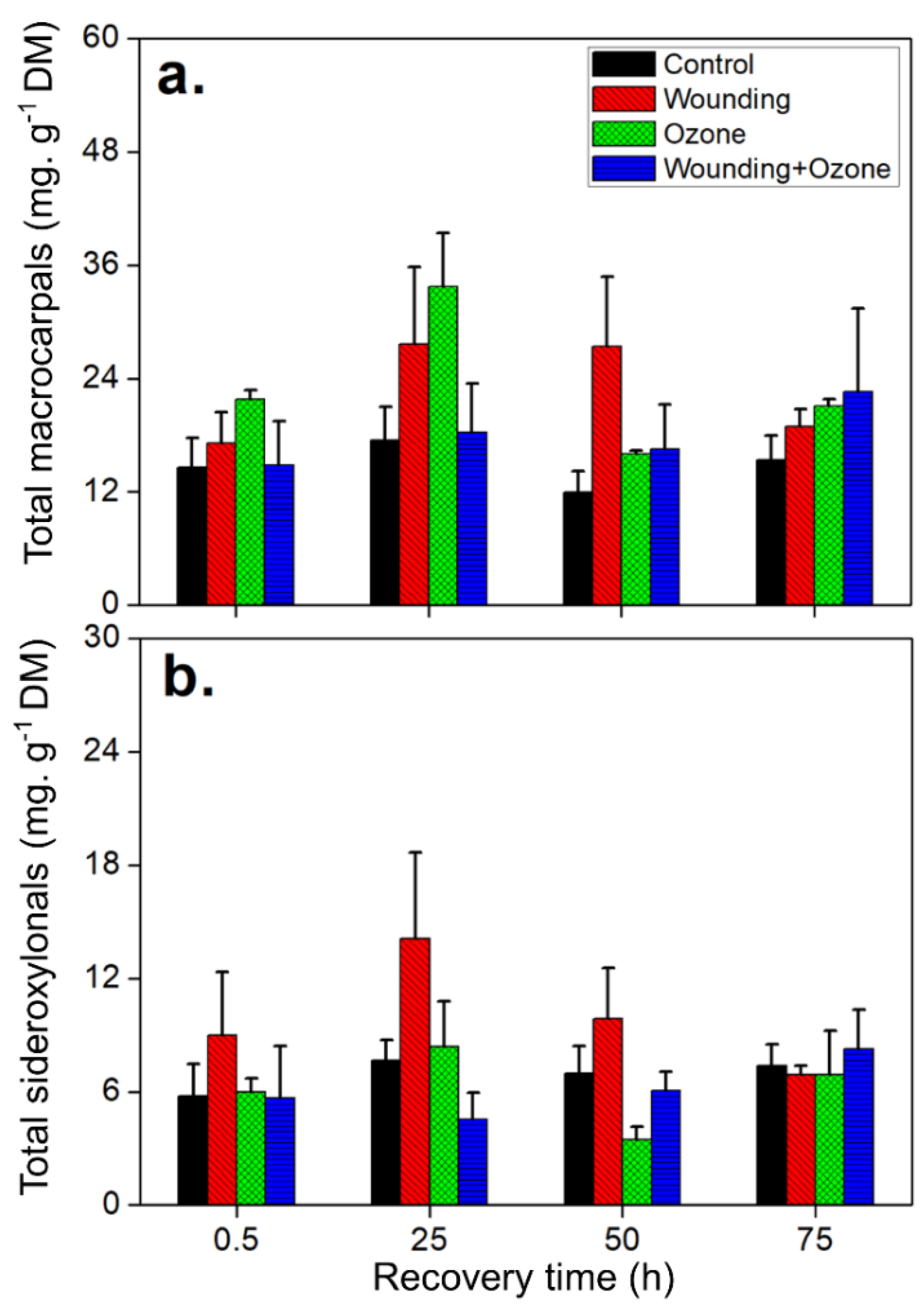

Figure 5. Time-dependent changes (means ± SE, n = 3) in the concentration of total macrocarpals (a) and total sideroxylonals (b) in E. globulus leaves subjected to separate and combined wounding and O3 treatments. Details of the statistical summary are shown in Table 3. Total macrocarpals are expressed as mg g−1 DM macrocarpal A equivalents, and total sideroxylonals are expressed as mg g−1 DM sideroxylonal A equivalents.
Figure 6. Temporal changes (mean ± SE, n = 3) in the concentration of total FPCs (a), total phenolic compounds (b), and their correlation (c) in E. globulus leaves subjected to separate and combined O3 and wounding treatments. The data selected for non-linear correlation analysis are the mean of total FPCs and total phenolics concentrations at each recovery time point from different treatments and controls. Total phenolic contents (TPC) are expressed as mg g−1 DM gallic acid equivalents. Details of the statistical summary are shown in Table 3.
Table 1. Peak assignments of formylated phloroglucinol compounds (FPCs) detected in E. globulus leaves as analyzed by UHPLC-DAD-ESI-Q-TOF-MS/MS. Peak numbers shown in the table are presented as in Figure 2.
|Peak #||RT [min]||Relative Peak Area%||Calculated [M−H]− m/z||Measured [M−H]− m/z||Error (ppm)||MS/MS (Relative Intensity, in %)||Molecular Formula||Identity|
|1||8.9||1.2||489.2857||489.2866||1.8||489 (100), 490 (35), 491 (8)||C28H42O7||FPC01|
|2||9.6||0.5||489.2857||489.2864||1.4||489 (100), 490 (28), 491 (5)||C28H42O7||FPC02 Macrocarpal J|
|3||10.2||0.1||485.2544||485.2543||−0.2||485 (100), 486 (41), 487 (14), 249 (8)||C28H38O7||FPC03|
|4||11.1||0.2||485.2544||485.2547||0.6||485 (100), 486 (28), 487 (15), 249 (10)||C28H38O7||FPC04|
|5||11.3||0.9||485.2544||485.2550||1.2||485 (100), 486 (23), 207 (40), 250 (13)||C28H38O7||FPC05|
|6||11.6||0.9||485.2544||485.2549||1.0||485 (100), 486 (26), 487 (7), 207 (5)||C28H38O7||FPC06|
|7||11.8||1.2||485.2544||485.2542||−0.4||485 (100), 486 (23), 207 (28), 250 (15)||C28H38O7||FPC07|
|8||12.8||0.4||485.2544||485.2547||0.6||485 (100), 486 (23), 487 (10), 207 (3)||C28H38O7||FPC08|
|9||13.1||0.4||485.2544||485.2550||1.2||485 (100), 486 (40), 487 (8), 207 (10)||C28H38O7||FPC09|
|10||14.5||1.7||485.2544||485.2546||0.4||485 (100), 486 (29), 207 (9), 250 (10)||C28H38O7||FPC10 Macrocarpal N|
|11||14.7||2.1||471.2752||471.2756||0.8||471 (100), 472 (32), 473 (4)||C28H40O6||FPC11|
|12||15.3||15.2||471.2752||471.2751||−0.2||471 (100), 472 (27), 473 (4), 207 (3)||C28H40O6||FPC12 Macrocarpal A|
|13||15.6||6.9||471.2752||471.2751||−0.2||471 (100), 472 (28), 473 (5), 207 (3)||C28H40O6||FPC13|
|14||15.9||7.7||485.2544||485.2545||0.2||485 (100), 486 (29), 207 (8), 250 (2)||C28H38O7||FPC14|
|15||16.3||16.2||471.2752||471.2751||−0.2||471 (100), 472 (27), 473 (4), 207 (3)||C28H40O6||FPC15|
|16||16.9||15.8||471.2752||471.2752||0.0||471 (100), 472 (29), 473 (5), 207 (3)||C28H40O6||FPC16|
|17||17.1||0.5||485.2544||485.2544||0.0||485 (100), 486 (30), 207 (12), 250 (2)||C28H38O7||FPC17|
|18||17.8||33.1||471.2752||471.2750||−0.4||471 (100), 472 (27), 473 (4), 207 (2)||C28H40O6||FPC18 Macrocarpal L|
|19||18.2||24.2||471.2752||471.2751||−0.2||471 (100), 472 (27), 473 (4), 207 (4)||C28H40O6||FPC19|
|20||19.0||49.2||471.2752||471.2750||−0.4||471 (100), 207 (48), 250 (28), 472 (26)||C28H40O6||FPC20 Macrocarpal D|
|21||22.3||15.7||499.1609||499.1608||−0.2||249 (100), 250 (15), 181 (1), 251 (1)||C26H28O10||FPC21|
|22||23.3||18.3||499.1609||499.1610||0.2||249 (100), 250 (13), 181 (1), 251 (2)||C26H28O10||FPC22|
|23||23.8||100.0||499.1609||499.1607||−0.4||249 (100), 250 (12), 181 (3), 251 (1)||C26H28O10||FPC23 Sideroxylonal A|
Table 2. Summary of the linear mixed model for the statistical effects of treatments (wounding, O3, and O3 + wounding) and different recovery times on the concentration of individual FPCs in E. globulus leaves. Significant values are shown in italic and bold (n = 3, Sig. < 0.05).
|Concentration (mg g−1 DM)||Macrocarpal A||Macrocarpal D||Macrocarpal J||Macrocarpal L||Macrocarpal N||Sideroxylonal A|
|Time × Time||0.30||0.60||0.02||0.89||N.A.1||N.A.1||0.07||0.81||3.91||0.10||0.28||0.62|
|Wounding × Time||0.00||0.97||5.49||0.06||N.A.1||N.A.1||2006.52||0.00||10.34||0.02||12.71||0.01|
|Time × Time||5.27||0.06||1.52||0.26||0.39||0.55||1.75||0.23||4.19||0.09||0.40||0.55|
|Ozone × Time||18.30||0.01||2.96||0.14||13.97||0.01||21.69||0.00||41.69||0.00||17.51||0.01|
|Ozone + Wounding||6.22||0.05||1.07||0.34||4.41||0.08||0.81||0.40||23.26||0.00||140.11||0.00|
|Time × Time||0.13||0.73||0.23||0.65||0.20||0.67||0.36||0.57||0.99||0.36||0.00||0.99|
|(Ozone + Wounding) × Time||20.38||0.00||1.01||0.35||3.36||0.12||0.00||0.98||5.76||0.05||14.72||0.01|
1 In all the wounding-treated E. globulus leaves across the whole recovery period, the concentration of macrocarpal J is out of the detection limit and considered as zero. Therefore, the effects of wounding on macrocarpal J are not analyzed by the linear mixed model. N.A., not statistically analyzed.
Table 3. Summary of the linear mixed model for the statistical effects of treatments (wounding, O3, and O3 + wounding) and different recovery times on total macrocarpals, total sideroxylonals, total FPCs, and total phenolic contents in E. globulus leaves. Significant values are shown in italic and bold (n = 3, Sig. < 0.05).
|Concentration (mg g−1 DM)||Total Macrocarpals||Total Sideroxylonals||Total FPCs||Total Phenolics|
|Time × Time||1.04||0.35||0.65||0.45||0.87||0.39||2.17||0.19|
|Wounding × Time||0.00||0.98||13.71||0.01||1.72||0.24||27.52||0.00|
|Time × Time||4.75||0.07||0.26||0.63||5.33||0.06||6.55||0.04|
|Ozone × Time||0.09||0.77||2.56||0.16||0.54||0.49||10.47||0.02|
|Ozone + Wounding||0.01||0.94||16.44||0.01||1.45||0.27||924.63||0.00|
|Time × Time||4.65||0.07||0.29||0.61||2.78||0.15||0.39||0.55|
|(Ozone + Wounding) × Time||0.28||0.62||2.79||0.15||1.50||0.27||176.34||0.00|
Table 4. Summary of the linear mixed model for the statistical effects of treatments (wounding, O3, and O3 + wounding) and different recovery times on the composition of individual FPCs in total FPCs in E. globulus leaves. Significant values are shown in italic and bold (n = 3, Sig. < 0.05).
|Composition (%)||Macrocarpal A||Macrocarpal D||Macrocarpal J||Macrocarpal L||Macrocarpal N||Sideroxylonal A|
|Time × Time||4.50||0.08||6.04||0.05||N.A.1||N.A.1||4.73||0.07||0.04||0.85||0.20||0.67|
|Wounding × Time||1.72||0.24||15.94||0.01||N.A.1||N.A.1||5.33||0.06||29.86||0.00||131.52||0.00|
|Time × Time||0.40||0.55||2.10||0.20||1.54||0.26||1.61||0.25||4.45||0.08||2.83||0.14|
|Ozone × Time||7.78||0.03||12.09||0.01||0.13||0.73||4.83||0.07||7.98||0.03||13.54||0.01|
|Ozone + Wounding||22.29||0.00||0.89||0.38||47.33||0.00||4.23||0.09||7.10||0.04||16.99||0.01|
|Time ×* Time||1.14||0.33||0.25||0.64||0.02||0.90||0.05||0.83||67.31||0.00||0.29||0.61|
|(Ozone + Wounding) × Time||88.99||0.00||0.48||0.52||2.27||0.18||4.11||0.09||2.21||0.19||160.49||0.00|
1 In all the wounding-treated E. globulus leaves across the whole recovery period, the concentration of macrocarpal J is out of the detection limit and considered as zero. The composition of macrocarpal J in total FPCs of wounding treated leaves is zero accordingly. Therefore, the effects of wounding on macrocarpal J are not analyzed by the linear mixed model. N.A., not statistically analyzed.
Table 5. Effects of treatments (control, wounding, O3, O3 and wounding treatments) on the ratio of each individual FPC to the total FPCs in E. globulus leaves. Data shown are means ± SE (n = 3). Details of the statistical summary are shown in Table 4. C, control; W, wounding; O, O3 and O + W, O3 + wounding.
|% of Total FPCs||Macrocarpal A||Macrocarpal D||Macrocarpal J||Macrocarpal L||Macrocarpal N||Sideroxylonal A|
|0.5||C||1.42 ± 0.82||7.61 ± 4.39||0.06 ± 0.03||9.03 ± 5.21||0.36 ± 0.21||29.31 ± 16.92|
|W||1.02 ± 0.59||4.05 ± 2.34||0.00 ± 0.00||4.92 ± 2.84||0.39 ± 0.22||23.82 ± 13.75|
|O||2.13 ± 1.23||6.52 ± 3.76||0.00 ± 0.00||7.97 ± 4.60||0.17 ± 0.10||15.88 ± 9.17|
|O + W||0.85 ± 0.49||4.58 ± 2.64||0.02 ± 0.01||6.31 ± 3.64||0.14 ± 0.08||20.07 ± 11.58|
|25||C||1.27 ± 0.73||5.54 ± 3.20||0.07 ± 0.04||6.43 ± 3.71||0.29 ± 0.17||22.80 ± 13.16|
|W||0.90 ± 0.52||3.59 ± 2.07||0.00 ± 0.00||4.63 ± 2.67||0.36 ± 0.21||30.04 ± 17.34|
|O||2.68 ± 1.55||7.25 ± 4.18||0.00 ± 0.00||8.26 ± 4.77||0.38 ± 0.22||16.44 ± 9.49|
|O + W||2.37 ± 1.37||7.62 ± 4.40||0.00 ± 0.00||9.49 ± 5.48||0.45 ± 0.26||20.23 ± 11.68|
|50||C||1.10 ± 0.63||4.70 ± 2.71||0.08 ± 0.04||6.68 ± 3.85||0.11 ± 0.06||27.45 ± 15.84|
|W||1.10 ± 0.64||4.67 ± 2.70||0.00 ± 0.00||5.54 ± 3.20||0.37 ± 0.21||18.52 ± 10.69|
|O||1.67 ± 0.96||5.89 ± 3.40||0.00 ± 0.00||8.17 ± 4.71||0.09 ± 0.05||19.35 ± 11.17|
|O + W||1.84 ± 1.06||7.07 ± 4.08||0.01 ± 0.01||8.27 ± 4.77||0.38 ± 0.22||22.63 ± 13.06|
|75||C||1.49 ± 0.86||6.09 ± 3.51||0.09 ± 0.05||8.43 ± 4.87||0.18 ± 0.10||21.49 ± 12.41|
|W||1.19 ± 0.69||5.61 ± 3.24||0.00 ± 0.00||6.14 ± 3.54||0.42 ± 0.24||18.88 ± 10.90|
|O||1.72 ± 0.99||7.34 ± 4.24||0.00 ± 0.00||8.60 ± 4.96||0.28 ± 0.16||18.31 ± 10.57|
|O + W||0.92 ± 0.53||4.87 ± 2.81||0.01 ± 0.01||5.87 ± 3.39||0.13 ± 0.07||20.70 ± 11.95|
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
