Review

An Overview of the Bacterial Carbonic Anhydrases

by
Claudiu T. Supuran
1,* and
Clemente Capasso
2,*
1
Dipartimento Neurofarba, Sezione di Scienze Farmaceutiche, Laboratorio di Chimica Bioinorganica, Università degli Studi di Firenze, Polo Scientifico, Via U. Schiff 6, Sesto Fiorentino, 50019 Florence, Italy
2
Istituto di Bioscienze e Biorisorse (IBBR), Consiglio Nazionale delle Ricerche (CNR), via Pietro Castellino 111, 80131 Napoli, Italy
*
Authors to whom correspondence should be addressed.
Metabolites 2017, 7(4), 56; https://doi.org/10.3390/metabo7040056
Submission received: 25 October 2017 / Revised: 8 November 2017 / Accepted: 8 November 2017 / Published: 11 November 2017
(This article belongs to the Special Issue Carbonic Anhydrases and Metabolism)

Abstract

:
Bacteria encode carbonic anhydrases (CAs, EC 4.2.1.1) belonging to three different genetic families, the α-, β-, and γ-classes. By equilibrating CO2 and bicarbonate, these metalloenzymes interfere with pH regulation and other crucial physiological processes of these organisms. The detailed investigations of many such enzymes from pathogenic and non-pathogenic bacteria afford the opportunity to design both novel therapeutic agents, as well as biomimetic processes, for example, for CO2 capture. Investigation of bacterial CA inhibitors and activators may be relevant for finding antibiotics with a new mechanism of action.

Graphical Abstract

1. Introduction

In the time of emerging antibiotic resistance, the improvement of pharmacological arsenal against bacterial pathogens is of pivotal importance [1,2]. Among the strategies adopted for fighting antibiotic resistance, the effectiveness is a structural upgrade of the current clinical drugs for generating novel antibiotics [1,2]. The limit of this strategy is that the newly generated drugs could have a limited lifespan due to the possible resistance that they will develop sooner or later. Fortunately, in the last years, the DNA sequencing approach applied to the bacterial genome allowed the discovery of numerous genes encoding for enzymes which catalyze metabolic pathways essential for the life cycle and/or the virulence of these microbes [3]. Thus, scientists possess in vitro essential bacterial targets for finding and designing new antiinfectives able to disarm pathogens through their inhibition, as well as to bypass their resistance to conventional antimicrobials. In fact, the inhibition of the new bacterial targets takes place through mechanisms different from those usually represented by the block of DNA gyrase, the inhibition of the ribosomal function, and the shut down of the cell-wall biosynthesis, as most clinically used antibiotics act [3]. Moreover, this strategy will result in the development of new antiinfectives, which can replace those already used in clinics with increasing bacterial resistance. In this context, the superfamily of carbonic anhydrases (CAs, EC 4.2.1.1) represents a valuable member of such new macromolecules affecting the growth of microorganisms or making them vulnerable to the host defense mechanisms [4,5,6,7,8]. These metalloenzymes catalyze the simple but physiologically crucial reaction of carbon dioxide hydration to bicarbonate and protons: CO2 + H2O ⇄ HCO3 + H+ [4,8,9,10,11,12,13,14], and they are involved in the transport and supply of CO2 or HCO3 in pH homeostasis, the secretion of electrolytes, biosynthetic processes, and photosynthesis [15,16]. Moreover, CAs are target molecules of some antibacterial drugs, such as sulfanilamide.
Since CAs are very effective catalysts for the conversion of CO2 to bicarbonate, the CA superfamily might be involved in the capture/sequestration of CO2 from combustion gases with the goal of alleviating the global warming effects through a reduction of CO2 emissions in the atmosphere [17]. The production of CO2 is linked to the industrial development that must necessarily reduce its production. To decrease the amount of CO2 in the atmosphere, a number of CO2 sequestration methods have been proposed [17]. Most of them require that the CO2 captured from the flue gases is compressed, transported to the sequestration site, and injected into specific areas for long-term storage [17]. All these procedures lead to an increase in the costs of the capture and storage processes [17]. For this reason, the biomimetic approach represents a valid strategy for CO2 capture. It allows the CO2 conversion to water-soluble ions and offers many advantages over other methods, such as its eco-compatibility and the possibility to use the reaction products for multiple applications, with no added costs. Furthermore, thermophilic CAs are still active at high temperatures compared to their mesophilic counterparts, and their use is preferred in environments characterized by hard conditions, such as those of the carbon capture process (high temperature, high salinity, extreme pH) [18,19,20,21].

2. Classification and Structure

2.1. CA-Classes

The CAs make up a widely distributed class of metalloenzymes with the catalytically active species represented by a metal hydroxide derivative [4,5,6,7,8]. CAs are grouped into seven genetically distinct families, named α-, β-, γ-, δ-, ζ-, η-, and ɵ-CAs, with different folds and structures but common CO2 hydratase activity, coupled to low sequence similarity. Bacteria encode for enzymes belonging to α-, β-, and γ-CA classes [8,22,23,24,25,26,27]. Bacteria have a very intricate CA distribution pattern because some of them encode CAs belonging to only one family, whilst others encode those from two or even three different genetic families. The α- and β-CAs are metalloenzymes, which use the Zn(II) ion as a catalytic metal; γ-CAs are Fe(II) enzymes, but they are also active with bound Zn(II) or Co(II) ions [28,29,30,31,32,33,34,35]. The metal ion from the CA active site is coordinated by three His residues in the α- and γ-classes (Figure 1 and Figure 2), and by one His and two Cys residues in the β-class (Figure 3). The fourth ligand is a water molecule/hydroxide ion acting as a nucleophile in the catalytic cycle of the enzyme [8,24,25,36,37,38,39]. The rate-determining step of the entire catalytic process is the formation of the metal hydroxide species of the enzyme by the transfer of a proton from the metal-coordinated water molecule to the surrounding solvent, possibly via proton-shuttling residues [5,8,22,24,25].

2.2. α-CA Structure

Bacterial α-CAs have only been poorly characterized with respect to the mammalian α-CAs. In fact, the CAs from Neisseria gonorrhoeae, Sulfurihydrogenibium yellowstonense, Sulfurihydrogenibium azorense, and Thermovibrio ammonificans are the only bacterial α-CAs with a known three-dimensional structure [30,33,40,41]. An example of the typical structural organization of a bacterial α-CA is offered by the X-ray crystal structure of the CA identified in the thermophilic bacterium Sulfurihydrogenibium yellowstonense YO3AOP1 (Figure 4) [30,33]. This three-dimensional structure generally resembles those of human α-CAs and it was obtained in the presence of the classical inhibitor of CAs, the sulfonamide acetazolamide (AAZ). In particular, it shows a homodimeric arrangement stabilized by a large number of hydrogen bonds and several hydrophobic interactions. The crystallized α-CAs are active as monomers and dimers (Figure 4). The active site is located in a deep cavity, which extends from the protein surface to the center of the molecule, and is characterized by hydrophilic and hydrophobic regions. The hydrophilic part assists in the transfer of the proton from the Zn-bound water to the solvent, while the hydrophobic district is involved in CO2 binding and ligand recognition. The catalytic zinc ion is located at the bottom of this cavity and is tetrahedrally coordinated by three histidine residues and by the N atom of the sulfonamide moiety of the inhibitor (or probably by the water molecule in the uninhibited enzyme). Intriguingly, the bacterial α-CAs show a more compact structure with respect to the mammalian counterpart, which is characterized by the presence of three insertions (Figure 1) [30,33]. Due to the absence of these inserts, an active site larger than that of human enzymes characterizes the bacterial CAs. Moreover, the structure of the thermostable CAs, such as SspCA (from Sulfurihydrogenibium yellowstonense) and SazCA (from Sulfurihydrogenibium azorense) identified in thermophilic bacteria, are characterized by a higher content of secondary-structural elements and an increased number of charged residues, which are all elements responsible for protein thermostability [30,33]. It is interesting to note that the crystal structure of TaCA from Thermovibrio ammonificans is tetrameric, with a central core stabilized by two intersubunit disulfides and a single lysine residue from each monomer, which is involved in intersubunit ionic interactions [40].

2.3. β-CA Structure

X-ray crystal structures are available for several of β-CAs, such as those from Escherichia coli, Haemophilus influenzae, Mycobacterium tuberculosis, Salmonella enterica, and Vibrio cholerae [29,42,43,44,45]. The 3-D folds of these enzymes are rather conserved, although some of them are dimers whereas others are tetramers. All bacterial β-CAs crystallized so far are active as dimers or tetramers, with two or four identical active sites. Their shape is that of a rather long channel at the bottom of which the catalytic zinc ion is found, tetrahedrally coordinated by two cysteines, one-histidine and one-aspartic amino acid residue (the so called “closed active site”). Interesting, the enzyme structure from Vibrio cholerae (VchCAβ) was determined in its closed active site form at pH values <8.3 (Figure 5) [29]. The “closed active site” is named in this way as these enzymes are not catalytically active (at pH values <8.3). Interesting, in its inactive form, the bicarbonate is bound in a pocket close to the zinc ion [29]. However, at pH values >8.3, the “closed active site” is converted to the “open active site” (with gain of catalytic activity), which is associated with a movement of the Asp residue from the catalytic Zn(II) ion, with the concomitant coordination of an incoming water molecule approaching the metal ion [29]. This water molecule (as hydroxide ion) is, in fact, responsible for the catalytic activity, as shown above for the α-CAs.

2.4. γ-CA Structure

CAM (Carbonic Anhydrase Methanosarcina) from Methanosarcina thermophila is the prototype of the γ-class carbonic anhydrase and the only enzyme from this class that has been crystallized so far (Figure 6) [46]. This enzyme adopts a left-handed parallel β-helix fold and crystallizes as a trimer with three zinc-containing active sites, each located at the interface between two monomers. The metalloenzyme is only active as a trimer (Figure 6) [46]. Interestingly, in this class of enzyme, instead of a histidine (as in α-CAs), there is a glutamic acid residue acting as a proton shuttle residue (Figure 3). In fact, the high-resolution crystal of CAM showed that Glu89 has two orientations, similar to those of His64 in α-CAs (Figure 3) [46].

3. Catalytic Activity

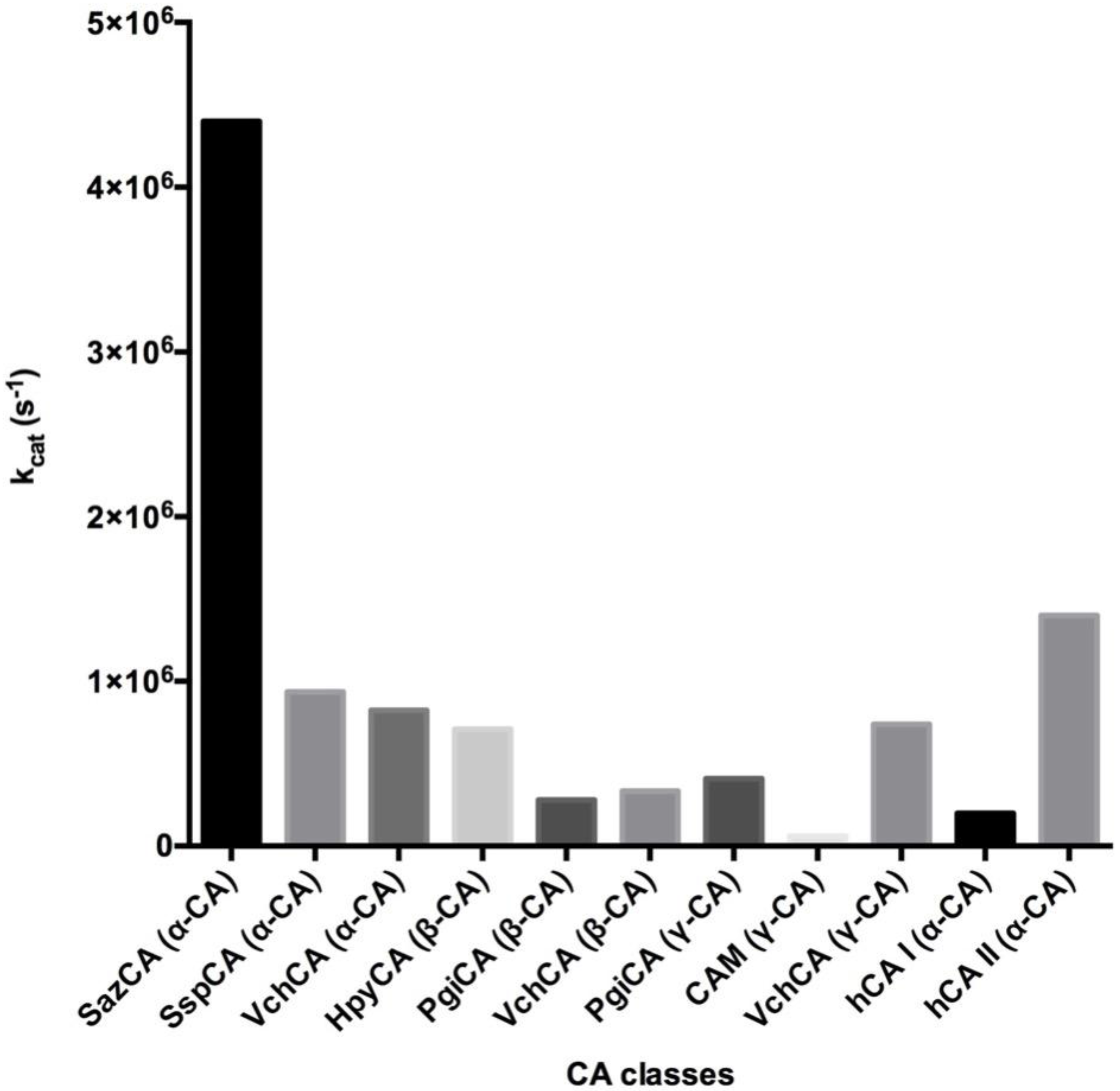

The spontaneous reversible CO2 hydration reaction in the absence of the catalyst has an effective first-order rate constant of 0.15 s−1, while the reverse reaction shows a rate constant of 50 s−1 [36,47]. In the living organisms, the CO2 hydration and the HCO3 dehydration are connected to very fast processes, such as those related to transport/secretory processes. The main metabolic role of CAs is to catalyze the carbon dioxide hydration at a very high rate, with a pseudo first order kinetic constant (kcat) ranging from 104 to 106 s−1 [36,47]. Thus, the CA superfamily significantly accelerates the hydration reaction to support the metabolic processes involving dissolved inorganic carbon. Until 2012, the most active CA was the human isoform hCA II (kcat = 1.40 × 106 s−1), belonging to the α-class and abundantly present in the human erythrocytes [36,48]. The hCA II, at the level of the peripheral tissues, converts the CO2 into carbonic acid, while when the blood reaches the lungs, dehydrates the HCO3 to CO2 for it exhalation. In 2012, a new α-CA was identified, and was shown to be a highly and catalytically effective catalyst for the CO2 hydration reaction (Figure 7) [49]. To our surprise, this CA (SazCA) was identified in the genome of the thermophilic bacterium Sulfurihydrogenibium azorense and showed a kcat = 4.40 × 106 s−1, thus being 2.33 times more active than the human isoform hCA II (Figure 7) [30,49]. In general, the bacterial CAs belonging to the three known classes (α, β, and γ) are efficient catalysts for the CO2 hydration reaction. Analyzing the three-dimensional structures of the bacterial CAs, it has been observed that the catalytic pocket is rather small for the γ-CAs, gets bigger for β-CAs, and becomes quite large in the α-CAs (Figure 4, Figure 5 and Figure 6) [5,8,25,50]. As a consequence, the catalytic constant of the γ-CAs is usually low compared to the β-CAs, which is lower when compared to many bacterial α-CAs (Figure 7). Sometimes, there are γ-CAs with a catalytic turnover number that is higher with respect to that shown by the β-class, such as the γ-CAs from Porphyromonas gingivalis and Vibrio cholerae (Figure 7).

4. CA Inhibitors

Different types of CA inhibitors (CAIs) exist [47,48] and they can be grouped into: (1) the metal ion binders (anion, sulfonamides, and their bioisosteres, dithiocarbamates, xanthates, etc.); (2) compounds which anchor to the zinc-coordinated water molecule/hydroxide ion (phenols, polyamines, thioxocoumarins, sulfocumarins); (3) compounds occluding the active site entrance, such as coumarins and their isosteres; and (4) compounds binding out of the active site [47]. This subdivision has been made considering the way that the inhibitors bind the catalytic metal ion, the metal coordinated-water molecule, and the occlusion of the active site [47]. The most investigated CAIs are anions and sulfonamides [36,47,51,52]. Sulfonamides were discovered by Domagk in 1935 [53], and were the first antimicrobial drugs. The first sulfonamide showing effective antibacterial activity was Prontosil, a sulfanilamide prodrug isosteric/isostructural with p-aminobenzoic acid (PABA) [54]. In the following years, a range of analogs constituting the so-called sulfa drug class of anti-bacterials entered into clinical use, and many of these compounds are still widely used. A library of 40 compounds, 39 sulfonamides, and one sulfamate was used to provide CAIs (Figure 8) [6,10,13,14,55,56,57,58,59,60,61,62,63,64,65,66].

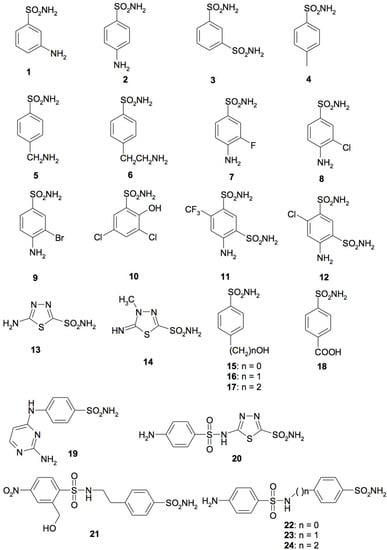

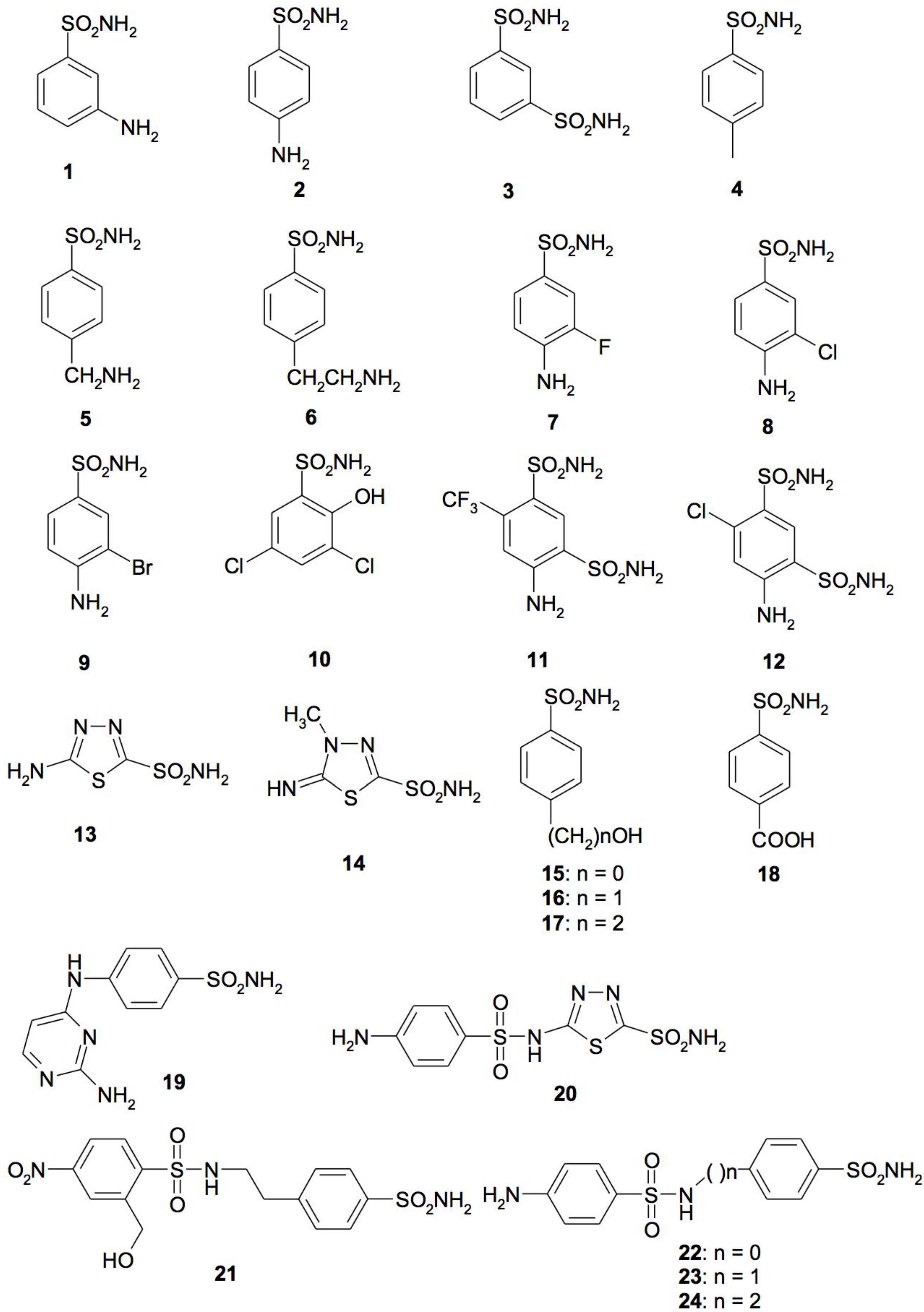

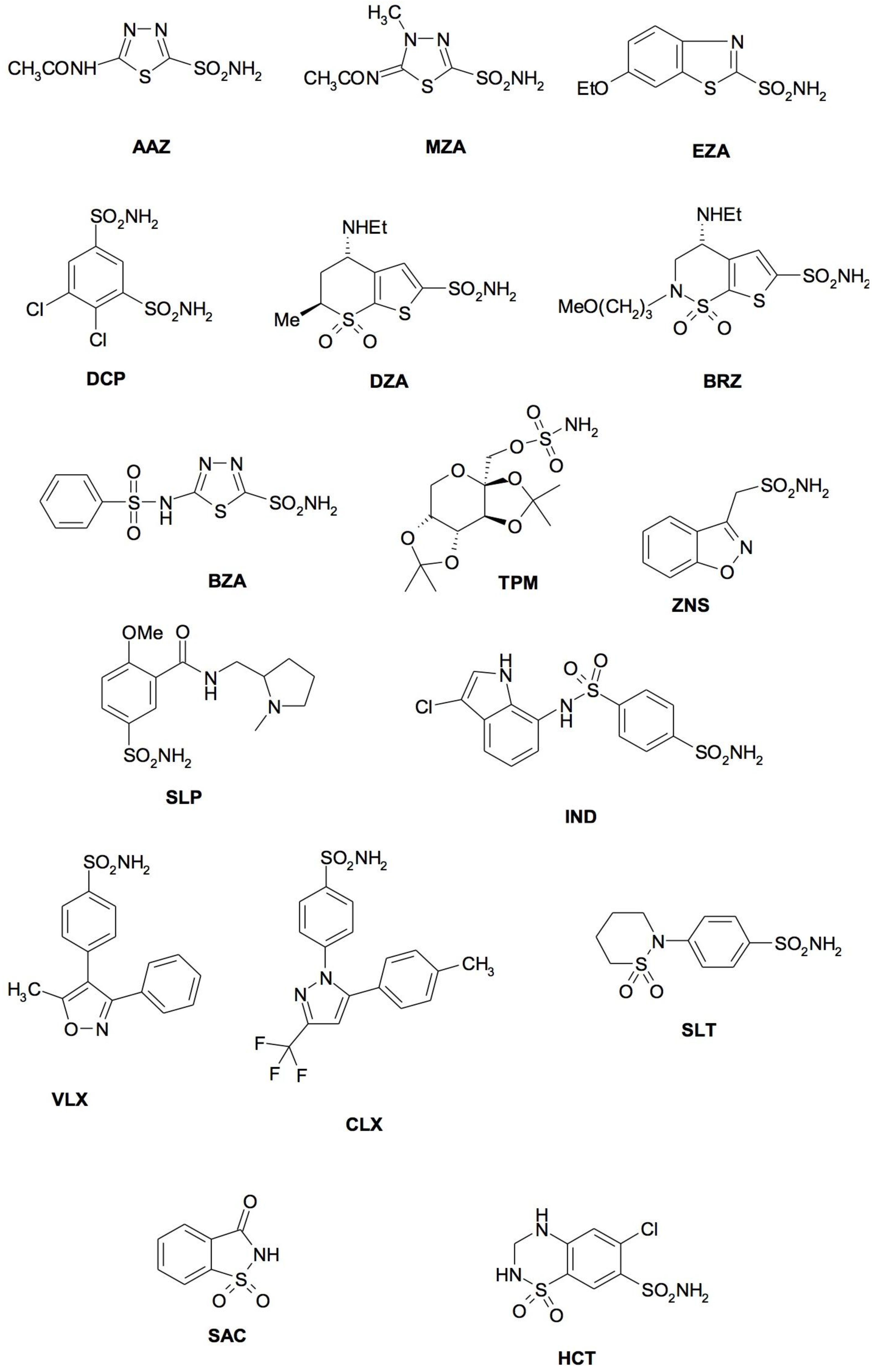

Derivatives 1–24 and AAZ-HCT are either simple aromatic/heterocyclic sulfonamides widely used as building blocks for obtaining new families of such pharmacological agents, or they are clinically used agents, among which acetazolamide (AAZ), methazolamide (MZA), ethoxzolamide (EZA), and dichlorophenamide (DCP) are the classical, systemically acting antiglaucoma CAIs. Dorzolamide (DZA) and brinzolamide (BRZ) are topically acting antiglaucoma agents; benzolamide (BZA) is an orphan drug belonging to this class of pharmacological agents. Moreover, the zonisamide (ZNS), sulthiame (SLT), and the sulfamic acid ester topiramate (TPM) are widely used antiepileptic drugs. Sulpiride (SLP) and indisulam (IND) were also shown by our group to belong to this class of pharmacological agents, together with the COX2 selective inhibitors celecoxib (CLX) and valdecoxib (VLX). Saccharin (SAC) and the diuretic hydrochlorothiazide (HCT) are also known to act as CAIs. Sulfonamides, such as the clinically used derivatives acetazolamide, methazolamide, ethoxzolamide, dichlorophenamide, dorzolamide, and brinzolamide, bind in a tetrahedral geometry to the Zn(II) ion in the deprotonated state, with the nitrogen atom of the sulfonamide moiety coordinated to Zn(II) and an extended network of hydrogen bonds, involving amino acid residues of the enzyme, also participating in the anchoring of the inhibitor molecule to the metal ion [36,47,48,67]. The aromatic/heterocyclic part of the inhibitor interacts with the hydrophilic and hydrophobic residues of the catalytic cavity [36,47,51,52].
Anions, such as inorganic metal-complexing anions or more complicated species such as carboxylates, are also known to bind to CAs [47,48]. These anions may bind either the tetrahedral geometry of the metal ion or as trigonal–bipyramidal adducts. Anion inhibitors are important both for understanding the inhibition/catalytic mechanisms of these enzymes fundamental for many physiologic processes, and for designing novel types of inhibitors which may have clinical applications for the management of a variety of disorders in which CAs are involved [47,48].
In the last ten years, numerous results concerning the inhibition profile of the three bacterial CA classes (α, β, and γ) have been reported using anions and sulfonamides. Most of these studies were carried out on bacterial CAs from pathogenic bacteria, such as Francisella tularensis, Burkholderia pseudomallei, Vibrio cholerae, Streptococcus mutans, Porphyromonas gingivalis, Legionella pneumophila, Clostridium perfringens, and Mycobacterium turberculosis, etc. [6,14,68,69,70]. The results indicated that certain CAIs were able to highly inhibit most of the CAs identified in the genome of the aforementioned bacteria (for details see associate bibliography) [4,62,71,72,73,74]. Moreover, certain CAIs, such as acetazolamide and methazolamide, were shown to effectively inhibit bacterial growth in cell cultures [75]. The inhibition profile with simple and complex anions, as well as small molecules inhibiting other CAs, showed that the most efficient inhibitors detected so far are sulfamide, sulfamate, phenylboronic acid, and phenylarsonic acid [24,62,76]. Generally, halides, cyanide, bicarbonate, nitrite, selenate, diphosphate, divanadate, tetraborate, peroxodisulfate, hexafluorophosphate, and triflate exhibit weak inhibitory activity against the bacterial CAs [22,24,25,76,77].

5. Activators

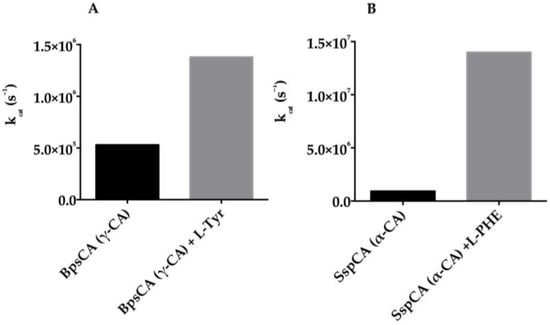

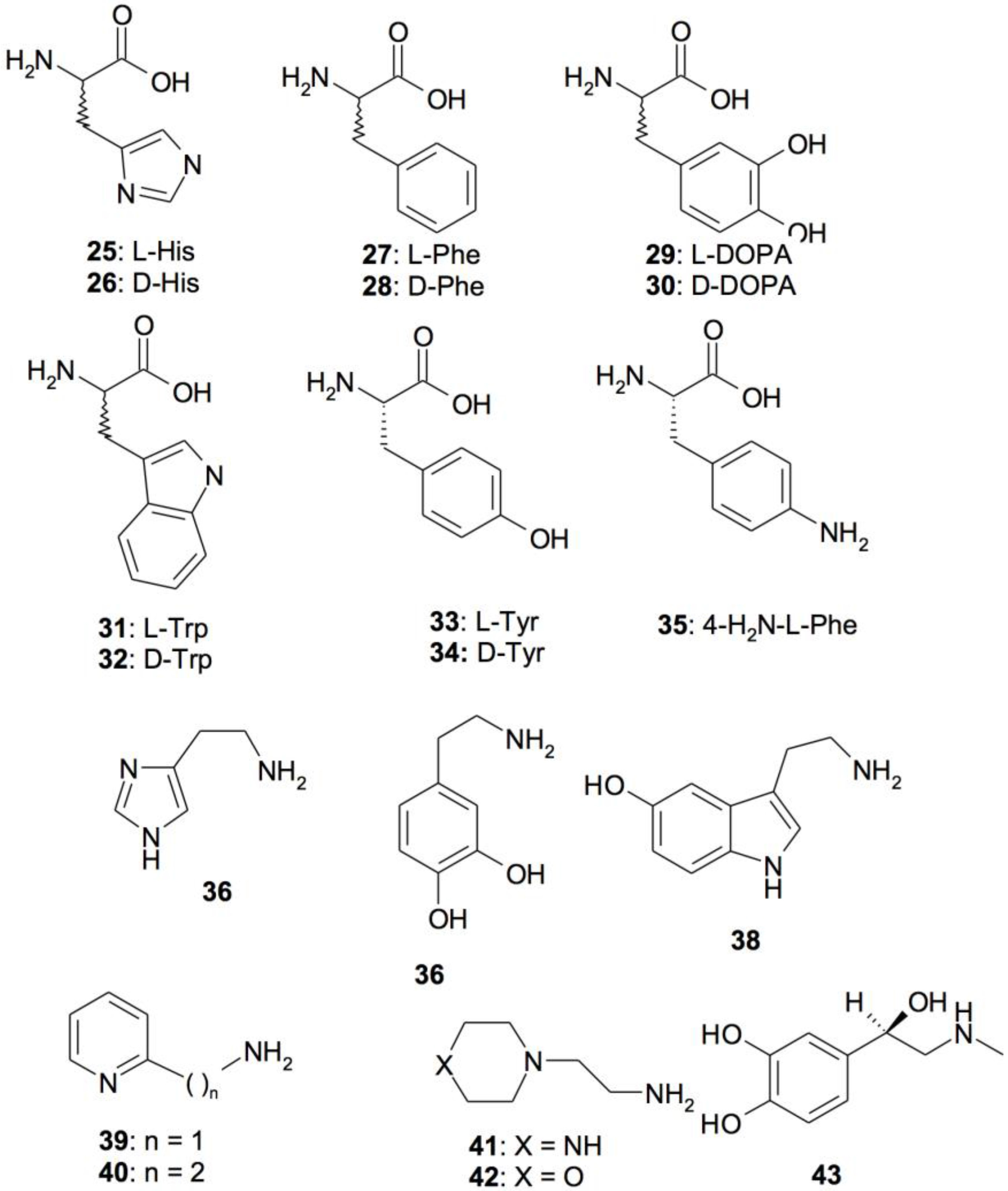

An interesting feature of the CA superfamily is that they can bind within the middle-exit part of the active site molecules known as “activators” (CAA). They are biogenic amines (histamine, serotonin, and catecholamines), amino acids, oligopeptides, or small proteins (Figure 9 shows the small molecule CAAs mostly investigated) [78,79,80,81]. By means of electronic spectroscopy, X-ray crystallography, and kinetic measurements, it has been demonstrated that CAAs do not influence the binding of CO2 to the CA active site but mediate the rate-determining step of the catalysis hurrying the transfer of protons from the active site to the environment. The final result is an overall increase of the catalytic turnover. Thus, the CA activators enhance the kcat of the enzyme, with no effect on KM [78,80,81]. Numerous studies concerning the activation of the mammalian enzymes with amines and amino acids are reported in the literature [78,80,81]. In fact, CAAs may have pharmacologic applications in therapy memory, neurodegenerative diseases (Alzheimer’s disease), or the treatment of genetic CA deficiency syndromes [78,80,81]. On the other hand, the activation of CA classes different from those belonging to mammals has been poorly investigated. Considering the limited data available at this moment on the activation of other classes of CAs and using a series of structurally related amino acids and amines of types 2543 (Figure 9), Supuran and coworkers have investigated the activation profiles of some bacterial CAs [82,83]. More precisely, the activation profile of the γ-CA (BpsCA) identified in the genome of the pathogenic bacteria Burkholderia pseudomallei has been investigated for understanding the role of the CAs in the lifecycle and virulence of these bacteria [82]. Moreover, the activation profile of the thermophilic α-CAs (SspCA, from Sulfurihydrogenibium yellowstonense and SazCA, from Sulfurihydrogenibium azorense) has also been explored [83]. From Figure 10, it is readily apparent that the activators L-Tyr for BpsCA and L-Phe for SspCA enhanced the values of the kcat by one order of magnitude compared to those without activators.

6. Phylogenetic Analysis

The complex distribution of the various CA classes in Gram-positive and -negative bacteria allowed us to find a correlation between the evolutionary history of the bacteria and the three CA classes (α, β, and γ) identified in their genome. Prokaryotes appeared on the Earth 3.5–3.8 billion years ago, while eukaryotes were dated to 1.8 billion years ago [84]. During the first 2.0–2.5 billion years, the Earth's atmosphere did not contain oxygen, and the first organisms were thus anaerobic. Eukaryotic organisms’ almost aerobes developed on the Earth when the atmosphere was characterized by a stable and relatively high oxygen content [84]. The oldest part of the evolutionary history of the planet and more than 90% of the phylogenetic diversity of life can be attributed to the microbial world. Moreover, the fact that the Archaea are distinct from other prokaryotes is demonstrated by the existence of protein sequences that are present in Archaea, but not in eubacteria [85]. Many phylogenetic methods support a close correlation of Archaea with Gram-positive bacteria, while Gram-negative bacteria form a separate clade, indicating their phylogenetic distinction. Gupta et al. believe that the Gram-positive bacteria occupy an intermediate position between Archaea and Gram-negative bacteria, and that they evolved precisely from Archaea [25,77]. Phylogenetic analysis of carbonic anhydrases identified bacteria Gram-positive and negatively showed that the ancestral CA is represented by the γ-class. In fact, the γ-CA is the only CA class, which has been identified in Archaea [86,87,88,89]. This is consistent with the theory that maintains a close relationship between the Archaea and the Gram-positive bacteria, considering that Gram-negative arised from the latter. Furthermore, phylogenetic analysis of bacterial CAs showed that the α-CAs, exclusively present in Gram-negative bacteria, were the most recent CAs. These results have been corroborated by the enzymatic promiscuity theory, which is the ability of an enzyme to catalyze a side reaction in addition to the main reaction [90,91]. In fact, as reported in the literature, the α-CAs can catalyze a secondary reaction, such as the hydrolysis of p-NpA or a thioester, in addition to the primary reaction consisting of CO2 hydration.

7. Localization and Physiological Role

A common feature of all bacterial α-CAs known to date is the presence of an N-terminal signal peptide, which suggests a periplasmic or extracellular location (Figure 1). From these findings, we have speculated that in Gram-negative bacteria, the α-CA are able to convert the CO2 to bicarbonate diffused in the periplasmic space ensuring the survival and/or satisfying the metabolic needs of the microorganism [25,77]. In fact, several essential metabolic pathways require either CO2 or bicarbonate as a substrate, and probably, the spontaneous diffusion of CO2 to the outer membrane and the conversion to bicarbonate inside the cell are not sufficient for the metabolic needs of the microorganism. On the contrary, β- or γ-classes have a cytoplasmic localization and are responsible for CO2 supply for carboxylase enzymes, pH homeostasis, and other intracellular functions [25,77]. Not all the Gram-negative bacteria, however, have α-CAs. Probably, the α-CAs are not required when the Gram-negative bacteria colonize habitats defined as not metabolic limiting or adverse to their survival [77]. Recently, we analyzed the amino acid sequence of the β-CAs encoded by the genome of Gram-negative bacteria with SignalP version 4.1, which is a program designed to discriminate between signal peptides and transmembrane regions of proteins. The program is available as a web tool at http://www.cbs.dtu.dk/services/SignalP/ [92]. We noted that the primary structure of some β-CAs identified in the genome of some pathogenic Gram-negative bacteria, such as such as HpyCA (from Helicobacter pylori), VchCA (from Vibrio cholerae), NgonCA (from Neisseria gonorrhoeae), and SsalCA (from Streptococcus salivarius), present a pre-sequence of 18 or more amino acid residues at the N-terminal part, which resulted in a secretory signal peptide [25,77]. Intriguingly, during the writing of this review, we saw that the CAM enzyme also contained a short putative signal peptide at its N-terminus (Figure 3). Since the signal peptide is essential for the translocation across the cytoplasmic membrane in prokaryotes, it has been suggested that the β- and/or γ-CAs found in Gram-negative bacteria and characterized by the presence of a signal peptide might exhibit a periplasmic localization and a role similar to that described previously for the α-CAs [25,77].
In the past ten years, the understanding of the function of the bacterial CAs has increased significantly [25,77]. We suggested that the activity of CAs is connected with the survival of the microbes because the metabolic reaction catalyzed by CA is essential for supporting numerous physiological functions involving dissolved inorganic carbon. For example, in non-pathogenic bacteria such as Ralstonia eutropha (Gram-negative bacterium found in soil and water) and Escherichia coli (a facultative Gram-negative bacterium), it has been demonstrated in vivo that the bacterial growth at an ambient CO2 concentration is dependent on CA activity [93,94]. In fact, the CO2 and bicarbonate are both produced and consumed by bacterial metabolism. Since CO2 is rapidly lost from the bacterial cells by passive diffusion, their rate is maintained individually in balance by the CA activity. In fact, the reversible spontaneous CO2 hydratase reaction is insufficient to restore the amount of dissolved inorganic carbon. More interesting is the in vivo evidence concerning the involvement of CAs for the growth of pathogenic bacteria. For example, CAs encoded by the genome of Helicobacter pylori, a Gram-negative, microaerophilic bacterium colonizing the human stomach, are essential for the acid acclimatization of the pathogen within the stomach and thus, for bacterial survival in the host [15,16,95,96]. In the case of the pathogenic bacterium Vibrio cholera (Gram-negative bacterium responsible of cholera), its CAs are involved in the production of sodium bicarbonate, which induces cholera toxin expression [15,24,61,95,96,97,98,99,100]. Probably, V. cholera uses the CAs as a system to colonize the host [6,12,14,101]. Again, the causative agent of brucellosis Brucella suis, a non-motile Gram-negative coccobacillus, and the Mycobacterium tuberculosis, an obligate pathogenic bacterium responsible for tuberculosis, are needed for the growth of functional CAs [66,102,103,104].

8. Engineered Bacteria with a Thermostable CA for CO2 Capture

Recently, the heterologous expression of the recombinant thermostable SspCA by the high-density fermentation of Escherichia coli cultures, in order to produce a usable biocatalyst for CO2 capture, has been described [20]. The enzyme was covalently immobilized onto the surface of magnetic Fe3O4 nanoparticles (MNP) by using the carbodiimide activation reaction [20]. This approach offered two main advantages: 1) the magnetic nanoparticles-immobilized SspCA via carbodiimide increased the stability and the long-term storage of the biocatalyst; and 2) the immobilized biocatalyst can be recovered and reused from the reaction mixture by simply applying a magnet or an electromagnet field because of the strong ferromagnetic properties of Fe3O4 [20]. The main issues of this method are the costs connected to biocatalyst purification and the support used for enzyme immobilization. Often, all these aspects may discourage the utilization of enzymes in industrial applications. In 2017, a system able to overexpress and immobilize the protein directly on the outer membrane of Escherichia coli for lowering the costs of the purification of the biocatalyst and immobilization has been proposed [105]. To accomplish this, the Escherichia coli cells have been engineered using the well-described INP (Ice Nucleation Protein) technique [105]. Briefly, an expression vector composed of a chimeric gene resulting from the fusion of a signal peptide, the Pseudomonas syringae INP domain (INPN), and the SspCA gene encoding for the thermostable α-CA, SspCA, has been prepared. During protein overexpression, the signal peptide makes possible the translocation of the neo-synthetized protein through the cytoplasmic membrane, while the INPN domain is necessary for guiding and anchoring the protein to the bacterial outer membrane. The results demonstrated that the anchored SspCA was efficiently overexpressed and active on the bacterial surface of E. coli [105]. Moreover, the anchored SspCA was stable and active for 15 h at 70 °C and for days at 25 °C [105]. This approach with respect to the covalent immobilization of the enzyme onto the surface of magnetic Fe3O4 nanoparticles (MNP) clearly has important advantages. It is a one-step procedure for overexpressing and immobilizing the enzyme simultaneously on the outer membrane, and it drastically reduces the costs needed for enzyme purification, enzyme immobilization, and the support necessary for biocatalyst immobilization [105]. In addition, the biocatalyst could be recovered by a simple centrifugation step from the reaction mixture. The strategy of the INPN-SspCA obtained by engineering E. coli could be considered as a good method for approaching the biomimetic capture of CO2 and other biotechnological applications in which a highly effective, thermostable catalyst is needed.

9. Conclusions

Bacterial CAs were rather poorly investigated until recently. However, in the last years the cloning, purification, and characterization of many representatives, belonging to all three genetic families present in Bacteria, has led to crucial advances in the field. The role of CAs in many pathogenic as well as non-pathogenic bacteria is thus beginning to be better understood. Apart from pH regulation and adaptation to various niches in which bacteria live (e.g., the highly acidic environment in the stomach, in the case of Helicobacter pylori, the alkaline one in the gut for Vibrio cholerae, etc.), CAs probably participate in biosynthetic processes in which bicarbonate or CO2 are substrates, as in the case of other organisms for which these roles are demonstrated. The inhibition and activation of bacterial CAs may be exploited either from pharmacological or environmental viewpoints. On the one hand, the inhibitors of such enzymes may lead to antibiotics with a new mechanism of action, devoid of the drug resistance problems encountered with the various classes of clinically used agents. Moreover, catalytically highly efficient, thermally stable bacterial CAs may have interesting applications for biomimetic CO2 capture in the context of global warming due to the accumulation of this gas in the atmosphere as a consequence of anthropic activities. Furthermore, Ca activators of such enzymes may represent an even more attractive option for mitigating global warming.

Acknowledgments

This work was supported in part by an FP7 European Union Project (Gums & Joints, Grant agreement Number HEALTH-F2-2010-261460).

Author Contributions

Clemente Capasso and Claudiu T. Supuran wrote, edited, and supervised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Turk, V.E.; Simic, I.; Likic, R.; Makar-Ausperger, K.; Radacic-Aumiler, M.; Cegec, I.; Juricic Nahal, D.; Kraljickovic, I. New drugs for bad bugs: What’s new and what’s in the pipeline? Clin. Ther. 2016, 38, e9. [Google Scholar] [CrossRef] [PubMed]
  2. Decker, B.; Masur, H. Bad bugs, no drugs: Are we part of the problem, or leaders in developing solutions? Crit. Care Med. 2015, 43, 1153–1155. [Google Scholar] [CrossRef] [PubMed]
  3. Payne, D.J.; Gwynn, M.N.; Holmes, D.J.; Pompliano, D.L. Drugs for bad bugs: Confronting the challenges of antibacterial discovery. Nat. Rev. Drug. Dis. 2007, 6, 29–40. [Google Scholar] [CrossRef] [PubMed]
  4. Annunziato, G.; Angeli, A.; D’Alba, F.; Bruno, A.; Pieroni, M.; Vullo, D.; De Luca, V.; Capasso, C.; Supuran, C.T.; Costantino, G. Discovery of new potential anti-infective compounds based on carbonic anhydrase inhibitors by rational target-focused repurposing approaches. Chem. Med. Chem. 2016, 11, 1904–1914. [Google Scholar] [CrossRef] [PubMed]
  5. Ozensoy Guler, O.; Capasso, C.; Supuran, C.T. A magnificent enzyme superfamily: Carbonic anhydrases, their purification and characterization. J. Enzyme Inhibi. Med. Chem. 2016, 31, 689–694. [Google Scholar] [CrossRef] [PubMed]
  6. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Ferraroni, M.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Sulfonamide inhibition studies of the beta-carbonic anhydrase from the Pathogenic bacterium Vibrio cholerae. Bioorg. Med. Chem. 2016, 24, 1115–1120. [Google Scholar] [CrossRef] [PubMed]
  7. Del Prete, S.; De Luca, V.; De Simone, G.; Supuran, C.T.; Capasso, C. Cloning, expression and purification of the complete domain of the eta-carbonic anhydrase from Plasmodium falciparum. J. Enzyme Inhib. Med. Chem. 2016, 31, 54–59. [Google Scholar] [CrossRef] [PubMed]
  8. Capasso, C.; Supuran, C.T. An overview of the carbonic anhydrases from two pathogens of the oral cavity: Streptococcus mutans and Porphyromonas gingivalis. Curr. Top. Med. Chem. 2016, 16, 2359–2368. [Google Scholar] [CrossRef] [PubMed]
  9. Supuran, C.T. Carbonic anhydrase inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 3467–3474. [Google Scholar] [CrossRef] [PubMed]
  10. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Cloning, expression, purification and sulfonamide inhibition profile of the complete domain of the eta-carbonic anhydrase from Plasmodium falciparum. Bioorg. Med. Chem. Lett. 2016, 26, 4184–4190. [Google Scholar] [CrossRef] [PubMed]
  11. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Di Fonzo, P.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Anion inhibition profiles of the complete domain of the η-carbonic anhydrase from Plasmodium falciparum. Bioorg. Med. Chem. 2016, 24, 4410–4414. [Google Scholar] [CrossRef] [PubMed]
  12. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; di Fonzo, P.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Anion inhibition profiles of α-, β- and γ-carbonic anhydrases from the pathogenic bacterium Vibrio cholerae. Bioorg. Med. Chem. 2016, 24, 3413–3417. [Google Scholar] [CrossRef] [PubMed]
  13. Abdel Gawad, N.M.; Amin, N.H.; Elsaadi, M.T.; Mohamed, F.M.; Angeli, A.; De Luca, V.; Capasso, C.; Supuran, C.T. Synthesis of 4-(thiazol-2-ylamino)-benzenesulfonamides with carbonic anhydrase I, II and IX inhibitory activity and cytotoxic effects against breast cancer cell lines. Bioorg. Med. Chem. 2016, 24, 3043–3051. [Google Scholar] [CrossRef] [PubMed]
  14. Del Prete, S.; Vullo, D.; De Luca, V.; Carginale, V.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Comparison of the sulfonamide inhibition profiles of the α-, β- and γ -carbonic anhydrases from the pathogenic bacterium Vibrio cholerae. Bioorg. Med Chem. Lett. 2016, 26, 1941–1946. [Google Scholar] [CrossRef] [PubMed]
  15. Nishimori, I.; Onishi, S.; Takeuchi, H.; Supuran, C.T. The α and β classes carbonic anhydrases from Helicobacter pylori as novel drug targets. Curr. Pharm. Des. 2008, 14, 622–630. [Google Scholar] [PubMed]
  16. Morishita, S.; Nishimori, I.; Minakuchi, T.; Onishi, S.; Takeuchi, H.; Sugiura, T.; Vullo, D.; Scozzafava, A.; Supuran, C.T. Cloning, polymorphism, and inhibition of β-carbonic anhydrase of Helicobacter pylori. J. Gastroenterol. 2008, 43, 849–857. [Google Scholar] [CrossRef] [PubMed]
  17. Cheah, W.Y.; Ling, T.C.; Juan, J.C.; Lee, D.J.; Chang, J.S.; Show, P.L. Biorefineries of carbon dioxide: From carbon capture and storage (CCS) to bioenergies production. Bioresour. Technol. 2016, 215, 346–356. [Google Scholar] [CrossRef] [PubMed]
  18. Migliardini, F.; De Luca, V.; Carginale, V.; Rossi, M.; Corbo, P.; Supuran, C.T.; Capasso, C. Biomimetic CO2 capture using a highly thermostable bacterial α-carbonic anhydrase immobilized on a polyurethane foam. J. Enzyme Inhib. Med. Chem. 2014, 29, 146–150. [Google Scholar] [CrossRef] [PubMed]
  19. Perfetto, R.; Del Prete, S.; Vullo, D.; Sansone, G.; Barone, C.; Rossi, M.; Supuran, C.T.; Capasso, C. Biochemical characterization of the native α-carbonic anhydrase purified from the mantle of the Mediterranean mussel, Mytilus galloprovincialis. J. Enzyme Inhib. Med. Chem. 2017, 32, 632–639. [Google Scholar] [CrossRef] [PubMed]
  20. Perfetto, R.; Del Prete, S.; Vullo, D.; Sansone, G.; Barone, C.M.A.; Rossi, M.; Supuran, C.T.; Capasso, C. Production and covalent immobilisation of the recombinant bacterial carbonic anhydrase (SspCA) onto magnetic nanoparticles. J. Enzyme Inhib. Med. Chem. 2017, 32, 759–766. [Google Scholar] [CrossRef] [PubMed]
  21. Vullo, D.; De Luca, V.; Scozzafava, A.; Carginale, V.; Rossi, M.; Supuran, C.T.; Capasso, C. The first activation study of a bacterial carbonic anhydrase (CA). The thermostable α-CA from Sulfurihydrogenibium yellowstonense YO3AOP1 is highly activated by amino acids and amines. Bioorg. Med. Chem. Lett. 2012, 22, 6324–6327. [Google Scholar] [CrossRef] [PubMed]
  22. Capasso, C.; Supuran, C.T. Bacterial, fungal and protozoan carbonic anhydrases as drug targets. Expert Opin. Ther. Targets 2015, 19, 1689–1704. [Google Scholar] [CrossRef] [PubMed]
  23. Supuran, C.T.; Capasso, C. The η-class carbonic anhydrases as drug targets for antimalarial agents. Exp. Opin. Ther. Targets 2015, 19, 551–563. [Google Scholar] [CrossRef] [PubMed]
  24. Capasso, C.; Supuran, C.T. An Overview of the selectivity and efficiency of the bacterial carbonic anhydrase inhibitors. Curr. Med. Chem. 2015, 22, 2130–2139. [Google Scholar] [CrossRef] [PubMed]
  25. Capasso, C.; Supuran, C.T. An overview of the α-, β- and γ-carbonic anhydrases from Bacteria: Can bacterial carbonic anhydrases shed new light on evolution of bacteria? J. Enzyme Inhib. Med. Chem. 2015, 30, 325–332. [Google Scholar] [CrossRef] [PubMed]
  26. Capasso, C.; Supuran, C.T. Sulfa and trimethoprim-like drugs-antimetabolites acting as carbonic anhydrase, dihydropteroate synthase and dihydrofolate reductase inhibitors. J. Enzyme Inhib. Med. Chem. 2014, 29, 379–387. [Google Scholar] [CrossRef] [PubMed]
  27. Capasso, C.; Supuran, C.T. Anti-infective carbonic anhydrase inhibitors: A patent and literature review. Exp. Opin. Ther. Pat. 2013, 23, 693–704. [Google Scholar] [CrossRef] [PubMed]
  28. Pinard, M.A.; Lotlikar, S.R.; Boone, C.D.; Vullo, D.; Supuran, C.T.; Patrauchan, M.A.; McKenna, R. Structure and inhibition studies of a type II beta-carbonic anhydrase psCA3 from Pseudomonas aeruginosa. Bioorg. Med. Chem. 2015, 23, 4831–4838. [Google Scholar] [CrossRef] [PubMed]
  29. Ferraroni, M.; Del Prete, S.; Vullo, D.; Capasso, C.; Supuran, C.T. Crystal structure and kinetic studies of a tetrameric type II beta-carbonic anhydrase from the pathogenic bacterium Vibrio cholerae. Acta Crystallogr. Sect. D Biolog. Crystallogr. 2015, 71, 2449–2456. [Google Scholar] [CrossRef] [PubMed]
  30. De Simone, G.; Monti, S.M.; Alterio, V.; Buonanno, M.; De Luca, V.; Rossi, M.; Carginale, V.; Supuran, C.T.; Capasso, C.; Di Fiore, A. Crystal structure of the most catalytically effective carbonic anhydrase enzyme known, SazCA from the thermophilic bacterium Sulfurihydrogenibium azorense. Bioorg. Med. Chem. Lett. 2015, 25, 2002–2006. [Google Scholar] [CrossRef] [PubMed]
  31. Zolnowska, B.; Slawinski, J.; Pogorzelska, A.; Chojnacki, J.; Vullo, D.; Supuran, C.T. Carbonic anhydrase inhibitors. synthesis, and molecular structure of novel series N-substituted N’-(2-arylmethylthio-4-chloro-5-methylbenzenesulfonyl)guanidines and their inhibition of human cytosolic isozymes I and II and the transmembrane tumor-associated isozymes IX and XII. Euro. J. Med. Chem. 2014, 71, 135–147. [Google Scholar]
  32. De Luca, L.; Ferro, S.; Damiano, F.M.; Supuran, C.T.; Vullo, D.; Chimirri, A.; Gitto, R. Structure-based screening for the discovery of new carbonic anhydrase VII inhibitors. Euro. J. Med. Chem. 2014, 71, 105–111. [Google Scholar] [CrossRef] [PubMed]
  33. Di Fiore, A.; Capasso, C.; De Luca, V.; Monti, S.M.; Carginale, V.; Supuran, C.T.; Scozzafava, A.; Pedone, C.; Rossi, M.; De Simone, G. X-ray structure of the first ‘extremo-alpha-carbonic anhydrase’, a dimeric enzyme from the thermophilic bacterium Sulfurihydrogenibium yellowstonense YO3AOP1. Acta Crystallogr. Sect. D Biol. Crystallogr. 2013, 69, 1150–1159. [Google Scholar] [CrossRef] [PubMed]
  34. Supuran, C.T. Structure-based drug discovery of carbonic anhydrase inhibitors. J. Enzyme Inhib. Med. Chem. 2012, 27, 759–772. [Google Scholar] [CrossRef] [PubMed]
  35. Supuran, C.T. Carbonic anhydrases—An overview. Curr. Pharm. Des. 2008, 14, 603–614. [Google Scholar] [CrossRef]
  36. Supuran, C.T. Structure and function of carbonic anhydrases. Biochem. J. 2016, 473, 2023–2032. [Google Scholar] [CrossRef] [PubMed]
  37. Buzas, G.M.; Supuran, C.T. The history and rationale of using carbonic anhydrase inhibitors in the treatment of peptic ulcers. In memoriam Ioan Puscas (1932–2015). J. Enzyme Inhib. Med. Chem. 2016, 31, 527–533. [Google Scholar] [CrossRef] [PubMed]
  38. Carta, F.; Supuran, C.T.; Scozzafava, A. Sulfonamides and their isosters as carbonic anhydrase inhibitors. Future Med. Chem. 2014, 6, 1149–1165. [Google Scholar] [CrossRef] [PubMed]
  39. Supuran, C.T. Carbonic anhydrases: Novel therapeutic applications for inhibitors and activators. Nat. Rev. Drug Dis. 2008, 7, 168–181. [Google Scholar] [CrossRef] [PubMed]
  40. James, P.; Isupov, M.N.; Sayer, C.; Saneei, V.; Berg, S.; Lioliou, M.; Kotlar, H.K.; Littlechild, J.A. The structure of a tetrameric alpha-carbonic anhydrase from Thermovibrio ammonificans reveals a core formed around intermolecular disulfides that contribute to its thermostability. Acta Crystallogr. Sect. D Biol. Crystallogr. 2014, 70, 2607–2618. [Google Scholar] [CrossRef] [PubMed]
  41. Huang, S.; Xue, Y.; Sauer-Eriksson, E.; Chirica, L.; Lindskog, S.; Jonsson, B.H. Crystal structure of carbonic anhydrase from Neisseria gonorrhoeae and its complex with the inhibitor acetazolamide. J. Mol. Biol. 1998, 283, 301–310. [Google Scholar] [CrossRef] [PubMed]
  42. Cronk, J.D.; O’Neill, J.W.; Cronk, M.R.; Endrizzi, J.A.; Zhang, K.Y. Cloning, crystallization and preliminary characterization of a β-carbonic anhydrase from Escherichia coli. Acta Crystallogr. Sec. D Biol. Crystallogr. 2000, 56, 1176–1179. [Google Scholar] [CrossRef]
  43. Rowlett, R.S.; Tu, C.; Lee, J.; Herman, A.G.; Chapnick, D.A.; Shah, S.H.; Gareiss, P.C. Allosteric site variants of Haemophilus influenzae β-carbonic anhydrase. Biochemistry 2009, 48, 6146–6156. [Google Scholar] [CrossRef] [PubMed]
  44. Covarrubias, A.S.; Bergfors, T.; Jones, T.A.; Hogbom, M. Structural mechanics of the pH-dependent activity of β-carbonic anhydrase from Mycobacterium tuberculosis. J. Biol. Chem. 2006, 281, 4993–4999. [Google Scholar] [CrossRef] [PubMed]
  45. Nishimori, I.; Minakuchi, T.; Vullo, D.; Scozzafava, A.; Supuran, C.T. Inhibition studies of the β-carbonic anhydrases from the bacterial pathogen Salmonella enterica serovar Typhimurium with sulfonamides and sulfamates. Bioorg. Med. Chem. 2011, 19, 5023–5030. [Google Scholar] [CrossRef] [PubMed]
  46. Kisker, C.; Schindelin, H.; Alber, B.E.; Ferry, J.G.; Rees, D.C. A left-hand β-helix revealed by the crystal structure of a carbonic anhydrase from the archaeon Methanosarcina thermophila. EMBO J. 1996, 15, 2323–2330. [Google Scholar] [PubMed]
  47. Supuran, C.T. Advances in structure-based drug discovery of carbonic anhydrase inhibitors. Exp. Opin. Drug Dis. 2017, 12, 61–88. [Google Scholar] [CrossRef] [PubMed]
  48. Supuran, C.T. How many carbonic anhydrase inhibition mechanisms exist? J. Enzyme Inhib. Med. Chem. 2016, 31, 345–360. [Google Scholar] [CrossRef] [PubMed]
  49. Vullo, D.; De Luca, V.; Scozzafava, A.; Carginale, V.; Rossi, M.; Supuran, C.T.; Capasso, C. Anion inhibition studies of the fastest carbonic anhydrase (CA) known, the extremo-CA from the bacterium Sulfurihydrogenibium azorense. Bioorg. Med. Chem. Lett. 2012, 22, 7142–7145. [Google Scholar] [CrossRef] [PubMed]
  50. Capasso, C.; Supuran, C.T. Inhibition of bacterial carbonic anhydrases as a novel approach to escape drug resistance. Curr. Top. Med. Chem. 2017, 17, 1237–1248. [Google Scholar] [CrossRef] [PubMed]
  51. Supuran, C.T. Carbonic anhydrase inhibition and the management of neuropathic pain. Exp. Rev. Neurother 2016, 16, 961–968. [Google Scholar] [CrossRef] [PubMed]
  52. Supuran, C.T. Drug interaction considerations in the therapeutic use of carbonic anhydrase inhibitors. Exp. Opin. Drug Metab. Toxicol. 2016, 12, 423–431. [Google Scholar] [CrossRef] [PubMed]
  53. Otten, H. Domagk and the development of the sulphonamides. J. Antimicrob. Chem. 1986, 17, 689–696. [Google Scholar] [CrossRef]
  54. Achari, A.; Somers, D.O.; Champness, J.N.; Bryant, P.K.; Rosemond, J.; Stammers, D.K. Crystal structure of the anti-bacterial sulfonamide drug target dihydropteroate synthase. Nat. Struct. Biol. 1997, 4, 490–497. [Google Scholar] [CrossRef] [PubMed]
  55. Vullo, D.; Del Prete, S.; Fisher, G.M.; Andrews, K.T.; Poulsen, S.A.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition studies of the η-class carbonic anhydrase from the malaria pathogen Plasmodium falciparum. Bioorg. Med. Chem. 2015, 23, 526–531. [Google Scholar] [CrossRef] [PubMed]
  56. Vullo, D.; De Luca, V.; Del Prete, S.; Carginale, V.; Scozzafava, A.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition studies of the γ-carbonic anhydrase from the Antarctic bacterium Pseudoalteromonas haloplanktis. Bioorg. Med. Chem. Lett. 2015, 25, 3550–3555. [Google Scholar] [CrossRef] [PubMed]
  57. Vullo, D.; De Luca, V.; Del Prete, S.; Carginale, V.; Scozzafava, A.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition studies of the γ-carbonic anhydrase from the Antarctic cyanobacterium Nostoc commune. Bioorg. Med. Chem. 2015, 23, 1728–1734. [Google Scholar] [CrossRef] [PubMed]
  58. Dedeoglu, N.; DeLuca, V.; Isik, S.; Yildirim, H.; Kockar, F.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition study of the β-class carbonic anhydrase from the caries producing pathogen Streptococcus mutans. Bioorg. Med. Chem. Lett. 2015, 25, 2291–2297. [Google Scholar] [CrossRef] [PubMed]
  59. Alafeefy, A.M.; Ceruso, M.; Al-Tamimi, A.M.; Del Prete, S.; Supuran, C.T.; Capasso, C. Inhibition studies of quinazoline-sulfonamide derivatives against the γ-CA (PgiCA) from the pathogenic bacterium, Porphyromonas gingivalis. J. Enzyme Inhib. Med. Chem. 2015, 30, 592–596. [Google Scholar] [CrossRef] [PubMed]
  60. Alafeefy, A.M.; Abdel-Aziz, H.A.; Vullo, D.; Al-Tamimi, A.M.; Awaad, A.S.; Mohamed, M.A.; Capasso, C.; Supuran, C.T. Inhibition of human carbonic anhydrase isozymes I, II, IX and XII with a new series of sulfonamides incorporating aroylhydrazone-, [1,2,4]triazolo[3,4-b][1,3,4]thiadiazinyl- or 2-(cyanophenylmethylene)-1,3,4-thiadiazol-3(2H)-yl moieties. J. Enzyme Inhib. Med. Chem. 2015, 30, 52–56. [Google Scholar] [CrossRef] [PubMed]
  61. Diaz, J.R.; Fernandez Baldo, M.; Echeverria, G.; Baldoni, H.; Vullo, D.; Soria, D.B.; Supuran, C.T.; Cami, G.E. A substituted sulfonamide and its Co (II), Cu (II), and Zn (II) complexes as potential antifungal agents. J. Enzyme Inhib. Med. Chem. 2016, 31, 51–62. [Google Scholar] [CrossRef] [PubMed]
  62. Supuran, C.T. Legionella pneumophila carbonic anhydrases: Underexplored antibacterial drug targets. Pathogens 2016, 5. [Google Scholar] [CrossRef] [PubMed]
  63. Nishimori, I.; Vullo, D.; Minakuchi, T.; Scozzafava, A.; Capasso, C.; Supuran, C.T. Sulfonamide inhibition studies of two β-carbonic anhydrases from the bacterial pathogen Legionella pneumophila. Bioorg. Med. Chem. 2014, 22, 2939–2946. [Google Scholar] [CrossRef] [PubMed]
  64. Vullo, D.; Sai Kumar, R.S.; Scozzafava, A.; Capasso, C.; Ferry, J.G.; Supuran, C.T. Anion inhibition studies of a β-carbonic anhydrase from Clostridium perfringens. Bioorg. Med. Chem. Lett. 2013, 23, 6706–6710. [Google Scholar] [CrossRef] [PubMed]
  65. Nishimori, I.; Minakuchi, T.; Maresca, A.; Carta, F.; Scozzafava, A.; Supuran, C.T. The β-carbonic anhydrases from Mycobacterium tuberculosis as drug targets. Curr. Pharm. Des. 2010, 16, 3300–3309. [Google Scholar] [CrossRef]
  66. Carta, F.; Maresca, A.; Covarrubias, A.S.; Mowbray, S.L.; Jones, T.A.; Supuran, C.T. Carbonic anhydrase inhibitors. Characterization and inhibition studies of the most active β-carbonic anhydrase from Mycobacterium tuberculosis, Rv3588c. Bioorg. Med. Chem. Lett. 2009, 19, 6649–6654. [Google Scholar] [CrossRef] [PubMed]
  67. Supuran, C.T. Acetazolamide for the treatment of idiopathic intracranial hypertension. Exp. Rev. Neurother 2015, 15, 851–856. [Google Scholar] [CrossRef] [PubMed]
  68. Del Prete, S.; Vullo, D.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. Sulfonamide inhibition profiles of the β-carbonic anhydrase from the pathogenic bacterium Francisella tularensis responsible of the febrile illness tularemia. Bioorg. Med. Chem. 2017, 25, 3555–3561. [Google Scholar] [CrossRef] [PubMed]
  69. Vullo, D.; Del Prete, S.; Di Fonzo, P.; Carginale, V.; Donald, W.A.; Supuran, C.T.; Capasso, C. Comparison of the sulfonamide inhibition profiles of the β- and γ-carbonic anhydrases from the pathogenic bacterium Burkholderia pseudomallei. Molecules 2017, 22. [Google Scholar] [CrossRef] [PubMed]
  70. Dedeoglu, N.; DeLuca, V.; Isik, S.; Yildirim, H.; Kockar, F.; Capasso, C.; Supuran, C.T. Cloning, characterization and anion inhibition study of a β-class carbonic anhydrase from the caries producing pathogen Streptococcus mutans. Bioorg. Med. Chem. 2015, 23, 2995–3001. [Google Scholar] [CrossRef] [PubMed]
  71. Cau, Y.; Mori, M.; Supuran, C.T.; Botta, M. Mycobacterial carbonic anhydrase inhibition with phenolic acids and esters: Kinetic and computational investigations. Org. Biomol. Chem. 2016, 14, 8322–8330. [Google Scholar] [CrossRef] [PubMed]
  72. Modak, J.K.; Liu, Y.C.; Supuran, C.T.; Roujeinikova, A. Structure-activity relationship for sulfonamide inhibition of Helicobacter pylori α-carbonic anhydrase. J. Med. Chem. 2016, 59, 11098–11109. [Google Scholar] [CrossRef] [PubMed]
  73. Supuran, C.T. Bortezomib inhibits bacterial and fungal β-carbonic anhydrases. Bioorg. Med. Chem. 2016, 24, 4406–4409. [Google Scholar] [CrossRef] [PubMed]
  74. Vullo, D.; Kumar, R.S.S.; Scozzafava, A.; Ferry, J.G.; Supuran, C.T. Sulphonamide inhibition studies of the β-carbonic anhydrase from the bacterial pathogen Clostridium perfringens. J. Enzyme Inhib. Med. Chem. 2018, 33, 31–36. [Google Scholar] [CrossRef] [PubMed]
  75. Shahidzadeh, R.; Opekun, A.; Shiotani, A.; Graham, D.Y. Effect of the carbonic anhydrase inhibitor, acetazolamide, on Helicobacter pylori infection in vivo: A pilot study. Helicobacter 2005, 10, 136–138. [Google Scholar] [CrossRef] [PubMed]
  76. Capasso, C.; Supuran, C.T. Carbonic anhydrase from Porphyromonas Gingivalis as a drug target. Pathogens 2017, 6, 30–42. [Google Scholar]
  77. Supuran, C.T.; Capasso, C. New light on bacterial carbonic anhydrases phylogeny based on the analysis of signal peptide sequences. J. Enzyme Inhib. Med. Chem. 2016, 31, 1254–1260. [Google Scholar] [CrossRef] [PubMed]
  78. Licsandru, E.; Tanc, M.; Kocsis, I.; Barboiu, M.; Supuran, C.T. A class of carbonic anhydrase I—Selective activators. J. Enzyme Inhib. Med. Chem. 2017, 32, 37–46. [Google Scholar] [CrossRef] [PubMed]
  79. Supuran, C.T. Carbonic anhydrase inhibitors and activators for novel therapeutic applications. Future Med. Chem. 2011, 3, 1165–1180. [Google Scholar] [CrossRef] [PubMed]
  80. Supuran, C.T. Carbonic anhydrases: From biomedical applications of the inhibitors and activators to biotechnological use for CO(2) capture. J. Enzyme Inhib. Med. Chem. 2013, 28, 229–230. [Google Scholar] [CrossRef] [PubMed]
  81. Vullo, D.; Del Prete, S.; Capasso, C.; Supuran, C.T. Carbonic anhydrase activators: Activation of the β-carbonic anhydrase from Malassezia globosa with amines and amino acids. Bioorg. Med. Chem. Lett. 2016, 26, 1381–1385. [Google Scholar] [CrossRef] [PubMed]
  82. Vullo, D.; Del Prete, S.; Osman, S.M.; AlOthman, Z.; Capasso, C.; Donald, W.A.; Supuran, C.T. Burkholderia pseudomallei γ-carbonic anhydrase is strongly activated by amino acids and amines. Bioorg. Med. Chem. Lett. 2017, 27, 77–80. [Google Scholar] [CrossRef] [PubMed]
  83. Akdemir, A.; Vullo, D.; De Luca, V.; Scozzafava, A.; Carginale, V.; Rossi, M.; Supuran, C.T.; Capasso, C. The extremo-alpha-carbonic anhydrase (CA) from Sulfurihydrogenibium azorense, the fastest CA known, is highly activated by amino acids and amines. Bioorg. Med. Chem. Lett. 2013, 23, 1087–1090. [Google Scholar] [CrossRef] [PubMed]
  84. Forterre, P. Looking for the most “primitive” organism(s) on Earth today: The state of the art. Planet Space Sci. 1995, 43, 167–177. [Google Scholar] [CrossRef]
  85. Gupta, R.S. Protein phylogenies and signature sequences: A reappraisal of evolutionary relationships among archaebacteria, eubacteria, and eukaryotes. Microbiol. Mol. Biol. Rev. MMBR 1998, 62, 1435–1491. [Google Scholar] [PubMed]
  86. Zimmerman, S.; Innocenti, A.; Casini, A.; Ferry, J.G.; Scozzafava, A.; Supuran, C.T. Carbonic anhydrase inhibitors. Inhibition of the prokariotic β and γ-class enzymes from Archaea with sulfonamides. Bioorg. Med. Chem. Lett. 2004, 14, 6001–6006. [Google Scholar] [CrossRef] [PubMed]
  87. Tripp, B.C.; Bell, C.B., 3rd; Cruz, F.; Krebs, C.; Ferry, J.G. A role for iron in an ancient carbonic anhydrase. J. Biol. Chem. 2004, 279, 6683–6687. [Google Scholar] [CrossRef] [PubMed]
  88. Tripp, B.C.; Smith, K.; Ferry, J.G. Carbonic anhydrase: New insights for an ancient enzyme. J. Biol. Chem. 2001, 276, 48615–48618. [Google Scholar] [CrossRef] [PubMed]
  89. Smith, K.S.; Jakubzick, C.; Whittam, T.S.; Ferry, J.G. Carbonic anhydrase is an ancient enzyme widespread in prokaryotes. Proc. Natl. Acad. Sci. USA 1999, 96, 15184–15189. [Google Scholar] [CrossRef]
  90. Torrance, J.W.; Bartlett, G.J.; Porter, C.T.; Thornton, J.M. Using a library of structural templates to recognise catalytic sites and explore their evolution in homologous families. J. Mol. Biol. 2005, 347, 565–581. [Google Scholar] [CrossRef] [PubMed]
  91. Torrance, J.W.; Holliday, G.L.; Mitchell, J.B.; Thornton, J.M. The geometry of interactions between catalytic residues and their substrates. J. Mol. Biol. 2007, 369, 1140–1152. [Google Scholar] [CrossRef] [PubMed]
  92. Petersen, T.N.; Brunak, S.; von Heijne, G.; Nielsen, H. SignalP 4.0: Discriminating signal peptides from transmembrane regions. Nat. Methods 2011, 8, 785–786. [Google Scholar] [CrossRef] [PubMed]
  93. Kusian, B.; Sultemeyer, D.; Bowien, B. Carbonic anhydrase is essential for growth of Ralstonia eutropha at ambient CO(2) concentrations. J. Bact. 2002, 184, 5018–5026. [Google Scholar] [CrossRef] [PubMed]
  94. Merlin, C.; Masters, M.; McAteer, S.; Coulson, A. Why is carbonic anhydrase essential to Escherichia coli? J. Bact. 2003, 185, 6415–6424. [Google Scholar] [CrossRef] [PubMed]
  95. Cobaxin, M.; Martinez, H.; Ayala, G.; Holmgren, J.; Sjoling, A.; Sanchez, J. Cholera toxin expression by El Tor Vibrio cholerae in shallow culture growth conditions. Microb. Pathog. 2014, 66, 5–13. [Google Scholar] [CrossRef] [PubMed]
  96. Abuaita, B.H.; Withey, J.H. Bicarbonate induces Vibrio cholerae virulence gene expression by enhancing ToxT activity. Infect. Immun. 2009, 77, 4111–4120. [Google Scholar] [CrossRef] [PubMed]
  97. Joseph, P.; Ouahrani-Bettache, S.; Montero, J.L.; Nishimori, I.; Minakuchi, T.; Vullo, D.; Scozzafava, A.; Winum, J.Y.; Kohler, S.; Supuran, C.T. A new β-carbonic anhydrase from Brucella suis, its cloning, characterization, and inhibition with sulfonamides and sulfamates, leading to impaired pathogen growth. Bioorg. Med. Chem. 2011, 19, 1172–1178. [Google Scholar] [CrossRef] [PubMed]
  98. Modak, J.K.; Liu, Y.C.; Machuca, M.A.; Supuran, C.T.; Roujeinikova, A. Structural basis for the inhibition of Helicobacter pylori α-carbonic anhydrase by sulfonamides. PLoS ONE 2015, 10, e0127149. [Google Scholar] [CrossRef] [PubMed]
  99. Nishimori, I.; Vullo, D.; Minakuchi, T.; Morimoto, K.; Onishi, S.; Scozzafava, A.; Supuran, C.T. Carbonic anhydrase inhibitors: Cloning and sulfonamide inhibition studies of a carboxyterminal truncated α-carbonic anhydrase from Helicobacter pylori. Bioorg. Med. Chem. Lett. 2006, 16, 2182–2188. [Google Scholar] [CrossRef] [PubMed]
  100. Del Prete, S.; Isik, S.; Vullo, D.; De Luca, V.; Carginale, V.; Scozzafava, A.; Supuran, C.T.; Capasso, C. DNA cloning, characterization, and inhibition studies of an α-carbonic anhydrase from the pathogenic bacterium Vibrio cholerae. J. Med. Chem. 2012, 55, 10742–10748. [Google Scholar] [CrossRef] [PubMed]
  101. Vullo, D.; Del Prete, S.; De Luca, V.; Carginale, V.; Ferraroni, M.; Dedeoglu, N.; Osman, S.M.; AlOthman, Z.; Capasso, C.; Supuran, C.T. Anion inhibition studies of the β-carbonic anhydrase from the pathogenic bacterium Vibrio cholerae. Bioorg. Med. Chem. Lett. 2016, 26, 1406–1410. [Google Scholar] [CrossRef] [PubMed]
  102. Kohler, S.; Ouahrani-Bettache, S.; Winum, J.Y. Brucella suis carbonic anhydrases and their inhibitors: Towards alternative antibiotics? J. Enzyme Inhibit Med. Chem. 2017, 32, 683–687. [Google Scholar] [CrossRef] [PubMed]
  103. Singh, S.; Supuran, C.T. 3D-QSAR CoMFA studies on sulfonamide inhibitors of the Rv3588c β-carbonic anhydrase from Mycobacterium tuberculosis and design of not yet synthesized new molecules. J. Enzyme Inhib. Med. Chem. 2014, 29, 449–455. [Google Scholar] [CrossRef] [PubMed]
  104. Ceruso, M.; Vullo, D.; Scozzafava, A.; Supuran, C.T. Sulfonamides incorporating fluorine and 1,3,5-triazine moieties are effective inhibitors of three beta-class carbonic anhydrases from Mycobacterium tuberculosis. J. Enzyme Inhib. Med. Chem. 2014, 29, 686–689. [Google Scholar] [CrossRef] [PubMed]
  105. Del Prete, S.; Perfetto, R.; Rossi, M.; Alasmary, F.A.S.; Osman, S.M.; AlOthman, Z.; Supuran, C.T.; Capasso, C. A one-step procedure for immobilising the thermostable carbonic anhydrase (SspCA) on the surface membrane of Escherichia coli. J. Enzyme Inhib. Med. Chem. 2017, 32, 1120–1128. [Google Scholar] [CrossRef] [PubMed]

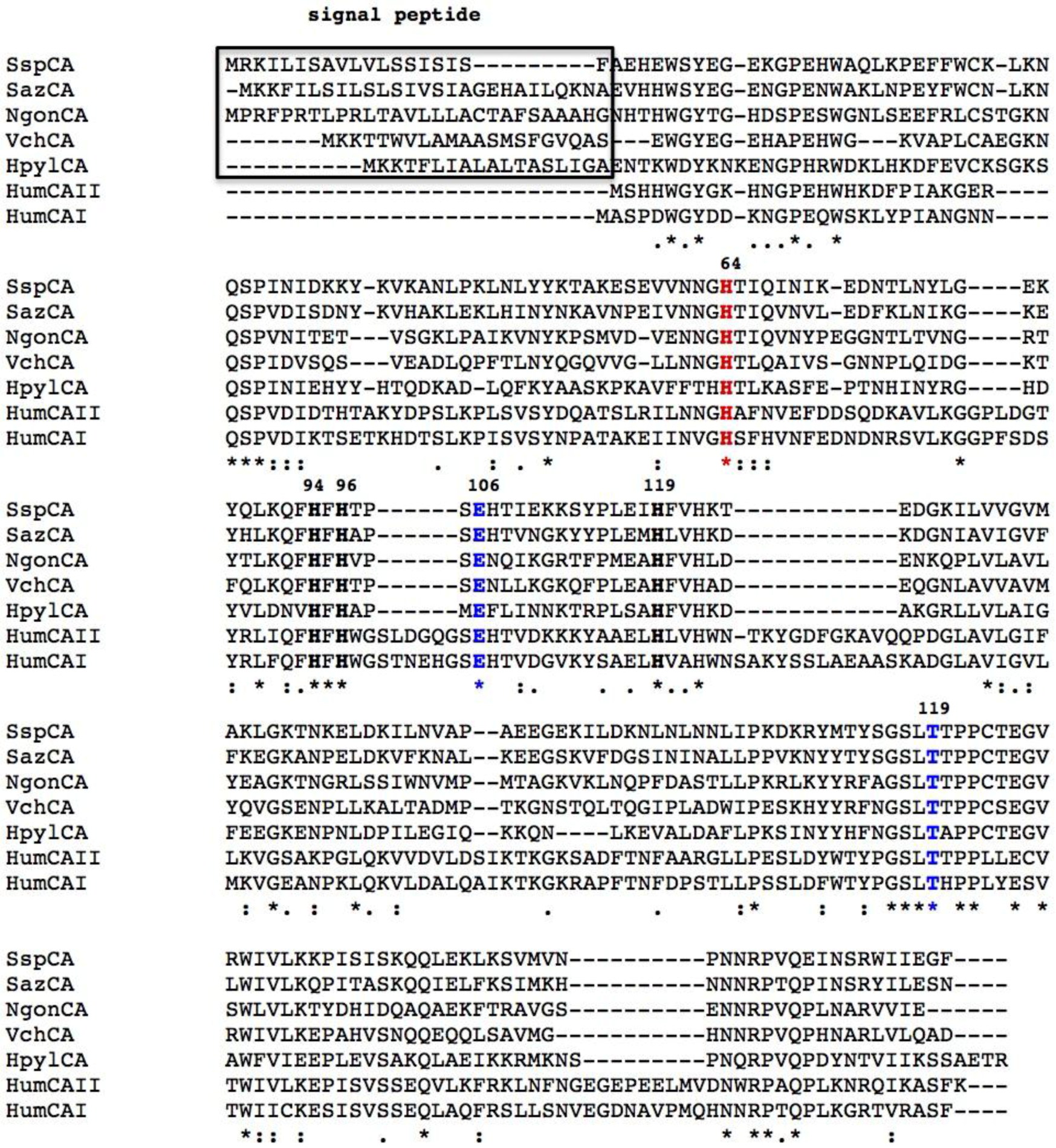

Figure 1. Multi-alignment of the amino acid sequences of two human α-CAs (hCAI and hCAII) and of five bacterial α-CAs (SspCA, SazCA, NgoCA, VchCA, and HypyCA) was performed with the ClustalW program, version 2.1. The hCA I numbering system was used. Black bold indicates the amino acid residues of the catalytic triad; blue bold represents the “gate-keeper” residues; and red bold shows the “proton shuttle residue”. Box indicates the signal peptide. The asterisk (*) indicates identity at a position; the symbol (:) designates conserved substitutions, while (.) indicates semi-conserved substitutions. Multi-alignment was performed with the program Clustal W, version 2.1. Legend: hCAI, α-CA isoform I from Homo sapiens; hCAII, α-CA isoform II from Homo sapiens; SspCA, α-CA from Sulfurihydrogenibium yellowstonense; SazCA, α-CA from Sulfurihydrogenibium azorense; NgonCA, α-CA from Neisseria gonorrhea; VchCA, α-CA from Vibrio cholerae; HpyCA, α-CA from Helicobacter pylori.
Figure 1. Multi-alignment of the amino acid sequences of two human α-CAs (hCAI and hCAII) and of five bacterial α-CAs (SspCA, SazCA, NgoCA, VchCA, and HypyCA) was performed with the ClustalW program, version 2.1. The hCA I numbering system was used. Black bold indicates the amino acid residues of the catalytic triad; blue bold represents the “gate-keeper” residues; and red bold shows the “proton shuttle residue”. Box indicates the signal peptide. The asterisk (*) indicates identity at a position; the symbol (:) designates conserved substitutions, while (.) indicates semi-conserved substitutions. Multi-alignment was performed with the program Clustal W, version 2.1. Legend: hCAI, α-CA isoform I from Homo sapiens; hCAII, α-CA isoform II from Homo sapiens; SspCA, α-CA from Sulfurihydrogenibium yellowstonense; SazCA, α-CA from Sulfurihydrogenibium azorense; NgonCA, α-CA from Neisseria gonorrhea; VchCA, α-CA from Vibrio cholerae; HpyCA, α-CA from Helicobacter pylori.
Metabolites 07 00056 g001

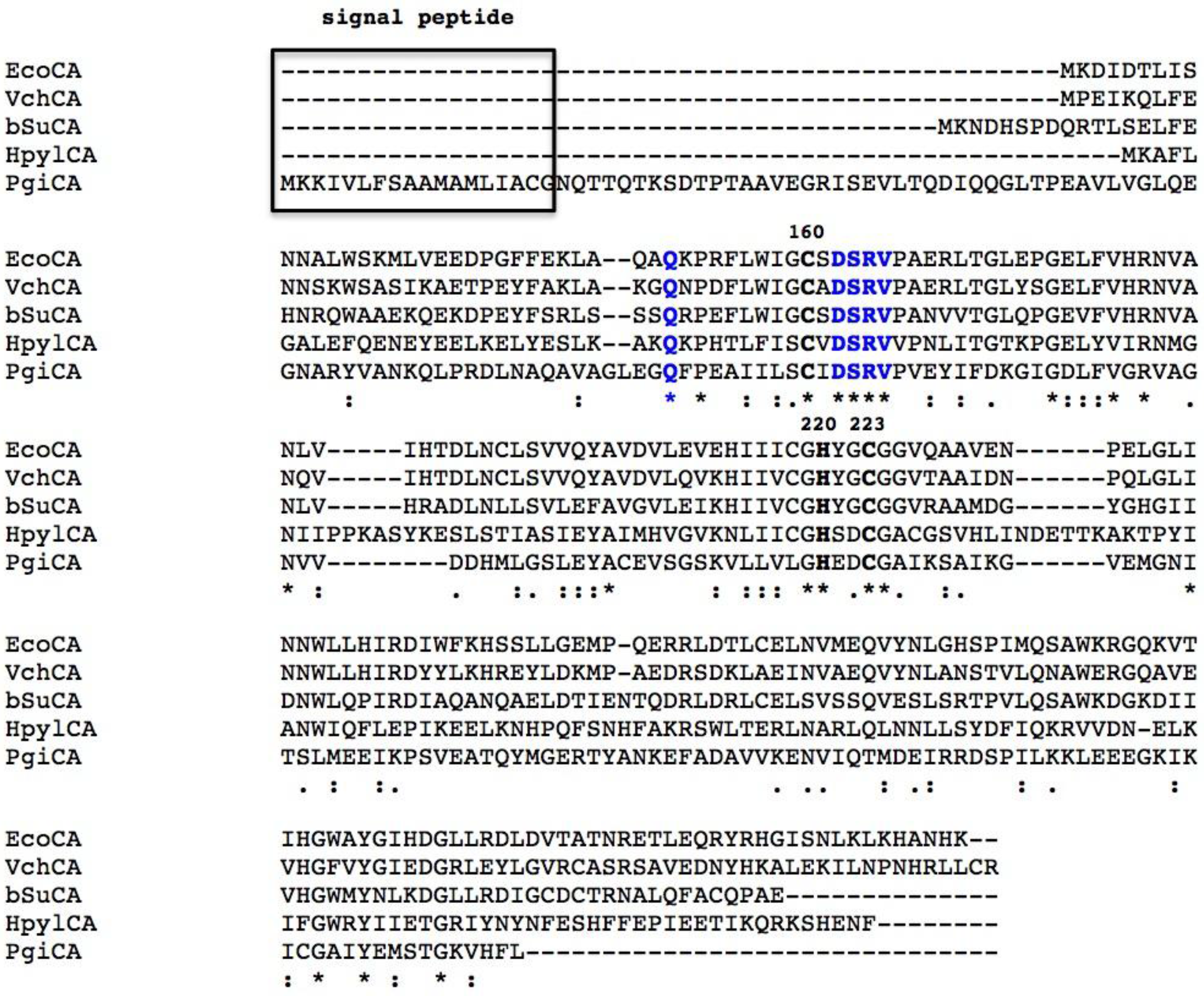

Figure 2. Alignment of the amino acid sequences of bacterial 𝛽-CAs from different species. Zinc ligands are indicated in black bold; amino acids involved in the enzyme catalytic cycle are indicated in blue bold. Box indicates the signal peptide. The asterisk (*) indicates identity at a position; the symbol (:) designates conserved substitutions, while (.) indicates semi-conserved substitutions. Multi-alignment was performed with the program Clustal W, version 2.1. Pisum sativum numbering system was used. Legend: EcoCA, 𝛽-CA from Escherichia coli; VchCA, 𝛽-CA from Vibrio cholerae; bSuCA, 𝛽-CA from Brucella suis; HpyCA, 𝛽-CA from Helicobacter pylori; PgiCA, 𝛽-CA from Porphyromonas gingivalis.
Figure 2. Alignment of the amino acid sequences of bacterial 𝛽-CAs from different species. Zinc ligands are indicated in black bold; amino acids involved in the enzyme catalytic cycle are indicated in blue bold. Box indicates the signal peptide. The asterisk (*) indicates identity at a position; the symbol (:) designates conserved substitutions, while (.) indicates semi-conserved substitutions. Multi-alignment was performed with the program Clustal W, version 2.1. Pisum sativum numbering system was used. Legend: EcoCA, 𝛽-CA from Escherichia coli; VchCA, 𝛽-CA from Vibrio cholerae; bSuCA, 𝛽-CA from Brucella suis; HpyCA, 𝛽-CA from Helicobacter pylori; PgiCA, 𝛽-CA from Porphyromonas gingivalis.
Metabolites 07 00056 g002

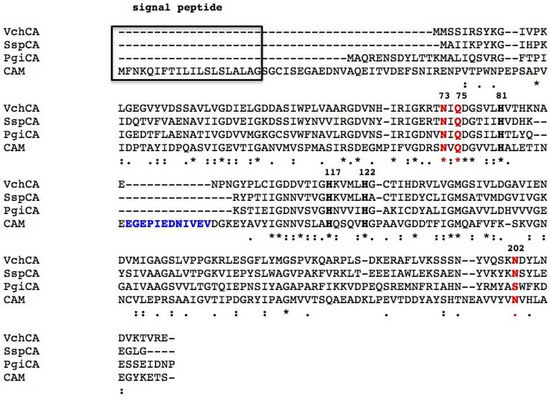

Figure 3. Amino acid sequence alignment of the 𝛾-CAs from different bacterial sources, such as Vibrio cholerae, Sulfurihydrogenibium yellowstonense, Porphyromonas gingivalis, and Methanosarcina thermophila. The metal ion ligands (His81, His117, and His122) are indicated in black bold; the catalytically relevant residues of CAM, such as Asn73, Gln75, and Asn202, which participate in a network of hydrogen bonds with the catalytic water molecule, are indicated in red bold; the acidic loop residues containing the proton shuttle residues (Glu89) are colored in blue bold, but are missing in PgiCA. The CAM numbering system was used. Box indicates the signal peptide. Legend: VchCA (𝛾-CA from Vibrio cholerae), SspCA (𝛾-CA from Sulfurihydrogenibium yellowstonense), PgiCA (𝛾-CA from Porphyromonas gingivalis), and CAM (𝛾-CA from Methanosarcina thermophila). The asterisk (*) indicates identity at all aligned positions; the symbol (:) relates to conserved substitutions, while (.) means that semi-conserved substitutions are observed. The multi-alignment was performed with the program Clustal W.
Figure 3. Amino acid sequence alignment of the 𝛾-CAs from different bacterial sources, such as Vibrio cholerae, Sulfurihydrogenibium yellowstonense, Porphyromonas gingivalis, and Methanosarcina thermophila. The metal ion ligands (His81, His117, and His122) are indicated in black bold; the catalytically relevant residues of CAM, such as Asn73, Gln75, and Asn202, which participate in a network of hydrogen bonds with the catalytic water molecule, are indicated in red bold; the acidic loop residues containing the proton shuttle residues (Glu89) are colored in blue bold, but are missing in PgiCA. The CAM numbering system was used. Box indicates the signal peptide. Legend: VchCA (𝛾-CA from Vibrio cholerae), SspCA (𝛾-CA from Sulfurihydrogenibium yellowstonense), PgiCA (𝛾-CA from Porphyromonas gingivalis), and CAM (𝛾-CA from Methanosarcina thermophila). The asterisk (*) indicates identity at all aligned positions; the symbol (:) relates to conserved substitutions, while (.) means that semi-conserved substitutions are observed. The multi-alignment was performed with the program Clustal W.
Metabolites 07 00056 g003

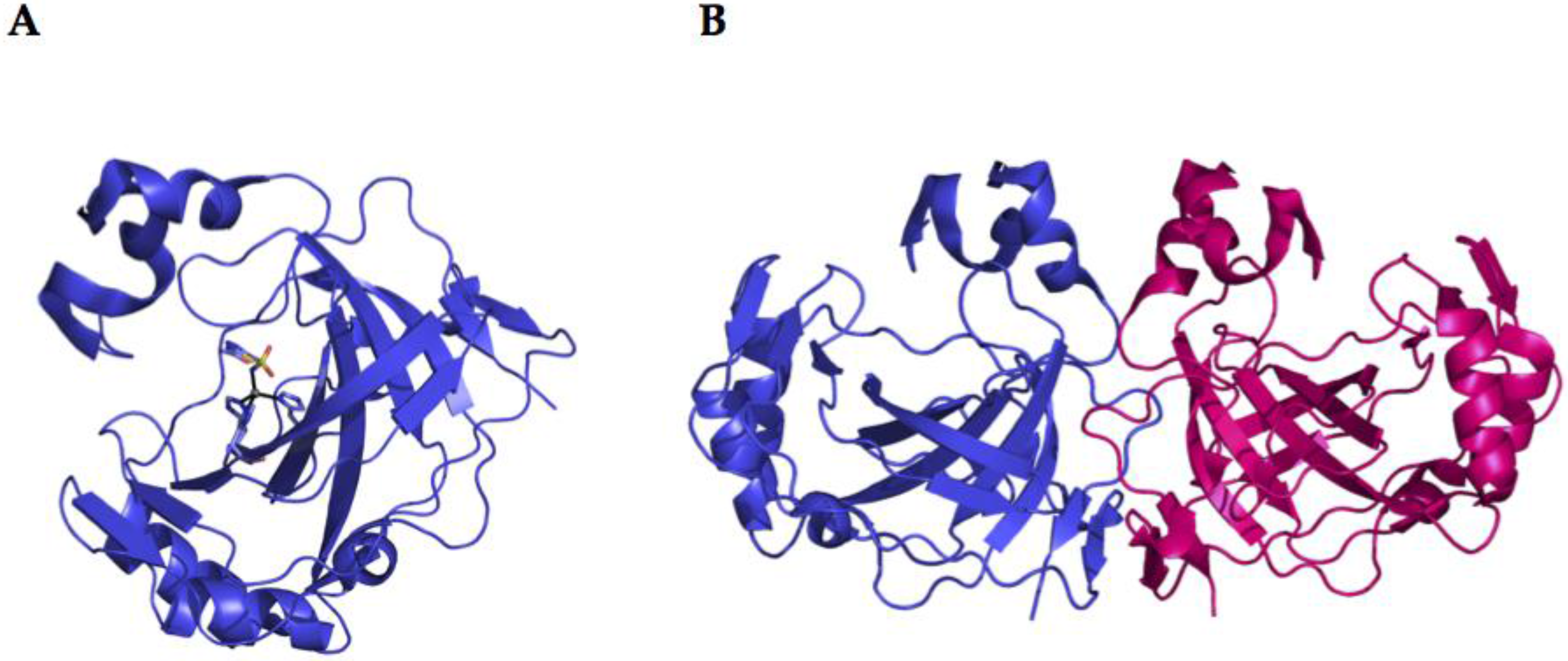

Figure 4. Ribbon representation of the overall fold of α-CA (SspCA) from Sulfurihydrogenibium yellowstonense. (A): SspCA active monomer with the inhibitor acetazolamide (AAZ) showed; (B): SspCA active dimer.
Figure 4. Ribbon representation of the overall fold of α-CA (SspCA) from Sulfurihydrogenibium yellowstonense. (A): SspCA active monomer with the inhibitor acetazolamide (AAZ) showed; (B): SspCA active dimer.
Metabolites 07 00056 g004

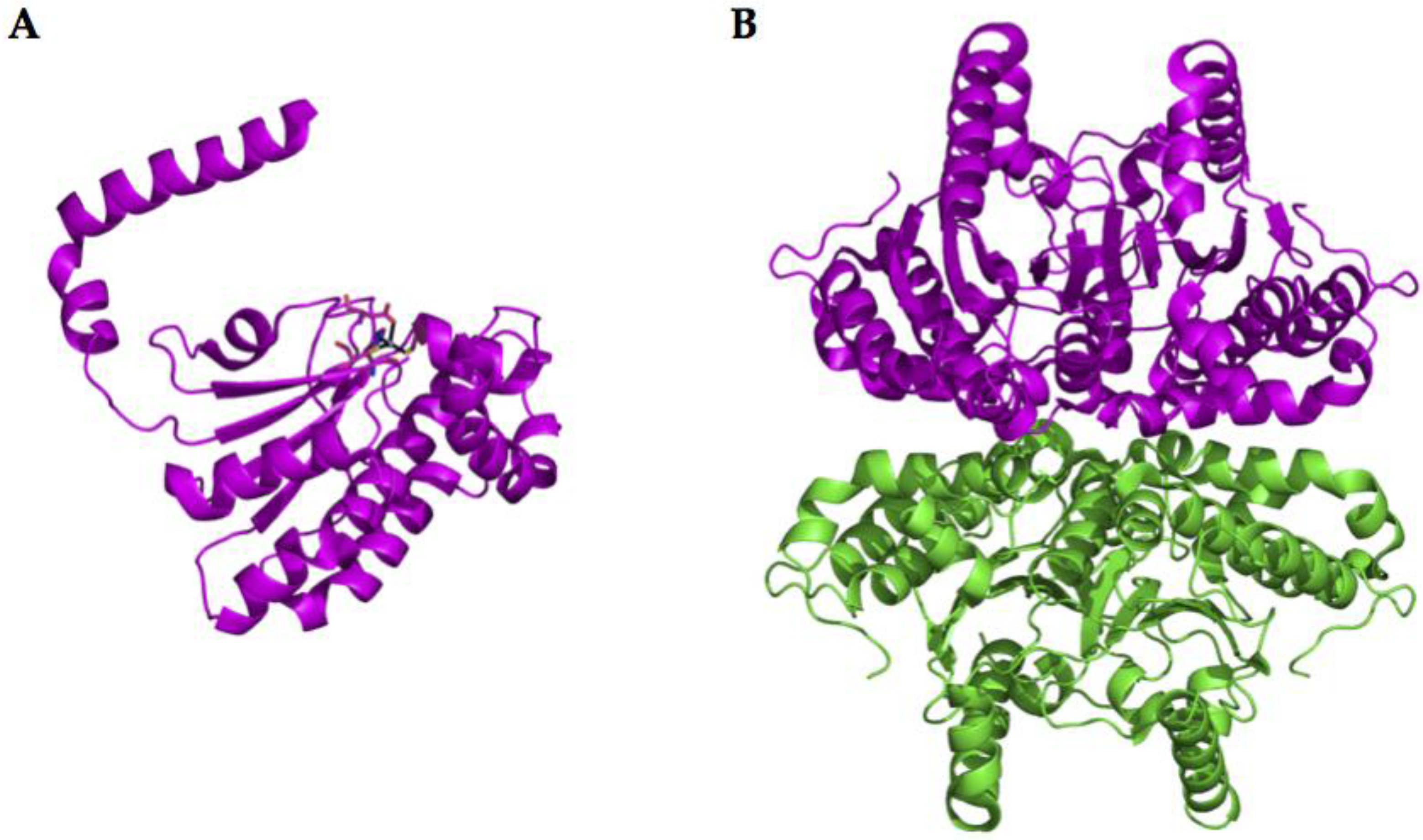

Figure 5. Ribbon representation of the catalytically inactive monomer (A) and active tetramer (B) of 𝛽-CA (VchCA) from Vibrio cholerae.
Figure 5. Ribbon representation of the catalytically inactive monomer (A) and active tetramer (B) of 𝛽-CA (VchCA) from Vibrio cholerae.
Metabolites 07 00056 g005

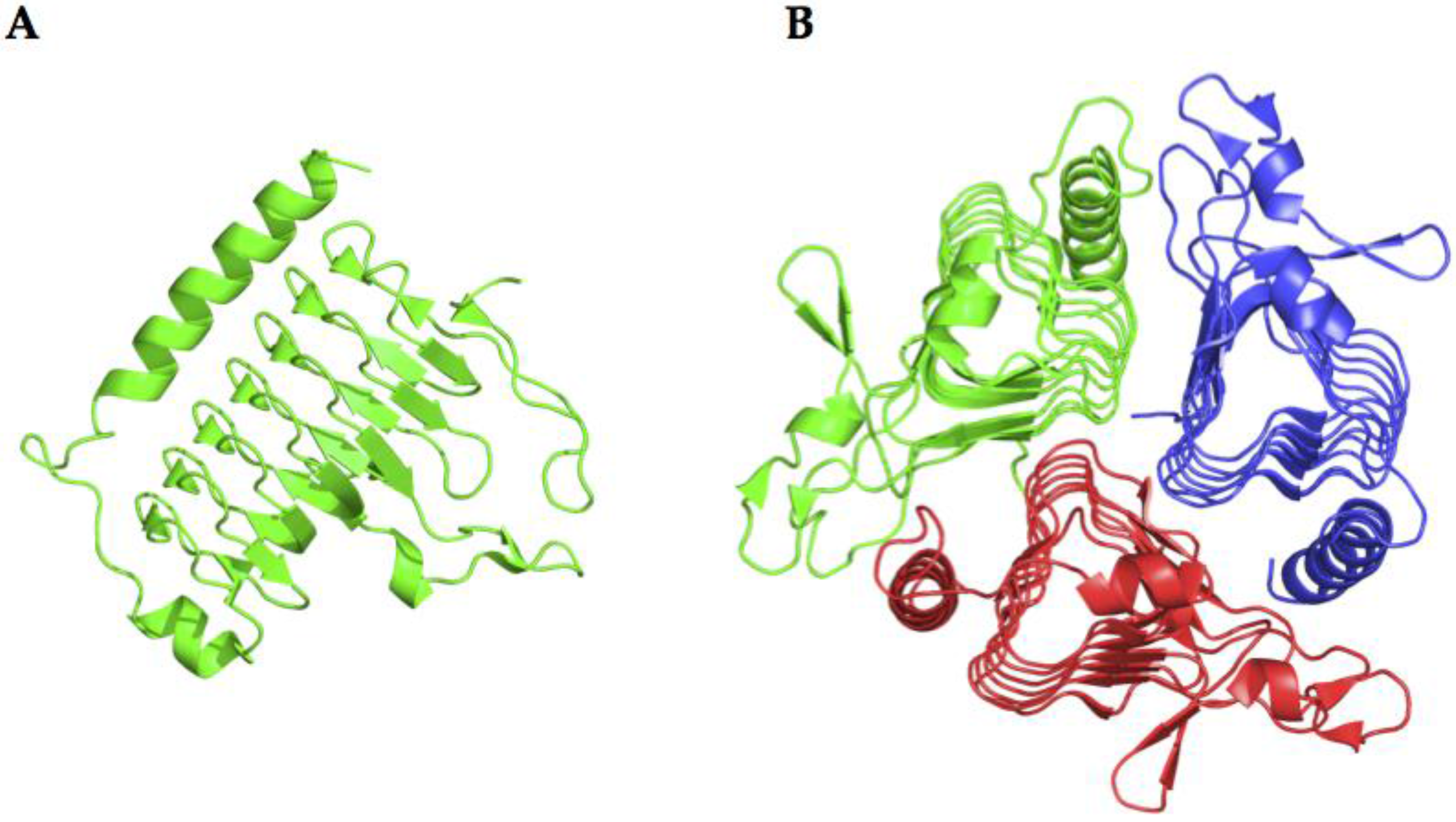

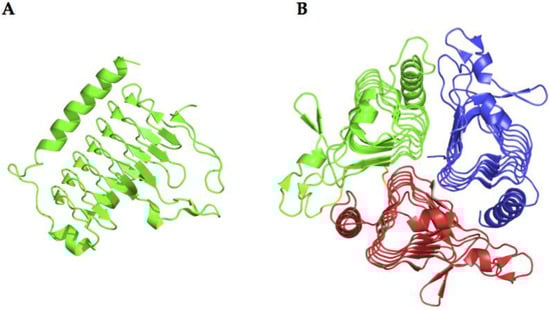

Figure 6. Structural representation of the catalytically inactive monomer (A) and active trimer (B) of the CAM (γ-CA) enzyme from Methanosarcina thermophila.
Figure 6. Structural representation of the catalytically inactive monomer (A) and active trimer (B) of the CAM (γ-CA) enzyme from Methanosarcina thermophila.
Metabolites 07 00056 g006
Figure 7. Kinetic parameters for the CO2 hydration reaction catalyzed by the human cytosolic isozymes hCA I and II (α-class CAs) and bacterial α-, β-, and γ-CAs, such as SazCA (α-CAs from Sulfurihydrogenibium azorense), SspCA (α-CAs from Sulfurihydrogenibium yellowstonense), HpyCA (α- and β-CAs from Helicobacter pylori), VchCA (α-, β-, and γ-CAs from Vibrio cholerae), PgiCA (β- and γ-CAs from Porphyromonas gingivalis), and CAM (γ-CA from Methanosarcina thermophila). All the measurements were done at 20 °C, pH 7.5 (α-class enzymes), and pH 8.3 (β- and γ-CAs) by a stopped flow CO2 hydratase assay method.
Figure 7. Kinetic parameters for the CO2 hydration reaction catalyzed by the human cytosolic isozymes hCA I and II (α-class CAs) and bacterial α-, β-, and γ-CAs, such as SazCA (α-CAs from Sulfurihydrogenibium azorense), SspCA (α-CAs from Sulfurihydrogenibium yellowstonense), HpyCA (α- and β-CAs from Helicobacter pylori), VchCA (α-, β-, and γ-CAs from Vibrio cholerae), PgiCA (β- and γ-CAs from Porphyromonas gingivalis), and CAM (γ-CA from Methanosarcina thermophila). All the measurements were done at 20 °C, pH 7.5 (α-class enzymes), and pH 8.3 (β- and γ-CAs) by a stopped flow CO2 hydratase assay method.
Metabolites 07 00056 g007
Figure 8. Sulfonamides, sulfamates, and some of their derivatives investigated as bacterial CA inhibitors.
Figure 8. Sulfonamides, sulfamates, and some of their derivatives investigated as bacterial CA inhibitors.
Metabolites 07 00056 g008aMetabolites 07 00056 g008b
Figure 9. Amino acid and amine CA activators 2543 investigated for their interaction with bacterial CAs.
Figure 9. Amino acid and amine CA activators 2543 investigated for their interaction with bacterial CAs.
Metabolites 07 00056 g009
Figure 10. (A): Activation of the bacterial BpsCA (γ-CA) with L-Tyr; (B): Activation of the bacterial SspCA (α-CA) L-Phe. All measurements were carried out at 25 °C and pH 7.5, for the CO2 hydration reaction.
Figure 10. (A): Activation of the bacterial BpsCA (γ-CA) with L-Tyr; (B): Activation of the bacterial SspCA (α-CA) L-Phe. All measurements were carried out at 25 °C and pH 7.5, for the CO2 hydration reaction.
Metabolites 07 00056 g010

Share and Cite

MDPI and ACS Style

Supuran, C.T.; Capasso, C. An Overview of the Bacterial Carbonic Anhydrases. Metabolites 2017, 7, 56. https://doi.org/10.3390/metabo7040056

AMA Style

Supuran CT, Capasso C. An Overview of the Bacterial Carbonic Anhydrases. Metabolites. 2017; 7(4):56. https://doi.org/10.3390/metabo7040056

Chicago/Turabian Style

Supuran, Claudiu T., and Clemente Capasso. 2017. "An Overview of the Bacterial Carbonic Anhydrases" Metabolites 7, no. 4: 56. https://doi.org/10.3390/metabo7040056

APA Style

Supuran, C. T., & Capasso, C. (2017). An Overview of the Bacterial Carbonic Anhydrases. Metabolites, 7(4), 56. https://doi.org/10.3390/metabo7040056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
