Article

The Metabolite Profiling of Aspergillus fumigatus KMM4631 and Its Co-Cultures with Other Marine Fungi

by
Anton N. Yurchenko
*,
Liliana E. Nesterenko
,
Roman S. Popov
,
Natalya N. Kirichuk
,
Viktoria E. Chausova
,
Ekaterina A. Chingizova
,
Marina P. Isaeva
and
Ekaterina A. Yurchenko
*
G.B. Elyakov Pacific Institute of Bioorganic Chemistry, Far Eastern Branch of the Russian Academy of Sciences, Prospect 100-Letiya Vladivostoka, 159, Vladivostok 690022, Russia
*
Authors to whom correspondence should be addressed.
Metabolites 2023, 13(11), 1138; https://doi.org/10.3390/metabo13111138
Submission received: 30 September 2023 / Revised: 3 November 2023 / Accepted: 6 November 2023 / Published: 8 November 2023
(This article belongs to the Special Issue Marine Microbes Related Metabolic Studies)

Abstract

:
An Aspergillus fumigatus KMM 4631 strain was previously isolated from a Pacific soft coral Sinularia sp. sample and was found to be a source of a number of bioactive secondary metabolites. The aims of this work are the confirmation of this strain’ identification based on ITS, BenA, CaM, and RPB2 regions/gene sequences and the investigation of secondary metabolite profiles of Aspergillus fumigatus KMM 4631 culture and its co-cultures with Penicillium hispanicum KMM 4689, Amphichorda sp. KMM 4639, Penicillium sp. KMM 4672, and Asteromyces cruciatus KMM 4696 from the Collection of Marine Microorganisms (PIBOC FEB RAS, Vladivostok, Russia). Moreover, the DPPH-radical scavenging activity, urease inhibition, and cytotoxicity of joint fungal cultures’ extracts on HepG2 cells were tested. The detailed UPLC MS qTOF investigation resulted in the identification and annotation of indolediketopiperazine, quinazoline, and tryptoquivaline-related alkaloids as well as a number of polyketides (totally 20 compounds) in the extract of Aspergillus fumigatus KMM 4631. The metabolite profiles of the co-cultures of A. fumigatus with Penicillium hispanicum, Penicillium sp., and Amphichorda sp. were similar to those of Penicillium hispanicum, Penicillium sp., and Amphichorda sp. monocultures. The metabolite profile of the co-culture of A. fumigatus with Asteromyces cruciatus differed from that of each monoculture and may be more promising for the isolation of new compounds.

Graphical Abstract

1. Introduction

Marine microbial ecosystems are characterized by high competition and an uneven ratio between prokaryotes and eukaryotes. Studies of the microbiome of marine communities are often limited to prokaryotes, and only a few relevant papers include studies of both prokaryotes and eukaryotes. Their results show that against the background of a large diversity of species of bacteria and archaea, fungi are represented by only a few phyla [1,2]. This interspecific competition for resources stimulates the production of various secondary metabolites by all members of the community. Moreover, a marine bacteria–fungus symbiosis was discovered, in which the bacterium can stimulate the fungus to produce an antibiotic, spiromarmycin, to protect against other bacteria [3].
Understanding the interactions of microbial communities led to the development of chemical ecology-related cultivation-based strategies, now called the “one strain many compounds” (OSMAC) approach, in which the microbial co-culture is used to stimulate the production of new metabolites [4]. One of the first reports was about the isolation of new diketopiperazines glionitrins A and B from a laboratory co-culture of Aspergillus fumigatus fungal strain KMC-901 and Sphingomonas bacterial strain KMK-001 [5,6]. Glionitrin A had high antibacterial and cytotoxic activity [5], while glionitrin B inhibited the invasion of DU145 cancer cells [6]. This example confirms the leading role of microbial exolites in regulating relationships in microbial communities.
For about two decades, this approach has been successfully used to obtain a variety of low-molecular weight compounds from the co-culture of terrestrial and marine microorganisms. Caudal et al., from 2010 to 2020, reviewed three papers on marine fungi–bacteria co-cultivation, 11 papers on marine bacteria–bacteria co-cultivation, and 14 papers on two marine fungal strain co-cultures [7]. Co-culture has the potential to induce the production of novel metabolites, increase the yield of specific target metabolites with pharmacological potential, or inhibit the production of metabolites found in axenic culture.
Since the diversity of secondary metabolites allows fungi to adapt more or less successfully to various environmental conditions, in some particularly successful cases fungi can become pathogenic to humans. This happens with the widespread Aspergillus fumigatus. A. fumigatus is a saprotrophic fungus that is pathogenic in highly immunocompromised patients because it is found in high concentrations in the atmosphere; it grows faster than any other airborne fungi at 40 °C [8]. The A. fumigatus genome sequence and a metabolomics analysis revealed the potential for synthesizing more than 200 compounds and the presence of over 30 gene clusters associated with secondary metabolites. The non-ribosomal peptide gliotoxin, anthraquinone-derived trypacidin, meroterpenoids fumagillin and pyripyropene A, heteropolymer dihydroxynaphthalene melanin, tryptophan-derived indole alkaloids fumigaclavines, diketopiperazine alkaloids fumitremorgins and verruculogen, and fusidane-type triterpenoid helvolic acid are the primary described secondary metabolites which provide high environmental stability and defensive function against (microbial) predators [9]. However, the comparative investigation of the secondary metabolite profile of several A. fumigatus strains isolated from human as well as soil samples showed that soil-derived A. fumigatus conidia and culture media did not produce toxic compounds as toxic as fumitremorgins A–C, pyripyropenes E and O, fumigaclavines A–C, helvolic acid, and pseurotins A, B, D [10].
A. fumigatus fungi are also common in a variety of marine ecosystems. The marine fungus Aspergillus fumigatus KMM4631 associated with the soft coral Sinularia sp. was reported as a producer of a number of diketopiperazine and quinazoline alkaloids as well as triterpenoids, and some of them show promising bioactivity [11,12,13].
Moreover, promising marine fungal strains such as Penicillium hispanicum KMM 4689, Amphichorda sp. KMM 4639, Penicillium sp. KMM 4672, and Asteromyces cruciatus KMM 4696 were found and stored in the Collection of Marine Microorganisms (KMM, Vladivostok, Russia). Recently, some new secondary metabolites were isolated from the co-culture of Amphichorda sp. KMM 4639 with Aspergillus carneus KMM 4638 [14] and continuing this investigation is promising.
There are several methods of metabolomic analysis, including NMR, GC-MS, LC-MS, and FTIR (Fourier transform infrared spectroscopy), each of which has its own limitations and capabilities. At the same time, the LC-MS method has the best combination of simplicity, speed, selectivity, and repeatability, and therefore is most widely used for the analysis of metabolomes [15].
The aim of the present work is the investigation of the secondary metabolite profiles of Aspergillus fumigatus KMM 4631 culture and its co-cultures with Penicillium hispanicum KMM 4689, Amphichorda sp. KMM 4639, Penicillium sp. KMM 4672, and Asteromyces cruciatus KMM 4696, using the UPLC-MS-qTOF technique. Moreover, the DPPH-radical scavenging activity, urease inhibition, and cytotoxicity of joint fungal cultures’ extracts on HepG2 cells were tested.

2. Materials and Methods

2.1. General

An Olympus CX41 microscope (Olympus Corporation, Tokyo, Japan) equipped with an Olympus SC30 camera (Olympus Corporation, Tokyo, Japan) was used for the examination of fungal cultures and the preparation of photography.

2.2. Fungal Strains

The fungal strain KMM 4631 was isolated from soft coral Sinularia sp. collected near Kunashir Island (Kuril islands, north west Pacific Ocean) and identified based on morphological features as Aspergillus fumigatus [11]. The fungal strain KMM 4639 was isolated from a sediment sample collected in Van Phong Bay (the South China Sea, Vietnam) and identified based on molecular features as Amphichorda sp. [14]. The fungal strain KMM 4672 was isolated from brown algae Padina sp. collected in Van Phong Bay (the South China Sea, Vietnam) and identified based on molecular features as Penicillium sp. [16]. The fungal strain KMM 4689 was isolated from identified soft coral collected near Con Co Island (the South China Sea, Vietnam) and identified based on molecular features as Penicillium hispanicum [17]. The fungal strain KMM 4696 was isolated from brown algae Sargassum pallidum (Vostok Bay, the Sea of Japan) and identified based on molecular features as Asteromyces cruciatus [18].
All used fungal strains are stored in the Collection of Marine Microorganisms (PIBOC FEB RAS, Vladivostok, Russia). The strain Penicillium hispanicum KMM 4689 also stored in the collection of the Nhatrang Institute of Technology Research and Applications under the code VO49-30.5.

2.3. DNA Extraction and Amplification

The fungal mycelia (mycelium) grew on MEA (malt extract agar) at 25 °C for 7 days, and then genomic DNA was isolated using the MagJET Plant Genomic DNA Kit (Thermo Fisher Scientific, Waltham, MA, USA), according to the manufacturer’s protocol. PCR was conducted using GoTaq Flexi DNA Polymerase (Promega, Madison, WI, USA). The ITS region and partial BenA gene were amplified and sequenced as described in [14]. For amplification of the partial CaM gene, the standard primer pair cmd5 and cmd6 was used [19]. The reaction profile was 95 °C for 300 s, 35 cycles of 95 °C for 30 s, 55 °C for 45 s, and 72 °C for 90 s, and finally 72 °C for 300 s. For amplification of the partial RPB2 gene, the standard primer pair RPB2-5F and RPB2-7CR was used [20]. The reaction profile was an initial denaturation at 95 °C for 300 s, followed by 5 cycles at 95 °C for 30 s, 60 °C for 45 s, 72 °C for 120 s, then 5 cycles at 95 °C for 30 s, 58 °C for 45 s, 72 °C for 120 s, and finally 30 cycles of 95 °C for 30 s, 54 °C for 45 s, 72 °C for 120 s, and a final elongation at 72 °C for 420 s. The amplified partial CaM and RPB2 genes were purified and sequenced as described in [14]. Gene sequences were deposited in GenBank under accession numbers OR578448 for ITS, OQ466614 for the partial BenA, OR600992 for the partial CaM, and OR600993 for the partial RPB2 (Table 1).

2.4. Phylogenetic Analysis

The ITS region, the partial BenA, CaM, and RPB2 gene sequences of the fungal strain KMM 4631 and members of genus Aspergillus section Fumigati series Fumigati were aligned via MEGA X software version 11.0.9 [21] using the Clustal W algorithm. The ex-type homologs were searched in the GenBank database (http://ncbi.nlm.nih.gov, accessed on 7 September 2023) using the BLASTN algorithm (http://www.ncbi.nlm.nih.gov/BLAST, accessed on 14 September 2023). The phylogenetic analysis was carried out using MEGA X software [21]. The ITS region and partial BenA, CaM, and RPB2 gene sequences were concatenated into one alignment. A phylogenetic tree was constructed according to the Maximum Likelihood (ML) algorithm based on the Kimura 2-parameter model [22]. The tree topology was evaluated via 1000 bootstrap replicates. The Talaromyces marneffei CBS 388.87T was used as outgroup (Table 1).

2.5. Cultivation of Fungi

Before co-cultivation, fungal strains were grown in test tubes on slanted wort agar in sea water for 7 days at 22 °C. Pairs of fungal strains were inoculated onto rice medium simultaneously by transferring a small block of agar medium containing mycelium and conidia. Inoculation of each strain in a pair was carried out at three points and at some distance from each other. Co-cultivation was carried out for 21 days at 22 °C in 500 mL Erlenmeyer flasks, each containing natural sea water (Vodolaznaya bay, Troitsa bay, the Sea of Japan), rice (20.0 g), yeast extract (20.0 mg), and KH2PO4 (10 mg). Fungal monocultures were obtained in a similar manner.

2.6. Extraction and HPLC MS Analysis

2.6.1. Extraction of Fungal Cultures

Each fungal culture with medium was extracted using EtOAc (100 mL) and then evaporated in vacuo to prepare a crude extract (Table 2). Then, each extract was dissolved in methanol and passed through column with C18-SiO2 (YMC Gel ODS-A, 12 nm, S—75 µm, YMC Co., Ishikawa, Japan).
The masses of the purified extracts are presented in Table 2.

2.6.2. HPLC MS Analysis of Fungal Extracts

HPLC MS analysis was performed using a Bruker Elute UHPLC chromatograph (Bruker Daltonics, Bremen, Germany) connected to a Bruker Impact II Q-TOF mass spectrometer (Bruker Daltonics, Bremen, Germany). An InfinityLab Poroshell 120 SB-C18 column (2.1 × 150 mm, 2.7 μm, Agilent Technologies, Santa Clara, CA, USA) was used for chromatographic separation. Chromatographic separation and mass spectrometric detection were performed as previously described [17].

2.6.3. UHPLC-Q-TOF Data Analysis

UHPLC-Q-TOF data were converted from Bruker “.d” formatting to “.mzXML” using MSConvert 3.0 (part of ProteoWizard 3.0 package, Palo Alto, CA, USA) [23], and further processing was performed using MZMine (version 2.53) [24] as described previously [17].
Metabolite dereplication was also carried out with an in-house MS/MS spectral library, comparing experimental spectra and retention times (RTs) with the spectra and RTs obtained for reference compounds. A set of compounds previously isolated from Aspergillus fumigatus KMM 4631, Penicillium hispanicum KMM 4689, Amphichorda sp. KMM 4639, Penicillium sp. KMM 4672, and Asteromyces cruciatus KMM 4696 was used as standards for the microbial secondary metabolites. Structures of these compounds were established using various methods including 1D and 2D NMR spectra. Compounds were dissolved in 75% MeCN (0.1 μg/mL) and 3 μL of solution was subjected to UHPLC-Q-TOF MS analysis in the same condition as the studied samples. The full list of the standards for the microbial secondary metabolites is given in the Supplementary Materials.
In addition, the annotation of some metabolites was performed by comparing the experimental MS/MS spectra with compounds from the PubChem database using in-silica fragmentation via the MetFrag service [25].

2.7. Principal Component Analysis (PCA)

PCA analysis, a hierarchical dendrogram, and visualization of the resulting graphs were performed using the “google colab” web resource based on Python 3.8 using Pandas, Seaborn, and Matplotlib libraries. Below is a link to the notepad with the code used in the analysis: https://drive.google.com/drive/folders/1qov-yZHRKp-L3Qq69iiLTakfzxGOpBYI?usp=drive_link (accessed on 7 September 2023).

2.8. Bioassays

2.8.1. Urease Inhibition Assay

The inhibitory activity of the extracts on urease (from Canavalia ensiformis, 1U final concentration) was estimated by determining ammonia production using the indophenol method. A reaction mixture consisting of 25 µL enzyme solution and 5 µL of extracts (100.0 µg/mL final concentration) was preincubated at 37 °C for 60 min in 96-well plates. Next, 55 µL of phosphate-buffered solution with 100 µM urea was added to each well and incubated at 37 °C for 10 min. Next, 45 µL of phenol reagent (1% w/v phenol and 0.005% w/v sodium nitroprusside) and 70 µL of alkali reagent (0.5% w/v NaOH and 0.1% active chloride NaClO) were added to each well for 50 min. The pH was maintained at 7.3–7.5 in all assays. DMSO (5%) was used as a positive control. Optical density at 630 nm was measured after 50 min at 630 nm using a MultiskanFS microplate reader (Thermo Scientific Inc., Beverly, MA, USA).

2.8.2. DPPH Radical Scavenger Assay

DPPH (Sigma-Aldrich, Steinheim, Germany) solution at a concentration of 7.5 × 10−3 M was used for this assay. The concentrations of the test extracts in the mixtures were 100 µg/mL. The mixtures were shaken and left to stand for 30 min, and the absorbance of the resulting solutions was measured at 520 nm using a microplate reader MultiscanFC (Thermo Scientific, USA). The radical scavenging activity of the extracts was presented as % to the control (MeOH).

2.8.3. Cell Culture

The human hepatocarcinoma HepG2 cells were purchased from ATCC (Manassas, VA, USA). The cells were cultured in DMEM with 10% of fetal bovine serum and 1% of penicillin/streptomycin (BioloT, St. Petersburg, Russia). For experiments, HepG2 cells were seeded at concentrations of 5 × 103 cell/well and the experiments were started after 24 h.

2.8.4. Cell Viability Assay

The cells were treated with the extracts at a concentration of 10 µg/mL for 24 h, and cell viability was measured using an MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay, which was performed according to the manufacturer’s instructions (Sigma-Aldrich, St.-Louis, MO, USA). Optical density at 570 nm was detected using a MultiskanFS microplate reader (Thermo Scientific Inc., Beverly, MA, USA). The results were presented as percentages of the control (vehicle) data.

2.8.5. Statistical Data Evaluation

All bioassay data were obtained in three independent replicates, and the calculated values are expressed as a mean ± standard error mean (SEM). Student’s t-test was performed using SigmaPlot 14.0 (Systat Software Inc., San Jose, CA, USA) to determine statistical significance. Differences were considered statistically significant at p < 0.05.

3. Results

3.1. Molecular Identification of the Fungal Strain

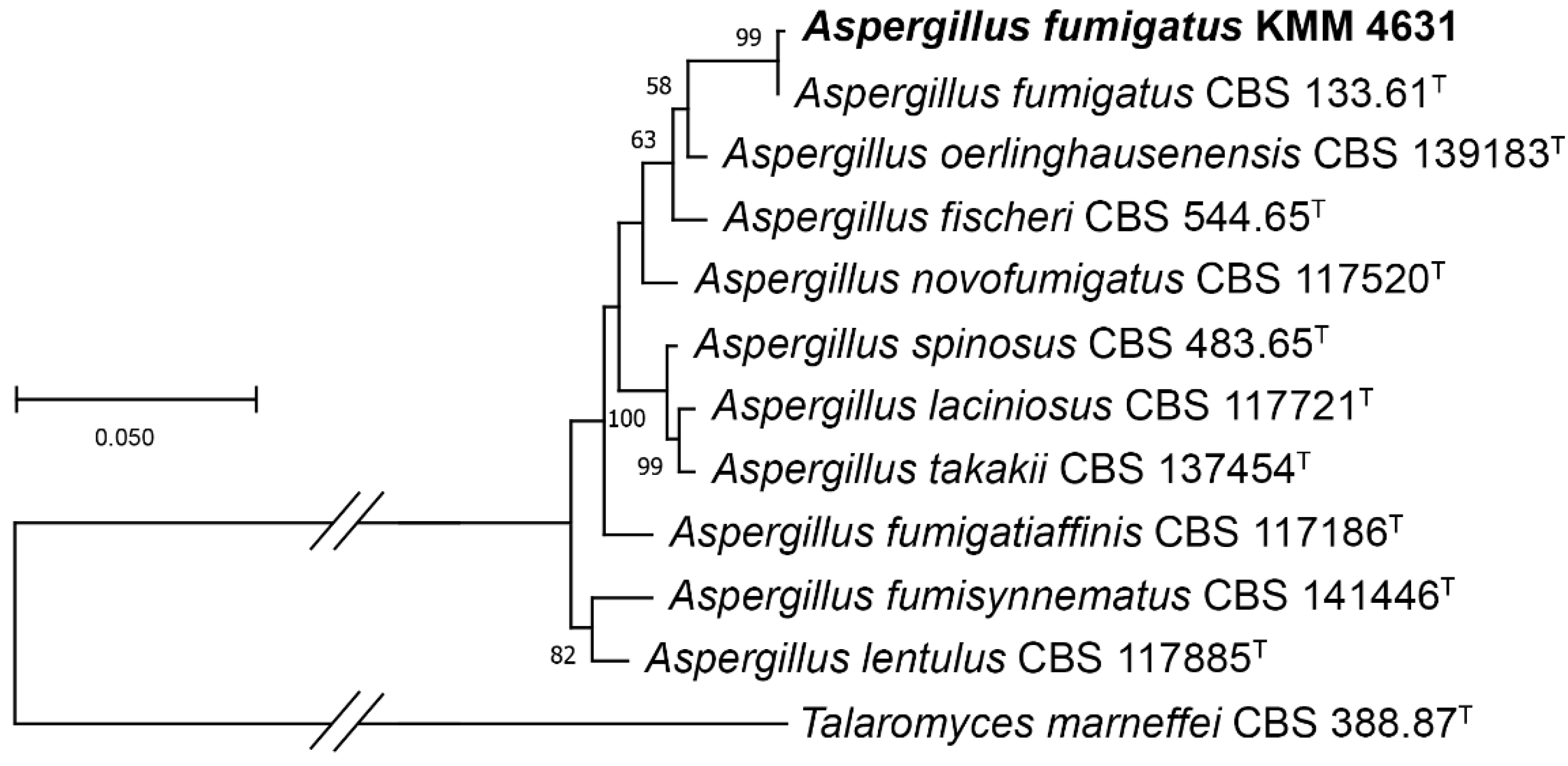

To clarify the taxonomic position of the strain KMM 4631 we sequenced the molecular markers, such as ITS, the partial BenA, CaM, and RPB2 regions. Approximately 1300 bp fragments of the ITS region, about 650 bp fragments of the partial BenA, and about 650 bp and 1200 bp fragments of the CaM and RPB2 genes, respectively, were successfully amplified. A BLAST search showed that the ITS region, the partial CaM, and RPB2 gene sequences were 100% identical with the sequences of the ex-type strain Aspergillus fumigatus CBS 133.61T, while the partial BenA gene sequence was more than 99% identical. Phylogenetic ML tree of the concatenated ITS-BenA-CaM-RPB2 gene sequences clearly showed that the strain KMM 4631 clusters with the ex-type strain Aspergillus fumigatus CBS 133.61T (Figure 1).

3.2. Aspergillus fumigatus KMM 4631 Monoculture Metabolites

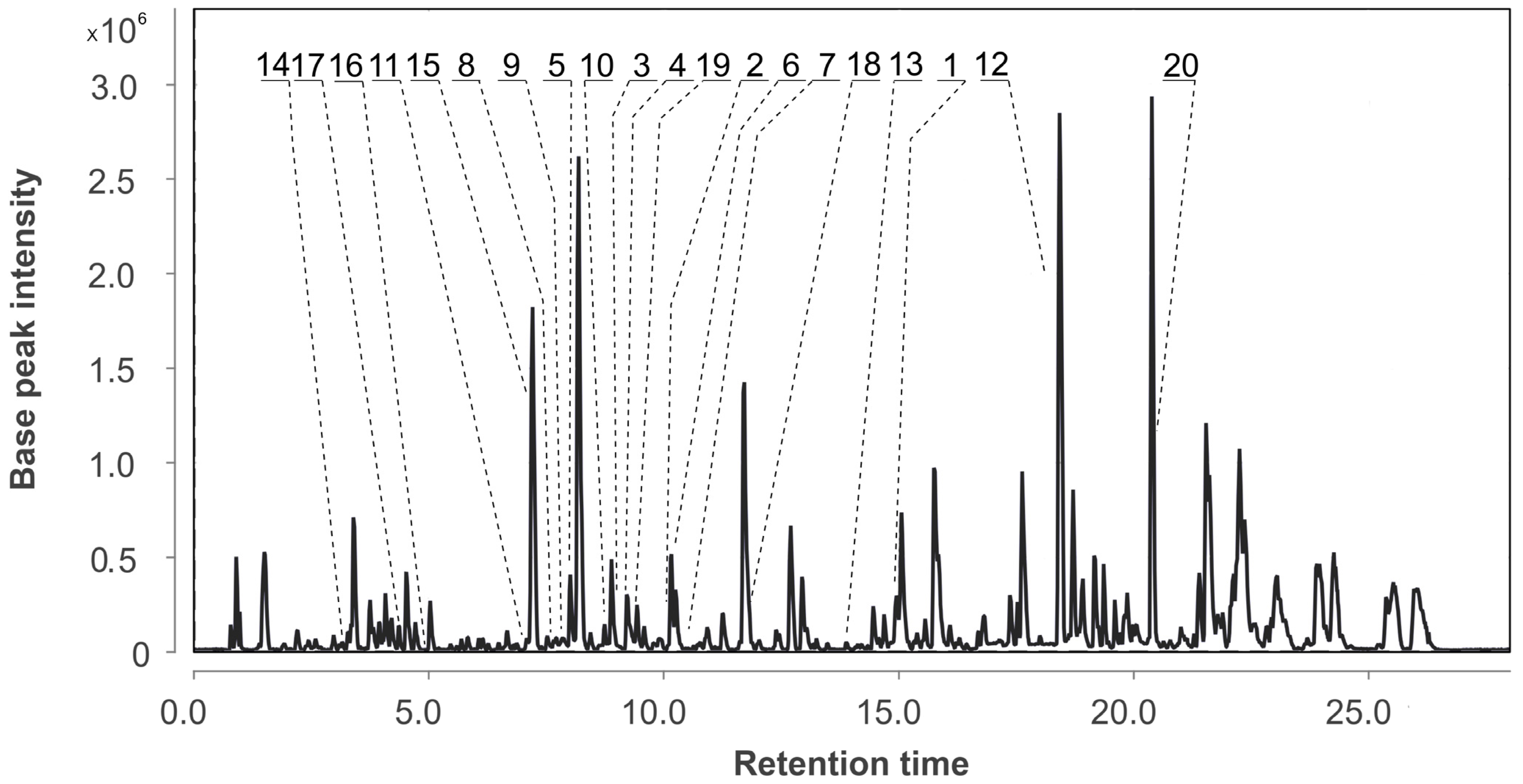

The UHPLC MS chromatogram of the extract of Aspergillus fumigatus KMM 4631 monoculture (Af) is presented in Figure 2.

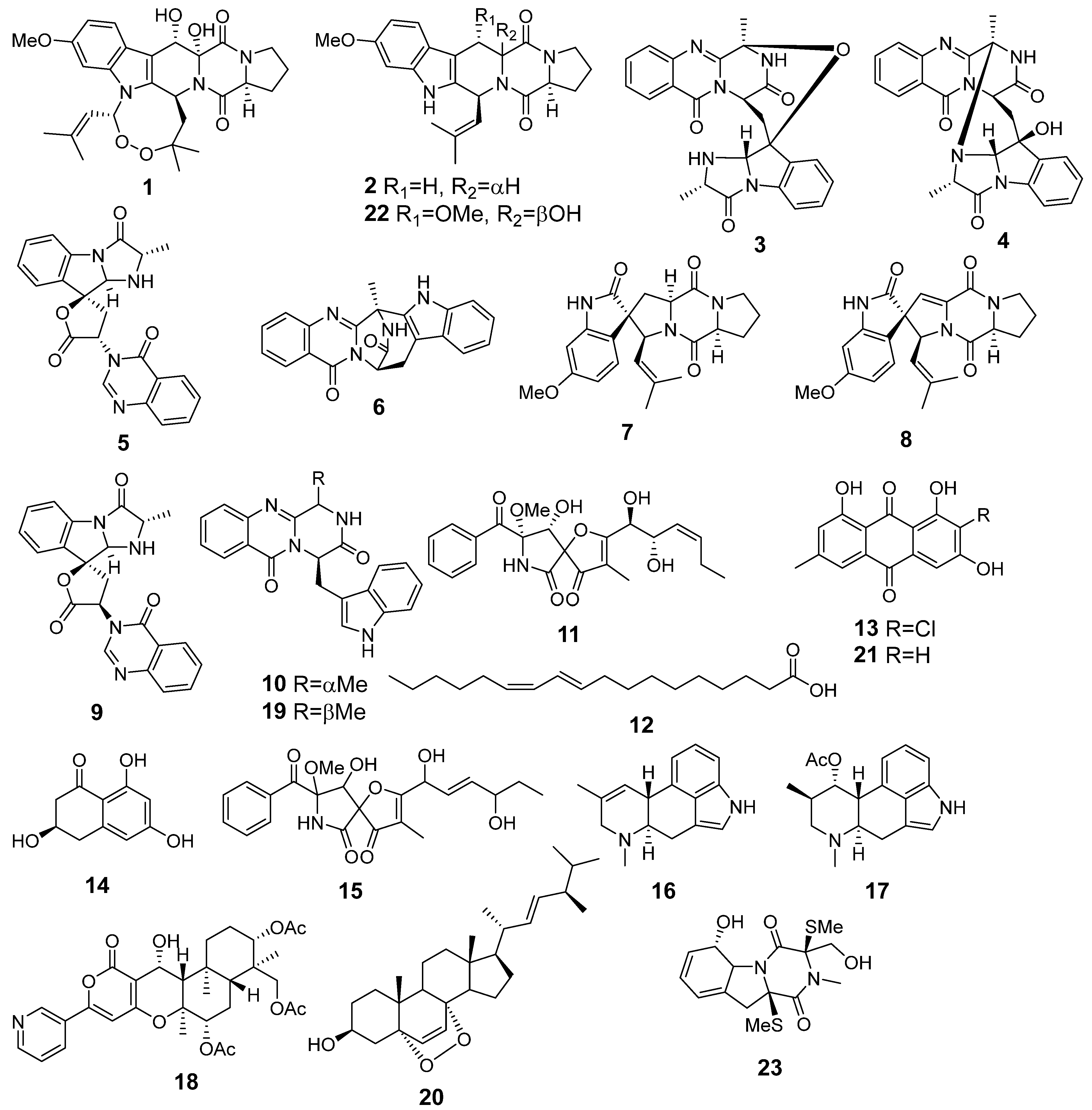

In total, 20 compounds were identified in the extract of the monoculture of A. fumigatus using an in-house database or proposed based on MetFrag and the GNPS database (Figure 3, Table A1). The detailed characteristics of the annotated compounds are presented in Appendix A (Table A1).
The peak detected at 3.2 min (m/z 195.0649) corresponded to the molecular formula C10H10O4, the same as scytalone (14), which was suggested based on MS/MS comparison using MetFrag [25]. The peaks detected at 4.2 (m/z 299.1759) and 4.8 min (m/z 239.1519) corresponded to the molecular formulas C18H22N2O2 and C16H18N2, the same as fumigaclavine A (17) and agroclavine (16), respectively; those were suggested based on MS/MS comparison using MetFrag [25].
The peaks detected at 7.1 and 7.2 min (m/z 432.1664) corresponded to the molecular formula C22H25NO8, the same as isomeric pseurotin A (11) and D (15), and were suggested based on MS/MS comparison using GNPS database and MetFrag, respectively. The peaks detected at 7.6 and 10.4 with m/z 394.1754 and m/z 396.1920 were identified as 6-methoxyspirotriprostatin B (8) and spirotriprostatin A (7), respectively, based on an exact mass value and RT comparison with an in-house database.
The peaks detected at 7.8 and 8.0 min with m/z 403.1396 corresponded to the molecular formula C22H18N4O4, which can be associated with the stereoisomeric compounds tryptoquivaline F (9) and tryptoquivaline J (5). The compounds were identified based on an exact mass value and MS/MS with an in-house database and MetFrag [25].
The peak detected at 8.7 min (m/z 359.1494) corresponded to the molecular formula C21H18N4O2 and was suggested to be fumiquinazoline F (10) via the GNPS database. The peaks detected at 9.0 and 9.2 min with m/z 444.1671 corresponded to the molecular formula C24H21N5O4, which can be associated with the isomeric quinazoline-containing indole alkaloids fumiquinazoline C (3) and fumiquinazoline D (4). The compounds were identified based on an exact mass value and MS/MS with an in-house database and GNPS (MQScore 0.95).
The peak detected at 9.4 min (m/z 359.1480) corresponded to the molecular formula C21H18N4O2, the same as fumiquinazoline G (19), and it was annotated based on MS/MS comparison using MetFrag. The peaks detected at 10.1 min with (m/z 380.1971) and at 15.0 (m/z 512.2402) corresponded to the molecular formulas C22H16N4O2, the same as fumitremorgin C (2), and C27H33N3O7, the same as verruculogen (1), respectively. Both compounds were identified based on an exact mass value and RT comparison with an in-house database.
The peak detected at 10.2 min (m/z 357.1338) corresponded to the molecular formula C21H25N3O3, which can be associated with the fumiquinazoline K (6). The compound was identified based on an exact mass value and MS/MS with an in-house database and MetFrag.
The peaks detected at 11.9 min (m/z 584.2507) and 13.8 min (m/z 305.0200) corresponded to the molecular formulas C31H37NO10, the same as pyripyropene A (18), and C15H9ClO5, the same as 2-chloroemodin (13), respectively, which were proposed based on MS/MS comparison using MetFrag.
The peak detected at 18.4 min (m/z 281.2487) corresponded to the molecular formula C18H32O2 and was suggested to be conjugated linoleic acid (10E, 12Z) (12) using the GNPS database. The peak detected at 20.4 (m/z 429.3348) corresponded to the molecular formula C28H44O3, the same as ergosterol peroxide (20). The compound was identified based on MS/MS and RT comparison with an in-house database as well as a GNPS database.
All identified and annotated compounds were reported for various strains of A. fumigatus [26]. Verruculogen (1), [11] fumitremorgin C (2) [11], fumiquinazolines C (3), D (4) [12], and K (6) [13], tryptoquivalines J (5) [12] and F (9) [13], 6-methoxyspirotriprostatin B (8) [13], and spirotriprostatin A (7) [13] were previously isolated from this strain. Compounds 1020 had not previously been isolated from this strain.
The most intensive peaks detected at 3.4 (m/z 227.0908), 8.2 (m/z 195.1003), 11.7 (m/z 380.1139), 12.7 (m/z 389.1924), 15.1 (m/z 256.2989), 15.8 (m/z 301.1407), 17.6 (m/z 377.2653), 18.4 (m/z 353.2654), and 20.4 (m/z 413.2657) min were not annotated using any available database and were not associated with common A. fumigatus metabolites.

3.3. Aspergillus fumigatus KMM 4631 and Penicilliun hispanicum KMM 4689 Co-Culture Metabolites

The UHPLC MS chromatograms of extracts of the Penicillium hispanicum KMM 4689 monoculture (Ph) and the co-culture of Aspergillus fumigatus KMM 4631 and Penicillium hispanicum KMM 4689 (AfPh) are presented in Figure 4.

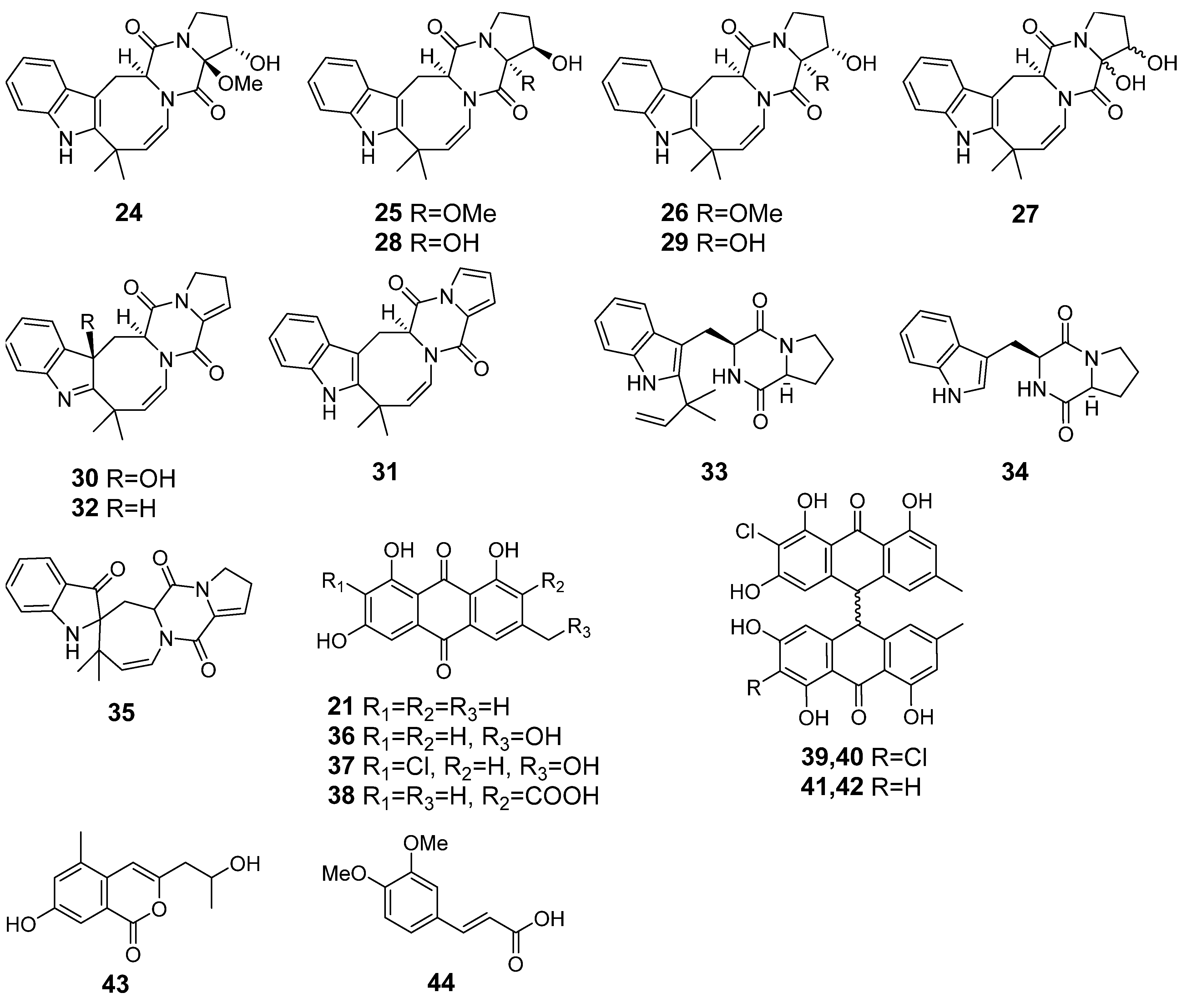

Emodin (21), desoxyisoaustamide alkaloids 2432, desoxybrevianamide E (33), brevianamide F (34), austamide (35), citreorosein (36), 2-chlorocitreorosein (37), endocrocin (38), nephrolaevigatins A–C (3941), isochromene derivative 43, and ergosterol peroxide (20), which were earlier identified in this fungal strain using the HPLC MS technique [17] were detected in Ph extract using an in-house database and GNPS (Figure 5, Table A1).
In AfPh, a total of 28 compounds were identified. They were compounds 1216, 18, 20, 21, 2441, and 43. Nephrolaevigatin D (42) and 3,4-dimethoxycinnamic acid (44) were found in the peaks at 15.0 and 4.9 min, respectively. These compounds were previously reported as metabolites of Penicillium hispanicum KMM 4689 [17]. Moreover, the peaks at 10.0 (m/z 329.1005) and 19.8 (m/z 443.3138) were detected only in AfPh and were not associated with any of the compounds in the used databases.

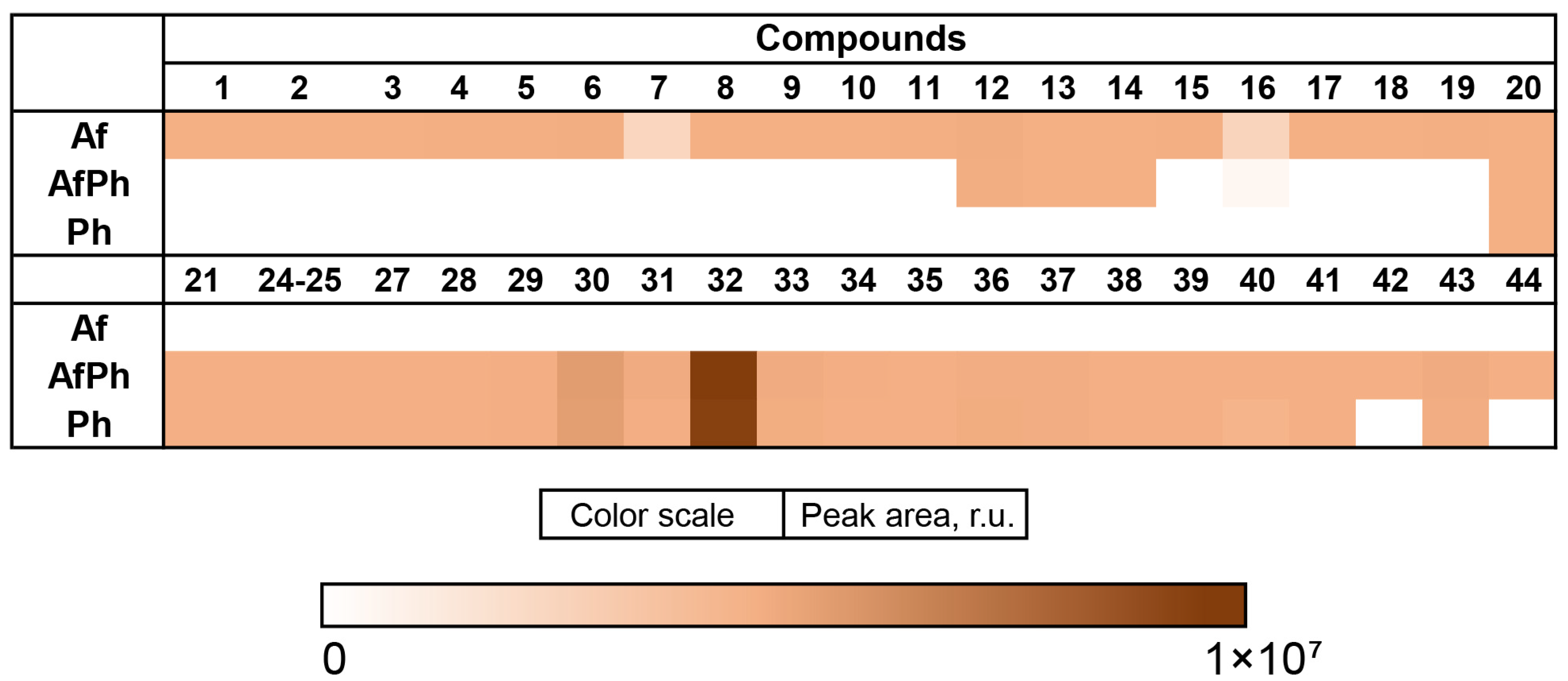

The content of the compounds identified as the peak areas in in the Af, Ph, and AfPh extracts, detected in the HPLC MS chromatogram, was visualized in a heatmap (Figure 6).
The content of 3β-hydroxydeoxyisoaustamide (30), (+)-deoxyisoaustamide (32), nephrolaevigatin B (40), and 7-hydroxy-3-(2-hydroxypropyl)-5-methylisochromen-1-one (43) was higher in the AfPh extract in comparison with the Af. Moreover, nephrolaevigatin D (42) as well as 3,4-dimethoxycinnamic acid (44) were detected in the AfPh extract only. Only the conjugated linoleic acid (10E, 12Z) (12), 2-chloroemodin (13), scytalone (14), and agroclavine (16) observed in the Af extract were also detected in the AfPh. Ergosterol peroxide (20) was identified in all extracts in equal amounts.

3.4. Aspergillus fumigatus KMM 4631 and Amphichorda sp. KMM 4639 Co-Culture Metabolites

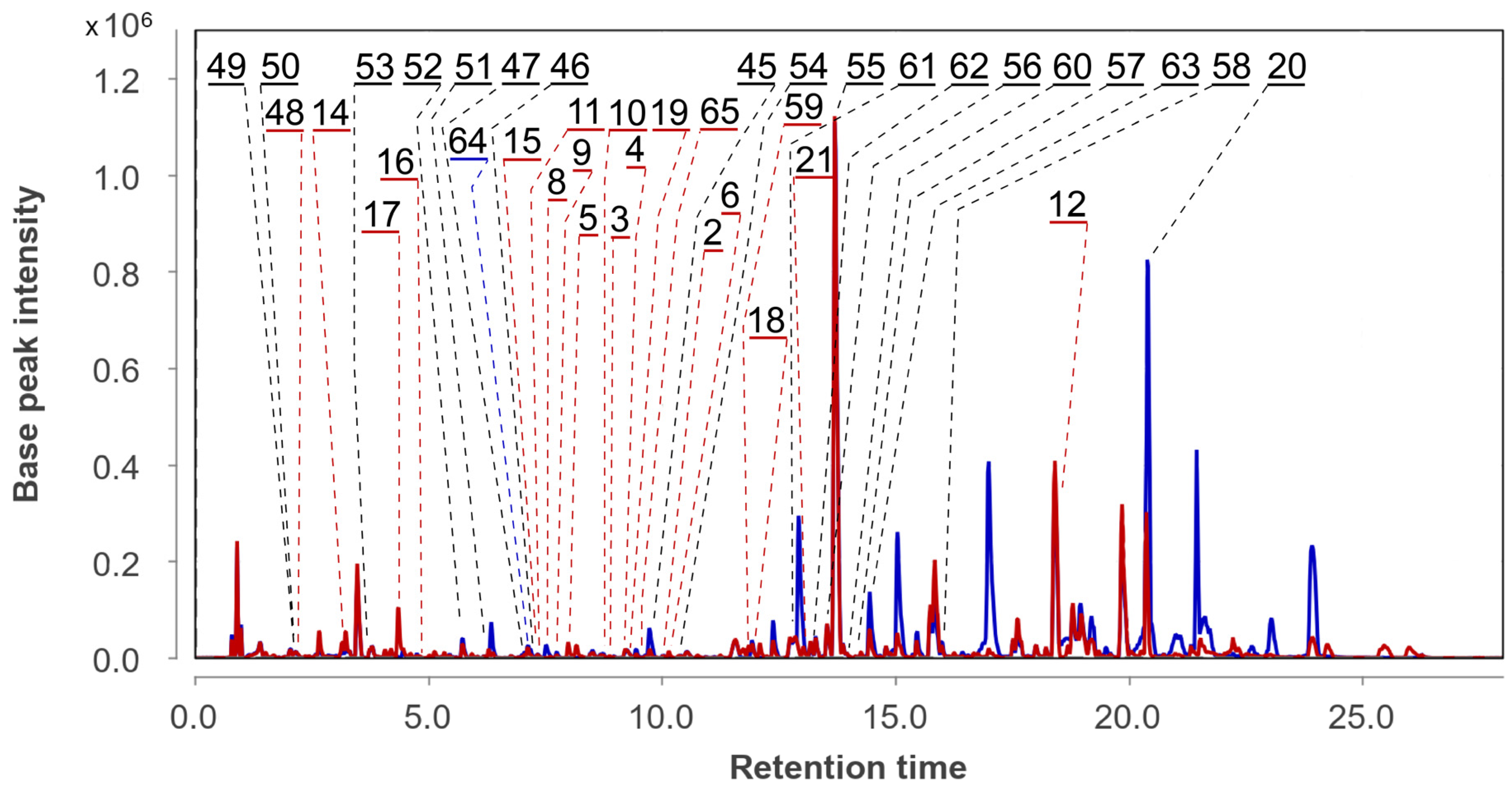

The UHPLC MS chromatograms of extracts of the Amphichorda sp. KMM 4639 monoculture (As) and the co-culture of Aspergillus fumigatus KMM 4631 and Amphichorda sp. KMM 4639 (AfAs) are presented in Figure 7.

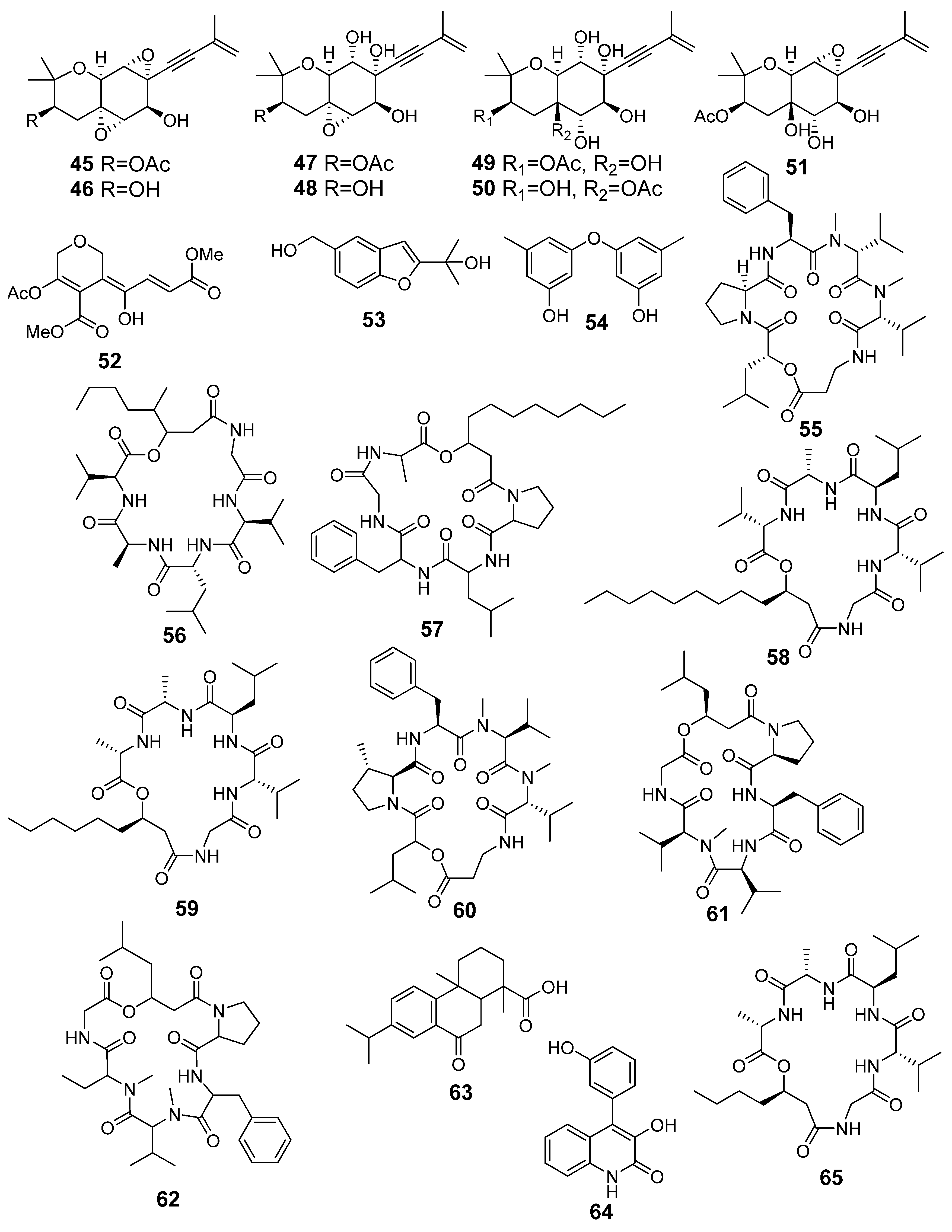

A total of 19 compounds (20, 4547, 4958, 6064) were identified and annotated in the As extract (Figure 8).
The peaks at 7.1 (m/z 353.1587), 7.2 (m/z 275.1279 [M−H2O+H]+) and 9.7 (m/z 335.1487) min corresponded to the molecular formulas C18H24O7, C16H20O5, and C18H22O6, which can be associated with the chromene derivatives oxirapentyns F (47), E (46), and B (45), respectively. This was additionally proven through a comparison of exact mass values and RT comparison with an in-house database.
The peaks detected at 2.9 min (m/z 371.1711) corresponded to the molecular formula C18H26O8, which may be associated with isomeric oxirapentyns H (49) and I (50). The RTs of the reference compounds were very close, and both of the compounds may be contained in this peak. The peaks at 5.7 (m/z 313.0910), 3.7 (m/z 207.1014), and 10.4 (m/z 231.1009) min corresponded to the molecular formulas C14H16O8, C12H14O3, and C14H14O3, the same as isariketide A (52), acremine S (53), and diorcin (54). The compounds were identified based on an exact mass value and RT comparison with an in-house database.
The peak at 6.2 (m/z 353.1587) min corresponded to the molecular formula C18H24O7, the same as oxirapentyn J (51). The compound was identified based on an exact mass value and RT comparison with an in-house database. The main peak was detected at 13.7 (m/z 656.4010) min in the HPLC MS chromatogram. It corresponds to the molecular formula C35H53N5O7, the same as isaridin E (55). This was suggested through the comparison of experimental MS/MS spectra with the GNPS database (MQScore 0.81). It should be noted that the earlier compounds 4555 were reported as metabolites of the Amphichorda sp. KMM 4639 strain [27].
Many Cordycipitaceae fungi are known to produce various cyclodepsipeptides. The strain KMM 4639 is no exception. In addition to the main peptide isaridin E (55), we were able to detect other related metabolites. Unfortunately, their concentration in the extracts was low and we were unable to obtain MS/MS data to identify them more accurately, so the presence of these peptides was assumed based on the exact mass values.
Thus, the peaks detected at 12.8 (m/z 642.3870), 13.2 (m/z 642.3870), 13.5 (m/z 596.3997), 14.0 (m/z 670.4187), 14.1 (m/z 670.4187), and 16.0 (m/z 638.4495) min corresponded to the molecular formula C34H51N5O7, C34H51N5O7, C30H53N5O7, C36H55N5O7, C36H55N5O7, and C33H59N5O7, and were associated with desmethylisaridin E (61), isaridin F (62), isaridin B (56), psuedodestruxin C (60), isarfelin A (57), and isariin (58).
None of the peptides 5662 have previously been isolated from the strain KMM 4639.
The peaks detected at 7.5 (m/z 254.0795) and 14.2 (m/z 315.1947) min corresponded to the molecular formulas C15H11NO3 and C20H26O3, and were associated with viridicatol (64) and 1,4a-dimethyl-9-oxo-7-propan-2-yl-3,4,10,10a-tetrahydro-2H-phenanthrene-1-carboxylic acid (63), based on MS/MS comparison with the GNPS database.
In the AfAs extract a total of 37 compounds were identified. They were compounds 26 and 820, which were identified in the Af extract, and compounds 4558 and 6063, identified in the As extract. Moreover, the peaks detected in the AfAs extract at 2.2 (m/z 311.1504), 11.8 (m/z 568.3692), and 9.7 (m/z 540.3395) min corresponded to the molecular formulas C16H22O6, C28H49N5O7, and C26H45N5O7, which can be associated with oxirapentyn G (48), isariin C (59), and D (65). These compounds were suggested based on exact mass values. No new unidentified intensive peaks were observed in the AfAs chromatogram.

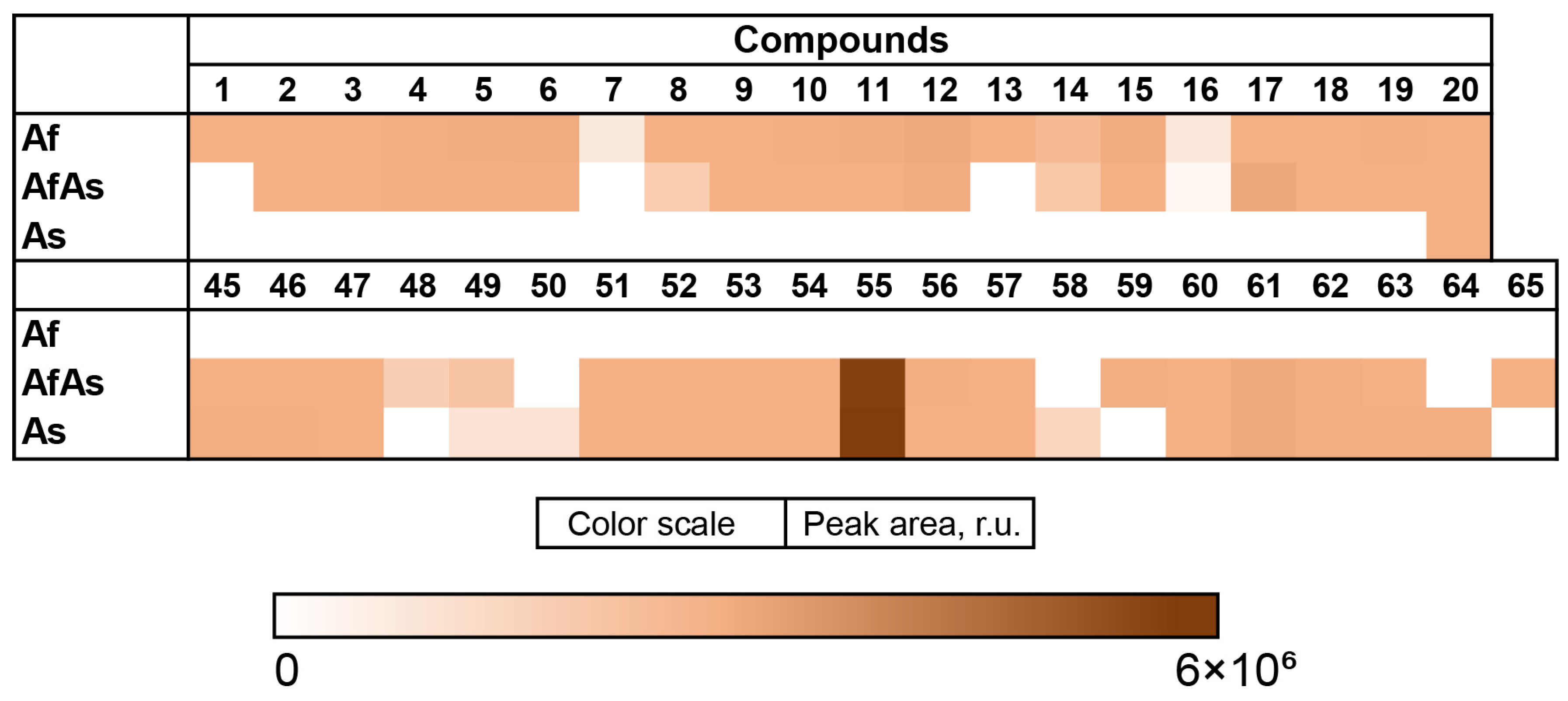

The content of the compounds identified as the peak areas in the Af, As, and AfAs extracts, detected in the HPLC MS chromatogram, was visualized in a heatmap (Figure 9).
The Af metabolites 26, 912, and 18 were observed in the AfAs extract in equal amounts compared with the Af, while compounds 1, 7, 13, and 16 were not detected in the AfAs, and 8, 14 were detected in a smaller amount. Only fumigaclavine A (17) was produced in the AfAs extract in higher amount than in the Af.
The As metabolites 4547, 5157, and 6063 were observed in the AfAs extract in equal amounts in comparison with the As, while 50, 58, and 64 were not detected. The amount of oxirapentyn H (49) was higher in the AfAs than in the As extract, and oxirapentyn G (48), isariin C (59) and isariin D (65) were detected only in the AfAs extract.

3.5. Aspergillus fumigatus KMM 4631 and Penicillium sp. KMM 4672 Co-Culture Metabolites

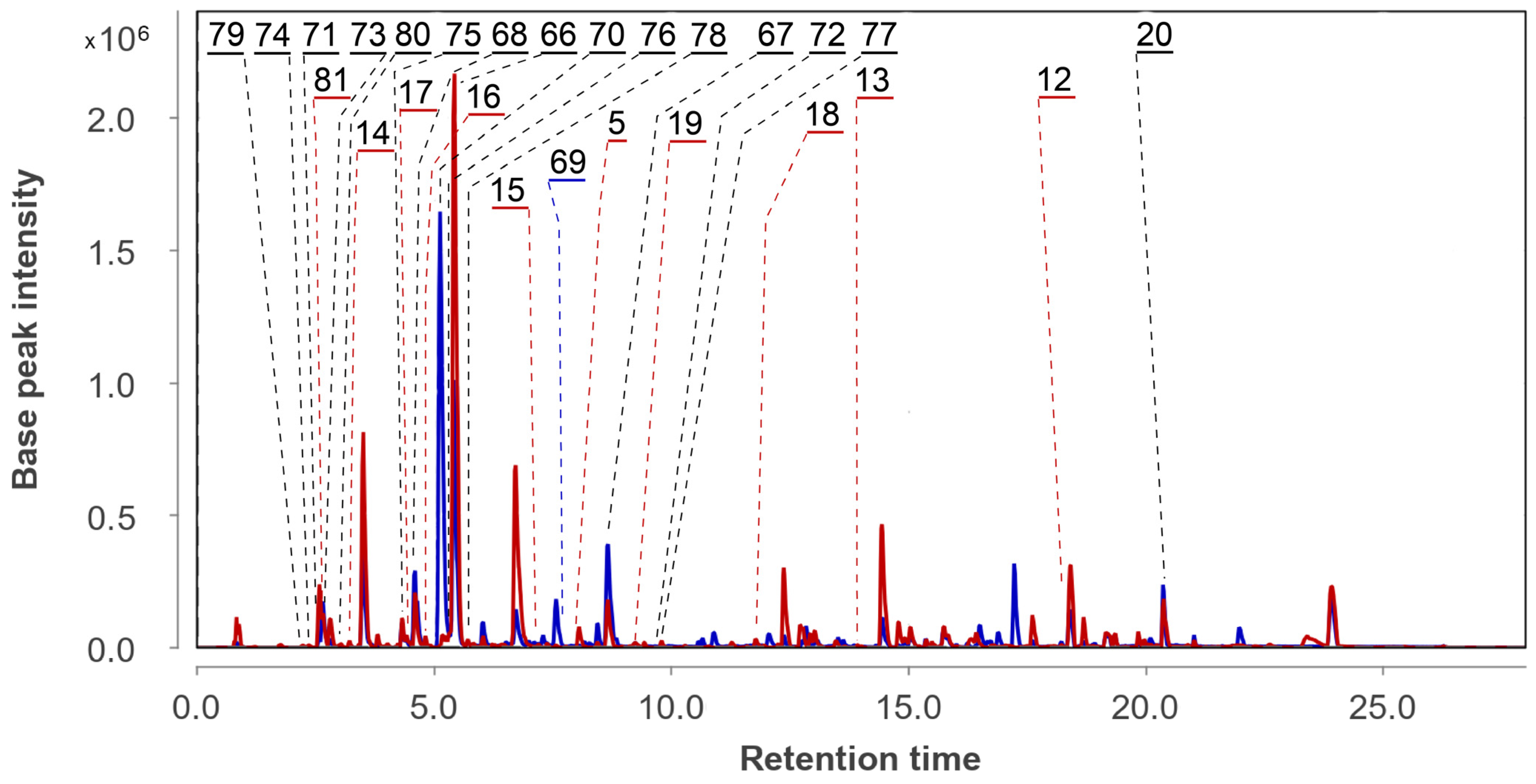

The combined UHPLC MS chromatograms of the extracts of Penicillium sp. KMM 4672 monoculture (Ps) and the co-culture of Aspergillus fumigatus KMM 4631 and Penicillium sp. KMM 4672 (AfPs) are presented in Figure 10.
In total, 16 compounds were identified and annotated in the Ps extract (Figure 11, Table A1).
The main peak in the HPLC MS chromatograms was detected at 5.4 min. The base peak with m/z 237.0670 corresponded to the molecular formula C14H8N2O2, the same as quinolactacide (66) [28]. The compound was identified based on an exact mass value and RT comparison with an in-house database.
The peaks at 2.2 (m/z 211.0603) and 3.0 (m/z 195.0654) min corresponded to the molecular formulas C10H10O5 and C10H10O4, which can be associated with 4-hydroxyscytalone (79) and 4-hydroxy-6-dehydroxyscytalone (80) [29]. The compounds were identified based on exact mass values and RT comparisons with an in-house database.
The peaks at 2.4 (m/z 233.0925), 2.6 (m/z 176.0717), and 2.7 (m/z 141.0548) min corresponded to the molecular formulas C12H12N2O3, C10H9NO2, and C7H8O3, which can be associated with the melatonin derivative hydroxy-N-acetyl-β-oxotriptamine (74) [30], 4-methoxyisoquinolin-1(2H)-one (71), and 4-hydroxy-3,6-dimethyl-2-pyrone (73) [31]. The compounds were identified based on exact mass values and RT comparisons with an in-house database.
The peak at 4.4 min with m/z 339.0979 corresponded to the molecular formula C18H16N2O6 ([M−H2O+H]+ ion), the same as citriperazine D (75) [32]. This was additionally proven through a comparison of experimental MS/MS spectra and RT comparison with an in-house database.
The peaks detected at 4.6 (m/z 193.0856) and 7.5 (m/z 239.0913) min corresponded to the molecular formulas C11H14O4 ([M−H2O+H]+) and C12H14O5, the same as anserinone B (68) and formylanserinone B (69) [33], respectively. The compounds were identified based on exact mass values and RT comparisons with an in-house database.
The peaks at 5.3 (m/z 207.0651, [M−H2O+H]+), 8.7 (m/z 209.1175), and 9.7 (m/z 192.1390) min corresponded to the molecular formulas C11H12O5, C12H16O3, and C12H17NO, the same as 6-methylcurvulinic acid (70) [34], 3,5-dimethyl-8-methoxy-3,4-dihydro-1H-isochromene-6-ol (67) [35], and N,N-diethyl-3-methylbenzamide (72) [36]. The compounds were identified based on exact mass values and RT comparisons with an in-house database.
The peaks at 5.4 (m/z 513.0988) and 8.1 (m/z 531.0662) min corresponded to the molecular formulas C21H24N2O9S2 and C21H23ClN2O8S2, the same as pretrichodermamide C (76) and N-methylpretrichodermamide B (77) [16,37], respectively. The compounds were identified based on exact mass values and RT comparisons with an in-house database. The peak at 5.9 min (m/z 513.0988) corresponded to the molecular formula C21H24N2O9S2, the same as pretrichodermamide D (78). This was additionally proven through a comparison of experimental MS/MS spectra and RT comparison with an in-house database. Moreover, ergosterol peroxide (20) was detected in the Ps extract.

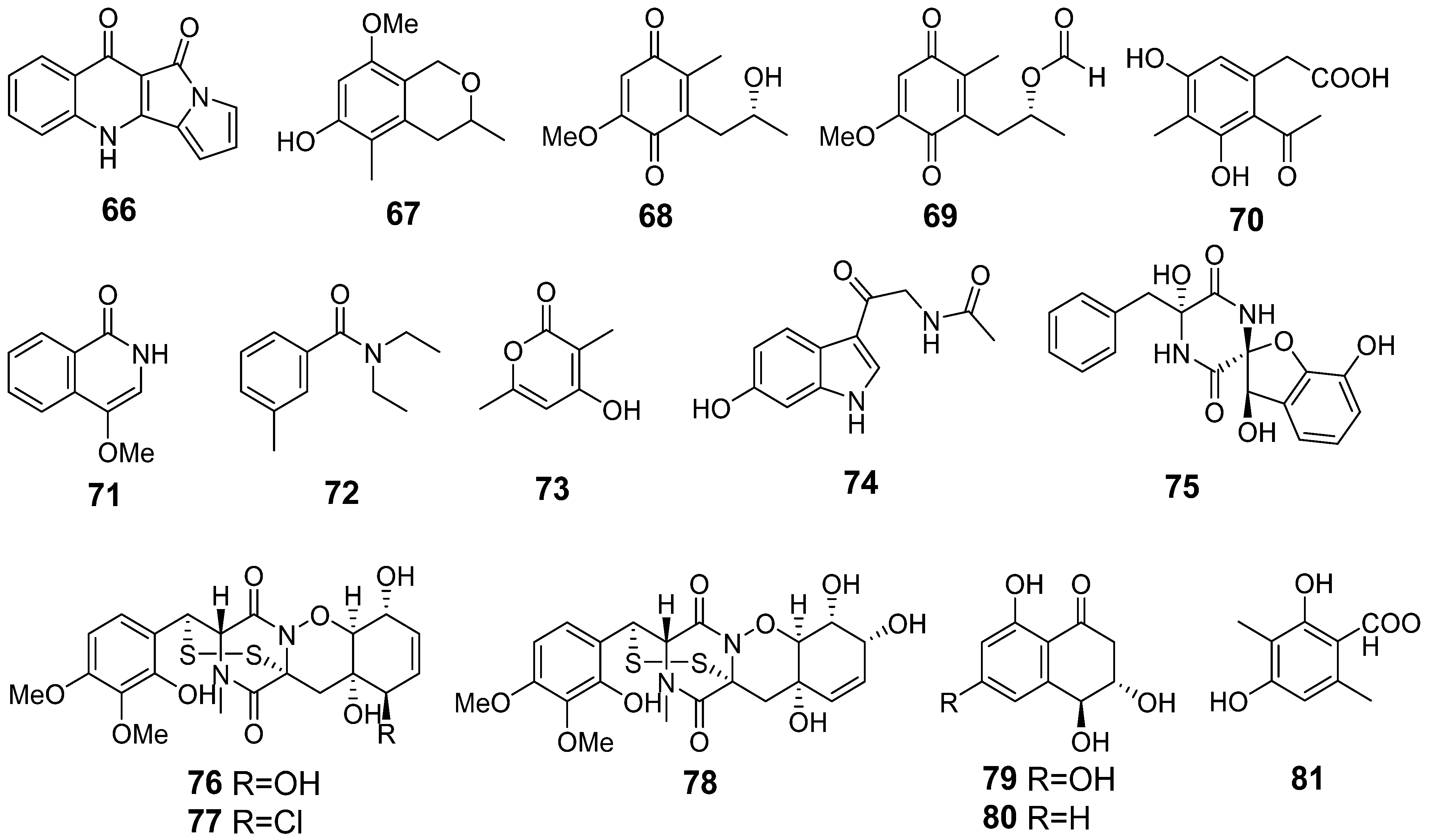

The earlier compounds 6682 were reported as metabolites of Penicillium sp. KMM 4672 [16,29,30,32,36].
In the AfPs extract the compounds 5, 1220, 6668, and 7080 were identified. Moreover, the peak at 2.6 min with m/z 183.0659 in the HPLC MS chromatogram of the AfPs extract corresponded to the molecular formula C9H10O4, which can be associated with 3-methylorsellinic acid (81). The compound was suggested based on an exact mass value. Compound 81 was also previously isolated from this fungal strain [30].
In addition, the intensive peaks at 12.7 (m/z 214.2518), 16.3 (m/z 498.3788), and 23.4 (m/z 791.5300) were detected both in AfPs and Ps extracts, but their intensities in the AfPs extract were more than 20 times higher than in the Ps.

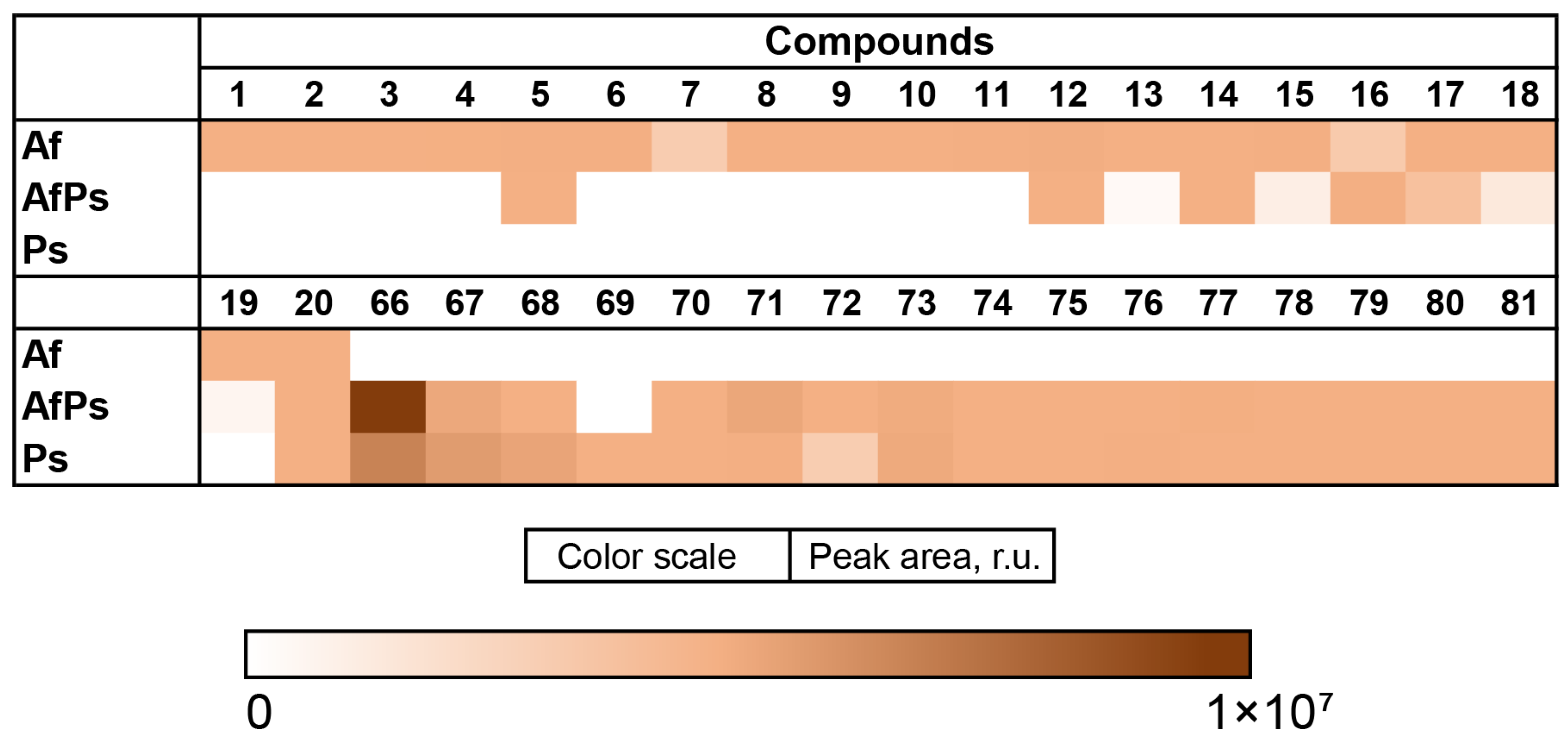

The content of the compounds identified as the peak areas in the Af, Ps, and AfPs extracts, detected in the HPLC MS chromatogram, is visualized in a heatmap (Figure 12).
The Af metabolites 5, 12, and 14 were detected in the AfPs extract in equal amounts compared with the monoculture. The content of 15 and 1719 was less than in the Af extract and 14, 611, and 13 were not detected in the AfPs. Only the amount of agroclavine (16) was higher in the AfPs extract than in the Af.
The Ps metabolites 70 and 7381 were detected in the AfPs extract in equal amounts, and only formylanserinone B (69) was not detected in the AfPs extract. The amounts of 67 and 68 were less in the AfPs extract than in the Ps, while the content of quinolactacide (66), 4-methoxyisoquinolin-1(2H)-one (71), and N,N-diethyl-3-methylbenzamide (72) was higher in the AfPs extract than in the Ps.

3.6. Aspergillus fumigatus KMM 4631 and Asteromyces cruciatus KMM 4696 Co-Culture Metabolites

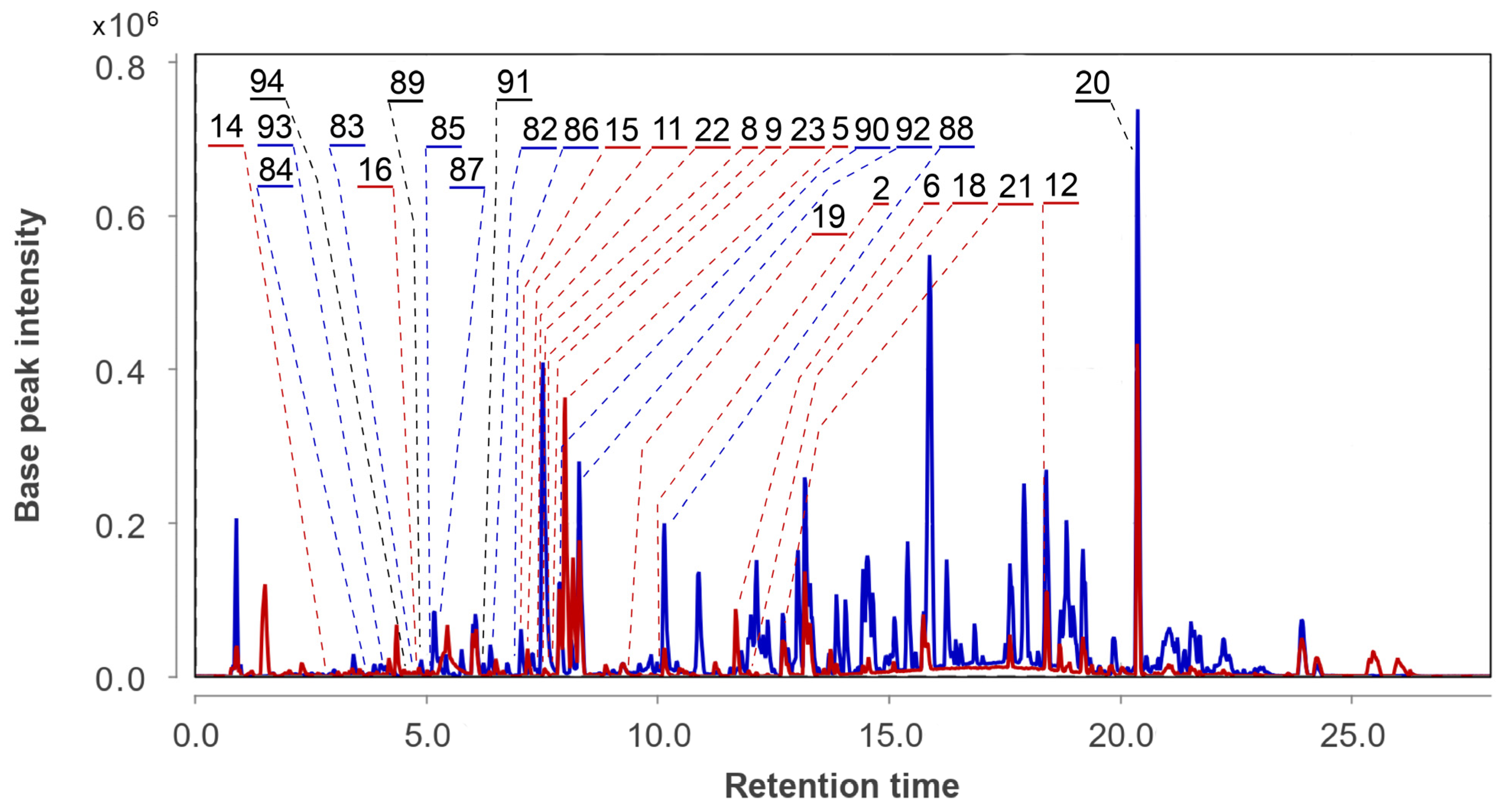

The UHPLC MS chromatograms of the Asteromyces cruciatus KMM 4696 monoculture (Ac) and the co-culture of Aspergillus fumigatus KMM 4631 and Asteromyces cruciatus KMM 4696 (AfAc) extracts are presented in Figure 13.

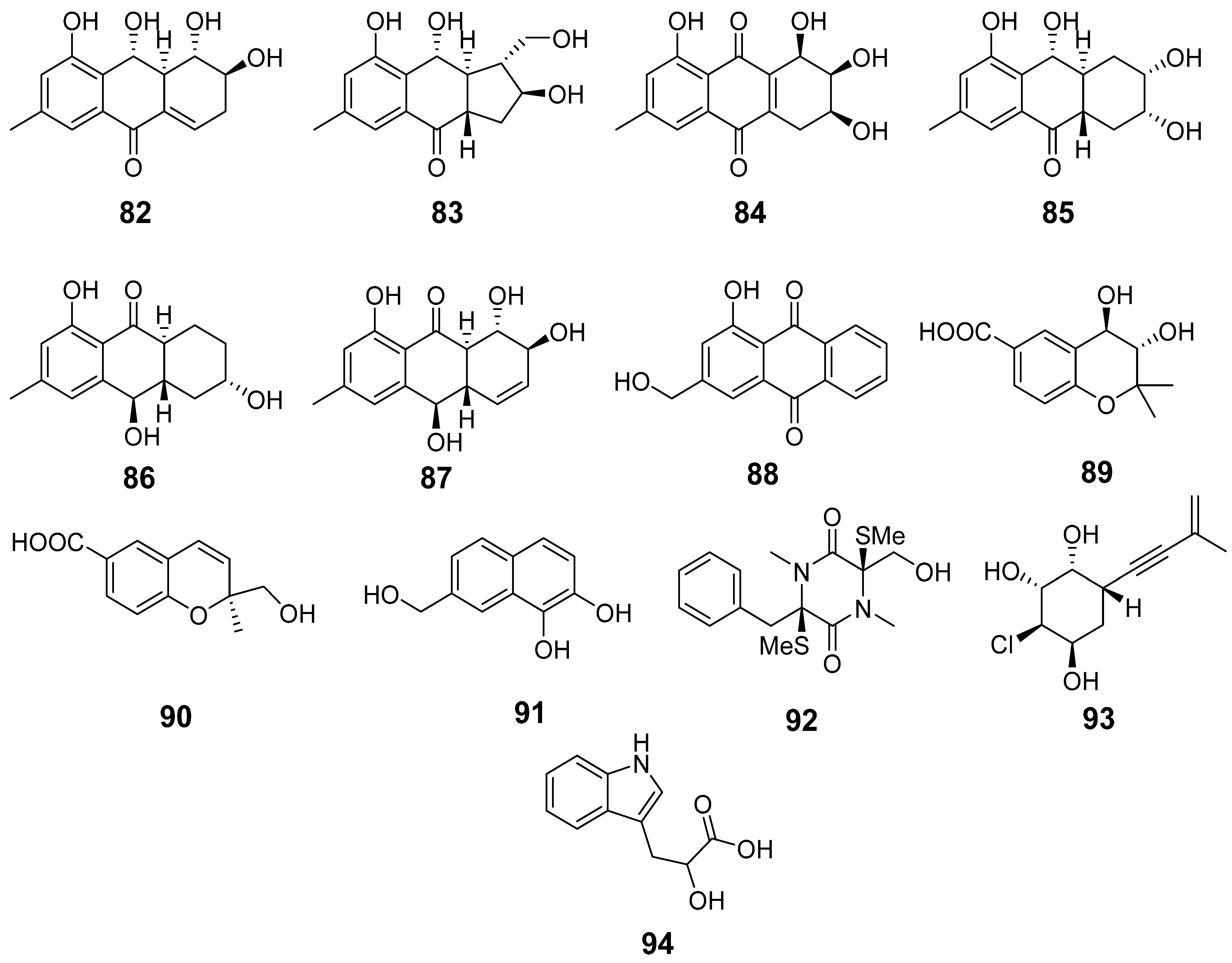

In total, 13 compounds were identified and annotated in the Ac extract (Figure 14, Table A1).
The peak at 4.6 min with m/z 206.0810 corresponded to the molecular formula C11H11NO3. It was suggested to be indolelactic acid (94) [38] based on MS/MS comparison using the GNPS database.
The peak at 4.9 min with m/z 239.0895 corresponded to the molecular formula C12H14O5, the same as trans-3,4-dihydroxy-3,4-dihydroanofinic acid (89) [39]. This was proven through a comparison of experimental MS/MS spectra and RT comparison with an in-house database.
The peak at 6.2 min with m/z 191.0707 corresponded to the molecular formula C11H10O3, the same as 7-hydroxymethyl-1,2-naphthalenediol (91) [40]. The compound was identified based on an exact mass value and RT comparison with an in-house database.
The peaks detected at 6.4 (m/z 277.1063) and 5.2 (m/z 277.1062) min corresponded to the molecular formula C15H16O5, which can be associated with the isomeric anthraquinone derivatives acruciquinone A (82) [41] and rubrumol (87) [42]. The comparison of experimental MS/MS spectra and an RT comparison with the values obtained for reference compounds showed that the RTs of 6.4 and 5.2 min correspond to acruciquinone A (82) and rubrumol (87), respectively.
The peaks detected at 4.6 (m/z 279.1226) and 4.9 (m/z 279.1226) min corresponded to the molecular formula C15H18O5, which can be associated with the isomeric anthraquinone derivatives acruciquinone C (83) and coniothyrinone D (85). The comparison of experimental MS/MS spectra and an RT comparison with the value obtained for the reference compound showed that a RT of 4.9 min corresponds to coniothyrinone D (85) [43]. The peak detected at 4.6 min with the same m/z very likely corresponds to acruciquinone C (83) [41], but this peak was detected in extracts only in trace quantities, so we have no MS/MS for exact identification.
The peak detected at 3.8 min with m/z 291.0853 corresponded to the molecular formula C15H14O6, the same as pleosporon (84) [44]. The compound was identified based on an exact mass value and RT comparison with an in-house database.
The peaks detected at 7.0 (m/z 263.1272) and 10.1 (m/z 255.0652) corresponded to the molecular formula C15H18O4 and C15H10O4, which can be associated with coniothyrinone B (86) [43] and 9,10-anthracenedione (88). This was additionally proven through a comparison of experimental MS/MS spectra and RT comparison with an in-house database.
The peak detected at 7.8 min with m/z 221.0819 corresponded to the molecular formula C12H12O4, the same as quadricinctapyran A (90) [45]. The compound was identified based on an exact mass value and RT comparison with an in-house database.
The peaks detected at 8.3 (m/z 355.1160) and 4.1 (m/z 231.0777) corresponded to the molecular formula C16H22N2O3S2 and C11H15ClO3, which can be associated with gliovictin (92) [46] and acrucipentyn A (93) [18]. This was additionally proven through a comparison of experimental MS/MS spectra and an RT comparison with an in-house database.
In the AfAc extract the compounds 2, 5, 6, 8, 9, 1116, 1821, 89, 91, and 94 were identified. Moreover, the peaks at 7.3 (m/z 426.2035, C23H27N3O5) and 7.4 (m/z 357.0936, C15H20N2O4S) min were associated with cyclotryprostatin B (22) and bisdethiobic(methylthio)gliotoxin (23). They were previously isolated from Aspergillus fumigatus KMM 4631 [11,12], but in the present study both these compounds were identified in the AfAc extract only.
In addition, the intensive peaks at 5.4 (m/z 470.1496) and 5.5 (m/z 877.3782) min were detected only in the AfAc chromatogram, while the intensive peaks found at 2.3 (m/z 113.0598), 4.8 (m/z 183.0649), and 13.7 (m/z 233.1154) min were 10–20 times more intensive in the AfAc chromatogram than in the Ac.

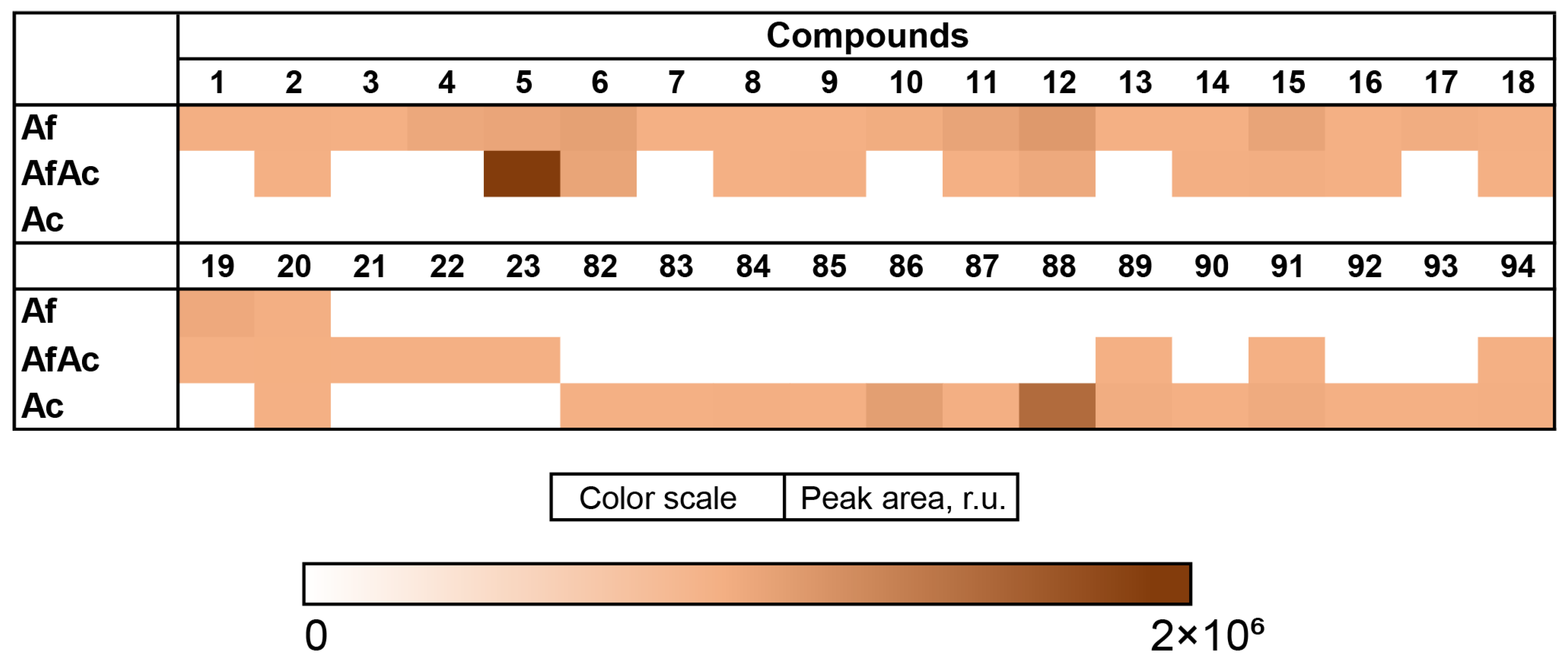

The content of the compounds identified as the peak areas in the Af, Pc, and AfAc extracts, detected in the HPLC MS chromatogram, is visualized in a heatmap (Figure 15).
The Af metabolites 2, 8, 9, 14, 16, and 18 were detected in the AfAc extract in equal amounts compared with the Af. The amount of 6, 11, 12, 15, and 19 was less in the AfAc extract than in the Af, while 1, 3, 4, 7, 10, 13, and 17 were not detected in the AfAc extract. It was surprising that the content of tryptoquivaline J (5) was significantly higher in the AfAc extract than in the Af.
The Ac metabolites 8288, 90, 92, and 93 were not detected in the AfAc extract and only 89, 91, and 94 were observed in the AfAc extract in equal amounts in comparison with the monoculture. Emodin (21), cyclotryprostatin B (22), and bisdethiobis(methylthio)gliotoxin (23) were detected only in the AfAc extract.

3.7. PCA Analysis of the HPLC MS Chromatograms of Fungal Extracts

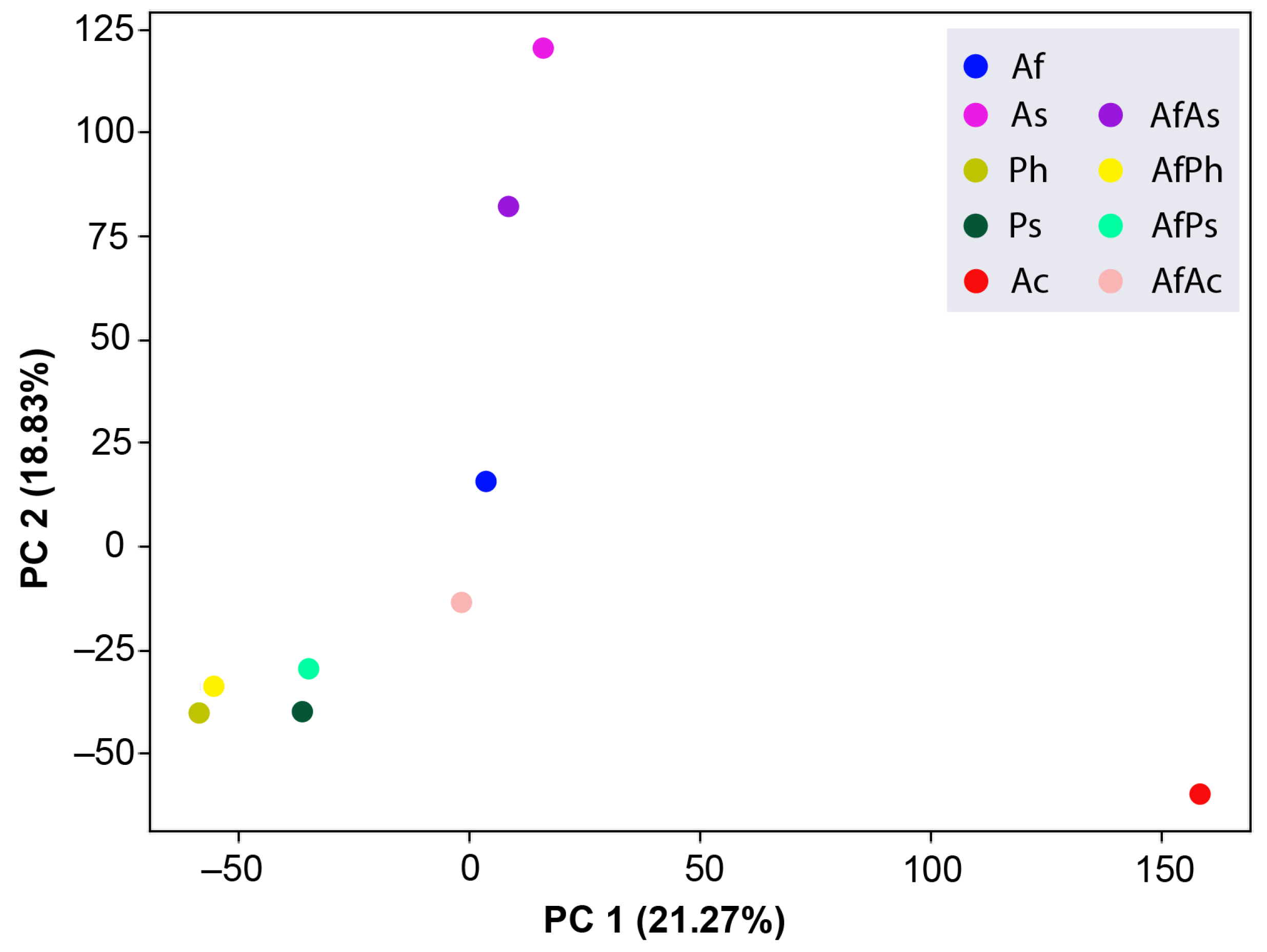

Principal component analysis (PCA) was utilized to differentiate between the extracts analyzed via UHPLC MS. The PCA model revealed an optimal number of principal components (PCs) equal to two, so two PCs (PC1 and PC2) were chosen to describe ≈40% of the variation in the samples. The first principal component describes approximately 21% of the variance, and ≈19% of the variation is described by the second principal component (Figure 16).
The results of the PCA analysis showed that the extracts of both Penicillium strains Ph and Ps are very close to their co-cultures with A. fumigatus, AfPh and AfPs, in terms of the two principal components. The AfAc extract is the closest to the Af in PC1, and the Ac extracts is the most different from other extracts in PC1. The AfAs extract is a bit closer to the As than to the Af extract in PC2.
The studied extracts were divided into three clusters based on the PCA of the UHPLC MS data, which was visualized in a dendrogram (Figure 17).

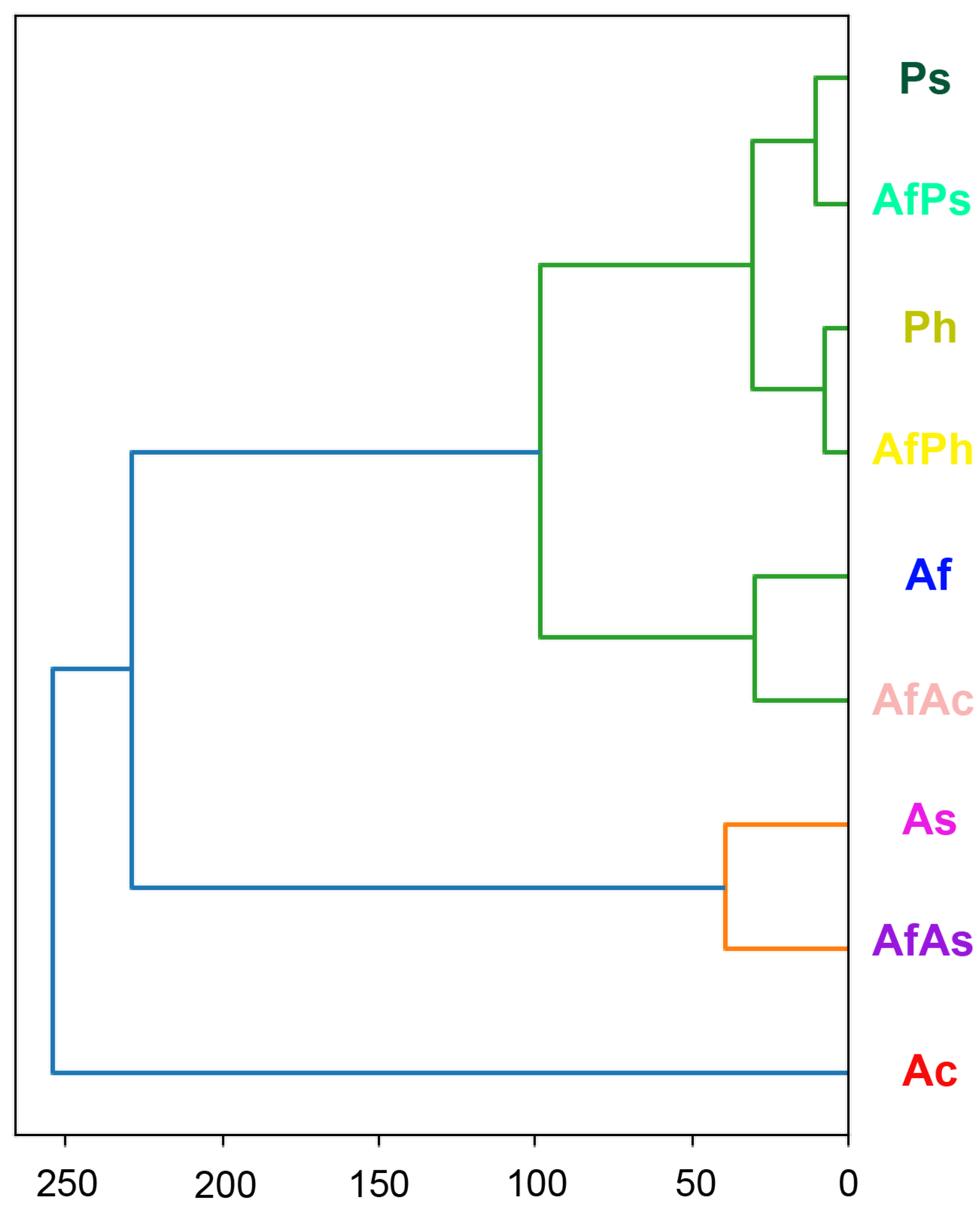

The dendrogram confirms the relationships between the extracts visualized on the PCA plot.

3.8. Influence of Co-Cultivation on the Biological Activity of Fungal Extracts

The joint cultivation of different fungal strains induces cell wall integrity (CWI) stress, the limitation of nutrition and O2, and oxidative stress, which results in the activation of various adaptive strategies including the production of direct or indirect antioxidants or secondary metabolites targeting the suppression of a competitor’s viability. Oxidative stress induces the production of reactive oxygen and nitrogen species which can be scavenged by direct antioxidants. Urease (urea amino hydrolase), which hydrolyzes urea to ammonia and carbamate, is an important virulent factor for some fungi like Helicobacter pylori and other bacteria [47]. The inhibition of urease activity can result in a decrease of urease-producing strains’ virulence, so, it may be one of the defense strategies in joint fungus–fungus cultivation [48]. Also, secondary metabolites with cytotoxic properties are produced during fungal co-cultivation [49,50].

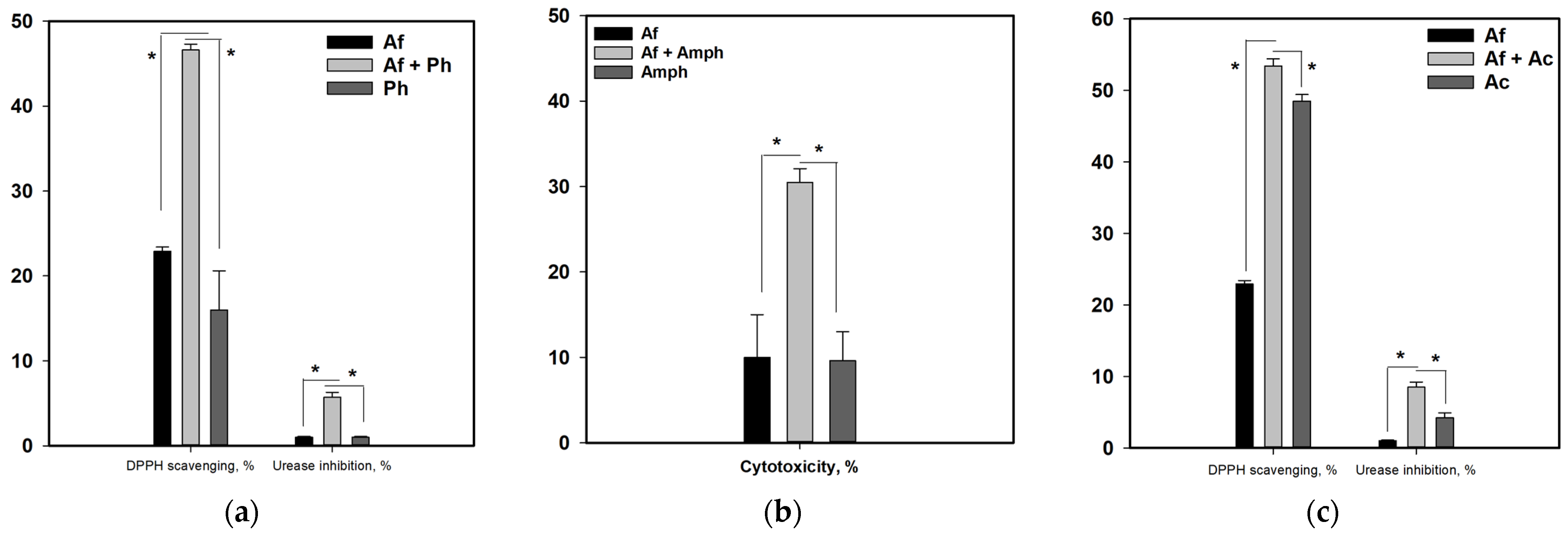

Thus, the effect of fungal mono- and co-culture extracts on DPPH radical scavenging, urease activity, and human hepatocarcinoma HepG2 cell viability was investigated, and some data are presented in Figure 18.
The DPPH radical scavenging activity of the Af extract was 22.9%. The AfPh extract scavenged 46.6% of DPPH radicals, while the Ph extract scavenged only 16.0% of DPPH radicals (Figure 18a).
The extract of AfAc scavenged 53.4% of DPPH radicals, while the Ac extract decreased the quantity of DPPH radicals by only 48.5% (Figure 18c).
The extract of Af inhibited the activity of urease only by almost 1% while the AfPh and AfAc extracts inhibited urease activity by 5.7% and 8.5%, respectively.
The extract of Af decreased HepG2 cell viability by 10.0% while the AfAs extract was more toxic and decreased HepG2 cell viability by 30.5% (Figure 18b).
The cytotoxicity, as well as the DPPH radical scavenging and urease inhibition activities, of the AfPs extract did not differ from those of the Af extract.

4. Discussion

In the present work, the metabolite profiles of marine A. fumigatus strain KMM 4631 and other marine fungi Amphichorda sp. KMM 4639, Penicillium sp. KMM 4672, and Asteromyces cruciatus KMM 4696 were investigated for the first time. This helps us to study the metabolite profiles of co-cultures of A. fumigatus with Amphichorda sp., Penicillium sp., Asteromyces cruciatus, and Penicillium hispanicum KMM 4689.
In total, 20 known compounds were analyzed in this marine A. fumigatus strain and some of them had not yet been isolated from this fungus. A number of secondary metabolites such as gliotoxin, fumagillin, fumigaclavines, fumitremorgins, and fumiquinazolines have previously been described as the main virulence factors of A. fumigatus [51]. The strains isolated from environmental sources may display a decreased production of these metabolites [10], which can result in the higher stress sensitivity of non-pathogenic strains. It has been reported that non-pathogenic A. fumigatus Af293, isolated from decaying organic and plant matter, exhibits moderate tolerance to the cell wall stress caused by Congo Red and Calcofluor White, and moderate sensitivity to the oxidative stress induced by menadione and H2O2 [52]. Fusidane-type triterpenoid helvolic acid [53], which aids in the colonization of mammalian cells by A. fumigatus, decreasing the beat frequency of the ciliated respiratory epithelium, as does as fumagillin [51], was not identified in the marine isolate of A. fumigatus studied in the present investigation. On the other hand, an unusual nordammarane triterpenoid was isolated from this marine A. fumigatus strain [13], and its biological role may be related to adaptation to marine environments like the anti-inflammatory nordammarane triterpenoid decurrencyclic A [54]. Moreover, nine intensive peaks in the LC-MS chromatogram of the A. fumigatus extract were not annotated with any common metabolites of A. fumigatus, and this 15-year-ago-investigated strain may have become “second born”, via the use of actual techniques for the isolation and identification of minor natural compounds.
The joint cultivation of fungi mimics natural communities and can have significant effects on the biosynthesis of secondary metabolites. In addition to resource limitations, physical contact during co-culture induces cell wall integrity (CWI) stress [55], both of which cause changes in the production of compounds that act as second messengers or directly (e.g., direct antioxidants).
The metabolite profiles of co-cultures of A. fumigatus with two Penicillium strains, KMM 4672 and KMM 4689, were very close to the profiles of the monocultures of those Penicillium fungi. Nevertheless, their co-cultivation with P. hispanicum KMM 4689 resulted in the detection of two new unidentified compounds. Furthermore, three previously unidentified compounds were detected in significantly higher amounts in the co-culture of A. fumigatus and Penicillium sp. KMM 4672. The mixed cultivation of A. fumigatus and P. hispanicum resulted in the increased DPPH radical scavenging and urease inhibition activities of the co-culture extract. However, these activities have not been previously reported for the known metabolites identified in the A. fumigatus and Penicillium hispanicum co-culture.
The metabolite profile of the co-culture of A. fumigatus with Amphichorda sp. was like that of the Amphichorda sp. monoculture. Three metabolites that were previously reported for Amphichorda sp. were detected only in the co-culture extract, but no new unidentified compounds were observed when A. fumigatus was cultivated with Amphichorda sp. A significant increase in cytotoxic activity was observed for an extract of this co-culture and it was accompanied by the detection of oxirapentyn G, isariin C, and isariin D in this extract. Isariin C has been reported as insecticidal against Galleria mellonella [56], as has isariin D [57], but cytotoxic activity has not yet been published for these depsipeptides. The cytotoxic activity of oxirapentyn G has also not been reported. Thus, the extract of the A. fumigatus and Amphichorda sp. joint culture may contain unidentified cytotoxic compounds.
The metabolite profile of the co-culture of A. fumigatus with Asteromyces cruciatus is more distinct from those of each monoculture. Three known fungal metabolites were detected only in this co-culture and three unidentified compounds were observed in significantly higher amounts compared with the monocultures. In addition, the co-cultivation of A. fumigatus with Asteromyces cruciatus resulted in the production of two new unidentified compounds in significant amounts.
As noted above, gliotoxin was not identified in the extract of A. fumigatus KMM 4631, and its derivative bisdethiobis(methylthio)gliotoxin was observed only in the co-culture of A. fumigatus with Asteromyces cruciatus. Gliotoxin via the action of gliotoxin bis-thiomethyltransferase (GtmA) can transform into bisdethiobis(methylthio)gliotoxin [58]. This mechanism of self-protection against toxicity induced by cycling between the oxidized and reduced dithiol form and the generation of reactive oxygen species was reported for A. fumigatus [59], but could also be true for other fungi. Thus, gliotoxin, dehydroxybisdethiobis(methylthio)gliotoxin, and bisdethiobis(methylthio)gliotoxin were isolated also from a marine Pseudallescheria fungus [60]. It was previously reported that the production of gliotoxin was changed in response to contact with other microorganisms during co-cultivation [61]. So, gliotoxin plays a double role, i.e., it can both regulate the growth of a competitor fungus [62] and protect the producing fungus, as an antioxidant [63] during CWI stress. In the present work, the derivative of gliotoxin was detected only in the co-culture of A. fumigatus with Asteromyces cruciatus. At this stage of our investigation it is difficult to say which of them is responsible for the production of this gliotoxin derivative—it could be either the result of A. fumigatus’ self-protection or the result of a defense strategy of Asteromyces cruciatus.
The co-culture extract exhibited a significant increase in both DPPH radical scavenging and urease inhibition activities. Previously, urease inhibition activity has been reported for trans-3,4-dihydroxy-3,4-dihydroanofinic acid and 7-hydroxymethyl-1,2-naphthalenediol from Asteromyces cruciatus [41], but the detection of only these two metabolites in the co-culture of A. fumigatus and Asteromyces cruciatus cannot explain the increase in the urease inhibition activity of the joint culture extract. Furthermore, the observed increase in DPPH radical scavenging activity of the co-culture extract raises further questions.
These results confirm that competition between fungi in the communities is carried out, among other things, through chemical communication. Exolites that are capable of scavenging active radicals play a protective role in the interactions between community members. An increase in the radical scavenging activity of extracts directly indicates the activation of the defense system of one or both fungi in their joint culture [64]. The urease enzyme is important in modifying microenvironmental conditions and is utilized by a wide range of prokaryotes and microeukaryotes, including fungi [65]. The inhibition of urease activity can reduce the virulence and the viability of its producers. Therefore, the effectiveness of a well-known drug targeted at Helicobacter pylori is based on the suppression of urease activity [66]. The enhanced ability to inhibit urease activity found in extracts of A. fumigatus and Asteromyces cruciatus, as well as the A. fumigatus and P. hispanicum co-cultures, indicates that fungi use a tactic involving affecting another member of the community. An increase in the cytotoxic activity of the extract of another joint culture also confirms the use of an aggressive strategy by fungi in the community [67].

5. Conclusions

Thus, the joint cultivation of the marine non-pathogenic strain Aspergillus fumigatus KMM 4631 with two marine Penicillium fungi may result in the production of some novel compounds. The co-cultivation of Aspergillus fumigatus with Asteromyces cruciatus KMM 4696 resulted in more pronounced changes in secondary metabolite biosynthesis and may be the most promising for the isolation of unknown compounds or for enhancing the production of known bioactive metabolites.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo13111138/s1, Figures S1–S9: UPLC MS chromatograms of the investigated extracts, Figures S10-S40: MS/MS fragmentation of compounds 36, 921, 5456, 58, 6064, 7578, 86, 88, 89, 94, Table S1: Experimental UPLC MS data for reference compounds.

Author Contributions

Conceptualization, E.A.Y.; data curation, E.A.Y.; formal analysis, L.E.N.; funding acquisition M.P.I.; investigation, L.E.N., R.S.P., N.N.K., V.E.C., E.A.C., and E.A.Y.; methodology, R.S.P. and M.P.I.; project administration, M.P.I.; resources, A.N.Y. and M.P.I.; supervision, A.N.Y.; validation, A.N.Y., M.P.I., and E.A.Y.; visualization, L.E.N., N.N.K., V.E.C., and E.A.C.; writing—original draft, A.N.Y., N.N.K., and V.E.C.; writing—review and editing, R.S.P., M.P.I., and E.A.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a grant from the Ministry of Science and Higher Education of the Russian Federation, 15.BRK.21.0004 (Contract No. 075-15-2021-1052).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original data presented in the study are included in the article/Supplementary Materials; further inquiries can be directed to the corresponding author.

Acknowledgments

We are grateful to Elena Belousova for preparing the extracts for analysis, Vera Alferova (IBC RAS, Moscow) for valuable advice in LC MS data analysis, and Gleb Borkunov (PIBOC FEB RAS, Vladivostok) for advice on performing the PCA. The study was carried out using the Collective Facilities Center’s “Collection of Marine Microorganisms PIBOC FEB RAS” and on “The Far Eastern Center for Structural Molecular Research (NMR/MS) PIBOC FEB RAS” equipment of the Collective Facilities Center.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. The secondary metabolites identified in Aspergillus fumigatus KMM 4631 (Af), Penicillium hispanicum KMM 4689 (Ph), Amphichorda sp. KMM 4639 (As), Penicillium sp. KMM 4672 (Ps), and Asteromyces cruciatus KMM 4696 (Ac) monoculture extracts and the Aspergillus fumigatus co-cultures with other investigated fungi.
Table A1. The secondary metabolites identified in Aspergillus fumigatus KMM 4631 (Af), Penicillium hispanicum KMM 4689 (Ph), Amphichorda sp. KMM 4639 (As), Penicillium sp. KMM 4672 (Ps), and Asteromyces cruciatus KMM 4696 (Ac) monoculture extracts and the Aspergillus fumigatus co-cultures with other investigated fungi.
N NameStructureRTExact Mass (Measured)Exact Mass (Calcd)Δ, ppmScore
1AfverruculogenMetabolites 13 01138 i00115.0512.2414
[M+H]+
512.23914.5
2Af
AfAs
AfAc
fumitremorgin CMetabolites 13 01138 i00210.1380.1971
[M+H]+
380.19690.5
3Af
AfAs
fumiquinazoline CMetabolites 13 01138 i0039.0444.1671
[M+H]+
444.16661.1
4Af
AfAs
fumiquinazoline DMetabolites 13 01138 i0049.2444.1671
[M+H]+
444.16661.10.95 a
5Af
AfAs
AfPs
AfAc
tryptoquivaline JMetabolites 13 01138 i0058.0403.1396
[M+H]+
403.1401−1.2
6Af
AfAs
AfAc
fumiquinazoline KMetabolites 13 01138 i00610.2357.1338
[M+H]+
357.1346−2.2
7Afspirotriprostatin AMetabolites 13 01138 i00710.4396.1920
[M+H]+
396.19180.5
8Af
AfAs AfAc
6-
methoxyspirotriprostatin B
Metabolites 13 01138 i0087.6394.1754
[M+H]+
394.1761−1.8
9Af
AfAs
AfAc
tryptoquivaline FMetabolites 13 01138 i0097.8403.1396
[M+H]+
403.1401−1.2
10Af
AfAs
fumiquinazoline FMetabolites 13 01138 i0108.7359.1494
[M+H]+
359.1503−2.50.83 a
11Af
AfAs
AfAc
pseurotin AMetabolites 13 01138 i0117.1432.1652
[M+H]+
432.1653−0.20.76 a, 0.95 b
12Af
AfPh
AfAs
AfPs
AfAc
conjugated linoleic acid (10E, 12Z)Metabolites 13 01138 i01218.4281.2487281.24754.30.74 a
13Af
Ph
AfPh
AfPs
2-chloroemodinMetabolites 13 01138 i01313.8305.0200305.0211−3.61.00 b
14Af
AfPh AfAs
AfPs
AfAc
scytaloneMetabolites 13 01138 i0143.2195.0649195.0652−1.50.84 b
15Af
AfAs
AfPs
AfAc
pseurotin DMetabolites 13 01138 i0157.2432.1650432.1653−0.71.00 b
16Af
AfPh AfAs
AfPs
AfAc
agroclavineMetabolites 13 01138 i0164.8239.1519239.1543−10.41.00 b
17Af
AfAs
AfPs
fumigaclavine AMetabolites 13 01138 i0174.4299.1749299.1754−1.71.00 b
18Af
AfAs
AfPs
AfAc
pyripyropene AMetabolites 13 01138 i01811.9584.2507584.24902.91.00 b
19Af
AfAs
AfPs
AfAc
fumiquinazoline GMetabolites 13 01138 i0199.4359.1480359.1503−6.40.80 b
20Af, Ph
As, Ps
Ac
AfPh
AfAs
AfPs
AfAc
ergosterol peroxideMetabolites 13 01138 i02020.4429.3348429.3363−3.50.85 a
24Ph
AfPh
16α-hydroxy-17β-methoxy-deoxydihydroisoaustamideMetabolites 13 01138 i0217.3396.1921
[M+H]+
396.19180.8
25Ph
AfPh
16β-hydroxy-17α-methoxy-deoxydihydroisoaustamideMetabolites 13 01138 i0227.3396.1921
[M+H]+
396.19180.8
26Ph
AfPh
16α-hydroxy-17α-methoxy-deoxydihydroisoaustamideMetabolites 13 01138 i0237.3396.1921
[M+H]+
396.19180.8
27Ph
AfPh
16,17-dihydroxy-deoxydihydroisoaustamideMetabolites 13 01138 i0246.2382.1748
[M+H]+
382.1761−3.4
28Ph
AfPh
16β,17α-dihydroxy-deoxydihydroisoaustamideMetabolites 13 01138 i0256.0382.1748
[M+H]+
382.1761−3.4
29Ph
AfPh
16α,17α-dihydroxy-deoxydihydroisoaustamideMetabolites 13 01138 i0266.6382.1748
[M+H]+
382.1761−3.4
30Ph
AfPh
3β-hydroxydeoxyisoaustamideMetabolites 13 01138 i0272.9364.1655
[M+H]+
364.1656−0.3
31Ph
AfPh
deoxy-14,15-dehydroisoaustamideMetabolites 13 01138 i02810.8346.1544
[M+H]+
346.1550−1.7
32Ph
AfPh
(+)-deoxyisoaustamideMetabolites 13 01138 i0297.7348.1713
[M+H]+
348.17071.7
33Ph
AfPh
desoxybrevianamide EMetabolites 13 01138 i0309.6352.2019
[M+H]+
352.2020−0.3
34Ph
AfPh
brevianamide FMetabolites 13 01138 i0315.0284.1388
[M+H]+
284.1394−2.1
35Ph
AfPh
austamideMetabolites 13 01138 i0325.3364.1635
[M+H]+
364.1656−5.80.97 a
36Ph
AfPh
citreoroseinMetabolites 13 01138 i0338.8287.0539
[M+H]+
287.0550−3.8
37Ph
AfPh
2-chlorocitreoroseinMetabolites 13 01138 i03410.2321.015
[M+H]+
321.0160−3.1
38Ph
AfPh
endocrocinMetabolites 13 01138 i0358.1315.0488
[M+H]+
315.0499−3.50.86 a
21Ph
AfPh
AfAc
emodinMetabolites 13 01138 i03613.0271.0605271.06011.50.95 b
39Ph
AfPh
nephrolaevigatin AMetabolites 13 01138 i03715.5579.0665
[M+H]+
579.06089.8
40Ph
AfPh
nephrolaevigatin BMetabolites 13 01138 i03815.7579.0626
[M+H]+
579.06083.1
41Ph
AfPh
nephrolaevigatin CMetabolites 13 01138 i03915.3545.1005
[M+H]+
545.0998−1.3
42AfPh nephrolaevigatin DMetabolites 13 01138 i04015.0545.0992
[M+H]+
545.0998−1.1
43Ph
AfPh
7-hydroxy-3-(2-hydroxypropyl)-5-methylisochromen-1-oneMetabolites 13 01138 i0415.2235.0949
[M+H]+
235.0965−6.8
44AfPh3,4-dimethoxycinnamic acidMetabolites 13 01138 i0424.9209.0805
[M+H]+
209.08040.5
45As
AfAs
oxirapentyn BMetabolites 13 01138 i0439.7335.1487
[M+H]+
335.1489−0.6
46As
AfAs
oxirapentyn EMetabolites 13 01138 i0447.2275.1279
[M-H2O+H]+
275.12780.4
47As
AfAs
oxirapentyn FMetabolites 13 01138 i0457.1353.1587
[M+H]+
353.1595−2.3
48AfAsoxirapentyn GMetabolites 13 01138 i0462.2311.1504
[M+H]+
311.14894.8
49As
AfAs
oxirapentyn HMetabolites 13 01138 i0472.9371.1704
[M+H]+
371.17001.1
50As
AfAs
oxirapentyn IMetabolites 13 01138 i0482.9371.1704
[M+H]+
371.17001.1
51As
AfAs
oxirapentyn JMetabolites 13 01138 i0496.2353.1587
[M+H]+
353.1595−2.3
52As
AfAs
isariketide AMetabolites 13 01138 i0505.7313.0910
[M+H]+
313.0918−2.6
53As
AfAs
acremine SMetabolites 13 01138 i0513.7207.1014
[M+H]+
207.1016−1.0
54As
AfAs
diorcinMetabolites 13 01138 i05210.4231.1009
[M+H]+
231.1016−3.0
55As
AfAs
isaridin EMetabolites 13 01138 i05313.7656.4010
[M+H]+
656.4018−1.20.81 a
56As
AfAs
isaridin BMetabolites 13 01138 i05413.5596.3997
[M+H]+
596.4018−3.5
57As
AfAs
isarfelin AMetabolites 13 01138 i05514.0/14.1670.4187
[M+H]+
670.41741.9
58As
AfAs
isariinMetabolites 13 01138 i05616.0638.4495
[M+H]+
638.44871.3
59AfAsisariin CMetabolites 13 01138 i05711.8568.3692
[M+H]+
568.3705−2.3
60As
AfAs
psuedodestruxin CMetabolites 13 01138 i05814.0/14.1670.4187
[M+H]+
670.41741.9
61As
AfAs
desmethylisaridin EMetabolites 13 01138 i05912.8/13.2642.3870
[M+H]+
642.38611.4
62As
AfAs
isaridin FMetabolites 13 01138 i06012.8/13.2642.3870
[M+H]+
642.38611.4
63As
AfAs
1,4a-dimethyl-9-oxo-7-propan-2-yl-3,4,10,10a-tetrahydro-2H-phenanthrene-1-carboxylic acidMetabolites 13 01138 i06114.4315.1947
[M+H]+
315.1955−2.50.96 a
64AsviridicatolMetabolites 13 01138 i0627.5254.0795
[M+H]+
254.0812−6.70.77 a
65AfAsisariin DMetabolites 13 01138 i0639.7540.3395
[M+H]+
540.3392−0.6
66Ps
AfPs
quinolactacideMetabolites 13 01138 i0645.4237.0670
[M+H]+
237.06594.6
67Ps
AfPs
3,5-dimethyl-8-methoxy-3,4-dihydro-1H-isochromene-6-olMetabolites 13 01138 i0658.7209.1175
[M+H]+
209.11721.4
68Ps
AfPs
anserinone BMetabolites 13 01138 i0664.6193.0856
[M−H2O+H]+
193.0859−1.6
69Psformylanserinone BMetabolites 13 01138 i0677.5239.0913
[M+H]+
239.0914−0.4
70Ps
AfPs
(6-methyl curvulinic acidMetabolites 13 01138 i0685.3207.0651 [M−H2O+H]+207.0652−0.5
71Ps
AfPs
4-methoxyisoquinolin-1(2H)-oneMetabolites 13 01138 i0692.6176.0702
[M+H]+
176.0706−2.3
72Ps
AfPs
N,N-diethyl-3-methylbenzamideMetabolites 13 01138 i0709.7192.1390
[M+H]+
192.13833.6
73Ps
AfPs
4-hydroxy-3,6-dimethyl-2-pyroneMetabolites 13 01138 i0712.7141.0548
[M+H]+
141.05461.4
74Ps
AfPs
hydroxy-N-acetyl-β-oxotriptamineMetabolites 13 01138 i0722.4233.0925
[M+H]+
233.09211.7
75Ps
AfPs
citriperazine DMetabolites 13 01138 i0734.4339.0979
[M−H2O+H]+
339.09760.9
76Ps
AfPs
pretrichodermamide CMetabolites 13 01138 i0745.4513.0988
[M+H]+
513.1996−1.6
77Ps
AfPs
N-methylpretrichodermamide BMetabolites 13 01138 i0758.1531.0662
[M+H]+
531.06570.9
78Ps
AfPs
pretrichodermamide DMetabolites 13 01138 i0765.9513.0988
[M+H]+
513.0996−1.6
79Ps
AfPs
4-hydroxyscytaloneMetabolites 13 01138 i0772.2211.0603
[M+H]+
211.06011.0
80Ps
AfPs
4-hydroxy-6-dehydroxyscytaloneMetabolites 13 01138 i0783.0195.0654
[M+H]+
195.06521.0
81AfPs3-methylorsellinic acidMetabolites 13 01138 i0792.6183.0659183.06523.8
82Acacruciquinone AMetabolites 13 01138 i0806.4277.1063
[M+H]+
277.1071−2.9
83Acacruciquinone CMetabolites 13 01138 i0814.6279.1226
[M+H]+
279.1227−0.4
84AcpleosporonMetabolites 13 01138 i0823.8291.0853 [M+H]+291.0863−3.4
85Acconiothyrinone DMetabolites 13 01138 i0834.9279.1226
[M+H]+
279.1227−0.4
86Acconiothyrinone BMetabolites 13 01138 i0847.0263.1272
[M+H]+
263.1278−2.3
87AcrubrumolMetabolites 13 01138 i0855.2277.1062
[M+H]+
277.1071−3.2
88Ac9,10-anthracenedioneMetabolites 13 01138 i08610.1255.0652
[M+H]+
255.06520
89Ac
AfAc
trans-3,4-dihydroxy-3,4-dihydroanofinic acidMetabolites 13 01138 i0874.9239.0895
[M+H]+
239.0914−8.0
90Acquadricinctapyran AMetabolites 13 01138 i0887.8221.0819
[M+H]+
221.08085.0
91Ac
AfAc
7-hydroxymethyl-1,2-naphthalenediolMetabolites 13 01138 i0896.2191.0707
[M+H]+
191.07032.1
92AcgliovictinMetabolites 13 01138 i0908.3355.1160
[M+H]+
355.11454.2
93Acacrucipentyn AMetabolites 13 01138 i0914.1231.0777
[M+H]+
231.0782−2.2
94Ac
AfAc
indolelactic acidMetabolites 13 01138 i0924.6206.0810
[M+H]+
206.0812−1.00.98 a
22AfAccyclotryprostatin BMetabolites 13 01138 i0937.3426.2035
[M+H]+
426.20242.6
23AfAcbisdethiobis(methylthio)gliotoxinMetabolites 13 01138 i0947.4357.0936
[M+H]+
357.0937−0.3
a GNPS MQScore, b MetFrag Score.

References

  1. Polinski, J.M.; Bucci, J.P.; Gasser, M.; Bodnar, A.G. Metabarcoding assessment of prokaryotic and eukaryotic taxa in sediments from Stellwagen Bank National Marine Sanctuary. Sci. Rep. 2019, 9, 14820. [Google Scholar] [CrossRef]
  2. Zhou, J.; Lao, Y.-M.; Song, J.-T.; Jin, H.; Zhu, J.-M.; Cai, Z.-H. Temporal heterogeneity of microbial communities and metabolic activities during a natural algal bloom. Water Res. 2020, 183, 116020. [Google Scholar] [CrossRef] [PubMed]
  3. Shao, M.; Sun, C.; Liu, X.; Wang, X.; Li, W.; Wei, X.; Li, Q.; Ju, J. Upregulation of a marine fungal biosynthetic gene cluster by an endobacterial symbiont. Commun. Biol. 2020, 3, 527. [Google Scholar] [CrossRef] [PubMed]
  4. Bertrand, S.; Bohni, N.; Schnee, S.; Schumpp, O.; Gindro, K.; Wolfender, J.-L. Metabolite induction via microorganism co-culture: A potential way to enhance chemical diversity for drug discovery. Biotechnol. Adv. 2014, 32, 1180–1204. [Google Scholar] [CrossRef]
  5. Park, H.B.; Kwon, H.C.; Lee, C.-H.; Yang, H.O. Glionitrin A, an Antibiotic−Antitumor Metabolite Derived from Competitive Interaction between Abandoned Mine Microbes. J. Nat. Prod. 2009, 72, 248–252. [Google Scholar] [CrossRef] [PubMed]
  6. Park, H.B.; Kim, Y.-J.; Park, J.-S.; Yang, H.O.; Lee, K.R.; Kwon, H.C. Glionitrin B, a Cancer Invasion Inhibitory Diketopiperazine Produced by Microbial Coculture. J. Nat. Prod. 2011, 74, 2309–2312. [Google Scholar] [CrossRef] [PubMed]
  7. Caudal, F.; Tapissier-Bontemps, N.; Edrada-Ebel, R.A. Impact of Co-Culture on the Metabolism of Marine Microorganisms. Mar. Drugs 2022, 20, 153. [Google Scholar] [CrossRef]
  8. Tekaia, F.; Latgé, J.-P. Aspergillus fumigatus: Saprophyte or pathogen? Curr. Opin. Microbiol. 2005, 8, 385–392. [Google Scholar] [CrossRef]
  9. Boysen, J.M.; Saeed, N.; Hillmann, F. Natural products in the predatory defence of the filamentous fungal pathogen Aspergillus fumigatus. Beilstein J. Org. Chem. 2021, 17, 1814–1827. [Google Scholar] [CrossRef]
  10. Tamiya, H.; Ochiai, E.; Kikuchi, K.; Yahiro, M.; Toyotome, T.; Watanabe, A.; Yaguchi, T.; Kamei, K. Secondary metabolite profiles and antifungal drug susceptibility of Aspergillus fumigatus and closely related species, Aspergillus lentulus, Aspergillus udagawae, and Aspergillus viridinutans. J. Infect. Chemother. 2015, 21, 385–391. [Google Scholar] [CrossRef]
  11. Afiyatullov, S.S.; Kalinovskii, A.I.; Pivkin, M.V.; Dmitrenok, P.S.; Kuznetsova, T.A. Fumitremorgins from the marine isolate of the fungus Aspergillus fumigatus. Chem. Nat. Compd. 2004, 40, 615–617. [Google Scholar] [CrossRef]
  12. Afiyatullov, S.S.; Kalinovskii, A.I.; Pivkin, M.V.; Dmitrenok, P.S.; Kuznetsova, T.A. Alkaloids from the marine isolate of the fungus Aspergillus fumigatus. Chem. Nat. Compd. 2005, 41, 236–238. [Google Scholar] [CrossRef]
  13. Afiyatullov, S.S.; Zhuravleva, O.I.; Antonov, A.S.; Kalinovsky, A.I.; Pivkin, M.V.; Menchinskaya, E.S.; Aminin, D.L. New metabolites from the marine-derived fungus Aspergillus fumigatus. Nat. Prod. Commun. 2012, 7, 497–500. [Google Scholar] [CrossRef] [PubMed]
  14. Belousova, E.B.; Zhuravleva, O.I.; Yurchenko, E.A.; Oleynikova, G.K.; Antonov, A.S.; Kirichuk, N.N.; Chausova, V.E.; Khudyakova, Y.V.; Menshov, A.S.; Popov, R.S.; et al. New Anti-Hypoxic Metabolites from Co-Culture of Marine-Derived Fungi Aspergillus carneus KMM 4638 and Amphichorda sp. KMM 4639. Biomolecules 2023, 13, 741. [Google Scholar] [CrossRef]
  15. Oyedeji, A.B.; Green, E.; Adebiyi, J.A.; Ogundele, O.M.; Gbashi, S.; Adefisoye, M.A.; Oyeyinka, S.A.; Adebo, O.A. Metabolomic approaches for the determination of metabolites from pathogenic microorganisms: A review. Food Res. Int. 2021, 140, 110042. [Google Scholar] [CrossRef]
  16. Yurchenko, A.; Smetanina, O.; Ivanets, E.; Kalinovsky, A.; Khudyakova, Y.; Kirichuk, N.; Popov, R.; Bokemeyer, C.; von Amsberg, G.; Chingizova, E.; et al. Pretrichodermamides D–F from a Marine Algicolous Fungus Penicillium sp. KMM 4672. Mar. Drugs 2016, 14, 122. [Google Scholar] [CrossRef]
  17. Nesterenko, L.E.; Popov, R.S.; Zhuravleva, O.I.; Kirichuk, N.N.; Chausova, V.E.; Krasnov, K.S.; Pivkin, M.V.; Yurchenko, E.A.; Isaeva, M.P.; Yurchenko, A.N. A Study of the Metabolic Profiles of Penicillium dimorphosporum KMM 4689 Which Led to Its Re-Identification as Penicillium hispanicum. Fermentation 2023, 9, 337. [Google Scholar] [CrossRef]
  18. Zhuravleva, O.I.; Oleinikova, G.K.; Antonov, A.S.; Kirichuk, N.N.; Pelageev, D.N.; Rasin, A.B.; Menshov, A.S.; Popov, R.S.; Kim, N.Y.; Chingizova, E.A.; et al. New Antibacterial Chloro-Containing Polyketides from the Alga-Derived Fungus Asteromyces cruciatus KMM 4696. J. Fungi 2022, 8, 454. [Google Scholar] [CrossRef]
  19. Hong, S.-B.; Cho, H.-S.; Shin, H.-D.; Frisvad, J.C.; Samson, R.A. Novel Neosartorya species isolated from soil in Korea. Int. J. Syst. Evol. Microbiol. 2006, 56, 477–486. [Google Scholar] [CrossRef]
  20. Liu, Y.J.; Whelen, S.; Hall, B.D. Phylogenetic relationships among ascomycetes: Evidence from an RNA polymerse II subunit. Mol. Biol. Evol. 1999, 16, 1799–1808. [Google Scholar] [CrossRef]
  21. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547. [Google Scholar] [CrossRef] [PubMed]
  22. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef] [PubMed]
  23. Chambers, M.C.; MacLean, B.; Burke, R.; Amodei, D.; Ruderman, D.L.; Neumann, S.; Gatto, L.; Fischer, B.; Pratt, B.; Egertson, J.; et al. A cross-platform toolkit for mass spectrometry and proteomics. Nat. Biotechnol. 2012, 30, 918–920. [Google Scholar] [CrossRef] [PubMed]
  24. Pluskal, T.; Castillo, S.; Villar-Briones, A.; Orešič, M. MZmine 2: Modular framework for processing, visualizing, and analyzing mass spectrometry-based molecular profile data. BMC Bioinform. 2010, 11, 395. [Google Scholar] [CrossRef]
  25. Ruttkies, C.; Schymanski, E.L.; Wolf, S.; Hollender, J.; Neumann, S. MetFrag relaunched: Incorporating strategies beyond in silico fragmentation. J. Cheminform. 2016, 8, 3. [Google Scholar] [CrossRef]
  26. Frisvad, J.C.; Rank, C.; Nielsen, K.F.; Larsen, T.O. Metabolomics of Aspergillus fumigatus. Med. Mycol. 2009, 47, S53–S71. [Google Scholar] [CrossRef]
  27. Yurchenko, A.N.; Smetanina, O.F.; Kalinovsky, A.I.; Pushilin, M.A.; Glazunov, V.P.; Khudyakova, Y.V.; Kirichuk, N.N.; Ermakova, S.P.; Dyshlovoy, S.A.; Yurchenko, E.A.; et al. Oxirapentyns F-K from the Marine-Sediment-Derived Fungus Isaria felina KMM 4639. J. Nat. Prod. 2014, 77, 1321–1328. [Google Scholar] [CrossRef]
  28. Abe, M.; Imai, T.; Ishii, N.; Usui, M.; Okuda, T.; Oki, T. Quinolactacide, a new quinolone insecticide from Penicillium citrinum Thom F 1539. Biosci. Biotechnol. Biochem. 2005, 69, 1202–1205. [Google Scholar] [CrossRef]
  29. Girich, E.V.; Yurchenko, A.N.; Smetanina, O.F.; Trinh, P.T.; Ngoc, N.T.; Pivkin, M.V.; Popov, R.S.; Pislyagin, E.A.; Menchinskaya, E.S.; Chingizova, E.A.; et al. Neuroprotective Metabolites from Vietnamese Marine Derived Fungi of Aspergillus and Penicillium Genera. Mar. Drugs 2020, 18, 608. [Google Scholar] [CrossRef]
  30. Yurchenko, E.A.; Menchinskaya, E.S.; Pislyagin, E.A.; Trinh, P.T.H.; Ivanets, E.V.; Smetanina, O.F.; Yurchenko, A.N. Neuroprotective Activity of Some Marine Fungal Metabolites in the 6-Hydroxydopamin- and Paraquat-Induced Parkinson’s Disease Models. Mar. Drugs 2018, 16, 457. [Google Scholar] [CrossRef]
  31. Hirota, A.; Nemoto, A.; Tsuchiya, Y.; Hojo, H.; Abe, N. Isolation of a 2-pyrone compound as an antioxidant from a fungus and its new reaction product with 1,1-diphenyl-2-picrylhydrazyl radical. Biosci. Biotechnol. Biochem. 1999, 63, 418–420. [Google Scholar] [CrossRef]
  32. Yurchenko, A.N.; Berdyshev, D.V.; Smetanina, O.F.; Ivanets, E.V.; Zhuravleva, O.I.; Rasin, A.B.; Khudyakova, Y.V.; Popov, R.S.; Dyshlovoy, S.A.; von Amsberg, G.; et al. Citriperazines A-D produced by a marine algae-derived fungus Penicillium sp. KMM 4672. Nat. Prod. Res. 2020, 34, 1118–1123. [Google Scholar] [CrossRef]
  33. Gautschi, J.T.; Amagata, T.; Amagata, A.; Valeriote, F.A.; Mooberry, S.L.; Crews, P. Expanding the Strategies in Natural Product Studies of Marine-Derived Fungi: A Chemical Investigation of Penicillium Obtained from Deep Water Sediment. J. Nat. Prod. 2004, 67, 362–367. [Google Scholar] [CrossRef] [PubMed]
  34. El-Neketi, M.; Ebrahim, W.; Lin, W.; Gedara, S.; Badria, F.; Saad, H.E.A.; Lai, D.; Proksch, P. Alkaloids and polyketides from Penicillium citrinum, an endophyte isolated from the Moroccan plant Ceratonia siliqua. J. Nat. Prod. 2013, 76, 1099–1104. [Google Scholar] [CrossRef]
  35. Masuma, R.; Tabata, N.; Tomoda, H.; Haneda, K.; Iwai, Y.; Omura, S. Arohynapenes A and B, new anticoccidial agents produced by Penicillium sp.: Taxonomy, fermentation, and structure elucidation. J. Antibiot. 1994, 47, 46–53. [Google Scholar] [CrossRef] [PubMed]
  36. Smetanina, O.F.; Yurchenko, A.N.; Ivanets, E.V.; Gerasimenko, A.V.; Trinh, P.T.H.; Ly, B.M.; Nhut, N.D.; Van, T.T.T.; Yurchenko, E.A.; Afiyatullov, S.S. Aromatic Metabolites of Marine Fungus Penicillium sp. KMM 4672 Associated with a Brown Alga Padina sp. Chem. Nat. Compd. 2017, 53, 600–602. [Google Scholar] [CrossRef]
  37. Orfali, R.S.; Aly, A.H.; Ebrahim, W.; Abdel-Aziz, M.S.; Müller, W.E.G.; Lin, W.; Daletos, G.; Proksch, P. Pretrichodermamide C and N-methylpretrichodermamide B, two new cytotoxic epidithiodiketopiperazines from hyper saline lake derived Penicillium sp. Phytochem. Lett. 2015, 11, 168–172. [Google Scholar] [CrossRef]
  38. Bai, H.-Y.; Zheng, W.-H.; Han, S.; Bao, F.; Sun, L.-L.; Zhang, K.-X.; Wang, L.-Y.; Du, H.; Li, Y.-M.; Feng, S.-L. Metabolomic Determination of Specialized Metabolites Using Liquid Chromatography-Tandem Mass Spectrometry in the Traditional Chinese Medicines Astragali Radix and Hedysari Radix. Nat. Prod. Commun. 2020, 15, 1934578X19901192. [Google Scholar] [CrossRef]
  39. Abraham, W.R.; Arfmann, H.A. Hydroxy-(methylbutenynyl)-benzoic acid and derivatives from Curvularia fallax. Phytochemistry 1990, 29, 2641. [Google Scholar] [CrossRef]
  40. Golyshin, P.N.; Golyshina, O.V.; Timmis, K.N.; Chernikova, T.; Waliczek, A.; Ferrer, M.; Beloqui, A.; Guazzaroni, M.E.; Vieites, J.M.; Pazos, F.; et al. Preparation of Fluorescent Probe-Based Reactome Array for Detection, Immobilization and Isolation of Enzymes. WO2010105851, 22 September 2010. [Google Scholar]
  41. Zhuravleva, O.I.; Chingizova, E.A.; Oleinikova, G.K.; Starnovskaya, S.S.; Antonov, A.S.; Kirichuk, N.N.; Menshov, A.S.; Popov, R.S.; Kim, N.Y.; Berdyshev, D.V.; et al. Anthraquinone Derivatives and Other Aromatic Compounds from Marine Fungus Asteromyces cruciatus KMM 4696 and Their Effects against Staphylococcus aureus. Mar. Drugs 2023, 21, 431. [Google Scholar] [CrossRef]
  42. Zhang, Y.; Jia, A.; Chen, H.; Wang, M.; Ding, G.; Sun, L.; Li, L.; Dai, M. Anthraquinones from the saline-alkali plant endophytic fungus Eurotium rubrum. J. Antibiot. 2017, 70, 1138–1141. [Google Scholar] [CrossRef]
  43. Sun, P.; Huo, J.; Kurtan, T.; Mandi, A.; Antus, S.; Tang, H.; Draeger, S.; Schulz, B.; Hussain, H.; Krohn, K.; et al. Structural and stereochemical studies of hydroxyanthraquinone derivatives from the endophytic fungus Coniothyrium sp. Chirality 2013, 25, 141–148. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, C.; Ondeyka, J.G.; Zink, D.L.; Basilio, A.; Vicente, F.; Collado, J.; Platas, G.; Huber, J.; Dorso, K.; Motyl, M.; et al. Isolation, structure and antibacterial activity of pleosporone from a pleosporalean ascomycete discovered by using antisense strategy. Bioorg. Med. Chem. 2009, 17, 2162–2166. [Google Scholar] [CrossRef] [PubMed]
  45. Prompanya, C.; Dethoup, T.; Gales, L.; Lee, M.; Pereira, J.A.C.; Silva, A.M.S.; Pinto, M.M.M.; Kijjoa, A. New Polyketides and New Benzoic Acid Derivatives from the Marine Sponge-Associated Fungus Neosartorya quadricincta KUFA 0081. Mar. Drugs 2016, 14, 134. [Google Scholar] [CrossRef] [PubMed]
  46. Shin, J.; Fenical, W. Isolation of gliovictin from the marine deuteromycete Asteromyces cruciatus. Phytochemistry 1987, 26, 3347. [Google Scholar] [CrossRef]
  47. Rutherford, J.C. The Emerging Role of Urease as a General Microbial Virulence Factor. PLoS Pathog. 2014, 10, e1004062. [Google Scholar] [CrossRef]
  48. Cox Gary, M.; Mukherjee, J.; Cole Garry, T.; Casadevall, A.; Perfect John, R. Urease as a Virulence Factor in Experimental Cryptococcosis. Infect. Immun. 2000, 68, 443–448. [Google Scholar] [CrossRef]
  49. Bao, J.; Wang, J.; Zhang, X.Y.; Nong, X.H.; Qi, S.H. New Furanone Derivatives and Alkaloids from the Co-Culture of Marine-Derived Fungi Aspergillus sclerotiorum and Penicillium citrinum. Chem. Biodivers. 2017, 14, e1600327. [Google Scholar] [CrossRef]
  50. Knowles, S.L.; Raja, H.A.; Roberts, C.D.; Oberlies, N.H. Fungal-fungal co-culture: A primer for generating chemical diversity. Nat. Prod. Rep. 2022, 39, 1557–1573. [Google Scholar] [CrossRef]
  51. Raffa, N.; Keller, N.P. A call to arms: Mustering secondary metabolites for success and survival of an opportunistic pathogen. PLoS Pathog. 2019, 15, e1007606. [Google Scholar] [CrossRef]
  52. Nikolaou, E.; Agrafioti, I.; Stumpf, M.; Quinn, J.; Stansfield, I.; Brown, A.J.P. Phylogenetic diversity of stress signalling pathways in fungi. BMC Evol. Biol. 2009, 9, 44. [Google Scholar] [CrossRef]
  53. Lv, J.-M.; Hu, D.; Gao, H.; Kushiro, T.; Awakawa, T.; Chen, G.-D.; Wang, C.-X.; Abe, I.; Yao, X.-S. Biosynthesis of helvolic acid and identification of an unusual C-4-demethylation process distinct from sterol biosynthesis. Nat. Commun. 2017, 8, 1644. [Google Scholar] [CrossRef]
  54. Thambi, A.; Chakraborty, K. Anti-inflammatory decurrencyclics A-B, two undescribed nor-dammarane triterpenes from triangular sea bell Turbinaria decurrens. Nat. Prod. Res. 2023, 37, 713–724. [Google Scholar] [CrossRef] [PubMed]
  55. Schroeckh, V.; Scherlach, K.; Nützmann, H.-W.; Shelest, E.; Schmidt-Heck, W.; Schuemann, J.; Martin, K.; Hertweck, C.; Brakhage, A.A. Intimate bacterial–fungal interaction triggers biosynthesis of archetypal polyketides in Aspergillus nidulans. Proc. Natl. Acad. Sci. USA 2009, 106, 14558–14563. [Google Scholar] [CrossRef] [PubMed]
  56. Langenfeld, A.; Blond, A.; Gueye, S.; Herson, P.; Nay, B.; Dupont, J.; Prado, S. Insecticidal cyclodepsipeptides from Beauveria felina. J. Nat. Prod. 2011, 74, 825–830. [Google Scholar] [CrossRef]
  57. Baute, R.; Deffieux, G.; Merlet, D.; Baute, M.-A.; Neveu, A. New insecticidal cyclodepsipeptides from the fungus Isaria felina I. production, isolation and insecticidal properties of Isariins B, C and D. J. Antibiot. 1981, 34, 1261–1265. [Google Scholar] [CrossRef]
  58. Smith, E.B.; Dolan, S.K.; Fitzpatrick, D.A.; Doyle, S.; Jones, G.W. Towards understanding the gliotoxin detoxification mechanism: In vivo thiomethylation protects yeast from gliotoxin cytotoxicity. Microb. Cell 2016, 3, 120. [Google Scholar] [CrossRef]
  59. Owens, R.A.; O’Keeffe, G.; Smith, E.B.; Dolan, S.K.; Hammel, S.; Sheridan, K.J.; Fitzpatrick, D.A.; Keane, T.M.; Jones, G.W.; Doyle, S. Interplay between gliotoxin resistance, secretion, and the methyl/methionine cycle in Aspergillus fumigatus. Eukaryot. Cell 2015, 14, 941–957. [Google Scholar]
  60. Li, X.; Kim, S.-K.; Nam, K.W.; Kang, J.S.; Choi, H.D.; Son, B.W. A New Antibacterial Dioxopiperazine Alkaloid Related to Gliotoxin from a Marine Isolate of the Fungus Pseudallescheria. J. Antibiot. 2006, 59, 248–250. [Google Scholar] [CrossRef]
  61. Jain, R.; Valiante, V.; Remme, N.; Docimo, T.; Heinekamp, T.; Hertweck, C.; Gershenzon, J.; Haas, H.; Brakhage, A.A. The MAP kinase MpkA controls cell wall integrity, oxidative stress response, gliotoxin production and iron adaptation in Aspergillus fumigatus. Mol. Microbiol. 2011, 82, 39–53. [Google Scholar] [CrossRef]
  62. Carberry, S.; Molloy, E.; Hammel, S.; O’Keeffe, G.; Jones, G.W.; Kavanagh, K.; Doyle, S. Gliotoxin effects on fungal growth: Mechanisms and exploitation. Fungal Genet. Biol. 2012, 49, 302–312. [Google Scholar] [CrossRef] [PubMed]
  63. Dolan, S.K.; O’Keeffe, G.; Jones, G.W.; Doyle, S. Resistance is not futile: Gliotoxin biosynthesis, functionality and utility. Trends Microbiol. 2015, 23, 419–428. [Google Scholar] [CrossRef] [PubMed]
  64. Yaakoub, H.; Mina, S.; Calenda, A.; Bouchara, J.P.; Papon, N. Oxidative stress response pathways in fungi. Cell. Mol. Life Sci. 2022, 79, 333. [Google Scholar] [CrossRef] [PubMed]
  65. Hameed, A.; Al-Rashida, M.; Uroos, M.; Qazi, S.U.; Naz, S.; Ishtiaq, M.; Khan, K.M. A patent update on therapeutic applications of urease inhibitors (2012–2018). Expert Opin. Ther. Pat. 2019, 29, 181–189. [Google Scholar] [CrossRef]
  66. Zhou, C.; Bhinderwala, F.; Lehman, M.K.; Thomas, V.C.; Chaudhari, S.S.; Yamada, K.J.; Foster, K.W.; Powers, R.; Kielian, T.; Fey, P.D. Urease is an essential component of the acid response network of Staphylococcus aureus and is required for a persistent murine kidney infection. PLoS Pathog. 2019, 15, e1007538. [Google Scholar] [CrossRef]
  67. Gogineni, V.; Chen, X.; Hanna, G.; Mayasari, D.; Hamann, M.T. Role of symbiosis in the discovery of novel antibiotics. J. Antibiot. 2020, 73, 490–503. [Google Scholar] [CrossRef]
Figure 1. ML tree based on concatenated ITS-BenA-CaM-RPB2 gene sequences showing the phylogenetic position of the strain KMM 4631 among members of genus Aspergillus section Fumigati series Fumigati. Bootstrap values (%) of 1000 replications. Nodes with confidence values greater than 50% are indicated. The scale bars represent 0.05 substitutions per site. T—ex-type strain.
Figure 1. ML tree based on concatenated ITS-BenA-CaM-RPB2 gene sequences showing the phylogenetic position of the strain KMM 4631 among members of genus Aspergillus section Fumigati series Fumigati. Bootstrap values (%) of 1000 replications. Nodes with confidence values greater than 50% are indicated. The scale bars represent 0.05 substitutions per site. T—ex-type strain.
Metabolites 13 01138 g001
Figure 2. UHPLC MS chromatogram of Aspergillus fumigatus KMM 4631 monoculture extract.
Figure 2. UHPLC MS chromatogram of Aspergillus fumigatus KMM 4631 monoculture extract.
Metabolites 13 01138 g002
Figure 3. The secondary metabolites detected in Aspergillus fumigatus KMM 4631 monoculture.
Figure 3. The secondary metabolites detected in Aspergillus fumigatus KMM 4631 monoculture.
Metabolites 13 01138 g003
Figure 4. UHPLC MS chromatograms of Ph (blue) and AfPh (red) extracts.
Figure 4. UHPLC MS chromatograms of Ph (blue) and AfPh (red) extracts.
Metabolites 13 01138 g004
Figure 5. The compounds identified in Ph and AfPh extracts.
Figure 5. The compounds identified in Ph and AfPh extracts.
Metabolites 13 01138 g005
Figure 6. The heatmap of the content of compounds identified and annotated in the fungal extracts Af, Ph, and AfPh. Each cell presents a peak area in the HPLC MS chromatogram.
Figure 6. The heatmap of the content of compounds identified and annotated in the fungal extracts Af, Ph, and AfPh. Each cell presents a peak area in the HPLC MS chromatogram.
Metabolites 13 01138 g006
Figure 7. UHPLC MS chromatogram of As (blue) and AfAs (red) extracts.
Figure 7. UHPLC MS chromatogram of As (blue) and AfAs (red) extracts.
Metabolites 13 01138 g007
Figure 8. The compounds identified in As and AfAs extracts.
Figure 8. The compounds identified in As and AfAs extracts.
Metabolites 13 01138 g008
Figure 9. The heatmap of the content of compounds identified in the fungal extracts Af, As, and AfAs. Each cell presents a peak area in the HPLC MS chromatogram.
Figure 9. The heatmap of the content of compounds identified in the fungal extracts Af, As, and AfAs. Each cell presents a peak area in the HPLC MS chromatogram.
Metabolites 13 01138 g009
Figure 10. UHPLC MS chromatograms of Ps (blue) and AfPs (red) extracts.
Figure 10. UHPLC MS chromatograms of Ps (blue) and AfPs (red) extracts.
Metabolites 13 01138 g010
Figure 11. The compounds identified in Ps and AfPs extracts.
Figure 11. The compounds identified in Ps and AfPs extracts.
Metabolites 13 01138 g011
Figure 12. The heatmap of the content of compounds identified in the fungal extracts Af, Ps, and AfPs. Each cell presents a peak area in the HPLC MS chromatogram.
Figure 12. The heatmap of the content of compounds identified in the fungal extracts Af, Ps, and AfPs. Each cell presents a peak area in the HPLC MS chromatogram.
Metabolites 13 01138 g012
Figure 13. UHPLC MS chromatogram of Ac (blue) and AfAc (red) extracts.
Figure 13. UHPLC MS chromatogram of Ac (blue) and AfAc (red) extracts.
Metabolites 13 01138 g013
Figure 14. The compounds identified in Ac and AfAc extracts.
Figure 14. The compounds identified in Ac and AfAc extracts.
Metabolites 13 01138 g014
Figure 15. The heatmap of the content of compounds identified in the fungal extracts Af, Ac, and AfAc. Each cell presents a peak area in the HPLC MS chromatogram.
Figure 15. The heatmap of the content of compounds identified in the fungal extracts Af, Ac, and AfAc. Each cell presents a peak area in the HPLC MS chromatogram.
Metabolites 13 01138 g015
Figure 16. The principal component analysis (PCA) of all studied extracts.
Figure 16. The principal component analysis (PCA) of all studied extracts.
Metabolites 13 01138 g016
Figure 17. Dendrogram of the clustering of all investigated extracts. Different colors indicate different clusters.
Figure 17. Dendrogram of the clustering of all investigated extracts. Different colors indicate different clusters.
Metabolites 13 01138 g017
Figure 18. Biological activity of fungal mono- and co-culture extracts. (a) DPPH radical scavenging and urease inhibition activity of Af, AfPh, and Ph extracts; (b) cytotoxic activity toward human hepatocarcinoma HepG2 cells of Af, AfAs, and As extracts; (c) DPPH radical scavenging and urease inhibition activity of Af, AfAc, and Ac extracts. All experiments were carried out in triplicate. * indicates the significant differences with p ≤ 0.05.
Figure 18. Biological activity of fungal mono- and co-culture extracts. (a) DPPH radical scavenging and urease inhibition activity of Af, AfPh, and Ph extracts; (b) cytotoxic activity toward human hepatocarcinoma HepG2 cells of Af, AfAs, and As extracts; (c) DPPH radical scavenging and urease inhibition activity of Af, AfAc, and Ac extracts. All experiments were carried out in triplicate. * indicates the significant differences with p ≤ 0.05.
Metabolites 13 01138 g018
Table 1. The strains of the species used in multi-locus phylogenetic analysis and their GenBank accession numbers.
Table 1. The strains of the species used in multi-locus phylogenetic analysis and their GenBank accession numbers.
SpeciesStrain NumberGenBank Accession Number
ITSBenACaMRPB2
Aspergillus takakiiCBS 137454TMN431378AB787221AB787566MN969097
Aspergillus laciniosusCBS 117721TAB299413AY870756AY870716MN969080
Aspergillus spinosusCBS 483.65TEF669988EF669844EF669914EF669775
Aspergillus fumisynnematusCBS 141446TAB250779AB248076AB259968MN969073
Aspergillus lentulusCBS 117885TEF669969EF669825EF669895EF669756
Aspergillus fumigatiaffinisCBS 117186TMN431367DQ094885DQ094891MN969072
Aspergillus oerlinghausenensisCBS 139183TKT359601KT359603KT359605MN969162
Aspergillus fumigatusCBS 133.61TEF669931EF669791EF669860EF669719
Aspergillus fumigatusKMM 4631OR578448OQ466614OR600992OR600993
Aspergillus fischeriCBS 544.65TEF669936EF669796EF669865EF669724
Aspergillus novofumigatusCBS 117520TMN431372DQ094886DQ094893MN969083
Talaromyces marneffeiCBS 388.87TJN899344JX091389KF741958KM023283
T—ex-type strain
Table 2. Amounts of the extracts of the fungal cultures.
Table 2. Amounts of the extracts of the fungal cultures.
Fungal CultureSample CodeMass of Crude Extract, mg
Aspergillus fumigatus KMM 4631Af21.1
Aspergillus fumigatus KMM 4631+
Amphichorda sp. KMM 4639
AfAs14.5
Amphichorda sp. KMM 4639As12.7
Aspergillus fumigatus KMM 4631+
Penicillium sp. KMM 4672
AfPs87.0
Penicillium sp. KMM 4672Ps102.1
Aspergillus fumigatus KMM 4631+
Penicillium hispanicum KMM 4689
AfPh365.0
Penicillium hispanicum KMM 4689Ph233.1
Aspergillus fumigatus KMM 4631+
Asteromyces cruciatus KMM 4696
AfAc39.5
Asteromyces cruciatus KMM 4696Ac56.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yurchenko, A.N.; Nesterenko, L.E.; Popov, R.S.; Kirichuk, N.N.; Chausova, V.E.; Chingizova, E.A.; Isaeva, M.P.; Yurchenko, E.A. The Metabolite Profiling of Aspergillus fumigatus KMM4631 and Its Co-Cultures with Other Marine Fungi. Metabolites 2023, 13, 1138. https://doi.org/10.3390/metabo13111138

AMA Style

Yurchenko AN, Nesterenko LE, Popov RS, Kirichuk NN, Chausova VE, Chingizova EA, Isaeva MP, Yurchenko EA. The Metabolite Profiling of Aspergillus fumigatus KMM4631 and Its Co-Cultures with Other Marine Fungi. Metabolites. 2023; 13(11):1138. https://doi.org/10.3390/metabo13111138

Chicago/Turabian Style

Yurchenko, Anton N., Liliana E. Nesterenko, Roman S. Popov, Natalya N. Kirichuk, Viktoria E. Chausova, Ekaterina A. Chingizova, Marina P. Isaeva, and Ekaterina A. Yurchenko. 2023. "The Metabolite Profiling of Aspergillus fumigatus KMM4631 and Its Co-Cultures with Other Marine Fungi" Metabolites 13, no. 11: 1138. https://doi.org/10.3390/metabo13111138

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
