Trichoderma Strains and Metabolites Selectively Increase the Production of Volatile Organic Compounds (VOCs) in Olive Trees

by
Irene Dini
1,†,
Roberta Marra
2,*,†,
Pierpaolo Cavallo
3,4,
Angela Pironti
2,
Immacolata Sepe
5,
Jacopo Troisi
6,7,
Giovanni Scala
7,
Pasquale Lombari
2 and
Francesco Vinale
8,9
1
Department of Pharmacy, University of Naples Federico II, 80141 Naples, Italy
2
Department of Agricultural Sciences, University of Naples Federico II, Portici, 80055 Naples, Italy
3
Department of Physics “E.R. Caianiello”, University of Salerno, Fisciano, 84084 Salerno, Italy
4
Institute for Complex Systems, National Research Council, 00185 Rome, Italy
5
Diagnostica Cavallo S.r.l.—Centro di Ricerca Albo MIUR, 84123 Salerno, Italy
6
Department of Chemistry and Biology “A. Zambelli”, University of Salerno, Baronissi, 84081 Salerno, Italy
7
Theoreo S.r.l., Montecorvino Pugliano, 84090 Salerno, Italy
8
Department of Veterinary Medicine and Animal Productions, University of Naples Federico II, 80138 Naples, Italy
9
Institute for Sustainable Plant Protection, National Research Council, Portici, 80055 Naples, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Metabolites 2021, 11(4), 213; https://doi.org/10.3390/metabo11040213
Submission received: 2 February 2021 / Revised: 23 March 2021 / Accepted: 26 March 2021 / Published: 31 March 2021
(This article belongs to the Special Issue Advances in Plant-Microbe Interactions Using Metabolomics Approaches)
Browse Figures
Versions Notes

Abstract

:
Plants emit volatile organic compounds (VOCs) that induce metabolomic, transcriptomic, and behavioral reactions in receiver organisms, including insect pollinators and herbivores. VOCs’ composition and concentration may influence plant-insect or plant-plant interactions and affect soil microbes that may interfere in plant-plant communication. Many Trichoderma fungi act as biocontrol agents of phytopathogens and plant growth promoters. Moreover, they can stimulate plant defense mechanisms against insect pests. This study evaluated VOCs’ emission by olive trees (Olea europaea L.) when selected Trichoderma fungi or metabolites were used as soil treatments. Trichoderma harzianum strains M10, T22, and TH1, T. asperellum strain KV906, T. virens strain GV41, and their secondary metabolites harzianic acid (HA), and 6-pentyl-α-pyrone (6PP) were applied to olive trees. Charcoal cartridges were employed to adsorb olive VOCs, and gas chromatography mass spectrometry (GC-MS) analysis allowed their identification and quantification. A total of 45 volatile compounds were detected, and among these, twenty-five represented environmental pollutants and nineteen compounds were related to olive plant emission. Trichoderma strains and metabolites differentially enhanced VOCs production, affecting three biosynthetic pathways: methylerythritol 1-phosphate (MEP), lipid-signaling, and shikimate pathways. Multivariate analysis models showed a characteristic fingerprint of each plant-fungus/metabolite relationship, reflecting a different emission of VOCs by the treated plants. Specifically, strain M10 and the metabolites 6PP and HA enhanced the monoterpene syntheses by controlling the MEP pathway. Strains GV41, KV906, and the metabolite HA stimulated the hydrocarbon aldehyde formation (nonanal) by regulating the lipid-signaling pathway. Finally, Trichoderma strains GV41, M10, T22, TH1, and the metabolites HA and 6PP improve aromatic syntheses at different steps of the shikimate pathway.

1. Introduction

Synthetic pesticides are employed in agriculture to control pests, avoid crop yield losses and product damage. Pesticides may negatively affect human health due to high biological activity and long persistence in the environment [1]. Pesticides in food products and drinking water determine a threat to human health [2]. They accumulate in living species and determine long-term and chronic effects [2]. Fungal biocontrol agents (BCAs) are a natural alternative to control plant diseases, and their complex modes of action generally does not induce resistance in insects, weeds, pests, and pathogens [3]. Microbes of the genus Trichoderma are the most studied and marketed fungal BCAs used as active ingredients of various bioformulations in agriculture [4]. They exert a direct activity against pathogens using different mechanisms: antibiosis, parasitism, and competition for nutrients and space [5]. Trichoderma spp. have shown rhizosphere competence, may improve plant health and growth, enhance nutrient availability and uptake, induce host resistance, and modify the plant metabolome [6,7]. These positive effects are associated with the production of effector metabolites that selected Trichoderma strains can release during the multicomponent interactions with the plant, pathogen, and other microbes [8,9]. For example, Trichoderma determines host-induced plant volatile alteration after root colonization in response to the inoculation of different microbial symbioses [10].
Plant volatile organic compounds (VOCs) may act as direct and indirect protective compounds [11,12,13]. They induce metabolomic, transcriptomic, and behavioral responses in receiver organisms, including insect pollinators and herbivores. The composition and concentration of VOCs may influence plant-insect and plant-plant interactions [14]. It is known that olive trees (Olea europaea L.) produce VOCs. Some VOCs were characterized in virgin olive oil and processed table olives; among these, C6 compounds, C9 aldehydes, hydrocarbons, and uncharacterized sesquiterpenes were found [15,16,17,18,19]. The olive tree diversifies volatile compounds’ emission depending on the growth environmental conditions, e.g., the water status [20], and the season [21]. Moreover, previous studies showed that Trichoderma strains improved the nutraceutical properties of extra virgin olive oil and olive leaves [22,23,24]. Nevertheless, an extensive study on VOCs’ modification in Trichoderma-treated olive plants and the possible correlations between the emissions of VOCs and physiological states or interactions with other organisms has not been reported so far. In this work, the effects of Trichoderma harzianum strains M10, T22, and TH1, T. asperellum strain KV906, T. virens strain GV41, or their metabolites harzianic acid (HA) and 6-pentyl-α-pyrone (6PP), on the production of VOCs in olive trees were evaluated. The experiments were conducted in a controlled water regime, as previous studies showed that water availability affects the production of the alcohols, C6-saturated, and unsaturated aldehydes [25]. The VOCs production was monitored by Charcoal cartridge (Radiello®) and analyzed by gas chromatography mass spectrometry (GC-MS). The effect of the treatments was evaluated by multivariate analysis to manage the variables and understand their relationships.

2. Results

2.1. VOCs Identification

In this study, olive trees were treated with Trichoderma spore suspensions (T. harzianum strains M10, TH1, T22; T. asperellum strain KV906, T. virens strain GV41) or their metabolite solutions (HA, 6PP) once per month from April to September. Radiello® technology was used to trap the VOCs produced by the plant during the experiments. After seven days of exposure, VOCs were chemically desorbed from the cartridges and analyzed by GC-MS allowing an excellent chromatographic separation. Blank samples were used to subtract noise interferences from sample chromatograms. Traces of benzene were found in blank samples (obtained using unexposed Radiello® samplers) due to its high solubility in carbon disulfide and its ability to be rapidly adsorbed on the activated carbon filter after exposure to the atmosphere. Three technical replicates were performed for each biological sample for a total of 120 GC-MS analyzes. The average of the three technical replicates was considered as the spectrum of the sample (See Supplementary Figure S1). The peaks were then automatically integrated.
The integration, when necessary, was manually corrected and the noise interferences found in blank samples were subtracted from each chromatogram. Forty-five major volatile compounds observed in total ion chromatograms (TICs) were identified by comparing their mass spectra with natural compounds present in database (Table 1).
The presence of specific olive tree VOCs was evaluated using single ion monitoring (SIM) analysis (Figure 1). Table 2 shows the nineteen volatile compounds emitted by the olive trees and the relative parameters used for their identification.

2.2. VOCs Quantification

The quantification of the VOCs was carried out by integrating the peak areas obtained from the gas chromatographic analysis. The method was validated in terms of linearity (R2 ≈ 1), sensitivity (values were within the range established by the limits of detection and quantification), and repeatability (relative standard deviation, RSD, values <15% confirmed the inter-and intraday repeatability). The parameters used to validate the quantification method have been reported as Supplementary Materials (Table S1).
In Table 3, the mean values of the VOCs produced by olive trees following the application of Trichoderma strains or metabolites have been reported.

2.3. Correlation between Emission of VOCs and Trichoderma Applications

Replicate samples were grouped according to the abundance of continuous variables in a hierarchical cluster analysis (one-way ANOVA, p < 0.05). Figure 2 reports the heat map obtained analyzing the 19 volatile compounds that differentially accumulated among treatments and comparing their chemical abundance vs. control (water-treated plants). Interestingly, all the detected VOCs were significantly affected by the treatments with Trichoderma strains or metabolites. Overall, we found that among treated plants, those inoculated with Trichoderma strain KV906, HA or 6PP showed a higher number of differential VOCs with lower chemical abundance (blue color), while a higher number of differential compounds with higher chemical abundance (red color) were observed in the control, M10-, GV41-, or TH1-treated plants (Figure 2).

3. Discussion

In this study olive trees were treated with Trichoderma spore suspensions or their metabolite solutions, and Radiello® technology was used to trap the VOCs [35,36]. Forty-five volatile compounds were detected and identified by GC-MS. These included hydrocarbons (e.g., decane, octane, nonane, etc.) and aromatics (e.g., benzene and derivatives). The most abundant VOCs were benzene, dodecane, toluene, and tetradecane. These compounds are contaminants generally present in the air [26]. Volatile compounds specifically emitted by the olive tree leaves and fruits were obtained by subtracting the contaminants present in the blank sample and comparing the data with the existing literature [27,28,29,30,31,32,33,34,37,38]. VOCs related to the field treatment with biocontrol agents were selected using a targeted metabolomics approach and comparing treated plants with controls. The target VOCs analyses were obtained by extracting the Single Ion Monitoring (SIM) signals from the gas chromatograms acquired in Full Scan function between 40 and 500 amu/z. Nineteen compounds, including terpenes, ketones, aldehydes, and aromatic compounds were emitted by plants in response to field treatments with Trichoderma spore suspensions or metabolite solutions [39]. Statistical analyses were performed to evaluate the effects of each treatment on the emission of VOCs by olive trees. A hierarchical clustering heat map of differential volatile compounds produced by olive trees was used to understand the optimal method for scaling the data (Figure 2). The search for the selected target VOCs showed a distribution strongly influenced by the treatments. Interestingly, terpenes release was strongly influenced by olive trees’ treatment with strain M10 or the metabolites 6PP and HA. The emission of aromatic compounds was influenced by the application of Trichoderma strains T22, TH1, M10, and GV41 or the metabolites (6PP and HA). The emission of aldehydes was mainly affected by strains GV41 and KV906, or the compound HA.
In the plant cells, the terpenoids’ biosynthesis occurs in the plastids and cytosol (Figure 3). In the plastids, the GDP (prenyl diphosphates geranyl diphosphate) influences the monoterpenes’ synthesis, and the GGDP (geranylgeranyl diphosphate) controls that of the diterpenes. In the cytosol, sesquiterpene biosynthesis occurs using farnesyl diphosphate (FDP) [40]. As already seen in our previous work, these results confirmed Trichoderma ability to interfere with the geranyl diphosphate in the biosynthetic pathway [22]. The concentration of myrcene, pinene, and DMNT did not increase after Trichoderma treatments. These data can be explained considering that such volatiles are monoterpenes modified into limonene and/or other oxidized metabolites before the plant’s emission. No significant interferences were found with the biosynthesis of sesquiterpenes (copaene, funebrene, and muurolene). Limonene (4-isopropenyl-1-methylcyclohexene) has an important ecological role in plants [41], working as an attractant for pollinators, as part of a defense mechanism, an antifeedant, and an antifungal compound [42]. It is toxic for some herbivore species [43] and is an allelopathic agent in hot and dry climates [44]. Moreover, limonene has chemopreventive, antitumoral [45], hypoglycemic [46], antioxidant [47,48] anti-inflammatory [46], antibacterial [49], and antifungal [50] properties.
Elevated levels of nonanal observed in treated plants indicate that biostimulants might modulate the lipid-signaling pathways controlling the enzyme lipoxygenase (LOX). Alkenes and ketones volatile compounds containing C6 to C16 chain are generally the result of fatty acid metabolism [48], while C9-compounds derivate from the oxidation of linoleic and linolenic acid [51,52]. In the lipid-signaling pathway, decarboxylation yields alkanes, methyl ketones, or 1-alkenes, and the carboxy group reduction produces 1-alkanols and aldehydes. Nonanal inhibits Penicillium cyclopium and Botrytis cinerea’s mycelial growth by disrupting the fungal cell membrane’s integrity, leaking the cell constituents and potassium ions, enhancing the extracellular pH, the total lipid content, and the membrane permeability [53,54]. Moreover, the nonanal acts as an attractant for pollinators [55], is an antifeedant [56], and controls, via the activation of peripheral neurons (e.g., in Helicoverpa assulta), the insect oviposition preference [57]. Finally, nonanal has anti-diarrheal properties on humans [58]. The elevated value of methyl salicylate emitted when Trichoderma strains GV41, KV906, and TH1, or the metabolites HA and 6PP were used in the field showed that they were able to interfere with the shikimic acid pathway according to previous work [24]. Similarly, it is possible to explain the positive effect of benzyl alcohol release into the environment when Trichoderma strains GV41 and M10, and the metabolite 6PP were used in the field (Figure 4) [59].

4. Materials and Methods

4.1. Fungal Strains and Microbial Metabolites

T. harzianum strains M10, T22, and TH1, T. asperellum strain KV906, T. virens strain GV41 were cultivated as previously described [24]. Fungal spores were collected and maintained at −20 °C in 20% glycerol before use. Spore concentrations were determined by using a hemocytometer. In this work, the Trichoderma secondary metabolites harzianic acid (HA) and 6-pentyl-α-pyrone (6PP) were isolated from Trichoderma culture filtrate as previously reported [60,61,62].
Fungal metabolites were solubilized in water under continuous stirring overnight.

4.2. Plant Material and Experimental Setup

Experiments were conducted on two-years-old olive trees (Olea europaea L.) cv. Carolea, a typical south Italian variety. The plants were transplanted into pots and placed in a field trial at the Department of Agricultural Sciences at the University of Naples Federico II (Portici, Naples, Italy). The experiments consisted of 8 treatments, including water control, T. harzianum strains M10, T22, and TH1, T. asperellum strain KV906, T. virens strain GV41, and their secondary metabolites harzianic acid (HA), and 6-pentyl-α-pyrone (6PP). The field trial was arranged in a completely randomized block design with a 1.30 m distance between the plants (see Supplementary Figure S2). Cultivar Pendolino was used as a pollinating plant and distributed in the field trial. Olive trees were treated with Trichoderma spore suspensions (1 × 107 sp/mL) or fungal metabolite solutions (1 × 10−5 M) at the time of transplant by root dip (10 min, 1 L/plant), and repeated every 30 days by soil drenching (400 mL/plant), for a total of 6 applications. Each treatment was applied to five plants with three biological replicates, for a total of 15 plants per treatment.

4.3. Collection of VOCs

Charcoal cartridges (Radiello® 130, Supelco, St. Louis, MO, USA) were used to adsorb the olive trees’ VOCs. The cartridge’s adsorbing capacity was about 80 mg, equivalent to exposure to total VOCs of 3000–3500 mg/m3 for 8 h or 70,000–80,000 μg/m3 for 14 days. The analytical performances of Radiello® were validated by Supelco and reported in the instruction manual. The Radiello® cartridges were placed in the upper part of the olive tree, near the plant’s stem and in a direction parallel to it (see Supplementary Figure S3). All cartridges were set at the same height and were removed on the same day. Five replicates were used per each treatment.
The samples were stored at −20 °C until analysis. The cartridges were analyzed within a week. VOCs were extracted with 2 mL of carbon disulfide (CS2) in chlorobenzene (100 µg/L) directly in the Radiello® glass storage tube without drawing out the cartridge. CS2 served as an internal standard. The same extraction was carried out on a new unexposed cartridge used as blank. Blank samples were used to subtract noise interferences from sample chromatograms.

4.4. GC-MS Analysis

After 30 min, the CS2 solution (1 µL) was injected in a GC-MS-QP2010 instrument (Shimadzu Corp., Kyoto, Japan) consisting of a GC-2010 Plus gas chromatograph coupled to a 2010 Plus single quadrupole mass spectrometer. Separations were performed using a 30 m column (JB DB-WAX, 0.25 mm id, 0.25 µm film thickness, Agilent Technologies, Santa Clara, CA, USA), with helium as carrier gas. The initial oven temperature of 40 °C was held for 1 min and then raised to 120 °C at a rate of 5 °C/min, with a further 3 min of hold time. The gas flow was set to achieve a constant linear velocity of 45 cm/s, and the split ratio was set to 10:1. The total run time was 20 min, and the injection temperature was set at 200 °C. The mass spectrometer operated in electron impact (70 eV) in full scan mode in the interval of 40–500 m/z with a scan velocity of 5000 amu/s and a solvent cut time of 1.9 min. The ion source temperature was set at 200 °C, and the interface temperature at 180 °C. Each biological replicate was run in triplicate (technical replicates) for 120 GC-MS separations. Before the analysis, a solvent blank was analyzed (pure CS2 solution), and then an analytical blank was obtained by extracting an unexposed cartridge with 2 mL of CS2 solution. Peak areas were automatically normalized to the standard internal area, and metabolite identification was performed by comparing each peak’s mass spectrum with the NIST library collection (NIST, Gaithersburg, MD, USA). The linear index difference max tolerance was set at 10, while the minimum matching for the NIST library search was set at 85%. Using the Kovats index, identification was further confirmed by analyzing a series of hydrocarbons (C10–C26).
Method validation. Calibration curves were built by using external standards. From each curve, it was possible to obtain the linearity (from the regression coefficient), the limit of detection (LODs = 3 × standard   deviation   a n g u l a r   c o e f f i c i e n t ), and quantification (LOQs = 10 × standard   deviation   a n g u l a r   c o e f f i c i e n t ). Intraday repeatability was tested by injecting eight different concentrations of each standard three times. The interday variations were found carrying out after seven days of the same experiments. Standards were purchased by Sigma-Aldrich (St. Louis, MO, USA) except Muurolene (Molbase Biotechnology Co., Ltd. Shanghai, China).

4.5. Statistical Analysis

Results were summarized in a comma-separated matrix (CSV) file and loaded in the appropriate statistics manipulation software. The normalization procedures consisted of data transformation and scaling. Data transformation was made by generalized log transformation and data scaling by autoscaling (mean-centered and divided by each variable’s standard deviation) [63]. The chromatographic data were tabulated with one sample per row and one variable (metabolite) per column. Statistical analysis was performed using Statistica software (StatSoft, Tulsa, OK, USA) and Minitab (Minitab Inc., State College, PA, USA). Fisher’s least significant difference (LSD) post hoc test at the 0.05 level of significance was used.
Clustering analysis. Metabolite expression ratios of VOCs (column) were log2 transformed and normalized using z-scores. In the vertical heat map, colour coding indicated concentration differences for each metabolite (row): z-scores >0 (red), <0 (blue) and ≈0 (white).

5. Conclusions

This study allowed the analysis of the volatile organic substances emitted by olive trees under treatment with formulations based on different strains belonging to the genus Trichoderma or metabolites extracted from them. Forty-five compounds have been identified by gas chromatography, of which nineteen compounds were imputable to olive trees emissions. Statistical analysis showed that each treatment influenced the different VOCs’ relative concentrations, allowing to obtain a characteristic profile of compounds released by the olive tree treated with Trichoderma living fungus or its metabolites. For these compounds each treatment’s relative concentrations were explored to allow a quick and visual interpretation of the results obtained. Considering relevant metabolic pathways acting on VOCs’ formation after treatments, we found a significant effect on three biosynthetic pathways: methylerythritol 1-phosphate (MEP) pathway (by Trichoderma strain M10, and metabolites 6PP and HA), lipid-signaling pathway (by Trichoderma strains GV41, KV906 and the metabolite HA) and shikimate pathway (by Trichoderma strains GV41, M10, T22, TH1, and the metabolites HA and 6PP) (Table 4).
Considering that the different volatile compounds have different activities and roles in the ecosystems, our work provides essential information on olive tree/Trichoderma interaction. This interaction positively interferes with VOCs’ biosynthesis, confirming the beneficial effects of these microbes on plants.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/metabo11040213/s1, Table S1: Parameters used to validate the relative-quantification method of the VOCs produced by olive trees following the application of Trichoderma strains or metabolites, Figure S1: Example of an integrated gas chromatogram resulting from the extraction of plant VOCs sampled by Radiello® cartridges, Figure S2: Randomized block design of field experiment, Figure S3: Application of the Radiello® cartridges to olive trees.

Author Contributions

Conceptualization, P.C. and F.V.; methodology, F.V., J.T. and G.S.; software, J.T.; formal analysis and writing—original draft preparation, I.D. and R.M.; data curation, A.P., I.S. and P.L.; writing—review and editing, I.D., R.M., P.C., J.T. and F.V.; project administration, I.D., R.M., P.C. and F.V.; funding acquisition, G.S. and F.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the following projects: MIURPON (grant number Linfa 03PE_00026_1; grant number Marea 03PE_00106); POR FESR CAMPANIA 2014/2020-O.S. 1.1 (grant number Bioagro CUP B63D18000270007); MISE (grant number Protection F/050421/01-03/X32); Regione Campania PSR 2014-2020 (grant number DIONISO B98H19005010009); Regione Veneto PSR 2014-2020 (grant number DIVINE 3589659).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author or the first author. The data are not publicly available due to privacy.

Acknowledgments

The authors R.M., A.P., P.L. and F.V. are grateful to Marica Pascale and Mauro Senatore for their helpful support in field experiments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Bao, L.-J.; Wei, Y.-L.; Yao, Y.; Ruan, Q.-Q.; Zeng, E.Y. Global trends of research on emerging contaminants in the environment and humans: A literature assimilation. Environ. Sci. Poll. Res. 2015, 22, 1635–1643. [Google Scholar] [CrossRef]
  2. Gavrilescu, M.; Demnerová, K.; Aamand, J.; Agathos, S.; Fava, F. Emerging pollutants in the environment: Present and future challenges in biomonitoring, ecological risks, and bioremediation. New Biotechnol. 2015, 32, 147–156. [Google Scholar] [CrossRef] [PubMed]
  3. Savita, S.A. Fungi as biological control agents. In Biofertilizers for Sustainable Agriculture and Environment: Soil Biology; Giri, B., Prasad, R., Wu, Q.S., Varma, A., Eds.; Springer: Cham, Switzerland, 2019; Volume 55. [Google Scholar] [CrossRef]
  4. Woo, S.L.; Pepe, O. Microbial consortia: Promising probiotics as plant biostimulants for sustainable agriculture. Front. Plant Sci. 2018, 9, 1801. [Google Scholar] [CrossRef] [PubMed]
  5. Vinale, F.; Sivasithamparam, K.; Ghisalberti, E.L.; Marra, R.; Woo, S.L.; Lorito, M. Trichoderma–plant–pathogen interactions. Soil Biol. Biochem. 2008, 40, 1–10. [Google Scholar] [CrossRef]
  6. Harman, G.E.; Howell, C.R.; Viterbo, A.; Chet, I.; Lorito, M. Trichoderma species, opportunistic avirulent plant symbionts. Nat. Rev. Microbiol. 2004, 2, 43–56. [Google Scholar] [CrossRef] [PubMed]
  7. Lorito, M.; Woo, S.L.; Harman, G.E.; Monte, E. Translational research on Trichoderma: From Omics to the field. Ann. Rev. Phytopathol. 2010, 48, 395–417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Vinale, F.; Sivasithamparam, K. Beneficial effects of Trichoderma secondary metabolites on crops. Phytother. Res. 2020, 34, 2835–2842. [Google Scholar] [CrossRef]
  9. Siddiquee, S. Recent advancements on the role and analysis of volatile compounds (VOCs) from Trichoderma. In Biotechnology and Biology of Trichoderma; Gupta, V.K., Schmoll, M., Herrera-Estrella, A., Upadhyay, R.S., Druzhinina, I., Tuohy, M.G., Eds.; Elsevier Press: Cambridge, MA, USA, 2014; pp. 139–175. [Google Scholar]
  10. Coppola, M.; Cascone, P.; Chiusano, M.L.; Colantuono, C.; Lorito, M.; Pennacchio, F.; Rao, R.; Woo, S.L.; Guerrieri, E.; Digilio, M.C. Trichoderma harzianum enhances tomato indirect defense against aphids. Insect Sci. 2017, 24, 1025–1033. [Google Scholar] [CrossRef] [PubMed]
  11. Turlings, T.C.; Loughrin, J.H.; McCall, P.J.; Rose, U.S.; Lewis, W.J.; Tumlinson, J.H. How caterpillar-damaged plants protect themselves by attracting parasitic wasps. Proc. Natl. Acad. Sci. USA 1995, 92, 4169–4174. [Google Scholar] [CrossRef] [Green Version]
  12. Kessler, A. Defensive function of herbivore-induced plant volatile emissions in nature. Science 2001, 291, 2141–2144. [Google Scholar] [CrossRef]
  13. Dicke, M.; van Poecke, R.M.P.; de Boer, J.G. Inducible indirect defence of plants: From mechanisms to ecological functions. Basic Appl. Ecol. 2003, 4, 27–42. [Google Scholar] [CrossRef]
  14. Ranieri, E.; Ruschioni, S.; Riolo, P.; Isidoro, N.; Romani, R. Fine structure of antennal sensilla of the spittlebug Philaenus spumarius L. (Insecta: Hemiptera: Aphrophoridae). I. Chemoreceptors and thermo-/hygroreceptors. Arthropod. Struct. Dev. 2016, 45, 432–439. [Google Scholar] [CrossRef]
  15. Baccouri, O.; Bendini, A.; Cerretani, L.; Guerfel, M.; Baccouri, B.C.; Lercker, G.; Zarrouk, M.; Daoud Ben Miled, D. Comparative study on volatile compounds from Tunisian and Sicilian monovarietal virgin olive oils. Food Chem. 2008, 111, 322–328. [Google Scholar] [CrossRef] [PubMed]
  16. Campeol, E.; Flamini, G.; Chericoni, S.; Catalano, S. Volatile Compounds from Three Cultivars of Olea europaea from Italy. J. Agric. Food Chem. 2001, 49, 5409–5411. [Google Scholar] [CrossRef] [PubMed]
  17. Sabatini, N.; Marsilio, V. Volatile compounds in table olives (Olea europaea L.; Nocellara del Belice cultivar). Food Chem. 2008, 107, 1522–1528. [Google Scholar] [CrossRef]
  18. Masi, E.; Romani, A.; Pandolfi, C.; Heimler, D.; Mancuso, S. PTR-TOF-MS analysis of volatile compounds in olive fruits. J. Sci. Food Agric. 2015, 95, 1428–1434. [Google Scholar] [CrossRef] [PubMed]
  19. Sansone-Land, A.; Takeoka, G.R.; Shoemaker, C.F. Volatile constituents of commercial imported and domestic black-ripe table olives (Olea europaea). Food Chem. 2014, 149, 285–295. [Google Scholar] [CrossRef]
  20. Servili, M.; Esposto, S.; Lodolini, E.M.; Selvaggini, R.; Taticchi, A.; Urbani, S.; Montedoro, G.; Serravalle, M.; Gucci, R. Irrigation effects on quality, phenolic composition and selected volatiles of virgin olive oil cv. Leccino. J. Agric. Food Chem. 2007, 55, 6609–6618. [Google Scholar] [CrossRef]
  21. Campeol, E.; Flamini, G.; Cioni, P.L.; Morelli, I.; Cremonini, R.; Ceccarini, L. Volatile fractions from three cultivars of Olea europaea L. collected in two different seasons. J. Agric. Food Chem. 2003, 51, 1994–1999. [Google Scholar] [CrossRef]
  22. Dini, I.; Graziani, G.; Fedele, F.L.; Sicari, A.; Vinale, F.; Castaldo, L.; Ritieni, A. An Environmentally Friendly Practice Used in Olive Cultivation Capable of Increasing Commercial Interest in Waste Products from Oil Processing. Antioxidants 2020, 9, 466. [Google Scholar]
  23. Dini, I.; Graziani, G.; Fedele, F.L.; Sicari, A.; Vinale, F.; Castaldo, L.; Ritieni, A. Effects of Trichoderma biostimulation on the phenolic profile of extra-virgin olive oil and olive oil by-products. Antioxidants 2020, 9, 284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Dini, I.; Graziani, G.; Gaspari, A.; Fedele, F.L.; Sicari, A.; Vinale, F.; Cavallo, P.; Lorito, M.; Ritieni, A. New Strategies in the Cultivation of Olive Trees and Repercussions on the Nutritional Value of the Extra Virgin Olive Oil. Molecules 2020, 25, 2345. [Google Scholar] [CrossRef] [PubMed]
  25. Caruso, G.; Rapoport, H.F.; Gucci, R. Long-term evaluation of yield components of young olive trees during the onset of fruit production under different irrigation regimes. Irrig. Sci. 2013, 31, 37–47. [Google Scholar] [CrossRef] [Green Version]
  26. Massolo, L.; Rehwagen, M.; Porta, A.; Ronco, A.; Herbarth, O.; Mueller, A. Indoor-outdoor distribution and risk assessment of volatile organic compounds in the atmosphere of industrial and urban areas. Environ. Toxicol. 2010, 25, 339–349. [Google Scholar] [CrossRef]
  27. Kesen, S.; Kelebek, H.; Selli, S. Characterization of the Volatile, Phenolic and Antioxidant Properties of Monovarietal Olive Oil Obtained from cv. Halhali. J. Am. Oil Chem. Soc. 2013, 90, 1685–1696. [Google Scholar] [CrossRef]
  28. Angerosa, F. Influence of volatile compounds on virgin olive oil quality evaluated by analytical approaches and sensor panels. Eur. J. Lipid Sci. Technol. 2002, 104, 639–660. [Google Scholar] [CrossRef]
  29. Lin, P.; Cai, J.; Li, J.; Sang, W.; Su, Q. Constituents of the essential oil of Hemerocallis flava day lily. Flavour Fragr. J. 2003, 18, 539–541. [Google Scholar] [CrossRef]
  30. Vichi, S.; Guadayol, J.M.; Caixach, J.; Lόpez-Tamames, E.; Buxaderas, S. Comparative study of different extraction techniques for the analysis of virgin olive oil aroma. Food Chem. 2007, 105, 1171–1178. [Google Scholar] [CrossRef]
  31. Üçüncüoğlu, D.; Sivri-Özay, D. Geographical origin impact on volatile composition and some quality parameters of virgin olive oils extracted from the “Ayvalık” variety. Heliyon 2020, 6, e04919. [Google Scholar] [CrossRef]
  32. Zhang, Y.-R.; Wang, R.; Yu, L.-F.; Lu, P.-F.; Luo, Y.-Q. Identification of Caragana plant volatiles, overlapping profiles, and olfactory attraction to Chlorophorus caragana in the laboratory. J. Plant Interact. 2015, 10, 41–50. [Google Scholar] [CrossRef]
  33. Ben Abdeljelil, Z.; Tekaya, M.; Mechri, B.; Flamini, G.; Hammami, M. Changes in volatiles of olive tree Olea europaea according to season and foliar fertilization. Int. J. Agric. Biol. 2017, 19, 1633–1639. [Google Scholar]
  34. Malheiro, R.; Casal, S.; Cunha, S.C.; Baptista, P.; Pereira, J.A. Identification of leaf volatiles from olive (Olea europaea) and their possible role in the ovipositional preferences of olive fly, Bactrocera oleae (Rossi) (Diptera: Tephritidae). Phytochemistry 2016, 121, 11–19. [Google Scholar] [CrossRef] [Green Version]
  35. Ribes, A.; Carrera, G.; Gallego, E.; Roca, X.; Berenguer, M.J.; Guardino, X. Development and validation of a method for air-quality and nuisance odors monitoring of volatile organic compounds using multi-sorbent adsorption and gas chromatography/mass spectrometry thermal desorption system. J. Chromatog. A 2007, 1140, 44–55. [Google Scholar] [CrossRef] [PubMed]
  36. Gallego, E.; Roca, F.J.; Perales, J.F.; Guardino, X. Comparative study of the adsorption performance of an active multi-sorbent bed tube (Carbotrap, Carbopack X, Carboxen 569) and a Radiello® diffusive sampler for the analysis of VOCs. Talanta 2011, 85, 662–672. [Google Scholar] [CrossRef] [PubMed]
  37. Baratella, V.; Volpe, D.; Marucchini, C.; Pucci, C. Early attempts to detect VOCs emission from Olea europaea L. (Laurales: Oleaceae) in different phenological growth stages. Integrated Protection of Fruit Crops Subgroups Pome fruit arthropods and Stone fruits. IOBC/wprs Bull. 2012, 74, 233–240. [Google Scholar]
  38. Flamini, G.; Cioni, P.L.; Morelli, I. Volatiles from Leaves, Fruits, and Virgin Oil from Olea europaea Cv. Olivastra Seggianese from Italy. J. Agric. Food Chem. 2003, 51, 1382–1386. [Google Scholar] [CrossRef]
  39. Lee, S.; Yap, M.; Behringer, G.; Hung, R.; Bennet, J.W. Volatile organic compounds emitted by Trichoderma species mediate plant growth. Fungal Biol. Biotechnol. 2016, 3, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Asaph, A.; Jongsma, M.A.; Kim, T.-Y.; Ri, M.-B.; Giri, A.P.; Verstappen, W.A.; Schwab, W.; Bouwmeester, H.J. Metabolic engineering of terpenoid biosynthesis in plants. Phytochem. Rev. 2006, 5, 49–58. [Google Scholar]
  41. Erasto, P.; Viljoen, A.M. Limonene—A review: Biosynthetic, ecological and pharmacological relevance. Nat. Prod. Commun. 2008, 3, 1193–1202. [Google Scholar] [CrossRef] [Green Version]
  42. Langenheim, J.H. Higher plant terpenoids: A phytocentric overview of their ecological roles. Chem. Ecol. J. 1994, 20, 1223–1280. [Google Scholar] [CrossRef]
  43. Sadof, C.S.; Grant, G.G. Monoterpene composition of Pinus sylvestris varieties resistant and susceptible to Dioryctria zimmermani. Chem. Ecol. J. 1997, 23, 1917–1926. [Google Scholar] [CrossRef]
  44. Cates, R.G.; Redak, R.A. Variation in the terpene chemistry of Douglas-fir and its relationship to western spruce budworm success. In Chemical Mediation of Coevolution; Spencer, K.C., Ed.; Academic Press: San Diego, CA, USA, 1998; pp. 317–344. [Google Scholar]
  45. Yu, X.; Lin, H.; Wang, Y.; Lv, W.; Zhang, S.; Qian, Y.; Deng, Y.; Feng, N.; Yu, H.; Quan, B. D-limonene exhibits antitumor activity by inducing autophagy and apoptosis in lung cancer. Onco Targets Ther. 2018, 11, 1833–1847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Yilmaz, B.S.; Özbek, H. Investigation of the anti-inflammatory, hypoglycemic activity and median lethal dose (LD50) level of limonene in mice and rats. ACTA Pharm. Sci. 2018, 56, 85–94. [Google Scholar] [CrossRef] [Green Version]
  47. Shah, B.B.; Mehta, A.A. In vitro evaluation of antioxidant activity of d-limonene. Asian J. Pharm. Sci. 2018, 4, 883–887. [Google Scholar] [CrossRef]
  48. Bai, J.; Zheng, Y.; Wang, G.; Liu, P. Protective effect of d-limonene against oxidative stress-induced cell damage in human lens epithelial cells via the p38 pathway. Oxid. Med. Cell. Longev. 2016, 14, 1–12. [Google Scholar] [CrossRef] [PubMed]
  49. Pathirana, H.N.K.S.; Wimalasena, S.H.M.P.; De Silva, B.C.J.; Hossain, S.; Heo, G.J. Antibacterial activity of lime (Citrus aurantifolia) essential oil and limonene against fish pathogenic bacteria isolated from cultured olive flounder (Paralichthys oilvaceus). Fisher. Aquat. Life 2018, 26, 131–139. [Google Scholar] [CrossRef]
  50. Dias, A.L.B.; Sousa, W.C.; Batista, H.R.F.; Alves, C.C.F.; Souchie, E.L.; Silva, F.G.; Pereira, P.S.; Sperandio, E.M.; Cazal, C.M.; Forim, M.R.; et al. Chemical composition and in vitro inhibitory effects of essential oils from fruit peel of three Citrus species and limonene on mycelial growth of Sclerotinia sclerotiorum. Braz. J. Biol. 2019, 80. [Google Scholar] [CrossRef] [Green Version]
  51. Penuelas, J.; Asensio, D.; Tholl, D.; Wenke, K.; Rosenkranz, M.; Piechulla, B.; Schnitzler, J.P. Biogenic volatile emissions from the soil. Plant Cell Environ. 2014, 37, 1866–1891. [Google Scholar] [CrossRef] [PubMed]
  52. Lawo, N.C.; Weingart, G.J.; Schuhmacher, R.; Forneck, A. The volatile metabolome of grapevine roots: First insights into the metabolic response upon phylloxera attack. Plant Physiol. Biochem. 2011, 49, 1059–1063. [Google Scholar] [CrossRef] [Green Version]
  53. Zhang, J.; Sun, H.; Chen, S.; Zeng, L.; Wang, T. Anti-fungal activity, mechanism studies on α-Phellandrene and Nonanal against Penicillium cyclopium. Bot. Stud. 2017, 58, 1–9. [Google Scholar] [CrossRef] [Green Version]
  54. Zhang, J.; Zeng, L.; Sun, H.; Chen, S.; Wang, T.; Ma, S. Use of Nonanal-wax as Postharvest Fungicide of Tomato against Botrytis cinereal. J. Food Nutr. Res. 2017, 5, 458–466. [Google Scholar] [CrossRef] [Green Version]
  55. Twidle, A.M.; Barker, D.; Seal, A.G.; Fedrizzi, B.; Suckling, D.M. Identification of floral volatiles and pollinator responses in kiwifruit cultivars, Actinidia chinensis var. chinensis. J. Chem. Ecol. 2018, 44, 406–415. [Google Scholar] [CrossRef] [PubMed]
  56. Egigu, M.C.; Ibrahim, M.A.; Yahya, A.; Holopainen, J.K. Cordeauxia edulis and Rhododendron tomentosum extracts disturb orientation and feeding behavior of Hylobius abietis and Phyllodecta laticollis. Entomol. Exp. Appl. 2011, 138, 162–174. [Google Scholar] [CrossRef]
  57. Wang, C.; Li, G.; Miao, C.; Zhao, M.; Wang, B.; Guo, X. Nonanal modulates oviposition preference in female Helicoverpa assulta (Lepidoptera: Noctuidae) via the activation of peripheral neurons. Pest Manag. Sci. 2020, 76, 3159–3167. [Google Scholar] [CrossRef]
  58. Zavala-Sanchez, M.A.; Perez-Gutierrez, S.; Perez-Gonzalez, C.; Sanchez-Saldivar, D.; Arias-Garcia, L. Antidiarrheal activity of nonanal, an aldehyde isolated from Artemisia ludoviciana. Pharm. Biol. 2002, 40, 263–268. [Google Scholar] [CrossRef]
  59. Kougan, G.B.; Tabopda, T.; Kuete, V.; Verpoorte, R. Simple phenols, phenolic acids, and related esters from the medicinal plants of Africa. In Medicinal Plant Research in Africa. Pharmacology and Chemistry; Kuete, V., Ed.; Elsevier Inc.: San Diego, CA, USA, 2013; pp. 54–58. [Google Scholar]
  60. Vinale, F.; Manganiello, G.; Nigro, M.; Mazzei, P.; Piccolo, A.; Pascale, A.; Ruocco, M.; Marra, R.; Lombardi, N.; Lanzuise, S.; et al. A novel fungal metabolite with beneficial properties for agricultural applications. Molecules 2014, 19, 9760–9772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Pascale, A.; Vinale, F.; Manganiello, G.; Nigro, M.; Lanzuise, S.; Ruocco, M.; Marra, R.; Lombardi, N.; Woo, S.L.; Lorito, M. Trichoderma and its secondary metabolites improve yield and quality of grapes. Crop Prot. 2017, 92, 176–181. [Google Scholar] [CrossRef] [Green Version]
  62. Vinale, F.; Sivasithamparam, K.; Ghisalberti, E.L.; Marra, R.; Barbetti, M.J.; Li, H.; Woo, S.L.; Lorito, M. A novel role for Trichoderma secondary metabolites in the interactions with plants. Phys. Mol. Plant Pathol. 2008, 72, 80–86. [Google Scholar] [CrossRef]
  63. Van den Berg, R.A.; Hoefsloot, H.C.; Westerhuis, J.A.; Smilde, A.K.; van der Werf, M.J. Centering, scaling, and transformations: Improving the biological information content of metabolomics data. BMC Genom. 2006, 8, 7–142. [Google Scholar] [CrossRef] [Green Version]
Metabolites 11 00213 g001 550

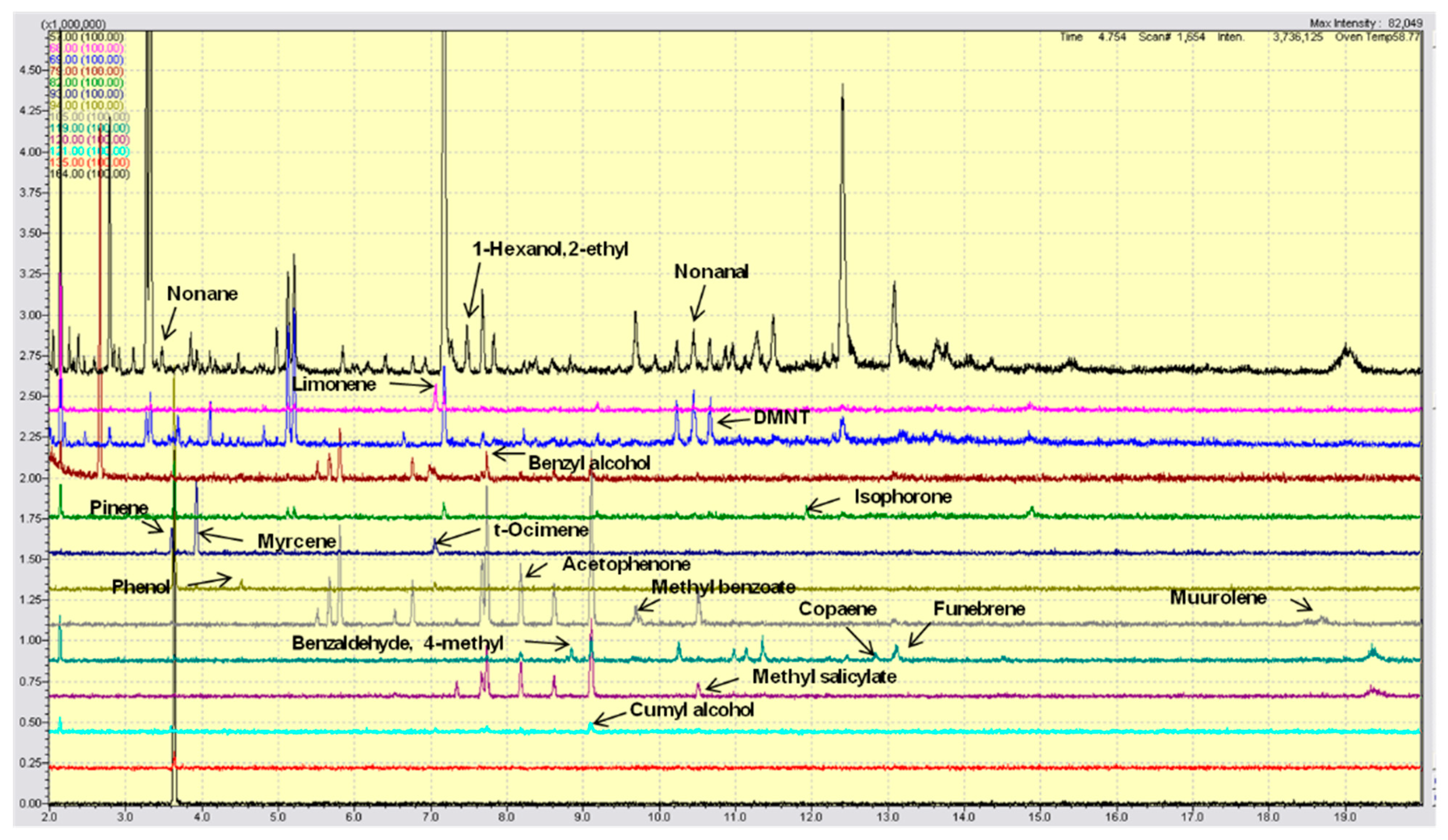

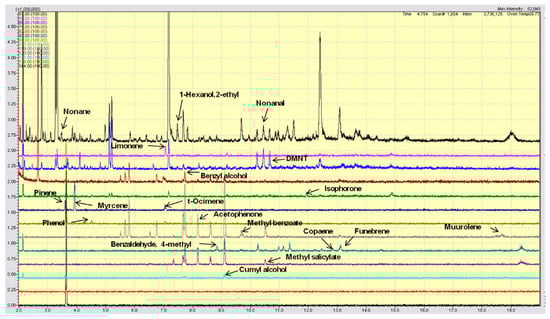

Figure 1. Gas chromatograms of specific olive tree VOCs evaluated using single ion monitoring (SIM) analysis. Different colors are used to better visualize the SIM signals of the VOC compounds (see Table 2), whose peaks are indicated by arrows.
Figure 1. Gas chromatograms of specific olive tree VOCs evaluated using single ion monitoring (SIM) analysis. Different colors are used to better visualize the SIM signals of the VOC compounds (see Table 2), whose peaks are indicated by arrows.
Metabolites 11 00213 g001
Metabolites 11 00213 g002 550

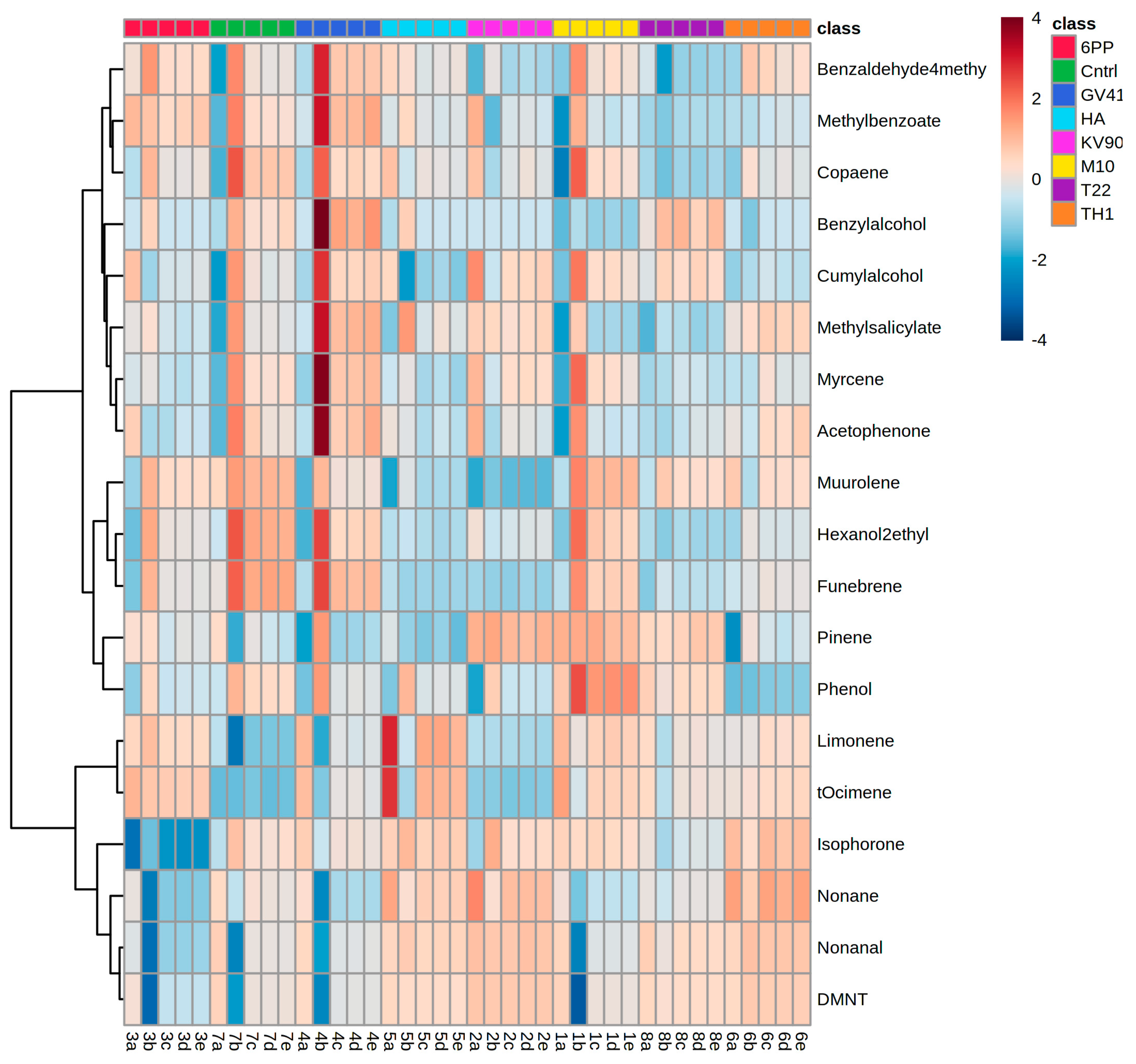

Figure 2. Hierarchical clustering heat map of differential volatile compounds produced by olive trees. Each column represents the samples obtained by plants treated with Trichoderma spores (M10, TH1, T22, KV906, and GV41,) or metabolites (6PP and HA). Water-treated plants served as controls (CTRL). In the heat map, red and blue colors indicate higher and lower chemical abundance, respectively. Treatments are indicated according to the color scale (class) shown in the legend at the top right. Data are presented as individual values from each biological replication. Statistical differences were determined using one-way ANOVA (p < 0.05).
Figure 2. Hierarchical clustering heat map of differential volatile compounds produced by olive trees. Each column represents the samples obtained by plants treated with Trichoderma spores (M10, TH1, T22, KV906, and GV41,) or metabolites (6PP and HA). Water-treated plants served as controls (CTRL). In the heat map, red and blue colors indicate higher and lower chemical abundance, respectively. Treatments are indicated according to the color scale (class) shown in the legend at the top right. Data are presented as individual values from each biological replication. Statistical differences were determined using one-way ANOVA (p < 0.05).
Metabolites 11 00213 g002
Metabolites 11 00213 g003 550

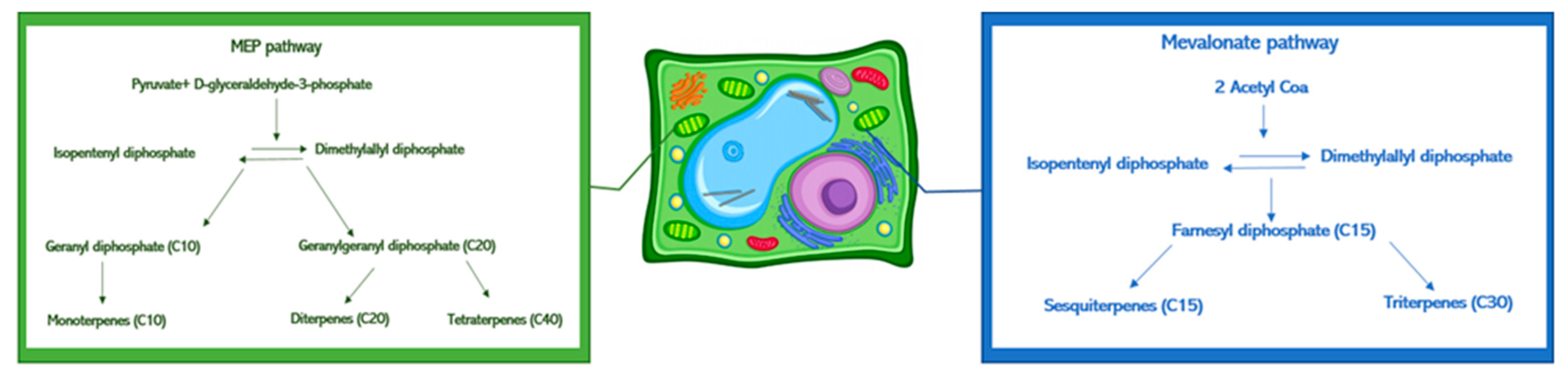

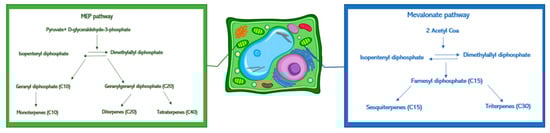

Figure 3. Schematic representation of terpenes biosynthetic pathways in the plant cell.
Figure 3. Schematic representation of terpenes biosynthetic pathways in the plant cell.
Metabolites 11 00213 g003
Metabolites 11 00213 g004 550

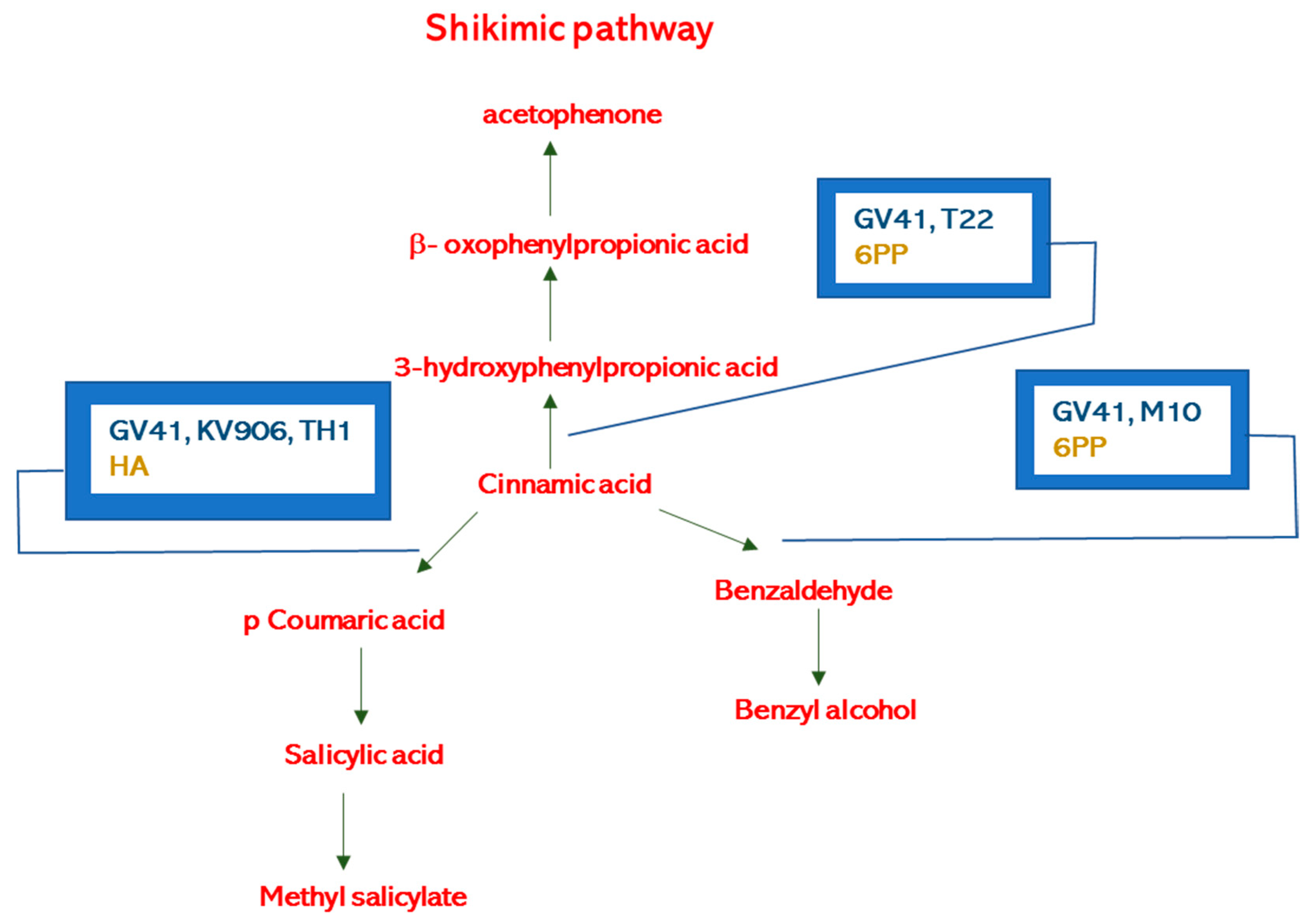

Figure 4. Benzene derivatives biosynthetic pathways and possible influence of Trichoderma strains (GV41, T22, M10, KV906, TH1) or metabolites (HA, 6PP).
Figure 4. Benzene derivatives biosynthetic pathways and possible influence of Trichoderma strains (GV41, T22, M10, KV906, TH1) or metabolites (HA, 6PP).
Metabolites 11 00213 g004
Table
Table 1. List of olive tree VOCs identified in this work. Radiello® technology was used to trap the VOCs during the experiments. After seven days of exposure, VOCs were chemically desorbed from the cartridges and analyzed by GC-MS. The asterisk (*) indicates air contaminants [26].
Table 1. List of olive tree VOCs identified in this work. Radiello® technology was used to trap the VOCs during the experiments. After seven days of exposure, VOCs were chemically desorbed from the cartridges and analyzed by GC-MS. The asterisk (*) indicates air contaminants [26].
N.Compound Name N.Compound Name
11-Heptene, 2,6,6-trimethyl-24 *Ethylbenzene
21-Hexanol, 5-methyl-2-(1-methylethyl)-25 *Hexadecane
32,3-Dihydroxystearic acid26 *Hexane, 3,3,4-trimethyl-
43-Thiazolidinecarboxylic acid, 4-(acetyloxy)-2-(1,1-dimethylethyl), phenylmethyl ester, 1-oxide, [1R-(1.α., 2.β.,4.β)]27Isobutyl 2-methylpentyl carbonate
5Acetic acid, butyl ester28Methylene chloride
6 *Benzene29Nonane, 2,3-dimethyl-
7 *Benzene, 1,2,4-trimethyl-30Nonane, 2,5-dimethyl-
8 *Benzene, 1,3-bis(1,1-dimethylethyl)-31Nonane, 5-(2-methylpropyl)-
9 *Benzene, 1,3-dimethyl-32 *Octane, 1,1’-oxybis-
10 *Benzene, 1-ethyl-4-methyl-33 *Octane, 5-ethyl-2-methyl-
11Butyronitrile, 2-(trimethylsilyloxy)-(3S)-(t-butoxycarbonyl)amino-34 *o-Xylene
12Cyclohexene, 1-methyl-4-(1-methylethenyl)-, (S)-35 *p-Xylene
13 *Cyclopentane, (2-methylpropyl)-36Sulfurous acid, butyl nonyl ester
14 *Decane, 1-iodo-37Sulfurous acid, decyl hexyl ester
15 *Decane, 2,3,5,8-tetramethyl-38 *Tetrachloroethylene
16 *Decane, 2-methyl-39Tetradecane
17 *Decane, 3,7-dimethyl-40Tetradecane, 5-methyl-
18 *Decane, 3,8-dimethyl-41 *Toluene
19 *Decane, 4-methyl-42trans-2,3-Epoxydecane
20 *Decane, 5-methyl-43 *Tridecane
21 *Dodecane44 *Undecane
22 *Dodecane, 4,6-dimethyl-45Undecane, 6-ethyl-
23Ethanol, 1-(1-cyclohexenyl)-
Table
Table 2. List of specific olive tree volatile compounds found in this study and the parameters used for their identification.
Table 2. List of specific olive tree volatile compounds found in this study and the parameters used for their identification.
N.CompoundClassCAS NumberSIM Signal (amu/z)Kovats IndexRef.
11-Hexanol, 2-ethyl-Alcohols104-76-7571030[27]
2AcetophenoneAromatic ketones98-86-21051068[28]
3Benzaldehyde,4-methyl-Aromatic aldehydes104-87-01191086[16]
4Benzyl alcoholAlcohols100-51-6791040[27]
5CopaeneSesquiterpenoids3856-25-51191375[28]
6Cumyl alcoholAlcohols617-94-71211084[29]
7DMNT [(E)-4,8-Dimethyl-1,3,7-nonatriene]Terpenoids51911-82-1691759[30]
8FunebreneTerpenoids50894-66-11191403[31]
9IsophoroneCyclic ketones78-59-1821123[32]
10LimoneneMonoterpenes138-86-3681030[28]
11Methyl benzoateBenzoic acid esters93-58-31051096[28]
12Methyl salicylateBenzoic acid esters119-36-81201192[28]
13MuuroleneSesquiterpenoids10208-80-71051497[28]
14MyrceneMonoterpenes123-35-393991[31]
15NonanalAldehydes124-19-6571107[28]
16NonaneHydrocarbons111-84-257900[33]
17PhenolPhenols108-95-2941011[27]
18PineneMonoterpenes2437-95-893943[34]
19t-OcimeneMonoterpenes13877-91-393976[30]
Table
Table 3. Quantification of the VOCs produced by olive trees following the application of Trichoderma strains (M10, T22, TH1, KV906, GV41) or metabolites (HA, 6PP). Symbols in the tables indicate statistical differences among treatments as follows: * indicates a p-value < 0.05 compared to CTRL; § indicates a p-value < 0.05 compared to 6PP; ¥ indicates a p-value < 0.05 compared to GV41; ¶ indicates a p-value < 0.05 compared to M10; & indicates a p-value < 0.05 compared to T22; % indicates a p-value < 0.05 compared to TH1; £ indicates a p-value < 0.05 compared to KV906; @ indicates a p-value < 0.05 compared to HA. Each symbol has been also repeated under the treatment of reference in the first line of the Table.
Table 3. Quantification of the VOCs produced by olive trees following the application of Trichoderma strains (M10, T22, TH1, KV906, GV41) or metabolites (HA, 6PP). Symbols in the tables indicate statistical differences among treatments as follows: * indicates a p-value < 0.05 compared to CTRL; § indicates a p-value < 0.05 compared to 6PP; ¥ indicates a p-value < 0.05 compared to GV41; ¶ indicates a p-value < 0.05 compared to M10; & indicates a p-value < 0.05 compared to T22; % indicates a p-value < 0.05 compared to TH1; £ indicates a p-value < 0.05 compared to KV906; @ indicates a p-value < 0.05 compared to HA. Each symbol has been also repeated under the treatment of reference in the first line of the Table.
VOC (p-Value)CTRL *M10T22 &TH1 %KV906 £GV41 ¥HA @6PP §
1-Hexanol, 2-Ethyl- (0.0013527)18.35 ± 4.2916.03 ± 4.5910.66 ± 0.18
§*¶		11.00 ± 0.75
§*¥¶		11.42 ± 0.30
§*¶		15.45 ± 4.9510.58 ± 0.47
§*¶		15.70 ± 4.25
Acetophenone
(5.03 × 10−1)		11.88 ± 0.99
§¥		11.53 ± 1.03
§¥		12.00 ± 0.52
§¥		11.32 ± 0.62
§¥		11.06 ± 0.42
§¥		13.14 ± 0.87
*		11.40 ± 0.24
§¥		13.47 ± 0.88
*
Benzaldehyde, 4-Methyl
(1.11 × 10−2)		2.96 ± 0.49
§¥		3.17 ± 0.36
§&		2.70 ± 0.18
§¥¶		2.90 ± 0.20
§¥&		2.46 ± 0.33
*§¥¶&		3.42 ± 0.37
*§£&		3.08 ± 0.06
§&		3.93 ± 0.32 *£%
Benzyl alcohol
(1.51 × 10−5)		3.68 ± 0.16 §&3.17 ± 0.10 *§¥@&4.32 ± 0.40 *3.13 ± 0.24 *§¥@&3.21 ± 0.16
*§¥&		4.35 ± 0.44 *3.53 ± 0.31 §¥4.18 ± 0.19 *
Copaene
(0.031723)		2.35 ± 0.62 *2.19 ± 0.691.71 ± 0.03 §¥1.77 ± 0.16 §*1.88 ± 0.18 §2.25 ± 0.322.06 ± 0.172.46 ± 0.34
Cumyl alcohol (0.00047929)1.60 ± 0.28 §&1.79 ± 0.271.91 ± 0.181.38 ± 0.03 §¥£¶&1.73 ± 0.161.85 ± 0.22 %1.42 ± 0.20 §¥£¶&1.92 ± 0.23
DMNT (0.00010625)7.00 ± 4.43 £&%7.18 ± 4.78 £&%11.10 ± 0.64
*		12.53 ± 0.81
*		14.14 ± 0.47
*		6.12 ± 3.99 @£&%10.50 ± 0.234.95 ± 3.19 @£%
Funebrene
(3.14 × 10−2)		6.68 ± 1.48 ¶&%£@§5.46 ± 1.22 &%£¥@3.64 ± 0.55 *£¥§3.82 ± 0.09 *2.79 ± 0.10 *¶¥§6.08 ± 1.68 &%@3.14 ± 0.10 *¥§5.08 ± 1.44 *&£@
Isophorone
(2.35 × 10−2)		2.16 ± 0.28
@§§		2.46 ± 0.20
&		1.98 ± 0.14 ¶%2.56 ± 0.29 &2.19 ± 0.642.12 ± 0.51 @§2.66 ± 0.21 *&£¥§1.12 ± 0.20 *¶&%£¥@
Limonene
(3.93 × 10−2)		3.30 ± 0.75 ¶&%¥@§5.45 ± 0.76 *£5.00 ± 0.27 *£@§4.56 ± 0.16 *@§3.64 ± 0.15 ¶&@§4.43 ± 1.42 *@§6.42 ± 1.56 *&%£¥6.32 ± 0.22 *&%£¥
Methyl benzoate
(3.54 × 10−3)		5.10 ± 0.98 %¥§4.57 ± 0.85 §4.39 ± 0.13 §4.16 ± 0.17 *&§4.43 ±0.68 ¥§6.20 ± 0.87 *¶&%£@4.89 ± 0.37 ¥§6.80 ± 0.21 *¶&%£@
Methyl salicylate (0.00071484)2.58 ± 0.36 ¥§2.37 ± 0.25 ¥§2.47 ± 0.26 ¥§2.68 ± 0.05 ¥§2.70 ± 0.12 ¥§3.17 ± 0.31 *¶£@2.72 ± 0.48 ¥3.06 ± 0.06 *¶&%£
Muurolene
(3.98 × 10−1)		3.09 ± 0.72 &%£¥@3.17 ± 1.65 &%£¥@1.81 ± 0.70 *¶£@1.54 ± 0.64 *¶&£0.32 ± 0.06 *¶&%§1.40 ± 0.74 *¶0.66 ± 0.31 *¶&§2.17 ± 1.09 £@
Myrcene
(0.00088287)		11.66 ± 1.23
¥§		12.14 ± 1.64
@		11.48 ± 0.65
¥		10.42 ± 0.42
¶¥		11.41 ± 0.42
¥		13.22 ± 1.75
*&%£@§		10.70 ± 0.43
¶¥§		13.02 ± 0.31
*&%£@
Nonanal
(1.39 × 10−1)		9.20 ± 5.59 &%£@8.67 ± 5.27 &%£@14.30 ± 1.90
*¶¥§		16.44 ± 1.02
*¶§		17.15 ± 0.37
*¶¥§		8.57 ± 4.88 &%£@15.08 ± 1.15
*¶¥§		5.33 ± 2.98 &%£@
Nonane
(7.07 × 10−2)		3.43 ±0.582.91 ±0.65 @%3.57 ±0.06 ¥£%4.84 ±0.57 *§¥4.47 ±0.59 *§¥2.63 ±1.01 @4.37 ±0.46 *§2.75 ±0.83
Phenol
(2.01 × 10−4)		1.10 ± 0.111.59 ± 0.17 §*¥@1.22 ± 0.02 ¥@¶0.65 ± 0.02 §*¥@¶&0.83 ± 0.24 §*¶&0.96 ± 0.160.99 ± 0.241.08 ± 0.17
Pinene
(1.28 × 10−6)		3.03 ± 0.44 §3.78 ± 0.22 *¥@£%3.79 ± 0.16 *¥@£%2.83 ± 0.20 §£3.51 ± 0.19 §*¥@2.93 ± 0.11 §2.91 ± 0.06 §3.88 ± 0.06
t-Ocimene
(1.13 × 10−2)		1.94 ± 0.10 §3.51 ± 0.76 §*£3.16 ± 0.19 §*@£2.98 ± 0.09 §*£1.97 ± 0.09 §@2.86 ± 0.85 §*@£4.02 ± 1.21 *4.29 ± 0.13
Table
Table 4. Olive VOC biosynthetic pathways possibly affected by Trichoderma applications (strains or metabolite).
Table 4. Olive VOC biosynthetic pathways possibly affected by Trichoderma applications (strains or metabolite).
TrichodermaMetabolic PathwayClass of VOCs
Strain GV41Shikimate pathwayAromatics
Lipid-signaling pathwayAldehydes
Strain KV906Lipid-signaling pathwayAldehydes
Strain M10MEP pathwayTerpenes
Shikimate pathwayAromatics
Strain T22Shikimate pathwayAromatics
Strain TH1Shikimate pathwayAromatics
Metabolite HAMEP pathwayTerpenes
Shikimate pathwayAromatics
Lipid-signaling pathwayAldehydes
Metabolite 6PPMEP pathwayTerpenes
Shikimate pathwayAromatics
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dini, I.; Marra, R.; Cavallo, P.; Pironti, A.; Sepe, I.; Troisi, J.; Scala, G.; Lombari, P.; Vinale, F. Trichoderma Strains and Metabolites Selectively Increase the Production of Volatile Organic Compounds (VOCs) in Olive Trees. Metabolites 2021, 11, 213. https://doi.org/10.3390/metabo11040213

AMA Style

Dini I, Marra R, Cavallo P, Pironti A, Sepe I, Troisi J, Scala G, Lombari P, Vinale F. Trichoderma Strains and Metabolites Selectively Increase the Production of Volatile Organic Compounds (VOCs) in Olive Trees. Metabolites. 2021; 11(4):213. https://doi.org/10.3390/metabo11040213

Chicago/Turabian Style

Dini, Irene, Roberta Marra, Pierpaolo Cavallo, Angela Pironti, Immacolata Sepe, Jacopo Troisi, Giovanni Scala, Pasquale Lombari, and Francesco Vinale. 2021. "Trichoderma Strains and Metabolites Selectively Increase the Production of Volatile Organic Compounds (VOCs) in Olive Trees" Metabolites 11, no. 4: 213. https://doi.org/10.3390/metabo11040213

APA Style

Dini, I., Marra, R., Cavallo, P., Pironti, A., Sepe, I., Troisi, J., Scala, G., Lombari, P., & Vinale, F. (2021). Trichoderma Strains and Metabolites Selectively Increase the Production of Volatile Organic Compounds (VOCs) in Olive Trees. Metabolites, 11(4), 213. https://doi.org/10.3390/metabo11040213

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
