Bi-Level Operation Scheduling of Distribution Systems with Multi-Microgrids Considering Uncertainties
Abstract
:1. Introduction
- Proposing a bi-level operation scheduling framework for decision making of DSO and MMGs in an uncertain environment,
- Proposing a scenario matrix based on the HMM method to achieve the stochastic moments and correlations among the historical scenarios,
- Transforming the non-linear bi-level optimization problem into the single-level MISOCP optimization problem through linearization techniques and KKT optimality conditions.
2. Uncertainties Modelling
Modeling of Scenario Matrix
3. Problem Formulation
3.1. Upper-Level: Distribution System Operator (DSO) Decision Making
Constraints
- Bus voltage limits constraint:
- Line current limits constraint:
- Exchanged power limit with the wholesale electricity market:In order to deal with the limited capacity of sub-transmission transformer, the exchanged power between the wholesale market and DSO should be guaranteed as follows:
- Exchanged power limit between DSO and MGs:Based on the aforementioned limitations in the contract for the exchanged power between DSO and MG operators, constraint (15) should be met.
3.2. Lower-Level: Multi-Microgrids (MMGs) Decision Making
Constraints
- Exchanged power limit between DSO and each MG:
- Exchanged power limit between MGp and MGq:
- Operation limit of MTs:
- Operation limits of ESSs:
- Power balance of pth MG:
3.3. Solution Methodology
4. Numerical Results and Discussion

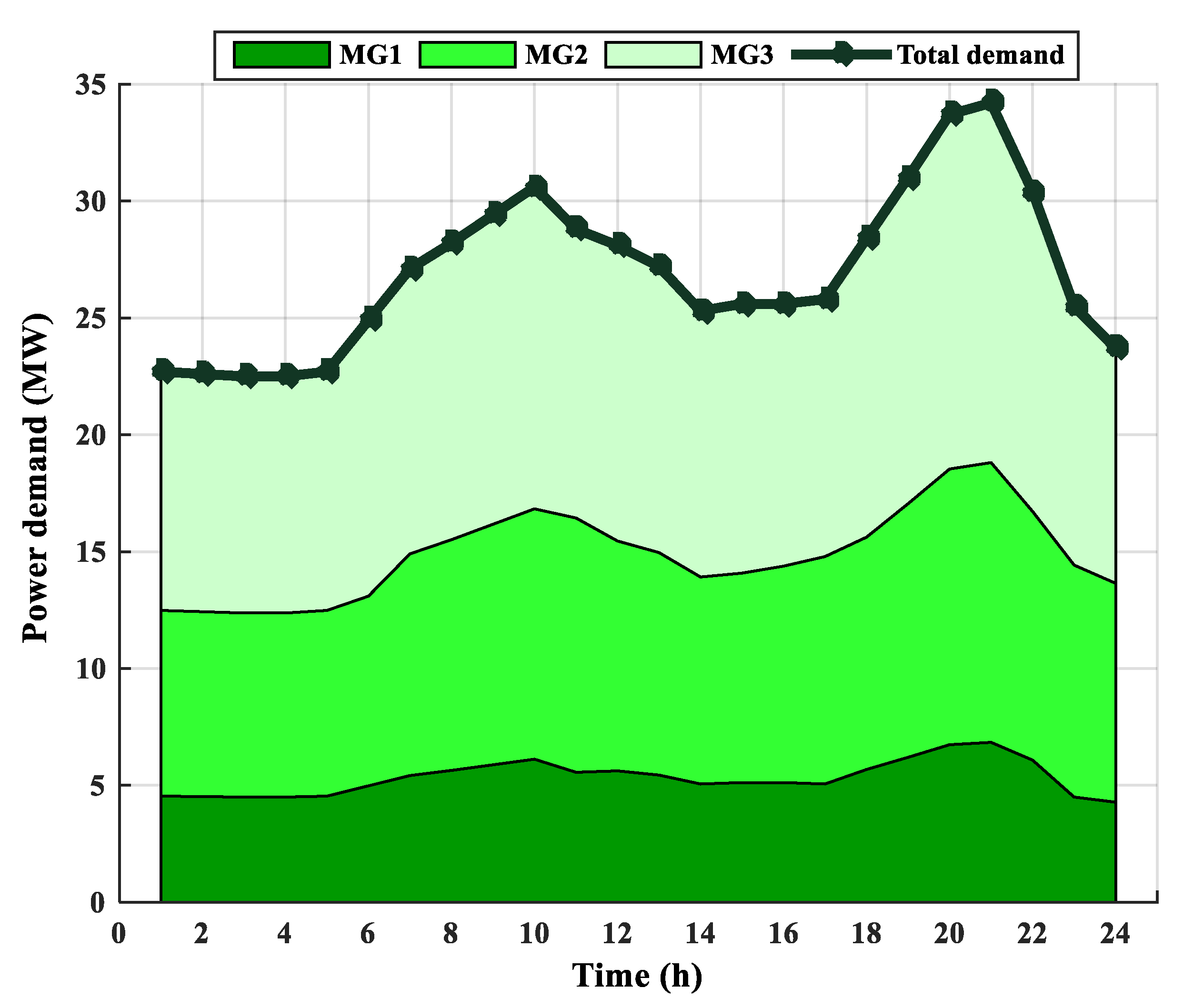

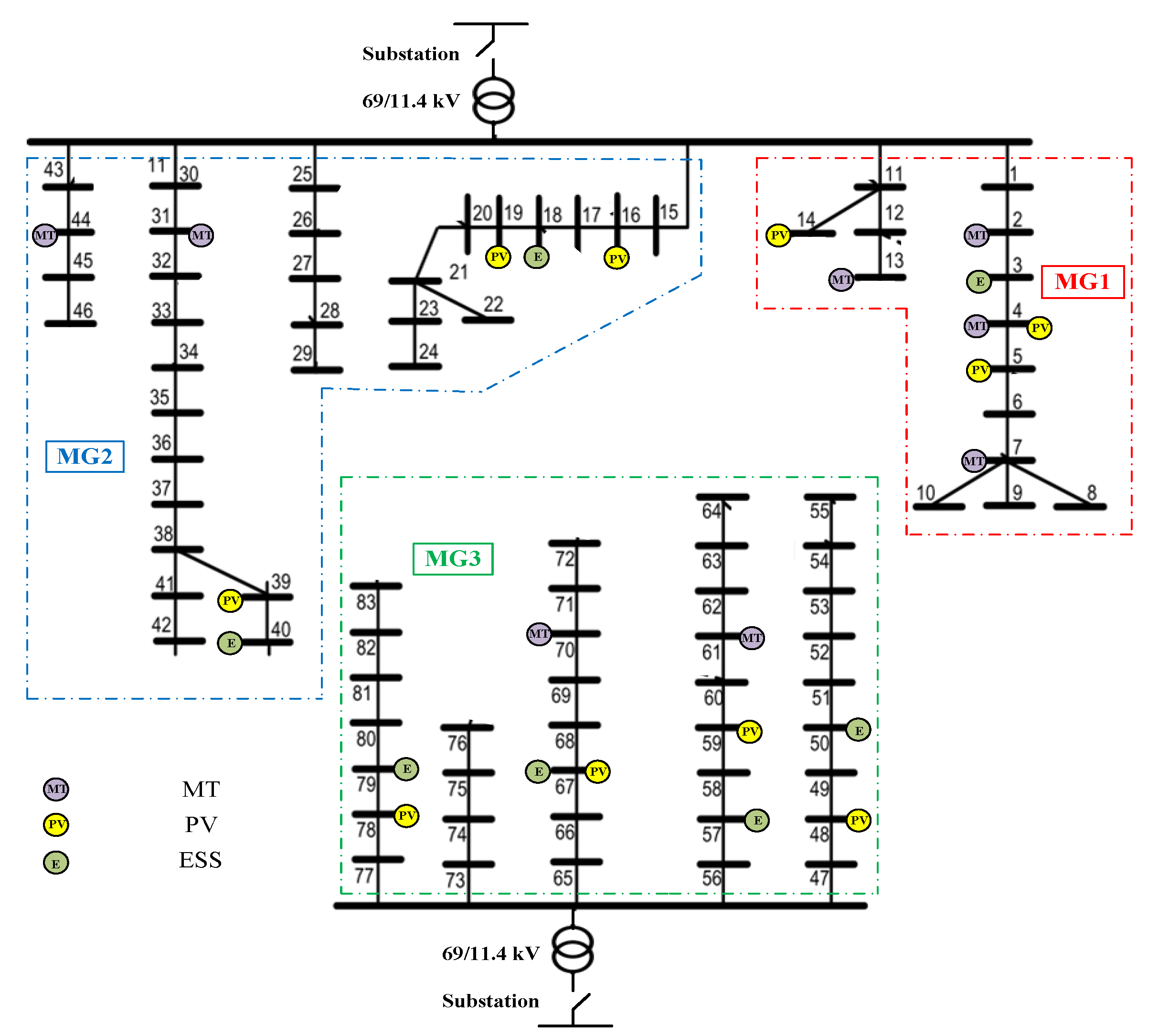

4.1. Test System
4.2. Simulation Results

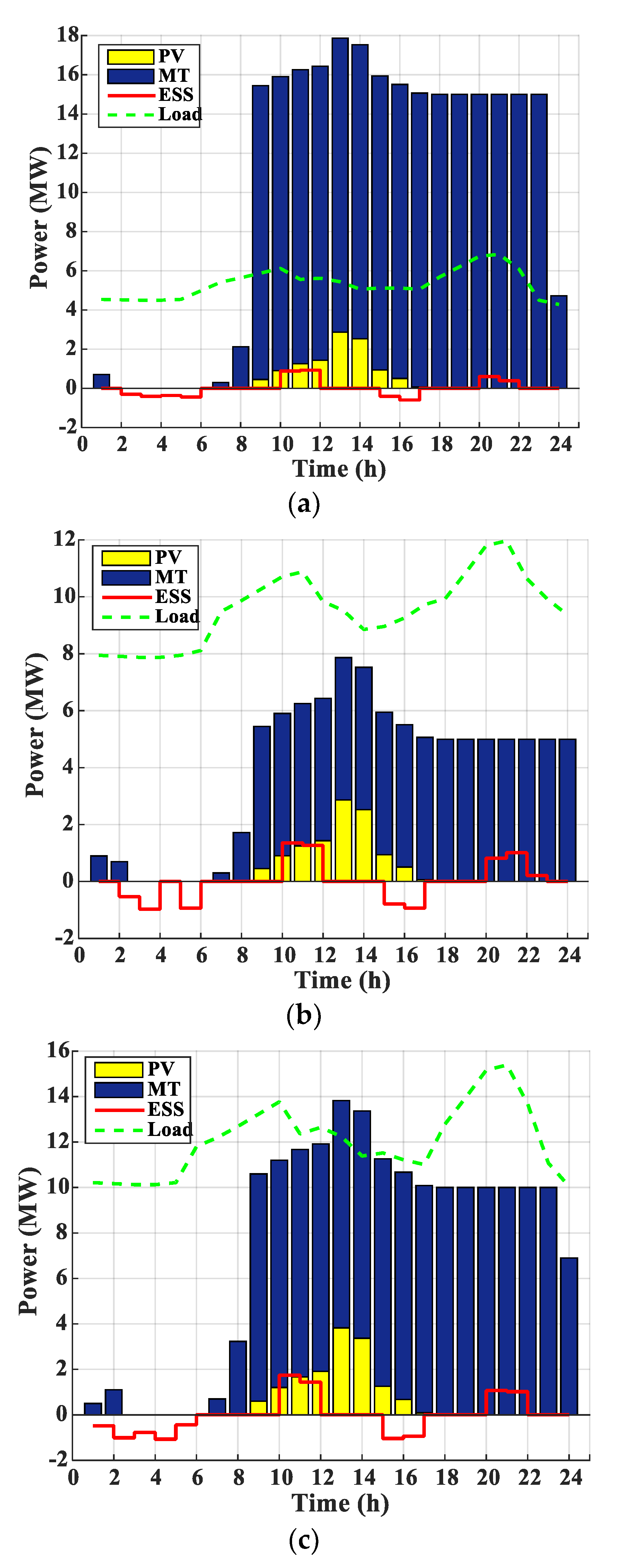

4.2.1. Operation Scheduling
4.2.2. Considering Uncertainties
4.2.3. Large-Scale Test Systems

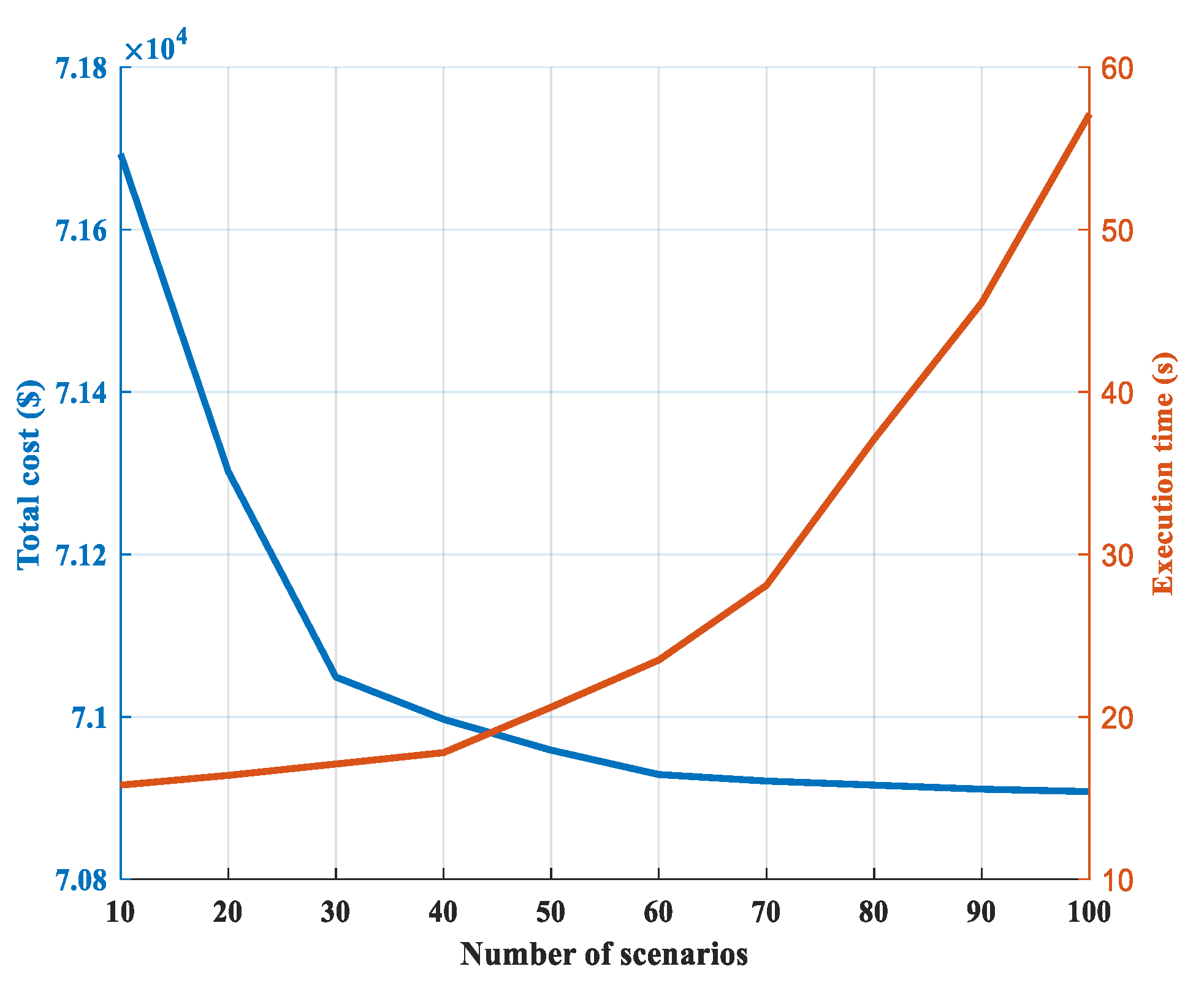

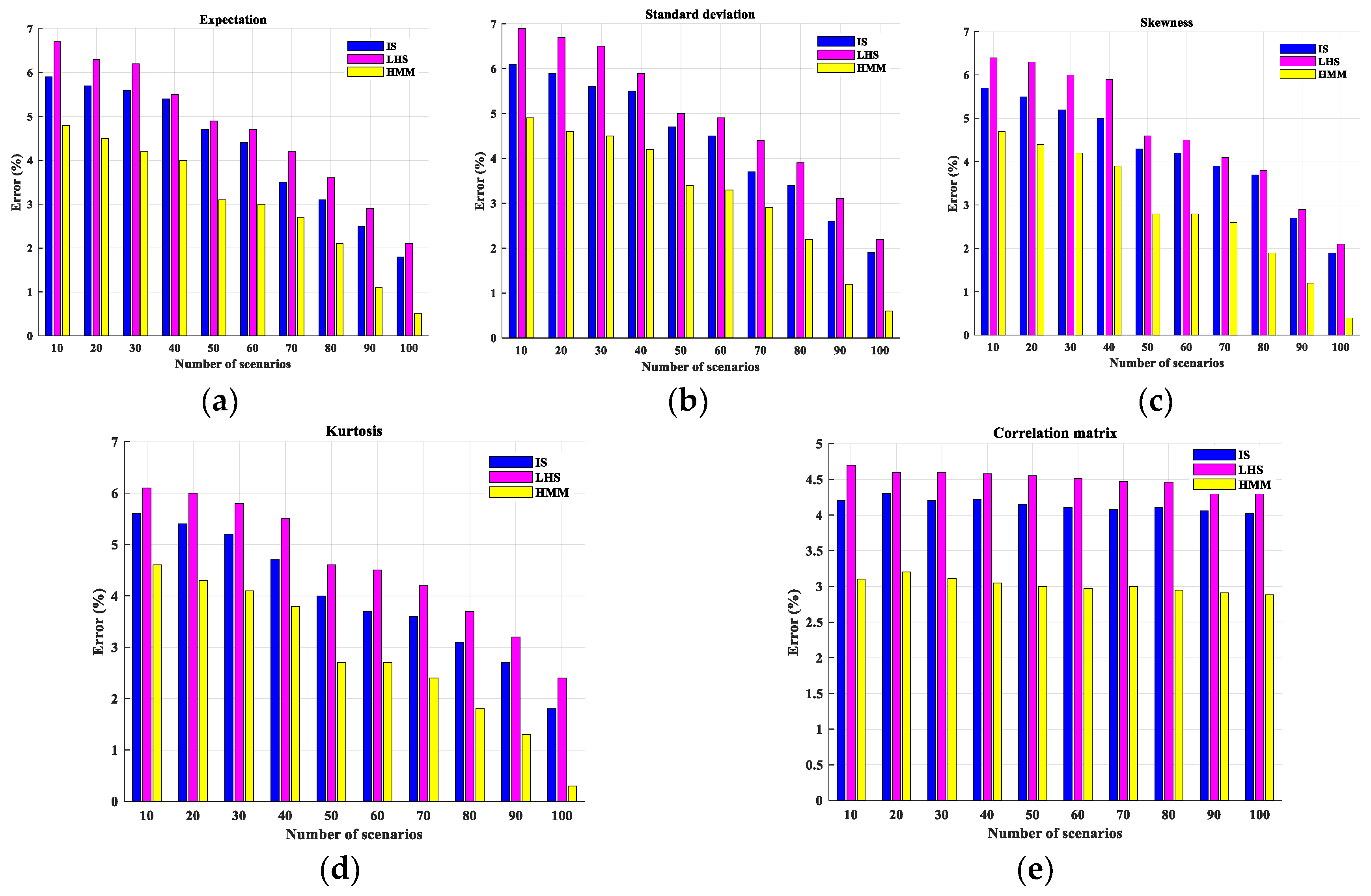

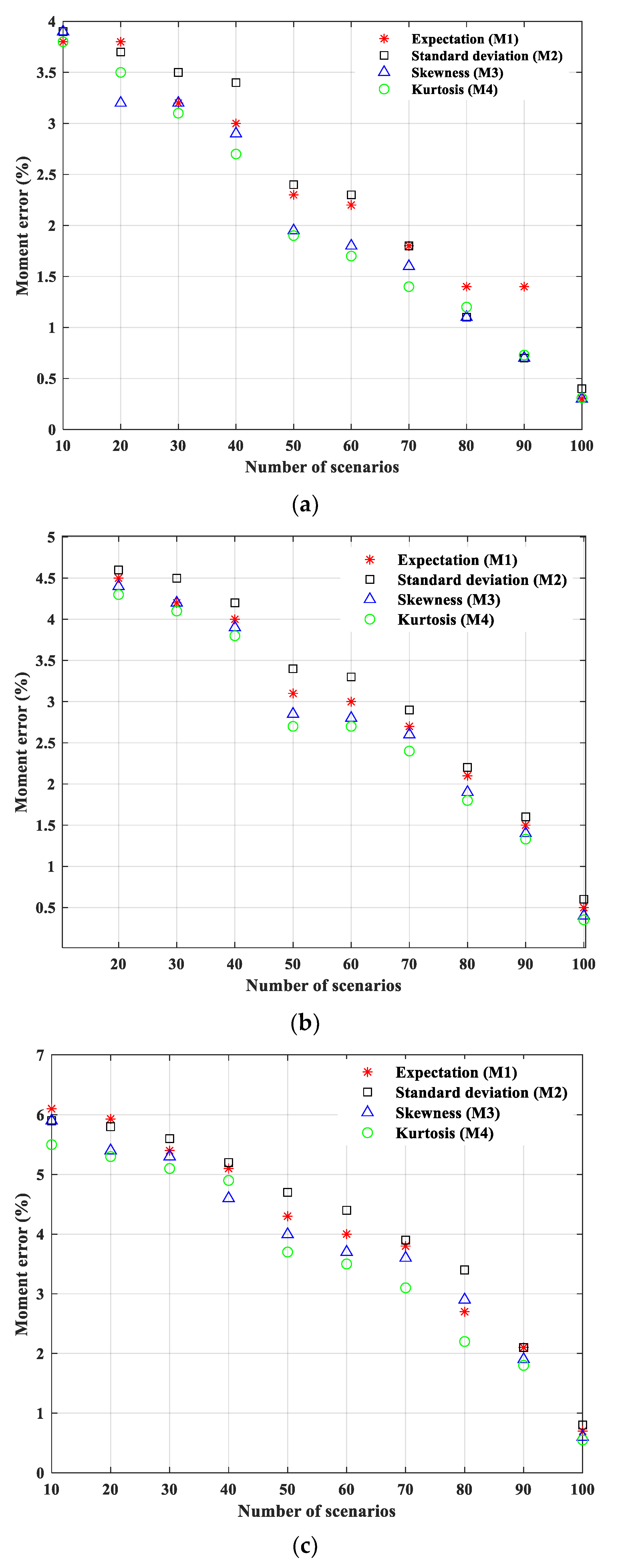

4.2.4. Performance Evaluation of the Proposed Heuristic Moment Matching (HMM) Method
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
Nomenclature
t | Index of hours. |
Index of buses. | |
Index of DERs (PVs, MTs, and ESSs). | |
br | Index of branches. |
Index of MGs. | |
Set of scenarios. | |
Wholesale market/retail market price at time t ($/MWh). | |
The amount of exchanged power with wholesale market at time t (MW). | |
The amount of exchanged power between DSO and MGp at time t (MW). | |
The total load demand at time t (MW). | |
The amount of exchanged power between MGp and MGq at time t (MW). | |
Output power of DER at time t (MW). | |
Output power of th PV (MW). | |
Operation & maintenance cost coefficient of DER . | |
Voltage at bus m (p.u.) | |
Line current between bus m and bus n at time t (kA) | |
/ | Charging/discharging power of ESS at time t (MW). |
Charging/discharging efficiency of ESS . | |
Initial amount of stored energy for ESS (MWh). | |
Stored energy for ESS at time t (MWh). | |
Binary variable for the charging/discharging status of ESS at time t. | |
Auxiliary variable used for linearization of the complementary conditions. | |
Maximum allowable exchanged power between DSO and wholesale market (MW). | |
Maximum allowable exchanged power between DSO and each MG (MW). | |
Maximum allowable exchanged power between MGp and MGq (MW). | |
Cost of exchanging power between DSO and MGs ($). | |
Cost of exchanging power between DSO and wholesale market ($). | |
Profit of selling power to loads ($). | |
Profit of exchanging power between DSO and MGp ($). | |
Profit of exchanging power between MGp and MGq ($). | |
Profit related to the generated power of DERs. | |
kth target moment/normalized target moment of i uncertain parameter. | |
Randomly generated matrix | |
L | Lower-triangle matrix of the correlation matrix |
R | Correlation matrix |
Cubic transformation coefficients | |
Non-normal random variable to satisfy the normalized target moments of the historical scenarios | |
Correlation error/the moment errors | |
Scenario matrix | |
Moments of target scenarios | |
Dual variable. | |
Greater than or equal to zero constraints. |
