Delta-Sigma Modulator-Based Step-Up DC–DC Converter with Dynamic Output Voltage Scaling

Communication RF Research Section, Electronics and Telecommunications Research Institute (ETRI), Daejeon 34129, Korea
*
Author to whom correspondence should be addressed.
Electronics 2020, 9(3), 498; https://doi.org/10.3390/electronics9030498
Received: 25 February 2020 / Revised: 16 March 2020 / Accepted: 17 March 2020 / Published: 18 March 2020
(This article belongs to the Special Issue Energy Efficient Circuit Design Techniques for Low Power Systems)

Abstract

:
The switching noise and conversion efficiency of step-up DC-DC converters need to be improved to meet increasing demand. The delta-sigma modulation (DSM) technique is typically used to improve the performance of buck converters; however, this control scheme is not directly applicable for boost converters. This paper presents a boost DC–DC converter using a continuous-time delta-sigma modulator (DSM) controller for battery-powered and noise-sensitive applications. The proposed converter can adjust a wide range of output voltages dynamically by clamping the maximum duty cycle of the DSM, thus enabling stable and robust transient responses of the converter. The switching harmonics in the converter output are reduced effectively by the noise shaping property of the modulator. Moreover, the converter does not suffer from instability of mode switching due to the use of a fixed third-order DSM. Fabricated in a 180 nm CMOS, the converter occupies an active area of 0.76 mm2. It produced an output voltage ranging from 2.5 V to 5.0 V at an input voltage of 2.0 V and achieved a peak conversion efficiency of 95.5%. The output voltage ripples were maintained under 25 mV for all load conditions. A low noise output spectrum with a first spurious peak located −91 dBc from the signal was achieved.

1. Introduction

Portable electronic devices are typically equipped with a rechargeable lithium-ion battery with an output voltage range from 4.2 V to 2.7 V [1]. However, traditional analog mixed-signal systems may require the supply voltage to be regulated at a higher level than the battery voltage [2,3]. Therefore, integrated boost DC–DC converters, which can serve as a power interface to step up the input voltage, have become increasingly popular [4,5,6,7,8,9,10]. These converters must exhibit a high conversion efficiency to extend the battery life and minimize the chip area to be cost effective. Moreover, low noise characteristics should accompany this in order to achieve high performance in precision analog blocks.
In recent years, an approach to reduce the switching noise in DC–DC converters using a delta-sigma modulator (DSM) controller has received increasing attention [11,12]. Replacing the conventional pulse-width modulation (PWM) controller with a DSM can reduce the output harmonics and electromagnetic interference and yield high efficiency. This control scheme is directly applicable for boosting converters [6,13,14]; however, the most practical limitation on the step-up conversion is that the maximum duty ratio (DMAX) of the DSM controller cannot be adjusted as in conventional PWM controllers [15]. Because the digitalized output bitstream of the DSM is determined by the difference between the reference voltage of the compensator (VREF) and output voltage of the converter (VOUT), a duty condition exceeding DMAX may occur under dynamic output voltage scaling where VREF is significantly higher than VOUT. Beyond DMAX, the output voltage can decrease below the targeted value, and the feedback loop may become unstable [16]. In an extreme scenario, a 100% duty condition with the low-side N-type transistor turned on can be produced, in which case the stored energy of the inductor is not transferred to the load and causes an excessive inductor current, resulting in damage to the bottom switch. An earlier study did not address this issue because the output voltage scaling condition was not considered [6]. Therefore, it is necessary to produce a duty ratio limitation in the DSM controller to ensure the reliable operation of the boost converter.
This paper presents a low-switching-noise boost converter that uses a DSM controller with limited on-time duty ratio. The proposed converter produces a wide range of scalable output voltages by adjusting the maximum duty cycle of the controller, thus enabling robust and reliable operation of the converter. Moreover, the boost converter achieves a low output switching noise by using a noise-shaped third-order DSM controller. The remainder of this paper is organized as follows. Section 2 introduces the proposed boost converter architecture; Section 3 describes the detailed circuit of the duty cycle limiter, DSM controller, and compensator; Section 4 provides the experimental results of the prototype converter; and Section 5 presents the conclusions.

2. Proposed DSM-Based Boost Converter Architecture

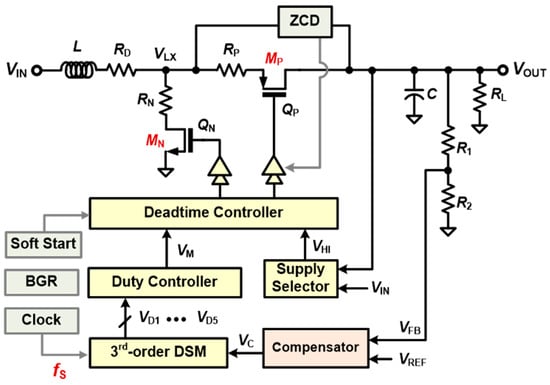

The block diagram of the proposed boost converter is shown in Figure 1. The converter is composed of power stages (two switches of MN and MP, an external inductor L, and an output capacitor C), feedback networks (a resistor divider comprising R1 and R2 and a compensator), and control blocks (a third-order DSM, a duty controller, and a dead-time controller). The external inductor and capacitor are 2.8 μH and 20 μF, respectively. The signal difference between the scaled output voltage VFB and reference voltage VREF is processed by the compensator and fed to the DSM input. The switching noise of the converter can be reduced by the noise shaping capability of the DSM. The DSM outputs noise-shaped, digitized single-bit, and multiple delayed signals of VD1 to VD5 to control the on-time duty ratio. The duty controller produces a modified output bitstream VM with this limited on-time duty ratio. VM drives the power stage through a deadtime controller. The clock signal fS is applied externally with a 12 MHz source. The converter has a single operating mode because it operates only in the continuous conduction mode (CCM) condition under the targeted output load of 50–450 mA. A zero-current detector (ZCD) was included for stable operation under light load conditions below 50 mA. A bandgap reference (BGR), soft start, and supply selector were also designed for a more robust operation.

3. Circuit Implementations

The proposed boost converter was designed for a supply of 2.0–4.5 V, output voltage of 2.5–5.0 V, and output current of 1–450 mA. It uses a switching frequency of 12 MHz.

3.1. Duty Cycle Controller

The voltage conversion ratio M for an ideal boost converter (in Figure 1, RD, RN, and RP are 0 where RD is the parasitic resistance of inductor L, RN is the on-resistance of low-side transistor MN, and RP is the on-resistance of high-side transistor MP) is determined by 1/(1–D), which is a function of duty cycle D [16]. A larger output voltage can be achieved as D approaches 1. In the practical case where the resistances of the inductor and switches are present (in Figure 1, RD, RN, and RP are not 0), M can be calculated as [17]
M = V OUT V IN = R L · ( 1 D ) R L · D 2 ( 2 R L + R P R N ) D + R L + R P + R D
The reduction in M is demonstrated for various on-resistances of transistors in Figure 2. As shown in Figure 2, the parasitic resistance and on-resistances in Equation (1) limit the maximum M and determine the upper limit of D (DMAX) that can produce normal operation with a positive gain. It is noteworthy that although M is not a function of VIN, RN and RP are proportional to VIN; therefore, the maximum output voltage can vary with VIN. In the targeted system, the worst-case DMAX at which M begins to decrease is about 0.8, which occurs at the maximum load current and highest RN condition. The duty cycle of the DSM controller should be clamped to a fixed DMAX to prevent control loop instability.
The proposed duty cycle limiter (DCL) is shown in Figure 3. Multiple delayed signals (VD1 to VD5) connected to the DSM output (DSMO) and a modified counter with an AND gate are used to clamp the duty cycle of the controller. By connecting the inverting output of the D-type flip-flop (DFF) back to the “D” input through the AND gate and creating a feedback loop, the signal period applied to VSUM can be counted using the clock signal fS. VSUM outputs high only when VD1 to VD5 produce low simultaneously. Therefore, if the DSM outputs a low signal for five or more periods, VSUM activates the DFF to form a new pulse VSHOT. This signal is combined with the original DSM output VD1 and limits the on-time duty of the proposed boost converter. Figure 4 shows the simulation results of the proposed duty cycle control. VSHOT is generated when the output of the DSM maintains low for more than five cycles, as explained earlier. The modified control signal of the controller VM effectively limits the DMAX of the converter by adding new pulses through VSHOT. The clamped DMAX is approximately 83%, which corresponds to the system simulation results.
The simulation result of the dynamic output voltage scaling according to the DCL scheme is shown in Figure 5. Without the DCL, because a VSHOT signal is not produced and a 100% duty condition in which MN is solely turned on has occurred, the stored energy of the inductor causes an excessive current; hence, the output voltage decreases below the targeted value and the feedback loop becomes unstable. Meanwhile, with the DCL, DMAX is limited by VSHOT, resulting in stable operation of the converter. The stability of the control loop is maintained despite the forced VM because the compensator and DSM can sufficiently cope with the variation in the output voltage from the changed switching operation. Therefore, the proposed step-up converter enables a wide range of scalable output voltages with stable transient responses, as shown in Figure 5. Moreover, because the proposed technique controls the duty cycle in the digital domain rather than in the analog domain, it is more immune to process and temperature variations [17].

3.2. Third-Order Single Op-Amp DSM

The DSM controller in Figure 6 adopts a continuous-time (CT) architecture with a third-order single op-amp loop filter because of its simple and nondelaying nature. A CT DSM is less sensitive to loop filter delays compared with discrete-time DSMs, and the single op-amp loop filter merges multiple integrators into a single op-amp; hence, the proposed controller exhibits the advantages of high-order and -frequency operations with improved power and area efficiency. The proposed third-order loop filter (LF) consists of a single op-amp with an input resistor (R1), three series-connected capacitors (C1, C 2, C 3), and two T-shape resistors (R2R 4R6, R3R5R7). The input signal and the output signal are applied to R6 and R5, respectively, through the cross-coupled connection of the differential signal, which is illustrated as -1. These signals adjust the numerator and denominator coefficients of the transfer function. The transfer function of proposed LF is given by
G D ( s ) = V O V I = s 2 · 1 C ( 4 R 1 + 1 R 7 3 R 6 ) + s · 1 C 2 [ 3 R 1 ( 1 R X + 1 R Y ) 2 R 6 R Y ] + 2 C 3 R 1 ( 1 R X · 1 R Y ) s · [ s 2 + 2 / 3 C 2 R 5 R Y ]
where RX = R2R4R6, RY = R3R5R7, and C = C1= 2∙C2= C3. The positive feedback produced by R5 makes a resonating condition when R4 =3∙R5. The resonating condition is used to implement a zero-optimized noise transfer function (NTF). The DSM can maximize the signal-to-noise ratio by optimizing the NTF zeros. The simulation results of the signal transfer function and NTF of the DSM are illustrated in Figure 7 using a Matlab/Simulink simulation platform. This noise shaping characteristic of the DSM controller can effectively suppress the switching noise of the boost converter. The corresponding sampling frequency (fS) and signal bandwidth (fBW) are 12 MHz and 150 kHz, respectively. The performance of the DSM was described in greater detail in [18]. The primary difference of the DSM compared with [11] is that it adopts only the third-order loop filter structure. This is because the proposed converter has a small output load range and operates only in the CCM. Thus, the converter does not suffer from instability of the mode switching and alleviates the design complexity of the compensator. Moreover, the third-order structure exhibits a signal-to-noise ratio more than 20 dB higher when compared with its second-order counterpart [19], which can improve the switching noise rejection.

3.3. Type-III Controller

Because the right-half-plane zero (RHPZ) shifts to a lower frequency as the load current increases, a type-III compensator was adopted to overcome the reduced phase margin due to the RHPZ, as shown in Figure 8. An error amplifier with a feedback network (C1, C3, and R2) is the on-chip component and an input network (C2, R1, and R3) is the off-chip component. The transfer function of the compensator is expressed as
G C ( s ) = ( s C 1 R 2 + 1 ) ( s C 2 ( R 1 + R 3 ) + 1 ) s · ( s C 1 C 3 R 2 + ( C 1 + C 3 ) ) ( s C 2 R 1 R 3 + R 1 )
The compensator produces three poles and two zeros to improve the system stability by compensating the phase delay caused by the external L and C, equivalent series resistance zero, and RHPZ.

4. Measurement Results

The proposed boost converter was implemented in a 180 nm complementary metal–oxide–semiconductor process. Figure 9 shows the chip micrograph. The converter occupies an active area of 0.76 mm2, which is one of the smallest among the reported step-up converters [5,6,7,8,13].
The proposed step-up converter can adjust the output voltage dynamically by changing the reference voltage, as shown in Figure 10. For a VIN of 2.0 V and IL of 125 mA, VOUT changes from 2.5 to 5.0 V. A wide-range scalable output voltage was produced by virtue of the maximum duty cycle limiter, which enables stable and robust operation of the converter.
Figure 11 shows the measured output spectrum of the proposed DSM-based step-up converter. The spurious tones were suppressed effectively, as predicted. A first spurious peak located at −91 dBc below the DC signal was achieved. Although the rejection of the switching noise was not as good as that for the buck converter [11], the proposed converter demonstrated significantly reduced switching harmonics compared with a conventional PWM-based boost converter [8] and DSM-based boost converters [6,13].
Figure 12 shows the transient waveforms with respect to the load current at VIN = 3.7 V and VOUT = 5.0 V. When IL= 1 mA, the reverse inductor current is controlled effectively by the ZCD. As the load current increases, the output voltage ripple worsens; however, it is controlled within 25 mV at a 450 mA load. Moreover, the body diode did not conduct, owing to the deadtime controller in the CCM operation where the ZCD was not enabled (Figure 12b,c).
Figure 13 shows the load transient response with VIN = 3.7 V when IL changes between 10 and 350 mA. The transient recovery times and undershoot voltages were less than 60 μs and 92 mV, respectively. These measurements indicate that the proposed step-up converter produces a good transient response with robust stability.
Figure 14 shows the measured efficiency with different input voltages at VOUT = 5 V. The converter exhibited a peak efficiency of 95.5% when VIN = 4.5 V and IL = 150 mA. For the targeted load current range from 50 to 450 mA, the converter efficiency was maintained over 80% regardless of the input voltage. Table 1 summarizes the performance of the boost converter and compares it with that of the state-of-the-art boost converters.

5. Conclusions

A low-switching-noise boost DC–DC converter with improved transient responses was presented. The proposed converter produced a wide range of dynamic output voltages from 2.5 to 5.0 V at VIN = 2.0 V and achieved a conversion efficiency of higher than 80% over the input voltage and load current ranges of 2.5–4.5 V and 50–450 mA, respectively. Its output voltage ripples were maintained below 25 mV. Moreover, the switching harmonics were reduced by the noise-shaped DSM controller. The proposed converter’s active area of 0.76 mm2 is highly competitive among the previously reported step-up converters. Therefore, it is expected to be a desirable solution for battery-powered and noise-sensitive applications.

Author Contributions

Y.-K.C., S.-B.H. and B.H.P. conceived the idea and co-wrote/edited the manuscript. Y.-K.C. suggested the initial idea of a delta-sigma modulator-based step-up converter. Y.-K.C. designed the circuits. Y.-K.C. and S.-B.H. measured the electric characteristics of the fabricated boost converter. Y.-K.C., S.-B.H. and B.H.P. analyzed the experimental data. All authors discussed the results and commented on the manuscript. B.H.P. was in charge of project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Institute of Information & Communications Technology Planning & Evaluation (IITP) grant funded by the Korea government (MSIT) (2019-0-00933, Development on multi-beam antenna technology).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Horiba, T. Lithium-ion battery systems. Proc. IEEE 2014, 102, 939–950. [Google Scholar] [CrossRef]
  2. Cho, Y.-K.; Lee, K.C. Noninverting buck-boost DC-DC converter using a duobinary-encoded single-bit delta-sigma modulator. IEEE Trans. Power Electron. 2020, 35, 484–495. [Google Scholar] [CrossRef]
  3. Cho, Y.-K.; Park, B.H.; Kim, C.-Y. Wideband and multiband long-term evolution transmitter using envelope delta-sigma modulation technique. Analog Intergr. Circuits Signal Process. 2017, 91, 155–162. [Google Scholar] [CrossRef]
  4. Forouzesh, M.; Siwakoti, Y.P.; Gorji, S.A.; Blaabjerg, F.; Lehman, B. Step-up DC-DC converters: A comprehensive review of voltage-boosting techniques, topologies, and applications. IEEE Trans. Power Electron. 2017, 32, 9143–9178. [Google Scholar] [CrossRef]
  5. Huang, C.-H.; Wu, H.-H.; Wei, C.-L. Compensator-free mixed-ripple adaptive on-time controlled boost converter. IEEE J. Solid-State Circuits 2018, 53, 596–604. [Google Scholar] [CrossRef]
  6. Hwang, Y.-S.; Chen, J.-J.; Lai, B.-H.; Ku, Y.-T.; Yu, C.-C. A fast-response boost converter with noise-reduction techniques for wireless sensor networks. IEEE Sens. J. 2016, 16, 3188–3197. [Google Scholar] [CrossRef]
  7. Su, Y.-P.; Luo, Y.K.; Chen, Y.-C.; Chen, K.-H. Current-mode synthetic control technique for high-efficiency DC-DC boost converters over a wide load range. IEEE Trans. Very Large Scale Integr. Syst. 2014, 22, 1666–1678. [Google Scholar] [CrossRef]
  8. Jing, X.; Mik, P.K.T. A fast-frequency adaptive-on-time boost converter with light load efficiency enhancement and predictable noise spectrum. IEEE J. Solid-State Circuits 2013, 48, 2442–2456. [Google Scholar] [CrossRef]
  9. Duong, T.-D.; Nguyen, M.-K.; Tran, T.-T.; Lim, Y.-C.; Choi, J.-H. Transformerless high step-up dc-dc converters with switched-capacitor network. Electronics 2019, 8, 1420. [Google Scholar] [CrossRef][Green Version]
  10. Liu, S.; Gao, Y.; Yang, L. Research on application of non-isolated three-port switching boost converter in photovoltaic power generation system. Electronics 2019, 8, 746. [Google Scholar] [CrossRef][Green Version]
  11. Cho, Y.-K.; Kim, M.-D.; Kim, C.-Y. A low switching-noise and high-efficiency buck converter using a continuous-time reconfigurable delta-sigma modulator. IEEE Trans. Power Electron. 2018, 33, 10501–10511. [Google Scholar] [CrossRef]
  12. Alghamdi, M.K.; Hamoui, A.A. A spurious-free switching buck converter achieving enhanced light-load efficiency by using a ΔΣ-modulator controller with a scalable sampling frequency. IEEE J. Solid-State Circuits 2012, 47, 841–851. [Google Scholar] [CrossRef]
  13. Liou, W.-R.; Yeh, M.-L.; Chen, P.-S.; Tseng, C.-C.; Huang, T.-Y.; Lin, S.-C.; Lin, C.-Y.; Sun, C.-H. Monolithic low-EMI CMOS DC-DC boost converter for portable applications. IEEE Trans. Very Large Scale Integr. Syst. 2014, 22, 420–424. [Google Scholar] [CrossRef]
  14. Khan, Q.; Rao, S.; Swank, D.; Rao, A.; McIntyre, W.; Bang, S.; Hanumolu, P.K. A 3.3V 500mA digital buck-boost converter with 92% peak efficiency using constant ON/OFF time delta-sigma fractional-N control. In Proceedings of the ESSCIRC, Helsinki, Finland, 12–16 September 2011; pp. 439–442. [Google Scholar]
  15. Sahu, B.; Rincon-Mora, G.A. A high-efficiency, dual-mode, dynamic, buck-boost power supply IC for portable applications. In Proceedings of the 18th International Conference on VLSI Design held jointly with 4th International Conference on Embedded Systems Design, Kolkata, India, 3–7 January 2005; pp. 858–861. [Google Scholar]
  16. Ericson, R.; Maksimovic, D. Fundamentals of Power Electronics, 2nd ed.; Kluwer: New York, NY, USA, 2001. [Google Scholar]
  17. Michal, V. Dynamic duty-cycle limitation of the boost DC/DC converter allowing maximal output power operations. In Proceedings of the International Conference on Applied Electronics, Pilsen, Czech Republic, 6–7 September 2016; pp. 177–182. [Google Scholar]
  18. Cho, Y.-K.; Kim, M.-D.; Kim, C.-Y. A low-power continuous-time delta-sigma modulator using resonant single op-amp third-order loop filter. IEEE Trans. Circuits Syst. II Express Briefs 2018, 65, 854–858. [Google Scholar] [CrossRef]
  19. Cho, Y.-K.; Park, B.H. Single op-amp second-order loop filter for continuous-time delta-sigma modulators. Electron. Lett. 2015, 51, 619–621. [Google Scholar] [CrossRef]

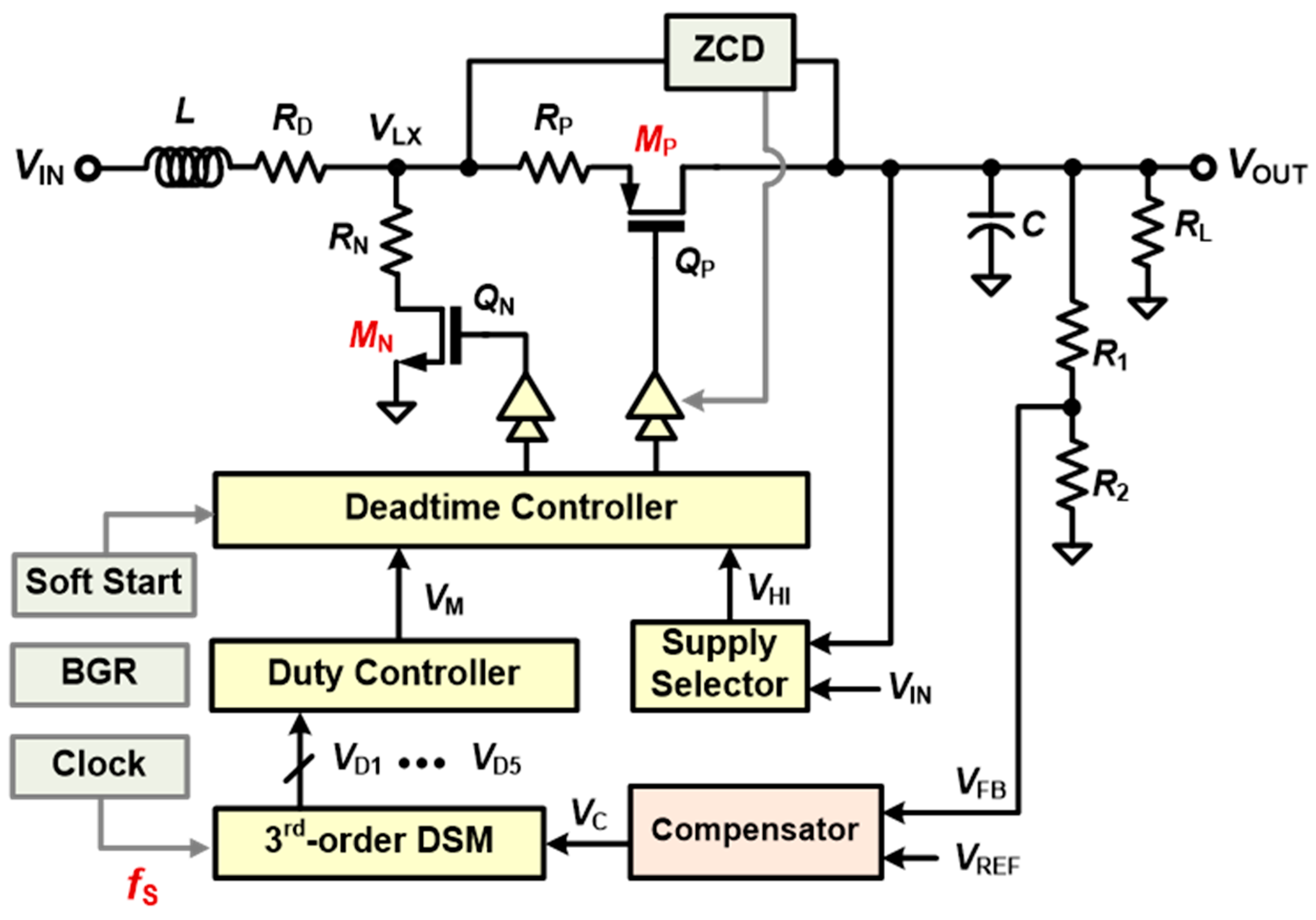

Figure 1. Block diagram of the proposed step-up converter.
Figure 1. Block diagram of the proposed step-up converter.
Electronics 09 00498 g001

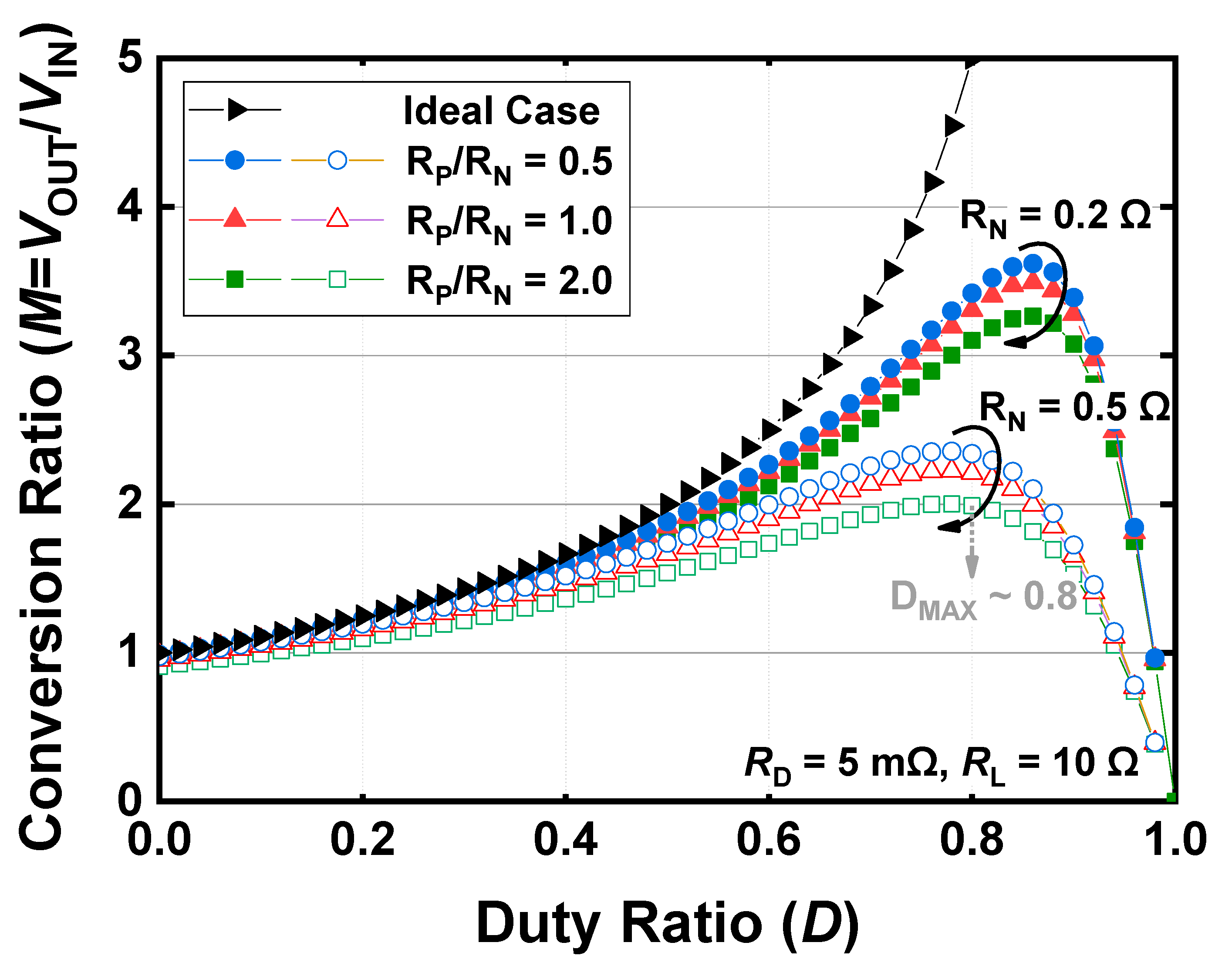

Figure 2. Voltage conversion ratio with respect to the duty ratio.
Figure 2. Voltage conversion ratio with respect to the duty ratio.
Electronics 09 00498 g002

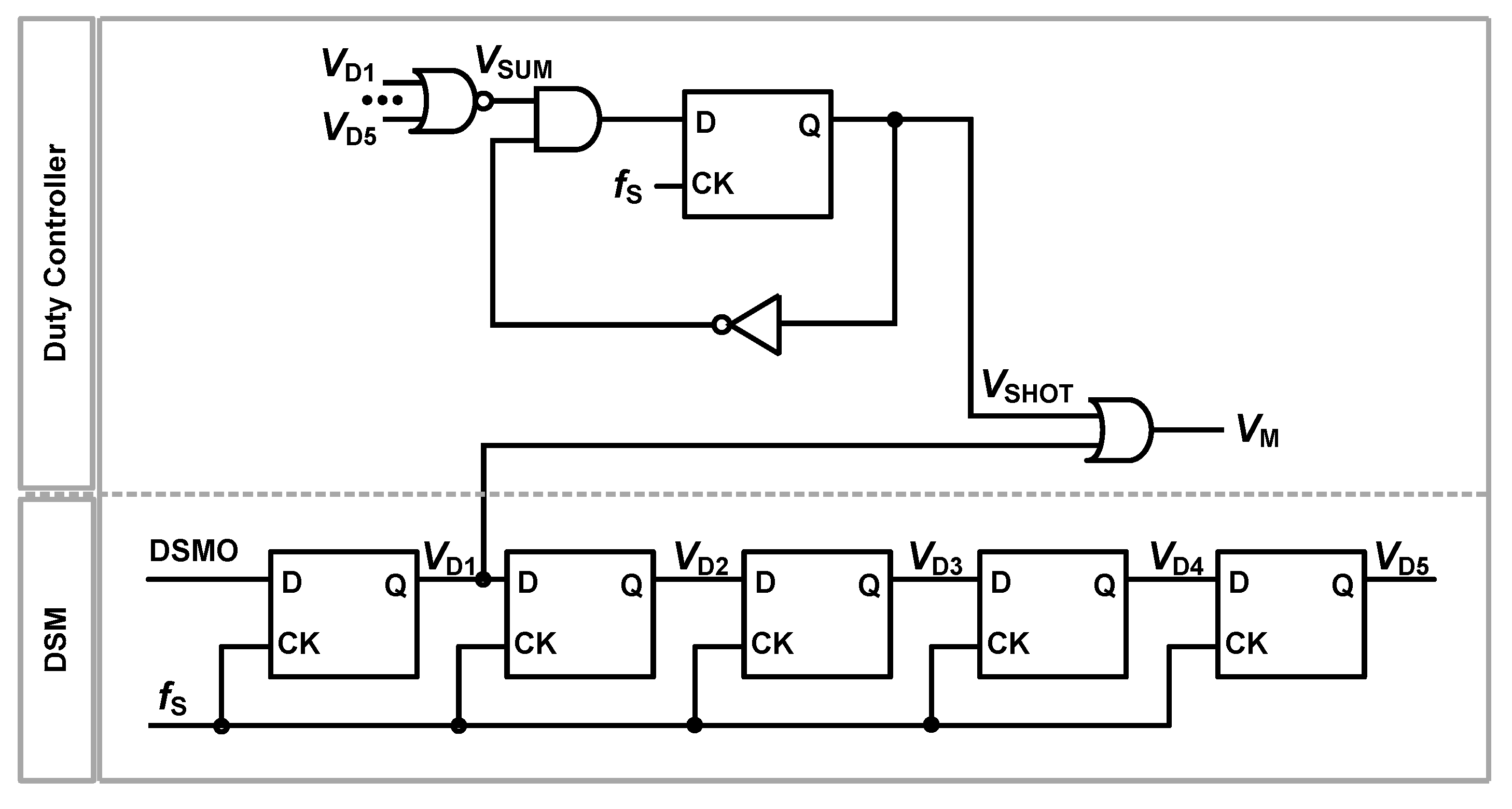

Figure 3. Proposed duty cycle limiter.
Figure 3. Proposed duty cycle limiter.
Electronics 09 00498 g003

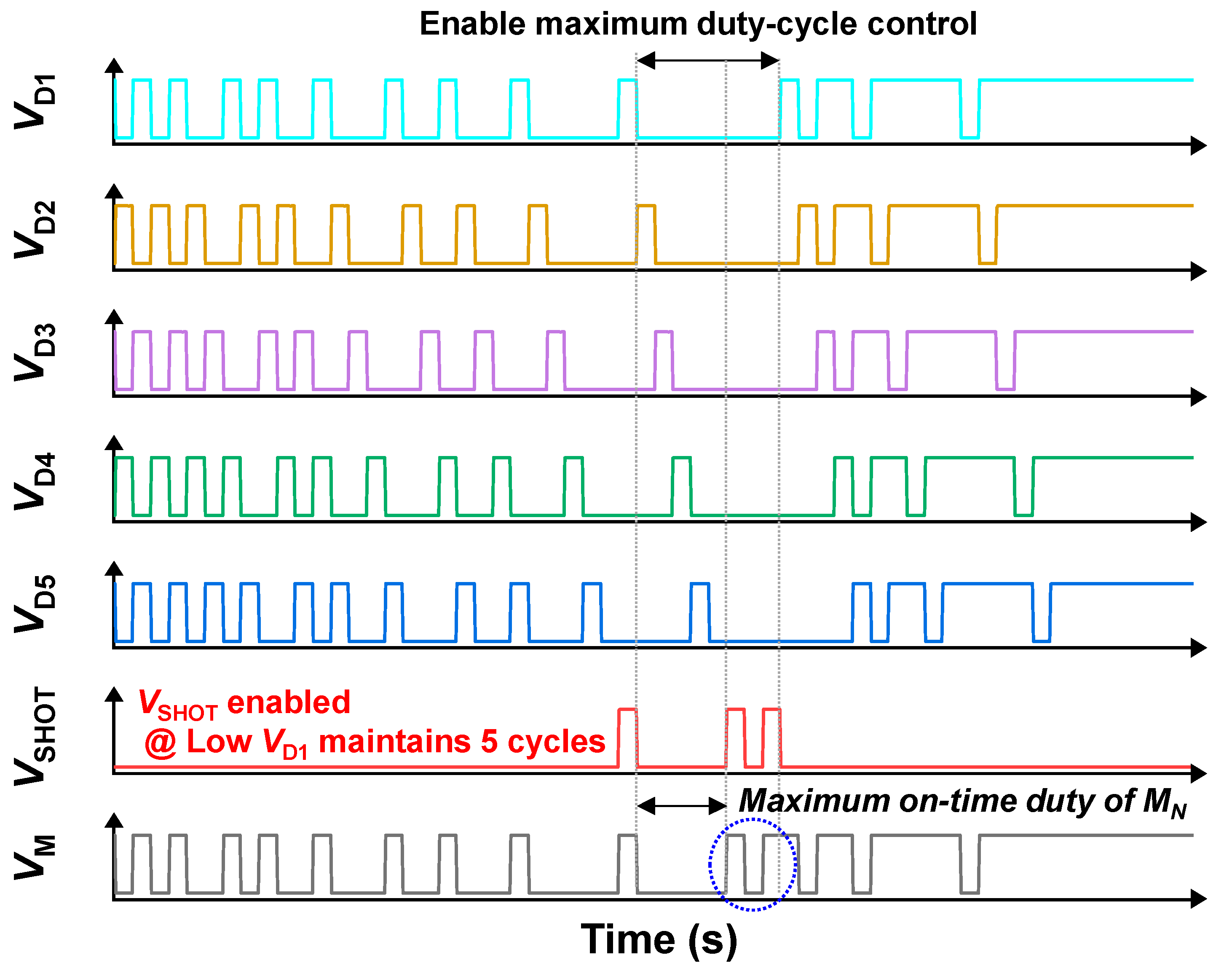

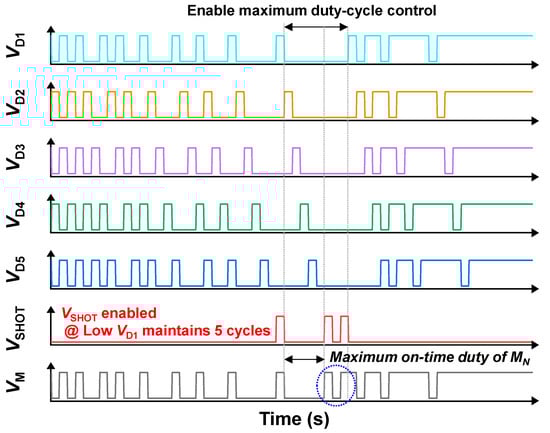

Figure 4. Simulation results of the proposed duty cycle control.
Figure 4. Simulation results of the proposed duty cycle control.
Electronics 09 00498 g004

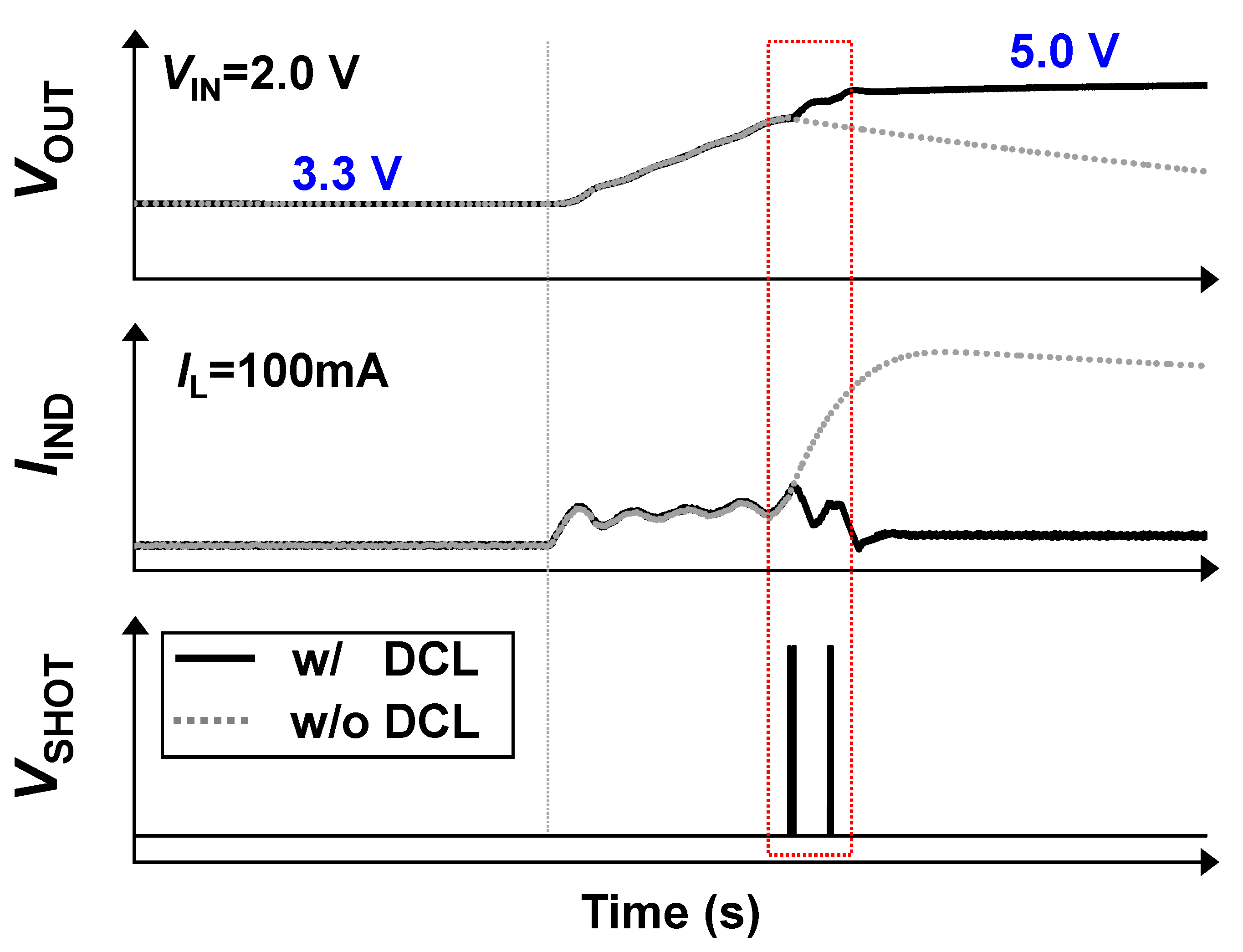

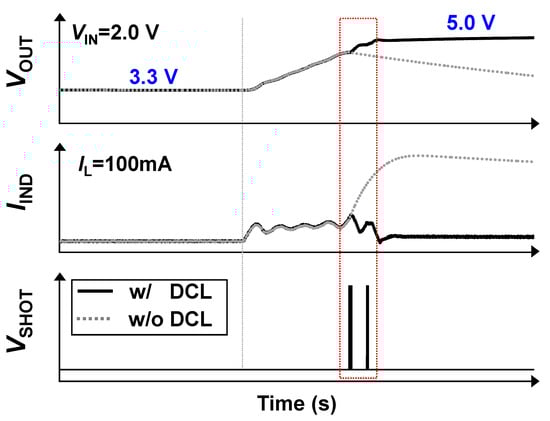

Figure 5. Dynamic output voltage scaling according to the duty cycle limiter (DCL) scheme.
Figure 5. Dynamic output voltage scaling according to the duty cycle limiter (DCL) scheme.
Electronics 09 00498 g005

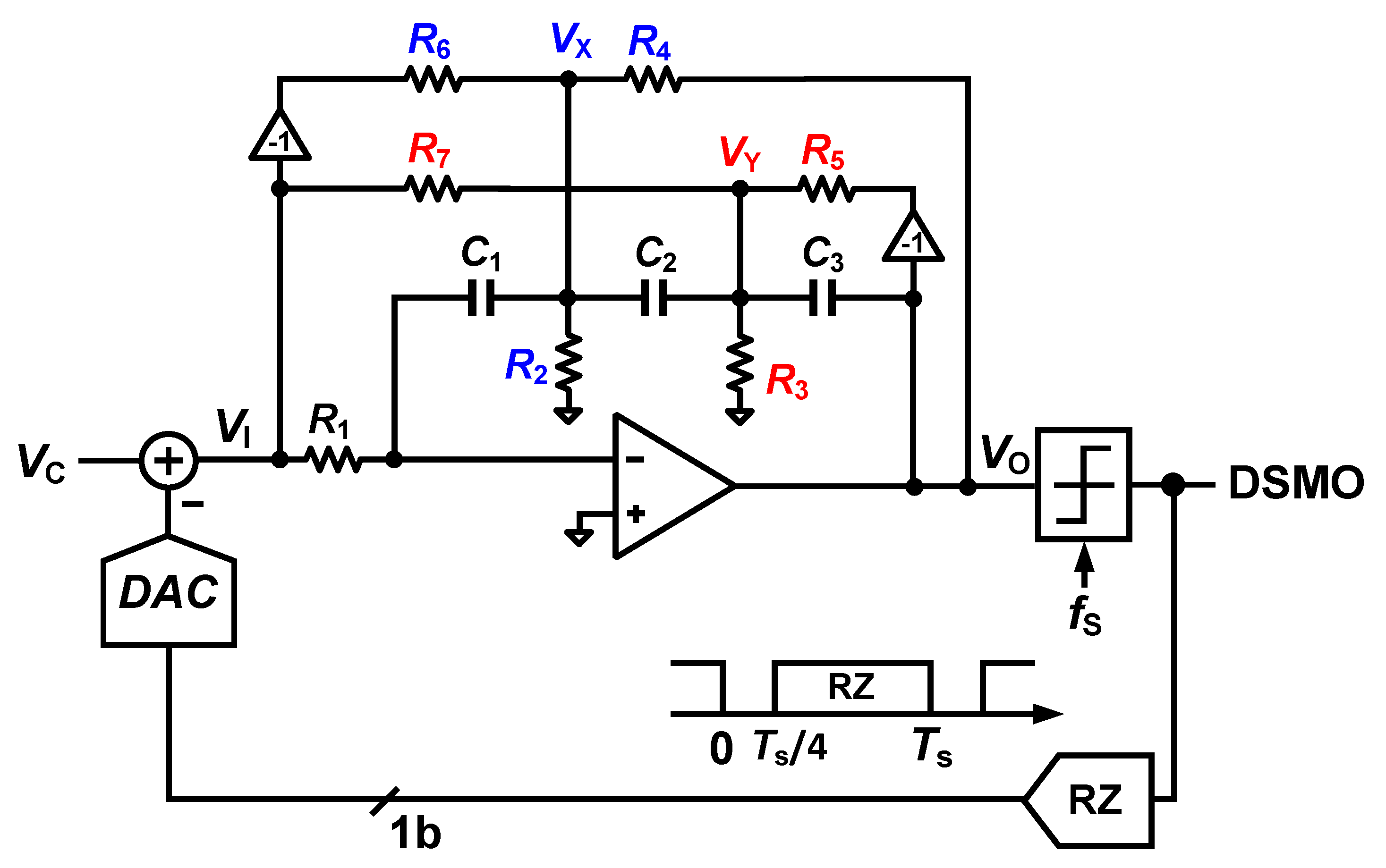

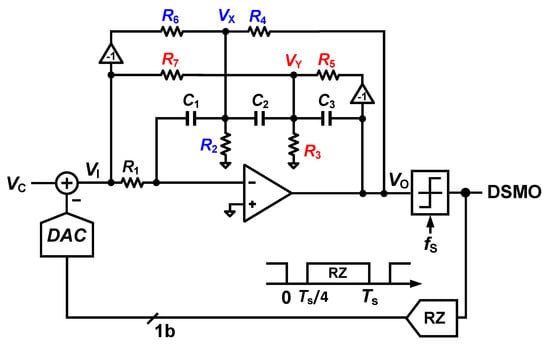

Figure 6. Single op-amp third-order DSM.
Figure 6. Single op-amp third-order DSM.
Electronics 09 00498 g006

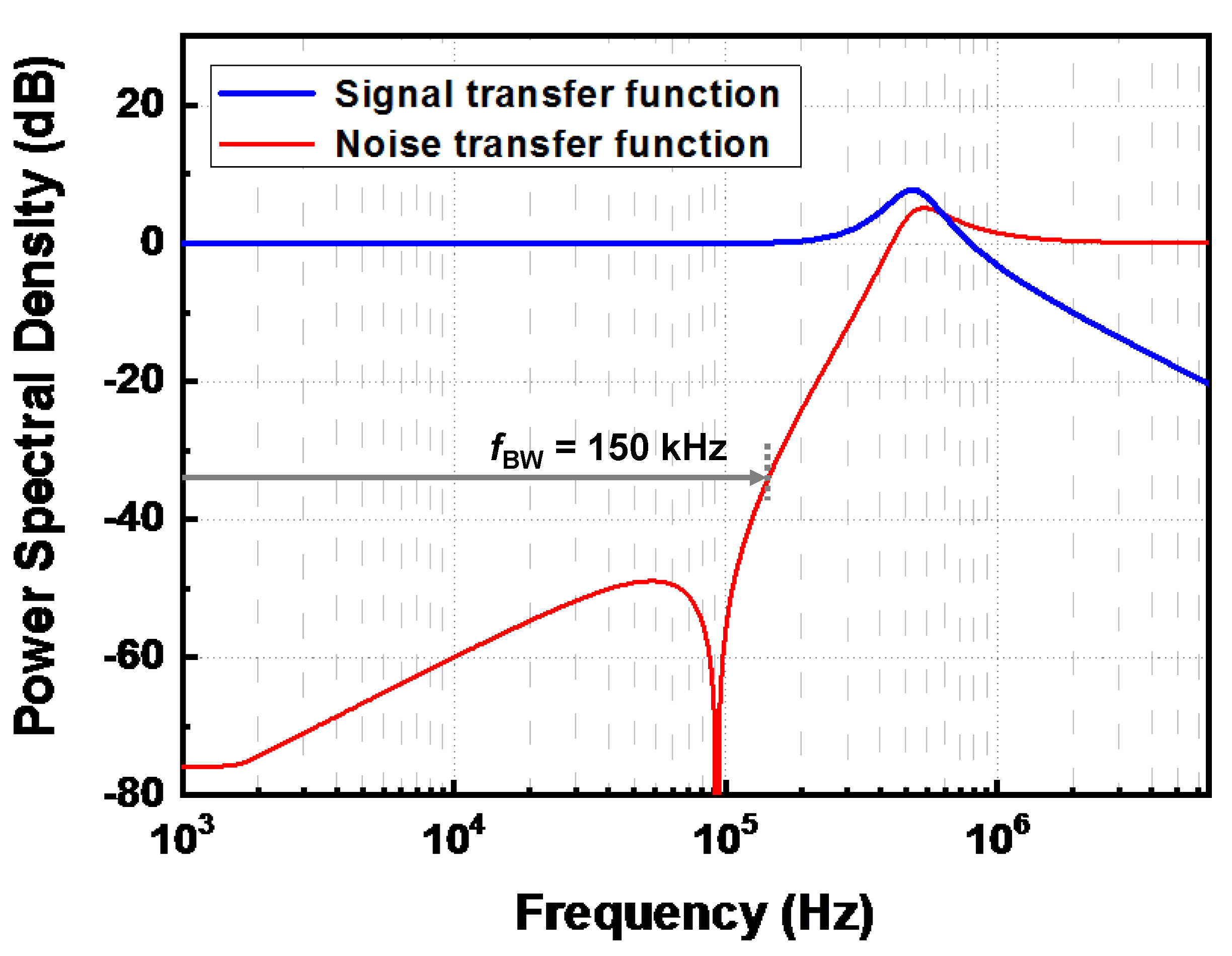

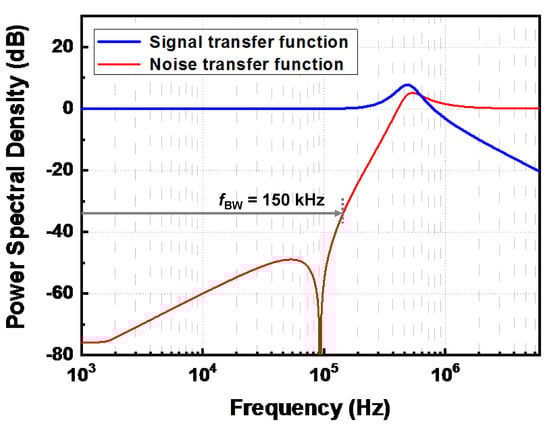

Figure 7. Signal and noise transfer functions of the single op-amp loop filter.
Figure 7. Signal and noise transfer functions of the single op-amp loop filter.
Electronics 09 00498 g007

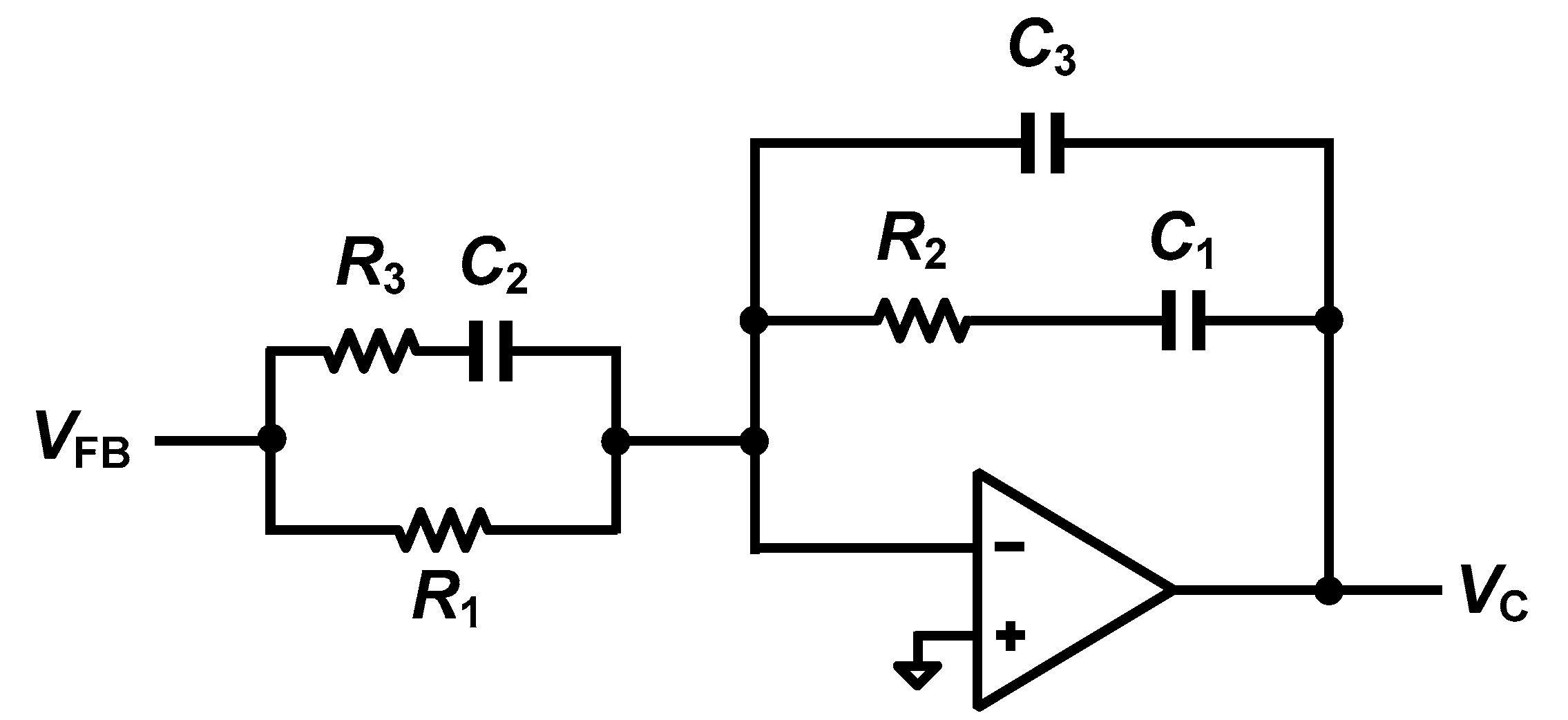

Figure 8. Type-III compensator.
Figure 8. Type-III compensator.
Electronics 09 00498 g008

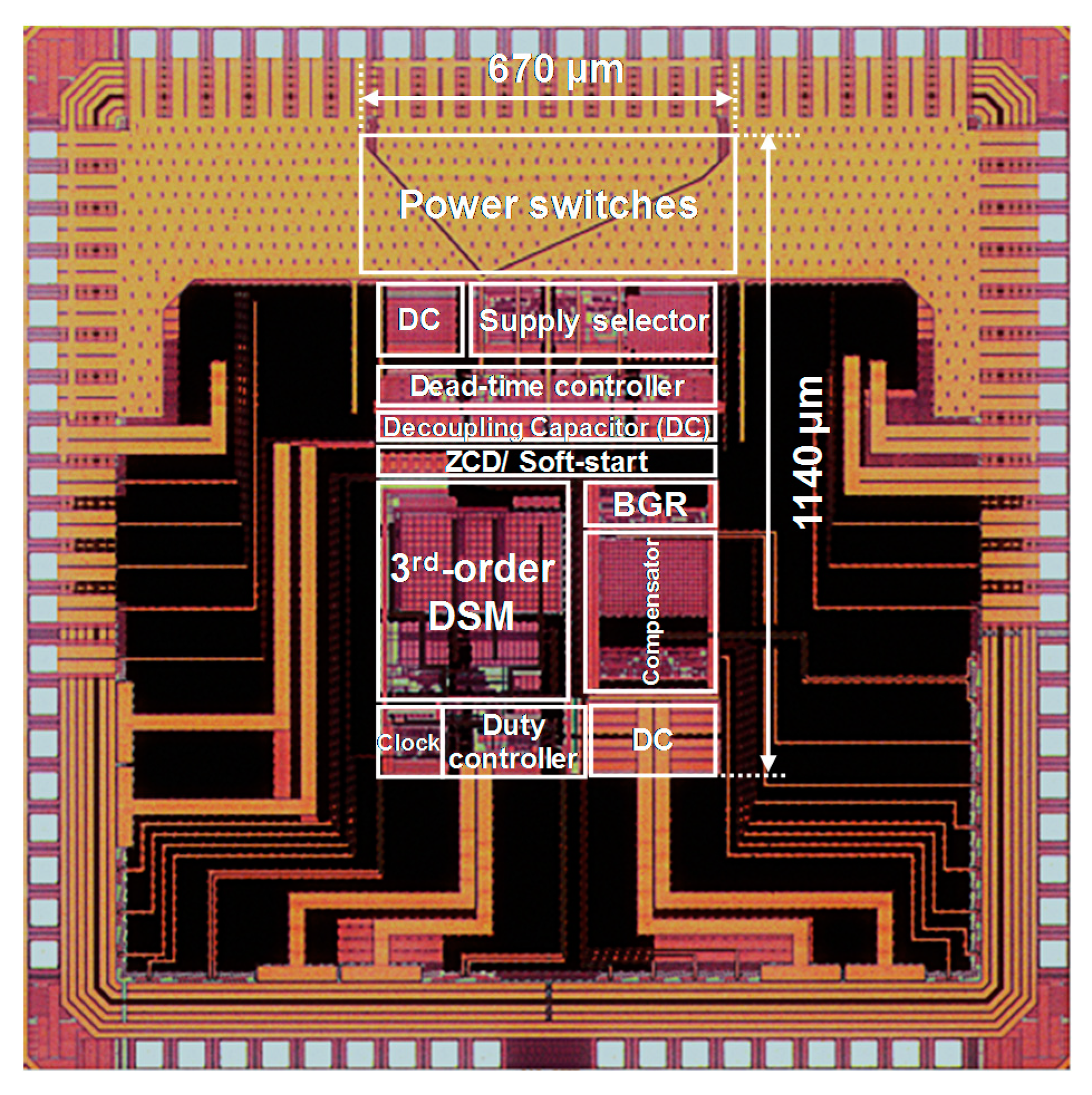

Figure 9. Chip micrograph.
Figure 9. Chip micrograph.
Electronics 09 00498 g009

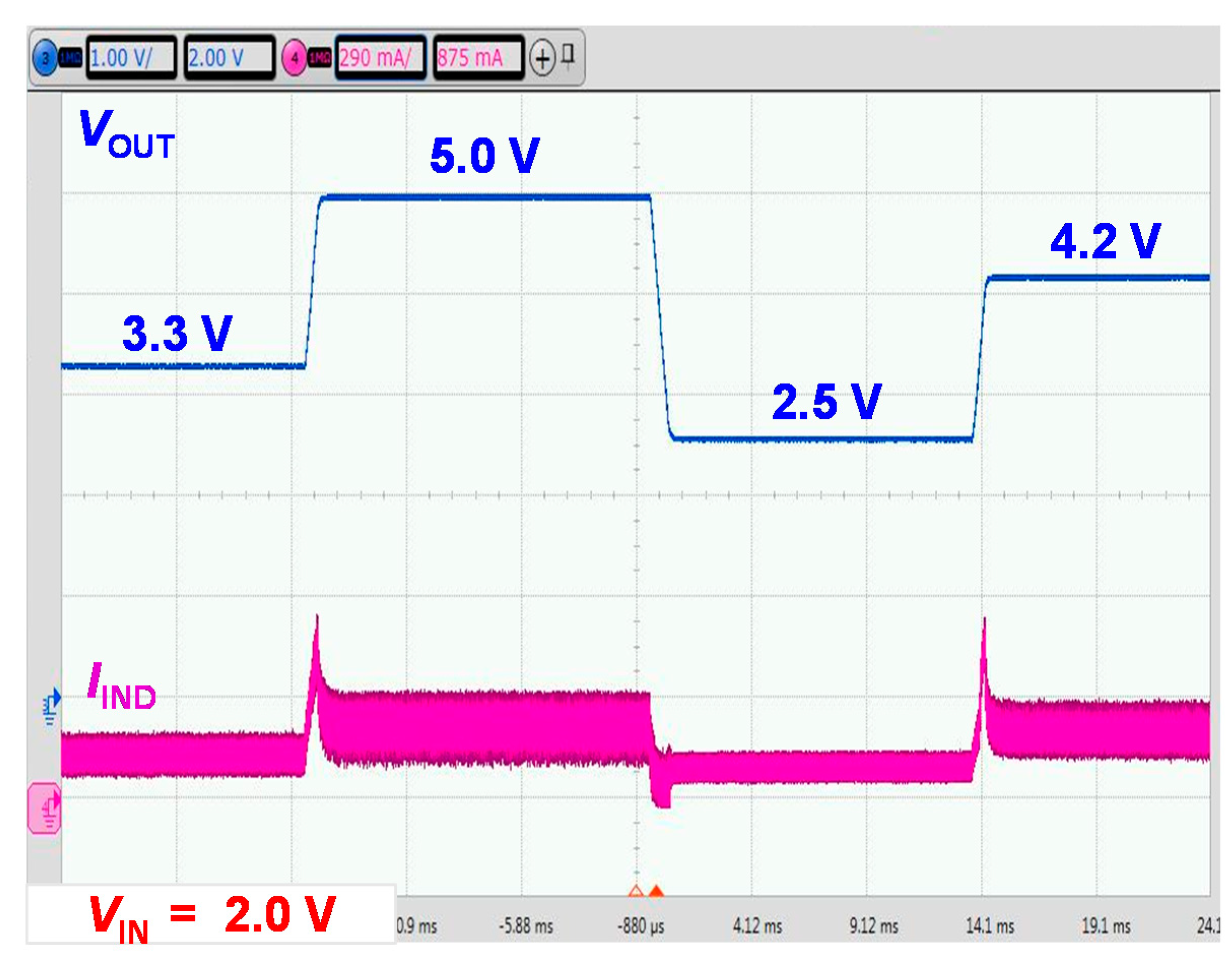

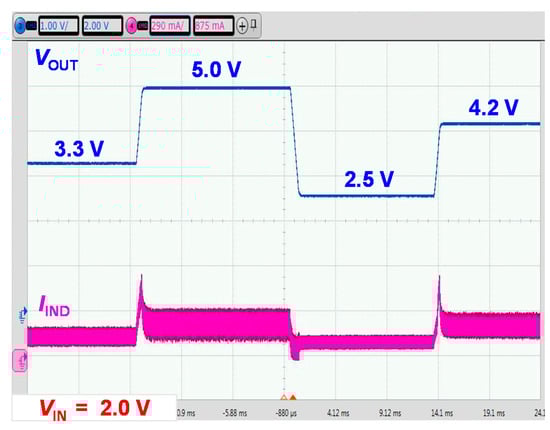

Figure 10. Measured dynamic output voltage scaling.
Figure 10. Measured dynamic output voltage scaling.
Electronics 09 00498 g010

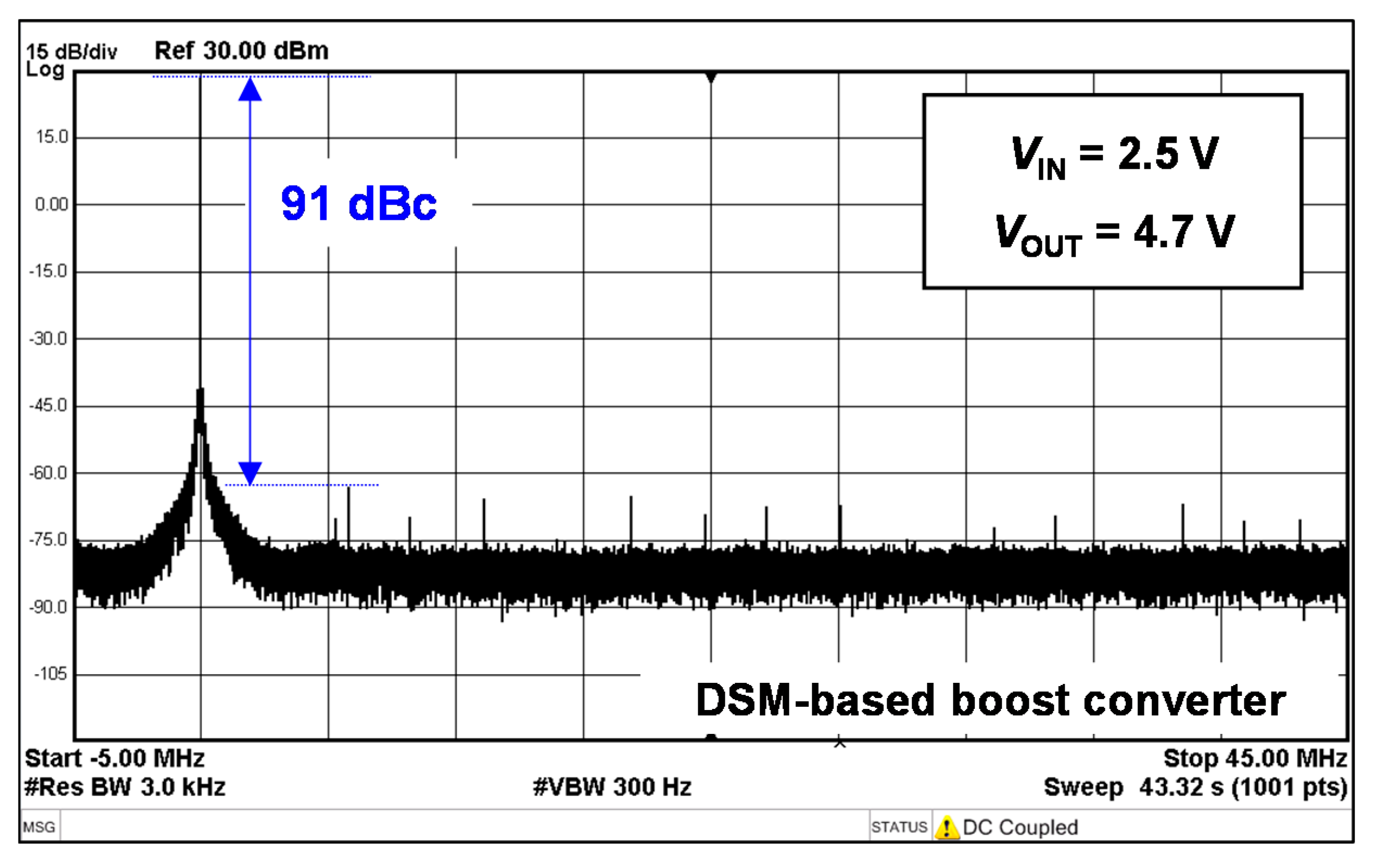

Figure 11. Measured output voltage spectrum.
Figure 11. Measured output voltage spectrum.
Electronics 09 00498 g011

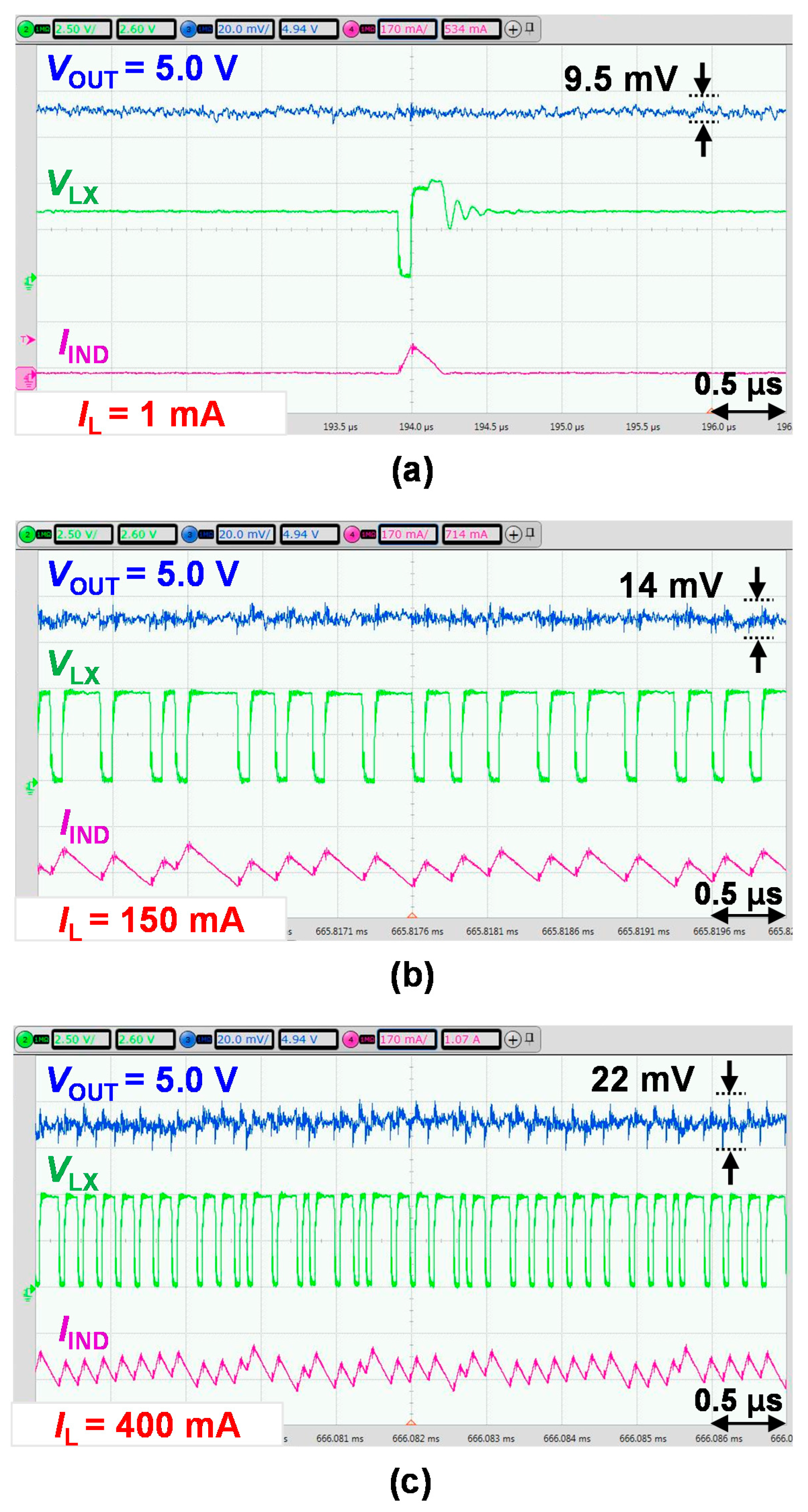

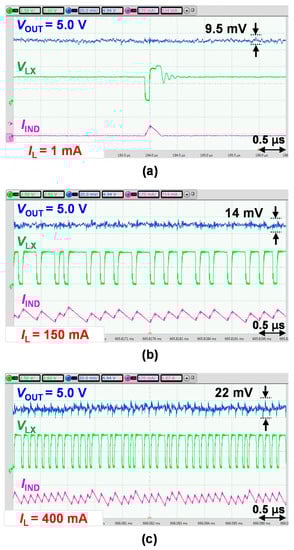

Figure 12. Measured transient waveforms with respect to the load current at VIN =3.7 V. (a) IL = 1 mA. (b) IL = 150 mA. (c) IL = 400 mA.
Figure 12. Measured transient waveforms with respect to the load current at VIN =3.7 V. (a) IL = 1 mA. (b) IL = 150 mA. (c) IL = 400 mA.
Electronics 09 00498 g012

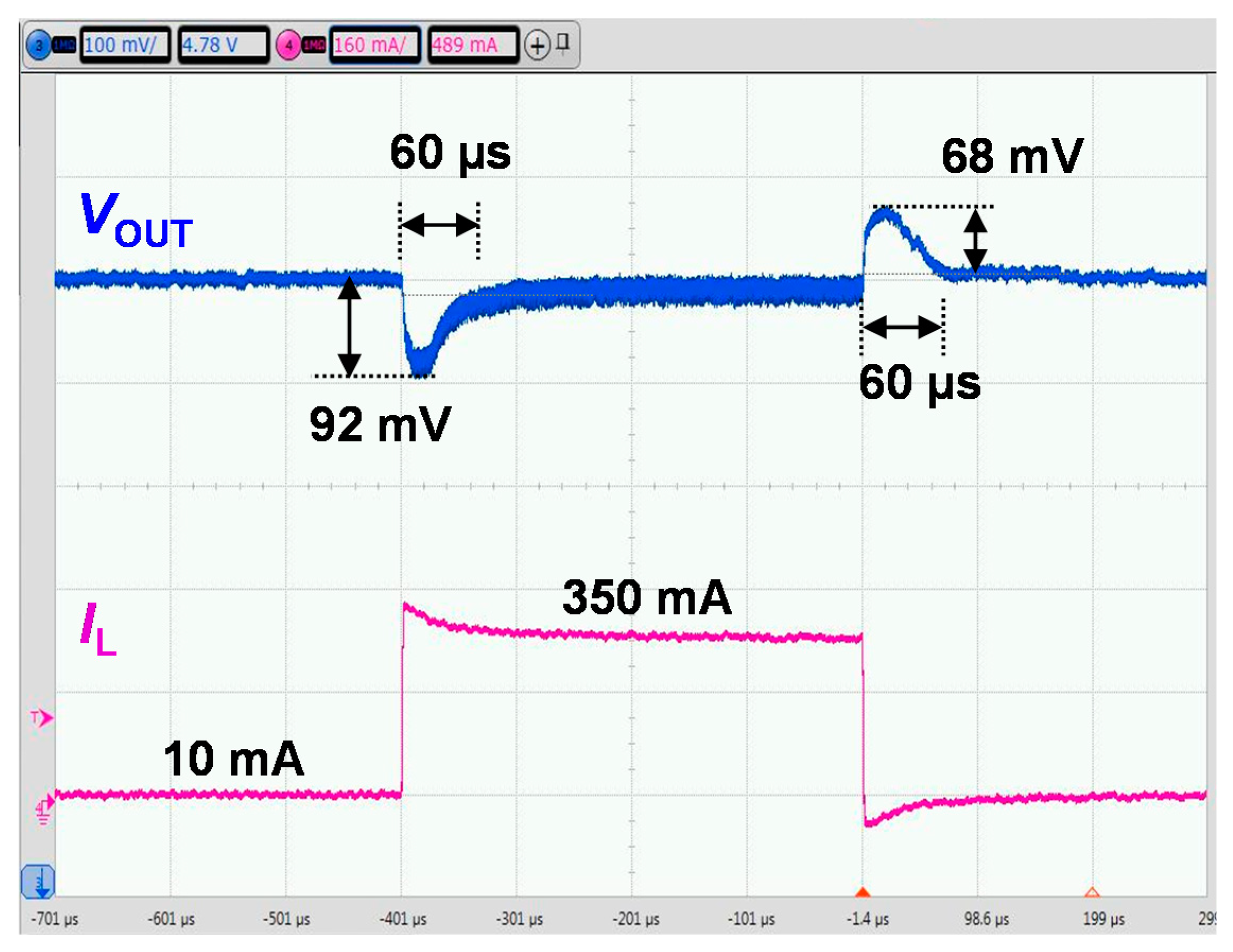

Figure 13. Load transient response.
Figure 13. Load transient response.
Electronics 09 00498 g013

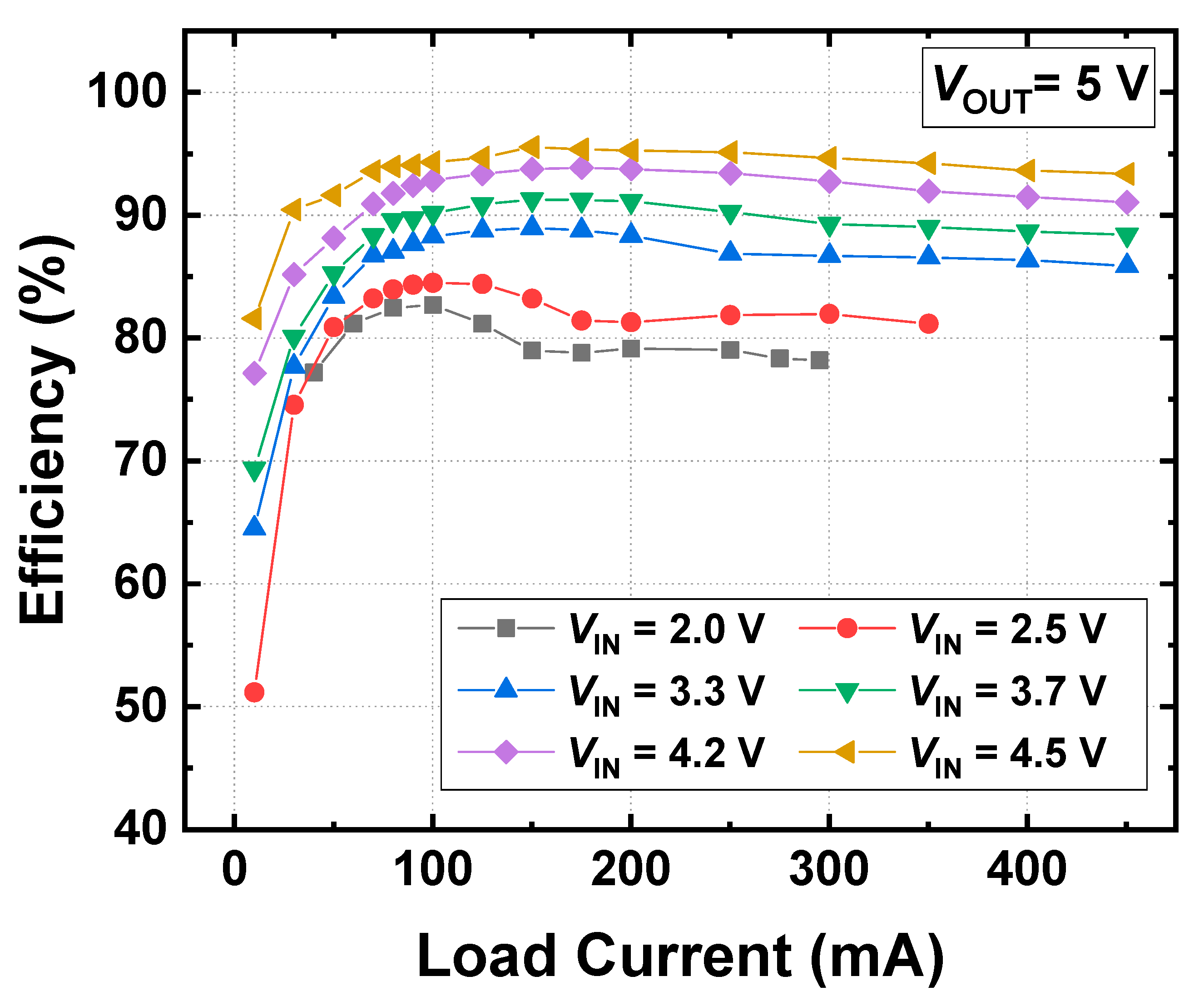

Figure 14. Measured efficiency of the boost converter.
Figure 14. Measured efficiency of the boost converter.
Electronics 09 00498 g014
Table 1. Performance summary of the proposed converter and comparison with state-of-the-art boost converters.
Table 1. Performance summary of the proposed converter and comparison with state-of-the-art boost converters.
ref.VIN (V)VOUT (V)ControllerL (μH)C (μF)Load Current (mA)EfficiencyMax Ripple VOUT (mV)Output SFDR (dBc)Size (mm2)Process (nm)
TypefS (MHz)minmaxPeak η (%)
This work2.0–4.52.5–5.0DSM122.820145095.525 @500 mA910.76 180
[5]0.8–1.41.8MRAOT116.81040092.442.5 @400 mA-0.88 180
[6]0.8–1.21.8DSM1–23.31011009045 @100 mA700.85 180
[7]2.5–4.25Current-Mode Synthetic 2–5110105009050 @400 mA-1.90 300
[8]1.8–3.23.0–4.2Adaptive On Time1/2N
N = 0–5
110280094.880 @800 mA~50 *2.25 350
* extracted from graph.
