1. Introduction and Motivation
Recently, wireless networks have been widely deployed, as they offer high-speed data rates and have become more reliable and resilient against noise and interference. Globally, the total amount of mobile data traffic was around 1.1 Exabytes per day by the end of 2019, and this is expected to increase five times (i.e., 5.5 Exabytes per day) by 2025 [
1]. Such popularity has led to continuous improvement and development in every aspect of wireless networking, including its infrastructures, architectures, protocols, and services. However, researchers and developers are still facing significant challenges in the evaluation phase of mobile device simulation algorithms and technologies, since testing them in existing and deployed wireless networks requires a high financial cost and is a time-consuming process. For that reason, several studies have been conducted to offer appropriate environments to facilitate the simulation and evaluation of novel and enhanced network systems. Some of these studies have focused on modeling the mobility of users within the wireless network to predict their movements [
2]. Mimicking mobile users, such as pedestrians or drivers, with realistic constraints, will help in appropriately performing handover operations, making scheduling decisions, and obtaining the density of user distributions within their cells. In fact, the understanding of mobility patterns was motivated by its relevance to different real-life applications, such as location recommendation [
3], motion estimation and positioning [
4,
5], safe mobility during crisis [
6], and forecasting disturbances in electromobility [
7].
Various mobility models have been introduced in the literature, and these models rely on different assumptions for user movement trajectories. For example, both random waypoint (RWP) and random walk (RW) mobility models predict the speed and direction of an object within a specific zone using random processes [
8]. Random mobility models are straightforward and simple to apply. However, they are unrealistic and only work when evaluating and simulating algorithms that are entirely independent of user mobility. To improve the predictions of users’ movements in wireless networks, the Gauss–Markov (GM) mobility model was proposed to take advantage of the temporal dependencies feature, in addition to random properties [
9]. The GM model yields better performance results than other random mobility models, but it is still far from providing realistic patterns. This has caused many researchers to apply complex, application-driven mobility models that are based on the GPS traces of human walks or cellphone location tracking [
10,
11,
12]. Here, we propose to improve the performance of GM and provide more realistic mobility modeling without introducing additional computational complexity or requiring any traces of human mobility.
It is challenging to predict user movement patterns in a wireless network [
13], yet mobile users, despite their random behaviors, sometimes pass particular points due to predetermined and realistic constraints. The number of these points and the amount of randomness in users’ behaviors are dependent on scenarios. For instance, the participants in a marathon must run within a given route, so they are likely to cross a high number of known milestones, thereby making their movement patterns predictable. Similarly, the visitors at a shopping mall go through specific walkways and entrances, but with extra degrees of randomness in their behaviors. This uncertainty of human mobility becomes higher in more open places, such as beaches and parks. Most existing mobility models do not provide the flexibility of adjusting their degree of randomness or the option of mimicking human movements by injecting possible crossing points and adding recurrent patterns.
In this paper, we introduce a new mobility model, named the “recurrent self-similar Gauss–Markov mobility (RSSGM)” model that mimics those applications exhibiting recurrent visits to selected locations with self-similar routes. The proposed model captures the random behavior of the GM model. It also uses recurrent user travel patterns of the chosen nodes and self-similarity movement that imitates real human mobility. We will present the proposed algorithm and its assumptions; then we will evaluate its performance under different scenarios. A comparison with other mobility models (e.g., GM, RWP, and random direction (RD)) will also be discussed. We will show that our mobility model provides an enhanced and more realistic prediction of human mobility by applying recurrent and self-similarity features. As a result, the simulation and evaluation of wireless and cellular networks will be improved.
The remainder of this paper is organized as follows. Brief theoretical background of mobility models and their categories is presented in
Section 2. In
Section 3, related works in the literature are summarized. Our proposed RSSGM model is introduced in
Section 4. In
Section 5, the obtained evaluation performance results are presented and discussed. Finally, concluding remarks and future research directions are provided in
Section 6.
3. Related Works
There have been several efforts to improve the performance of mobility models in the literature. For instance, He et al. in [
29] introduce a modified version of the GM mobility model, in which tuning parameters are utilized to set the degree of randomness in user movements. They also integrate the proposed mobility model with the cluster-based two-ring Machine-to-Machine (M2M) reference model to recognize non-stationary channels. The model is capable of covering other mobility trajectories (including RW mobility model and linear motion).
Wang et al. in [
30] present a realistic mobility model that is suitable for environments with irregular barriers and constrained mobility. Their approach is based on Bezier curves to distinguish some control points and to provide smooth user movements between blocks and pathways. The simulation results obtained show that the proposed algorithm outperforms its counterpart mobility models in restrained environments with respect to the smoothness of its paths, the avoidance of collisions, and the capability of broad movements.
Several other studies have proposed mobility models for Unmanned Aerial Vehicles (UAVs) [
31,
32,
33,
34,
35]. Li et al. [
31] took advantage of the temporal dependency of an Unmanned Aerial Vehicle (UAV). They also considered the spatial correlation among a group of UAVs, since these vehicles are usually traveling in an arranged formation. Both temporal dependency and spatial correlation are exploited to propose a particle swarm mobility model for flying ad hoc networks. Sharma and Kim in [
32] introduced a mixed mobility model that applies both RWP and uniform mobility models in order to examine the coverage probability of mobile terminals in a three-dimensional network of UAVs. RWP is utilized for vertical motions, whereas the uniform mobility model is followed to choose spatial directions. The authors in [
32] found that such a mixed mobility model helps to associate mobile terminals with the closest UAV, thereby enhancing the network’s coverage performance.
Jo et al. in [
33] proposed a customized mobility model for reconnaissance by dividing the scanning area into zones. UAVs in this model would communicate with each other to record the number of visits in each zone, and then the next movement of a UAV would lean toward the zone with the least number of visits. The same authors extended their work to improve the coverage rate in reconnaissance operations by limiting the overlapping among UAVs and avoiding any simultaneous visits to the same zone [
34]. Sayeed et al. in [
35] exploited the transmission density of nodes in a wireless sensor network to give a mobility model in which the UAV traversals are determined according to dynamic changes in the underlying network topology.
The performance of mobility models in mobile ad hoc networks (MANETs) has also been investigated [
28,
36,
37,
38]. For instance, Abdullah et al. [
37] evaluated the RWP model on various routing protocols: ad hoc on-demand distance vector (AODV), optimized link state routing (OLSR), and Geographic Routing Protocol (GRP). The evaluation was conducted under four different configurations for speed and pausing time: fast car, slow car, race walk, and human walk models. As a result, the OLSR protocol has the best performance among the three routing protocols, as it yields short service delay, low packet retransmission, and better throughput. Appiah [
36] analyzed two types of mobility models: RWP and MANET Down Left (MDL), and compared their performance when the OLSR is implemented in MANET. He showed that choosing a suitable speed and pausing time for the RWP mobility model could lead to better performance than MDL. In another performance study, Laqtib et al. [
28] investigated the performance of the OLSR under four mobility models: RWP, RD, RW, and GM. The study concluded that the RWP model gives optimal performance results with respect to delay, packet retransmission, and throughput, regardless of the number of mobile nodes in the network.
Lee et al. [
39] proposed the self-similar least-action human walk (SLAW) model to capture the statistical characteristics of human movements in highly populated environments, such as university campuses and public places. People in these environments act in similar ways, making the prediction of their movements more manageable.
To mimic human mobility, most related works focus on providing mobility models that are either purely random, rely on real-world traces, or are built based on complex statistical models. Other techniques are also not fully decentralized, since a form of coordination among users is required to determine their movements. In this study, RSSGM provides a random mobility model for network nodes, while exhibiting self-similarity and frequent movements based on user requirements.
4. Recurrent Self-Similar Gauss–Markov Mobility (RSSGM)
The RSSGM model is proposed for applications when nodes exhibit recurrent visits to selected locations with semi-similar routes. For example, a professor at a university might have recurrent visits to a classroom, a laboratory, his/her office, and a coffee shop. In addition, the model provides the flexibility of adjusting the degree of randomness of nodes’ mobility. For instance, the mobility of a professor whose movement patterns are predictable might have less randomness than a student who hangs out a lot with friends. Moreover, the model provides the option of mimicking human movements by injecting possible crossing points and adding recurrent patterns.
This section presents and discusses the algorithm and implementation of the proposed RSSGM mobility model, whose pseudo-code is shown in Algorithm 1. The algorithm defines all required functions, such as the nextCentriod function that obtains the next centroid point, and a function named "dist" that is used to calculate the Euclidean distance between two points. In addition, all required parameters are defined; for example, speed mean, direction mean, a tuning parameter, a list of centroid points, a distance where the node enters the range of the current centroid, Mobility boundary limits, and the required number of points of a node. The output of the algorithm is to have the mobility traces.
The user provides a set of centroid locations, , and , that are used to determine the locations nodes can visit. In other words, a moving node moves towards the first centroid’s location, and once it gets in the range of of the centroid location, it starts to move to the next centroid location.
The algorithm consists of two main phases: an initialization phase (lines 2–4) and a mobility generation phase (lines 5–32). The first phase starts by initializing all the variables needed for the mobility model. It also obtains the centroid location variables, and , using the function function, which retrieves the first element of the given centroids list . Next, the algorithm initializes the location coordinate, , such that the node begins its movement, starting from the first centroid location in the given list.
The second phase of the algorithm aims at generating the mobility patterns of a node, and it consists of three sub-phases: centroid selection, next movement decision, and boundary preservation. In the centroid selection sub-phase, if the current point is located near the currently targeted centroid, the centroid coordinate will be updated with the next point on the list of given centroids via the function , which returns the following centroid location. On the other hand, if the current point is still away from the targeted centroid, the current centroid remains unchanged.
The next movement decision is accomplished in Phase II-b, and is computed as follows. First, the mean direction
is updated to a point towards the targeted centroid location, which is calculated using Equation (
5):
This equation improves the mobility model compared to other existing approaches, including the GM model, by forcing nodes to come across specific centroid points. Such enforcement is realistic since, although mobile users behave randomly, they sometimes follow particular points because of predetermined constraints in their environments. The next step in the future movement decision sub-phase is updating the two random function variables,
and
, utilizing the normal distribution function. Then, the current speed and direction are also updated using the two GM Mobility functions shown in lines 15 and 16 of the pseudo-code in Algorithm 1. Using the updated speed and direction, the next location,
, is determined using lines 17 and 18.

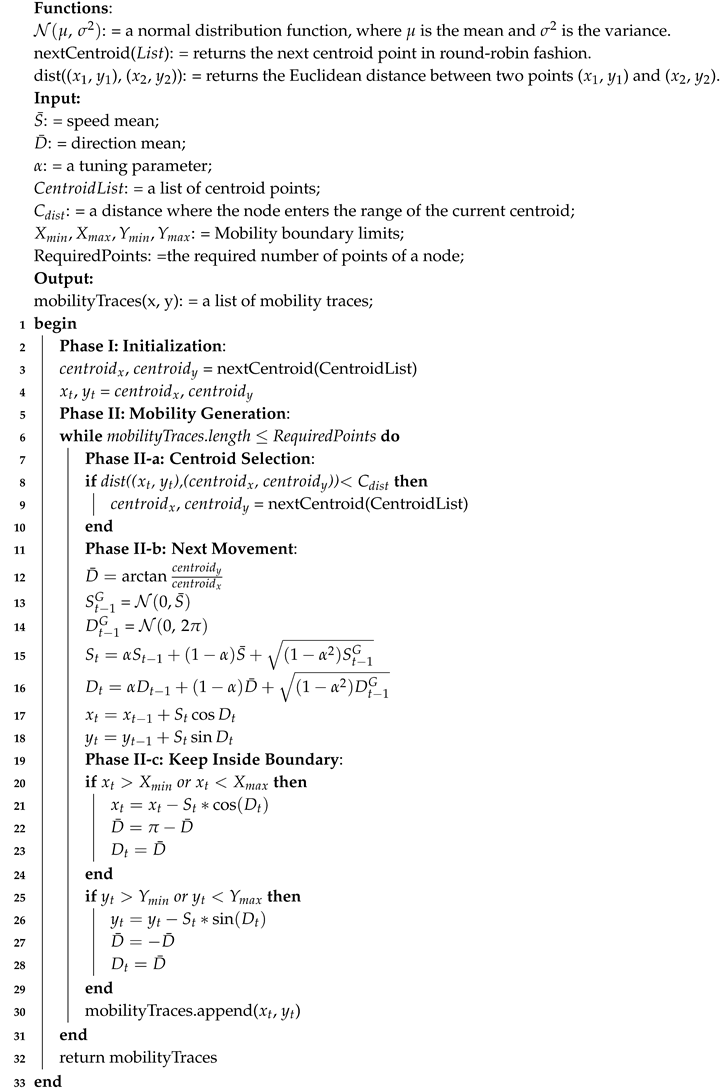

Algorithm 1: Recurrent self-similar gauss–markov mobility model. |
|
Finally, our algorithm performs the boundary preservation sub-phase to ensure keeping the mobility pattern within the environment boundary, which is defined by a polygon []. If the node moves outside the polygon, the mean direction is updated to bounce the node back inside the polygon, using the equations shown in lines 21 and 26 of Algorithm 1. The proposed RSSGM model will continue iterating through Phase II until the number of required points is added to the mobility traces list, which is then returned to the user.
5. Experimental Evaluation
The proposed mobility model and other baseline mobility models (GM, RWP, and random direction) are implemented using Python. The NetworkX library is used for the graph and nodes [
40]. The Shapely library is used for geometric measurements [
41]. The experimental evaluation is conducted based on an area of
with different values of
to study its behavior and movement patterns. In addition, we run experiments with different values of mean speed,
, to study the impact of changing the mean speed on the behavior of nodes’ mobility. During the evaluation, the number of centroids is set to be five with the locations [(150, 150), (500, 500), (800, 800), (150, 800), (150, 800)]. All parameters used in the simulation are shown in
Table 2, and the results of our evaluation are shown in
Figure 4.
5.1. Effect of Varying on Mobility

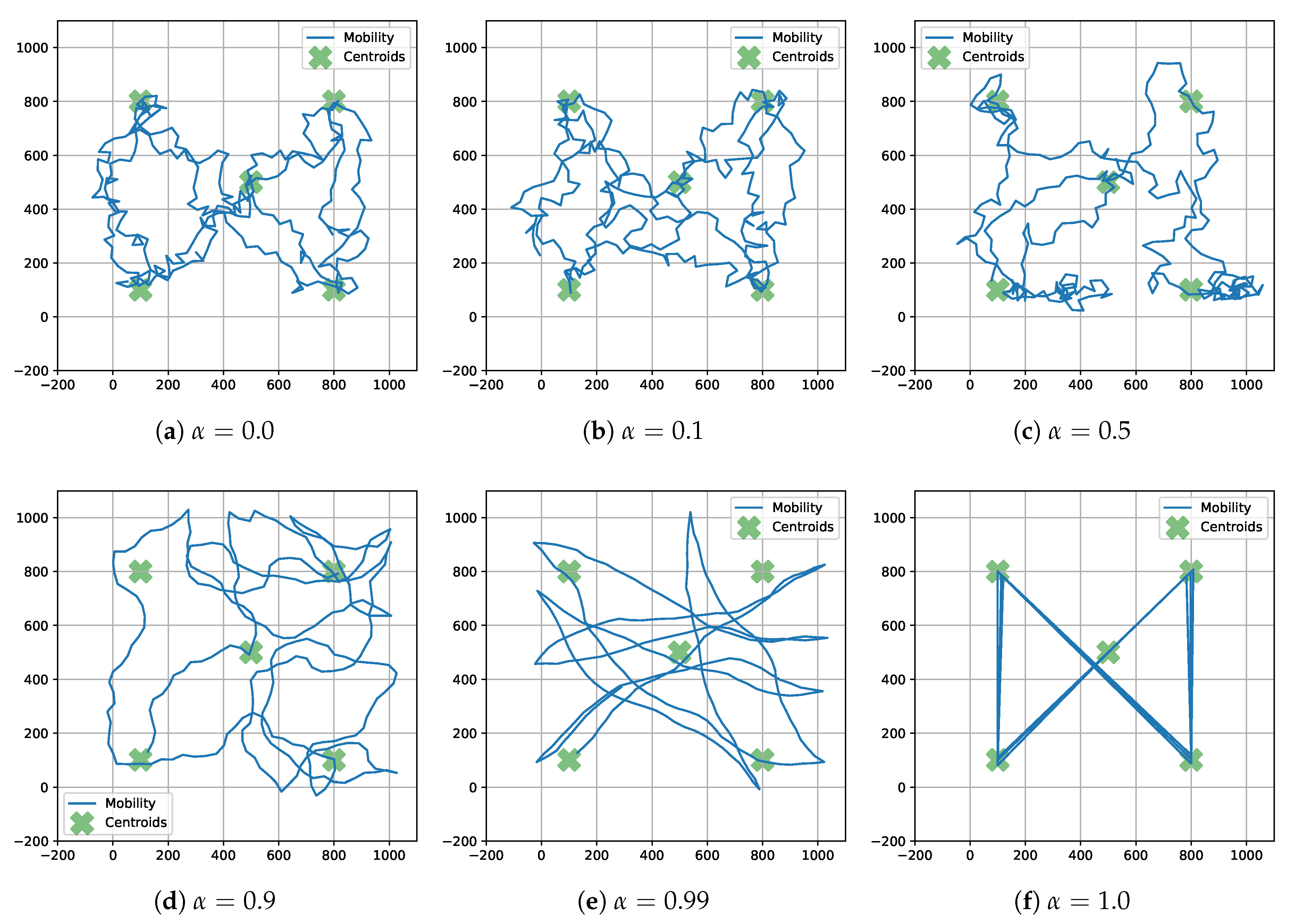

The effect of varying
is that the random movement of the mobile nodes in terms of speed and direction changes based on Equations (
1) and (
2), respectively. The speed equation is invoked at line 15 in Algorithm 1, while the direction equation is invoked in line 16 of the same algorithm. The changes in the speed value are not reflected in the movements in
Figure 4. Thus, we will only focus on the direction equation. When
, the direction equation is as follows:
As a result, the movement is entirely affected by the sum of the median direction
and the randomness term
. The median direction always points at the next centroid position, which is computed using Equation (
5), whereas the random value is drawn from a normal distribution with a mean of 0. In the case when the drawn random value is zero at any given time, the node moves purely towards the centroid position. However, when the random value is not zero, the resulting direction is toward the centroid’s position. As a consequence, the node could move in all directions locally, but it moves globally as it gets closer towards the next centroid, as shown in
Figure 4a. We clearly see that the node starts at point (150, 150), and it moves towards the point (500, 500), while making turns in all directions. Then, the node gets closer to the center point by a distance of 20, and then it continues to the next centroid. This process is repeated by selecting the next centroids in a round-robin fashion until
points are generated.
We observe that there is no significant change in the node movements between when
and
, as shown in
Figure 4a,b. For
, the effect of the randomness dominates as the term
increases slightly to
. In fact, we can clearly see that the node starts to move in all directions randomly. However, the node eventually reaches the centroid’s position, since the direction is the sum of the random value and the median direction. Therefore, the node moves mostly in a random way, as shown in its movement, but it purely points toward the centroid location. When the random value is a non-zero term, the resulting direction will be toward the centroid’s position and deviated by adding the amount of uncertainty. The node’s mobile movement will also be entirely affected by the random term, as shown in
Figure 4b.
For
, the effect of the randomness is still clearly observed, and the node movement is equally affected by both the mean direction and the random term. Therefore, the node moves mostly in a random way, as shown in
Figure 4c. Although the value of
implies that the randomness should be about %50 between straight lines and random movements, we still see more patterns in U-turn shapes during the node movements. Such patterns are triggered by the random behavior of the GM mobility approach. This behavior also indicates that the effect of
value is not uniform, and the
should be higher than
to move in a more consistent way.
Once
is tuned to
, less randomness is noticed in the movement of nodes, and the node is profoundly affected by the mean direction in its mobility. Still, since the randomness value,
, is
, the node moves slightly randomly while targeting the next centroid location, as shown in
Figure 4d. We also notice that setting the tuning parameter
in the proposed mobility model yields an interesting movement pattern that mimics human mobility in open areas.
For
, the effect of the randomness starts to vanish as the term
decreases to almost
. The movement is profoundly affected by the mean direction. Therefore, the node moves in a semi-straight line, as shown in
Figure 4e. We observe that the node visits all centroids according to their order in the given list. However, the main challenge with
is that a node might need several steps to get closer to the centroid position. This is because the node mainly moves with semi-straight lines, which in turn deviate it from the targeted centroid. As a result, it does not get closer to the centroid and might hit the boundary, as shown in
Figure 4e.
When
, the amount of uncertainty in our mobility model is zero, since both Equations (
1) and (
2) have only one term. Hence, the movement here is purely motivated by the mean direction, which lets the mobile node move in straight lines, as shown in
Figure 4f. As seen in the figure, the node starts from the position of the first centroid at (150, 150). Then, it moves toward the second centroid located at (500, 500). The node keeps visiting all five centroids in a round-robin fashion.
After evaluating the proposed mobility model with several values of the tuning parameter , we conclude that selecting the appropriate value of is crucial to mimic the intended movements within the chosen application. For example, with or , nodes tend to move in straight lines among the given centroid points. Such behavior emulates airplane movements between a set of airport locations. With or , nodes tend to mimic human-like walks in open areas, such as parks and sports fields. Moreover, with values closer to zero, nodes tend to move randomly, turning to all directions while reaching the next centroid eventfully. Such movement can mimic delivery robots when they deliver packages to stores, or ants when they search for food.
5.2. Effect of Varying Mean Speed on Mobility

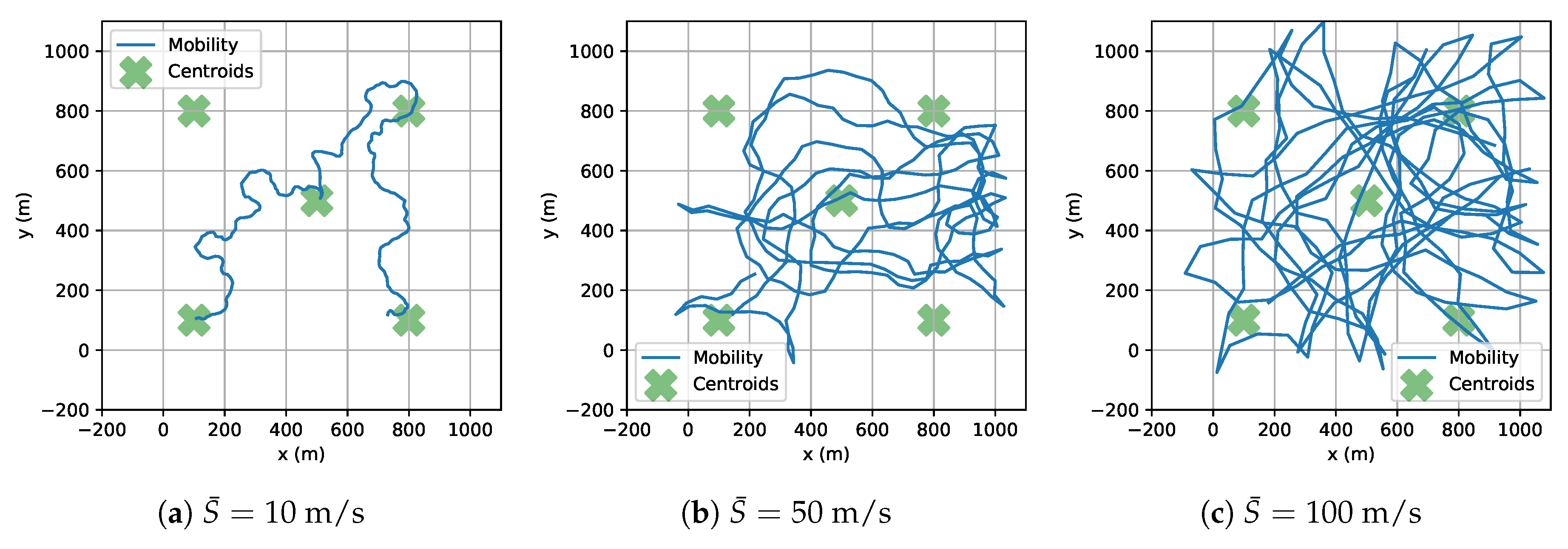

This section studies the effect of varying mean speed
on the RSSGM mobility model. We run three scenarios with different values of
as shown in
Figure 5. We start our study by setting the mean speed to a low-speed value of 10 m/s. The results of RSSGM mobility with
are shown in
Figure 5a. We visually observe that the node moves with inconsiderable variations in terms of direction. The mean speed keeps the instantaneous speed low on average. Since the speed is low, we observe that the node does not get far away from the mean direction. Next, we increase the mean speed to 50 m/s to study the effect of a medium speed. In this scenario, we see that the node starts to move far away from the mean direction, as shown in
Figure 5b. Finally, the mean speed is set to 100 m/s to study the effect of such a high speed. The results of RSSGM mobility with
are shown in
Figure 5c. With high speed, we observe that the node cannot reach the targeted centroid easily. It misses the centroid’s center several times before moving toward the next centroid. This is why the node hits the boundaries many times, as shown in
Figure 5c. On the other hand, with low speed,
, the node clearly crosses the center of the centroid on the first try as shown in
Figure 5a. In this figure, we see that the node never hits the boundaries.
5.3. Results and Discussions
This section compares the proposed mobility model to baseline models, such as GM, RWP, and random direction. The evaluation focuses on spatial and temporal randomness and self-similarity. For evaluation purposes, we define a new metric called spatial and temporal standard deviation (STSD), which measures the level of change in mobility with different random seeds. The STSD is defined as follows:
where
represents the set of mobility traces and
N represents the number of sample traces.
represents the set of points for a given mobility trace, where
represents the point at time
t. STSD metric determines the standard deviation of multiple samples of a given mobility model. Hence, if all samples are identical, STSD is zero, which indicates that there is no deviation for the given set of samples. However, STSD value increases as the sample mobility traces follow different routes. The larger the distance is for a particular time, the higher STSD value is indicated.
5.3.1. Impact of on Spatial and Temporal

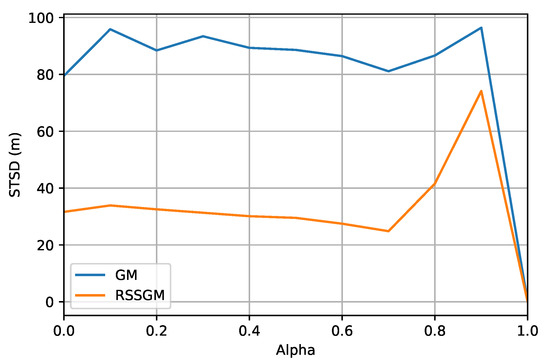

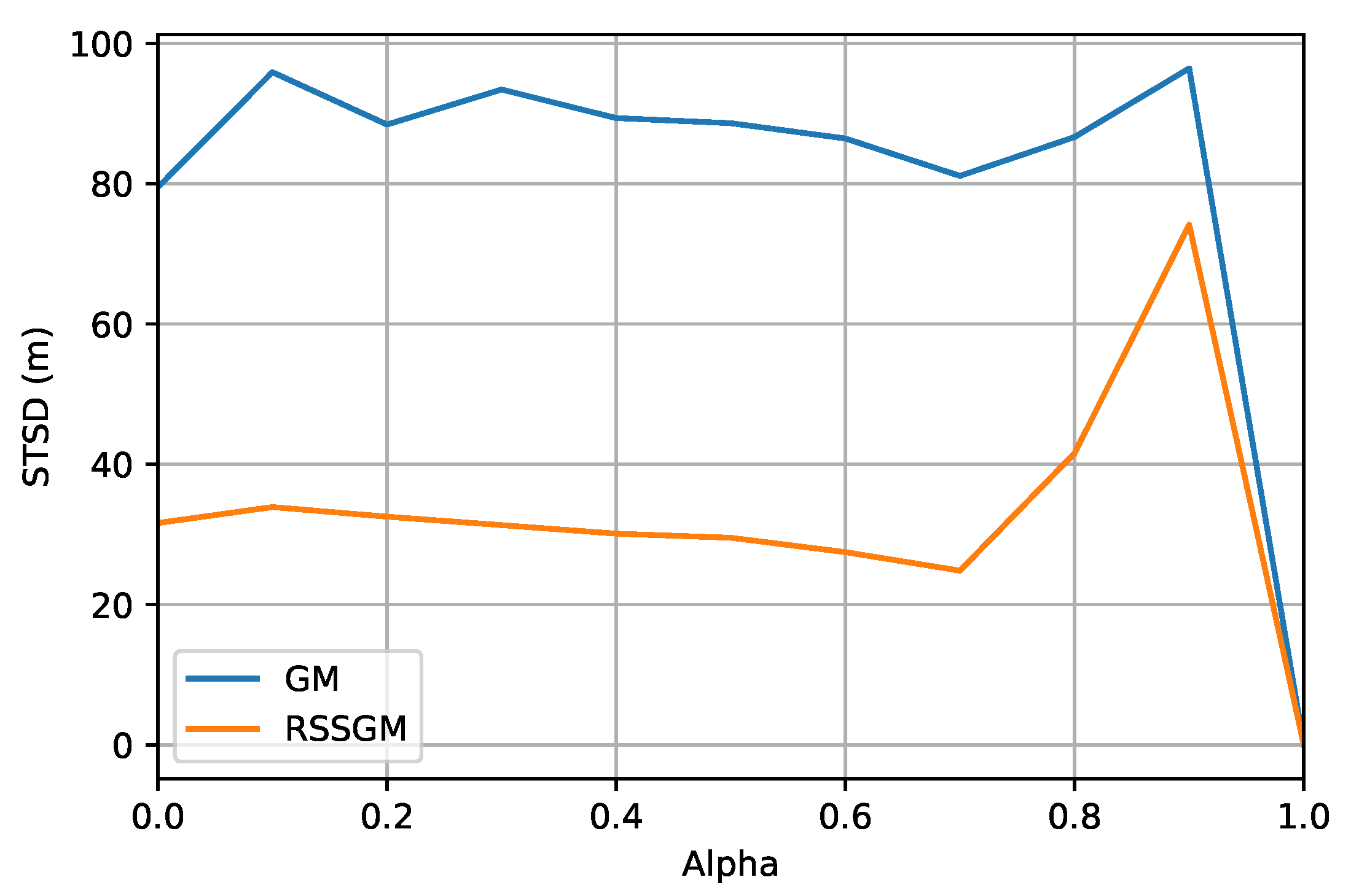

This section studies the impact of changing the value of
on the spatial and temporal standard deviation (STSD) for RSSGM and GM mobility models. RWP and random direction are not included in this comparison, since they do not depend on the value of
. For this comparison, the value of
is increased from 0 to 1 incrementally to study how it affects STSD. The evaluation results are shown in
Figure 6. We observe that the STSD value starts high for both mobility models when
is 0. However, RSSGM provides significantly lower, almost 40%, STSD values than GM. This indicates that RSSGM exhibits similar routes with different random seeds. Moreover, as we increase
to 0.9, the STSD provides semi-uniform values for both models. When
gets closer to 1, the STSD values increase slightly (by 20%) for GM, which indicates a slight deviation, because nodes tend to move in semi-straight lines but in different directions with every random seed. As a result, the STSD value increases as these lines travel in a different direction every time. For RSSGM, this phenomenon is seen more clearly. In fact, when
gets closer to 1, the STSD values increase for RSSGM by 100%. Finally, when
reaches 1, we observe that the STSD value drops to zero for both mobility models since the movements of the nodes are identical for all random seeds.
5.3.2. Comparative Evaluation

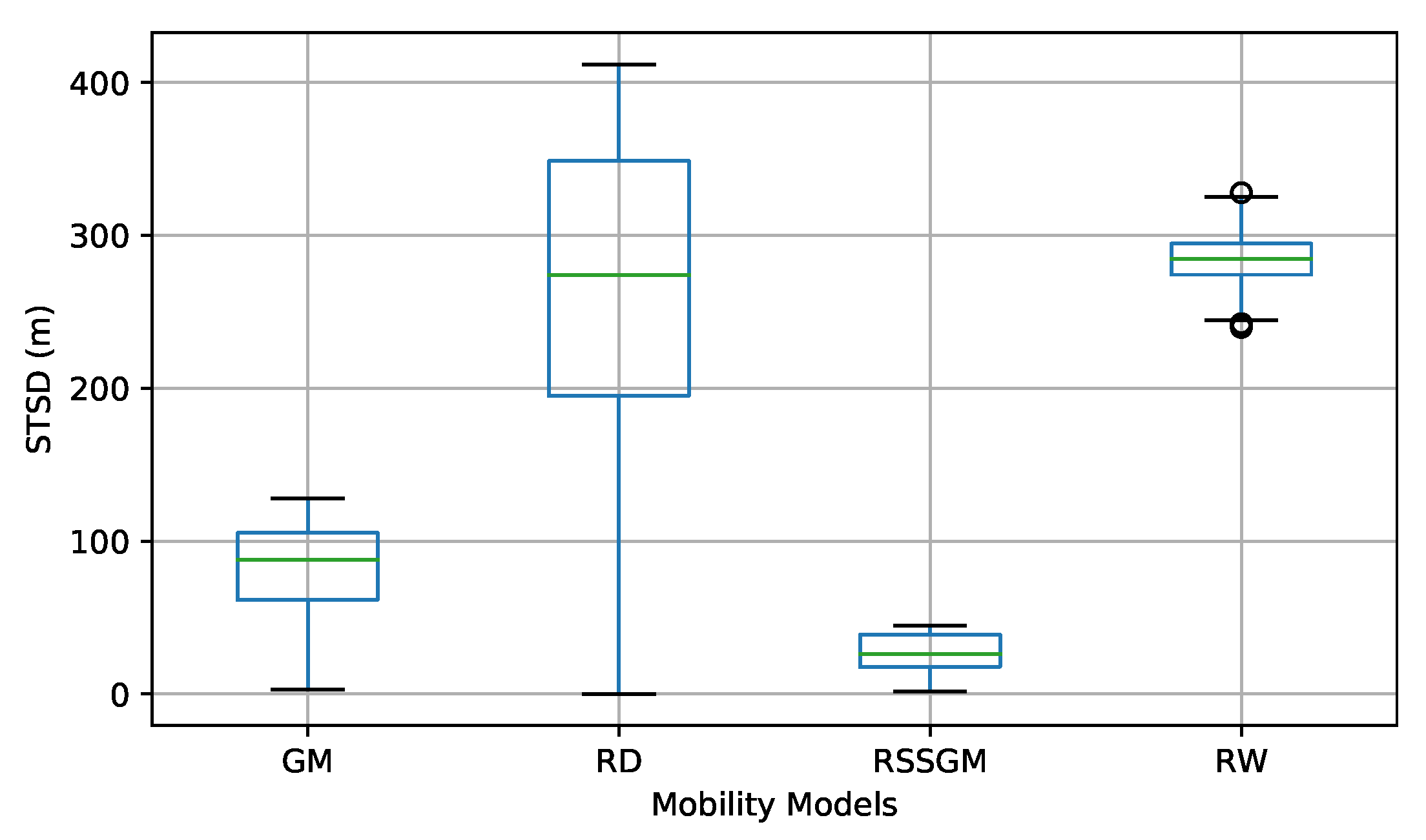

Based on STSD, this section compares RSSGM, GM, RWP, and random direction (RD) mobility models. The comparative evaluation results are shown in
Figure 7. We observe that the RSSGM provides the lowest STSD values, with an average of around 30 m standard deviation. This indicates that RSSGM provides the most similar routes with different random seeds. Next, GM shows the second-lowest variation in terms of mobility, with an STSD value of around 80 m. Moreover, we observe that RD shows the third-lowest variation in terms of average mobility, with an STSD value of around 270 m. However, RD provides high variance and range in terms of variation, starting from 0 to up to 410 m. This indicates that RD is highly random in terms of mobility with different seeds. Finally, RW provides the third-highest variation in terms of average mobility, with an STSD value of around 280 m. By observing all STSD values, we conclude that our RSSGM showed the best similarity when running different random seeds. This similarity is preferable when simulating some applications, such as human walk, which exhibit similar routes to routinely visited places at homes or workplaces.
6. Conclusions and Future Work
In this paper, we presented a novel mobility model, based on the GM model, to consider such movements in a predefined set of places, named centroids. We studied the behavior of our proposed mobility approach in several scenarios to evaluate the impacts of changing its parameters, such as and mean speed . Our evaluation results showed that different mobility behaviors could be achieved by carefully selecting the right parameters. The most dominant parameter is , which controls the randomness in our mobility. With values closer to 1, nodes move in semi-straight lines and STSD reaches zero, whereas these nodes tend to move in more random patterns (high STSD) when is closer to 0. Moreover, with relatively low speed, nodes tend to cross the center of each centroid on the first attempt. However, with high speed, nodes’ mobility is significantly affected by the randomness of speed and direction, which in turn yields high randomness in displacement. As a result, nodes cannot reach the targeted centroid easily; they miss the centroid’s center several times before moving toward the next centroid. In addition, compared to GM, RW, and RD, the study shows that RSSGM achieves the best similarity when running different seeds. For future work, we plan to build a 3D version of our mobility model to emulate airplane and drone routes. In addition, we plan to compare our mobility model to real traces, such as human walking traces and airplane routes. Moreover, we plan to implement our model in an ns-3 network simulator to study its effect in data traffic scenarios.
