K/Ka-Band Very High Data-Rate Receivers: A Viable Solution for Future Moon Exploration Missions

1
Department of Engineering, University of Perugia, via G. Duranti 93, 06125 Perugia, Italy
2
Consorzio Nazionale Interuniversitario per le Telecomunicazioni (CNIT), 43124 Parma, Italy
3
GMSpazio s.r.l., Viale Guglielmo Marconi, 19, 00146 Rome, Italy
4
Silicon Infusion, CP House, Otterspool Way, Watford WD25 8HP, UK
5
Analog Devices, Energy Park, 20871 Vimercate (MB), Italy
6
Independent Researcher, 1023 Chieri (TO), Italy
7
Independent Researcher, 24030 Valbrembo (BG), Italy
8
Department of Electronics and Telecommunications, Politecnico di Torino, 10129 Torino, Italy
9
ESA-ESTEC, Keplerlaan 1, 2201 AZ Noordwijk, The Netherlands
10
PicoSaTs s.r.l., Padriciano 99, c/o Area Science Park, 34149 Trieste, Italy
11
Department of Physics, University of Trieste, via Valerio 2, 34149 Trieste, Italy
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(3), 349; https://doi.org/10.3390/electronics8030349
Received: 16 January 2019 / Revised: 5 March 2019 / Accepted: 15 March 2019 / Published: 22 March 2019
(This article belongs to the Section Microwave and Wireless Communications)
  |
PDF [4071 KB, uploaded 22 March 2019]
  |

Abstract

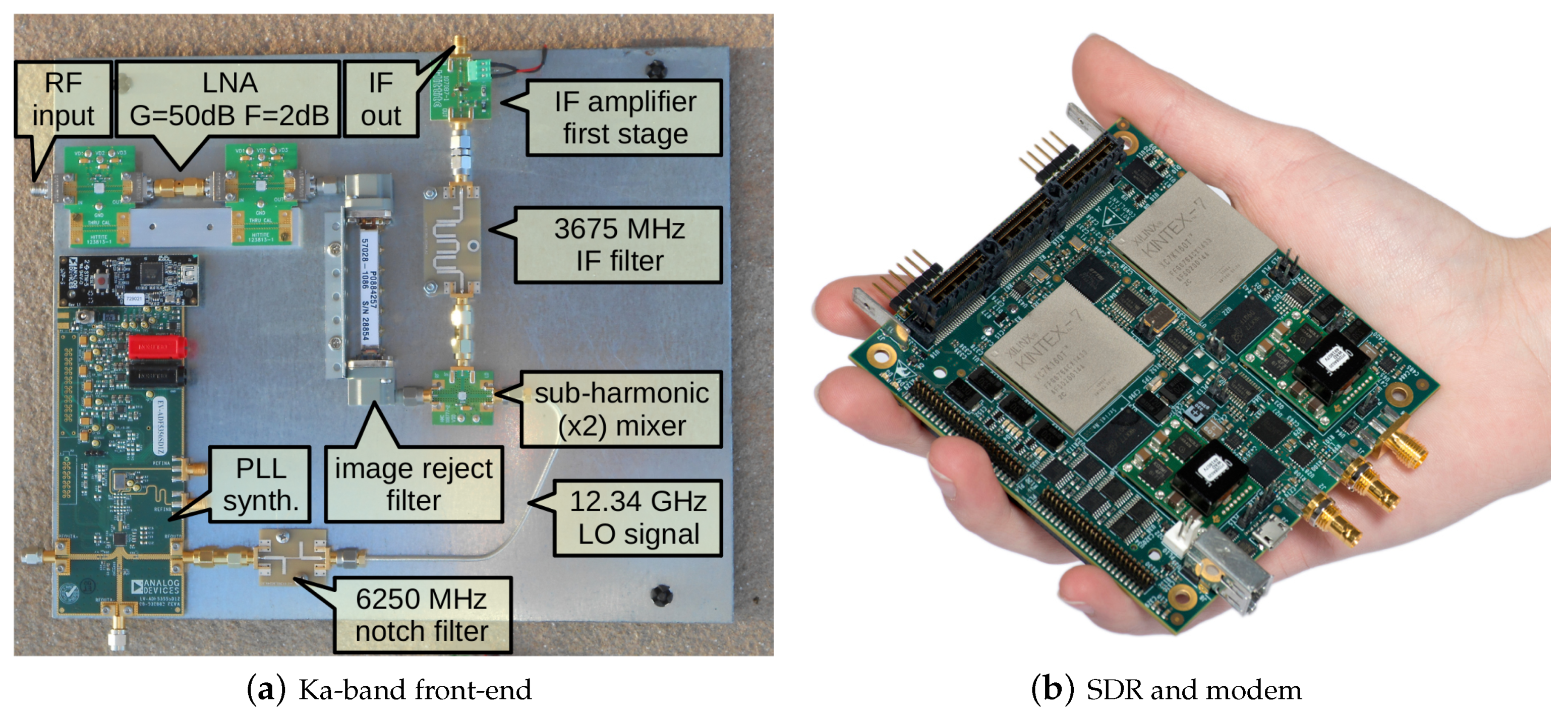

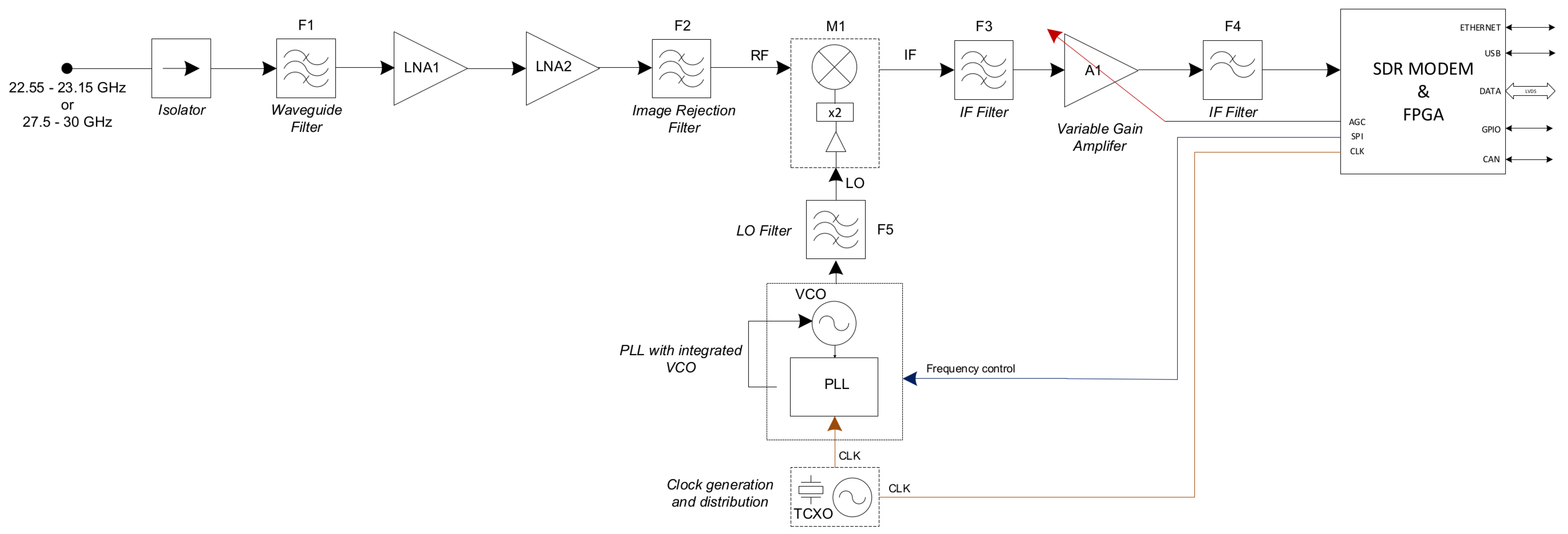

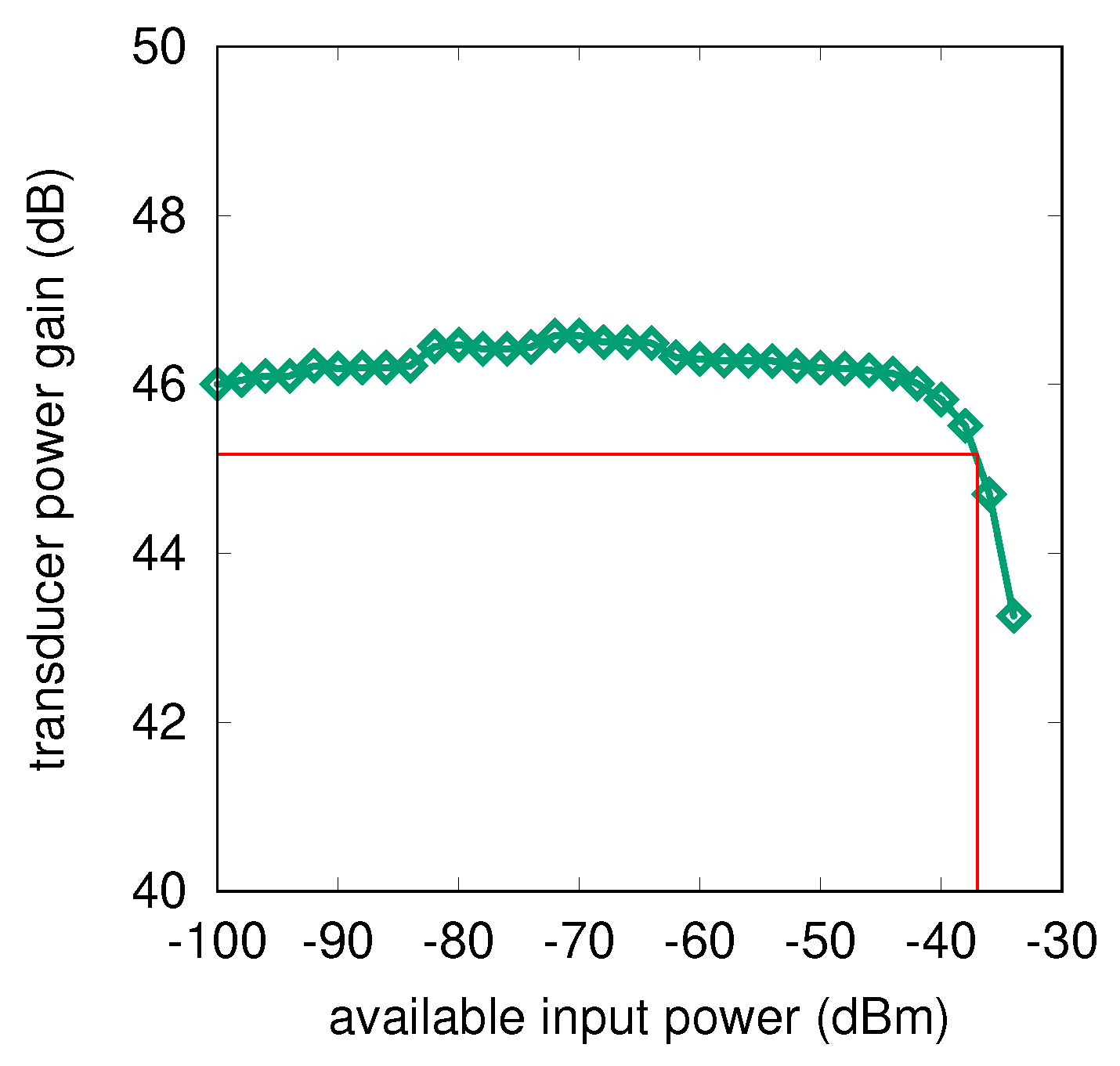

This paper presents a feasibility study for a very high data rate receiver operating in the K/Ka-band suitable to future Moon exploration missions. The receiver specifications are outlined starting from the mission scenario and from a careful system analysis. The designed architecture uses a low noise front-end to down-convert the incoming K/Ka-band signal into a 3.7 GHz intermediate frequency (IF). For maximum flexibility, a software defined radio (SDR) is adopted for the I/Q demodulation and for the analog to digital conversion (ADC). The decoding operations and the data interface are carried out by a processor based on field programmable gate array (FPGA) circuits. To experimentally verify the above concepts, a preliminary front-end breadboard is implemented, operating between 27.5 and 30 GHz. The breadboard, which uses components off the shelf (COTS) and evaluation boards (EVBs), is characterized by a 46 dB gain, a 3.4 dB noise figure and a 37 dBm input-referred 1 dB compression point. Finally, a 40 Msym / s quadrature phase shift keying (QPSK) signal is demodulated by means of a commercially available SDR, demonstrating the above concept. The importance of these results is that they have been obtained exploiting a class of miniaturized and low cost microwave integrated circuits currently available on the market, opening the way to a dense communication infrastructure on cislunar space. View Full-Text
Keywords: microwave receivers; K/Ka-band; Moon; cislunar space; exploration missions; cubesats; phase-noise; effective noise figure microwave receivers; K/Ka-band; Moon; cislunar space; exploration missions; cubesats; phase-noise; effective noise figure
Figures

Figure 1
