Efficient FPGA-Based Architecture of the Overlap-Add Method for Short-Time Fourier Analysis/Synthesis
Abstract
:1. Introduction
2. Theory

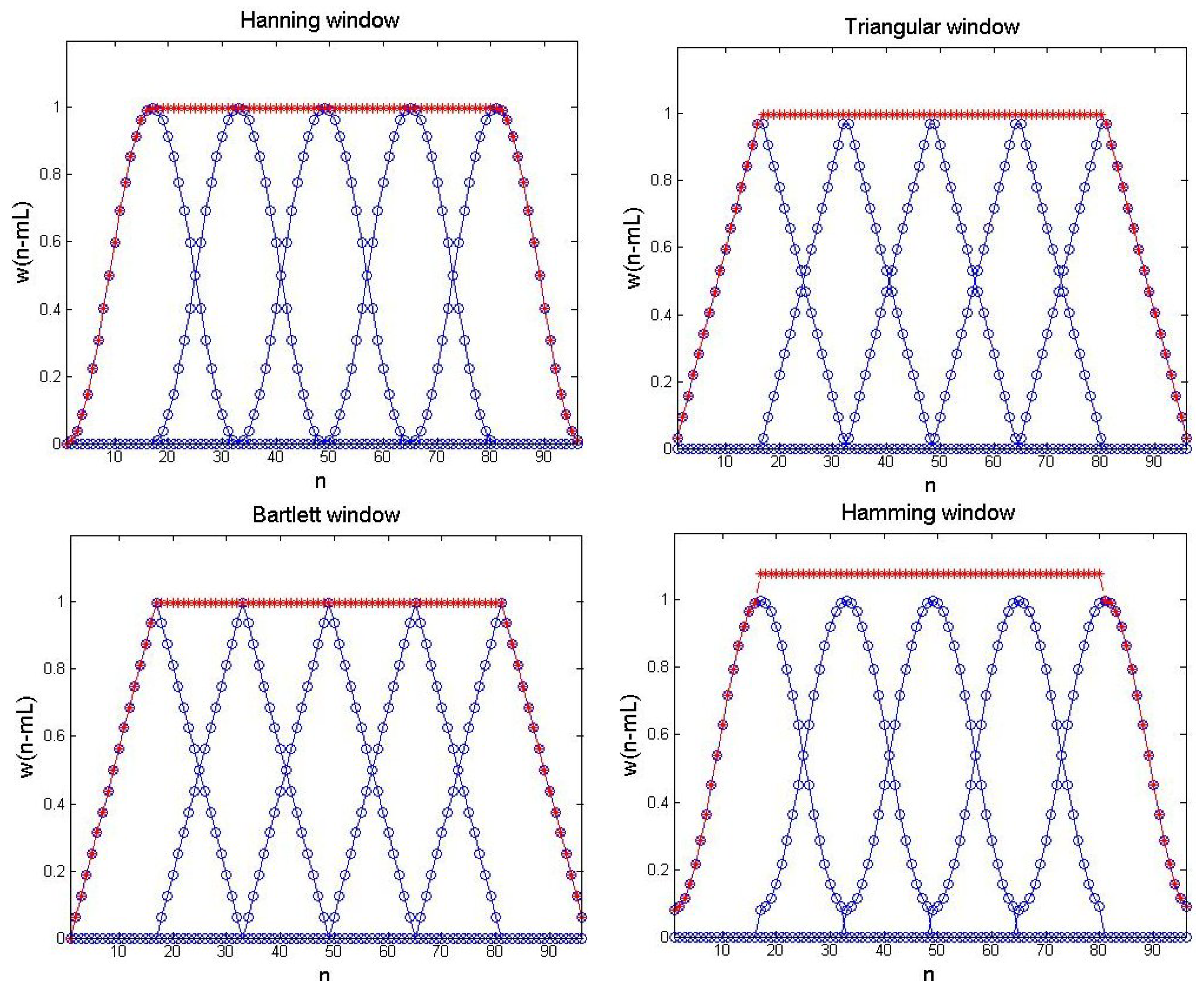

2.1. Overlapping and Windowing
2.2. Short-Time Fourier Transform
2.3. Inverse Discrete Fourier Transform

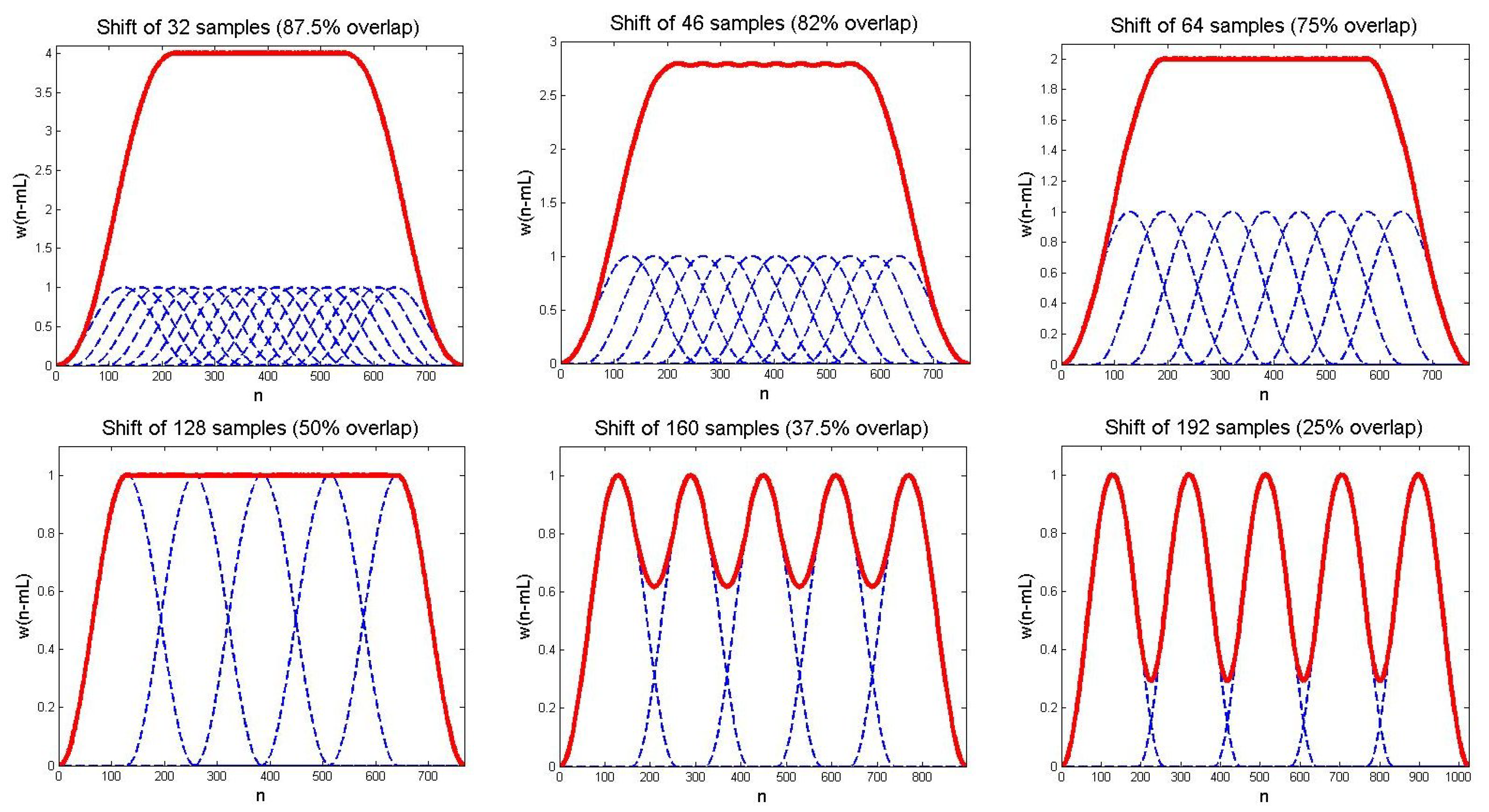

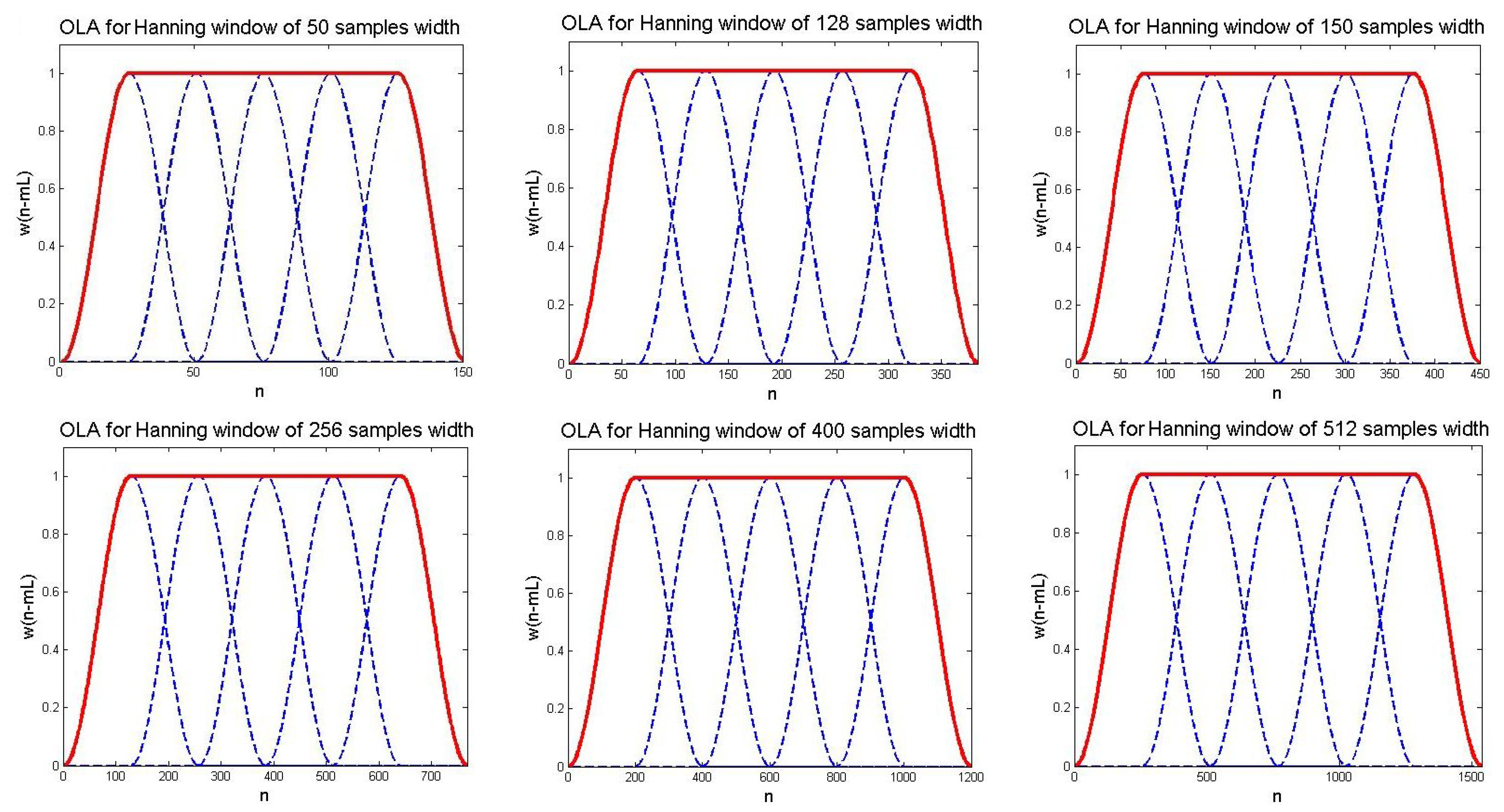

2.4. Perfect Reconstruction
2.5. Overlap-Add Synthesis
3. FPGA Implementation
3.1. Overlapping/Windowing
3.2. STFT/ISTFT
3.3. Overlap-Add Synthesis
4. Results and Discussion
4.1. Database
4.2. Evaluation Tests

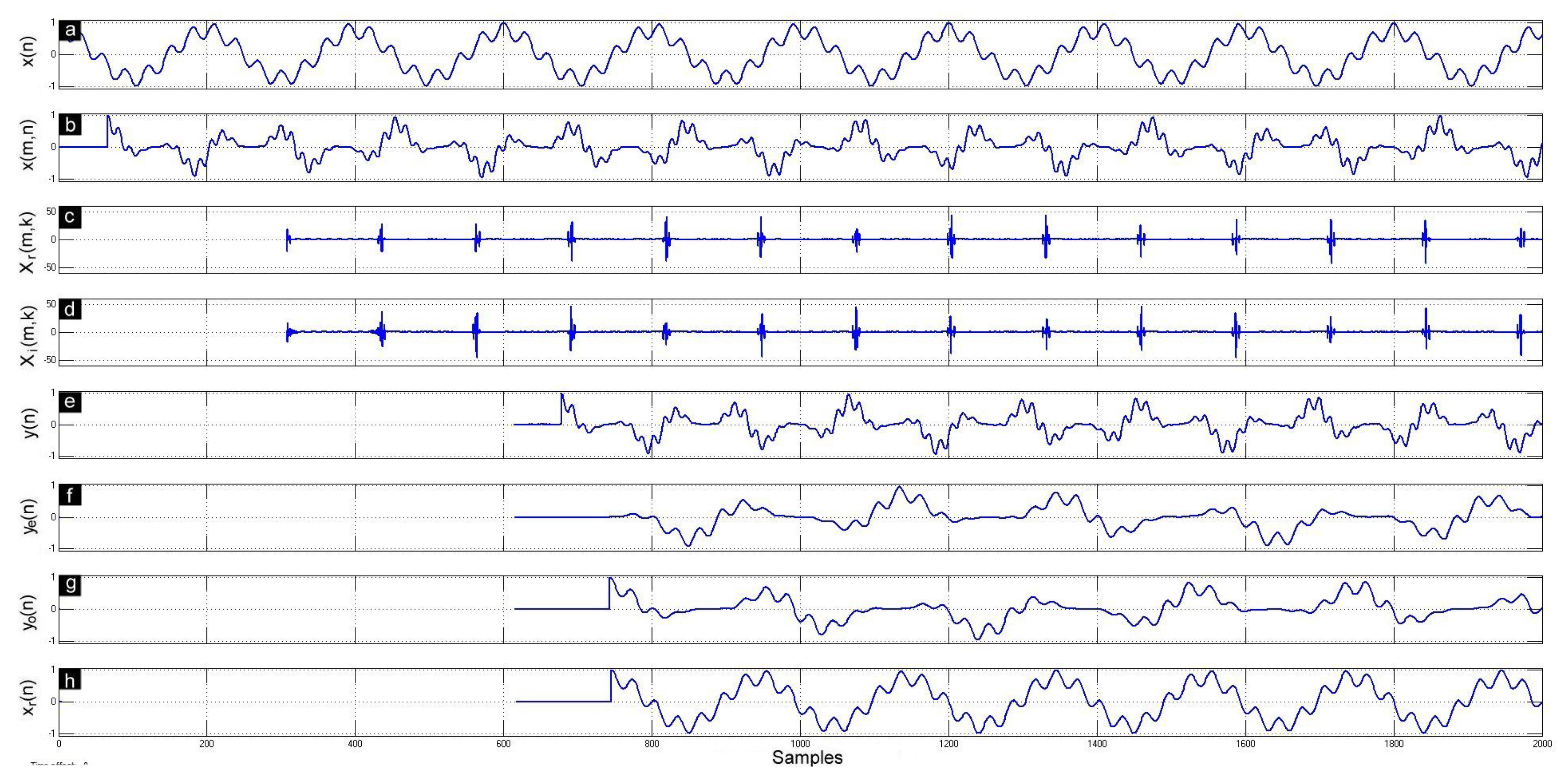

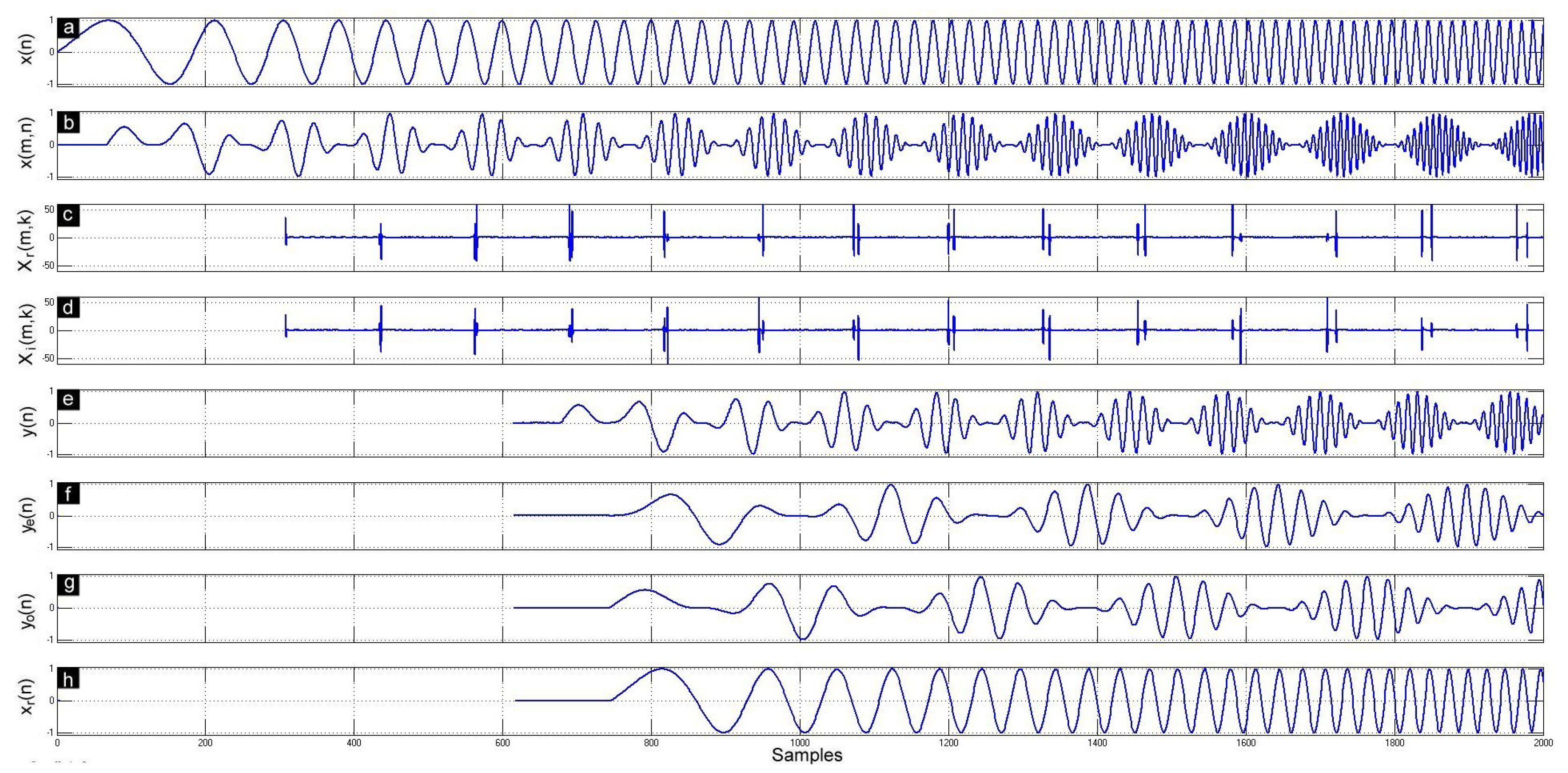

4.3. Results and Discussion
5. Conclusions
Funding
Conflicts of Interest
References
- Gade, S.; Gram-Hansen, K. Non-Stationary Signal Analysis Using Wavelet Transform, Short-Time Fourier Transform and Wigner-Ville Distribution; Technical Reviews 2; Brüel & Kjær: Nærum, Denmark, 1996. [Google Scholar]
- Boll, S.F. Suppression of Acoustic Noise in Speech Using Spectral Subtraction. IEEE Trans. Acoust. Speech Signal Process. 1979, 27, 113–120. [Google Scholar] [CrossRef] [Green Version]
- Reynolds, D.; Rose, R. Robust Test-Independent Speaker Identification Using Gaussian Mixture Speaker Models. IEEE Trans. Speech Audio Process. 1995, 3, 72–83. [Google Scholar] [CrossRef] [Green Version]
- Tzanetakis, G.; Cook, P. Musical genre classification of audio signals. IEEE Trans. Speech Audio Process. 2002, 10, 293–302. [Google Scholar] [CrossRef]
- Wacker, M.; Witte, H. Time-frequency techniques in biomedical signal analysis: A tutorial review of similarities and differences. Methods Inf. Med. 2013, 52, 279–296. [Google Scholar] [PubMed]
- Mateo, C.; Talavera, J. Short-time Fourier transform with the window size fixed in the frequency domain. Digit. Signal Process. Rev. J. 2018, 77, 13–21. [Google Scholar] [CrossRef]
- Allen, J.B.; Rabiner, L.R. A unified approach to short-time Fourier analysis and synthesis. Proc. IEEE 1977, 65, 1558–1564. [Google Scholar] [CrossRef]
- Crochiere, R. A weighted overlap-add method of short-time Fourier analysis/Synthesis. IEEE Trans. Acoust. Speech Signal Process. 1980, 28, 99–102. [Google Scholar] [CrossRef]
- George, E.B.; Smith, M.J.T. Speech analysis/synthesis and modification using an analysis-by-synthesis/overlap-add sinusoidal model. IEEE Trans. Speech Audio Process. 1997, 5, 389–406. [Google Scholar] [CrossRef]
- Whittington, J.; Deo, K.; Kleinschmidt, T.; Mason, M. FPGA implementation of spectral subtraction for in-car speech enhancement and recognition. In Proceedings of the 2nd International Conference on Signal Processing and Communication Systems, ICSPCS 2008, Gold Coast, Australia, 13–15 December 2008. [Google Scholar]
- Bahoura, M.; Ezzaidi, H. Implementation of spectral subtraction method on FPGA using high-level programming tool. In Proceedings of the 24th International Conference on Microelectronics (ICM), Algiers, Algeria, 17–20 December 2012; pp. 1–4. [Google Scholar]
- Amornwongpeeti, S.; Ono, N.; Ekpanyapong, M. Design of FPGA-based rapid prototype spectral subtraction for hands-free speech applications. In Proceedings of the Signal and Information Processing Association Annual Summit and Conference (APSIPA), Asia-Pacific, Chiang Mai, Thailand, 9–12 December 2014; pp. 1–6. [Google Scholar]
- Bahoura, M. Pipelined Architecture of Multi-Band Spectral Subtraction Algorithm for Speech Enhancement. Electronics 2017, 6, 73. [Google Scholar] [CrossRef] [Green Version]
- Wassi, G.; Iloga, S.; Romain, O.; Granado, B. FPGA-based real-time MFCC extraction for automatic audio indexing on FM broadcast data. In Proceedings of the 2015 Conference on Design and Architectures for Signal and Image Processing (DASIP), Krakow, Poland, 23–25 September 2015; pp. 1–6. [Google Scholar]
- Lin, B.S.; Yen, T.S. An FPGA-based rapid wheezing detection system. Int. J. Environ. Res. Public Health 2014, 11, 1573–1593. [Google Scholar] [CrossRef] [PubMed]
- Bahoura, M. FPGA Implementation of Blue Whale Calls Classifier Using High-Level Programming Tool. Electronics 2016, 5, 8. [Google Scholar] [CrossRef] [Green Version]
- Boujelben, O.; Bahoura, M. Efficient FPGA-based architecture of an automatic wheeze detector using a combination of MFCC and SVM algorithms. J. Syst. Archit. 2018, 88, 54–64. [Google Scholar] [CrossRef]
- Goldberger, A.L.; Amaral, L.A.N.; Glass, L.; Hausdorff, J.M.; Ivanov, P.C.; Mark, R.G.; Mietus, J.E.; Moody, G.B.; Peng, C.K.; Stanley, H.E. PhysioBank, PhysioToolkit, and PhysioNet: Components of a New Research Resource for Complex Physiologic Signals. Circulation 2000, 101, e215–e220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Berti, E.; Chiaraluce, F.; Evans, N.E.; McKee, J.J. Reduction of Walsh-transformed electrocardiograms by double logarithmic coding. IEEE Trans. Biomed. Eng. 2000, 47, 1543–1547. [Google Scholar] [CrossRef] [PubMed]
- Chen, J.; Itoh, S. A Wavelet Transform-Based ECG Compression Method Guaranteeing Desired Signal Quality. IEEE Trans. Biomed. Eng. 1998, 45, 1414–1419. [Google Scholar] [CrossRef] [PubMed]
Architecture | CLB Logic | 4-Multiplier |
---|---|---|
Resource utilization | ||
Slices (15,850) | 3972 (25.1%) | 1563 (9.9%) |
Flip Flops (126,800) | 15,822 (12.5%) | 6504 (5.3%) |
LUTs (63,400) | 14,199 (22.4%) | 4775 (7.5%) |
Bonded IOBs (210) | 33 (15.7%) | 33 (15.0%) |
RAMB18E1s (270) | 6 (2.2%) | 6 (2.2%) |
DSP48E1s (240) | 1 (0.4%) | 25 (10.4%) |
Maximum Operating Frequency | 126.920 MHz | 133.905 MHz |
Cosine Mixture | Chirp | ECG | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Window | NMSE | CC | NMSE | CC | NMSE | CC | ||||||
Hanning | 68.31 | 0.999999 | 70.10 | 0.999999 | 50.07 | 0.999995 | ||||||
Triangular | 64.13 | 0.999999 | 66.55 | 0.999999 | 50.63 | 0.999995 | ||||||
Bratlett | 65.32 | 0.999999 | 67.15 | 0.999999 | 50.34 | 0.999995 | ||||||
Hamming | 64.84 | 0.999999 | 67.03 | 0.999999 | 51.01 | 0.999996 |
Cosine Mixture | Chirp | ECG | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Window | NMSE | CC | NMSE | CC | NMSE | CC | ||||||
Hanning | 68.25 | 0.999999 | 70.31 | 0.999999 | 50.04 | 0.999995 | ||||||
Triangular | 63.98 | 0.999999 | 66.54 | 0.999999 | 50.19 | 0.999995 | ||||||
Bratlett | 65.17 | 0.999999 | 67.19 | 0.999999 | 50.33 | 0.999995 | ||||||
Hamming | 64.82 | 0.999999 | 66.98 | 0.999999 | 50.88 | 0.999995 |
