Simple and Low-Cost Photovoltaic Module Emulator

Department of Information Engineering, Infrastructure and Sustainable Energy (DIIES), University Mediterranea of Reggio Calabria, 89124 Reggio Calabria, Italy
HWA srl-Spin Off dell’Università Mediterranea di Reggio Calabria, Via Reggio Campi II tr. 135, 89126 Reggio Calabria, Italy
Author to whom correspondence should be addressed.
Electronics 2019, 8(12), 1445;
Received: 30 October 2019 / Revised: 21 November 2019 / Accepted: 26 November 2019 / Published: 1 December 2019
(This article belongs to the Special Issue Grid-Connected Renewable Energy Sources)

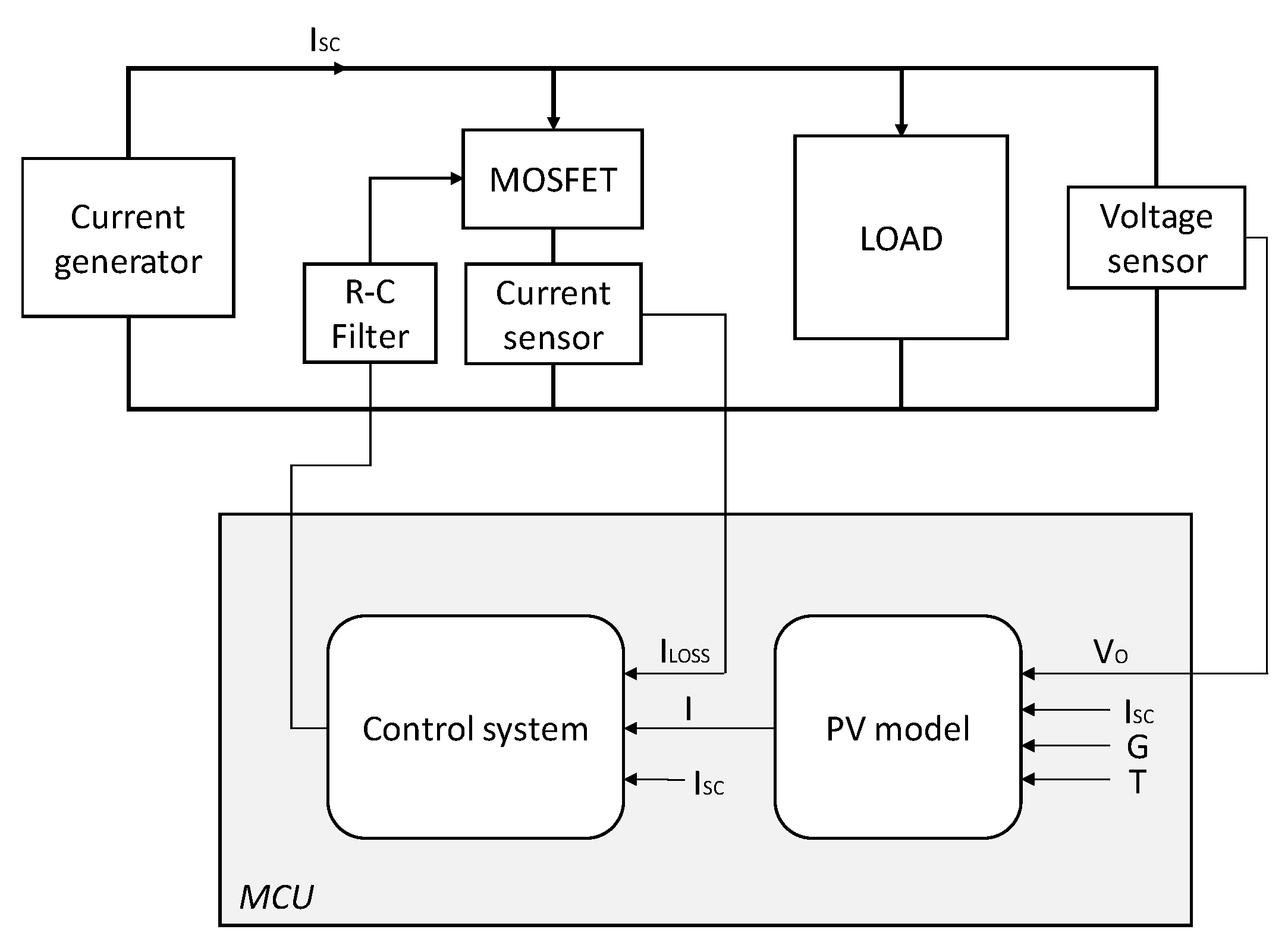

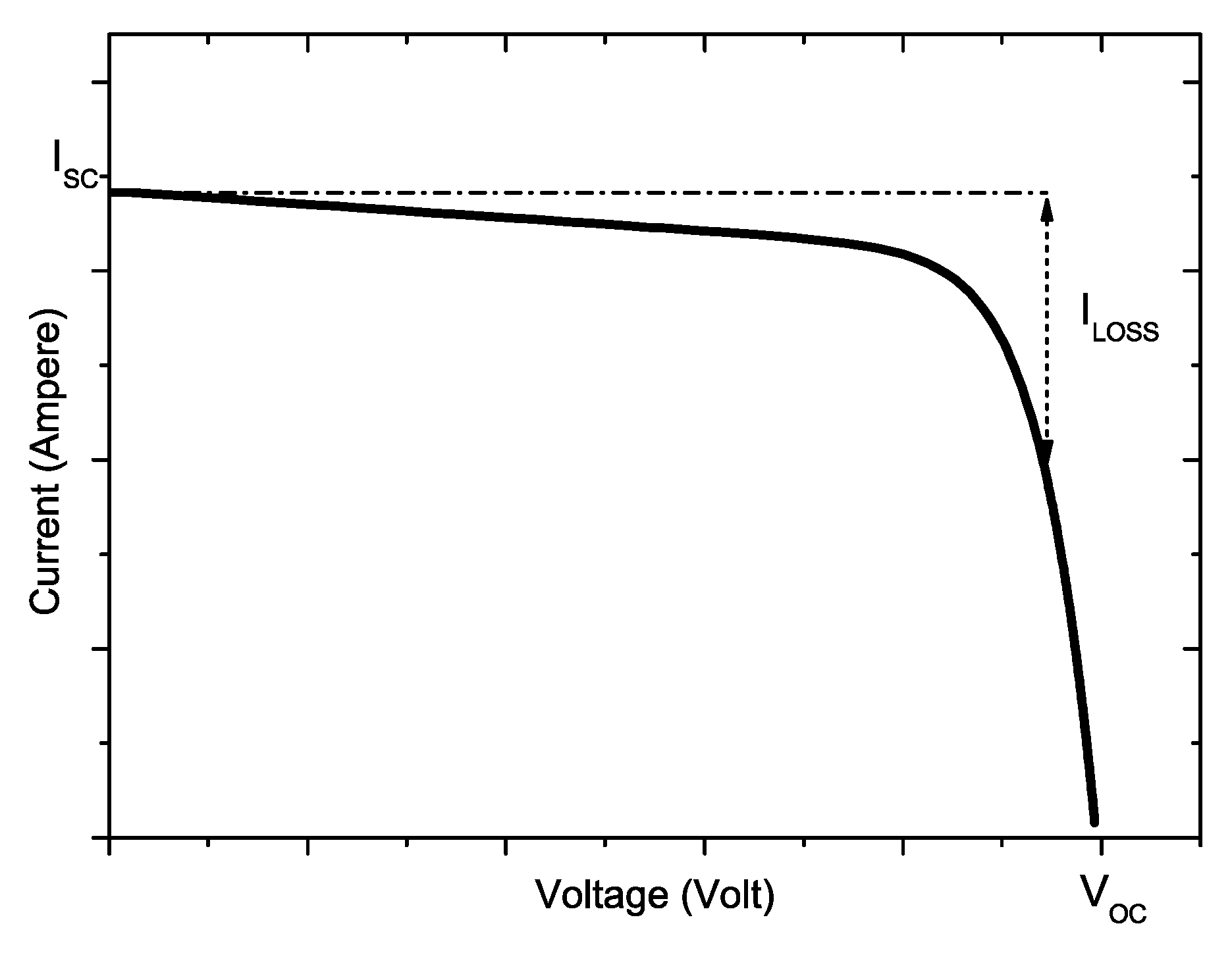

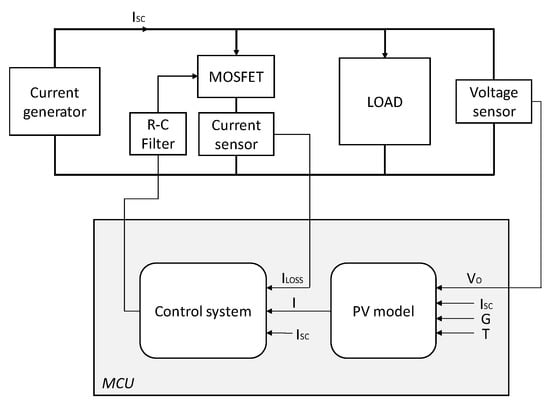

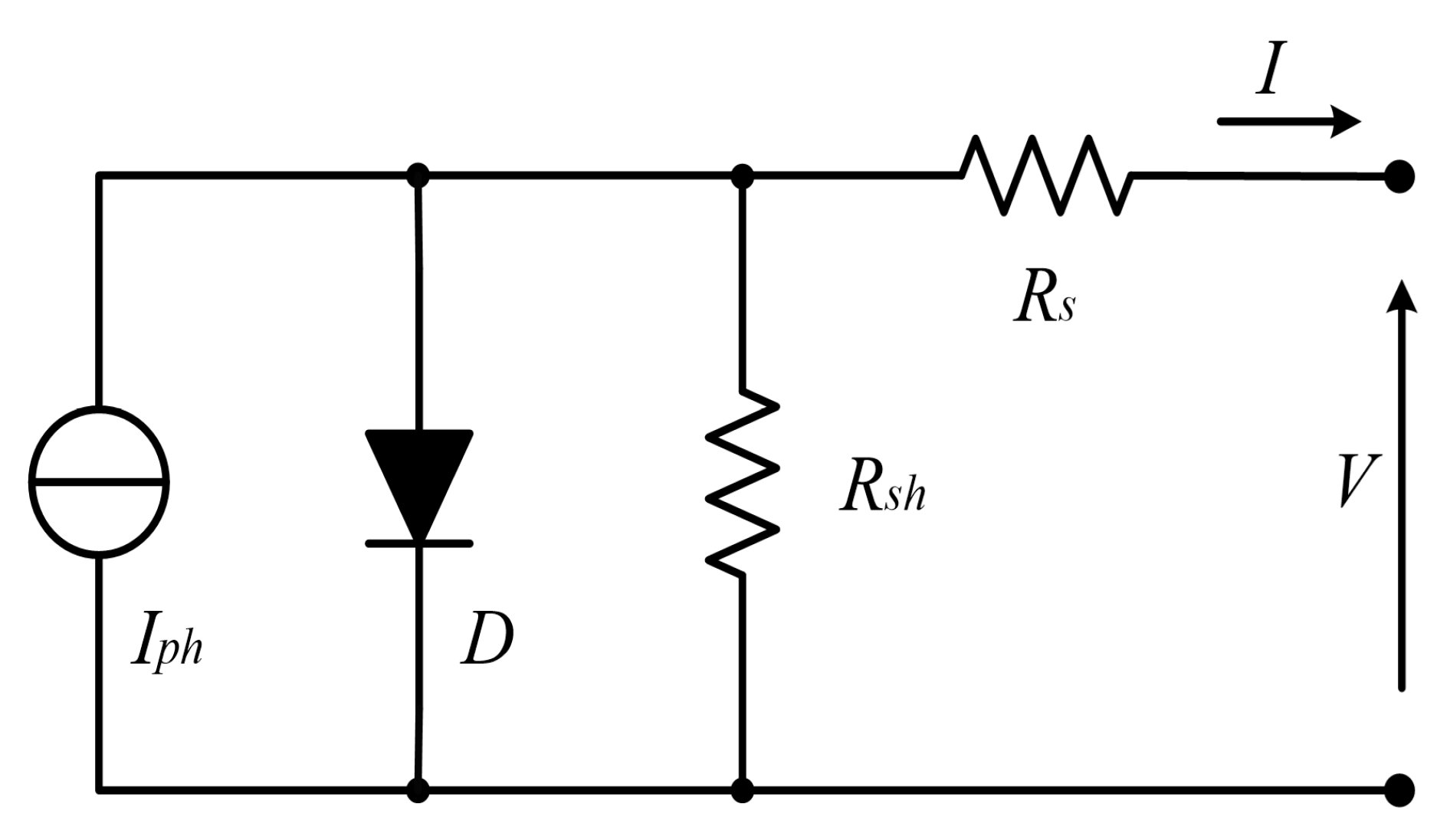

The design and testing phase of photovoltaic (PV) power systems requires time-consuming and expensive field-testing activities for the proper operational evaluation of maximum power point trackers (MPPT), battery chargers, DC/AC inverters. Instead, the use of a PV source emulator that accurately reproduces the electrical characteristic of a PV panel or array is highly desirable for in-lab testing and rapid prototyping. In this paper, we present the development of a low-cost microcontroller-based PV source emulator, which allows testing the static and dynamic performance of PV systems considering different PV module types and variable operating and environmental conditions. The novelty of the simple design adopted resides in using a low-cost current generator and a single MOSFET converter to reproduce, from a fixed current source, the exact amount of current predicted by the PV model for the actual load conditions. The I–V characteristic is calculated in real-time using a single diode exponential model under variable and user-selectable operating conditions. The proposed method has the advantage of reducing noise from high-frequency switching, reducing or eliminating ripple and the demand for output filters, and it does not require expensive DC Power source, providing high accuracy results. The fast response of the system allows the testing of very fast MPPTs algorithms, thus overcoming the main limitations of state-of-art PV source emulators that are unable to respond to the quick variation of the load. Experimental results carried on a hardware prototype of the proposed PV source emulator are reported to validate the concept. As a whole result, an average error of ±1% in the reproduction of PV module I–V characteristics have been obtained and reported. View Full-Text
Keywords: photovoltaic emulator; photovoltaic panel; single diode model; MPPT photovoltaic emulator; photovoltaic panel; single diode model; MPPT
Show Figures

Figure 1

MDPI and ACS Style

Merenda, M.; Iero, D.; Carotenuto, R.; Della Corte, F.G. Simple and Low-Cost Photovoltaic Module Emulator. Electronics 2019, 8, 1445.

AMA Style

Merenda M, Iero D, Carotenuto R, Della Corte FG. Simple and Low-Cost Photovoltaic Module Emulator. Electronics. 2019; 8(12):1445.

Chicago/Turabian Style

Merenda, Massimo, Demetrio Iero, Riccardo Carotenuto, and Francesco G. Della Corte. 2019. "Simple and Low-Cost Photovoltaic Module Emulator" Electronics 8, no. 12: 1445.
