Electronics 2018, 7(8), 151; doi:10.3390/electronics7080151

Article
On-Line Application of SHEM by Particle Swarm Optimization to Grid-Connected, Three-Phase, Two-Level VSCs with Variable DC Link Voltage
1
Electrical and Electronics Engineering Department, Middle East Technical University, Ankara TR 06800, Turkey
2
Electrical and Electronics Engineering Department, Hacettepe University, Beytepe, Ankara TR 06800, Turkey
*
Author to whom correspondence should be addressed.
Received: 4 July 2018 / Accepted: 16 August 2018 / Published: 20 August 2018

Abstract

:
This paper is devoted to an otablen-line application of the selective harmonic elimination method (SHEM) to three-phase, two-level, grid-connected voltage source converters (VSCs) by particle swarm optimization (PSO). In such systems, active power can be controlled by the phase shift angle, and reactive power by the modulation index, against variations in the direct current (DC) link voltage. Some selected, low-odd-order harmonic components in the line-to-neutral output voltage waveforms are eliminated by calculating the SHEM angle set continuously through the developed PSO algorithm on field-programmable gate array (FPGA)-based computing hardware as the modulation index is varied. The use of powerful computing hardware permits the elimination of all harmonics up to 50th. The cost function of the developed PSO algorithm is formulated by using an optimum number of particles to obtain a global optimum solution with a small fitness value in each half-cycle of the grid voltage and then updating the SHEM angle set at the beginning of the next full-cycle. Since the convergence of the solution to a global minimum point depends upon the use of correct initial values especially for a large number of SHEM angles, a generalized initialization procedure is also described in the paper. Theoretical results are verified initially using hardware co-simulation. They are also tested using a small scale photovoltaic (PV) supply prototype developed specifically for this purpose. It is demonstrated that the 5th, 7th, 11th, 13th, 17th, and 19th sidekick harmonics are eliminated by on-line calculation of seven SHEM angles through the developed PSO algorithm on a moderately powerful XEM6010-LX150, USB-2.0-integrated FPGA module. All control and protection actions and the calculation of SHEM angles are achieved by a single FPGA chip and its peripherals within the FPGA board.
Keywords:
field-programmable gate array; particle swarm optimization; selective harmonic elimination method; voltage source converter

1. Introduction

Various modulation schemes have been employed in inverter circuits, such as space vector modulation (SVM), pulse width modulation (PWM), and the selective harmonic elimination method (SHEM). The main feature of the SVM scheme is the fast dynamic response obtained, whereas the SHEM has superior harmonic performance for a given switching frequency. The performance of the best PWM modulation techniques is somewhere between the SVM and SHEM [1]. On-line application of SHEM to voltage source converters (VSCs) for the elimination of low-order output voltage harmonics, however, has not been reported yet in the literature due to the computational overhead of the digital implementation on processors.
In grid-connected VSCs of either two-level or multilevel types, the SHEM angles can be determined by solving a set of nonlinear algebraic equations. The resulting mathematical model contains sinusoidal terms and the number of equations in the model is equal to the number of switching angles. Two main groups of techniques have been presented in the literature to solve these nonlinear equations. Iterative methods, such as the Newton–Raphson method [2,3] and the homotopy algorithm [4,5,6,7], are given in the first group. Some other iterative numerical techniques have been proposed in [8,9,10,11], and the Walsh-function-based analytical technique has been adopted in [12]. In [13,14], to find the solutions for all modulation indices, theories of resultants and symmetric polynomials have been employed, which are then used to solve the polynomial equations obtained from transcendental equations. It has been shown in [13] that such SHEM equations do not have a solution set for some unfeasible modulation index values of the inverter.
In the second group, SHEM is considered as an optimization problem, which is investigated through evolutionary search algorithms. Evolutionary search algorithms have been used to solve various industrial problems in recent years. Easier solutions can be found to these problems by this way as compared to the analytical methods, and in some cases, they constitute the unique way to find a feasible solution [15]. The global optimum solution can be found by these algorithms for complete elimination of certain harmonics or optimum switching angles can be offered in cases where a feasible solution cannot be found. Some major evolutionary search algorithms which have been applied can be cited as the genetic algorithm (GA) [16,17,18], particle swarm optimization (PSO) [2,19,20], ant colony optimization [21], the bee algorithm [22], and the bacterial foraging algorithm [23].
Until now, SHEM has been applied off-line in industry applications of grid-connected converters by using lookup tables (LUTs). Among these, distribution-type, two-level static synchronous compensator (STATCOM) systems based on a current source converter (CSC) with a variable direct current (DC) link current are reported in [24,25,26], two-level voltage source converter (VSC)-based distribution-type STATCOM systems with variable DC link voltages in [27], and a transmission-type cascaded multilevel converter-based STATCOM system with constant DC link voltage in [28,29]. On the other hand, VSCs with variable DC link voltages are widely used in photovoltaic (PV) and traction applications, in which the modulation index value for the VSC changes in a wide range as the DC link voltage varies. In such applications, the off-line SHEM using LUTs for determination of switching angle sets is disadvantageous primarily due to the stepwise control of the modulation index value resulting in minimization of selected harmonics instead of their elimination, and secondarily due to the infeasible region of the solution space [30] and the need for a large LUT storage area [31].
To solve these problems, researchers have searched for an effective way to apply SHEM on-line in order to allow for continuous control of SHEM angles. The generalization ability of an artificial neural network (ANN) has been applied in [30] to cope with this problem. The switching angles have been calculated beforehand for different DC source values using GA, then the switching angles have been determined for different DC link voltage magnitudes at each phase of the multilevel inverter in real-time by adopting the ANN to train the controller. By this way, the ANN can be used instead of a LUT, thus introducing its inherent capability to generalize the solution space into the problem with proper training. In [31], another approach was investigated for on-line applications of SHEM, where an analytical procedure was employed for computation of all pairs of valid switching angles in five-level, H-bridge cascaded inverters. Here, a fully analytical calculation is allowed for the switching angles using Chebyshev polynomials and Waring equations. This procedure can be implemented in real-time using either a digital signal controller, a programmable logic device, or a field-programmable gate array (FPGA), as claimed in [31], due to its limited complexity. On the other hand, digital control techniques applied to voltage source inverters in renewable energy applications were reviewed in [32]. On-line optimal switching frequency selection for grid-connected voltage source inverters was presented in [33].
In this paper, calculation of SHEM angles in real-time is described by using a PSO algorithm, specifically developed for this purpose, and a digital computing hardware. An on-line application of SHEM is important especially for grid-connected inverters with variable DC link voltages in order to eliminate all odd-order characteristic power system harmonics up to the 50th. The initialization procedure for the PSO algorithm is generalized to ensure the convergence of the solution to a global optimum by assuming that the modulation index, and hence the inverter’s output voltage, is initially zero. A timing diagram for the on-line application of SHEM is given in the paper, in which the number of SHEM angles, up to 17, is calculated in each half-cycle of the supply voltage waveform, and the firing instants of all power semiconductors of the grid-connected inverter are updated in the next full-cycle. Keeping the switching pattern constant in each full-cycle avoids the generation of DC component and even-order voltage harmonics. The proposed method is verified by a hardware co-simulation work, and the theoretical results are justified in the field on a small-size photovoltaic (PV) supply by calculating on-line seven SHEM angles on a moderately powerful FPGA board. In the prototype PV supply, active power control is implemented by phase shift angle control, reactive power control by variation of the modulation index, and elimination of selected sidekick voltage harmonics (5th, 7th, 11th, 13th, 17th, and 19th) in the inverter’s output phase voltage by SHEM.

2. Problem Description

2.1. Possible Application Areas of SHEM

Possible application areas of SHEM are summarized in Figure 1. The common properties of these applications are: (i) few MVA apparent power rating, (ii) Connection to an available three-phase, medium-voltage grid bus though a dedicated coupling transformer, and (iii) 690 V or 1 kV voltage rating for the grid-side VSC. The application of SHEM is suitable for the gray-shaded converters in Figure 1. In these three-phase, two-level VSCs, either high voltage insulated gate bipolar transistor (HV-IGBT) type or integrated gate commutated thyristor (IGCT) type power semiconductors are used in practice. IGBTs and IGCTs in these converters can be switched, respectively, in the range of 1.5 kHz and 500 Hz in practical applications because of their relatively high switching losses. SHEM best matches the needs of such applications, i.e., minimum harmonic current distortion on the grid side and high conversion efficiency. In the near future, with the advents in SiC power MOSFET technology, these new power semiconductors can be switched at much higher frequencies in such applications. In the systems shown in Figure 1a–c, the DC link voltage is variable depending upon the operating condition. In the system in Figure 1d, the DC link voltage may be kept constant or varies in a narrow range. However, in the systems in Figure 1e,f, the DC link voltage may be varied only for performance concerns.
In most of these applications, the grid-side inverter or rectifier is connected to the grid by using a dedicated coupling transformer as shown in Figure 1. If the leakage reactance of the coupling transformer is not sufficiently large for minimization of total demand distortion (TDD), a small series inductor bank may be connected on the converter side of the system. On the other hand, for small-size systems, the grid connection is achieved by using an LCL filter or its derivatives, since an inductance-only filter is not sufficient to suppress high-order harmonic components which are not eliminated by SHEM.

2.2. Switching Techniques for SHEM

Various switching techniques that can be used in the application of SHEM are clearly described in [34]. Line-to-line converter voltage harmonics can be directly eliminated by the three-phase line-to-line technique (TLL), and line-to-neutral converter output voltage harmonics by the three-phase line-to-neutral techniques (TLN1 and TLN2). In the TLL technique, a 2 times higher switching frequency and a higher DC link voltage are required in comparison with those of the TLN2 technique in order to eliminate the same number harmonics and to give the same grid voltage. Similar conclusions can be drawn also for the TLN1 technique. In view of PV applications with direct power conversion, the TLN1 and TLN2 techniques are more suitable to maintain the maximum power-point voltage, Vmpp, and hence the DC link voltage of the inverter within an acceptable range, e.g., 600–900 V for thin-film PV arrays. On the other hand, TLN1 differs from the TLN2 technique by the number of harmonics to be eliminated from the voltage waveform. This number is even for the TLN1 technique, whereas it is odd for the TLN2 technique. It can be examined from the line-to-neutral voltage waveform in Figure 2 that an odd number of notch angles α1 to α5 exists, resulting in the elimination of an even number of characteristic power system harmonics, i.e., the 5th, 7th, 11th, and 13th in the line-to-neutral voltage waveform. In SHEM, the first notch angle is always used to control the fundamental voltage component. Triplen harmonics, such as the 3rd, 9th, and 15th, will be cancelled out in line-to-line voltage waveforms although they are present in line-to-neutral voltage waveforms. There will be no even-order characteristic power system harmonics, such as the 2nd, 4th, 6th, 8th, etc., in line-to-neutral voltage waveforms because of the quarter-wave odd symmetry [24,27,35,36]. The converter’s switching frequency fc can be expressed as in (1) for TLN1 and TLN2 techniques:
f c = ( 2 N + 1 ) f 1 { N   is   odd   for   TLN 1 N   is   even   for   TLN 2
where, f1 is the frequency of the fundamental component and N the total number of harmonics to be eliminated, including the fundamental component to be controlled.
If TLN2 were chosen, a higher-order harmonic component, the 13th for N = 4 or the 19th for N = 6 among the sidekick harmonics (the 11th and 13th for N = 4 or the 17th and 19th for N = 6) could not be eliminated. Therefore, in this research work, the TLN1 technique is preferred.
The Fourier series expansion of the line-to-neutral voltage waveform in Figure 2 gives the magnitude of the nth characteristic power system harmonic, b n , obtained from (2).
b n = 4 n π V d c 2 [ 1 2 k = 1 N ( 1 ) k cos ( n α k ) ]
where, n is the odd harmonic order, Vdc the DC link voltage, and αk the switching angle for k = {1, 2, …, N}.
N transcendental equations with N unknowns (α1, α2, …, αN) in (3) are then obtained by setting the fundamental voltage component to a prespecified value and equating the remaining N − 1 harmonics all to zero.
[ 2 cos ( α 1 ) 2 cos ( α 2 ) 2 ( 1 ) N + 1 cos ( α N ) 2 cos ( 5 α 1 ) 2 cos ( 5 α 2 ) 2 ( 1 ) N + 1 cos ( 5 α N ) 2 cos ( X α 1 ) 2 cos ( X α 2 ) 2 ( 1 ) N + 1 cos ( X α N ) ] = [ 1 + π b 1 2 V d c 1 1 ]
where X = 3N − 2 and α constraints 0 < α 1 < α 2 < < α N < π 2 .
A simultaneous solution of the set of transcendental equations in (3) is necessary to obtain a solution set for α1 to αN. Since these equations are nonlinear, either an iterative method or an evolutionary search algorithm is required.

2.3. Need for On-Line SHEM

The technical specifications of a three-phase, two-level, and grid-connected VSC with some selected harmonics eliminated by SHEM are assumed to be as follows.
  • It provides conversion of the desired amount of DC power to AC over a wide DC link voltage range, e.g., Vdc = 600 V to 900 V for the thin-film PV systems in Figure 1a.
  • Active power control is achieved by controlling the phase shift angle, δ, of the VSC output voltage with respect to the supply voltage.
  • The reactive power generated or consumed by the VSC should be adjusted to any prespecified value by varying the magnitude of the VSC’s output voltage by controlling the modulation index over the entire operating range.
The need for on-line SHEM is justified by carrying out two case studies as given below.
Case Study I: Constant SHEM Angle Set with Variable DC Link Voltage

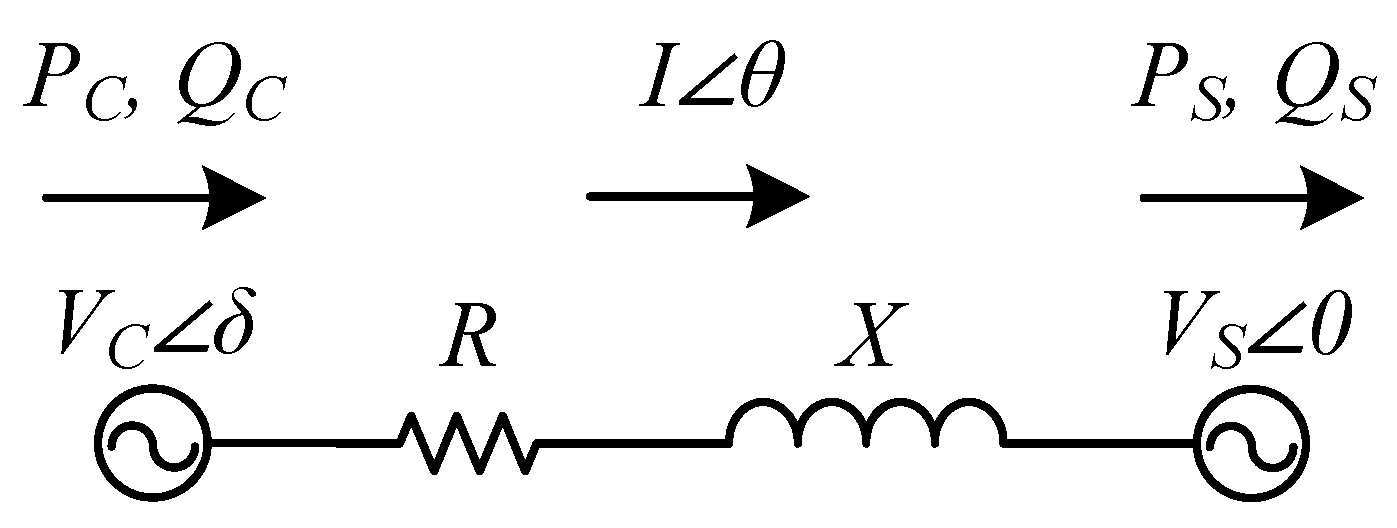

The three-phase, grid-connected VSC can be represented by the single-line diagram shown in Figure 3.
The output series filter reactor’s internal resistance component, R, and/or the coupling transformer’s leakage impedance is much smaller than the inductive reactance component, X, and phase-shift angle, δ, between the fundamental component of converter voltage, Vc, and the fundamental component of supply voltage, Vs, phasors is very small, then sinδ ≈ δ and cosδ ≈ 1 [27,36]. Under these assumptions, the active and reactive powers generated by the VSC, (Pc, Qc), and active and reactive powers consumed by the grid, (Ps, Qs), can be approximated by expressions in (4) to (6).
P C P S 3 V C V S X δ
Q C 3 V C V C V S X
Q S 3 V S V C V S X
Since Vs and X in (6) are constant, Qs can be adjusted to any preset value only by controlling Vc. The relationship between the rms value of the fundamental component of the VSC’s output voltage, Vc, and the variable DC link voltage, Vdc, is given by the modulation index expression in (7). Since M is kept constant for a constant SHEM angle set, as Vdc changes there will be no control on Vc and hence on Qs. Therefore, the use of constant SHEM angles in the control system of grid-connected inverters with variable DC link voltages is to be avoided.
M = π V ^ c 2 V d c = π 2 V c 2 V d c
Case Study II: Off-line SHEM by the Look-Up Table Method
In order to avoid the drawbacks of constant SHEM angles in the reactive power control of grid-connected inverters with variable DC link voltages, M and hence Vc should be adjusted by using several sets of SHEM angles as Vdc changes. The common approach to this problem is the computation of several SHEM angle sets and their storage in an internal or external random access memory (RAM)/read-only memory (ROM) in the form of (a) LUT(s). This approach makes necessary the discretization of M control range into d number of steps for N number of total harmonics to be controlled over the entire operation range of the resulting system, which yields a d × N LUT. Since M and hence SHEM angles α1 to αN are controlled stepwise instead of by on-line continuous control, the required value of M at any particular operating point will be rounded to the nearest M number stored in the LUT. This may result in a significant error in Vc and hence Qs values when the row number, d, of the LUT is kept low. Therefore, d should be as high as possible. A d × N LUT will be impractical if a huge number of harmonics is to be eliminated.
The effects of the order of a LUT on the discretized values of M, the corresponding Vc, and Qs for unity power factor operation are examined by considering 5 × 7 and 41 × 7 LUTs and the associated results are given in Table 1 for two different values of DC link voltage (Vdc (min) = 600 V, Vdc (max) = 900 V, and X = 3.14 Ω at 50 Hz). In this paper, theoretical results are verified on a sample small-scale PV system as described in Section 4. This small-scale prototype is connected to a 400-V, 50-Hz grid. The performance of real-time SHEM in adjusting M, and hence Vc to its set value of 230 V in order to bring Qs = Qs(set) to zero is also given in Table 1 for the same problem. As can be understood from the results marked by red colored values in Table 1, Vc and Qs deviate significantly from their set values in the case of a small-sized LUT. Deviations from the set values can be significantly lowered as the size of the LUT increases (marked by yellow color in Table 1). In order to alleviate the problem arising from the discrete LUT method in variable DC link voltage applications, linear interpolation can be used between consecutive M steps.
At the present time, with the advances in digital electronics area by using a powerful FPGA module or parallel computing hardware, such as a Graphical Processing Unit (GPU), enormously large SHEM angles can be calculated on-line to control M continuously. The performance of the on-line SHEM by using a single FPGA module to control seven harmonics is also given in Table 1 by the green-colored area.

3. Application of PSO to SHEM

In grid-connected PV inverter applications, since the supply frequency is constant (f1 = 50 or 60 Hz), SHEM angles should be updated once in a full-cycle (20 or 16.67 ms) with 2π/3 and 4π/3 phase-shifted signals for the remaining two phases. Therefore, on-line calculation of SHEM angles should be carried out in a total execution time less than a period of grid voltage, i.e., 20 ms for 50 Hz applications. However, variable-frequency alternating current (AC) motor drive applications need lower calculation times when the applied motor frequency is higher than the rated frequency. In this research work, the equations in (3) will be solved by the PSO technique, which is an evolutionary search algorithm.
In order to evaluate the fitness values of each particle at each time frame, a cost function should be formulated as required by the PSO. SHEM equations should be put into a format so that each particle is assigned a real fitness value. Then, boundaries of the solution space are defined, and an initial population of swarms is generated in this solution space. Finally, PSO parameters are set, so that the PSO algorithm is ready to find a feasible global optimum to the optimization problem.

3.1. Particle Swarm Optimization (PSO)

The stochastic population-based optimization technique called particle swarm optimization (PSO) has been developed by Dr. Russell Eberhart and Dr. James Kennedy in 1995 [37]. It is initialized with a random or heuristic population which consists of particles such as birds, fish, and insects. Each particle in this research work is a vector composed of seven SHEM angles and in order to assess whether it can be a potential global solution or not, it is evaluated with a fitness function. The particles search the problem space via cognitive and social interaction by pursuing the current optimum particles. The personal best location (pbest) is defined as the coordinates of the particle which is associated with the best personal fitness value acquired so far. The global best location (gbest), however, is defined as the location with the best fitness value which all of the population has reached. In each time frame, each particle updates its velocity towards its pbest and gbest locations. Separate random numbers [38] are employed to weight the total acceleration terms of local and global searches. The velocity, vi, and position, xi, update equations are as given in (8) and (9), respectively.
v i ( t + 1 ) = K × [ β v i ( t ) + c 1 × r a n d × ( p b e s t i ( t ) x i ( t ) ) + c 2 × r a n d × ( g b e s t ( t ) x i ( t ) ) ]
x i ( t + 1 ) = x i ( t ) + v i ( t + 1 ) × Δ t
where, β is the inertia weight which dictates the velocity of the particles in the next time frame, the acceleration constants c1 and c2 are, respectively, the cognition and social factors which are, respectively, related to the diversification and intensification of the search procedure. rand is chosen as a random number between 0 and 1, which defines the explorative capability of the particle over the search space, and K is the constriction factor to guarantee the convergence of the algorithm given in (10), which has been found in [38].
K = 2 | 2 φ φ 2 4 φ |
where, φ = c 1 + c 2 and φ > 4 .

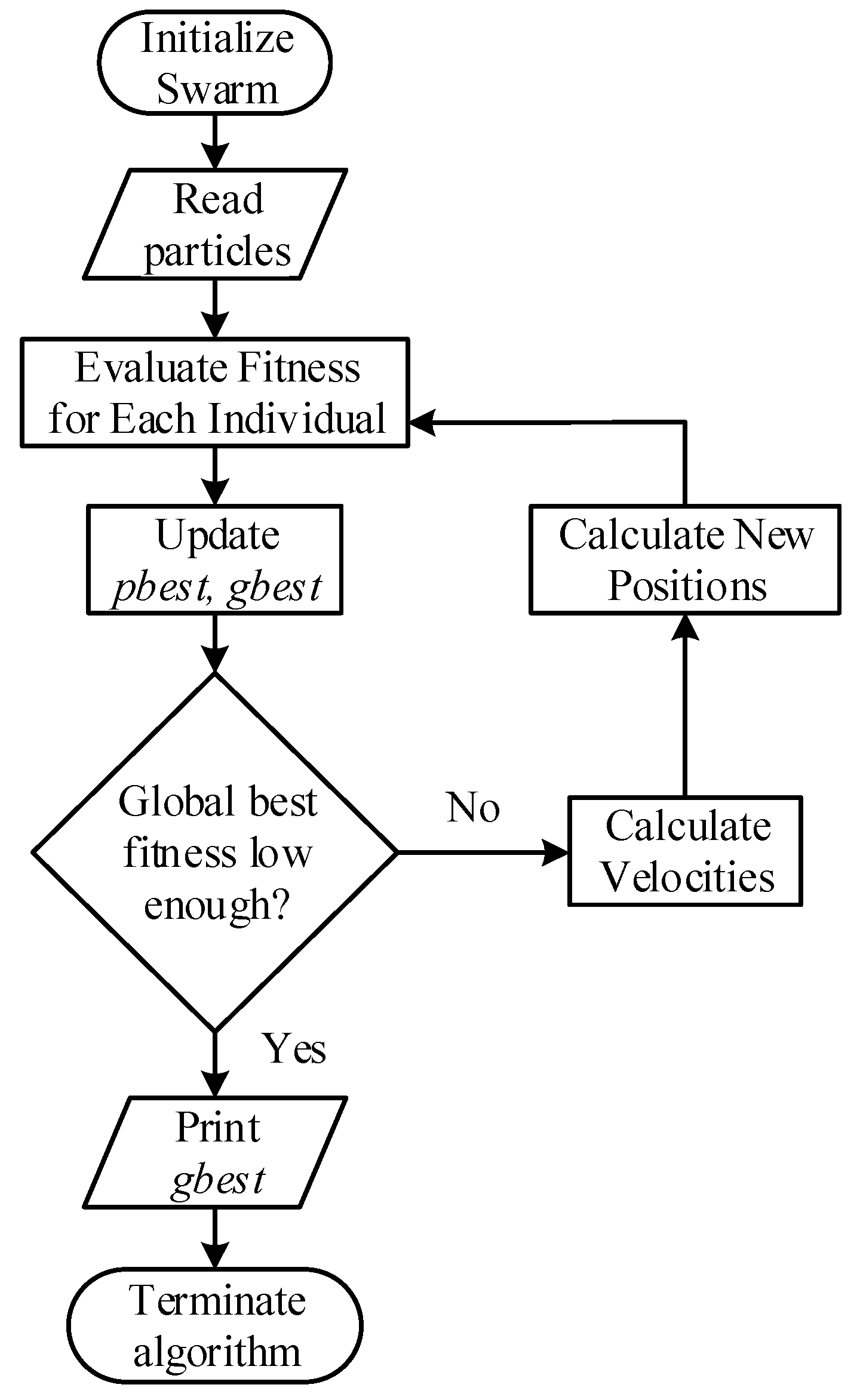

Figure 4 shows the basic flowchart of the PSO algorithm. Whenever the global best fitness, f, reaches a value less than a prespecified limit, e.g., f = 1 × 10−9 in this application, the algorithm terminates for each PSO calculation window.

3.2. Determination of Cost Function

In this application, the TLN1 technique is chosen to eliminate the six lowest-order sidekick harmonics, given as the 5th, 7th, 11th, 13th, 17th, and 19th, in the output voltage waveform of the inverter since even-order harmonics are not present if an odd quarter-wave symmetric pattern is used, and all triplen harmonics are eliminated in the line-to-line voltages for a three-phase, three-wire system. This results in a switching frequency of 750 Hz. For this sample application, the equation set in (11) is to be solved.
A new set of equations given in (12) is obtained by rearranging equations in (11) and using the M expression given in (7). The cost function Tn, and the fitness value, f, of a SHEM angle set can be expressed by squaring the left hand sides of the equations in (12) and then summing them up as given in (13). In (13), γ should be set to a value higher than 10 to converge the solution more rapidly. Furthermore, T1 in (12) has crucial importance in determining Vc and hence adjusting Qs to the prespecified set value.
b 1 = 4 π   V d c 2 [ 1 2 k = 1 7 ( 1 ) k cos ( α k )   ] = V ^ c b n = 4 n π   V d c 2 [ 1 2 k = 1 7 ( 1 ) k cos ( n α k )   ] = 0
where, V ^ c = 2 V c is the peak value of the fundamental line-to-neutral voltage at the inverter output, Vdc is the DC link voltage, bn is the peak value of the nth harmonic component (n = 5, 7, 11, 13, 17, and 19) as given in (2), and αk is the SHEM angle to be determined for k = 1, 2, …, 7.
T 1 = 1 [ 2 k = 1 7 ( 1 ) k cos ( α k ) ] M = 0 T n = 1 [ 2 k = 1 7 ( 1 ) k cos ( n α k ) ] = 0
f = μ ( γ T 1 2 + T 5 2 + T 7 2 + T 11 2 + T 13 2 + T 17 2 + T 19 2 )
where γ and µ are the penalty values, respectively, for M and the angle constraint in (14).
0 < α 1 < α 2 < α 3 < α 4 < α 5 < α 6 < α 7 < π 2
µ can be set to 10 for this sample application in order to eliminate invalid SHEM angle sequences rapidly during the on-line application of SHEM.

3.3. Results of the PSO Algorithm

The parameters used in the PSO algorithm are first optimized in the MATLAB environment. Among these, the most important parameters affecting how fast the PSO algorithm converges are the swarm size, s, and the number of time frames, Ntf. The variations in fitness value, f against s, and Ntf are given in Figure 5 and Figure 6, respectively. The ideal value of f is zero. From Figure 5 and Figure 6, the optimum swarm size and number of time frames are chosen to be s = 250 and Ntf = 200, which correspond to a decadic logarithmic error, i.e., log10 f = −9. The optimized and default values of all parameters used in the PSO algorithm are as given in Table 2. SHEM angles from α1 to α7 are found against M by running the PSO algorithm in the MATLAB environment with optimized parameters in Table 2.
Random initialization of the PSO algorithm at time t = 0 (at start-up) can be made by utilizing the constraints defined for the problem by equating the initial value of M and hence the fundamental component of inverter’s output voltage to zero. Randomly chosen initial values usually cause convergence of the solution to a local minimum, especially for large numbers of SHEM angles, N. When the problem is generalized to eliminate all odd-order power system harmonics up to the 50th according to IEEE Std. 519-2014 [39] and IEC 61000-4-30 [40], the initial values of N number of SHEM angles can be distributed in the range of either,
  • Case (I) from 0 to ξ = 90°, or
  • Case (II) from 0 to ξ = 60°,
with respect to the zero crossing point on the rising edge of the fundamental line-to-neutral voltage waveform. Initial values of N number of SHEM angles can therefore be determined from the first equation in (12) by setting M to zero as given in (15).
M = 1 + 2 cos ( α 1 ) 2 cos ( α 2 ) + 2 cos ( α 3 ) 2 cos ( α 4 ) + + 2 cos ( α N 2 ) 2 cos ( α N 1 ) + 2 cos ( α N ) = 0
In case (I), the SHEM angles are distributed between 0 and 90°, where the first SHEM angle α1 is set to zero, and the last angle αN to 90°. The angles from α2 to αN−1 are distributed to p sections, where p = (N + 1)/2, so as to eliminate pairwise the remaining cosine terms in (15). For N = 7, in the case study, α1 = 0, α2 = α3 = 15°, α4 = 60°, α5 = α6 = 75°, and α7 = 90°. In order to cancel out the first term (−1) in (15), α4 is set to 60°. Although the initialization procedure with M = 0 for case (I) which distributes SHEM angles over the quarter wave from 0 to 90° gives quite accurate results on the PSO algorithm for a low number of harmonics to be eliminated (for N = 3, 5, 7, and 9), this is not true for N > 9. However, in case (II), the SHEM angles are distributed between 0 and 60°, i.e., the last SHEM angle should be set to 60°, thus canceling the first term in (15). On the other hand, angles α1 to αN-1 are evenly distributed to p = (N + 1)/2 sections so as to cancel pairwise the remaining cosine terms. The generalization procedure for initial values of SHEM angles for case (II) is summarized in Table 3. The initialization procedure in case (II) is simpler and more general than that of case (I).
There may be more than one solution for SHEM angles for any number N between 3 and 17. As an example, for N = 7, the optimum values of SHEM angles (α1, α2, … α7) and the corresponding fitness values as a function of M are obtained by distributing the initial values in the range from 0 to 90° (case (I)) as given in Table 4. However, Table 5 shows the optimum values of SHEM angles and fitness values for the same problem when the initial values of those angles are chosen according to the generalized procedure in Table 3 (case (II)). As can be understood from Table 4 and Table 5, the optimum values of SHEM angles are different for the same problem owing to the use of different initial values. Since the f values are very low, both solutions can be considered to be the global optimum points found by the PSO algorithm.
Much lower f values could be obtained by using time frames higher than 200 (Table 2) at the expense of a longer execution time. In this research work, the results given in Table 4 are used in the implementation.
The control range of M is divided into three subregions:
(a)
Impractical M values in which the difference between any two consecutive SHEM angles is less than 0.1°. The associated M values and the critical angles are marked by red color boxes in Table 4 and Table 5. As an example, the typical turn-off times for 1700 V 300 A SiC power MOSFET and HV IGBT are nearly 0.27 μs and 1.8 μs, respectively. Deadbands of 0.5 μs and 3 μs can be chosen in the implementation for these power semiconductors. These values for deadbands correspond to ~0.01° and ~0.06° for 50-Hz grid applications, respectively. In higher power applications, IGCT (alternatively ETO) requires a nearly 10-µs deadband, which corresponds to ~0.2°. Therefore, operation at M ≥ 0.95 is impractical for all power semiconductors.
(b)
M ≤ 0.10 and 0.9 ≤ M < 0.95 values are not recommended for implementation especially for Si IGBTs, which are marked by yellow color circles in Table 4 and Table 5.
(c)
The remaining M control range in Table 4 and Table 5 defines safe operating M values.
In order to justify the usefulness of the PSO algorithm and the generalized initialization procedure in applying SHEM for the elimination of odd-order power system harmonics up to the 50th, optimum SHEM angles have been found for N = 7, 9, 11, 13, 15, and 17, and sample results corresponding to M = 0.7 are given in Table 6. The results of these analyses show that the PSO algorithm can be successfully used in an on-line application of SHEM provided that powerful computing hardware is available for each case.

4. On-Line Application of SHEM to a Small-Scale PV Supply

SHEM is applied on-line by PSO to a laboratory prototype of a small-scale PV supply consisting of a two-level, three-phase, and grid-connected IGBT inverter with variable DC link voltage. It performs direct power conversion to the AC grid, and is equipped with a FPGA-based digital control system. If the PV inverter were connected to the PV array via a boost-type DC-DC converter, a DC link voltage control strategy could be adopted for reducing the TDD in grid-connected PV inverters as recommended in [41].

4.1. Description of the Laboratory Prototype

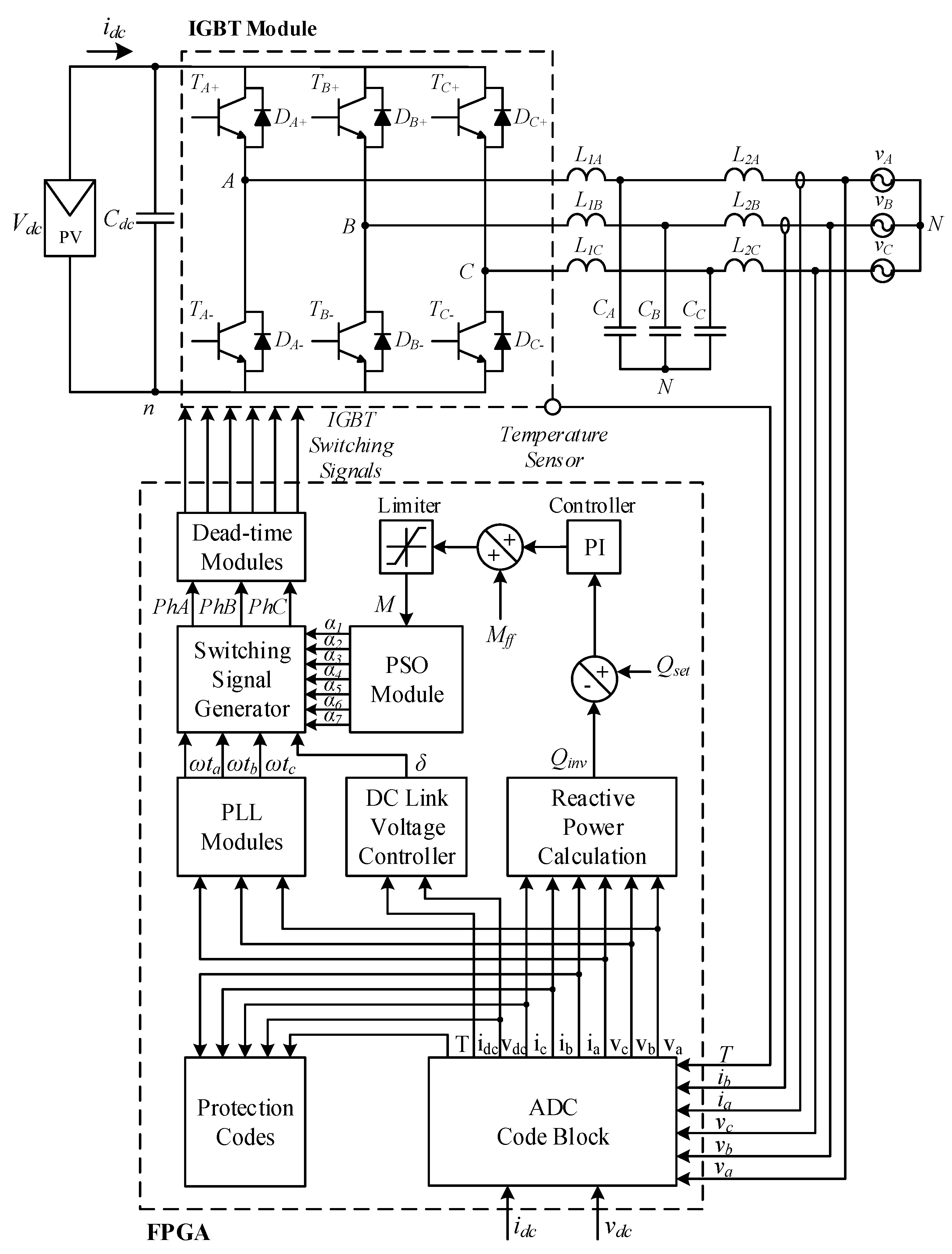

The circuit diagram of the power stage and block diagram of the prototype’s FPGA-based controller is given in Figure 7. An IGBT module (SKiiP 12AC12T4V1), a DC link capacitor, and an FPGA board are mounted on a common printed circuit board (PCB). The controller features are (a) elimination of selected harmonics (5th, 7th, 11th, 13th, 17th, and 19th) in the output voltage waveforms of the voltage source inverter (VSI), (b) maximum power-point tracking, and (c) reactive power control. The PCB of the laboratory prototype, the grid connection of the PV inverter through an LCL filter, and the flat-roof mounted thin-film PV arrays are shown in Figure 8.
In order to implement the worst operating condition in the laboratory, i.e., a step change in Vdc from 600 V to 900 V, the power stage is supplied from a solar simulator (Chroma 62150H-1000S) and Qset in Figure 7 is set to zero for unity power factor operation. However, for steady-state operation, the power stage is supplied from the thin-film PV array shown in Figure 8c.

4.2. FPGA Implementation of On-Line SHEM

In order to apply the on-line SHEM to the grid-connected, two-level, three-phase VSI, powerful computing hardware having very fast computational capability, a parallel operation ability, and a sufficient number of input/output (I/O) ports is required. In the sample application, all calculation steps of the seven SHEM angles by the PSO algorithm and the necessary control actions should be completed in a time period of less than a complete cycle (20 ms for a 50-Hz application). The numbers of digital inputs to the computing hardware and outputs which will be applied to the gate driver circuits of the power stage are, respectively, 8 and 6 as shown in Figure 7. The timing diagram in Figure 9 summarizes the operational principles of the sample system in Figure 7, including all control actions and on-line application of SHEM. All of these functions are performed by only one common FPGA board. The phase-locked loop (PLL) modules of all phases run for each 20-μs period. The instantaneous reactive power, Qinv, is calculated in each 20-μs period to update M. The PSO module is running in synchronism with the phase A supply line-to-neutral voltage waveform to calculate SHEM angles in every positive half-cycle of van. New SHEM angles for the power semiconductors of the inverter circuit are then updated only once in the next full-cycles of the vcn, van, and vbn voltage waveforms successively in order to avoid generation of DC and even-order voltage harmonics. On the other hand, the MPPT algorithm runs continuously to update δ every second.
In this research work, an XEM6010-LX150 USB-2.0-integrated FPGA module from Opal Kelly is chosen in the implementation which satisfies the requirements mentioned above [42]. This module consists of a Xilinx Spartan-6 XC6SLX150-2FGG484 FPGA to perform all control actions of the VSI together with an analog-to-digital converter (ADC) μchip (ADC128S102) [43].

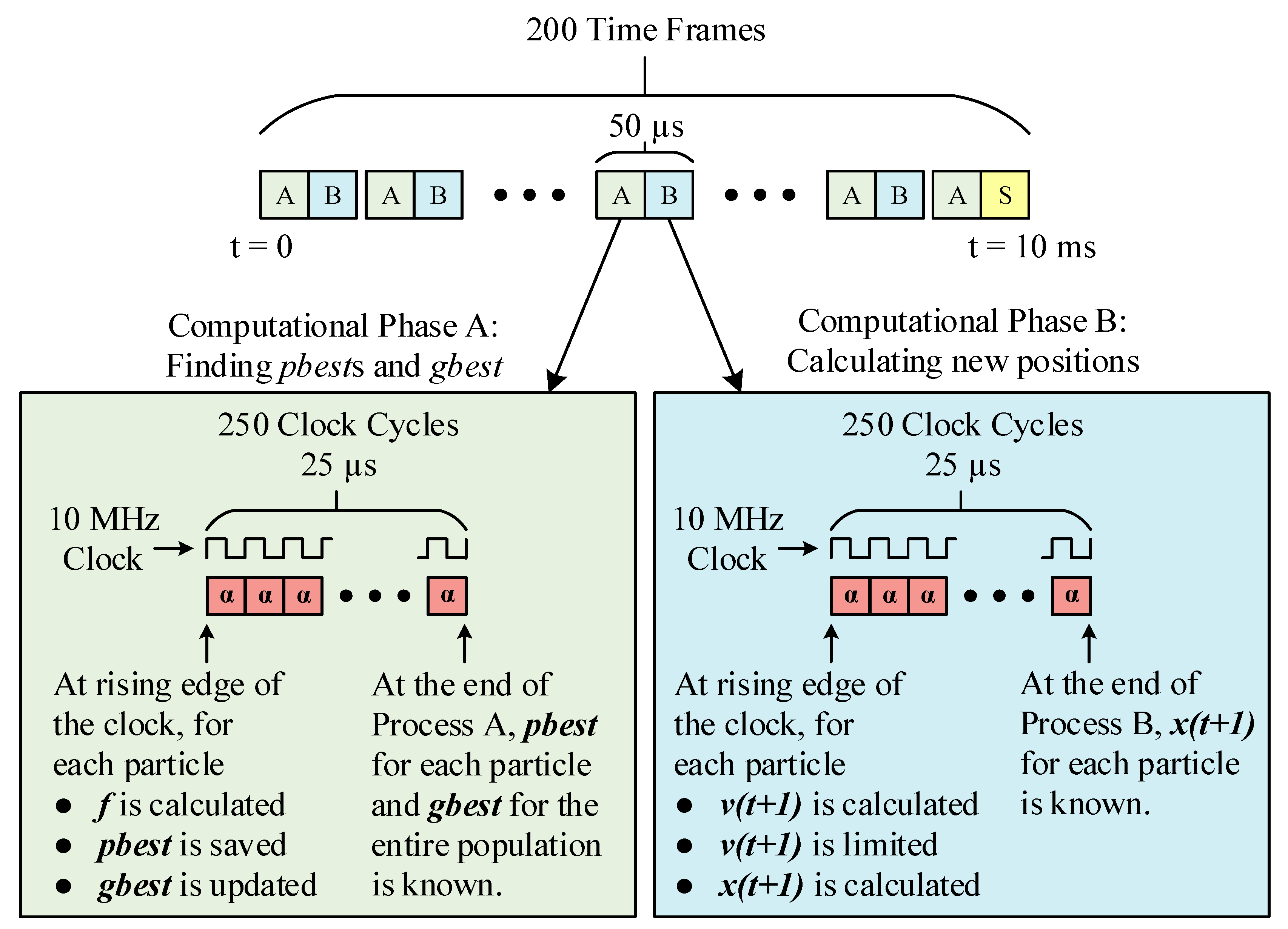

The implementation of the on-line SHEM was realized by utilizing a fixed-point library in the very high level design language (VHDL) code. The developed software is composed of two parts, one of which performs calculations sequentially, while the other carries out parallel operations. VHDL code runs at a 10 MHz system clock frequency, while the RAM blocks should run at a maximum 30 MHz clock frequency in order to be able to follow the operations in one clock period. The flow of the PSO algorithm is as illustrated in Figure 10. In this research work, it is aimed at determining SHEM angles α1 to α7 in a time period less than or equal to 10 ms. For this purpose, the 10 ms time period is divided into 200 time frames. Each time frame can be considered as an iteration in two steps, A and B. Therefore, each iteration will take 50 µs of time. In the first phase, A, in Figure 10 of each iteration, (12)–(14) are solved in a consecutive manner for 250 individuals, whereas for each individual the same equations are solved simultaneously. Each iteration in phase A utilizes values for SHEM angles obtained in phase B in the previous iteration as being their initial values.
At the end of phase A of each iteration, the pbest values in (8) for 250 individuals and the gbest value in (8) for the population are calculated. As can be seen from the velocity update Equation (8), the algorithm uses two random numbers between 0 and 1 for random searching of particles in the search space. For this reason, random number generation has been employed in the VHDL code by using a pseudo random number generator (PRNG) [44].
A linear feedback shift register (LFSR) is a PRNG using sequential shift registers to produce binary random numbers in a certain periodic sequence, whose period can be increased by using more registers. Therefore, a more random sequence with respect to the frame of the algorithm can be acquired [45]. A 12-bit LFSR was used for this purpose in the code. In phase B of the same iteration, the velocity in (8) and new positions in (9), i.e., new α1 to α7, are calculated for each individual consecutively. The new positions for 250 individuals will then be applied to the phase A of the next iteration as the initial values. In phase A of the last iteration step, the 200th iteration, 250 SHEM angle sets, one for each individual, are obtained and among these the one having the lowest fitness value (gbest) is chosen as the solution of the problem in phase S of the 200th time frame in Figure 10. These are the updated SHEM angles (e.g., those calculated in the green-colored PSO module box in Figure 9) that will be applied to gate driver circuits of the power stage in the next full-cycles of the vcn, van, and vbn voltages as illustrated by green-colored arrows in Figure 9.

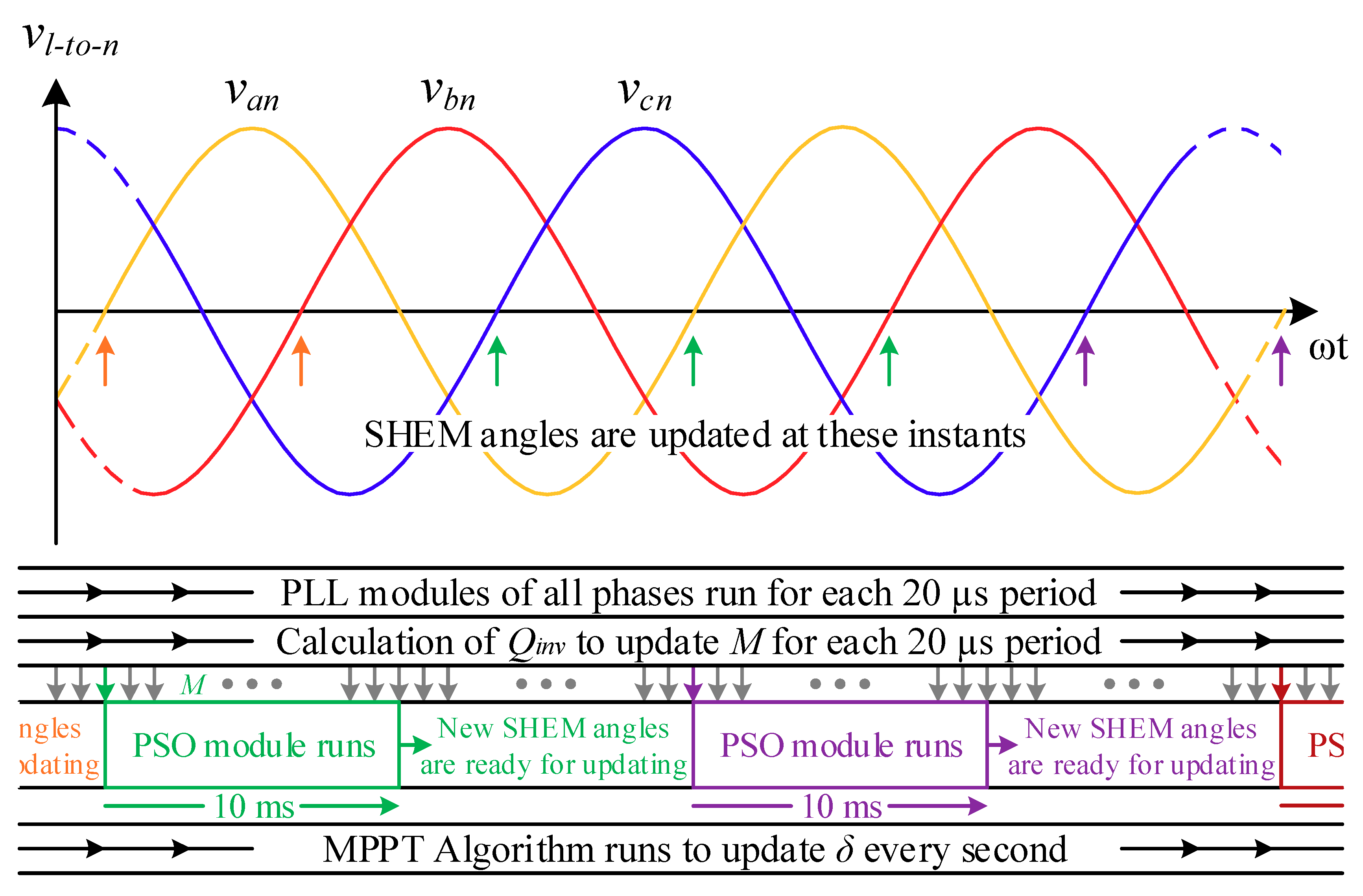

In the next positive half-cycle of the line-to-neutral voltage van (e.g., the violet-colored PSO module box in Figure 9), the PSO algorithm starts to run afresh regardless of whether the value of M remains the same or not. The PSO algorithm is initialized according to the lattice diagram given in Figure 11. Note that this diagram is a generalized one to cover all possibilities for N from 3 to 17. The first individual is the swarm leader, which tends to guide other individuals towards the solution. To initialize the PSO algorithm in the new positive half-cycle, the first individual utilizes the final values of the SHEM angles α1 to αN calculated in the previous positive half-cycle as the initial values of α1 to αN.
Only the initial value vectors corresponding to the 2nd and 250th individuals are marked on Figure 11, while the others are evenly distributed according to the lattice structure. The maximum SHEM angle ξ can be chosen as either 60° or 90°. In the prototype system, N = 7 and ξ = 90° were used. The performance of the FPGA implementation of on-line SHEM is verified in the following subsection experimentally by applying a step variation to M from 0.1 to 0.9.

4.3. Hardware Co-Simulation Results

The FPGA program written in VHDL code is run in real-time to determine the system clock frequency limits and to verify the correct operation of primarily the PSO submodule and secondarily the PLL, DC link voltage controller, and reactive power calculation submodules via Opal Kelly’s FrontPanel interface. In order to observe the performance of the on-line application of SHEM, a step change is given to M from 0.1 to 0.9 in the PSO module and the resulting responses of the SHEM angles α1 to α7 are recorded by using a digital storage oscilloscope (DSO) through digital-to-analog converters (DACs). The step change in M from 0.1 to 0.9 corresponds to a variation in Vdc much wider than 900 to 600 V. This is because M would vary in the range from 0.5 to 0.9 for a Vdc variation range from 900 V to 600 V in the field application.

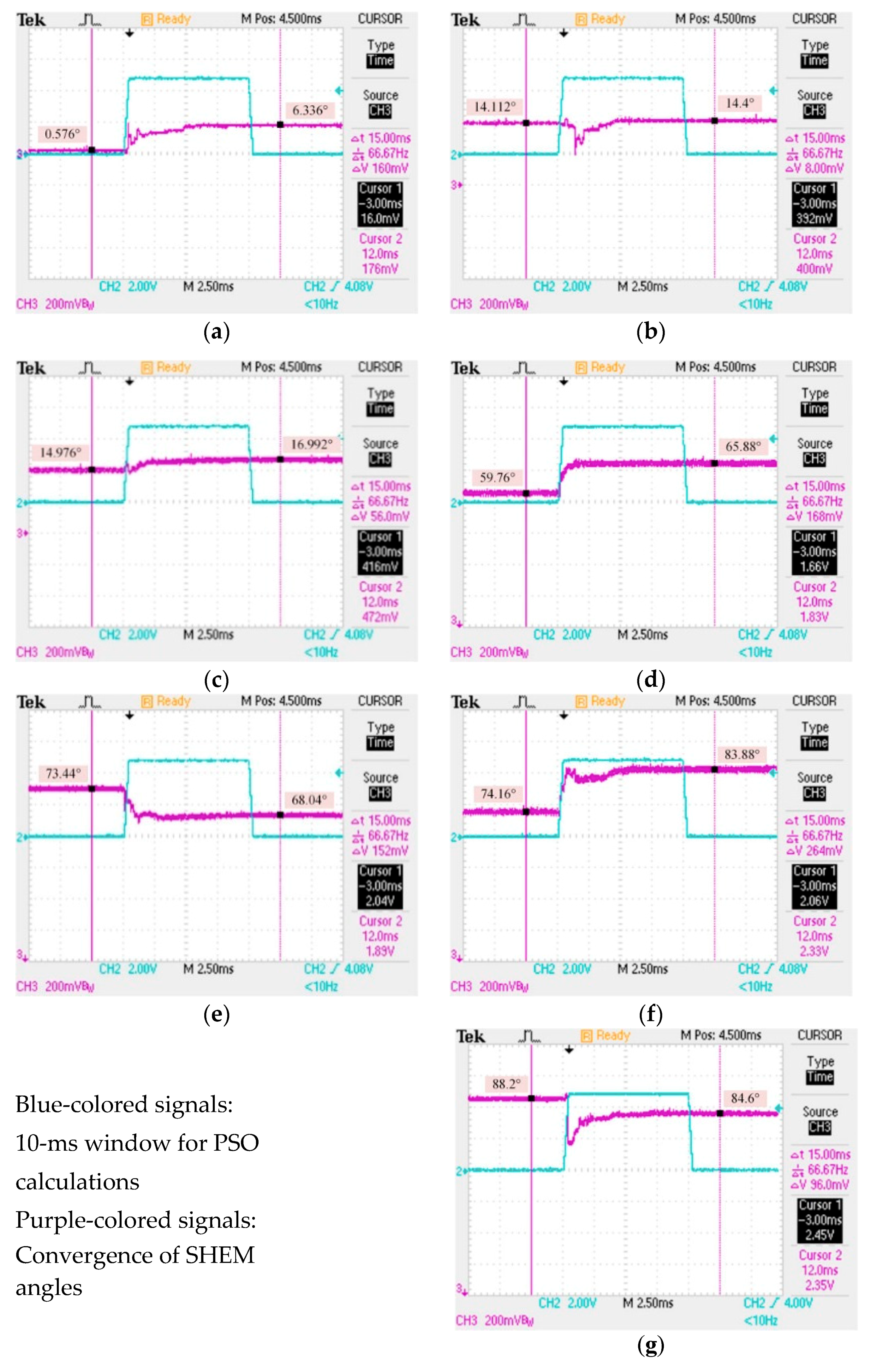

The responses of the PSO module against the step change in M are as given in Figure 12 in both the transient-state and the steady-state. The 10-ms window, which corresponds to a half-cycle of 50 Hz grid voltage, is marked by a blue-colored pulse. Steady-state values of SHEM angles read on the DSO screen for M = 0.1 and 0.9 are also marked by purple-colored pulses on the records given in Figure 12. These records show that on-line calculation of SHEM angles by the PSO algorithm works rapidly and successfully, and in nearly 5 ms of time the SHEM angles α1 to α7 reach their final values even for a drastic step variation of M from 0.1 to 0.9.
In the hardware co-simulation test, the SHEM angles determined by the PSO module are also captured from Opal Kelly’s FrontPanel interface for different values of M in the range from 0.1 to 0.9 as given in Table 7. It is worth noting that the SHEM angles in Table 7 are more accurate than the corresponding DSO readings. That is the main reason why the steady-state values of SHEM angles for M = 0.1 and 0.9 in Figure 12 are slightly different from the corresponding values in Table 7. Fitness values of SHEM angle calculations against M variations are given in the last column of Table 7.
In the implemented system, higher f values have been obtained in comparison with the target fitness value of f = 1 × 10−9 in Figure 5 and Figure 6. This is attributed to the fact that the random number generator in the FPGA module is implemented to produce 12-bit random numbers and SHEM angles are realized as 24-bit fixed-point logic vectors. Twenty-four-bit random number generation and 32-bit fixed-point logic vector usage would give much lower f values. Nevertheless, when the SHEM angles calculated by the FPGA and corresponding to the worst case fitness value of 2.489 × 10−4 in Table 7 are applied to the MATLAB model of the PV supply, the individual low-order 5th, 7th, 11th, 13th, 17th, and 19th harmonic contents of the output line-to-line voltage waveform are found to be less than 0.5% with respect to the fundamental value. Thus, the fitness values in Table 7 are found to be quite acceptable in this application.

4.4. Limitations of Computing Hardware in On-line Application of SHEM

In this research work, on-line application of SHEM is implemented by using a XEM6010-LX150 USB-2.0-integrated FPGA module containing a Xilinx Spartan-6 XC6SLX150-2FGG484 FPGA to calculate seven SHEM angles continuously. Table 8 shows the utilization report of the chosen FPGA while running only the PSO code and also the total code including all control and protection actions. As can be understood from the last row of Table 8, the chosen FPGA is working at its limit from the viewpoint of the number of DSP48A1 slices. Each DSP slice contains an 18-bit × 18-bit multiplier and a 48-bit accumulator to perform high-performance arithmetic and signal-processing actions.
One hundred and five DSP slices have been used to run the PSO code and 177 of the available 180 DSP slices have been used to run the total code in each half-cycle of the supply voltage waveform. It is obvious that in order to calculate a higher number of SHEM angles up to 17, high-performance computing is required. This can be achieved either by (a) using a much more powerful FPGA chip, which has much higher DSP slices, such as 740, 1920, and 3600, than the one used in the research work, (b) operating more than one moderately powerful FPGA for parallel computing, or (c) using a proper GPU together with a real-time operating system.

4.5. Field Test Results

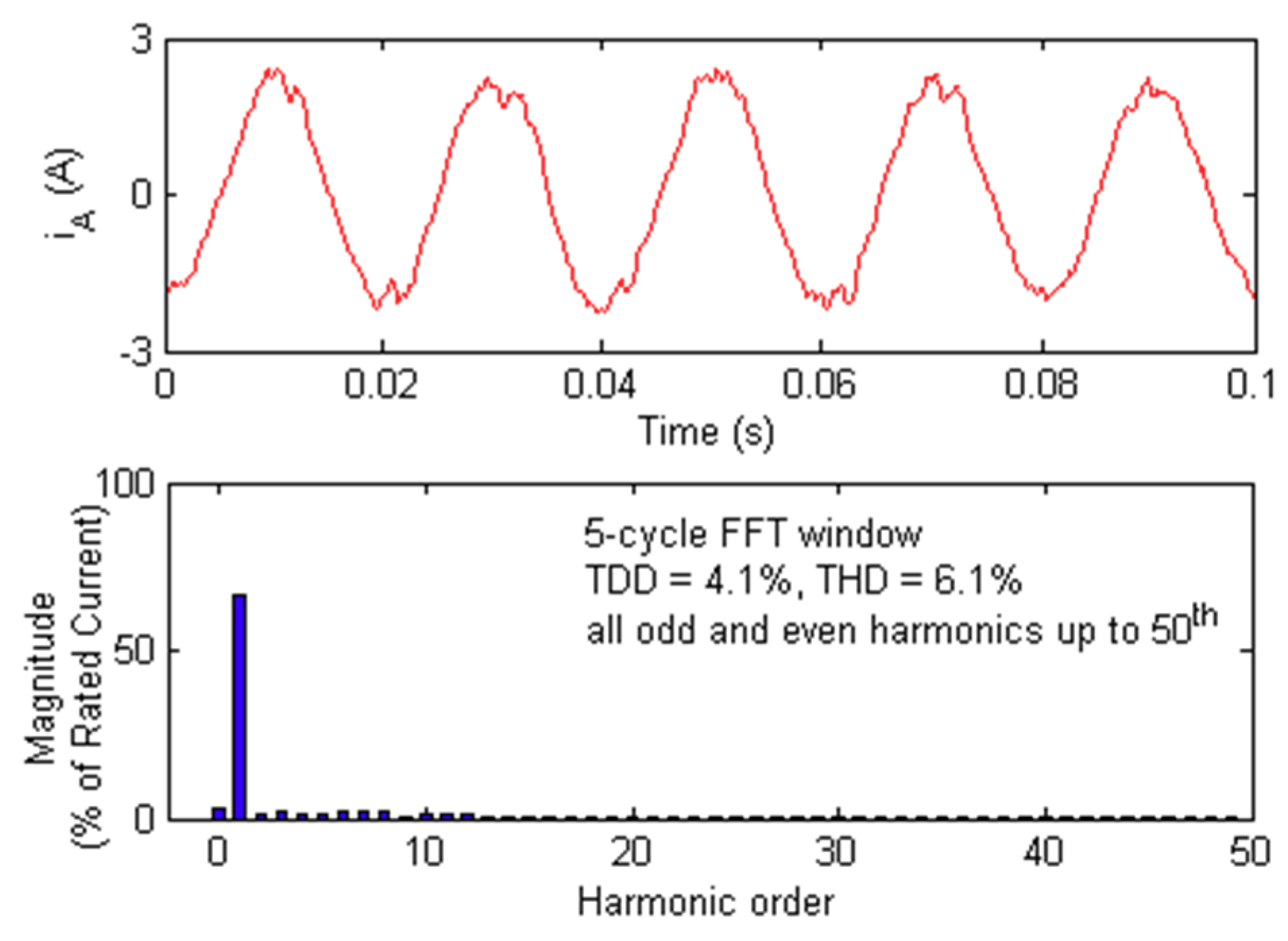

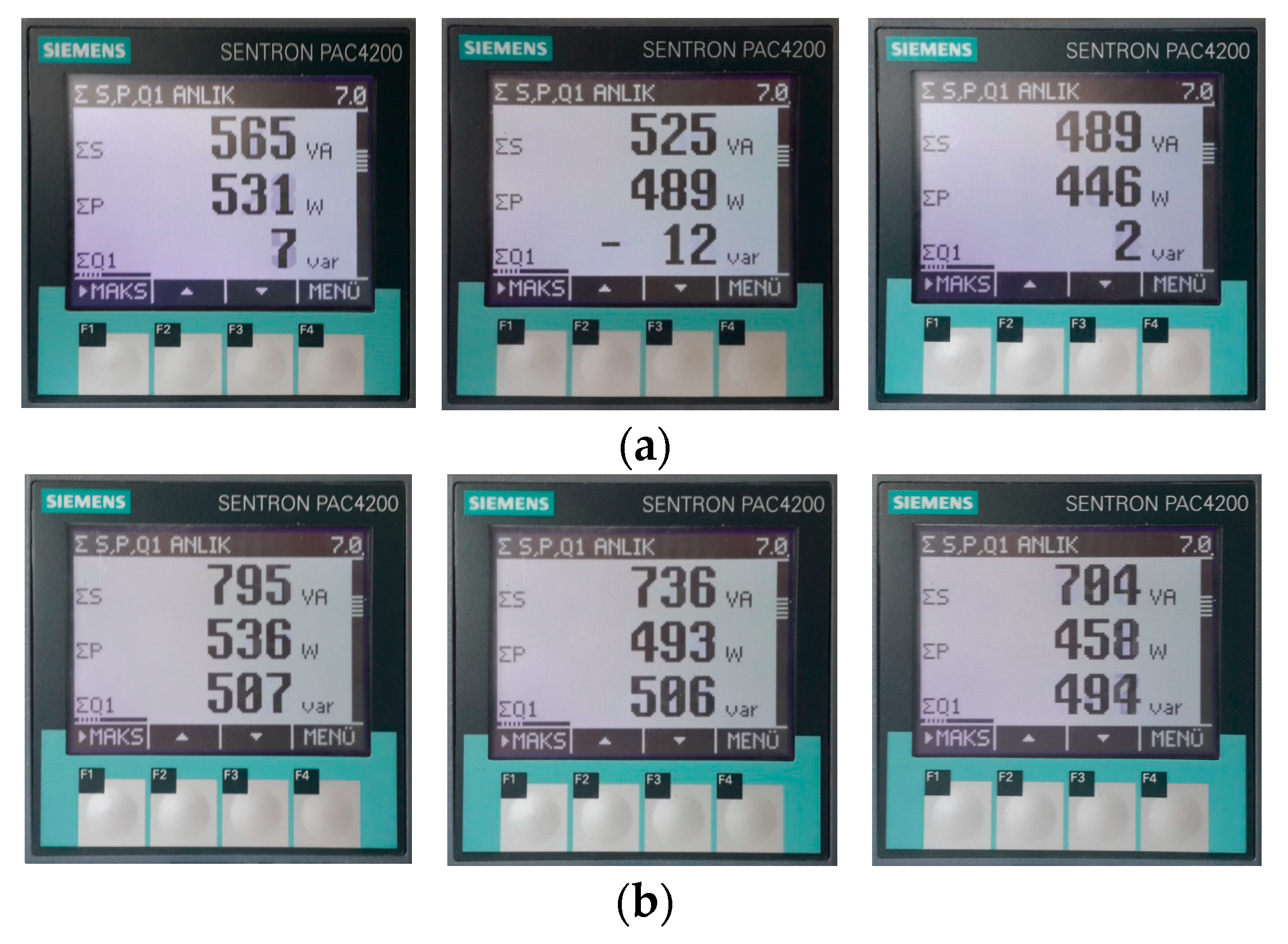

The field performance of the real-time SHEM angle calculations by the PSO algorithm has been obtained on the prototype of a small-scale, grid-connected PV supply in Figure 8a with direct DC-to-AC conversion. Line-to-line voltage waveforms of the PV inverter and the corresponding harmonic voltage spectra are given in Figure 13 and Figure 14 when Vmpp = Vdc = 560 V and 667 V, respectively. These results show that the recommended method eliminates the target low-order harmonics (n ≤ 19) successfully. For elimination of all odd-order harmonics up to the 49th, 17 SHEM angles, instead of seven, are to be calculated on-line by using a PSO algorithm with higher computational complexity and more powerful digital computing hardware. This would increase the switching frequency from 750 Hz to 1750 Hz according to (1).
The 400-V line-to-line grid bus to which the prototype PV supply delivers power is slightly distorted (THD   1.8%) owing to the presence of the 3rd, 5th, and 7th harmonic voltage components. The line current waveform injected into the grid and its harmonic spectrum are as shown in Figure 15 when the PV supply delivers 800 VA to the grid at 0.8 p.f. lagging (the inverter is operating in its capacitive region). Although the TDD of the line current for the given test conditions is 4.1%, it contains some low-order harmonics, such as the 3rd, 5th, and 7th, which are not produced by the PV inverter, but sinked by the LCL filter tuned to 291 Hz and connected to the grid terminals. Harmonic current contributions of the PV inverter and the grid can be separated by using the method recommended in [46,47]. If the grid voltage waveform were a less distorted one, the TDD of the line current waveform would be much lower than 5%.
Since the reactive power delivered to the grid is determined by Q control loop and SHEM angles, and hence the magnitude of the fundamental component of the inverter’s output voltage, the performance of the resulting system is tested in the field for different Qset values. Since in this application of instantaneous p-q theory only the average values of vd, vq, id, and iq are taken into account, Q and Qset are the actual and set values of the reactive power at 50-Hz supply frequency, respectively. Figure 16 shows the readings of an energy analyzer corresponding to Qset = 0 and Qset = 500 VAr. In these snapshots, the apparent power and active power readings include also harmonic effects, while the Q values are calculated only from the fundamental components. These results show the success of the PSO module, DC link voltage, and reactive power controller blocks.

5. Conclusions

An off-line application of SHEM provides stepwise control of SHEM angles resulting in minimization of the selected harmonic components instead of their elimination. However, in the on-line application, switching angle sets can be continuously controlled by on-line calculation of SHEM angles, resulting in much better harmonic elimination performance and minimization of THDs. As reported in this paper for the first time, the six low, odd-order voltage harmonics of a grid-connected VSI with variable DC link voltage in a small-scale PV supply are eliminated on-line by using the developed PSO algorithm running on am FPGA controller successfully. The global best solution of the PSO algorithm is obtained with 250 individual particles, i.e., switching angle sets, within 200 time frames, resulting in a relatively small fitness value in the range from 10−7 to 10−4 depending on the modulation index, M. For a step change in M, all switching angles converge to the solution within a time period less than one half-cycle of the grid voltage, thus updating the switching instants of power semiconductors in every full-cycle of the output voltage.
In order to eliminate all voltage harmonics up to the 50th continuously and rapidly, very powerful digital computing hardware is needed. This is an important requirement especially for variable frequency traction and industrial AC motor drives, where the motor drive is to be operated frequently at frequencies much higher than the rated frequency. In general, the maximum number of harmonics that can be eliminated or minimized in SHEM applications is dictated by the operational capabilities of power semiconductors employed in the VSC, such as the optimum switching frequency and turn-on and turn-off times. As an example, an SiC power MOSFET, as a wide-band-gap device permits the elimination of a number of harmonics much higher than that of IGBT-based VSCs in an on-line application of SHEM. Each recorded harmonic is the vectorial sum of the harmonic current component injected by the PV supply, and the associated one sinked by the LCL filter from the grid. Therefore, the harmonic current contribution of the prototype system can be assessed only by using a proper measurement and calculation method. On the other hand, the elimination of a much higher number of harmonics at the expense of a higher switching frequency would reduce significantly the size of the LCL filter and hence the amount of low-order harmonics sinked from the grid.

Author Contributions

U.G. carried out all necessary derivations and implemented the FPGA-based grid-connected inverter operated by SHEM. M.E. and I.Ç. conceived of the presented idea and contributed to the application of SHEM to the grid-connected PV inverter. All authors discussed the results and contributed to the final manuscript.

Funding

This research received no external funding

Acknowledgments

The PV panels and all electronic components used in this research work were provided by the TÜBİTAK MAM Energy Institute, Ankara Branch.

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Wu, B. High-Power Converters and AC Drives; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  2. Kaviani, A.K.; Fathi, S.H.; Farokhnia, N.; Ardakani, A.J. PSO, an Effective Tool for Harmonics Elimination and Optimization in Multi-Level Inverters. In Proceedings of the 2009 4th IEEE Conference on Industrial Electronics Applications, Xi’an, China, 25–27 May 2009; pp. 2902–2907. [Google Scholar]
  3. Tang, T.; Han, J.; Tan, X. Selective Harmonic Elimination for a Cascade Multilevel Inverter. In Proceedings of the IEEE International Symposium on Industrial Electronics, Montreal, QC, Canada, 9–13 July 2006; Volume 2, pp. 977–981. [Google Scholar]
  4. Guan, E.; Song, P.; Ye, M.; Wu, B. Selective Harmonic Elimination Techniques for Multilevel Cascaded H-bridge Inverters. In Proceedings of the 2005 International Conference Power Electronics and Drives Systems, Kuala Lumpur, Malaysia, 28 November–1 December 2005; Volume 2, pp. 1441–1446. [Google Scholar]
  5. Aghdam, M.G.H.; Fathi, S.H.; Gharehpetian, G.B. Elimination of Harmonics in a Multi-Level Inverter with Unequal DC Sources Using the Homotopy Algorithm. In Proceedings of the 2007 IEEE International Symposium on Industrial Electronics, Vigo, Spain, 4–7 June 2007; pp. 578–583. [Google Scholar]
  6. Kato, T. Sequential Homotopy-Based Computation of Multiple Solutions for Selected Harmonic Elimination in PWM Inverters. IEEE Trans. Circuits Syst. I Fundam. Theory Appl. 1999, 46, 586–593. [Google Scholar] [CrossRef]
  7. Sun, J.; Beineke, S.; Grotstollen, H. Optimal PWM based on real-time solution of harmonic elimination equations. IEEE Trans. Power Electron. 1996, 11, 612–621. [Google Scholar]
  8. Kumar, J.; Das, B.; Agarwal, P. Selective Harmonic Elimination Technique for a Multilevel Inverter. In Proceedings of the 15th National Power Systems Conference (NPSC), Maharashtra, India, 16–18 December 2008; pp. 608–613. [Google Scholar]
  9. Tolbert, L.M.; Peng, F.Z.; Habetler, T.G. Multilevel converters for large electric drives. IEEE Trans. Ind. Appl. 1999, 35, 36–44. [Google Scholar] [CrossRef]
  10. Sun, J.; Grotstollen, H. Pulsewidth Modulation Based on Real-Time Solution of Algebraic Harmonic Elimination Equations. In Proceedings of the 20th International Conference on Industrial Electronics, Control and Instrumentation, Bologna, Italy, 5–9 September 1994; Volume 1, pp. 79–84. [Google Scholar]
  11. Li, L.; Czarkowski, D.; Liu, Y.; Pillay, P. Multilevel selective harmonic elimination PWM technique in series-connected voltage inverters. IEEE Trans. Ind. Appl. 2000, 36, 160–170. [Google Scholar] [CrossRef]
  12. Liang, T.-J.; O’Connell, R.M.; Hoft, R.G. Inverter harmonic reduction using Walsh function harmonic elimination method. IEEE Trans. Power Electron. 1997, 12, 971–982. [Google Scholar] [CrossRef]
  13. Chiasson, J.N.; Tolbert, L.M.; McKenzie, K.J.; Du, Z. Control of a multilevel converter using resultant theory. IEEE Trans. Control Syst. Technol. 2003, 11, 345–354. [Google Scholar] [CrossRef]
  14. Chiasson, J.N.; Tolbert, L.M.; McKenzie, K.J.; Du, Z. A unified approach to solving the harmonic elimination equations in multilevel converters. IEEE Trans. Power Electron. 2004, 19, 478–490. [Google Scholar] [CrossRef]
  15. Elbeltagi, E.; Hegazy, T.; Grierson, D. Comparison among five evolutionary-based optimization algorithms. Adv. Eng. Inf. 2005, 19, 43–53. [Google Scholar] [CrossRef]
  16. El-Naggar, K.; Abdelhamid, T.H. Selective harmonic elimination of new family of multilevel inverters using genetic algorithms. Energy Convers. Manag. 2008, 49, 89–95. [Google Scholar] [CrossRef]
  17. Ozpineci, B.; Tolbert, L.M.; Chiasson, J.N. Harmonic Optimization of Multilevel Converters Using Genetic Algorithms. In Proceedings of the 2004 IEEE 35th Annual Power Electronics Specialists Conference, Aachen, Germany, 20–25 June 2004; Volume 5, pp. 3911–3916. [Google Scholar]
  18. Dahidah, M.S.A.; Agelidis, V.G. Generalized Formulation of Multilevel Selective Harmonic Elimination PWM: Case I-non-equal DC sources. In Proceedings of the 2006 IEEE 37th Annual Power Electronics Specialists Conference, Jeju, Korea, 18–22 June 2006; pp. 1–6. [Google Scholar]
  19. Shen, K.; Zhao, D.; Mei, J.; Tolbert, L.M.; Wang, J.; Ban, M.; Ji, Y.; Cai, X. Elimination of harmonics in a modular multilevel converter using particle swarm optimization-based staircase modulation strategy. IEEE Trans. Ind. Electron. 2014, 61, 5311–5322. [Google Scholar] [CrossRef]
  20. Hagh, M.T.; Taghizadeh, H.; Razi, K. Harmonic minimization in multilevel inverters using modified species-based particle swarm optimization. IEEE Trans. Power Electron. 2009, 24, 2259–2267. [Google Scholar] [CrossRef]
  21. Sundareswaran, K.; Jayant, K.; Shanavas, T.N. Inverter harmonic elimination through a colony of continuously exploring ants. IEEE Trans. Ind. Electron. 2007, 54, 2558–2565. [Google Scholar] [CrossRef]
  22. Kavousi, A.; Vahidi, B.; Salehi, R.; Bakhshizadeh, M.; Farokhnia, N.; Fathi, S.S. Application of the bee algorithm for selective harmonic elimination strategy in multilevel inverters. IEEE Trans. Power Electron. 2012, 27, 1689–1696. [Google Scholar] [CrossRef]
  23. Salehi, R.; Vahidi, B.; Farokhnia, N.; Abedi, M. Harmonic elimination and optimization of stepped voltage of multilevel inverter by bacterial foraging algorithm. J. Elect. Eng. Technol. 2010, 5, 545–551. [Google Scholar] [CrossRef]
  24. Bilgin, H.F.; Ermis, M. Design and implementation of a current-source converter for use in industry applications of D-STATCOM. IEEE Trans. Power Electron. 2010, 25, 1943–1957. [Google Scholar] [CrossRef]
  25. Bilgin, H.F.; Ermis, M.; Kose, K.N.; Cetin, A.; Cadirci, I.; Acik, A.; Demirci, T.; Terciyanli, A.; Kocak, C.; Yorukoglu, M. Reactive-power compensation of coal mining excavators by using a new-generation STATCOM. IEEE Trans. Ind. Appl. 2007, 43, 97–110. [Google Scholar] [CrossRef]
  26. Bilgin, H.F.; Ermis, M. Current source converter based STATCOM: Operating principles, design and field performance. Elect. Power Syst. Res. 2011, 81, 478–487. [Google Scholar] [CrossRef]
  27. Cetin, A.; Ermis, M. VSC-based D-STATCOM with selective harmonic elimination. IEEE Trans. Ind. Appl. 2009, 45, 1000–1015. [Google Scholar] [CrossRef]
  28. Gultekin, B.; Ermis, M. Cascaded multilevel converter-based transmission STATCOM: System design methodology and development of a 12 kV ± 12 MVAr power stage. IEEE Trans. Power Electron. 2013, 28, 4930–4950. [Google Scholar] [CrossRef]
  29. Atalik, T.; Deniz, M.; Koc, E.; Gercek, C.O.; Gultekin, B.; Ermis, M.; Cadirci, I. Multi-DSP and -FPGA-based fully digital control system for cascaded multilevel converters used in FACTS applications. IEEE Trans. Ind. Inf. 2012, 8, 511–527. [Google Scholar] [CrossRef]
  30. Filho, F.; Maia, H.Z.; Mateus, T.H.A.; Ozpineci, B.; Tolbert, L.M.; Pinto, J.O.P. Adaptive selective harmonic minimization based on ANNs for cascade multilevel inverters with varying DC sources. IEEE Trans. Ind. Electron. 2013, 60, 1955–1962. [Google Scholar] [CrossRef]
  31. Buccella, C.; Cecati, C.; Cimoroni, M.G.; Razi, K. Analytical method for pattern generation in five-level cascaded H-bridge inverter using selective harmonic elimination. IEEE Trans. Ind. Electron. 2014, 61, 5811–5819. [Google Scholar] [CrossRef]
  32. Tahir, S.; Wang, J.; Baloch, M.H.; Kaloi, G.S. Digital control techniques based on voltage source inverters in renewable energy applications: A review. Electronics 2018, 7, 18. [Google Scholar] [CrossRef]
  33. Alatawi, K.; Almasoudi, F.; Manandhar, M.; Matin, M. Online optimal switching frequency selection for grid-connected voltage source inverters. Electronics 2017, 6, 110. [Google Scholar] [CrossRef]
  34. Enjeti, P.N.; Ziogas, P.D.; Lindsay, J.F. Programmed PWM techniques to eliminate harmonics: A critical evaluation. IEEE Trans. Ind. Appl. 1990, 26, 302–316. [Google Scholar] [CrossRef]
  35. Terciyanli, A.; Ermis, M.; Cadirci, I. A selective harmonic amplification method for reduction of kVA rating of current source converters in shunt active power filters. IEEE Trans. Power Deliv. 2011, 26, 65–78. [Google Scholar] [CrossRef]
  36. Gultekin, B.; Gercek, C.O.; Atalik, T.; Deniz, M.; Bicer, N.; Ermis, M.; Kose, K.N.; Ermis, C.; Koc, E.; Cadirci, I.; et al. Design and implementation of a 154-kV ± 50-Mvar transmission STATCOM based on 21-level cascaded multilevel converter. IEEE Trans. Ind. Appl. 2012, 48, 1030–1045. [Google Scholar] [CrossRef]
  37. Kennedy, J.; Eberhart, R. Particle swarm optimization. In Encyclopedia of Machine Learning; Springer: Boston, MA, USA, 1995; Volume 4, pp. 1942–1948. [Google Scholar]
  38. Eberhart, R.C.; Shi, Y. Particle Swarm Optimization: Developments, Applications and Resources. In Proceedings of the 2001 Congress on Evolutionary Computation, Seoul, Korea, 27–30 May 2001; Volume 1, pp. 81–86. [Google Scholar]
  39. Langella, R.; Testa, A.; Alii, E. IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems; IEEE Std. 519-2014; IEEE: Piscataway, NJ, USA, 2014. [Google Scholar]
  40. International Electrotechnical Commission (IEC). Electromagnetic Compatibility (EMC)—Part 4–30: Testing and Measurement Techniques—Power Quality Measurement Methods; IEC 61000-4-30; IEC: Geneva, Switzerland, 2008. [Google Scholar]
  41. Hu, Y.; Du, Y.; Xiao, W.; Finney, S.; Cao, W. DC-link voltage control strategy for reducing capacitance and total harmonic distortion in single-phase grid-connected photovoltaic inverters. IET Power Electron. 2015, 8, 1386–1393. [Google Scholar] [CrossRef]
  42. Opal Kelly. XEM6010-LX150 USB 2.0 Integrated FPGA Module. Available online: https://www.opalkelly.com/products/xem6010/ (accessed on 21 July 2015).
  43. XILINX. XC6SLX150-2FGG484 FPGA, Spartan-6 Family Overview. Available online: http://www.xilinx.com/support/documentation/data_sheets/ds160.pdf (accessed on 25 October 2011).
  44. Mishra, S.; Das, M. FPGA Based Random Number Generation for Cryptographic Applications. Ph.D. Thesis, Department Electronics Engineering, National. Institute of Technology, Rourkela, India, 2010. [Google Scholar]
  45. Sung, R.; Sung, A.; Chan, P.; Mah, J. Linear Feedback Shift Register. Available online: http://www.ece.ualberta.ca/elliott/ee552/studentAppNotes/1999f/Drivers_Ed/lfsr.html (accessed on 25 October 2014).
  46. Unsar, O.; Salor, O.; Cadirci, I.; Ermis, M. Identification of harmonic current contributions of iron and steel plants based on time-synchronized field measurements—Part I: At PCC. IEEE Trans. Ind. Appl. 2014, 50, 4336–4347. [Google Scholar] [CrossRef]
  47. Unsar, O.; Salor, O.; Cadirci, I.; Ermis, M. Identification of harmonic current contributions of iron and steel plants based on time-synchronized field measurements—Part II: Inside plants. IEEE Trans. Ind. Appl. 2014, 50, 4348–4355. [Google Scholar] [CrossRef]

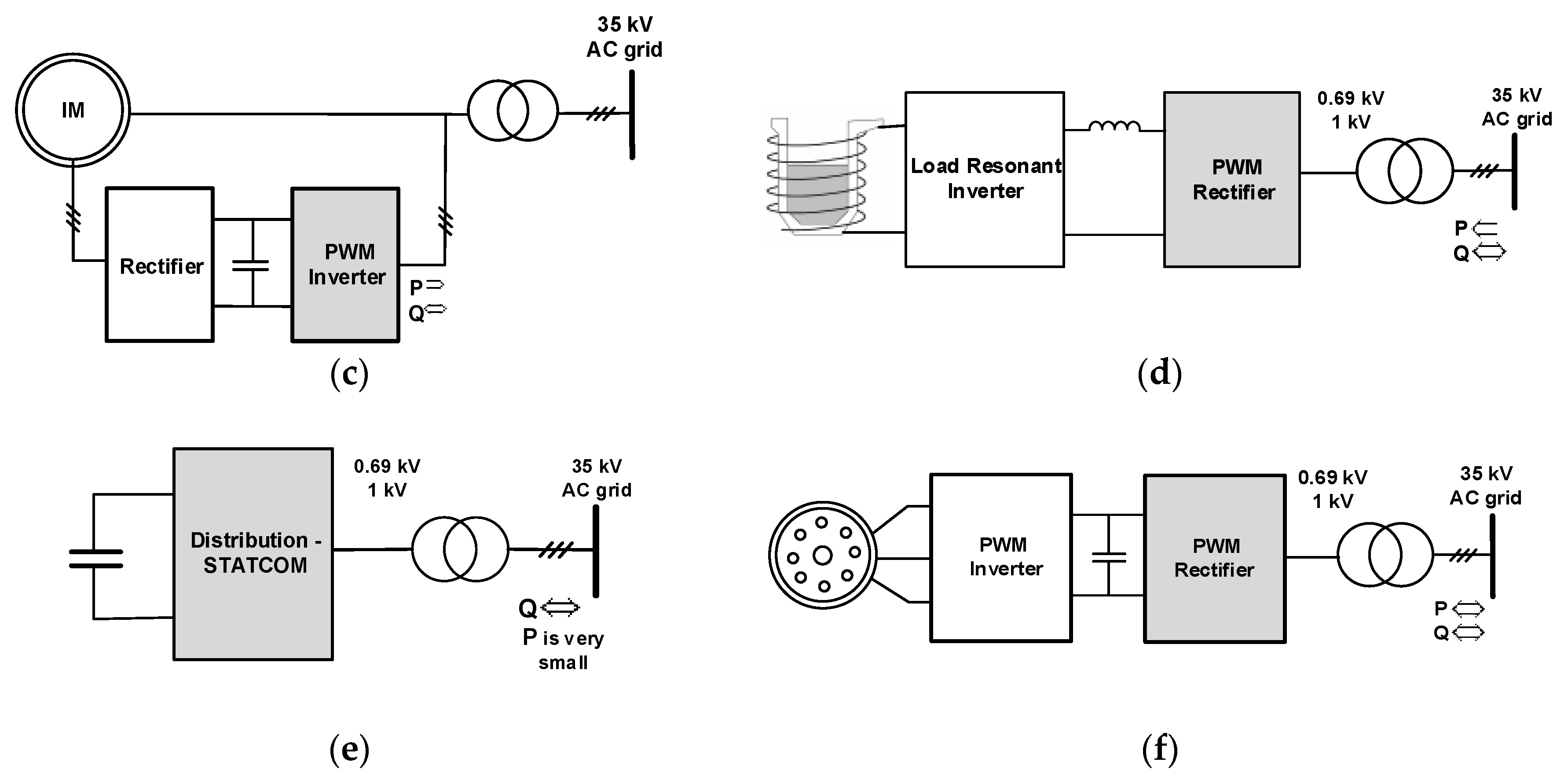

Figure 1. Possible application areas of the selective harmonic elimination method (SHEM) in grid-connected voltage source converter (VSC) applications. (a) Single-stage grid-connected photovoltaic (PV) supply, (b) wind energy conversion system with a permanent magnet synchronous generator (SG), (c) Subsynchronous slip-energy recovery drive or double-output induction generator, (d) Medium-power induction melting furnace, (e) Distribution static synchronous compensator (STATCOM), and (f) Variable frequency alternating current (AC) motor drive. PWM, pulse-width modulator.
Figure 1. Possible application areas of the selective harmonic elimination method (SHEM) in grid-connected voltage source converter (VSC) applications. (a) Single-stage grid-connected photovoltaic (PV) supply, (b) wind energy conversion system with a permanent magnet synchronous generator (SG), (c) Subsynchronous slip-energy recovery drive or double-output induction generator, (d) Medium-power induction melting furnace, (e) Distribution static synchronous compensator (STATCOM), and (f) Variable frequency alternating current (AC) motor drive. PWM, pulse-width modulator.
Electronics 07 00151 g001aElectronics 07 00151 g001b

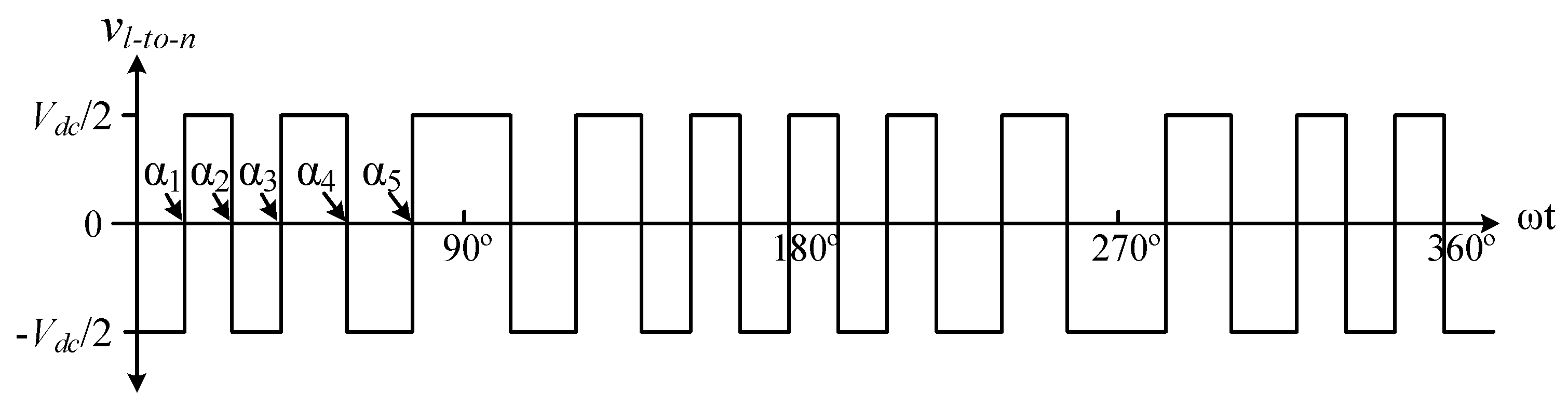

Figure 2. Line-to-neutral voltage in the TLN1 technique for five switching angles.
Figure 2. Line-to-neutral voltage in the TLN1 technique for five switching angles.
Electronics 07 00151 g002
Figure 3. Single-line diagram of the simplified three-phase system.
Figure 3. Single-line diagram of the simplified three-phase system.
Electronics 07 00151 g003
Figure 4. Flowchart of the particle swarm optimization (PSO) algorithm.
Figure 4. Flowchart of the particle swarm optimization (PSO) algorithm.
Electronics 07 00151 g004
Figure 5. Fitness values expressed as decadic logarithmic error against swarm size.
Figure 5. Fitness values expressed as decadic logarithmic error against swarm size.
Electronics 07 00151 g005
Figure 6. Fitness values expressed as decadic logarithmic error against the number of time frames.
Figure 6. Fitness values expressed as decadic logarithmic error against the number of time frames.
Electronics 07 00151 g006
Figure 7. Three-phase two-level grid-connected inverter controlled by a field-programmable gate array (FPGA). ADC, analog-to-digital converter.
Figure 7. Three-phase two-level grid-connected inverter controlled by a field-programmable gate array (FPGA). ADC, analog-to-digital converter.
Electronics 07 00151 g007

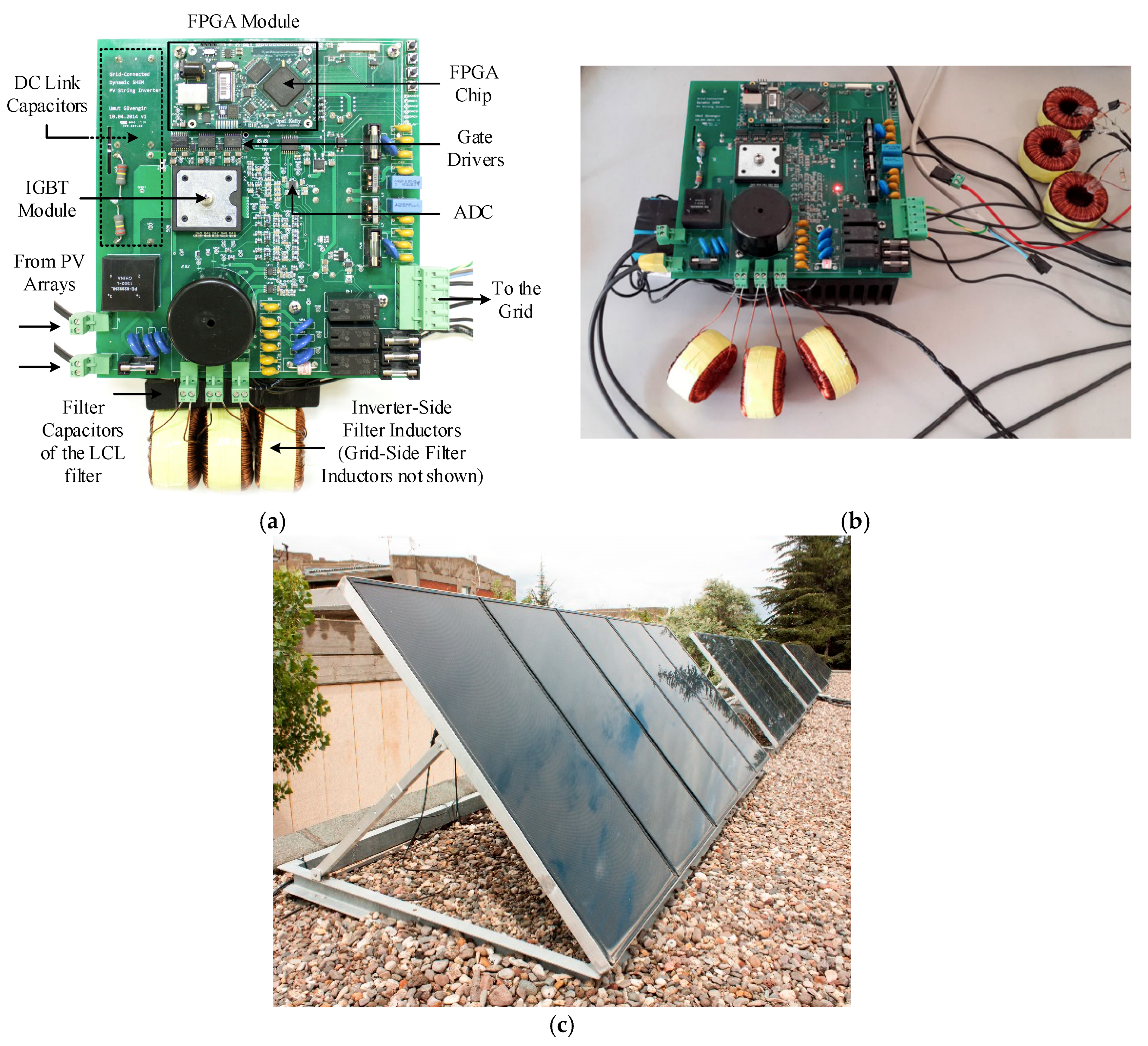

Figure 8. Experimental setup. (a) Power stage and controller (206 × 196 mm double-layer printed circuit board (PCB)), (b) Grid connection of PV inverter through an LCL filter, (c) Two strings of the thin-film PV panels used in the experiments.
Figure 8. Experimental setup. (a) Power stage and controller (206 × 196 mm double-layer printed circuit board (PCB)), (b) Grid connection of PV inverter through an LCL filter, (c) Two strings of the thin-film PV panels used in the experiments.
Electronics 07 00151 g008
Figure 9. Timing diagram illustrating all control actions and on-line application of SHEM for the sample system in Figure 7.
Figure 9. Timing diagram illustrating all control actions and on-line application of SHEM for the sample system in Figure 7.
Electronics 07 00151 g009
Figure 10. Implementation of the PSO module.
Figure 10. Implementation of the PSO module.
Electronics 07 00151 g010
Figure 11. Generalized lattice structure used for population initialization in each positive half-cycle of line-to-neutral voltage.
Figure 11. Generalized lattice structure used for population initialization in each positive half-cycle of line-to-neutral voltage.
Electronics 07 00151 g011
Figure 12. Online calculation of SHEM angles for a step change in M from M = 0.1 to 0.9. (a) α1, (b) α2, (c) α3, (d) α4, (e) α5, (f) α6, (g) α7 (5 V ≡ 180°).
Figure 12. Online calculation of SHEM angles for a step change in M from M = 0.1 to 0.9. (a) α1, (b) α2, (c) α3, (d) α4, (e) α5, (f) α6, (g) α7 (5 V ≡ 180°).
Electronics 07 00151 g012
Figure 13. Line-to-line (l-to-l) voltage output of the VSC at the top when Vdc = 560 V, and its harmonic spectrum at the bottom.
Figure 13. Line-to-line (l-to-l) voltage output of the VSC at the top when Vdc = 560 V, and its harmonic spectrum at the bottom.
Electronics 07 00151 g013

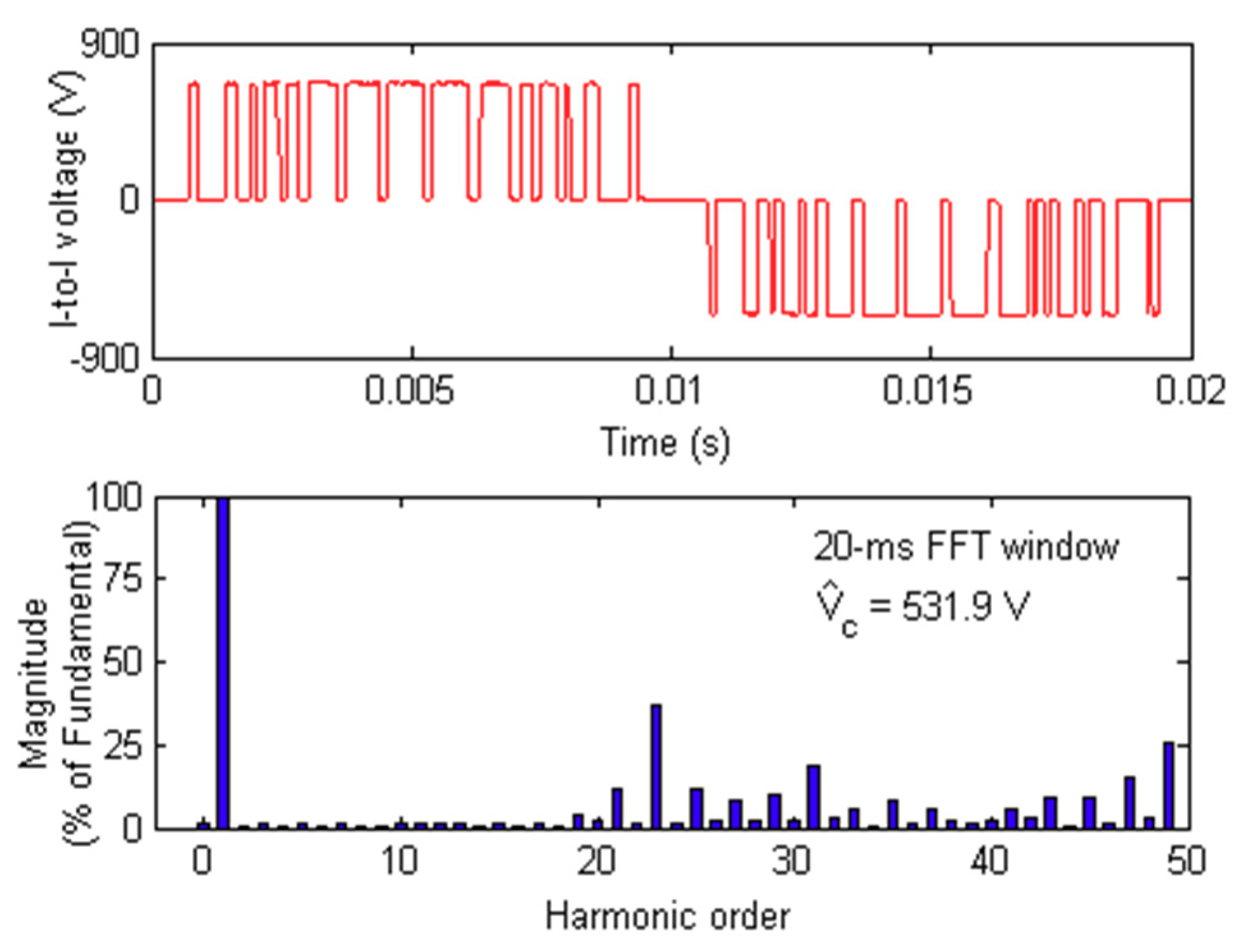

Figure 14. Line-to-line (l-to-l) voltage output of the VSC at the top when Vdc = 667 V, and its harmonic spectrum at the bottom.
Figure 14. Line-to-line (l-to-l) voltage output of the VSC at the top when Vdc = 667 V, and its harmonic spectrum at the bottom.
Electronics 07 00151 g014
Figure 15. Grid-side line current of PV supply at the top, and its harmonic spectrum at the bottom when delivering 800 VA to the grid at Vdc = 667 V. TDD, total demand distortion.
Figure 15. Grid-side line current of PV supply at the top, and its harmonic spectrum at the bottom when delivering 800 VA to the grid at Vdc = 667 V. TDD, total demand distortion.
Electronics 07 00151 g015
Figure 16. Field records of energy analyzer. (a) Qset = 0, and (b) Qset = 500 VAr.
Figure 16. Field records of energy analyzer. (a) Qset = 0, and (b) Qset = 500 VAr.
Electronics 07 00151 g016
Table 1. Errors in Reactive Power Adjustment Arising From Off-line SHEM Based on the Look-Up Table (LUT) Method for Unity Power Factor (PF) Operation.
Table 1. Errors in Reactive Power Adjustment Arising From Off-line SHEM Based on the Look-Up Table (LUT) Method for Unity Power Factor (PF) Operation.
Parameter Off-Line SHEMOn-Line SHEM
5 × 7 LUT41 × 7 LUT
Vdc (V)600900600900600900
M (required)0.8520.5680.8520.5680.8520.568
M (realized)0.90.60.850.570.8520.568
VC (Vrms, l−n)243.1243.1229.6230.9230230
QS (VAr)28772877−8819800
Ps (W)135016751350167513501675
δ (°)1.4491.7971.5341.8921.5311.900
Table 2. Optimized Parameters of PSO Algorithm (optimized parameters are marked by *, and others are default parameters).
Table 2. Optimized Parameters of PSO Algorithm (optimized parameters are marked by *, and others are default parameters).
SymbolParameterValue
βInertia weight1
c 1 Cognition factor2.8
c 2 Social factor1.3
KConstriction factor0.729
sSwarm size *250
NtfNumber of time frames *200
γModulation index penalty *100
µAngle constraint penalty *10
Table 3. Generalized initialization procedure for SHEM angle sets. (N can be chosen to be any value among 3, 5, 7, …, 17; N = 17 eliminates all odd-order characteristic power system harmonics up to the 50th).
Table 3. Generalized initialization procedure for SHEM angle sets. (N can be chosen to be any value among 3, 5, 7, …, 17; N = 17 eliminates all odd-order characteristic power system harmonics up to the 50th).
Initial Values of SHEM Angles, α1, …, αN to give M = 0
α1α2α3α4αkαN−2αN−1αN
60 p 60 p 60 p × 2 60 p × 2 60 p × ( p 1 ) 60 p × ( p 1 ) 60°
Table 4. SHEM Angles Found by the PSO Algorithm for N = 7 and Case I. (Yellow M: Not recommended, Red M: Impractical).
Table 4. SHEM Angles Found by the PSO Algorithm for N = 7 and Case I. (Yellow M: Not recommended, Red M: Impractical).
MSHEM Angles, Degreef
α1α2α3α4α5α6α7
0.100.4814.5114.9260.8374.1875.7789.282.19 × 10−5
0.201.2314.6915.5461.6673.4276.6288.574.37 × 10−7
0.301.8614.5615.8162.4972.6377.4487.874.02 × 10−8
0.402.5214.4916.1263.3371.8678.2787.188.43 × 10−9
0.503.1914.4816.4764.1971.1079.1386.514.42 × 10−9
0.603.8714.5116.8365.0770.3780.0485.892.51 × 10−9
0.704.5614.5817.2066.0169.6981.0385.352.44 × 10−9
0.805.2514.7017.5967.1569.2082.2685.064.74 × 10−9
0.905.9214.8817.9969.8870.3584.6485.897.50 × 10−5
0.955.9414.8917.9369.2469.2588.7789.273.03 × 10−2
Table 5. SHEM Angles Found by PSO Algorithm for N = 7 and Case II. (Yellow M: Not recommended, Red M: Impractical).
Table 5. SHEM Angles Found by PSO Algorithm for N = 7 and Case II. (Yellow M: Not recommended, Red M: Impractical).
MSHEM Angles, Degreef
α1α2α3α4α5α6α7
0.1014.1415.3129.1430.5744.1545.7659.162.23 × 10−5
0.2013.3315.6828.2631.1443.2446.4758.334.94 × 10−7
0.3012.4816.0127.3531.6942.3347.1957.488.22 × 10−8
0.4011.6116.3226.4132.2241.3847.9256.611.12 × 10−8
0.5010.7216.5925.4232.7140.3948.6255.715.52 × 10−9
0.609.8016.8024.3733.1339.3149.3154.785.06 × 10−9
0.708.8416.9023.2133.4138.0949.9253.763.22 × 10−9
0.807.8116.7721.8333.3336.5350.3352.507.14 × 10−9
0.906.5615.8719.6831.6033.3748.1148.638.41 × 10−5
0.955.9214.7417.7929.1030.1049.0949.102.78 × 10−2
Table 6. SHEM Angles for N = 7, 9, 11, 13, 15, and 17, and M = 0.7 Optimized by PSO Usıng the Generalized Initialization Procedure in Table 3.
Table 6. SHEM Angles for N = 7, 9, 11, 13, 15, and 17, and M = 0.7 Optimized by PSO Usıng the Generalized Initialization Procedure in Table 3.
NSHEM Angles for M = 0.7, Degreef
α1α2α3α4α5α6α7α8α9α10α11α12α13α14α15α16α17
78.8416.9023.2133.4138.0949.9253.76----------3.22 × 10−9
97.1513.2418.7026.2030.4539.1542.5652.1055.08--------8.24 × 10−9
115.9910.8815.6721.5625.4432.2035.3842.8545.5453.5055.94------7.50 × 10−9
135.179.2313.4918.3121.8627.3530.3336.3938.9245.4447.6654.4756.54----9.30 × 10−9
154.548.0111.8515.9119.1823.7726.5631.6234.0339.4841.5947.3549.2455.2056.99--4.89 × 10−9
174.047.0810.5614.0617.0921.0223.6527.9630.2534.9136.9341.8643.6648.8150.4755.7557.347.77 × 10−9
Table 7. SHEM Angles Found by Hardware Co-simulation.
Table 7. SHEM Angles Found by Hardware Co-simulation.
Mα1(°)α2(°)α3(°)α4(°)α5(°)α6(°)α7(°)f
0.100.54114.60615.01860.80574.23475.79489.2891.216 × 10−5
0.201.21714.67715.52461.63773.43976.61988.5832.384 × 10−7
0.301.86414.58315.83862.48172.64977.44187.8681.192 × 10−6
0.402.54414.52216.18863.34771.84378.29387.1702.408 × 10−5
0.503.15414.61216.42964.16871.11079.11586.5211.860 × 10−5
0.603.84314.51016.81665.04870.39180.00385.9167.153 × 10−7
0.704.55514.59017.21966.01269.69481.03485.3591.907 × 10−6
0.805.25314.72817.61667.13869.18682.27585.0531.907 × 10−6
0.905.89514.86517.92370.05370.57284.42785.7672.489 × 10−4
Table 8. Utilization report of FPGA Used in the Experimental System to Calculate Seven SHEM Angles in Real-Time.
Table 8. Utilization report of FPGA Used in the Experimental System to Calculate Seven SHEM Angles in Real-Time.
Slice Logic UtilizationAvailable NumberUsedUtilization
PSO CodeTotal CodePSO CodeTotal Code
Slice Registers184304508099202%5%
Slice LUTs921528142327948%35%
Fully-Used LUT-FF Pairs37683265250317%13%
Bonded IOBs33824577%16%
Block RAM/FIFO2688410431%38%
BUFG/BUFGCTRL/BUFHCEs162312%18%
DSP48A1s18010517758%98%

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Electronics EISSN 2079-9292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
