Isotropic Reconstruction of Anisotropic vEM Volumes with ViT-Guided Diffusion

Abstract

Volume electron microscopy (vEM) provides nanometer-scale 3D imaging, yet its axial (z) resolution is often much lower than the in-plane ($xy$) resolution, yielding anisotropic volumes that hinder segmentation and connectomic reconstruction. We present a two-stage cross-axial super-resolution framework for isotropic reconstruction that combines a conditional diffusion model and domain-specific self-supervised pretraining of a vision transformer (ViT). First, the student–teacher self-distillation paradigm of DINOv3 is adopted to learn representations from large sets of high-resolution $xy$ sections, capturing vEM-specific texture statistics and ultrastructural patterns. Second, a conditional diffusion denoiser is trained with supervised anisotropic degradation simulated by z-downsampling, while a perceptual loss based on frozen ViT feature distances constrains generated slices to match real-section distributions. These constraints recover axial high-frequency details and reduce hallucinated textures and inter-slice drift, improving cross-slice consistency. Experiments on two public vEM datasets show improved fidelity, perceptual quality, and membrane-boundary continuity over interpolation and learning-based baselines.

1. Introduction

Volume electron microscopy (vEM) is a key tool in structural cell biology, enabling three-dimensional imaging of cells and tissues at nanometer-scale resolution. As acquisition throughput increases, vEM datasets routinely reach terabyte (TB) to petabyte (PB) scales [1,2,3]. By resolving complex intracellular and tissue-level architectures, vEM captures fine spatial relationships among organelles, synapses, and neural circuits [4,5,6]. This capability is essential for connectomics, where accurate reconstruction of neural wiring at synaptic resolution is required [4,5]. Beyond neuroscience, vEM is widely used in cancer research [7], immunology [8], infectious disease, and developmental biology to study three-dimensional ultrastructural changes underlying complex biological processes [9].

However, current vEM imaging modalities face severe anisotropies. In many acquisition setups, the in-plane ($xy$) pixel size is only a few nanometers (typically 3∼5 nm), whereas the inter-slice sampling interval along z is much coarser (typically 30∼70 nm). Consequently, the effective axial resolution is degraded by roughly 6∼20× compared with the in-plane resolution [1,2]. This imbalance arises from the imaging physics and sectioning limitations. For serial-section TEM (ssTEM), the axial resolution is determined largely by the section thickness [4,5,10]. For serial block-face SEM (SBF-SEM), it is constrained by the achievable cutting precision of the diamond knife [1,2,10]. FIB-SEM can yield near-isotropic volumes in some configurations, but the attainable volume and throughput remain limited; high equipment and maintenance costs further hinder large-scale acquisition [11].

Traditionally, missing z-direction slices are filled using linear or bicubic interpolation [12]. However, the axial information loss is not merely a simple decimation process; rather, it is a complex degradation combining volumetric averaging—dictated by the physical section thickness—and severe missing data caused by coarse inter-slice sampling gaps. Interpolation only enforces smooth transitions between observed samples and therefore cannot recover unacquired high-frequency structures (e.g., sharp membrane boundaries and continuous tubular topologies) [13]. As a result, over-smoothing in the $xz/yz$ planes, inter-slice discontinuities, and stair-step artifacts are common, and the reconstruction becomes more sensitive to registration errors and sample deformation [14].

Recent studies therefore favor learning-based reconstruction [15]. These methods exploit high-resolution $xy$-plane texture statistics as priors and impose explicit cross-slice consistency to complete missing z-direction details without additional physical sections [16]. Generative models such as GANs [17,18] and diffusion models are particularly promising because they can model complex texture distributions while maintaining inter-slice coherence, thereby improving isotropic reconstruction quality without increasing acquisition cost [19].

Despite this progress, learning-based methods still face two key challenges in vEM. First, without domain-consistent perceptual priors, models may generate biologically implausible textures [20]. Second, insufficient cross-slice consistency can lead to inter-slice jumps and topological breaks, which directly impact downstream segmentation and tracing [5,10].

To address these issues, we propose a hybrid framework that combines conditional diffusion with domain-specific self-supervised ViT pretraining. We select DINOv3’s self-distillation paradigm [21] as the pretraining recipe for several reasons: (i) Its student–teacher framework with exponential moving average provides stable, collapse-free training on single-domain data without labels; (ii) The resulting features capture both local patch-level details and global structural layout through the multi-crop strategy, which aligns well with the multi-scale nature of vEM ultrastructures; (iii) DINOv3’s knowledge-distillation objective produces features with strong spatial correspondence, suited for pixel-level perceptual constraints in super-resolution. We first perform self-supervised representation learning on abundant high-resolution $xy$ slices to obtain vEM-adapted feature priors capturing ultrastructural statistics [16]. We then train a conditional diffusion super-resolution model under simulated anisotropic degradation and inject ViT features as perceptual constraints. This design suppresses biologically implausible details and reduces cross-slice drift [22].

Our main contributions are summarized as follows:

• We propose a two-stage training framework for cross-axial super-resolution in vEM. It completes axial details while enhancing cross-slice structural consistency. It effectively reduces biologically implausible pseudo-textures.
• We perform self-supervised pretraining on large-scale high-resolution $xy$ slices. This yields representation priors adapted to vEM texture statistics and ultrastructural patterns.
• We validate the framework’s effectiveness on vEM datasets through 3D reconstruction experiments. Results demonstrate improvements in both quantitative metrics and visual quality.

2. Related Work

Isotropic reconstruction for volume electron microscopy (vEM) and related microscopy data typically relies only on high-resolution $xy$ slices. In contrast, the axial planes ($yz/xz$) often suffer from severe undersampling and blurring. Existing methods generally fall into three broad categories: traditional/2D super-resolution, video interpolation/implicit representations, and generative diffusion models. Each faces distinct limitations when applied to vEM data.

Traditional and 2D Super-Resolution. Traditional linear or bicubic interpolation is stable and easy to use; however, it cannot recover unacquired high-frequency information. To recover these missing details, deep learning techniques have recently become mainstream choices. Classic 2D super-resolution networks, such as SRCNN, sub-pixel convolution, and Transformer variants, are frequently used as building blocks for EM super-resolution (EMSR) [23,24,25,26]. However, these methods often do not explicitly enforce volumetric cross-slice constraints. While some approaches emphasize combining generative priors with cross-slice alignment to improve large upscaling-factor EMSR, they still struggle with unpaired structural consistency  [27].

Video Interpolation and Implicit Representations. Another line of work formulates cross-axial reconstruction as z-direction super-resolution or frame interpolation. These methods adapt video interpolation or optical flow estimation to generate intermediate slices [28]. However, they depend heavily on the accuracy of deformation estimation. Large deformations or low-contrast structures can easily propagate errors and lead to topological discontinuities. Beyond explicit voxel generation, implicit neural representations, such as niiv and Gaussian splatting-based rendering, enable continuous-resolution reconstruction [29,30,31,32,33]. Overall, existing methods either incur high computational costs for large volumes, or still suffer from hallucinated details and inter-slice drift under unpaired conditions.

Generative Models and Our Differentiation. Under more realistic unpaired or weakly paired settings, diffusion models have gained popularity for isotropic reconstruction because their progressive denoising process enables more powerful detail synthesis. Methods like DiffuseIR and EMDiffuse showed axial detail enhancement without requiring isotropic training data [16,19]. Other studies further discussed suppressing hallucinated details in the absence of ground-truth references [22].

Motivated by these limitations, we combine conditional diffusion models with domain-specific self-supervised ViT pretraining to improve detail authenticity while explicitly constraining cross-slice structural consistency. Unlike existing diffusion baselines that rely on generic perceptual networks or lack domain-specific constraints, our approach explicitly pretrains a ViT on in-domain $xy$ slices via self-distillation, yielding feature priors specifically adapted to vEM ultrastructural statistics. This domain-adapted perceptual constraint more effectively suppresses biologically implausible hallucinated textures and reduces cross-slice drift.

3. Preliminaries

Task Definition (Cross-axial Super-resolution Reconstruction). Cross-axial super-resolution aims to address anisotropy in vEM data. $xy$ planes exhibit high resolution, while the z direction suffers from sparse sampling and blurring. Given anisotropic observed volume data (or slice stack) $V_{LR}$, the goal is to learn a mapping F producing an isotropic reconstruction ${\widehat{V}}_{HR}=F\left(V_{LR}\right)$. The output should complete z-direction textures and structural details. It must also maintain consistency with observed high-resolution $xy$ slices.

Formally, let ideal isotropic high-resolution volume be $V_{HR}\in {\mathbb{R}}^{H\times W\times D}$. We only observe degraded anisotropic data $V_{LR}\in {\mathbb{R}}^{H\times W\times (D/s)}$. Here, s denotes the axial downsampling factor (e.g., $s=2$). Degradation operator $\mathcal{A}(·)$ models the process from high-resolution to low-resolution observation. Let ${\mathcal{D}}_{xy}$ denote the high-resolution $xy$ slice dataset. During training, we construct sample pairs $(x_{LR},x_{HR})$. $x_{HR}$ represents high-resolution slices cropped from $xy$ planes. $x_{LR}=\mathcal{A}\left(x_{HR}\right)$ denotes its corresponding low-resolution condition. This is obtained by undersampling along the z axis, followed by upsampling for structural guidance. Our learning objective makes ${\widehat{V}}_{HR}=F\left(V_{LR}\right)$ approximate $V_{HR}$ as closely as possible.

4. Methodology

4.1. Framework Overview

Cross-axial super-resolution reconstructs high-frequency details in $yz/xz$ planes. Input contains only high-resolution $xy$ slices with sparse, blurred z-direction sampling. The goal is to complete missing details while preserving 3D structural coherence and topological consistency. Unlike conventional 2D super-resolution, this task faces three practical challenges:

• Axial information loss represents irreversible systematic degradation. Section thickness, PSF, and sampling intervals jointly cause low-pass blurring in $yz/xz$ directions. This makes boundaries blunt and structures discontinuous.
• Cross-slice consistency serves as a critical constraint. Inconsistent generated details between adjacent slices cause organelle boundary jumps. They also break thin elongated structures, creating 3D artifacts that affect segmentation and tracing.
• Domain distribution differs significantly from natural images. vEM images exhibit distinct contrast, noise patterns, and texture statistics. Directly transferring generic perceptual networks often fails to provide reliable structural priors. It may even amplify pseudo-textures.

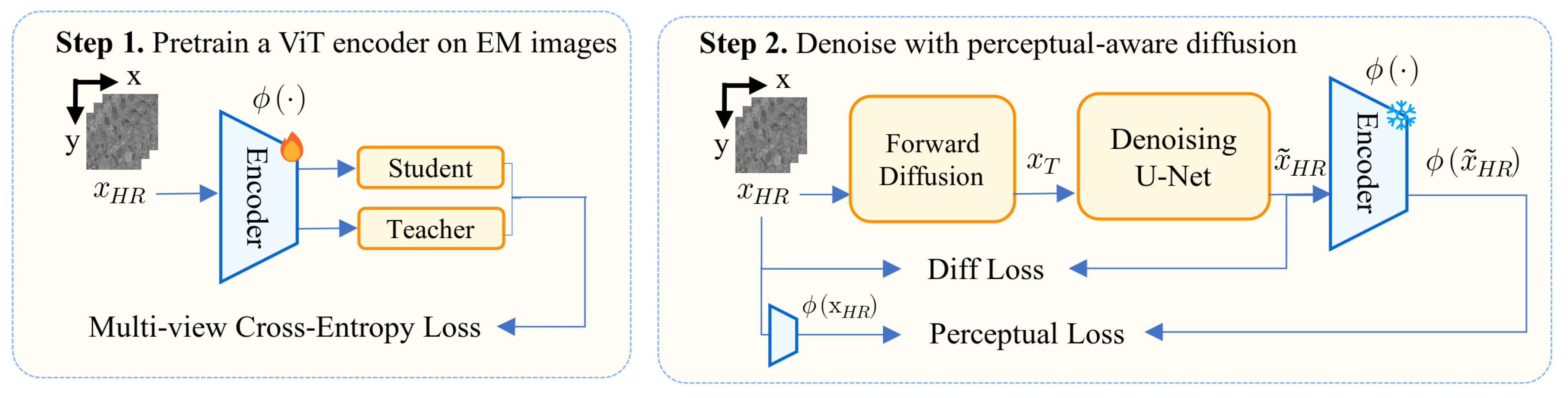

To address these issues, we propose a hybrid architecture (Figure 1). It combines a conditional diffusion model and domain self-supervised ViT pretraining:

• Conditional diffusion model enables multi-solution generation through progressive denoising while providing multi-scale local inductive bias (via the denoiser backbone). This alleviates over-smoothing and artifact accumulation from single-step reconstruction. It also enhances the perceptual authenticity of fine details.
• Self-supervised ViT features serve as domain priors. They construct perceptual constraints in feature space. These constraints suppress biologically implausible hallucinated details. They also reduce cross-slice drift by enforcing structural consistency.

We adopt a two-stage training strategy. Stage 1 performs self-supervised representation learning on abundant high-resolution $xy$ slices. This yields vEM-adapted feature space capturing domain statistics. Stage 2 trains conditional diffusion super-resolution under simulated anisotropic degradation. We inject frozen ViT features from Stage 1 as perceptual loss. This explicitly reinforces cross-axial structural consistency during detail completion.

4.2. Self-Supervised ViT Feature Pretraining

We adopt the student–teacher self-distillation paradigm of DINOv3 [21] for self-supervised learning. Training occurs on abundant unlabeled high-resolution $xy$ slices. The frozen teacher network serves as a feature prior extractor $f_{\varphi }$ in Stage 2.

Motivation for domain priors. In real acquisition, $xy$ planes are more reliable and higher resolution than axial directions. Thus, $xy$ slice texture and structural statistics provide valuable priors for cross-axial reconstruction. Directly using ImageNet-pretrained perceptual networks risks mismatched features. This may amplify pseudo-textures or introduce implausible details. Conversely, self-supervised pretraining on domain $xy$ slices yields appropriate ViT features. We then use feature distances as perceptual constraints in Stage 2. This enhances detail, authenticity, and structural consistency.

(1) Multi-crop view augmentation. For vEM data, augmentation must preserve ultrastructural morphology while improving robustness. We adopt global/local crop-based multi-view strategies. Controlled brightness/contrast perturbations and light noise injection further enhance robustness. These avoid destroying critical topology like membrane structures. Given input slice $x\in {\mathbb{R}}^{H\times W\times 1}$, we define random augmentation operator $\mathcal{T}(·)$ as:

$$\begin{array}{cc}\hfill {\mathcal{T}}_{\mathrm{crop}}\left(x\right)& =\mathrm{Crop}(x;\mathsf{\Omega }),\mathsf{\Omega }\sim \mathcal{U}({\mathsf{\Omega }}_{\mathrm{global}}\cup {\mathsf{\Omega }}_{\mathrm{local}}),\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill {\mathcal{T}}_{\mathrm{photo}}\left(x\right)& =\mathrm{clip}\left(ax+b,0,1\right),a\sim \mathcal{U}(1-{\delta }_c,1+{\delta }_c),b\sim \mathcal{U}(-{\delta }_b,{\delta }_b),\hfill \end{array}$$

(2)

$$\begin{array}{cc}\hfill {\mathcal{T}}_{\mathrm{noise}}\left(x\right)& =\mathrm{clip}\left(x+\eta ,0,1\right),\eta \sim \mathcal{N}(0,{\sigma }^2),\hfill \end{array}$$

(3)

$$\mathcal{T}={\mathcal{T}}_{\mathrm{noise}}\circ {\mathcal{T}}_{\mathrm{photo}}\circ {\mathcal{T}}_{\mathrm{crop}},$$

(4)

where ${\mathcal{T}}_{\mathrm{crop}}$ denotes global/local random cropping. ${\mathcal{T}}_{\mathrm{photo}}$ applies controlled brightness/contrast perturbations. ${\mathcal{T}}_{\mathrm{noise}}$ injects light noise. $\mathsf{\Omega }$ represents the crop window. $a,b$ denote contrast and brightness perturbation magnitudes. $\eta$ represents injected noise. $\mathrm{clip}(·)$ restricts pixel values within valid dynamic range. Based on $\mathcal{T}(·)$, we generate view sets from the same x:

$$\mathcal{V}\left(x\right)=\{x_g^{\left(1\right)},x_g^{\left(2\right)}\}\cup {\left\{x_l^{\left(m\right)}\right\}}_{m=1}^M,$$

(5)

where $x_g$ denotes two global views (larger crop scales). $x_l$ denotes M local views (smaller crop scales). In vEM, this strategy covers both global structural layout (e.g., organelle morphology) and local texture details (e.g., membrane boundaries statistics).

(2) ViT encoder (patch embedding + Transformer blocks). We adopt Vision Transformer as the encoder. Input view $v\in \mathcal{V}\left(x\right)$ is divided into $P\times P$ patches. Patch count $N={\displaystyle \frac{HW}{P^2}}$. The i-th patch token representation is:

$$z_i=E·\mathrm{flatten}\left(p_i\right)+e_i,z_i\in {\mathbb{R}}^d,$$

(6)

where $\mathrm{flatten}(·)$ unfolds 2D patch $p_i$ ($P\times P$) into length-$P^2$ vector. E denotes a linear projection matrix. $e_i$ represents positional encoding. d is the token dimension. After L Transformer blocks, we obtain token sequence $Z^{\left(L\right)}={\left\{z_i^{\left(L\right)}\right\}}_{i=1}^N$. Average pooling yields image representation:

$$h={\displaystyle \frac{1}{N}}\sum _{i=1}^N{z}_i^{\left(L\right)}\in {\mathbb{R}}^d.$$

(7)

For the ℓ-th Transformer block (Pre-LN form):

$$\begin{array}{cc}\hfill {\tilde{Z}}^{(\ell )}& =Z^{(\ell -1)}+\mathrm{MSA}\left(\mathrm{LN}\left(Z^{(\ell -1)}\right)\right),\hfill \end{array}$$

(8)

$$\begin{array}{cc}\hfill Z^{(\ell )}& ={\tilde{Z}}^{(\ell )}+\mathrm{MLP}\left(\mathrm{LN}\left({\tilde{Z}}^{(\ell )}\right)\right),\hfill \end{array}$$

(9)

where $\mathrm{MSA}$ denotes multi-head self-attention. $\mathrm{MLP}$ represents feed-forward network. Both teacher and student branches project representations to the distillation space via MLP heads. Temperature-scaled softmax yields distributions:

$$P_{\varphi ,\psi }(v;\tau )=\mathrm{softmax}\left({\displaystyle \frac{{\mathrm{MLP}}_{\psi }\left(h\left(v\right)\right)}{\tau }}\right).$$

(10)

(3) Student–Teacher dual branches and cross-view alignment loss. Let teacher output be $P_t=P_{{\varphi }_t,{\psi }_t}(v_t;{\tau }_t)$. Let student output be $P_s=P_{{\varphi }_s,{\psi }_s}(v_s;{\tau }_s)$. Cross-view alignment uses cross-entropy loss $H(·,·)$:

$${\mathcal{L}}_{\mathrm{DINO}}(v_t,v_s)=H(P_t,P_s)=-\sum _k{P}_t^{\left(k\right)}log{P}_s^{\left(k\right)}.$$

(11)

We sum (or average) over all pairs between teacher global views $v_t\in \{x_g^{\left(1\right)},x_g^{\left(2\right)}\}$ and all student views $v_s\in \mathcal{V}\left(x\right)$. This yields self-supervised loss ${\mathcal{L}}_{\mathrm{SSL}}$. Teacher parameters update via exponential moving average (EMA) without backpropagation:

$${\varphi }_t\leftarrow m{\varphi }_t+(1-m){\varphi }_s,{\psi }_t\leftarrow m{\psi }_t+(1-m){\psi }_s,$$

(12)

where $m\in (0,1)$ is momentum coefficient. After pretraining, we discard projection heads. We freeze the teacher encoder $f_{{\varphi }_t}$ for Stage-2 perceptual constraints. Specifically, for Stage-2 reconstruction ${\widehat{x}}_0$ and reference $x_0$, we define perceptual loss in the teacher encoder’s feature space:

$$L_{\mathrm{per}}=\parallel f_{{\varphi }_t}\left({\widehat{x}}_0\right)-f_{{\varphi }_t}\left(x_0\right){\parallel }_2^2.$$

(13)

This naturally injects Stage-1 vEM structural/textural priors into diffusion super-resolution. It suppresses domain-inconsistent hallucinated details. It also enhances cross-slice structural consistency.

4.3. Conditional Diffusion Denoising Reconstruction with ViT Perceptual Constraints

Network architecture. We adopt U-Net as the diffusion denoiser ${ϵ}_{\theta }$. Key vEM information (membrane boundaries, fine tubular structures, vesicle textures) exhibits strong locality and multi-scale characteristics. UNet’s skip connections help preserve both fine textures and coarse morphology during denoising. Inputs include noisy sample $x_t$, timestep t, and conditional input $x_{LR}$. $x_{LR}$ is the anisotropic observation upsampled along z axis to target depth. It provides low-frequency structural guidance for $yz/xz$ views. The network learns to complete missing high-frequency details given cross-slice context. During training, we organize samples as 3D blocks/neighborhoods. This enables leveraging adjacent slice redundancy. It enhances cross-slice consistency and reduces inter-slice jumps.

Diffusion training objective. We train the conditional diffusion model in pixel space. The forward diffusion process is defined as:

$$q(x_t\mid x_{t-1})=\mathcal{N}\left(x_t;\sqrt{1-{\beta }_t}{x}_{t-1},{\beta }_t\mathbf{I}\right),t\in \{1,\dots ,T\}.$$

(14)

Here, T denotes total diffusion steps. $t\in \{1,\dots ,T\}$ represents timestep. $x_0$ is a clean sample. $x_t$ denotes a noisy sample at step t. Noise $ϵ\sim \mathcal{N}(0,\mathbf{I})$ where $\mathbf{I}$ is identity matrix. ${\beta }_t\in (0,1)$ is noise variance coefficient at step t.

Denoiser ${ϵ}_{\theta }(x_t,t,x_{LR})$ predicts noise $ϵ$ added to $x_0$. We adopt the following joint loss:

$$L_{\mathrm{total}}=L_{\mathrm{diff}}+\lambda L_{\mathrm{per}},$$

(15)

where $\lambda$ balances diffusion denoising and ViT feature constraints. Specifically:

$$L_{\mathrm{diff}}={\mathbb{E}}_{x_0,ϵ,t}\left[\parallel ϵ-{ϵ}_{\theta }(x_t,t,x_{LR}){\parallel }_2^2\right]$$

(16)

is the simplified diffusion denoising MSE loss. Perceptual loss $L_{\mathrm{per}}$ uses frozen Stage-1 teacher ViT features (Equation (13) with ${\ell }_2$ distance). We first construct reconstruction estimate ${\widehat{x}}_0$ from current noisy sample $x_t$ and noise prediction:

$${\widehat{x}}_0={\displaystyle \frac{x_t-\sqrt{1-{\overline{\alpha }}_t}{ϵ}_{\theta }(x_t,t,x_{LR})}{\sqrt{{\overline{\alpha }}_t}}},$$

(17)

where ${\alpha }_t\triangleq 1-{\beta }_t$ and ${\overline{\alpha }}_t\triangleq {\prod }_{i=1}^t{\alpha }_i$. This estimate computes perceptual loss $L_{\mathrm{per}}$. It constrains diffusion outputs’ structural statistics in feature space. Compared to pixel-level loss alone, this perceptual constraint better captures EM-specific patterns. Examples include membrane continuity, texture granularity, and repetitive internal organelle structures. Thus, it effectively suppresses diffusion-generated hallucinated artifacts inconsistent with domain statistics. It also enhances cross-slice structural consistency during cross-axial reconstruction.

We summarize the two-stage training in Algorithm 1. Lines 1–8 describe DINO-based ViT self-supervised pretraining and teacher freezing. Lines 9–20 describe conditional diffusion SR training with ViT perceptual constraints. Corresponding reverse diffusion inference appears in Algorithm 2. Lines 1–2 construct conditions and initialize noise. Lines 3–9 perform progressive denoising to output reconstructed volume.

Algorithm 1 Two-stage Training for Cross-axial SR

Require:  High-res $xy$ slices dataset ${\mathcal{D}}_{xy}$; degradation operator $\mathcal{A}(·)$; diffusion steps T; perceptual weight $\lambda$ Ensure:  Trained teacher ViT feature extractor $f_{\varphi }$ and denoiser ${ϵ}_{\theta }$ 1: Stage-1 (Self-supervised ViT pretraining) 2: Initialize student $f_{{\varphi }_s}$ and teacher $f_{{\varphi }_t}$ 3: for each SSL iteration do 4:     Sample $x\sim {\mathcal{D}}_{xy}$; generate global/local views $(x_g,x_l)$ 5:     Update ${\varphi }_s$ by minimizing DINO loss $H(P_t\left(x_g\right),P_s\left(x_l\right))$ 6:     Update teacher by EMA: ${\varphi }_t\leftarrow \mathrm{EMA}({\varphi }_t,{\varphi }_s)$ 7: end for 8: Freeze $f_{\varphi }\leftarrow f_{{\varphi }_t}$ 9: Stage-2 (Conditional diffusion SR training) 10: Initialize denoiser ${ϵ}_{\theta }$ (UNet) 11: for each SR training iteration do 12:     Sample $x_0\sim {\mathcal{D}}_{xy}$ and construct condition $x_{LR}\leftarrow \mathcal{A}\left(x_0\right)$ 13:     Sample $t\sim \{1,\dots ,T\}$ and noise $ϵ\sim \mathcal{N}(0,\mathbf{I})$ 14:     Form noisy input $x_t\leftarrow \sqrt{{\overline{\alpha }}_t}{x}_0+\sqrt{1-{\overline{\alpha }}_t}ϵ$ 15:     Predict noise $\widehat{ϵ}\leftarrow {ϵ}_{\theta }(x_t,t,x_{LR})$ 16:     $L_{\mathrm{diff}}\leftarrow {\parallel ϵ-\widehat{ϵ}\parallel }_2^2$ 17:     Reconstruct ${\widehat{x}}_0\leftarrow {\displaystyle \frac{x_t-\sqrt{1-{\overline{\alpha }}_t}\widehat{ϵ}}{\sqrt{{\overline{\alpha }}_t}}}$ 18:     $L_{\mathrm{per}}\leftarrow {\parallel f_{\varphi }\left({\widehat{x}}_0\right)-f_{\varphi }\left(x_0\right)\parallel }_2^2$ 19:     Update $\theta$ by minimizing $L_{\mathrm{diff}}+\lambda L_{\mathrm{per}}$ 20: end for

Algorithm 2 Inference (Cross-axial SR via Reverse Diffusion)

Require:  Anisotropic volume $V_{LR}$; trained denoiser ${ϵ}_{\theta }$; diffusion steps T Ensure:  Reconstructed isotropic volume ${\widehat{V}}_{HR}$ 1: Construct condition volume $C\leftarrow \mathrm{Upsample}\left(V_{LR}\right)$ 2: Initialize $x_T\sim \mathcal{N}(0,\mathbf{I})$ 3: for $t=T$ down to 1 do 4:     $\widehat{ϵ}\leftarrow {ϵ}_{\theta }(x_t,t,C)$ 5:     Sample $x_{t-1}$ from the reverse transition $p(x_{t-1}\mid x_t,\widehat{ϵ})$ 6: end for 7: Output ${\widehat{V}}_{HR}\leftarrow x_0$

5. Experiments

5.1. Experimental Setup

Dataset description. We evaluate on two representative vEM datasets: a mouse cerebral cortex EM dataset [19] and the FANC dataset [34]. Both datasets exhibit typical vEM challenges. Slices contain complex ultrastructures such as mitochondrial cristae, synaptic vesicles, and ER networks. During training, we simulate anisotropic degradation by downsampling isotropic ground truth along the z-axis and applying Gaussian smoothing to mimic point-spread-function (PSF) effects.

Implementation details. Our framework follows the two-stage training paradigm in Section 4. Stage 1 uses a ViT-Base/16 encoder ($L=12$ Transformer blocks, 12 attention heads, embedding dimension $d=768$, patch size $P=16$) following the DINOv3 self-distillation recipe [21]. We generate structure-preserving augmentations, including global crops ($224\times 224$) and local crops ($96\times 96$). Augmentations include limited rotation ($\pm 5^{\circ }$), contrast perturbation ($\pm 15\%$), and Poisson noise injection. Training uses 4 NVIDIA RTX PRO 6000 Blackwell GPUs with a batch size of 256 for 1000 epochs. Stage 2 adopts a UNet denoiser backbone with a base channel count of 64. The UNet architecture features channel multipliers $[1,2,4,8]$, two residual blocks per resolution level, self-attention at resolution 16 with 32 head channels, and dropout rate $0.2$. Training images are resized to $256\times 256$ via bicubic interpolation and normalized to $[-1,1]$ ($\mathrm{mean}=0.5$, $\mathrm{std}=0.5$). Data augmentation includes random horizontal flipping ($p=0.5$), ${90}^{\circ }$ rotation ($p=0.5$), and Gaussian blur with radius 3 applied to the input image only ($p=0.5$). Diffusion uses a linear noise schedule with $T=1000$ steps during training. Inference employs a DDIM sampler with 50 steps. We use the Adam optimizer (${\beta }_1=0.9$, ${\beta }_2=0.999$). The initial learning rate is $2\times {10}^{-4}$ with cosine decay. An exponential moving average (EMA) with decay $0.9999$ is maintained over the denoiser weights and used at inference. Stage 2 training uses per-GPU batch size 16 across 4 GPUs (effective batch size 64); models are validated every 10 epochs and checkpointed every 20 epochs.

Evaluation metrics. We assess reconstruction quality from three perspectives: pixel fidelity, perceptual similarity, and domain structural plausibility. Table 1 reports pixel-level metrics, including PSNR (dB) and SSIM (↑ higher is better), as well as error metrics MSE and MAE (↓ lower is better). Values are reported as “mean ± std” across test samples. These metrics measure intensity consistency and local structural agreement against reference slices. FSIM (Feature Similarity Index) measures structural similarity based on phase congruency and gradient magnitude. LPIPS (Learned Perceptual Image Patch Similarity) measures deep feature space differences (lower is better). DISTS (Deep Image Structure and Texture Similarity) evaluates structure and texture similarity with geometric robustness. CLIPIQA (CLIP-based Image Quality Assessment) provides semantic quality scores derived from CLIP features (higher is better).

Baseline methods. We select representative baselines covering four categories: (1) Bicubic: classic bicubic interpolation as a non-learning baseline; (2) SRCNN [23] and Subpixel CNN [24]: early convolutional super-resolution methods; (3) EDSR [35] and WDSR [36]: residual/wide-activation networks representing strong 2D restoration backbones; (4) FNO [37]: a Fourier neural operator baseline for larger-receptive-field modeling. All baselines are re-implemented under identical degradation settings, train/test splits, and evaluation metrics.

5.2. Quantitative Results and Comparison

We compare our method against bicubic interpolation and learning-based baselines. Table 1 shows $2\times$ axial super-resolution performance on mouse cerebral cortex EM dataset [19].

As Table 1 shows, our method achieves the best results across all four pixel-level metrics. Compared to Bicubic, PSNR improves from $12.98$ to $20.25$. SSIM increases from $0.280$ to $0.451$. MSE/MAE decreases from $0.377/0.489$ to $0.0387/0.1546$. This indicates significant improvements in intensity fidelity and structural consistency. Against learning-based baselines (SRCNN, Subpixel CNN, EDSR, WDSR), our method maintains a lead in PSNR/SSIM. It also substantially reduces error metrics. This demonstrates more effective recovery of high-frequency details lost in the axial direction. It also avoids over-smoothing from simple interpolation.

Table 1. Quantitative comparison of $2\times$ axial super-resolution on mouse cerebral cortex EM dataset (mean ± std). Baselines include bicubic interpolation and multiple 2D super-resolution methods. PSNR/SSIM higher better; MSE/MAE lower better; bold indicates best results.

Model	Parameters (M)	PSNR (↑)	SSIM (↑)	MSE (↓)	MAE (↓)
Bicubic	/	12.9804 ± 0.4148	0.2799 ± 0.0213	0.3766 ± 0.0366	0.4894 ± 0.0252
SRCNN [23]	0.0573	15.4597 ± 0.4392	0.3669 ± 0.0226	0.2008 ± 0.0161	0.3500 ± 0.0165
Subpixel CNN [24]	0.2270	15.4310 ± 0.4087	0.3646 ± 0.0214	0.2017 ± 0.0147	0.3506 ± 0.0154
FNO [37]	4.7520	14.5686 ± 0.2274	0.2967 ± 0.0146	0.2405 ± 0.0059	0.3880 ± 0.0078
EDSR [35]	1.3676	15.5603 ± 0.3947	0.3737 ± 0.0208	0.1957 ± 0.0132	0.3452 ± 0.0144
WDSR [36]	1.3345	15.4533 ± 0.3863	0.3651 ± 0.0204	0.2002 ± 0.0133	0.3496 ± 0.0143
Ours	15.677	20.2509 ± 0.9655	0.4510 ± 0.0394	0.0387 ± 0.0091	0.1546 ± 0.0137

Table 1. Quantitative comparison of $2\times$ axial super-resolution on mouse cerebral cortex EM dataset (mean ± std). Baselines include bicubic interpolation and multiple 2D super-resolution methods. PSNR/SSIM higher better; MSE/MAE lower better; bold indicates best results.

Model	Parameters (M)	PSNR (↑)	SSIM (↑)	MSE (↓)	MAE (↓)
Bicubic	/	12.9804 ± 0.4148	0.2799 ± 0.0213	0.3766 ± 0.0366	0.4894 ± 0.0252
SRCNN [23]	0.0573	15.4597 ± 0.4392	0.3669 ± 0.0226	0.2008 ± 0.0161	0.3500 ± 0.0165
Subpixel CNN [24]	0.2270	15.4310 ± 0.4087	0.3646 ± 0.0214	0.2017 ± 0.0147	0.3506 ± 0.0154
FNO [37]	4.7520	14.5686 ± 0.2274	0.2967 ± 0.0146	0.2405 ± 0.0059	0.3880 ± 0.0078
EDSR [35]	1.3676	15.5603 ± 0.3947	0.3737 ± 0.0208	0.1957 ± 0.0132	0.3452 ± 0.0144
WDSR [36]	1.3345	15.4533 ± 0.3863	0.3651 ± 0.0204	0.2002 ± 0.0133	0.3496 ± 0.0143
Ours	15.677	20.2509 ± 0.9655	0.4510 ± 0.0394	0.0387 ± 0.0091	0.1546 ± 0.0137

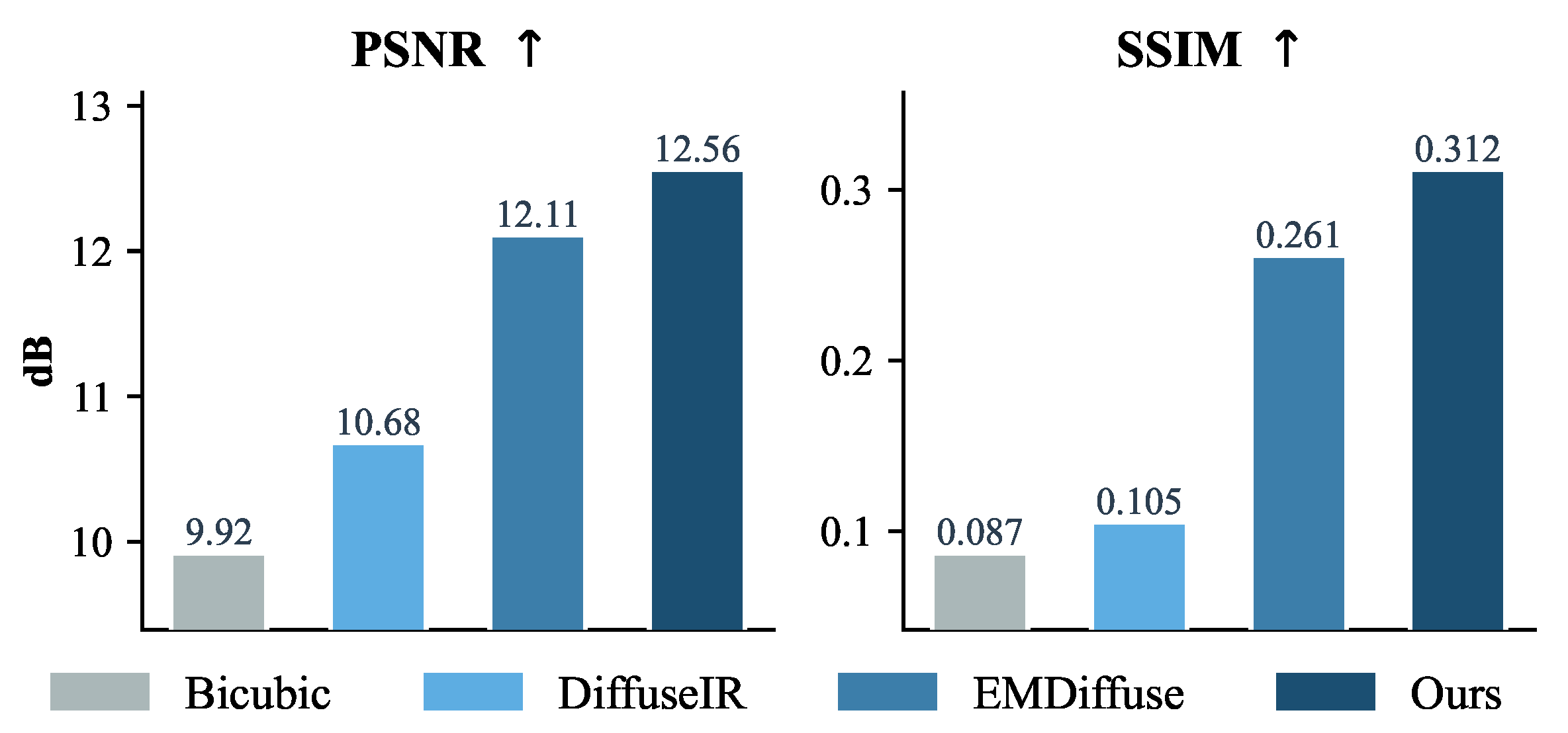

DiffuseIR [16] and EMDiffuse [19] are diffusion-based methods designed specifically for vEM isotropic reconstruction; however, their default training configurations differ from ours. To provide a direct comparison with these vEM-specific diffusion methods, we conduct a separate evaluation on the FANC dataset under a unified protocol. Figure 2 presents 3D reconstruction results on FANC. Our method outperforms both DiffuseIR and EMDiffuse, achieving the highest PSNR ($12.56$ dB) and SSIM ($0.3117$), which confirms its effectiveness against diffusion-based competitors.

5.3. Qualitative Visual Analysis

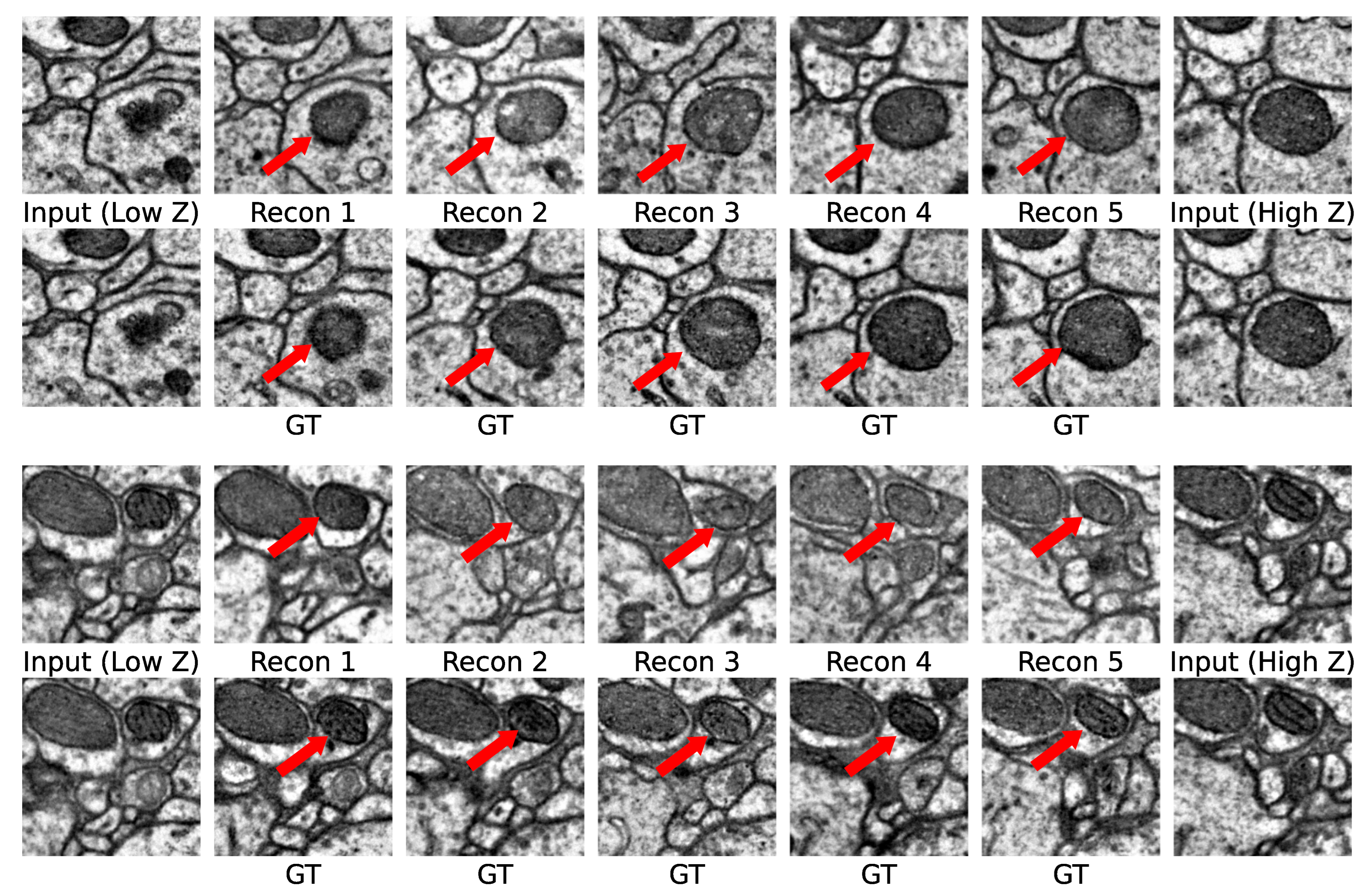

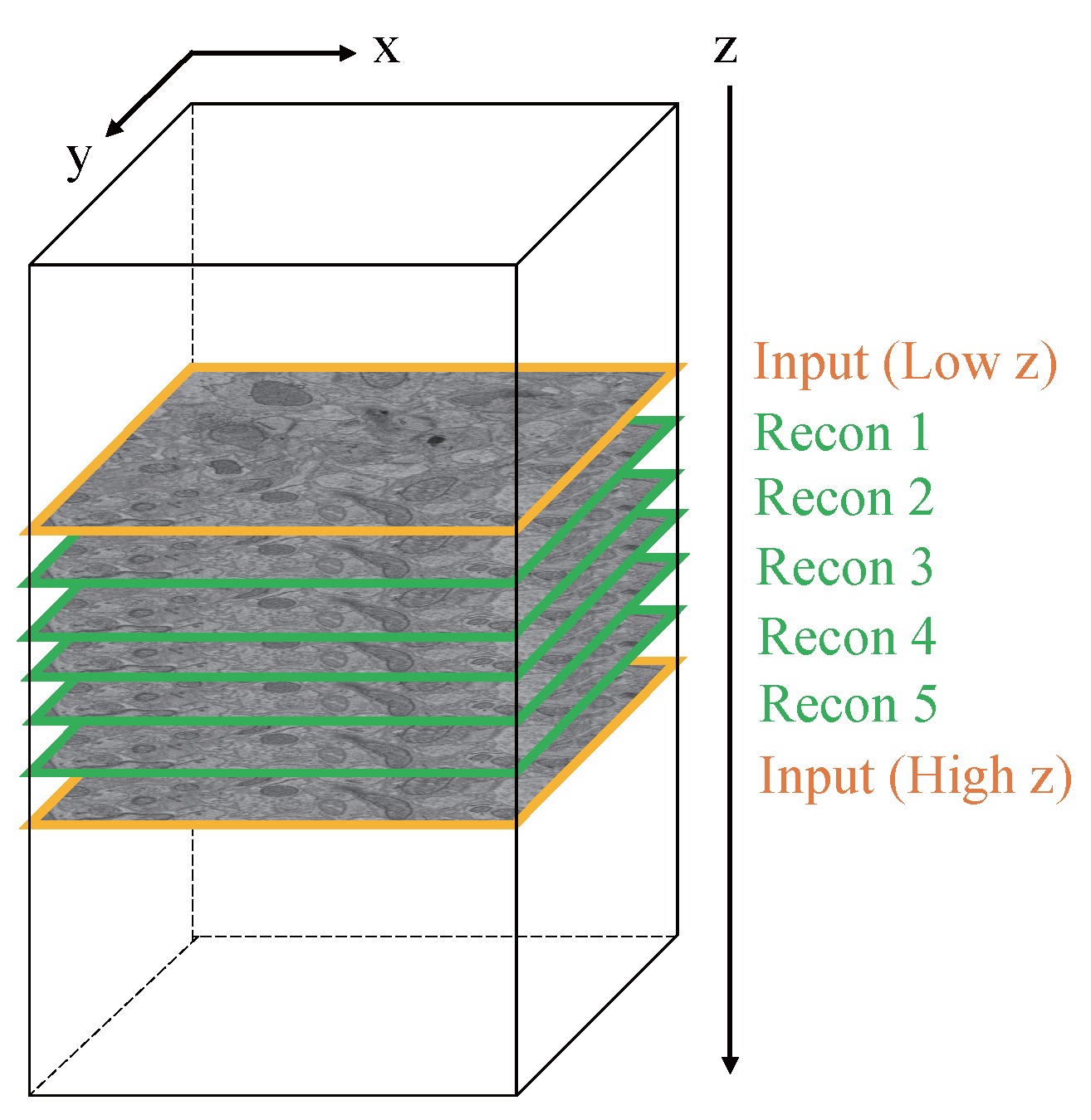

We present two voxel-level case studies. Figure 3 shows a reconstruction schematic. The model takes two adjacent input slices (Input (Low Z) and Input (High Z)) as conditions. It reconstructs intermediate missing slices (Recon 1–Recon 5). Figure 4 compares continuous $xy$-plane slices along z axis. Reconstructions are compared against ground truth (GT) slices. Our method accurately recovers key ultrastructures like membrane boundaries. It maintains relatively smooth structural transitions along the z direction. For tubular continuous structures, reconstructions show fewer breaks. This indicates that domain perceptual constraints help suppress implausible hallucinated details.

5.4. Ablation Study

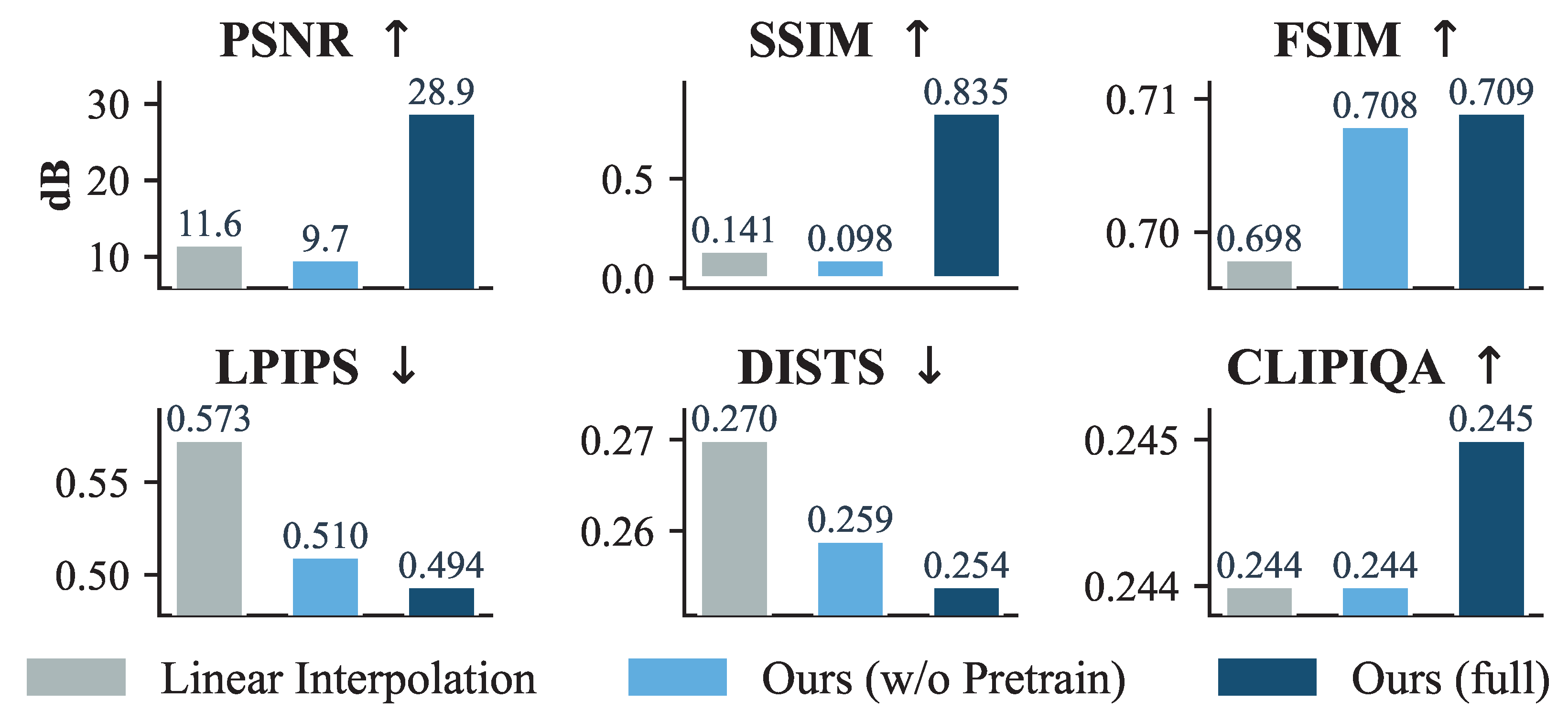

Figure 5 quantifies the contribution of each component via systematic ablation. Linear interpolation retains some low-frequency structures; however, it over-smooths fine details, leading to degraded perceptual quality. Replacing the domain-specific ViT prior with a generic ImageNet-pretrained one (Ours w/o Pretrain) reduces PSNR/SSIM, while increasing LPIPS/DISTS. These results suggest that, without domain constraints, the generator tends to mistake high-frequency noise for biological texture, thereby amplifying perceptual distortion. In contrast, the full model achieves a more balanced performance across all metrics, indicating better alignment with real EM image statistics. Overall, the domain-specific perceptual prior effectively suppresses biologically implausible hallucinated details while preserving structural plausibility.

Beyond the binary ablation above, we further investigate the individual contributions of the loss function design and the perceptual loss hyperparameters.

Table 2. Ablation study on loss functions (MSE baseline vs. adding ViT perceptual loss).

Method	PSNR ↑	SSIM ↑	LPIPS ↓	DISTS ↓
MSE only	19.8774	0.2550	0.5407	0.3682
MSE + $L_{\mathrm{per}}$ (Ours)	19.9742	0.4060	0.4627	0.2930

compares training with MSE loss only versus MSE combined with perceptual loss. Adding the domain-specific perceptual term improves SSIM from $0.2550$ to $0.4060$ and reduces LPIPS/DISTS from $0.5407/0.3682$ to $0.4627/0.2930$, confirming that the ViT-based perceptual constraint improves structural fidelity beyond pixel-level supervision alone.

Table 3. Ablation study on perceptual loss hyperparameters ($\lambda$: perceptual weight, $t_s$: step threshold—perceptual loss is applied only when diffusion timestep $t<t_s$, i.e., in the low-noise refinement phase).

Method	MAE ↓	MSE ↓	PSNR ↑	SSIM ↑	FSIM ↑	LPIPS ↓	DISTS ↓
$\lambda =0.1$, $t_s=100$	0.1594	0.0406	19.9318	0.1991	0.7018	0.5579	0.3677
$\lambda =0.5$, $t_s=100$	0.2063	0.0716	17.4730	0.1375	0.6462	0.6252	0.4098
$\lambda =1.0$, $t_s=100$ (Ours)	0.1644	0.0413	19.9742	0.4060	0.7006	0.4627	0.2930
$\lambda =2.0$, $t_s=100$	0.1560	0.0404	19.9602	0.2217	0.7270	0.5561	0.3659
$\lambda =1.0$, $t_s=50$	0.1458	0.0342	20.6844	0.2752	0.7552	0.5395	0.3624
$\lambda =1.0$, $t_s=200$	0.1610	0.0424	19.7508	0.2492	0.7403	0.5164	0.3368

reports a grid search over the perceptual loss weight $\lambda$ and start step $t_s$. The default configuration ($\lambda =1.0$, $t_s=100$) achieves the best SSIM ($0.4060$) and lowest LPIPS/DISTS ($0.4627/0.2930$).

5.5. ViT Feature Similarity Heatmap Visualization

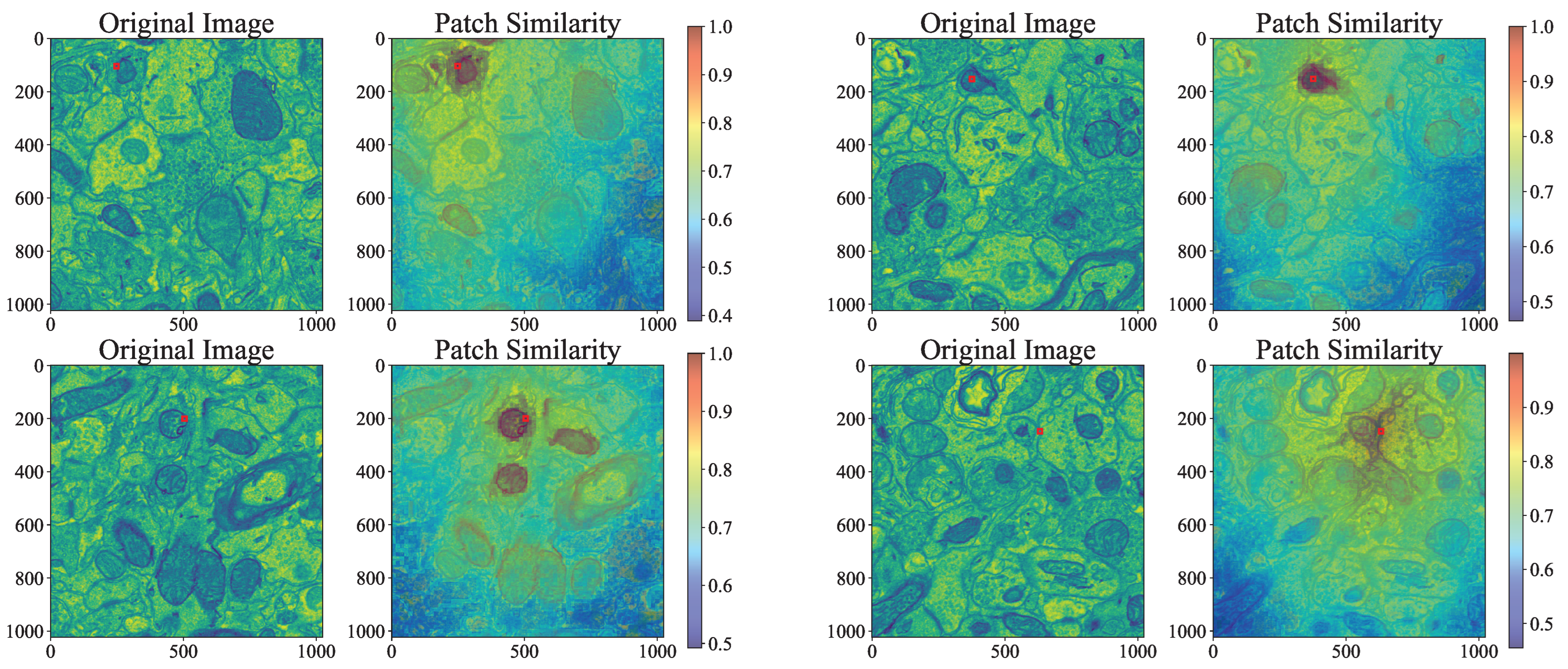

Figure 6 shows a patch similarity heatmap visualization. Using the query patch as a reference, feature similarity with all patches is higher near membrane boundaries. It is also elevated around periodic ultrastructures. Similarity is lower in relatively homogeneous cytoplasmic regions. This phenomenon supports hallucination suppression intuition from a feature space perspective. During diffusion training, perceptual loss more strongly penalizes deviations at these key structural patterns. This encourages reconstructed textures to align better with biological topology.

5.6. Training Dynamics Analysis

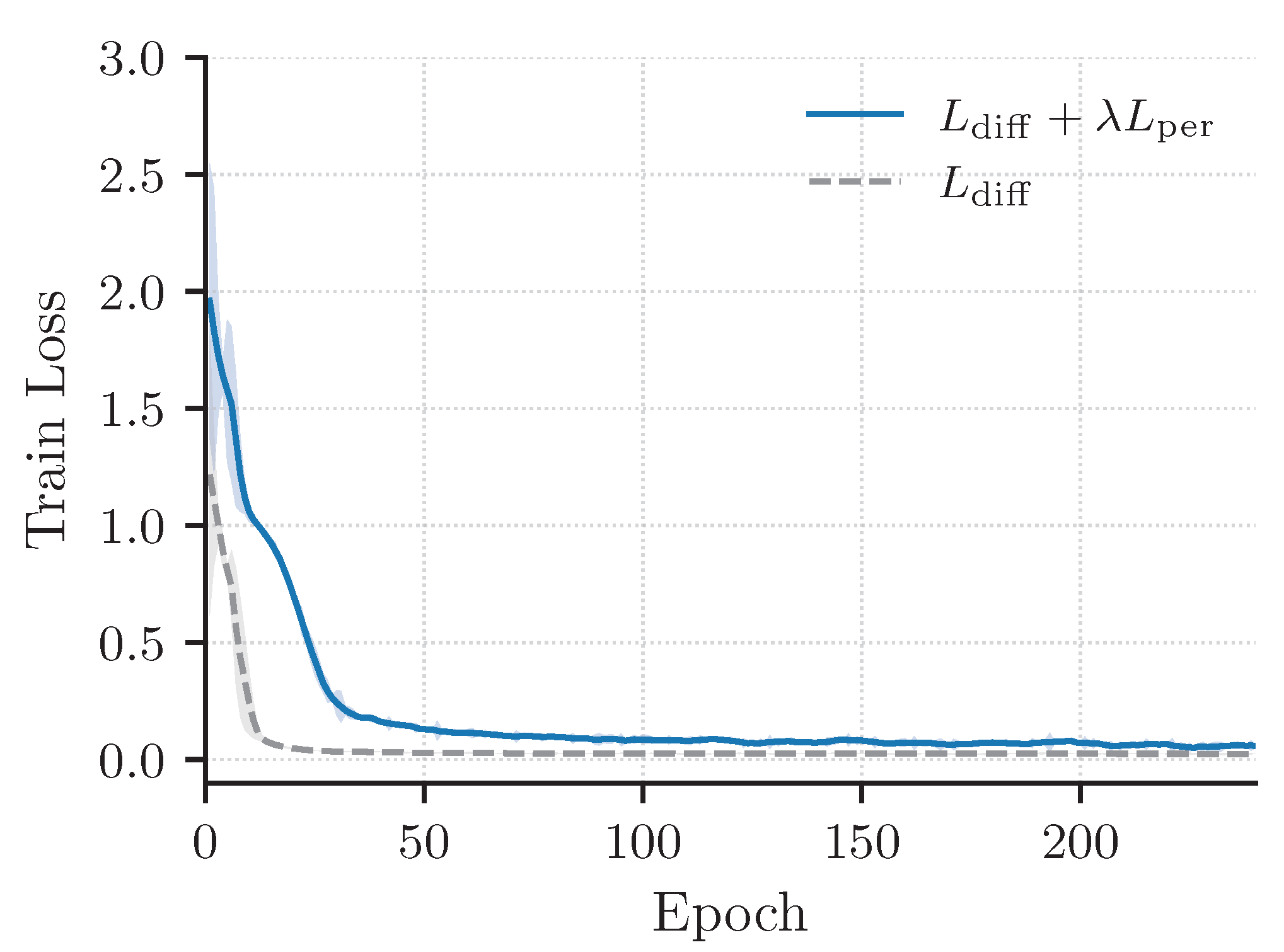

Figure 7 compares training loss curves with and without ViT perceptual constraints. The model with the ViT prior (blue curve) converges more smoothly. The inset shows the perceptual loss component decreasing overall. This confirms that generated textures progressively align with domain structural statistics in feature space. It validates the effectiveness of our two-stage training strategy.

6. Limitations

We acknowledge several limitations of the current work. First, while our model demonstrates robust performance on specific datasets, its generalizability across different imaging modalities and biological species is not yet fully guaranteed. Specifically, variations in imaging physics (e.g., FIB-SEM vs. serial-section SEM) introduce distinct noise profiles and contrast distributions—often referred to as the instrumental domain gap. Furthermore, the structural heterogeneity across different biological tissues or species poses a biological domain gap, where the structural priors learned from one specimen (e.g., mouse brain) may not perfectly align with others (e.g., Drosophila or plant tissues). Second, our quantitative evaluation relies on paired datasets constructed via synthetically simulated degradation (z-downsampling followed by Gaussian smoothing). Evaluating natively anisotropic volumes without paired isotropic ground truth remains an important direction for future work.

7. Conclusions

This paper addresses the loss of fine ultrastructural details in vEM volumes caused by axial (z) undersampling and blurring. We proposed an axial isotropic reconstruction framework that couples a conditional diffusion model with domain-specific self-supervised ViT pretraining. The method follows a two-stage pipeline. In Stage 1, we performed self-supervised representation learning on abundant high-resolution $xy$ slices to obtain feature priors aligned with vEM texture statistics and ultrastructural patterns. In Stage 2, we trained a conditional diffusion denoiser under simulated anisotropic degradation and added a ViT-feature perceptual loss computed with a frozen ViT. This explicitly encourages cross-slice structural consistency during axial high-frequency detail synthesis and mitigates hallucinated textures and inter-slice drift. Experiments on two representative vEM datasets show consistent improvements over baselines across pixel-level fidelity, perceptual quality, and structural plausibility metrics. Future work will explore scaling the framework to larger connectomics volumes and downstream analysis tasks.
