Fractional Kelvin–Voigt Model for Beam Vibrations: Numerical Simulations and Approximation Using a Classical Model

by
Paweł Łabędzki
Faculty of Management and Computer Modelling, Kielce University of Technology, al. Tysiąclecia Państwa Polskiego 7, 25-314 Kielce, Poland
Electronics 2025, 14(10), 1918; https://doi.org/10.3390/electronics14101918
Submission received: 7 April 2025 / Revised: 3 May 2025 / Accepted: 6 May 2025 / Published: 8 May 2025
(This article belongs to the Section Systems & Control Engineering)

Abstract

:
In this study, a cantilever beam with a tip mass under base excitation was analyzed, with system damping modeled using a fractional derivative approach. By applying the Rayleigh–Ritz method, the governing equation was decomposed into spatial and temporal components. Analytical solutions for the temporal equation were derived; however, their complexity posed challenges for practical application. To address this, convergence acceleration techniques were employed to efficiently evaluate slowly converging series representations. Additionally, two methods for identifying the parameters of a classical model approximating the fractional system were investigated: a geometric approach based on waveform shape analysis and an optimization procedure utilizing a genetic algorithm. The identified harmonic oscillator reproduced the dynamic response of the fractional model with an average relative error typically below 5% for off-resonance excitation. Overall, the study presents a robust analytical framework for solving fractional-order vibration problems and demonstrates effective strategies for their approximation using classical harmonic models.

1. Introduction

A cantilever beam with piezoelectric layers and a tip mass under base excitation is a widely studied model in piezoelectric energy harvesting [1]. Damping in such beams has traditionally been modeled using classical derivative-based approaches [2]. Alternatively, fractional-order models have been employed to describe damping effects more accurately, capturing memory-dependent and nonlocal characteristics of viscoelastic materials [3,4,5,6,7].
Vibration energy harvesting using piezoelectric beams has garnered significant attention in recent years due to its potential in powering low-energy devices. Recent studies have explored various configurations and modeling techniques to enhance the efficiency of such systems. For instance, a study by Cao et al. [8] investigated the effects of fractional damping on the dynamic response of a piezoelectric energy harvester, revealing complex behaviors including chaos and bifurcations. Another study by Sengha et al. [9] examined a hybrid energy harvesting system incorporating fractional properties, demonstrating improved performance under certain excitation conditions.
The incorporation of fractional-order derivatives into the modeling of piezoelectric energy harvesters has shown promise in capturing the complex dynamics of these systems more accurately. Studies such as those by Kwuimy et al. [10] and Zhou et al. [11] have highlighted the benefits of using fractional calculus in representing the viscoelastic behavior and memory effects inherent in piezoelectric materials. These approaches have led to more precise predictions of system responses and have opened new avenues for optimizing energy harvesting performance.
Fractional-order derivatives have gained increasing attention in recent years due to their ability to capture complex physical behavior that cannot be adequately described by classical models. They have been successfully applied in modeling diffusion, viscoelasticity, thermal transport, etc. This growing popularity is reflected in numerous recent studies, including those collected in [12], as well as in theoretical contributions such as [13], which extends the formalism to generalized function spaces. Further recent developments are discussed in [14], highlighting novel applications of fractional calculus.
The Galerkin and Rayleigh–Ritz methods are commonly employed to solve problems involving vibrating beams and other mechanical structures such as rods and plates [3,15]. These methods enable the decomposition of the solution of the governing equation into two components: spatial and temporal. Typically, the temporal solution is predetermined, as it often corresponds to the natural vibration modes of the mechanical structure under consideration or is represented by appropriately chosen, well-established functions.
In this study, the vibration of a beam with a tip mass under base excitation is analyzed. The damping in the system is modeled using a fractional Kelvin–Voigt constitutive equation for a viscoelastic material [16]. The application of the Rayleigh–Ritz method reduces the problem to a set of independent fractional differential equations, each corresponding to a distinct natural vibration mode of the beam. These equations take the following form:
u ¨ t + μ D α u t + ω 2 u t = f t ,
where u t represents the temporal component of the solution associated with a specific natural vibration mode, μ > 0 and ω > 0 are fixed real parameters, 0 < α < 1 is the order of the fractional derivative D α , and f t represents the excitation term corresponding to the given vibration mode.
In the literature, the model described by Equation (1) is referred to as the fractional Kelvin–Voigt (FKV) oscillator [17]. It has attracted the attention of many researchers [18,19,20,21,22]. Some studies employ the Riemann–Liouville definition of the fractional derivative [18], while others use the Caputo definition [21]. Although analytical solutions to Equation (1) have been derived [20,23,24], numerical methods are often preferred for solving this equation due to the complexity of the analytical solutions and the computational challenges associated with their practical application. In contrast, classical models with integer-order derivatives do not exhibit such difficulties.
This naturally raises the following question: Under what conditions can fractional models be replaced by classical models, and how should the parameters of classical models be selected to best approximate the behavior of fractional models? A similar problem has been investigated in [25,26,27,28] using different approaches. The Fourier transform and the response of oscillators to a unit impulse were analyzed in [25]. In [26], the total mechanical energy of fractional operators was used to determine the damping coefficient of a classical model corresponding to a fractional model. The relationship between fractional and classical models was established in [27] by matching their dispersion relations. Finally, in [28], a measure of the incompatibility between fractional and classical models, referred to as the divergence coefficient, was introduced, and optimization methods were employed to refine the parameter selection.
This article presents a method for determining the solution of Equation (1) using closed-form analytical formulas, complemented by a numerical approach to accelerate the convergence of slowly converging series, specifically Wynn’s epsilon method [29]. Typically, equations of this type are solved using purely numerical techniques [30,31] due to the complexity of their analytical solutions. However, obtaining solutions in a closed form is of significant importance, as they provide a benchmark for validating numerical methods and assessing their accuracy.
To determine the classical model—a damped harmonic oscillator, corresponding to a given FKV oscillator—two approaches are employed. In the first approach, the parameters of the classical model—namely, the undamped angular frequency and the damping ratio—are identified by analyzing the shape of the response graph. This includes examining the distribution of zeros and the positions of local maxima, with the logarithmic decrement method applied to the latter [32]. The second approach utilizes the divergence coefficient introduced in [28]. The parameters of the classical model are estimated by minimizing the divergence coefficient using a genetic algorithm. The results obtained from both approaches are compared and discussed.
The paper is structured as follows. The introduction outlines the current state of research and presents the scope of the study in relation to previous work. In the next section, the fractional Kelvin–Voigt (FKV) oscillator equation is obtained as the temporal part of the motion of a cantilever beam with a tip mass subjected to base excitation. The following section presents analytical solutions to both the homogeneous and nonhomogeneous forms of the FKV equation for Riemann–Liouville and Caputo derivatives and discusses two methods for identifying the parameters of an equivalent harmonic oscillator. The results section includes validation of the numerical method based on analytical formulas, evaluation of the identified harmonic models, and their performance in the nonhomogeneous case. The final section presents the conclusions of the study.

2. Formulation, Solution, and Computational Methods

2.1. Governing Equation and Solution Using the Rayleigh–Ritz Method

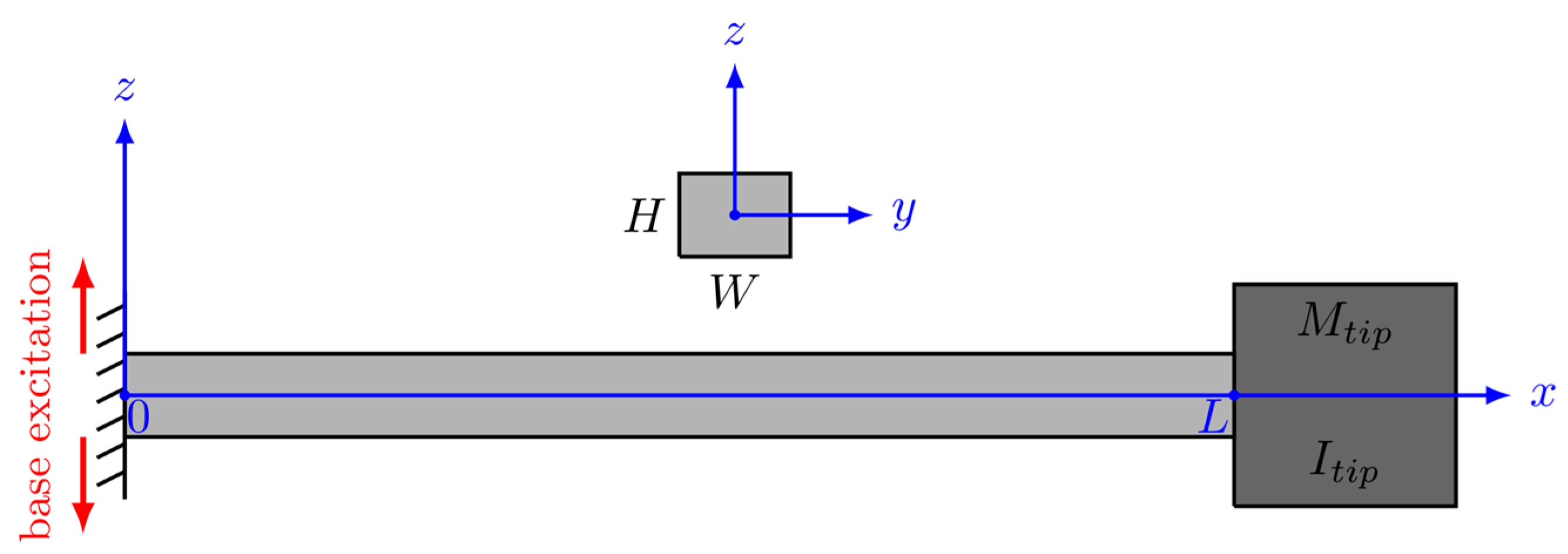

Consider a cantilever beam, clamped at x = 0 , with a tip mass M t i p at its free end x = L , subjected to base excitation, as shown in Figure 1. Assume that the relationship between stress and strain in the beam’s material is governed by a constitutive equation known as the fractional Kelvin–Voigt model [16]:
σ x , z , t = E 0 ε x , z , t + E 0 τ α D α ε x , z , t ,
where E 0 is a material constant, τ is retardation time, and α is the order of the fractional derivative D α , with 0 < α < 1 , which is taken with respect to t only.
According to the Euler–Bernoulli beam-bending theory, the relationship between strain ε ( x , z , t ) and the transverse displacement w ( x , t ) of the beam is given by
ε x , z , t = z 2 w x , t x 2 ,
The bending moment M x , t in the beam cross-section C is determined as
M x , t = C z σ x , z , t d y d z ,
By substituting Equations (2)–(4) into the equilibrium equation
ρ A 2 w x , t t 2 = 2 M x , t x 2 ,
one obtains the governing equation for the transverse displacement w x , t :
ρ A 2 w x , t t 2 + E 0 I 4 w x , t x 4 + E 0 τ α I D α 4 w x , t x 4 = 0 ,
where I is the moment of inertia of the cross-section with respect to the bending axis y , A = W H is the cross-sectional area, and ρ is a density of beam’s material. The absolute transverse displacement w x , t can be expressed as
w x , t = w r e l x , t + w b x , t ,
where w r e l x , t is the displacement relative to a moving coordinate system with its origin at the clamped end of the beam, and w b x , t is the base displacement. It is assumed that
w b x , t = A 0 s i n Ω t ,
where A 0 and Ω are amplitude and angular frequency of the base excitation, respectively. Substituting Equations (7) and (8) into Equation (6) yields
ρ A 2 w r e l x , t t 2 + E 0 I 4 w r e l x , t x 4 + E 0 τ α I D α 4 w r e l x , t x 4 = ρ A A 0 Ω 2 s i n ( Ω t ) ,
The boundary conditions for displacement and angle at clamped end x = 0 are
w r e l 0 , t = 0 , w r e l x 0 , t = 0 .
The boundary condition for the bending moment at the free end x = L is
E 0 I 2 w r e l x 2 L , t + E 0 τ α D α 2 w r e l x 2 x , L + I t i p 2 w r e l t 2 L , t = 0 ,
The boundary condition for the transverse force at the free end x = L is the following:
E 0 I 3 w r e l x 3 L , t + E 0 τ α D α 3 w r e l x 3 x , L + M t i p 2 w r e l t 2 L , t = 0 ,
where M t i p is the mass of the body attached to the free end of the beam and I t i p is its moment of inertia, about x = 0 (for point mass M t i p it would be equal to I t i p = L 2 M t i p ).
To obtain an approximate solution to Equation (9), the Rayleigh–Ritz method is employed. In this approach, the transverse displacement w r e l ( x , t ) is assumed to be a series expansion in terms of trial functions that satisfy the boundary conditions:
w r e l x , t = i = 1 φ i x u i ( t ) ,
where φ i ( x ) are the trial functions representing the mode shapes of the beam and u i t are the generalized coordinates that describe the time-dependent motion of the system. The mode shapes of a cantilever beam are given by [1,33]:
φ i x = 1 ρ A   L c o s λ i L x c o s h λ i L x + σ i s i n λ i L x s i n h λ i L x ,
where
σ i = sin λ i sinh λ i cos λ i cosh λ i
and dimensionless eigenvalues λ i are determined from the characteristic equation
1 + cos λ cosh λ = 0 .
Eigenfunctions defined in Equation (14) are orthogonal, which means that for i j , the following conditions hold:
0 L φ i x φ j x d x = 0 , 0 L φ i x d 4 φ j ( x ) d x 4 d x = 0 ;
for i = j , these integrals are nonzero.
Multiplying Equation (9) by φ k ( x ) and integrating over the range [ 0 , L ] , we obtain, based on the orthogonality conditions of the natural vibration modes (17), an equation of the form (1), as previously introduced, where the function f t is defined as
f t = F 0 sin Ω t ,
for some F 0 associated with the k -th vibration mode of the beam.

2.2. Solution of the Temporal Equation and Numerical Methods

In this section, we present closed-form solutions for Equation (1) and discuss numerical methods for their efficient computation.
We begin with the homogeneous equation for f t = 0 :
u ¨ t + μ D α u t + ω 2 u t = 0 ,
We consider the above equation with initial conditions: x 0 = x 0 , x ˙ 0 = v 0 .
Based on Theorem 5.2 and Proposition 5.2 from [23], and after applying the necessary transformations, the solution of Equation (19) for the Riemann–Liouville fractional derivative takes the form
x R L t = x 0 x 1 ( R L ) t + v 0 x 2 ( R L ) t ,
where
x 1 R L t = n = 0 k = 0 1 n + k n + k n ω 2 n μ k Γ 2 n + k α k + 1 t 2 n + k α k ,
x 2 R L t = t n = 0 k = 0 1 n + k n + k n ω 2 n μ k Γ 2 n + k α k + 2 t 2 n + k α k .
Similarly, applying Theorem 5.13 and Proposition 5.8 from [23], the solution for Equation (19) in the case of the Caputo fractional derivative takes the form
x C t = x 0 x 1 ( C ) t + v 0 x 2 ( R L ) t ,
where
x 1 ( C ) t = x 1 ( R L ) t + μ t 2 α n = 0 k = 0 1 n + k n + k n ω 2 n μ k Γ ( 2 n + k α ( k + 1 ) + 3 ) t 2 n + k α k ,
For the nonhomogeneous Equation (1), solutions can be obtained for both Riemann–Liouville and Caputo fractional derivatives using Proposition 5.5 and Proposition 5.11, respectively, in the form
x t = x h o m t + 0 t t τ G t τ f τ d τ ,
where the function G ( t ) is defined as
G t = n = 0 k = 0 1 n + k n + k n ω 2 n μ k Γ 2 n + k α k + 2 t 2 n + k α k .
The function x h o m ( t ) represents the solution of the homogeneous Equation (19) for either the Riemann–Liouville or Caputo derivative, as given in Equations (20) and (23), respectively.
Direct computation of x 1 R L t ,   x 2 R L t ,   x 1 C t and G ( t ) by truncating the series in Equations (21), (22), (24), and (26) is only effective for small values of t. For larger t , naive truncation leads to significant numerical errors due to cancelation and round-off in the summation of highly oscillatory terms. To overcome this limitation and extend the computation to a broader range of t , we employed the Wynn- ε algorithm [20], as implemented in Mathematica’s built-in function SequenceLimit[]. The Wynn-ε algorithm is a nonlinear sequence transformation designed to accelerate the convergence of slowly converging or even divergent series. In this context, it is particularly effective because it systematically reduces numerical errors arising from the oscillatory and slowly decaying terms in the series representations, allowing for accurate evaluation even at large t .The integral in Equation (25) was evaluated using the trapezoidal rule. Our calculations were performed using Mathematica v. 12.1.
Applying the Wynn-   ε method requires transforming the double series into a single series. Since the original series are absolutely convergent, their terms can be grouped and summed in an arbitrary order. Here, summation was performed over N = n + k , varying from zero to infinity. The computations required high floating-point precision, and all model parameters were converted into symbolic fractions to facilitate exact symbolic calculations.
In terms of computational cost, the proposed approach is significantly more demanding than classical numerical methods for solving fractional differential equations. For example, when compared to numerical schemes based on the Grünwald–Letnikov derivative (for the Riemann–Liouville case) [30] or MATLAB implementations using the Caputo derivative [31], the computation of the solution components using Wynn’s epsilon method is substantially slower. While standard numerical implementations typically complete calculations within approximately 10 s, the Wynn epsilon acceleration requires around 10 min for comparable problems. However, a key advantage of the Wynn epsilon method is that it operates on exact analytical series representations, offering high accuracy that is less sensitive to discretization parameters, whereas the considered numerical methods are more dependent on the time-step size to maintain accuracy.
The computational domain 0 t T was chosen to approximately span 10 fundamental periods of the homogeneous solution x h o m ( t ) . To determine T , the fundamental frequency ω 0 of the corresponding harmonic oscillator was estimated using the relation derived in [28]:
ω 0 = ω 2 + μ 2 2 α ,
The final time was then set as T = 10 T 0 , with T 0 = 2 π ω 0 .
The time step for evaluating the integral in Equation (25) using the trapezoidal rule was chosen as Δ t = min { 0.01 T 0 ,   0.01 2 π Ω } .

2.3. Identification of Equivalent Harmonic Oscillator Parameters: Geometric and Optimization Approaches

The classical damped harmonic oscillator is well known to be governed by the following equation:
x ¨ t + 2 ξ ω 0 x ˙ t + ω 0 2 x t = 0 ,
subject to the initial conditions x 0 = x 0 , x ˙ 0 = v 0 . Here, ω 0 denotes the undamped natural angular frequency of the system and ξ is the damping ratio. The solution to Equation (28) can be written in the form
x t = x 0 x 1 H O t + v 0 x 2 H O t ,
where the functions x 1 H O t and x 2 H O t are expressed in terms of exponential and trigonometric functions.
Our aim is to determine an equivalent harmonic oscillator represented by Equation (28) that approximates the behavior of the FKV oscillator, defined by Equation (19). Solutions of Equation (19) for the case of the Riemann–Liouville and Caputo fractional derivatives, given by formulas (20) and (23), respectively, share a common component corresponding to the initial condition x ˙ 0 = v 0 . Consequently, if a harmonic oscillator can be identified for the case of the Caputo fractional derivative, it remains the same for the case of the Riemann–Liouville fractional derivative. In this work, we choose to focus primarily on the Caputo fractional derivative. This is motivated by the fact that, unlike the Riemann–Liouville derivative, the Caputo formulation allows for the use of physically meaningful initial conditions expressed in terms of the function and its integer-order derivatives, such as position and velocity.

2.3.1. Geometric Approach to Parameter Identification

As a result of the numerical method of solving Equation (19), we have the values of the components x 1 ( C ) ( t ) and x 2 R L t defined in Equations (24) and (22), respectively, at discrete moments of time t i = i Δ t , for some Δ t > 0 , i = 0,1 , , N . Here, we discuss how, based on these data, to obtain approximations of the parameters ω 0 and ξ of a harmonic oscillator that approximates a given FKV oscillator.
Let the sequences z j ( 1 ) ,   j = 1,2 , , M 1 and m k ( 1 ) ,   k = 1,2 , , K 1 represent, respectively, the approximate locations of the zeros and the arguments corresponding to local maxima of the function x 1 ( C ) ( t ) . Similarly, the sequences z j ( 2 ) ,   j = 1,2 , , M 2 and m k ( 2 ) ,   k = 1,2 , , K 2 are defined for the function x 2 ( R L ) ( t ) . The approximate parameters of the harmonic oscillator corresponding to the given FKV oscillator are determined from the following formulas:
ω 0 = π 1 M 1 1 i = 1 M 1 1 ( z i + 1 1 z i ( 1 ) ) + 1 M 2 1 i = 1 M 2 1 ( z i + 1 2 z i ( 2 ) ) ,
ξ = 1 2 π 1 K 1 1 i = 1 K 1 1 ln m i ( 1 ) m i + 1 ( 1 ) + 1 K 2 1 i = 1 K 2 1 ln m i ( 2 ) m i + 1 ( 2 )   ,
In the denominator of Equation (30), we approximate half the fundamental period for the harmonic oscillator we are looking for, so dividing π by half the period gives an approximation of the circular frequency ω 0 . In Equation (31), we use the concept of the logarithmic damping decrement to determine ξ .

2.3.2. Genetic Algorithm Approach to Parameter Identification

To assess the quality of fit between a given FKV oscillator and a classical harmonic oscillator, we adopted a measure of model similarity defined in [28], called the divergence coefficient:
I x F K V t , x H O t max x 1 F K V t x 1 H O t x 1 F K V t , x 2 F K V t x 2 H O t x 2 F K V t   ,
where is the supremum norm on interval   0 t T   for some T > 0 [34] and x F K V t and x H O t are defined in (23) and (28), respectively. The divergence coefficient has an interpretation as the maximum relative difference between components of the functions x F K V t and x H O t . Function x F K V t is fixed and we look for the function x H O t that minimizes the divergence coefficient (32). In this case, we write I x H O t .
Let the FKV oscillator with parameters μ , α , ω be fixed. We use the genetic algorithm to find the minimum value of the divergence coefficient and the parameters ω 0 and ξ of the harmonic oscillator, which correspond to the given FKV oscillator. The calculations were carried out using MATLAB’s ‘Global Optimization’ toolbox. The objective function, the divergence coefficient, was minimized using MATLAB’s built-in function ga. Although the ga function allows the adjusting of many parameters, after experimenting with various settings, we decided to use its default options. Changes in the parameters typically did not significantly improve the result’s quality, but often substantially increased computation time.

3. Results

3.1. Verification of the Wynn Epsilon Method for Solving the FKV Oscillator Equation

To validate the numerical method used to evaluate the series solutions of Equation (19), we consider the special case α = 1 . In this case, Equation (19) reduces to the classical damped harmonic oscillator Equation (28), with parameters given by ξ = μ / 2 ω and ω 0 = ω . Accordingly, we substitute α = 1 into Equations (21), (22), and (24), and compare the results obtained using the Wynn epsilon method with the known analytical functions x 1 ( H O ) ( t ) and x 2 ( H O ) ( t ) appearing in Equation (29). This comparison allows us to verify the correctness and numerical accuracy of the proposed approach.

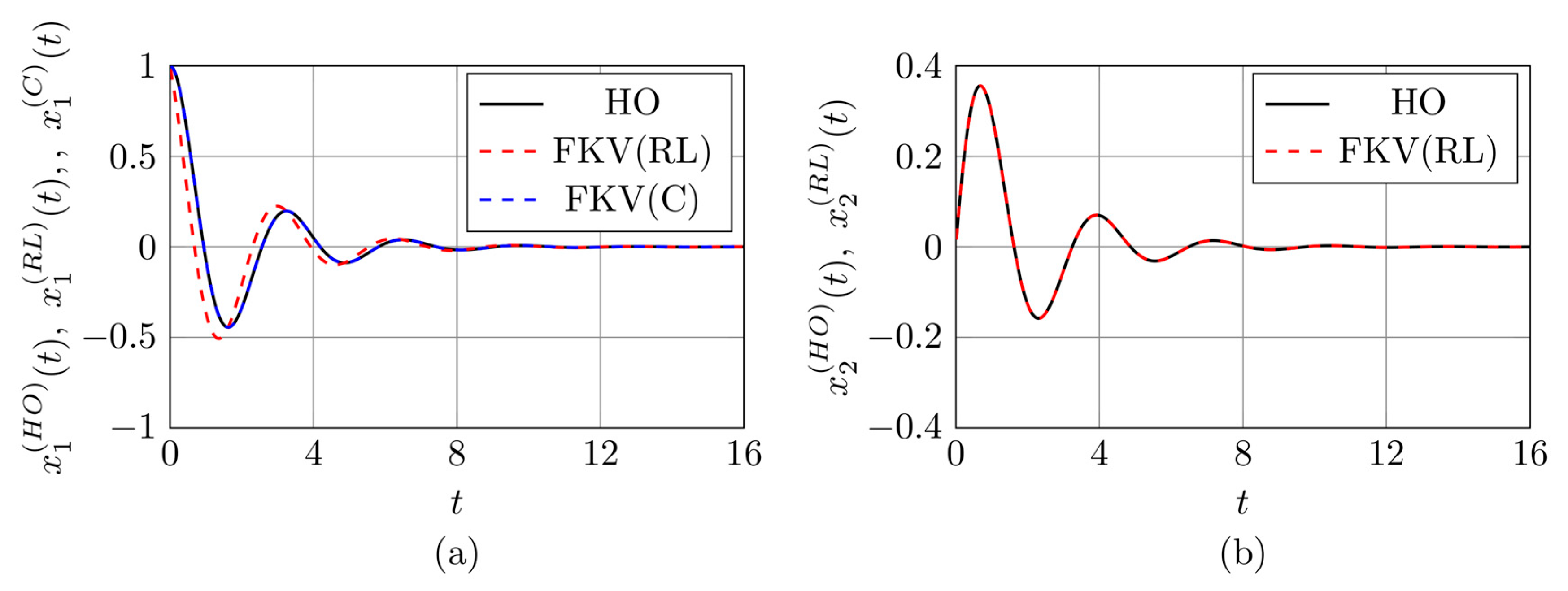

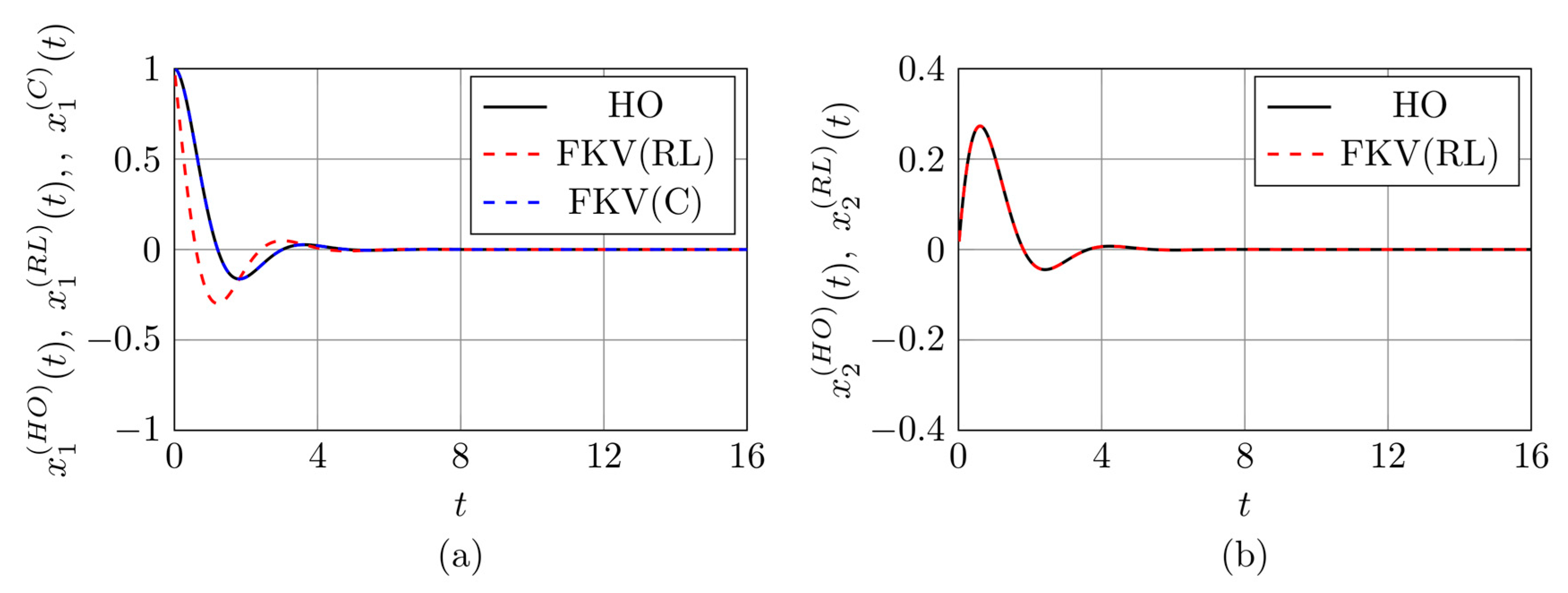

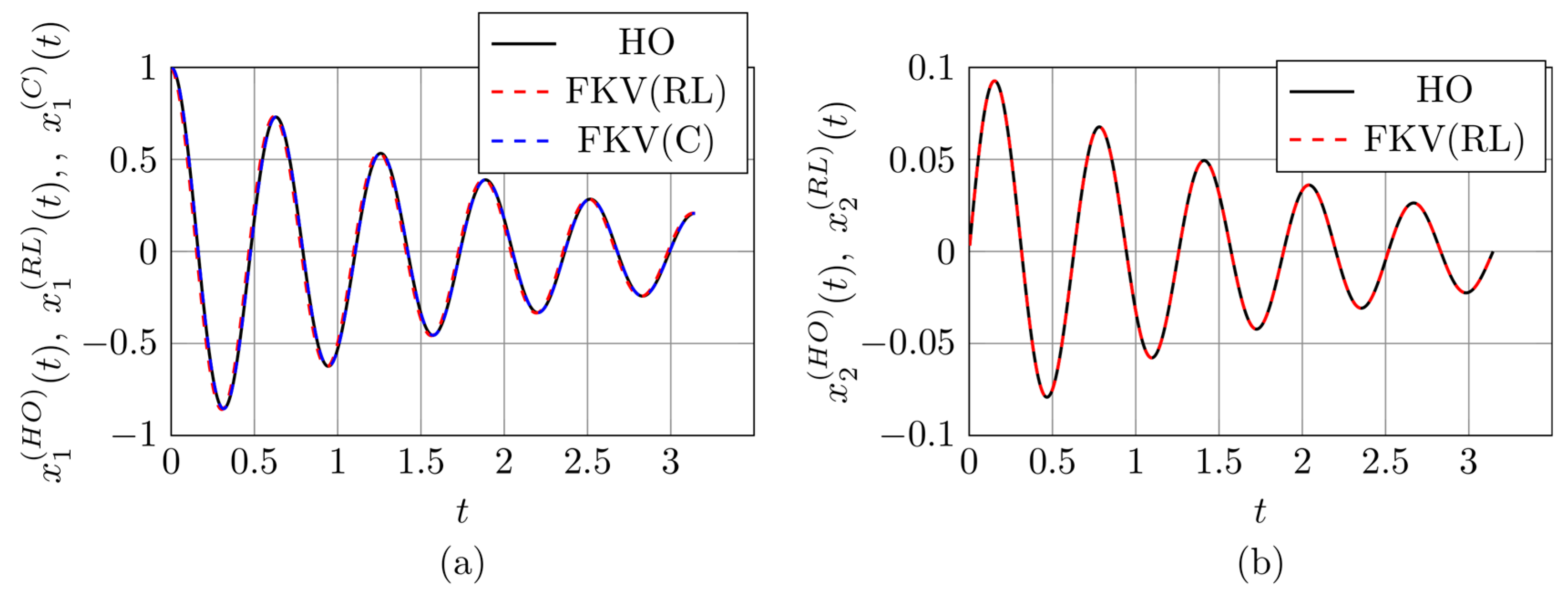

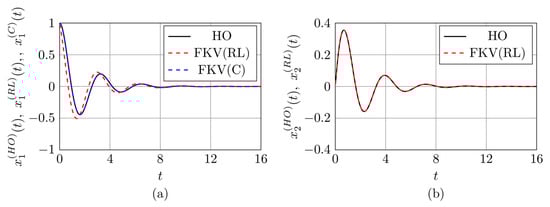

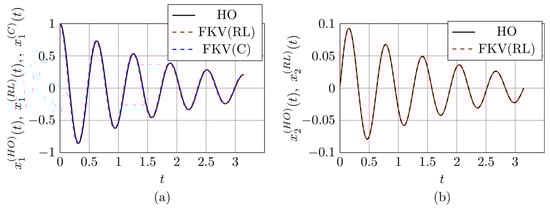

Figure 2, Figure 3 and Figure 4 present a comparison between the analytical solution components of the classical harmonic oscillator, x 1 ( H O ) ( t ) and x 2 ( H O ) ( t ) (solid black lines), and the corresponding approximations obtained using the Wynn epsilon method for the fractional model with Riemann–Liouville (red dashed lines) and Caputo (blue dashed lines) derivatives.
Figure 2a, Figure 3a and Figure 4a show the components associated with the initial displacement condition x 0 = x 0 , while Figure 2b, Figure 3b and Figure 4b correspond to the initial velocity condition x ˙ 0 = v 0 . It should be noted that in Figure 2b, Figure 3b and Figure 4b, only two curves are plotted, since the solution components related to the initial velocity are identical for both the Riemann–Liouville and Caputo cases.
A very good agreement can be observed between the Wynn- ε approximation of the x 1 C ( t ) and the function x 1 H O ( t ) in Figure 2a, Figure 3a and Figure 4a, with the maximum relative absolute difference being on the order of 10 16 . A similar observation holds for the Wynn- ε approximation x 2 R L ( t ) and the function x 2 H O ( t ) , shown in Figure 2b, Figure 3b and Figure 4b.
In contrast, noticeable discrepancies occur between x 1 R L ( t ) (red dashed lines in Figure 2a, Figure 3a and Figure 4a) and x 1 H O ( t ) , with maximum relative differences reaching approximately 0.36 in Figure 2a, 0.55 in Figure 3a, and 0.09 in Figure 4a. These deviations are related to the incompatibility of initial conditions in the Riemann–Liouville formulation. However, it can be shown that the difference x 1 C t x 1 R L ( t ) tends to zero as t , indicating that the solutions converge asymptotically.
To validate the numerical solutions of the nonhomogeneous fractional Kelvin–Voigt oscillator equation with zero initial conditions, we once again consider the limiting case α = 1 . In this case, the equation reduces to the classical nonhomogeneous damped harmonic oscillator:
x ¨ t + 2 ξ ω 0 x ˙ t + ω 0 2 x t = f ( t ) ,
where ω 0 = ω , ξ = μ / 2 ω , and the forcing function f ( t ) is defined in Equation (18). We denote the solution of Equation (33) under zero initial conditions by x H O ( t ) . This solution serves as a reference for assessing the accuracy of the numerical results obtained for the fractional model with α = 1 .
Let x F K V ( t ) denote the solution of Equation (1) with zero initial conditions for α = 1 . In this case, the homogeneous component vanishes, and the solution is given by the convolution integral appearing in Equation (25).

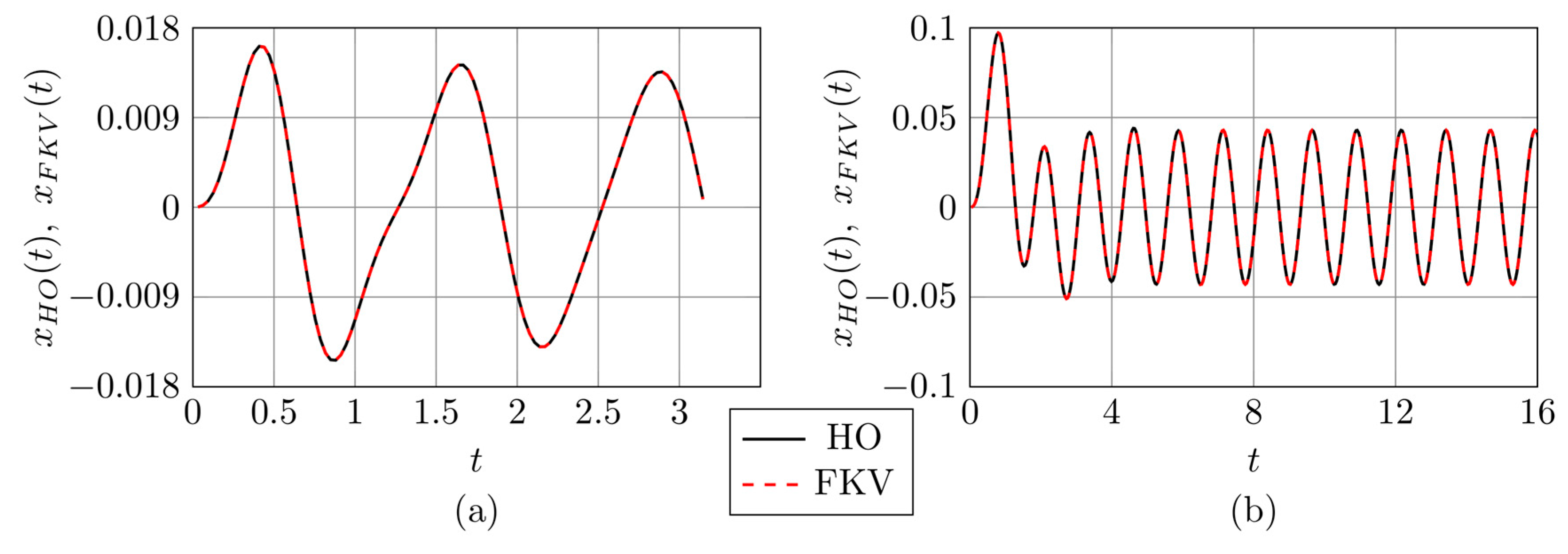

To illustrate the accuracy of the proposed numerical approach, Figure 5 presents a comparison between the exact solution x H O ( t ) of the classical oscillator Equation (33) and the approximation x F K V ( t ) obtained using the Wynn epsilon method. The comparison is carried out for two selected fractional Kelvin–Voigt oscillators subjected to the external excitation defined in Equation (18), with parameters fixed as F 0 = 1 and Ω = 5 .
The agreement between the exact solution and the Wynn epsilon approximation is very good. The maximum relative difference between the two curves is on the order of 10 6 .

3.2. Results Based on the Proposed Identification Methods

In this section, we compare two methods for identifying the parameters of a classical harmonic oscillator that best approximates the response of a given fractional Kelvin–Voigt (FKV) oscillator. For each method, denoted by the superscript m , we define the identified optimal parameters of the equivalent harmonic oscillator as ω 0 m and ξ ( m ) , corresponding to the undamped natural frequency and the damping ratio, respectively.
The resulting optimal approximation is denoted by x H O ( m ) ( t ) , and its accuracy is evaluated using formula ε m = I ( x H O ( m ) ( t ) ) , where I ( ) denotes the divergence coefficient defined in Equation (32), which quantifies the discrepancy between the fractional and harmonic oscillator responses.
Table 1 presents a comparison of parameter identification results for several fractional Kelvin–Voigt (FKV) with parameters (µ, α, ω) shown in the first column. For each case, the identified parameters of the equivalent harmonic oscillator obtained using the geometric method (second column) and the genetic algorithm (third column) are listed, along with the corresponding values of the divergence coefficient ε m , which quantifies the discrepancy between the fractional and classical models.
.
Analysis of the results reveals that the genetic algorithm generally yields lower values of the divergence coefficient ε m , indicating better agreement between the models. However, this is not always the case, as illustrated by rows 1 and 7 of Table 1, where the geometric method performs slightly better. In certain cases (rows 7 and 10), the divergence coefficient reaches relatively high values, suggesting that the classical harmonic model may not always provide a satisfactory approximation of the fractional dynamics.

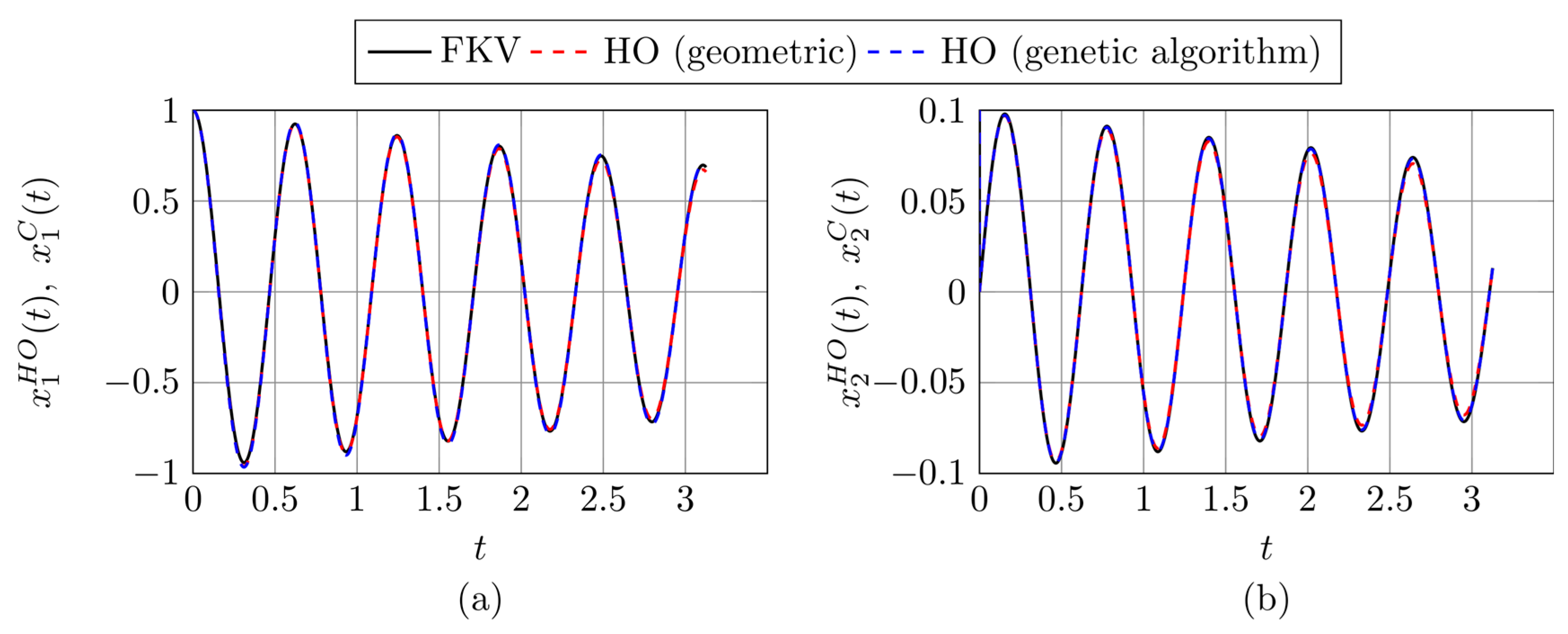

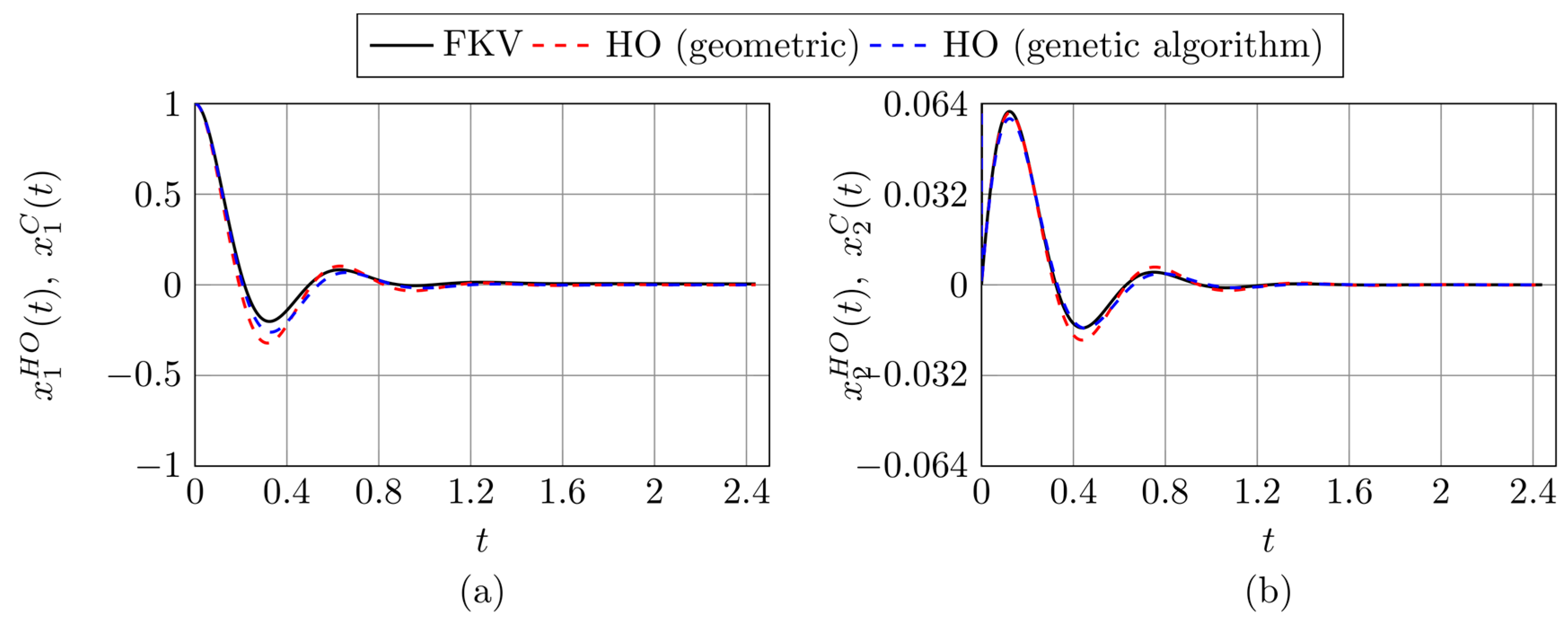

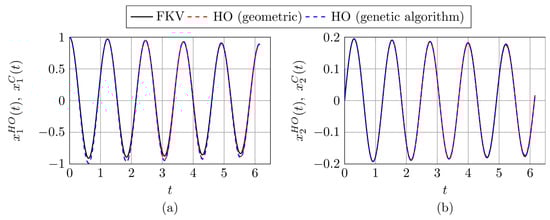

Figure 6, Figure 7, Figure 8 and Figure 9 present a comparison between the solution components of selected FKV oscillators and those of classical harmonic oscillators identified using two different methods: a geometric approach and a genetic algorithm. Each figure is composed of two parts: (a) and (b). Figure (a) shows a comparison of the displacement-related components x 1 C ( t ) and x 1 H O ( t ) , while Figure (b) shows a comparison of the velocity-related components x 2 R L ( t ) and x 2 H O ( t ) . Here, x 1 H O ( t ) and x 2 H O ( t ) correspond to components of the harmonic oscillator solution x H O m ( t ) , computed using the optimal parameters obtained via the respective identification method.
The results illustrated in Figure 6, Figure 7, Figure 8 and Figure 9 provide additional insight into the effectiveness of both identification methods in approximating the behavior of various FKV oscillators. The observations are consistent with the divergence values ε m reported in Table 1.

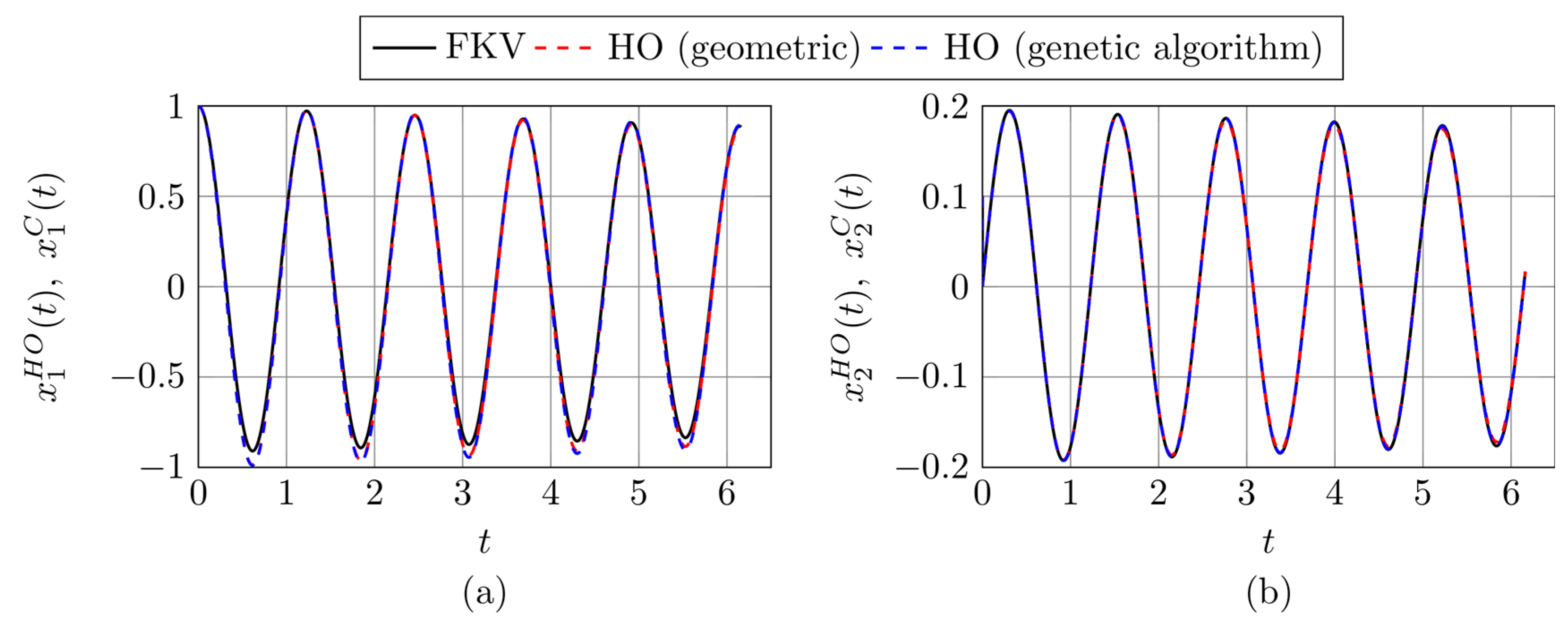

In Figure 6, corresponding to parameters (µ, α, ω) = (1, 0.1, 5), both methods yield harmonic oscillators with relatively high divergence values (around 0.08), despite the overall good visual agreement of the solution components. Deviations are mainly noticeable near the extrema of the curves, as seen in Figure 6a.

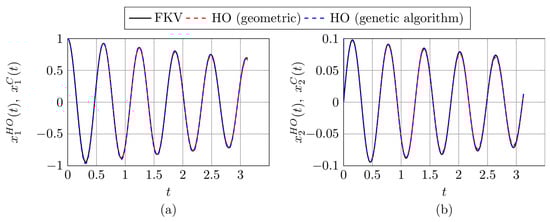

Figure 7 shows the results for (µ, α, ω) = (1, 0.5, 10), where the divergence coefficients are somewhat different: 0.037 for the geometric method and 0.026 for the genetic algorithm. Nevertheless, in both cases, the visual agreement between the fractional and classical components remains excellent.

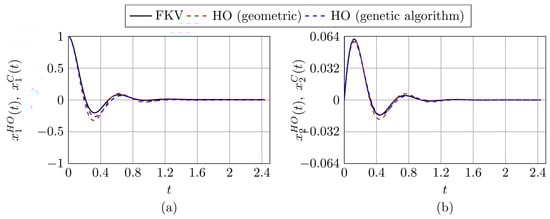

In Figure 8, with parameters (µ, α, ω) = (10, 0.5, 10), a more pronounced discrepancy is observed: The geometric approach produces a relatively large value of the ε m , while the genetic algorithm yields a smaller value. This case corresponds to a system with strong damping, which may contribute to the increased difficulty in achieving an accurate harmonic approximation.

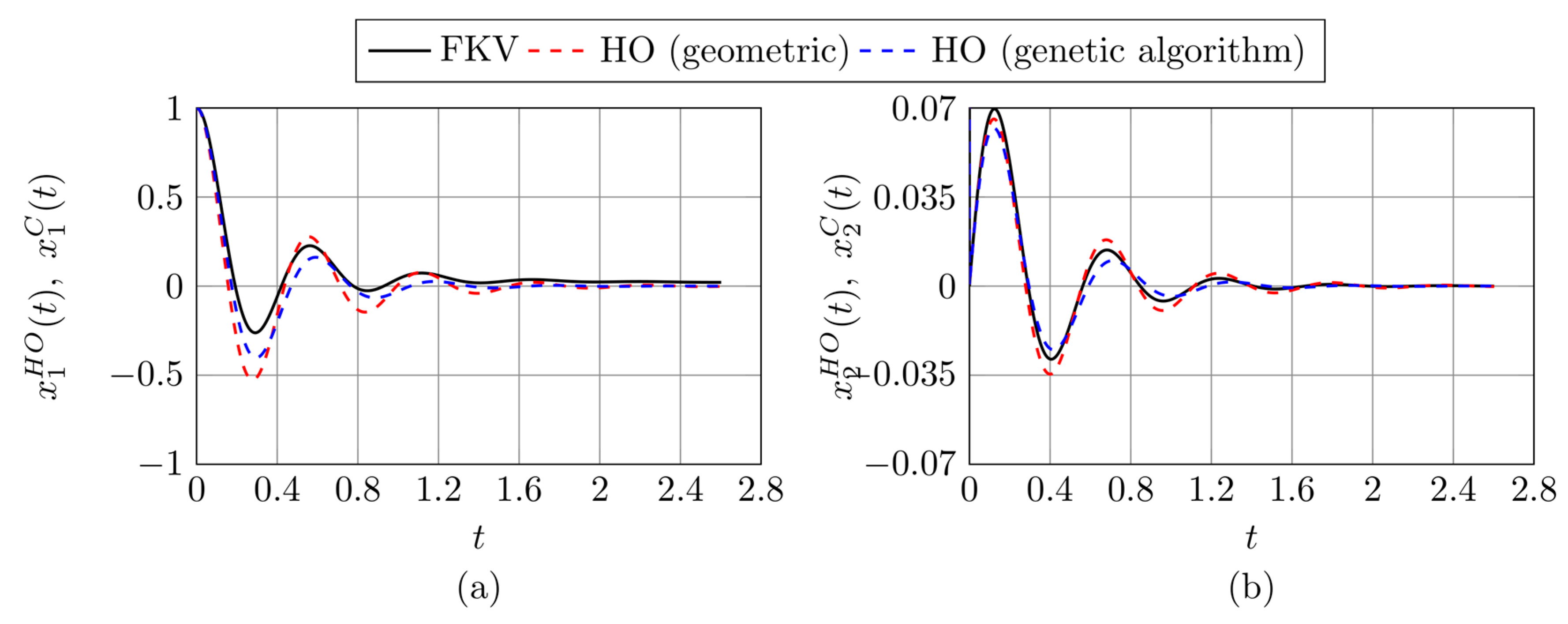

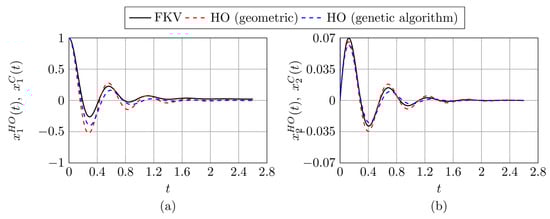

Finally, Figure 9, representing (µ, α, ω) = (12, 0.7, 10), shows that neither method succeeds in producing a good match. The divergence coefficient exceeds 0.1 in both cases, reaching as high as 0.25 for the geometric approach. This poor agreement, clearly visible in both components, suggests that for this configuration, a classical harmonic oscillator may not adequately capture the dynamics of the fractional system.

3.3. Testing Harmonic Models in the Nonhomogeneous Case

In this subsection, we investigate the performance of the identified harmonic oscillator models in the context of the nonhomogeneous fractional Kelvin–Voigt equation (Equation (1)) with zero initial conditions. The solution of this equation, given by Equation (25), reduces to a convolution integral, as the homogeneous part vanishes. For comparison, we consider the classical damped harmonic oscillator (Equation (33)) with zero initial conditions and identical sinusoidal forcing, whose solution can be expressed in closed form using elementary functions such as sine, cosine, and exponential terms.
The harmonic oscillator parameters used in this comparison were obtained using the identification methods described in the previous subsection, for fixed values of the FKV model parameters (µ, α, ω). Two representative FKV oscillators were selected for this analysis: (1, 0.1, 5) and (1, 0.5, 10). The corresponding harmonic oscillator parameters are listed in Table 1 (rows 1 and 5, respectively).
To quantitatively assess the agreement between the solutions of the fractional model x F K V ( t ) and the classical harmonic oscillator x H O ( t ) , we use a modified version of the divergence coefficient (32) introduced earlier:
I x F K V t , x H O t x F K V t x H O t x F K V t .
Specifically, when the indicator defined in Equation (34) is evaluated using the solution x H O t obtained with parameters identified in the previous subsection (using either the geometric method or the genetic algorithm), we denote its value by ε m .

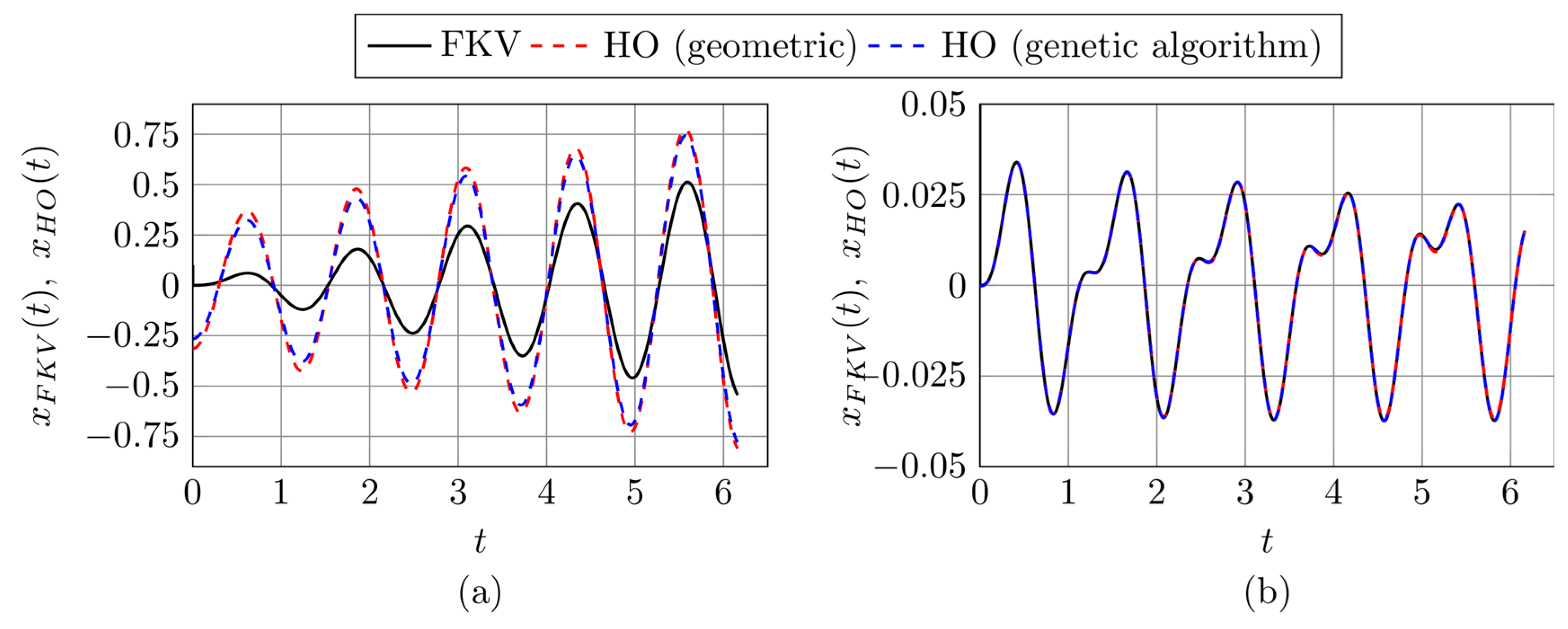

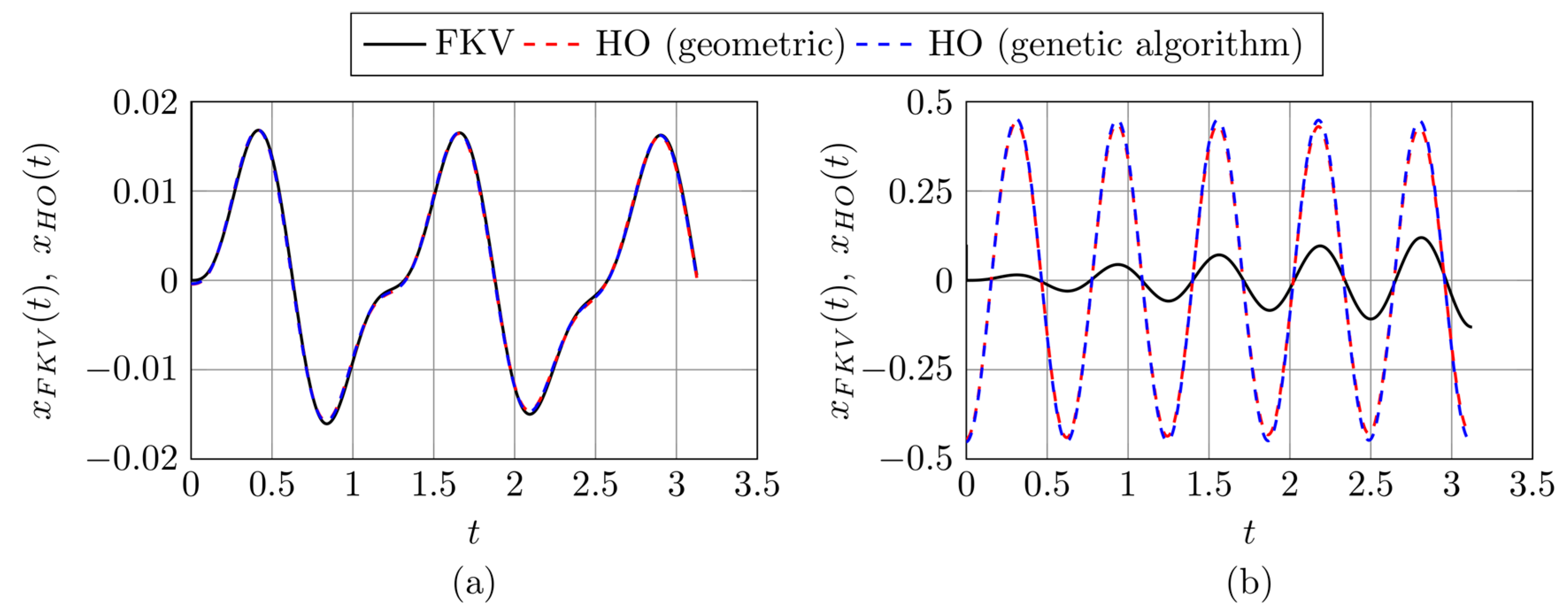

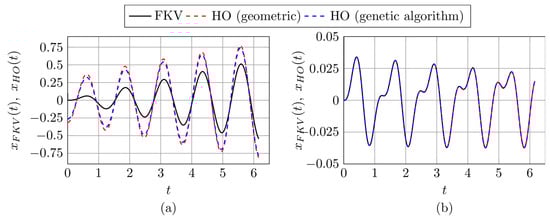

Figure 10 and Figure 11 present a comparison between the time-domain responses of the fractional oscillator x F K V t and the corresponding harmonic oscillator approximations x H O t , obtained using the geometric method (red dashed lines) and the genetic algorithm (blue dashed lines). The fractional response is plotted in black as a reference.
For each selected FKV oscillator, two scenarios are considered: one in which the forcing frequency Ω is far from the resonance frequency of the harmonic model, and another in which Ω is chosen to match the resonance frequency of the harmonic model (we set Ω = ω). This setup allows us to examine how the accuracy of the harmonic approximation depends on the proximity to resonance.
The results shown in Figure 10 and Figure 11 highlight the influence of the forcing frequency on the accuracy of harmonic oscillator approximations in the nonhomogeneous case. Each figure compares the solution of the FKV equation with those of two harmonic oscillators identified using the geometric method and the genetic algorithm, respectively.
For the FKV oscillator with parameters (µ, α, ω) = (1, 0.1, 5), Figure 10a illustrates the resonance case with Ω = 5, where substantial discrepancies are observed: the divergence coefficients reach ε m = 0.3875 for the geometric method and ε m = 0.3408 for the genetic algorithm. In contrast, Figure 10b, corresponding to the off-resonance case with Ω = 10, shows very good agreement, with ε m dropping to 0.0168 and 0.0036 , respectively.
A similar trend is visible for the oscillator defined by (µ, α, ω) = (1, 0.5, 10). In this case, the off-resonance response (Figure 11a), Ω = 10, yields relatively low divergence values: ε m = 0.0293 for the geometric method and ε m = 0.0284 for the genetic algorithm. However, the resonance case shown in Figure 11b, with Ω = 10, leads to a complete breakdown of the harmonic approximation, with divergence values near to 1 for both methods.
These results demonstrate that while harmonic oscillator models can accurately reproduce the fractional response under off-resonance excitation, they may fail dramatically near resonance. This is due to the high sensitivity of the system’s steady-state behavior in the resonant regime, where subtle differences in the underlying dynamics—especially those introduced by the fractional-order operator—are strongly amplified and no longer well captured by classical models.
To further investigate the sensitivity of the harmonic approximation with respect to the forcing frequency, we compute the divergence coefficient ε m for a range of excitation frequencies. Specifically, we vary the ratio ω/Ω from 0.05 to 1.95 in steps of 0.05, while keeping the parameters of the FKV oscillator fixed. This analysis is performed for both identification methods and for the two representative FKV oscillators considered earlier.

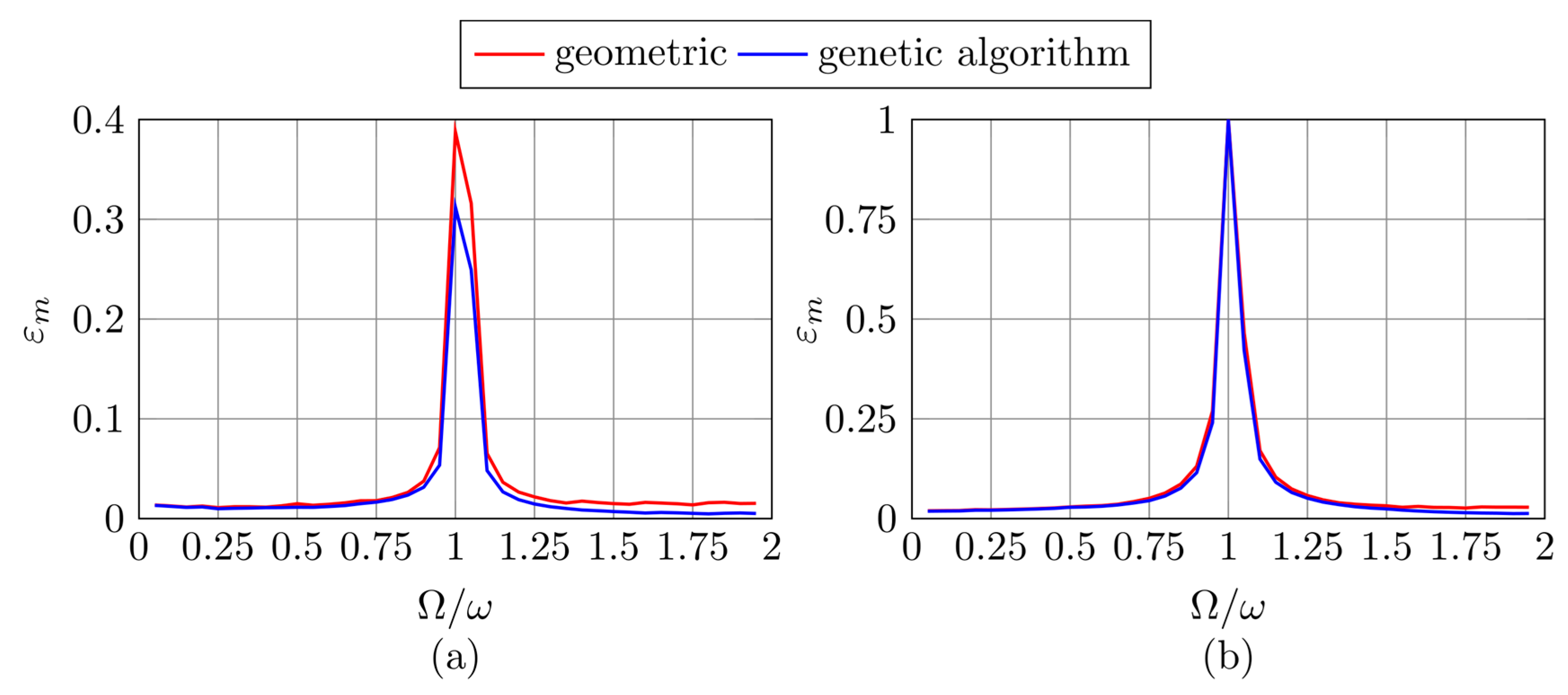

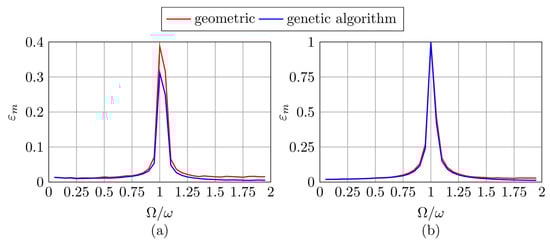

The plots in Figure 12 reveal that the divergence coefficient ε m reaches a sharp peak in the vicinity of ω/Ω = 1, confirming that the accuracy of the harmonic approximation deteriorates significantly near resonance.
For the first FKV oscillator (Figure 12a), the peak is less pronounced and slightly shifted away from ω/Ω = 1. This shift reflects the fact that the actual resonance frequency of the corresponding harmonic oscillator does not exactly match the parameter ω of the FKV model.
In contrast, for the second oscillator (Figure 12b), the resonance frequency of the harmonic model is close to ω = 10, resulting in a stronger and more centered peak. These observations highlight the limitations of harmonic approximations in capturing resonant behavior in fractional-order systems.

4. Conclusions

This paper considered the dynamic response of a cantilever beam with a tip mass subjected to base excitation. The beam material was assumed to obey a fractional Kelvin–Voigt constitutive law. By applying modal decomposition, a time-domain equation governing the selected mode shape was derived. It was shown that the resulting model corresponds to the FKV oscillator equation.
A method for computing accurate time-domain solutions based on analytical series expressions was presented. The series, evaluated using the Wynn epsilon algorithm, provides high accuracy at the cost of significant computational effort. While purely numerical methods may be more efficient in practical applications, the ability to compute highly accurate reference solutions based on analytical formulas is of great importance, as it enables reliable validation and benchmarking of approximate numerical schemes. The method was validated against exact solutions for the case α = 1. It was also observed that, for the Riemann–Liouville derivative, the component associated with the initial displacement condition deviates from the exact solution. This discrepancy is not due to numerical inaccuracy but rather reflects the known issues related to initial conditions for this type of derivative. For the Caputo derivative case, validation of the Wynn epsilon method demonstrated excellent agreement with exact solutions, achieving relative errors on the order of 10−6 for the homogeneous problem and approximately 10−6 for the nonhomogeneous case.
For a given FKV oscillator, two methods were proposed for identifying the parameters of an equivalent classical harmonic oscillator: a geometric approach and a genetic algorithm. Both methods yielded comparable accuracy in most cases, although the genetic algorithm generally produced better results. However, it should be noted that in certain cases, an equivalent harmonic oscillator cannot accurately replicate the dynamics of a given FKV oscillator, as indicated by divergence coefficients exceeding 10%, reflecting a significant mismatch between the models.
Finally, the identified harmonic oscillators were applied to the nonhomogeneous version of the problem with sinusoidal forcing. The harmonic approximation was shown to be accurate when the forcing frequency was far from resonance, but its performance degraded significantly near the resonance frequency of the harmonic model. In particular, for excitation frequencies well outside the resonance region, the identified harmonic oscillator provided a close approximation of the fractional model’s response, with typical relative errors remaining below 5%.
There are also several possible directions for future work. One potential direction is the derivation of explicit formulas for determining the parameters of the equivalent harmonic oscillator directly from those of the FKV model, bypassing the need for numerical identification. Another important question concerns the conditions under which a given FKV oscillator exhibits sustained oscillations. A theoretical investigation into the parameter regimes that lead to oscillatory versus non-oscillatory behavior would offer deeper insight into the dynamic properties of fractional systems and clarify the boundary between underdamped and overdamped responses.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available in this article.

Conflicts of Interest

The author declares no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
FKVFractional Kelvin–Voigt
HOHarmonic oscillator
RLRiemann–Liouville (fractional derivative)
CCaputo (fractional derivative)

References

  1. Erturk, A.; Inman, D.J. Piezoelectric Energy Harvesting; John Wiley & Sons: Hoboken, NJ, USA, 2011; ISBN 9780470682548. [Google Scholar]
  2. Basson, M.; De Villiers, M.; Van Rensburg, N.F.J. Solvability of a Model for the Vibration of a Beam with a Damping Tip Body. J. Appl. Math. 2014, 2014, 298092. [Google Scholar] [CrossRef]
  3. Paunović, S.; Cajić, M.; Karličić, D.; Mijalković, M. A Novel Approach for Vibration Analysis of Fractional Viscoelastic Beams with Attached Masses and Base Excitation. J. Sound Vib. 2019, 463, 114955. [Google Scholar] [CrossRef]
  4. Freundlich, J. Transient Vibrations of a Fractional Kelvin-Voigt Viscoelastic Cantilever Beam with a Tip Mass and Subjected to a Base Excitation. J. Sound Vib. 2019, 438, 99–115. [Google Scholar] [CrossRef]
  5. Freundlich, J. Transient Vibrations of a Fractional Zener Viscoelastic Cantilever Beam with a Tip Mass. Meccanica 2021, 56, 1971–1988. [Google Scholar] [CrossRef]
  6. Xu, J.; Chen, N. A Generalized Shape Function for Vibration Suppression Analysis of Acoustic Black Hole Beams Based on Fractional Calculus Theory. Appl. Sci. 2025, 15, 2768. [Google Scholar] [CrossRef]
  7. Makkad, G.; Khalsa, L.; Yadav, A.K.; Varghese, V. Non-Local Fractional Thermoviscoelastic Bending Analysis of Non-Simple Nanobeam Under Ramp-Type Heating. J. Elast. 2025, 157, 28. [Google Scholar] [CrossRef]
  8. Cao, J.; Syta, A.; Litak, G.; Zhou, S.; Inman, D.J.; Chen, Y. Regular and Chaotic Vibration in a Piezoelectric Energy Harvester with Fractional Damping. Eur. Phys. J. Plus 2015, 130, 103. [Google Scholar] [CrossRef]
  9. Sengha, G.G.; Kenfack, W.F.; Bekoa, D.J.O.; Siewe, M.S.; Tabi, C.B.; Kofane, T.C. Fractional Properties’ Effects on a Hybrid Energy Harvesting System Dynamics. Meccanica 2021, 56, 2451–2469. [Google Scholar] [CrossRef]
  10. Kwuimy, C.A.K.; Litak, G.; Borowiec, M.; Nataraj, C. Fractional Dynamics of a Piezoelectric Energy Harvester with Nonlinear Magnetic Coupling. Appl. Phys. Lett. 2015, 106, 24103. [Google Scholar] [CrossRef]
  11. Zhou, Y.; Ionescu, C.; Tenreiro Machado, J.A. Fractional Dynamics and Its Applications. Nonlinear Dyn. 2015, 80, 1661–1664. [Google Scholar] [CrossRef]
  12. Agarwal, P.; Martínez, L.V.; Lenzi, E.K. Recent Trends in Fractional Calculus and Its Applications; Elsevier: Amsterdam, The Netherlands, 2024. [Google Scholar]
  13. Hilfer, R.; Kleiner, T. Fractional Calculus for Distributions; Springer International Publishing: Berlin/Heidelberg, Germany, 2024; Volume 27, ISBN 1354002400306. [Google Scholar]
  14. Zhao, K.; Liu, J.; Lv, X. A Unified Approach to Solvability and Stability of Multipoint BVPs for Langevin and Sturm–Liouville Equations with CH–Fractional Derivatives and Impulses via Coincidence Theory. Fractal Fract. 2024, 8, 111. [Google Scholar] [CrossRef]
  15. Fasana, A.; Marchesiello, S. Rayleigh-Ritz Analysis of Sandwich Beams. J. Sound Vib. 2001, 241, 643–652. [Google Scholar] [CrossRef]
  16. Mainardi, F. Fractional Calculus and Waves in Linear Viscoelasticity: An Introduction to Mathematical Models; World Scientific: Singapore, 2010; ISBN 9781848163300. [Google Scholar]
  17. Rossikhin, Y.A.; Shitikova, M.V. Application of Fractional Calculus for Dynamic Problems of Solid Mechanics: Novel Trends and Recent Results. Appl. Mech. Rev. 2010, 63, 010803. [Google Scholar] [CrossRef]
  18. Zhang, W.; Shimizu, N. Damping Properties of the Viscoelastic Material Described by Fractional Kelvin-Voigt Model. JSME Int. J. Ser. C Mech. Syst. Mach. Elem. Manuf. 1999, 42, 1–9. [Google Scholar] [CrossRef]
  19. Rossikhin, Y.A.; Shitikova, M.V. Application of Fractional Derivatives to the Analysis of Damped Vibrations of Viscoelastic Single Mass Systems. Acta Mech. 1997, 120, 109–125. [Google Scholar] [CrossRef]
  20. Vaz, J.; de Oliveira, E.C. On the Fractional Kelvin-Voigt Oscillator. Math. Eng. 2022, 4, 1–23. [Google Scholar] [CrossRef]
  21. Cao, Q.; Hu, S.L.J.; Li, H. Frequency/Laplace Domain Methods for Computing Transient Responses of Fractional Oscillators. Nonlinear Dyn. 2022, 108, 1509–1523. [Google Scholar] [CrossRef]
  22. Kim, V.A.; Parovik, R.I. Application of the Explicit Euler Method for Numerical Analysis of a Nonlinear Fractional Oscillation Equation. Fractal Fract. 2022, 6, 274. [Google Scholar] [CrossRef]
  23. Kilbas, A.; Srivastava, H.; Trujillo, J. Theory and Applications of Fractional Differential Equations; Elsevier: Amsterdam, The Netherlands, 2006; Volume 129, ISBN 978-0-444-51832-3. [Google Scholar]
  24. Podlubny, I. Fractional Differential Equations, Volume 198: An Introduction to Fractional Derivatives, Fractional Differential Equations, to Methods of Their; Elsevier: Amsterdam, The Netherlands, 1998; Volume 198, ISBN 978-0125588409. [Google Scholar]
  25. Li, M. Three Classes of Fractional Oscillators. Symmetry 2018, 10, 40. [Google Scholar] [CrossRef]
  26. Yuan, J.; Zhang, Y.; Liu, J.; Shi, B.; Gai, M.; Yang, S. Mechanical Energy and Equivalent Differential Equations of Motion for Single-Degree-of-Freedom Fractional Oscillators. J. Sound Vib. 2017, 397, 192–203. [Google Scholar] [CrossRef]
  27. Ding, W.; Hollkamp, J.P.; Patnaik, S.; Semperlotti, F. On the Fractional Homogenization of One-Dimensional Elastic Metamaterials with Viscoelastic Foundation. Arch. Appl. Mech. 2022, 93, 261–286. [Google Scholar] [CrossRef]
  28. Łabędzki, P.; Pawlikowski, R. On the Equivalence between Fractional and Classical Oscillators. Commun. Nonlinear Sci. Numer. Simul. 2023, 116, 106871. [Google Scholar] [CrossRef]
  29. Wynn, P. On a Device for Computing the em(Sn) Transformation. Math. Tables Other Aids Comput. 1956, 10, 91–96. [Google Scholar] [CrossRef]
  30. Li, C.; Zeng, F. Numerical Methods for Fractional Calculus; CRC Press: Boca Raton, FL, USA, 2015; ISBN 9781482253818. [Google Scholar]
  31. Garrappa, R. Numerical Solution of Fractional Differential Equations: A Survey and a Software Tutorial. Mathematics 2018, 6, 16. [Google Scholar] [CrossRef]
  32. Little, J.A.; Mann, B.P. Optimizing Logarithmic Decrement Damping Estimation through Uncertainty Propagation. J. Sound Vib. 2019, 457, 368–376. [Google Scholar] [CrossRef]
  33. Weaver, W., Jr.; Timoshenko, S.P.; Young, D.H. Vibration Problems in Engineering; John Wiley & Sons: Hoboken, NJ, USA, 1991. [Google Scholar]
  34. Rudin, W. Principles of Mathematical Analysis, 3rd ed.; McGraw-Hill: New York, NY, USA, 1976; ISBN 9780070542358. [Google Scholar]
Figure 1. Model of a cantilever beam with a tip mass subjected to base excitation.
Figure 1. Model of a cantilever beam with a tip mass subjected to base excitation.
Electronics 14 01918 g001
Figure 2. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (1, 1, 2): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Figure 2. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (1, 1, 2): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Electronics 14 01918 g002
Figure 3. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (2, 1, 2): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Figure 3. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (2, 1, 2): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Electronics 14 01918 g003
Figure 4. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (1, 1, 10): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Figure 4. Comparison between the analytical solution and the numerical approximation obtained using the Wynn epsilon method for the FVK oscillator with parameters (µ, α, ω) = (1, 1, 10): (a) Solution components corresponding to the initial condition x 0 = x 0 ; (b) Solution components corresponding to the initial condition x ˙ 0 = v 0 .
Electronics 14 01918 g004
Figure 5. Comparison between the exact solution x H O ( t ) and the Wynn epsilon approximation of the fractional oscillator response x F K V ( t ) for α = 1 : (a): μ = 2 , α = 1 , ω = 2 ; (b): μ = 1 , α = 1 , ω = 10 . In both cases, the external forcing is defined by Equation (18) with F 0 = 1 and Ω = 5 .
Figure 5. Comparison between the exact solution x H O ( t ) and the Wynn epsilon approximation of the fractional oscillator response x F K V ( t ) for α = 1 : (a): μ = 2 , α = 1 , ω = 2 ; (b): μ = 1 , α = 1 , ω = 10 . In both cases, the external forcing is defined by Equation (18) with F 0 = 1 and Ω = 5 .
Electronics 14 01918 g005
Figure 6. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (1, 0.1, 5): (a) displacement-related components; (b) velocity-related components.
Figure 6. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (1, 0.1, 5): (a) displacement-related components; (b) velocity-related components.
Electronics 14 01918 g006
Figure 7. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (1, 0.5, 10): (a) displacement-related components; (b) velocity-related components.
Figure 7. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (1, 0.5, 10): (a) displacement-related components; (b) velocity-related components.
Electronics 14 01918 g007
Figure 8. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (10, 0.5, 10): (a) displacement-related components; (b) velocity-related components.
Figure 8. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (10, 0.5, 10): (a) displacement-related components; (b) velocity-related components.
Electronics 14 01918 g008
Figure 9. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (12, 0.7, 10): (a) displacement-related components; (b) velocity-related components.
Figure 9. Comparison between the components of the fractional and classical oscillator responses for the FKV oscillator with parameters (µ, α, ω) = (12, 0.7, 10): (a) displacement-related components; (b) velocity-related components.
Electronics 14 01918 g009
Figure 10. Results for the FKV oscillator with parameters (µ, α, ω) = (1, 0.1, 5): (a) forcing frequency Ω = 5 (resonance case); (b) forcing frequency Ω = 10 (off-resonance case).
Figure 10. Results for the FKV oscillator with parameters (µ, α, ω) = (1, 0.1, 5): (a) forcing frequency Ω = 5 (resonance case); (b) forcing frequency Ω = 10 (off-resonance case).
Electronics 14 01918 g010
Figure 11. Results for the FKV oscillator with parameters (µ, α, ω) = (1, 0.5, 10): (a) forcing frequency Ω = 5 (off-resonance case); (b) forcing frequency Ω = 10 (resonance case).
Figure 11. Results for the FKV oscillator with parameters (µ, α, ω) = (1, 0.5, 10): (a) forcing frequency Ω = 5 (off-resonance case); (b) forcing frequency Ω = 10 (resonance case).
Electronics 14 01918 g011
Figure 12. Divergence coefficient ε m as a function of the frequency ratio Ω/ω for two FKV oscillators: (a) (µ, α, ω) = (1, 0.1, 5); (b) (µ, α, ω) = (1, 0.5, 10).
Figure 12. Divergence coefficient ε m as a function of the frequency ratio Ω/ω for two FKV oscillators: (a) (µ, α, ω) = (1, 0.1, 5); (b) (µ, α, ω) = (1, 0.5, 10).
Electronics 14 01918 g012
Table 1. Comparison of harmonic oscillator parameters identified for various FKV oscillators using the geometric method and the genetic algorithm, along with the corresponding values of the divergence coefficient ε m .
Table 1. Comparison of harmonic oscillator parameters identified for various FKV oscillators using the geometric method and the genetic algorithm, along with the corresponding values of the divergence coefficient ε m .
FKV Oscillator Parameters (µ, α, ω)Geometric Approach ω 0 m , ξ ( m ) , ε m Genetic Algorithm ω 0 m , ξ ( m ) , ε m
(1, 0.1, 5)(5.115, 0.0043), 0.077(5.115, 0.0036), 0.079
(1, 0.5, 5)(5.158, 0.0032), 0.068(5.153, 0.0032), 0.067
(1, 0.9, 5)(5.052, 0.086), 0.019(5.056, 0.085), 0.015
(1, 0.1, 10)(10.062, 0.0018), 0.023(10.062, 0.0011), 0.021
(1, 0.5, 10)(10.111, 0.0126), 0.037(10.11, 0.0112), 0.026
(1, 0.9, 10)(10.055, 0.0041), 0.019(10.057, 0.0394), 0.009
(5, 0.1, 10)(10.307, 0.0055), 0.102(10.057, 0.0048), 0.104
(5, 0.9, 10)(10.267, 0.1895), 0.048(10.235, 0.1989), 0.032
(10, 0.9, 10)(10.581, 0.34), 0.124(10.35, 0.393), 0.065
(12, 0.7, 10)(11.512, 0.2), 0.279(11.08, 0.2785), 0.147
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Łabędzki, P. Fractional Kelvin–Voigt Model for Beam Vibrations: Numerical Simulations and Approximation Using a Classical Model. Electronics 2025, 14, 1918. https://doi.org/10.3390/electronics14101918

AMA Style

Łabędzki P. Fractional Kelvin–Voigt Model for Beam Vibrations: Numerical Simulations and Approximation Using a Classical Model. Electronics. 2025; 14(10):1918. https://doi.org/10.3390/electronics14101918

Chicago/Turabian Style

Łabędzki, Paweł. 2025. "Fractional Kelvin–Voigt Model for Beam Vibrations: Numerical Simulations and Approximation Using a Classical Model" Electronics 14, no. 10: 1918. https://doi.org/10.3390/electronics14101918

APA Style

Łabędzki, P. (2025). Fractional Kelvin–Voigt Model for Beam Vibrations: Numerical Simulations and Approximation Using a Classical Model. Electronics, 14(10), 1918. https://doi.org/10.3390/electronics14101918

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
