Crypto-Ransomware: A Revision of the State of the Art, Advances and Challenges

Abstract

According to the premise that the first step to try to solve a problem is to deepen our knowledge of it as much as possible, this work is mainly aimed at diving into and understanding crypto-ransomware, a very present and true-world digital pandemic, from several perspectives. With this aim, this work contributes the following: (a) a review of the fundamentals of this security threat, typologies and families, attack model and involved actors, as well as lifecycle stages; (b) an analysis of the evolution of ransomware in the past years, and the main milestones regarding the development of new variants and real cases that have occurred; (c) a study of the most relevant and current proposals that have appeared to fight against this scourge, as organized in the usual defence lines (prevention, detection, response and recovery); and (d) a discussion of the current trends in ransomware infection and development as well as the main challenges that necessarily need to be dealt with to reduce the impact of crypto-ransomware. All of this will help to better understand the situation and, based on this, will help to develop more adequate defence procedures and effective solutions and tools to defeat attacks.

1. Introduction

Ransomware has become a digital pandemic in recent years, and it is expected to remain so in the coming ones [1,2]. Although there are a number of typologies and, thus, the associated tactics, techniques and procedures (TTPs) can differ, all of them (as the name indicates) are aimed at kidnapping the target’s device resources and then extorting the victim to recover them. Although the very origin of the term ’ransomware’ is not clear [3], it is mainly used for marketing purposes since the term crypto-virus would have been more accurate.

Ransomware causes not only extortion but also data breaches, intellectual and industrial property theft, loss of reputation and other harmful effects [4]. Cheating, spying and disrupting operations are examples of motivations in the current geopolitical game. In such a case, no ransom payment mechanisms are considered. Recently, before and during Russia’s war against Ukraine, some ransomware attacks have been triggered by both sides. In particular, NotPetya disrupted the operation of several Ukrainian companies, as did the recent WhisperGate attack [5]. Among the most relevant cybersecurity threats at present [6], ransomware appears as the second cause for concern in relation to the possible types of attacks [7]. In fact, it has evolved in the last few years to select organizations and enterprises as its main objectives, since the balance between benefits and attack cost is higher than in other cases. The report by Deloitte [8] indicates that around 4000 ransomware attacks occur daily; on average, 191 days pass until an attack breach is identified, and the average number of exfiltrating and dropping ransomware cases has increased 8.7% from the first quarter of 2021. From an economic perspective, ransom payments reached 350 million dollars in 2020 with an increase of about 109% compared to 2019. In fact, around 42% of companies with cyber-insurance against ransomware have not recovered the losses suffered. To present some more figures, on average, system shutdown lasts 19 days; 92% of companies that paid the ransom did not recover the data; 53% of them claim that the attacks damaged the trademark; and 26% of companies had to temporarily close.

In the above general context, this work is aimed at knowing more in detail about this damaging cyber-attack typology, the procedures and countermeasures developed to fight against it (based on the Cyber Kill Chain and MITRE ATT&CK frameworks), as well as the defence methods deployed according to the specific attack stage: prevention (prior to the attack), detection (when the attack is triggered) and response/recovery (after the attack). Moreover, current trends and new challenges in the field are discussed. All of this is clearly exposed and organized for the reader’s understanding. This way, a better comprehension of the problem can result in the development of more effective defence schemes.

To perform the present study, an exhaustive search for works related to ransomware or crypto-ransomware was carried out, from which a total of almost 600 bibliographic references were obtained. The sources included articles from magazines and conferences, as well as technical reports and publications in specialized newspapers that provide characteristics of the way crypto-ransomware samples usually operate. In order to reduce that number and focus on the study, a filtering process was carried out based on three main criteria: (a) the introduction of a specific defence proposal (prevention, detection and recovery) or approach (technical or regulatory) to the problem; (b) the quality of the proposal determined by a proper description of it and some associated experimentation; and (c) the appearance date of the proposal after 2017. Around 250 out of the 315 works finally included in the ’References’ section correspond to magazines or conferences and the rest to technical reports, specialized journals or data sources that allow for understanding the characteristics of recent crypto-ransomware samples or specific aspects of their development.

There are very good reviews of the state of the art and taxonomies of ransomware included in the present work. Aimed at unifying all of them, we introduce here a new taxonomy that covers all the phases to tackle the ransomware problem (prevention, detection and recovery), unlike similar previous works that usually focus on some specific stages, generally detection, or techniques, such as Machine Learning. In this regard, the present review covers all known/documented techniques in each of the problem stages, while the topic is addressed not only from a technical point of view but also from a regulatory and legal perspective.

With all of that in mind, the rest of the document is organized as follows. Section 2 is devoted to describing ransom concepts, the RaaS model (Ransomware-as-a-Service). The implemented attack model is described in Section 3. In Section 4, the families appeared over time and their associated attack methodologies are presented. Afterwards, Section 5 introduces the primary defence proposals in the literature to combat this attack, from the perspectives of preventing, detecting, responding and recovering. For extension purposes, the bibliography review is mainly focused on works developed in the last five years. In Section 6, current trends in ransomware attacks and new challenges in preventing this pandemic are presented. Finally, the main conclusions of the work are highlighted in Section 7.

2. Ransomware-as-a-Service Ecosystems, Crypto-Coins and Extortion

There are a variety of ransomware typologies. In terms of attack severity, we can discern among the following ones [9,10,11]:

• Device locker. It is aimed at locking the victim’s device functions, such as the screen or keyboard. W32.Rasith or Android.LockDroid.H are some examples of this typology.
• Crypto-ransomware. Contrary to the previous type, this focuses on encrypting the victim’s data. The victim should pay a ransom to obtain the key for deciphering the affected files and recovering them.
• Victim intimidation (scareware). This kind of ransomware just scares the victim through specific messages indicating that their files are blocked or ciphered, although that is not true.
• Data exfiltration (leakware or doxware). Sensitive information is exfiltrated from the victim’s device. Different from crypto-ransomware, the victim can still access the files.

Among the previous types, the most prevalent one at present is that of crypto-ransomware. In this work we focus on crypto-ransomware, but we will use the terms ransomware or crypto-ransomware indistinctly from now on for the sake of simplicity. Crypto-ransomware is mainly motivated by its inherent properties of persistence and reversibility. In other words, the attacker keeps the control over the hijacked files even if the malware is removed, while she is also able to reverse the ciphering process if required.

Traditionally, people who developed the ransomware samples and people who performed the attack were the same. Instead, the RaaS exploitation model has recently appeared, which inherits the SaaS (Software-as-a-Service) approach but with its own features.

It proposes a specialization of the work performed by attackers [12,13]. Thus, there are operators who include an organized group of people to build the malware, create a panel of command and control to manage the attack, enable a data leak site, recruit affiliates, negotiate with the victims or carry out money laundering.

Affiliates are people who pay for tools to carry out the attacks without having special technical skills for that because they can receive guidelines and support from the operator to attack by just using ransomware samples. They can participate in the business by paying a tax or a percentage of the benefits to the operators. They are responsible for running the ransomware and requesting the ransom. In recent attacks, when the victim refuses to pay, the so-called negotiator role appears, which consists of convincing the victim to pay for the extortion by making an economic balance of the losses derived from the affected systems in respect to the ransom amount demanded.

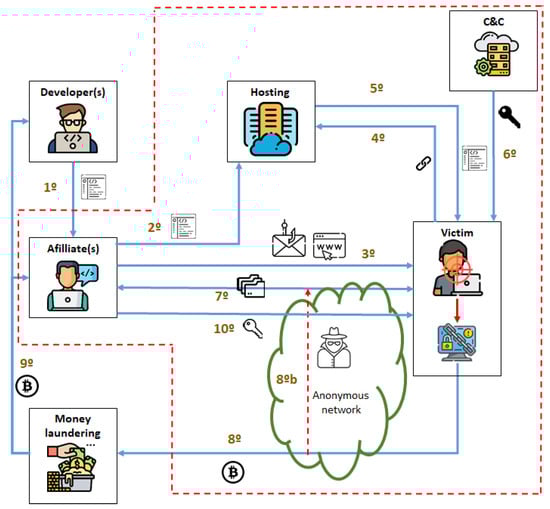

Figure 1 shows a functional diagram of the RaaS model, where the stages inside the dashed red line are the steps followed by non-specific RaaS-based attacks. The diagram is simplified for a more general vision, while we can find more specific models in works like reference [14], for Evil Corp. The overall process is as follows: (1) the ransomware developer creates a specific exploit to be afterwards licensed/shared with an affiliate; (2) the affiliate updates the exploit code to the hosting site and (3) selects the target victim as well as the attack vector to deliver the exploitation (email, web, etc.); (4) the victim bites the trap so that (5) the ransomware is downloaded and installed; (6) the ransomware will communicate with the command and control (C&C) server to get the ciphering key and, apart from ciphering the victim’s files, (7) it can perform lateral movements to identify other potential targets, make itself persistent, delete file backups and hide its presence; (8) the extortion message is shown to the victim, as is the way to pay; (9) another malicious agent is potentially in charge of money laundering such that it would be difficult to identify both the ransomware developer and affiliate; (10) the affiliate can decide to send the ciphering key to the victim or not in order to get additional payments.

Beyond the economic profit itself, the RaaS approach makes the identification of the developer even more difficult. Together with the existence of ransomware, generation toolkits, like Thanos [15] or Chaos Ransomware Builder [16], boost the creation, use and promotion of RaaS not only by their own developers but also by other actors like individuals, companies or governments. An example of the business model could be found in reference [17] for the case of the Conti group.

An increasing trend in benefits can be observed for ransomware, with profits raising up to USD 602 million in crypto-coins in 2021, a 2500% increase in comparison with 2016. In particular, Conti has been the most profitable RaaS model until now, with a total of USD 180 million raised [18].

3. Crypto-Ransomware Attack Model

With the aim of understanding how crypto-ransomware attacks work, we introduce here a taxonomy based on the CKC (Cyber Kill Chain) defence model [10,19,20] where all the life cycle attack steps and phases are described. A different approach is proposed in reference [21], where a ransomware process model is used to identify the chain processes associated with ransom-related behaviors.

The CKC model extends a previous one named IKC (Intrusion Kill Chain) [22] to provide fine-grain information for each attack phase. This model has been successfully tested before to characterize intrusion attacks in industrial environments and, in general terms, to obtain the tactics, techniques and procedures attackers can carry out.

The CKC model defines seven steps that an attacker must follow to effectively execute the attack. They are as follows:

• Reconnaissance. In this phase, the attacker gathers as much data as possible about potential targets from, e.g., email lists, social networks, system and service vulnerabilities, among other sources of information. Such information will help the attacker to perform a targeted, more robust attack [23].
• Weaponization. The malicious payload is prepared to be delivered to the target in this stage.
• Delivery. In this phase, the attacker searches for a valid way to deliver the malicious payload to the targets. For instance, by sending a compromised email to them.
• Exploitation. This comprises methods and techniques for exploiting vulnerabilities on the target computer and allowing attackers to execute the malicious payload.
• Installation. The methods through which attackers are able to access and compromise nearby nodes and install administrative tools like Remote Access Trojans (RAT) or backdoors [24] are involved in this phase.
• Command & Control. The attacker builds dedicated communication channels to manage the compromised system.
• Actions. In this phase, the attacker carries out actions on the compromised system according to the main attack objective. For instance, file ciphering, data exfiltration or data erasing.

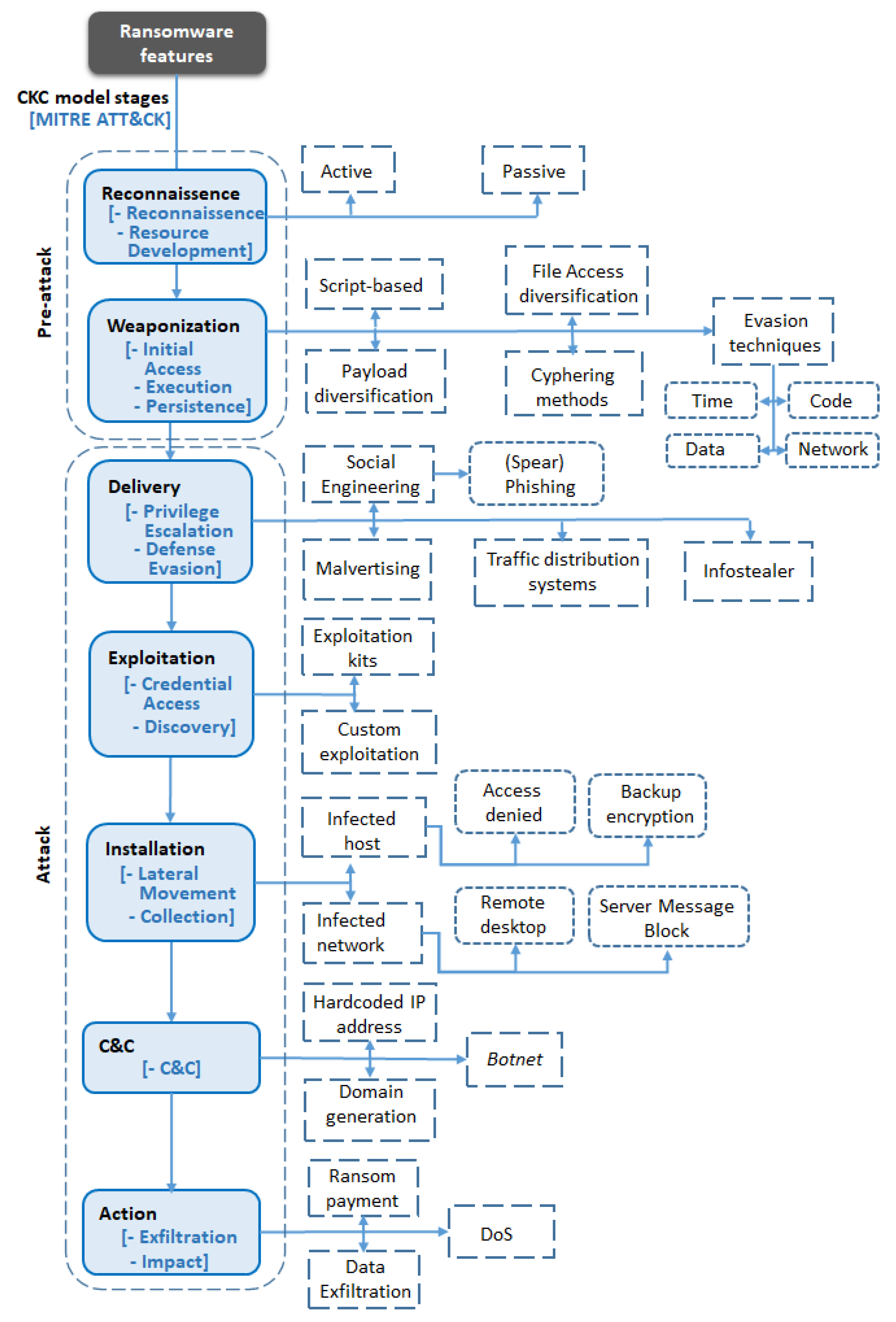

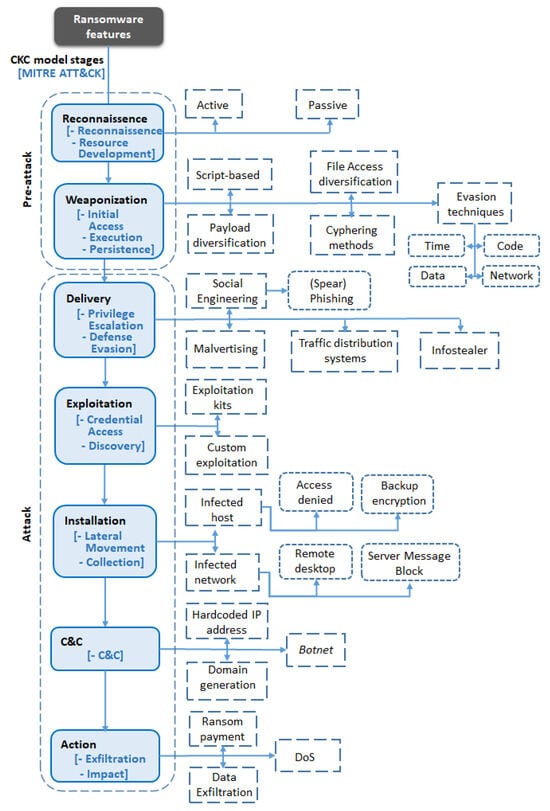

Figure 2 graphically summarizes and extends the CKC taxonomy proposed in reference [19] and shows the relation with the MITRE ATT&CK framework [25]. In the following, each of the previous attack stages is described a bit more in detail.

3.1. Reconnaissance Stage

In fact, this phase is seen generally in attacks and is not specific to ransomware. In this stage, information about the target is gathered (in an active or passive way) in order to decide the attack method and tools to be used.

In previous decades, attackers usually sought easy targets for ransomware attacks. In order to do this, publicly available tools like Shodan were used. Instead, targeted attacks against specific or preselected organizations are more common at present, with the objective of minimizing effort while maximizing benefits.

In the MITRE TTP&CK framework, this stage corresponds with the Reconnaissance and Resources Development phases, where Discovery (named TA007), Priority Definition Planning (TA0012), Priority Definition Direction (TA0013), Target Selection (TA0014), Technical Information Gathering (TA0015), People Information Gathering (TA0016), Organization Information Gathering (TA0017), Technical Weakness Identification (TA0018), People Weakness Identification (TA0020), and Organization Weakness Identification (TA0020) are included.

In the Weaponization Stage, there are different techniques for a ransomware attack to carry out: script-based, diversification or evasion techniques.

Script-based ransomware encrypts files by following commands in a script. Such scripts are removed after the malware operation. This way, the malware code is only found in memory, thus making it a fileless sample that is more robust against security defences.

Diversification techniques are intended to evade security mechanisms. For instance, a payload diversified into different apparently benign files is commonly used in this kind of attack to hide them. Another example of diversification is the typology of malware access to the target files. Moreover, attackers can also diversify the ciphering methods to be used. In this case, the two main categories are as follows: standard and customized. The first ones are well-known ciphering algorithms (e.g., symmetric, asymmetric or hybrid) that make use of system native encryption APIs (Application Programming Interfaces). They usually require administration permissions and the API access can be easily blocked. Conversely, the customized techniques make use of their own ciphering suite, making them more robust against crypto-API defence techniques [26].

Regarding evasion mechanisms, we can discern four categories [27,28,29]:

• Time-based evasion techniques schedule the attack execution or measure how long the attack execution was. They, in turn, can be split into two: delayed and event-based execution. The first ones delay the ciphering procedure, while the second ones wait for a specific system event to start the ciphering process (e.g., a system reboot).
• Data-based evasion schemes are focused on removing all the attack evidence, making them difficult to detect and identify. As an example, anti-memory-dumping techniques make reverse engineering difficult in the case of applying digital forensic analysis. To do that, removing executable file headers or moving them to different memory locations can be implemented. One more example is ADS (Alternate Data Streams) [30], which consists of adding extra attributes to the file containing the malware.
• Code-based evasion techniques have four variants. The first typology is called the debugger evasion technique and it tries to detect if the code is being debugged. In that case, the malware stops its execution or tries to kill the debugger. Some other techniques add useless pieces of code/data to obfuscate it; the reverse engineering process thus becomes more difficult and the antivirus detection performance is reduced [31]. They are also known as anti-disassembling evasion techniques. Anti-sandboxing code evasion techniques are devised to detect and avoid running a malware sample in a virtualized environment or sandbox, which is usually employed by security analysts to safely characterize the malware behavior. Finally, polymorphism and metamorphism techniques add little modifications to malware samples so that they can evade signature-based detection techniques.
• Network-based evasion techniques are applied to network communications with the main aim of fooling IDS/IPS (Intrusion Detection Systems/Intrusion Prevention Systems). Network traffic ciphering or anonymizing, domain shadowing and fast flux are some examples of such kind of techniques. Thus, ciphering C&C communications prevent external analysis. Network traffic anonymization, using darknets, for instance, does not only cipher but also prevents the disclosing of the source of the communication. Attackers also use domain shadowing, which consists of first stealing a legitimate domain to be subsequently used for building sub-domains. Then, such sub-domains are periodically rotated to point to malicious servers. Finally, fast flux techniques prevent the attacker’s IP from belonging to black lists. For that, the associated IP is periodically changed according to a predefined list.

In the MITRE ATT&CK framework this stage corresponds with the Initial access, Execution and Persistence phases, where Adversary OPSEC (OPerational SECurity, TA0021), Establish & Main Infrastructure (TA0022), Build Capability (TA0023), Test Capability (TA0024) and Stage Capability (TA0025) are included.

Delivery Stage Delivering the malicious payload to the target victim requires specific techniques that usually include people as one of the weakest links in the security chain. Thus, this kind of technique is mainly based on social engineering and misleading advertising techniques [32,33]. For that, phishing [34] and social engineering [35] are widely utilized. In general, phishing techniques are aimed at gathering sensitive victim data like credentials or credit card information. For instance, attackers send malicious emails (spam) that mimic legitimate ones from well-known companies, send an SMS (Short Message Service) or just make a phone call. Sometimes, they encourage the victim to visit a compromised website or to download an infected file.

Through misleading advertising, attackers promote advertising campaigns where legitimate websites are in charge of redirecting the victim to malicious websites from where the malware is finally downloaded. Instead of malware being delivered by directly accessing malicious sites, attackers can pay for a traffic distribution service that redirects users to malicious websites [33].

Table 1. Percentage of non-exclusive delivery methods (two left columns) and protocols (two right columns) used by crypto-ransomware.

Delivery Method	Usage %	Protocol	Usage %
Spam email	60	SMTP	45
Remote Desktop	21	IMAP	26.5
Trojan	20	Web-browsing	22.3
Vulnerability exploitation	15	POP3	3.8
Botnet/Downloader	11	FTP	2.3
Malicious advertising	8	Other	3.3
Endpoint	7
External server	7
Removable media	6
Social media	5
Insider	3
Unfair administration	2
SMS	1
Affiliate scheme	1

summarizes the most predominant delivery methods [36] and protocols [37] at present. As shown, they are not exclusive, since, for instance, an SMS or a spam email may also contain a link to a downloader. As could be expected, spam campaigns are still the most relevant and useful way to effectively deliver malware. However, they are closely followed by remote access procedures that may be motivated by the COVID-19 pandemic, when companies and workers operated remotely.

Apart from the previously mentioned mechanisms to deliver ransomware, the following five are the most important delivery artifacts in the last two years: Emotet, Zbot, Dridex, Gozi and Danabot [38]. Recently, ransomware actors have been using infostealer to get credentials and evade defense mechanisms. Another aspect that we will have to observe the evolution of is the use of AI to improve the methods used in phishing.

In the MITRE ATT&CK framework, this stage corresponds with the Privilege escalation and Defense evasion phases, where Initial Access (TA001), Defense Evasion (TA005) and Discovery (TA007) are included.

3.2. Exploitation Stage

After delivering the malware, the attacker will need to effectively execute it. For that, two main methods can be distinguished: EK-based (Exploitation Kits) or targeted exploitation. An EK comprises a hacking toolkit to, firstly, perform a vulnerability scan and, secondly, to exploit one or more of the vulnerabilities found by executing the malicious program [39,40]. To do that, attackers will redirect users to malicious domains where they are able to scan and exploit vulnerabilities. Nowadays, malicious agents offer that as an exploit-as-a-service.

Among others, the following EK can be remarked: Fallout used by Gandcrab and Maze [41]; Ring used by Sodinokibi, CrySys and Cerber ransomware; Spelenko also used by Maze [42]; and GrandSoft Exploit Kit to deliver GandCrab 3.0 [43].

According to the 2021 CyberSecurityWorks report [44], 35 new vulnerabilities have become associated with ransomware (13 in the last quarter), making a total of 323 vulnerabilities related to ransomware. That means an increase of 466% since 2019. Moreover, 11 vulnerabilities were labeled as critical, even though scanners like Nessus, Nexpose or Qualys could not detect them. The S21sec company summarizes in reference [45] the most exploited vulnerabilities by ransomware creators up to 2021.

While EKs are devised to be massively applied, the targeted exploitation methods are oriented to specific hosts or network devices. In this case, attackers are searching for the senior management people staff of a company (e.g., CEOs (Chief Executive Officers)) that control and have access to sensitive information and systems.

The last ransomware report, released by VirusTotal in 2021 [38], shows that just 5% of the found ransomware samples include or are associated with exploits. This fact is supported by the CKC model, where the exploitation stage is needed before the ransomware can take place.

In the MITRE ATT&CK framework, this stage corresponds with the Credential Access and Discovery phases, where Initial Access (TA001), Execution (TA002) and Defense Evasion (TA005) are included.

3.3. Installation Stage

During the installation stage, the malicious payload is installed on the target system. Then, it is spread over the network the system belongs to. Indeed, the installation stage can be split into two steps: host and network installation.

During host installation, the deployed executable tries to encrypt all the possible local files and backups (local or cloud-based). After that, network installation takes place to infect other nodes by performing lateral movements. Some tools used by the attacker to perform network installation are, among others, Mimikatz or Cobalstrike [38]. In terms of services and protocols, three of these are the most exploited ones in this phase: RDP (Remote Desktop Protocol) [46], SMB (Server Message Block) [47] and VPN (Virtual Private Network) [48].

In the MITRE ATT&CK framework, this stage corresponds with the Lateral Movement and Collection phases, where Persistence (TA003) and Defense Evasion (TA005) are included.

3.4. C&C Stage

Once the ransomware has been successfully installed on the target, communications to/from the C&C server are crucial for both asking and receiving the ciphering keys and for managing the ransom payment. In the MITRE ATT&CK framework, this stage corresponds with the same phase that corresponds with Command&Control (TA001).

How the ransomware knows the C&C server’s IP (Internet Protocol) address is commonly faced using three methods: a code-embedded IP address, domain generation algorithms or botnets. The two first techniques will be described in detail in Section 5.2, while the last one consists of the use of botnets to perform different malicious activities: data ex-filtration, phishing campaigns or malware spreading [49], among others.

3.5. Action Stage

After ciphering files, ransomware will show a message on the victim’s computer informing its user of the type of attack and the form to recover the affected files, usually through some kind of payment method. In this line, several levels of extortion can be used: from simple data ex-filtration to publicly publishing them if the user declines the payment.

In the beginning, attackers considered classical payment methods (e.g., Paypal), but the use of crypto-currencies is the most widely accepted method at present. To push the victim for the payment, some ransomware families like Jigsaw both increment exponentially the cost of the ransom and delete files over time. For instance, FrenchLocker deletes a file every few minutes.

In the MITRE ATT&CK framework, this stage corresponds with the Exfiltration and Impact phases, where Privilege Escalation (TA004), Credential Access (TA006), Lateral Movement (TA008), Collection (TA009), Exfiltration (TA0010) and Impact (TA0040) are included.

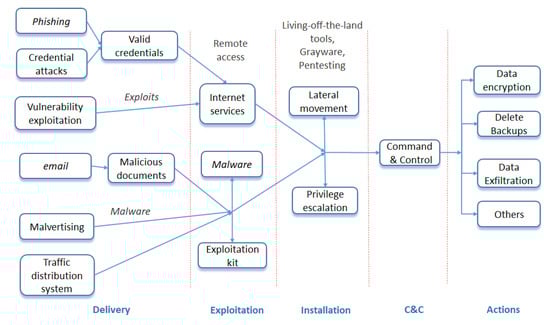

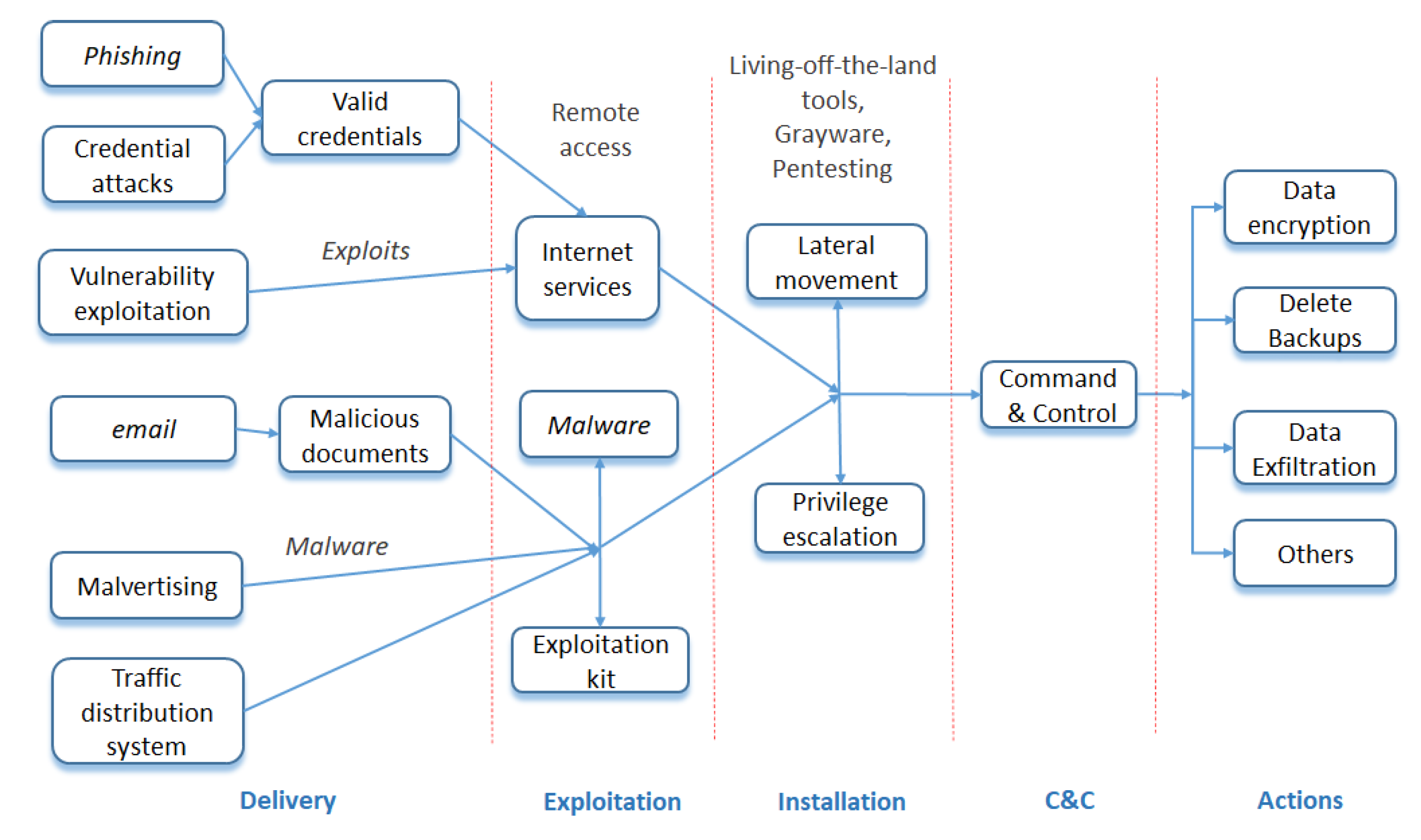

Figure 3 graphically depicts the typical life cycle of a ransomware incident according to the previous CKC stages. Moreover,

Table 2. Ransomware families and their attack techniques.

Family	Cyber Kill Chain Stage
	Weaponization								Delivery				Exploit		Installation				C&C			Action
	Scripting	Payload	FAP	Encryption	Evasion				Social	Engineering	Malvertising	TDS	Exploit Kit	Custom Exploit		Host		Net	Hardcoded IP	DG	Botnet
					T	D	C	N	P	S					AD	BE	RD	BMS
Avaddon [50,51]			✓	3 9		✓	✓			✓				✓		✓						I
BlackByte [52,53]			✓	1		✓	✓			✓				✓		✓						I
BlackCat [54,55]		✓	✓	1		✓	✓	✓	✓			✓		✓				✓				o
Cerber [56,57,58]	✓	✓		7 8	✓	✓	✓		✓	✓	✓		✓		✓						✓
Diavol [59,60]		✓	✓	8				✓		✓			✓			✓	✓		✓			E
Ekans [61,62]	✓			3 9			✓	✓		✓	✓					✓	✓					I
Entropy [63,64]		✓	✓	7		✓	✓	✓	✓				✓				✓				✓
Hive [65]	✓		✓	8		✓			✓			✓		✓	✓
Khonsari [66]		✓	✓	2 4										✓			✓			✓
Locky [27] [67,68,69]	✓	✓	✓	21 5		✓	✓	✓	✓			✓	✓			✓			✓	✓	✓
Megacortex [70]	✓		✓	23 10 11			✓	✓		✓			✓			✓			✓
REvil [71]		✓		7		✓	✓	✓					✓	✓								E
Ruyk [72,73]				1			✓		✓				✓			✓	✓			✓		E
Sabbath [74]		✓	✓	1			✓	✓			✓		✓			✓					✓	E
Sodinokibi [75]	✓	✓		1 6 11	✓	✓		✓	✓			✓		✓		✓	✓					Z
TFLower [76,77]		✓		8		✓	✓			✓					✓			✓		✓	✓
WannaCry [78,79]			✓	1 8		✓	✓									✓		✓				I

Abbreviations: AD: Access denial; BE: Backup encryption; BMS: Block Message Server; C: Code; D: Data; DG: Domain Generation; E: Data Ex-filtration; FAP: File Access Pattern; I: Inhibit system recovery; N: Network; o: Denial of Service; RD: Remote Desktop; P: Phishing; S: Spear phishing; T: Time-based; TDS: Traffic distribution system; Z: Inhibit system recovery and data ex-filtration. 1: AES; 2: AES-128; 3: AES-256; 4: CBC; 5: CTR-EBC; 6: ECDB; 7: RC4; 8: RSA; 9: RSA-2048; 10: RSA-4096; 11: Salsa20.

shows, for different ransomware families, the stages and techniques involved to provide a complete overview of how ransomware attacks work to devise novel security solutions against this type of malware.

4. Crypto-Ransomware Evolution

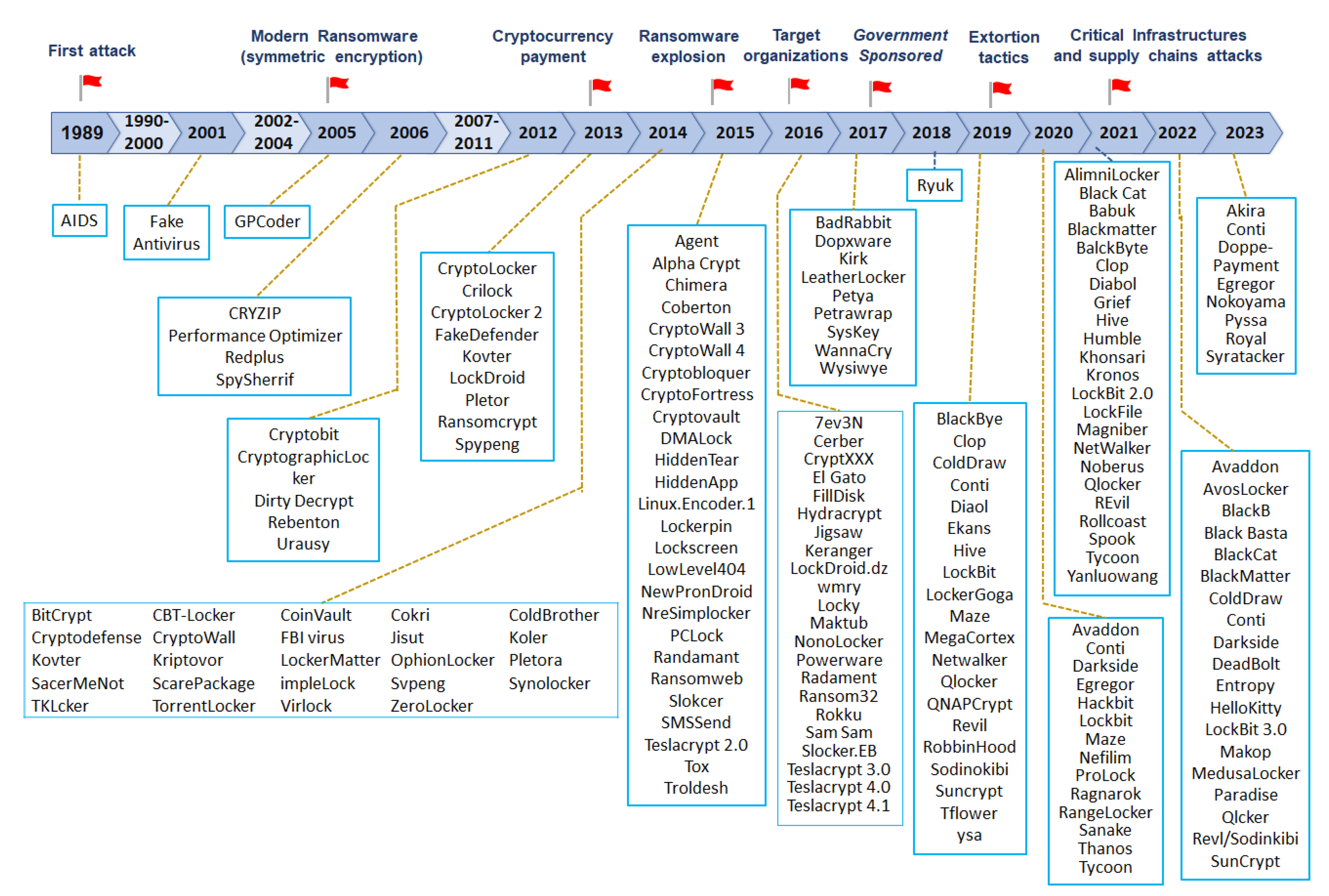

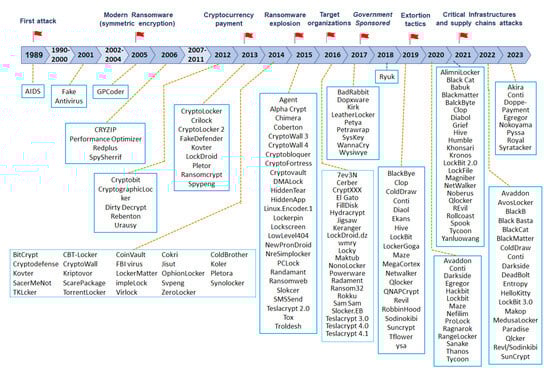

This section presents the ransomware’s historical evolution, from the appearance of the first sample until the present day. This historical description is focused on attacks directed to generic targets, individuals or business teams of all types of organizations.

There are numerous works where the evolution of ransomware is studied [80,81,82]. An overview of the abovementioned evolution is shown in Figure 4, showing in blue text the most relevant milestones that have given ransomware its current damaging power. The most notable moments are as follows: 1989, considered the origins; 2005, when modern ransomware incorporating asymmetric encryption appeared; 2013, where crypto-currencies payment was incorporated; 2015, considered the explosion year of this threat; 2016, ransomware’s focus on organizations; 2017, with government-sponsored ransomware (e.g., the work [83] documents the relationship between ransomware groups and states); 2019, with the addition of new extortion tactics (in the double extortion case, the operator threatens the victim by publishing the data if the ransom is not payed; in the triple extortion case, the target’s customer and partners are notified about sensitive data related to them that would also be disclosed if the victim does not pay the ransom; and in the quadruple extortion case, ransom note includes a threat to bring down the target’s public-facing servers with a distributed denial-of-service (DDoS) attack if it refuses to pay the ransom); 2021, beginning of the attacks on critical infrastructures and supply chains. The figure also includes (in blue boxes) examples of the most relevant families by appearance date. It is worth highlighting the growing number, complexity and impact of new ransomware samples, as discussed in the following. In addition, it should be noted that the problem is far from disappearing in the short-medium term.

4.1. The Origins

With the development of the Internet, in late 2004 and earlier 2005, GP-Coder infected different systems by using a personalized encryption algorithm. It requested a ransom payment of USD 200 through Western Union or premium SMS. Fortunately, the encryption key was weak and easy to break. With Archiveus in 2006, ransomware’s authors realized the importance of using strong encryption by only encrypting the ’My Documents’ folder. Although it was the first time that a 2014-bit RSA encryption code was used, the authors’ failure was not to use different keys to lock down the target systems. Once this error was discovered, the malware fell into disuse.

Until now, one of the major limitations of ransomware attacks was the traceability of payments. Therefore, the following families started to use gift cards to pay the ransom. This medium allowed the victims to pay the ransom simply by going to a store, video game vendor, or credit card company. This is what Locker did, since 2009 in Russia and since 2010 in the rest of the countries, and WinLock as well. In particular, Locker was installed by visiting a malicious or compromised website and was usually written in JavaScript. Its objective was to block access to device functionality with a popup that indicated how to pay the ransom through a gift card or wallet. This variant also spread to mobile phones by downloading applications outside official sources. This has been seen again in the COVID-19 pandemic, where cybercriminals used an infection tracker that turned into a device blocking a sample [84]. These attacks pretended to look like some state security body and indicated to the victim that they had committed an illegality for which they had to pay a penalty. This technique had little success as the victim’s files were not affected and, thus, it was possible to bypass the lock screen.

4.2. Use of Cryptocurrencies

Combining device blocking and crypto-currencies gave rise to Reveton in 2012, which was the first to use the RaaS business model and Bitcoin payment. With it, the ability to massively infect victims began. Reveton also showed a fraudulent message posing as some state security body and force depending on the country and accusing the victims of committing a criminal act for which they could be imprisoned if they did not pay the extortion. In this regard, the emergence of crypto-currencies in 2009 revolutionized the ransomware business by enabling easy and anonymous payments

Up until the mid-2010s, ransomware was more focused on PCs, given the popularity of the Microsoft market that offered a high number of victims. Despite that, an expansion of the target platforms began: mobile, Linux and Mac. Specifically, in 2012, SimpleLocker became the first ransomware to encrypt files on Android device’s SD cards, thus opening a new niche of victims and attacks.

Another important milestone was in 2013, with the appearance of CryptoLocker. This had the double form of payment through Bitcoin or wallet cards. Also, it used a 2048-bit RSA key. It spread as an apparently normal email with an attachment. One of the variants managed to raise a significant amount of money (USD 27 million in two months) and it is estimated that it affected around 234,000 victims. The fight against this attack was an example of collaboration between security forces and private security companies that culminated in the identification of the responsible person, who was never arrested.

In 2015, LockerPin, which also targeted Android devices, aimed to completely block user access by changing the device PIN (Personal Identification Number), instead of encrypting files. This year, Linux.Encoder.1, the first ransomware for Linux, was released.

From the defence point of view against this threat, in 2015 the source code of Hidden Tear was published by a group of Turkish researchers, with the intention that security teams knew how it worked [85]. Unfortunately, this also allowed attackers to make improvements and launch new attacks. In 2020, some new ransomware variants contained traces of this code, such as Chaos Ransomware Builders [86], a software with a graphical interface to create ransomware according to certain options. For example, these similarities appear in its V3 version, both in the code to generate the keys and in the AES encryption, which are practically identical. Something similar happens with Bagli.

The change in evolution culminated with variants capable of attacking Windows, Linux and Mac systems without differentiated codes for each platform. Ransom32, which appeared in 2016, is a variant of the RaaS model developed in JavaScript, and allows it to operate on most platforms.

4.3. Crypto-Ransomware Explosion

In the next stage, the sophistication of attack techniques increased, in addition to expanding globally. In 2016, Petya was the first variant to overwrite the MBR (Master Boot Record) instead of encrypting individual files, blocking disk access faster than other techniques. This same year, Locky appeared, sending up to 500,000 phishing emails per day for its propagation [3]. Other families that also appeared that year were TeslaCrypt, Jigsaw and Cerber. All of them have in common that they were used for automated attacks, delivered via phishing emails, exploit kits or malicious advertisements located on websites, against a single machine. There were so many variants that 2016 was designated as the ’year of ransomware’, even though it was only the beginning of its rise.

Another of these families was SamSam (named after a village in northwestern Iran) which, instead of using exploit kits or phishing, exploited vulnerabilities in JBoss (Open Java Application Server) and looked for exposed RDP (Remote Desktop Protocol) servers to launch password brute force attacks to obtain access to them. Instead of installing itself on one machine, as today’s families do, it spreads through the target network with different tools and exploits by installing itself on as many machines as possible. It was operational until 2018 when the United States Department of Justice charged its perpetrators and the attacks stopped.

A few months later, Zcryptor, which combines features of a worm, created an attack called a crypto-worm or ransom-worm, which is particularly damaging as it can stop an entire system by replicating itself across the network.

WannaCry, in 2017, was cataloged as one of the largest attacks in terms of the machines and business sectors affected. It used the EternalBlue exploit [87] that exploited the vulnerabilities of Microsoft’s SMB (Server Message Block) protocol. It demanded the ransom in Bitcoin, equivalent to USD 300, but as the encryption key was not available, thousands of paying victims found they could not get their files back. At the end of 2017, the United States of America and the United Kingdom attributed the ransomware to North Korea. Two months after WannaCry, the NotPetya attack (successor to Petya) took place. It encrypted files and did the same with the MBR, which meant that, even with the decryption key, the victim could not recover the files. It was distributed using a trojanized version of the M.E.Doc software for updates, necessary for companies doing business in Ukraine. The attackers compromised the update server to insert the malicious software. A few months later, the attack was attributed to Russia according to the United States, Canada and Australia.

This period of time was also characterized by the development of new variants of existing ransomware instead of developing new families. For example, Goldeneye appeared in 2017, which is a variant of Petya, and is pretty similar to WannaCry. However, this new variant is more dangerous because it solves the encryption problems of its predecessors.

Since 2016, there has been ransomware using the RaaS model, such as Stampado, Goliath and Locky. However, the operators initially only provided the executable file, so the attacker who bought it was responsible for the entire operation. This aspect changed with GandCrab (2018), which offered a portal for affiliates, allowing them to follow the attack and manage the payment. This same year, Ryuk appeared, setting a new standard by being the first to operate as a targeted attack. It used Tribot and PowerShell Empire to spread and install itself. Additionally, it used PowerShell and Windows Management Instrumentation (WMI) to perform lateral movements.

4.4. New Extortion Techniques

In 2019 and 2020, new ransomware attacks appeared with two dangerous and destructive aspects: double extortion and oriented to organizations instead of individuals. Double extortion encrypts and steals the victim’s files so that, if victims do not pay, they are threatened with publishing data or selling it on the black market. An example of this is Maze (2019), which provides a leak site and, therefore, uses ransomware as a data theft attack (double extortion). Its successor, Egregor (2020), incorporates a support service for victims to protect their systems if they paid. On the other hand, to maximize profit, attackers select victims in large, well-known organizations where the ransom amount can be higher. This does not mean that individualized attacks will disappear.

The COVID-19 pandemic has triggered the explosion of double extortion and RaaS. During this period, the number of attacks on hospitals, government organizations and universities increased, with 72% of new samples and 77 new campaigns during the first months [88]. Attackers took advantage of the event to carry out the following: (i) execute more and faster attacks (shortening the time between infection and activation), (ii) recruit collaborators to maximize impact, and (iii) offer RaaS on the Dark Web [89]. This increase was generalized to all types of malware. We must highlight campaigns that took advantage of the coronavirus issue, such as Ransomware-GVZ [90], NetWalker and CoViper. One of the reasons for this proliferation is the increase in remote work, which allowed the vulnerabilities of remote desktop protocols to be exploited at a higher level. Also, we should indicate that the amount requested in ransoms with these attacks increased by 60% on average [91].

Also, in 2019, QLocker attacked NAS (Network Attached Storage) systems, the CVE-2021-28799 vulnerability being exploited. This ransomware was active again in early 2022 [92]. In this same year, Conti appeared, one of the most common ransomware families, with more than 450 known victims and considered a relative of Ryuk (2018–2021), since both are operated by the same Wizard Spider subgroup, and reuses code from it. Conti is especially hard since it persecuted health organizations during the pandemic. After the attack on Ireland’s Health Service Executive, the group was forced to give the decryption key to stop the possible response from the government. In 2020, the Trickbot Trojan began to be used together with Emotet and Ryuk, and Trickbot was eventually included inside Conti [18].

Lockbit appeared in 2019 and continued throughout 2020, reporting more than 9000 incidents. Given the large number of affiliates, it is difficult to establish how it proceeds. Some gain access using phishing campaigns while others take advantage of exposed RDP servers or even exploit VPN vulnerabilities or cloud infrastructures such as SonicWall or Microsoft SharePoint. REvil reappeared as LockBit 2.0, hoping to capture REvil’s affiliates. One of its features is the automation of the deployment process for affiliates, who only have to take control of Active Directory and run a script. The rest is done by the program.

In May 2021, the RaaS variant of REvil was used to carry out one of the largest attacks in history, where the attackers demanded Kaseya USD 70 million for unlocking more than one million devices. In December of this same year, Konsari appeared, the first to exploit the Log4Shell vulnerability (CVE-2021-4428).

Grief (2021) was the successor of DoppelPaymer. It was deployed in an environment already compromised by Dridex and the post-exploitation was performed using Cobal Strike. This family is obfuscated and uses anti-analysis techniques that include API hashing, VEH (Vector Exception Handling), the Heaven’s Gate technique [93] and the encryption of relevant data carried out with RC4. Grief runs with specific parameters calculated based on the victim’s environment and fails if these are missing or incorrect. Moreover, it disables Windows Defender and deletes shadow copies with vssadmin and diskshadow [94].

4.5. Critical Infrastructure Attacks

Another important milestone in the evolution of ransomware is the appearance in 2021 of attacks against critical infrastructures (CI). The Sabbath group, which operates various ransomware including Rollcoast, exposed data and extorted several US school districts using social networks like Reddit and Twitter. Since July, it started using Themida to package ransomware samples and prevent detection. It is designed to run in memory and check the system language (it has an exclusion list of 40 languages). Similarities to Tycoon ransomware were detected.

In a recent work on attacks on CIs [95], a change in this type of incident is shown mainly due to the pandemic of COVID-19. A change is shown in the type of organizations affected, where attacks on government organizations are less frequent (going from 35.9% to 16.6%) while increasing the attacks to other sectors. The study also reflects how the ransom payment, given the pressure and tracking of Bitcoin, has shifted to the use of conventional means.

Another important aspect in 2021 was the publication in a hacker forum of the complete source code of Babuk (or Babyk) ransomware [96]. This was made by one of the developers, a 17-year-old suffering from advanced cancer. The group that operated this family also announced a change in the way they operated according to which they were not going to encrypt the data but just steal them. If the victim does not contact attackers after being notified of the theft, the data will be published [97].

In 2022, the attackers of UNC2596 (known as Cuba) operated the ColdDraw Cuba ransomware, which targeted public service providers, government agencies and organizations that support non-profit and healthcare entities. They used a re-branding approach, as is the case with Entropy, which has many similarities with the general-purpose malware Dridex, or like Sabbath with Arcane. From the second half of 2022 until today, some changes can be observed. First, ransomware groups are centered on more directed attacks and especially on critical infrastructures [98]. Second, because more organizations are refusing to pay, ransomware is more centered on data ex-filtration so they can extort the victims with their publication. Some recent incidents are the attack on the Costa Rican government by Conti, or the NFC team by the BlackByte group. Third, phishing emails are the preferred way to obtain valid access credentials for the target [99].

Another interesting aspect is that of collaboration between ransomware actors like Ex-Conti and FIN7, also known as ITG14, which work together with the new Domino backdoor, used to distribute the payload of the Nemesis infostealer project [100].

During the Russia–Ukraine conflict, the ransomware with more activity affecting strategic sectors is especially related to defence, like LockBit 3.0, BlackCat (ALPHV) or Black Basta [45].

Recently, a ransomware evolution from Windows to Linux systems in large companies has been observed. Here, a double extortion is carried out, with different persistence mechanisms and evasion mechanisms by erasing log files [101]. Also, MacOS-related [102] and even cloud-based [103] samples appeared.

In summary, it should be noted that, since the appearance of the first sample of ransomware, the growth of attacks has been enormous. We can highlight the following factors in this evolution: pseudo-anonymous payment mechanisms [104], anonymous networks [105], RaaS [106,107] and botnets [108]. All of them make it easier for ransomware operators to work with higher impunity.

In the first half of 2021, we can find 130 active families grouped into 30,000 clusters. The most active ones were GandCrab with 6000 clusters, followed by Babuk, Cerber, Matsnu, Congur, Locky, TeslaCrypt, Rkor and Reveton [38].

An interesting fact regarding evolution is to see how fresh the samples used in the attacks are. VirusTotal shows, in the same report [38], the existence of a correlation between the specimens already examined on the platform and those that appeared in the first instance. This could indicate that the attackers prepare new samples for most of their attacks, except for the peak observed in the first quarter of 2021, where the activity seems to show that previous samples are being reused. These experimental data agree with the analysis carried out in reference [109], which establishes a formula to predict the probability of new attacks. The data analyzed between 2016 and 2020 indicates that a previously observed ransomware attack is more likely than a new one.

Although ransomware attack vectors tend to be similar to those for general malware [110,111], a recent prominent trend can be observed [112]:

• An attack on the supply chain. This attack tries to extend the radius of affection of ransomware to the entire software supply chain by inserting malicious code into a trusted component [113].
• The use of the RaaS model to launch and maintain an attack campaign [10].
• An attack on unpatched systems. While new ransomware to exploit zero-day vulnerabilities appears, known vulnerabilities continue to be exploited on unpatched systems.
• Phishing. Although they are not the main cause, phishing emails are frequent in ransomware attacks.
• Multiple extortion. New extortion models include multiple levels of extortion, personalization and evolution towards new protected goods such as IoT (Internet of Things) [114]. It should be noted that, according to a report by the consulting firm Unit 42 [115], some families of ransomware have evolved from double to quadruple extortion [116]. The Suncrypt group even called the victim to pressure her into making the payment [117].

As a summary of the current situation, the cyber-intelligence report by S21Sec [45], covering the second half of 2022, shows that the most active groups were Lockbit, BlackCat and Black Basta. Among the countries mainly affected, we find the United States of America (619), the United Kingdom (79), France (58), Germany (62) and Spain (48).

5. Defence against Crypto-Ransomware

As is usual for any other kind of security threats, the defence lines against crypto-ransomware can be organized at three different levels: prevention, detection and response (including recovery in this last phase). First, mechanisms to avoid the occurrence of crypto-ransomware events should be deployed on the target environment. Since we cannot guarantee the complete avoidance of such a kind of situation, the environment should be monitored over time in order to detect potential incidents. In case they occur, countermeasures should be deployed to solve the incidents and, if so, to recover the affected system and restore it to its original operation state.

In the rest of the section, a revision of the proposals in the literature for each of the above defence lines is presented.

5.1. Crypto-Ransomware Mitigation

Several recommendations are provided in the literature to mitigate this harmful threat and, thus, to try to avoid its occurrence [118,119,120,121,122,123]:

• Periodically patching software and firmware, since ransomware usually attacks known vulnerabilities [124].
• Segmenting networks to reduce the number of reachable systems [125]. In a more general way, the Zero Trust Model can be adopted to avoid the existence of any reliable perimeter [126].
• Blocking access to web resources that are potentially dangerous such as name servers and malicious or suspicious IP addresses, ports and protocols.
• Use of whitelists for authorized applications.
• Use of standard accounts instead of privileged ones.
• Establishing BYOD (Bring Your Own Device) policies for personal devices on corporate environments [127].
• Avoiding the use of personal applications on the equipment such as email clients or social networks.
• Training staff and users about security risks, in particular regarding social engineering. Associated behaviors should be supervised.
• Managing authorization credentials to every asset in the organization. In particular, regarding the file system.
• Making periodic off-site backups [128].
• Protecting against data ex-filtration events, which are identified in the MITRE ATT&CK report [129].

In addition to the previous most adopted ones, a variety of other prevention schemes can be found in the literature. For instance, a multi-layered prevention system is proposed in references [130,131], where, among other possible techniques, anti-malware software deployment, firewall configuration, DNS/Web filtering and email security can be considered. In this way, in case of a ransomware incident, the multi-layer defence will allow us to recover data. Furthermore, reference [132] implements a module of traffic analysis to detect potential communications between victims and C&C servers to get cipher keys. This way, in case of a ransomware incident, the data could be deciphered. Similarly, the authors of reference [133] rely on the DFR (Digital Forensics Readiness) framework to collect, in a pro-active way, system artifacts over time so that, in the case of a ransomware incident, we are able to perform a forensics analysis to recover ciphering keys and, from them, to recover the data affected by the attack.

A different approach addresses attack simulation where data breaches occur based on Cyber Threat Intelligence (CTI) and the MITRE ATT&CK framework to mitigate the threat [134]. Sensitive system points for surveillance can be identified with Rantology [135], an ontology that allows the evaluation of the program’s maliciousness based on different factors, including API function calls and the running behaviors. Moreover, it is possible to learn from the different attack types through multistage game theory in order to derive measures to mitigate their negative impact and improve the decision-making process of defenders [136].

A complementary prevention scheme is the convenience of designing a recovery plan. That is, the elaboration of a procedure aimed to restore the system in case of an incident or disaster is definitive to guarantee its continuity. Recovery, however, is usually described in conjunction with the response schemes, as we shall describe below in Section 5.3.

Some recent papers in the literature are specifically intended to create a survey of prevention and mitigation schemes [137,138]. In what follows, some of the previously itemized prevention mechanisms are detailed.

5.1.1. Access Control

Access control and permission policies are principal in avoiding privilege escalation by ransomware in case of incidents through user credentials [139]. It is recommended to implement the lowest privilege and separate functions basis through a role-based access control scheme.

AntiBotics [140] makes use of a periodic biometric and challenge-based manual authentication procedure to prevent data loss or modification. Likewise, whitelist-based solutions seem to be promising [141], like that in reference [142] where only specific programs are allowed to access files while the rest of the programs are blocked. Similarly, the authors of reference [143] propose limiting the access to the pseudo-random numbers generator API, since it is considered a critical resource.

Another different approach is provided by MTD (Moving Target Defense) [144], where file extensions are continuously and randomly modified with the aim of reducing the impact of attacks. Instead, other works propose differing the control access decisions to analyze the access consequences and, if necessary, to undo changes [145].

Sophos developed Intercept X Endpoint, a tool that makes use of behavioral analysis to prevent ransomware from writing on the system’s registry [146]. Intercept X is capable of blocking zero-day APTs (Advanced Persistent Threats) and relies on Crypto Guard to recover files.

In a similar line, Microsoft released two products to fight against ransomware: Defender for Endpoint and Defender for Identity. The first one allows access to folders only for reliable applications [147], while the second tool is aimed at identifying advanced threats, especially those regarding lateral movements [148].

Some other proposals rely on firmware. This is the case for reference [149], where a mechanism is proposed to prevent unauthorized applications from accessing file data if they do not know the key registered in the disk. To avoid Petya-like attacks against the MBR (Master Boot Record), the authors of reference [150] introduce a hardware-based architecture to protect and control access to the boot process and the associated data.

There are also proposals based on SDN (Software Defined Networks) to prevent ransom propagation over the network. For instance, the authors of reference [151] perform anomaly detection on traffic SMB-related ports 139 and 445.

The Staged Event-Driven Access Control (SEDAC) approach incorporates both program-centric and user-centric access control measures to intercept a greater number of ransomware attack vector types than other proposals. For that, only delegate access control decisions regarding file operations that users either need or are capable of making and where the security is not affected, while non-negotiable access control decisions made by OS and software developers are enforced [152].

5.1.2. Data Backups

The use of backups is a generic mechanism aimed at recovering information due to a number of threats, either random or deliberate. In the case of a ransomware incident, only new data generated after the last backup will be affected. For that, the backups should not be accessible to attackers. This way, it is necessary to balance data protection and the resources needed to achieve it. This way, the authors of reference [153] introduce improvements to the evaluation of security risks and develop a tool to analyze backups.

Amoeba [154] is a Solid-State Drive (SSD) backup and restoration system that detects infected pages through a hardware accelerator and minimizes the backup overhead. According to the evaluation provided by the authors, the tool gives a high detection accuracy due to the small total ratio of False Positives (FP) and False Negatives (FN), only 2.58%.

Safe Zone [155] maintains all the user’s (compressed) files into a unique file (safe zone), which is always open for writing to prevent access by other resources. The application has a File Watcher register to collect the events of the safe zone. This way, the last version of the files is recovered from the safe zone in the case of a ransomware incident.

More recently, reference [156] considered a backup scheme called RAP (RAnsomware Protection) focused on confidentiality and DoS attacks. RAP adjusts the backup overhead and the recovery through a secure channel based on blockchain by using an AONT (All-Or-NoThing) optimization.

Another solution by Dell is PowerProtect Cyber Recovery [157], which duplicates every writing and adding operation. One of them is local (production system), while the second is remote over the network, in the recovery site. To measure the de-duplication rate, a time window is used so that a ransomware attack is concluded in case a given threshold on the rate is reached. In such a case, the remote I/O operations are inhibited to protect the data.

Some more daring proposals consider a specific filesystem, like Model Core [158]. It is decentralized and analyzes in real-time the client petitions to check data integrity (by monitoring the metadata structure of files) and conclude the potential infection. A private cloud is the proposed alternative for data backup in reference [159]. Furthermore, the proposal found in reference [160] affords file immunization by storing a backup of files at the end of them.

5.1.3. Deception Techniques

The relevance of deception techniques in computer security [161] is well known, since they constitute a pro-active defence approach. A formal study and test of such techniques can be found in reference [162]. For example, RansomTracer [163] is a honeypot designed to collect traces from an attack by using a monitored bait. The environment is configured to monitor remote access, clipboard, mounted disks and executable files. Likewise, a honeyfile is a trap file aimed at generating a notification if it is accessed. In this line, the authors of reference [164] propose to create a big central file to be monitored. In case a ransomware sample accesses the file, the time involved in ciphering it will be enough to allow the detection of this circumstance and to protect the rest of the archives.

Decoy files are a variety of trap files, where archives are deployed around the folders on the filesystem to compute the number of times a thread traverses the filesystem and generates a score to measure its potential malicious behavior [165].

Other specific practical deception systems are as follows. RWGuard [166] also uses decoy files to detect and trace the behavior of input/output processes and changes in files. To do this, a machine learning (ML)-related model is considered. RansomWall [167] uses the decoy file approach in a multi-layered defence. Thus, when a process is suspected to be malicious in the trap layer, the files are copied until determining if it is really malicious or benign on other layers. Furthermore, SentryFS [168] is a specialized filesystem that deploys trap files around the environment. Traps are generated using NLP (Natural Language Processing) and both content and metadata are constantly updated to be attractive for ransomware. Moreover, the proposal clones files to avoid the actual data being ciphered. After that, an AI agent assigns the activity a suspicion value to allow users to approve or discard changes.

Focused on Android IoT devices, decoy files are used by KRProtector [169] to prevent ransomware in the ciphering phase without root privileges. R-Sentry deploys decoy files across the filesystem by analyzing the filesystem traversal patterns of existing ransomware samples. When the decoy file detects the access, the process is killed [170].

A more elaborated and current decoy-file-based approach is R-Locker [171,172], where authors deploy a set of trap files around the filesystem with the particularity that they are FIFO-based files. This way, once a ransomware sample accesses the file it is blocked by the OS. Thanks to that, a countermeasure is automatically launched to solve the problem with no affection to the rest of the filesystem.

In a different way, the proposed approach in reference [173] detects attacks when a decoy file disappears, it responds in such a case by making a system shutdown. RTrap [174] also creates deceptive files through machine learning to attract access to them by attackers (or ransomware). When detecting any access to deceptive files, RTrap autonomously contains the incident disconnecting the victim from the network and killing all the malicious processes. The proposed decoy-watcher can catch, contain and control the running of the ransomware in less than 5.35 s.

5.1.4. User Training and Awareness

As previously indicated, the attack vectors of ransomware are the same as those for malware in general. Considering that users are the weakest links in the security chain, social engineering and phishing are very relevant techniques. As a consequence, it is principal user training and awareness to effectively fight against ransomware.

In reference [175], the most relevant attack vectors for ransomware as well as the principal training and awareness aspects to be applied to mitigate social engineering are identified and analyzed. Software-based solutions like gamification and simulation are adequate to reach that goal. A similar study is performed in reference [176] to prevent spear phishing.

The authors of reference [177] apply PMT (Protection Motivation Theory) to investigate the motivation of users to adopt protection measures against ransomware. Experimentation establishes that the main motivation is derived from fear due to the severity and vulnerability of threats. The principal recommendations to users to fight against ransomware are as follows [178]: antivirus/anti-malware installation on computers and mobile devices, the use of strong and different passwords for personal and work computers, periodic security backups, not opening enclosed files in mail and the use of mirror shielding technologies. In addition, reference [179] proposes carrying out training exercises to help identify potential security breaches and guarantee the correctness of mitigation and recovery processes.

After analyzing the TTPs associated with different ransomware families, a predictive model regarding the characteristics of this threat is created. The model, RANDEP (RANsomware and DEPloyment) [180], allows for knowing when users are aware of the appearance of ransomware in the environment.

5.2. Detection of Crypto-Ransomware

The aim of deploying detection solutions relies on environment supervision to determine the potential occurrence of ransomware incidents [181]. If so, the necessary actions to thwart its effect as soon as possible will be launched [182].

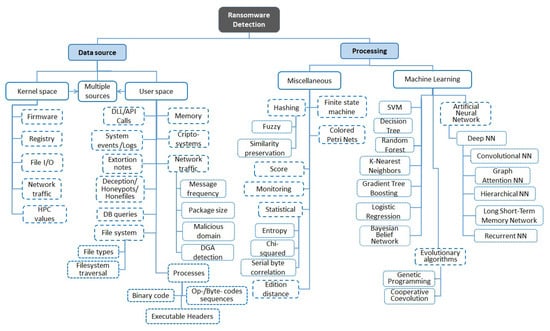

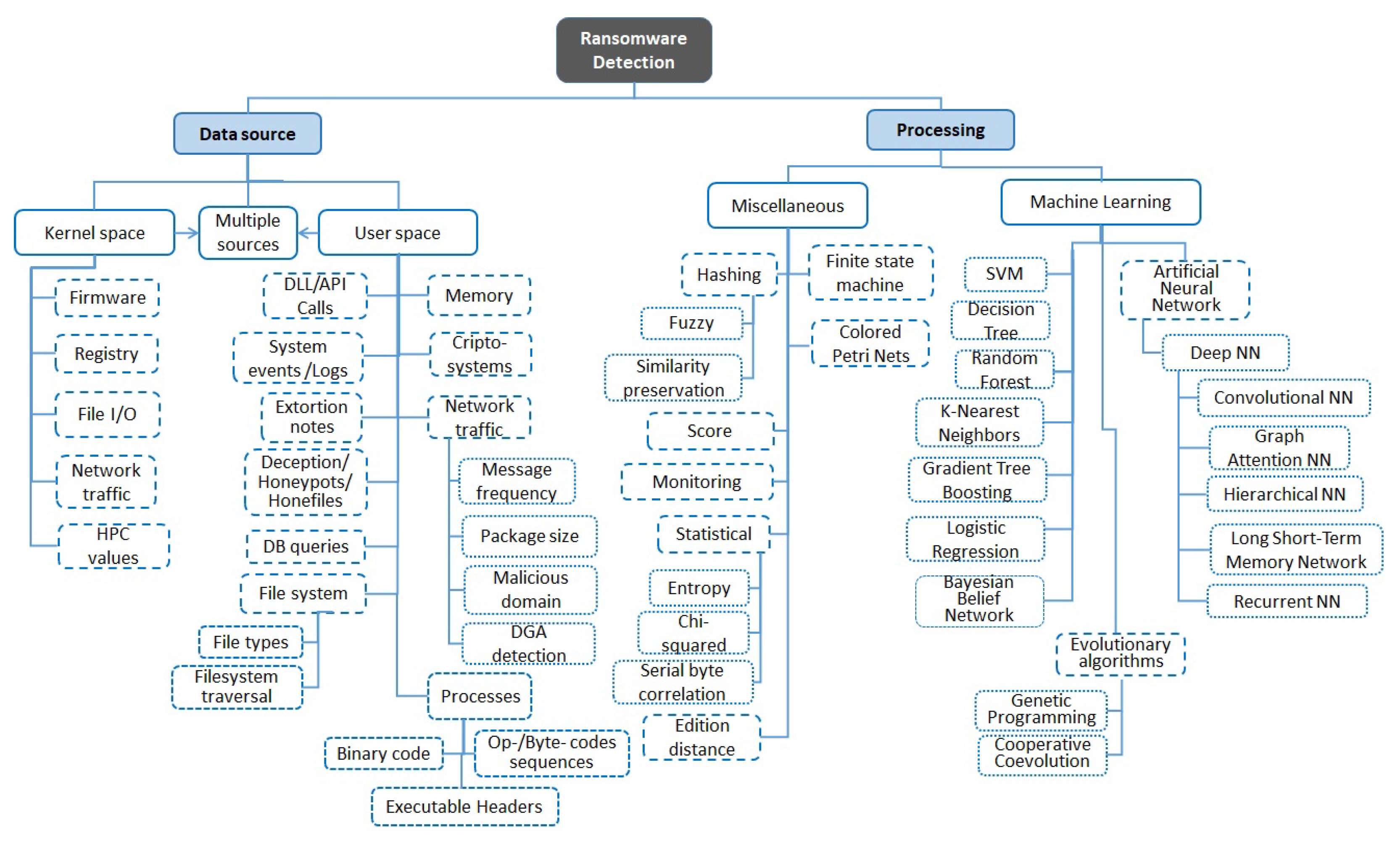

Figure 5 shows a taxonomy of detection mechanisms for ransomware which is based on the previous ones in references [183,184]. This new taxonomy includes more detection schemes while unifying and organizing them better. Two main categories of detection approaches are defined: based on the data source considered and based on the processing performed.

5.2.1. Data Source

Detection solutions usually rely on dynamically monitoring diverse activities to obtain data from which to be able to conclude the occurrence of certain events. As indicated through Figure 5, such monitoring may involve kernel or user space. In the first case, detailed information about the inner state of the system can be obtained. For that, however, root privileges are required. In addition, developing a kernel module or controller is a complex and critical task, as a little error can give way to a generalized system error (i.e., kernel panic). It is also important to mention that installing a kernel controller is feasible for Windows or Linux platforms but that task is only allowed in mobile devices after jailbreaking/rooting them, which implies removing the security mechanisms in the system and, thus, exposing the device. On the other hand, monitoring the user space is easier but less complete than the kernel one from the perspective of knowing the real state of the device.

The most common activities to be monitored concern filesystem and storage devices. Works like that in reference [183] rely on the correlation between the number of bytes written into a file (usually low for ciphered files) and the edition distance of file names.

Ransomware uses the same I/O operations as regular users (e.g., read(), write()). In this way, the authors of reference [185] propose a system to learn the behavior of ransomware from header information in Input/Output (I/O) operations (block address, operation typology, data size) to detect ransomware. Also, reference [186] introduces a system to obtain the probability of ransomware based on the comparison of the current I/O activity with a historical one. These proposals, like the one in reference [187], rely on an unrestricted access to I/O request packets (IRP).

Gathering information from the user space is the approach used by PayBreak and UShallNotPass [143], which make use of hooks to intercept cryptographic library calls.

In reference [188], the authors introduce Sentinel to detect and recover data based on access patterns by using system mechanisms like audit logs, filter controllers (Windows), file system stack (Unix) or light events (Linux and IBM Spectrum Scale). In addition, reference [189] considers process creation patterns as well. Furthermore, the tool ARW in reference [190] combines the analysis of the life cycle of files with their content to detect cryptographic attacks.

As mentioned, system and service logs are also recurrent data sources for ransomware detection [191,192]. This is also the case of the system DeepRan, where BiLSTM (Attention-based Bidirectional Long Short Term Memory) is considered for detection [193]. Similarly, reference [194] makes use of a number of features obtained through a forensic analysis of artifacts, like process descriptors or DLL (Dynamic-link Library), to feed a XGBoost (eXtreme Gradient Boosting) classifier.

The file typology or the extension can be modified when files are ciphered by ransomware. Such changes can be monitored to determine the presence of this kind of attack [166]. This work also uses the similarity of different file versions to detect ransomware actions.

API calls are recurrently monitored to determine the occurrence of a number of activities: C&C communications, privilege escalation, file access, ciphering and many other functions associated with ransomware action [195]. Some works, like references [196,197], analyze and filter API calls to obtain the most relevant ones. API calls can be also combined with DLL-related features like in reference [198].

Also, opcodes or bytecodes contain rich information about context and semantics, which provides information about the behavior of a given program. Some works that make use of these kinds of features are references [199,200,201,202,203,204], where ML models like SVM (Support Vector Classifier), HMM (Hidden Markov Model), CNN (Convolutional Neural Network) or RF (Random Forest) are used.

References [205,206] focus on variables related to executable programs in Windows like code size, image, DLL features or initialized data. Over them, ML detection methods like PCA (Principal Component Analysis), SVM, KNN (K-Nearest Neighbors) and RF are applied.

The authors of reference [207] make use of a number of features (entropy changes, apps retention state, lateral movement, system resources) to define an eight-final-states FSM (Finite State Machine). When one of these states is reached by the system, a ransomware event is concluded. Also, using a number of different features, the proposal in reference [208] relies on an ACO (Ant Colony Optimization) procedure for ransomware detection. More, Refs. [209,210] also makes use of a number of features among which are file ciphering rate, writing operations, registry changes, CPU usage or DLLs used.

Traffic monitoring is also relevant for ransomware detection, where features like packet size, message frequency and malicious domains, among others, support C&C communications occurrence. In this vein, the authors of reference [211] make use of Domain Generation Algorithms (DGA). Also, reference [212] considers message size in HTTP headers to detect CryptoLocker and Locky samples. In such a case, an SDN is used to stop the communication with the malicious domain. Also based on SDN and auto-organizative networks, reference [213] introduces a defence scheme against ransomware. The authors of reference [214] introduce REDFISH, a system to detect ransomware actions through monitoring network traffic for shared network data volumes. Further works in a similar vein can be found in references [215,216,217], where either generic traffic features (communication duration, protocol, IP addresses, etc.) or specific TCP-related features are considered by using ML algorithms like RF, SVM, DT (Decision Tree) and LR (Logistic Regression).

Since phishing is a recurrent attack vector, some researchers analyze URLs based on ML techniques to detect if they are malicious or benign by considering features like protocol, domain, path and other traffic features [218]. To detect ransomware samples against database servers, the proposal DIMASQ (Dynamic Identification of Malicious Query Sequences) is introduced in reference [219], where colored Petri networks are used to classify malicious requests.

In some cases, the detection proposal is focused on analyzing the extortion notice provided to the user once the data are ciphered. In reference [220], the ransomware embedded in Android apps is detected by comparing the similarity of a set of images of the analyzed program with a set of extortion images corresponding to ransomware variants. Reference [221] introduces a forensics tool to analyze the extortion pop-up message of the ransomware. Based on an OCR (Optical Character Recognition) process, the message and the payment instructions are recovered. More recently, the authors of reference [222] propose studying files related to ransomware to identify it. For that, LSA (Latent Semantic Analysis), used to seek similarities among files, and ML, used to classify files as benign or malicious, are implemented.

A recent work is reference [223], where a ransomware SSD (State Solid Disk) (RSSD) controller is constructed based on an assisted hardware registry. This keeps old data copies in a conservative way and performs storage requests with a small overhead. Moreover, the subsequent analysis of the attack is allowed, from which we can obtain storage evidence for attack investigation purposes. Also based on hardware, the authors of reference [224] propose RAPPER to determine static and dynamic programs’ integrity by using a model with a time series of HPC (Hardware Performance Counter). Furthermore, reference [225] introduces RanStop, where hardware events feed a neural network using the model LSTM (Long Short Term Memory). Similarly, reference [226] makes use of hardware profiles for Windows-related ransomware detection. A more recent work determines, for early detection, the most effective time frame and also the appropriate HPC registers [227].

A different approach is proposed in reference [228], where the cryptocoin rate and blockchain congestion are monitored over time. If an increase is detected, the system is blocked to avoid malware infection [229].

5.2.2. Processing

Whichever the data source considered, some kind of processing of the information collected is needed to conclude the occurrence of a ransomware event. As in the case of malware in general, detection schemes can be classified as signature-based or anomaly-based. That is, a set of well-known (ransomware-related) pre-defined patterns or behaviors are either detected, or a certain deviation with respect to the expected normal operation of the target system occurs.

An example of signature-based processing is the case of hashing, used, for example, in VirusTotal (https://www.virustotal.com/gui/home/search (accessed on 25 October 2023)), to identify and classify malicious samples. Hashing can also be used in combination with other techniques like diffuse signature and entropy to detect samples for which no signatures are known [230].

Other proposals consist of assigning values to quantify the malicious behavior of a process. This is the case of Redemption or CryptoDrop. This is also the case of reference [231], where YARA rules [232] are used to characterize the behavior of a sample based on API functions, extortion-related words, cryptographic signatures and file names. If the rule reaches a given threshold, the sample is classified as malicious. In comparison with signature-related detection, the anomaly-based paradigm is able to detect unknown malware samples.

There are a number of detection proposals based on entropy [166,233,234]. Also, the authors of reference [235] make use of entropy for file headers, the accuracy obtained being 99.96%. This feature feeds an SVM model to discriminate between malicious and benign files [236]. However, because entropy by itself cannot detect the differences between ciphered files and compressed files [237], or it can be even evaded [238,239], the analysis should be complemented. This is the case of reference [240], where a decoy file is additionally considered.

EntropySA and DistSA are ML-based schemes too but they make use of byte frequency and frequency variation, respectively, to reduce the cost of entropy [241]. Another possibility to reduce such a cost is to consider visualization, like in reference [242]. In this case, ransomware is described in terms of images which are analyzed by using neural networks.

Whatever the data gathered, ML algorithms are generally applied over them for detection purposes [243,244,245,246]. In reference [247], a comparison of ML-based ransomware detectors is performed. Table 3 shows the main ML-based detection techniques used in the literature and the features collected in each [248]. Let us remark on some works in the field. In reference [249], a natural language processing scheme is used over API calls. A Random Forest detection algorithm over DLL features combined with resource consumption (communications, RAM, CPU, disk, among other resources) and opened files is implemented in reference [250].

More novel, the proposal of ZSL (ZeroShot Learning framework) introduced in reference [251] is inspired by brain mechanisms to identify new concepts. The approach is based on API calls and is divided into two stages: the first one to learn basic features for ransomware, and the second to infer the final malicious or benign behavior.

API calls are monitored in reference [252], but, in this case, a previous binary static analysis is performed in a hybrid detector named PEDA (from Pre-Encryption Detection Algorithm). The authors of reference [253] propose a behavioral anomaly detector based on the combination of Random Forest, Decision Trees and K-Nearest Neighbor schemes. Furthermore, the authors of reference [254] introduce the system DRTHIS (Deep Ransomware Threat Hunting and Intelligence System) based on the combination of two ML techniques: LSTM and CNN.

Table 3. ML-based ransomware detection approaches.

Name	Classification Algorithm(s)	Feature(s)	Ref.
-	Random Forest (RF)	Raw bytes	[255]
DNAact-Ran	LiR	K-mer frequency	[256]
RansomWall	ANN, GTB, LR, RF, SVM	System calls/API	[167]
-	DT, LR, NB, RF	Logfiles	[166]
-	ANN, DT, KNN, LiR, LR, SVM	File I/O	[257]
PEDA	RF	System Calls/API	[252]
-	SVM	System calls/API	[258]
-	SVM	System calls/API	[259]
DPBD-FE	ANN, Boosting, CART, DT, KNN,	System calls/API	[260]
	LDA, LR, NB, RF
DRDT	CNN	System calls/API	[261]
-	ANN	Log files	[262]
-	KNN, LR, NB, RF, SGD, SVM	System calls/API	[263]
-	DT, LiR	System calls/API	[264]
-	AdaBoost, Bagging, BN, DT,	System calls/API, RAM memory dump	[265]
	LogiBoost, LR, NB, RF
iBagging/ESRS	Linear regression	System calls/API	[247]
RAPPER	ANN (LSTM)	HPC	[224]
-	BN, RF, SVM, RT	Network traffic	[266]
-	ANN, KNN, RF, SVM	CPU consumption	[267]
-	RF	Network traffic	[268]
-	CNN	Operation codes	[201]
-	SVM	Operation code sequences/byte	[269]
-	CNN	PE executable headers	[270]
-	DT, LR, NB, RF, SVM	DLL calls, Operation/bytes codes	[271]
-	DT, LR, RF, SVM	DLL calls, operation code/byte sequences	[272]
DRTHIS	CNN, LSTM	Event sequences	[254]
-	NB, SVM	Network traffic	[273]
DRDT	TextCNN	System calls	[261]
-	RF	DDL calls, OS resources	[250]
-	RF, OoW	DDL calls	[249]
-	KNN, LR, NB, RF, SGD, SVM	System calls	[195]
AIRaD	AI	DLL calls	[198]
DeepRan	BiLSTM, FC	Logs	[193]
RanStop	LSTM	Hardware events	[225]
MUSTARD	RF	Folders, file operations and types	[274]
DIMAQS	CPN, DNN	DB SQL queries	[275]
BGPGuard	CNNs, GBDT, GRU, LSTM, RNNs	Features selection	[276]
-	RF	Network traffic (PSO)	[277]
SwiftR	HNN, LSTM	Binary code, word-embedded)	[278]
RANDES	GAT	lists of assembly mnemonic	[279]
-	NN	API calls	[280]
-	GP, CC	API calls, extension of dropped files,	[281]
		Registry key operations, embedded strings

Abbreviations: ANN: Artificial Neural Network; BN: Bayesian Networks; CC: Cooperative Coevolution; DT: Decision Tree; GAT: Graph Attention Network; GP: Genetic Programming; GTB: Gradient Tree Boosting; HNN: Hierarchical Neural Network; KNN: K-Nearest Neighbors; LDA: Linear Discriminant Analysis; LiR: Linear Regression; LR: Logistic Regression; LSTM: Long Short-Term Memory; NB: Naïve Bayes; PSO: Particle Swarm Optimization; RF: Random Forest; SVM: Support Vector Machine.

Table 3. ML-based ransomware detection approaches.

Name	Classification Algorithm(s)	Feature(s)	Ref.
-	Random Forest (RF)	Raw bytes	[255]
DNAact-Ran	LiR	K-mer frequency	[256]
RansomWall	ANN, GTB, LR, RF, SVM	System calls/API	[167]
-	DT, LR, NB, RF	Logfiles	[166]
-	ANN, DT, KNN, LiR, LR, SVM	File I/O	[257]
PEDA	RF	System Calls/API	[252]
-	SVM	System calls/API	[258]
-	SVM	System calls/API	[259]
DPBD-FE	ANN, Boosting, CART, DT, KNN,	System calls/API	[260]
	LDA, LR, NB, RF
DRDT	CNN	System calls/API	[261]
-	ANN	Log files	[262]
-	KNN, LR, NB, RF, SGD, SVM	System calls/API	[263]
-	DT, LiR	System calls/API	[264]
-	AdaBoost, Bagging, BN, DT,	System calls/API, RAM memory dump	[265]
	LogiBoost, LR, NB, RF
iBagging/ESRS	Linear regression	System calls/API	[247]
RAPPER	ANN (LSTM)	HPC	[224]
-	BN, RF, SVM, RT	Network traffic	[266]
-	ANN, KNN, RF, SVM	CPU consumption	[267]
-	RF	Network traffic	[268]
-	CNN	Operation codes	[201]
-	SVM	Operation code sequences/byte	[269]
-	CNN	PE executable headers	[270]
-	DT, LR, NB, RF, SVM	DLL calls, Operation/bytes codes	[271]
-	DT, LR, RF, SVM	DLL calls, operation code/byte sequences	[272]
DRTHIS	CNN, LSTM	Event sequences	[254]
-	NB, SVM	Network traffic	[273]
DRDT	TextCNN	System calls	[261]
-	RF	DDL calls, OS resources	[250]
-	RF, OoW	DDL calls	[249]
-	KNN, LR, NB, RF, SGD, SVM	System calls	[195]
AIRaD	AI	DLL calls	[198]
DeepRan	BiLSTM, FC	Logs	[193]
RanStop	LSTM	Hardware events	[225]
MUSTARD	RF	Folders, file operations and types	[274]
DIMAQS	CPN, DNN	DB SQL queries	[275]
BGPGuard	CNNs, GBDT, GRU, LSTM, RNNs	Features selection	[276]
-	RF	Network traffic (PSO)	[277]
SwiftR	HNN, LSTM	Binary code, word-embedded)	[278]
RANDES	GAT	lists of assembly mnemonic	[279]
-	NN	API calls	[280]
-	GP, CC	API calls, extension of dropped files,	[281]
		Registry key operations, embedded strings

Abbreviations: ANN: Artificial Neural Network; BN: Bayesian Networks; CC: Cooperative Coevolution; DT: Decision Tree; GAT: Graph Attention Network; GP: Genetic Programming; GTB: Gradient Tree Boosting; HNN: Hierarchical Neural Network; KNN: K-Nearest Neighbors; LDA: Linear Discriminant Analysis; LiR: Linear Regression; LR: Logistic Regression; LSTM: Long Short-Term Memory; NB: Naïve Bayes; PSO: Particle Swarm Optimization; RF: Random Forest; SVM: Support Vector Machine.

5.3. Response to Crypto-Ransomware

Once ransomware is detected, it is necessary to launch the required actions to solve the event. Such a response is part of the so-called disaster recovery, contingency plan or business continuity [282,283].

Maybe the most evident reaction scheme is that of killing the malicious process when we are sure about its harmful nature. Another possibility is to put it under inspection to obtain more indicators about its dangerous condition, although that can imply consuming more system resources. Additionally, it is also possible to notify users of the event so that they take corresponding corrective actions, which mainly rely on prevention mechanisms (e.g., data backups).

Depending on the affectation level of the target system, the first aspect involved in data recovery is that of ransom payment. Should we pay or not? The short answer is “No!”. On the one hand, it should be noticed that the payment is considered an illegal action in some countries, which is mainly intended to reduce the success and impact of this kind of attack on society [284,285,286]. Moreover, payment is not the end of the story! First, it does not guarantee that the attacker will return the victim’s data. Second, the data or the tools provided by the attacker to recover the information can be infected with malware. Finally, data can be stolen again later to demand additional ransom payments (provided the fact that the victim is demonstrated to be prone to pay!) [287].

As a consequence of all of the above, it is usually recommended to restore the complete system from scratch and restore the information from backups. A clarifying recovery experience from a crypto-ransomware attack can be found in reference [288].

To conclude pragmatically with defence techniques against ransomware,

Table 4. Anti-ransomware tools (modified from reference [183]).

	Detection													Recovery
	Source		ML			Processing				Actions				Sources			Processing		Actions
Name	Kernel	User	DT	RF	ANN	Scoring	Monitoring	Statistical	Distance	Kill	Block	Isolation	Notify	I/O	Cache	API	Deletion		Restoration
KRProtector		H					✓						✓
RAPPER	AC			✓		✓			✓			✓
R-Killer	FS	N			✓		✓			✓			✓
R-Locker		H					✓			✓	✓		✓
SSD-Insider	S		✓									✓	✓	✓	✓		✓		✓
UShallNotPass		PR					✓			✓		✓	✓

Abbreviations: AC: Access Control; CS: Crypto-system; FS: File system; H: Honeyfile; N: Network; PR: Pseudo random number generator API; S: Storage.

shows the various anti-ransomware tools developed in the recent literature. As a general comment, detection solutions are prevalent, in particular those focused on filesystem monitoring.

Regarding a comparison among tools, the framework FARFEL [71] analyzes the behavior of detectors from the perspective of accuracy, false positive rate and capacity to detect polymorphic samples and new attack patterns. Moreover, a comparison of them from the perspective of computation and system overhead can be done by using tools of thirds like CrystalDiskMark [289], Geekbench 5 [290] or PCMark 10 [291].

A fundamental issue in developing detection tools is the disposal of working samples for the necessary experimentation purposes. First, with learning and model estimation objectives and second, to allow valid comparisons between alternative solutions based on the same test corpora (reproducibility). Table 5 shows a number of repositories from which researchers usually get real samples. Despite the utility of such repositories, it is important to mention that, in some cases, a number of potential samples are not really operative (in the range of 12–67%, depending on the work). It is also convenient to pay attention to the necessity of adequately labeling the samples, not only from the perspective of the family they belong to but also from the perspective of their real ransomware nature. All of this would introduce a notable bias, if not directly a malfunction, in the developed systems.

Another interesting question is the dataset age and how it affects the detection accuracy of supervised machine learning models. A recent paper proves that supervised machine learning models trained using datasets with new ransomware samples are inefficient in detecting old types of ransomware and vice versa [292].

Table 5. Ransomware samples repositories (modified from reference [293]).

Work	No. Samples	No. Active samples	TP Rate	Ratio Active Samples/Family	Source of the Collection or Method
Ahmed [196]	1254	673	98.8	48.1	virusshare.com, virustotal.com (accessed on 25 October 2023), spider to repositories, forums
Berrueta [294]	70	NA	NA	NA	PCAP repository http://dataset.tlm.unavarra.es/ransomware/ (accessed on 25 October 2023)
Cabaj [212]	NA	787	98	395.5	malwr.com, ransomtracker.abuse.ch (accessed on 25 October 2023)
ISOT [295]	669	NA	NA	NA	www.uvic.ca/ecs/ece/isot/datasets/botnet-ransomware/ (accessed on 25 October 2023)
Morato [214]	NA	54	100	2.8	NA
RISSP [296]	540	NA	NA	NA	github.com/rissgrouphub/ransomwaredataset2016 (accessed on 23 October 2023)
Temple [297]	1156	NA	NA	NA	Critical Infrastructures incidents (2013–2021) https://sites.temple.edu/care/ci-rw-attacks/ (accessed on 25 October 2023)
CIRW [298]	NA	NA	NA	NA	Critical Infrastructure RansomWare. Available by request
Zscaler ThreatLabz	NA	NA	NA	NA	Repository of ransom notes https://github.com/threatlabz/ransomware_notes/ (accessed on 25 October 2023)

NA: Not Available.

Table 5. Ransomware samples repositories (modified from reference [293]).

Work	No. Samples	No. Active samples	TP Rate	Ratio Active Samples/Family	Source of the Collection or Method
Ahmed [196]	1254	673	98.8	48.1	virusshare.com, virustotal.com (accessed on 25 October 2023), spider to repositories, forums
Berrueta [294]	70	NA	NA	NA	PCAP repository http://dataset.tlm.unavarra.es/ransomware/ (accessed on 25 October 2023)
Cabaj [212]	NA	787	98	395.5	malwr.com, ransomtracker.abuse.ch (accessed on 25 October 2023)
ISOT [295]	669	NA	NA	NA	www.uvic.ca/ecs/ece/isot/datasets/botnet-ransomware/ (accessed on 25 October 2023)
Morato [214]	NA	54	100	2.8	NA
RISSP [296]	540	NA	NA	NA	github.com/rissgrouphub/ransomwaredataset2016 (accessed on 23 October 2023)
Temple [297]	1156	NA	NA	NA	Critical Infrastructures incidents (2013–2021) https://sites.temple.edu/care/ci-rw-attacks/ (accessed on 25 October 2023)
CIRW [298]	NA	NA	NA	NA	Critical Infrastructure RansomWare. Available by request
Zscaler ThreatLabz	NA	NA	NA	NA	Repository of ransom notes https://github.com/threatlabz/ransomware_notes/ (accessed on 25 October 2023)

NA: Not Available.

6. Trends and Challenges

After studying the overall current context of crypto-ransomware, this section is devoted to briefly pointing out the main trends and challenges regarding this threat, which continues to be a principal security threat worldwide [112,299]. In fact, ransomware is not only dangerous but an ever-changing and dynamic form of crime. Some of the keys to this dynamism and the associated risks are as follows.

Crypto-ransomware is usually assumed to consume a number of resources mainly due to cryptographic procedures. In addition, a lot of detection and recovery solutions are based on the local disposal of ciphered files and/or ciphering keys. Regretfully, this situation has evolved over the years, so that new ransomware samples (i) can apply only a partial ciphering (around 3–5%) to quick affectation and detection evasion [300,301], and (ii) can steal information from the target system instead of, or as well as, ciphering (and locally storing) it [302]. All of this compels us to develop new, more varied and faster detection schemes to minimize system damage. In other words, early detection is a mandatory requirement since the so-called Time-To-Ransom (i.e., the time between the initial compromise of the system and the execution of ransomware) is decreasing with new samples. Otherwise, the effective detection can be useless as the system will be already seriously affected. For that, lightweight detection and fast recovery procedures are needed, especially for mobile and IoT-related devices which are characterized by low resources and computation capacities.

Also, related to the above question, one more relevant issue in ransomware fighting is that of detection in Big Data environments, as the computational cost and the detection response involved can make the mechanisms deployed useless. In this regard, authors usually propose performing the feature selection process in order to reduce the problem dimension. For that, schemes like FeSA [248], PCA, FA (Factor Analysis), TSVD (Truncated Singular Value Decomposition) [303] or VIF (Variance of Inflation Factor) [304] are analyzed. Despite the existence of all those proposals, the increasing speed of current computation and transmission technologies, together with the complexity of new ransomware samples, make it necessary to continue researching and innovating fast and early detection solutions.

As previously explained, ML algorithms are commonly considered in the detection of ransomware solutions. Despite the results usually being satisfactory, ML schemes present some limitations and potential improvements [305,306]:

• Estimating the adequate model is a complex task, since the occurrence of over/under-training, and thus bias, is feasible [307].
• The cost involved in ML classification and detection techniques can be high. To avoid that, dimensional reduction techniques are useful, like PCA in reference [308].
• Despite current detection schemes being efficient, new ransomware samples can implement novel tactics to evade detection procedures in what is called Adversarial ML [309]. To solve this problem, hybrid classifiers are developed, which combine both static and dynamic features [310] or different classification algorithms (ensemble malware detection) [243].
• Also related to detection evasion, papers like reference [204] analyze the resilience of ML algorithms against security incidents.

One more relevant aspect of current ransomware is that of life expectation [311]. A decreasing trend is observed in this line, with ∼500 days in 2017 to 60 days in 2021. This fact can be explained by the brand-changing strategy followed by the RaaS operators to hide criminal organizations. For instance, Evil Corp has performed several attacks with different brands: Hades, Phoenix Crypotolocker and Doppelpaymer, among others. Despite the changes that could be unveiled, for instance, by discovering code similarities or following crypto-payments and flow movements searching for similar behaviors and patterns [312], it is evident that the methodology makes its prosecution more difficult.

As pointed out by the authors of reference [313], the growth of ransomware is a consequence of its high degree of economic efficiency and impunity. Current studies are focused on issues such as the juridical implications of ransomware when it is to be considered a law breach under data privacy or data protection laws, but legality should be strengthened and adapted to new technical methodologies to fight against this criminal practice. In the end, without a proper legal sanction and without a proper punishment, the crime will be repeated and extended because of the lack of harmful consequences for the aggressor. For that, several changes should be carried out: (i) typifying ransomware as an autonomous and specific crime, due to its technical uniqueness; (ii) penalizing incitement, complicity and attempts to commit this offence to limit or reduce its impunity; (iii) prohibiting and penalizing insurance contracts for the payment of ransoms to prevent legal instruments from becoming an additional incentive for criminals in a regrettable perversion of the system; (iv) the international cooperation is a main instrument for dealing with the impunity arising from the fact that it is a generally transnational crime (as a relevant example in this direction, it should be remarked that a number of countries have recently discussed fighting together against ransomware (https://therecord.media/u-s-convenes-30-countries-on-ransomware-threat-without-russia-or-china/ - accessed on 25 October 2023), and also the private sector should be involved in this common objective (https://www.europol.europa.eu/media-press/newsroom/news/13-countries-join-global-fight-against-ransomware-0 - accessed on 25 October 2023-)); (v) promoting crypto-currency exchange and payment regulations as they largely support ransomware proliferation [314].

In summary, ransomware is continuously evolving and thus the efforts to defeat it must be redoubled. In this vein, and according to the recent work in reference [315], it is likely that the behavior of ransomware will gradually evolve and refine its operation mode to achieve the following: (i) steal crypto-currencies; (ii) guide targets toward cloud and IoT; (iii) migrate from ransomware payload to business email compromise (BEC); (iv) use the kill chain for stock market manipulation; and (v) use the supply chain compromise as a service. As a direct consequence of that continuous evolution, we are aware that the current work is limited in drawing lasting conclusions and, thus, new overviews on the topic should be conducted in the future to shed light on the possible new variants and families of crypto-ransomware that appear.

7. Conclusions

The impact of crypto-ransomware attacks in recent years is indubitable, with heavy losses in terms of both economic and reputation to individuals, companies and organizations all around the world. Regretfully, and despite the efforts in fighting against the threat, that trend will prevail in the coming years. In this way, the main aim of this work is to go into depth about the current fundamentals of this typology of attack regarding infection and attack models, the actors involved and the lifecycle stages to deploy its malicious load to better understand the inherent operation of such malware and, from it, to develop more effective defence schemes. Also, the principal milestones of the evolution of crypto-ransomware over time are presented and the most famous families and extortion cases are discussed.

In order to complete the study of crypto-ransomware attacks at present, the most relevant works in the last recent years are also presented in this paper. For that, they are organized according to the main defence line for which they are intended: prevention, detection, response or recovery. Such an overview allows us to know the variety and capability of the existing proposals, as well as their restrictions and limitations. Moreover, the main trends in ransomware infection are presented with the aim of forecasting new attack procedures and defence requirements, in particular the convenience of strengthening public and private legal-related collaborations to successfully defeat this scourge.

In summary, the main goal of this work is to update the knowledge and efforts to date against crypto-ransomware, with the aim of fighting against it and minimizing its impact and damage to society.
