Hybrid Spatiotemporal Contrastive Representation Learning for Content-Based Surgical Video Retrieval

1
Department of Computer Science and Engineering, Graphic Era Deemed to be University, Dehradun 248002, India
2
Department of Information Technology, College of Computer and Information Technology, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
3
Department of Computer Science and Engineering, Women’s Institute of Technology, Dehradun 248007, India
4
Division of Research & Innovation, Uttaranchal University, Dehradun 248007, India
5
Department of Computer Engineering, Faculty of Science and Technology, Vishwakarma University, Pune 411048, India
6
Department of Information Technology, Al Baha University, P.O. Box 1988, Al Baha 65731, Saudi Arabia
7
Department of Computer Engineering, College of Computer and Information Technology, Taif University, P.O. Box 11099, Taif 21994, Saudi Arabia
*
Author to whom correspondence should be addressed.
Electronics 2022, 11(9), 1353; https://doi.org/10.3390/electronics11091353
Submission received: 10 March 2022 / Revised: 17 April 2022 / Accepted: 20 April 2022 / Published: 24 April 2022
(This article belongs to the Collection Image and Video Analysis and Understanding)

Abstract

:
In the medical field, due to their economic and clinical benefits, there is a growing interest in minimally invasive surgeries and microscopic surgeries. These types of surgeries are often recorded during operations, and these recordings have become a key resource for education, patient disease analysis, surgical error analysis, and surgical skill assessment. However, manual searching in this collection of long-term surgical videos is an extremely labor-intensive and long-term task, requiring an effective content-based video analysis system. In this regard, previous methods for surgical video retrieval are based on handcrafted features which do not represent the video effectively. On the other hand, deep learning-based solutions were found to be effective in both surgical image and video analysis, where CNN-, LSTM- and CNN-LSTM-based methods were proposed in most surgical video analysis tasks. In this paper, we propose a hybrid spatiotemporal embedding method to enhance spatiotemporal representations using an adaptive fusion layer on top of the LSTM and temporal causal convolutional modules. To learn surgical video representations, we propose exploring the supervised contrastive learning approach to leverage label information in addition to augmented versions. By validating our approach to a video retrieval task on two datasets, Surgical Actions 160 and Cataract-101, we significantly improve on previous results in terms of mean average precision, 30.012 ± 1.778 vs. 22.54 ± 1.557 for Surgical Actions 160 and 81.134 ± 1.28 vs. 33.18 ± 1.311 for Cataract-101. We also validate the proposed method’s suitability for surgical phase recognition task using the benchmark Cholec80 surgical dataset, where our approach outperforms (with 90.2% accuracy) the state of the art.

1. Introduction

In the medical field, interest in minimally invasive surgeries and microscopic surgeries has grown at an enormous rate over the last few decades. Minimally invasive surgery is a surgical technique which requires only small incisions to be made on the patient’s body instead of a large opening, as in case of open surgery. One of the small incisions made is used to insert a small camera called an endoscope, and the surgical instruments needed to perform the operation are inserted through other incisions [1]. Through the endoscope, a high-definition view of the surgical site is displayed on a monitor in the operating room. As a result, the surgeon performs the surgery by looking at a monitor that displays the surgical site inside the patient’s body. In the field of medical endoscopy, some of the areas are: esophagogastroduodenoscopy (EGD) (procedures in the gastrointestinal tract), enteroscopy (operations performed on the small intestine), colonoscopy (procedures in the colon), arthroscopy (operations performed on joints), laparoscopy (surgeries performed in the abdomen), etc. The main advantage of the minimally invasive approach over open surgery is that it causes less pain, scarring and patient trauma and it also reduces the risk of infection, hospitalization time and recovery time. On the other hand, microsurgery is a procedure that requires a microscope on small parts of the body. It is used in plastic surgery, cataract surgery, reconstructive surgery involving the skin and muscles, and surgery involving the ear, nose, and throat, etc. In the field of neurosurgery, microsurgery has now become an important process in the treatment of vascular abnormalities as well as cancerous tumors found in the brain.
Nowadays, in the hospital, surgery procedures are often recorded during the operation. In some countries, these videos are also stored in an archive as enforced by law. These recordings can be used in many ways: by young surgeons or medical students to learn the basics of surgery [2], for in-depth analysis of patient disease, for surgical quality assessment [3,4,5], for analytical self-examination for the surgeon, as an evidence of patients’ cases [6], etc. In the field of endoscopic surgery, the endoscope acts as an information source for young trainees who view surgical procedures on a big screen in the surgery room. Additionally, by viewing recorded surgeries later, trainees can further enhance their knowledge. In microscopic surgery, the operating surgeon performs the operation using a microscope, which allows only one trainee to follow the operation with an extra eyepiece and, because of this, there is a hindrance in the teaching and training of young surgeons for this type of surgery. However, microscopic surgery can also be recorded using mounted cameras, and subsequently reviewed in full detail. However, manual searching for the desired video is a tedious and error-prone task. Moreover, both minimally invasive surgery and microscopic surgery typically require specific psychomotor skills that are hard to teach and learn and directly affect the performance of the surgery. These types of surgeries also pose a risk relating to human error due to their nature as high-performance and high-risk undertakings. However, during surgery, these errors and microscopic events may go unnoticed, which prevents the possibility of improvement in future cases. Therefore, it is important to perform surgical error analysis to improve learning and quality control, which will also promote patient safety [7]. With the help of recorded surgery videos, the technical errors during surgery can be carefully examined, and the skill level of the surgeon can also be evaluated [8,9]. One way to use these recordings is to perform a manual search and manual inspection. However, this manual process of searching and inspection is extremely labor-intensive and long-term. Therefore, there is a high requirement for automated content-based surgical video analysis methods for both analysis and searching for desired videos. Consequently, this would allow for investigating other medical research questions in a postoperative manner.
In this work, our main contributions are:
  • To support surgical quality assessment, the teaching and training of surgical procedures, and other aforementioned applications, we propose a Content-Based Surgical Video Retrieval (CBSVR) system based on a contrastive learning framework.
  • A hybrid temporal embedding approach with adaptive fusion layer is proposed to enhance spatiotemporal features from different modalities.
  • We propose a supervised contrastive learning approach to learn surgical video representations which extends the general contrastive loss to consider positive samples from the same label in addition to augmented versions.
  • In addition, we design video frame-level self-supervised learning to enhance the visual feature learning when combined with spatiotemporal supervised contrastive learning.
  • With extensive experiments, we validate our proposed methodology on two publicly available surgery video datasets along with an ablation study on a surgical phase recognition task.
This paper is organized as follows: Section 2 gives a concise review of related works. Section 3 briefly discusses the essential background information. In Section 4, the proposed framework is elaborated in detail. Experimental settings are discussed in Section 5. The results of the extensive experiments are reported and analyzed in Section 6. Further, the proposed methodology is discussed in Section 7 with experimental outcomes. Finally, Section 8 summarizes the conclusions with future research directions.

2. Related Work

Several works have been published in the last two decades in the field of surgical video analysis [1,10]. Most of the earlier works [11,12,13,14,15,16,17] focused on the use of handcrafted features. For instance, the author of [15] used a bag of words approach based on SIFT descriptors for surgical phase recognition in minimally invasive surgery. Reference [16] utilized HOG features for video-based surgical skills assessment. In addition, Allan et al. [17] used SIFT, color-based SIFT and HOG as features for the surgical tool detection task. However, these low-level features are not sufficient to capture subtle details in surgical videos. With the deep learning revolution, recently proposed methods within the realm of medical image analysis appeared to improve feature representation capability through the use of CNN [18,19,20]. Meanwhile, since a surgical video is in fact a form of sequential data, effectively capturing sequential dynamics in surgical video is important for workflow representation. In this direction, several approaches have also been proposed that are based on statistical models such as hidden Markov models (HMM) [12,21,22,23], conditional random fields (CRF) [24,25], linear dynamical systems (LDS) [26], dynamic time warping (DTW) [27], etc. Moreover, Cadène et al. [28], Jalal et al. [29], and Twinanda et al. [30] used HMM for modeling temporal information over computed CNN features. However, these statistical methods generally neglect subtle and even significant motions in surgical videos. Recently, some works [31,32,33,34,35] based on RNN have been proposed that work effectively compared to traditional statistical methods. Additionally, works such as [36,37,38] in the general domain have shown RNN to be effective in video representation.
Diverse attempts have been made in medical image retrieval [39]. However, video retrieval in the medical domain has not yet attracted much attention. Some work has been completed in this field by linking images to corresponding videos. For instance, [40] proposed a video retrieval method based on local and global features (color, texture). The authors of [41] and [42] used feature signatures constructed from the position, color, and texture features to match corresponding videos for querying images. André et al. [43] used the bag of visual words with video-mosaicking technique for endomicroscopic video retrieval. Furthermore, Beecks et al. [44] proposed gradient-based signatures for image and video linking. However, these static frame-based methods ignore the crucial temporal dynamics present in the video, affecting system performance. Therefore, it is important to incorporate motion information present in the video [45,46]. For instance, Syeda-Mahmood et al. [47], Quellec et al. [48] and Quellec et al. [49] used optical flow for motion information. Droueche et al. [50] proposed motion trajectory-based method for content-based medical video retrieval. They used motion vectors from the MPEG-4 video stream to build trajectories and used the extension of DTW for video matching. Muenzer et al. [51] investigated static frame-based features and dynamic-based features for laparoscopic video retrieval, and also gave directions to fuse these features for better representation. Kletz et al. [52] proposed flow-based and track-based descriptors for similarity searches that extend static frame-based feature signatures to dynamically rich content. Moreover, Amanat et al. [53] proposed a meniscal surgical video retrieval system based on the use of key points, statistical, PCA-SIFT and PCA-GMM methods, and found that PCA-SIFT-based performance is better than others. In this method, a master frame is first extracted by a shot boundary detector and then its SIFT description is computed followed by PCA for dimensionality reduction. The author used Euclidean distance to match the input video to target video. Furthermore, Schoeffmann et al. [54] proposed a video content descriptor for laparoscopic video retrieval named motion intensity and direction descriptor (MIDD). In their proposed method, they first estimated motion vectors using optical flow and then by quantizing these motion vectors into different bins, they computed a motion direction histogram and used it as a descriptor to represent the surgical sequence. In contrast to the above methods, our approach explicitly exploits both spatial and temporal information present in the surgical video without using optical flow under the unified single model. Additionally, we explore the hybrid embedding learning approach to enhance spatiotemporal representations.

3. Background

Deeper CNNs typically take longer to converge during backpropagation, which is due to the rapid shrinking of the gradients toward input while backpropagating the loss, and thus require a large number of iterations to update the parameters. He et al. [55] proposed ResNet that overcomes the issue of training deeper CNNs by the use of a residual function. In our proposed method, we follow the ResNet-18, which acts as an initial visual descriptor. In general, it takes a 224 × 224 RGB image/frame and transforms through a number of residual blocks to generate 512-dimension activation at the end by means of an average pooling layer.
On the other hand, RNN is a special type of neural network that processes sequential data. In general, as shown in Figure 1a, RNN processes the sequential data by looking at the input as well as the output of the hidden state of the previous time step to synthesize dynamics in data. However, for long sequences, the gradients can grow and decay exponentially during training, which results in its limitation to learn long-length continuous dynamics. To address this problem, LSTM is developed in [56] and emerged as successful architecture in tasks related to natural language processing [57]. LSTM (see Figure 1b) uses memory cells in long-range learning that tell the network what to remember and when to forget. We use the LSTM module for learning temporal feature representation. The major advantage of the differentiable recurrent models such as LSTM is that they can map variable-length input such as video to single-label output (e.g., genre category) directly and can also model complex temporal dynamics as demonstrated in [36].

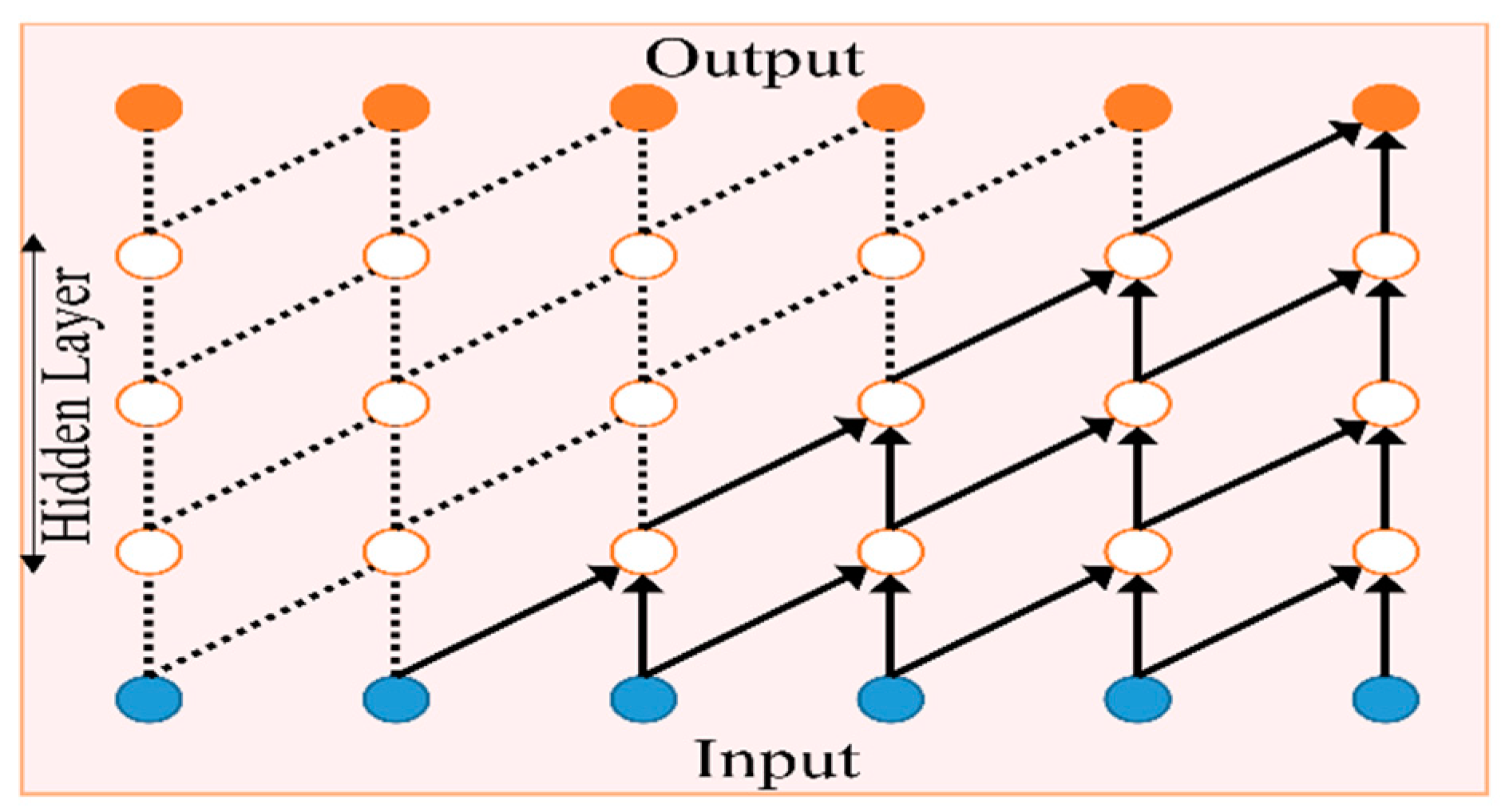

Temporal relationships can also be synthesized with temporal convolutions [58]. For instance, [59] exploited residual 1D temporal convolutions and proposed a multi-stage temporal convolutional network for surgical phase recognition. Additionally, Ramesh et al. [60] proposed a multi-stage temporal convolutional network for the recognition of phases in gastric bypass procedures. These methods are based on causal convolutions, i.e., the prediction at current time step does not involve future information but only past information. This is achieved by convolving with applying padding at the single end, i.e., at the past side. In Figure 2, the visualization of the causal convolution is shown. We used the causal convolutions in our temporal convolution layer (with kernel size 1 × 3) to capture temporal information in hybrid mode.
Recently, contrastive learning [61] has emerged as an effective method for learning robust representations in the image field. The general concept is to make an anchor-positive pair closer in the embedding space, and to separate the anchor from the negative samples. A deep network such as ResNet50 is used as an encoder to extract high-level features (of dimension 2048), which are then projected to embedding space with a projection head (with lower dimension, e.g., 256). As in [61], when no labels are used, positive pairs are constructed with data augmentations, and negatives for the anchor are sampled randomly from the mini-batch.

4. Proposed Methodology

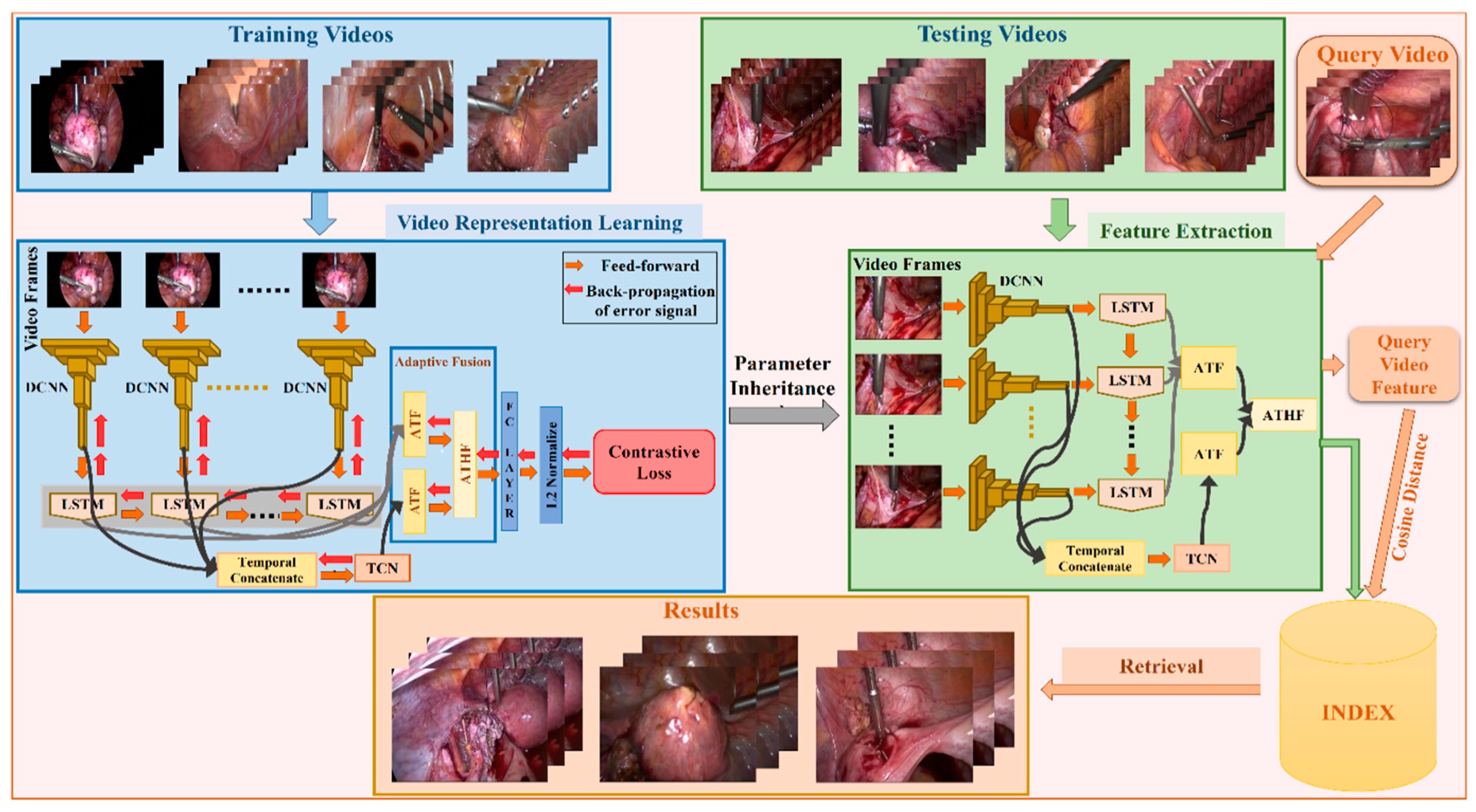

The proposed CB-SVR system including training and retrieval process is illustrated in Figure 3. The system has three core elements: video representation learning, feature extraction and the retrieval process. Firstly, video representation learning is performed by optimizing the weights in the proposed hybrid feature embedding learning model. Second, video-level features are extracted by deploying the trained model to index the database. Finally, similar surgery videos are retrieved for a given query surgical video by matching the query’s video descriptor to the stored database’s index of features via similarity measurement. All of the elements of the proposed framework are detailed in the following subsections.

4.1. Video Representation Learning

Given a surgical video sequence V ( j ) = [ V 1 ( j ) , V 2 ( j ) , , V t ( j ) , , V n ( j ) ] R n × r × c (where V ( j ) indicates the j th surgical video in the database, n refers to the number of frames in each video, and r × c is a spatial resolution of each frame), the goal of the video representation learning method is to learn a compact descriptor or code for each surgical video. In order to learn video representation directly from the surgical video itself, we adapt the deep learning approach to learn long-range dynamics in a surgical video through the proposed hybrid spatiotemporal embedding learning method.

4.1.1. Hybrid Spatiotemporal Contrastive Embedding Learning

This work proposes a hybrid spatiotemporal embedding learning (RDCN−TCN−CL) method within a supervised contrastive learning framework (see Figure 4) to learn surgical video representations. Inspired by [61], we propose exploring the supervised contrastive learning method in the context of surgical video retrieval, where we leverage the label information to construct positive pairs in addition to augmentations. We design the hybrid model RDCN−TCN−CL by combining CNN as spatial encoder and LSTM and temporal causal convolution modules for temporal information analysis. We design an adaptive temporal fusion layer which aims to pool the sequence of spatiotemporal features with learnable weights. The pooled features are then fused together via an adaptive hybrid fusion layer, which aims to fuse spatiotemporal features of different temporal modules by applying appropriate weights. The entire model is trained under contrast learning which includes video frame embedding learning and spatiotemporal embedding learning.

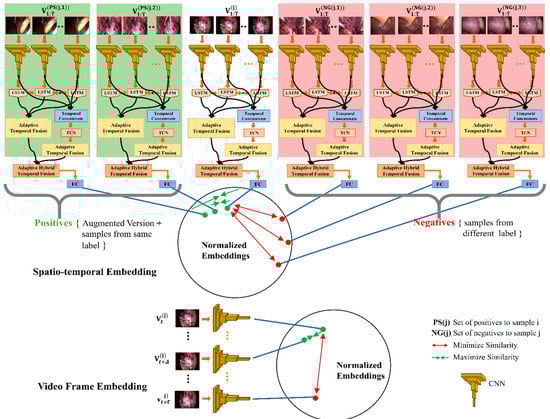

The RDCN−TCN−CL works by feeding T continuous frames of input surgical video V 1 : T ( j ) into T shared deep CNNs (ResNet-18 in our case) to encode spatial information within the pixels into rich features as a sequence of frame-level features S 1 : T ( j ) which are then input to the recurrent sequence learning module (LSTM) to learn temporal dependencies in the surgical video. Specifically, a sequence of visual features S 1 : T ( j ) is generated by passing each time step tT of video sequence V t ( j   ) through a feature transformation f D C N N with learnable parameter U as S t ( j ) = f D C N N t ( V t ( j ) , U ) . The transformation f D C N N corresponds to the activations of the last layer (average pooling layer in our case) before the classification layer in the deep CNN. The sequence S 1 : T ( j ) is then input sequentially into a single-layer LSTM with 512 hidden units, where the cell state c t and hidden state h t of LSTM for time step t are updated as:

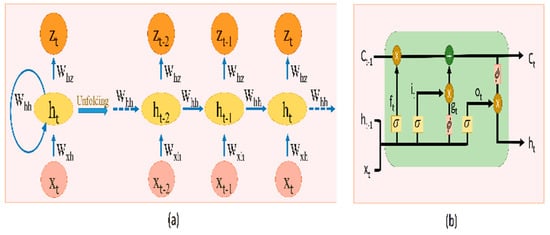

i t =   σ ( Q   s   i   S   t +   Q   h   i   h t   1 +   b   i )
f t =   σ ( Q   s   f S t +   Q   h   f   h t   1 +   b f )
g t =   ϕ ( Q   s   g S t +   Q   h   g   h t   1 +   b g )
o t =   σ ( Q   s   o S t +   Q   h   o h t   1 +   b o )
c t =   ( f t c t 1 +   i t g t )
h t =   o t ϕ ( c t )
where Q and b are the LSTM’s parameters; i , g , o are the input gate, input modulation gate and output gate, respectively; f acts as the forget gate where c acts as the memory cell; σ and s are the sigmoid and hyperbolic tangent function, respectively; and refers to element-wise multiplication.
To further enrich the feature descriptor of the surgical sequence S 1 : T ( j ) , the temporal causal convolutional layer is included in the proposed framework, consisting of 5 layers, each consisting of 64 kernels with a kernel size of 1 × 3. The output of the temporal convolutional layer is the same size as the input S 1 : T ( j ) and denoted as G 1 : T ( j ) .

Adaptive Fusion

For effective analysis of the surgical video content, the use of all hidden states of the LSTM module as well as all time steps of the causal convolution module are critical. In general, all segments of the video have different effects, and the simple temporal mean pooling operation can ignore the important weights of different segments. To tackle this, we design the adaptive temporal fusion (ATF) layer to learn these weights.
Let h 1 : T be the hidden states of the LSTM module and G 1 : T ( j ) be the output of the temporal causal convolutional layer. The output of the ATF layer for both modules is computed as:
A T F L S T M ( j ) = t = 1 : T ( h t ( j ) a 1 t ) / T
A T F T C N ( j ) = t = 1 : T ( G t ( j ) a 1 t ) / T
where a1t is the adaptive weight and denotes element-wise multiplication.
A T F L S T M ( j ) and A T F T C N ( j ) represent clip-level descriptors from two different temporal modules. For effective fusion of these two features, we design the adaptive hybrid temporal fusion (AHTF) layer. It consists of 1 fully connected layer. The output of AHTF layer is computed as:
A H T F ( j ) = [ ( ( W A F A T F L S T M ( j ) + b ) a 2 ) ( ( W A F A T F L S T M ( j ) + b ) a 3 ) ]
where WAF is the shared weight matrix, b is the bias term, and a2 and a3 are adaptive weights for the LSTM and the temporal causal convolutional modality.

Contrastive Embedding Learning

The feature A H T F ( j ) is passed through the fully connected layer z = W H F A H T F ( j ) + b (where W H F R |   K |   ×   d and b R |   K |   are learnable parameters) followed by a L2 normalized layer.
Now, let z j be the L2 normalized feature vector corresponding to surgical video V 1 : T ( j ) , and consider a positive pair ( z j , z pos ) from the same class (and augmented versions) and negatives ( z j , z neg ) from different classes within the training minibatch, the probability of z j being recognized as the category of its positive sample z pos as:
P ( y j = y p o s | z j ) = exp ( z p o s T z j ) / τ ) exp ( z p o s T z j ) / τ )   + n e g N G ( j ) exp ( z n e g T z j ) / τ )
where NG(j) is a set of negatives to the jth sample and τ is temperature [61].
Let N refer to the training set of labeled surgical video sequences, i.e., ( V 1 : T ( j ) , y ( j ) ) N , where y is the label. Let PS and NG be sets of positive and negative samples. The goal is to maximize the probability (10). This can be accomplished by optimizing the parameters (U, Q) of the network’s visual and sequential components by minimizing the negative log likelihood. The contrastive loss associated with (11) can be given as
L V C L = 1 | N | j = 1 N 1 | P S ( j ) | p o s P S ( j ) ( log P ( y j = y p o s | z j ) )
which can be rewritten as:
L V C L = 1 | N | j = 1 N 1 | P S ( j ) | p o s P S ( j ) ( log ( exp ( z p o s T z j ) / τ ) / exp ( z p o s T z j ) / τ )   + n e g N G ( j ) exp ( z n e g T z j ) / τ ) ) )
By minimizing Equation (12), we end up in maximizing the cosine similarity between z j and z p o s and minimizing the cosine similarity between z j and z neg , where y j = y pos and y j y neg .
In addition to video-level contrastive loss (12), we also apply contrastive learning at the frame level so that it can better learn the visual patterns essential for video representation. We design the self-supervised learning task with the assumption that adjacent frames share similar patterns with respect to distant frames. More formally, the required constraints for embedding learning are:
f D C N N t ( V t ( j ) , U ) f D C N N t + Δ ( V t + Δ ( j ) , U )
for small Δ , and
D i s t ( f D C N N t ( V t ( j ) , U ) , f D C N N t + Δ ( V t + Δ ( j ) , U ) ) < D i s t ( f D C N N t ( V t ( j ) , U ) , f D C N N t + Γ ( V t + Γ ( j ) , U ) )
for Γ > Δ , where Dist is the distance function (we used the L2 norm).
The contrastive loss for video frame embedding can be defined as:
L F C L = D i s t ( f D C N N t ( V t ( j ) , U ) , f D C N N t + Δ ( V t + Δ ( j ) , U ) ) + max { 0 , m c D i s t ( f D C N N t ( V t ( j ) , U ) , f D C N N t + Γ ( V t + Γ ( j ) , U ) ) }
The loss L F C L will make f D C N N t ( V t ( j ) , U ) and f D C N N t + Δ ( V t + Δ ( j ) , U ) closer, while f D C N N t ( V t ( j ) , U ) and f D C N N t + Γ ( V t + Γ ( j ) , U ) are enforced to be separated by the margin mc.
The total loss is given as:
L C L = L V C L + λ L F C L
We jointly optimize the entire parameters of RDCN−TCN−CL, with backpropagation used to compute the gradient of the objective L C L with respect to all parameters (U, Q) over minibatches N N sampled from the training dataset N.

4.1.2. Training Details

Since the parameter scale of the spatial component of RDCN−TCN−CL is much larger than that of its temporal component, it can quickly overfit on smaller training datasets. Additionally, the effectiveness of its temporal component depends on how its spatial component extracts the features that are relevant to its temporal component. Therefore, to effectively train the RDCN−TCN−CL, we initialize the weights of its spatial component with weights trained on the ImageNet [62] dataset by leveraging the power of transfer learning. Further, we initialize the recurrent weights of its LSTM module with orthogonal initialization [63] and the TCN module as in [55]. The weights of adaptive fusion layer are initialized to 1. We train the RDCN−TCN−CL network using backpropagation with Adam optimization [64] with β 1 set to 0.9, β 2 set to 0.999 and ϵ = 10 × 10 8 , and weight decay of 10 × 10−4. The neuron size of embedding is set to 256. The learning rate is set to 1 × 10−4. The parameter Δ is set to choose randomly from {t = 0:floor(T/4)} time step and Γ from {t = T-floor(T/4):T}. Additionally, mc is set to 2. Furthermore, in order to prevent overfitting, we also adopt undermentioned data augmentation techniques and an early stopping strategy. We stop training after 100 epochs, as the loss does not seem to decrease further.
During training, for each training batch, we apply three types of data augmentation, namely cropping, rotation and horizontal flipping, to artificially enlarge the database. First, a video clip of 24 (i.e., T = 24 without temporal downsampling) continuous frames is randomly sampled from each video, after which it is converted to a 250 × 280 spatial resolution. Then, the center crop of 240 × 260 is sampled from its randomly rotated variant within a range of [−5, 5]. After that, the 224 × 224 crop is randomly sampled from it and fed to the network. We also apply horizontal flipping with 50% probability before inputting it into network. Our framework is implemented on MATLAB 2019b with NVIDIA Tesla K40c GPU.

4.2. Feature Extraction and Query Matching

Once the model is trained, its responses can be used as a feature representation for the surgical video. The features from the LSTM component and TCN component in the trained RDCN−TCN−CL model are extracted and fused via the adaptive fusion layer to represent the surgical sequence.
To facilitate the retrieval process, the model’s responses as features are extracted from each surgical video in the database using (9) and indexed in the database. Now, for a given query surgical video q, which is represented as a feature vector obtained after feature extraction, CB-SVR aims to select the X best videos from the database that resembles this query video q. This is usually done by computing the similarity distance between the query video and the videos in the database D. In this paper we utilize the cosine distance as similarity measurement which is given as:
D cos ( q , D )   =   r = 1 d ( F q r ) 2 r = 1 d ( F D j r ) 2 r = 1 d F q r F D j r r = 1 d ( F q r ) 2 r = 1 d ( F D j r ) 2
where F q r is the rth feature vector of query video q and F D j r is the rth feature of the jth video in the database.

5. Dataset

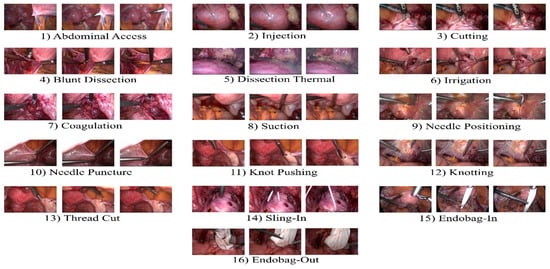

We chose two publicly available datasets to evaluate the performance of our method: Surgical Actions 160 [54] and Cataract-101 [65]. The Surgical Actions 160 dataset consists of 160 short video clips representing surgical actions in gynecologic laparoscopy. These video clips are categorized into 16 distinct classes of surgical actions as depicted in Figure 5, and the database has exactly 10 example clips for each action class. Each video clip is encoded with H.264/AVC and is of approximately 5-second duration with a spatial resolution of 320 × 240. In total, this dataset amounts to 19,181 frames. For our experiments, we randomly selected ten splits, such that each split divided the dataset into two sets (training and testing), and each set consists of 80 videos (5 videos per class in each set).

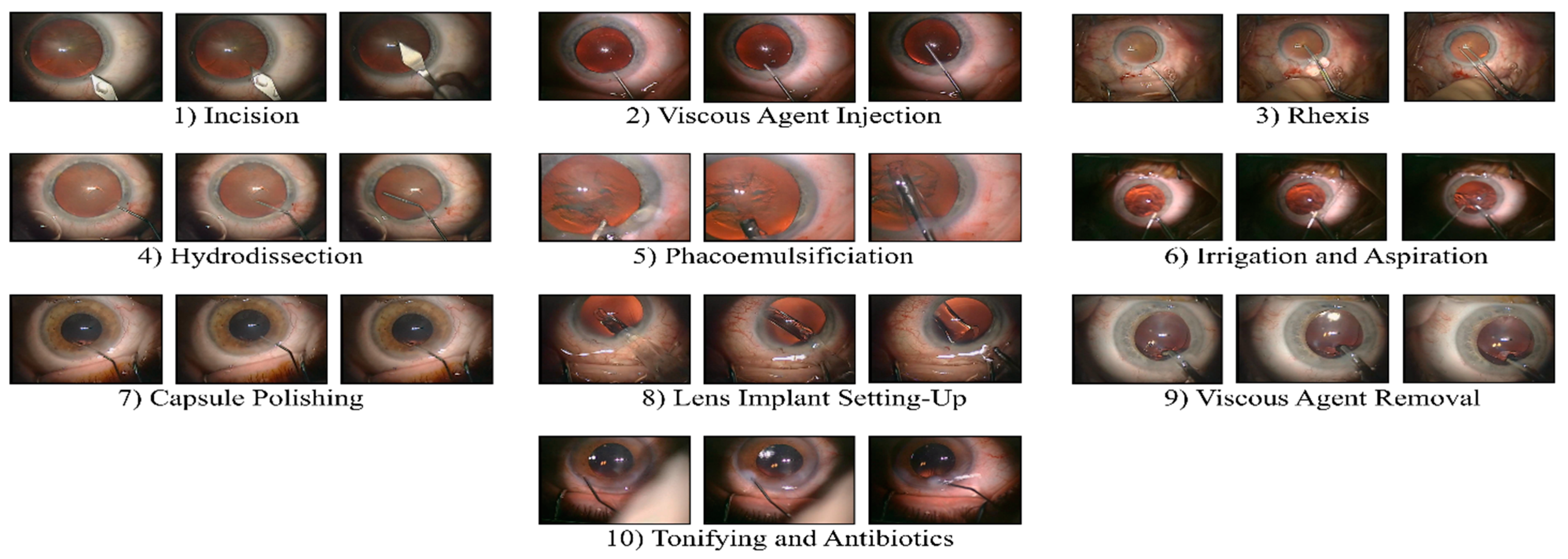

On the other hand, the Cataract-101 dataset consists of 101 recorded cataract surgeries performed by four surgeons [65] and annotated with ten surgical phases (as shown in Figure 6) by the senior ophthalmic surgeon. Each video is encoded with H.264/AVC. In total, this dataset amounts to 1.26 million frames with a total duration of 14 h and a spatial resolution of 720 × 540. For our experiments, we prepared this dataset for the experiment as follows: first, we extracted clips from each video according to the phase annotation given with the dataset, resulting in 1265 total clips of 10 phases. Then, we randomly chose 5 splits such that for each split, the training set and testing set consisted of 634 and 631 video clips, respectively, as depicted in Table 1.
Training is performed using a training set and retrieval is performed on the testing set with the leave one out rule (i.e., retrieval set does not include query video). As visible in both Figure 5 and Figure 6, the visual appearance of both datasets is very similar, which makes retrieval of surgical videos an extremely challenging research area.
We adopted mean average precision (mAP) following [54] to evaluate the effectiveness of the proposed approach, which is computed using (16).
m A P = 1 | Q | q   Q ( 1 G q k = 1 G q P q ( k ) β q ( k ) )
where G q is the ground truth on query q. P q ( k ) is the precision of the top k retrieved videos, Q is the set of all queries and β q ( k ) = 1 if the item at rank k is relevant, and otherwise 0.

6. Experimental Results and Analysis

6.1. Analysis of Training with Different Temporal Length Video Sequences

We first investigate the influence of learned RDCN−TCN−CL features on the retrieval performance by selecting different temporal lengths (T = {8, 16, 24, 32}) of video sequence inputs for training the RDCN−TCN−CL. As shown in Table 2, the mAP (averaged over aforementioned splits) gradually increases with an increase in the temporal length of the input sequence. This indicates that a longer input sequence for training gives a boost in system performance. However, a input sequence length of 32 does not have a further impact on the retrieval accuracy but costs more during training. Hence, we choose the temporal length of 24 for a video sequence for training the RDCN−TCN−CL network under the CB-SVR system. Note that we do not downsample the video and use the original sampling. Training with downsampled sequence (to increase the length of video) can be further investigated.

6.2. Analysis of Different Temporal Pooling Strategies

Extracting discriminative video features is vital for our task. In this regard, we evaluate the impact of two feature pooling methods (mean pool, max pool) on retrieval performance. For this assessment, video features are computed by using with particular pooling method in place of adaptive fusion. The retrieval performance (mAP averaged over aforementioned splits) based on these methods is depicted in Table 3. The result shows that adaptive fusion performs superiorly over the other two pooling methods with 30.012% mAP in Surgical Actions 160 and 81.13% mAP in Cataract-101.

6.3. Effectiveness of Combined Visual and Sequential learning

In order to demonstrate the effectiveness of RDCN−TCN−CL as a combined visual and sequential features learnable network, we evaluate its performance with a series of experiments by exploiting ResNet-18 into its potential counterparts. These are: (1) R e s N e t 18 S : ResNet-18 trained from scratch; (2) R e s N e t 18 F T : ResNet-18 fine-tuned from an imagenet pre-trained model; (3) R e s N e t 18 F R Z + L S T M : trained on frame-level features computed from a frozen imagenet pre-trained model; (4) R e s N e t 18 F R Z + L S T M + T C N : trained with hybrid LSTM-TCN on frame-level features computed from a frozen imagenet pre-trained model; and (5) R D C N T C N C L S : ResNet-18, LSTM and TCN jointly trained end-to-end from scratch. We use the same training parameters for R e s N e t 18 S , R e s N e t 18 F T , R e s N e t 18 F R Z + L S T M , R e s N e t 18 F R Z + L S T M + T C N and R D C N T C N C L S as stated in Section 4.1.2 for RDCN−TCN−CL. We initialize the weights of R e s N e t 18 S and the spatial component of R D C N T C N C L S as in [55]. Moreover, we train R e s N e t 18 S and R e s N e t 18 F T in its purest form, i.e., we do not use dropout, but we follow early stopping and all spatial data augmentation techniques (with temporal length of 1) to avoid overfitting as stated in Section 4.1.2. The video features are extracted with spatial frame-level features (extracted from respected average pooling layer) for R e s N e t 18 S and R e s N e t 18 F T . Likewise, for R e s N e t 18 F R Z + L S T M , R e s N e t 18 F R Z + L S T M + T C N and R D C N T C N C L S , it follows the same procedure to extract video features as in RDCN−TCN−CL. All counterparts with RDCN−TCN−CL are performed on the aforementioned training and testing splits, and the results are depicted in Table 4 and Table 5 for the Surgical Actions 160 and Cataract-101 databases, respectively.
In Table 4 and Table 5, we can see that RDCN−TCN−CL achieves much better performance than the other four methods. More analytically, in the context of retrieval performance (mAP averaged over aforementioned splits), we can observe: (1) the importance of pre-trained weights (in initializing the spatial component DCNN) when comparing R e s N e t 18 S with R e s N e t 18 F T , and R D C N T C N C L S with RDCN−TCN−CL; (2) the importance of using temporal dynamics when comparing R e s N e t 18 S and R D C N T C N C L S (although there is a little difference in their performance for the Surgical Actions 160 dataset, which may be due to there being fewer training data than Cataract-101); (3) the effectiveness of end-to-end training when comparing R e s N e t 18 F R Z + L S T M and RDCN−TCN−CL; and (4) despite using both spatial and temporal dynamics, R e s N e t 18 F R Z + L S T M performs worse than R e s N e t 18 F T . The underlying reason for this is that R e s N e t 18 F T is a domain-specific version adapted to the surgical visual content, whereas R e s N e t 18 F R Z + L S T M relies on visual knowledge of the general domain and, therefore, is unable to synthesize true temporal dynamics in the surgical video.

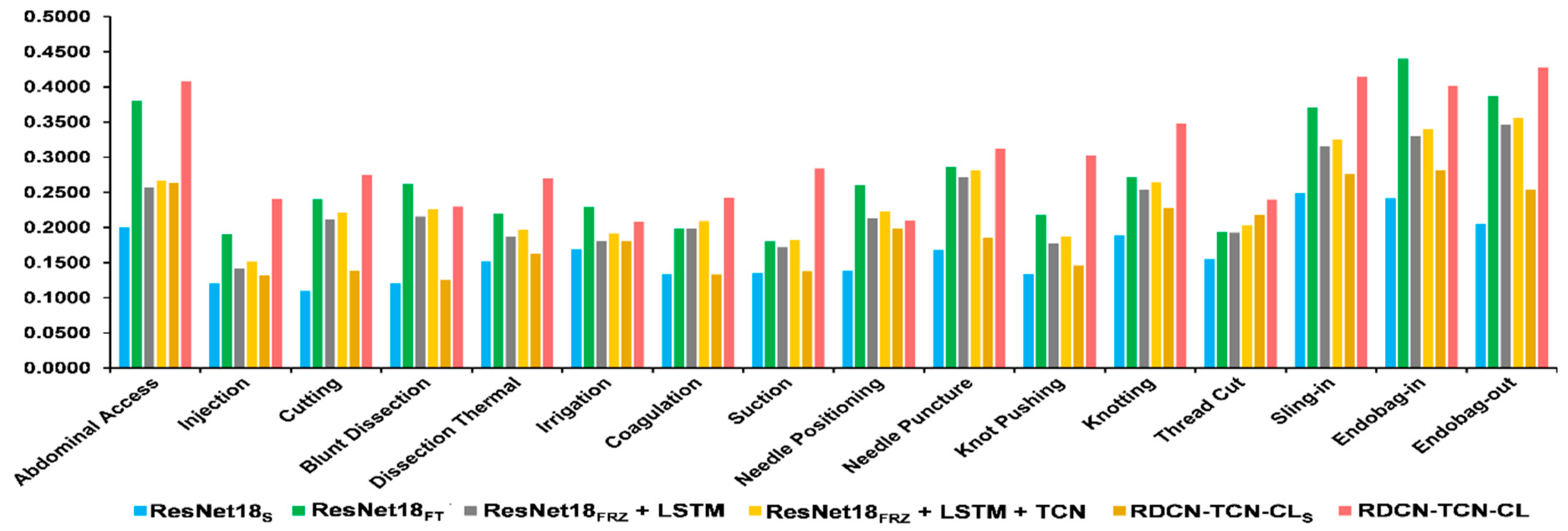

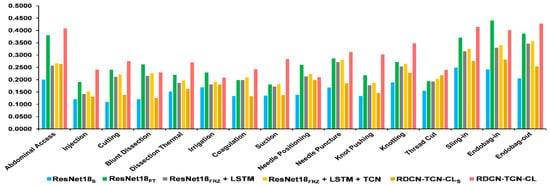

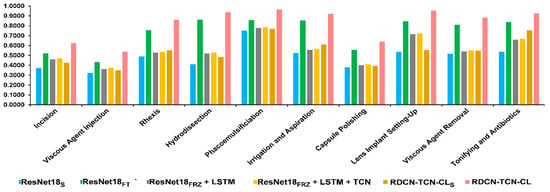

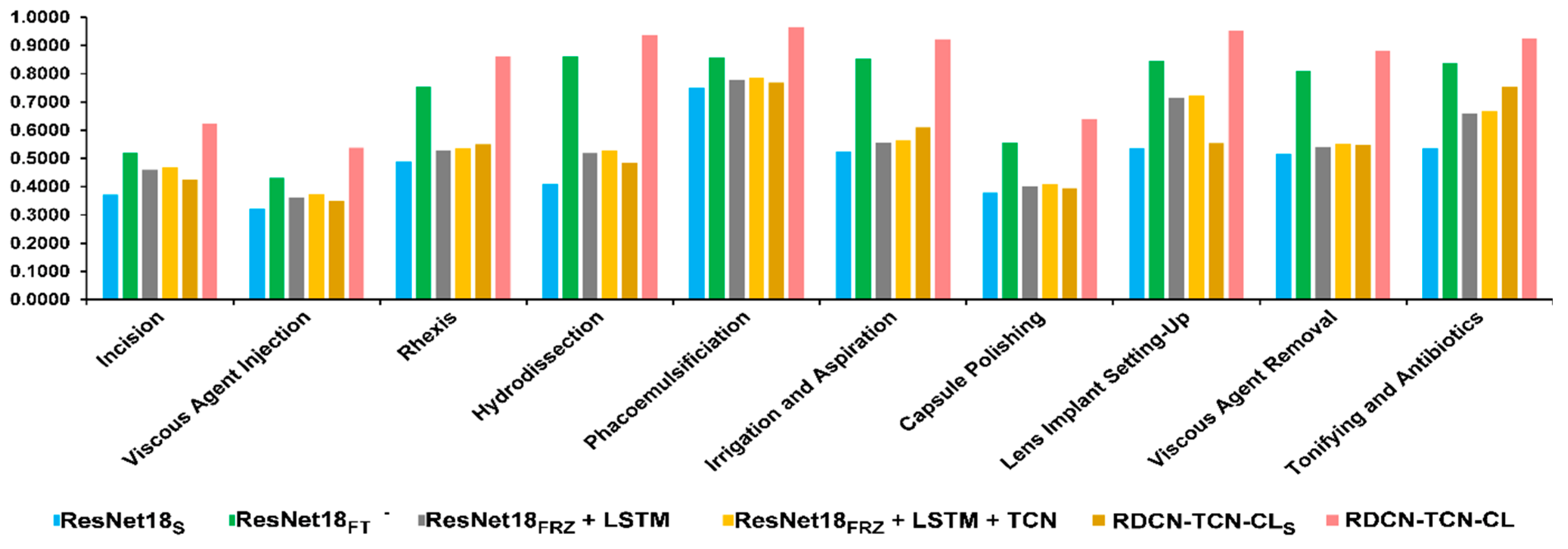

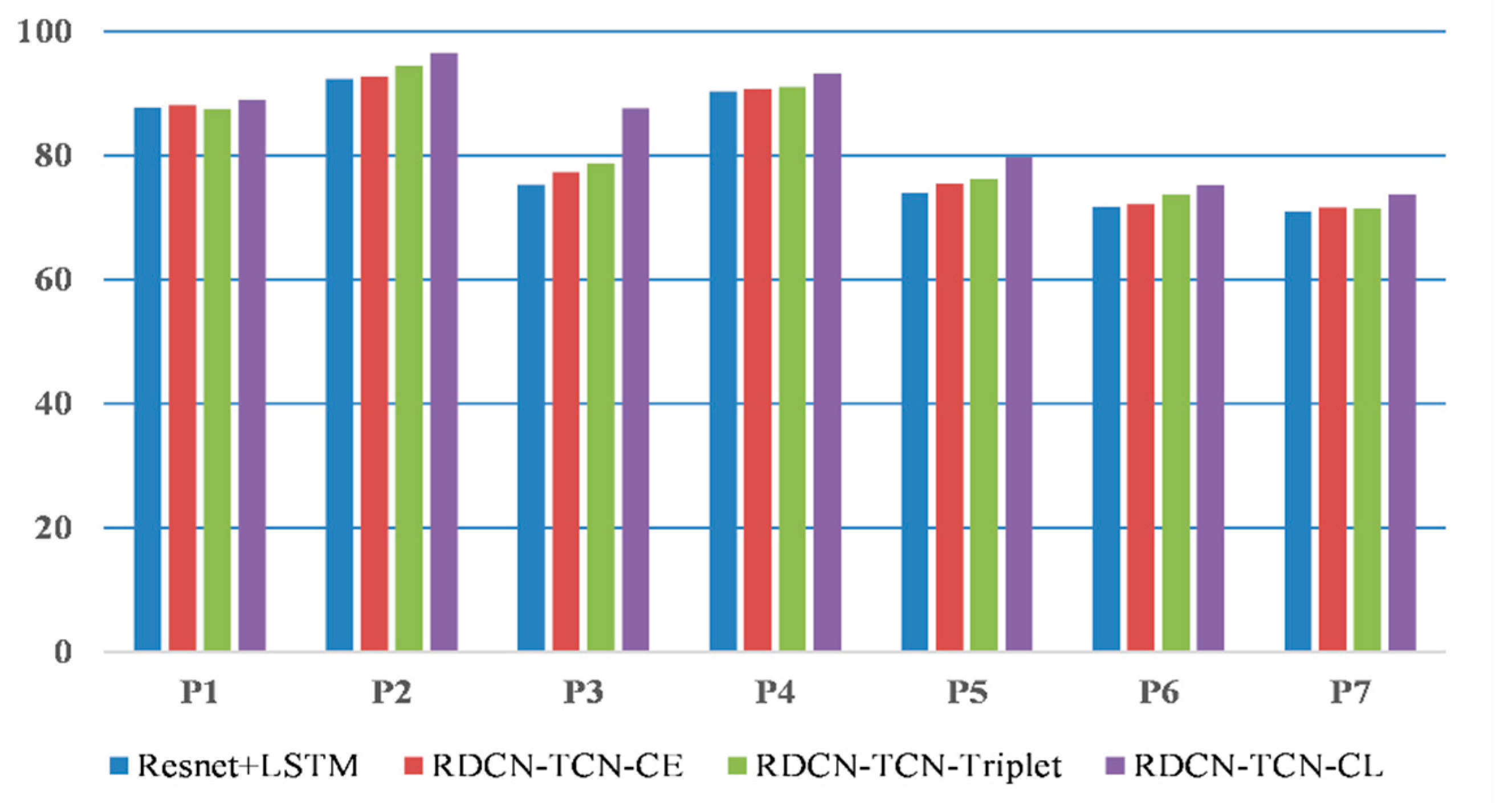

Further, Figure 7 and Figure 8 depict the class-wise performance, where RDCN−TCN−CL performs much better than other methods in all classes of Cataract-101, but in Surgical Actions 160, we can see its performance degradation in some classes (e.g., Blunt Dissection, Irrigation, Needle Positioning and Endobag-in). However, for such classes, R e s N e t 18 F T performs better. The reason for this seems to be that these classes have some unique visual patterns in the form of instruments and structural objects that are effectively captured with static R e s N e t 18 F T descriptors, while for other classes which have strong subtle motions, RDCN−TCN−CL descriptors are able to capture them.

6.4. Comparison with State of the Art

In Table 6, to demonstrate the superiority of the proposed methodology, we compare our approach with previous methods on both datasets. We also compute the CNN responses such as ResNet18 responses from the average pooling layer as a feature descriptor (denoted as CNNR). Similarly, CNNA represents activations of the fc7 layer of the AlexNet [66], and CNNG represents Googlenet [67] responses from the last pooling layer. For the CNN features, we perform meanpool in the temporal dimension.
In Table 7, we can observe the impact of network depth on the retrieval performance using the results obtained by CNNA (20.011 ± 1.53)%, CNNG (21.82 ± 1.06)%, and CNNR (22.67 ± 1.19)% for the Surgical Actions dataset and CNNA (20.44 ± 1.253)%, CNNG (22.16 ± 1.145)%, and CNNR (23.18 ± 1.212)% for the Cataract-101 dataset. Furthermore, the handcrafted feature-based method [41] performs poorly compared to deep features (e.g.,19.46 ± 1.631 vs. 22.67 ± 1.192) for surgical 160). With RDCN−TCN−CL descriptor, we are able to outperform MIDD [54] with an mAP of 30.012 ± 1.778 in Surgical Actions 160 and with a significant boost in mAP (81.13 ± 1.28 vs. 33.18 ± 1.311) for Cataract-101. Additionally, RDCN−TCN−CL was found to be effective compared to RDCN-TCN-Triplet and RDCN-TCN-CE, where RDCN-TCN-Triplet is trained under triplet loss and RDCN-TCN-CE is trained under cross entropy loss.
We further evaluate run time performance of RDCN−TCN−CL on Xeon E5 CPU. Compared to MIDD, which can process 108 frames per second for feature extraction, RDCN−TCN−CL can process 40 frames per second. Although RDCN−TCN−CL is slower than MIDD, it achieves higher performance than MIDD, and is a promising future approach.

6.5. Ablation Study in Context of Surgical Phase Recognition

Next, we also conduct an ablation study to analyze the effectiveness of RDCN−TCN−CL in surgical phase recognition. In this regard, we conduct the experiment on a large dataset named cholec80 dataset [68] and compared the performance with the state of the art. Cholec80 consists of eighty recorded videos of cholecystectomy surgeries captured at 25 fps. All videos are annotated with seven phases and seven tools. Following [32,33,68], we used 40 videos as a training set and the rest as a test set. Since additional annotations such as tool presence labels are generally not available and single-task approaches are more practical in real-world applications, we only employ the phase labels. Further, we downsample the training videos from 25 fps to 1 fps. The video frames are first resized to 250 × 250 and follow the same data augmentation as mentioned in Section 4.1.2.
The loss for the surgical phase recognition task with contrastive loss can be defined as:
L P = 1 | N | j = 1 N t = 1 T ( log ( y ^ t ( j ) ) ) + 1 | N | j = 1 N t = 1 T ( log ( y ¯ t ( j ) ) ) + L C L
where y ^ t ( j ) is the predicted probability of the tth frame of the jth video for the LSTM module and y ¯ t ( j ) is the predicted probability of the tth frame of the jth video for the TCN module.
Hybrid predictions are used to compute phase scores. The results are reported in Table 7, where we explore the triplet loss (RDCN-TCN-Triplet) and cross entropy loss (RDCN-TCN-CE) methods in (14); however, RDCN−TCN−CL performs better. With ResNet50 as a backbone, RDCN−TCN−CL outperforms all other methods with 90.2% accuracy (we retain the imagenet pretrained weights of Conv1_x to Conv4_x residual blocks in R50 while training). We also plot the bar chart (see Figure 9) of average F1 scores computed for each phase. We can observe that RDCN−TCN−CL gradually improves the F1 score performance in almost all phases compared to other baselines.

7. Discussion

The automated retrieval system for the long-term archives of recorded surgeries is a key component for tasks such as surgical error analysis, surgical skills assessment, and post-operative disease analysis. In this paper, we present a content-based surgical video retrieval system (CB-SVR) to address these tasks. In contrast to previous methods for surgical video retrieval, which are based on handcrafted features, we utilize a deep learning approach to extract discriminative features from surgical videos for video retrieval. Specifically, we propose exploring a supervised contrastive learning framework under which surgical representations are learned on the top of ResNet via a hybrid LSTM-TCN module into a single end-to-end trainable network (i.e., RDCN−TCN−CL), whose activations are used to represent the surgical video. By fusing LSTM-TCN via the adaptive fusion layer, RDCN−TCN−CL ends up exploring both spatial and enhanced temporal information to represent videos. We also incorporate video frame embedding learning to further enhance the visual features needed for video representation. As the main concerns of the proposed RDCN−TCN−CL, the training setting of the network should be carefully determined after extensive consideration of system performance. To train RDCN−TCN−CL, we have shown that the length of the input video sequence affects the learning ability and therefore affects the retrieval performance. Therefore, we chose the temporal length of 24 frames for the video sequence to train the network. Additionally, increasing the length with downsampling can be investigated in future works. Meanwhile, to avoid overfitting, we also used data augmentation techniques to increase the database size. Furthermore, with extensive experiments, we demonstrated the effectiveness of RDCN−TCN−CL in end-to-end training, where RDCN−TCN−CL performs much better than its counterparts. Finally, compared to the state of the art, we demonstrated the superiority of the proposed approach for representing surgical videos in the context of video retrieval. Although RDCN−TCN−CL is slower than the state of the art, its performance is high with adequate speed. We also conduct the ablation study, where our model outperforms the state of the art in the surgical phase recognition task. With the proposed method, RDCN−TCN−CL as an attempt to exploit contrastive learning (with a deep learning approach) for video retrieval in the medical domain; we believe that it can be used to effectively analyze other medical videos, and will inspire further investigation in surgical video retrieval.

8. Conclusions

In conclusion, we present a deep learning approach for content-based surgical video retrieval. We explore the supervised contrastive learning approach to learn surgical representations. Further, to strengthen the surgical representations, we propose a hybrid approach which combines LSTM and temporal convolutions to learn temporal features under supervised contrastive learning framework. We exploit ResNet and LSTM and TCN in a unified single joint model, i.e., RDCN−TCN−CL, to learn surgical video representations. We train the RDCN−TCN−CL under a contrastive learning approach where we explore both spatiotemporal embedding and video frame embedding learning, and the generated high-quality spatiotemporal features from the RDCN−TCN−CL model are used to retrieve similar surgical videos. With extensive experiments, we validate our proposed methodology on public surgery video datasets, where it outperforms the state of the art in retrieval and phase-recognition tasks. For retrieval, the proposed method achieves the mean average precision of 30.012 ± 1.778 vs. 22.54 ± 1.557 36 for Surgical Actions 160 and 81.134 ± 1.28 vs. 33.18 ± 1.311 for Cataract-101. For the phase-recognition task, the proposed method achieves 90.2% accuracy for the Cholec80 surgical dataset. For future work, we consider including training on larger database, with large batch sizes to improve the feature learning ability. Additionally, more self-supervised methods need to explore enhancing feature learning, and hashing is a worthy option that can be used for fast retrieval.

Author Contributions

Conceptualization, V.K.; methodology, V.K.; validation, B.P., S.S.A. and M.R.; formal analysis, A.G., V.K. and R.S.; writing—original draft preparation, V.K.; writing—review and editing, M.R., A.A. and A.S.A.; supervision, B.P., V.T. and A.D.; funding acquisition, S.S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Deanship of Scientific Research, Taif University Researchers Supporting Project number (TURSP-2020/215), Taif University, Taif, Saudi Arabia.

Data Availability Statement

Data in this research paper will be shared on request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.
