Evolutionary Coalitional Game-Based Cooperative Localization in Vehicular Networks

Abstract

Cooperative localization under complex urban environments has become a solution able to replace Global Navigation Satellite System (GNSS) positioning. Due to the lack of an efficient cooperative localization scheme, traditional cooperative vehicle networks result in high computational complexity and heavy communication overhead. In this paper, we concentrate on the cooperative localization design of a vehicle. This paper proposes a cooperative localization method based on evolutionary coalitional game theory to implement vehicle location estimation with a lower communication cost. We select the neighboring vehicles to form a coalition based on the node’s square position error bound and communication cost. The location is obtained via exchanging information between vehicles. It is evident from the simulations and results that the proposed method requires a low communication overhead while maintaining localization accuracy.

1. Introduction

With the Intelligent Transportation System (ITS) developing rapidly, vehicle positioning technology has become a focus for autonomous driving applications [1,2]. In these applications, the vehicle is generally located with Global Navigation Satellite Systems (GNSS). However, GNSS signals are usually poor in urban canyons and overpasses due to high-rise building occlusion and multipath issues. Therefore, the demand for localization accuracy under dense and complex urban environments has become high.

There are many novel localization methods used in vehicle networks to deal with complex urban environments. Visual localization is a standard technology used to match and predict vehicles’ positions via identifying and searching local features [3]. Similarly, radar technology is widely used in dual-functional radar communication (DFRC) systems. It is superior to reducing the signaling overhead and improving the angle estimation accuracy [4]. Since different positioning technologies are suitable for urban environments, multi-data fusion has become inevitable. The fusion of multiple types of localization information can effectively deal with complex urban environments [5,6].

With the development of the fifth generation of mobile communication (5G), 5G mmWave positioning has become a new localization scheme [7] that is generally categorized as a base station (BS) -based method and user-based method [8]. The BS-based method applies the Location Management Function to estimate users’ positions. However, vehicles often fail to be located due to network congestion and high latency occurring in the dense urban environments and crowded situations in which many vehicles access the BS. Inversely, the user-based method is an active form of localization in which the user receives positioning signals and calculates their position. Therefore, the user-based method is more reliable than the BS-based method for vehicle networks.

Cooperative vehicle localization is an effective model for the user-based method [9,10,11]. In general, both non-Bayesian-based and Bayesian-based methods are considered in cooperative localization. In non-Bayesian models, widespread estimators include the least-squares (LS) method and the maximum likelihood (ML) method. For the Bayesian-based model, there are belief propagation and nonparametric belief propagation [12,13]. It is noticed that the Bayesian-based method performed well compared to the non-Bayesian method in terms of localization accuracy. The classical algorithm of the Bayesian-based method is the sum–product algorithm over a wireless network (SPAWN) [12], which estimates the position via the anchors’ position information and the posterior probability of the nodes through message passing. In [14], the authors employ the idea of the posterior linearization filter in belief propagation with the sigma-point method. The posterior linearization belief propagation (PLBP) method performs well for the localization accuracy with nonlinear measurement. However, the cost of communication and the computational complexity increase under the scenarios with numerous nodes, and it cannot meet the requirements of these use cases.

A number of relevant problems have lately received considerable attention in cooperative localization. Game theory is successful in solving various limitations. In [15], the authors propose an improved game theory-based cooperative localization algorithm for multi-robot system localization. In [16], the authors propose a network formation game for cooperative localization to reduce the computational complexity and resultant network traffic. Similarly, the coalition game, a typical static game theory, is widely implemented for cooperative localization [17]. In addition to that, the most informative agents for exchanging information are determined with the opportunistic cooperative localization-based overlapping coalition formation (OCF) game [18,19]. However, the above game theories are static games that need to reach equilibrium with a heavy communication overhead every time the topology changes. They are unsuitable for networks with dynamic topology, such as vehicle networks. Therefore, we embed the dynamic game theory in cooperative localization and propose a framework for solving the problem of communication cost.

The main contribution of this paper is to address the problem of the high computation complexity and communication cost for vehicle networks in cooperative localization. In this paper, we formulate the cooperative vehicle localization problem as an evolutionary coalitional (EC) game. The vehicles autonomously decide whether to assist other vehicles based on their positioning performance and the current position relationship. The simulation results demonstrate that the proposed method performs better than the PLBP algorithm. It is noticed that the proposed method reduces the computation complexity and communication cost while maintaining the same accuracy.

2. Materials and Methods

2.1. Network Model

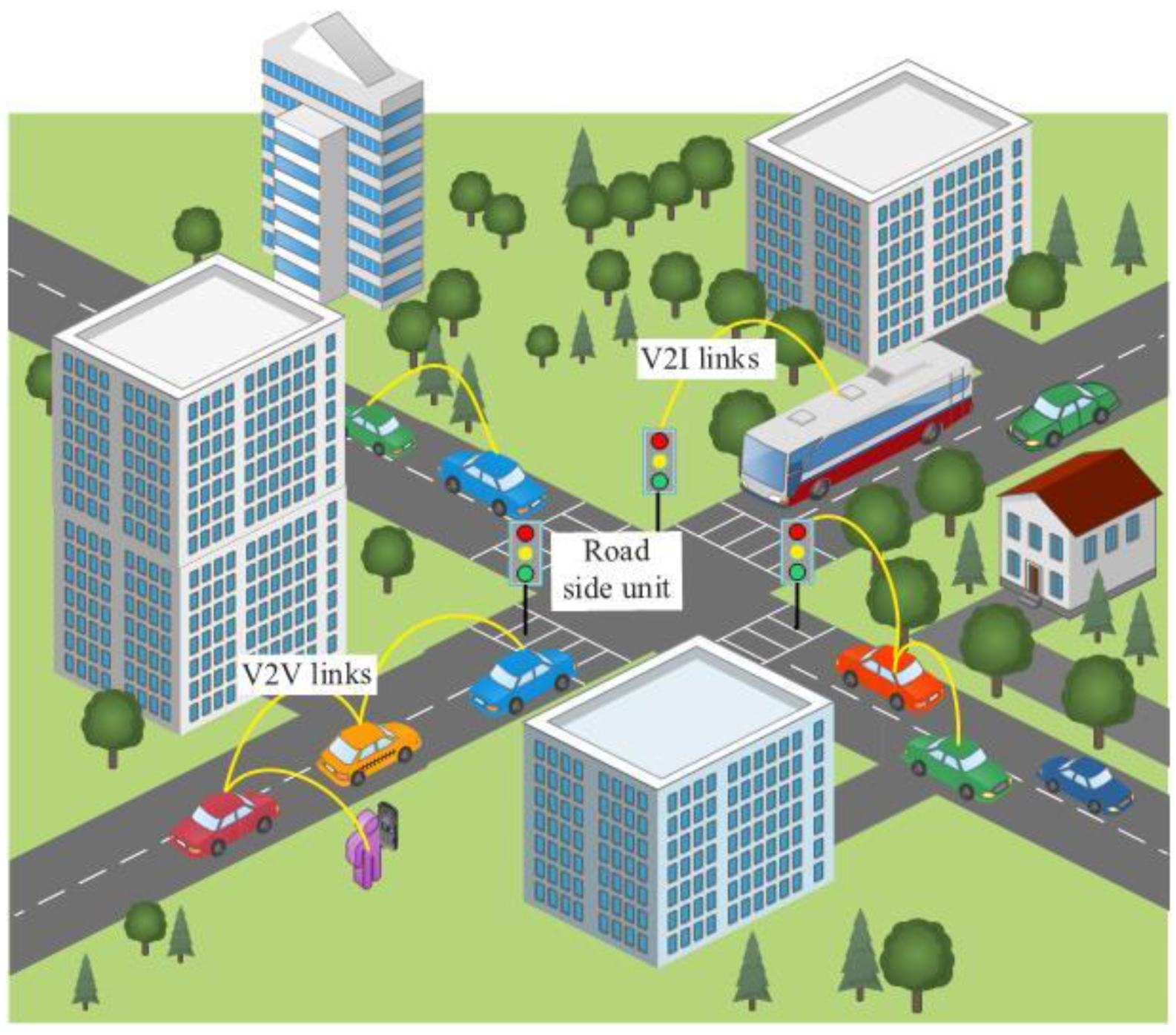

The crossroads congestion scenarios in the city are described in Figure 1. Due to density of high buildings, vehicles cannot receive satellite signals with a good geometric dilution precision. The scenario comprises M Roadside unit (RSUs) and N vehicles. In detail, the RSU is considered a small base station with precise location and clock information, and the vehicles are within the coverage of the RSU. Significantly, the vehicle must be time-synchronized with the RSU and randomly deployed with unknown positions.

In this scenario, 5G mmWave and multiple-input-multiple-output (MIMO) provide the position and orientation [20], respectively. Additionally, accurate location and synchronization information are contributed for the RSUs via vehicle-to-infrastructure (V2I) communication. Vehicle-to-vehicle (V2V) communication is employed for distance measurement and message transformation. The distances model measured with time-difference-of-arrival (TDOA) is given as

$$z_{ij,t}=h_{\mathrm{TDOA}}(x_{i,t},x_{j,t})+{\beta }_{i,t}+{\beta }_{j,t},$$

(1)

where $x_{i,t}$ and ${\beta }_{i,t}$ denote the $i$ vehicle’s location and the normally distributed process noise with $N(0,{\sum }_{{\beta }_{i,t}})$ at the time $t$, respectively. The $h_{\mathrm{TDOA}}(x_{i,t},x_{j,t})$ is a function of both $x_{i,t}$ and $x_{j,t}$.

The mobile state of the vehicle is a random walk model, and each vehicle has a fixed speed and direction. The following state $x_{i,t+1}$ has evolved from the current state $x_{i,t}$ according to

$$x_{i,t+1}=x_{i,t}+\Delta t·v_i+w_i,$$

(2)

where $\Delta t$ is the time step, $v_i$ is the velocity, and $w_i$ represents the process noise.

2.2. Belief Propagation Algorithm for Cooperative Localization

The cooperative localization algorithm based on the belief propagation (BP) algorithm is widely recognized with a high accuracy and suitable for static and dynamic network scenarios.

To be specific, the BP algorithm is based on factor groups and Gaussian message propagation, and is able to estimate the locations via exchanging the vehicle’s statistical information with a Gaussian distribution [12,14]. In the beginning, the vehicle broadcasts discovery information and measures distances among the neighboring vehicles and RSUs. According to the vehicle’s i prior information, the message $\mu$ from factor $f_{i,t}$ to state $x_{i,t}$ at the $l\mathrm{t}\mathrm{h}$ iteration in time t is given in

$${\mu }_{f_{i,t}\to x_{i,t}}^{(l)}\left(x_{i,t}\right)=\int p(x_{i,t}\mid x_{i,t-1})b^{(l-1)}\left(x_{i,t-1}\right)d{x}_{i,t-1}.$$

(3)

The vehicle calculates the incoming message when receiving the messages from neighbors, and is given as:

$${\mu }_{f_{ij,t}\to x_{i,t}}^{(l)}\left(x_{i,t}\right)=\int p\left(z_{ij,t}\mid x_{i,t},x_{j,t}\right){\displaystyle \prod }_{j\in S_i}{\mu }_{x_{i,t}\to f_{ij,t}}^{(l-1)}\left(x_{i,t}\right)d{x}_{i,t}.$$

(4)

The outgoing message is defined as:

$${\mu }_{x_{i,t}\to f_{ij,t}}^{(l)}\left(x_{i,t}\right)={\mu }_{f_{i,t}\to x_{i,t}}{\displaystyle \prod }_{j\in S_i/j}{\mu }_{f_{ij,t}\to x_{i,t}}^{(l)}\left(x_{i,t}\right)$$

(5)

Moreover, the posterior distribution $p(x|z)$ is denoted:

$$b^{(l)}\left(x_{i,t}\right)\propto {\mu }_{f_{i,t}\to x_{i,t}}\left(x_{i,t}\right)\prod _{j\in S_i}{\mu }_{f_{ij}\to x_{i,t}}^{(l)}\left(x_{i,t}\right)$$

(6)

The location $x_{i,t}$ is estimated by the minimum mean-square error (MMSE) algorithm or maximum a posteriori (MAP) according to $b^{(Niter)}\left(x_{i,t}\right)$. The detailed process of the BP algorithm of cooperative localization is presented in Algorithm 1.

Algorithm 1: Belief propagation of cooperative localization

Initialization:

nodes$i=1:N$in parallel

The vehicle $i$ discovers its neighboring vehicles and RSUs.

The vehicle $i$ measures the distance between it and its neighbors.

For $l=1:Niter$.

The vehicle $i$ broadcasts the belief $b^{(l-1)}\left(x_{i,t}\right)$.

The vehicle $i$ receives $b^{(l-1)}\left(x_{j,t}\right)$ from the neighbors.

Vehicle $i$ calculates the incoming and outgoing message.

Vehicle $i$ calculates the new belief $b^{(l)}\left(x_{j,t}\right)$.

end for

end parallel

However, with the number of vehicles increasing, the BP algorithm has a high computational complexity and heavy communication overhead. For the vehicle networks, this may cause network congestion and even fail to locate.

2.3. Evolutionary Coalitional Game Algorithm Based Cooperative Localizaion

Since the evolutionary coalitional (EC) game is suitable for capturing wireless networks’ behaviors in terms of randomness and uncertainty [21,22], we employ it to construct a stable coalition structure.

The EC game for the cooperative localization in vehicle networks is described as:

• Players: The finite vehicles join in the game of cooperative localization. The RSUs assist in vehicle localization but do not play a role in games.
• Population: All vehicles form coalitions, and each coalition belongs to a population.
• Strategy: The vehicle’s strategy set is defined in the neighboring coalitions, and the vehicle determines its activities based on the actions of other vehicles.
• Payoff: The vehicle’s payoff is influenced by its connected neighbor vehicles. Each vehicle determines which coalition to join according to the preference profile set during the formation and strategy learning stage.

The vehicle’s payoff function $u(·)$ is based on [23] and [18], which is composed of the benefit and cost of the vehicle. The $u(·)$ is defined as

$$u_{i,m}(t)=SPE{B}_{i,m}+\alpha ·\log \left(1-{\left(\frac{\left|n_i^{(l)}\right|-\mathsf{\Delta }}{{\mathcal{N}}_i}\right)}^2\right)$$

(7)

where $\alpha$ represents the balance parameter; ${\mathcal{N}}_i$ is the number of the $i$ vehicle’s neighbors; $n_i^{}$ denotes the number of nodes with the $i$ vehicle communication; and Δ is introduced to avoid $\left|n_i^{(l)}\right|={\mathcal{N}}_i$. The benefit of this is the squared position error bound (SPEB), which is relevant to the information from anchors, the range information, and the prior knowledge of the vehicles’ positions [23,24,25]. Moreover, the cost of the vehicle is the ratio of the number of communicating neighbors.

In the vehicle’s utility, the number of neighboring vehicles needs to be considered. It is worth noting that more neighbor vehicles can improve the benefit of the node but that the cost is also increased. We denote $q_i(t)=[q_{i,m}{]}_{m\in S_i}$ as the preference profile set of the $i$ vehicle to select the coalition, where $S_i$ is the strategy set of the $i$ vehicle. The evolutionary game dynamics play a significant role in coalition games, which update the preference profile set for players. It is noted that the replicator dynamics is a simple and effective dynamic model that represents the probability of the player choosing to jump out of the current to another coalition. The definition is as follows:

$${\rho }_{i(m,n)}(t)=\frac{1}{n_i}{[{\overline{u}}_{i,m}(t)-{\overline{u}}_{i,n}(t)]}_{+}$$

(8)

where + indicates that a value greater than 0 is selected. In addition to that, the average payoff of the $i$ vehicle is provided using the payoff function

$${\overline{u}}_{{}_{i,m}}(t)=q_{i,m}(t)\left({\displaystyle \prod }_{\begin{array}{l}j\in {ℱ}_m\backslash \left\{i\right\}\\ j\in {\mathcal{N}}_i\end{array}}{q}_{j,m}(t)\right)u_{i,m}(t)$$

(9)

where $q_{i,m}$ represents the probability of the $i$ vehicle selecting the ${ℱ}_m(t)$ coalition and ${\mathcal{N}}_i$ represents the neighboring vehicle set of the i vehicle.

Additionally, the evolution of the coalition preference is related to the probability of change and given by:

$${\dot{q}}_{i,m}(t)={\displaystyle \sum }_{{ℱ}_n\in S_i\setminus {ℱ}_m}{\rho }_{i(n,m)}\left(x_{-i}\right)q_{i,n}(t)-q_{i,m}(t){\displaystyle \sum }_{{ℱ}_n\in S_i\setminus {ℱ}_m}{\rho }_{i,(m,n)}\left(x_{-i}\right)$$

(10)

$$q_{i,m}(t+1)=q_{i,m}(t)+{\dot{q}}_{i,m}(t)$$

(11)

If the evolution of coalition preference ${\dot{q}}_{i,m}$ is greater than 0, the $i$ vehicle joins in the $m$ coalition. If ${\dot{q}}_{i,m}$ is equal to 0, the $i$ vehicle keeps the current coalition. Otherwise, the $i$ vehicle departs the $m$ coalition.

The new strategic preferences based on continuous iterations are provided via the learning stage and a stable coalition structure. The evolutionary stable coalitional structure (ESCS) [26] is employed to represent the stable state of an EC game in which the vehicle coalitions are resilient to vehicle topology changes. Additionally, the perturbation of strategies represents the vehicles changing due to new vehicles joining, NLOS in a vehicle–vehicle link, the message congestion of vehicles, and vehicles exiting the location. The ESCS is defined as

$${\overline{u}}_i\left(q_i^{\prime },(1-ϵ)q_{-i}^{\ast }+ϵq_{-i}^{\prime }\right)\le {\overline{u}}_i\left(q_i^{\ast },(1-ϵ)q_{-i}^{\ast }+ϵq_{-i}^{\prime }\right),$$

(12)

where $ϵ\in (0,1)$ is a probability and $q_{-i}^{\prime }$ and $q_i^{\ast }$ are different strategy sets. Specifically, when $ϵ$ vehicles in the coalition $q_{-i}^{\ast }$ change their strategy and quit the coalition $q_{-i}^{\ast }$ or $ϵ$ portion of vehicles join in this coalition, the vehicles in the coalition $q_i^{\ast }$ still maintain the highest payoff.

A detailed illustration of cooperative localization with the EC game is revealed in Algorithm 2. We employ the EC game to select the neighboring vehicles to reduce the computational complexity and communication overhead. Vehicles form coalitions and exchange information with members of the coalition. While the number of iterations for cooperative localization is maintained, we manage to reduce the number of communication vehicles.

Algorithm 2: Evolutionary coalitional game based cooperative localization

Initialization: The vehicle $i$ discovers its neighboring vehicles.

For Time $t=1:T$

Range measurement is implemented, where $j\in N_i$.

The RSUs broadcast their beliefs (positions). Vehicle $i$ forms initial coalitions by calculating and exchanging $u_i$ with neighboring vehicles.

Vehicle $i$ calculates $q_i^{}$ for neighboring vehicles.

Vehicle $i$ determines to join in or to quit the coalition ${ℱ}_i$ according to $q_i^{}$.

For Iteration $l=1:Niter$

The message ${\mu }_{x_{i,t}\to f_{ij,t}}^{(l)}$ is calculated and transmitted from neighboring vehicle $i$ to vehicle $j$, where the vehicle $j$ belongs to the same coalition with the vehicle $i$.

The vehicle $i$ broadcasts its belief (the location estimation ${\hat{x}}_i$).

Until Iteration $l=Niter$

Until Time $t=\mathrm{T}$

3. Results

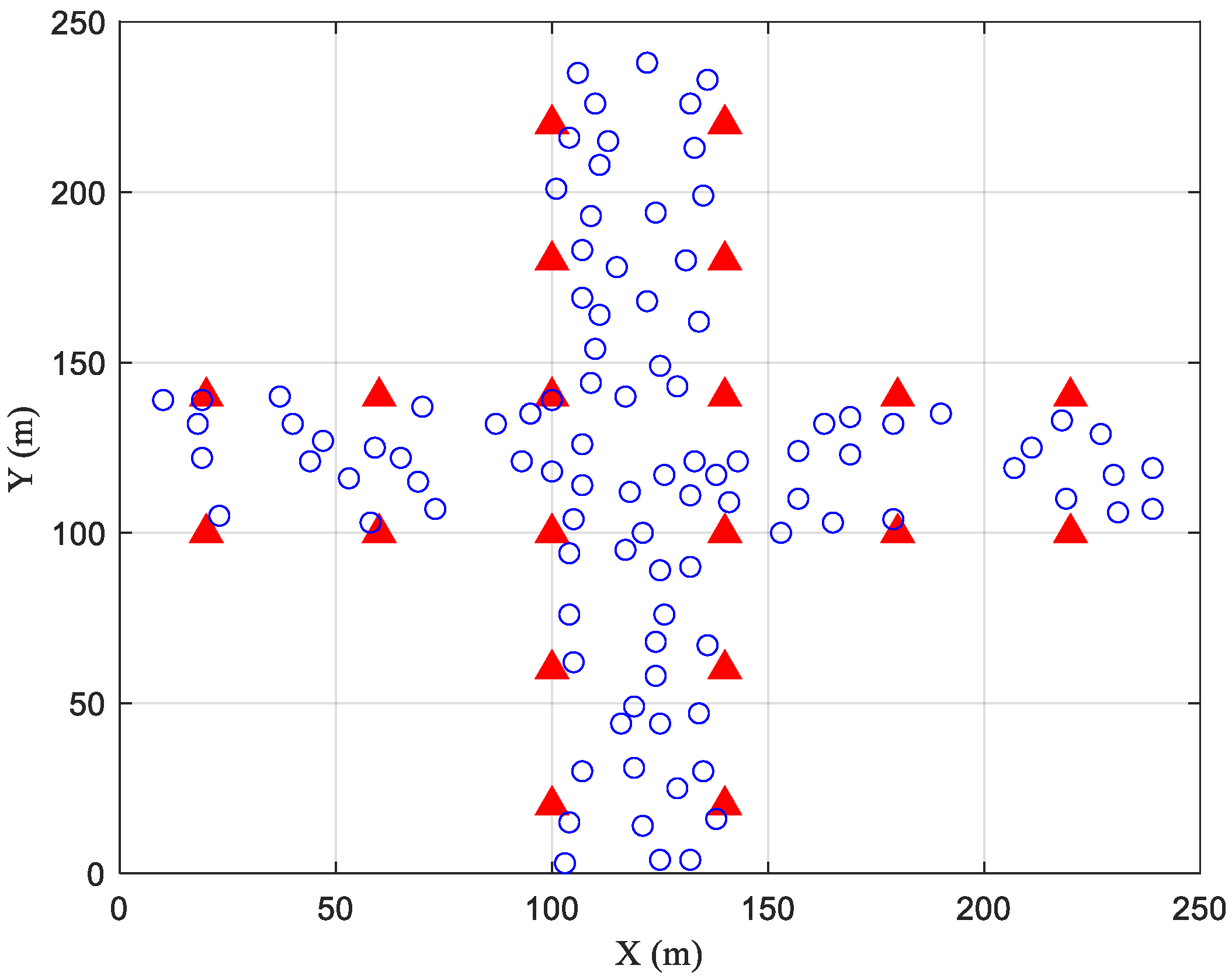

The simulation deploys a 240 m $\times$ 240 m crossroad with 20 fixed RSUs along the road and 80 randomly placed vehicles, where the distance between two RSUs is 40 m. The considered scenario is described in Figure 2. The red triangle regions are the RSUs and the blue circles represent the vehicles’ positions. The communication range is 30 m. The vehicles carry out the same direction of movement with different speeds (with a range of 0–1 m/s) under the considered scenario. In addition to that, the distance between vehicles is set as greater than 6 m because the vehicle is usually 5 m long and 2 m wide. We assume that the coverage of RSUs is seamless and that each vehicle finds at least one RSU. The $\alpha$ is set to 1, meaning that the two terms of payoff function can be well balanced.

Additionally, the RSU’s position is drawn from a Gaussian posterior probability density function (PDF), whose mean is the true position and whose covariance is 0.1 m. For the vehicle, its covariance is 10 m. The measurement error R is 1 m. The PLBP with a weight of 1/3 and dimension of 4 × 9 sigma-points is employed to estimate the vehicles’ positions. In the end, the N_iter is set to 5.

Each vehicle has an a priori location with a low precision that obeys the Gaussian distribution. The vehicles learn the coalition strategy and form relatively stable coalitions for location estimation, utilizing the proposed method. The results are compared with the OCF game-based method and PLBP, which performs well for mobile networks as a typical cooperative localization algorithm.

(1)

Localization performance

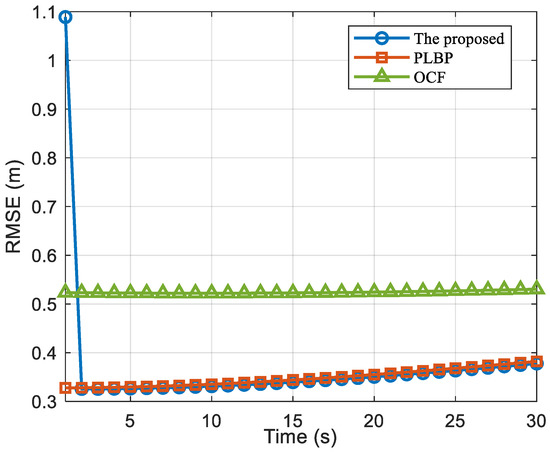

The RMSE of the proposed method over time in vehicle networks is shown in Figure 3. In the first few seconds, the positioning error of the proposed algorithm is larger than that of PLBP, as the EC game needs to achieve the ESCS. As the time taken increased, the proposed method’s root means squared error (RMSE) achieved a value of 0.35 m at a speed of 0.1 m/s. This demonstrates that the RMSE in the proposed algorithm and the PLBP algorithm tends to coverage over time. According to the analysis method used in Ref. [18], the difference from the PLBP method can be neglected. However, for the OCF-based method, the localization accuracy is still poorer than that of other localization methods. Therefore, the localization performance degradation of the proposed method is minor.

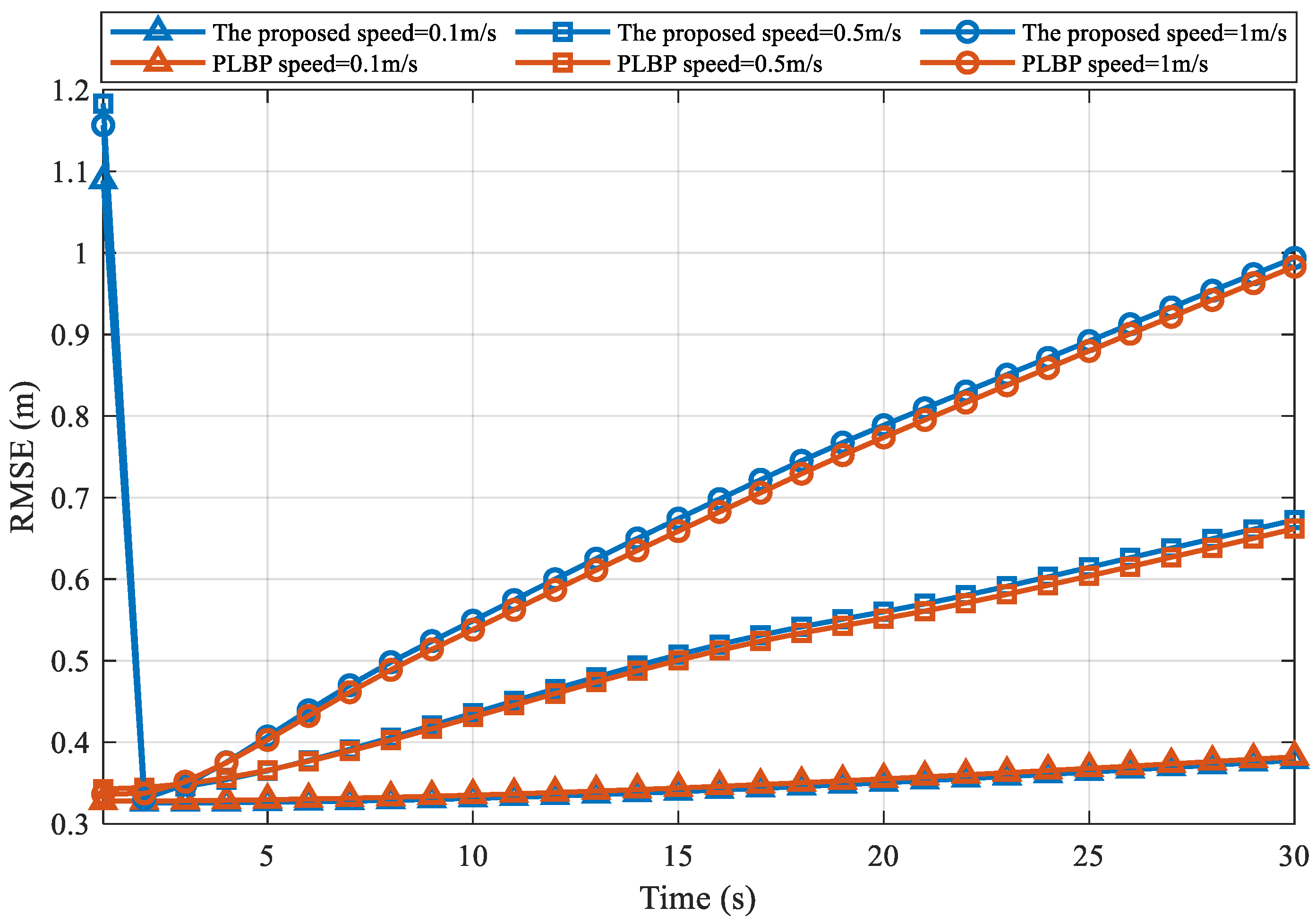

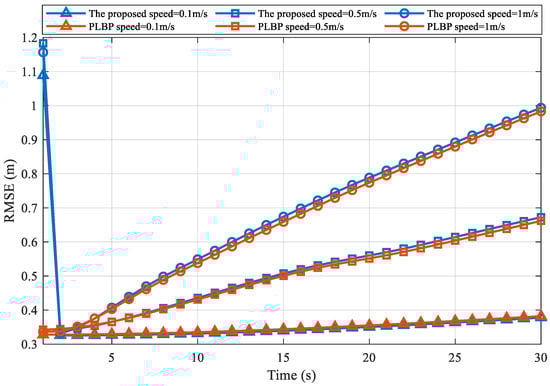

Meanwhile, the vehicles with different speeds are described in Figure 4. The RMSEs of the proposed method are 0.39 m, 0.68 m, and 0.99 m under the speeds of 0.1 m/s, 0.5 m/s, and 1 m/s, respectively. Although the speed of the vehicle affects the localization error, this is because the localization algorithm does not utilize the velocity information of past moments, the proposed method has the same trend as the PLBP. Therefore, the proposed method does not affect the localization accuracy at the same speed.

(2)

Complexity and Network Traffic

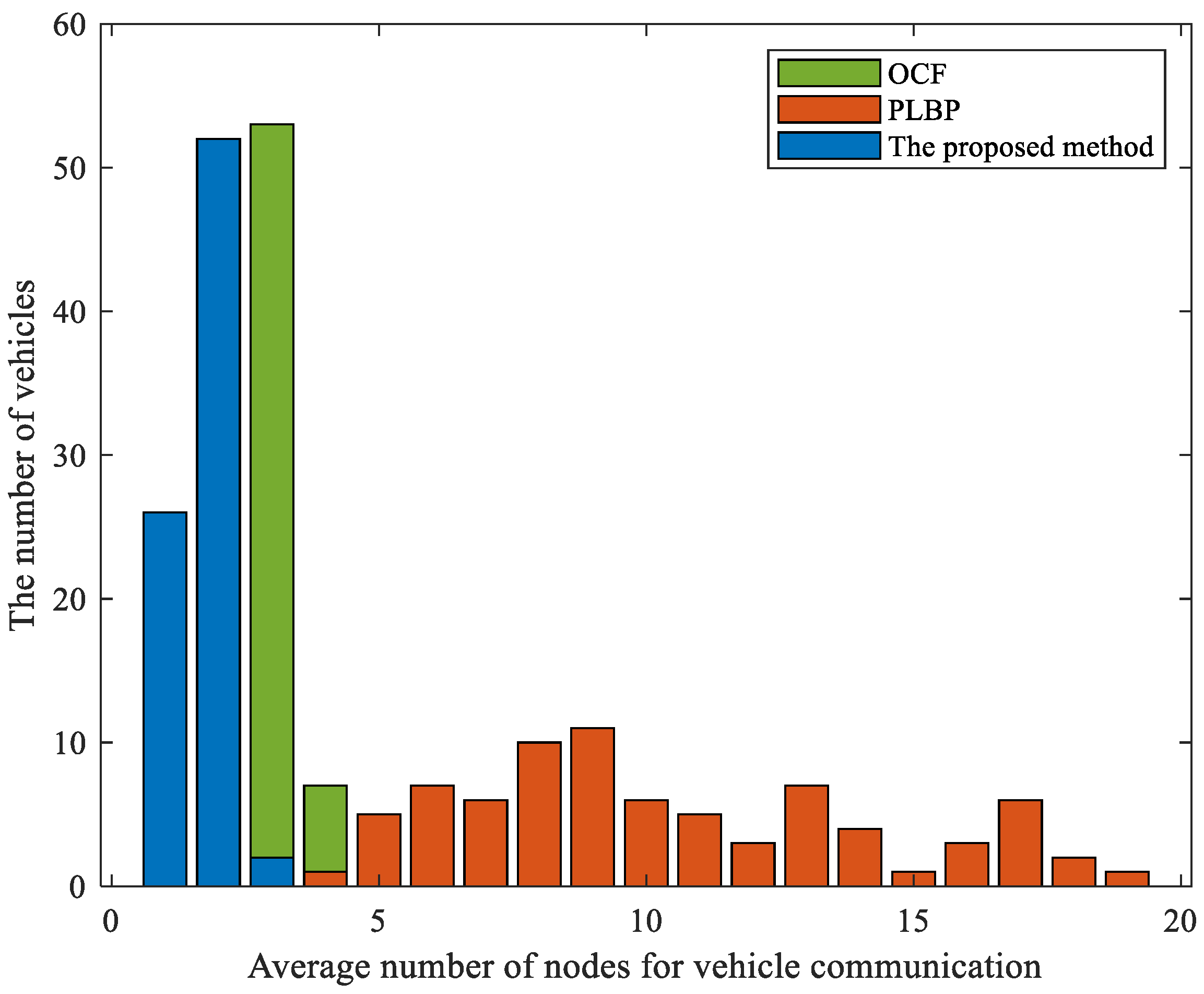

The complexity of the cooperative localization algorithm is $\mathcal{O}\left(Q\left|n_i^{\left(l\right)}\right|\right)$, where $n_i^{}$ denotes the average number of nodes positioned for the $i$ vehicles and Q denotes the message representation complexity pre link. The complexity depends on the number of nodes communicating per vehicle. Figure 5 describes the comparison of $n_i$ for the proposed method, the OCF-based method, and PLBP with 5 iterations. The average number of nodes with the proposed method is 2, which is less than the number in the OCF-based method (3 nodes on average) and the PLBP algorithm (11 nodes on average). The complexity of the proposed method is less than that of the conventional algorithm.

4. Discussion

Inaccurate positions, time synchronization, and erroneous measurements are the primary error sources in wireless localization [27]. Here, we discuss and analyze the influence of different error sources on localization performance. In the proposed localization method, we consider the SPEB and communication cost as the vehicle payoff in the EC game to form a localization coalition. The SPEB is composed of the RSU’s location, range measurement information, and the a priori information of the vehicle. Moreover, communication cost is relevant to the number of neighbors in the coalition. Since the RSUs, as infrastructure, have precise location information, we consider the proposed localization method’s error sources: time synchronization and measurement error. Therefore, the impact of above error sources is discussed.

For time synchronization, generally, users within the coverage area of a BS are time-synchronized with the BS in a cellular network. In V2V communication, vehicles within the coverage of the RSU are also synchronized with the RSU, while the vehicles in semi-coverage or outside the coverage are synchronized with the vehicles that need to communicate [28]. However, since the requirements for time synchronization in positioning are much higher than those in communication, an effective time synchronization method is necessary. Similar to the BP algorithm, this proposed method is also affected by time synchronization [29]. The joint synchronization and localization algorithm can exchange the clock parameters of the vehicles while the positioning information is exchanged between the vehicles, thereby ensuring the time synchronization between the vehicles [30,31,32]. The above method can solve the problem of the impact of time synchronization on cooperative localization well, though we will not discuss it in detail here.

Moreover, the measurement error mainly affects the vehicle’s SPEB. The SPEB of the vehicle is defined as:

$${\mathrm{SPEB}}_k\triangleq tr\left\{{\left[J_e(P_k)\right]}_{2\times 2,k}^{-1}\right\}.$$

(13)

Then, the $J_e(P_k)$ is given by:

$$J_{\mathrm{e}}(p_k)={\displaystyle \sum _{j\in N_{a,b}}{\lambda }_{kj}((1-{\gamma }^2){\beta }^2{\displaystyle \sum _{m=1}^{N_t}{J}_y({\varphi }_{kj})}+\frac{N_t{(\gamma \beta +f_c)}^2{G}_{kj}}{z_{kj}^2}{J}_y({\varphi }_{kj}+\frac{\pi }{2}))}$$

(14)

From the formula, it can be seen that the distance $z_{kj}^{}$ and angle ${\varphi }_{kj}$ are variables that need to be measured. Therefore, it is affected by measurement errors.

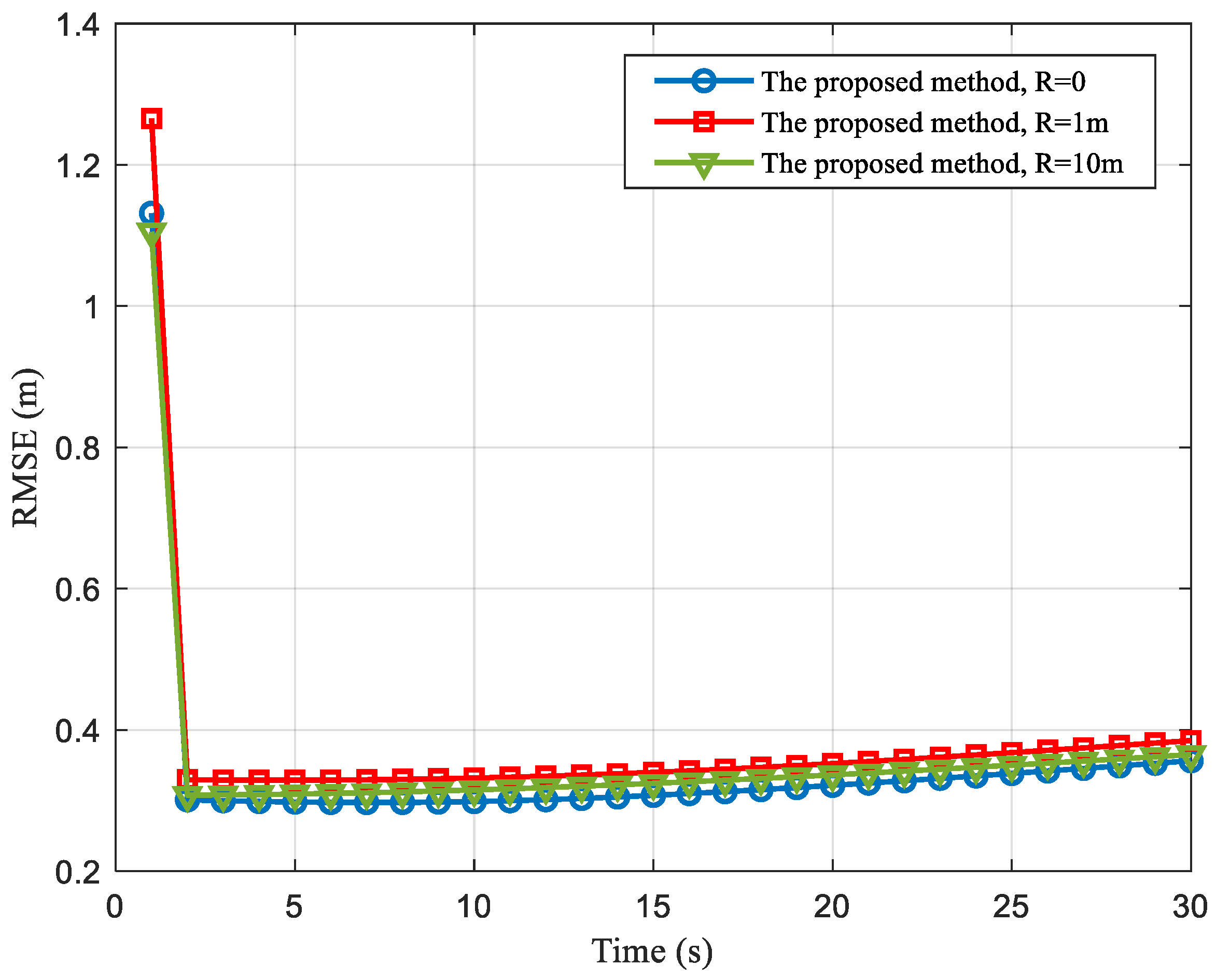

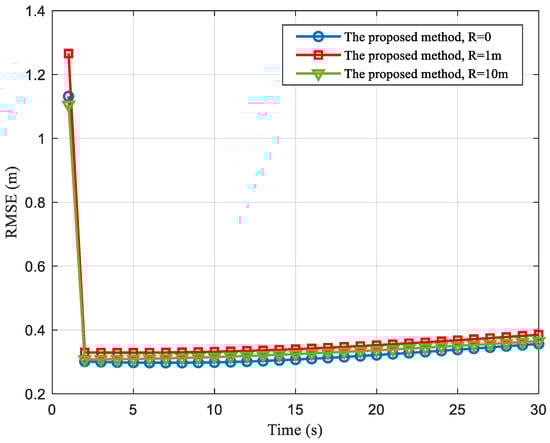

The measurement error is set to 0 m, 1 m, and 10 m with the vehicles having a 0.1 m/s speed. Figure 6 shows the RMSE of the proposed method with the measurement error. We observe the influence of the measurement error on the localization accuracy of the vehicles. Note that the proposed localization method is barely affected by measurement errors, which is mainly due to the special network topology and the effective cooperative localization algorithm used. The roadside unit enables the vehicles to receive precise position information within a range of up to two hops, which greatly reduces the error accumulation.

5. Conclusions

In this paper, we focused on the limitations of cooperative localization in vehicle networks and proposed a fusion framework based on cooperative localization and the evolutionary coalitional game. Specifically, to reduce the high computational complexity and communication overhead, we conducted an evolutionary coalitional game to select the neighboring vehicles to form coalitions. In this method, the vehicle implements positioning via information exchange among neighboring nodes in the coalition. The simulation results indicate that the proposed evolutionary coalitional game-based cooperative localization model reduced the computational complexity and communication overhead while maintaining the localization accuracy. The proposed model results are thus beneficial for vehicle position identification.

In the future, we would like to apply the proposed framework in a practical cooperative localization system and address the specific problems brought about by network protocols.
