TheraProx: Capacitive Proximity Sensing

Faculty of Electrical Engineering, Mechanical Engineering and Naval Architecture, University of Split, 32 Rudjera Boskovica, 21000 Split, Croatia
Authors to whom correspondence should be addressed.
Electronics 2022, 11(3), 393;
Submission received: 23 December 2021 / Revised: 20 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022


This paper presents the development of a novel contactless omnidirectional capacitive proximity sensor. The presented device has been designed to be energy-efficient (≈5 mW power consumption) by means of duty-cycling the power supply. A comprehensive methodological experiment has been carried out to extensively evaluate the performance within the sensing range (5–10 cm). A simple boot-up self-adjustment mechanism has been implemented using a digital potentiometer. This feature allows for an effortless utilization of the proposed device in a wide variety of potential applications, including mobile robotics and human–machine interaction.

1. Introduction

Proximity sensors have been employed across numerous existing and emerging fields such as robotic technologies, bio-electronic devices, parking sensors and human–machine interfaces [1], with an emphasis on a broad usage within industries like transportation, manufacturing as well as building automation and Industrial Internet of Things (IIoT) [2]. Since it is expected that the utilization of proximity sensors will increase even more, their power consumption has become a crucial attribute of such devices calling for more in-depth research and development of more energy-efficient sensors [3]. What is more, cost-effective and reliable proximity sensors that are satisfactory accurate are especially important for use case scenarios such as angle measurements used in robots that include wheel positioning and joint angle measurement [4], for collision avoidance, precision assembly as well as grasping [5].
This paper addresses utilization of an in-house developed contactless omnidirectional capacitive sensor as a promising solution for human–machine interface applications. An extensive experiment has been conducted to compare the performance of the capacitive with other sensors commonly used in similar applications: ultrasonic, infrared and time-of-flight sensor. The omnidirectional sensor proposed in this manuscript has a potential to overcome the shortcomings of the above mentioned sensors in terms of directivity. To be specific, the time-of-flight (TOF) sensors mostly exhibit high linearity and wide sensing range, yet very narrow sensing angle (effectively a dot). Most of the ultrasonic and optical proximity sensors are also highly directional [6,7,8]. On the other hand, a capacitive sensor presents an exception to this limitation by inherently being non-directional. In addition, the sensing element of a capacitive sensor can be of arbitrary shape and dimensions, hence being adaptable to a variety of device enclosures. Furthermore, an almost instantaneous response allows to duty-cycle the power supply whilst providing correct output value, reducing the overall power consumption. Cost-wise, the presented sensor is plain and simple in design, using several CMOS logic gates and a digital potentiometer which is used for self-adjustment purposes. A major drawback of most currenty used capacitive sensors is a short sensing range (generally below 1 cm [9]), restricting their usage to capacitive keypads and touch screens, both of which merely detect a direct contact with human finger. Based on experimental findings, the device presented in this paper can be employed for proximity sensing applications within the 5–10 cm range.

2. Technological Background

To this date, a variety of different sensor technologies have been developed for sensing distance or proximity of an object. With that regard, proximity sensors have been produced and brought to the market in form of infrared, ultrasonic, magnetic induction as well as capacitive sensors [1]. Choice of a particular sensor depends on the application, resilience to harsh environment conditions, low cost, high energy efficiency and long life cycle [10]. Generally, a proximity sensor will provide a non-contact detection of objects within its range and distinguished based on physical phenomenon utilized for sensing [2], as depicted in Figure 1. For instance, inductive sensors employ electromagnetic induction to detect objects by sensing the change of inductance of a coil, since a nearby object will disturb the generated magnetic field [11]. Although the objects do not need to be ferromagnetic, the ones that are highly conductive, like metal ones, will strongly affect an alternating magnetic field [12]. Due to their robustness to harsh environmental conditions, durability, safety and non-mechanical contact, inductive proximity sensors have broadly been utilized in many areas such as aviation field [13], or in IoT applications like parking place availability sensors [14] as well as in a form of angle sensors in the automotive applications [4]. Furthermore, a study given in [15] presents an ultra-low power proximity sensor using electrostatic induction for detection of human motion.
Sonic sensors such as ultrasonic sensors have also been applied as proximity sensors [2,16,17]. Basis of operation for ultrasonic sensors is founded on the Time-of-Flight (ToF) principle measuring the time needed for the acoustic wave to travel from the transmitter to the object and bounce back to the receiver [6] and are deemed to be quite precise for measuring tiny distances. Generally, two types of ultrasonic sensors can be distinguished: Ultrasonic Proximity Detection and Ranging Measurement; the first ones will sense an object passing within it’s range and output a signal, where the second one will precisely measure the distance from the object by determining the time intervals among the sent and received bursts of ultrasonic waves [18]. Utilization of ultrasonic sensors ranges from process industry [19], robotics [6], within IoT for employment such as water level detection [20] and with a very significant applications within automobile industry [18]. For instance, these sensors are applied within self-driving vehicles [21], as well as in IoT concept of Smart Parking solutions as occupancy detection sensors [22]. Ultrasonic proximity sensor has also been applied for safe operation of human friendly robots [23], as well as for robot safety control as presented in [6]. One of the main reason for their frequent usage is their low cost and simple installation, energy efficiency, low maintenance combined with high sensitivity and frequency, as well as uncomplicated interface with a micro-controller or any type of controller [18]. One of their main disadvantages is that they are prone to environmental changes.
Infrared (IR) sensors are being broadly utilized as proximity sensors in robotics for detection of nearby objects and obstacle avoidance, operating typically based on triangulation [8]. In general, IR sensors emit and detect infrared radiation to sense their surrounding environment [21], where the distance to the sensed object depends on the angle at which the reflected light returns to the sensor [24]. When considering proximity sensing, IR sensors abide by photometry inverse square law where the illuminance intensity is inversely proportional to the square of the distance between the light source and the illuminated object. The illuminance will increase linearly with the intensity of the emitting infrared diode and decrease with the cosine of the angle of incidence [25]. In comparison to ultrasonic sensors infrared sensors are more cost-effective having a swifter response, but since they are more sensitive to noisy environment, measurement precision for proximity purposes may be affected [7]. Presently, IR sensors are being utilized within numerous IoT applications ranging from healthcare, for instance in non-contact-based temperature measurements, smart home appliances, smartwatches as well as automotive blind-angle detection [21]. Their expanded usage has led to development of new generation of IR sensors with enhanced cross-sensitivity achieved with integration of sensor and emitter with digital signal processing [25]. Furthermore, research in [26] describes a low-cost IR reflective proximity sensors which can be applied to measure displacements with sub-microlevel accuracy whose utilization is important in the context of emerging micro/nanotechnology. Infrared proximity sensors have also been frequently applied for detection of human presence in the building aiming to decrease energy consumption [27]. One such IR sensor implementation has recently been considered in [28] for smart home purposes. The use of IR sensors has also been examined in robotic applications such as in [24], exploring the possibilities of obtaining rough 3D information about target objects or robots’ surroundings.
Finally, when considering the class of electric proximity sensors, capacitive proximity sensors (CPSs) have been most extensively applied. Their sensing occurs upon the perturbance of the sensors’ electric field caused by a nearby object, that shifts the sensor’s capacitance [29]. Applications of CPSs can be found in various domains such as object identification in robotics, proximity perception in human-centered robotics up to continuous touch gesture recognition [2,12,30]. Due to their design flexibility and simplicity, cost-effectiveness and low power consumption, CPSs are widely used in comparison to other proximity sensors [31]. Capacitive proximity sensors can be easily calibrated with adequate response performance and are able to estimate distance from several millimeters up to several centimeters from metallic as well as nonmetallic objects [32]. The distance from the object is measured based on the capacitance created among the CPSs surface and the object surface where CPSs can be classified based on the measurement principle as self-capacitance [33] and mutual-capacitance sensors [34]. In the case of self-capacitance CPSs the object is required to be a grounded conductor (therefore it is prone to the influence of its surrounding stray electric field) and capacitance established between the sensor and the object alters along with object’s distance from the sensor where the range of distance sensing is approximately only a few millimeters [32]. In the mutual-capacitance scenario, the object and sensor are regarded as two plates stationed on the same plane, where mutual capacitance among these two plates is generated as the object moves [34]. Mutual-capacitance sensors are able to measure the distance from conductive as well as non-conductive objects, but not the direction of the object movements [32]. Although different proximity sensing technologies have been employed for particular purposes, capacitive proximity sensors prevail over others. In general, the capacitance between the sensor and an object is closely related to the object shape as well as its material and relative location from the sensor [12]. Capacitive proximity sensors have been utilized within numerous fields like smart environment applications [31,34], in gesture recognition [30], in human-centered robotics [12]. Furthermore, CPSs have been extensively researched within the field of human–computer interaction, as presented in research [29]. A role of CPSs working in displacement sensing modality has also been comprehensively examined within study given in [31]. Furthermore, researchers in [32] have designed a capacitve proximity sensor which can distinguish four different directions and measure the object distance in the range of 1–40 mm simultaneously.

3. Materials and Methods

The proposed sensor is based upon a heterodyning technique used in theremin [35,36]. There is a commercially available theremin shield for Arduino (OpenTheremin product page: accessed on 20 December 2021) which operates on similar principle as the one used in our proposed device, but with a greater complexity and at a higher price point. The simplicity of our device also leads to a lower power consumption. Our sensor consists of two digital oscillators, one of which (primary/sensing) is connected to a sensing (conductive) plate. Should a grounded object come within the sensing range, the total capacitance in the oscillator would increase, changing the frequency of the generated square wave.
The other (secondary/adjustment) oscillator is kept at a constant frequency which is being adjusted during the power-on phase, while there is no object present other than the static environment. The frequency adjustment must be performed remotely, without introducing additional capacitance in the circuit. The constant-frequency square wave is combined with the variable-frequency square wave using logical XOR operation. This approach is generally employed in digital phase detectors, but can be used to simulate analogue heterodyning.
While analogue heterodyning technique yields two new spectral components (the sum and difference of input signals), the output from the XOR gives a PWM signal which modulates according to the phase and frequency offset between the input signals. In both cases the exact frequencies of the input signals are not relevant, because the distance from a nearby object depends on their relative difference. This difference is contained within the PWM signal and can be converted to a DC voltage by means of a passive RC filter.

3.1. Sensor Development and Design

The schematic of the proposed device is presented in Figure 2. The 6-pin connector J1 labeled “IN” is used to provide connections to:
  • Control signals for the digital potentiometer (pins 1–3);
  • Power supply (pins 4 and 5);
  • Sensing plate (pin 6).
The sensing plate used in our measurements was a 10 × 10 cm thin copper PCB square, but the functionality of the proposed device is not limited by the sensing plate design and size. The operating principle of digital oscillators is based on using the CD4093 Schmitt NAND gates (U1A for the secondary oscillator, U1B in the primary oscillator). They are connected to behave as NOT gates, feeding the output signal back to both inputs through a 10 k Ω resistor in the primary oscillator or 10 k Ω digital potentiometer X9C104 (U3) in the secondary oscillator. Both U1A and U1B have a ≈5 pF input capacitance (not visible in the schematic), which is being charged through the feedback resistor while their outputs are high. Once the input voltage reaches the high trigger threshold voltage, the output goes low and input capacitance begins to discharge through the feedback resistor. As the input voltage drops down to the low trigger threshold voltage, the output goes high again and the input capacitance begins to charge. Consequentially, the voltage at the output of U1A and U2B oscillates between the high and low level as a digital square wave signal. Its frequency depends on the feedback resistor and input capacitance values. As there is a sensing plate connected to the primary oscillator, any nearby grounded object will introduce additional capacitance and change its frequency. During the self-adjustment procedure, the value of the digital potentiometer U3 is set to equalize the frequency of the secondary oscillator to that of the primary one.
The primary oscillator is connected to the sensing plate and has a fixed 10 k Ω resistor in the feedback path. Any grounded object placed within the sensing range will introduce additional capacitance to this oscillator and change its frequency to a certain extent. The secondary oscillator has a digital potentiometer X9C104 (X9C104 Digitally Controlled Potentiometer datasheet: accessed on 20 December 2021) in the feedback path which allows for remote adjustment of its frequency. The value of this potentiometer is to set during the boot-up self-adjustment procedure, while there is no object present within the sensing range, aside from the static surroundings. The signals from the two oscillators are sent to a mixing stage, realized as an logical XOR structure. Both oscillators and mixing stage are realized using CD4093 Schmitt NAND gates (CD4093 CMOS Quad 2-Input NAND Schmitt Triggers datasheet: accessed on 20 December 2021). The output form the mixing stage is filtered by a passive RC integrator to yield an average (DC) value of the output signal. The 4-pin connector J2 labeled “OUT” is used to output both filtered and unfiltered output signal, as well as power supply connections. Following the presented schematic a prototype of the proposed device has been designed and built in a through-hole technology.

3.2. Operating Principle

The proper operation of the proposed device has been verified in controlled laboratory conditions. Figure 3a presents the measured waveforms when there is no object present and the sensor is self-adjusted. Both oscillators generate square waves at almost the same frequency, as measured around 2.7 MHz [35]. There is an obvious asymmetry in the duty cycle of the generated signals as the low-level lasts for roughly one third of a period. This inevitably causes the signals to overlap in their high states during a short period in which the XOR structure should respond by going low. As the propagation delay and transition time impose a strong limit to the dynamic response of the XOR structure, it has no time to respond to such short overlaps. Therefore the output signal remains high as the signals are constantly out of phase. This phase alignment is a phenomenon which calls for further investigation, but is probably caused within the integrated circuit itself. A reasonable solution for this would imply using separate ICs for both oscillators, but this would introduce larger differences between them, compromising the self-adjustment procedure.
If an object is present within the sensing range (around 10 cm), additional capacitance is added to the primary oscillator, detuning its frequency. The physical basis for the range limitation of the proposed capacitive sensor lies in the ability to sense the additional capacitance introduced by a nearby object. This capacitance is added to the total capacitance in the sensing oscillator. The lumped capacitors are not used in the oscillators, as it has been proved in [35] that the parasitic capacitance present between the pins of the IC and the PCB (≈20 pF) is large enough to generate oscillations with a 10 kOhm resistor in the feedback loop. This capacitance is well below the lower limit stated in the CD4093 datasheet, but allows for greater sensing range. Any minor ambiental capacitance introduced by a nearby object would detune the oscillator to a greater extent than if there were lumped capacitors in the oscillators. The general idea is to keep the overall capacitance in the oscillators at a lowest possible value in order to detect ambiental capacitance at maximum possible distance (range). It is the relative difference between the two oscillators’ frequency that functions as a main sensing mechanism.
This extends the duration of the overlapping high levels of the output signals, allowing the XOR structure to respond by going low despite the previously mentioned dynamic properties, as presented in Figure 3b. This reduces the average output voltage obtained at the output of the passive RC filter/integrator, as presented in Figure 4. Observed periodicity of the signals in Figure 4 results from driving the sensor’s power supply by means of duty cycling, which decreased average power consumption. A more detailed discussion regarding the power consumption and optimization can be found in Section 5.1. Bringing the object closer to the sensor further detunes the primary oscillator, thus extending the overlap of the high levels in the output signals, Figure 3c,d. The duration of the low state at the output of the XOR structure increases, reducing the average (DC) value of the output voltage. The output voltage can never zero out, as the oscillators would have to be perfectly in phase and at the same frequency for this to happen. The waveforms observed are far from an ideal digital square wave due to the transition (rise/fall) times of the CD4096 IC (≈50 ns). Therefore they appear more of a trapezoidal shape. Furthermore, the propagation delay causes the output from XOR structure (blue waveform) to respond after approximately 100 ns.

4. Experimental Results

The following section describes the design of the measurement setup employed for validation of the proposed sensor, as well as comparison with the other sensors used in the setup. The main component of the measurement system was Raspberry Pi 4B+ (Raspberry Pi 4B product page: accessed on 20 December 2021) computer with an Arducam Camera (Arducam product page: accessed on 20 December 2021) installed. All other sensors were incorporated into the subsystem alongside the Arduino Nano microcontroller. Raspberry Pi computer and microcontroller are interconnected via USART (Universal Synchronous/Asynchronous Receiver/Transmitter) interface running at 192 kbps. The entire system and measurement setup are depicted in Figure 5. Additionally, a laboratory table was used as a measurement surface with four optical markers placed on predefined locations (and measured with millimeter precision). The camera with the Raspberry Pi computer was placed above the measurement surface, while the sensor subsystem was placed on the measurement surface itself. This setup uses the camera to calculate the displacement of the user’s hand from the sensor module.

4.1. Sensors Subsystem

An Arduino Nano microcontroller board (Arduino Nano product page: accessed on 20 December 2021) running ATmega328P microcontrolller (ATMEGA 328P product page: accessed on 20 December 2021) was selected due to its affordability, availability of common interfaces, and consequently simplicity in utilizing various sensors, which were all supported by compatible libraries. The design of the sensor subsystem is presented in Figure 6.
The first sensor incorporated into the sensor subsystem was an in-house developed capacitive proximity sensor, which principle of operation was previously described in Section 3. The sensor itself uses 3 GPIO (General Purpose Input Output) pins and a single analog input on the microcontroller side. The performance of the proposed sensor is analyzed in the following sections.
The second sensor implemented was ultrasonic ranging device HC-SR04 (HC-SR04 Datasheet: accessed on 20 December 2021), which is commonly used in mobile robotics for obstacle detection and avoidance [37]. The measured distance is obtained as a digital output with a duration of high level equivalent to time required for the ultrasound chirp signal to travel from device to object and back to the device. Distance is then calculated on the microcontroller by measured signal duration and known speed of sound in the current conditions (0.034 cm/µs at room temperature and humidity). Detection range of the sensor is 2–450 cm with conically shaped detection area measuring 15–30° angle, allowing the sensor to detect small object or obstacles. This sensor requires two GPIO pins, while versions which require only a single shared GPIO pin are also available while operating on the same principle.
The third sensor implemented was Sharp GP2Y0A21YK0F (SHARP IR distance sensor datasheet: accessed on 20 December 2021) Analog IR (Infra Red) distance sensor, which is alongside previously described ultrasonic sensor also commonly used as an obstacle detection sensor in mobile robotics [38,39]. An IR distance sensor uses a beam of infrared light to reflect off an object to measure its distance, which is then calculated using the triangulation principle. The measured distance is provided as an analog output. As the characteristics of the IR sensor are non-linear it is commonly utilized only between 10 and 80 cm range where voltage to distance relation can be described by a single mathematical equation. Similar models of the same sensor lineup may offer different minimal and maximal ranges, which are selected regarding to the sensor’s current application. For the model implemented in our sensor module distances below 10 cm can be misinterpreted, which is a major shortcoming of the sensor in real-life applications. As compared to the ultrasonic sensor, the IR sensor is highly directional and in some applications can miss small objects or obstacles. It is trivial to implement this sensor, as it only requires a single analog input on the microcontroller side.
The fourth sensor implemented was the VL53L0X TOF sensor (VL53L0X TOF sensor accessed on 20 December 2021). Time of flight (ToF) principle is based on an approximation of the time it takes a traveling light wave to come in contact with a surface and reflect back to the source. The laser emits in IR (infra-red) spectrum, which is invisible to the human eye and offers higher immunity to ambient light. In practice, this sensor can measure absolute distances up to 200 cm, which are read via digital TWI (Two Wire Interface). Similar to the Sharp IR sensor, this device is also highly directional and can miss small objects or obstacles.
In addition to distance sensors, a simple push button switch was connected to the microcontroller and was used as a hardware trigger to initiate the measurement procedure. This switch was connected to the GPIO pin set up with input pull-up resistor activated (LOW state on GPIO pin indicates button press). The microcontroller waits for the falling edge on the corresponding GPIO PIN, which is immediately followed by readings from all sensors in the sequential order. Readings were then formatted in a single string message delimited with a comma. This message is then transmitted over the USART interface to the Raspberry Pi computer. The initial test showed robustness and almost instant data availability on the Raspberry Pi computer, as compared to an alternative approach where all sensors were directly connected to the Raspberry Pi computer.

4.2. Computer Vision Subsystem

The Raspberry Pi computer was running the Raspian operating system (Raspian-Raspberry PI Operating System: accessed on 20 December 2021) with Linux kernel version 5.10. Alongside to the operating system, Python 3.9 (Python programming language web page: accessed on 20 December 2021) and OpenCV 4.5 (OpenCV Computer Vision library web page: accessed on 20 December 2021) libraries were installed. As a main image sensor 8MP Sony IMX219 Camera Module (Sony IMX219 Camera Module: accessed on 20 December 2021) with M12 lens was connected to the Raspberry Pi using a MIPI (Mobile Industry Processor Interface) Display Serial Interface. Used camera offers low distortions, thus was selected as an ideal candidate for vision-based object localisation. When all objects and markers are placed on a single surface (plane), their location can be reconstructed with high accuracy using only Homography transformations, which transforms known locations from one plane (camera image described in pixels) to the corresponding plane (table surface described with physical measures) [40,41]. Evaluation of the displacement measurement accuracy included an accuracy test of the reference system with static markers using a calibration object for a total of 96 marker positions. Calculated RMSE for our reference system was 1.1843 mm. A python script provides almost effortless image acquisition and processing with control of the USART interface. Additionally, a wireless keyboard and mouse are connected to the Raspberry Pi computer allowing the operator to remotely control the measurements, thus diminishing the possibility of interference with the measurement readings.

4.3. Measurement Procedure

Initially, the operator starts the main python script and enters the save location for measured data. A simple GUI (Graphical User Interface) is then created with the initial camera feed and addition of terminal used as a simple text output. The user’s hand was immobilized and attached via surgical tape to a long plastic board with a vertical knob. This was designed with intention to limit hand movement towards the sensor subsystem. The hand tied to a plastic board can freely move in only one axis (towards or away from sensor module), which is limited with a busbar attached to the measurement surface. The board has an optical marker placed in front of the hand, which is used for hand location reconstruction. The user was instructed to move their hand and place it on random locations (provided ruler is used as a reference) and use a button trigger to confirm a new location. When the button was pressed, the sensor readings were sent by the USART interface to the Raspberry Pi computer. Instantly, the computer parses received data, dumps it to the prepared CSV (Comma Separated Values) data file, and saves the acquired camera image with the appropriate filename. The user then displaced their hand to another location and the measurement was repeated. This procedure was repeated until the quit command was issued on the operator’s side.
Saved CSV files and a series of images were then transferred to a computer with MATLAB (MATLAB product page: accessed on 20 December 2021) installed, where another script was prepared for processing images and data. Initially, the operator has to manually confirm the locations of four calibration markers placed on the measurement surface and visible on the camera image. After correct locations are acquired homography transformations were calculated, which was followed by processing of prepared input data. The result was a matrix that consists of the original reading from the sensor subsystem with an additional column that represents the referent distance of the hand to the sensor module measured by computer vision system. All measured data was prepared for subsequent analysis in the following sections.

5. Discussion

The main goal of this paper was to develop a proximity sensor with possible application in human–machine interaction and mobile robotics. To validate our hypothesis some limited trials originally aimed to benchmark distance sensors had to be performed. First of all, ability to accurately measure the distance of an object in its vicinity and secondary estimate usable sensor bandwidth.
As described in previous sections, a computer vision system was employed for obtaining the referent measurement. In the first trial the output analog signal from the proposed sensor was compared with the referent distance for a total of 252 points with an intention of creating a distance measurement characteristics plot presented in Figure 7. Non-linear characteristics of the proposed sensor are evident, where some similarities with the IR distance sensor are observable.
The sensor displays predictable behavior in ranges up to 10 cm, which can be described with a polynomial function. As the maximum output signal is reached (at distance around 10 cm) the output signal saturates and remains constant with increasing distance. Measured data for ranges up to 10 cm were used in second step which approximate voltage to distance relation. A second-order polynomial function showed to be an optimal fit to the training data and can be described using the following expression:
d = U p e d e s t a l 0.15 U i n p u t + 0.00016 U i n p u t 2
where U i n p u t is sensor output voltage, U p e d e s t a l is the pedestal value, and d is measured distance from the object itself.
The second trial aimed to compare distances obtained by sensors included in the sensor subsystem with the distance estimated using the proposed sensor. The results are presented in Figure 8, where it is evident that the sensor can estimate distances within its limited range (5–10 cm). More detailed comparison is presented in Table 1, where the proposed sensor exhibits RMSE (Root Mean Square Error), MAE (Mean Absolute Error) and STD (Standard deviation) similar to other sensors used in the setup. As sensors used in our setup do offer different measuring ranges, results in Figure 9 were cropped to the range of 5–20 cm, usual in HMI for this type of sensor application. TOF sensor exhibits superior performance regarding the RMSE and MAE, which was almost in range of our referent CV system. When compared to our proposed sensor, TOF is highly directional and may fail to detect an object in its vicinity, while requiring four times more power than our proposed sensor. Ultrasonic and IR sensors exhibit something bigger RMSE and AME than our proposed capacitive sensor, with significantly more power required for operation. As our intention was to use sensors out-of-the-box with standard libraries no additional tweaking has been performed. All applied sensors can benefit from additional (individual) calibration and digital linearization in a limited range which may reduce error in the observed range. Additionally, both IR and ultrasound are directional and cannot sense the entire 360° area around the sensor. Our proposed capacitive sensor offers the reasonable error of distance readings for applications where highly precise distance measurement is not primal while having the lowest average power consumption of any commercially available sensor that can operate in the same manner.
Both trials support our hypothesis that the proposed sensor can successfully detect the presence of the object in its vicinity and accurately estimate the distance within a limited range. A comparison of sensing range and measuring angle between all sensors used in the experiment is presented in Table 2.
The third trial included a detailed analysis of sensors’ analog output signal, which aims to calculate sensors’ bandwidth and lay some recommendations for duty cycle timings. The output signal from the sensor was read by two-channel oscilloscope DS1102E (DS1102E Osciloscope product page: accessed on 20 December 2021) with 100 MHz bandwidth and the ability to read up to 1 GSa/sec. Signal generator Rigol DG1022 (DG1022 signal waveform generatoor product page: accessed on 20 December 2021) was used for generating square signals, utilized as both trigger and a power supply for the sensor. As maximal output current is not explicitly stated in the generator’s data sheet, the preliminary test shows that external source was not required, thus allowing the proposed sensor to be solely powered using signals generated by a signal generator itself. Power consumption is with more details discussed in the next subsection.
Square signals with a 50% duty cycle were input to the sensor, where analog output signal was recorded and analyzed using an oscilloscope for a range of input frequencies and object distances. The main task was to observe the transient part of the recorded signal and to estimate the minimal time required for signal settling (defined as when oscillations are inside 5% the settling value). Results are presented for both object placed at 5 cm and 15 cm from the sensor. Differences between settling times for both measurements are negligible and measuring around 2.6 ms.

5.1. Power Consumption

Settling times measured in the previous subsection lead us to a possibility to create a more power-efficient device. By means of minimizing the active duty cycle of the proposed sensor, average power consumption is consequently reduced. As reported in the literature, human self-paced movements for index fingers are within 3.3 Hz bandwidth [42], thus proposed 50 Hz sampling rate is sufficient for recognizing complex hand gestures. This leads us to the conclusion that single time frame can last up for 20 ms. By a conservative estimation that active sensor time is 5 ms, 2.6 ms required for a transient response, and the rest for averaging several ADC readings leads us to active time lasting 5 ms. Thus, 50 Hz sampling with a 20 percent duty cycle was selected as optimal in our configuration. An oscillogram with the proposed 50 Hz rate and 20 percent duty cycle is presented in Figure 10, where it is evident that the sensor’s output signal successfully stabilizes around settling time, thus allowing enough time for it to be successfully read by the ADC.
Active power consumption was measured using a shunt resistor and oscilloscope resulting between 2.4 and 4.9 mA, depending on object distance. This leads us to another estimation that in maximum power demanding mode and with optimal duty cycle sensor in average requires 0.98 mA when powered with 5 V input. When comparing to other devices implemented in sensor subsystem, proposed sensor uses significantly less power, averaging around 5 mW, as presented in Table 1. This further emphasizes the possibility of utilizing the proposed sensor in battery powered applications, particularly in IoT scenarios.
The operating sensing range of the presented device exceeds values commonly found in similar capacitive sensing technologies, allowing them to evolve from tactile to contactless. What is more, the self-adjustment algorithm allows for effortless utilization of the proposed device in a wide variety of applications. For example, such a device could be integrated within a Smart Home touchless control panel as a novel sensing technology in the realm of such interfaces. This could provide a hygienic solution to overcome ongoing COVID-19 pandemic, while remaining cost- and energy-efficient. Such a solution is also extendable to various contactless interface applications, including ATM machine and elevator keypads. Within these applications, object’s presence is a key factor, instead of the exact distance of an object to the sensor. Therefore the proposed device is expected to be more resilient to harsh environmental conditions compared to other commonly used sensing technologies, such as infrared and ultrasonic [18,31,43]. The proposed sensor could also be employed as a covert proximity alarm system at smart homes, banks, or museums, with no visible components. Limited distance measurement capabilities may even enable the device to be used as a contactless gesture recognition system using simple and intuitive hand gestures.

6. Conclusions

Novel and enhanced sensing technologies have been the driving force behind the uprising industrial digital transformation aiming to provide better performance across a variety of industrial sectors such as transportation, manufacturing and robotics. With that regard, one of the aims of robotics within modern industry is improved productivity and lower product price. As a consequence, numerous sensing technologies will need to be redesigned with a particular focus on power efficiency.
Proximity sensing technologies employed for human–machine interaction that can be used to detect presence of a conductive object or a human hand without any physical contact are particularly important. By employing an omnidirectional capacitive sensor such as one presented in this paper, this can be extended to all directions around the sensing element. Furthermore, the range of the proposed capacitive sensor (5–10 cm) exceeds values commonly found in similar capacitive sensing technologies. This allows to extend the capacitive interfaces from tactile to contactless. The power consumption was reduced by duty-cycling the power supply down to 5 mW, while still able to acquire 50 readings per second.

Author Contributions

Conceptualization, D.Č. (Duje Čoko), I.S., L.D.R. and D.Č. (Dora Čošić); methodology, D.Č. (Duje Čoko) and I.S.; software, I.S.; validation, D.Č. (Duje Čoko), I.S. and D.Č. (Dora Čošić); formal analysis, I.S.; investigation, L.D.R.; resources, L.D.R.; data curation, I.S.; writing—original draft preparation, D.Č. (Duje Čoko), I.S., L.D.R. and D.Č. (Dora Čošić); writing—review and editing, D.Č. (Duje Čoko), I.S. and L.D.R.; visualization, D.Č. (Duje Čoko) and I.S.; supervision, L.D.R. All authors have read and agreed to the published version of the manuscript.


This work was funded by Croatian Science Foundation under the project ”Internet of Things: Research and Applications”, UIP-2017-05-4206.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Moheimani, R.; Pasharavesh, A.; Agarwal, M.; Dalir, H. Mathematical Model and Experimental Design of Nanocomposite Proximity Sensors. IEEE Access 2020, 8, 153087–153097. [Google Scholar] [CrossRef]
  2. Ibrahim, M.A.; Hassan, G.; Monea, K.; Hassanein, H.S.; Obaia, K. A Ferrous-Selective Proximity Sensor for Industrial Internet of Things. In Proceedings of the ICC 2020—2020 IEEE International Conference on Communications (ICC), Dublin, Ireland, 7–11 June 2020; pp. 1–6. [Google Scholar] [CrossRef]
  3. Rai, A.; Zhuo, D.H.; Bahreyni, B. Passive Proximity Detection Based on a Miniaturized Pyramidal Optical Sensor. In Proceedings of the 2019 IEEE SENSORS, Montreal, QC, Canada, 27–30 October 2019; pp. 1–4. [Google Scholar] [CrossRef]
  4. Kumar, A.S.A.; George, B.; Mukhopadhyay, S.C. Technologies and Applications of Angle Sensors: A Review. IEEE Sens. J. 2021, 21, 7195–7206. [Google Scholar] [CrossRef]
  5. Lee, H.K.; Chang, S.I.; Yoon, E. Dual-Mode Capacitive Proximity Sensor for Robot Application: Implementation of Tactile and Proximity Sensing Capability on a Single Polymer Platform Using Shared Electrodes. IEEE Sens. J. 2009, 9, 1748–1755. [Google Scholar] [CrossRef]
  6. Tong, Z.; Hu, H.; Wu, Z.; Xie, S.; Chen, G.; Zhang, S.; Lou, L.; Liu, H. An Ultrasonic Proximity Sensing Skin for Robot Safety Control by Using Piezoelectric Micromachined Ultrasonic Transducers (PMUTs). IEEE Sens. J. 2021. [Google Scholar] [CrossRef]
  7. Benet, G.; Blanes, F.; Simó, J.E.; Pérez, P. Using infrared sensors for distance measurement in mobile robots. Robot. Auton. Syst. 2002, 40, 255–266. [Google Scholar] [CrossRef]
  8. Orten, A.K. A Low-Cost Indoor Positioning System. Master’s Thesis, University of Oslo, Department of Informatics, Oslo, Norway, 2015. [Google Scholar]
  9. Fleming, A.J. A review of nanometer resolution position sensors: Operation and performance. Sens. Actuators A Phys. 2013, 190, 106–126. [Google Scholar] [CrossRef]
  10. Zuk, S.; Pietrikova, A.; Vehec, I. LTCC Based Planar Inductive Proximity Sensor Design. Period. Polytech. Electr. Eng. Comput. Sci. 2016, 60, 200–205. [Google Scholar] [CrossRef] [Green Version]
  11. Li, P.; Liu, X. Common Sensors in Industrial Robots: A Review. J. Phys. Conf. Ser. 2019, 1267, 012036. [Google Scholar] [CrossRef] [Green Version]
  12. Navarro, S.E.; Mühlbacher-Karrer, S.; Alagi, H.; Zangl, H.; Koyama, K.; Hein, B.; Duriez, C.; Smith, J.R. Proximity Perception in Human-Centered Robotics: A Survey on Sensing Systems and Applications. IEEE Trans. Robot. 2021, 1–22. [Google Scholar] [CrossRef]
  13. Guo, Y.X.; Lai, C.; Shao, Z.B.; Xu, K.L.; Li, T. Differential Structure of Inductive Proximity Sensor. Sensors 2019, 19, 2210. [Google Scholar] [CrossRef] [Green Version]
  14. Susilawati, H.; Wiharso, T.A.; Hidayat, T.M.; Ikhsan, A.F.; Rukmana, A. Information of parking place availability through the use of proximity inductive sensor based on IoT. J. Phys. Conf. Ser. 2019, 1402, 033095. [Google Scholar] [CrossRef]
  15. Fuketa, H.; Morita, Y. Ultra-Low Power Human Proximity Sensor Using Electrostatic Induction. IEEE Sens. J. 2020, 20, 7819–7825. [Google Scholar] [CrossRef]
  16. Darwito, P.A.; Raditya, M.; Sa’diyah, H.; Cikadiarta, A.; Aditya, W. Comparative Study of Burst Furthermore, Beams Types Ultrasonic Sensor For Distance Measurements. In Proceedings of the 2019 International Seminar on Intelligent Technology and Its Applications (ISITIA), Surabaya, Indonesia, 28–29 August 2019; pp. 46–51. [Google Scholar] [CrossRef]
  17. Webster, J.; Eren, H. Measurement, Instrumentation and Sensors Handbook, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  18. Pandey, M.; Mishra, G. Types of Sensor and Their Applications, Advantages, and Disadvantages. In Emerging Technologies in Data Mining and Information Security; Abraham, A., Dutta, P., Mandal, J.K., Bhattacharya, A., Dutta, S., Eds.; Springer: Singapore, 2019; pp. 791–804. [Google Scholar]
  19. Hauptmann, P.; Hoppe, N.; Püttmer, A. Application of ultrasonic sensors in the process industry. Meas. Sci. Technol. 2002, 13, R73. [Google Scholar] [CrossRef]
  20. Prafanto, A.; Budiman, E. A water level detection: IoT platform based on wireless sensor network. In Proceedings of the 2018 2nd East Indonesia Conference on Computer and Information Technology (EIConCIT), Makassar, Indonesia, 6–7 November 2018; pp. 46–49. [Google Scholar]
  21. Javaid, M.; Haleem, A.; Rab, S.; Singh, R.P.; Suman, R. Sensors for daily life: A review. Sens. Int. 2021, 2, 100121. [Google Scholar] [CrossRef]
  22. Khalid, M.; Wang, K.; Aslam, N.; Cao, Y.; Ahmad, N.; Khan, M.K. From smart parking towards autonomous valet parking: A survey, challenges and future Works. J. Netw. Comput. Appl. 2021, 175, 102935. [Google Scholar] [CrossRef]
  23. Cho, I.J.; Lee, H.K.; Chang, S.I.; Yoon, E. Compliant ultrasound proximity sensor for the safe operation of human friendly robots integrated with tactile sensing capability. J. Electr. Eng. Technol. 2017, 12, 310–316. [Google Scholar] [CrossRef]
  24. Do, Y.; Kim, J. Infrared Range Sensor Array for 3D Sensing in Robotic Applications. Int. J. Adv. Robot. Syst. 2013, 10, 1. [Google Scholar] [CrossRef]
  25. Patel, R.; Cox, R.; Correll, N. Integrated proximity, contact and force sensing using elastomer-embedded commodity proximity sensors. Auton. Robot. 2018, 42, 1443–1458. [Google Scholar] [CrossRef]
  26. Shan, Y.; Speich, J.E.; Leang, K.K. Low-Cost IR Reflective Sensors for Submicrolevel Position Measurement and Control. IEEE/ASME Trans. Mechatronics 2008, 13, 700–709. [Google Scholar] [CrossRef]
  27. Maaspuro, M. Infrared occupancy detection technologies in building automation—A review. ARPN J. Eng. Appl. Sci. 2018, 13, 8055–8068. [Google Scholar]
  28. Chapron, K.; Lapointe, P.; Bouchard, K.; Gaboury, S. Highly Accurate Bathroom Activity Recognition Using Infrared Proximity Sensors. IEEE J. Biomed. Health Inform. 2020, 24, 2368–2377. [Google Scholar] [CrossRef] [PubMed]
  29. Grosse-Puppendahl, T.; Holz, C.; Cohn, G.; Wimmer, R.; Bechtold, O.; Hodges, S.; Reynolds, M.S.; Smith, J. Finding Common Ground: A Survey of Capacitive Sensing in Human–Computer Interaction. In Proceedings of the 2017 CHI Conference on Human Factors in Computing Systems, Denver, CO, USA, 6–11 May 2017. [Google Scholar] [CrossRef] [Green Version]
  30. Castells-Rufas, D.; Borrego-Carazo, J.; Carrabina, J.; Naqui, J.; Biempica, E. Continuous touch gesture recognition based on RNNs for capacitive proximity sensors. Pers. Ubiquitous Comput. 2020, 1–18. [Google Scholar] [CrossRef]
  31. Ye, Y.; Zhang, C.; He, C.; Wang, X.; Huang, J.; Deng, J. A Review on Applications of Capacitive Displacement Sensing for Capacitive Proximity Sensor. IEEE Access 2020, 8, 45325–45342. [Google Scholar] [CrossRef]
  32. Lü, X.; Li, X.; Zhang, F.; Wang, S.; Xue, D.; Qi, L.; Wang, H.; Li, X.; Bao, W.; Chen, R. A Novel Proximity Sensor Based on Parallel Plate Capacitance. IEEE Sens. J. 2018, 18, 7015–7022. [Google Scholar] [CrossRef]
  33. Li, N.; Zhu, H.; Wang, W.; Gong, Y. Parallel double-plate capacitive proximity sensor modelling based on effective theory. Aip Adv. 2014, 4, 027119. [Google Scholar] [CrossRef]
  34. Rus, S.; Grosse-Puppendahl, T.; Kuijper, A. Evaluating the recognition of bed postures using mutual capacitance sensing. J. Ambient Intell. Smart Environ. 2017, 9, 113–127. [Google Scholar] [CrossRef]
  35. Čoko, D.; Rodić, L.D.; Perković, T.; Šolić, P. Geometry from Thin Air: Theremin as a Playful Learning Device. In Proceedings of the 2021 16th International Conference on Telecommunications (ConTEL), Zagreb, Croatia, 30 June–2 July 2021; pp. 89–96. [Google Scholar]
  36. Skeldon, K.D.; Reid, L.M.; McInally, V.; Dougan, V.B.; Fulton, C. Physics of the Theremin. Am. J. Phys. 1998, 66, 945–955. [Google Scholar] [CrossRef] [Green Version]
  37. Zhao, J.; Fang, J.; Wang, S.; Wang, K.; Liu, C.; Han, T. Obstacle Avoidance of Multi-Sensor Intelligent Robot Based on Road Sign Detection. Sensors 2021, 21, 6777. [Google Scholar] [CrossRef]
  38. Arantes, C.; Esteves, J.S. Omnidirectional Mobile Robot Platform with Four Mecanum Wheels Featuring Remote Motion Control Through Either a Graphical Application or an Inertial Measurement Unit. In International Conference on Innovation, Engineering and Entrepreneurship; Springer: Berlin/Heidelberg, Germany, 2018; pp. 32–38. [Google Scholar]
  39. Vignesh, R.; Venkatesh, D.; Bhaskar, K. Design of a small mobile robot using an efficient heuristic approach for reduced travel time avoiding obstacles. In Proceedings of the 2012 IEEE International Conference on Computational Intelligence and Computing Research, Coimbatore, India, 18–20 December 2012; pp. 1–8. [Google Scholar] [CrossRef]
  40. Hartley, A.; Zisserman, A. Multiple View Geometry in Computer Vision, 2nd ed.; Cambridge University Press: New York, NY, USA, 2003. [Google Scholar]
  41. Szeliski, R. Computer Vision: Algorithms and Applications, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2010. [Google Scholar]
  42. Häger-Ross, C.; Schieber, M.H. Quantifying the Independence of Human Finger Movements: Comparisons of Digits, Hands, and Movement Frequencies. J. Neurosci. 2000, 20, 8542–8550. [Google Scholar] [CrossRef] [Green Version]
  43. McGrath, M.J.; Scanaill, C.N. Sensing and Sensor Fundamentals. In Sensor Technologies: Healthcare, Wellness, and Environmental Applications; Apress: Berkeley, CA, USA, 2013; pp. 15–50. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Different types of proximity sensors depending on the physical phenomenon utilized for sensing with representatives of each type.
Figure 1. Different types of proximity sensors depending on the physical phenomenon utilized for sensing with representatives of each type.
Electronics 11 00393 g001

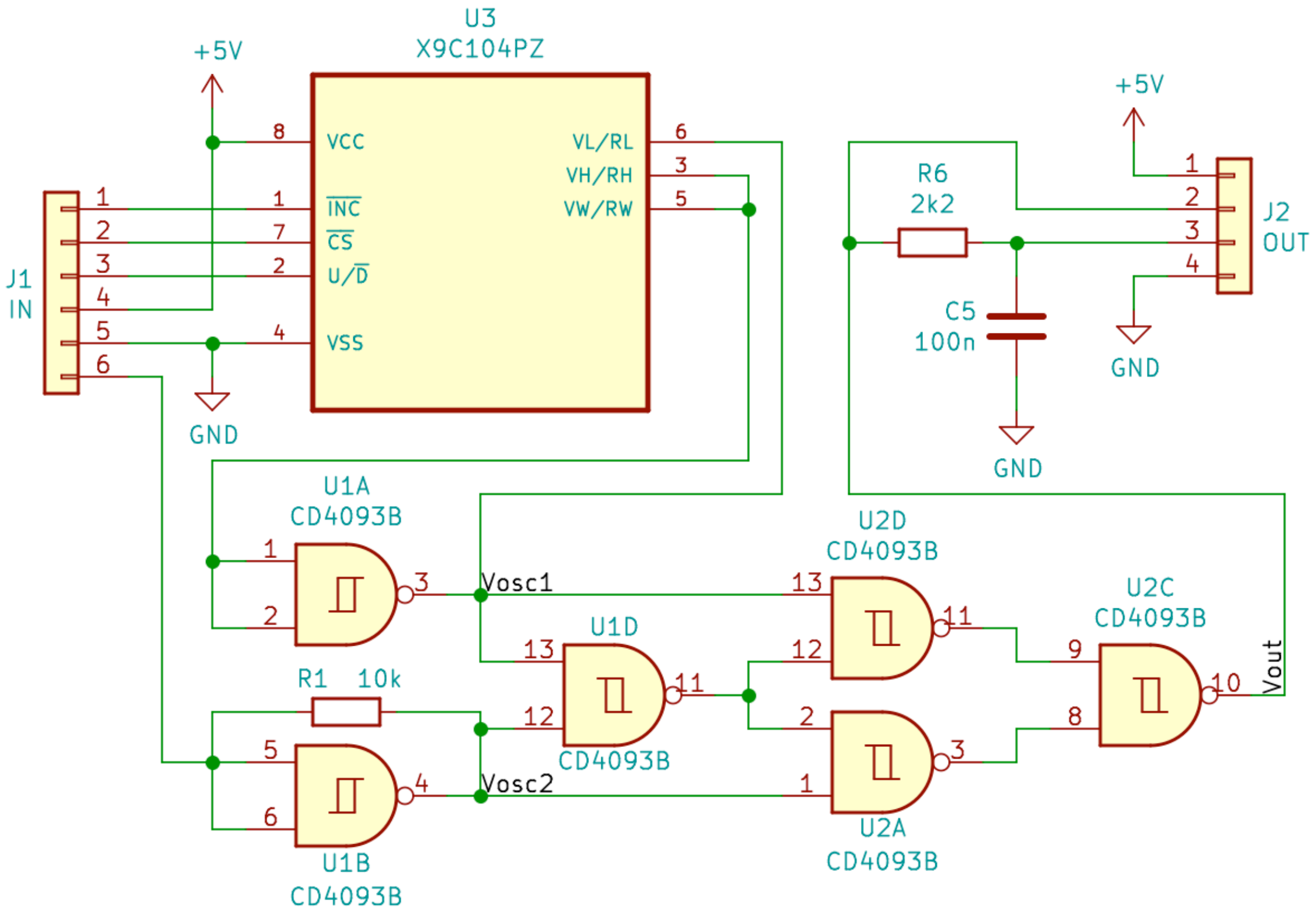

Figure 2. Schematic of the proposed device.
Figure 2. Schematic of the proposed device.
Electronics 11 00393 g002

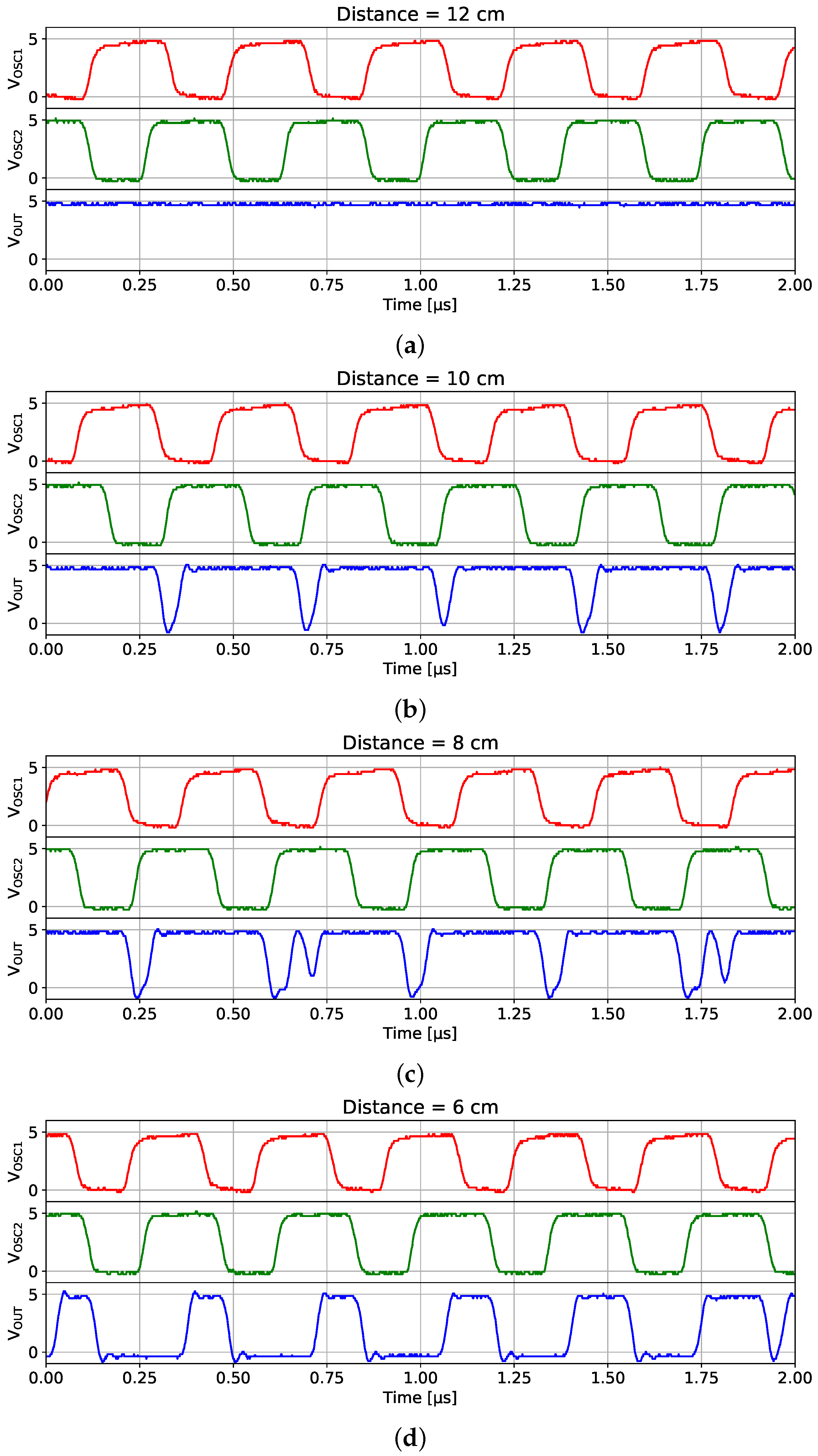

Figure 3. Measured waveforms at the inputs and output of the mixing stage at different distances: (a) 12 cm. (b) 10 cm. (c) 8 cm. (b) 10 cm. (d) 6 cm.
Figure 3. Measured waveforms at the inputs and output of the mixing stage at different distances: (a) 12 cm. (b) 10 cm. (c) 8 cm. (b) 10 cm. (d) 6 cm.
Electronics 11 00393 g003

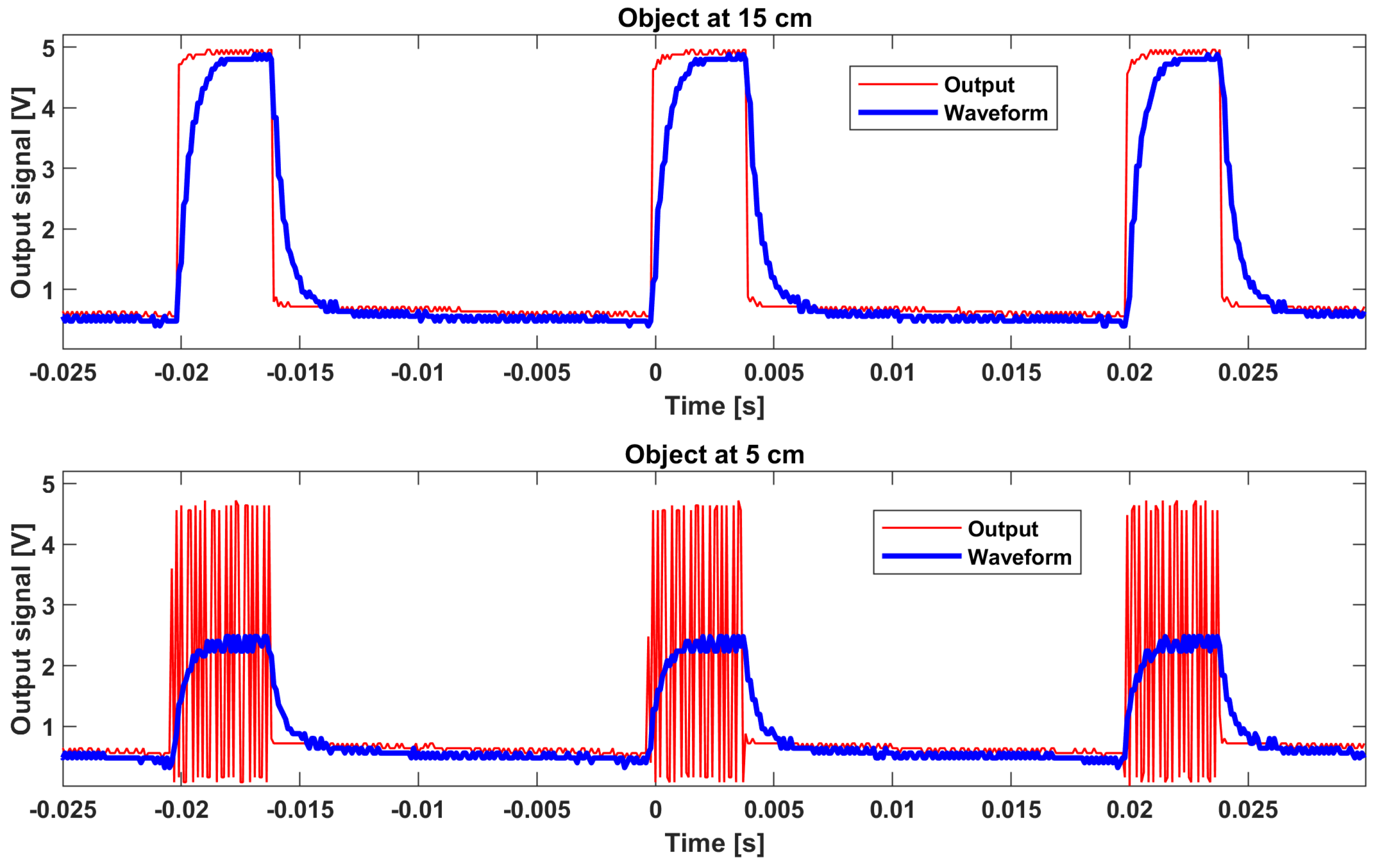

Figure 4. Voltages at the input (red) and output (blue) of the passive RC filter.
Figure 4. Voltages at the input (red) and output (blue) of the passive RC filter.
Electronics 11 00393 g004

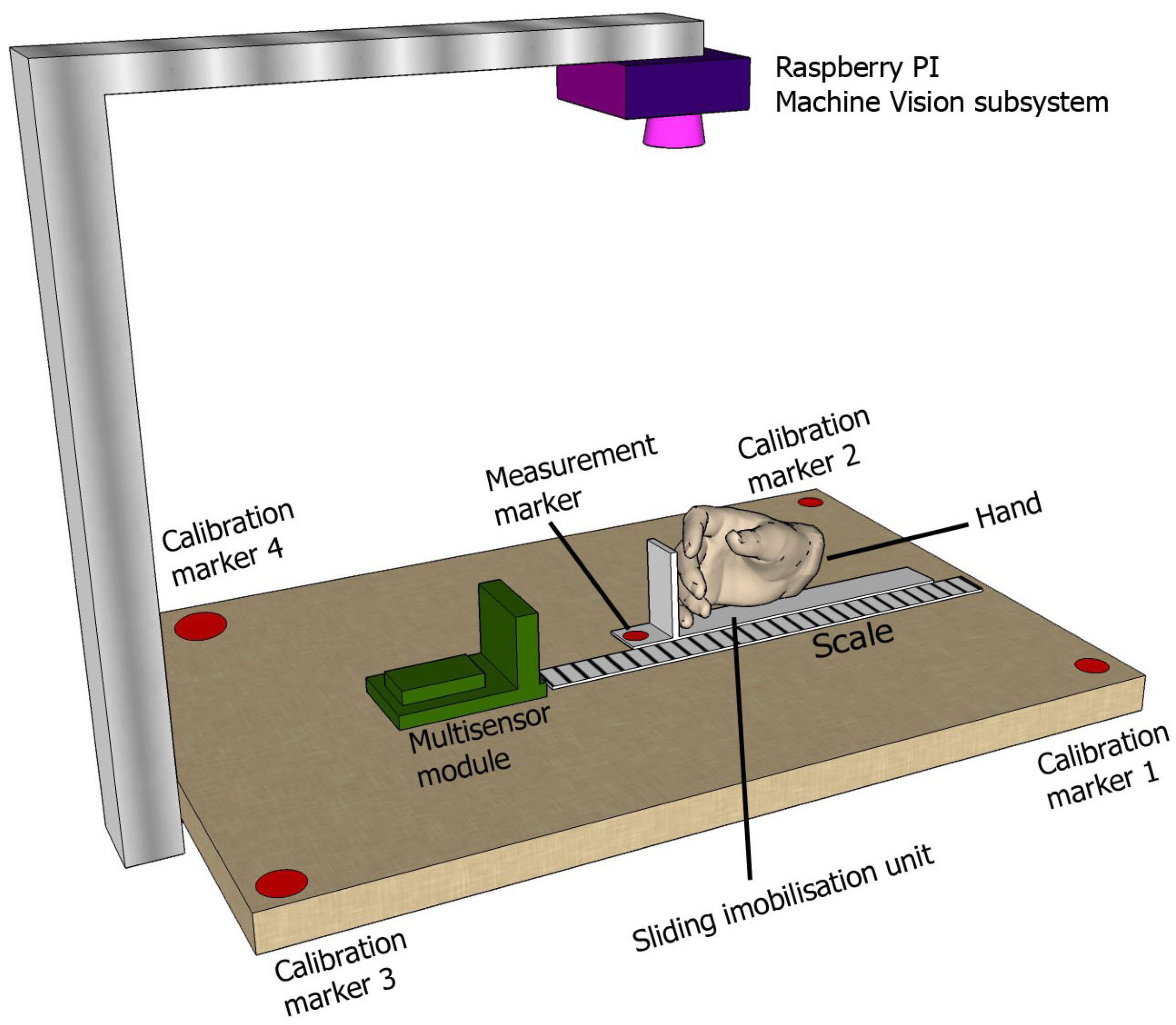

Figure 5. Illustration of the measurement setup.
Figure 5. Illustration of the measurement setup.
Electronics 11 00393 g005

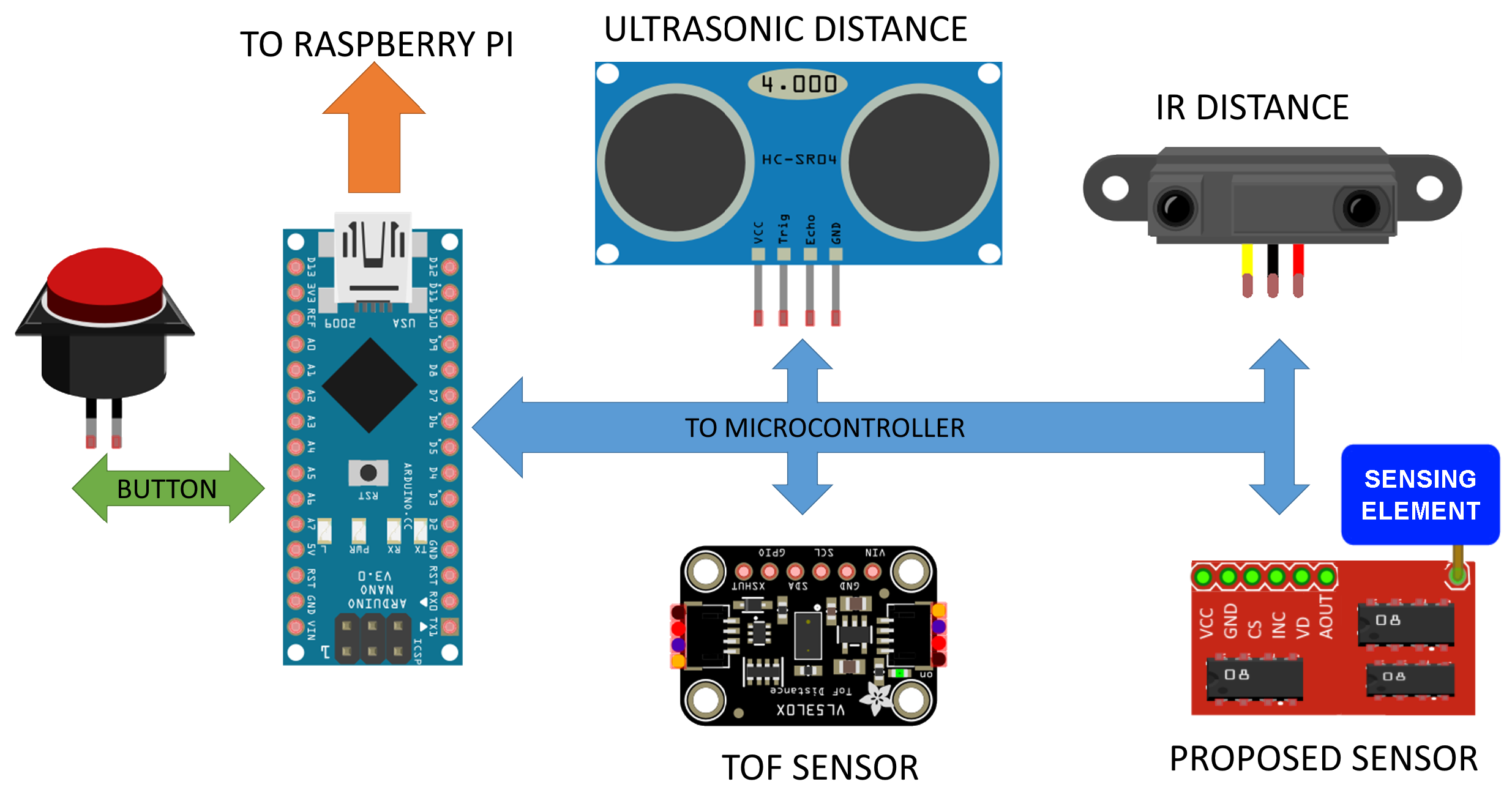

Figure 6. Diagram representing components of the sensors subsystem.
Figure 6. Diagram representing components of the sensors subsystem.
Electronics 11 00393 g006
Figure 7. Distance measurement characteristics graph for the proposed sensor.
Figure 7. Distance measurement characteristics graph for the proposed sensor.
Electronics 11 00393 g007

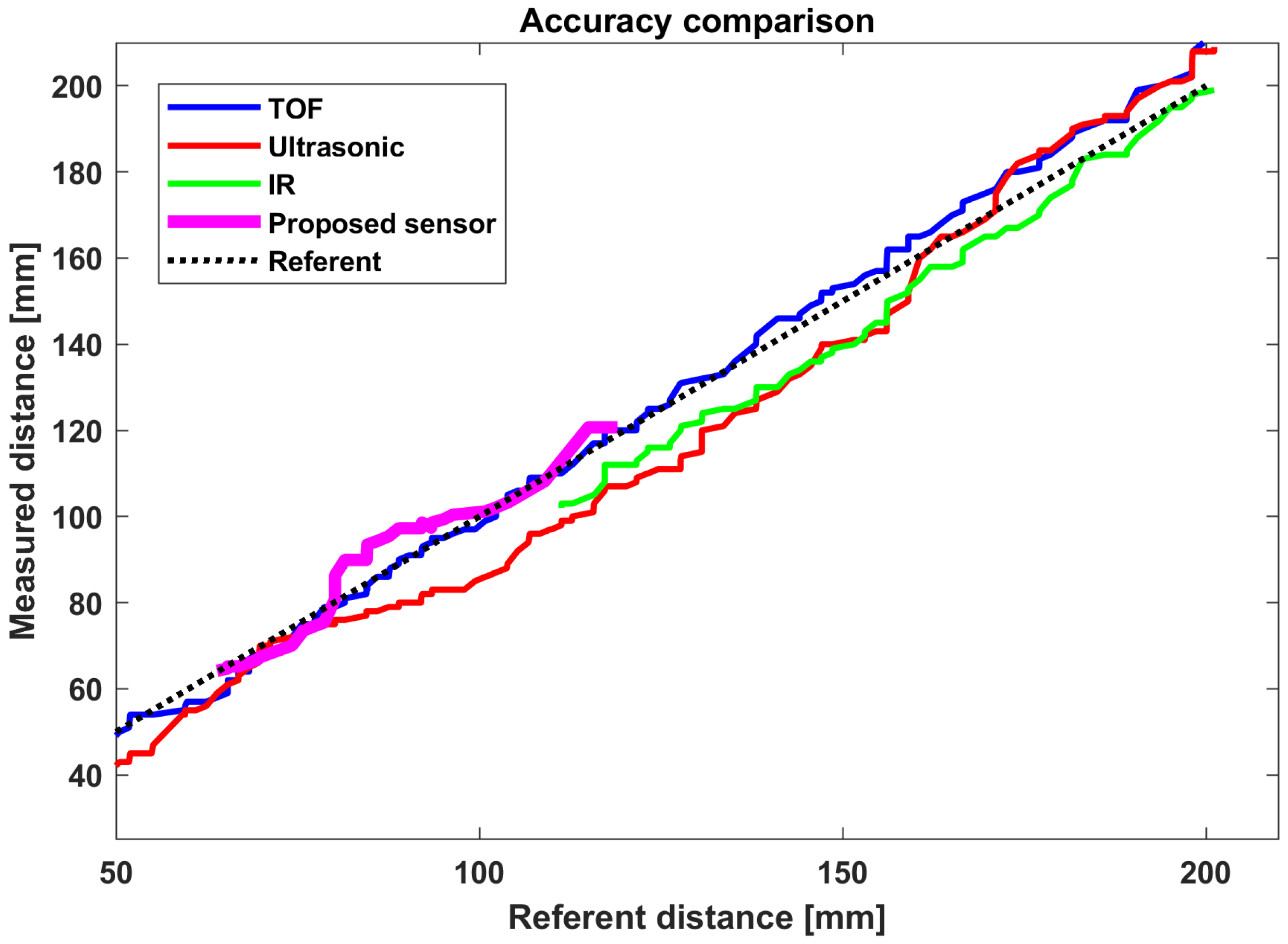

Figure 8. Accuracy comparison for several sensors used in sensor subsystem.
Figure 8. Accuracy comparison for several sensors used in sensor subsystem.
Electronics 11 00393 g008

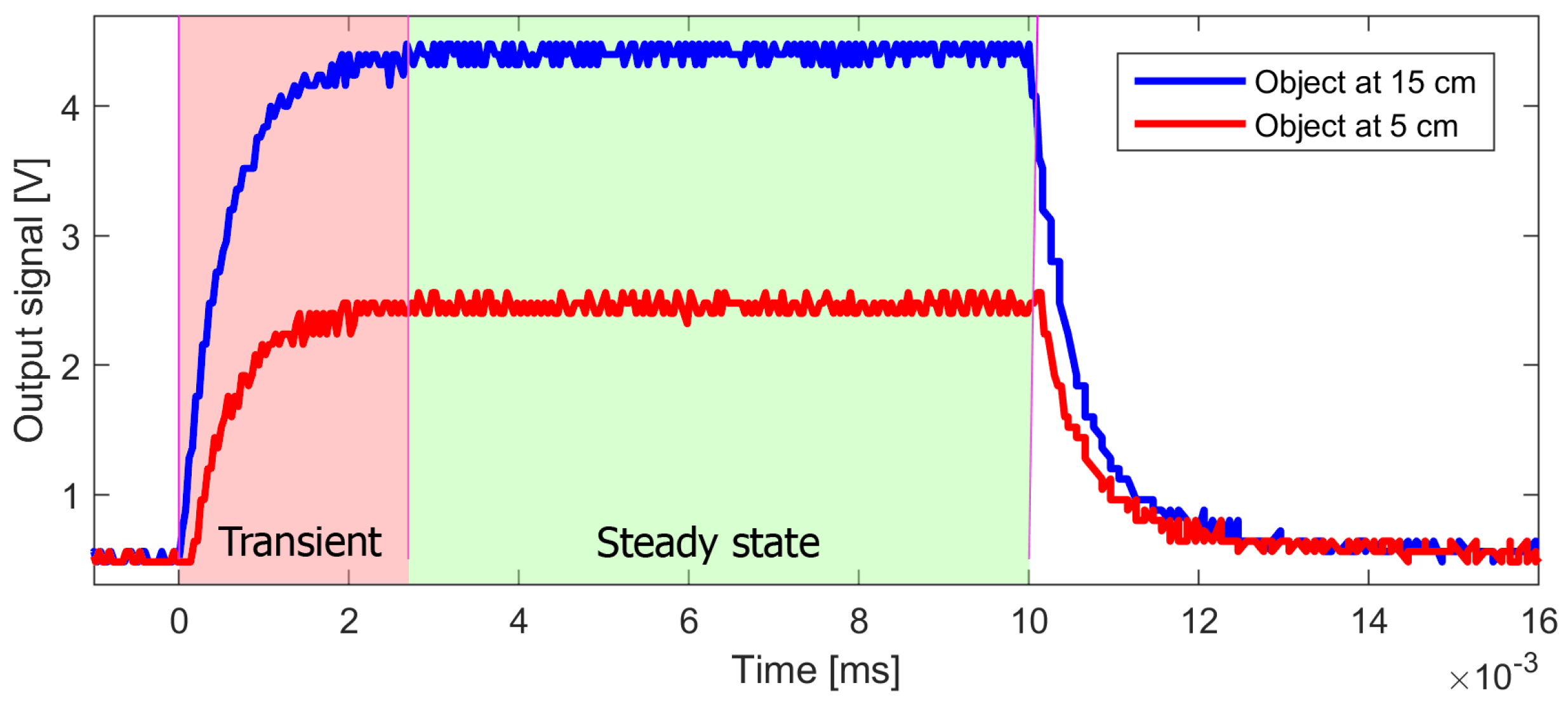

Figure 9. Sensor output response for a single reading.
Figure 9. Sensor output response for a single reading.
Electronics 11 00393 g009

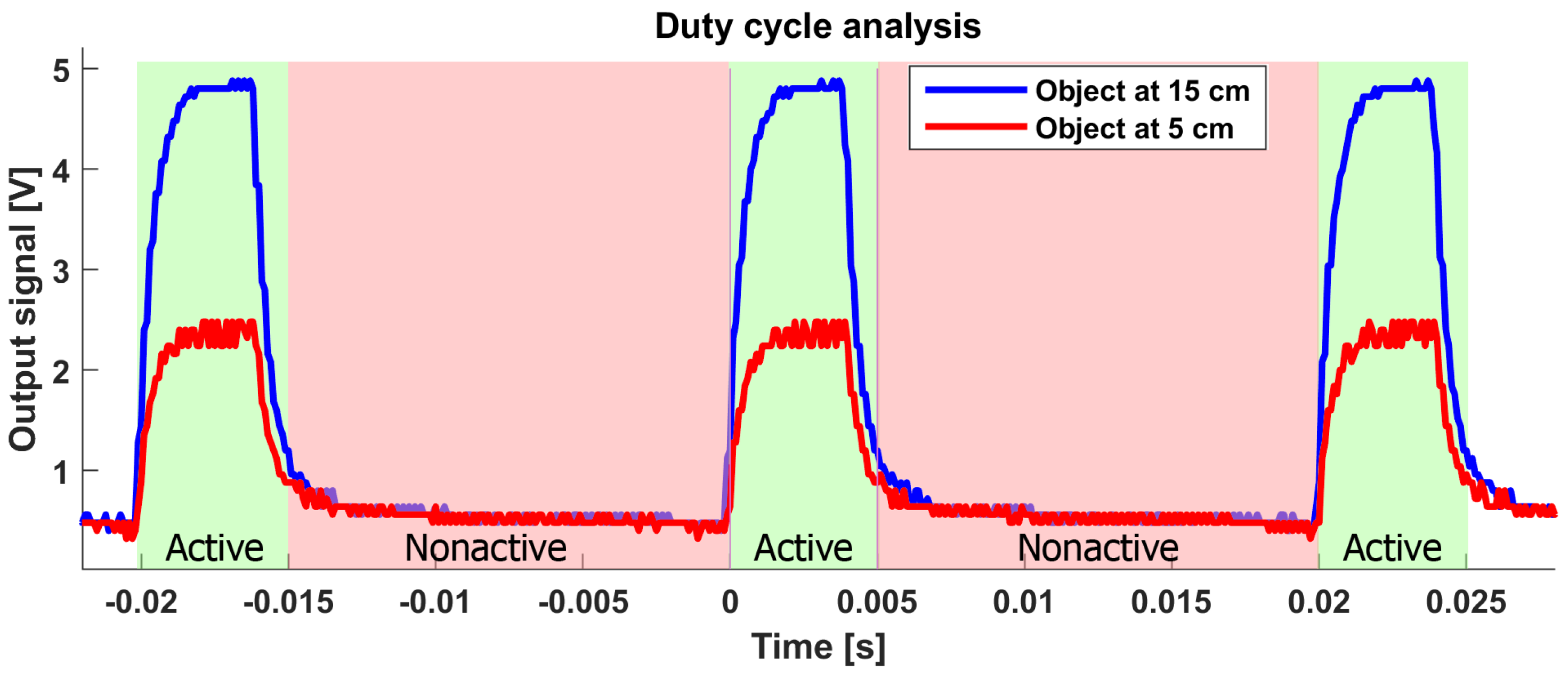

Figure 10. Oscillogram of analog sensor output at 50 Hz and 20% duty cycle.
Figure 10. Oscillogram of analog sensor output at 50 Hz and 20% duty cycle.
Electronics 11 00393 g010
Table 1. Measured characteristics and power consumption for sensors used in the sensor subsystem.
Table 1. Measured characteristics and power consumption for sensors used in the sensor subsystem.
Sensor Type
RMSE [mm]3.729.637.714.68
MAE [mm]0.966.757.052.15
STD [mm]3.606.883.154.23
Power consumption [mW]20751505
Table 2. Comparison of usable range and measuring angle for several used proximity and distance sensors.
Table 2. Comparison of usable range and measuring angle for several used proximity and distance sensors.
HC-SR04GP2Y0A21VL53L0XTSSP77038Proposed Sensor
Range [cm]2–40010–800–2000–605–10
Measuring angle [deg]15–30N/AN/A100360
