EMC Impact of Disturbances Generated by Multiple Sources
Abstract
:1. Introduction
- -
- The proposed method uses the surface equivalent theory to calculate the electric and magnetic current densities (or fields) on a rectangular cuboid around each EMI source. This method allows any arbitrary number of different devices with different radiation patterns to be used to estimate the radiated emissions.
- -
- The locations and orientations of each EUT can be randomly selected. The proposed method does not have any restrictions on this point. After calculating the electric and magnetic current densities (or fields) for each source, these current densities (or fields) can be randomly positioned and/or rotated.
- -
- -
2. Methods: Application of the Surface Equivalence Theorem
- -
- The full-wave solution of Maxwell’s equations for each EMI source is calculated only once in the determination of the equivalent sources. Alternatively, the near-field measurements to obtain the equivalent surface current densities of the real-world EMI source can be performed once.
- -
- Translation, rotation, assumed phase of the EMI sources, and changes in the observation point(s) do not affect the distribution of the equivalent surface current densities.
- -
- The equivalent surface current densities can be calculated or measured on an arbitrarily shaped surface, which can be determined based on the considered device (EMI source).
- -
- The total radiated emissions from multiple EMI sources can be easily calculated analytically by considering the equivalent surface current densities of each EMI source simultaneously.

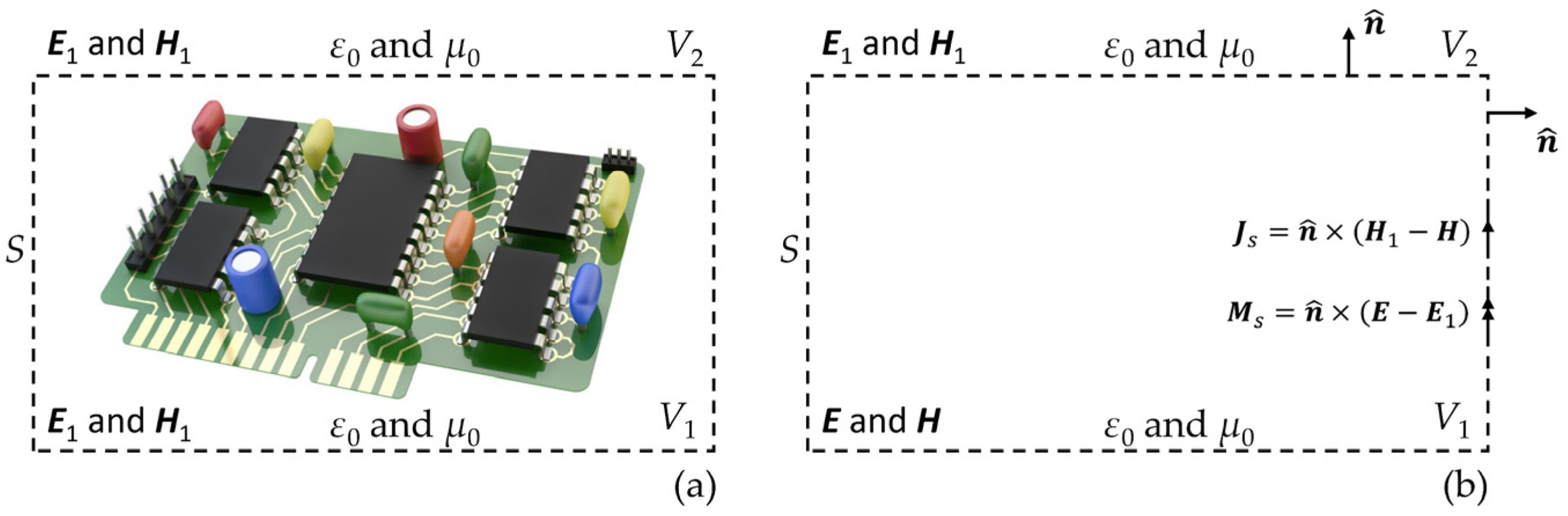

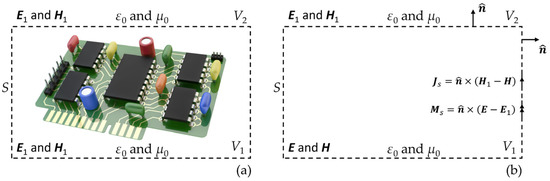

2.1. Theory of Surface Equivalence for a Single EMI Source

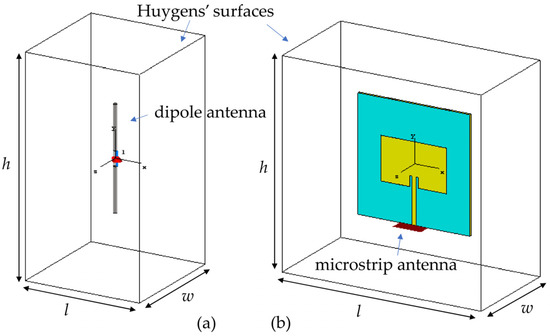

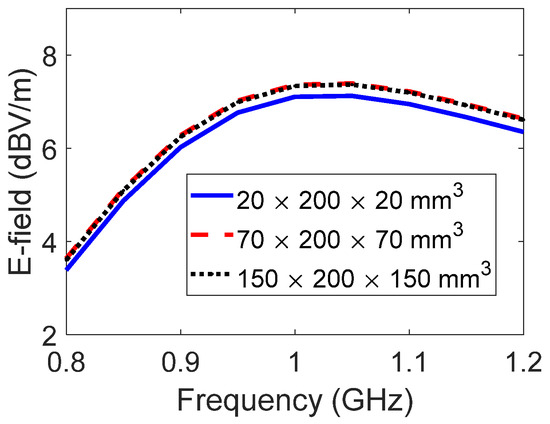

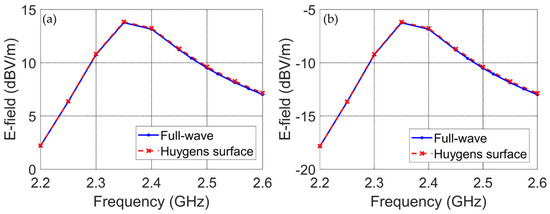

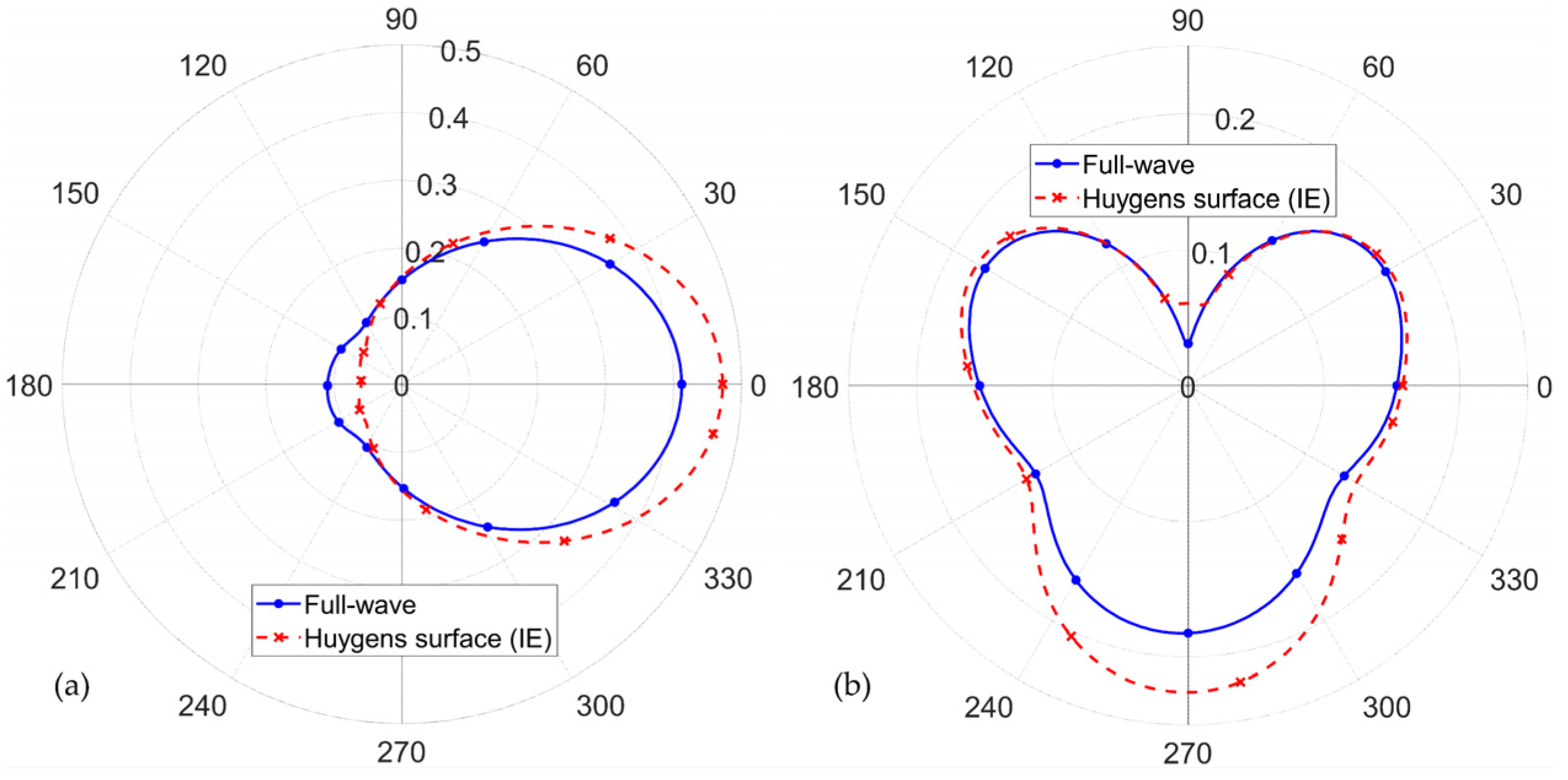

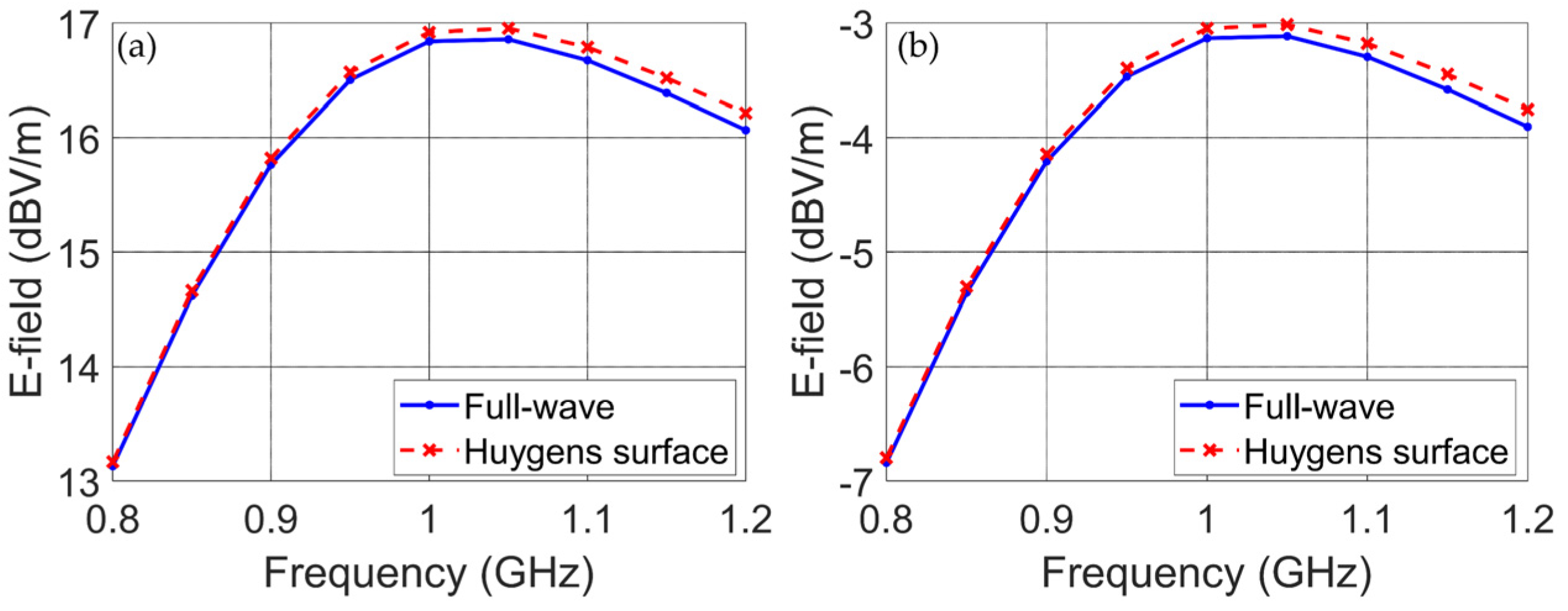

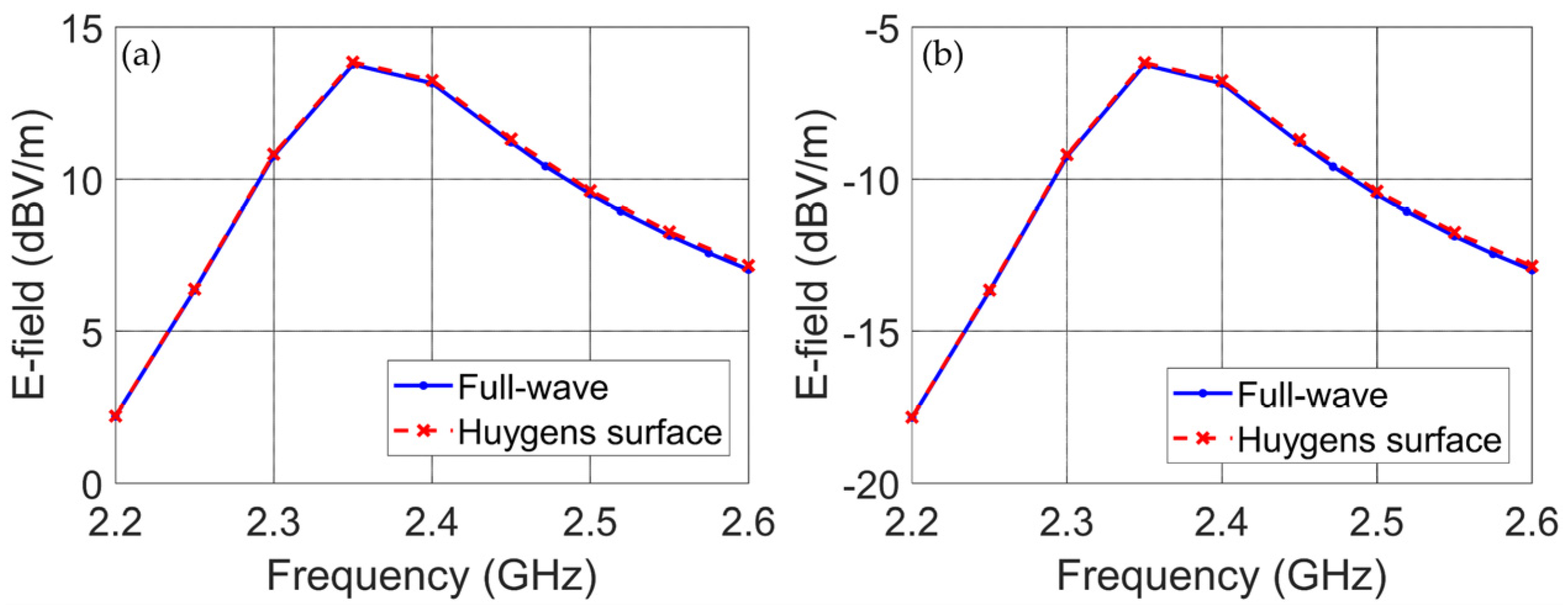

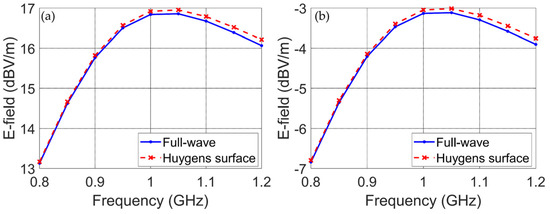

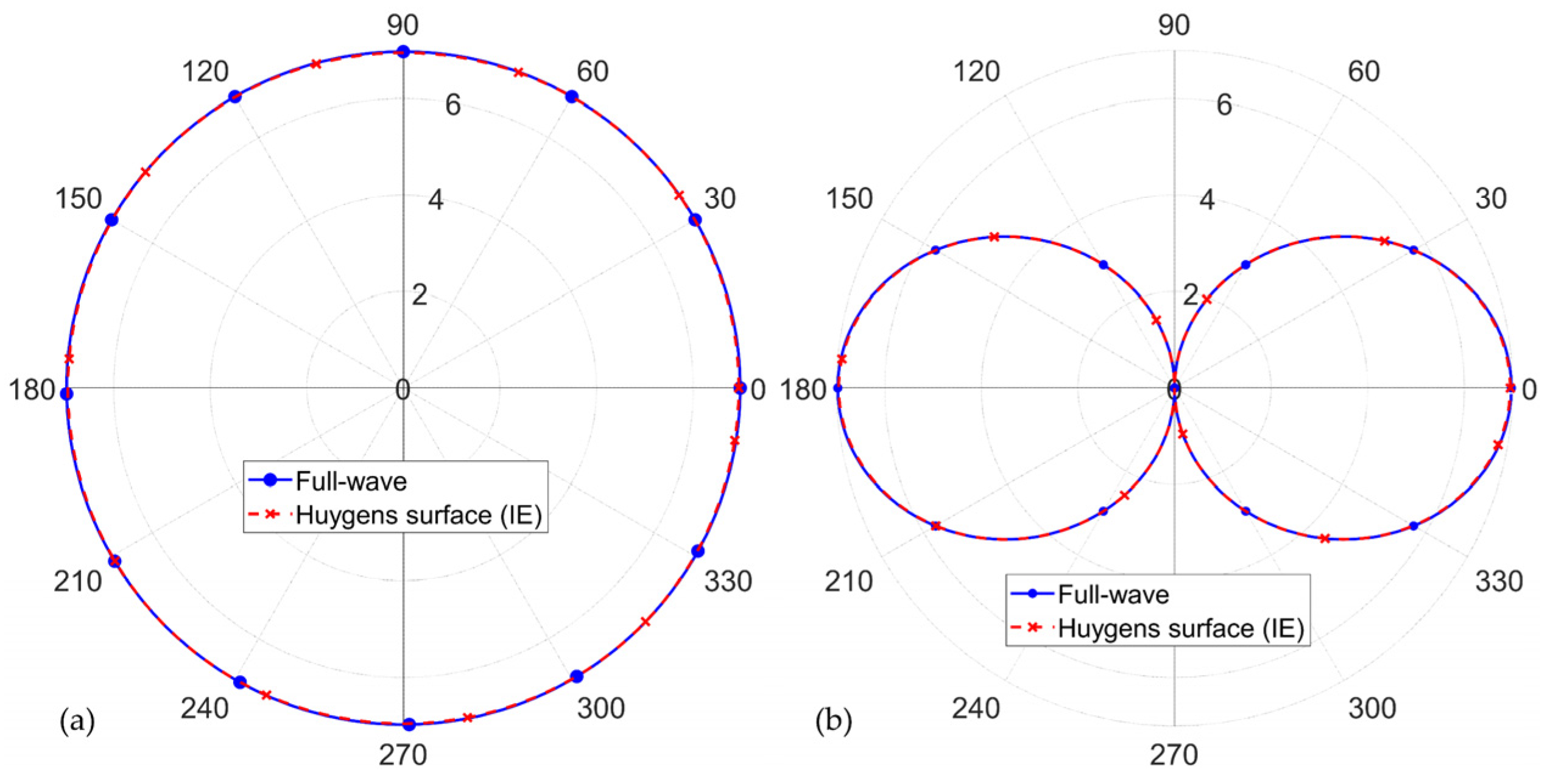

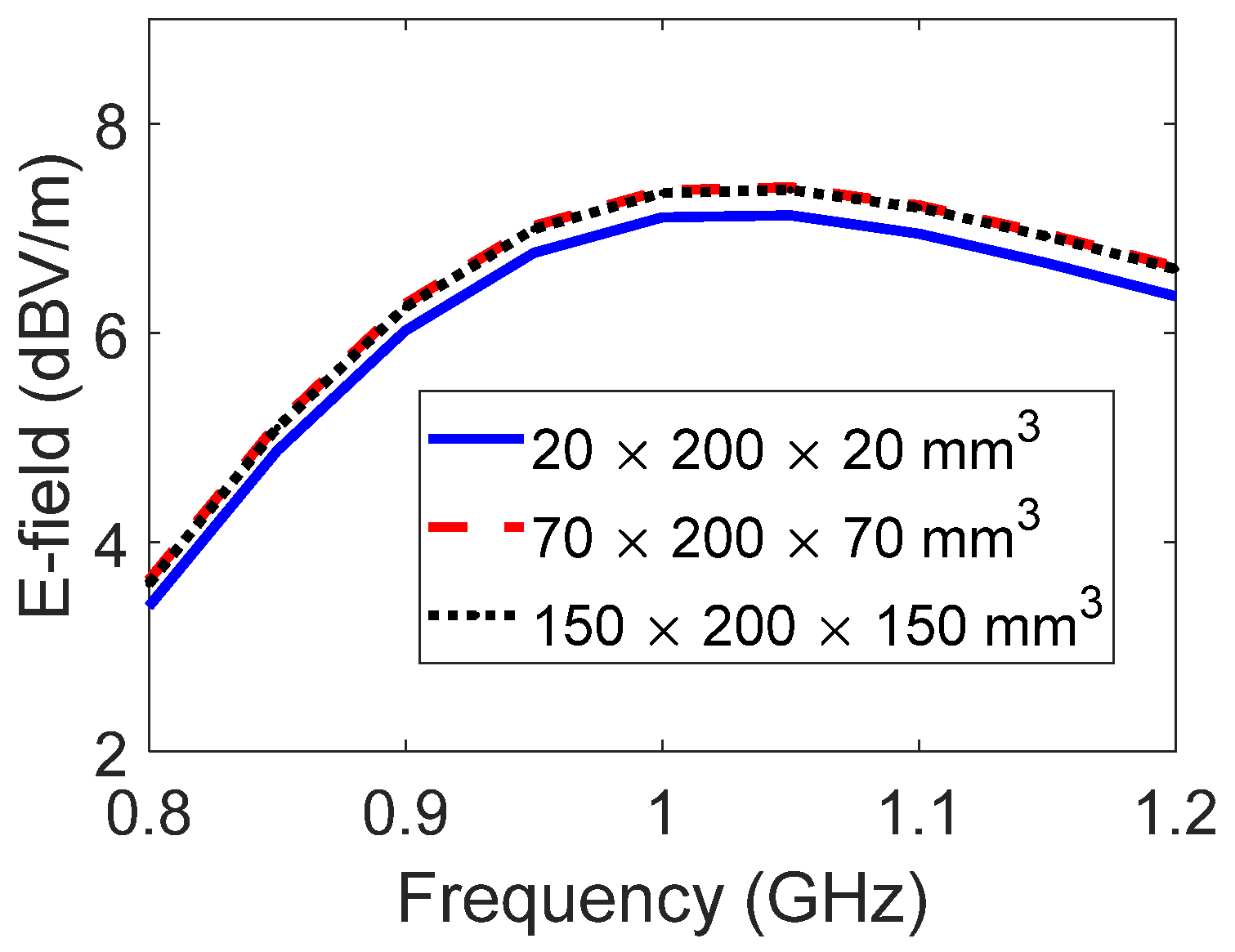

2.2. Numerical Implementation of the Surface Equivalence Theorem and Validation for a Single Device

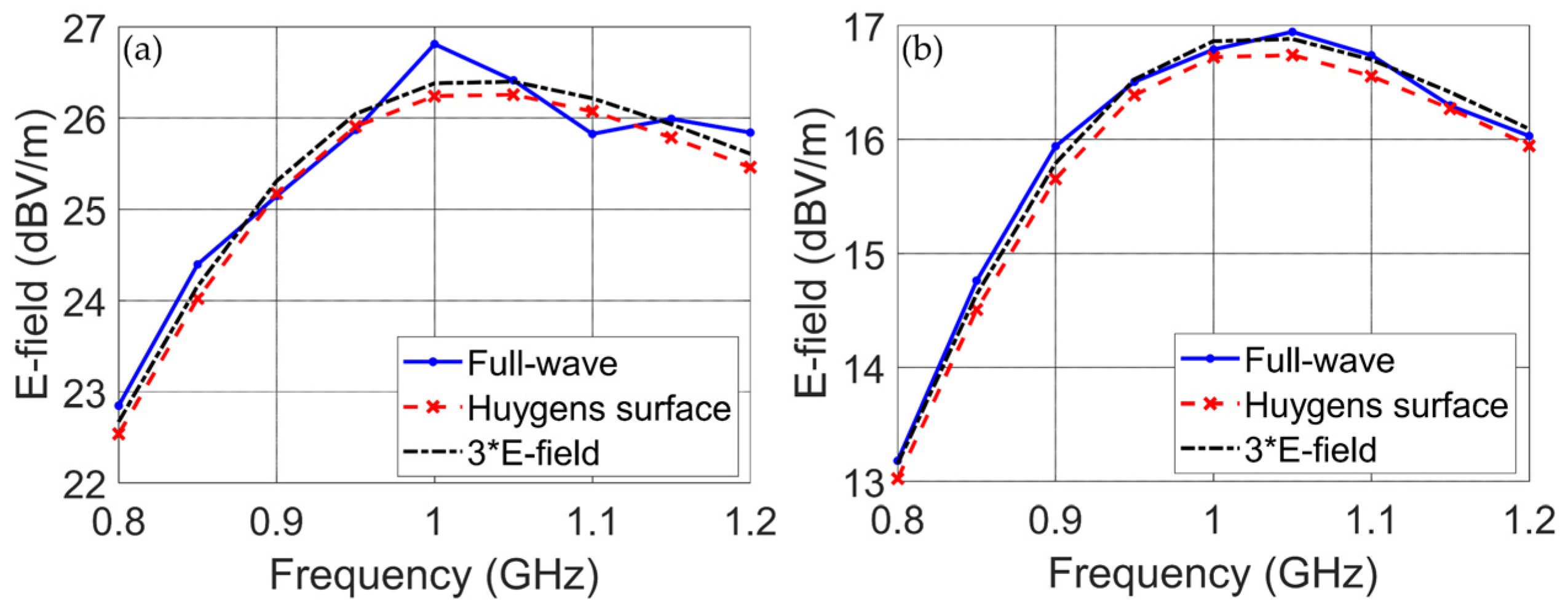

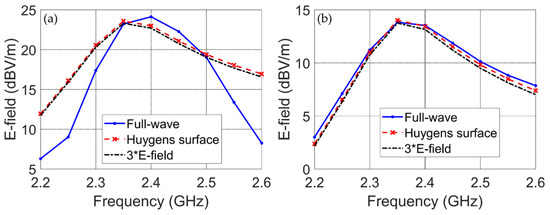

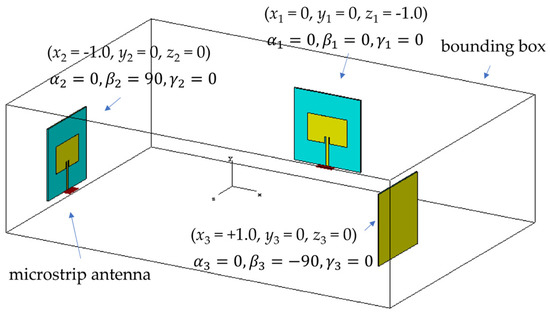

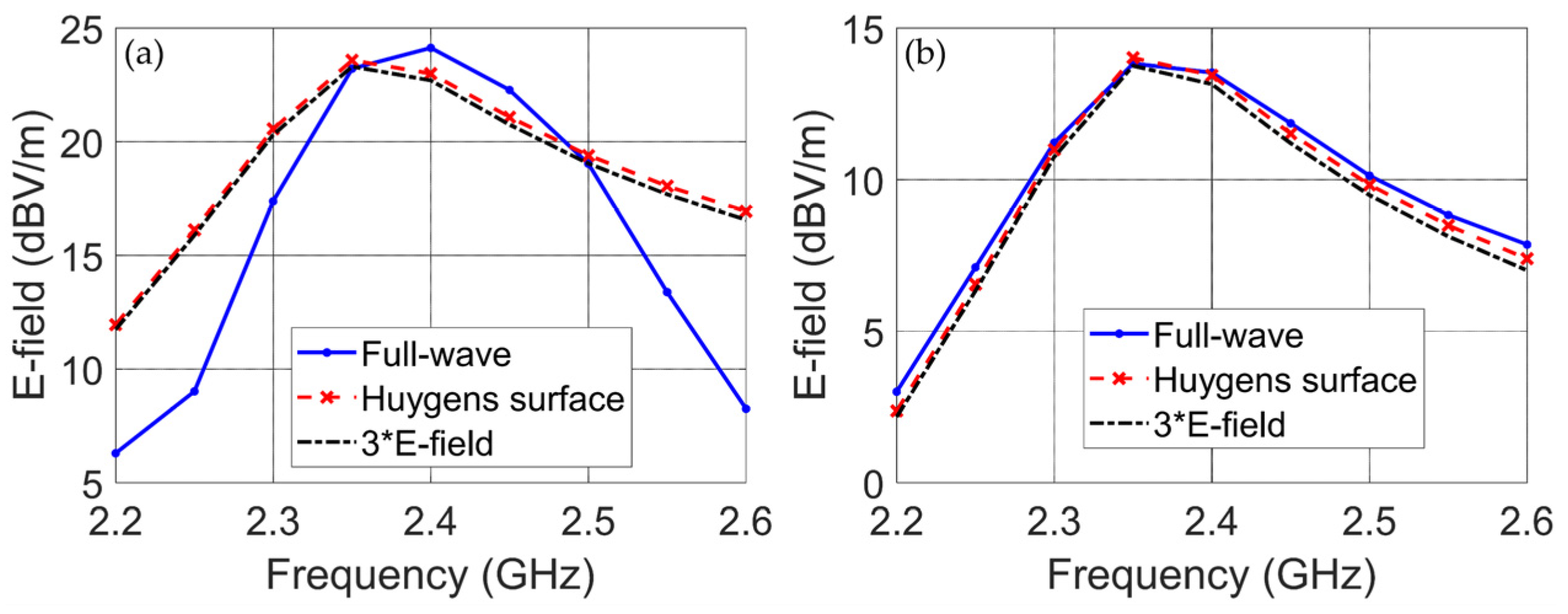

2.3. Calculation of Radiated Emission from Multiple EMI Sources Using the Surface Equivalence Theorem
3. Application of the Method to Calculate the Radiated Emissions from Multiple Devices
3.1. The Considered Configurations of EMI Sources

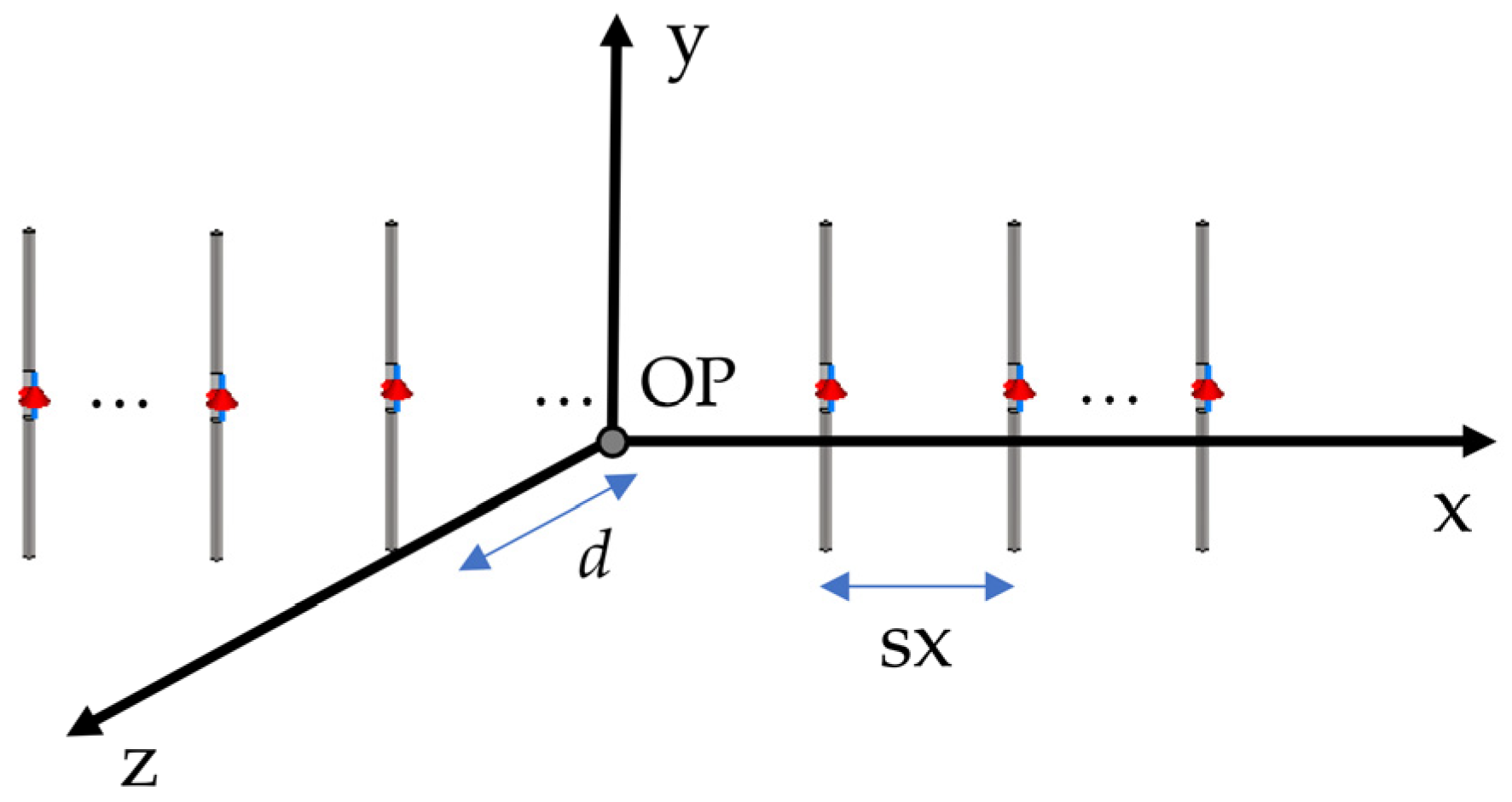

3.1.1. One-Dimensional Linear Array of EMI Sources

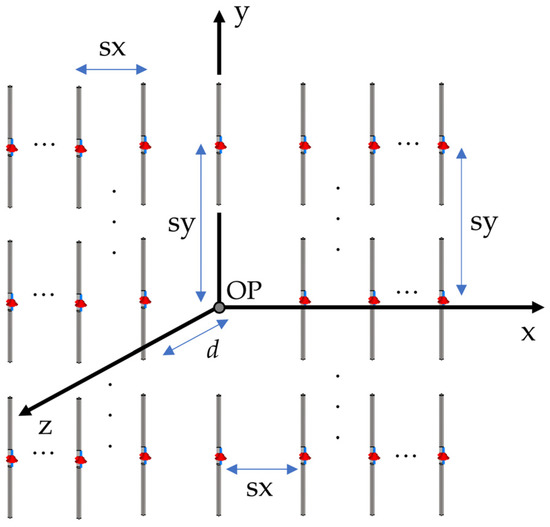

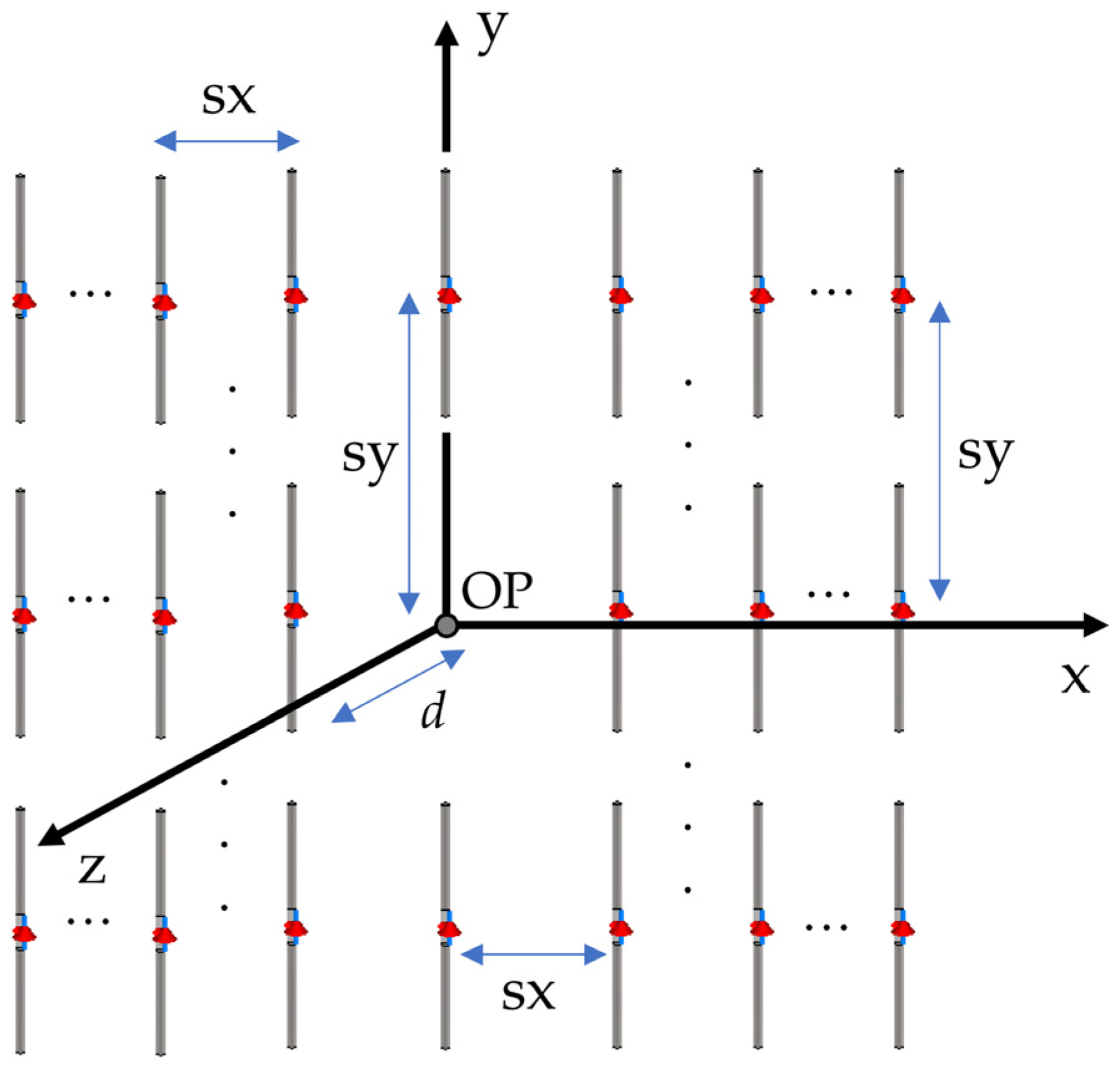

3.1.2. Two-Dimensional Rectangular Array of EMI Sources

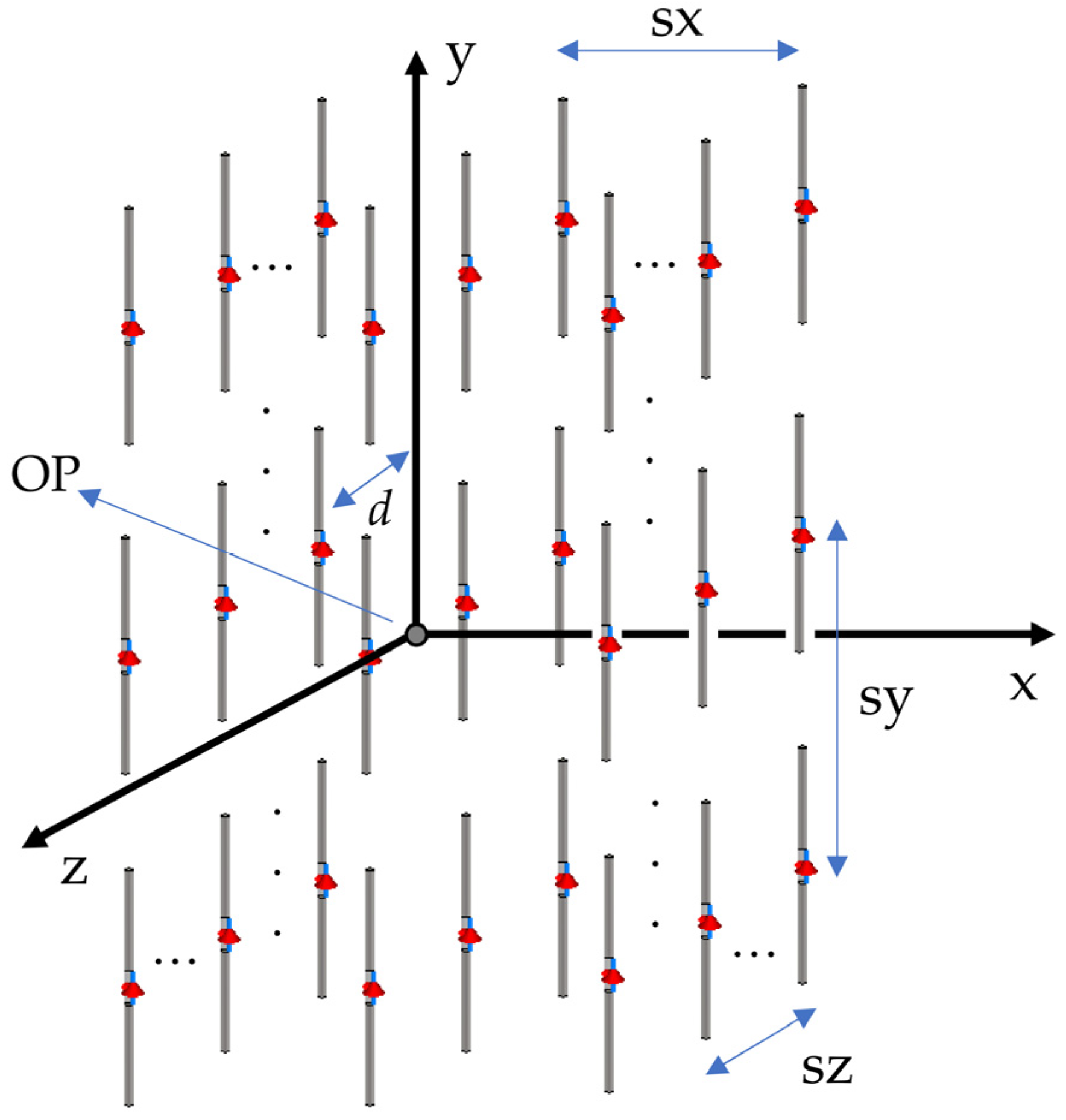

3.1.3. Three-Dimensional Array of EMI Sources

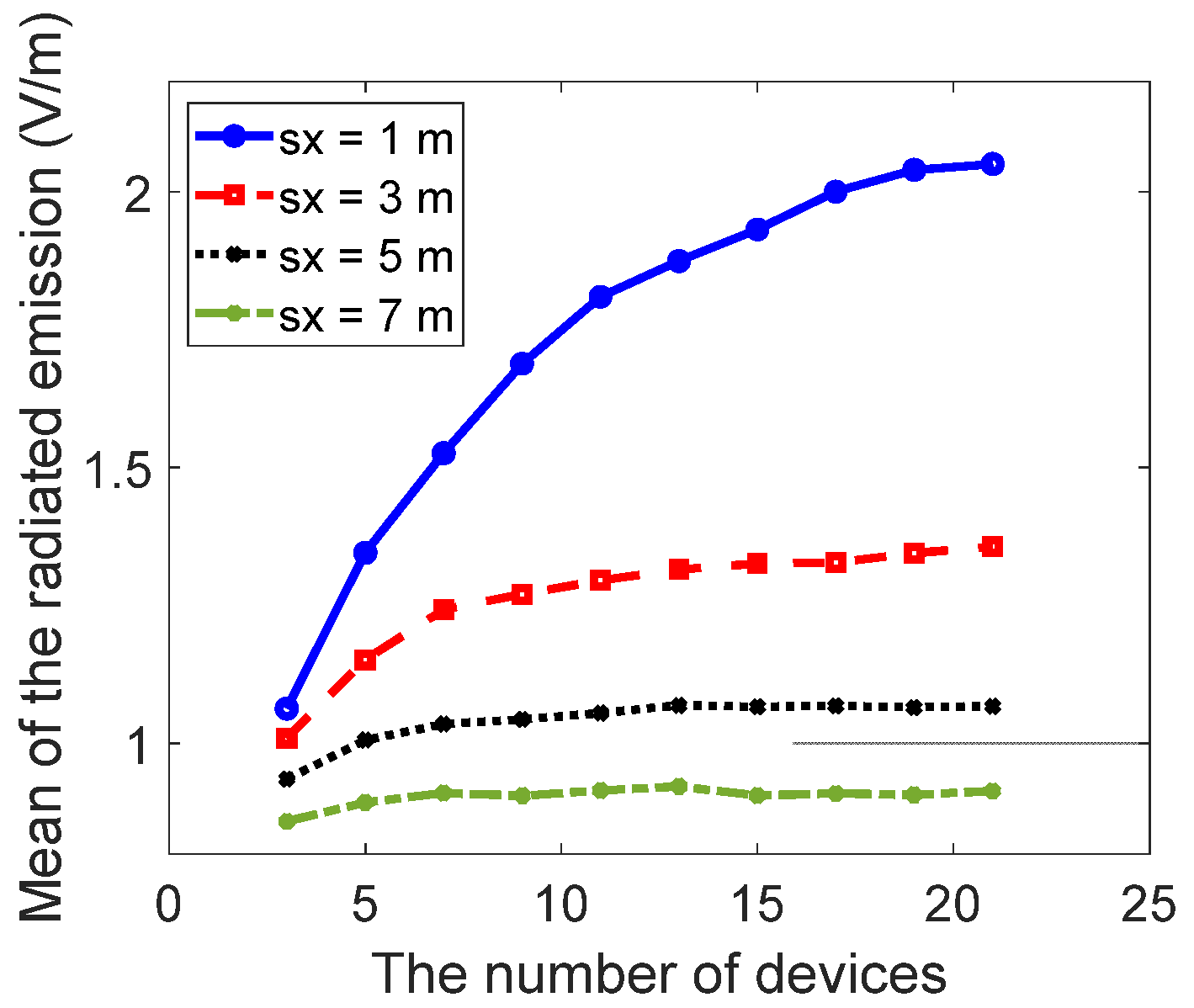

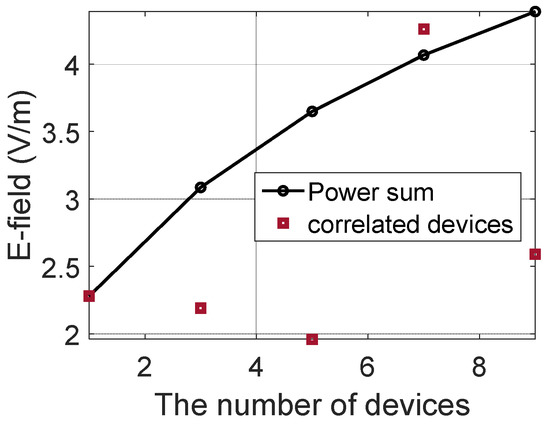

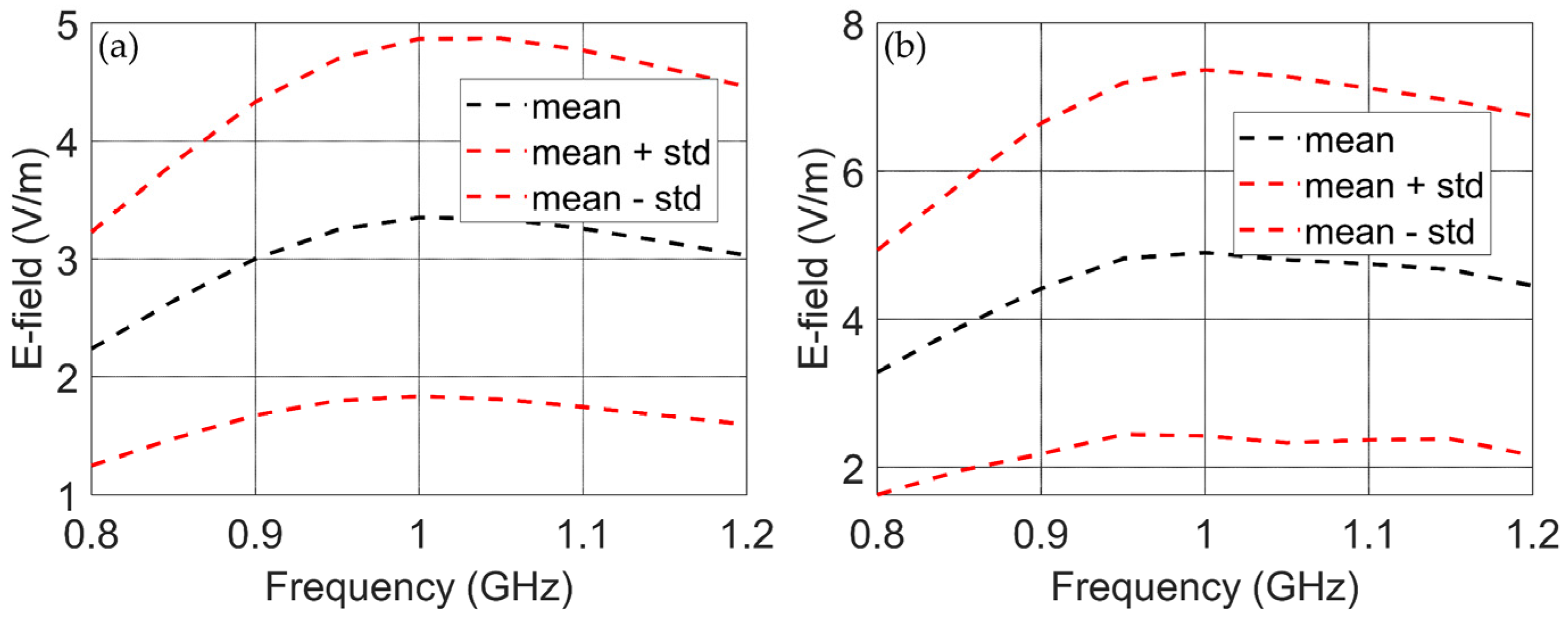

3.2. Radiation from Multiple EMI Sources Configured in a One-Dimensional Linear Array

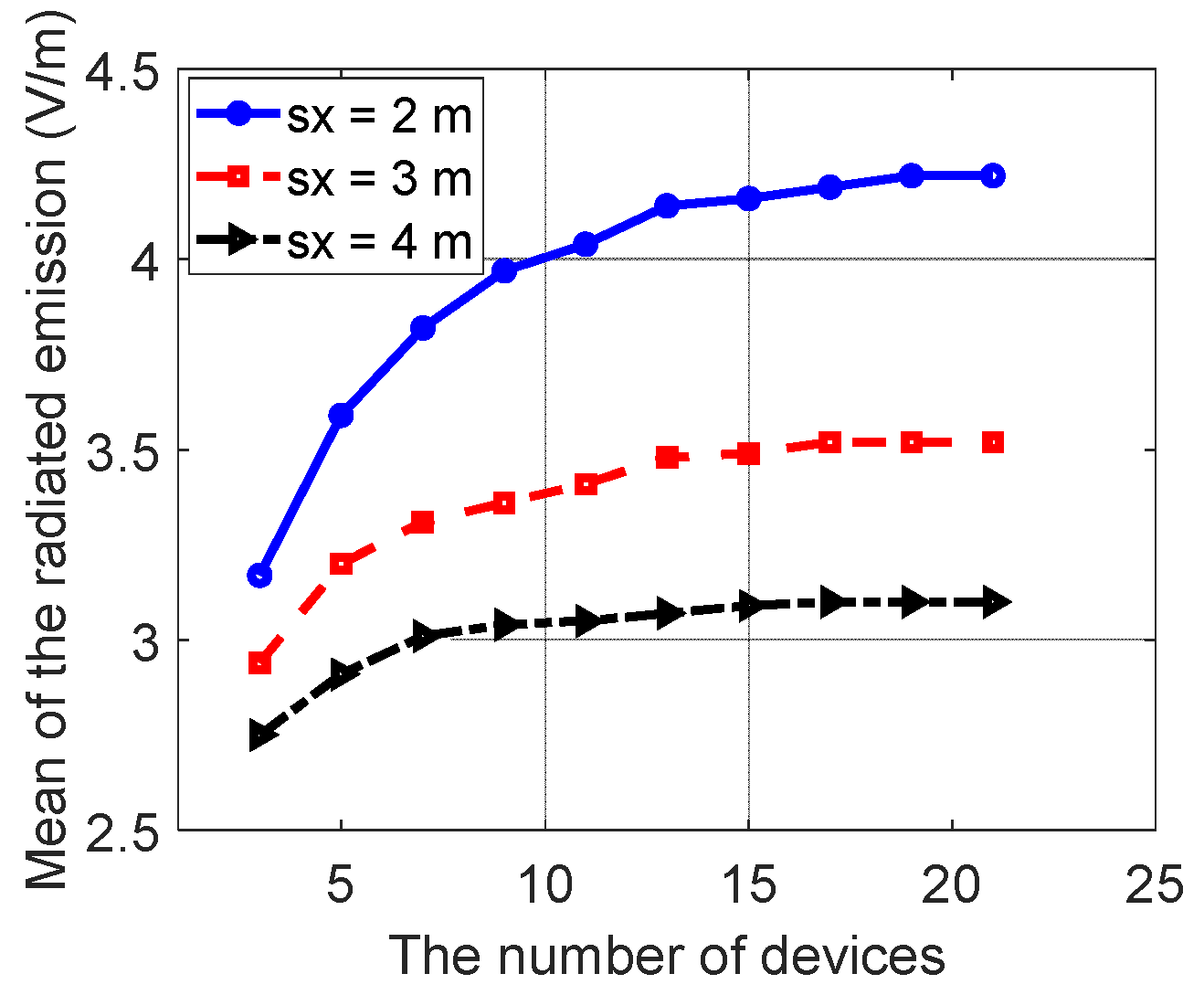

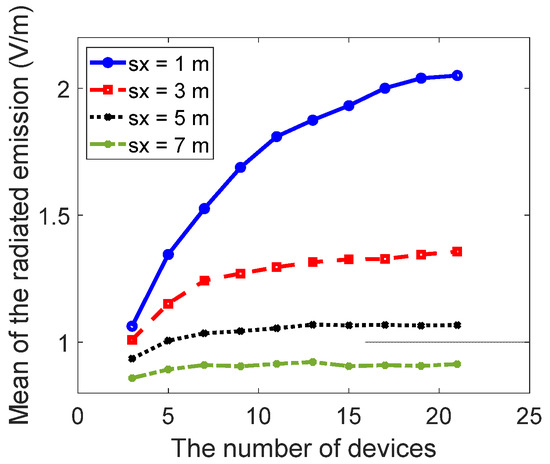

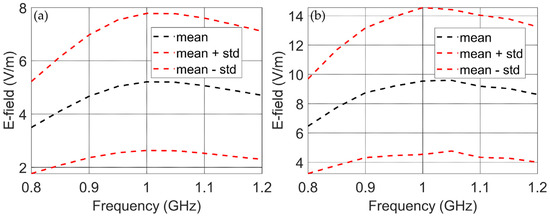

3.3. Radiation from Multiple EMI Sources Configured in a Two-Dimensional Linear Array
3.4. Radiation from Multiple EMI Sources Configured in a Three-Dimensional Linear Array

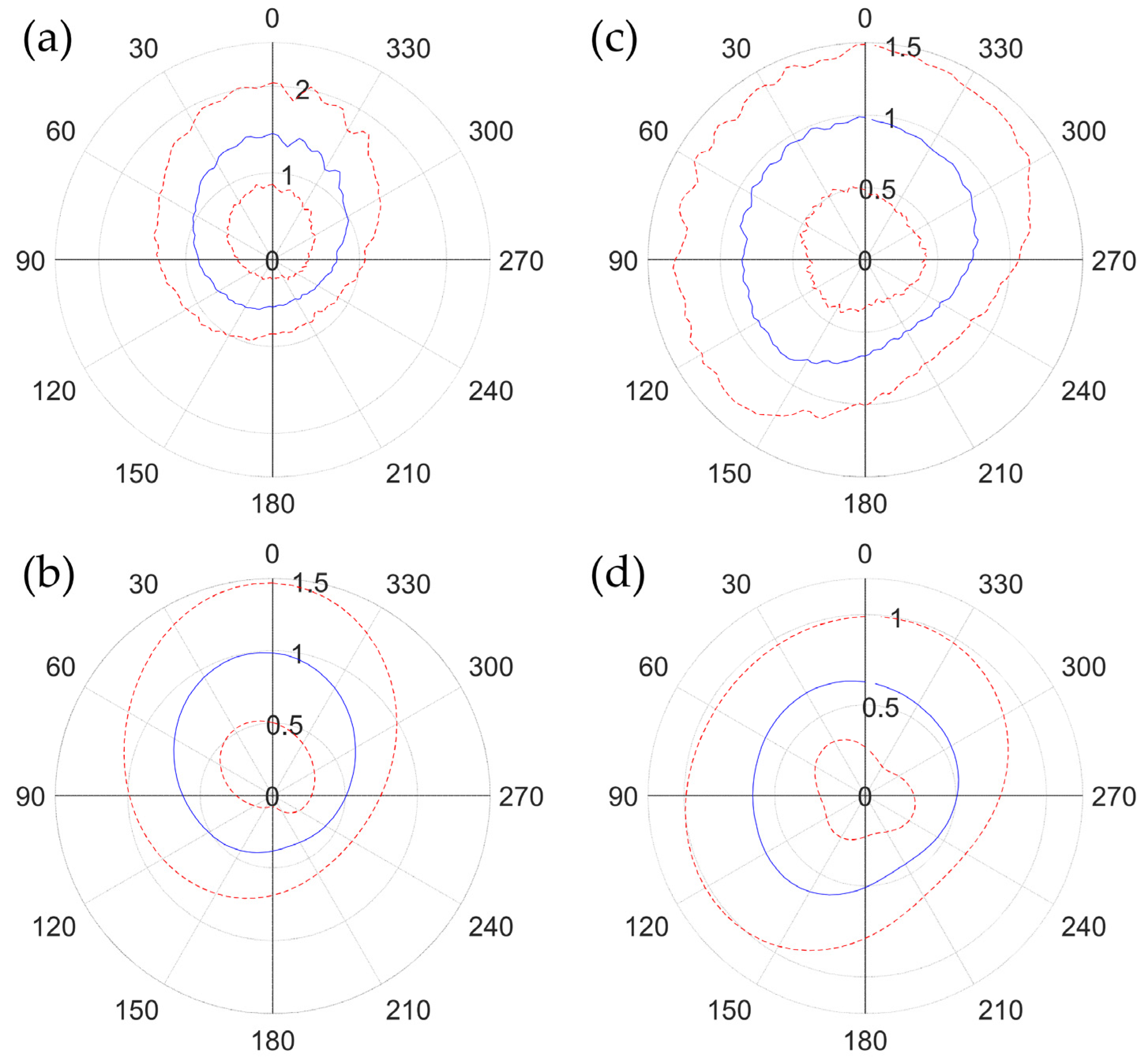

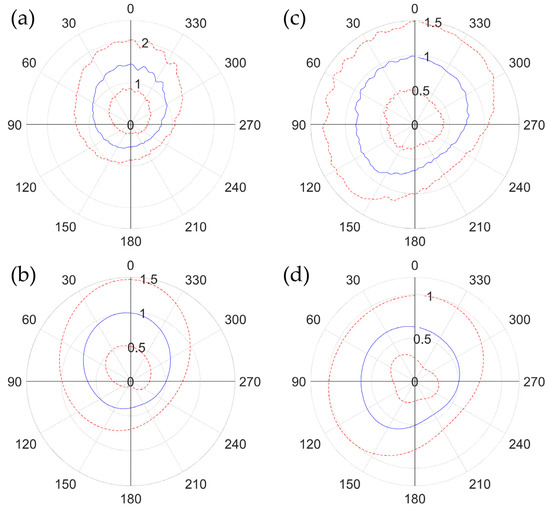

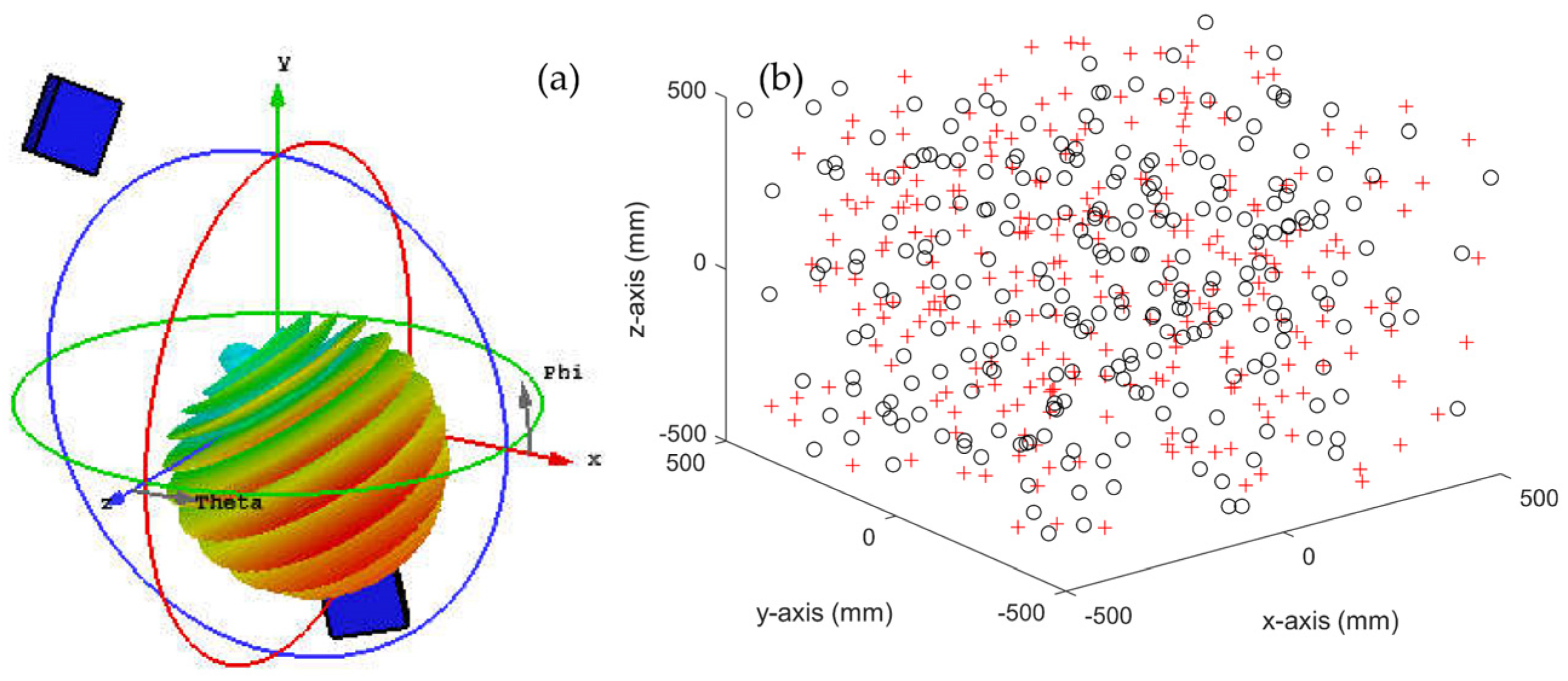

3.5. Radiation from Multiple Uncorrelated Devices with Arbitrary Locations and Orientations
4. Discussion and Conclusions
- -
- Radiation from multiple correlated devices;
- -
- Radiation from multiple uncorrelated devices;
- -
- Radiation from multiple uncorrelated devices with arbitrary locations and orientations.
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Fockens, T.W.H.; Zwamborn, A.P.M.; Leferink, F. Measurement methodology and results of measurements of the man-made noise floor on HF in the Netherlands. IEEE Trans. Electromagn. Compat. 2019, 61, 337–343. [Google Scholar] [CrossRef]
- Matsumoto, Y.; Gotoh, K.; Yamanaka, Y. Interference Aggregation Involving Near-to Far-Field Propagation of Disturbance and its Impact on Emission Limits for Radio Protection. IEEE Trans. Electromagn. Compat. 2022, 64, 770–778. [Google Scholar] [CrossRef]
- C63.4a-2017; American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. IEEE: Piscataway, NJ, USA, 2009; p. 133.
- CISPR/1446/DC; International Electrotechnical Commission (IEC): Geneva, Switzerland, 2020.
- Takahashi, M.; Murakawa, K.; Ohashi, H.; Tokuda, M. Extrapolation of radiated emissions from telecommunication equipment. IEEE Int. Conf. Commun. 1996, 3, 1462–1466. [Google Scholar]
- Häberlin, H. Total Disturbance by many Distributed Isotropic Disturbance Sources. Available online: https://www.iaru-r1.org/wp-content/uploads/2020/05/Total-Disturbance-by-many-distributed-dist.-sources_V7_E_IARU.pdf (accessed on 16 December 2021).
- Kootz, T.; Kiwull, N. Impact of an Increasing Number of Devices; Document CISPR/1397/INF; IEC: Geneva, Switzerland, 2018; pp. 21–35. [Google Scholar]
- Ghosh, K.; Zhang, W.; Meiguni, J.; Patnaik, A.; Pommerenke, D.; Sochoux, P.; Rollin, J.; Li, A.; Liu, Q. Growth of Radiated Emission in Multi-Modular Systems. IEEE Trans. Electromagn. Compat. 2020, 62, 612–616. [Google Scholar] [CrossRef]
- Zhang, L.; Yang, H.; Su, X.; Huang, Q.; Rajagopalan, J.; Pai, D.; Hwang, C.; Fan, J. Radio-Frequency Interference Estimation for Multiple Random Noise Sources. IEEE Trans. Electromagn. Compat. 2021, 64, 358–366. [Google Scholar] [CrossRef]
- Balanis, C.A. Antenna Theory: Analysis and Design, 4th ed.; Wiley: Hoboken, NJ, USA, 2016. [Google Scholar]
- Taflove, A.; Hagness, S.C. The Finite-Difference Time-Domain Method, 3rd ed.; Artech House, Inc.: London, UK, 2005. [Google Scholar]
- Kunz, K.S.; Luebbers, R.J. Finite Difference Time Domain Method for Electromagnetics; CRC Press: Boca Raton, FL, USA, 1993. [Google Scholar]
- Harrington, R.F. Field Computation by Moment Methods; Wiley-IEEE Press: Hoboken, NJ, USA, 1993. [Google Scholar]
- Gibson, W.C. The Method of Moments in Electromagnetics, 3rd ed.; Chapman and Hall/CRC: Boca Raton, FL, USA, 2021. [Google Scholar]
- Harrington, R.F. Time-Harmonic Electromagnetic Fields; IEEE Press: Piscataway, NJ, USA, 2001. [Google Scholar]
- CST STUDIO SUITE Learning Edition. 3DEXPERIENCE Edu. Available online: https://edu.3ds.com/en/software/cst-studio-suite-learning-edition (accessed on 18 September 2022).
- Clemens, M.; Weiland, T. Discrete Electromagnetism with the Finite Integration Technique. Prog. Electromagn. Res. 2001, 32, 65–87. [Google Scholar] [CrossRef] [Green Version]
- Reddy, J.N. Introduction to the Finite Element Method, 4th ed.; McGraw-Hill Education: New York, NY, USA, 2019. [Google Scholar]
- Karami, H.; Moini, R.; Sadeghi, S.H.H.; Maftooli, H.; Mattes, M.; Mosig, J.R. Efficient analysis of shielding effectiveness of metallic rectangular enclosures using unconditionally stable time-domain integral equations. IEEE Trans. Electromagn. Compat. 2014, 56, 1412–1419. [Google Scholar] [CrossRef]
- Maftooli, H.; Sadeghi, S.H.H.; Karami, H.; Dehkhoda, P.; Moini, R. An Efficient Time-Domain Integral Solution for a Loaded Rectangular Metallic Enclosure With Apertures. IEEE Trans. Electromagn. Compat. 2016, 58, 1064–1071. [Google Scholar] [CrossRef]
- Sadiku, M.N.O. Monte Carlo Methods for Electromagnetics; CRC Press: Boca Raton, FL, USA, 2019. [Google Scholar]
- Karami, H.; Khalvati, M.R.; Rubinstein, M.; Rachidi, F. EMC Impact of Disturbances Generated by Multiple Sources, Lausanne, Switzerland, 2022.
Pattern | Placement and Orientation | Phase | Measurements | Theory | |
---|---|---|---|---|---|
Takahashi et al. [5] | isotropic | predefined | uncorrelated | included | power sum |
Häberlin [6] | isotropic | predefined | uncorrelated | not included | power sum |
Kootz and Kiwull [7] | dipole | predefined | uncorrelated | included | power sum |
Ghosh et al. [8] | slot | predefined | either correlated or uncorrelated | included | array formula |
Zhang et al. [9] | arbitrary | predefined | uncorrelated | included | SRT 1 |
This paper | arbitrary | random | arbitrary 2 | not included | SRT |
Radiated Emissions for Correlated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices with Random Orientation (V/m) | |
---|---|---|---|
Single EUT | 2.28 | --- | --- |
3 devices | 2.19 | Mean: 3.35 | Mean: 2.26 |
Std: 1.52 | Std: 1.14 | ||
5 devices | 1.96 | Mean: 4.11 | Mean: 2.77 |
Std: 2.07 | Std: 1.43 | ||
7 devices | 4.26 | Mean: 4.56 | Mean: 3.02 |
Std: 2.26 | Std: 1.60 | ||
9 devices | 2.59 | Mean: 4.90 | Mean: 3.30 |
Std: 2.47 | Std: 1.73 |
Radiated Emissions for Correlated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices with Random Orientation (V/m) | |
---|---|---|---|
Single EUT | 2.28 | --- | --- |
3 × 3 devices | 1.39 | Mean: 5.21 | Mean: 3.66 |
Std: 2.58 | Std: 1.88 | ||
5 × 5 devices | 4.39 | Mean: 7.41 | Mean: 5.43 |
Std: 3.76 | Std: 2.90 | ||
7 × 7 devices | 4.26 | Mean: 8.89 | Mean: 6.32 |
Std: 4.63 | Std: 3.44 | ||
9 × 9 devices | 12.13 | Mean: 9.55 | --- |
Std: 5.01 | --- |
Radiated Emissions for Correlated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices (V/m) | Mean and Std of the Radiated Emissions for Uncorrelated Devices with Random Orientation (V/m) | |
---|---|---|---|
Single EUT | 2.28 | --- | --- |
3 × 3 × 1 devices | 1.39 | Mean: 5.21 | Mean: 3.66 |
Std: 2.58 | Std: 1.88 | ||
3 × 3 × 2 devices | 3.98 | Mean: 6.84 | Mean: 4.65 |
Std: 3.58 | Std: 2.46 | ||
5 × 5 × 1 devices | 4.39 | Mean: 7.41 | Mean: 5.43 |
Std: 3.76 | Std: 2.90 | ||
5 × 5 × 2 devices | 9.34 | Mean: 9.62 | Mean: 6.72 |
Std: 5.03 | Std: 3.58 |
