Self-Interference Cancellation: A Comprehensive Review from Circuits and Fields Perspectives

by
Jiahao Zhang
*,
Fangmin He
,
Wei Li
,
Yi Li
,
Qing Wang
,
Songhu Ge
,
Jinling Xing
,
Hongbo Liu
,
Yaxing Li
and
Jin Meng
National Key Laboratory of Science and Technology on Vessel Integrated Power System, Wuhan 430033, China
*
Author to whom correspondence should be addressed.
Electronics 2022, 11(2), 172; https://doi.org/10.3390/electronics11020172
Submission received: 9 November 2021 / Revised: 22 December 2021 / Accepted: 30 December 2021 / Published: 6 January 2022
(This article belongs to the Special Issue EMC Analysis in Wireless Communication)
Browse Figures
Versions Notes

Abstract

:
Increased demand for higher spectrum efficiency, especially in the space-limited chip, base station, and vehicle environments, has spawned the development of full-duplex communications, which enable the transmitting and receiving to occur simultaneously at the same frequency. The key challenge in this full-duplex communication paradigm is to reduce the self-interference as much as possible, ideally, down to the noise floor. This paper provides a comprehensive review of the self-interference cancellation (SIC) techniques for co-located communication systems from a circuits and fields perspective. The self-interference occurs when the transmitting antenna and the receiving antenna are co-located, which significantly degrade the system performance of the receiver, in terms of the receiver desensitization, signal masking, or even damage of hardwares. By introducing the SIC techniques, the self-interference can be suppressed and the weak desired signal from the remote transmitter can be recovered. This, therefore, enables the full-duplex communications to come into the picture. The SIC techniques are classified into two main categories: the traditional circuit-domain SICs and the novel field-domain SICs, according to the method of how to rebuild and subtract the self-interference signal. In this review paper, the field-domain SIC method is systematically summarized for the first time, including the theoretical analysis and the application remarks. Some typical SIC approaches are presented and the future works are outlooked.

1. Introduction

With the rapid growth of the modern wireless communication systems and the Internet-of-Things technologies, wireless devices become pervasive nowadays [1]. In many space-limited platforms, such as chips, base stations, and vehicles, the demand to achieve higher spectrum efficiency and data rates has spawned the development of integrated transceivers, which enable the transmitting and the receiving in a co-located system [1,2,3,4]. Full-duplex communication, as a promising approach, provides a novel paradigm to improve spectrum efficiency by opening up the possibility to transmit and receive signals within the same frequency band and time slot, and even in a space-limited environment [5,6,7,8].
The key challenge of full-duplex communications is to reduce the self-interference as much as possible, ideally, down to the noise floor. In a full-duplex transceiver, the high-power transmitted signal propagates into the local receiver through a direct path between the transmitting and receiving antennas, and the reflection multi-paths created by the transmit signal scattering off nearby objects [9]. These transmitted signals combine and modulate at the radio frequency (RF) front-end of the local receiver and become a self-interference that is overwhelmingly stronger than the signal of interest (SoI) from the remote transmitter. The strong self-interference would interfere or even saturate the receiving chain, and thus needs to be suppressed at the RF front-end before the analog-to-digital converter (ADC) quantization process [10].
As can be seen from the above introduction, the investigation of the self-interference suppression methods is extremely important to realize the full-duplex integrated transceivers. Numerous self-interference suppression techniques have been reported in the literature, from the simplest isolation to the complex adaptive cancellation [11,12,13,14]. The aim of passive suppression approaches is to attenuate the self-interference by separating the transmitting and receiving antennas in the way of antenna directionality, orthogonal polarization, or simplest spatial isolation [15,16]. Another way is to use a circulator to share one antenna for both transmitting and receiving [17,18]. Isolators, such as the parasitic elements, metamaterial inspired isolators, and electromagnetic bandgap structures, have also been studied in previous research [19,20,21,22]. These passive approaches can be easily realized, but the isolation performance is normally limited, especially when the interference channel varies in time. In addition to the passive methods, the active methods have also received much attention. One of them is the transmit beamforming approach, which is widely used to boost the system performance, including mitigating the self-interference [23].
Among all the self-interference suppression approaches, self-interference cancellation (SIC) is a promising and effective technique to realize the full-duplex communications [24]. The basic principle of SIC is to rebuild a copy of the RF self-interference signal by some dedicated methods. The rebuilt signal will be subsequently used to subtract from the receiving signal, which combines both the SoI and the self-interference at the front-end of the receiver to suppress the strong self-interference signal. According to different division standard, the SIC methods can be classified into different categories. Whether the SIC can be adaptively adjusted with the varying of the environment is used to allocate the SIC to the active way or the passive way. In addition to this, SIC can be divided to the field-domain SIC (FDSIC) and the circuit-domain SIC (CDSIC), from the perspective of the signal processing domain, since the self-interference signal can be rebuilt in the field domain, or the circuit domain. The CDSIC can be further classified as the analog SIC, the digital SIC, and the analog–digital hybrid SIC.
Analog SIC in the circuit domain is the most popular approach; it attempts to generate a reference signal that is a replica of the self-interference by using the analog circuits. Digital SIC is implemented after the ADC, where the residual self-interference is estimated and subtracted from the received digital signal sample. The FDSIC can be easily implemented but suffers the drawback of a relatively low interference cancellation ratio (ICR). Different SIC methods should be adopted according to realistic situations. Normally, no single method of cancellation is sufficient to remove the effect of the self-interference thoroughly, and a combination of them is sometimes required.
A review paper on SIC techniques exists in the literature [25]. However, it only focuses on the SIC in the circuit domain. A review of the noise cancelling technique can be found in [26], which reviews the development of the noise cancellation the voltage or current domains, after frequency downconversion to baseband. However, the field domain cancellation technique is not highlighted. The wideband transmitting–receiving coupling reduction methods in propagation domain are reviewed in [27]. However, the circuit domain approaches are not included. This paper, for the first time, gives a comprehensive review of the SIC from the perspective of both the circuit domain and field domain. The phenomenon and effects of the self-interference in a co-located integrated communication system are at first reviewed, followed by the discussion of the conventional CDSIC techniques in analog, digital, and hybrid methods. FDSIC, which has never been summarized to the best knowledge of the authors, is then analyzed. It is similar with the CDSIC in terms of the operating theory. However, one difference is that the FDSIC has its unique design strategy and, thus, brings benefits of low-cost, low complexity, etc., compared with the conventional CDSIC. FDSIC is therefore suitable for many scenarios in which simple structured SIC devices are needed.
The rest of the article is organized as follows: the phenomenon and effects of the self-interference are introduced in Section 2. The classification of the SIC techniques is given in Section 3. The CDSIC, including the analog ways and digital ways are analyzed in Section 4, prior to the discussion of the FDSIC in Section 5. The comparison of the different SIC approaches are shown in Section 6. Finally, concluding remarks and future research outlooks are drawn in Section 7.

2. Phenomenon and Effects of Self-Interference

Interference is a phenomenon where received unwanted signals disturb the performance of a communication system. The growing trend of multiple operators sharing a common site has led to a serious interference issue. A collocated scenario of an integrated transceiver that contains high-power transmitters and a victim receiver is illustrated in Figure 1. A receiving antenna is mounted close to a number of transmitting antennas and in most commercial sites the transmitting antennas carry a number of transmit channels. These transmitted signals combine together at the RF front-end of the local receiver and form a self-interference that is much stronger than the SoI from a remote transmitter. The victim receiver therefore receives high-power jamming signals and these cause a number of distortions.
Firstly, consider blocking and desensitization. The desensitization is caused when the interference is large enough to affect the quiescent value and the low-noise amplifier (LNA) or the mixer in the receiver. The blocking occurs when the receiver circuits are forced into saturation by the high-power interference signals, regardless of their carrier frequencies [28].
Secondly, consider the radiated distortions from the co-located transmitters. They are generated when a high-powered signal from one transmitter radiates into a second transmitter. The signals mix together in the non-linear output stage of the high-power amplifier (HPA). The unwanted third-order intermodulation products can interfere with nearby receivers operating in their frequencies.
Thirdly, consider the intermodulation (IM) distortion, which is generated within the front-end circuits of the victim receiver. The large transmit signals from the co-located transmitters combine at the victim receiver, and thus form IM distortions. This becomes serious when it falls directly on the SoI frequency band. The LNA is most susceptible to the interference signals.
The distortion generated with in the receiver is well studied and modeled by the receiver’s third-order intercept point. It can easily affect the active devices, such as the LNA or mixer, especially when it falls in the SoI channel. Blocking does not require interference transmitters to operate at specific frequencies, but can be caused by just one high-power transmitter. In order to mitigate the interference signal, and protect the receiver from performance degrading or even damaging, the SIC methods should thus be introduced.

3. Classification of the SIC Techniques

The operating mechanism of the SIC techniques is illustrated in Figure 2. The core concept of the SIC technique is to cancel the self-interference signal by rebuilding a copy of the reference self-interference signal. Based on different methods of how to rebuild and subtract the copy of the self-interference signal, the SIC can be classified to the circuit domain approach or the field domain approach. The distinction of the CDSIC and the FDSIC is shown in Figure 3. The CDSIC rebuilds the copy of the self-interference signals via analog circuits or digital circuits. The FDSIC rebuilds the self-interference signals in the field domain and cancels the self-interference at the antenna terminal. By introducing the control methods to the FDSIC, the adaptive SIC can be realized. The classification of the SIC techniques is summarized in Figure 4.

4. SIC via Analog and Digital Circuits

4.1. Analog SIC

Among all the SIC methods, the analog SIC has been widely recognized as one of the most effective schemes published, since it is particularly critical to prevent the ADC from becoming saturated [29,30,31]. A typical analog self-interference cancellation system (SICS) is illustrated in Figure 5 [30]. The transmitted signal at the input of the transmitting antenna is sampled and used as the reference signal. The reference signal is delayed and multiplied by the amplified and looped-back residual self-interference with a vector modulator. The product of the residual self-interference signal and the delayed reference self-interference signal is then filtered with a pair of low-pass filters (LPFs) to update the complex weighting coefficient, which, in turn, modifies the delayed reference signal at the vector modulator. The synthesized cancellation signal is obtained by combining the output signal of the SICS and the received signal of the receiving antenna. After cancellation, the residual self-interference is amplified by the LNA.
The presented single-tap topology shown in Figure 5 is suitable for narrow band interference cancellation. It has been shown that cancellation techniques using a single-tap structure can only operate over narrow instantaneous bandwidths and inherently cannot address reflection paths from the environment [32]. In order to achieve wideband interference cancellation, the multitap configuration should be included to mimic the realistic interference channel, which considers the multi-path effects [8,33,34]. The multitap design in [34] passes the coupled RF-transmitted signal through a more complicated circuit that consists of 16 parallel fixed lines of different delays and tunable attenuators to reconstruct the multipath self-interference signal. However, this method dramatically increases the complexities in hardware design and requires sophisticated algorithms for attenuation tuning instead of more general gradient descent approaches [8]. Other different aspects of the analog SIC have been studied by many other researchers, in terms of the matching strategy [35], the performance bound [29,36,37], and the SIC performance under complex circumstances, i.e., the Doppler effects, the channel fading effects, and the nonlinear distortion effects [38,39]. All these studies from various perspectives form a relatively mature research framework of the analog SIC compared with the digital and hybrid approaches.

4.2. Digital SIC

The cancellation that occurs in the digital domain after the received signal has been quantized by an ADC is called the digital-domain SIC. Examples of full-duplex systems where digital-domain SIC has been implemented are presented in [40,41]. A typical digital-domain SIC is shown in Figure 6 [42]. Both the sampled reference self-interference signal and the received signal of the receiver are downconverted to digital signal by using the ADC and the downconverter. An equivalent discrete-time coupling channel is estimated to rebuild a digital self-interference signal. Then, the rebuilt self-interference signal will be subtracted from the digital received signal.
Given that the cancellation process is performed in the digital domain, digital SIC techniques are some of the least complex among all active cancellation techniques [43,44]. The digital-domain SIC is carried out after ADC, and many highly efficient digital signal processing algorithms can be utilized, which brings more degrees of freedom to the SICS design. However, as mentioned above, when the interference power is too large to saturate the front-end of the receiver, the interference cancellation performance of the digital-domain SIC will decrease significantly [45]. The analog SIC can solve this problem. However, the suppression performance of the analog SIC is normally subjected to the accuracy of the delay unit and attenuator of the vector modulator. As a result, the digital-domain SIC is commonly implemented together with the analog-domain SIC, i.e., the strong self-interference is at first suppressed by the analog SIC, and the residue self-interference is then cancelled by the digital SIC [14,46,47], see Figure 7.

4.3. Analog–Digital Hybrid SIC

As discussed above, the analog SIC is able to suppress the high-power SI, while the digital SIC allows a more complex adaptive algorithm. It is quite a consequential idea to combine the advantage of both methods. The analog–digital hybrid SIC is thus proposed. This approach is performed by building a digital copy of the self-interference signal from the baseband-transmitted signal and then transmitting the digital copy through an auxiliary analog transmit chain to reconstruct the RF self-interference signal [48,49,50,51,52]. In this approach, a finite impulse response filter is implemented in the digital domain to characterize the self-interference propagation channel to generate a reconstructed self-interference signal of multipath components.
A typical analog–digital hybrid configuration is shown in Figure 8 [51]. The high speed ADCs are utilized to directly sample the self-interference signal and the error feedback signal. The control loop is, therefore, realized in the digital domain, and then connected to the analog vector modulator by the digital-to-analog converters (DACs). The adaptive control algorithm of the SIC can, thus, be implemented in the digital circuits, which enables a more efficient, more complex, and high-performance algorithm.

4.4. Passive SIC

If the SIC can be adaptively adjusted to optimize the ICR in a time-varying environment, it is defined as the active SIC. Otherwise, it is featured as the passive SIC, which is also useful for many scenarios [53]. From the circuit perspective, the passive SIC is based on the use of passive circuits or components, e.g., resistor, capacitor, inductor, circulator etc. [54,55,56], and active passive SIC always contains active components [29,30,51]. Similar to the adaptive SIC, passive SIC techniques extract the reference signal from the transmitter, and cancel the interference signal at the receiver. The signal modulation can be implemented by the analog resonant circuits. The main difference is that the control circuit is omitted in the passive SIC, which will tremendously decrease the complexity of the SICS. Thus, this method is suitable for a situation in which the coupling path between the transmitter and receiver is (quasi) static. Note that the passive SIC so far is not realized in the digital domain.

4.5. Features of the Circuit-Domain SIC

As we can see from the above analysis, for all the CDSIC techniques, including both the active and passive SICs, extracting the reference self-interference signal from the transmitter is mandatory. This will inevitably decrease the transmitting power and, thus, degrade the transmitter performance. In the case that the coupling between the transmitting and receiving antenna is very strong, the loss of the transmitting power will be significant, because a high-power reference signal is needed to cancel the strong interference signal. On the other hand, since the CDSIC is realized by circuits, it can be integrated with the transceiver, and thus, the shielding can be easily implemented. As a result, the radiation patterns of the transmitting and receiving antenna will not be affected.

5. SIC in Fields Domain

5.1. Operating Mechanism of the FDSIC

Most of the previous SICS is realized in the circuit domain through analog or digital approaches. The advantage of this method is that a high ICR can be obtained. However, the CDSIC is complex and costly, since many basic components are mandatory, such as the sampling coupler, the vector modulator, and the combining coupler. Compared with the CDSIC, the FDSIC normally has a simpler structure [57,58,59].
The operating mechanism of the FDSIC is illustrated in Figure 9. The current excited in the transmitting antenna is described by I. Through the direct coupling path, a current αI is induced on the receiving antenna, where α is the coupling coefficient. By adding a FDSIC system, a new situation is generated, the coupling situation of which can be worked out to the first order. A current β1I is now also induced in the FDSIC system, generating in its turn an induced current β1β2I in the receiving antenna, where β1 is the coupling coefficient between the transmitting antenna and the FDSIC system, and β2 is the coupling coefficient between the FDSIC system and the receiving antenna. The total induced current in the receiving antenna is αI + β1β2I. When the FDSIC system is properly designed, the FDSIC system creates reverse coupling, meaning that the total induced current approaches zero:
αI + β1β2I = 0
The self-interference is cancelled in the field domain like this. In essence, the FDSIC system is designed with a scatterer, which can generate rich scattering characteristics to rebuild the copy of the SI.

5.2. Features of the FDSIC

Compared with the CDSIC, the FDSIC is relatively simple, since some components that are necessary in the CDSIC can be omitted. The reference signal is extracted from the radiation of the transmitting antenna directly in the space, while the interference signal is cancelled at the receiving antenna terminal. In this way, the sampling coupler and the combining coupler are not needed, which greatly decreases the complexity of the SICS. Different from the CDSIC, the transmitting power will not be decreased when the FDSIC system is utilized, since the radiated power of the transmitter is “captured” by the FDSIC system in the space.
The drawback of the FDSIC is the distortion of the radiation patterns. When introducing a FDSIC system between the transmitting antenna and the receiving antenna in the space, the SIC is inherently coupled with the transmitting and receiving antenna, and thus affects the radiation patterns. However, through careful design, this effect can be miniaturized and will not impact the system performance. An example is shown in Figure 10 and Figure 11 [58]. The coupling is suppressed, while the radiation patterns are slightly affected when the SIC isolator is introduced. The ICR of [58] is limited compared with many CDSIC [29,30,51], since it is a great challenge to rebuild a perfect copy of the self-interference signals via the simple scatterer.

6. Comparison of the Circuit- and Field-Domain SIC

The key performances of some typical SIC systems in the circuit domain and field domain are compared in Table 1. The characteristics of the CDSIC and the FDSIC are summarized in Table 2. In terms of the transmitting power, the CDSIC will result in a high power loss, while the FDSIC does not have the power loss theoretically, since the transmitting power of transmitting system will be sampled by the CDSIC, see Figure 12. However, the radiation patterns of the transmitting and receiving antenna will be affected to some extent when introducing the FDSIC system. This problem will not happen for the CDSIC. Note that the CDSIC will affect the received SoI and the noise floor. The typical receiving system and the receiving system containing an SIC are presented in Figure 13a,b, respectively. In the latter case, the receiving signal is delivered to the combining coupler via the cables. Then, the combined signal, which contains the reference signal and the receiving signal, is sent to the receiver via the error coupler and an LNA. The receiving transmission link of the SoI contains the receiving antenna, the cables, the combining coupler, the error coupler, the LNA and the receiver. This will inevitably increase the noise figure of the receiving system [60]. Given that the combining coupler and the error coupler are inserted in the receiving transmission link, the SoI will also be attenuated.
Summarily, compared with the CDSIC, FDSIC has a relatively low complexity and smaller effects on the receiving system. However, CDSIC normally has a high ICR, since it is easier to precisely reconstruct the self-interference via circuits.

7. Conclusions

7.1. Concluding Remarks

A comprehensive review of the SIC technology for integrated transceivers from circuits and fields perspective is presented in this paper. It has been shown that the performance of the receivers will degrade due to blocking or distortion when the co-located transmitters exist. In order to protect the receiver and improve the system performance, SIC techniques are required. According to the methods of how to rebuild and subtract the copy of the self-interference signal, the SIC can be classified as a CDSIC or a FDSIC. The former can be further divided to the analog SIC and the digital SIC. The CDSIC and the FDSIC have the same basic operating mechanism, however, the design strategies and implementation approaches are different. In real applications, the implementation of the SIC methods depends on the specific scenarios and the targeted requirements. The analog way is particularly critical to prevent the ADC from becoming saturated. However, implementing SIC in the analog domain is normally challenging and highly complex, so the analog CDSIC is normally chosen when the self-interference is strong and a high ICR is required. In contrast to the analog CDSIC, the digital CDSIC deals with the self-interference signals in the digital domain, after the self-interference signal has been quantized by an ADC. The digital CDSIC technique has a lower complexity compared with the analog approach, and many high-performance SIC algorithms can be easily implemented. However, this method is always limited by the hardware performance. To reduce the self-interference power below the noise floor, the dual-stage interference cancellation, which combines both the analog and digital CDSIC, is commonly used. A high ICR can be obtained if the strong self-interference is at first suppressed by the analog canceller, and the residual interference is then cancelled by the digital canceller. However, obviously, this kind of cancellation is very complicated. The FDSIC has a much simpler structure than the CDSIC, since the sampling coupler is on the transmitter side, and the combining coupling on the receiver side can be omitted. What is more, the power of the transmitting signal and the received SoI will not be attenuated when implementing the FDSIC. Although the radiation pattern will be affected, the FDSIC is suitable for the application scenarios in which the cost and complexity are strictly limited.

7.2. Future Outlooks

As a promising technique, artificial intelligence (AI) receives much attention at present, and plays a very important role for both signal processing and electromagnetic designs [61]. It also holds great potential for the future of SIC design in terms of two aspects: (1) AI-based high-performance algorithm for SIC signal processing [62] and (2) automatic AI-driven design for SIC topologies [58]. For the first aspect, more effective models for the digital canceller with fewer parameters and low-complexity optimization algorithms are needed, which will trigger the application of the AI approaches. For the second aspect, it is an advantageous idea to propose a generic SIC method for diverse configurations serving complex applications, without requiring extensive experience from the designers. The AI-driven design automation is quite promising for this scenario, especially for the design of the FDSIC system. Beyond that, the idea of combining the AI concept and the SIC techniques can be stretched to more applications, such as the reference-less SIC.
This paper provides a broad overview of the SIC techniques from the perspective of the circuit domain and field domain, and paves a way for the future explosive research.

Author Contributions

Conceptualization, J.Z., F.H. and J.M.; methodology, J.Z.; validation, H.L. and Y.L. (Yaxing Li); formal analysis, Y.L. (Yaxing Li); resources, W.L., Y.L. (Yi Li), Q.W., S.G. and J.X.; writing—original draft preparation, J.Z.; writing—review and editing, J.M.; project administration, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded in part by the National Natural Science Foundation of China, grant number 62001496, 52025072, 52177012, 62001497; and the Foundation of National Key Laboratory of Science and Technology on Vessel Integrated Power System, grant number 6142217210501.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ADCanalog-to-digital converter
AIartificial intelligence
CDSICcircuit-domain self-interference cancellation
DACdigital-to-analog converter
FDSICfield-domain self-interference cancellation
HPAhigh power amplifier
ICRinterference cancellation ratio
IMintermodulation
LNAlow noise amplifier
LPFlow pass filters
SICself-interference cancellation
SICSself-interference cancellation system
SoIsignal of interest
RFradio frequency

References

  1. Xue, W.; Li, F.; Chen, X. Effects of Signal Bandwidth on Total Isotropic Sensitivity Measurements in Reverberation Chamber. IEEE Trans. Instrum. Meas. 2021, 70, 1005408. [Google Scholar] [CrossRef]
  2. Lu, J.; Zhang, Q.; Shi, W.; Zhang, L.; Shi, J. Robust Adaptive Filtering Alogrithm for Self-Interference Cancellation with Impulsive Noise. Electronics 2021, 10, 196. [Google Scholar] [CrossRef]
  3. Akhtar, M.W.; Hassan, S.A.; Jung, H. On the Symbol Error Probability of STBC-NOMA with Timing Offsets and Imperfect Successive Interference Cancellation. Electronics 2021, 10, 1386. [Google Scholar] [CrossRef]
  4. Ershadi, A.; Entesari, K. A 0.5-to-3.5-GHz full-duplex mixer-first receiver with Cartesian synthesized self-interference suppression interface in 65-nm CMOS. IEEE Trans. Microw. Theory Tech. 2020, 68, 1995–2010. [Google Scholar] [CrossRef]
  5. Shah, M.; Cheema, H.M.; Abbasi, Q.H. Substrate Integrated Waveguide Antenna System for 5G In-Band Full Duplex Applications. Electronics 2021, 10, 2456. [Google Scholar] [CrossRef]
  6. Nawaz, H.; Shoaib, N.; Niazi, A.U.; Chaudhry, S.M. A Compact, Bistatic Antenna System with Very High Interport Isolation for 2.4 GHz In-Band Full Duplex Applications. Int. J. Antennas Propag. 2021, 2021, 8855726. [Google Scholar] [CrossRef]
  7. Zhang, Z.; Long, K.; Vasilakos, A.V.; Hanzo, L. Full-duplex wireless communications: Challenges, solutions, and future research directions. Proc. IEEE 2016, 104, 1369–1409. [Google Scholar] [CrossRef] [Green Version]
  8. Kolodziej, K.E.; McMichael, J.G.; Perry, B.T. Multitap RF canceller for in-band full-duplex wireless communications. IEEE Trans. Wirel. Commun. 2016, 15, 4321–4334. [Google Scholar] [CrossRef]
  9. Chen, X.; Xue, W.; Shi, H.; Yi, J.; Sha, W.E.I. Orbital Angular Momentum Multiplexing in Highly Reverberant Environments. IEEE Microw. Wirel. Compon. Lett. 2021, 30, 112–115. [Google Scholar] [CrossRef] [Green Version]
  10. Qin, H.; He, F.; Meng, J.; Wang, Q. Analysis and optimal design of radio-frequency interference adaptive cancellation system with delay mismatch. IEEE Trans. Electromagn. Compat. 2019, 6, 2015–2023. [Google Scholar] [CrossRef]
  11. Cheng, C.; Luo, L. Mutual Coupling Reduction Using Improved Dual-Layer Mushroom and E-Shaped Stub. Int. J. Antennas Propag. 2021, 2021, 8862570. [Google Scholar] [CrossRef]
  12. Qiu, L.; Zhao, F.; Xiao, K.; Chai, S.-L.; Mao, J.-J. Transmit–receive isolation improvement of antenna arrays by using EBG structures. IEEE Antennas Wirel. Propag. Lett. 2012, 11, 93–96. [Google Scholar]
  13. Niroo-Jazi, M.; Denidni, T.A.; Chaharmir, M.; Sebak, A. A hybrid isolator to reduce electromagnetic interactions between Tx/Rx antennas. IEEE Antennas Wirel. Propag. Lett. 2014, 13, 75–78. [Google Scholar] [CrossRef]
  14. Venkatakrishnan, S.B.; Alwan, E.A.; Volakis, J.L. Wideband RF self-interference cancellation circuit for phased array simultaneous transmit and receive systems. IEEE Access 2018, 6, 3425–3432. [Google Scholar] [CrossRef]
  15. Everett, E.; Sahai, A.; Sabharwal, A. Passive self-interference suppression for full-duplex infrastructure nodes. IEEE Trans. Wirel. Commun. 2014, 13, 680–694. [Google Scholar] [CrossRef] [Green Version]
  16. Dinc, T.; Krishnaswamy, H. A T/R antenna pair with polarization based wideband reconfigurable self-interference cancellation for simultaneous transmit and receive. Proc. IEEE MTT-S Int. Microw. Symp. 2015, 1–4. [Google Scholar] [CrossRef]
  17. Knox, M.E. Single antenna full duplex communications using a common carrier. In Proceedings of the WAMICON 2012 IEEE Wireless & Microwave Technology Conference, Cocoa Beach, FL, USA, 15–17 April 2012; pp. 1–6. [Google Scholar]
  18. Yang, S.; Vincent, D.; Bray, J.R.; Roy, L. Study of a ferrite LTCC multifunctional circulator with integrated winding. IEEE Trans. Compon. Packag. Manuf. Technol. 2015, 5, 879–886. [Google Scholar] [CrossRef]
  19. Lin, X.-J.; Xie, Z.-M.; Zhang, P.-S. Integrated Filtering Microstrip Duplex Antenna Array with High Isolation. Int. J. Antennas Propag. 2017, 2017, 4127943. [Google Scholar] [CrossRef] [Green Version]
  20. Li, Z.; Du, Z.; Takahashi, M.; Saito, K.; Tto, K. Reducing mutual coupling of MIMO antennas with parasitic elements for mobile terminals. IEEE Trans. Antennas Propag. 2012, 60, 473–481. [Google Scholar] [CrossRef]
  21. Lee, Y.; Ga, D.; Choi, J. Design of a MIMO Antenna with Improved Isolation Using MNG Metamaterial. Int. J. Antennas Propag. 2012, 2012, 864306. [Google Scholar] [CrossRef] [Green Version]
  22. Yon, H.; Rahman, N.H.A.; Aris, M.A.; Jamaluddin, M.H.; Kong Cheh Lin, I.; Jumaat, H.; Mohd Redzwan, F.N.; Yamada, Y. Development of C-Shaped Parasitic MIMO Antennas for Mutual Coupling Reduction. Electronics 2021, 10, 2431. [Google Scholar] [CrossRef]
  23. Ju, H.; Kim, D.; Poor, H.V.; Hong, D. Bi-directional beamforming and its capacity scaling in pairwise two-way communications. IEEE Trans. Wirel. Commun. 2012, 11, 346–357. [Google Scholar] [CrossRef]
  24. Zhou, J.; Chuang, T.-H.; Dinc, T.; Krishnaswamy, H. Integrated wideband self-interference cancellation in the RF domain for FDD and full-duplex wireless. IEEE J. Solid-State Circuits 2015, 50, 3015–3031. [Google Scholar] [CrossRef]
  25. Ahmed, S.; Faulkner, M. Interference at colocated base stations: A review. In Proceedings of the IEEE 23rd International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), Sydney, NSW, Australia, 9–12 September 2012; pp. 1716–1721. [Google Scholar]
  26. Klumperink, E.A.M.; Nauta, B. Software defined radio receivers exploiting noise cancelling: A tutorial review. IEEE Commun. Mag. 2014, 111–117. [Google Scholar] [CrossRef]
  27. Venkatakrishnan, S.B.; Hovsepian, A.; Johnson, A.D.; Nakatani, T.; Alwan, E.A.; Volakis, J.L. Techniques for achieving high isolation in RF domain for simultaneous transmit and receive. IEEE Open J. Antennas Propag. 2020, 1, 358–367. [Google Scholar] [CrossRef]
  28. Gavan, J.J.; Shulman, M.B. Effects of Desensitization on Mobile Radio System Performance, Part I: Quantitative Analysis. IEEE Trans. Veh. Technol. 1984, VT-33, 285–290. [Google Scholar] [CrossRef]
  29. Huang, X.; Guo, Y.J. Radio frequency self-interference cancellation with analog least mean-square loop. IEEE Trans. Microw. Theory Tech. 2017, 65, 3336–3350. [Google Scholar] [CrossRef]
  30. Li, W.; Zhao, Z.; Tang, J.; He, F.; Li, Y.; Xiao, H. Performance analysis and optimal design of the adaptive interference cancellation system. IEEE Trans. Electromagn. Compat. 2013, 55, 1068–1075. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Wang, Q.; Qin, H.; Meng, J. Adaptive self-interference cancellation system for microwave LFMCW radar with optimal delay matching. In Proceedings of the 2019 Joint International Symposium on Electromagnetic Compatibility, Sapporo and Asia-Pacific International Symposium on Electromagnetic Compatibility (EMC Sapporo/APEMC), Sapporo, Japan, 3–7 June 2019. [Google Scholar]
  32. Raghavan, A.; Gebara, E.; Tentzeris, E.M.; Laskar, J. Analysis and design of an interference canceller for collocated radios. IEEE Trans. Microw. Theory Tech. 2005, 53, 3498–3508. [Google Scholar] [CrossRef] [Green Version]
  33. Choi, Y.-S.; Shirani-Mehr, H. Simultaneous transmission and reception: Algorithm, design and system level performance. IEEE Trans. Wirel. Commun. 2013, 12, 5992–6010. [Google Scholar] [CrossRef] [Green Version]
  34. Bharadia, D.; McMilin, E.; Katti, S. Full duplex radios. In Proceedings of the ACM SIGCOMM 2013 Conference on SIGCOMM, Hong Kong, China, 12–16 August 2013; pp. 375–386. [Google Scholar]
  35. Kolodziej, K.E.; Yegnanarayanan, S.; Perry, B.T. Fiber bragg grating delay lines for wideband self-interference cancellation. IEEE Trans. Microw. Theory Tech. 2019, 67, 4005–4014. [Google Scholar] [CrossRef]
  36. Le, A.T.; Tran, L.C.; Huang, X.; Gou, Y.J.; Vardaxoglou, J.C. Frequency-domain characterization and performance bounds of ALMS loop for RF self-interference cancellation. IEEE Trans. Commun. 2019, 67, 682–692. [Google Scholar] [CrossRef]
  37. Zhao, K.; Wang, Q.; He, F.; Cui, Z.; Meng, J.; Zhang, L. Analysis of interference cancellation ratio requirement for co-site interference mitigation between AM and FM systems. In Proceedings of the 2019 Joint International Symposium on Electromagnetic Compatibility, Sapporo and Asia-Pacific International Symposium on Electromagnetic Compatibility (EMC Sapporo/APEMC), Sapporo, Japan, 3–7 June 2019. [Google Scholar]
  38. Ma, M.; Huang, X.; Gou, Y.J. An interference self-cancellation technique for SC-FDMA systems. IEEE Commun. Lett. 2010, 14, 512–514. [Google Scholar] [CrossRef]
  39. He, Z.; Shao, S.; Shen, Y.; Qing, C.; Tang, Y. Performance analysis of RF self-interference cancellation in full-duplex wireless communications. IEEE Wirel. Commun. Lett. 2014, 3, 405–408. [Google Scholar] [CrossRef]
  40. Choi, J.I.; Jain, M.; Srinivasan, K.; Levis, P.; Katti, S. Achieving single channel, full duplex wireless communications. In Proceedings of the Sixteenth Annual International Conference on Mobile Computing and Networking, Chicago, IL, USA, 20–24 September 2010; pp. 1–12. [Google Scholar]
  41. Duarte, M.; Sabharwal, A. Full-duplex wireless communications using off-the-shelf Radios: Feasibility and first results. Proc. Asilomar Conf. Signals Syst. Comput. 2010, 1558–1562. [Google Scholar] [CrossRef]
  42. Shen, L.; Henson, B.; Zakharov, Y.; Mitchell, P. Digital Self-Interference Cancellation for Full-Duplex Underwater Acoustic Systems. IEEE Trans. Circuits Syst.-II Express Briefs 2020, 67, 192–196. [Google Scholar] [CrossRef] [Green Version]
  43. Ahmed, E.; Eltawil, A.M. All-digital self-interference cancellation technique for full-duplex systems. IEEE Trans. Wirel. Commun. 2015, 14, 3519–3532. [Google Scholar] [CrossRef] [Green Version]
  44. Masmoudi, A.; Le-Ngoc, T. Channel estimation and self-interference cancelation in full-duplex communication systems. IEEE Trans. Veh. Technol. 2017, 66, 321–334. [Google Scholar] [CrossRef]
  45. Laughlin, L.; Beach, M.A.; Morris, K.A.; Haine, J.L. Optimum single antenna full duplex using hybrid junctions. IEEE J. Sel. Areas Commun. 2014, 32, 1653–1661. [Google Scholar] [CrossRef] [Green Version]
  46. Ge, S.; Xing, J.; Liu, Y.; Liu, H.; Meng, J. Dual-stage co-site RF interference canceller for wideband direct-conversion receivers using reduced observation chain. IEEE Trans. Electromagn. Compat. 2020, 62, 923–932. [Google Scholar] [CrossRef]
  47. Liu, J.; Quan, H.; Li, Z.; Sun, H.; Yuan, D. Digital nonlinear self-interference cancellation based on LMS-volterra algorithm. In Proceedings of the 2016 3rd International Conference on Information Science and Control Engineering, Beijing, China, 8–10 July 2016. [Google Scholar]
  48. Liu, Y.; Roblin, P.; Quan, X.; Pan, W.; Shao, S.; Tang, Y. A full-duplex transceiver with two-stage analog cancellations for multipatch self-interference. IEEE Trans. Microw. Theory Tech. 2017, 65, 5263–5273. [Google Scholar] [CrossRef]
  49. Duarte, M.; Dick, C.; Sabharwal, A. Experiment-driven characterization of full-duplex wireless systems. IEEE Trans. Wirel. Commun. 2012, 11, 4296–4307. [Google Scholar] [CrossRef] [Green Version]
  50. Liu, Y.; Quan, X.; Pan, W.; Tang, Y. Digitally assisted analog interference cancellation for in-band full-duplux radios. IEEE Commun. Lett. 2017, 21, 1079–1082. [Google Scholar] [CrossRef]
  51. Ge, S.; Meng, J.; Xing, J.; Liu, Y.; Gou, C. A digital-domain controlled nonlinear RF interference cancellation scheme for co-site wideband radios. IEEE Trans. Electromagn. Compat. 2018, 61, 1647–1654. [Google Scholar] [CrossRef]
  52. Xing, J.; Ge, S.; Liu, Y.; Cui, Z.; Meng, J. Comprehensive analysis of quantization effects on digital-controlled adaptive self-interference cancellation system. IEEE Access 2020, 8, 75772–75784. [Google Scholar] [CrossRef]
  53. Makimura, H.; Nishimoto, K.; Yanagi, T.; Fukasawa, T.; Miyashita, H. Novel decoupling concept for strongly coupled frequency-dependent antenna arrays. IEEE Trans. Antennas Propag. 2017, 65, 5147–5154. [Google Scholar] [CrossRef]
  54. Zhang, Y.; Zhang, S.; Li, J.; Pedersen, G.F. A transmission-line-based decoupling method for MIMO antenna arrays. IEEE Trans. Antennas Propag. 2019, 67, 3117–3131. [Google Scholar] [CrossRef] [Green Version]
  55. Bhatti, R.A.; Yi, S.; Park, S.-O. Compact antenna array with port decoupling for LTE-standardized mobile phones. IEEE Antennas Wirel. Propag. Lett. 2009, 8, 1430–1433. [Google Scholar] [CrossRef]
  56. Chaudhary, G.; Jeong, J.; Jeong, Y. Differential fed antenna with high self-interference cancellation for in-band full-duplex communication system. IEEE Access 2019, 7, 45340–45348. [Google Scholar] [CrossRef]
  57. Zhang, J.; Yan, S.; Hu, X.; Vandenbosch, G.A.E. Mutual coupling suppression for on-body multiantenna systems. IEEE Trans. Electromagn. Compat. 2020, 22, 1045–1054. [Google Scholar] [CrossRef]
  58. Zhang, J.; Akinsolu, M.O.; Liu, B.; Vandenbosch, G.A.E. Automatic AI-driven design of mutual coupling reducing topologies for frequency reconfigurable antenna arrays. IEEE Trans. Antennas Propag. 2021, 69, 1831–1836. [Google Scholar] [CrossRef]
  59. Zhang, L.; Zhang, S.; Song, Z.; Liu, Y.; Ye, L.; Liu, Q.H. Adaptive decoupling using tunable metamaterials. IEEE Trans. Microw. Theory Tech. 2016, 64, 2730–2739. [Google Scholar] [CrossRef]
  60. Tang, J.; Zhao, Z.; Li, W.; Meng, J.; Li, Y.; He, F.; Xiao, H. Research on noise figure of a receiving system using adaptive interference cancellation. In Proceedings of the Asia-Pacific International Symposium on Electromagnetic Compatibility (APEMC2016), Shenzhen, China, 17–21 May 2016. [Google Scholar]
  61. Park, H.; Park, J.; Kim, S.; Cho, K.; Lho, D.; Jeong, S.; Park, S.; Park, G.; Sim, B.; Kim, S.; et al. Deep reinforcement learning-based optimal decoupling capacitor design method for silicon interposer-based 2.5-D/3-D ICs. IEEE Trans. Compon. Packag. Manuf. Technol. 2020, 10, 467–478. [Google Scholar] [CrossRef]
  62. Wang, Q.; He, F.; Meng, J. Performance comparison of real and complex valued neural networks for digital self-interference cancellation. In Proceedings of the IEEE 19th International Conference on Communication Technology (ICCT2019), Xi’an, China, 16–19 October 2019. [Google Scholar]
Electronics 11 00172 g001 550

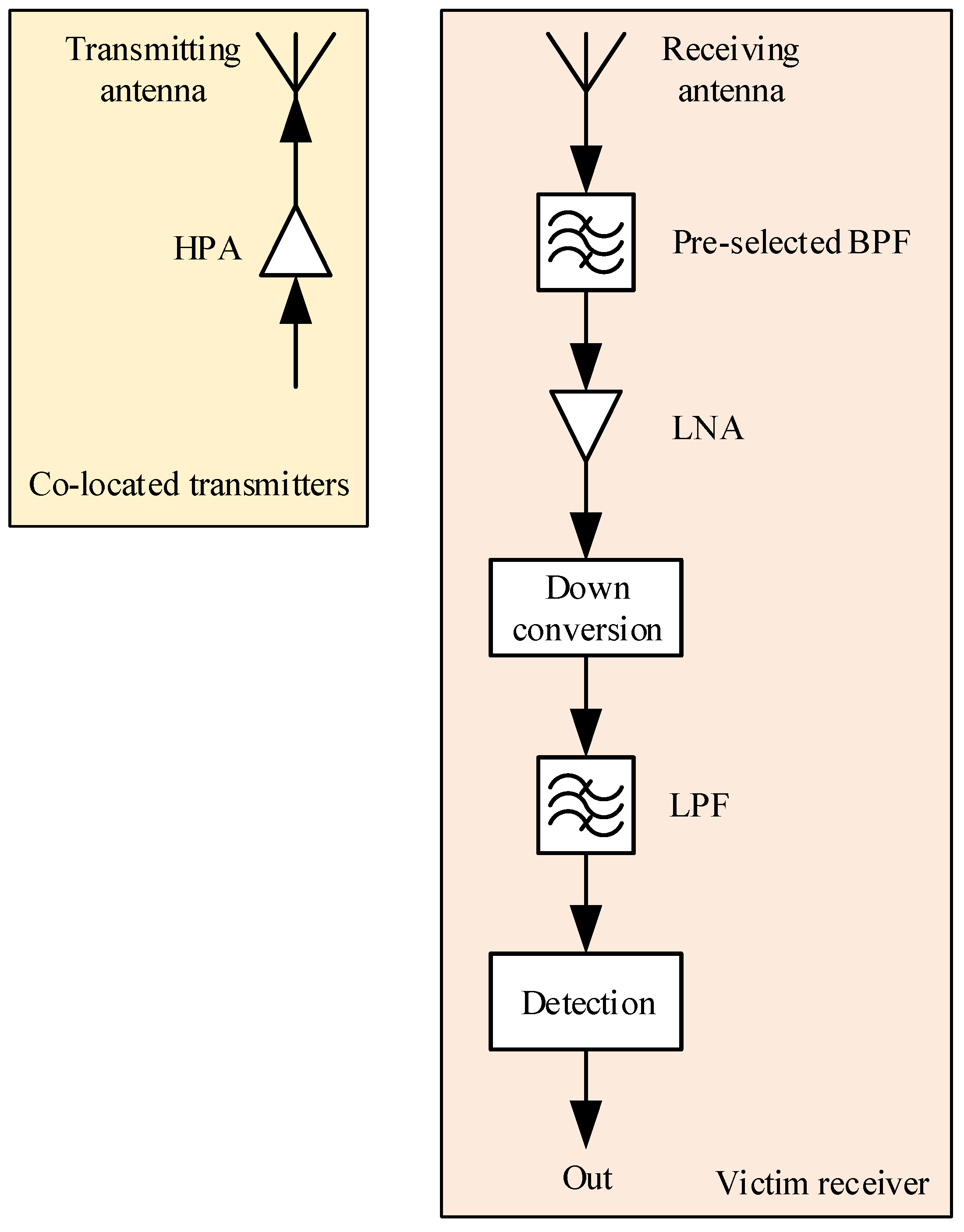

Figure 1. A co-located communication system that includes multiple transmitters and a victim receiver.
Figure 1. A co-located communication system that includes multiple transmitters and a victim receiver.
Electronics 11 00172 g001
Electronics 11 00172 g002 550

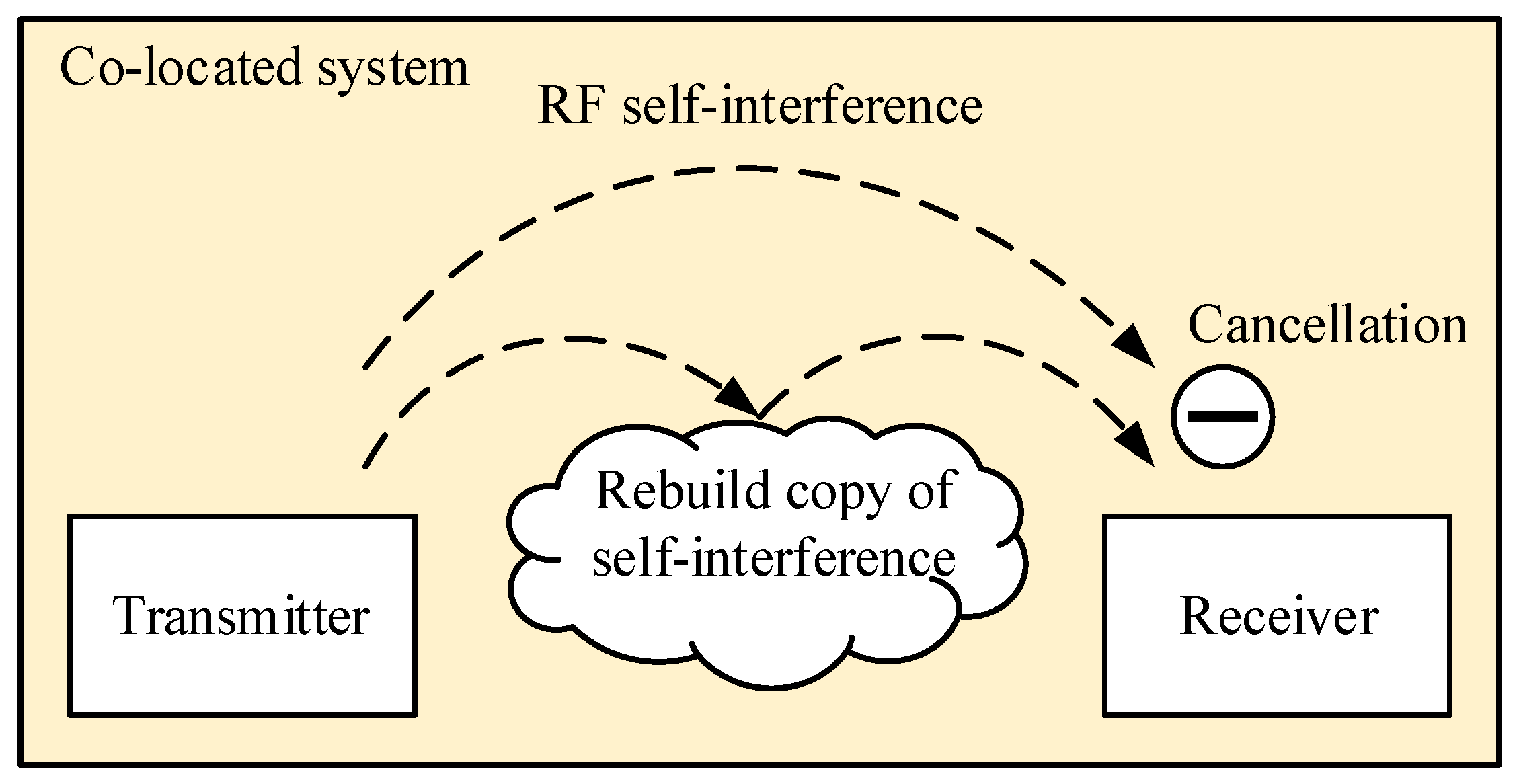

Figure 2. Operation mechanism of the SIC techniques.
Figure 2. Operation mechanism of the SIC techniques.
Electronics 11 00172 g002
Electronics 11 00172 g003 550

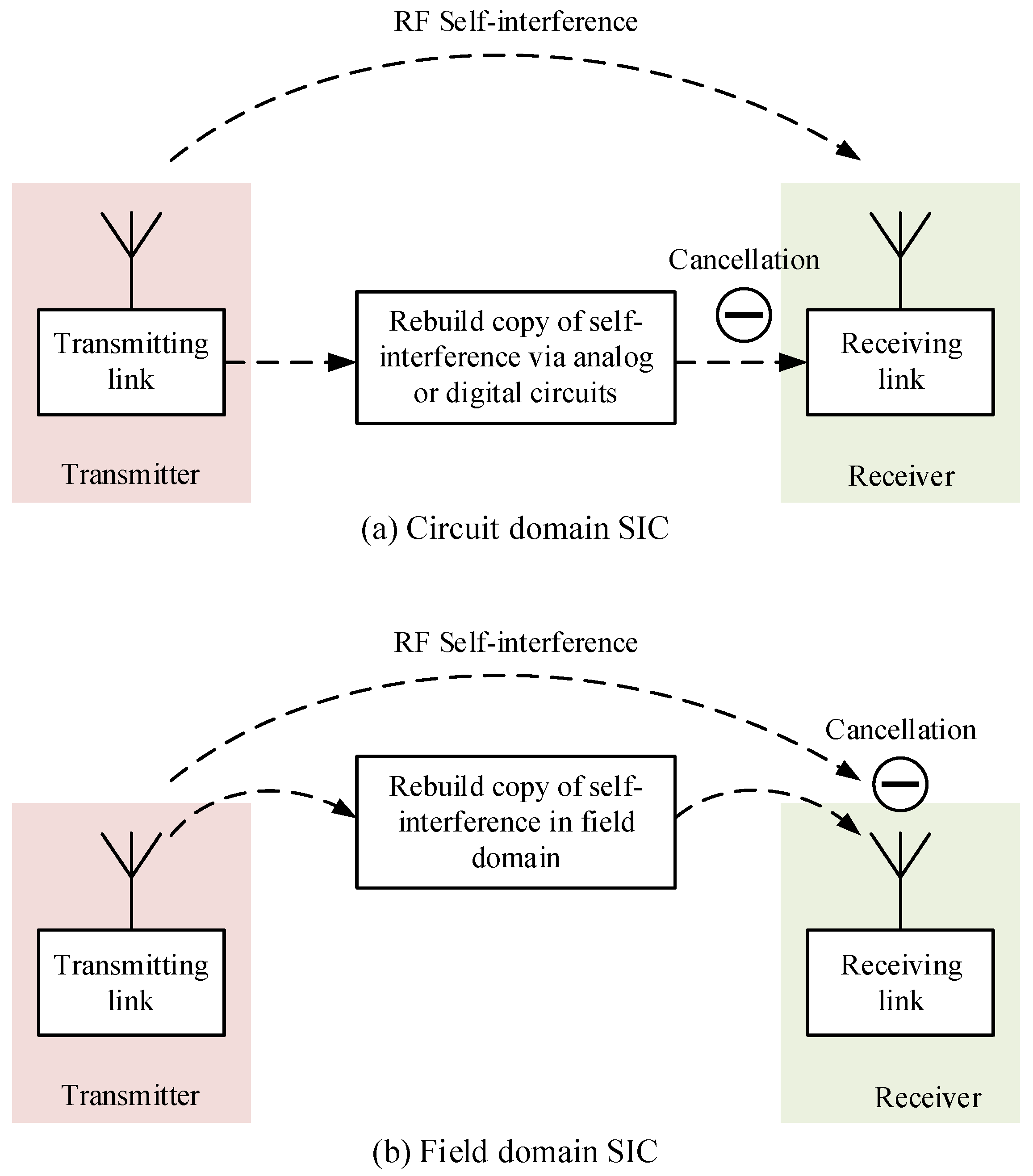

Figure 3. Distinction between the circuit- and field-domain SIC.
Figure 3. Distinction between the circuit- and field-domain SIC.
Electronics 11 00172 g003
Electronics 11 00172 g004 550

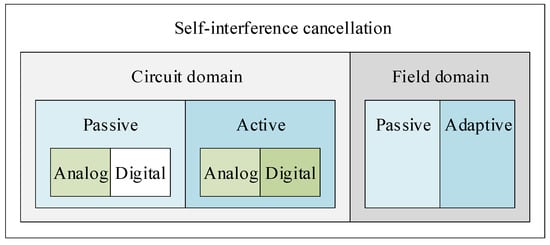

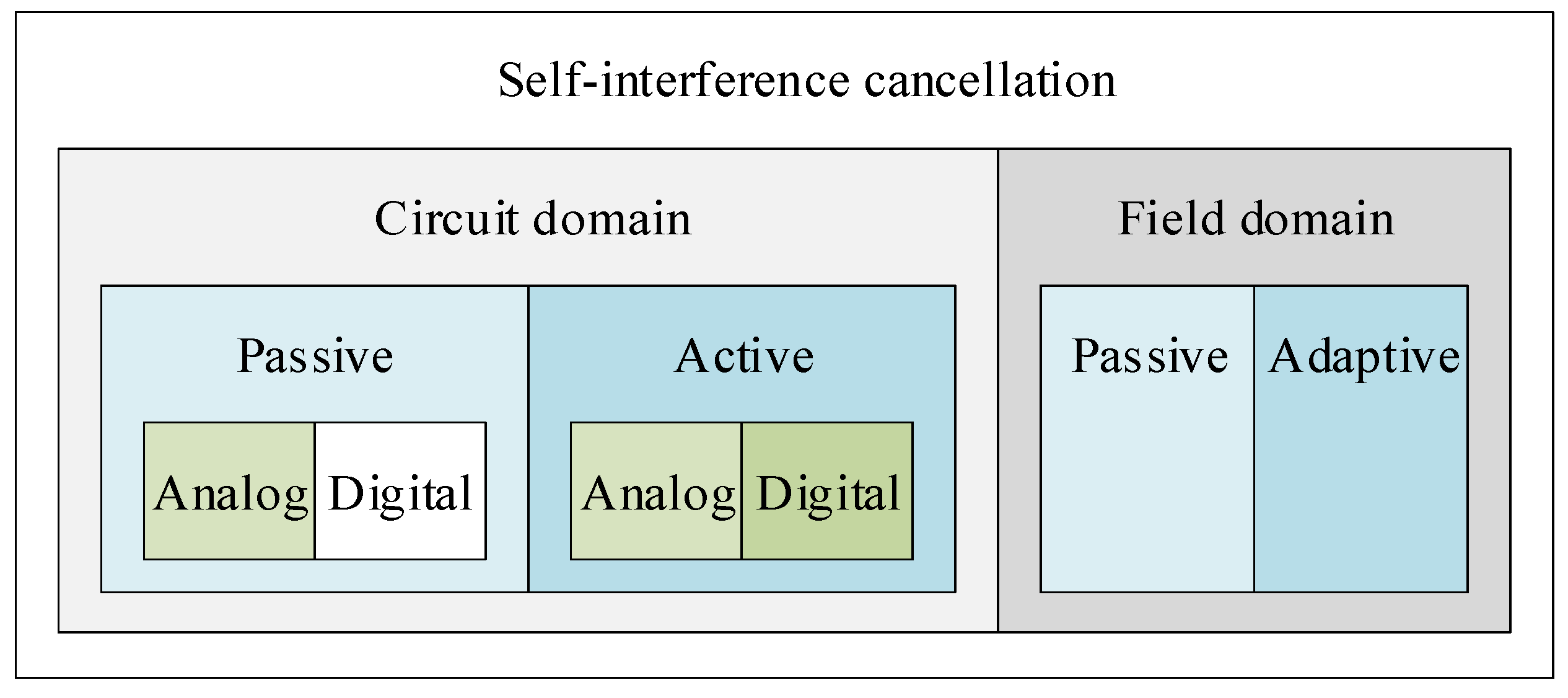

Figure 4. Classification of the SIC techniques.
Figure 4. Classification of the SIC techniques.
Electronics 11 00172 g004
Electronics 11 00172 g005 550

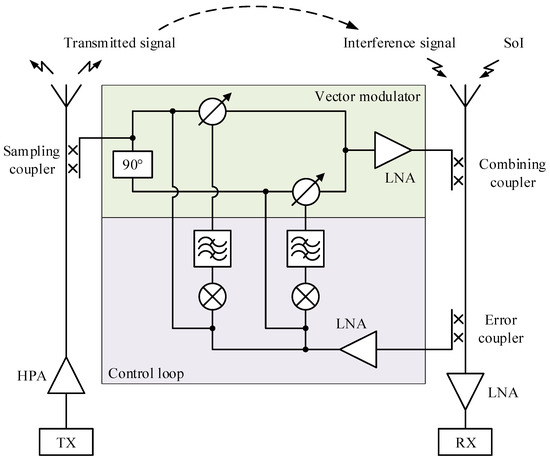

Figure 5. A typical analog SIC topology.
Figure 5. A typical analog SIC topology.
Electronics 11 00172 g005
Electronics 11 00172 g006 550

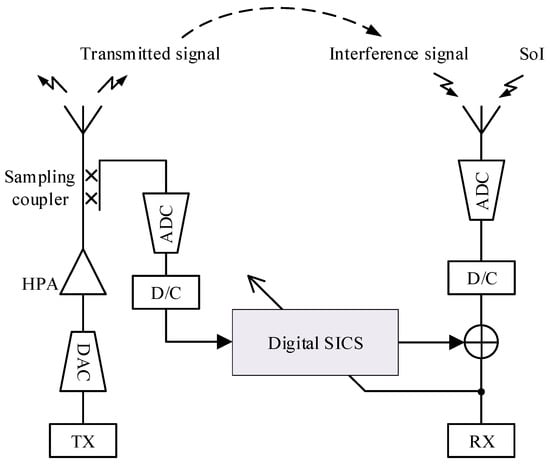

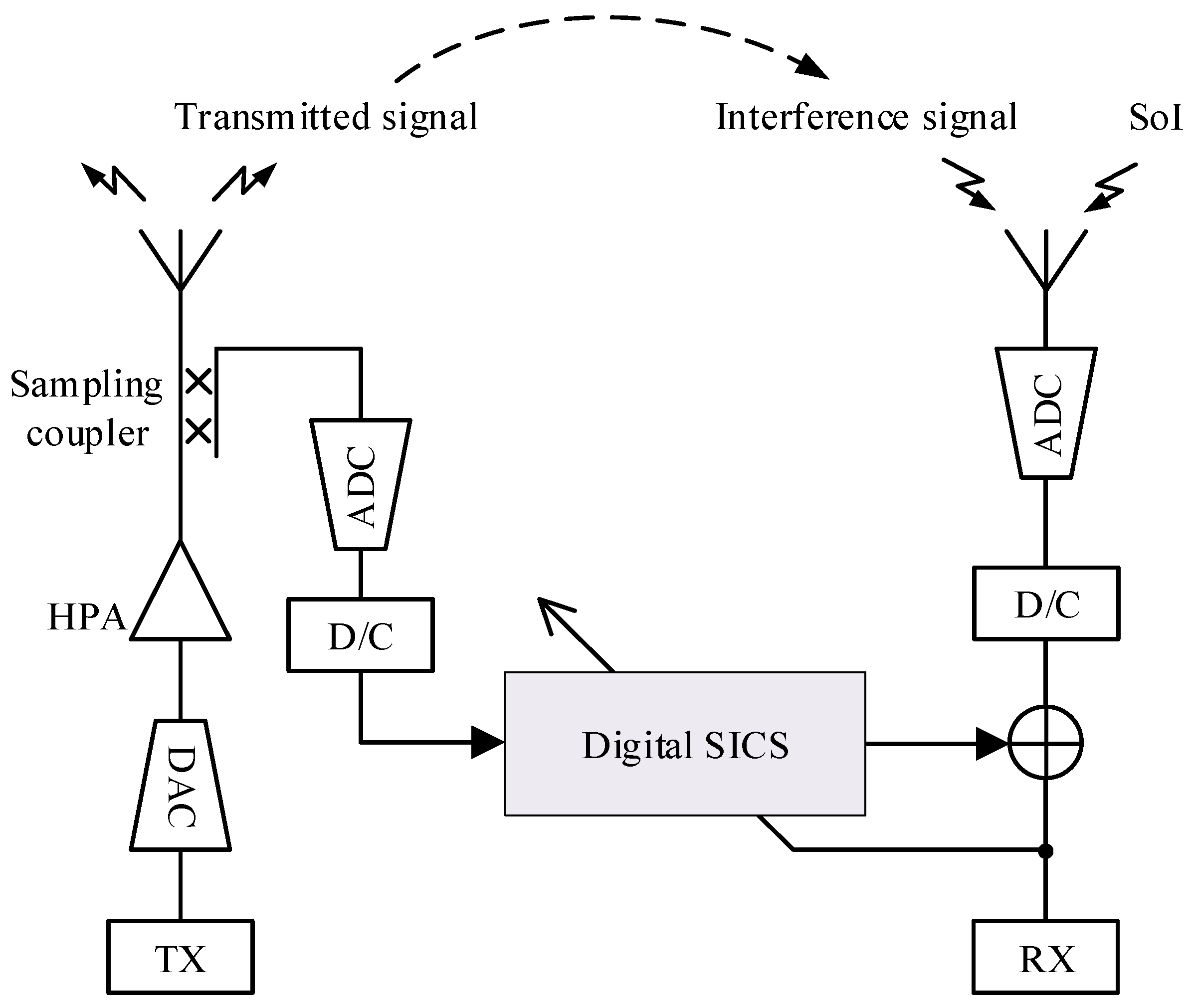

Figure 6. A typical digital SIC topology.
Figure 6. A typical digital SIC topology.
Electronics 11 00172 g006
Electronics 11 00172 g007 550

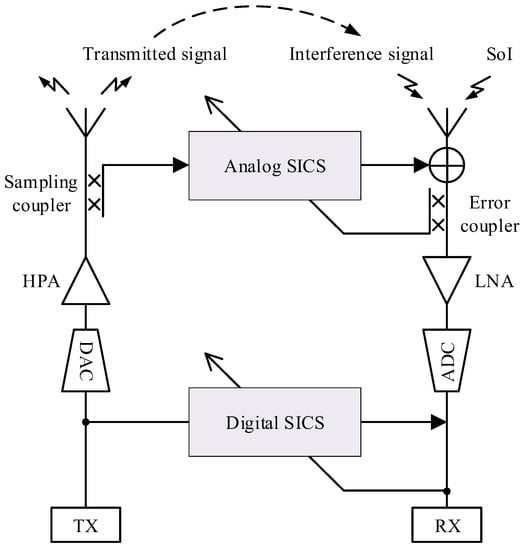

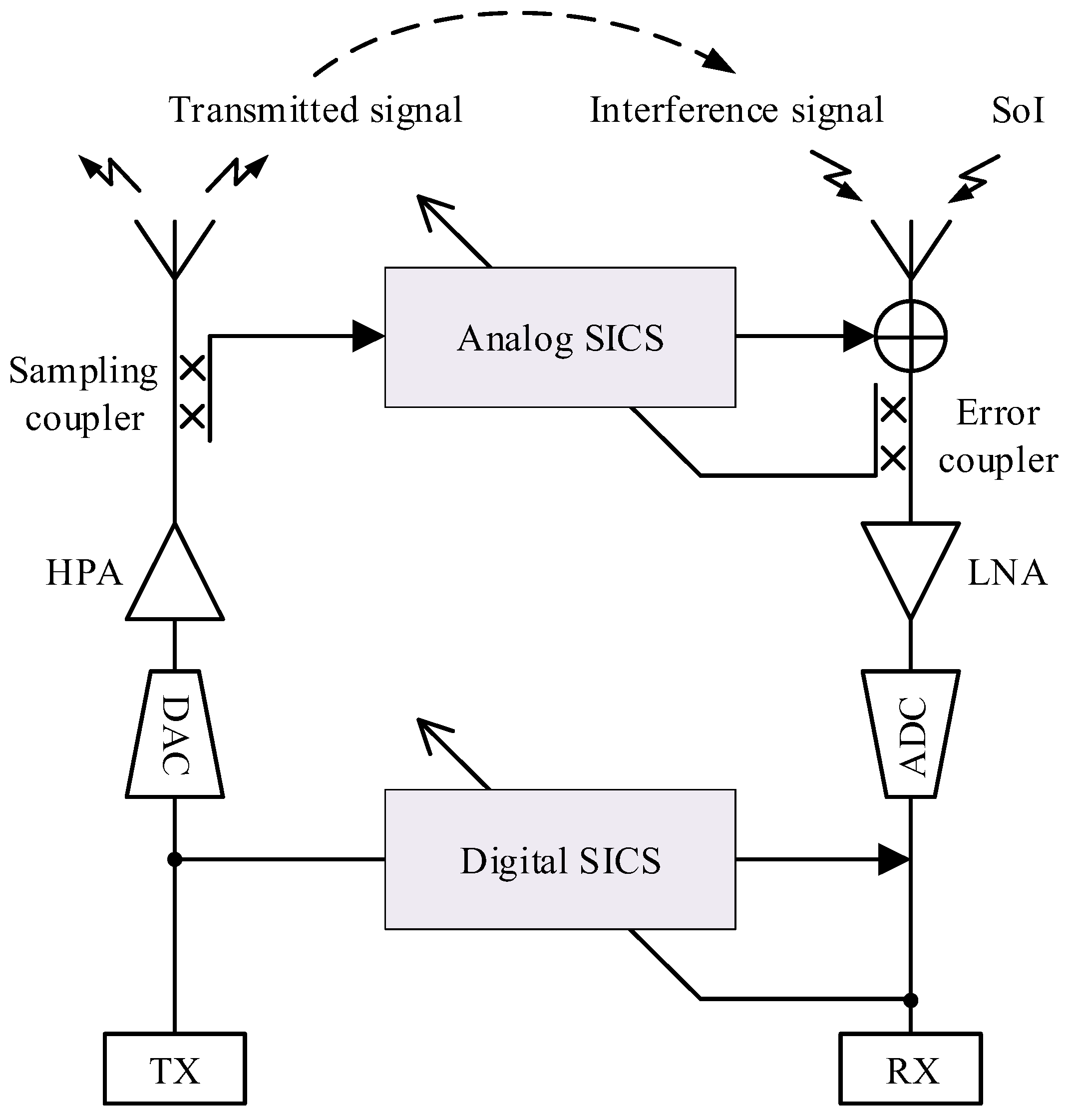

Figure 7. A two-stage SIC topology that contains both the analog SIC and digital SIC.
Figure 7. A two-stage SIC topology that contains both the analog SIC and digital SIC.
Electronics 11 00172 g007
Electronics 11 00172 g008 550

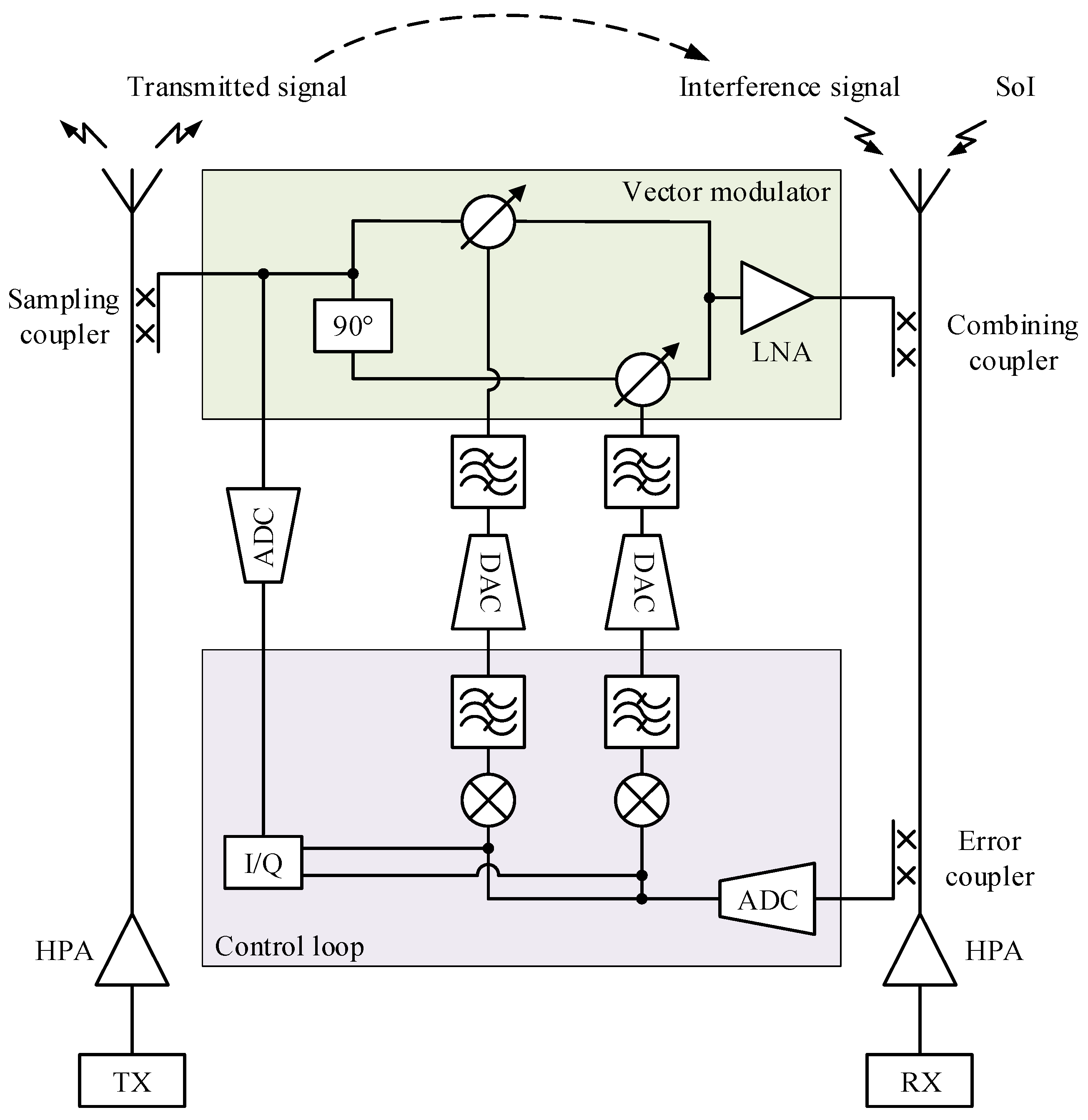

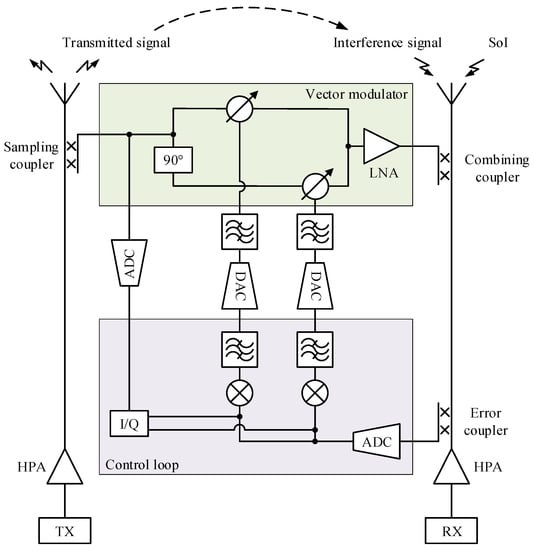

Figure 8. A typical analog–digital hybrid SIC topology.
Figure 8. A typical analog–digital hybrid SIC topology.
Electronics 11 00172 g008
Electronics 11 00172 g009 550

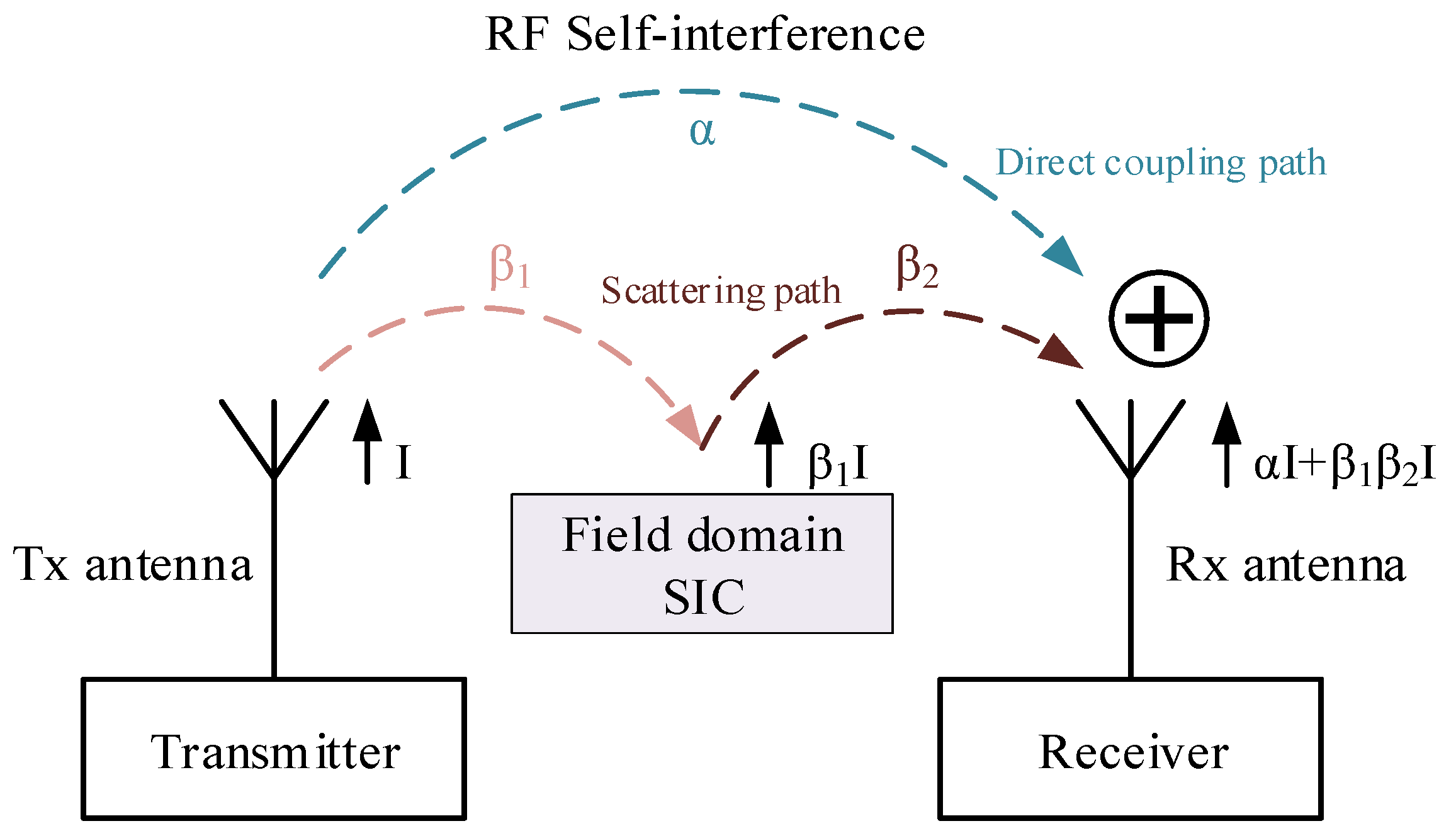

Figure 9. Operation mechanism of the FDSIC.
Figure 9. Operation mechanism of the FDSIC.
Electronics 11 00172 g009
Electronics 11 00172 g010 550

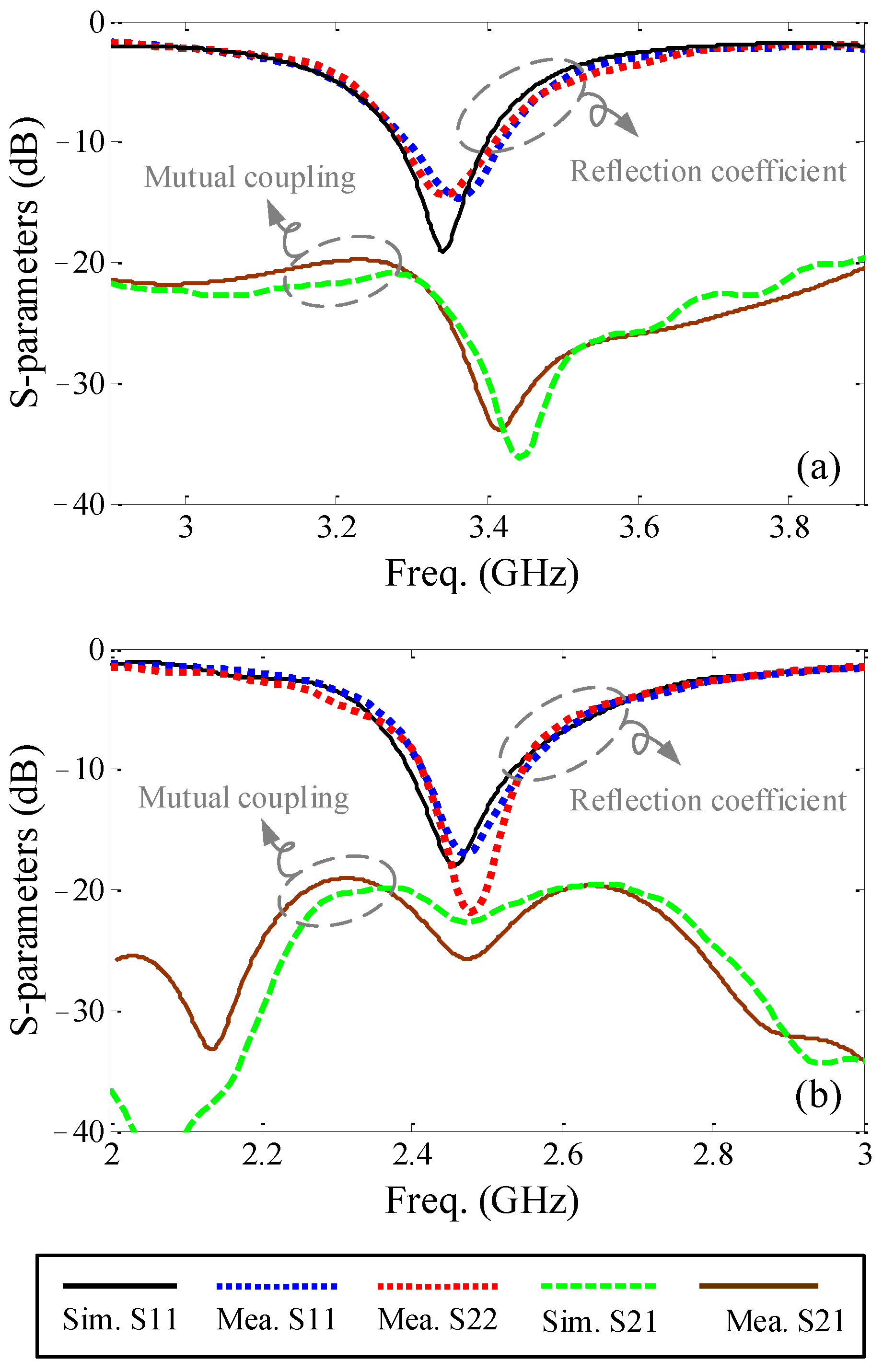

Figure 10. S-parameter performance of a field-domain SICS [58]. (a) State 1, (b) State 2. The dashed lines indicate the measurement results, the solid lines indicate the simulation results.
Figure 10. S-parameter performance of a field-domain SICS [58]. (a) State 1, (b) State 2. The dashed lines indicate the measurement results, the solid lines indicate the simulation results.
Electronics 11 00172 g010
Electronics 11 00172 g011 550

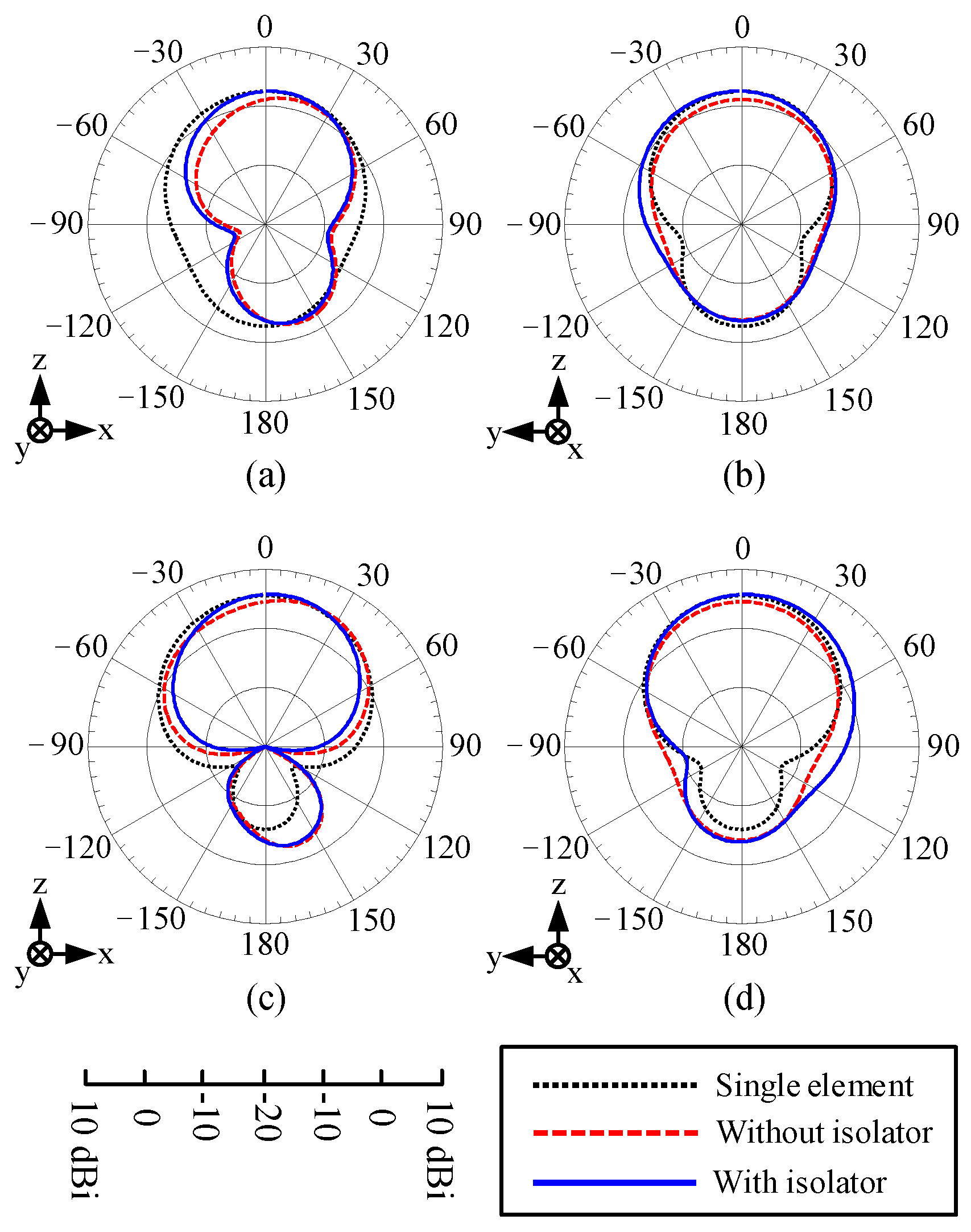

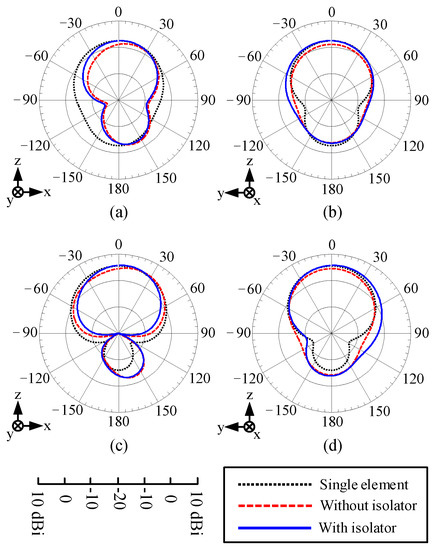

Figure 11. Radiation patterns of a field-domain SICS [58]. (a) State 1, xz plane, (b) State 1, yz plane, (c) State 2, xz plane, (d) State 2, yz plane.
Figure 11. Radiation patterns of a field-domain SICS [58]. (a) State 1, xz plane, (b) State 1, yz plane, (c) State 2, xz plane, (d) State 2, yz plane.
Electronics 11 00172 g011
Electronics 11 00172 g012 550

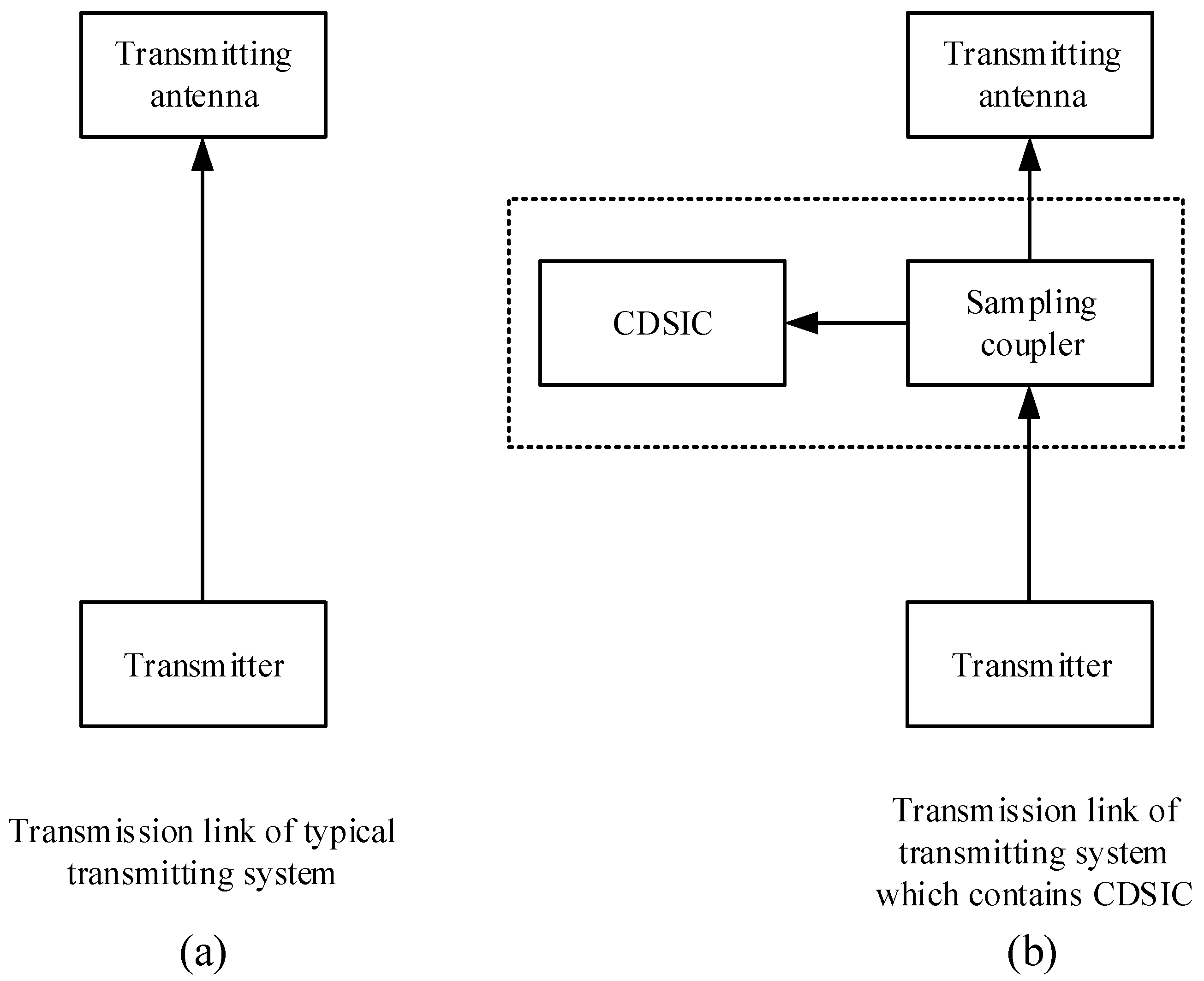

Figure 12. Typical transmitting system and transmitting system containing a CDSIC.
Figure 12. Typical transmitting system and transmitting system containing a CDSIC.
Electronics 11 00172 g012
Electronics 11 00172 g013 550

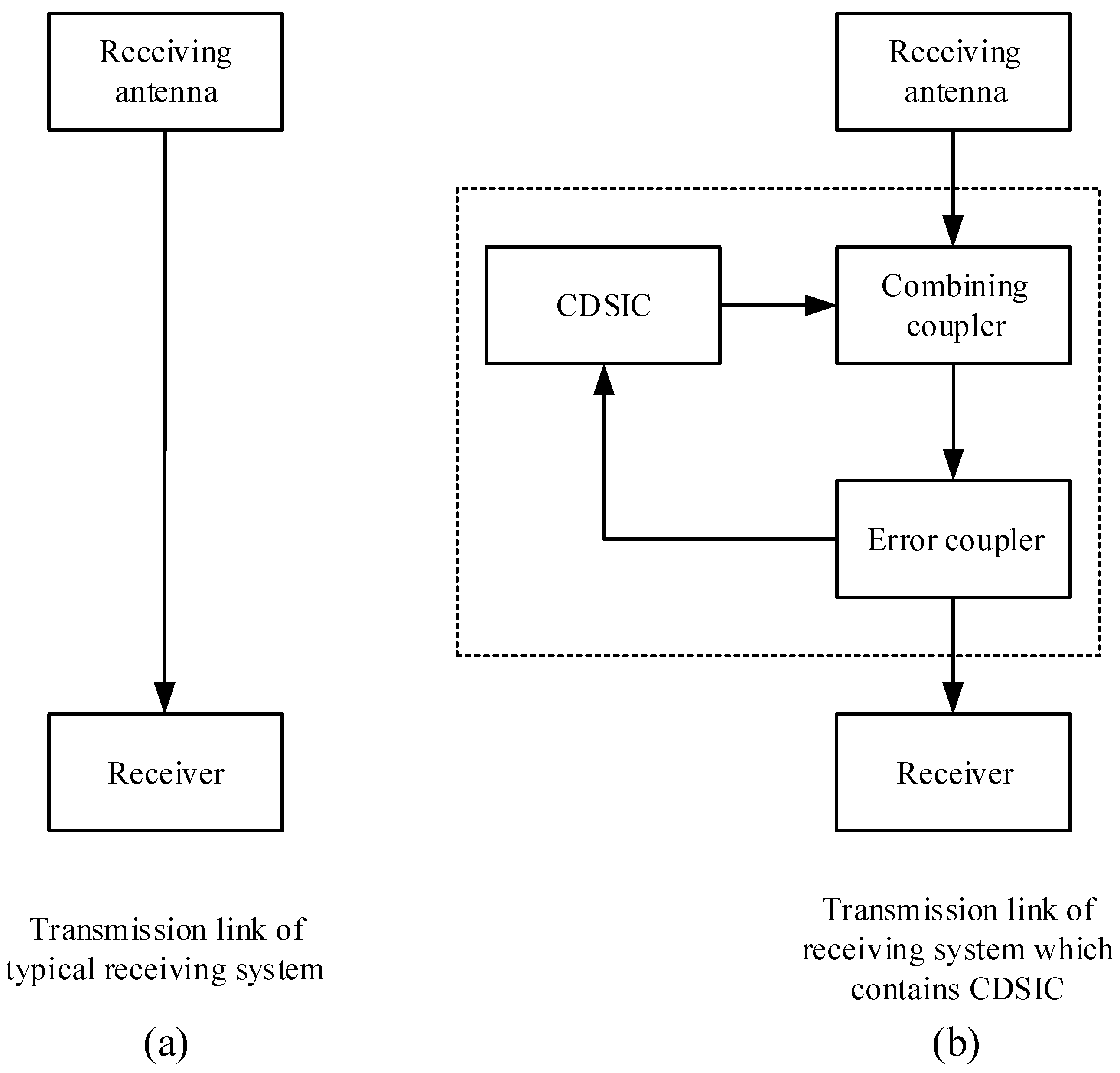

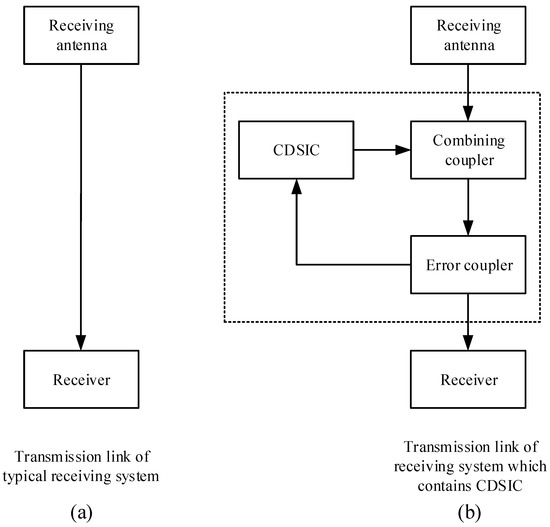

Figure 13. Typical receiving system and receiving system containing a CDSIC.
Figure 13. Typical receiving system and receiving system containing a CDSIC.
Electronics 11 00172 g013
Table
Table 1. Key performance comparison of typical circuit and field-domain SIC.
Table 1. Key performance comparison of typical circuit and field-domain SIC.
RefCategoryComplexityICRBandwidth
[29]CDSIC-analogHigh30–40 dBnarrow
[30]CDSIC-analogHigh60–80 dBnarrow
[32]CDSIC-analogHighca. 30 dBnarrow
[35]CDSIC-analogHighca. 30 dBwide
[43]CDSIC-digitalHigh25–60 dBnarrow
[46]CDSIC-hybridHigh30–40 dBwide
[53]CDSIC-passiveLow12 dBnarrow
[56]CDSIC-passiveLow60 dBnarrow
[58]FDSIC-passiveLowca. 8 dBnarrow
[59]FDSIC-activeHigh40 dBnarrow
Table
Table 2. Comparison of the circuit domain SIC and the field-domain SIC.
Table 2. Comparison of the circuit domain SIC and the field-domain SIC.
Transmitting Power LossAttenuation of the SoIEffect on the Noise FigureRadiation Pattern
Circuit domainAnalogYesYesYesNo effect
DigitalYesYesYesNo effect
Field domain-No lossNo attenuationNo effectDistortion
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, J.; He, F.; Li, W.; Li, Y.; Wang, Q.; Ge, S.; Xing, J.; Liu, H.; Li, Y.; Meng, J. Self-Interference Cancellation: A Comprehensive Review from Circuits and Fields Perspectives. Electronics 2022, 11, 172. https://doi.org/10.3390/electronics11020172

AMA Style

Zhang J, He F, Li W, Li Y, Wang Q, Ge S, Xing J, Liu H, Li Y, Meng J. Self-Interference Cancellation: A Comprehensive Review from Circuits and Fields Perspectives. Electronics. 2022; 11(2):172. https://doi.org/10.3390/electronics11020172

Chicago/Turabian Style

Zhang, Jiahao, Fangmin He, Wei Li, Yi Li, Qing Wang, Songhu Ge, Jinling Xing, Hongbo Liu, Yaxing Li, and Jin Meng. 2022. "Self-Interference Cancellation: A Comprehensive Review from Circuits and Fields Perspectives" Electronics 11, no. 2: 172. https://doi.org/10.3390/electronics11020172

APA Style

Zhang, J., He, F., Li, W., Li, Y., Wang, Q., Ge, S., Xing, J., Liu, H., Li, Y., & Meng, J. (2022). Self-Interference Cancellation: A Comprehensive Review from Circuits and Fields Perspectives. Electronics, 11(2), 172. https://doi.org/10.3390/electronics11020172

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
