A Blockchain-Based and SGX-Enabled Access Control Framework for IoT
Abstract
:1. Introduction
- The performance of the existing public blockchain cannot meet the massive terminal nodes of the Internet of Things; to solve this issue, we designed a blockchain framework of the permissioned blockchain on Quorum, based on the Ethereum protocol, to break the practical bottleneck. The framework saved the valuable storage space of the blockchain by distributing attribute signatures for clients off the chain. Specifically, it dramatically improves data-carrying capacity and transmission efficiency.
- We have designed an attribute-based access control contract to manage the access control strategy of IoT data resources in a fine-grained manner. It can effectively complete the process of client access verification on the blockchain. At the same time, the on-chain access control policy can be updated dynamically. We use a set of attributes to describe the client’s identity and grant it access through an off-chain attribute signature distribution mechanism. Therefore, our control access framework decouples access policy on the blockchain from client identity, which is more flexible than previous work [10,11].
- In data processing and the transmission of edge nodes, we use the Enclave security zone provided by Intel SGX as a trusted execution environment to process sensitive data. We use the remote attestation mechanism provided by Intel SGX to build a secure communication channel from the edge server to the client to ensure the credibility of data in the remote processing process and the security of the transmission process.
- We implemented a prototype of the proposed framework on Quorum. We conducted many experiments and compared them with previous work. Finally, we demonstrated the superiority of the proposed scheme with excellent performance data.
2. Related Technologies
2.1. Quorum and Smart Contract
2.2. Intel SGX
2.2.1. Isolated Execution

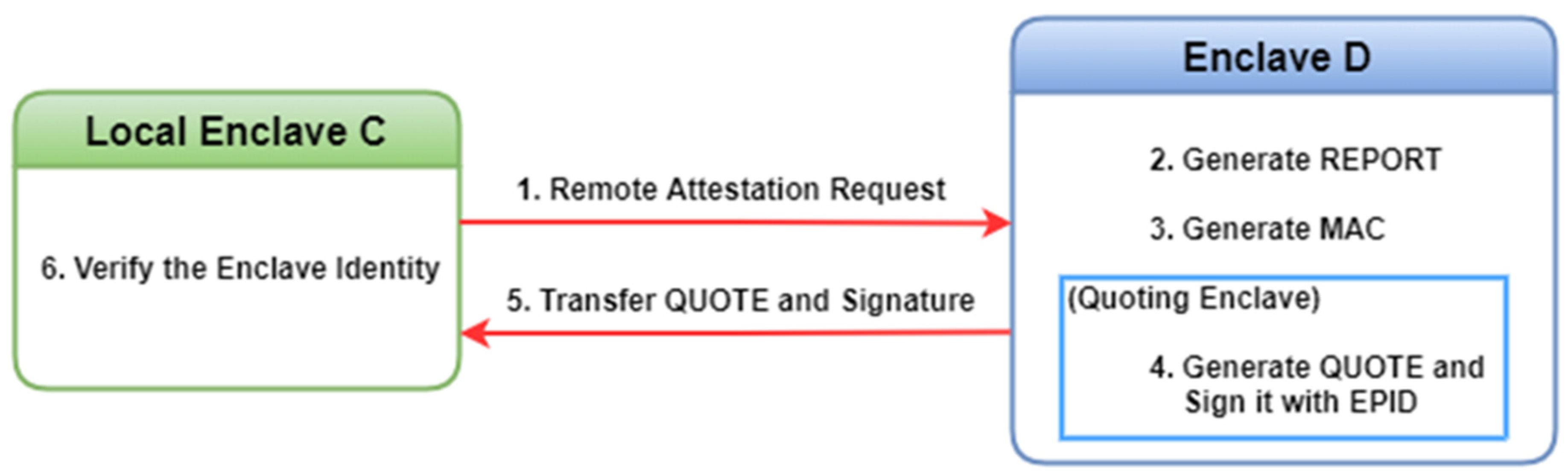

2.2.2. SGX Attestation
2.3. Access Control
3. Related Work
4. Design and Implementation

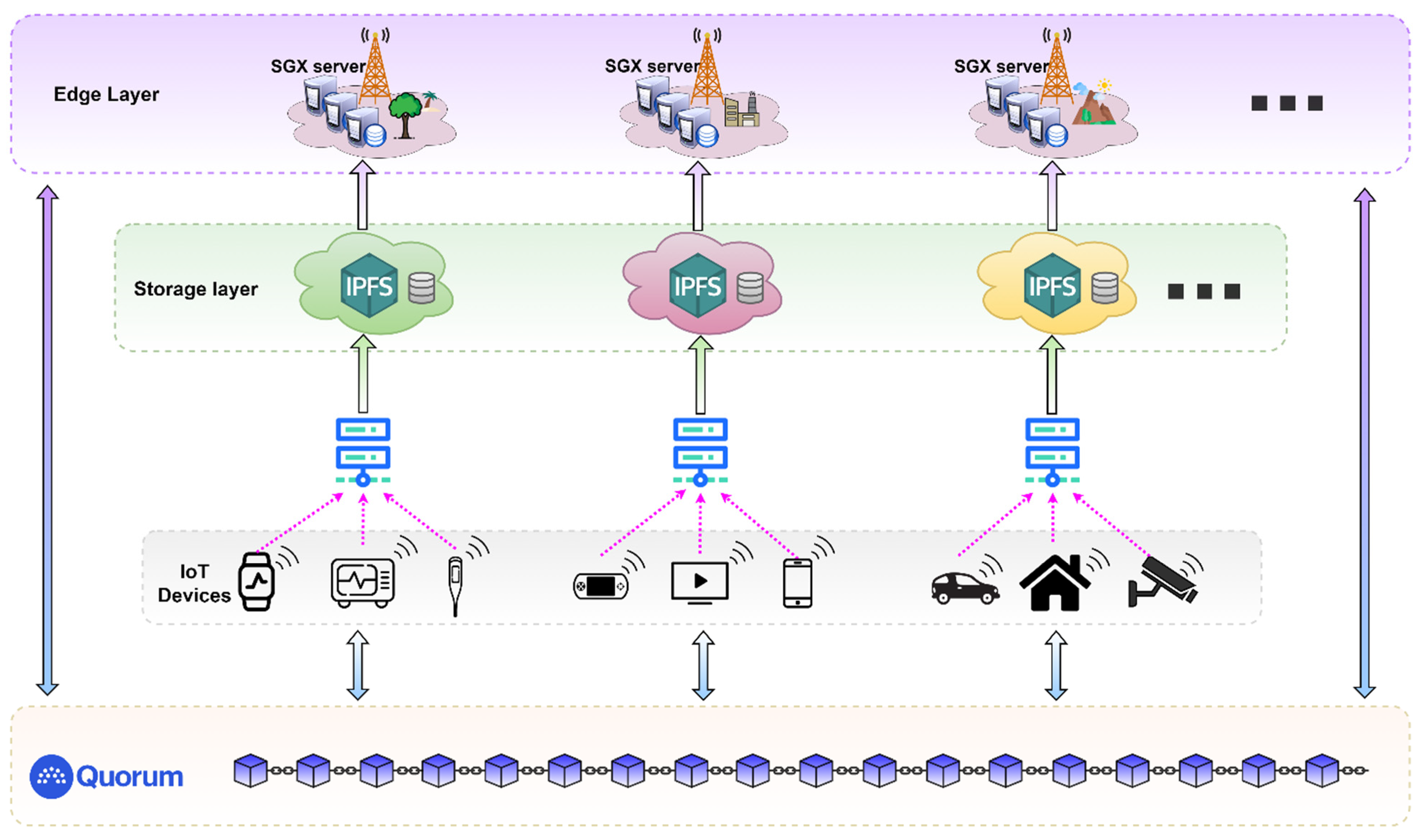

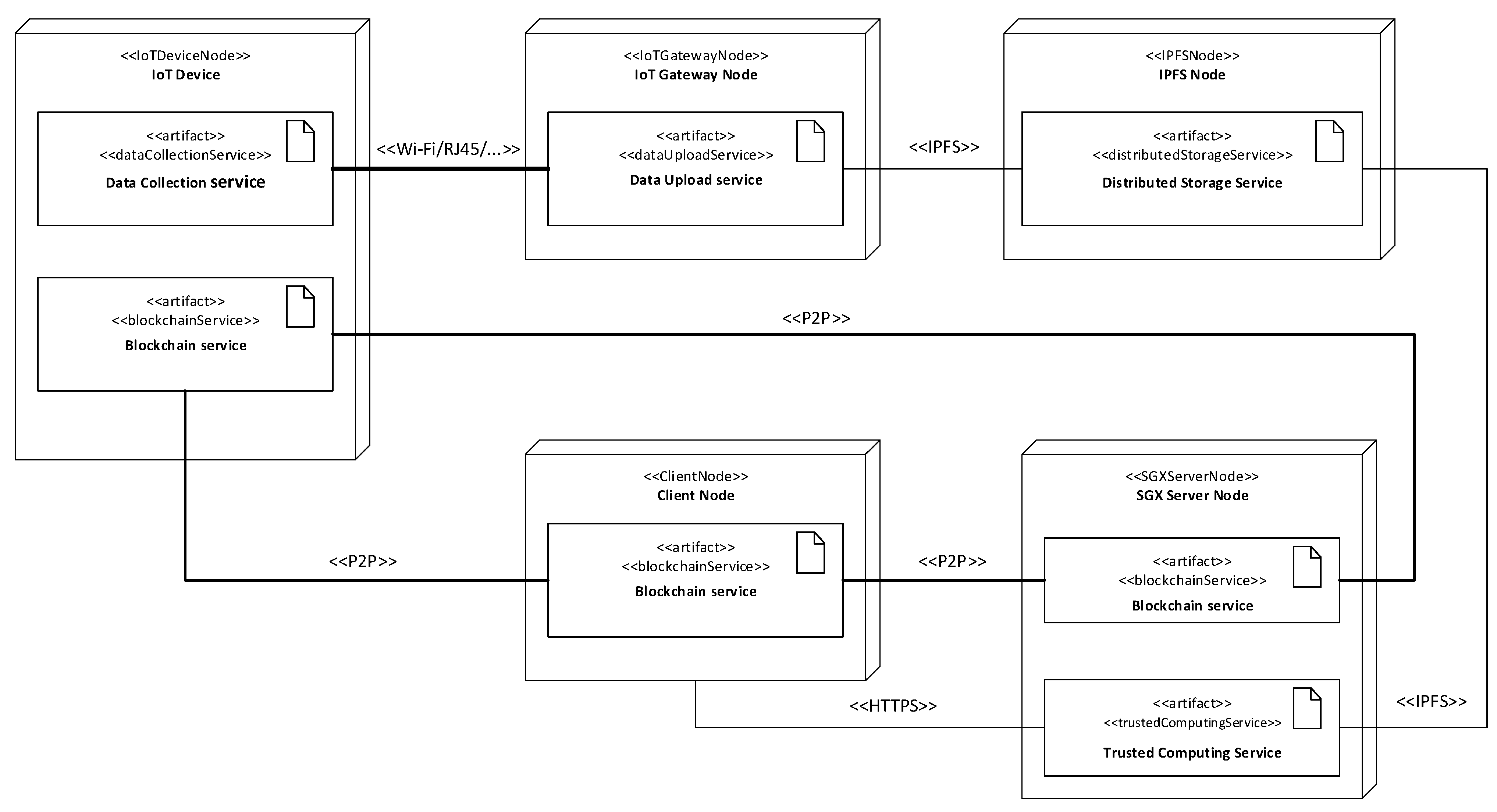

4.1. System Framework

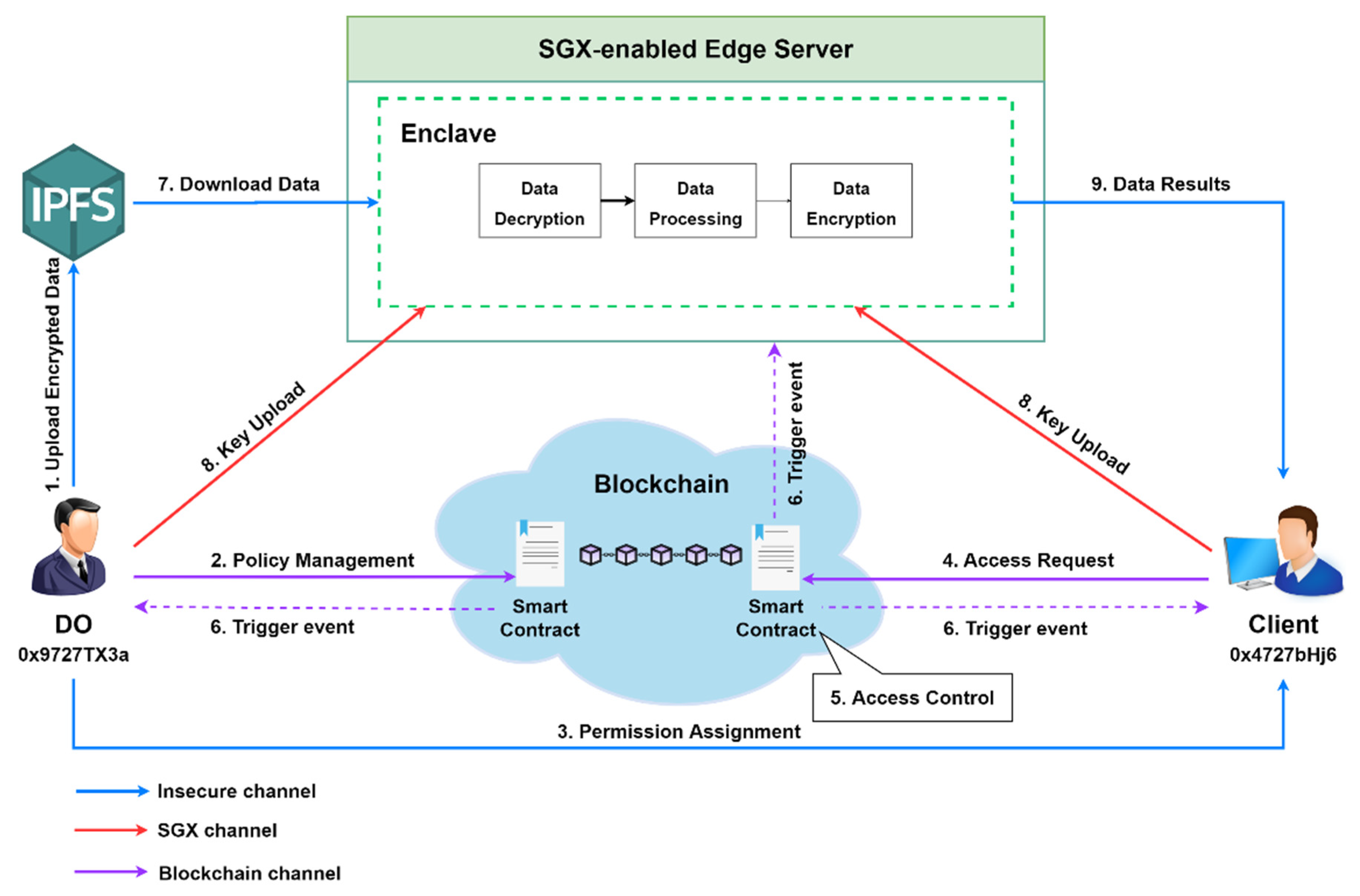

4.2. Access Control of IoT Based on Blockchain
4.2.1. Initialization of Blockchain
4.2.2. Attribute-Based Access Control Contract
- Initialization of the Contract
Algorithm 1. Initialization of the Contract | |
1: | address |
2: | enum{, , , } |
3: | mapping(=> ) |
4: | event ResultEvent(, , ) |
5: | mapping( => ) |
6: | function Constructor(): ▷only invoked once by |
7: | = |
8: | end function |

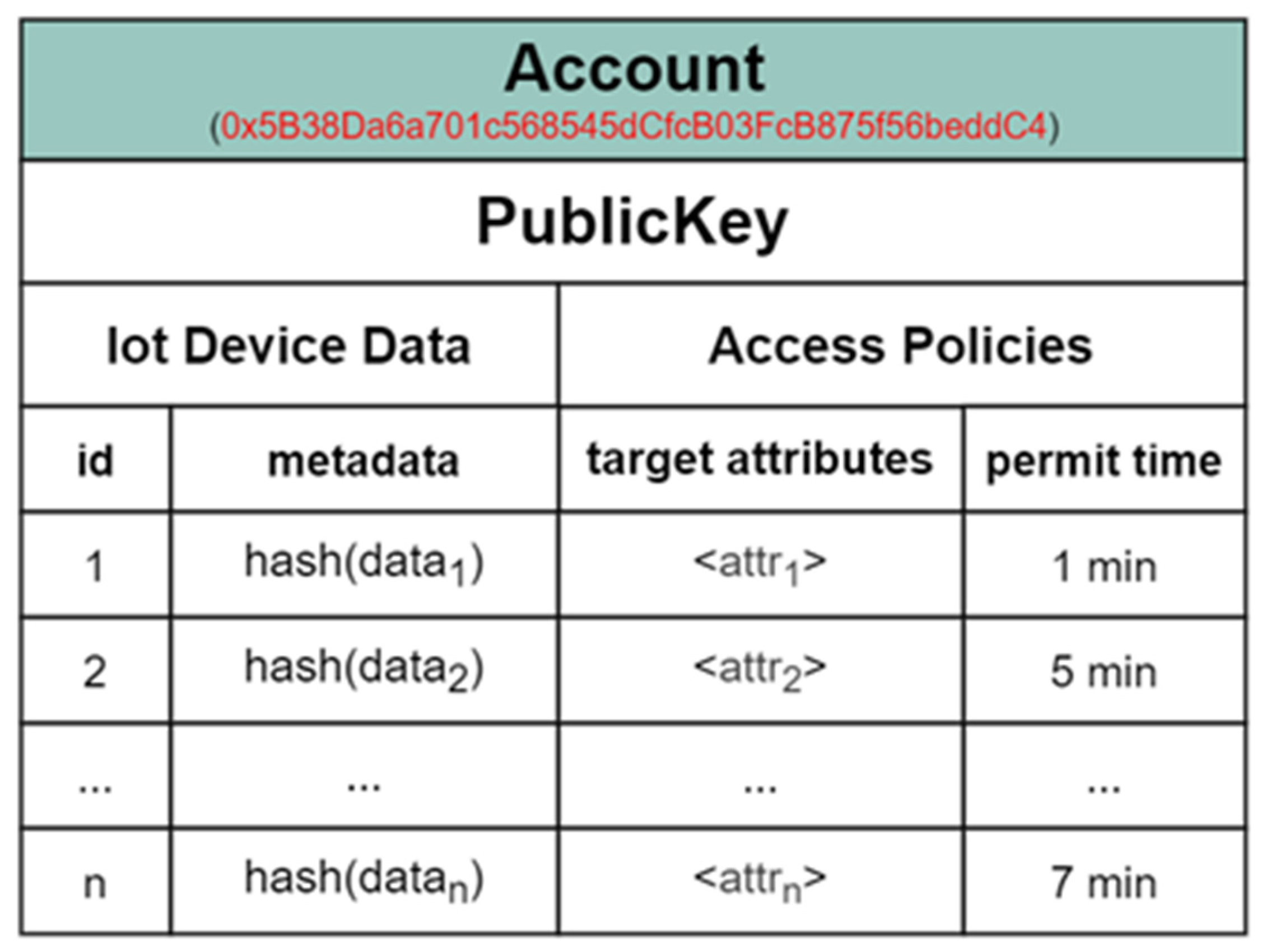

- Management of Access Policy
Algorithm 2. Management of Access Policy | |
Input: | : the target data’ID : IPFS address index :the access policy |
1: | function AddDataPol(, , ) : ▷only invoked by |
2: | policy_all[] = (, ) |
3: | end function |
4: | function DelDataPol() ▷only invoked by |
5: | |
6: | end function |
7: | function QueryData() ▷only invoked by |
8: | (==) |
9: | return |
10: | end function |
- Assignment of Client Permission
- Access Control
Algorithm 3. Assignment of Client Permission | |
Input: | : the target data’ID : the attribute set : a message signed by |
1: | function AccessControl(, , ): ▷only invoked by |
2: | (==) |
3: | if ! = 1: |
4: | ResultEvent(, , ) |
5: | elif SignVerify(, ) == : |
6: | ResultEvent(, , ) |
7: | elif PolicyVerify(, ) == : |
8: | ResultEvent(, , ) |
9: | else: |
10: | ResultEvent(, ,,) |
11: | end if |
12 | end function |
13: | function SignVerify(, ): ▷only invoked internally |
14: | msgHash = |
15: | if == : |
16: | return |
17: | else |
18: | return |
19: | end if |
20: | end function |
21: | function PolicyVerify(, ): ▷only invoked internally |
22: | = |
23: | if is satisfied by : |
24: | return |
25: | else |
26: | return |
27: | end if |
28: | end function |
- Deregistration and Recovery of Client
Algorithm 4. Deregistration of Client | |
Input: | : the account address |
1: | function DeregisterClient() : ▷only invoked by |
2: | ++ |
3: | end function |
4.3. Trusted Processing of IoT Data Based on SGX-Enabled Edge Computing
5. Performance Evaluation

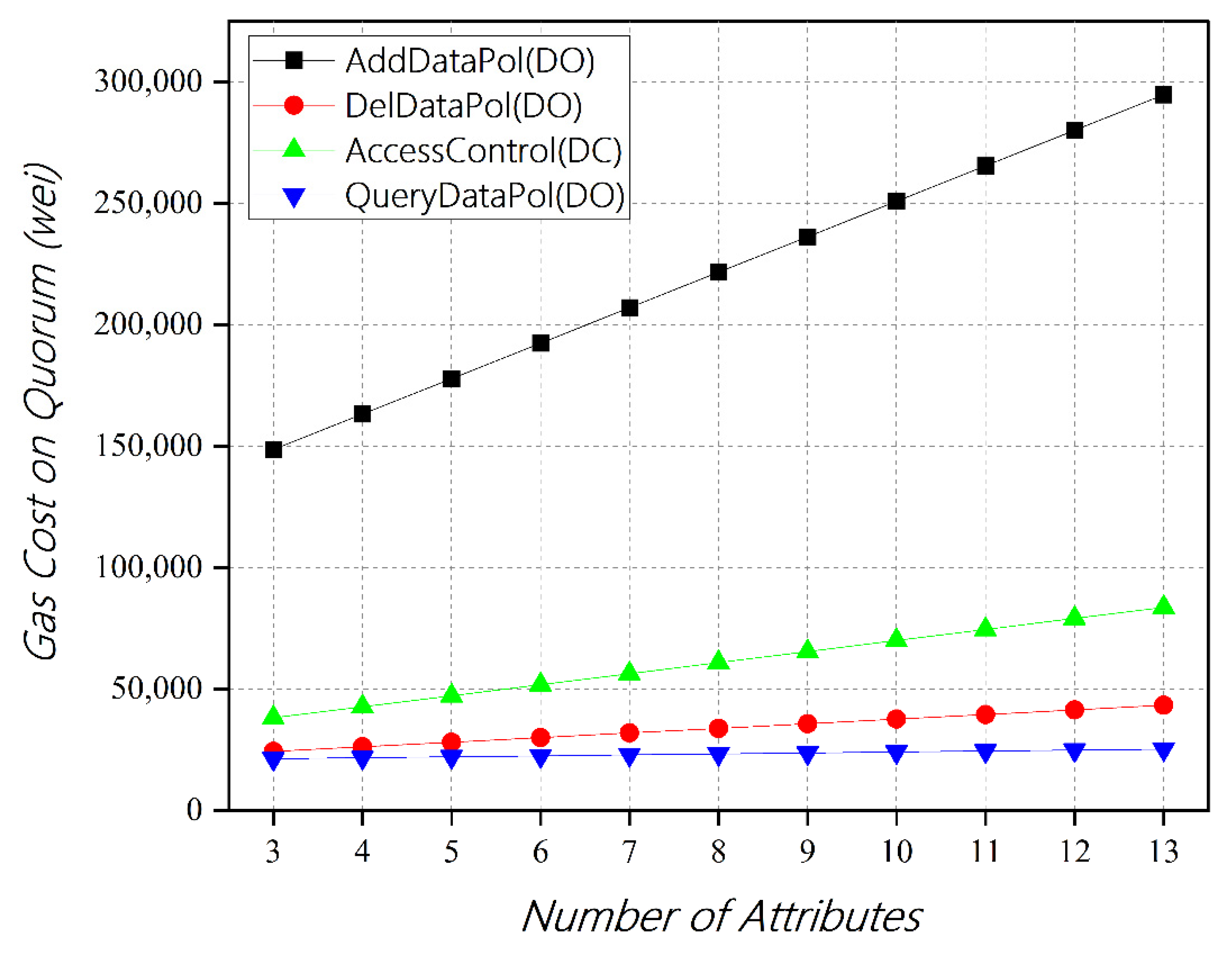

5.1. Performance of Access Control Contract

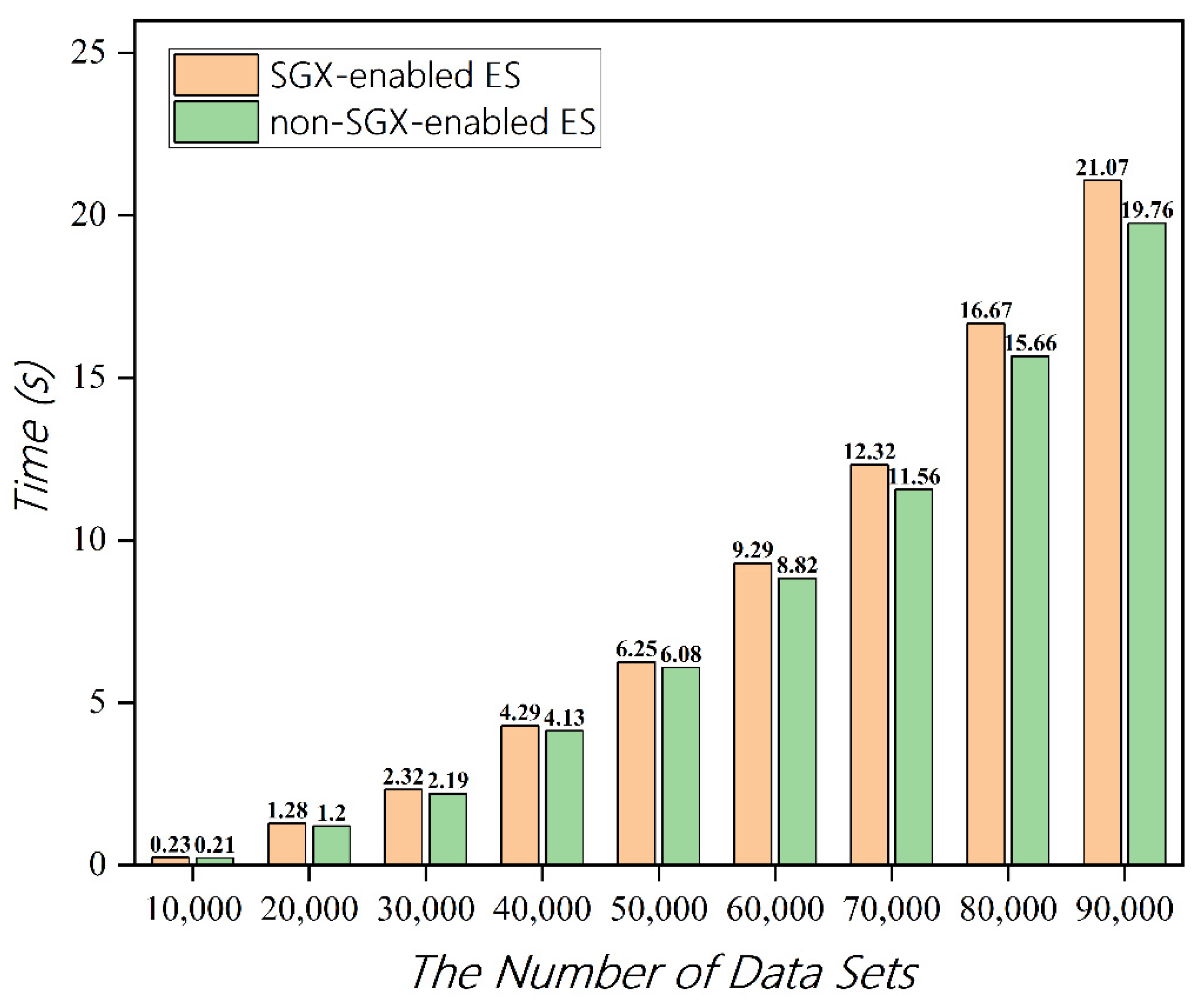

5.2. Performance of Trusted Data Processing Based on SGX
6. Discussion and Limitations
- (1)
- Auditability
- (2)
- Flexibility
- (3)
- Authenticity
- (4)
- IoT Data Confidentiality
7. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
