Double-Network Hydrogel for Stretchable Triboelectric Nanogenerator and Integrated Electroluminescent Skin with Self-Powered Rapid Visual Sensing

by
Yanshuo Sun
1,2,†,
Jianjun Zhang
1,2,†,
Chengyu Li
2,3,†,
Jin Yang
1,2,
Hao Li
1,2,
Tao Jiang
1,2,3,* and
Baodong Chen
2,3,4,*
1
School of Chemistry and Chemical Engineering, Guangxi University, Nanning 530004, China
2
Beijing Institute of Nanoenergy and Nanosystems, Chinese Academy of Sciences, Beijing 101400, China
3
School of Nanoscience and Technology, University of Chinese Academy of Sciences, Beijing 100049, China
4
Institute of Applied Nanotechnology, Jiaxing 314031, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Electronics 2022, 11(13), 1928; https://doi.org/10.3390/electronics11131928
Submission received: 1 June 2022 / Revised: 16 June 2022 / Accepted: 16 June 2022 / Published: 21 June 2022
(This article belongs to the Special Issue Nanogenerators for Energy Harvesting and Self-Powered Sensing)
Browse Figures
Review Reports Versions Notes

Abstract

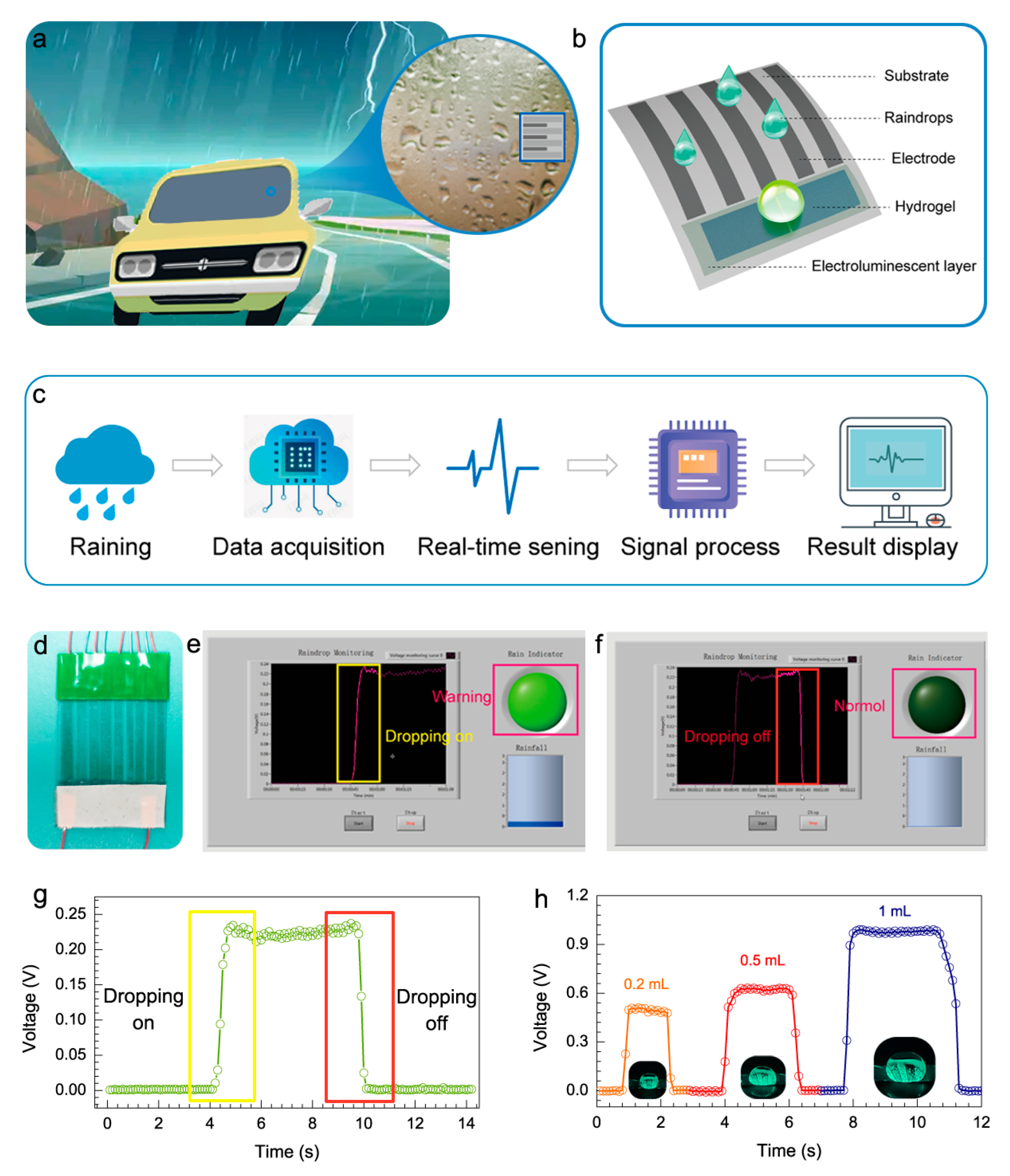

Bio-inspired design plays a very significant role in adapting biological models to technical applications of flexible electronics. The flexible, stretchable, and portable electrode is one of the key technical challenges in the field. Inspired by the responses to mechanical stimuli of natural plants, we designed a highly transparent (over 95%), stretchable (over 1500%), and biocompatible electrode material by using polymerized double-network hydrogel for fabricating a triboelectric nanogenerator (SH-TENG). The SH-TENG can convert tiny mechanical stretching from human movements directly into electrical energy, and is capable of lighting up to 50 LEDs. Benefiting from bio-inspired design, the coplanar, non-overlapping electrode structure breaks through the limitations of conventional electrodes in wearable devices and overcomes the bottleneck of transparent materials. Furthermore, a self-powered raindrop visual sensing system was realized, which can perform quasi-real-time rainfall information monitoring and increase rainfall recognition ability of vehicle automatic driving systems. This study provides a novel strategy for making next-generation stretchable electronic devices and flexible visual sensing systems.
Keywords: triboelectric nanogenerator; electroluminescent skin; self-powered visual sensing; double-network hydrogel triboelectric nanogenerator; electroluminescent skin; self-powered visual sensing; double-network hydrogel
Graphical Abstract
