1. Introduction
Advances in deep learning [
1,
2] have shown state-of-the-art performances in various recognition tasks [
3,
4,
5]. Thanks to open-sourced deep learning frameworks [
6,
7,
8], commercial applications [
9,
10] based on deep learning are made possible.
On the other hand, individual sensors have limited information, and different sensors have complementary information to provide. Therefore, multi-modal systems with multiple sensors have been developed to exploit the complementary information [
11,
12,
13,
14]. For example, RGB camera sensors provide rich information under sufficient lighting but may fail during night-time. Therefore, thermal imaging sensors and LiDAR sensors can be used for a more robust autonomous driving system [
12]. In action recognition tasks [
15,
16,
17], initial approaches use RGB image sequences and optical flow sequences as model inputs, as RGB images provide contextual information and optical flow images provide motion information. To combine the two modalities, a naive and effective approach, called late-fusion, is to ensemble two separate model outputs. A recent dataset [
18] for action recognition has shown that some actions are only recognizable with an audio modality. Apart from naive multi-modal approaches in which individual models are trained for each modality, there are studies using a single model with multi-modal inputs. A pioneering work [
19] proposes a model with multi-modal inputs for multiple tasks, including image and text inputs, classification, detection, translation and captioning tasks. Although the final performances are weaker than the state-of-the-art of each task, it is a proof-of-concept for utilizing multi-modal inputs.
While the aforementioned tasks can achieve high performance with single-modality inputs, sentimental analysis tasks [
20,
21] require the use of multiple modalities. Sentimental analysis is a task performed to predict the sentiment of a person in a given video clip. Three heterogeneous modalities can be used for this task: RGB frames, an audio sequence, and spoken sentences. The CMU Multimodal Opinion Sentiment and Emotion Intensity (CMU-MOSEI) dataset [
21] provides samples to explicitly show that the modalities are complementary and thus are essential to accurately classify those samples. As a result, recent studies [
21,
22,
23] propose ways to fuse multi-modal inputs to utilize complementary information in multiple modalities.
Multiple modalities can also be used for fraud detection. Face anti-spoofing is a widely-known task to identify forgery inputs. The face anti-spoofing benchmarks [
24,
25] use RGB, depth and IR sensors to identify fake inputs for face identifications. A single-modality system can be easily fooled. In a famous incident, called “facegate” [
26], a printed face on a paper or a 3D mask was able to fool an RGB-based system. On the other hand, simultaneously fooling multiple modalities is much more difficult, and we propose a simple method to detect fake data using the learned correspondence among multiple modalities.
Inspired by a recent study in self-supervised learning [

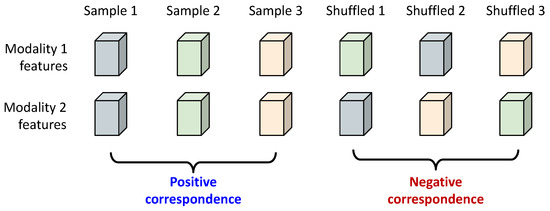

27], we propose a correspondence learning scheme to exploit the relationship among multiple modalities. The correspondence is defined according to whether the multiple modalities are taken from the same sample—that is, the modalities from the same sample have positive correspondence; when one or more modalities are taken from a different sample, the modalities have negative correspondence. The overall process is illustrated in

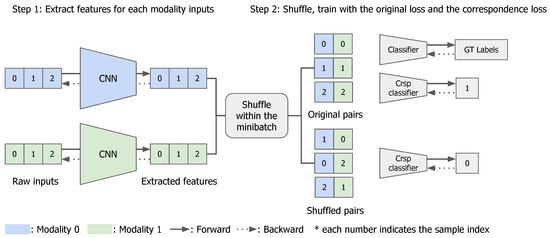

Figure 1. Each modality has its own feature extractor, and correspondence learning is added as an auxiliary task on top of the original task. After the feature extraction, we synthesize negative correspondence samples by swapping features from other samples and train a sub-network to predict the correspondence of given features. Positive correspondence samples are the un-swapped, original paired features. In this way, the sub-network is trained to predict the correspondence among modalities, and the extracted multi-modal features contain information about the correspondence with each other. We empirically show that correspondence learning can significantly improve the performance of models with multi-modal inputs in sentimental analysis benchmarks. In addition, the learned correspondence among modalities can be used for fraud detection, and we can effectively filter out fake inputs. As camera modality is frequently used as inputs, we focus on preventing look-alike frauds in reverse vending machine cases. Nevertheless, the idea can easily be extended to other situations. In the reverse vending machine dataset, the naive joint learning may not fully utilize multi-modal information, so we additionally use an attention mechanism to keep the performance on par with the conventional approach and simultaneously detect fraud inputs. Please note that this is an extended version of our conference paper [
28].
The paper contributes in the following ways:
We propose correspondence learning (CL), a novel and simple technique to explicitly learn the relationship among modalities;
In sentimental analysis benchmarks, we show that CL significantly improves performances with the simple auxiliary correspondence learning task;
In the garbage classification task, we show that single-modality-based models are vulnerable to fraud inputs and unseen class objects (out-of-distribution), and the learned correspondence can be used for fraud detection with high detection rates. We also show that the material classification is possible with non-contact ultrasound sensors.
2. Related Works
After the success of deep learning in single modality tasks [
1,
2] with a large scale dataset [
3], a number of datasets have been proposed with multiple modalities in action recognition [
15,
16,
18], sentiment analysis [
20,
29] and face anti-spoofing [
24,
25]. In action recognition datasets, there are three different modalities to be used: visual (RGB sequence), motion (optical flow) and audio. Until recently, only visual and motion modalities have been used, and a common approach is to train one model for each modality and ensemble via late-fusion [
30]. The two modalities are crucial yet complementary to each other: the visual modality contains the contextual information, and the the optical flow modality contains the motion information. A recent study [
31] shows that the complementary information can be partially distilled from motion to visual modality, and the single visual modality can achieve comparable results to the two-stream approaches. While modalities may share information on the target task, there are fundamental differences in different modalities: RGB sensors cannot defend against 3D masks in face identification [
25] and some actions can only be recognized with audio modality [
18] (e.g., snapping), while some sentiments can only be expressed via tone(audio), words(language) or facial expressions(visual) [
29].
A widely-used approach for multi-modal recognition is late-fusion [
30], in which one model is trained for each modality and the predictions from multiple modalities are combined. While aligning visual and motion modalities is straightforward [
32], as they are similar in terms of spatial characteristics, aligning heterogeneous modalities, such as visual, word and audio, requires sophisticated techniques [
21,
22,
23]. The proposed correspondence learning can be used as an auxiliary task along with any of the fusion methods. It can be regarded as semi-supervised learning with self-supervision from cross-modal correspondence. In the experiments, we show that the auxiliary task of CL can improve the performance.
Methods to fool deep learning models, or adversarial attacks [
33,
34,
35], have been actively developed to identify the vulnerability of the deep learning models and make them robust. Adversarial samples are easy to synthesize with minimal noises that are not visible to human eyes [
34]. Surprisingly, the adversarial samples can be extended to the physical world, and adversarial patches can fool the recognition models [
35]. A real world case [
26], in which a face recognition system was fooled by pictures, indicated the vulnerability of single modality inputs. To mitigate this issue, several benchmarks have been proposed to detect fraud inputs [
24,
25]. Previous approaches on fraud detection (i.e., face anti-spoofing) are only applicable with spatially-aligned image modalities. In contrast, our proposed method is simple and widely applicable without any constraints on the inputs.
Several previous works have tried to exploit cross-modal correspondence [
27,
36]. SoundNet [
36] uses a teacher–student framework to distill the discriminative information from a visual model into an audio model and achieves a new state-of-the-art in audio classification benchmarks. Relja Arandjelović et al. [
27] use the correspondence between audio and visual modalities to train a cross-modal retrieval system, where images can be retrieved with audio inputs, and vice versa. The proposed method in this manuscript also exploits cross-modal correspondence, but it differs from all previous works in several aspects. First, the previous works focus on using the learned correspondence for a specific task. For example, Relja Arandjelović et al. [
27] use the learned correspondence for sound-image retrieval and sound localization in the given video frames. On the other hand, we propose correspondence learning as an auxiliary feature for another task and aim to improve the performance of the original task. In the fraud detection task, we can keep the original task of garbage classification and add an important feature of fraud detection at the same time with only a marginal overhead. Furthermore, in contrast to SoundNet [
36], which only distills the rich information from a visual modality to sound modality, the proposed method jointly learns the correspondence among multiple modalities and automatically learns information from other modalities.
We propose correspondence learning (CL), which is an auxiliary task of classifying whether modalities are coming from the same sample or not. CL is inspired by representation learning [
27] using visual and audio modalities. To show the efficacy of CL for multi-modal recognition tasks, we utilize CL in two multi-modal sentiment analysis benchmarks [
20,
29] with several state-of-the-art baselines. In addition, the learned correspondence among modalities can detect any inconsistency among modalities, which can be an indication of fraud inputs. Thus, we propose a method and dataset to detect fraud samples without any fraud samples in the training set.
4. Garbage Classification Task for Fraud Detection
In this work, we propose a multi-modal garbage classification task to evaluate the robustness of multi-modal recognition systems against fraud inputs. Three different modalities are recorded for each sample: an RGB image, a non-contact ultrasound signal and the weight. The dataset consists of three garbage types (can, PET and glass bottle) and fraud examples. The task is to classify a given sample among three garbage types and reject any fraud samples. The fraud samples are defined as visually similar samples (VS) or non-target samples. VS samples are intentionally crafted to confuse the recognition system, and non-target samples are any objects that are not included in the three classes.
A reverse vending machine (RVM) collects empty, recyclable containers from users and gives out rewards. There are several products in operation, such as TOMRA [
38], RVM Systems [
39] and Superbin [

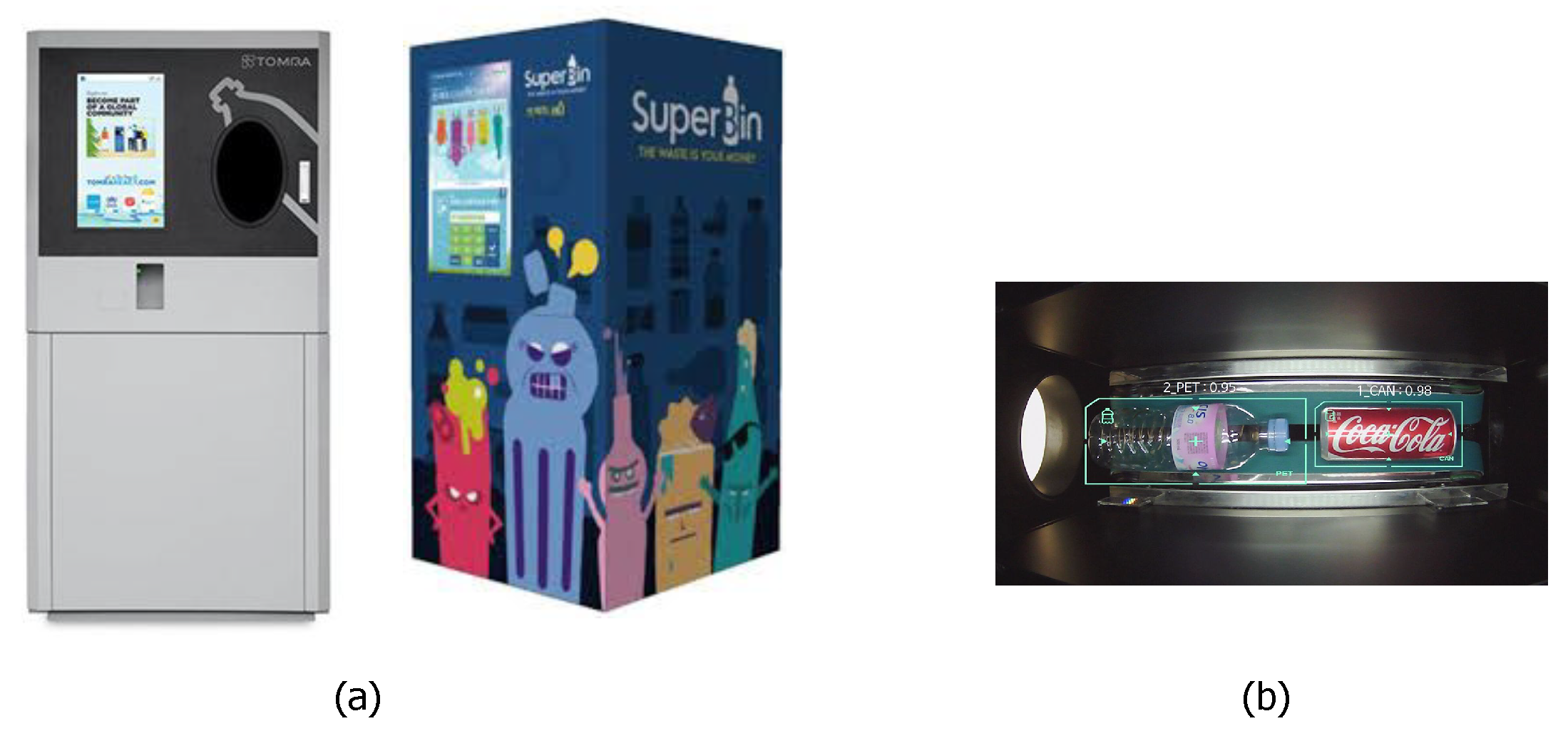

40]. Photos of commercial RVM systems are shown in
Figure 3. Previous systems often used UPC or bar code scanners to specifically identify the incoming containers. However, such systems require a huge and up-to-date database of containers and cannot handle deformed (crumpled) containers for which UPC or bar codes are not identifiable. To handle such problems, we have built a simple vision-based system with deep convolutional neural networks for garbage classification; it has shown over 99% accuracy for classification. Previously built systems used image inputs only and were vulnerable to fraud inputs such as look-alike samples.
Since an automated RVM gives back immediate rewards, it is crucial to not give a false positive classification; that is, to identify a non-target object as one of the target class. The system must reject any non-target inputs and ask the users to input target class objects. If the system accepts non-target objects, this vulnerability may be abused by malicious users and can lead to huge losses for the company. This is a fundamental threat to the RVM business model.
4.1. Hardware Settings
In this section, we introduce the data acquisition system and the types of databases for our experiments.

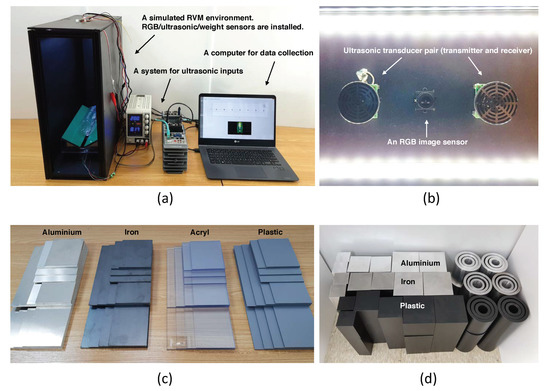

The hardware setup for data acquisition is shown in
Figure 4a,b. We used a single pair of transmitter/receiver ultrasonic sensors (HG-M40TN2/HG-M40RN2, Hagisonic), a USB webcam sensor and a 5 kg load cell sensor. We used a controller (compactRIO-9036, National Instruments) to trigger and receive raw signals of the ultrasonic and load cell sensors. We triggered the ultrasonic sensor transmitter every 200 ms and recorded the raw input in the receiver at 1 mega samples per second. We recorded the load cell signal simultaneously. We acquired the image data with the USB webcam. Everything was controlled by the laptop computer. The controller and the USB webcam were connected to the laptop.
4.2. Dataset Composition
4.2.1. Raw Material Samples
To build the databases for our multi-modal classification task, we acquired sensor inputs from various objects using ultrasonic, camera and load cell sensors. There were two types of databases: the raw material database in which the target objects had the same shapes and different material types, as shown in
Figure 4c,d; and the real object database, in which the target objects were real world objects including our target class objects (can, PET bottles, glass bottles), fraud inputs and non-target objects, as shown in
Figure 5. The raw material types were stainless steel, aluminum, poly-carbonate and polyvinyl chloride. To learn material features that were robust to sizes and shapes, we made the objects for the raw material database in various shapes and sizes. We used three shapes: flat, cuboid and cylinder. Flat shapes had widths of 80 mm, 100 mm, 120 mm and 140 mm, heights of 100 mm, 200 mm and 300 mm, and 3T of thickness. Cuboids had square bases with 50 mm, 75 mm and 100 mm sides and 100 mm, 200 mm and 300 mm heights. Cylinders had circular bases with 50 mm, 75 mm and 100 mm diameters and 100 mm, 200 mm and 300 mm heights.
4.2.2. Real World Targets and Fraud Samples
In order to evaluate the robustness of any multi-modal approach against fraud inputs, we collected as many real world samples as possible to ensure the diversity of the target class objects. We acquired real-world garbage samples from a local recycling facility. In total, 167 cans, 141 PET bottles and 228 glass bottles were collected with a multi-modal system. In addition, we collected fraud inputs to validate the robustness of a multi-modal recognition system, including visually similar (VS) samples and non-target samples. Note that the fraud inputs were only included in the validation set.

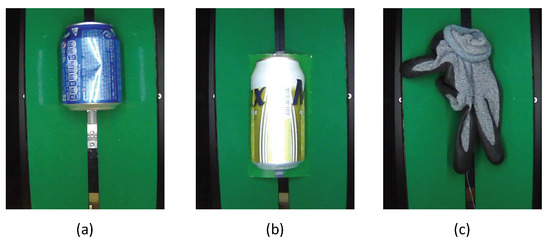

VS samples can be viciously manipulated to confuse the recognition system. We assumed that the visual information is easy to confuse and collected 60 visually-similar samples by printing out the target class objects. As shown in
Figure 5, the printed objects were realistic enough to “fool” a deep neural network system. Our initial experiment showed that a model using image inputs was able to reject 8.3% of the VS samples, leaving the rest of the VS samples to be mis-classified.
Although not viciously manipulated, non-target samples can also be potentially mis-classified with high confidence. Therefore, we collected 29 non-target samples, with the objects used in our daily life, such as paper cups, gloves, plastic bags, human arms or clothes.
The classification was very trivial, and the final accuracy was 98.0% using only the image modality. At the same time, the rejection rates of VS and non-target samples were 8.3% and 6.9%, respectively. The limitation of single-modality recognition is clear and is discussed in the experiment section, along with the efficacy of the proposed correspondence learning.
7. Conclusions

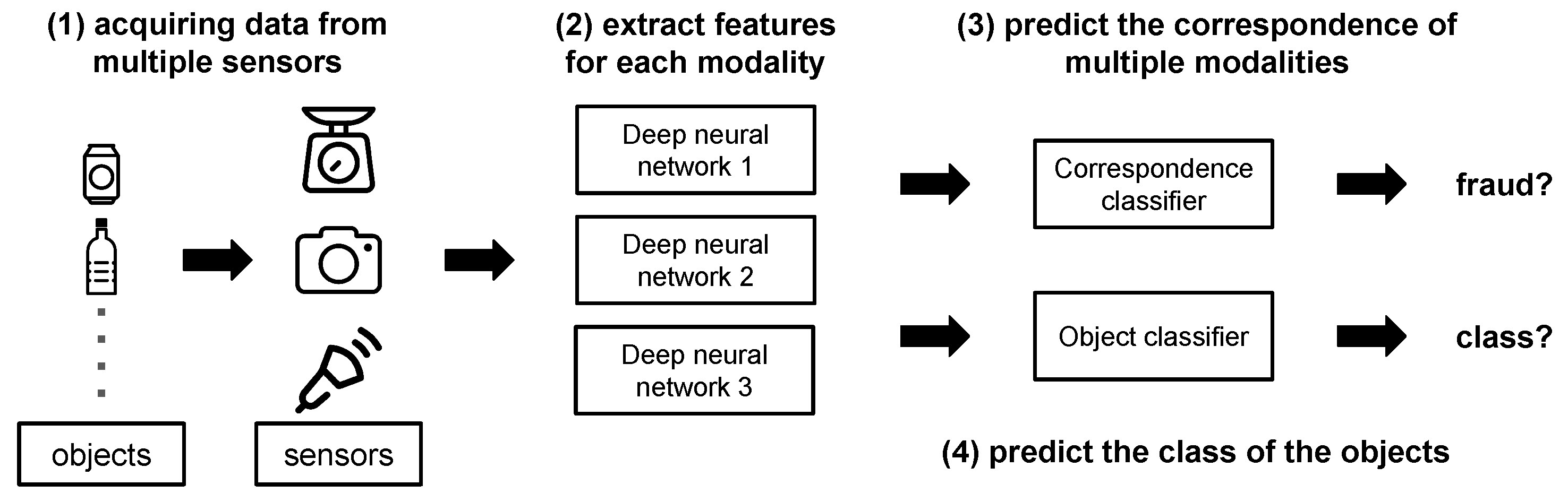

In this work, we propose correspondence learning (CL) for multi-modal object recognition tasks. The block diagram in

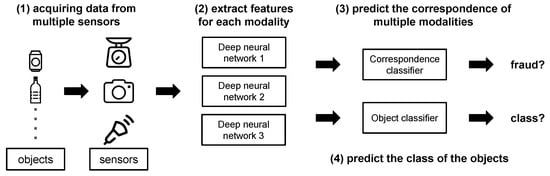

Figure 6 shows a general architecture of a multi-modal recognition system with correspondence learning. In such systems, there are two benefits of using CL: first, it can efficiently improve the recognition performance by learning the cross-model relationship throughout the correspondence; second, the learned correspondence can be used to effectively filter out fraud inputs. When improving the overall performance, CL can be treated as an auxiliary task during training and can be removed during inference, so there will be no extra cost for inference. When fraud inputs should be detected, a minimal branch will be added at the very end of the network, so the inference overhead is only a small multilayer perceptron.
The efficacy of CL in the two use-cases is empirically validated. First, we add CL to state-of-the-art methods in sentimental analysis, where multiple heterogeneous modalities are used. In the CMU-MOSI [
20] and CMU-MOSEI [
29] datasets, there are consistent performance improvements across multiple baselines [
22,
23,
41] and datasets. Second, we collect a dataset for garbage classification and show the learned correspondence can effectively filter out real-world fraud inputs. Since no previous works clearly show that non-contact ultrasonic inputs can be used for material classification, we collected raw materials and validated that the non-contact ultrasonic inputs contain sufficient information for garbage classification. Next, we collected real-world samples comprising three target classes (can/PET/glass) and two types of fraud inputs (visually similar and out-of-distribution samples). In this dataset, the fraud detection rate of the baseline (without CL) was very low (20.7% for out-of-distribution (OOD) and 21.7% for VS); with CL, we were able to effectively identify both types of fraud inputs (93.1% and 91.7%, respectively).
Other than the improved performance, the advantages of CL are two-fold: first, the proposed CL is lightweight and simple—CL can be easily integrated into any DNN-based multi-modal systems and can be jointly trained in an end-to-end manner; second, the high-performance fraud detection feature can be trained without any extra data collection for fraud samples.
There are several limitations of the proposed CL which lead to future research directions. First, CL only exploits the mutual information contained among the input modalities. While the proposed CL encourages the feature extractors to learn the mutual information among modalities, encouraging non-mutual information can further improve the recognition performance by fully exploiting the each modality information. Second, in this work, we only used real-world inputs for the fraud detection purpose. Recent adversarial attack methods [
33,
34,
35] have identified the vulnerability of deep neural networks, and methods such as virtual adversarial training [
45] have shown that adversarial inputs can be used to improve the performance. As a future direction, correspondence learning can be extended in combination with adversarial inputs to improve the robustness of the whole system.
