Predicting Rock Bursts in Rock Mass Blocks Using Acoustic Emission

Abstract

Geophysical methods for local rock burst prediction are currently being developed along two lines: improving recording equipment and improving data processing methods. Progress in developing processing methods is constrained by the lack of informative prognostic models that describe the condition of rock mass, the process of rock mass fracturing, and the phenomena that can substantiate the choice of both criteria and test parameters of the condition of rock mass and give an estimate of the time remaining until rock pressure manifestation. In particular, despite achievements in hardware design, researchers using the seismo-acoustic method to predict rock bursts measure the acoustical activity or energy capacity of elastic wave scattering after a man-made explosion and are faced with the dependence of forecast results on destabilizing factors. To solve this problem, we applied an information and kinetic approach to forecasting. In this article, we discuss the principles of selecting test parameters that are resistant to destabilizing factors. We propose a micromechanical model of fracture accumulation in a rock mass block that reflects the dependence of acoustic emission (AE) parameters on time, which makes it possible to detect the influence of various factors on forecast data and filter the signals. We also propose criteria and a methodology for rock burst risk assessment. The results were tested in analyzing the seismo-acoustic phenomena caused by man-made explosions at the Taimyrsky and Oktyabrsky mines in Norilsk. The article gives examples of using the proposed criteria. The effectiveness of their application is compared with traditional methods for assessing rock burst risks and evaluating the stress–strain parameters of rock mass in terms of their being informative, stable, and representative by means of statistical processing of experimental data.

1. Introduction

There is a sharp intensification of the extraction of minerals with an increase in consumption. The use of resources in excess of the replacement rate causes their depletion. Since minerals are non-renewable resources, one of the possible forms of depletion is mining. To meet the growing demand in order to ensure sustainable development of resources, mining enterprises are moving to the development of reserves that were previously considered unsuitable for extraction, such as off-balance reserves, ores of complex material composition, areas of the deposit in difficult mining and geological conditions, and more [1,2,3,4]. One of the ways to increase the mineral resource base and resource support for the sustainable development of a mining enterprise is the transition to the development of reserves which are located at great depths. However, the extraction of minerals at great depths is associated with the complexity of monitoring and managing the stress–strain state of the undermined rock massif [5,6,7].

As underground mining goes deeper and man-made stresses around mine workings are growing, the issue of combating rock pressure manifestations in ore deposits becomes increasingly important in mining theory and practice [8,9]. The consequence of the change in the stress–strain state of the massif as a result of mining operations is the development of subvertical disturbances, leading to the destruction of the waterproof layer and failures on the surface [10]. The problem of predicting the intensity of rock pressure manifestations has become of particular significance due to the need to consider the implementation of preventive measures when preparing plans for developing deep levels at both new and already operating mines [2,11,12]. No less important are the development and selection of practical methods and technical means for predicting stress–strain parameters of rock mass and assessing rock burst risks [13,14,15,16].

Extracting ore from deep levels that are prone to rock bursts necessitates improving the safety of workers, which requires improving methods and techniques for monitoring rock mass parameters [17,18,19]. Among them is the acoustic emission (AE) method, which is approved by Rostekhnadzor [20] as one of the geophysical methods for rock burst risk assessment. The AE method is being upgraded in terms of both hardware and methodology [21,22,23,24], but the developments are not effective enough due to the lack of a reliable methodological basis for searching for correlations between the AE parameters being measured and the parameters of rock mass [25,26,27]. In particular, despite progress in hardware design, tests are still based on measuring acoustical activity, the total number of pulses, or the energy capacity of elastic wave scattering after a man-made explosion, and researchers have to deal with the dependence of tests results on the influence of destabilizing factors [28,29,30]. It seems possible to solve the problem by using an information and kinetic approach to predicting rock fracturing and designing kinetic models of processes and phenomena preceding a rock burst, which can serve as guiding principles in the search for informative criteria and test parameters [31]. The purpose of the study is to justify effective AE analysis criteria and rock burst prediction methods that have low sensitivity to noise and are most closely related to the time remaining until rock pressure manifestation.

2. Materials and Methods

The proposed approach assesses rock burst risks by means of simulating the process of rock fracturing and monitoring the resulting phenomenon of elastic wave scattering, which manifests itself most intensely in the initial period of stress redistribution caused by new voids in a rock mass block after a man-made explosion. The basis of modeling is the relationship between the primary informative parameters of AE (ξ) and the parameter of damage to the material or rock, which is fracture density C(t) caused by the fracturing of structural elements [31,32], described by the following equation:

ξ(t) = k_AEC(t),

(1)

where t is the current time and k_AE is the acoustic emission factor (AEF), which reflects the similarity between the fracturing and elastic wave scattering processes or the acoustically active volume of the material and is described by the equation below:

$$k_{AE}=V{{\displaystyle \iiint }}_{\mathsf{\Delta }t,f,u}\mathsf{\Phi }\left(\mathsf{\Delta }t,f,u\right)dudfd\mathsf{\Delta }t$$

(2)

where V is the volume of the material being tested and Φ(Δt,f,u) is the density function of AE signal distribution by pauses ∆t, frequency f, and amplitude u. Model (1) is informative as it stabilizes AEF and connects the fracture density accumulation rate C(t) with time to failure.

The time dependence of fracture density is described as follows:

$$C\left(t\right)=C_0{{\displaystyle \int }}_{{\omega }_0}^{{\omega }_0+\mathsf{\Delta }\omega }\mathsf{\Psi }\left(\omega \right)\left\{1-exp\left[-{{\displaystyle \int }}_0^t\frac{d{t}^{\prime }}{{\theta }_{avg}}\left(U_0,\omega \left(t\prime \right)\right)\right]\right\}d\omega$$

(3)

where C₀ is the initial density of structural elements, ω is the strength parameter of the structural element of the test object material that depends on the time-varying tensile stresses σ(t) in the structural element, and ω(t) is the time dependence of the strength parameter:

ω(t) = γσ(t)/KT

(4)

where γ is the structurally sensitive coefficient; K is the Boltzmann constant; T is the absolute temperature; Ψ(ω) is the distribution density function of the values of ω by structural elements; θ_avg(U₀,ω(t)) = τ₀ exp[U₀/(KT) − ω(t)] is the average time before one structural element fails, which is found by the Zhurkov formula [33]; τ₀ is the atomic oscillation period; U₀ is the energy that activates the process of fracturing; ω₀ is the lower limit of the range of ω; Δω is a representative dispersion range of ω values by structural elements.

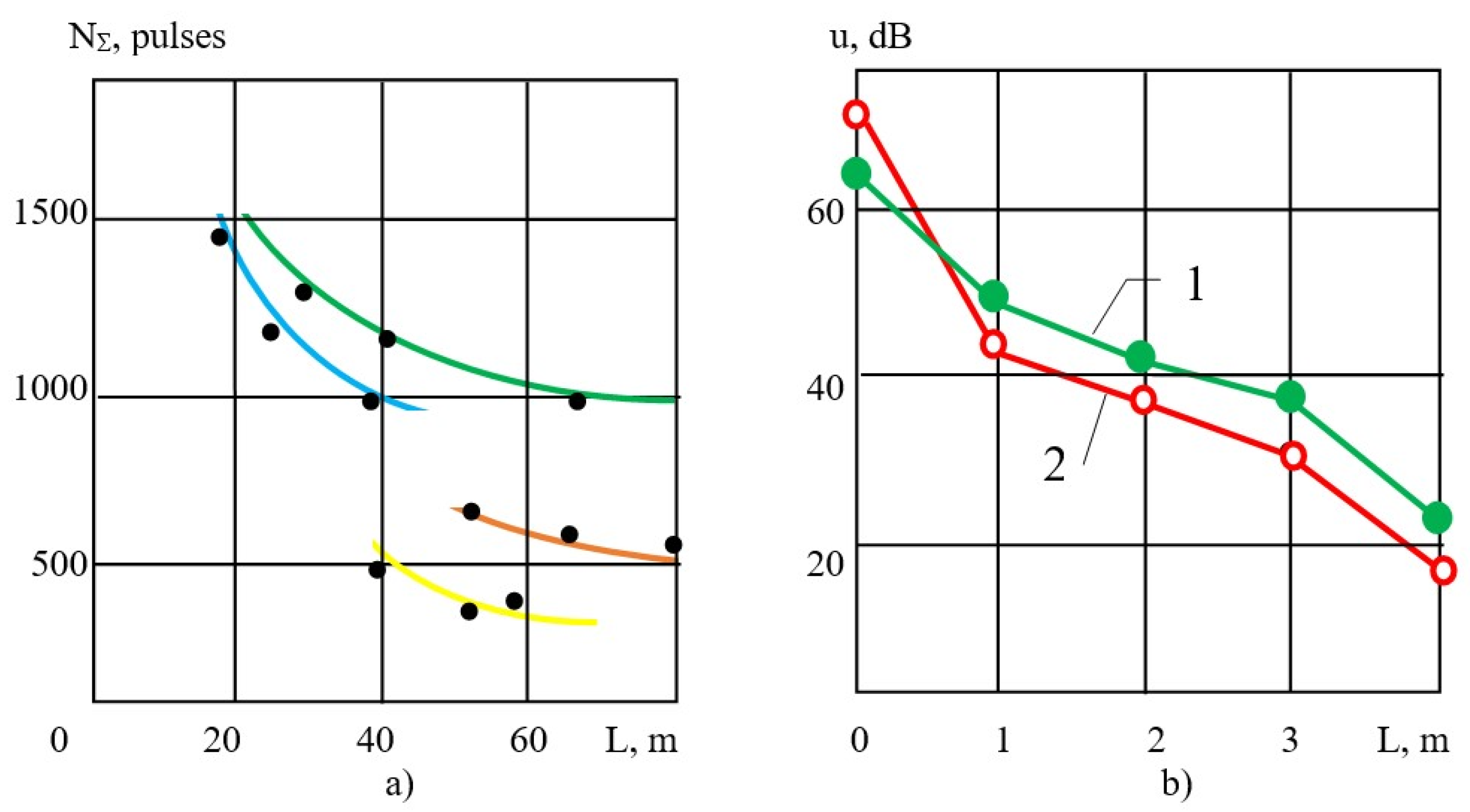

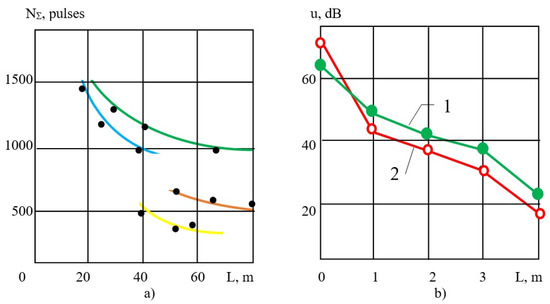

Equation (1), used for testing structural materials at the microscale level, also extends to the scale of an elastic wave scattered around the void formed by an explosion. Thus, Equation (1) is a universal multilevel model of time dependence of acoustic emission parameters recorded at the stage of scattered fracturing of any scale for a material characterized by strength heterogeneity. With a known critical fracture density C* ≈ 0.01C₀, it is possible to find time to failure. Various primary AE parameters (ξ) act as analogs of C(t), namely the number of discrete AE pulses recorded (N_∑), the total AE count (N), the relative total amplitude, or any dimensionless combination of these parameters. A significant dependence of the activity and amplitude of AE signals on the conditions of signal registration and elastic wave propagation reduces the reliability of the AE forecast and the effectiveness of safety measures based on it. Signal registration conditions are affected by the individuality of each recording channel (Figure 1), which affects AEF (2), thus destabilizing the relationship between the primary parameters or AE energy and the parameters of rock mass.

This approach to forecasting makes it possible to identify the predicted stage of homogeneous fracturing, formulate the conditions for AE testing correctness, and propose a number of informative indicators to be used in the AE testing of the strength parameters of structural materials. They are connected with the fracture rate at the stage of homogeneous fracturing, the moment of critical fracture density, and the degree of risk, and are also resistant to the influence of destabilizing factors [34]. As the testing optimization principles underlying the process are universal, the proposed indicators can be extrapolated onto rocks as well. We use relative stress (F_AE), as well structure parameters and decline in activity, or the structure factor (X_AE), as AE indicators of the stress–strain parameters of a rock mass block. The W_AE durability factor is used as an indicator of rock burst risk that reflects time to failure in the borehole zone (

Table 1. Multi-model multilevel concentration and kinetic AE strength indicators resistant to interference and destabilizing factors in AE testing.

AE Indicator	Micromodel	Nanomodel	Property
FAE	lnξ1/lnξ2	σ1/σ2	Relative stress
XAE (s−1)	dlnξ/dt	γ$\dot{\sigma }$/KT	Structure and decline in activity
WAE	dlnξ/dKs *	ω=γσ/KT	Durability

* K_s is the stress factor (ratio of test stress to working stress).

).

3. Results and Discussion

AE signals were recorded and their parameters were measured after man-made explosions at the Taimyrsky and Oktyabrsky mines, located in Norilsk and operated by Norilsk Nickel. The aim of the explosions was to break down the ore being mined. The equipment used for AE signal recording is described in [31].

In most cases, the $N_{\Sigma }^{\prime }$ number of AE signals recorded per unit time t of decline in activity varied according to the exponential law described by the micromechanical model (1) for the case of homogeneous fracturing (Figure 2):

$$N_{\Sigma }^{\prime }\left(t\right)=k_{AE}{C}_0\exp \frac{\left[\frac{\gamma ({\sigma }_0-\dot{\sigma }t)-U_0}{KT}\right]}{{\tau }_0}=N_{0\Sigma }^{\prime }\exp \left(-\alpha t\right)$$

(5)

where σ₀ is stress after the explosion, $\dot{\sigma }$ is the average rate of their decline, $N_{0\Sigma }^{\prime }$ is the seismo-acoustic activity at the initial time of its decline, and α = γ$\dot{\sigma }$/KT = X_AE = dln$N_{\Sigma }^{\prime }\left(t\right)$/dt is the AE decline rate indicator. The correlation coefficient between the real value and that calculated by Equation (5) for $N_{\Sigma }^{\prime }$ in various recording cases averaged 0.9, which confirms the adequacy of the model (5). This is notable for the difference in the number of pulses recorded by different sensors at the same distance (Figure 1) or from a single signal source (Figure 2), which indicates that this parameter is unstable in relation to the state of the array.

It was found that the AE caused by an explosion reached the maximum value of $N_{0\Sigma }^{\prime }$ at the first moment (1 to 2 min) and then decreased to $N_{\mathrm{p}\Sigma }^{\prime }$. The results were described by the equations of the micromechanical model:

$$N_{0\Sigma }^{\prime }=\frac{k_{AE}{C}_{0}exp\frac{{\sigma }_0\gamma }{KT}}{{\tau }_0\exp \frac{U_0}{KT}}=A_{D}exp{\omega }_0$$

(6)

$$N_{\mathrm{p}\Sigma }^{\prime }=\frac{k_{AE}{C}_{0}exp\frac{{\sigma }_p\gamma }{KT}}{{\tau }_0\exp \frac{U_0}{KT}}=A_{D}exp{\omega }_p$$

(7)

The number of AE pulses accumulated in time t according to the law is found as follows:

$$N_{\Sigma }\left(t\right)=\frac{A_{D}KTexp\frac{\gamma {\sigma }_0}{KT}\left(1-exp\frac{-\gamma \dot{\sigma }t}{KT}\right)}{\gamma \dot{\sigma }}=A_{D}exp{\omega }_0\left[1-\exp \left(-\alpha t\right)\right]/\alpha$$

(8)

where $A_D=\frac{k_{AE}{C}_0}{{\tau }_{0}exp\left(\frac{U_0}{KT}\right)}$ is the acoustic emission activity factor.

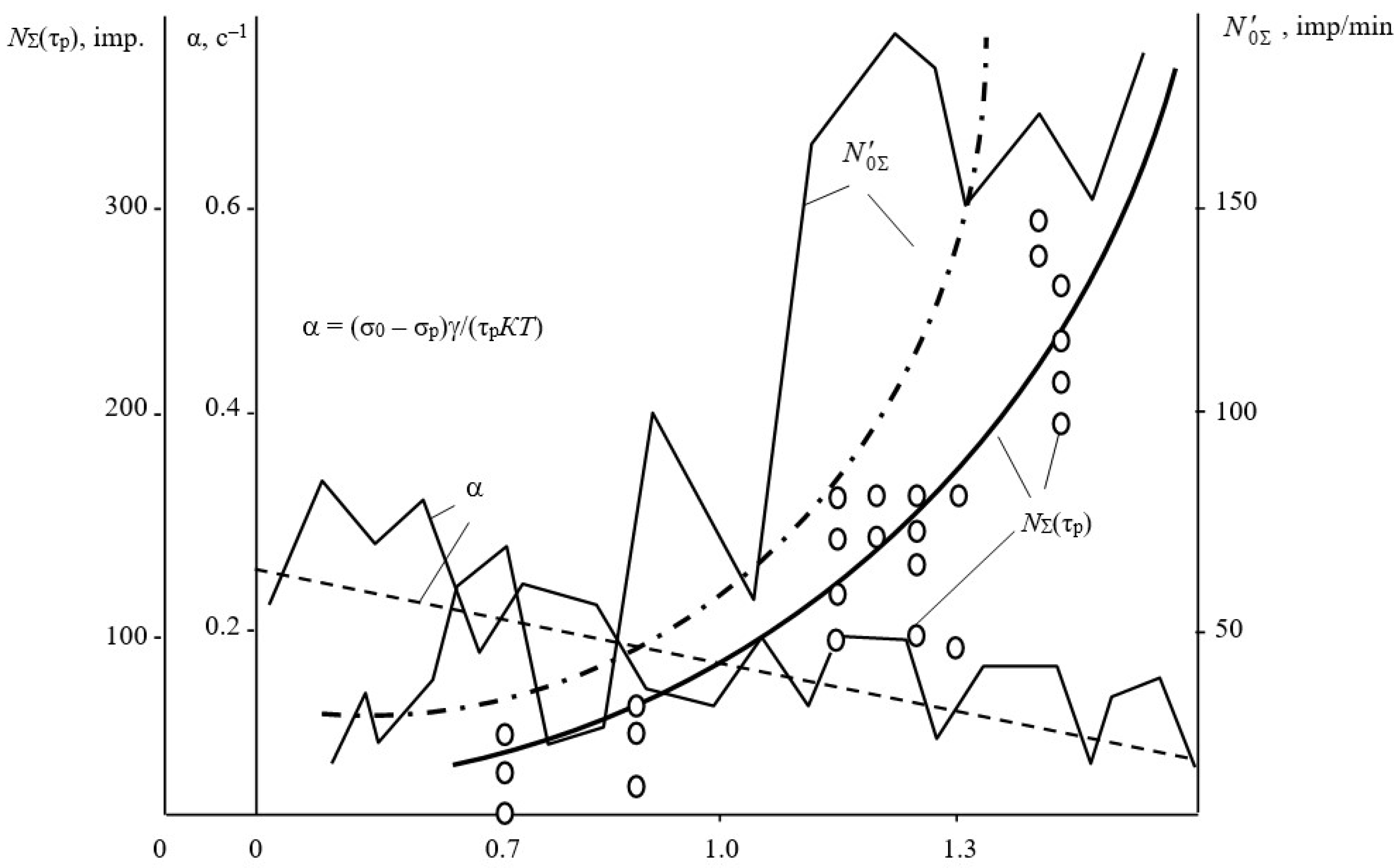

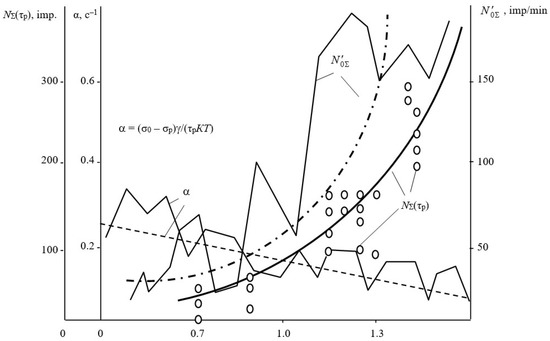

Figure 3 shows experimentally recorded data illustrating changes in the parameters $N_{0\Sigma }^{\prime }$, α, and N_Σ(τ_p) depending on the stress levels in the mine working being developed, which depend on the stress ratio σ/[σ]_avg and were analyzed using core disking [20].

As Figure 3 shows, the relationship between the AE parameters and the stresses in rock mass corresponds to the relationship described by Equations (5)–(8). For rock mass in a quasi-static homogeneous stressed state, with average stresses σ_p in it being constant, the time τ* reflecting rock burst risk is found based on the condition that fracture density C(t) has reached the critical value C* using the following equation [19,31]:

$${\tau }^{\ast }=0.01{\tau }_{0}exp\frac{U_0-\gamma {\sigma }_p}{KT}=\frac{A}{exp{\omega }_p}$$

(9)

The values of τ₀, U₀, K, T, A = $0.01{\tau }_{0}exp{U}_0/KT$ on the right side of Equation (9) are relatively stable and, as a rule, are known or can be found a priori before testing. Therefore, rock burst risk assessment is reduced to a posteriori determination of only the value ω_p of Equation (9), for example, using the AE index W_AE = γσ/(KT) (Table 1).

The value of the durability factor W_AE is found as follows.

-

For the rock mass block at the time of the explosion:

$$W_{0\mathrm{AE}}=\gamma {\sigma }_0/\left(\mathit{KT}\right)=[\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })]/\Delta K_0,$$

where ΔK₀= σ₀/[σ] − σ_p/[σ] ≈ [1 − F_AE] is the change in the stress factor during the stress relaxation period after the explosion, F_AE= ln ($N_{0\Sigma }^{\prime }$/$N_{\mathrm{p}\Sigma }^{\prime }$) ≈ σ_p/σ₀;

-

In equilibrium:

$$W_{\mathrm{pAE}}=\gamma {\mathsf{\sigma }}_{\mathrm{p}}/\left(\mathit{KT}\right)=[\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })]/\Delta K_{\mathrm{p}},$$

where ΔK_p = σ₀/σ_p − σ_p/σ_p ≈ 1/F_AE − 1 is the change in the stress factor for a rock mass block in equilibrium.

To formulate an indicator that is informative regarding rock burst risks, the W_AE values should be compared with the allowable threshold values [W_AE], which are found for a rock block being fractured in θ_exp time and do not depend on factors affecting the results of AE testing:

[W_0AE] = ln (τ₀/θ_exp) + U₀/(KT).

For τ₀ =10 ⁻¹³ ÷ 10 ⁻¹⁵ s, θ_exp ≈ 1 ÷ 1000 s, U₀/KT = 50 ÷ 60 [9,34], we have [W_0AE] ≈ 10 ÷ 30, [W_pAE] ≈ 1 ÷ 2, which is taken as the universal constant for a rock mass block.

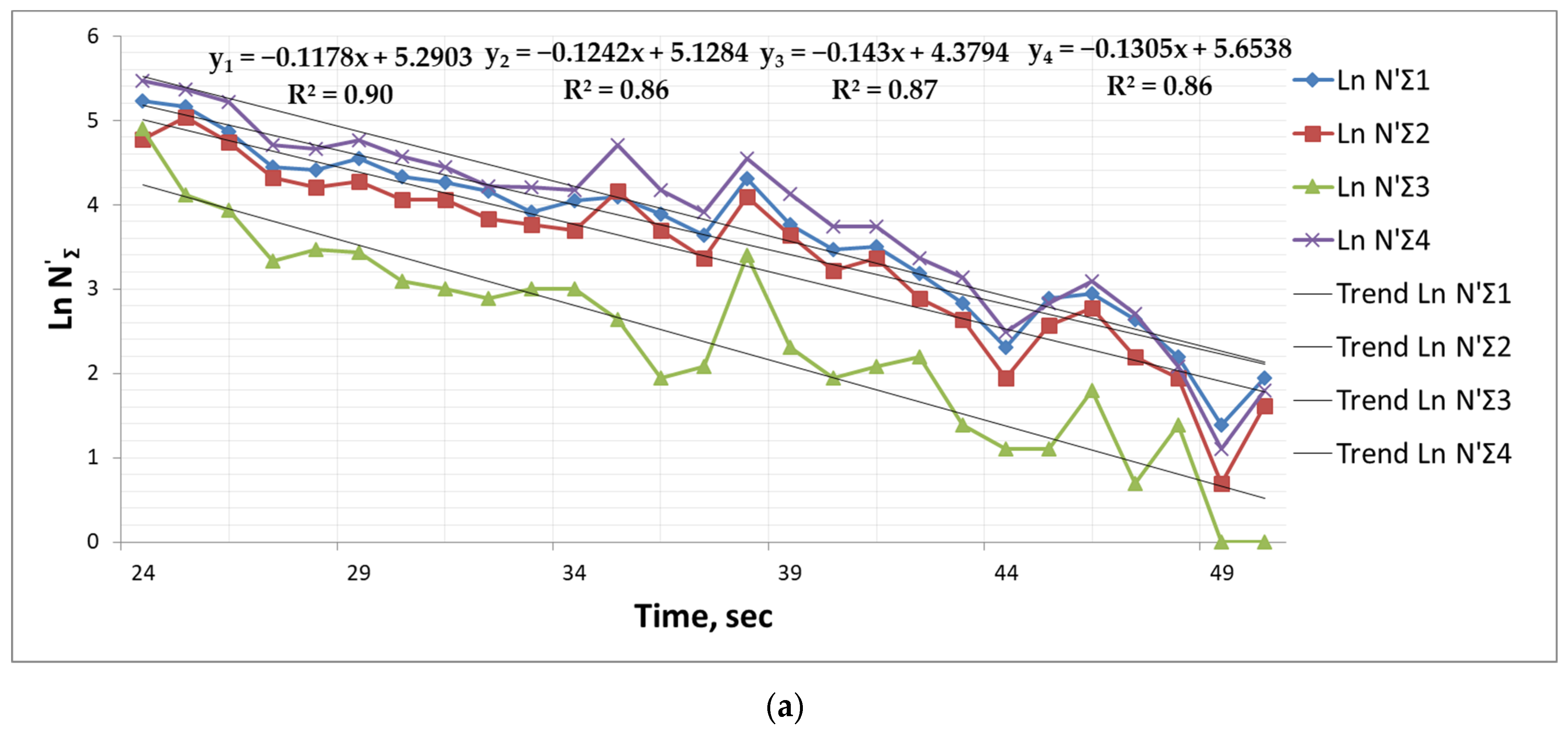

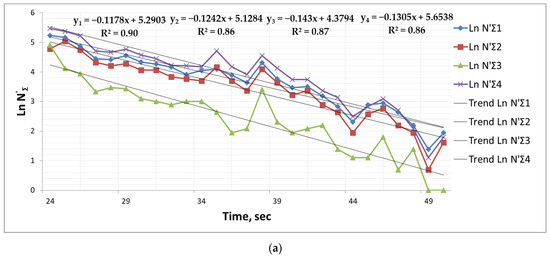

Let us consider the results of recording seismo-acoustic signals in rock mass after explosions in zones with different levels of rock pressure (the Taimyrsky mine of Norilsk Nickel). In the safe zone, AE signals registered by Channel 1 have the following values (Figure 2a):

-

At the initial moment of the decline in activity $N_{0\Sigma }^{\prime }$ = 62 min^–1, $\ln N_{0\Sigma }^{\prime }$ = 4.1.

-

At the final moment of the decline in activity $N_{\mathrm{p}\Sigma }^{\prime }$ = $N_{\Sigma }^{\prime }$ (16) = 2 min⁻¹, $\ln N_{\mathrm{p}\Sigma }^{\prime }$ = 0.69.

The value of the AE indicator of the stress parameters in the rock mass block is:

$$F_{AE}=\frac{\ln N_{\mathrm{p}\Sigma }^{\prime } }{\ln N_{0\Sigma }^{\prime }}=\frac{\ln \left(2\right)}{\ln \left(62\right)}=0.168$$

The value of the durability factor for the borehole zone is:

$$W_{\mathrm{pAE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_{\mathrm{p}}=\ln (62/2)/(1/0.168-1)=0.69<\mathrm{[}{\mathit{W}}_{p\mathrm{AE}}],$$

$$W_{0\mathrm{AE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_0=\ln (62/2)/(1-0.168)=4.127<\mathrm{[}{W}_{0\mathrm{AE}}].$$

As F_AE < 0.5, W_pAE < [W_pAE], W_0AE < [W_0AE], there are no rock burst risks. The zone belongs to Category III, meaning that there is no immediate danger of rock bursts.

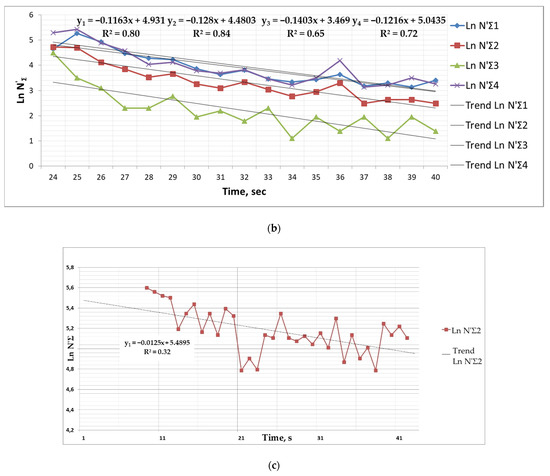

Similarly, in the zone with high bearing pressure (Figure 2b),

$$F_{AE}=\frac{\ln N_{\mathrm{p}\Sigma }^{\prime } }{\ln N_{0\Sigma }^{\prime }}=\frac{\ln \left(23\right)}{\ln \left(195\right)}=0.595.$$

The value of the durability factor for the borehole zone is:

$$W_{\mathrm{pAE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_{\mathrm{p}}=\ln (195/23)/(1/0.595-1)=4.04>\mathrm{[}{\mathit{W}}_{p\mathrm{AE}}],$$

$$W_{0\mathrm{AE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_0=\ln (195/23)/(1-0.595)=5.27<\mathrm{[}{W}_{0\mathrm{AE}}]$$

.

Taking into account the change in the AE testing procedure caused by a decrease in the average amplitude of the AE signals over time in the process of stress relaxation [35], the adjusted values are:

F_corAE = 1.1 F_AE = 0.654

The values of the durability factor for the borehole zone are as follows:

$$W_{\mathrm{pAE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_{\mathrm{pcorr}}=\ln (195/23)/(1/0.654-1)=4.04>\mathrm{[}{\mathit{W}}_{p\mathrm{AE}}],$$

$$W_{0\mathrm{AE}}=\ln (N_{0\Sigma }^{\prime }/N_{\mathrm{p}\Sigma }^{\prime })/\Delta K_{0\mathit{corr}}=\ln (195/23)/(1-0.654)=6.18<\mathrm{[}{W}_{0\mathrm{AE}}].$$

As F_AE > 0.5, W_pAE > [W_pAE], W_0AE < [W_0AE], the zone is classified as belonging to Category II, meaning that there are rock burst risks, the mine working must be stress-relieved, and mining operations are carried out according to standard methods.

Similarly, in terms of rock bursts (Figure 2c), F_AE = 0.94, W_pAE = 12.86, W_0AE = 13.67, F_AE > 0.5, W_pAE > [W_pAE], W_0AE > [W_0AE]; the zone belongs to Category I, which means there are increased rock burst risks.

Table 2. Correlation between relative stresses in the mine working being developed and AE parameters calculated factoring in the metrological heterogeneity associated with a decrease in the amplitude of AE signals in the process of stress relaxation.

Explosion Number	N∑(τp)1	N’0Σ1, min−1	WpAE1	W0AE1	WavgAE1	WavgAE	FAE1	XAE1, min−1	Rock Pressure, σ/[σ]avg
114	3193	142	2.08	5.56	3.82	3.55	0.37	0.02	Increased rock pressure, 1.325
115	2175	173	3.24	5.76	4.5	4.42	0.56	0.04
116	2415	198	3.33	5.91	4.62	4.71	0.56	0.02
208	1046	182	1.24	5.35	3.29	3.03	0.23	0.12
212	1031	195	4.04	6.18	5.11	4.35	0.65	0.12
214	1607	256	3.09	6.07	4.58	3.69	0.51	0.07
215	2092	241	1.58	5.68	3.63	3.27	0.28	0.08
217	1413	204	3.42	5.97	4.7	3.94	0.57	0.1
200	1519	186	1.39	5.23	3.31	3.06	0.27	0.12	Partly safe, 1
205	672	135	1.1	4.91	3	2.91	0.22	0.06
131	580	134	1.1	4.9	3	2.2	0.22	0.04	Safe, 0.7
138	332	122	1.79	4.8	3.3	2.41	0.37	0.19
184	117	51	1.1	3.93	2.52	2.69	0.28	0.19
186	97	46	0.69	3.83	2.26	2.47	0.18	0.29
188	193	83	1.1	4.42	2.76	2.76	0.25	0.32
194	64	35	1.1	3.56	2.33	2.35	0.31	0.29
197	198	62	0.69	4.13	2.41	2	0.17	0.14
Correlation coefficient for ρ and σ/[σ]avg	0.83	0.85	0.75	0.9	0.85	0.86	0.66	−0.69

W_1AEp, W_0AE1, and W_avgAE1 are values of the W_AE parameter calculated from the results of signal registration by the first channel in equilibrium, at the initial moment of recording, and as an average value, respectively; W_avgAE is the average value of the W_AE for four recording channels.

and

Table 3. Values of the coefficient of variation V for the recording channels and the representativity ratio |ρ|/V of the AE parameters.

Test Parameter	N∑(τp)1	N’0Σ1	XAE	FAE	WpAE	W0AE	WavgAE
Coefficient of variation V	0.062 ÷ 0.68	0.04 ÷ 0.74	0.02 ÷ 0.26	0.07 ÷ 0.43	0.07 ÷ 0.51	0.01 ÷ 0.28	0.04 ÷ 0.67
Average values Vavg	0.32	0.3	0.1	0.24	0.27	0.08	0.19
Representativity ratio |ρ|/Vavg	2.59	2.83	6.9	2.75	2.78	11.25	4.53

compare AE testing parameters in terms of their being informative (correlations with σ/[σ]_avg values in different rock mass zones), stable (variability across recording channels), and representative of the rock mass parameters.

As can be seen from the tables, the concentration and kinetic indicators are the most valuable (Table 1), which is due to the optimization principles underlying the information and kinetic approach.

Table 4. Rock burst risk assessment (local forecast).

Rock Burst Risk Category	Rock Burst Risk Indicator	Rock Mass Description in Terms of Rock Burst Risks
I	W0AE > 7	Increased rock burst risks. Mine workings must be immediately stress-relieved; additional precautionary measures are required to ensure safety in the workplace; mining operations are carried out using special methods.
II	5 < W0AE ≤ 7	Rock burst risks. Mine workings must be stress-relieved; mining operations are carried out using standard methods.
III	W0AE ≤ 5	No immediate danger of rock bursts. No special measures are needed; ongoing rock burst assessment is carried out.

shows an example of how rock bursts can be predicted.

4. Conclusions

We have demonstrated the efficiency of using an information and kinetic approach and a micromechanical model of time dependence of the AE parameters recorded after a man-made explosion for interpreting the results of recording AE signals in rock mass. Testing parameters have been substantiated that are connected with time until the moment of rock pressure manifestation, as well as the indicators reflecting the stress–strain parameters of a rock mass block. What makes the presented material original is that the previously formulated parameters X_AE and W_AE (concentration and kinetic indicators) that were used in testing objects of other types (welded structures, composite materials, pipelines, pressure vessels, etc.) have been successfully applied to rock burst risk assessment. The results produced confirm the universality of these parameters and the underlying principles of information optimization in testing. The difference between the presented research methodology and the previously published ones lies in changing the type of loading of the object under test by switching from uniform or sustained loading to unloading in the process of stress relaxation after a man-made explosion, changing the frequency range of signals and the type of equipment, and using a new mathematical model of the W_AE parameter presented in the article. The article also contains new information on the statistical processing of experimental data, confirming that the concentration and kinetic indicators of strength are more informative compared to the energy indicators that are traditionally used.
