Storage Compound Accumulation in Diatoms as Response to Elevated CO2 Concentration

CNRS, BIP, UMR 7281, IMM, FR3479, 31 Chemin J. Aiguier, Aix Marseille Univ., 13 402 Marseille CEDEX 20, France
Author to whom correspondence should be addressed.
Submission received: 29 November 2019 / Revised: 19 December 2019 / Accepted: 21 December 2019 / Published: 24 December 2019
(This article belongs to the Special Issue The Molecular Life of Diatoms: From Genes to Ecosystems)


Accumulation of reserve compounds (i.e., lipids and chrysolaminarin) in diatoms depends on the environmental conditions, and is often triggered by stress conditions, such as nutrient limitation. Manipulation of CO2 supply can also be used to improve both lipids and carbohydrates accumulation. Given the high diversity among diatoms, we studied the two marine model diatoms—Thalassiosira pseudonana and Phaeodactylum tricornutum, a freshwater diatom, Asterionella formosa, and Navicula pelliculosa—found in fresh- and sea-water environments. We measured the accumulation of reserve compounds and the activity of enzymes involved in carbon metabolism in these diatoms grown at high and atmospheric CO2. We observed that biomass and lipid accumulation in cells grown at high CO2 differ among the diatoms. Lipid accumulation increased only in P. tricornutum and N. pelliculosa grown in seawater in response to elevated CO2. Moreover, accumulation of lipids was also accompanied by an increased activity of the enzymes tested. However, lipid accumulation and enzyme activity decreased in N. pelliculosa cultured in fresh water. Chrysolaminarin accumulation was also affected by CO2 concentration; however, there was no clear relation with lipids accumulation. Our results are relevant to understand better the ecological role of the environment in the diatom adaptation to CO2 and the mechanisms underpinning the production of storage compounds considering diatom diversity.

1. Introduction

Diatoms are important primary producers in fresh and seawater environments. They contribute up to 20% of global CO2 fixation [1]. Carbon partition in diatoms involves the production of carbohydrates, specifically the soluble carbohydrate chrysolaminarin, and lipids (as triacylglycerols; TAGs) as main storage compounds [2]. Chrysolaminarin is stored in the vacuole [3], while lipids are accumulated in diatoms mainly as oil bodies in the cytoplasm and, in less amounts, in the chloroplasts [4].
Lipid production in microalgae has gained increasingly attention for their potential in industrial applications, including the production of third generation biofuels [5,6,7] and pharmaceutical and cosmetical products [8]. Lipid accumulation in some microalgae species can reach up to 73% of their dry weight and show higher productivities compared to crop plants [9,10]. Within microalgae species, diatoms have emerged as a good source of lipids because of their exceptional photosynthetic efficiency and their ability to accumulate high amounts of lipids in many different culture conditions [6,11,12,13].
Several studies show that lipids can accumulate in diatoms after mild or acute nutrient deprivation, generally at the expense of a decrease in biomass [14,15]. Increase in lipid accumulation after nitrogen starvation has been observed in some diatom species, such as Phaeodactylum tricornutum, Chaetoceros muelleri, and Thalassiosira weissflogii [16,17]. Other nutrient limitation stresses involved in an increased lipid accumulation are phosphorous and silicon deprivation [17,18]. In Chaetoceros gracilis, a combined mild deprivation of both silicon and sodium chloride produced a lipid accumulation reaching up to 73% of the total cell dry weight [10]. Other approaches to enhance lipid production in diatoms involve the use of phytohormones and other hormone-derived compounds [19,20], as well as the pharmacological modulation of signaling pathways involved in the synthesis of lipids [20,21]. In addition, thanks to the new molecular engineering approaches in diatoms, it is also possible to enhance lipid accumulation in these organisms by genetic transformation. For instance, overexpression of several genes involved in the biosynthesis of TAGs can increase lipid accumulation in P. tricornutum (reviewed in [18]). It can be expected that metabolic engineering will be more widely used as more sequences of diatom genomes become available.
Chrysolaminarin has been less studied compared to lipids, however there is a growing interest in its production because of its potential biotechnological applications, including its antioxidant and immunomodulatory effects in aquaculture, as well as its antitumor effects in human cancer [22,23,24]. In the diatom Skeletonema costatum under severe nutrient deprivation and subsaturating light intensity, it has been shown that chrysolaminarin can accumulate up to 80% [25].
CO2 is essential for diatom growth and metabolism and since the synthesis of storage compounds requires a carbon supply, it is likely that increased carbon availability might also improve lipid accumulation. In agreement with this hypothesis, some studies have shown that diatoms accumulate more lipids under high CO2 conditions [26,27,28]. In fact, the mechanisms of carbon capture and assimilation have been studied for many years [29], for instance, the CO2-concentrating mechanisms (CCMs), which involve bicarbonate transporters and carbonic anhydrases whose expression is often modulated by environmental CO2 concentrations [30,31,32]. However, the effect of CO2 on biomass and lipid accumulation is yet poorly understood and is also overlooked on chrysolaminarin production. Furthermore, carbon fixation and metabolism is a tightly regulated process and diatom regulation of CO2 fixation (i.e., the Calvin–Benson–Bassham cycle) differs in many aspects from that of green algae and land plants [33]. In addition, to date, most studies regarding the effects of CO2 and the production of storage compounds in diatoms have been done on marine species, and much less is known about freshwater species.
Diversity makes diatoms attractive models to study their capacity to produce either lipids or carbohydrates and we therefore studied different species. In this work, we studied four diatom species, the two most explored diatoms living in seawater environment: the centric (Thalassiosira pseudonana) and the pennate (Phaeodactylum tricornutum) diatom; in parallel, we also studied the pennate freshwater diatom Asterionella formosa and a pennate species capable to grow both in seawater and in freshwater environments (Navicula pelliculosa). We analyzed the production of their main storage compounds at two different CO2 concentrations (400 and 20,000 ppm).

2. Materials and Methods

2.1. Strains and Culture Conditions

Thalassiosira pseudonana Hasle & Heim., strain CCMP1335 subcultured in the lab since 2013, Phaeodactylum tricornutum Bohlin, strain CCMP2561, and Navicula pelliculosa (Brébisson ex Kützing) Hilse, strain CCAP 1050/9, were grown in artificial sea water enriched with Guillard’s “F/2” nutrients plus silicon (F/2+Si) as described previously [34]. The diatom N. pelliculosa was also cultured in a freshwater medium in the absence of NaCl and KCl, and NaH2PO4·2H2O (0.036 mM) was replaced by KH2PO4 (0.036 mM). Asterionella formosa Hassal, isolated from the English Lake District (Esthwaite Water; strain BG1), was grown in Diatom Medium (DM) as described [19]. Cultures were maintained at 18 °C in a growth cabinet (Innova 4230; New Brunswick Scientific, Edison, NJ, USA) with continuous light at 50 µmol photon m−2 s−1, constantly shaken at 90 rpm, and bubbled with air containing either 400 ppm or 20,000 ppm CO2 at a gas flow rate of 320 mL min−1 L−1 of culture. For growth curves, optical density was followed at 750 nm using a Perkin Elmer Lambda 25 UV/VIS spectrophotometer (Waltham, MA, USA).

2.2. Biomass Determination

Twenty-five to 50 mL of cell culture were filtered using a 0.45 µm nylon filter membrane (Merck-Millipore, Burlington, MA, USA), then dried overnight in an oven at 60 °C. Cell dry biomass was determined by the difference in the weight of the dried membrane versus the same membrane before filtering cells. Biomass productivity was determined as in Hempel et al. [35], using the formula Pbiomass (mg L−1 day−1) = (X2X1)·(t2t1)−1, where X2 and X1 correspond to the biomass concentration (mg L−1) at the end (t2) and start (t2) time of cultivation, respectively.

2.3. Lipid Extraction and Measurement

Lipids were extracted as previously mentioned in [21]. Diatom cultures of 250 mL were harvested by centrifugation at 3500 g for 20 min. Pellets were immediately resuspended in 2–3 mL of a chloroform/methanol solution (2:1, v/v) plus 0.2 mL of 1 N HCl and kept at −20 °C in glass vials. To complete lipid extraction, samples were mixed with one volume of ultrapure H2O and vortexed vigorously. The mixtures were centrifuged at 1000× g for 5 min at 4 °C to fully separate the two phases. The lower (organic) phase was recovered and washed once with a NaCl-saturated solution, followed by centrifugation at 3500× g for 20 min and the organic phase was recovered again. The lipid-containing organic phase was finally transfer to a glass vial for storage (−20 °C). Neutral lipids were separated by thin layer chromatography on silica-coated rods (SIII Chromarods) and detected by flame ionization using a MK-6 Iatroscan TLC-FID apparatus (Iatron Laboratories, Tokyo, Japan) as described previously in [36]. Data acquisition and processing was performed with the i-Chromstar 6.3 integration software (SCPA GmbH, Bremen, Germany). The amount of TAGs was estimated from a calibration curve. Lipid productivity (mg TAGs L−1 day−1) was calculated as Pbiomass·Cf, where Pbiomass is the biomass productivity, calculated as shown above, and Cf corresponds to the final concentration of TAGs at exponential or stationary phase.

2.4. Chrysolaminarin Measurement

Chrysolaminarin was measured according to the method performed by Granum and Myklestad [37] with some modifications. Briefly, 2 mL of cell culture were centrifuged at 3500× g for 15 min at 4 °C. Cell pellet was resuspended in a solution of 50 mM H2SO4 and incubated 1 h at 60 °C. The suspension was then centrifuged at 16,000× g for 10 min at room temperature. The supernatant was recovered and put in an oven at 60 °C. Dried samples were resuspended in 1 mL of concentrated H2SO4 and 30 µL of a fresh solution of 3% phenol and incubated at 85 °C for 1 h. Absorbance was measured at 493 nm and chrysolaminarin content was calculated using a calibration curve with glucose as standard. Cells were counted prior to chrysolaminarin extraction and measurement, using a hemocytometer (improved Neubauer chamber).

2.5. Protein Extraction

Cultures of 250–500 mL were centrifuged at 3500× g for 10 min at 4 °C. Pellets were resuspended in buffer 20 mM TRIS, 50 mM NaCl (pH 8), plus lysozyme (final concentration: 40 µg mL−1) and a protease inhibitor cocktail (Sigma®, St. Louis, MO, USA; Concentrations: 2 mM AEBSF, 0.3 μM Aprotinin, 116 μM Bestatin, 14 μM E-64, 1 μM Leupeptin, and 1 mM EDTA). Cells were broken using an ultrasonicator (Sonics & Materials Inc, Vibracell, Bioblock, Danbury, CT, USA) with four cycles consisting of 10 pulses followed by 1 min pause (40% power, 60% pulse). Lysates were centrifuged at 16,000× g for 30 min at 4 °C and the supernatant was collected and kept at −80 °C for further analysis.

2.6. Enzyme Activity Measurements

Prior to glyceraldehyde 3-phosphate dehydrogenase (GAPDH) measurements, bisphosphoglyceric acid (BPGA) was synthesized. BPGA synthesis was performed as follows: a reaction containing phosphoglyceric acid (PGA; 66 mM), 33 mM ATP and ~4.5 units of phosphoglycerate kinase (PGK) was incubated in glycyl-glycine buffer (50 mM glycyl-glycine, 0.5 mM EDTA, 15 mM MgCl2, 50 mM KCl, pH 7.7) for 20 min at 30 °C. To determine GAPDH activity the consumption of NADPH to NADP+340 nm = 6 220 M−1 cm−1) was followed using a Perkin Elmer Lambda 25 UV/VIS spectrophotometer (Waltham, MA, USA) at 340 nm in a reaction mix containing 50 µL of the freshly prepared BPGA, 0.2 mM NADPH, and 2–20 µL of protein crude extract in a total volume of 1 mL in buffer. Additionally, dithiothreitol (DTT) might be added at 5 mM final concentration for redox assays.
Phosphoglycerate kinase (PGK) activity was measured indirectly by coupling the PGK-mediating synthesis of BPGA to the NADH-consuming GAPDH-mediated synthesis of glyceraldehyde 3-phosphate (G3P). The reaction mix contained 1 mM ATP, 2 mM PGA, 0.15 mM NADH, and 0.5 unit of rabbit GAPDH in a total volume of 1 mL. PGK activity was related to NADH consumption followed at 340 nm as previously.
For pyruvate kinase (PK) activity, the conversion of phosphoenolpyruvate (PEP) to pyruvate catalyzed by PK was coupled to lactate production by the lactate dehydrogenase (LDH), which produces lactate using pyruvate as substrate, and consuming NADH. The reaction mix contained 5 mM PEP, 0.2 mM NADH, 2 units of LDH, and 1 mM ADP in a total volume of 1 mL, and NADH consumption was followed at 340 nm.

2.7. Statistical Analysis

Unpaired t-test analysis was performed to compare two group of samples using Graphpad Prism 6 software. Three independent biological replicates were done for each experiment, unless stated otherwise in the main text or figure legends, and comparisons done between groups of cells grown at high CO2 versus low CO2.

3. Results

3.1. Growth and Biomass as Response to High CO2

The growth of seawater and freshwater diatom species grown at atmospheric CO2 (400 ppm; low) or at high CO2 (20,000 ppm) was followed by measuring the optical density of the cultures at 750 nm (Figure 1).From all diatom species studied, the growth of A. formosa was the most affected in cells grown at high CO2 and the calculated growth rate was 0.57 ± 0.09 day−1 at high CO2 and 0.26 ± 0.02 day−1 at low CO2. In contrast, the growth rate of the other diatom species did not show significant differences (not shown) and their growth curves were only slightly or even not affected by CO2 (Figure 1). Nonetheless, we observed that the growth of T. pseudonana cells cultured at high CO2 was arrested after six days with a concomitant strong cell flocculation and precipitation, impeding the continuity of these cultures.
Biomass productivity was significantly increased only in T. pseudonana in the stationary phase and in N. pelliculosa grown in sea water in both exponential and stationary phase as response to high CO2 (Table 1).

3.2. Storage Compounds (TAGs)

As expected, TAG accumulation in the stationary phase was higher than in the exponential phase for most studied diatoms, except for the freshwater diatom, A. formosa (Figure 2e, Table 1). At high CO2 TAG productivity, in the stationary phase, for P. tricornutum and N. pelliculosa cultured in seawater medium significantly increased by 1.7-fold and 1.4-fold, respectively (Figure 2b,c), while production of TAGs was barely present in the exponential phase regardless of the CO2 treatment. In contrast, in the exponential phase, N. pelliculosa cultured in freshwater medium accumulated higher levels of TAG than in the seawater medium, with no significant difference between high and low CO2. On the other hand, in the stationary phase, N. pelliculosa grown under high CO2 had lower TAG content compared to low CO2 (Figure 2d), contrary to what was observed in N. pelliculosa grown in seawater medium (Figure 2c and Table 1). In T. pseudonana, TAG accumulation was not significantly affected by high or low CO2 neither at the exponential nor at the stationary phase (Figure 2a). TAG production in A. formosa was much lower than those of the other diatoms analyzed, and of interest, there was no TAG accumulation in the stationary phase of cells grown at low CO2 (Figure 2e).

3.3. Storage Compounds (Chrysolaminarin)

The contents of the carbohydrate chrysolaminarin in the diatom species studied were different and ranged from ~1 to up to 40 pg cell−1 (Figure 3). In T. pseudonana, the chrysolaminarin content from the cells grown at high CO2 compared to low CO2 significantly decreased by 0.38- and 0.44-fold in the exponential and stationary phase, respectively, (Figure 3a). In contrast, in P. tricornutum, the chrysolaminarin production was similar in the exponential phase of cells grown at low or high CO2; however, a significant 1.5-fold increase was found in the stationary phase of cells grown at high CO2 (Figure 3b). Only a 4.4- and 2.6-fold increase in the stationary phase, compared to the exponential phase, was observed in N. pelliculosa grown either in seawater or in freshwater medium, respectively, with no effect of CO2 concentration in neither of the two cultures (Figure 3c,d). A. formosa accumulated up to 40 pg of chrysolaminarin cell−1 at low CO2 and a strong 65% reduction was observed in cells grown at high CO2 versus low CO2 at the exponential phase (Figure 3e).

3.4. Activities of Key Enzymes from Carbon Metabolism

3.4.1. Glyceraldehyde 3-Phosphate Dehydrogenase (GAPDH)

The NADPH dependent activity of the chloroplast glyceraldehyde 3-phosphate dehydrogenase (GAPDH) was measured from crude extracts of cells maintained at 400 ppm or 20,000 ppm CO2 (Figure 4).
In T. pseudonana, GAPDH activity and its regulation by metabolites were similar for cells grown at 400 or 20,000 ppm (Figure 4a). Whatever CO2 conditions during the growth, GAPDH was strongly activated by its cofactor, NADPH (0.2 mM) alone, but not by the reducing agent, dithiothreitol (DTT) alone (5 mM). However, for this diatom, GAPDH activity was slightly increased by pre-incubation with both NADPH and DTT compared to pre-incubation of these compounds alone.
In contrast, the activity of GAPDH from P. tricornutum cells grown at 400 ppm CO2, required, prior to assay, pre-incubation with both DTT and NADPH (Figure 4b). However, GAPDH extracted from cells grown at 20,000 ppm CO2, was always active whatever the pre-incubation mixtures and its activity increased up to 8-fold compared to GAPDH mixed with DTT and NADPH prior to assay and extracted from cells grown at 400 ppm. The GAPDH from N. pelliculosa cultured in seawater or freshwater media and grown at 400 ppm CO2 was only activated by reducing conditions (i.e., with DTT; Figure 4c,d). Like in P. tricornutum, the enzyme was active in all conditions tested for cells grown at 20,000 ppm CO2 in seawater and freshwater media. Moreover, the GAPDH activity value in N. pelliculosa was 2.3-fold greater when cells were cultured in the seawater medium compared to freshwater for cells grown at high CO2. GAPDH activity in A. formosa only slightly increased, but not significantly, when cells were grown at 20,000 ppm CO2 (Figure 4e) and, for cells grown at both CO2 concentrations, activity was only inhibited after treatment with NADPH in oxidized conditions (i.e., without DTT).

3.4.2. Phosphoglycerate Kinase (PGK)

PGK activity was also measured from cell crude extracts. No changes were observed for PGK activity of T. pseudonana cells grown at 400 or 20,000 ppm CO2 (Figure 5a). PGK activity increased in P. tricornutum and N. pelliculosa (seawater) cells grown at 20,000 ppm CO2 by around 5- and 2.5-fold, respectively (Figure 5b,c). In contrast, PGK activity of N. pelliculosa cultured in freshwater medium and grown at 20,000 ppm CO2 decreased by 60% (Figure 5d). Moreover, PGK activity in N. pelliculosa cells from cultures in fresh water and grown at 400 ppm CO2 was 2-fold higher than in cells cultured in sea water and grown at 20,000 ppm CO2. PGK activity from A. formosa only slightly, but not significantly, increased in cells grown at 20,000 ppm CO2 (Figure 5e). In addition, we did not observe redox regulation in PGK as result of DTT treatment in any of the diatoms tested, in contrast to what was previously described in P. tricornutum [38].

3.4.3. Pyruvate Kinase (PK)

The pyruvate kinase (PK) activity was measured in all diatoms studied. The PK activity in all diatom cells grown at 20,000 ppm CO2 (Figure 6) was much higher compared to the PK activity in cells grown at low CO2. The PK activity in T. pseudonana showed a 2-fold increase after high CO2 treatments (Figure 6a). The PK activity in P. tricornutum was almost absent in cells grown at 400 ppm compared to high CO2, where activity increased dramatically (Figure 6b). N. pelliculosa cultured in seawater and freshwater had similar PK activities when grown at high CO2. However, at low CO2 PK activity was 5-fold higher in N. pelliculosa grown in freshwater medium compared to sea water (Figure 6c,d). A. formosa, showed similar results, including a high PK activity at high CO2 that was up to 16-fold compared to low CO2.

4. Discussion

In this work, we showed that the content of storage compounds varied among diatoms and that the response to high CO2 is species-specific. In addition, the effect of CO2 can be also affected by the culture media used for diatom growth, at least for diatoms that have the capacity to grow indistinctly in seawater or freshwater environments.
In our experimental conditions, we observed that lipid productivity in T. pseudonana is doubled in the stationary phase compared to the exponential growth (Figure 2a). However, neither TAG accumulation nor growth were affected by high CO2 compared to low (atmospheric) CO2 (Figure 1a and Figure 2a). Our data differs from what other authors have shown about the positive effect of CO2 in biomass and lipid content in T. pseudonana [27,39,40]. One explanation could be the different experimental setup used in all studies, especially the differences in light intensity, photoperiod, and CO2 supply. For instance, we kept our cultures at continuous light and photon flux of ~50 µmol m−2 s−1, while other authors used higher light fluxes and light photoperiod (light:dark) [11,26,27]. In addition, different CO2 concentrations up to 20–30% (200,000–300,000 ppm) have been also reported [11], although it has been observed that very high CO2 concentrations and high light can have deleterious effect on growth [40,41].
In P. tricornutum, we observed an increase in lipid productivity of 1.7-fold in cells grown at 20,000 ppm CO2 (Figure 2b); this value is only slightly higher than the 1.5-fold increase reported by Wu et al. in this species grown at 1500 ppm [42].
In the freshwater diatom A. formosa, lipid productivity is very low compared to other diatom species (Figure 2e and Table 1). This might be related to a very low growth compared to other species. In fact, although we observed a high increased growth of A. formosa grown at high CO2, the OD750 reached a plateau of about 0.08, compared to 0.8–1.0 in the other diatoms analyzed. There is no data in the literature about lipid accumulation in A. formosa grown at high CO2, however an increase in both growth and lipid content has been reported in this species grown in bicarbonate (5 mM, compared to 0.15 mM in control) [13]. This difference suggests that A. formosa performance highly depends on the nature of the carbon source supplied to the culture medium and the mechanism used by this diatom to uptake carbon from the environment. In addition, it has been shown that A. formosa relies more on the use of CO2 as a source of carbon than HCO3 [43], which might explain the high effect observed on growth in this diatom at high CO2 concentration.
The oleaginous diatom N. pelliculosa [44,45] accumulated high amounts of lipids (up to 32% of the total cell dry weight; not shown) and has the highest lipid productivity in the stationary phase compared to all the other diatom species studied here (Figure 2c,d and Table 1). However, we observed important differences when this diatom was cultured in seawater or freshwater. In seawater condition, growth slightly increased at high CO2, and lipid productivity in the stationary phase was 40% higher than with cells grown at low CO2. Interestingly and in contrast to seawater condition, N. pelliculosa cultured in freshwater medium had decreased lipid productivity at high CO2 compared to low CO2 (Figure 2d). Previous work showed that, at high CO2, the affinity for CO2 (shown as a reduced half-saturation constant) is 7.5-fold higher in N. pelliculosa cultured in seawater than in freshwater, although the overall CO2-concentrating mechanisms (CCMs) are not different in these two conditions [43]; thus, the higher lipid accumulation observed in cells grown in seawater medium at high CO2 might be more related to a change in the carbon conversion/metabolism than to a change in CO2 uptake. N. pelliculosa is a diatom species with a high tolerance to salinity as it can grow in fresh water and marine media. Salinity is one of the major chemical factors influencing lipid production in microalgae [46], and in diatoms, a change in lipid composition as a result of high salt stress that might be linked to a modification of the permeability and fluidity of the cell membrane has been observed [47]. Moreover, in the marine diatom, Chaetoceros gracilis, a moderate low salt (NaCl) and silicon stress can synergistically induce lipid accumulation, although both treatments have detrimental effects on cell growth [10]. Here, we observed that cell growth of N. pelliculosa is not affected by salinity and, therefore, it cannot be considered as a stress condition for this diatom species. This suggests that salinity is able to induce a metabolic reprogramming which affects lipid biosynthesis in response to elevated CO2 without affecting biomass accumulation. More work is needed to unravel this metabolic innovation in N. pelliculosa, and this might be also relevant for other microalgae species showing high tolerance to varying environmental conditions.
Studies on diatoms show that an impairment in one of the main two storage compounds synthesis pathways could shift the balance towards the synthesis of the other one. For instance, in P. tricornutum a reduction of vacuolar chrysolaminarin synthesis caused by a mutation of the vacuolar β-1,3-glucan synthase showed increased TAGs accumulation at both N-replete and N-deplete conditions [48]; similar effects were also observed when the same gene was knocked-down in T. pseudonana [49]. On the other hand, upregulation of chrysolaminarin synthesis as a consequence of the overexpression of the phosphoglucomutase gene results in a down-regulation of lipid accumulation [50]. Here, we did not find this negative correlation between lipid and chrysolaminarin production as response to CO2 treatment (Figure 2 and Figure 3). In fact, the only diatom species where we observed an increase in chrysolaminarin when grown at high CO2P. tricornutum—also had increased lipid production (Figure 2b and Figure 3b). The same effect has been observed in other microalgae. In the green alga Chlamydomonas reinhardtii both lipids and starch contents (storage carbohydrate in algae and equivalent to chrysolaminarin in diatoms) increased in cultures grown at 5% (50,000 ppm) [51] and at 2% (20,000 ppm) CO2 [52], as well as in Chlorella sorokiniana grown at 2% CO2 [53]. It is possible that in some microalgae CO2 treatment can have a synergistic effect on the accumulation of both storage compounds.
Chrysolaminarin content in P. tricornutum was reported by some authors to be around 1.5 pg cell−1 [54], this is ten times less than the lowest chrysolaminarin content showed in this work in the same species. Similar was the case of chrysolaminarin content in T. pseudonana, where we observe a content between 4–8.5 pg cell−1, while in other works only 1.5 pg cell−1 was found [49]. This might be also related to the differences on the culture conditions used here, as it was discussed above for lipid productivity. Moreover, in contrast to P. tricornutum, in which both lipids and chrysolaminarin were increased at high CO2 in the stationary phase, in T. pseudonana accumulation of chrysolaminarin was decreased (Figure 3a), which might reveal different adaptation mechanisms in these two marine species. Interestingly, N. pelliculosa had the same chrysolaminarin content regardless of CO2 or when grown in freshwater or seawater culture, in contrast to what was observed for lipid productivity; unfortunately, there is no transcriptomic or proteomic data on this species that could help to understand the modulation of the chrysolaminarin or lipid biosynthetic pathway in different growth conditions. From all diatoms studied, A. formosa showed the highest amount of chrysolaminarin content per cell; this in contrast to an extremely low lipid production. Other diatom species, like the marine Chaetoceros pseudocurvicetus, also have much higher chrysolaminarin accumulation than lipids [55]. In addition, other freshwater microalgae—like Chlorella sp., Arthrospira sp., and Chlorococcum sp.—also have preference to store carbohydrates (starch) than lipids [53,56,57,58]. This preference for chrysolaminarin accumulation over lipids in A. formosa needs to be further investigated.
Regulation and activity of the chloroplast GAPDH was different in all the diatoms studied (Figure 4). Redox regulation of GAPDH mediated by the formation of an inhibitory complex formed in oxidized condition and involving GAPDH, phosphoribulokinase (PRK), and the small intrinsically disordered CP12 that has been well studied in some plants and green algae [59,60,61,62,63]. Here, we showed that in T. pseudonana and P. tricornutum GAPDH is not regulated by DTT (reduced conditions) alone; however, activity is boosted after incubation with both DTT and NADPH, similar to previous studies in the case of T. pseudonana, although a lower activity value was reported [64,65]. In P. tricornutum, the formation of the regulatory complex GAPDH/PRK/CP12 has been already discarded [66], and there is no evidence of its formation in T. pseudonana. Moreover, it has been shown that the formation of this ternary complex requires the presence of two cysteine residues on PRK, that are absent in diatom PRK [67]. This suggests that regulation of GAPDH in these two diatoms relies on a different mechanism. In contrast, N. pelliculosa is highly regulated by reduction, using DTT alone, suggesting that a complex similar to the GAPDH/PRK/CP12 is feasible, but no sequences are available and this needs to be further studied. In A. formosa, a regulatory complex involving GAPDH, CP12, and ferredoxin-NADP reductase (FNR) has been observed [68]. In P. tricornutum and N. pelliculosa cultured in seawater, GAPDH activity increased by 7- and 8-fold, respectively, when cells were grown at high CO2 concentrations (Figure 4b,c). This increase in GAPDH activity correlates with the increased lipid productivity observed in these two species. GAPDH activity and lipid accumulation are also shown to increase in A. formosa cultured in the presence of plant hormones and high bicarbonate concentrations [13]. This is consistent with GAPDH producing trioses-phosphate that are required building blocks for lipid biosynthesis. In addition, we did not observe any significant increase neither in lipid productivity nor in GAPDH activity in both A. formosa and T. pseudonana grown at high CO2.
The pattern of PGK activity, as that of GAPDH, also correlates with lipid productivity in diatoms (Figure 5). P. tricornutum and N. pelliculosa in seawater culture showed both higher lipid productivity and higher PGK activity in cells grown at high CO2 (Figure 2b,c, and Figure 5b,c). In contrast, in T. pseudonana (Figure 2a and Figure 5a) and A. formosa (Figure 2e and Figure 5e), PGK activity and lipid productivity were rather similar in cells grown at high or low CO2. Wu et al. [42] showed that in P. tricornutum grown at high CO2 concentrations, PGK mRNA increases 3-fold. Furthermore, increased PGK activity is associated with oil accumulation in sunflower seeds during the synthesis of storage lipids [69]. In agreement with this, we found a positive correlation in N. pelliculosa cultured in freshwater media and grown at high CO2 concentration, with a decrease in both PGK activity and lipid productivity (Figure 2d and Figure 5d).
PK activity increased in all the diatoms tested. Thus, it is not clear whether there is a correlation in PK activity and lipid productivity. In some higher plants and fungi that PK expression is directly related to lipid biosynthesis and accumulation [70,71,72,73]. In contrast, in mammals, a PK isoform that is expressed in tumor cells (PKM2) does not affect lipid production when the gene that encodes this protein is knocked-out [74]. Moreover, in the green alga C. reinhardtii there is no change in the gene expression of PK in cells that accumulate TAGs as response to N-deprivation [75]. On the other hand, a proteome analysis of P. tricornutum during lipid accumulation induced by N-deprivation, showed upregulation of three PK isoforms [76], which agrees with our observations for this diatom species, however PK might not be involved in the same way in lipid accumulation in the other diatom species studied here.
To conclude, diatoms are important primary producers within phytoplankton communities [1,77], however, compared to land plants, there are fewer studies that emphasize the effect of CO2 in marine and freshwater microalgae and its ecological relevance [78,79,80]. The results of this work show that CO2 change is tackled differently by the different diatoms we have studied. Responses at the protein levels (activity and regulation) and storage compounds levels varied between freshwater and seawater diatoms under uniform conditions. Moreover, increasing the knowledge on genomes of diatoms from different aquatic ecosystems is essential to understand their role in the global biogeochemical cycling of carbon, especially when related to modern issues on climate change as result of human activity [81,82,83,84]. This work therefore brings some new elements on CO2 effect on some diatoms using short term experiments and reinforces the need to study more diatoms for a better understanding of the different mechanisms (carbohydrate, lipid synthesis) involved in these ecologically important organisms.

Author Contributions

E.L.J. and B.G. conceived the work. E.L.J. and K.Y. performed growth experiments, chrysolaminarin and enzyme activity measurements. E.L.J., K.Y., and F.C. performed lipid measurements. E.L.J., F.C., and B.G. analyzed data. E.L.J. and B.G. wrote the paper. All authors have read and agreed to the published version of the manuscript.


B.G.’s group is supported by the Centre National de la Recherche Scientifique, Aix-Marseille Université, Agence Nationale de la Recherche (Signaux-BioNRJ, ANR-15-CE05-0021-03). E.L.J. studentship was funded by Comision Nacional de Investigacion Cientifica y tecnologica (conicyt)—Programa de formacion humano avanzado Becas Chile 2015/2019. The APC was funded by Agence Nationale de la Recherche (ANR).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Armbrust, E.V. The life of diatoms in the world’s oceans. Nature 2009, 459, 185–192. [Google Scholar] [CrossRef] [PubMed]
  2. Wagner, H.; Jakob, T.; Fanesi, A.; Wilhelm, C. Towards an understanding of the molecular regulation of carbon allocation in diatoms: The interaction of energy and carbon allocation. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2017, 372, 1–10. [Google Scholar] [CrossRef] [PubMed]
  3. Chiovitti, A.; Molino, P.; Crawford, S.A.; Teng, R.; Wetherbee, R.; Chiovitti, A.; Molino, P.; Crawford, S.A.; Teng, R. The glucans extracted with warm water from diatoms are mainly derived from intracellular chrysolaminaran and not extracellular polysaccharides. Eur. J. Phycol. 2004, 39, 117–128. [Google Scholar] [CrossRef]
  4. Maeda, Y.; Nojima, D.; Yoshino, T.; Tanaka, T. Structure and properties of oil bodies in diatoms. Philos. Trans. R. Soc. B Biol. Sci. 2017, 372, 20160408. [Google Scholar] [CrossRef] [PubMed]
  5. Cuellar-Bermudez, S.P.; Romero-Ogawa, M.A.; Rittmann, B.E.; Parra-Saldivar, R. Algae Biofuels Production Processes, Carbon Dioxide Fixation and Biorefinery Concept. J. Pet. Environ. Biotechnol. 2014, 5. [Google Scholar] [CrossRef] [Green Version]
  6. Hildebrand, M.; Davis, A.K.; Smith, S.R.; Traller, J.C.; Abbriano, R. The place of diatoms in the biofuels industry. Biofuels 2012, 3, 221–240. [Google Scholar] [CrossRef] [Green Version]
  7. Hildebrand, M.; Abbriano, R.M.; Polle, J.E.W.; Traller, J.C.; Trentacoste, E.M.; Smith, S.R.; Davis, A.K. Metabolic and cellular organization in evolutionarily diverse microalgae as related to biofuels production. Curr. Opin. Chem. Biol. 2013, 17, 506–514. [Google Scholar] [CrossRef]
  8. Yi, Z.; Xu, M.; Di, X.; Brynjolfsson, S.; Fu, W. Exploring Valuable Lipids in Diatoms. Front. Mar. Sci. 2017, 4, 1–10. [Google Scholar] [CrossRef] [Green Version]
  9. Chisti, Y. Biodiesel from microalgae. Biotechnol. Adv. 2007, 25, 294–306. [Google Scholar] [CrossRef]
  10. Adams, C.; Bugbee, B. Enhancing lipid production of the marine diatom Chaetoceros gracilis: Synergistic interactions of sodium chloride and silicon. J. Appl. Phycol. 2013. [Google Scholar] [CrossRef]
  11. Wang, X.-W.; Liang, J.-R.; Luo, C.-S.; Chen, C.-P.; Gao, Y.-H. Biomass, total lipid production, and fatty acid composition of the marine diatom Chaetoceros muelleri in response to different CO2 levels. Bioresour. Technol. 2014, 161, 124–130. [Google Scholar] [CrossRef] [PubMed]
  12. Yao, Y.; Lu, Y.; Peng, K.; Huang, T.; Niu, Y.; Xie, W.; Yang, W.; Liu, J. Glycerol and neutral lipid production in the oleaginous marine diatom Phaeodactylum tricornutum promoted by overexpression of glycerol-3-phosphate dehydrogenase. Biotechnol. Biofuels 2014, 7, 1–9. [Google Scholar] [CrossRef] [Green Version]
  13. Mekhalfi, M.; Amara, S.; Robert, S.; Carriere, F.; Gontero, B. Effect of environmental conditions on various enzyme activities and triacylglycerol contents in cultures of the freshwater diatom, Asterionella formosa (Bacillariophyceae). Biochimie 2013, 101, 21–30. [Google Scholar] [CrossRef] [PubMed]
  14. Levitan, O.; Dinamarca, J.; Hochman, G.; Falkowski, P.G. Diatoms: A fossil fuel of the future. Trends Biotechnol. 2014, 32, 117–124. [Google Scholar] [CrossRef]
  15. Breuer, G.; Lamers, P.P.; Martens, D.E.; Draaisma, R.B.; Wijffels, R.H. The impact of nitrogen starvation on the dynamics of triacylglycerol accumulation in nine microalgae strains. Bioresour. Technol. 2012, 124, 217–226. [Google Scholar] [CrossRef] [PubMed]
  16. Yodsuwan, N.; Sawayama, S. Effect of nitrogen concentration on growth, lipid production and fatty acid pro fi les of the marine diatom Phaeodactylum tricornutum. Agric. Nat. Resour. 2017, 51, 190–197. [Google Scholar] [CrossRef]
  17. Lin, Q.; Zhuo, W.-H.; Wang, X.; Chen, C.-P.; Gao, Y.; Liang, J.-R. Effects of fundamental nutrient stresses on the lipid accumulation profiles in two diatom species Thalass. Weissflogii Chaetoceros Muelleri. Bioprocess Biosyst. Eng. 2018, 41, 1213–1224. [Google Scholar] [CrossRef]
  18. Zulu, N.N.; Zienkiewicz, K.; Vollheyde, K.; Feussner, I. Current trends to comprehend lipid metabolism in diatoms. Prog. Lipid Res. 2018, 70, 1–16. [Google Scholar] [CrossRef]
  19. Mekhalfi, M.; Avilan, L.; Lebrun, R.; Botebol, H.; Gontero, B. Consequences of the presence of 24-epibrassinolide, on cultures of a diatom, Asterionella Formosa. Biochimie 2012, 94, 1213–1220. [Google Scholar] [CrossRef]
  20. Comte, M.; Lupette, J.; Seddiki, K.; Mei, C.; Dolch, L.-J.; Gros, V.; Reveille, F.; Jouhet, J.; Marechal, E. Screening for biologically annotated drugs that trigger triacylglycerol accumulation in the diatom. Phaeodactylum Plant Physiol. 2018, 177, 532–552. [Google Scholar] [CrossRef] [Green Version]
  21. Prioretti, L.; Avilan, L.; Carrière, F.; Montané, M.H.; Field, B.; Grégori, G.; Menand, B.; Gontero, B. The inhibition of TOR in the model diatom Phaeodactylum tricornutum promotes a get-fat growth regime. Algal. Res. 2017, 26, 265–274. [Google Scholar] [CrossRef]
  22. Xia, S.; Gao, B.; Li, A.; Xiong, J.; Ao, Z.; Zhang, C. Preliminary characterization, antioxidant properties and production of chrysolaminarin from marine diatom Odontella aurita. Mar. Drugs 2014, 12, 4883–4897. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Carballo, C.; Chronopoulou, E.G.; Maya, C.; Labrou, N.E.; Infante, C.; Power, D.M.; Manchado, M. Antioxidant capacity and immunomodulatory effects of a chrysolaminarin-enriched extract in Senegalese sole. Fish Shellfish. Immunol. 2018, 82, 1–8. [Google Scholar] [CrossRef] [PubMed]
  24. Kusaikin, M.I.; Ermakova, S.P.; Shevchenko, N.M. Structurel characteristics and antitumor activity of a new chrysolaminarin from the diatom Synedra acus. Chem. Nat. Compd. 2010, 46, 5–8. [Google Scholar] [CrossRef]
  25. Varum, K.M.; Myklestad, S. Effects of light, salinity and nutrient limitation of β-1,3-D-glucan and exo-D-glucanase activity in Skeletonema costatum (Grev.) Cleve. J. Exp. Mar. Biol. Ecol. 1984, 83, 13–25. [Google Scholar] [CrossRef]
  26. Botte, P.; D’Ippolito, G.; Gallo, C.; Sardo, A.; Fontana, A. Combined exploitation of CO2 and nutrient replenishment for increasing biomass and lipid productivity of the marine diatoms Thalassiosira weissflogii and Cyclotella cryptica. J. Appl. Phycol. 2018, 30, 243–251. [Google Scholar] [CrossRef]
  27. Sabia, A.; Clavero, E.; Pancaldi, S.; Salvadó Rovira, J. Effect of different CO2 concentrations on biomass, pigment content, and lipid production of the marine diatom Thalassiosira pseudonana. Appl. Microbiol. Biotechnol. 2018, 102, 1945–1954. [Google Scholar] [CrossRef]
  28. Ishida, Y.; Hiragushi, N.; Kitaguchi, H.; Mitsutani, A. A highly CO2 -tolerant diatom, Thalassiosira weissflogii H1, enriched from coastal sea, and its fatty acid composition. Fish. Sci. 2000, 66, 655–659. [Google Scholar] [CrossRef]
  29. Hopkinson, B.M.; Dupont, C.L.; Allen, A.E.; Morel, F.M.M. Efficiency of the CO2-concentrating mechanism of diatoms. Proc. Natl. Acad. Sci. USA 2011, 108, 3830–3837. [Google Scholar] [CrossRef] [Green Version]
  30. Nakajima, K.; Tanaka, A.; Matsuda, Y. SLC4 family transporters in a marine diatom directly pump bicarbonate from seawater. Proc. Natl. Acad. Sci. USA 2013, 110, 1767–1772. [Google Scholar] [CrossRef] [Green Version]
  31. Kikutani, S.; Nakajima, K.; Nagasato, C.; Tsuji, Y.; Miyatake, A.; Matsuda, Y. Thylakoid luminal θ-carbonic anhydrase critical for growth and photosynthesis in the marine diatom Phaeodactylum tricornutum. Proc. Natl. Acad. Sci. USA 2016, 113, 9828–9833. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Jensen, E.L.; Clement, R.; Kosta, A.; Maberly, S.C.; Gontero, B. A new widespread subclass of carbonic anhydrase in marine phytoplankton. ISME J. 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Jensen, E.L.; Clément, R.; Maberly, S.C.; Gontero, B.; Clement, R.; Maberly, S.C.; Gontero, B. Regulation of the Calvin – Benson – Bassham cycle in the enigmatic diatoms: Biochemical and evolutionary variations on an original theme. Philos. Trans. R. Soc. B Biol. Sci. 2017, 372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Clement, R.; Dimnet, L.; Maberly, S.C.; Gontero, B. The nature of the CO2 -concentrating mechanisms in a marine diatom, Thalassiosira pseudonana. New Phytol. 2016, 209, 1417–1427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Hempel, N.; Petrick, I.; Behrendt, F. Biomass productivity and productivity of fatty acids and amino acids of microalgae strains as key characteristics of suitability for biodiesel production. J. Appl. Phycol. 2012, 24, 1407–1418. [Google Scholar] [CrossRef] [Green Version]
  36. Cavalier, J.F.; Lafont, D.; Boullanger, P.; Houisse, D.; Giallo, J.; Ballester, J.M.; Carrière, F. Validation of lipolysis product extraction from aqueous/biological samples, separation and quantification by thin-layer chromatography with flame ionization detection analysis using O-cholesteryl ethylene glycol as a new internal standard. J. Chromatogr. A 2009, 1216, 6543–6548. [Google Scholar] [CrossRef]
  37. Granum, E.; Myklestad, S.M. A simple combined method for determination of β-1,3-glucan and cell wall polysaccharides in diatoms. Sci. Technol. 2002, 477, 155–161. [Google Scholar]
  38. Bosco, M.B.; Aleanzi, M.C.; Iglesias, A.Á. Plastidic phosphoglycerate kinase from Phaeodactylum tricornutum: On the critical role of cysteine residues for the enzyme function. Protist 2012, 163, 188–203. [Google Scholar] [CrossRef]
  39. Mccarthy, A.; Rogers, S.P.; Duffy, S.J.; Campbell, D.A. Elevated carbon dioxide differentially alters the photophysiology of Thalassiosira pseudonana (Bacillariophyceae) and Emiliania huxleyi (Haptophyta). J. Phycol. 2012, 48, 635–646. [Google Scholar] [CrossRef]
  40. Li, G.; Campbell, D.A. Rising CO2 Interacts with Growth Light and Growth Rate to Alter Photosystem II Photoinactivation of the Coastal Diatom Thalassiosira pseudonana. PLoS ONE 2013, 8, e55562. [Google Scholar] [CrossRef]
  41. Gao, K.; Xu, J.; Gao, G.; Li, Y.; Hutchins, D.A.; Huang, B.; Wang, L.; Zheng, Y.; Jin, P.; Cai, X.; et al. Rising CO2 and increased light exposure synergistically reduce marine primary productivity. Nat. Clim. Chang. 2012, 2, 519. [Google Scholar] [CrossRef]
  42. Wu, S.; Huang, A.; Zhang, B.; Huan, L.; Zhao, P.; Lin, A.; Wang, G. Enzyme activity highlights the importance of the oxidative pentose phosphate pathway in lipid accumulation and growth of Phaeodactylum tricornutum under CO2 concentration. Biotechnol. Biofuels 2015, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Clement, R.; Jensen, E.; Prioretti, L.; Maberly, S.C.; Gontero, B. Diversity of CO2 concentrating mechanisms and responses to CO2 concentration in marine and freshwater diatoms. J. Exp. Bot. 2017, 68, 3925–3935. [Google Scholar] [CrossRef] [PubMed]
  44. Coombs, J.; Darley, W.M.; Volcani, B.E. Studies on the Biochemistry and Fine Structure of Silica Shell Formation in Diatoms. Chemical Composition of Navicula pelliculosa during Silicon-Starvation Synchrony. Plant Physiol. 1967, 42, 1601–1606. [Google Scholar] [CrossRef] [Green Version]
  45. Tadros, M.G. Screening and Characterizing Oleaginous Microalgal Species from the Southeastern United States. Final Subcontract Report; Alabama A&M University: Huntsville, AL, USA, 1985. [Google Scholar] [CrossRef] [Green Version]
  46. Hu, Q.; Sommerfeld, M.; Jarvis, E.; Ghirardi, M.; Posewitz, M.; Seibert, M.; Darzins, A. Microalgal triacylglycerols as feedstocks for biofuel production: Perspectives and advances. Plant J. 2008, 54, 621–639. [Google Scholar] [CrossRef] [PubMed]
  47. Sayanova, O.; Mimouni, V.; Ulmann, L.; Morant, A.; Napier, J.A.; Pasquet, V. Modulation of lipid biosynthesis by stress in diatoms. Philos. Trans. R. Soc. B Biol. Sci. 2017. [Google Scholar] [CrossRef] [Green Version]
  48. Huang, W.; Haferkamp, I.; Lepetit, B.; Molchanova, M.; Hou, S.; Jeblick, W.; Río Bártulos, C.; Kroth, P.G. Reduced vacuolar β-1,3-glucan synthesis affects carbohydrate metabolism as well as plastid homeostasis and structure in Phaeodactylum tricornutum. Proc. Natl. Acad. Sci. USA 2018, 115, 4791–4796. [Google Scholar] [CrossRef] [Green Version]
  49. Hildebrand, M.; Manandhar-Shrestha, K.; Abbriano, R. Effects of chrysolaminarin synthase knockdown in the diatom Thalassiosira pseudonana: Implications of reduced carbohydrate storage relative to green algae. Algal Res. 2017, 23, 66–77. [Google Scholar] [CrossRef]
  50. Yang, Y.; Li, D.; Chen, T.; Hao, T.; Balamurugan, S.; Yang, W.; Liu, J.; Li, H. Overproduction of Bioactive Algal Chrysolaminarin by the Critical Carbon Flux Regulator Phosphoglucomutase. Biotechnol. J. 2019, 1800220, 1–8. [Google Scholar] [CrossRef]
  51. Gardner, R.D.; Lohman, E.; Gerlach, R.; Cooksey, K.E.; Peyton, B.M. Comparison of CO2 and bicarbonate as inorganic carbon sources for triacylglycerol and starch accumulation in Chlamydomonas reinhardtii. Biotechnol. Bioeng. 2013, 110, 87–96. [Google Scholar] [CrossRef]
  52. Torres-Romero, I.; Kong, F.; Légeret, B.; Beisson, F.; Peltier, G.; Li-Beisson, Y. Chlamydomonas cell cycle mutant crcdc5 over-accumulates starch and oil. Biochimie 2019. [Google Scholar] [CrossRef] [PubMed]
  53. Tanadul, O.; Vandergheynst, J.S.; Beckles, D.M.; Powell, A.L.T.; Labavitch, J.M. The impact of elevated CO2 concentration on the quality of algal starch as a potential biofuel feedstock. Biotechnol. Bioeng. 2014, 111, 1323–1331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Caballero, M.A.; Jallet, D.; Shi, L.; Rithner, C.; Zhang, Y.; Peers, G. Quantification of chrysolaminarin from the model diatom Phaeodactylum tricornutum. Algal Res. 2016, 20, 180–188. [Google Scholar] [CrossRef] [Green Version]
  55. Kuwata, A.; Hama, T.; Takahashi, M. Ecophysiological characterization of two life forms, resting spores and resting cells, of a marine planktonic diatom, Chaetoceros pseudocurvisetus, formed under nutrient depletion. Mar. Ecol. Prog. Ser. 1993, 102, 245–256. [Google Scholar] [CrossRef]
  56. Cheng, D.; Li, D.; Yuan, Y.; Zhou, L.; Li, X.; Wu, T.; Wang, L.; Zhao, Q.; Wei, W.; Sun, Y. Improving carbohydrate and starch accumulation in Chlorella sp. AE10 by a novel two-stage process with cell dilution. Biotechnol. Biofuels 2017, 10, 1–14. [Google Scholar] [CrossRef] [Green Version]
  57. Puspanadan, S.; Wong, X.J.; Lee, C.K. Optimization of freshwater microalgae, Arthrospira sp. (Spirulina) for high starch production. Int. Food Res. J. 2018, 25, 1266–1272. [Google Scholar]
  58. Rehman, Z.U.; Anal, A.K. Enhanced lipid and starch productivity of microalga (Chlorococcum sp. TISTR 8583) with nitrogen limitation following effective pretreatments for biofuel production. Biotechnol. Rep. 2019, 21, e00298. [Google Scholar] [CrossRef]
  59. Avilan, L.; Puppo, C.; Erales, J.; Woudstra, M.; Lebrun, R.; Gontero, B. CP12 residues involved in the formation and regulation of the glyceraldehyde-3-phosphate dehydrogenase-CP12-phosphoribulokinase complex in Chlamydomonas Reinhardtii. Mol. Biosyst. 2012, 8, 2994–3002. [Google Scholar] [CrossRef]
  60. Erales, J.; Lignon, S.; Gontero, B. CP12 from Chlamydomonas reinhardtii, a permanent specific “chaperone-like” protein of glyceraldehyde-3-phosphate dehydrogenase. J. Biol. Chem. 2009, 284, 12735–12744. [Google Scholar] [CrossRef] [Green Version]
  61. Morisse, S.; Michelet, L.; Bedhomme, M.; Marchand, C.H.; Calvaresi, M.; Trost, P.; Fermani, S.; Zaffagnini, M.; Lemaire, S.D. Thioredoxin-dependent redox regulation of chloroplastic phosphoglycerate kinase from Chlamydomonas reinhardtii. J. Biol. Chem. 2014, 289, 30012–30024. [Google Scholar] [CrossRef] [Green Version]
  62. Gontero, B.; Maberly, S.C. An intrinsically disordered protein, CP12: Jack of all trades and master of the Calvin cycle. Biochem. Soc. Trans. 2012, 40, 995–999. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Groben, R.; Kaloudas, D.; Raines, C.A.; Offmann, B.; Maberly, S.C.; Gontero, B. Comparative sequence analysis of CP12, a small protein involved in the formation of a Calvin cycle complex in photosynthetic organisms. Photosynth. Res. 2010, 183–194. [Google Scholar] [CrossRef] [PubMed]
  64. Maberly, S.C.; Courcelle, C.; Groben, R.; Gontero, B. Phylogenetically-based variation in the regulation of the Calvin cycle enzymes, phosphoribulokinase and glyceraldehyde-3-phosphate dehydrogenase, in algae. J. Exp. Bot. 2010, 61, 735–745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Clement, R.; Lignon, S.; Mansuelle, P.; Jensen, E.; Pophillat, M.; Lebrun, R.; Denis, Y.; Puppo, C.; Maberly, S.C.; Gontero, B. Responses of the marine diatom Thalassiosira pseudonana to changes in CO2 concentration: A proteomic approach. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Kroth, P.G.; Chiovitti, A.; Gruber, A.; Martin-Jezequel, V.; Mock, T.; Parker, M.S.; Stanley, M.S.; Kaplan, A.; Caron, L.; Weber, T.; et al. A model for carbohydrate metabolism in the diatom Phaeodactylum tricornutum deduced from comparative whole genome analysis. PLoS ONE 2008, 3, e1426. [Google Scholar] [CrossRef] [Green Version]
  67. Thieulin-Pardo, G.; Remy, T.; Lignon, S.; Lebrun, R.; Gontero, B. Phosphoribulokinase from Chlamydomonas reinhardtii: A Benson-Calvin cycle enzyme enslaved to its cysteine residues. Mol. Biosyst. 2015, 11, 1134–1145. [Google Scholar] [CrossRef]
  68. Mekhalfi, M.; Puppo, C.; Avilan, L.; Lebrun, R.; Mansuelle, P.; Maberly, S.C.; Gontero, B. Glyceraldehyde-3-phosphate dehydrogenase is regulated by ferredoxin-NADP reductase in the diatom Asterionella formosa. New Phytol. 2014, 203, 414–423. [Google Scholar] [CrossRef] [Green Version]
  69. Troncoso-Ponce, M.A.; Kruger, N.J.; Ratcliffe, G.; Garcés, R.; Martínez-Force, E. Characterization of glycolytic initial metabolites and enzyme activities in developing sunflower (Helianthus annuus L.) seeds. Phytochemistry 2009, 70, 1117–1122. [Google Scholar] [CrossRef]
  70. Bourgis, F.; Kilaru, A.; Cao, X.; Ngando-Ebongue, G.-F.; Drira, N.; Ohlrogge, J.B.; Arondel, V. Comparative transcriptome and metabolite analysis of oil palm and date palm mesocarp that differ dramatically in carbon partitioning. Proc. Natl. Acad. Sci. USA 2011, 108, 12527–12532. [Google Scholar] [CrossRef] [Green Version]
  71. Tan, K.W.M.; Lee, Y.K. The dilemma for lipid productivity in green microalgae: Importance of substrate provision in improving oil yield without sacrificing growth. Biotechnol. Biofuels 2016, 9, 1–14. [Google Scholar] [CrossRef] [Green Version]
  72. Cai, Y.; Zhang, W.; Jin, J.; Yang, X.; You, X.; Yan, H.; Wang, L.; Chen, J.; Xu, J.; Chen, W.; et al. OsPKpα1 encodes a plastidic pyruvate kinase that affects starch biosynthesis in the rice endosperm. J. Integr. Plant Biol. 2018, 60, 1097–1118. [Google Scholar] [CrossRef] [PubMed]
  73. Chen, H.; Hao, G.; Wang, L.; Wang, H.; Gu, Z.; Liu, L.; Zhang, H.; Chen, W.; Chen, Y.Q. Identification of a critical determinant that enables efficient fatty acid synthesis in oleaginous fungi. Sci. Rep. 2015, 5, 1–10. [Google Scholar] [CrossRef] [PubMed]
  74. Rajala, A.; Wang, Y.; Brush, R.S.; Tsantilas, K.; Jankowski, C.S.R.; Lindsay, K.J.; Linton, J.D.; Hurley, J.B.; Anderson, R.E.; Rajala, R.V.S. Pyruvate kinase M2 regulates photoreceptor structure, function, and viability article. Cell Death Dis. 2018, 9. [Google Scholar] [CrossRef] [PubMed]
  75. Miller, R.; Wu, G.; Deshpande, R.R.; Vieler, A.; Gartner, K.; Li, X.; Moellering, E.R.; Zauner, S.; Cornish, A.J.; Liu, B.; et al. Changes in Transcript Abundance in Chlamydomonas reinhardtii following Nitrogen Deprivation Predict Diversion of Metabolism. Plant Physiol. 2010, 154, 1737–1752. [Google Scholar] [CrossRef] [Green Version]
  76. Longworth, J.; Wu, D.; Huete-Ortega, M.; Wright, P.C.; Vaidyanathan, S. Proteome response of Phaeodactylum tricornutum, during lipid accumulation induced by nitrogen depletion. Algal Res. 2016, 18, 213–224. [Google Scholar] [CrossRef] [Green Version]
  77. Kooistra, W.H.C.F.; Gersonde, R.; Medlin, L.K.; Mann, D.G. The origin and evolution of the diatoms. Their adaptation to a planktonic existence. In Evolution of Primary Producers in the Sea; Elsevier Academic Press: Cambridge, MA, USA, 2007; pp. 207–249. [Google Scholar] [CrossRef]
  78. Tortell, P.D. Evolutionary and ecological perspectives on carbon acquisition in phytoplankton. Limnol. Oceanogr. 2000, 45, 744–750. [Google Scholar] [CrossRef]
  79. Schippers, P.; Lürling, M.; Scheffer, M. Increase of atmospheric CO2 promotes phytoplankton productivity. Ecol. Lett. 2004, 7, 446–451. [Google Scholar] [CrossRef]
  80. Gao, K.; Campbell, D.A. Photophysiological responses of marine diatoms to elevated CO2 and decreased pH: A review. Funct. Plant Biol. 2014, 41, 449–459. [Google Scholar] [CrossRef]
  81. Bowler, C.; Vardi, A.; Allen, A.E. Oceanographic and biogeochemical insights from diatom genomes. Ann. Rev. Mar. Sci. 2009, 2, 333–365. [Google Scholar] [CrossRef]
  82. Hennon, G.M.M.; Ashworth, J.; Groussman, R.D.; Berthiaume, C.; Morales, R.L.; Baliga, N.S.; Orellana, M.V.; Armbrust, E.V. Diatom acclimation to elevated CO2 via cAMP signalling and coordinated gene expression. Nat. Clim. Chang. 2015, 5, 761–766. [Google Scholar] [CrossRef]
  83. Benoiston, A.S.; Ibarbalz, F.M.; Bittner, L.; Guidi, L.; Jahn, O.; Dutkiewicz, S.; Bowler, C. The evolution of diatoms and their biogeochemical functions. Philos. Trans. R. Soc. B Biol. Sci. 2017, 372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Valenzuela, J.J.; López García De Lomana, A.; Lee, A.; Armbrust, E.V.; Orellana, M.V.M.V.; Baliga, N.S. Ocean acidification conditions increase resilience of marine diatoms. Nat. Commun. 2018, 9. [Google Scholar] [CrossRef] [PubMed]

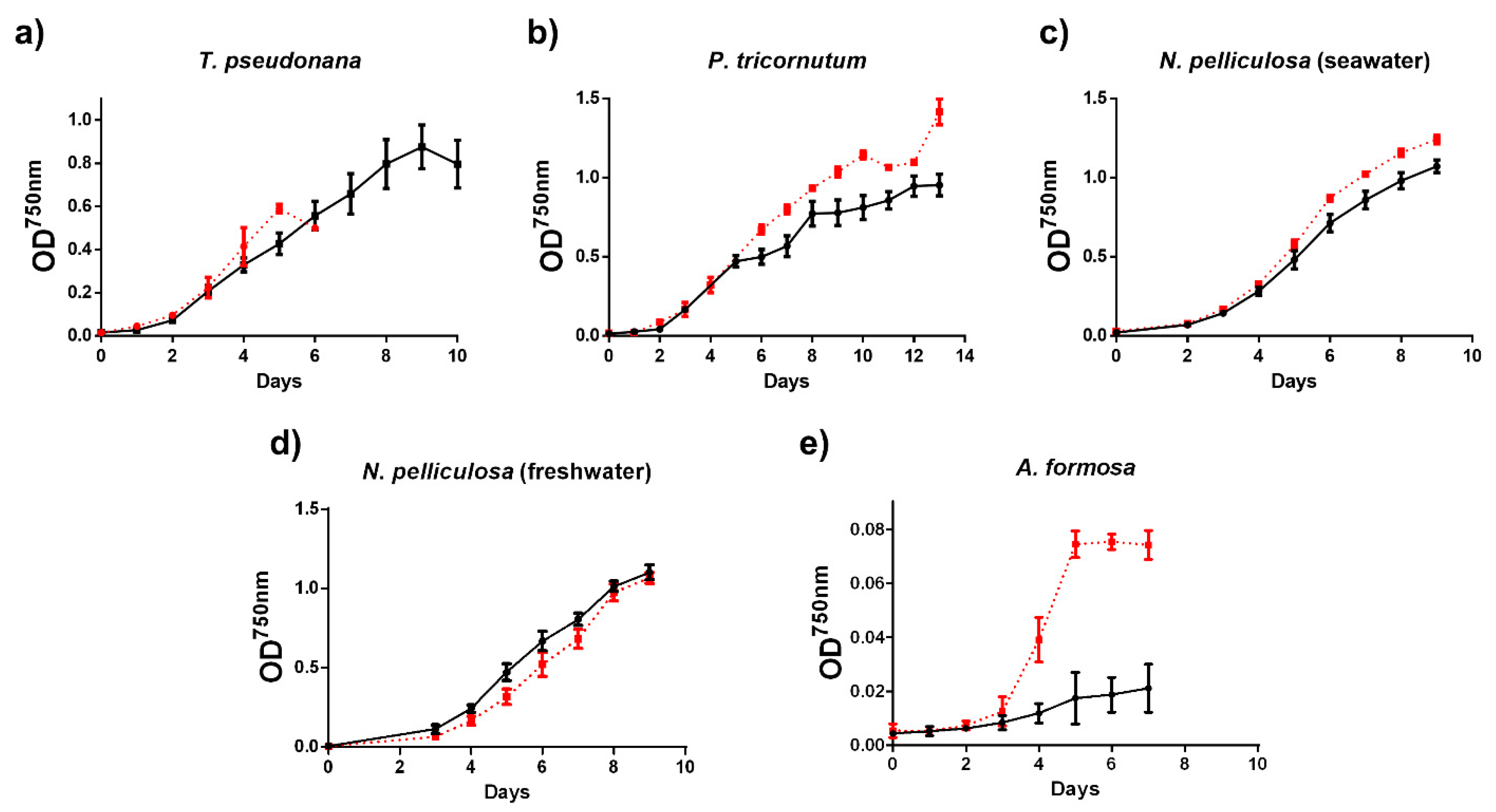

Figure 1. Growth curves of diatoms (a–e) grown at low (400 ppm; black and solid lines) or high (20,000 ppm; red and dotted lines) CO2. Each point represents the average (n = 3) ± SD.
Figure 1. Growth curves of diatoms (a–e) grown at low (400 ppm; black and solid lines) or high (20,000 ppm; red and dotted lines) CO2. Each point represents the average (n = 3) ± SD.
Biology 09 00005 g001

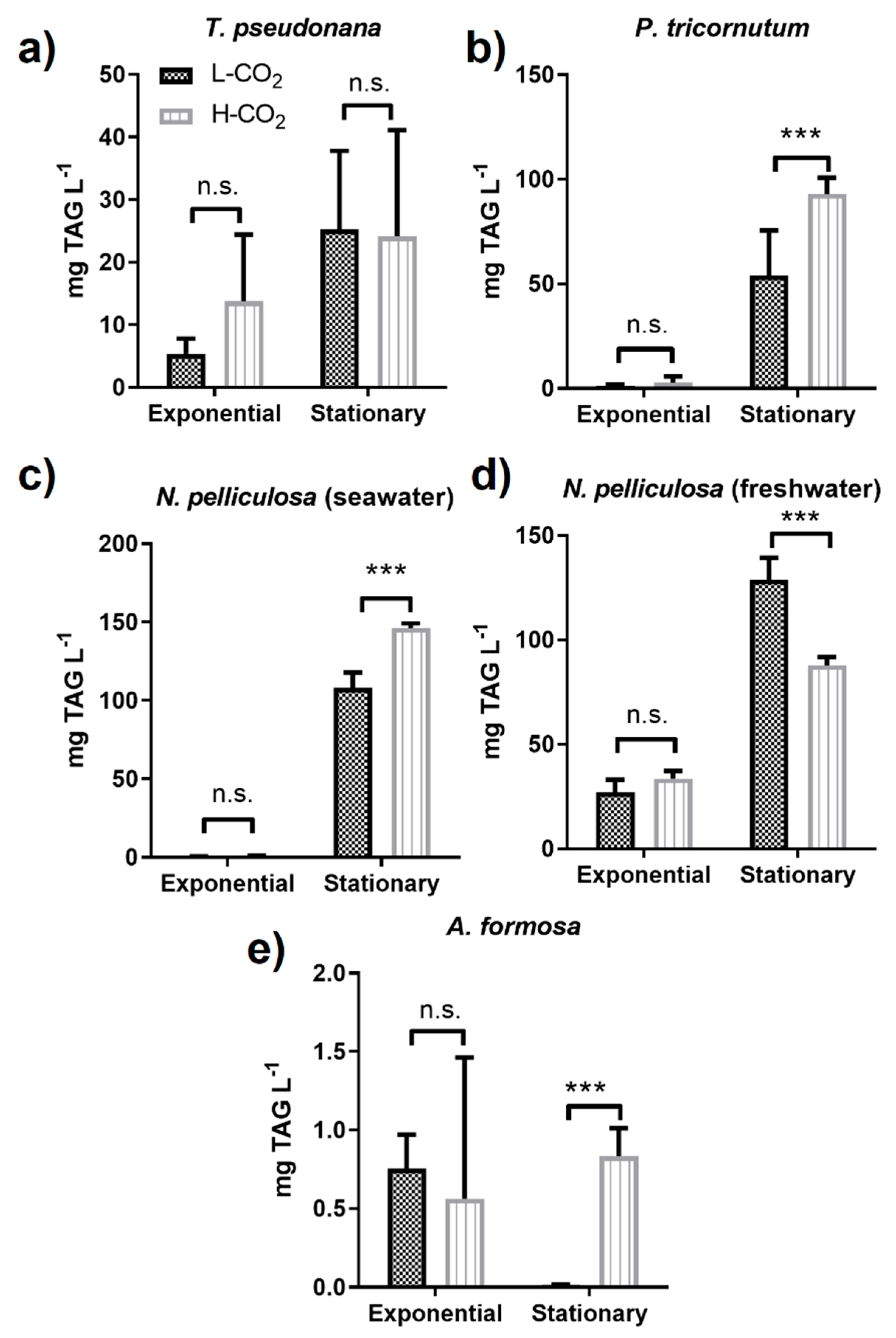

Figure 2. Triacylglycerol (TAG) productivity in diatoms (ae) grown at different CO2 concentrations. All panels represent low CO2 (L-CO2; 400 ppm, dark grey bars) and high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars) as in panel (a). Average and error bars (SD) are represented (n = 3). *** p ≤ 0.005.
Figure 2. Triacylglycerol (TAG) productivity in diatoms (ae) grown at different CO2 concentrations. All panels represent low CO2 (L-CO2; 400 ppm, dark grey bars) and high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars) as in panel (a). Average and error bars (SD) are represented (n = 3). *** p ≤ 0.005.
Biology 09 00005 g002

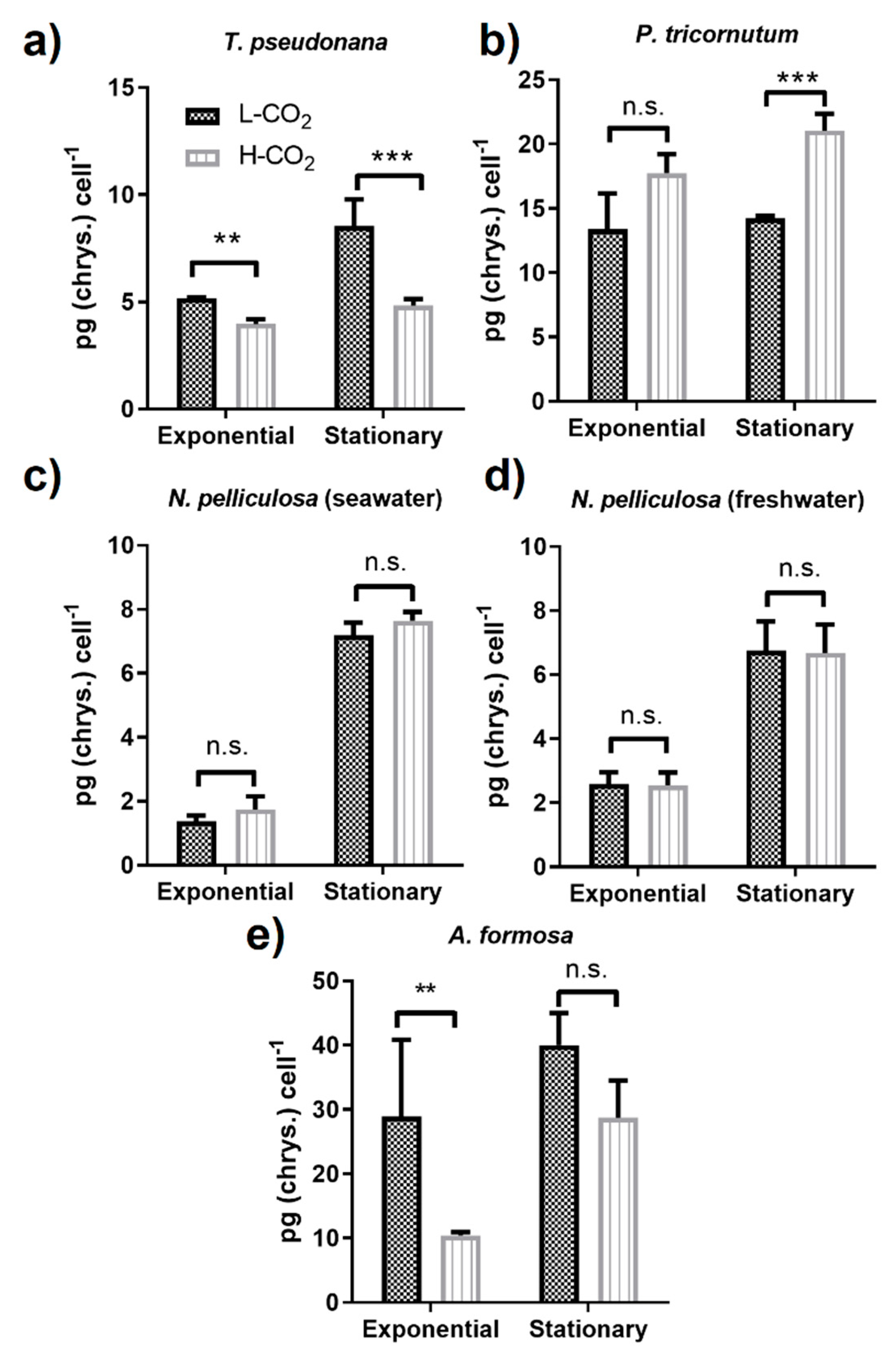

Figure 3. Production of chrysolaminarin in diatoms (ae) at different CO2 concentrations. All panels represent low CO2 (L-CO2; 400 ppm, dark grey bars) and high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars) as in panel (a). Average and error bars (SD) are represented (n = 3). ** p ≤ 0.01, *** p ≤ 0.005, and ns, not significant.
Figure 3. Production of chrysolaminarin in diatoms (ae) at different CO2 concentrations. All panels represent low CO2 (L-CO2; 400 ppm, dark grey bars) and high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars) as in panel (a). Average and error bars (SD) are represented (n = 3). ** p ≤ 0.01, *** p ≤ 0.005, and ns, not significant.
Biology 09 00005 g003

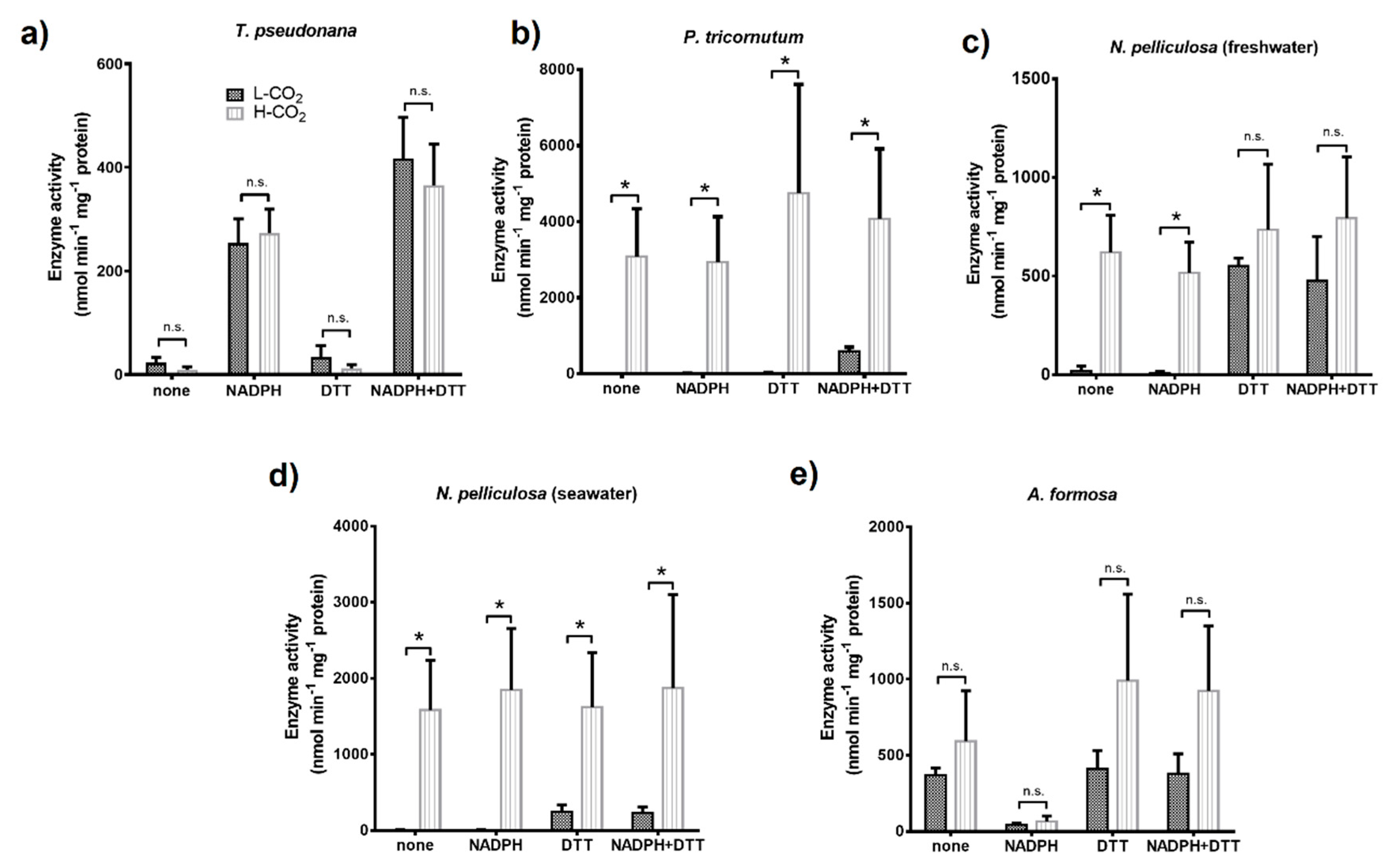

Figure 4. NADPH-dependent activity of chloroplast glyceraldehyde 3-phosphate dehydrogenase (GAPDH) in diatoms (ae). All panels show activity measurements of diatom crude extracts from cultures grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a), and without any treatment (none) or treated with either 0.2 mM NADPH or 5 mM DTT, or both prior to assay. Average and error bars (SD) are represented (n = 3). * p ≤ 0.05 and ns, not significant.
Figure 4. NADPH-dependent activity of chloroplast glyceraldehyde 3-phosphate dehydrogenase (GAPDH) in diatoms (ae). All panels show activity measurements of diatom crude extracts from cultures grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a), and without any treatment (none) or treated with either 0.2 mM NADPH or 5 mM DTT, or both prior to assay. Average and error bars (SD) are represented (n = 3). * p ≤ 0.05 and ns, not significant.
Biology 09 00005 g004

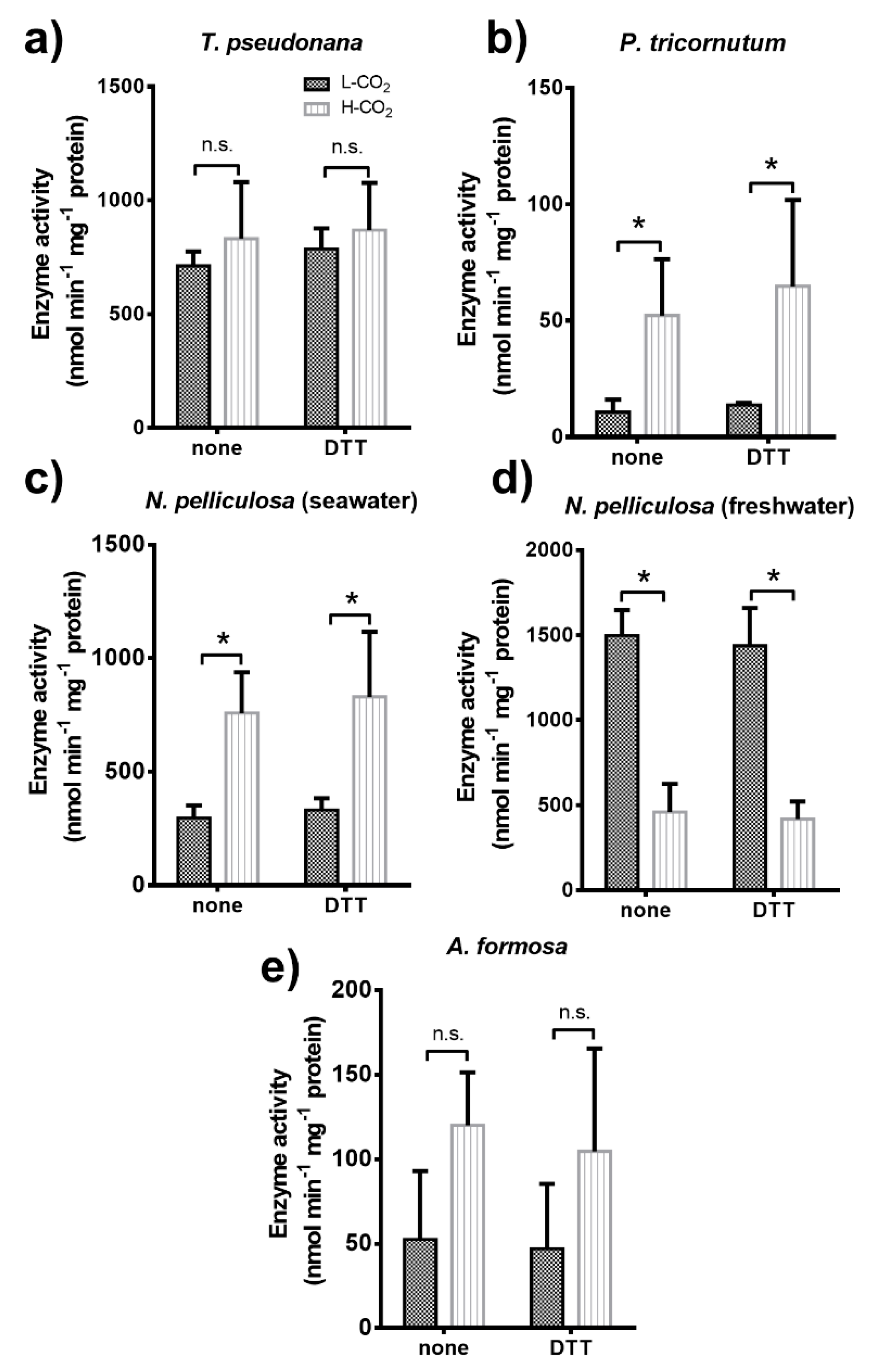

Figure 5. Phosphoglycerate kinase (PGK) activity in diatoms (ae). All panels show activity measurements of diatom crude protein extracts from cultures grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a), and without any treatment (none) or treated with 5 mM DTT prior to assay. Average and error bars (SD) are represented (n = 3). * p ≤ 0.05 and ns, not significant.
Figure 5. Phosphoglycerate kinase (PGK) activity in diatoms (ae). All panels show activity measurements of diatom crude protein extracts from cultures grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a), and without any treatment (none) or treated with 5 mM DTT prior to assay. Average and error bars (SD) are represented (n = 3). * p ≤ 0.05 and ns, not significant.
Biology 09 00005 g005

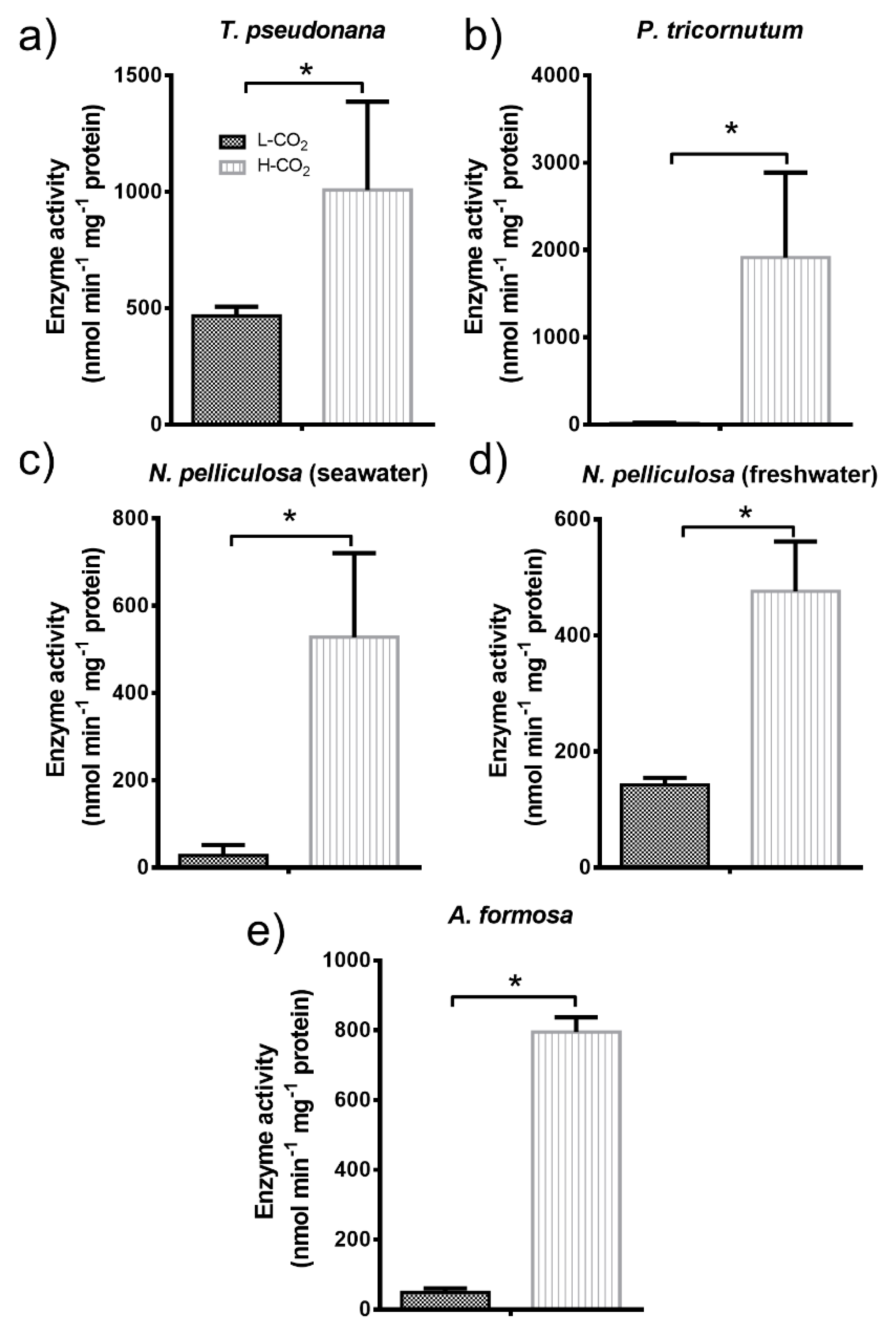

Figure 6. Pyruvate kinase (PK) activity in diatoms (ae) grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a). Average and error bars (SD) are represented (n = 3). * p ≤ 0.05.
Figure 6. Pyruvate kinase (PK) activity in diatoms (ae) grown at low CO2 (L-CO2; 400 ppm, dark grey bars) or high CO2 (H-CO2; 20,000 ppm, light grey and dashed bars), as specified in panel (a). Average and error bars (SD) are represented (n = 3). * p ≤ 0.05.
Biology 09 00005 g006
Table 1. Biomass and lipid (TAG) productivity and content in diatoms grown at different CO2 concentration.
Table 1. Biomass and lipid (TAG) productivity and content in diatoms grown at different CO2 concentration.
Diatom SpeciesGrowth PhaseCO2 Concentration (ppm)Biomass Productivity (mg L−1 day−1) *TAG Productivity (µgTAG L−1 day−1) *Percentage of TAGs (DW) *
T. pseudonanaExponential40061.7 ± 7.011.8 ± 3 2.3 ± 1.0
20,00068.6 ± 9.045.5 ± 265.3 ± 4.2
Stationary40045.3 ± 3.013.6 ± 25.5 ± 3.3
20,00055.8 ± 2.0 b19.0 ± 57.2 ± 5.3
P. tricornutumExponential40028.5 ± 4.03.36 ± 10.67 ± 0.65
20,00036.7 ± 6.08.47 ± 71.2 ± 1.4
Stationary40051.0 ± 4.050.2 ± 1510.1 ± 3.6
20,00056.9 ± 1.075.7 ± 913.5 ± 1.3
N. pelliculosa (seawater)Exponential40040.7 ± 4.00.03 ± 1-
20,00049.3 ± 3.0 a1.09 ± 10.22 ± 0.2
Stationary40048.8 ± 5.0117.4 ± 1225.7 ± 3.0
20,00058.6 ± 1.0 b158.4 ± 29 b27.0 ± 0.8
N. pelliculosa (freshwater)Exponential40042.8 ± 13.044.9 ± 1011.5 ± 5.0
20,00047.6 ± 12.055.8 ± 612.0 ± 1.8
Stationary40045.1 ± 8.0142.3 ± 1232.0 ± 5.0
20,00038.2 ± 1.097.25 ± 5 b25.5 ± 0.7
A. formosaExponential4006.4 ± 1.01.43 ± 0.42.2 ± 0.3
20,0005.6 ± 2.01.08 ± 1.71.4 ± 2.0
Stationary4002.3 ± 1.00.01 ± 0.003 0.06 ± 0.01
20,0002.5 ± 4.00.40 ± 0.81.7 ± 0.3
* All data is shown as average (n = 3) ± SD. a Significant difference between high and low CO2 in diatoms at exponential phase for a given species. b Significant difference between high and low CO2 in diatoms at stationary phase for a given species. ↑ and ↓ indicate increase or decrease, respectively. DW: Dry weight.

Share and Cite

MDPI and ACS Style

Jensen, E.L.; Yangüez, K.; Carrière, F.; Gontero, B. Storage Compound Accumulation in Diatoms as Response to Elevated CO2 Concentration. Biology 2020, 9, 5.

AMA Style

Jensen EL, Yangüez K, Carrière F, Gontero B. Storage Compound Accumulation in Diatoms as Response to Elevated CO2 Concentration. Biology. 2020; 9(1):5.

Chicago/Turabian Style

Jensen, Erik L., Karen Yangüez, Frédéric Carrière, and Brigitte Gontero. 2020. "Storage Compound Accumulation in Diatoms as Response to Elevated CO2 Concentration" Biology 9, no. 1: 5.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
